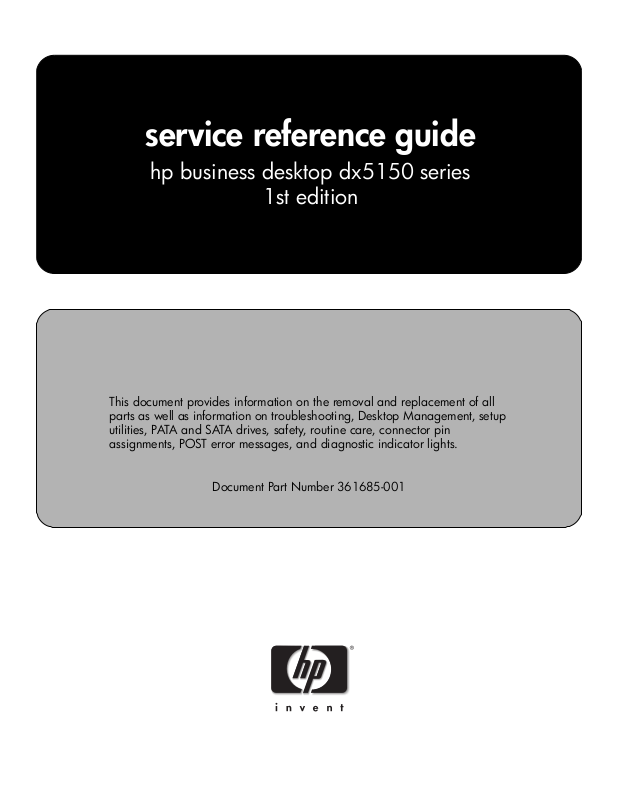

HP dx5150 User Manual 2

service reference guide

hp business desktop dx5150 series

1st edition

This document provides information on the removal and replacement of all parts as well as information on troubleshooting, Desktop Management, setup utilities, PATA and SATA drives, safety, routine care, connector pin assignments, POST error messages, and diagnostic indicator lights.

Document Part Number 361685-001

Service Reference Guide

HP Business Desktop dx5150 Series

1st Edition

Document Part Number: 361685-001

April 2005

Microsoft, MS-DOS, Windows, and Windows NT are trademarks of Microsoft Corporation in the U.S. and other countries.

Intel is a trademark of Intel Corporation in the U.S. and other countries.

Adobe, Acrobat, and Acrobat Reader are trademarks or registered trademarks of Adobe Systems Incorporated.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

This document contains proprietary information that is protected by copyright. No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of Hewlett-Packard Company.

WARNING: Text set off in this manner indicates that failure to follow directions could result in bodily

harm or loss of life.

CAUTION: Text set off in this manner indicates that failure to follow directions could result in damage

to equipment or loss of information.

Service Reference Guide

HP Business Desktop dx5150 Series

First Edition (April 2005)

Document Part Number: 361685-001

1 Installing the Operating System

1.1 Installing or Upgrading Device Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–1

1.2 Transferring Files and Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2

1.3 Backing Up and Restoring Files . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2

1.3.1 Creating a Backup File—Windows XP Professional . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2

1.3.2 Restoring from the Backup File—Windows XP Professional . . . . . . . . . . . . . . . . . . . . . . 1–2

1.4 Converting to NTFS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2

1.5 HP Software. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–3

2 Setup Utilities and Diagnostics Features

2.1 Power-On Self-Test (POST) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–1

2.2 Computer Setup (F10) Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–2

2.2.1 Using Computer Setup (F10) Utilities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–2

2.2.2 Computer Setup Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–4

2.3 Recovering the Configuration Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–8

2.3.1 Backing up the CMOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–8

2.3.2 Restoring the CMOS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–9

2.4 Diagnostics for Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–9

2.4.1 Detecting Diagnostics for Windows. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–9

2.4.2 Installing Diagnostics for Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–9

2.4.3 Using Categories in Diagnostics for Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–10

2.4.4 Running Diagnostic Tests in Diagnostics for Windows . . . . . . . . . . . . . . . . . . . . . . . . . 2–12

2.5 Configuration Record . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–13

2.5.1 Installing Configuration Record . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–13

2.5.2 Running Configuration Record . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–13

2.6 Remote Diagnostics Enabling Agent. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–14

2.6.1 Installing/Upgrading Remote Diagnostics Enabling Agent . . . . . . . . . . . . . . . . . . . . . . . 2–14

2.6.2 Running the Remote Diagnostics Enabling Agent . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–14

2.7 Protecting the Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–14

2.8 Restoring the Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–14

3 Desktop Management

3.1 Initial Configuration and Deployment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–1

3.2 Remote System Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–2

3.3 Software Updating and Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–2

3.3.1 HP Client Manager Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–2

3.3.2 Altiris Client Management Solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–3

3.3.3 System Software Manager . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–3

3.3.4 Proactive Change Notification (PCN) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–4

3.3.5 Subscriber’s Choice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–4

Service Reference Guide, dx5150 361685-001 iii

Contents

3.4 ROM Flash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–4

3.4.1 Remote ROM Flash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–4

3.4.2 HPQ Flash . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–5

3.4.3 FailSafe Boot Block ROM . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–5

3.4.4 Replicating Your Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–5

3.4.5 Dual-State Power Button . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–8

3.4.6 World Wide Web Site . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–9

3.4.7 Building Blocks and Partners . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–9

3.5 Asset Tracking and Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–9

3.5.1 Password Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–11

3.5.2 Establishing a Supervisor Password with Computer Setup . . . . . . . . . . . . . . . . . . . . . . . 3–11

3.5.3 Establishing a User Password with Computer Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–11

3.5.4 Master Boot Record Security . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–13

3.5.5 Before You Partition or Format the Current Bootable Disk . . . . . . . . . . . . . . . . . . . . . . 3–15

3.5.6 Cable Lock Provision . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–15

3.6 Fault Notification and Recovery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–15

3.6.1 Surge-Tolerant Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–15

3.6.2 Thermal Sensor. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–15

4 Serial and Parallel ATA Drive Guidelines and Features

4.1 SATA Hard Drive Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1

4.1.1 SATA Data Cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1

4.1.2 SATA Power Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–2

4.2 PATA Hard Drive Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–2

4.2.1 PATA Data Cable. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–3

4.2.2 PATA Power Cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–3

4.2.3 PATA Cable Layout . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–4

4.3 PATA Drive Installation Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–4

4.3.1 PATA Device Classes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–5

4.4 ATA SMART Drives. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–5

4.5 Drive Capacities . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–5

4.6 SATA BIOS. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–6

4.6.1 Legacy Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–6

4.6.2 Native Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–7

4.7 Mixed Devices Boot and Drive Letter Ordering . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–7

5 Identifying the Chassis, Routine Care, and Disassembly Preparation

5.1 Chassis Designations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–1

5.1.1 Microtower (MT) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–1

5.1.2 Small Form Factor (SFF) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–2

5.2 Electrostatic Discharge Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–2

5.2.1 Generating Static . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–3

5.2.2 Preventing Electrostatic Damage to Equipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–3

5.2.3 Personal Grounding Methods and Equipment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–3

5.2.4 Grounding the Work Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–4

5.2.5 Recommended Materials and Equipment. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–4

5.3 Operating Guidelines. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–5

iv 361685-001 Service Reference Guide, dx5150

5.4 Routine Care . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–5

5.4.1 General Cleaning Safety Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–5

5.4.2 Cleaning the Computer Case . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–6

5.4.3 Cleaning the Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–6

5.4.4 Cleaning the Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–6

5.4.5 Cleaning the Mouse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–7

5.5 Service Considerations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–7

5.5.1 Power Supply Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–7

5.5.2 Tools and Software Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–7

5.5.3 Screws . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–7

5.5.4 Cables and Connectors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–8

5.5.5 Hard Drives . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–8

5.5.6 Lithium Coin Cell Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–9

6 Removal and Replacement Procedures— Microtower (MT) Chassis

6.1 Preparation for Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–1

6.2 External Security Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–2

6.2.1 Installing a Cable Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–2

6.2.2 Installing a Padlock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–2

6.3 Access Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–3

6.4 Front Bezel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–4

6.5 Front Drive Bezels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–5

6.5.1 5.25" Drive Bezel Blank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–5

6.5.2 Diskette Drive Bezel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–6

6.5.3 3.5" Drive Bezel Blank . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–6

6.6 Cable Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–7

6.6.1 Cable Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–8

6.7 Memory Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–9

6.8 Expansion Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–10

6.8.1 Expansion Slot Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–10

6.8.2 PCI Expansion Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–11

6.9 Drives. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–13

6.9.1 Drive Positions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–13

6.9.2 Removing a Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–14

6.9.3 Installing a Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–17

6.10 Chassis Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–20

6.11 Front I/O Panel Housing Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–21

6.12 Front I/O Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–22

6.13 Power Switch Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–23

6.14 Heatsink. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–25

6.15 Processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6.16 System Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–27

6.17 Battery. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–29

6.17.1Type 1 Battery Holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–30

6.17.2Type 2 Battery Holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–31

6.17.3Type 3 Battery Holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–32

6.18 Speaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–33

6.19 Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6–34

. . . . . . . . 6–26

Contents

Service Reference Guide, dx5150 361685-001 v

Contents

7 Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

7.1 Preparation for Disassembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–1

7.2 External Security Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–2

7.2.1 Cable Lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–2

7.2.2 Padlock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–3

7.3 Computer Access Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–4

7.4 Front Bezel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–5

7.5 Front Drive Bezels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–6

7.6 Memory Modules . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–7

7.7 PCI Expansion Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–8

7.8 Drives. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–10

7.8.1 Drive Positions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–10

7.8.2 Cable Management . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–11

7.8.3 Cable Connections . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–13

7.8.4 Optical Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–14

7.8.5 External 3.5-inch Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–17

7.8.6 Primary Hard Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–19

7.9 Front I/O Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–21

7.10 Power Switch Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–22

7.11 Speaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–23

7.12 Chassis Fan . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–24

7.13 Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–25

7.13.1Type 1 Battery Holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–26

7.13.2Type 2 Battery Holder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–27

7.14 Heatsink Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–28

7.15 Processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–29

7.16 System Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

7.17 Power Supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7–32

. . . . . . 7–30

A Connector Pin Assignments

B Power Cord Set Requirements

C POST Error Messages

D Troubleshooting Without Diagnostics

EMemory

Index

vi 361685-001 Service Reference Guide, dx5150

Installing the Operating System

CAUTION: Do not add optional hardware or third-party devices to your computer until the operating

system is successfully installed. Doing so may cause errors and may prevent the operating system from installing properly.

CAUTION: Once the automatic installation has begun, DO NOT TURN OFF THE COMPUTER UNTIL

THE PROCESS IS COMPLETE. Turning off the computer during the installation process might damage the software that runs the computer or prevent its proper installation.

The first time the computer is turned on, the operating system is automatically installed. This takes approximately 10 minutes, depending on the system hardware configuration. At the beginning of the installation process, you are prompted to select the appropriate language for the operating system. Read and follow the instructions that appear on the screen to complete the installation.

If the computer shipped with more than one operating system language on the hard drive, the

✎

installation process could take up to 60 minutes.

During this process, do not turn off your computer unless you are directed to do so.

1.1 Installing or Upgrading Device Drivers

To install hardware devices such as a printer, a display adapter, or network adapter after the operating system installation is completed, the operating system needs access to the appropriate software drivers for the devices.

If prompted for the I386 directory, replace the path specification with C:\i386, or click Browse in the dialog box to locate the i386 folder. This action points the operating system to the appropriate drivers.

Obtain the latest support software, including support software for the operating system from

www.hp.com. Click support & drivers, select Download drivers and software, enter the model

number of the computer, and press

You can also obtain the latest support software on CD. The following Web site provides information about purchasing a support software CD subscription:

http://h18000.www1.hp.com/support/files/desktops/us/purchase.html

If the computer has an optical CDRW drive, install the appropriate application to allow you to

✎

write to the drive. To install the application, double-click the Setup Software icon on the desktop or the application launcher and select the Easy CD Creator and Direct CD options when prompted.

Enter.

Service Reference Guide, dx5150 361685-001 1–1

Installing the Operating System

1.2 Transferring Files and Settings

Use the Microsoft Windows XP Files and Settings Transfer Wizard to move files and settings from an old computer to a new one. Click Start > All Programs > Accessories > System Tools > Files and Settings Transfer Wizard.

1.3 Backing Up and Restoring Files

1.3.1 Creating a Backup File—Windows XP Professional

1. Click Start > All Programs > Accessories > System Tools > Backup.

2. Use the Backup or Restore Wizard to create a backup file or tape.

You can save a backup file to a hard disk, a floppy disk, CD, USB flash media device, tape drive,

✎

or to any other removable or nonremovable media.

1.3.2 Restoring from the Backup File—Windows XP Professional

1. Click Start > All Programs > Accessories > System Tools > Backup.

2. Use the Backup or Restore Wizard to restore files from a backup file.

A backup file can be saved on a hard disk, a floppy disk, CD, USB flash media device, tape drive,

✎

or any other removable or nonremovable media.

1.4 Converting to NTFS

Windows XP Professional

To convert a FAT or FAT32 volume to NTFS,

1. Click Start > All Programs > Accessories > Command Prompt.

2. Type convert drive_letter: /fs:ntfs (where drive_letter is the volume to be converted) and

Enter.

press

1–2 361685-001 Service Reference Guide, dx5150

1.5 HP Software

The Microsoft Windows XP Professional operating system is preinstalled on the computer and will be configured automatically the first time the computer is turned on. The following HP software may also be installed at that time on selected models:

■ Computer Setup Utilities

■ HP Support Software including device drivers

■ Configuration Record

■ Online Safety & Comfort Guide

■ Power Management with energy saver features

■ Security Management tools

■ Software Support Management tools

Certain drivers and utilities are available only in selected languages. You can obtain the latest version of these files, in English and selected other languages, in one of three ways:

■ Support Software CD

■ HP Web site at www.hp.com

Installing the Operating System

■ Restore Plus! CD, which is supplied with many HP models

Additional HP software may be required in certain situations.

✎

Service Reference Guide, dx5150 361685-001 1–3

Installing the Operating System

1–4 361685-001 Service Reference Guide, dx5150

Setup Utilities and Diagnostics Features

Setup Utilities (F10) and diagnostic features provide information needed about the computer system when contacting Customer Support. You can also use these tools to:

■ Change factory default settings and to set or change the system configuration, which may be

necessary when you add or remove hardware.

■ Determine if all of the devices installed on the computer are recognized by the system and

are functioning properly.

■ Determine information about the operating environment of the computer.

■ Solve system configuration errors detected but not automatically fixed during the Power-On

Self-Test (POST).

■ Establish and manage passwords and other security features.

■ Establish and manage energy-saving timeouts.

All features identified in this chapter may not be available on all HP products.

✎

2.1 Power-On Self-Test (POST)

POST is a series of diagnostic tests that runs automatically when the system is turned on. POST checks the following items to ensure that the computer system is functioning properly:

■ Keyboard

■ Memory modules

■ Diskette drives

■ All mass storage devices

■ Processors

■ Controllers

If the Power-On Password is set, a text box password prompt appears on the screen while POST

✎

is running. You must enter the password before continuing. Refer to Chapter 3,

“Initial Configuration and Deployment.” for information on setting, deleting, or bypassing the

password.

If POST finds an error in the system, an audible and/or visual message occurs. For POST error messages and their solutions, refer to Appendix C, “POST Error Messages.”

Section 3.1,

Service Reference Guide, dx5150 361685-001 2–1

Setup Utilities and Diagnostics Features

2.2 Computer Setup (F10) Utilities

Use Computer Setup (F10) Utility to do the following:

■ Change factory default settings.

■ Set the system date and time.

■ Set, view, change, or verify the system configuration, including settings for processor,

graphics, memory, audio, storage, communications, and input devices.

■ Modify the boot order of bootable devices such as hard drives, diskette drives, optical drives,

or USB flash media devices.

■ Enable or disable Quick Power-On Self Test, which is faster than a full boot but does not run

all of the diagnostic tests run during a full boot.

■ Enter the Asset Tag or property identification number assigned by the company to this

computer.

■ Establish a supervisor password that controls access to Computer Setup (F10) Utility and the

settings described in this section.

■ Secure integrated I/O functionality, including the serial, USB, or parallel ports, audio, or

embedded NIC, so that they cannot be used until they are unsecured.

■ Enable or disable Master Boot Record (MBR) Security.

■ Enable or disable removable media boot ability.

■ Enable or disable legacy diskette write ability (when supported by hardware).

2.2.1 Using Computer Setup (F10) Utilities

You can only access Computer Setup by turning the computer on or restarting the system. To access the Computer Setup Utilities menu, complete the following steps:

1. Turn on or restart the computer. If you are in Microsoft Windows, click Start >

Shut

Down > Restart.

2. As soon as the computer is turned on, press and hold the F10 key until you enter

Computer

If you do not press the F10 key at the appropriate time, you must restart the computer and press

✎

and hold the F10 key again to access the utility.

3. The Computer Setup Utility screen is divided into seven menu headings:

❏ System Information

❏ Standard CMOS Features

❏ Advanced BIOS Features

Setup.

❏ Advanced Chipset Features

❏ Integrated Peripherals

❏ Power Management Setup

❏ PnP/PCI Configurations

2–2 361685-001 Service Reference Guide, dx5150

Setup Utilities and Diagnostics Features

Six action choices are listed on the Computer Setup Utility screen:

❏ PC Health Status

❏ Load Optimized Defaults

❏ Set Supervisor Password

❏ Set User Password

❏ Save & Exit Setup

❏ Exit Without Saving

Use the arrow keys to select the appropriate heading, and then press Enter. Use the arrow (up and down) keys to select the option you want, and then press previous screen, press

Esc.

Enter. To return to the

4. To apply and save changes, press F10 or select Save & Exit Setup on the Computer Setup

Utility screen and press

Enter.

If you have made changes that you do not want applied, select Exit Without Saving and

Enter.

press

CAUTION: Do NOT turn computer power OFF while the ROM is saving F10 Computer Setup changes

because the CMOS could become corrupted. It is safe to turn off the computer only after exiting the F10 Setup screen.

Service Reference Guide, dx5150 361685-001 2–3

Setup Utilities and Diagnostics Features

2.2.2 Computer Setup Menu

Computer Setup

Heading Option Description

System Information

Standard CMOS Features

Displays Product Name

Processor Type Cache Size Memory Size System ROM Integrated MAC UUID System Serial # Asset Tracking Number Enter Asset Tag No.

Date (mm:dd:yy) Allows you to set system date.

Time (hh:mm:ss) Allows you to set system time.

IDE Channel 0 Master IDE Channel 0 Slave SATA IDE Channel 1

Master SATA IDE Channel 2

Master

For each, allows you to:

• HDD Self-Test (SATA only)

•SMART Status Check

•HDD Short Self-Test

•HDD Extended Self-Test

• IDE Auto-Detection

• Extended IDE Drive

•None

•Auto

• Access Mode

•CHS (PATA only)

•LBA (PATA only)

•Large

•Auto

Drive A Identifies the highest capacity media type accepted by

the diskette drive.

Halt On Allows you to set at:

•All Errors

•No Errors

• All, but Keyboard

• All, but Diskette

• All, but Diskette/Keyboard

POST Delay Allows you to set a POST delay.

Support for specific Computer Setup options may vary depending on the hardware configuration.

✎

2–4 361685-001 Service Reference Guide, dx5150

Computer Setup (Continued)

Heading Option Description

Setup Utilities and Diagnostics Features

Advanced BIOS Features

Removable Device Boot Seq.

Hard Disk Boot Seq. Allows you to specify the order of attached hard drive

CD-ROM Boot Seq. Allows you to specify the order in which attached

Network Boot Seq. Allows you to specify the order in which network devices

MBR Security Enables/disables the VIRUS warning feature for IDE Hard

Quick Power On Self Test Enables/disables the system to skip certain tests while

Allows you to specify the order in which attached devices (such as an FDD, an LS120, or a Zip Drive) are checked for a bootable operating system image.

devices (such as USB HDD storage, USB2 DriveKey, or USB flash media). The first drive in the order has priority in the boot sequence and is recognized as drive C (if any devices are attached).

CD-ROM drives (including USB ODD) are checked for a bootable operating system image.

(including UP NIC cards) are checked for a bootable operating system image.

Disk boot sector protection. When this function is enabled and someone attempts to

write data into this area, the BIOS responds with a warning message on screen and an alarm beep.

booting. Enabling this feature decreases the time required to boot

the system.

First Boot Device Second Boot Device Third Boot Device Fourth Boot Device

Boot Up NumLock Status Allows you to set the default NumLock status on or off.

Security Option Allows you to set to either Always or Setup.

APIC Mode Enables/disables the APIC support.

MPS Version Control for OS

HDD S.M.A.R.T. Capability Enables/disables SMART capability on the hard drive.

ASF Support Enables/disables ASF

BIOS Write Protection Enables/disables BIOS write protection.

Advanced Chipset Features

Support for specific Computer Setup options may vary depending on the hardware configuration.

✎

UMA Frame Buffer Size Allows you to set the size of the UMA frame buffer.

Allows you to specify which devices will boot first, second, third, and fourth.

MS-DOS drive lettering assignments may not apply

✎

after a non-MS-DOS operating system has started.

Allows you to set the MPS version for the OS.

Service Reference Guide, dx5150 361685-001 2–5

Setup Utilities and Diagnostics Features

Computer Setup (Continued)

Heading Option Description

Advanced Chipset Features (continued)

Integrated Peripherals

Video Display Devices Allows you to set to:

•Auto

•CRT only

•DFP only

•CRT Force, DFP Auto

Init Display First Allows you to select the primary VGA source.

Surroundview Allows you to enable/disable Surroundview only if PCI-E

GFX add-on card is ATI. Provides support for up to three independent monitors (available with the unified drivers).

Auto Detect PCI Clk Enables/disables PCI Clk auto detection.

Spread Spectrum Enables/disables spread spectrum.

South OnChip PCI Device Allows you to enable/disable:

• On Chip IDE Controller

•Onboard AC97 Audio

•Onboard Chip SATA

•SATA Disabled

• IDE Controller (non-RAID)

• RAID Controller

•Onboard LAN

•Onboard LAN Boot ROM

OnChip USB Controller Enables/disables the USB controller.

USB Legacy Support Enables or disables the USB Legacy feature.

Front Panel USB Port Enables/disables the front panel USB port and the two

USB ports located on the back of the computer under the NIC connector.

Onboard FDC Controller Enables/disables onboard FDC controller.

Onboard Serial Port Allows you to disable or select setting for the onboard

serial port.

Onboard Parallel Port Allows you to disable or select setting for onboard

parallel port.

Parallel Port Mode Allows you to select parallel port mode.

ECP Mode Use DMA If Parallel Port Mode is set to ECP or ECP+EPP, allows you

to set the ECP Mode Use DMA to 1 or 3.

Power Management Setup

Support for specific Computer Setup options may vary depending on the hardware configuration.

✎

ACPI Function Enables/disables ACPI functions.

ACPI Suspend Type Allows you to set type of ACPI suspend.

MODEM Use IRQ Select IRQ for the device.

2–6 361685-001 Service Reference Guide, dx5150

Computer Setup (Continued)

Heading Option Description

Setup Utilities and Diagnostics Features

Power Management Setup (continued)

PnP/PCI Configurations

After AC Power Loss Allows you to select:

• Last State

•On

•Off

PowerOn by PCI Card Enables/disables capability of powering on by PCI card.

AMD Cool’n’Quiet Allows you to set the AMD Cool’n’Quiet to auto or to

disable it.

RTC Alarm Resume Enables/disables resumption of RTC alarm.

Date (of Month) If RTC Alarm Resume is enabled, allows you to select the

day of the month for resumption of RTC alarm.

Resume Time (hh:mm:ss) If RTC Alarm Resume is enabled, allows you to select

what time the RTC alarm will resume.

Reset Configuration Data Enables/disables automatic reconfiguration.

Default is Disabled. Select Enabled to reset Extended System Configuration Data (ESCD) when you exit Setup, if you have installed a new add-on and the system reconfiguration has caused such a serious conflict that the OS cannot boot.

Resources Controlled By Allows you to select whether resources are controlled

automatically or manually. BIOS can automatically configure all the boot and

Plug-and-Play-compatible devices. If you choose Auto, you cannot select IRQ DMA and memory base address fields, since BIOS automatically assigns them.

IRQ Resources

• IRQ-3 assigned to

• IRQ-4 assigned to

• IRQ-5 assigned to

• IRQ-7 assigned to

• IRQ-10 assigned to

• IRQ-11assigned to

• IRQ-12assigned to

• IRQ-14assigned to

• IRQ-15assigned to

Assign IRQ for VGA Enables/disables capability of assigning IRQ for VGA.

Assign IRQ for USB Enables/disables capability of assigning IRQ for USB.

Support for specific Computer Setup options may vary depending on the hardware configuration.

✎

Service Reference Guide, dx5150 361685-001 2–7

When resources are controlled manually, allows you to assign each system interrupt a type, depending on the type of device using the interrupt.

Legacy ISA for devices compliant with the original PC AT bus specification, PCI/ISA PnP for devices compliant with the Plug and Play standard whether designed for PCI or ISA bus architecture.

Setup Utilities and Diagnostics Features

Computer Setup (Continued)

Heading Option Description

PC Health Status

Load Optimized Defaults

Set Supervisor Password

Set User Password

Save & Exit Setup

Exit Without Saving

System Information Lists:

•CPU Temperature

•System Temperature

•CPU Fan Speed

• System Fan Speed

• System Fan Fail Check (enable/disable)

• Fan Control (auto/disable)

Allows you to reset Computer Setup to factory defaults.

Allows you to establish a password to control access to Computer Setup. Allows you to boot computer and change Computer Setup.

Allows you to establish a password to control access to the computer. Allows you to boot the computer and view Computer Setup.

Allows you to save current settings and exit Computer Setup.

Allows you to exit Computer Setup without saving changes.

Support for specific Computer Setup options may vary depending on the hardware configuration.

✎

2.3 Recovering the Configuration Settings

Recovering the configuration settings established in the Computer Setup (F10) Utility requires that you first back up the settings before a recovery is needed.

The CMOS Save/Load utility ROMPAQ can be found at and drivers for the HP Business Desktop dx5150. Download the ROMPAQ files into a folder on a removable storage device. It is recommended that you save any modified computer configuration settings to a diskette, a USB flash media device, or a diskette-like device (a storage device set to emulate a diskette drive), and save the diskette or device for possible future use.

2.3.1 Backing up the CMOS

1. Make sure the computer you want to back up is turned on. Connect the removable storage to the computer.

2. In Windows, click Start > Run, type CMD, and click OK to open a DOS command

3. Type N:\folder\BIOS.exe SAVE:ABC001.DAT (where N is the drive letter of the removable storage) to save the CMOS setting to the removable storage device.

window.

http://www.hp.com under the support

2–8 361685-001 Service Reference Guide, dx5150

2.3.2 Restoring the CMOS

1. Make sure the target computer is turned on. Connect the removable storage to the

computer.

target

2. In Windows, click Start > Run, type CMD, and click OK. to open a DOS command

3. Type N:\folder\BIOS.exe LOAD:ABC001.DAT (where N is the drive letter of the removable storage) to load the custom CMOS setting onto the target system.

window.

2.4 Diagnostics for Windows

The Diagnostics for Windows (DFW) utility allows you to view information about the hardware and software configuration of the computer while running Microsoft Windows XP. It also allows you to perform hardware and software tests on the subsystems of the computer.

When you invoke Diagnostics for Windows, the current configuration of the computer is shown on the Overview screen. There is access from this screen to several categories of information about the computer and the Test tab. You can save to a file or print the information in every screen of the utility.

To test all subsystems, you must log in as the administrator. If you do not log in as the

✎

administrator, you will be unable to test some subsystems. The inability to test a subsystem is indicated by an error message under the subsystem name in the Test window or by shaded check boxes that you cannot select.

Setup Utilities and Diagnostics Features

Use Diagnostics for Windows in the following instances to:

■ Determine if all the devices installed on the computer are recognized by the system and

functioning properly. Running tests is optional but recommended after installing or connecting a new device.

■ Third party devices not supported by HP may not be detected. Save, print, or display the

information generated by the utility.

2.4.1 Detecting Diagnostics for Windows

Some computers ship with the Diagnostics for Windows preloaded, but not preinstalled.

To determine whether Diagnostics for Windows is installed:

1. Access the location of the Diagnostics icons in Windows XP Home or Windows XP Professional by selecting Start > Control Panel > Performance and Maintenance.

2. If icons for Configuration Record and Diagnostics for Windows are present, the Diagnostics for Windows utility is installed. If the icons are not present, the utility is either not preloaded or not installed.

2.4.2 Installing Diagnostics for Windows

If Diagnostics for Windows is not preloaded, you can download the Diagnostics for Windows SoftPaq from the following Web site:

http://www.hp.com/support/files

Service Reference Guide, dx5150 361685-001 2–9

Setup Utilities and Diagnostics Features

Once you download the software onto the hard drive, install the software as follows:

1. Close all Windows applications.

2. Install the Diagnostics for Windows utility:

❏ In Windows XP, select Start > Setup Software icon. Select Diagnostics for Windows,

click Next, then follow the instructions on the screen.

❏ If the Setup Software icon is not on the Desktop or on the Start menu, run the Setup

program from the C:\CPQAPPS\DIAGS directory or select Start > Run and type the following in the command line: C:\CPQAPPS\DIAGS\SETUP.

3. Click Next to install Diagnostics for Windows.

4. After the program has finished installing, you may be prompted to restart the computer, or the computer may automatically restart. If prompted, click Finish to restart the computer or Cancel to exit the program. You must restart the computer to complete the installation of Diagnostics for Windows.

If you want to upgrade an existing version of Diagnostics for Windows installed on the

✎

computer, visit desired software and download the latest version. Execute the downloaded file and select Repair to update the installed version. This will cause the new version to overwrite the old version.

http://www.hp.com/support/files and click on an applicable product. Locate the

2.4.3 Using Categories in Diagnostics for Windows

To use categories:

1. Click Start > HP Information Center > Diagnostics for Windows. You can also select the Diagnostics for Windows icon, located in the Control Panel.

The screen displays the overview of the computer hardware and software.

❏ In Windows 2000 Professional, select Start > Settings > Control Panel, then select

Diagnostics for Windows.

❏ In Windows XP Home and Windows XP Professional, select Start > Control Panel >

Performance and Maintenance, then select Diagnostics for Windows.

2. For specific hardware and software information, select a category from the Categories pull-down menu or the appropriate icon on the toolbar.

As the cursor moves over the toolbar icons, Windows displays the corresponding category name.

✎

3. To display more detailed information in a selected category, click More in the Information Level box in the lower left corner of the window or click Level at the top of the screen, and

then select More.

4. Review, print, and/or save this information as desired.

❏ To print the information, click File > Print. Select one of the following options:

Detailed Report (All Categories), Summary Report (All Categories), or Current Category. Click OK to print the report you selected.

❏ To save the information, click File > Save As. Select one of the following options:

Detailed Report (All Categories), Summary Report (All Categories), or Current Category. Click OK to save the report you selected.

5. To exit Diagnostics for Windows, on the File menu, click Exit.

2–10 361685-001 Service Reference Guide, dx5150

Setup Utilities and Diagnostics Features

Menu Bar—File, Categories, Navigation, Level, Tab, Help

At the top of the Diagnostics for Windows screen is a menu bar consisting of six pull-down menus. Select a menu for the following system information:

■ File—Save As, Print, Printer Setup, Exit.

■ Categories.

❏ System—System board, ROM, date, and time.

❏ Asset Control—Asset tag, system serial number, and processor.

❏ Input Devices—Keyboard, mouse, and joystick(s).

❏ Communication—Ports.

❏ Storage—Storage drives.

❏ Graphics—Graphics.

❏ Memory—System board and Windows memory.

❏ Multimedia—Optical storage (CD, DVD, and so on) and audio.

❏ Windows—Windows.

❏ Architecture—PCI Device.

❏ Resources—IRQ, I/O, and Memory Map.

❏ Health—Status of system temperature and hard drives.

❏ Miscellaneous—CMOS, DMI, BIOS, System, Product Name, and Serial Number.

■ Navigation—Previous Category (F5), Next Category (F6).

■ Level—Less (F7), More (F8) <information on the screen>.

■ Ta b.

❏ Overview—Displays general information about the computer. This window is displayed

when first starting the utility. The left side of the window shows hardware information, while the right side shows software information.

❏ Test—Allows you to choose various parts of the system to test. You can also choose the

type of test and testing

❏ Status—Displays the status of each test in progress. You can cancel testing by clicking

mode.

the Cancel Testing button.

❏ Log—Displays a log of tests for each device.

❏ Error—Displays any errors that occurred during device testing. The window lists the

device being tested, the type and number of errors, and the error code.

■ Help—Contents, How to use Help, About.

Service Reference Guide, dx5150 361685-001 2–11

Setup Utilities and Diagnostics Features

2.4.4 Running Diagnostic Tests in Diagnostics for Windows

To run diagnostic tests:

1. Click Start > HP Information Center > Diagnostics for Windows.

Alternately, you can access Diagnostics for Windows using the Control Panel.

The screen displays the overview of the computer hardware and software. Five tabs are displayed below the row of icons: Overview, Test , Status, Log, and Error.

2. Click the Te st tab, or click Tab at the top of the screen and select Tes t.

3. Select one of the following options:

❏ Quick Test—Runs a quick, general test on each device. Requires no user intervention if

Unattended Mode is selected.

❏ Complete Test—Runs maximum testing of each device. The user can select Interactive

Mode or Unattended Mode.

❏ Custom Test—Runs only the tests you select. To select specific devices or tests, find the

device in the list, then select the check box beside each test. When selected, a red check mark is displayed in the box. Some tests selected may require user intervention.

To test all subsystems, you must log in as the administrator. If you do not log in as the

✎

4. Select Interactive Mode or Unattended Mode. In Interactive Mode, the diagnostic software prompts you for any required input during tests. Some tests require interaction and display errors or halt testing if selected in conjunction with Unattended Mode.

❏ Interactive Mode provides maximum control over the testing process. You determine

whether the test passed or failed. The software may prompt you to insert or remove devices.

❏ Unattended Mode does not display prompts. The software displays all discovered errors

when testing is complete.

5. Click the Begin Testing button at the bottom of the window. Test Status is displayed, showing the progress and result of each test. For more details on the tests run, click the Log tab or click Tab at the top of the screen and select Log.

6. To view a test report, select one of three tabs:

❏ Status—Summarizes the tests run, passed, and failed during the current testing session.

❏ Log—Lists tests run on the system, the numbers of times each test has run, the number

of errors found on each test, and the total run time of each test.

❏ Error—Lists all errors found on the computer with their error codes.

7. To save a test report:

❏ Select the Log tab, then click Save to save a Log tab report.

❏ Select the Error tab, then click Save to save an Error tab report.

2–12 361685-001 Service Reference Guide, dx5150

8. To print a test report:

❏ If the report is on the Log tab, on the File menu, click Save As, and then print the file

from the selected folder.

❏ If the report is on the Error tab, select the Error tab, and then click Print.

9. If errors are found, click the Error tab to display more detailed information and recommended actions.

10. Click Print or save the error information for future reference.

11. To exit Diagnostics for Windows, on the File menu, click Exit.

2.5 Configuration Record

The Configuration Record utility is a windows-based information-gathering tool that gathers critical hardware and software information from various computer subsystems. The information includes such things as the ROM, asset tag, processor, physical drives, PCI devices, memory, graphics, operating system version number, operating system parameters, and the operating system startup files to give a complete view of the computer. Configuration Record provides a means for automatically identifying and comparing configuration changes, and has the ability to maintain a configuration history. You can save the information as a history of multiple sessions.

Setup Utilities and Diagnostics Features

This utility allows the resolution of problems without taking the computer offline and assists in maximizing the computer availability. The information obtained by the utility is useful in troubleshooting system problems and streamlines the service process by enabling quick and easy identification of system configurations.

The utility displays it findings in a Now.log file. If the original Base.log file is present in the cpqdiags directory, the Base.log file is displayed next to the Now.log file in a split window with the differences between the two highlighted in the color red.

2.5.1 Installing Configuration Record

The Configuration Record is part of Diagnostics for Windows and is automatically installed at the same time as Diagnostics for Windows.

2.5.2 Running Configuration Record

To run this program:

1. Click Start > HP Information Center > Configuration Record.

Alternately, you can access Diagnostics for Windows using the Control Panel.

The Configuration Record utility has two view options: Show Changed Items Only and Show

✎

All. The default view is Show color red since it shows only the differences. Switching to Show All displays the complete, comprehensive view of the system.

Changed Items Only, therefore all the text is displayed in the

2. The default view is Show Changed Items Only. To view all the information gathered by Configuration Record, click View at the top of the window and select Show All, or click the Show All Items icon.

3. To save the information in the left or right window, select File > Save Window File and then select Left Window File or Right Window File.

Service Reference Guide, dx5150 361685-001 2–13

Setup Utilities and Diagnostics Features

Saving the configuration of the computer periodically allows you to keep a history of the

✎

configuration. This history may be useful to you in the future if the system encounters a problem that requires debugging.

4. To exit Configuration Record, on the File menu, click Exit.

2.6 Remote Diagnostics Enabling Agent

This utility provides a Web browser interface to Diagnostics for Windows. It enables remote control of the diagnostics and facilitates easy transfer of computer information from remote machines to a service provider.

The Remote Diagnostics Enabling Agent captures hardware configuration and provides the ability to perform tests remotely to diagnose computer problems. In addition, the Remote Diagnostics Enabling Agent identifies any computer hardware device problems signaled by the HP Management Agents. The Remote Diagnostics Enabling Agent automatically selects these hardware devices for testing.

The Remote Diagnostics Enabling Agent only works if Diagnostics for Windows is installed.

✎

The Remote Diagnostics Enabling Agent is pre-loaded on some computers and is available through a SoftPaq at http://www.hp.com under Support and Drivers.

2.6.1 Installing/Upgrading Remote Diagnostics Enabling Agent

1. Visit http://www.hp.com/support/files and select the applicable product.

2. Locate the appropriate software and download the latest version.

3. Execute the downloaded file. If you are upgrading an existing version, select Repair for the new version to overwrite the old version.

2.6.2 Running the Remote Diagnostics Enabling Agent

1. Select the Remote Diagnostics icon located in the Control Panel.

The Remote Diagnostics Enabling Agent allows you to run Diagnostic Test or the Configuration

✎

Record in a browser window. You can run both of these utilities remotely or locally.

2. To exit Remote Diagnostics, on the File menu, click Close.

2.7 Protecting the Software

To protect software from loss or damage, you should keep a backup copy of all system software, applications, and related files stored on the hard drive. See the operating system or backup utility documentation for instructions about making backup copies of data files.

2.8 Restoring the Software

You can restore the Windows operating system and software to its original state using the Restore CD. See the Restore CD for complete instructions.

2–14 361685-001 Service Reference Guide, dx5150

Desktop Management

HP Intelligent Manageability provides standards-based solutions for managing and controlling desktops, workstations, and notebook PCs in a networked environment.

The key capabilities and features of desktop management are:

■ Initial configuration and deployment

■ Remote system installation

■ Software updating and management

■ ROM flash

■ Asset tracking and security

■ Fault notification and recovery

Support for specific features described in this guide may vary by model or software version.

✎

3.1 Initial Configuration and Deployment

HP computers come with a preinstalled system software image. After a brief software “unbundling” process, the computer is ready for use.

You can deploy a customized software image by:

■ Installing additional software applications after unbundling the preinstalled software image.

■ Using software deployment tools, such as Altiris Deployment Solutions

preinstalled software with a customized software image.

■ Using a disk cloning process to copy the contents from one hard drive to another.

The best deployment method depends upon your information technology environment and processes. The PC Deployment section of the Solutions and Services Web site

(http://h18000.www1.hp.com/solutions/pcsolutions)

best deployment method.

The Restore Plus! CD, ROM-based setup, and ACPI hardware provide further assistance with recovery of system software, configuration management and troubleshooting, and power management.

provides information to help you select the

, to replace the

Service Reference Guide, dx5150 361685-001 3–1

Desktop Management

3.2 Remote System Installation

Remote System Installation allows you to start and set up your system using the software and configuration information located on a network server by initiating the Preboot Execution Environment (PXE). The Remote System Installation feature is usually used as a system setup and configuration tool, and can be used for the following tasks:

■ Formatting a hard drive.

■ Deploying a software image on one or more new PCs.

■ Remotely updating the system BIOS in flash ROM. See Section 3.4.1, “Remote ROM

Flash.”

■ Configuring the system BIOS settings.

To initiate Remote System Installation, press F12 when the F12 = Network Service Boot message appears in the lower-right corner of the HP logo screen. Follow the instructions on the screen to continue the process. The default boot order is a BIOS configuration setting that you can change to always attempt to PXE boot.

3.3 Software Updating and Management

HP provides several tools for managing and updating software on desktops and workstations— HP Client Manager Software, Altiris Client Management Solution; System Software Manager; HP Proactive Notification; and ActiveUpdate.

3.3.1 HP Client Manager Software

HP Client Manager Software (HP CMS) tightly integrates HP Intelligent Manageability technology within Altiris to provide superior hardware management capabilities for HP access devices that include:

■ Detailed views of hardware inventory for asset management

■ PC health check monitoring and diagnostics

■ Proactive notification of changes in your hardware environment

■ Web-accessible reporting of business critical details such as machines with thermal

warnings, memory alerts, and more

■ Remote updating of system software such as device drivers and ROM BIOS

■ Remote changing of boot order

■ System BIOS setting configuration

For more information on the HP Client Manager, visit

http://h18000/www1.hp.com/im/client_mgr.html.

3–2 361685-001 Service Reference Guide, dx5150

3.3.2 Altiris Client Management Solutions

HP and Altiris have partnered to provide comprehensive, tightly integrated systems management solutions to reduce the cost of owning HP client PCs. HP Client Manager Software is the foundation for additional Altiris Client Management Solutions that address:

■ Inventory and Asset Management

❏ SW license compliance

❏ PC tracking and reporting

❏ Lease contract, fixing asset tracking

■ Deployment and Migration

❏ Windows 2000/XP migration

❏ System deployment

❏ Personality migrations

■ Help Desk and Problem Resolution

❏ Managing help desk tickets

❏ Remote troubleshooting

Desktop Management

❏ Remote problem resolution

❏ Client disaster recovery

■ Software and Operations Management

❏ Ongoing desktop management

❏ HP system SW deployment

❏ Application self-healing

For more information and details on how to download a fully-functional 30-day evaluation version of the Altiris solutions, visit

http://h18000.www1.hp.com/im/prodinfo.html#deploy.

On selected desktop and notebook models, an Altiris management agent is included as part of the factory-loaded image. This agent enables communication with the Altiris Development Solution, which you can use to complete new hardware deployment or personality migration to a new operating system using easy-to-follow wizards. Altiris solutions provide easy-to-use software distribution capabilities. When used in conjunction with System Software Manager, or HP Client Manager Software, administrators can also update ROM BIOS and device driver software from a central console.

For more information, visit

http://www.hp.com/go/easydeploy.

3.3.3 System Software Manager

System Software Manager (SSM) lets you update system-level software on multiple systems simultaneously. When executed on a PC client system, SSM detects both hardware and software versions, then updates the appropriate software from a central repository, also known as a file store. Driver versions supported by SSM are denoted with a special icon on the driver download Web site and on the Support Software CD. To download the utility or to obtain more information on SSM, visit

http://h18000.www1.hp.com/im/ssmwp.html.

Service Reference Guide, dx5150 361685-001 3–3

Desktop Management

3.3.4 Proactive Change Notification (PCN)

The Proactive Change Notification program uses the Subscriber's Choice Web site to proactively and automatically send you:

■ Proactive Change Notification (PCN) emails informing you of hardware and software

changes to most commercial computers and servers, up to 60 days in advance.

■ E-mail containing Customer Bulletins, Customer Advisories, Customer Notes, Security

Bulletins, and Driver alerts for most commercial computers and servers.

You create your own profile to ensure that you only receive the information relevant to your IT environment. To learn more about the Proactive Change Notification program and create your custom profile, visit

http://www.hp.com/go/pcn.

3.3.5 Subscriber’s Choice

Subscriber’s Choice is a client-based service from HP. Based on your profile, HP will supply you with personalized product tips, feature articles, and/or driver and support alerts/notifications. Subscriber’s Choice Driver and Support Alerts/Notifications will deliver e-mails notifying you that the information you subscribed to in your profile is available for review and retrieval. To learn more about Subscriber’s Choice and create a custom profile, visit

http://www.hp.com/go/pcn.

3.4 ROM Flash

The computer comes with a reprogrammable flash ROM (read only memory). By establishing a setup password in Computer Setup (F10) Utility, you can protect the ROM from unintentional updates or overwrites. This protection is important to ensure the operating integrity of the computer. Should you need or want to upgrade your ROM, you may:

■ Order an upgraded ROMPaq™ diskette from HP.

■ Download the latest ROMPaq images from http://www.hp.com/support/files.

CAUTION: For maximum ROM protection, establish a setup password. The setup password prevents

unauthorized ROM upgrades. System Software Manager allows the system administrator to set the setup password on one or more PCs simultaneously. For more information, visit

http://www.hp.com/go/ssm.

3.4.1 Remote ROM Flash

Remote ROM Flash allows the system administrator to safely upgrade the ROM on remote HP computers directly from the centralized network management console. Enabling the system administrator to perform this task remotely on multiple computers and personal computers results in a consistent deployment of and greater control over HP PC ROM images over the network.

The computer must be powered on, or turned on through Remote Wakeup, to take advantage of

✎

Remote ROM Flash.

For more information on Remote ROM Flash, refer to the HP Client Manager Software or System Software Manager at

3–4 361685-001 Service Reference Guide, dx5150

http://h18000.www1.hp.com/im/prodinfo.html.

3.4.2 HPQ Flash

Use the HPQFlash utility to locally update or restore the system ROM in individual PCs through a Windows environment. For more information on HPQFlash, refer to the HP Client Manager Software or System Software Manager at

3.4.3 FailSafe Boot Block ROM

The FailSafe Boot Block ROM allows for system recovery in the unlikely event of a ROM flash failure, for example, if a power failure occurs during a ROM upgrade. The Boot Block is a flash-protected section of the ROM that checks for a valid system ROM flash when power to the system is turned on.

■ If the system ROM is valid, the system starts normally.

■ If the system ROM fails the validation check, the FailSafe Boot Block ROM provides

enough support to start the system from a ROMPaq diskette, which programs the system ROM with a valid image.

Some models also support recovery from a ROMPaq CD.

✎

When the bootblock detects an invalid system ROM, the System Power LED blinks RED eight times, one every second, followed by a two-second pause. You will also hear eight simultaneous beeps. A Boot Block recovery mode message is displayed on the screen (some models).

Desktop Management

http://www.hp.com/support/files.

The beeps continue through five cycles of eight simultaneous beeps and stop; however, the LED

✎

continues blinking until the issue is resolved.

To recover the system after it enters Boot Block recovery mode, complete the following steps:

1. If there is a diskette or a CD in the computer, remove the media and turn off the power.

2. Insert a ROMPaq diskette, bootable drive key, or CD.

3. Turn on power to the system.

4. If no ROMPaq diskette is found, you must insert one and restart the computer.

3.4.4 Replicating Your Setup

To replicate or copy one setup configuration to other computers of the same model, HP has provided a Windows-based software utility, System Software Manager, that you can download

http://www.hp.com/go/ssm, plus a DOS-based software, CMOS Save/Load utility, that

from can be downloaded from Web site, enter the name of your computer when prompted.

Creating a Bootable Device

Supported USB Flash Media Device

Supported devices, such as an HP Drive Key, have a pre-installed image to simplify the process of making them bootable. If the USB flash media device being used does not have this image, use the procedure later in this section (see “Unsupported USB Flash Media Device” on page 7).

http://www.hp.com/support/files. After logging on to the HP Support

Service Reference Guide, dx5150 361685-001 3–5

Desktop Management

CAUTION: You cannot boot all computers from a USB flash media device. If the default boot order in

the Computer Setup (F10) Utility lists the USB device before the hard drive, you can boot the computer from a USB flash media device. Otherwise, you must use a bootable diskette.

To create a bootable USB flash media device, you must have a:

■ Supported USB flash media device.

■ Bootable DOS diskette with the FDISK and SYS programs. If SYS is not available, you can

use FORMAT, but you will lose all existing files on the USB flash media device.

■ PC that is bootable from a USB flash media device.

1. Turn off the computer.

2. Insert the USB flash media device into one of the computer's USB ports and remove all other USB storage devices except USB diskette drives.

3. Insert a bootable DOS diskette with FDISK.COM and either SYS.COM or FORMAT.COM into a diskette drive and turn on the computer to boot to the DOS diskette.

4. Run FDISK from the A:\ prompt by typing FDISK and pressing Enter. If prompted, click Ye s (Y) to enable large disk support.

5. Enter Choice [5] to display the drives in the system. The USB flash media device is the drive that closely matches the size of one of the drives listed. It is usually the last drive in the list. Note the letter of the drive.

USB flash media device drive: __________

CAUTION: If a drive does not match the USB flash media device, do not proceed. Data loss may occur.

Check all USB ports for additional storage devices. If any are found, remove them, reboot the computer, and proceed from step 4. If none are found, either the system does not support the USB flash media device or the USB flash media device is defective. DO NOT proceed in attempting to make the USB flash media device bootable.

6. Exit FDISK by pressing the Esc key to return to the A:\ prompt.

7. If your bootable DOS diskette contains SYS.COM, go to step 8. Otherwise, go to step 9.

8. At the A:\ prompt, enter SYS x: where x represents the drive letter noted above.

CAUTION: Make sure that you have entered the correct drive letter for the USB flash media device.

After transferring the system files, SYS will return to the A:\ prompt. Go to step 13.

9. Copy any files you want to keep from your USB flash media device to a temporary directory on another drive (for example, the system's internal hard drive).

10. At the A:\ prompt, enter FORMAT /S X: where X represents the drive letter noted before.

CAUTION: Make sure that you have entered the correct drive letter for the USB flash media device.

FORMAT will display one or more warnings and ask you each time whether you want to proceed. Enter system files, and ask for a Volume Label.

Y each time. FORMAT will format the USB flash media device, add the

11. Press Enter for no label or enter one if desired.

3–6 361685-001 Service Reference Guide, dx5150

Desktop Management

12. Copy any files you saved in step 9 back to your USB flash media device.

13. Remove the diskette and reboot the computer. The computer will boot to the USB flash media device as drive C.

The default boot order varies from computer to computer, and you can change it in the Computer

✎

Setup (F10) Utility.

If you have used a DOS version from Windows 9x, you may see a brief Windows logo screen. If you do not want this screen, add a zero-length file named LOGO.SYS to the root directory of the USB flash media device.

Unsupported USB Flash Media Device

CAUTION: You cannot boot all computers from a USB flash media device. If the default boot order in

the Computer Setup (F10) Utility lists the USB device before the hard drive, you can boot the computer from a USB flash media device. Otherwise, you must use a bootable diskette.

To create a bootable USB flash media device, you must have a:

■ Supported USB flash media device.

■ Bootable DOS diskette with the FDISK and SYS programs. If SYS is not available, you can

use FORMAT, but you will lose all existing files on the USB flash media device.

■ PC that is bootable from a USB flash media device.

1. If there are any PCI cards in the system that have SCSI, ATA RAID or SATA drives attached, turn off the computer and unplug the power cord.

CAUTION: You must unplug the power cord.

2. Open the computer and remove the PCI cards.

3. Insert the USB flash media device into one of the computer's USB ports and remove all other USB storage devices except USB diskette drives. Close the computer cover.

4. Plug in the power cord and turn on the computer.

5. As soon as the computer is turned on, press and hold the F10 key until you enter Computer Setup. Press

If you do not press the F10 key at the appropriate time, you must restart the computer and press

✎

and hold the

If you are using a PS/2 keyboard, you may see a Keyboard Error message—disregard it.

6. Go to Integrated Peripherals > South OnChip IDE Device to disable the PATA controller, and go to Integrated Peripherals > South OnChip PCI Device to disable the SATA controller. Exit setup, confirming the changes.

Enter to bypass the title screen, if necessary.

F10 key again to access the utility.

7. Insert a bootable DOS diskette with FDISK.COM and either SYS.COM or FORMAT.COM into a diskette drive and turn on the computer to boot to the DOS diskette.

8. Run FDISK and delete any existing partitions on the USB flash media device. Create a new partition and mark it active. Exit FDISK by pressing the

Service Reference Guide, dx5150 361685-001 3–7

Esc key.

Desktop Management

9. If the system did not automatically restart when exiting FDISK, press Ctrl+Alt+Del to reboot to the DOS diskette.

10. At the A:\ prompt, type FORMAT C: /S and press Enter. Format will format the USB flash

media device, add the system files, and ask for a Volume Label.

11. Press Enter for no label or enter one if desired.

12. Turn off the computer and unplug the power cord. Open the computer and re-install any PCI cards that were previously removed. Close the computer cover.

13. Plug in the power cord, remove the diskette, and turn on the computer.

14. As soon as the computer is turned on, press and hold the F10 key until you enter Computer Setup. Press

15. Go to Integrated Peripherals > South OnChip IDE Device and Integrated Peripherals >

South OnChip PCI Device and re-enable the PATA and SATA controllers that were disabled

in step

16. Save the changes and exit. The computer will boot to the USB flash media device as drive C.

The default boot order varies from computer to computer, and you can change it in the Computer

✎

Setup (F10) Utility. Refer to the Computer Setup Guide on the Documentation CD for instructions.

Enter to bypass the title screen, if necessary.

3.4.5 Dual-State Power Button

With Advanced Configuration and Power Interface (ACPI) enabled for Windows XP, the power button can function either as an on/off switch or as a suspend button. The suspend feature does not completely turn off power, but instead causes the computer to enter a low-power standby. This allows you to quickly power down without closing applications and to quickly return to the same operational state without any data loss.

To change the power button’s configuration, complete the following steps:

1. Left click on the Start Button, then select Control Panel > Performance and

Maintenance > Power Options.

2. In the Power Options Properties, select the Advanced tab.

3. In the Power Button section, select Standby.

After configuring the power button to function as a suspend button, press the power button to put the system in a very low power state (standby). Press the button again to quickly bring the system out of suspend to full power status. To completely turn off all power to the system, press and hold the power button for four seconds.

CAUTION: Do not use the power button to turn off the computer unless the system is not responding;

turning off the power without operating system interaction could cause damage to or loss of data on the hard drive.

3–8 361685-001 Service Reference Guide, dx5150

3.4.6 World Wide Web Site

When making the transition to new or revised operating systems, it is important to implement the support software designed for that operating system. If you plan to run a version of Microsoft Windows that is different from the version included with your computer, you must install corresponding device drivers and utilities to ensure that all features are supported and functioning properly.

HP has made the task of locating, accessing, evaluating, and installing the latest support software easier. You can download the software from the latest device drivers, utilities, and flashable ROM images needed to run the latest Microsoft Windows operating system on your HP computer.

http://www.hp.com/support. The Web site contains

3.4.7 Building Blocks and Partners

HP management solutions integrate with other systems management applications, and are based on industry standards, such as:

■ Web-Based Enterprise Management (WBEM)

■ Windows Management Interface (WMI)

■ Wake on LAN Technology

Desktop Management

■ ACPI

■ SMBIOS

■ Pre-boot Execution (PXE) support

3.5 Asset Tracking and Security

Asset tracking features incorporated into the computer provide key asset tracking data that you can manage using HP Insight Manager, HP Client Manager or other system management applications. Seamless, automatic integration between asset tracking features and these products enables you to choose the management tool that is best suited to your environment and to leverage your investment in existing tools.

HP also offers several solutions for controlling access to valuable components and information. ProtectTools Imbeds Security, if installed, prevents unauthorized access to the internal components of the personal computer. By disabling parallel, serial, or USB ports, or by disabling removable media boot capability, you can protect valuable data assets. You can automatically forward Memory Change and Smart Cover Sensor alerts to system management applications to deliver proactive notification of tampering with a computer’s internal components.

ProtectTools is available on some systems.

✎

Use the following utilities to manage security settings on your HP computer:

■ Locally, using the Computer Setup Utilities. See the Computer Setup (F10) Utility Guide on

the Documentation CD included with the computer for additional information and instructions on using the Computer Setup Utilities.

■ Remotely, using HP Client Manager or System Software Manager. This software enables the

secure, consistent deployment and control of security settings from a simple command-line utility.

Service Reference Guide, dx5150 361685-001 3–9

Desktop Management

The following table and sections refer to managing security features of your computer locally through the Computer Setup Utilities (F10).

Security Features Overview

Option Description

Supervisor Password

User Password

Device Security

Network Service Boot

System IDs Allows you to set:

Allows you to set and enable Supervisor (administrator) password.

If the Supervisor password is set, it is required to change Computer Setup

✎

options, flash the ROM, and make changes to certain plug and play settings under Windows.

See the Troubleshooting Guide on the Documentation CD for more information.

Allows you to set and enable a User password.

If the User password is set, it is required to access the computer when power is

✎

turned on.

See the Troubleshooting Guide on the Documentation CD for more information.

Enables/disables serial ports, parallel port, front USB ports, system audio, and network controllers (some models).

Enables/disables the computer’s ability to boot from an operating system installed on a network controller must reside on the PCI bus or be embedded on the system board.)

• Asset tag (18-byte identifier) and ownership Tag (80-byte identifier displayed during POST).

• Chassis serial number or Universal Unique Identifier (UUID) number. The UUID can only be updated if the current chassis serial number is invalid. (These ID numbers are normally set in the factory and are used to uniquely identify the system.)

Keyboard locale setting (for example, English or German) for System ID entry.

network server. (Feature available on NIC models only; the

Master Boot Record Security

For more information about Computer Setup, see the Computer Setup (F10) Utility Guide on the

✎

Documentation CD. Support for security features may vary depending on the specific computer configuration.

3–10 361685-001 Service Reference Guide, dx5150

Allows you to enable or disable Master Boot Record (MBR) Security. When enabled, the BIOS rejects all requests to write to the MBR on the current

bootable disk. Each time the computer is powered on or rebooted, the BIOS compares the MBR of the current bootable disk to the previously-saved MBR. If changes are detected, you are given the option of saving the MBR on the current bootable disk, restoring the previously-saved MBR, or disabling MBR Security. You must know the setup password, if one is set.

Disable MBR Security before intentionally changing the formatting or

✎

partitioning of the current bootable disk. Several disk utilities (such as FDISK and FORMAT) attempt to update the MBR.

If MBR Security is enabled and disk accesses are being serviced by the BIOS, write requests to the MBR are rejected, causing the utilities to report errors.

If MBR Security is enabled and disk accesses are being serviced by the operating system, any MBR change will be detected by the BIOS during the next reboot, and an MBR Security warning message will be displayed.

Desktop Management

3.5.1 Password Security

The user password prevents unauthorized use of the computer by requiring entry of a password to access applications or data each time the computer is turned on or restarted. The setup password specifically prevents unauthorized access to Computer Setup, and can also be used as an override to the user password. That is, when prompted for the user password, entering the supervisor password instead will allow access to the computer.

A network-wide setup password can be established to enable the system administrator to log in to all network systems to perform maintenance without having to know the user password, even if one has been established.

System Software Manager and HP Client Manager Software allow remote management of Setup

✎

Passwords and other BIOS settings in a networked environment. For more information, visit

http://www.hp.com/go/EasyDeploy.

3.5.2 Establishing a Supervisor Password with Computer Setup

If the system is equipped with an embedded security device, refer to HP ProtectTools Embedded Security Guide, on the Documentation CD. Establishing a Supervisor password through

Computer Setup prevents reconfiguration of the computer (use of the Computer Setup F10 utility) until the password is entered.

1. Turn on or restart the computer. If you are in Windows, click Start > Shut Down > Restart.

2. As soon as the computer is turned on, press and hold the F10 key until you enter Computer

Setup. Press

If you do not press the F10 key at the appropriate time, you must restart the computer and press

✎

and hold the

If you are using a PS/2 keyboard, you may see a Keyboard Error message—disregard it.

3. Select Set Security Password and follow the instructions on the screen.

4. Before exiting, on the File menu, select Save Changes and Exit.

Enter to bypass the title screen, if necessary.

F10 key again to access the utility.

3.5.3 Establishing a User Password with Computer Setup

Establishing a user password through Computer Setup prevents access to the computer when power is turned on unless the password is entered. When a user password is set, Computer Setup presents Password Options under the Security menu. Password options include Password Prompt on Warm Boot. When Password Prompt on Warm Boot is enabled, you must also enter the password each time the computer is rebooted.

1. Turn on or restart the computer. If you are in Windows, click Start > Shut Down > Restart.

2. As soon as the computer is turned on, press and hold the F10 key until you enter Computer

Setup. Press

Enter to bypass the title screen, if necessary.

If you do not press the F10 key at the appropriate time, you must restart the computer and press

✎

and hold the

If you are using a PS/2 keyboard, you may see a Keyboard Error message—disregard it.

Service Reference Guide, dx5150 361685-001 3–11

F10 key again to access the utility.

Desktop Management

3. Select Security, then Power-On Password and follow the instructions on the screen.

4. Before exiting, on the File menu, select Save Changes and Exit.

Entering a User Password

To enter a power-on password, complete the following steps:

1. Turn on or restart the computer. If you are in Windows, click Start > Shut Down > Restart.

2. When the key icon appears on the monitor, type your current password, then press Enter.

Type carefully; for security reasons, the characters you type do not appear on the screen.

✎

If you enter the password incorrectly, the message “Invalid Password, Press any key to continue!” appears. Try again. After three unsuccessful tries, you must turn off the computer, then turn it on again before you can continue.

Entering a Supervisor Password

If the system is equipped with an embedded security device, refer to the HP ProtectTools Embedded Security Guide, on the Documentation CD.

If a Supervisor password has been established on the computer, you will be prompted to enter it each time you run Computer Setup.

1. Turn on or restart the computer. If you are in Windows, click Start > Shut Down > Restart.

2. As soon as the computer is turned on, press and hold the F10 key until you enter Computer

Setup. Press

If you do not press the F10 key at the appropriate time, you must restart the computer and press

✎

and hold the

If you are using a PS/2 keyboard, you may see a Keyboard Error message—disregard it.

3. When the Enter Password box appears on the monitor, type the supervisor password, then

Enter.

press

Type carefully; for security reasons, the characters you type do not appear on the screen.

Enter to bypass the title screen, if necessary.

F10 key again to access the utility.

✎

3–12 361685-001 Service Reference Guide, dx5150

Desktop Management

Changing a User or Supervisor Password

If the system is equipped with an embedded security device, refer to the HP ProtectTools Embedded Security Guide, on the Documentation CD.

1. Turn on or restart the computer. If you are in Windows, click Start > Shut Down > Restart the Computer.

2. When the Enter Password box appears, type the current User password, if a password is required.

3. Press Enter.

4. Press and hold the F10 key until you enter Computer Setup. Press Enter to bypass the title screen, if necessary.

If you do not press the F10 key at the appropriate time, you must restart the computer and press

✎

and hold the

If you are using a PS/2 keyboard, you may see a Keyboard Error message—disregard it.

5. When the Enter Password box appears to access Computer Setup, type the current Supervisor password, if required.

F10 key again to access the utility.

6. Press Enter.

7. Select either Set Supervisor Password or Set User Password.

8. When the Enter Password box appears on the screen, type the new password and press

Enter.

9. Before exiting, on the File menu, select Save Changes and Exit.

To delete a password instead of changing it, when the Enter Password box appears on the

✎

screen, press Enter instead of entering the new password. This deletes the current password.

Clearing Passwords

If you forget the password, you cannot access the computer. Refer to the Troubleshooting Guide on the Documentation CD for instructions on clearing passwords.

If the system is equipped with an embedded security device, refer to the HP ProtectTools Embedded Security Guide, on the Documentation CD.

3.5.4 Master Boot Record Security

The Master Boot Record (MBR) contains information needed to successfully boot from a disk and to access the data stored on the disk. Master Boot Record Security may prevent unintentional or malicious changes to the MBR, such as those caused by some computer viruses or by the incorrect use of certain disk utilities. It also allows you to recover the “last known good” MBR, should the computer detect changes to the MBR when the system is restarted.

To enable MBR Security, complete the following steps:

1. Turn on or restart the computer. If you are in Windows, click Start > Shut Down > Restart.

2. As soon as the computer is turned on, press and hold the F10 key until you enter Computer Setup. Press

Service Reference Guide, dx5150 361685-001 3–13

Enter to bypass the title screen, if necessary.

Desktop Management

If you do not press the F10 key at the appropriate time, you must restart the computer and press

✎

and hold the

If you are using a PS/2 keyboard, you may see a Keyboard Error message—disregard it.

3. Select Advanced BIOS Features > MBR Security and press Enter.

4. In the MBR Security box, press the up or down arrows to select Enabled or Disabled.

5. To accept the changes, press Enter. To abort the changes, press the Esc key.

When MBR Security is enabled, the BIOS prevents any changes being made to the MBR of the current bootable disk while in MS-DOS or Windows Safe Mode.

Most operating systems control access to the MBR of the current bootable disk; the BIOS cannot

✎

prevent changes that may occur while the operating system is running.

Each time the computer is turned on or restarted, the BIOS compares the MBR of the current bootable disk to the previously saved MBR. If changes are detected and if the current bootable disk is the same disk from which the MBR was previously saved, the following message is displayed:

1999—Master Boot Record has changed.

1. Press any key to enter Setup to configure MBR Security.

F10 key again to access the utility.

2. Upon entering Computer Setup, you must disable the MBR Security feature.

You must know the supervisor password, if one exists.

If changes are detected and if the current bootable disk is not the same disk from which the MBR was previously saved, the following message is displayed:

2000—Master Boot Record Hard Drive has changed.

1. Press any key to enter Setup to configure MBR Security.

2. Upon entering Computer Setup, you must disable the MBR Security feature.

You must know the supervisor password, if one exists.

In the unlikely event that the previously saved MBR has been corrupted, the following message is displayed:

1998—Master Boot Record has been lost.

1. Press any key to enter Setup to configure MBR Security.

2. Upon entering Computer Setup, you must disable the MBR Security feature.

You must know the supervisor password, if one exists.

3–14 361685-001 Service Reference Guide, dx5150

Desktop Management

3.5.5 Before You Partition or Format the Current Bootable Disk

Ensure that MBR Security is disabled before you change partitioning or formatting of the current bootable disk. Some disk utilities, such as FDISK and FORMAT, attempt to update the MBR. If MBR Security is enabled when you change partitioning or formatting of the disk, you may receive error messages from the disk utility or a warning from MBR Security the next time the computer is turned on or restarted.

To disable MBR Security, complete the following steps:

1. Turn on or restart the computer. If you are in Windows, click Start > Shut Down > Restart.

2. As soon as the computer is turned on, press and hold the F10 key until you enter Computer Setup. Press

If you do not press the F10 key at the appropriate time, you must restart the computer and press

✎

and hold the

If you are using a PS/2 keyboard, you may see a Keyboard Error message—disregard it.

3. Select Advanced BIOS Features > MBR Security and press Enter.

4. In the MBR Security Pop-up box, use the down arrow key to select Disabled.

Enter to bypass the title screen, if necessary.

F10 key again to access the utility.

5. Press Enter.

6. Before exiting, on the File menu, click Save and Exit Setup.

3.5.6 Cable Lock Provision

The rear panel of the computer accommodates a cable lock so that you can physically secure the computer to a work area.

For illustrated instructions, see the Removal and Replacement Chapter for the specific chassis.

3.6 Fault Notification and Recovery

Fault Notification and Recovery features combine innovative hardware and software technology to prevent the loss of critical data and minimize unplanned downtime.

When a fault occurs, the computer displays a Local Alert message containing a description of the fault and any recommended actions. You can then view current system health by using the HP Client Manager Software. If the computer is connected to a network managed by HP Insight Manager, HP Client Manager Software, or other system management applications, the computer also sends a fault notice to the network management application.

3.6.1 Surge-Tolerant Power Supply

An integrated surge-tolerant power supply provides greater reliability when the computer is hit with an unpredictable power surge. This power supply is rated to withstand a power surge of up to 2000 volts without incurring any system downtime or data loss.

3.6.2 Thermal Sensor

The thermal sensor is a hardware and software feature that tracks the internal temperature of the computer. This feature displays a warning message when the normal range is exceeded, which gives you time to take action before internal components are damaged or data is lost.

Service Reference Guide, dx5150 361685-001 3–15

Desktop Management

3–16 361685-001 Service Reference Guide, dx5150

Serial and Parallel ATA Drive

Guidelines and Features

Serial ATA = SATA

✎

Parallel ATA = PATA

CAUTION: HP only supports a PATA hard drive in SATA systems when the PATA hard drive is used in

a MultiBay device.

4.1 SATA Hard Drive Information

Characteristic SATA

Number of pins/conductors in data cable 7/7

Number of pins in power cable 15

Maximum data cable length 39.37 in (100 cm)

Data interface voltage differential 400 - 700 mV

Drive voltages 3.3 V, 5V, 12 V

Jumpers for configuring drive N/A

Data transfer rate 1.5 Gb/s

SATA connectors on the system board are color coded to make identification easier.

SATA Identification Color

Primary channel, device 0 Blue

Secondary channel, device 0 White

4.1.1 SATA Data Cable

The SATA data cable is a thin, 7-pin cable designed to transmit data for only a single drive. As shown in the table, each cable has three grounds, and four transmit/receive pins.

SATA data cables are susceptible to damage if overflexed. Never crease a SATA data cable and never bend it tighter than a 30 mm (1.18 in) radius.

Serial and Parallel ATA Drive Guidelines and Features

Pin Number Usage Device Plug Host Plug

P1 Ground Ground Ground

P2* A+ Transmit data Receive data

P3* A- Transmit data Receive data

P4 Ground Ground Ground

P5** B- Receive data Transmit data

P6** B+ Receive data Transmit data

P7 Ground Ground Ground

*P2 and P3 differential signal pair **P5 and P6 differential signal pair

4.1.2 SATA Power Cable

Pin Usage Notes Pin Usage Notes

P1 V3.3 3.3 V power P9 V5 5 V power

P2 V3.3 3.3 V power P10 Ground

P3 V3.3 3.3 V power P11 Reserved

P4 Ground P12 Ground

P5 Ground P13 V 12 12 V power

P6 Ground P14 V12 12 V power

P7 V5 5 V power P15 V12 12 V power

P8 V5 5 V power

4.2 PATA Hard Drive Information

Characteristic PATA

Number of pins/conductors in data cable 40/80

Number of pins in power cable 4

Maximum data cable length 18 in (45.7 cm)

Data interface voltage 5 V

Drive voltages 5 V, 12 V

Jumpers for configuring drive Required

Data transfer rate up to 1.0 Gb/s

4–2 361685-001 Service Reference Guide, dx5150

4.2.1 PATA Data Cable

Pin Signal Pin Signal Pin Signal

Serial and Parallel ATA Drive Guidelines and Features

1 2 3 4 5

6 7 8 9 10

11 12 13 14

Reset Ground DD7 DD8 DD6

DD9 DD5 DD10 DD4 DD11

DD3 DD12 DD2 DD13

4.2.2 PATA Power Cable

Pin Usage

1 +12 V

2Ground

15 16 17 18 19

20 21 22 23 24

25 26 27 28

DD1 DD14 DD0 DD15 Ground

(Key) DMARQ Ground DIOW Ground

DIOR Ground IORDY CSEL

29 30 31 32 33

34 35 36 37 38

39 40

DMAK Ground INTRQ IOCS16 DA1

PDIAG (cable detect) DA0 DA2 CS1FX CS3FX

DASP Ground

3Ground

4 +5 V

Service Reference Guide, dx5150 361685-001 4–3

Serial and Parallel ATA Drive Guidelines and Features

4.2.3 PATA Cable Layout

The faces of industry-standard cable connectors are color-coded for easy recognition:

■ System board connector = blue face

■ Device 0 connector = black face

■ Device 1 connector = gray face

The color code of an industry-standard cable is applicable only if the drive’s jumper is in the

✎

cable-select position.

Single-Drive Cable

System

Board

Blue Face

Two-Drive Cable

System

Board

Blue Face

On a two-drive cable, the Drive/Device 0 connector is always the farthest one from the system board connector and the Drive/Device 1 connector is always the closest to the system board connector.

Some cables may be labeled “Drive 0” instead of “Device 0” and “Drive 1” instead of

✎

“Device 1”.

Device 1

Gray

Face

Device 0

Black

Face

Device 0

Black

Face

4.3 PATA Drive Installation Guidelines

CAUTION: HP only supports a PATA hard drive in SATA systems when the PATA hard drive is used in

a MultiBay device.

This computer system board has one Parallel ATA (PATA) channel.

The channel can have up to two devices attached to it. All drives are connected to a channel using an industry-standard 80-conductor cable.

The industry standard 1.44 MB diskette drive has its own separate channel and is not included as

✎

a part of the maximum four drives.

4–4 361685-001 Service Reference Guide, dx5150

The drive attached to a channel must have a drive designation. If a drive is attached to the Device 0 cable position and its cable-select jumper is present, the drive is designated as Device

0. Similarly, if a drive is attached to the Device 1 cable position and its cable-select jumper is present, the drive is designated as Device 1.

For optimal performance of a computer system, all drives need to be attached to the PATA channel(s) in a specified sequence. This sequence is determined by the device class of the drives and by specific attach sequence rules.

4.3.1 PATA Device Classes

To determine the best drive attach sequence, ATA/ATAPI drives are segregated into four different classes based upon the bandwidth demands they place on an ATA channel. The most demanding devices are in Class 1 and the least demanding are in Class 4.

Serial and Parallel ATA Drive Guidelines and Features

Class 1

Hard

Drives

Only MultiBay hard drive is supported

Class 2

High Speed

Optical Drives

DVD DVD-CD R/W

General Attach Guidelines

■ The lower the device class number, the faster the device and the more bandwidth required.

■ A drive installed in the Device 0 position receives the greatest possible bandwidth.

4.4 ATA SMART Drives

The Self Monitoring Analysis and Recording Technology (SMART) ATA drives for the HP Personal Computers have built-in drive failure prediction that warns the user or network administrator of an impending failure or crash of the hard drive. The SMART drive tracks fault prediction and failure indication parameters such as reallocated sector count, spin retry count, and calibration retry count. If the drive determines that a failure is imminent, it generates a fault alert.

4.5 Drive Capacities

Class 3

Optical Storage

Drives

R/W CD-ROM CD-ROM

Class 4

Magnetic

Storage Drives

Zip

The combination of the file system and the operating system used in the computer determines the maximum usable size of a drive partition. A drive partition is the largest segment of a drive that the operating system can properly access. Therefore, a single hard drive can be subdivided into a number of unique drive partitions in order to make use of all of its space.

Because of the differences in the way that drive sizes are calculated, the size reported by the operating system may differ from that marked on the hard drive or listed in the computer specification. Drive size calculations by drive manufacturers are bytes to the base 10 while calculations by Microsoft are bytes to the base 2.

Service Reference Guide, dx5150 361685-001 4–5

Serial and Parallel ATA Drive Guidelines and Features

Drive/Partition Capacity Limits

Maximum Size

File

System

FAT 32 ATA Windows 2000/ XP 32 GB 128 PB

NTFS ATA Windows NT/2000/XP 2 TB 128 PB

Controller

Type Operating System

4.6 SATA BIOS

Windows 2000 and XP Windows 9x, NT, and Linux

Enhanced Mode (default BIOS Setting) —Separate IDE controller

• PATA Controller in Legacy Mode

- Device 0 is accessible as Device 0 of PATA controller’s Primary Channel

- Device 1 is accessible as Device 1 of PATA controller’s Primary Channel

• SATA Controller in Native Mode

- SATA 0 is accessible as Device 0 of SATA controller’s Primary Channel

- SATA 1 is accessible as Device 0 of SATA controller’s Secondary Channel SATA 2 is accessible as Device 1 of SATA controller’s Primary Channel

- SATA 3 is accessible as Device 1 of SATA controller’s Secondary Channel

Partition Drive

Compatibility Mode (non-default BIOS Setting) —Combined IDE controller

• PATA Controller in Legacy Mode

- Device 0 is accessible as Device 0 of the combined controller’s Secondary Channel

- Device 1 is accessible as Device 1 of the combined controller’s Secondary Channel

• SATA Controller in Legacy Mode

- SATA 0 is accessible as Device 0 of the combined controller’s Primary Channel

- SATA 1 is inaccessible

- SATA 2 is accessible as device 1 of the combined controller’s Primary Channel

- SATA 3 is inaccessible

4.6.1 Legacy Mode

Use Legacy mode to access devices attached to the embedded IDE controller. The channel requires two fixed I/O address ranges and an IRQ for each.

❏ Command block: 1F0h - 1F7h

❏ Control block: 3F6h

❏ IRQ: 14

4–6 361685-001 Service Reference Guide, dx5150

Serial and Parallel ATA Drive Guidelines and Features

4.6.2 Native Mode

Use Native mode to access devices attached to add-in cards. Native mode is not supported by many legacy operating systems. PCI Plug-n-Play BIOS assigns addresses and the IRQ is shared with multiple controllers. The PCI Configuration Space contains Base Address Registers for the Command and Control Block.

■ Offset 10h—Primary Command base address

■ Offset 14h—Primary Control base address

■ Offset 18h—Secondary Command base address

■ Offset 1Ch—Secondary Control base address

4.7 Mixed Devices Boot and Drive Letter Ordering

HDD Boot and Drive

SATA Emulation Hard Drive Order

Letter Ordering

Separate IDE Controller (default). Used with Windows 2000 and XP.

Separate IDE Controller. Used with Windows 2000 and XP.

Combined with IDE Controller. Used with Windows 9x, NT, and Linux.

A. Integrated SATA B. Integrated IDE

A. Integrated IDE B. Integrated SATA

A. Integrated SATA B. Integrated IDE

A. Integrated IDE B. Integrated SATA

A1. SATA 0 A2. SATA 2 A3. SATA 1 A4. SATA 3 B1. IDE Device 0 B2. IDE Device 1

A1. IDE Device 0 A2. IDE Device 1 B1. SATA 0 B2. SATA 2 B3. SATA 1 B4. SATA 3

A1. SATA 0 A2. SATA 2 B1. IDE Device 0 B2. IDE Device 1

A1. IDE Device 0 A2. IDE Device 1 B1. SATA 0 B2. SATA 2

Service Reference Guide, dx5150 361685-001 4–7

Serial and Parallel ATA Drive Guidelines and Features

4–8 361685-001 Service Reference Guide, dx5150

Identifying the Chassis, Routine Care, and

Disassembly Preparation

This chapter provides general service information. To properly service the computer, you must adhere to the procedures and precautions described in this chapter.

CAUTION: When the computer is plugged into an AC power source, voltage is always applied to the

system board. You must disconnect the power cord from the power source before opening the computer to prevent system board or component damage.

Not all models are available in all chassis styles.

✎

5.1 Chassis Designations

5.1.1 Microtower (MT)

Service Reference Guide, dx5150 361685-001 5–1

Identifying the Chassis, Routine Care, and Disassembly Preparation

5.1.2 Small Form Factor (SFF)

5.2 Electrostatic Discharge Information

A sudden discharge of static electricity from your finger or other conductor can destroy static-sensitive devices or microcircuitry. Often the spark is neither felt nor heard, but damage occurs. An electronic device exposed to electrostatic discharge (ESD) may not appear to be affected at all and can work perfectly throughout a normal cycle. The device may function normally for a while, but it has been degraded in the internal layers, reducing its life expectancy.

Networks built into many integrated circuits provide some protection, but in many cases, the discharge contains enough power to alter device parameters or melt silicon junctions.

5–2 361685-001 Service Reference Guide, dx5150

5.2.1 Generating Static

The following table shows that:

■ Different activities generate different amounts of static electricity.

■ Static electricity increases as humidity decreases.

Event 55% 40% 10%

Identifying the Chassis, Routine Care, and Disassembly Preparation

Relative Humidity

Walking across carpet Walking across vinyl floor Motions of bench worker Removing DIPs* from plastic tube

Removing DIPs* from vinyl tray Removing DIPs* from Styrofoam Removing bubble pack from PCB Packing PCBs in foam-lined box

*These components are multi-packaged inside plastic tubes, trays, or Styrofoam.

7, 50 0 V

3,000 V

400 V 400 V

2,000 V

3,500 V

7,000 V

5,000 V

15,000 V

5,000 V

800 V 700 V

4,000 V

5,000 V 20,000 V 11,000 V

700 volts can degrade a product.

✎

5.2.2 Preventing Electrostatic Damage to Equipment

Many electronic components are sensitive to ESD. Circuitry design and structure determine the degree of sensitivity. The following packaging and grounding precautions are necessary to prevent damage to electric components and accessories.

■ To avoid hand contact, transport products in static-safe containers such as tubes, bags, or

boxes.

■ Protect all electrostatic parts and assemblies with conductive or approved containers or

packaging.

35,000 V 12,000 V

6,000 V 2,000 V

11,500 V 14,500 V 26,500 V 21,000 V

■ Keep electrostatic sensitive parts in their containers until they arrive at static-free stations.

■ Place items on a grounded surface before removing them from their container.

■ Always be properly grounded when touching a sensitive component or assembly.

■ Avoid contact with pins, leads, or circuitry.

■ Place reusable electrostatic-sensitive parts from assemblies in protective packaging or

conductive foam.

5.2.3 Personal Grounding Methods and Equipment

Use the following equipment to prevent static electricity damage to equipment:

■ Wrist straps are flexible straps with a maximum of one-megohm ± 10% resistance in the

ground cords. To provide proper ground, you must wear a strap snug against bare skin. The ground cord must be connected and fit snugly into the banana plug connector on the grounding mat or workstation.

Service Reference Guide, dx5150 361685-001 5–3

Identifying the Chassis, Routine Care, and Disassembly Preparation

■ Heel straps/Toe straps/Boot straps can be used at standing workstations and are

compatible with most types of shoes or boots. On conductive floors or dissipative floor mats, use them on both feet with a maximum of one-megohm ± 10% resistance between the operator and ground.

Static Shielding Protection Levels

Method Voltage

Antistatic plastic Carbon-loaded plastic Metallized laminate

1,500

7,500

15,000

5.2.4 Grounding the Work Area

To prevent static damage at the work area, use the following precautions:

■ Cover the work surface with approved static-dissipative material. Provide a wrist strap

connected to the work surface and properly grounded tools and equipment.

■ Use static-dissipative mats, foot straps, or air ionizers to give added protection.

■ Handle electrostatic sensitive components, parts, and assemblies by the case or PCB

laminate. Handle them only at static-free work areas.

■ Turn off power and input signals before inserting and removing connectors or test

equipment.

■ Use fixtures made of static-safe materials when fixtures must directly contact dissipative

surfaces.

■ Keep work area free of nonconductive materials such as ordinary plastic assembly aids and

Styrofoam.

■ Use conductive field service tools, such as cutters, screwdrivers, and vacuums.

5.2.5 Recommended Materials and Equipment

Materials and equipment recommended for use in preventing static electricity include:

■ Antistatic tape

■ Antistatic smocks, aprons, or sleeve protectors

■ Conductive bins and other assembly or soldering aids

■ Conductive foam

■ Conductive tabletop workstations with ground cord of one-megohm +/- 10% resistance

■ Static-dissipative table or floor mats with hard tie to ground

■ Field service kits

■ Static awareness labels

■ Wrist straps and footwear straps providing one-megohm +/- 10% resistance

■ Material handling packages

■ Conductive plastic bags

■ Conductive plastic tubes

5–4 361685-001 Service Reference Guide, dx5150

Identifying the Chassis, Routine Care, and Disassembly Preparation

■ Conductive tote boxes

■ Opaque shielding bags

■ Transparent metallized shielding bags

■ Transparent shielding tubes

5.3 Operating Guidelines

To prevent overheating and to help prolong the life of the computer:

■ Keep the computer away from excessive moisture, direct sunlight, and extremes of heat and

cold.

■ Operate the computer on a sturdy, level surface. Leave a 10.2-cm (4-inch) clearance on all

vented sides of the computer and above the monitor to permit the required airflow.

■ Never restrict the airflow into the computer by blocking any vents or air intakes. Do not place

the keyboard, with the keyboard feet down, directly against the front of the desktop unit as this also restricts airflow.

■ Occasionally clean the air vents on all vented sides of the computer. Lint, dust, and other

foreign matter can block the vents and limit the airflow.

■ Never operate the computer with the cover or side panel removed.

■ Do not stack computers on top of each other or place computers so near each other that they

are subject to each other’s re-circulated or preheated air.

■ If the computer is to be operated within a separate enclosure, intake and exhaust ventilation

must be provided on the enclosure, and the same operating guidelines listed above will still apply.

■ The computer is designed to operate continuously (24x7), provided that the operating

guidelines listed above are met.

■ Install or enable power management functions of the operating system or other software,

including sleep states.

5.4 Routine Care

5.4.1 General Cleaning Safety Precautions

1. Never use solvents or flammable solutions to clean the computer.

2. Never immerse any parts in water or cleaning solutions; apply any liquids to a clean cloth and then use the cloth on the component.

3. Always unplug the computer when cleaning with liquids or damp cloths.

4. Always unplug the computer before cleaning the keyboard, mouse, or air vents.

5. Disconnect the keyboard before cleaning it.

6. Wear safety glasses equipped with side shields when cleaning the keyboard.

Service Reference Guide, dx5150 361685-001 5–5

Identifying the Chassis, Routine Care, and Disassembly Preparation

5.4.2 Cleaning the Computer Case

Follow all safety precautions in Section 5.4.1, “General Cleaning Safety Precautions,” before cleaning the computer.

To clean the computer case, follow the procedures described below:

■ To remove light stains or dirt, use plain water with a clean, lint-free cloth or swab.

■ For stronger stains, use a mild dishwashing liquid diluted with water. Rinse well by wiping it

with a cloth or swab dampened with clear water.

■ For stubborn stains, use isopropyl (rubbing) alcohol. No rinsing is needed as the alcohol will

evaporate quickly and not leave a residue.

■ After cleaning, always wipe the unit with a clean, lint-free cloth.

■ Occasionally clean the air vents on the computer. Lint and other foreign matter can block the

vents and limit the airflow.

5.4.3 Cleaning the Keyboard

Follow all safety precautions in Section 5.4.1, “General Cleaning Safety Precautions,” before cleaning the keyboard.

To clean the tops of the keys or the keyboard body, follow the procedures described in

Section 5.4.2, “Cleaning the Computer Case.”

When cleaning debris from under the keys, review all rules in Section 5.4.1, “General Cleaning

Safety Precautions,” before following these procedures:

CAUTION: Use safety glasses equipped with side shields before attempting to clean debris from under

the keys.

■ You may remove visible debris underneath or between the keys by vacuuming or shaking.

■ You may use canned, pressurized air to clean debris from under the keys. Use caution, as too

much air pressure can dislodge lubricants applied under the wide keys.

■ If you remove a key, use a specially designed key puller to prevent damage to the keys. This

tool is available through many electronic supply outlets.

CAUTION: Never remove a wide leveled key (like the space bar) from the keyboard. If these keys are

improperly removed or installed, the keyboard may not function properly.

■ Clean under a key with a swab moistened with isopropyl alcohol and squeezed out. Be

careful not to wipe away lubricants necessary for proper key functions. Use tweezers to remove any fibers or dirt in confined areas. Allow the parts to air dry before reassembly.

5.4.4 Cleaning the Monitor

■ Wipe the monitor screen with a clean cloth moistened with water or with a towelette

designed for cleaning monitors. Do not use sprays or aerosols directly on the screen; the liquid may seep into the housing and damage a component. Never use solvents or flammable liquids on the monitor.

■ To clean the monitor body, follow the procedures in Section 5.4.2, “Cleaning the Computer

Case.”

5–6 361685-001 Service Reference Guide, dx5150

Identifying the Chassis, Routine Care, and Disassembly Preparation

5.4.5 Cleaning the Mouse

Before cleaning the mouse, ensure that the power to the computer is turned off.

■ Clean the mouse ball by first removing the retaining plate and the ball from the housing. Pull

out any debris from the ball socket and wipe the ball with a clean, dry cloth before reassembly.

■ To clean the mouse body, follow the procedures in Section 5.4, “Routine Care.”

5.5 Service Considerations

Listed below are some of the considerations that you should keep in mind during the disassembly and assembly of the computer.

5.5.1 Power Supply Fan

The power supply fan is a variable-speed fan based on the temperature in the power supply.

CAUTION: The cooling fan is always on when the computer is either in the “On,” “Standby,” or

“Suspend” modes. The cooling fan of off when the computer is in “Standby,” “Suspend,” or “OFF” modes. You must disconnect the power cord from the power source before opening the computer to prevent system board or component damage.

5.5.2 Tools and Software Requirements

To service the computer, you need the following:

■ Torx T-15 screwdriver (Compaq screwdriver with bits, PN 161946-001)

■ Torx T-15 screwdriver with small diameter shank (for certain front bezel removal)

■ Flat-bladed screwdriver (may sometimes use in place of the Torx screwdriver)

■ Phillips #2 screwdriver

■ Diagnostics software

■ Compaq tamper-resistant T-15 wrench (Smart Cover FailSafe Key, PN 166527-001) or

Compaq tamper-resistant bits (Smart Cover FailSafe Key, PN 166527-002)

5.5.3 Screws

The screws used in the computer are not interchangeable. They may have standard or metric threads and may be of different lengths. If an incorrect screw is used during the reassembly process, the screw can damage the unit. HP strongly recommends that you keep all screws removed during disassembly with the part that was removed, then returned to their proper locations.

Metric screws have a black finish.

✎

U.S. screws have a silver finish and are used only for the hard drive.

As you remove each subassembly from the computer, place the subassembly away from the work

✎

area to prevent damage.

Service Reference Guide, dx5150 361685-001 5–7

Identifying the Chassis, Routine Care, and Disassembly Preparation

5.5.4 Cables and Connectors

Most cables used in the unit are flat, flexible cables. You just handle these cables with care to avoid damage. Apply only the tension required to seat or unseat the cables during insertion or removal from the connector. Handle cables by the connector whenever possible. In all cases, avoid bending or twisting the cables, and ensure that the cables are routed in such a way that they cannot be caught or snagged by parts being removed or replaced.

CAUTION: When servicing this computer, ensure that you place cables in their proper location during

the reassembly process. Improper cable placement can damage the computer.

5.5.5 Hard Drives

Handle hard drives as delicate, precision components, avoiding all physical shock and vibration. This applies to failed drives as well as replacement spares.

■ If you must mail a drive, place the drive in a bubble-pack mailer or other suitable protective

packaging and label the package “Fragile: Handle With Care.”

■ Do not remove hard drives from the shipping package for storage. Keep hard drives in their

protective packaging until they are mounted in the CPU.

■ Avoid dropping drives from any height onto any surface.

■ If you are inserting or removing a hard drive, turn off the computer. Do not remove a hard

drive while the computer is on or in standby mode.

■ Before handling a drive, discharge yourself of static electricity. While handling a drive,

avoid touching the connector. For more information about preventing electrostatic damage, refer to

■ Do not use excessive force when inserting a drive.

■ Avoid exposing a hard drive to liquids, temperature extremes, or products that have magnetic

fields, such as monitors or speakers.

Section 5.2, “Electrostatic Discharge Information.”

5–8 361685-001 Service Reference Guide, dx5150

Identifying the Chassis, Routine Care, and Disassembly Preparation

5.5.6 Lithium Coin Cell Battery

The battery that comes with the computer provides power to the real-time clock and has a lifetime of about three years.

See the appropriate removal and replacement chapter for the chassis you are working on in this guide for replacement procedures.

WARNING: This computer contains a lithium battery. There is a risk of fire and chemical burns if the

battery is handled improperly. Do not disassemble, crush, puncture, short external contacts, dispose in water or fire, or expose it to temperatures higher than 60ºC (140ºF).

CAUTION: Batteries, battery packs, and accumulators should not be disposed of together with the

general household waste.

Service Reference Guide, dx5150 361685-001 5–9

Identifying the Chassis, Routine Care, and Disassembly Preparation

5–10 361685-001 Service Reference Guide, dx5150

Removal and Replacement Procedures—

Microtower (MT) Chassis

Adherence to the procedures and precautions described in this chapter is essential for proper service. After completing all necessary removal and replacement procedures, run the Diagnostics utility to verify that all components operate properly.

Not all features listed in this guide are available on all computers.

✎

6.1 Preparation for Disassembly

See Chapter 5, “Identifying the Chassis, Routine Care, and Disassembly Preparation,” for initial procedures.

1. Remove/disengage any security devices that prohibit opening the computer (Section 6.2.1,

“Installing a Cable Lock,” and Section 6.2.2, “Installing a Padlock”).

2. Close any open software applications.

3. Exit the operating system.

4. Remove any diskette, compact disc, or MultiBay device from the computer.

5. Turn off the computer and any peripheral devices that are connected to it.

CAUTION: Turn off the computer before disconnecting any cables.

CAUTION: Regardless of the power-on state, voltage is always present on the system board as long as

the system is plugged into an active AC outlet. In some systems, the cooling fan is on even when the computer is in the “Standby” or “Suspend” mode. Always disconnect the power cord before servicing a unit.

6. Disconnect the power cord from the electrical outlet and then from the computer.

7. Disconnect all peripheral device cables from the computer.

During disassembly, label each cable as you remove it, noting its position and routing. Keep all

✎

screws with the units removed.

CAUTION: The screws used in the computer are of different thread sizes and lengths; using the wrong

screw in an application may damage the unit.

Service Reference Guide, dx5150 361685-001 6–1

Removal and Replacement Procedures— Microtower (MT) Chassis

6.2 External Security Devices

6.2.1 Installing a Cable Lock

The cable lock may be used to secure the computer access panel to the chassis and, at the same time, secure the computer to a fixed object.

6.2.2 Installing a Padlock

A padlock may be used by itself to secure the access panel to the computer chassis. A padlock may also be used with a security cable to secure the computer to a fixed object.

6–2 361685-001 Service Reference Guide, dx5150

6.3 Access Panel

1. Prepare the computer for disassembly (Section 6.1, “Preparation for Disassembly”).

CAUTION: Before removing the computer access panel, ensure that the computer is turned off and that

the power cord is disconnected from the electrical outlet.

2. Loosen the captive thumbscrew 1 that secures the access panel to the computer chassis.

3. Slide the access panel 2 back about 2.5 cm (1 inch), then lift it off the unit.

You may want to lay the computer on its side to install internal parts. Make sure the side with the

✎

access panel and pull grip is facing up.

Removal and Replacement Procedures— Microtower (MT) Chassis

To install the access panel, reverse the removal procedure.

Service Reference Guide, dx5150 361685-001 6–3

Removal and Replacement Procedures— Microtower (MT) Chassis

6.4 Front Bezel

1. Prepare the computer for disassembly (Section 6.1, “Preparation for Disassembly”).

2. Remove the access panel (Section 6.3, “Access Panel”).

3. To remove the front bezel, press in on the two bottom tabs on the side of the bezel 1 so that they release from the chassis. Then press in on the upper tab on the side of the bezel so that it releases from the chassis. The bezel will rotate out slightly 2.

To reinstall the front bezel,

1. Position the chassis in the upright position.

2. Insert the two hooks on the right side of the bezel 1 into the rectangular holes on the chassis then rotate the bezel into place 2 so that the three tabs on the left side of the bezel and the single tab on the upper right corner of the bezel snap into the slots on the chassis.

6–4 361685-001 Service Reference Guide, dx5150

6.5 Front Drive Bezels

1. Prepare the computer for disassembly (Section 6.1, “Preparation for Disassembly”).

2. Remove the access panel (Section 6.3, “Access Panel”).

3. Remove the front bezel (Section 6.4, “Front Bezel”)

6.5.1 5.25" Drive Bezel Blank

Press the two retaining tabs on the inside of the large bezel 1 towards the outside of the bezel to release the bezel blank. At the same time, pull the bezel blank in 2 to remove it from the front bezel.

Removal and Replacement Procedures— Microtower (MT) Chassis

To install a bezel blank, reverse the removal procedure.

Service Reference Guide, dx5150 361685-001 6–5

Removal and Replacement Procedures— Microtower (MT) Chassis

6.5.2 Diskette Drive Bezel

Press the two upper 1 or the two lower 2 tabs for the diskette drive bezel towards the center of the drive bezel and push the bezel out to remove it from the front bezel.

To install a bezel or a bezel blank, reverse the removal procedure.

6.5.3 3.5" Drive Bezel Blank

Press the two upper 1 or the two lower 2 tabs for the 3.5" drive bezel towards the center of the

3.5" drive bezel and push the bezel blank out to remove it from the front bezel.

To install a bezel blank, reverse the removal procedure.

6–6 361685-001 Service Reference Guide, dx5150

Removal and Replacement Procedures— Microtower (MT) Chassis

6.6 Cable Management

Always follow good cable management practices when working inside the computer.

■ Keep cables away from major heat sources like the heatsink.

■ Do not jam cables on top of expansion cards or memory modules. Printed circuit cards like

these are not designed to take excessive pressure on them.

■ Keep cables clear of sliding or moveable parts to prevent their being cut or crimped when the

parts are moved.

■ When folding a flat ribbon cable, never fold to a sharp crease. Sharp creases may damage the

wires.

■ Some flat ribbon cables come prefolded. Never change the folds on these cables.

■ Do not bend any cable sharply. A sharp bend can break the internal wires.

■ Never bend a SATA data cable tighter than a 30 mm (1.18 in) radius.

■ Never crease a SATA data cable.

■ Do not rely on components like the drive cage, power supply, or computer cover to push

cables down into the chassis. Always position the cables to lay properly by themselves.

When removing the power supply power cables from the P1 or P3 connectors on the system board, always follow these steps:

1. Squeeze on the top of the retaining latch attached to the cable end of the connector 1.

2. Grasp the cable end of the connector and pull it straight up 2.

CAUTION: Always pull the connector - NEVER pull on the cable. Pulling on the cable could damage the

cable and result in a failed power supply.

Service Reference Guide, dx5150 361685-001 6–7

Removal and Replacement Procedures— Microtower (MT) Chassis

6.6.1 Cable Connections

Cable To Cable Designator

Power Supply System board P1

Power Supply System board P5

Power Supply 1st SATA Hard drive P7

Power Supply 2nd SATA Hard drive P6

Power Supply 1st Optical drive P2

Power Supply 2nd Optical drive P3

Power Supply Diskette drive P4

Power Supply 5.25” Zip drive P3

Cable To PCA Designator

Diskette drive System board FDD1 (Black)

1st SATA Hard drive System board SATA 1 (Blue)

2nd SATA Hard drive System board SATA 2 (White)

ODD Data System board IDE1 (Blue)

ODD Audio (if required) System board CD_IN1 (Black)

2nd ODD Audio (if required) System board AUX_IN1 (Yellow)

Heatsink fan System board CPU_FAN

Secondary system fan System board CHASSIS_FAN

Front LED power on button System board F_P1

Front I/O USB System board JUSB1 (Yellow)

Front I/O Audio System board AUD1 (Black)

Speaker System board SPKR

Serial port connector System board COM1

TCIP Security module System board JTPM1

6–8 361685-001 Service Reference Guide, dx5150

6.7 Memory Modules

CAUTION: The memory module sockets have gold metal contacts. When upgrading the memory, it is

important to use memory modules with gold metal contacts to prevent corrosion and/or oxidation resulting from having incompatible metals in contact with each other.

Static electricity can damage the electronic components of the computer or optional cards. Before beginning these procedures, ensure that you are discharged of static electricity by briefly touching a grounded metal object. Refer to Chapter

When handling a memory module, be careful not to touch any of the contacts. Doing so may damage the module.

1. Prepare the computer for disassembly (Section 6.1, “Preparation for Disassembly”).

2. Remove the access panel and rotate the computer so the system board is parallel to the table to make it easier to work on ( Cover Lock, use Computer Setup to unlock the lock.

WARNING: To reduce risk of personal injury from hot surfaces, allow the internal system components to

cool before touching.

Removal and Replacement Procedures— Microtower (MT) Chassis

5 for more information.

Section 6.3, “Access Panel”). If you have locked the Smart

3. Open both latches of the memory module socket 1, and insert the memory module into the socket 2. Begin by installing a module into the socket nearest the preinstalled module, and install the modules following the numerical order of the sockets.

You can install a memory module in only one way. Match the notch on the module with the tab

✎

on the memory socket.

4. Push the module down into the socket, ensuring that the module is fully inserted and properly seated. Make sure the latches are in the closed position 3.

5. Repeat steps 3 and 4 for any additional modules that you want to install.

To reassemble the computer, reverse the removal procedure.

Service Reference Guide, dx5150 361685-001 6–9

Removal and Replacement Procedures— Microtower (MT) Chassis

6.8 Expansion Cards

6.8.1 Expansion Slot Cover

1. Prepare the computer for disassembly (Section 6.1, “Preparation for Disassembly”).

2. Remove the access panel and rotate the computer so the system board is parallel to the table to make it easier to work on (

3. On the rear of the computer, remove the retaining screw and slide the slot cover lock up to access the expansion slot covers.

Section 6.3, “Access Panel”).

For instructions on PCI expansion cards see Section 6.8.2, “PCI Expansion Card.”

6–10 361685-001 Service Reference Guide, dx5150

6.8.2 PCI Expansion Card

For preliminary steps, see Section 6.8.1, “Expansion Slot Cover.”

1. Lay the computer on its side with the open side facing up.

If replacing a PCI expansion card go to step 2.

If installing a PCI expansion card for the first time in a computer, skip to step 5.

2. When removing an expansion card from a standard expansion socket, hold the card at each end, and carefully rock it back and forth until the connectors pull free from the socket.

3. Pull the expansion card straight up from the socket 1 then away from the inside of the chassis 2 to maneuver the card out of the computer.

CAUTION: Make sure not to scrape the card against the other components.

Removal and Replacement Procedures— Microtower (MT) Chassis

CAUTION: After removing an expansion card, you must replace it with a new card or cover the open

slot (for example, with a metal slot cover or a piece of cardboard taped in place) for proper cooling of internal components during operation.

4. Store the old card in the anti-static packaging that contained the new card.

5. If you are installing a PCI expansion card for the first time in this computer, you will need to remove the correct expansion slot cover at this time.

Service Reference Guide, dx5150 361685-001 6–11

Removal and Replacement Procedures— Microtower (MT) Chassis

6. When installing an expansion card, hold the card just above the expansion slot on the system board then move the card toward the rear of the chassis so that the bracket on the card is aligned with the open slot on the rear of the chassis 1.

7. Press the card straight down into the expansion slot on the system board 2.

Press firmly on the card so that the whole connector seats properly in the expansion card slot.

✎

8. Slide the slot cover lock down toward the expansion card brackets and slot covers to secure them in place.

6–12 361685-001 Service Reference Guide, dx5150

6.9 Drives

The computer supports up to six drives that may be installed in various configurations.

This Section describes the procedure for replacing or upgrading the storage drives. A Torx T-15 screwdriver is needed to remove and install the guide screws on a drive.

CAUTION: Make sure personal files on the hard drive are backed up to an external storage device

before removing the hard drive. Failure to do so will result in data loss. After replacing the primary hard drive, you will need to run the Restore CD to load the factory-installed files.

6.9.1 Drive Positions

Removal and Replacement Procedures— Microtower (MT) Chassis

Drive Positions

Item Description Item Description

1 Optical drive* 4 Bay for optional 3.5" drive

2 Second optical drive 5 Primary hard drive

3 Diskette drive (optional) 6 Optional hard drive

* CD-ROM, CD-R/RW, DVD-ROM, DVD-R/RW, or CD-RW/DVD Combo drive.

Service Reference Guide, dx5150 361685-001 6–13

Removal and Replacement Procedures— Microtower (MT) Chassis

6.9.2 Removing a Drive

1. Prepare the computer for disassembly (Section 6.1, “Preparation for Disassembly”).

2. Remove the access panel and rotate the computer so the system board is parallel to the table to make it easier to work on (

3. Remove the front bezel (Section 6.4, “Front Bezel”).

4. Disconnect the audio, data, and power cables from the back of the drive, as shown in the following illustrations:

Disconnecting Optical Drive Cables

Audio cable is 1, data cable is 2, and power cable is 3.

Section 6.3, “Access Panel”).

6–14 361685-001 Service Reference Guide, dx5150

Removal and Replacement Procedures— Microtower (MT) Chassis

Disconnecting Diskette Drive Cables

Data cable is 1 and power cable is 2.

Disconnecting Hard Drive Cables

Power cable is 1, data cable is 2.

Service Reference Guide, dx5150 361685-001 6–15

Removal and Replacement Procedures— Microtower (MT) Chassis

Releasing the Drives

5. A latch drive bracket with release tabs secures the drives in the drive bay. Lift the release tab on the latch drive bracket 1 for the drive you want to remove, then slide the drive from its drive bay

6. Remove the four guide screws (two on each side) from the old drive. You will need these screws to install a new drive.

6–16 361685-001 Service Reference Guide, dx5150

6.9.3 Installing a Drive

CAUTION: To prevent loss of work and damage to the computer or drive:

■ If you are inserting or removing a hard drive, shut down the operating system properly, then turn off

the computer. Do not remove a hard drive while the computer is on or in standby mode.

■ Before handling a drive, ensure that you are discharged of static electricity. While handling a drive,

avoid touching the connector. For more information about preventing electrostatic damage, refer to

Chapter 5, “Identifying the Chassis, Routine Care, and Disassembly Preparation,” for more

information

■ Handle a drive carefully; do not drop it.

■ Do not use excessive force when inserting a drive.

■ Avoid exposing a hard drive to liquids, temperature extremes, or products that have magnetic fields

such as monitors or speakers.

1. Install four guide screws (two on each side) into the new drive. The screws help guide the drive into its proper position in the bay.

❏ If this is a new installation, guide screws are provided on the front of the chassis under

the front bezel.

❏ If this is a replacement drive, use the screws taken from the old drive.

Removal and Replacement Procedures— Microtower (MT) Chassis

There are a total of eight extra guide screws on the front of the chassis. Four have U.S. threads

✎

and four have metric threads. Metric screws have a black finish. U.S. threaded screws have a silver finish and are only used for hard drives. Make sure to install the appropriate guide screws into the drive.

2. Align the guide screws with the guide slots, then slide the drive into the drive bay, making sure it is fully seated.

Service Reference Guide, dx5150 361685-001 6–17

Removal and Replacement Procedures— Microtower (MT) Chassis

3. Reconnect all cables to the drive as shown in the following illustrations.

Refer to Chapter 4, Section 4.3, “PATA Drive Installation Guidelines,” for information on

✎

attaching the cabling to get optimum performance.

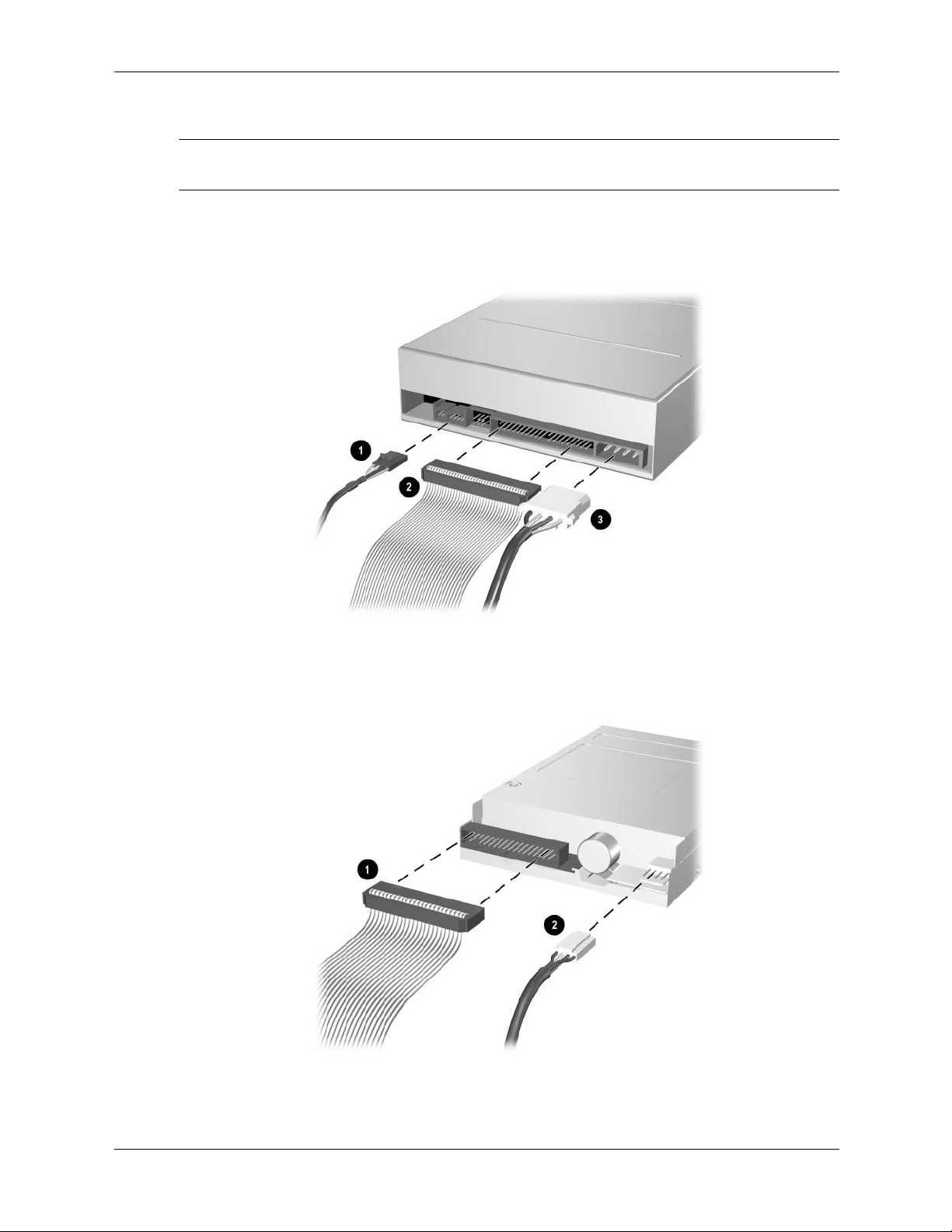

Connecting Optical Drive Cables

Audio cable is 1, data cable is 2, power cable is 3.

Connecting Diskette Drive Cables

Data cable is 1, power cable is 2.

6–18 361685-001 Service Reference Guide, dx5150

Removal and Replacement Procedures— Microtower (MT) Chassis

Connecting Hard Drive Cables

Power cable is 1, data cable is 2.

4. Install the front bezel (Section 6.4, “Front Bezel”).

5. Install the access panel (Section 6.3, “Access Panel”).

6. Turn on the computer.

If you replaced the primary hard drive, you may use the restore CD to restore the operating

✎

system, software drivers, and/or any software applications that were preinstalled on the computer. Follow the instructions in the guide included with the restore CD. When the restore process has completed, reinstall any personal files that were backed up before replacing the hard drive.

Service Reference Guide, dx5150 361685-001 6–19

Removal and Replacement Procedures— Microtower (MT) Chassis

6.10 Chassis Fan

1. Prepare the computer for disassembly (Section 6.1, “Preparation for Disassembly”).

2. Remove the access panel and rotate the computer so the system board is parallel to the table to make it easier to work on (

3. Disconnect the power cable that connects the chassis fan to the system board 1.

4. Remove the four screws from the rear of the chassis 2 that secure the fan.

5. Remove the fan from the chassis 3.

Section 6.3, “Access Panel”).

To install the chassis fan, reverse the removal procedure.

6–20 361685-001 Service Reference Guide, dx5150

Removal and Replacement Procedures— Microtower (MT) Chassis

6.11 Front I/O Panel Housing Assembly

1. Prepare the computer for disassembly (Section 6.1, “Preparation for Disassembly”).

2. Remove the access panel and rotate the computer so the system board is parallel to the table to make it easier to work on (

3. Disconnect the following three attaching cables from the system board:

❏ power switch/LED cable

❏ front USB cable

❏ front audio cable

4. Remove the two screws 1 that secure the housing to the chassis and then pull the housing 2 away from the chassis.

Section 6.3, “Access Panel”).

To install the housing assembly, reverse the removal procedures.

Service Reference Guide, dx5150 361685-001 6–21

Removal and Replacement Procedures— Microtower (MT) Chassis

6.12 Front I/O Devices

1. Prepare the computer for disassembly (Section 6.1, “Preparation for Disassembly”).

2. Remove the access panel and rotate the computer so the system board is parallel to the table to make it easier to work on (

3. Remove the front I/O panel assembly (Section 6.11, “Front I/O Panel Housing Assembly”).

4. Remove the two screws 1 that hold the USB and audio port assembly in place.

5. Remove the I/O device assembly from the I/O panel 2 by pushing it out of the housing.

Section 6.3, “Access Panel”).

To install the I/O devices, reverse the removal procedures and then reinstall the housing assembly.

6–22 361685-001 Service Reference Guide, dx5150

Removal and Replacement Procedures— Microtower (MT) Chassis

6.13 Power Switch Assembly

1. Prepare the computer for disassembly (Section 6.1, “Preparation for Disassembly”).

2. Remove the access panel and rotate the computer so the system board is parallel to the table to make it easier to work on (

3. Remove the front I/O panel assembly (Section 6.11, “Front I/O Panel Housing Assembly”).

4. Squeeze the switch holder retaining clips together 1 and push the switch assembly out of the front I/O panel housing.

5. From the inside of the I/O panel assembly, spread the clips 2 that secure the LEDs in place, and then push the LEDs out of the retainers from the front side.

6. If necessary, compress the retaining clips on the LED holders and push the holders out of the front of the I/O panel housing.

7. Remove the switch from the switch holder 3.

Section 6.3, “Access Panel”).

8. To install the power switch assembly install the switch into the switch holder.

Service Reference Guide, dx5150 361685-001 6–23

Removal and Replacement Procedures— Microtower (MT) Chassis

9. Place the switch holder with switch installed into the inside of the front I/O panel housing and position the legs of the retaining clip into the clip slots. Press firmly so that the clips will penetrate the slot openings and latch into place. If one clip will not easily engage, it may be necessary to use the end of a ball point pen (or another thin, stiff object) to compress the clip leg while inserting it into the clip slot.

10. Push the LEDs into the their retainers. The power LED (having the blue and black leads) should be to the right when viewed from the front of the computer.

11. Reconnect the housing assembly to the front of the chassis and reconnect the cables to the system board.

6–24 361685-001 Service Reference Guide, dx5150

6.14 Heatsink

1. Prepare the computer for disassembly (Section 6.1, “Preparation for Disassembly”).

2. Remove the access panel and rotate the computer so the system board is parallel to the table to make it easier to work on (

3. Disconnect the heatsink fan cable 1 from the system board.

4. Loosen the two screws 2 that secure the heatsink to the processor.

5. Twist the heatsink to break the bond between it and the processor.

6. Lift the heatsink 3 from the processor.

Removal and Replacement Procedures— Microtower (MT) Chassis

Section 6.3, “Access Panel”).

To install a heatsink, reverse the removal procedure.

CAUTION: Always refresh the thermal grease when reinstalling a heatsink.

Service Reference Guide, dx5150 361685-001 6–25

Removal and Replacement Procedures— Microtower (MT) Chassis

6.15 Processor

1. Prepare the computer for disassembly (Section 6.1, “Preparation for Disassembly”).

2. Remove the access panel and rotate the computer so the system board is parallel to the table to make it easier to work on (

3. Remove the heatsink (Section 6.14, “Heatsink”)

4. Rotate the ZIF socket handle to its fully open position 1.

5. Carefully lift the processor from the socket 2.

Section 6.3, “Access Panel”).

To install a new processor:

1. Insert the processor into the socket.

2. Secure the locking lever.

If reusing the existing heatsink, go to step 3.

If using a new heatsink, go to step 5.

3. If reusing the existing heatsink clean bottom of the heatsink and apply the thermal grease found in the spares kit to the top of the processor.

4. Clean the bottom of the heatsink with the provided alcohol pad and place it atop the processor.

Go to step 6.

5. If using a new heatsink, remove the protective covering from the bottom of the heatsink and place it in position atop the processor.

6. Secure the heatsink to the system board and system board tray with the two captive screws and attach the heatsink control cable to the system board.

After installing a new processor onto the system board, always update the system ROM to ensure

✎

that the computer is using the latest version of the BIOS. You can find the latest system ROMPaq on the Web at: http://h18000.www1.hp.com/support/files.

6–26 361685-001 Service Reference Guide, dx5150

6.16 System Board

1. Prepare the computer for disassembly (Section 6.1, “Preparation for Disassembly”).

2. Remove the access panel and rotate the computer so the system board is parallel to the table to make it easier to work on (

3. Remove all PCI expansion cards (Section 6.8.2, “PCI Expansion Card”).

4. Remove the memory modules (Section 6.7, “Memory Modules”).

5. Remove the heatsink (Section 6.14, “Heatsink”).

6. Remove the processor (Section 6.15, “Processor”).

7. Disconnect all cables connected to the system board, noting their location for reinstallation.

8. Remove the eight screws that secure the system board to the chassis, then slide the board toward the front of the computer until the rear I/O connectors clear the chassis.

Removal and Replacement Procedures— Microtower (MT) Chassis

Section 6.3, “Access Panel”).

CAUTION: When installing a new system board, you must attach a new processor backing

plate to the system board. The heatsink will not attach properly if this plate is not installed.

Service Reference Guide, dx5150 361685-001 6–27

Removal and Replacement Procedures— Microtower (MT) Chassis

To install a processor backing plate:

1. Lay the new system board top down on a padded surface to protect the board from damage.

2. Remove the protective paper shield 1 from the mounting surface of the backing plate.

3. Position the mounting plate studs over the back of the sytem board 2 and press the plate firmly to the system board so the studs penetrate the mounting holes.

To complete the installation of the system board, reverse the removal procedures.

6–28 361685-001 Service Reference Guide, dx5150

6.17 Battery

The battery that comes with your computer provides power to the real-time clock and has a lifetime of about three years. When replacing the battery, use a battery equivalent to the battery originally installed on the computer. The computer comes with a 3-volt lithium coin cell battery.

You can extend the lifetime of the lithium battery by plugging the computer into a live AC wall

✎

socket. The computer uses the lithium battery only when NOT connected to AC power.

WARNING: This computer contains an internal lithium manganese dioxide battery. There is a risk of fire and

chemical burns if the battery is not handled properly. To reduce the risk of personal injury:

■ Do not attempt to recharge the battery.

■ Do not expose to temperatures higher than 140°F (60°C)

■ Do not disassemble, crush, puncture, short external contacts, or dispose of in fire or

water.

■ Replace the battery only with the HP/Compaq spare designated for this product.

CAUTION: Before replacing the battery, it is important to back up the computer CMOS settings. When

the battery is removed or replaced, the CMOS settings will be cleared. Refer to the Troubleshooting Guide for information on backing up the CMOS settings.

Removal and Replacement Procedures— Microtower (MT) Chassis

Batteries, battery packs, and accumulators should not be disposed of together with the general

household waste. In order to forward them to recycling or proper disposal, please use the public collection system or return them to HP/Compaq, their authorized partners, or their agents.

CAUTION: Static electricity can damage the electronic components of the computer or optional

equipment. Before beginning these procedures, ensure that you are discharged of static electricity by briefly touching a grounded metal object.

1. Prepare the computer for disassembly (Section 6.1, “Preparation for Disassembly”).

2. Remove the access panel and rotate the computer so the system board is parallel to the table to make it easier to work on (

You may need to remove an expansion card to gain access to the battery.

Section 6.3, “Access Panel”).

✎

3. Locate the battery and battery holder on the system board.

4. Depending on the type of battery holder on your system board, complete the following instructions to replace the battery:

Service Reference Guide, dx5150 361685-001 6–29

Removal and Replacement Procedures— Microtower (MT) Chassis

6.17.1 Type 1 Battery Holder

1. Lift the battery out of its holder.

2. Slide the replacement battery into position, positive side up. The battery holder automatically secures the battery in the proper position.

3. Replace the computer cover or access panel (Section 6.3, “Access Panel”).

4. Plug in and turn on power to the computer.

5. Using Computer Setup, reset the date and time, passwords, and any special system setups. For more information, refer to the Computer Setup (F10) Utility Guide.

6–30 361685-001 Service Reference Guide, dx5150

6.17.2 Type 2 Battery Holder

1. To release the battery from its holder, squeeze the metal clamp that extends above one edge of the battery 1. When the battery pops up, lift it out.

2. To insert the new battery, slide one edge of the replacement battery under the holder’s lip 2 with the positive side up. Push the other edge down until the clamp snaps over the other edge of the battery.

Removal and Replacement Procedures— Microtower (MT) Chassis

After replacing the battery, use the following steps to complete this procedure.

✎

3. Replace the computer cover or access panel (Section 6.3, “Access Panel”).

4. Plug in and turn on power to the computer.

5. Using Computer Setup, reset the date and time, passwords, and any special system setups. For more information, refer to the Computer Setup (F10) Utility Guide.

Service Reference Guide, dx5150 361685-001 6–31

Removal and Replacement Procedures— Microtower (MT) Chassis

6.17.3 Type 3 Battery Holder

1. To release the battery from its holder, press back lever 1 that extends above one edge of the battery.

2. When the battery pops up, lift it out 2.

3. To insert the new battery, push it down into the holder with the positive side to the left as shown in the drawing above.

4. Replace the computer access panel (Section 6.3, “Access Panel”).

5. Plug in the computer and turn on power.

6. Using Computer Setup, reset the date and time, passwords, and any special system setups. For more information, refer to the Computer Setup (F10) Utility Guide.

6–32 361685-001 Service Reference Guide, dx5150

6.18 Speaker

1. Prepare the computer for disassembly (Section 6.1, “Preparation for Disassembly”).

2. Remove the access panel and rotate the computer so the system board is parallel to the table to make it easier to work on (

3. Move/remove any components necessary to gain access to the speaker.

4. Disconnect the speaker wire from the system board connector.

5. Remove the two screws 1, that secure the speaker to the chassis.

6. Remove the speaker 2.

Removal and Replacement Procedures— Microtower (MT) Chassis

Section 6.3, “Access Panel”).

To install the speaker, reverse the removal procedures.

Service Reference Guide, dx5150 361685-001 6–33

Removal and Replacement Procedures— Microtower (MT) Chassis

6.19 Power Supply

WARNING: Voltage is always present on the system board when the computer is plugged into an

active AC outlet. To avoid possible personal injury and damage to the equipment, disconnect the power cord from the computer and/or the AC outlet before opening the computer.

1. Prepare the computer for disassembly (Section 6.1, “Preparation for Disassembly”).

2. Remove the access panel and rotate the computer so the system board is parallel to the table to make it easier to work on (

3. Disconnect all power cables from the mass storage devices and from the system board.

4. Remove the screws that connect the power supply to the chassis 1.

5. Slide the power supply toward the front of the computer, then lift it out of the computer 2.

Section 6.3, “Access Panel”).

To install the power supply, reverse the removal procedure.

6–34 361685-001 Service Reference Guide, dx5150

Removal and Replacement Procedures—

Small Form Factor (SFF) Chassis

Not all features listed in this guide are available on all computers.

✎

7.1 Prepara t i o n for D i s ass e m b ly

See Chapter 5, “Identifying the Chassis, Routine Care, and Disassembly Preparation,” for initial procedures.

1. Remove/disengage any security devices that prohibit opening the computer (Section 7.2,

“External Security Devices”).

2. Close any open software applications.

3. Exit the operating system.

4. Remove any diskette, compact disc, or MultiBay device from the computer.

5. Turn off the computer and any peripheral devices that are connected to it.

CAUTION: Turn off the computer before disconnecting any cables.

CAUTION: Regardless of the power-on state, voltage is always present on the system board as long as

the system is plugged into an active AC outlet. In some systems the cooling fan is on even when the computer is in the “Standby” or “Suspend” modes. Always disconnect the power cord before servicing a unit.

6. Disconnect the power cord from the electrical outlet and then from the computer.

7. Disconnect all peripheral device cables from the computer.

During disassembly, label each cable as you remove it, noting its position and routing. Keep all

✎

screws with the units removed.

CAUTION: The screws used in the computer are of different thread sizes and lengths; using the wrong

screw in an application may damage the unit.

Service Reference Guide, dx5150 361685-001 7–1

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

7.2 External Security Devices

7.2.1 Cable L o c k

The cable lock may be used to secure the computer access panel to the chassis and, at the same time, secure the computer to a fixed object.

As shown, there are two acceptable methods for using the cable lock. While both methods work, for added security, HP recommends that you use the method shown on the left where the cable lock penetrates both the access panel and the chassis.

7–2 361685-001 Service Reference Guide, dx5150

7.2.2 Padloc k

A padlock may be used by itself to secure the access panel to the computer chassis. A padlock may also be used with a security cable to secure the computer to a fixed object.

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

Service Reference Guide, dx5150 361685-001 7–3

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

7.3 Co m p uter A c c ess Panel

1. Prepare the computer for disassembly (Section 7.1, “Preparation for Disassembly”).

CAUTION: Before removing the computer access panel, ensure that the computer is turned off and that

the power cord is disconnected from the electrical outlet.

2. Pull up and hold open the latch on the top of the computer 1.

3. Slide the computer access panel 2 back about 1.3 cm (0.5 inch), then lift it off the unit.

When installing the access panel, press down on its center to ensure the latches are properly secured while sliding it into the locked position.

7–4 361685-001 Service Reference Guide, dx5150

7.4 Front Bezel

1. Prepare the computer for disassembly (Section 7.1, “Preparation for Disassembly”).

2. Remove the computer access panel (Section 7.3, “Computer Access Panel”).

3. Pull up on the three release tabs 1 on the top of the bezel, then pull the front bezel away from the chassis 2.

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

To reinstall the front bezel, reverse the removal procedure

Service Reference Guide, dx5150 361685-001 7–5

Removal and Replacement Procedures— Small Form Factor (SFF) Chassis

7.5 Front Drive Bezels

1. Prepare the computer for disassembly (Section 7.1, “Preparation for Disassembly”).

2. Remove the computer access panel (Section 7.3, “Computer Access Panel”).

3. Remove the front bezel (Section 7.4, “Front Bezel”).

4. Press the large retaining tab 1 on the side of the bezel insert as shown then, push the bezel insert out of the front bezel 2.

To install a bezel or a bezel blank, reverse the removal procedure.

7–6 361685-001 Service Reference Guide, dx5150

HP dx5150 User Manual 2

Specifications and Main Features

Frequently Asked Questions

User Manual

Contents

Installing the Operating System

1.1 Installing or Upgrading Device Drivers

1.2 Transferring Files and Settings

1.3 Backing Up and Restoring Files

1.4 Converting to NTFS

1.5 HP Software
