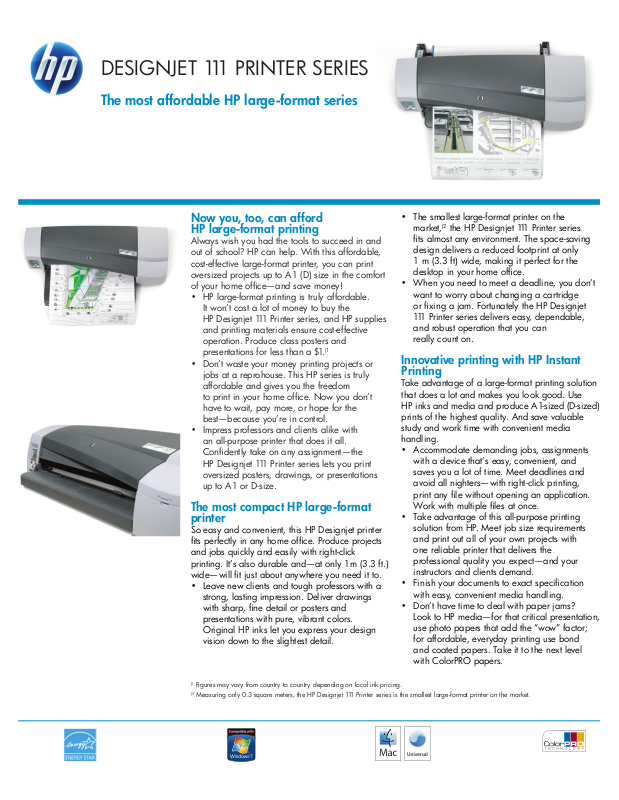

DESIGNJET 111 PRINTER SERIES

The most affordable HP large-format series

Now you, too, can afford HP large-format printing

Always wish you had the tools to succeed in and out of school? HP can help. With this affordable, cost-effective large-format printer, you can print oversized projects up to A1 (D) size in the comfort of your home ofce—and save money!

• HP large-format printing is truly affordable. It won’t cost a lot of money to buy the HP Designjet 111 Printer series, and HP supplies and printing materials ensure cost-effective operation. Produce class posters and presentations for less than a $1.

• Don’t waste your money printing projects or jobs at a reprohouse. This HP series is truly affordable and gives you the freedom to print in your home ofce. Now you don’t have to wait, pay more, or hope for the best—because you’re in control.

• Impress professors and clients alike with an all-purpose printer that does it all. Condently take on any assignment—the HP Designjet 111 Printer series lets you print oversized posters, drawings, or presentations up to A1 or D-size.

The most compact HP large-format printer

So easy and convenient, this HP Designjet printer ts perfectly in any home ofce. Produce projects and jobs quickly and easily with right-click printing. It’s also durable and—at only 1m (3.3 ft.) wide—will t just about anywhere you need it to.

• Leave new clients and tough professors with a strong, lasting impression. Deliver drawings with sharp, ne detail or posters and presentations with pure, vibrant colors. Original HP inks let you express your design vision down to the slightest detail.

• The smallest large-format printer on the market,(2 the HP Designjet 111 Printer series ts almost any environment. The space-saving design delivers a reduced footprint at only 1 m (3.3 ft) wide, making it perfect for the desktop in your home ofce.

• When you need to meet a deadline, you don’t want to worry about changing a cartridge or xing a jam. Fortunately the HP Designjet 111 Printer series delivers easy, dependable, and robust operation that you can really count on.

Innovative printing with HP Instant Printing

Take advantage of a large-format printing solution that does a lot and makes you look good. Use HP inks and media and produce A1-sized (D-sized) prints of the highest quality. And save valuable study and work time with convenient media handling.

• Accommodate demanding jobs, assignments with a device that’s easy, convenient, and saves you a lot of time. Meet deadlines and avoid all nighters—with right-click printing, print any le without opening an application. Work with multiple les at once.

• Take advantage of this all-purpose printing solution from HP. Meet job size requirements and print out all of your own projects with one reliable printer that delivers the professional quality you expect—and your instructors and clients demand.

• Finish your documents to exact specication with easy, convenient media handling.

• Don’t have time to deal with paper jams? Look to HP media—for that critical presentation, use photo papers that add the “wow” factor; for affordable, everyday printing use bond and coated papers. Take it to the next level with ColorPRO papers.

Figures may vary from country to country depending on local ink pricing.

Measuring only 0.3 square meters, the HP Designjet 111 Printer series is the smallest large-format printer on the market.

DESIGNJET 111 PRINTER SERIES

TECHNICAL SPECIFICATIONS

Line drawings(1 90 sec/page on A1/D, 11 A4/letter prints per minute

Color images(2 Fast: 90 sec/page on A1/D on coated media

Best: 21.5 min/page on A1/D on glossy media

Print resolution Up to 1200 x 600 dpi

Margins Roll: 5 x 5 x 5 x 5 mm (0.2 x 0.2 x 0.2 x 0.2 in)

(top x bottom x left x right) Sheet: 5 x 12 x 5 x 5 mm (0.2 x 0.47 x 0.2 x 0.2 in)

Technology HP Thermal Inkjet

Ink cartridge colors Cyan, magenta, yellow, black

Ink types Dye-based (color); pigment-based (black)

Ink drop 4 pl (C, M, Y), 18 pl (K)

Ink cartridge size 69 ml (black)

28 ml (cyan, magenta, yellow)

Line accuracy +/- 0.2%

Guaranteed minimum 0.04 mm (0.001 in) (ISO/IEC 13660:2001(E))

line width

Media

Handling With roll: Front manual single-sheet feed, rear manual path for thick media, manual roll

feed with auto cutter

With tray: Input tray, front manual single-sheet feed, rear manual path for thick media

Types Bond and coated paper (coated, heavyweight coated, plain), technical (natural tracing,

translucent, vellum), lm, photo (high-gloss, semi-gloss), proong (high-gloss contract,

semi-gloss contract, matte, semi-gloss)

Weight 60 to 210 g/m² (17 to 56 lb)

Size Tray 1: 76 x 142 to 457 x 610 mm (3 x 5.6 to 18 x 24 in); manual sheet feed: 110 x 205

to 625 x 1625 mm (4.3 x 8.1 to 24.6 x 64 in); rear path: 110 x 205 to 625 x 1625 mm

(4.3 x 8.1 to 24.6 x 64 in); roll feed: up to 609 mm (24 in)

Thickness Tray 1: up to 8 mil; envelopes: up to 15 mil; front path: up to 8 mil; rear path: up to 15 mil

Connectivity

Interfaces (standard) Full-Speed USB 1.1, Centronics parallel IEEE-1284 (ECP compliant), EIO Jetdirect

accessory slot

Print languages PCL 3 GUI

Drivers (included) HP PCL 3 GUI driver for Windows® (optimized for AutoCAD 2000 and higher); HP PCL 3

GUI driver for Mac OS X; support for Citrix XenApp and Citrix XenServer environments

Software solutions

HP Instant Printing: Easily and quickly print your les in large-format with the simple click

of a button. More information: www.hp.com/go/hpinstantprintingutility

Dimensions (w x d x h)

Printer With roll: 1042 x 495 x 220 mm (41 x 19.5 x 8.7 in)

With tray: 1042 x 579 x 220 mm (41 x 22.8 x 8.7 in)

Shipping With roll: 1192 x 545 x 453 mm (46.9 x 21.5 x 17.8 in);

With tray: 1192 x 545 x 493 mm (46.9 x 21.5 x 19.4 in)

Weight

Printer With roll: 23 kg (50.7 lb); With tray: 22 kg (48.5 lb)

Shipping With roll: 34.3 kg (75.5 lb); With tray: 34 kg (75 lb)

What’s in the box

HP Designjet 111 Printer, printheads, introductory ink cartridges, quick reference guide,

setup poster, documentation and drivers software, power cord

Environmental ranges

Operating temperature 5 to 40° C (41 to 104º F)

Storage temperature -20 to 55º C (-4 to 131º F)

Operating humidity 20 to 80% RH

Acoustic

Sound pressure, active 50 dB(A)

Sound pressure, standby 37 dB(A)

Sound power, active 6.2 B(A)

Sound power, standby 5.4 B(A)

Power

Maximum 45 watts

Powersave < 15 watts

Off 0.1 watts

Requirements Input voltage (auto ranging) 100 to 240 VAC (+/- 10%), 50/60 Hz (+/- 3 Hz), 2 A max

Certication

Safety IEC 60950-1 ITE product compliant, EU (LVD and EN 60950-1 compliant), CSA Certied

for US and Canada, Mexico (NOM), Argentina (IRAM), China (CCC), Singapore (PSB),

Russia (GOST)

Electromagnetic Compliant with requirements for Class B ITE products, EU (EMC Directive), US (FCC rules),

Canada (DOC), Australia (ACA), New Zealand (MoC), China (CCC), Japan (VCCI),

Class A for Korea (KCC)

Environmental WEEE, EU RoHS, China RoHS, REACH, EuP, FEMP

ENERGY STAR® see: www.hp.com/go/energystar .

qualied models

Warranty

One-year limited hardware warranty

ORDERING INFORMATION

Product

CQ532A HP Designjet 111 24-in Printer with Roll

CQ533A HP Designjet 111 24-in Printer with Tray

Accessories

Q1246B HP Designjet 1xx/5xx Mono 24-in Stand

Q1264A HP Designjet 1xx 24-in Spindle

C7797A HP Designjet Manual Roll Feed (only available for Printer with Tray)

J7961G HP Jetdirect 635n IPv6/IPsec Print Server

Original HP printheads

C4810A HP 11 Black Printhead

C4811A HP 11 Cyan Printhead

C4812A HP 11 Magenta Printhead

C4813A HP 11 Yellow Printhead

Original HP ink cartridges

CH565A HP 82 69-ml Black Ink Cartridge

C4836A HP 11 Cyan Ink Cartridge

C4837A HP 11 Magenta Ink Cartridge

C4838A HP 11 Yellow Ink Cartridge

Original HP large-format printing materials

HP Bright White Inkjet Paper with C1860A, C1861A, C6035A, C6036A, C6810A, Q1444A,

ColorPRO Technology Q1445A, Q1446A

HP Universal Bond Paper with ColorPRO Technology Q1396A, Q1397A, Q1398A, Q8003A, Q8004A, Q8005A

HP Recycled Bond Paper CG889A, CG890A, CG891A

HP Heavyweight Coated Paper C6029C, C6030C, C6569C, C6570C, C6977C, Q1956A,

Q1957A

HP Universal Heavyweight Coated Paper Q1412A, Q1413A, Q1414A, Q1416A

HP Universal Coated Paper Q1404A, Q1405A, Q1406A, Q1408A

HP Coated Paper C6019B, C6020B, C6567B, C6568B, C6980A, Q1441A,

Q1442A, Q1443A

HP Natural Tracing Paper Q1439A , C3869A, C3868A

HP Translucent Bond Paper C3860A, C3868A

HP Vellum Paper C3861A, C3862A

HP Matte Film 51642A, 51642B

HP Universal High-gloss Photo Paper Q1426A, Q1427A, Q1428A, Q1429A, Q1430A

HP Universal Semi-gloss Photo Paper Q1420A, Q1421A, Q1422A, Q1423A, Q1424A

For more HP large-format printing materials and detailed information on sizes and region availability, please visit us online at: www.hp.com/go/lfprinting/materials-supplies

Service and support

UV230E HP 3 year Next Business Day Onsite Support

UV233E HP 3 year 4 hour response, 9x5 Onsite Support

UV236E HP 3 year 4 hour response, 13x5 Onsite Support

UV239PE HP 1 year, Post Warranty, Next Business Day Onsite Support

UV240PE HP 2 year Post Warranty, Next Business Day Onsite Support

UV241PE HP 1 year Post Warranty, 4 hour response, 9x5 Onsite Support

UV242PE HP 1 year Post Warranty, 4 hour response, 13x5 Onsite Support

UC744E HP Network Installation Service Designjet 400-6100 SVC

Mechanical printing time. Printed in Fast mode on HP Bright White Inkjet Paper (Bond).

Mechanical printing time.

+/- 0.2% of the specied vector length or +/- 0.1 mm (whichever greater) at 23º C (73º F), 50-60% relative humidity, on A0/E

HP Matte Film in Best or Normal mode.

Measured on HP Matte Film.

With the addition of ColorPRO Technology, HP papers provide professional quality and striking results at production speed for high-quality, high-productivity printing of graphics and technical applications.

For more information, visit our website at www.hp.com/go/designjet111
