HP D7Q14A4, D7Q13A4 User manual

HP Z22i and Z23i IPS Displays

User Guide

Microsoft® and Windows® are U.S. registered trademarks of Microsoft Corporation.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

This document contains proprietary information that is protected by copyright. No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of Hewlett-Packard Company.

First Edition (March 2013)

Document Part Number: 723951-001

About This Guide

This guide provides information on monitor features, setting up the monitor, and technical specifications.

WARNING! Text set off in this manner indicates that failure to follow directions could result in bodily

harm or loss of life.

CAUTION: Text set off in this manner indicates that failure to follow directions could result in

damage to equipment or loss of information.

NOTE: Text set off in this manner provides important supplemental information.

iii

iv About This Guide

Table of contents

1 Product Features ............................................................................................................................................ 1

HP IPS Monitors ................................................................................................................................... 1

2 Setting Up the Monitor ................................................................................................................................... 3

Unfolding the Monitor ........................................................................................................................... 3

Rear Components ................................................................................................................................ 4

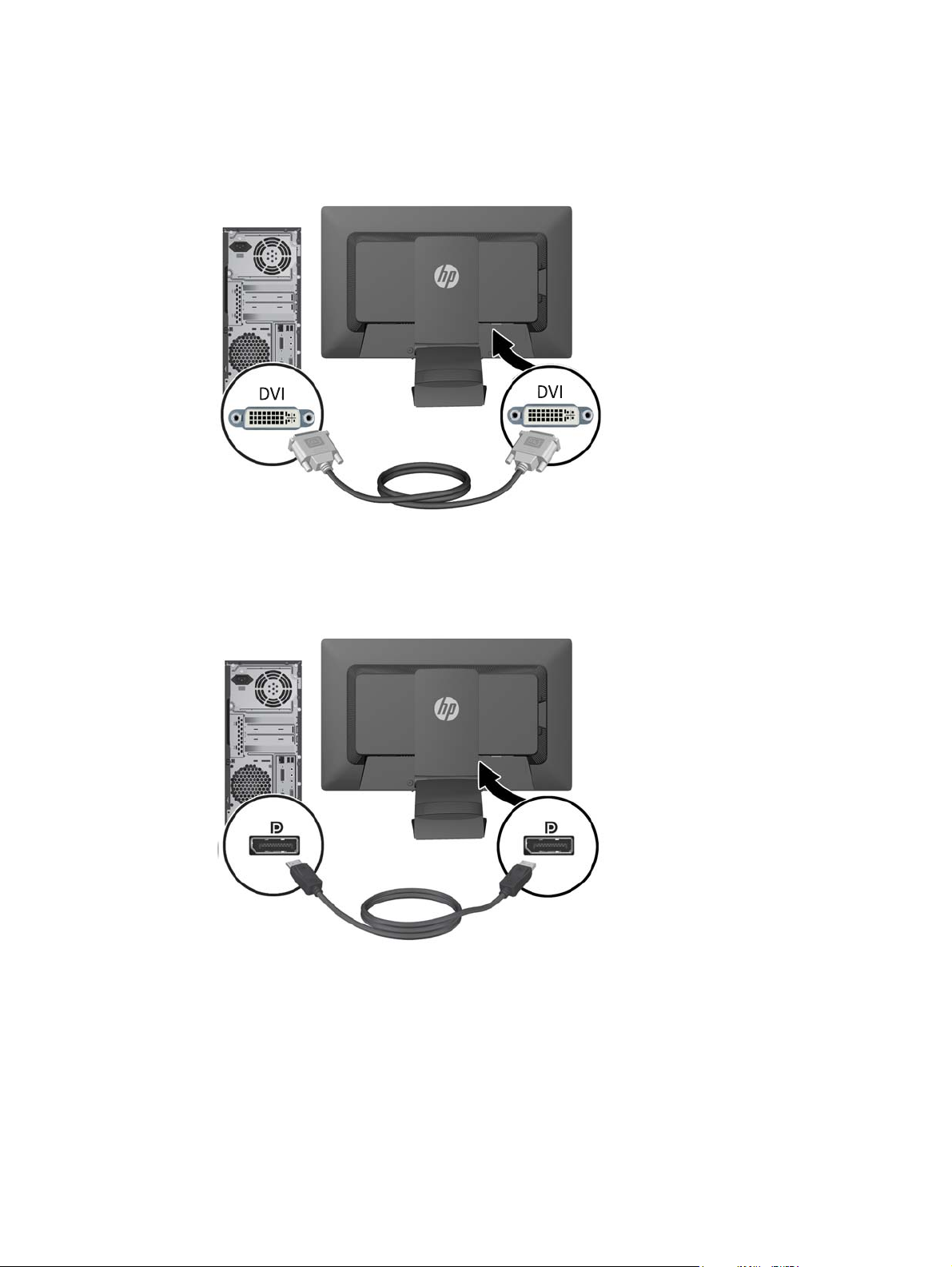

Connecting the Cables ......................................................................................................................... 5

Front Panel Controls ............................................................................................................................ 9

Adjusting the Monitor .......................................................................................................................... 10

Turning on the Monitor ....................................................................................................................... 12

HP Watermark and Image Retention Policy ....................................................................................... 13

Connecting USB Devices ................................................................................................................... 14

Removing the Monitor Stand .............................................................................................................. 15

Mounting the Monitor ......................................................................................................... 16

Locating the Rating Labels ................................................................................................................. 17

Installing a Cable Lock ....................................................................................................................... 17

3 Finding More Information ............................................................................................................................. 18

Reference Guides .............................................................................................................................. 18

Product Support ................................................................................................................................. 18

Appendix A Technical Specifications ............................................................................................................ 19

Z22i Model .......................................................................................................................................... 19

Z23i Model .......................................................................................................................................... 19

Recognizing Preset Display Resolutions ............................................................................................ 20

Z22i Model ......................................................................................................................... 20

Z23i Model ......................................................................................................................... 21

Entering User Modes .......................................................................................................................... 21

Energy Saver Feature ........................................................................................................................ 22

1 Product Features

HP IPS Monitors

The LCD (liquid crystal display) monitors have an active matrix, In-Plane Switching (IPS) panel. The monitor models and features include:

● Z22i model, 54.6 cm (21.5-inch) diagonal viewable area display with 1920 x 1080 resolution,

plus full-screen support for lower resolutions; includes custom scaling for maximum image size while preserving original aspect ratio

Z23i model, 58.4 cm (23-inch) diagonal viewable area display with 1920 x 1080 resolution, plus

●

full-screen support for lower resolutions; includes custom scaling for maximum image size while preserving original aspect ratio

● Non-glare panel with an LED backlight

Wide viewing angle to allow viewing from a sitting or standing position, or moving side-to-side

●

Tilt capability

●

● Pivot capability to rotate display to portrait mode

● Swivel and height adjustment capabilities

Removable stand for flexible monitor panel mounting solutions

●

Video signal input to support VGA analog (cables are provided with select models)

●

● Video signal input to support DVI digital (cables are provided with select models)

Video signal input to support DisplayPort digital (cables are provided with select models)

●

USB 2.0 hub with one upstream port (connects to the computer) and two downstream ports

●

(connects to USB devices)

● USB cable provided to connect the monitor's USB hub to the USB connector on the computer

Supports an optional HP speaker bar

●

Plug and play capability if supported by your operating system

●

● Privacy filter slots to insert filters (purchased separately) to block side screen viewing

Security slot provision on rear of monitor for optional cable lock

●

Cable management feature for placement of cables and cords

●

On-Screen Display (OSD) adjustments in several languages for easy setup and screen

●

optimization

HP Display Assistant for adjusting monitor settings and enabling theft deterrence features

●

HDCP copy protection on DVI and DisplayPort inputs

●

● Software and documentation CD that includes monitor drivers and product documentation

HP IPS Monitors 1

Energy saver feature to meet requirements for reduced power consumption

●

● Safety guidelines, certifications, and regulatory notices for these products are available in the HP

LCD Monitors Reference Guide on the CD included with this monitor.

2 Chapter 1 Product Features

2 Setting Up the Monitor

To set up the monitor, ensure that the power is turned off to the monitor, computer system, and other attached devices, then follow the instructions below.

Unfolding the Monitor

1. Lift the monitor from its box and place it face down on a flat surface.

2. Hold down the monitor stand with one hand (1) then grasp the top of the display with the other

hand and unfold the display head 90 degrees (2).

CAUTION: Do not touch the surface of the LCD panel. Pressure on the panel may cause non-

uniformity of color or disorientation of the liquid crystals. If this occurs the screen will not recover to its normal condition.

NOTE: When the monitor is unfolded for the first time, the display head is locked from adjusting to a

full-height position. To adjust the display head to full height, press down on the display head to unlock it then pull up on the display head to raise it to the full-height position. Refer to step 3 in

Monitor on page 10.

Unfolding the Monitor 3

Adjusting the
