HP CQ43 User Manual

Compaq Presario CQ43 Notebook PC

Maintenance and Service Guide

AMD, the AMD Arrow logo, and combinations thereof, are trademarks of Advanced Micro Devices, Inc. Bluetooth is a trademark owned by its proprietor and used by Hewlett-Packard Company under license. Intel, Celeron, Core, and Pentium are trademarks of Intel Corporation in the U.S. and other countries. Microsoft and Windows are U.S. registered trademarks of Microsoft Corporation. SD Logo is a trademark of its proprietor.

The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Third Edition: July 2011

First Edition: March 2011

Document Part Number: 642130-003

Safety warning notice

WARNING! To reduce the possibility of heat-related injuries or of overheating the device, do not

place the device directly on your lap or obstruct the device air vents. Use the device only on a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to contact the skin or a soft surface, such as pillows or rugs or clothing, during operation. The device and the AC adapter comply with the user-accessible surface temperature limits defined by the International Standard for Safety of Information Technology Equipment (IEC 60950).

iii

iv Safety warning notice

Table of contents

1 Product description ........................................................................................................... 1

2 External component identification ..................................................................................... 8

Display ................................................................................................................................... 8

Button ..................................................................................................................................... 9

Keys ..................................................................................................................................... 10

Lights .................................................................................................................................... 11

TouchPad .............................................................................................................................. 12

Left side ................................................................................................................................ 13

Right side .............................................................................................................................. 14

Bottom .................................................................................................................................. 15

3 Illustrated parts catalog .................................................................................................. 16

Service tag ............................................................................................................................ 16

Computer major components ................................................................................................... 18

Cable Kit .............................................................................................................................. 23

Display assembly subcomponents ............................................................................................. 24

Mass storage devices ............................................................................................................. 26

Miscellaneous parts ................................................................................................................ 27

Plastics Kit ............................................................................................................................. 28

Sequential part number listing .................................................................................................. 29

4 Removal and replacement procedures ............................................................................ 34

Preliminary replacement requirements ....................................................................................... 34

Tools required ......................................................................................................... 34

Service considerations ............................................................................................. 34

Plastic parts ............................................................................................. 34

Cables and connectors ............................................................................. 34

Drive handling ......................................................................................... 35

Grounding guidelines .............................................................................................. 35

Electrostatic discharge damage .................................................................. 35

Packaging and transporting guidelines ........................................ 37

Component replacement procedures ........................................................................................ 39

Service tag ............................................................................................................. 39

Computer feet ......................................................................................................... 40

Battery ................................................................................................................... 41

WLAN module ........................................................................................................ 42

Memory module ...................................................................................................... 45

Hard drive ............................................................................................................. 46

Optical drive (select models only) .............................................................................. 49

Keyboard ............................................................................................................... 51

Top cover ............................................................................................................... 54

Power button board ................................................................................................. 58

TouchPad button board ............................................................................................ 59

Speakers ................................................................................................................ 61

USB board ............................................................................................................. 63

Power connector cable ............................................................................................ 64

Display assembly .................................................................................................... 66

System board ......................................................................................................... 73

Optical drive connector cable ................................................................................... 76

RTC battery ............................................................................................................ 78

Fan/heat sink assembly ........................................................................................... 80

Processor ............................................................................................................... 86

5 Setup Utility (BIOS) and System Diagnostics .................................................................... 88

Using Setup Utility .................................................................................................................. 88

Starting Setup Utility ................................................................................................ 88

Changing the language of Setup Utility ...................................................................... 88

Navigating and selecting in Setup Utility .................................................................... 89

Displaying system information ................................................................................... 89

Restoring factory settings in Setup Utility ..................................................................... 90

Exiting Setup Utility ................................................................................................. 90

Updating the BIOS .................................................................................................. 90

Determining the BIOS version .................................................................... 91

Downloading a BIOS update ..................................................................... 91

Using System Diagnostics ........................................................................................................ 92

6 Specifications ................................................................................................................. 93

Computer specifications .......................................................................................................... 93

14.0-inch display specifications ............................................................................................... 94

Hard drive specifications ........................................................................................................ 95

7 Backup and recovery ...................................................................................................... 96

Restore ................................................................................................................................. 96

Creating restore media ........................................................................................................... 97

Performing a system restore ..................................................................................................... 98

Restoring using the dedicated recovery partition (select models only) ............................. 98

Restoring using the restore media .............................................................................. 99

Changing the computer boot order ............................................................................ 99

Backing up and recovering your information ........................................................................... 100

Using Windows Backup and Restore ....................................................................... 101

Using Windows system restore points ...................................................................... 101

When to create restore points .................................................................. 101

Create a system restore point ................................................................... 102

Restore to a previous date and time .......................................................... 102

8 Power cord set requirements ........................................................................................ 103

Requirements for all countries ................................................................................................ 103

Requirements for specific countries and regions ....................................................................... 104

9 Recycling ...................................................................................................................... 105

Battery ................................................................................................................................ 105

Display ............................................................................................................................... 105

Index ............................................................................................................................... 111

vii

viii

1 Product description

Category Description Computer models

equipped with an AMD processor

Product Name Compaq Presario CQ43 Notebook PC √√

Processors AMD® E450 1.65-GHz processor

(dual core, 18 W)

AMD E300 1.30-GHz processor

(dual core, 18 W)

AMD E240 1.50-GHz processor

(single core, 18 W)

Intel® Core® i5-2430M 2.40-GHz

processor (1333-MHz FSB, 3.0MB L3 cache, dual core, 35 W; not available on computer models equipped with Windows 7 Starter 32 operating system)

Intel Core i5-2410M 2.30-GHz processor

(1333-MHz FSB, 3.0-MB L3 cache, dual core, 35 W)

Intel Core i3-2330M 2.20-GHz processor

(1333-MHz FSB, 3.0-MB L3 cache, dual core, 35 W; not available on computer models equipped with Windows 7 Starter 32 operating system)

√

Computer models equipped with an Intel processor

Intel Core i3-2310M 2.10-GHz processor

(1333-MHz FSB, 3.0-MB L3 cache, dual core, 35 W)

Intel Core i3-370M 2.40-GHz processor

(1066-MHz FSB, 3.0-MB L3 cache, dual core, 35 W; not available on computer models equipped with Windows 7 Starter 32 operating system)

Intel Pentium® P6300 2.26-GHz

processor (3.0-MB L3 cache, dual core, 35 W)

√

Category Description Computer models

equipped with an AMD processor

Computer models equipped with an Intel processor

Intel Pentium P6200 2.13-GHz processor

(3.0-MB L3 cache, dual core, 35 W)

Intel Pentium B950 2.10-GHz processor

(2.0-MB L2 cache, dual core, TJ85, 35 W; not available on computer models equipped with Windows 7 Starter 32 operating system)

Intel Pentium B940 2.00-GHz processor

(2.0-MB L2 cache, dual core, TJ85, 35 W; not available on computer models equipped with Windows 7 Starter 32 operating system)

Intel Celeron® DC T3500 2.10-GHz

processor (1.0-MB L2 cache, 800MHz FSB)

Intel Celeron SC C925 2.30-GHz

processor (1.0-MB L2 cache, 800MHz FSB)

Intel Celeron SC C900 2.20-GHz

processor (1.0-MB L2 cache, 800MHz FSB)

Chipset AMD A50M fusion controller hub (FCH) √

√

Northbridge:

●

Intel HM65 Express Chipset

●

Intel HM55 Express Chipset

●

Intel GM45

Southbridge: ICH9m

Graphics AMD Radeon™ HD 6320M and 6310M

discrete-class graphics supporting DX11, 64-bit, muxless, switchable

Support for high-definition DVD playback with HD-decode and DX10 and DX11 support

Internal graphics:

●

Intel HD Graphics 3000 on computer models equipped with an Intel Core i5 or i3 processor

●

Intel HD Graphics on computer models equipped with an Intel Celeron or Pentium processor

√

2 Chapter 1 Product description

Category Description Computer models

equipped with an AMD processor

Computer models equipped with an Intel processor

Discrete graphics: AMD Radeon HD

6370M Graphics with 512-MB of discrete video memory (64M×16 DDR3 900 MHz × 4 PCs)

Switchable discrete graphics (not

supported on computer models equipped with Windows 7 Starter OS): AMD Radeon HD 6470M Graphics with 512MB of discrete video memory (64M×16 DDR3 900 MHz × 4 PCs) or AMD Radeon HD 6470M Graphics with 1024-MB of discrete video memory (128M×16 DDR3 900 MHz × 4 PCs)

Support for high-definition DVD playback

with HD-decode ,and DX10 (UMA) and DX11 (discrete) support

Panel 14.0-in, high-definition (HD), light-emitting

diode (LED), SVA BrightView (1366×768) display; typical brightness: 200 nits

All display assemblies include 1 or 2 wireless local area network (WLAN) antenna cables

Supports 16:9 ultra wide aspect ratio

√

√√

Memory 2 customer-accessible/upgradable

memory module slots

Supports dual-channel memory √√

Supports up to 8192 GB of system RAM √√

DDR3/1333-MHz √√

Supports the following configurations:

●

8192-MB total system memory (4096×2; not supported on a 32-bit operating system)

●

4096-MB total system memory (4096×1 or 2048×2; not supported with Windows® 7 Starter OS)

●

3072-MB total system memory (2048×1 + 1024×1; not supported with Windows® 7 Starter OS)

●

2048-MB total system memory (2048×1 or 1024×2)

●

1024-MB total system memory (1024×1; not supported on a 64-bit operating system)

√√

Category Description Computer models

equipped with an AMD processor

Computer models equipped with an Intel processor

Hard drives Supports 6.35-cm (2.5-in) hard drives in

9.5-mm (.37-in) and 7.0-mm (.28-

in) thicknesses

Customer-accessible √√

Serial ATA √√

Supports the following hard drives:

●

500-GB, 5400-rpm

●

320-GB, 5400-rpm (for use only with computer models equipped with an Intel processor)

●

250-GB, 5400-rpm

Optical drive

(select models only)

Serial ATA √√

12.7-mm tray load √√

DVD±RW and CD-RW Super Multi Double-

Fixed √√

Layer Combo Drive with LightScribe (select models only)

√√

DVD±RW and CD-RW Drive √√

DVD-ROM Drive √√

Audio and video

HD audio √√

Presario-branded Altec/Lansing speakers √√

Supports Microsoft Premium requirements √√

HP VGA webcam (select models only,

Ethernet Integrated 10/100 network interface

Wireless Integrated wireless local area network

One or two WLAN antennas built into

Single digital microphone √√

√√

fixed, no tilt with activity LED, 640×480 by 24 frames per second

√√

card (NIC)

√√

(WLAN) options by way of wireless module

√√

display assembly

4 Chapter 1 Product description

Category Description Computer models

equipped with an AMD processor

Computer models equipped with an Intel processor

Support for the following WLAN formats:

●

Atheros AR9002WB-1NGB

802.11b/g/n 1x1 WiFi and Bluetooth 2.1+EDR Combo Adapter (BT3.0+HS ready)

●

Atheros 9485GN 802.11b/g/n 1×1 WiFi and 3012 Bluetooth 4.0 Combo Adapter

●

Broadcom 4313 802.11b/g/n 1×1 WiFi and 2070 Bluetooth 2.1+EDR Combo adapter (BT3.0+HS ready) for use only with computer models equipped with an Intel processor

●

Broadcom 4313GN 802.11b/g/n 1×1 WiFi and 20702 Bluetooth 4.0 Combo Adapter

●

Ralink 5390GN 802.11b/g/n 1x1 WiFi Adapter

●

Realtek 8188BC8 802.11a/b/g/n 2x2 WiFi and Bluetooth 3.0+HS Combo Adapter

√√

External media card

●

Realtek 8188GN 802.11b/g/n 1x1 WiFi Adapter

HP Multi-Format Digital Media Reader supports the following digital card formats:

●

MultiMediaCard (MMC)

●

Secure Digital (SD) Memory Card

●

Secure Digital High Capacity (SDHC) Memory Card

√√

Category Description Computer models

equipped with an AMD processor

Computer models equipped with an Intel processor

Ports

Keyboard/ pointing devices

TouchPad with multi-touch gestures, 2-

●

3-pin AC power

●

Audio-in (mono microphone)

●

Audio-out (stereo headphone)

●

HDMI version 1.4 supporting 1920 ×1200 @ 60Hz

●

RJ-45 (Ethernet, includes link and activity lights)

●

USB 2.0 (3 ports)

●

VGA (Dsub 15 pin) supporting 2048×1536 external resolution @ 85 Hz, 1920 ×1200 external resolution @ 60Hz, hot plug and unplug and auto-detection for correct output to wide-aspect vs. standard aspect video

Full-size 14-in, textured, pocket, keyboard with full numeric keypad

finger scrolling, and pinch-zoom enabled

√√

Taps enabled by default √√

Power requirements

90-W PFC RC V EM HP Smart AC adapter

Support for the following batteries:

65-W RC V HP Smart AC adapter with localized cable plug support (3-wire plug with ground pin, supports 3-pin DC connector)

with localized cable plug support (3-wire plug with ground pin, supports 3-pin DC connector)

90-W PFC RC V HP Smart AC adapter with localized cable plug support (3-wire plug with ground pin, supports 3-pin DC connector)

65-W RC V EM HP Smart AC adapter with localized cable plug support (3-wire plug with ground pin, supports 3-pin DC connector)

●

6-cell, 55-Whr, 2.55-Ah Li-ion battery

●

6-cell, 47-Whr, 2.20-Ah Li-ion battery

√

√√

Security Security cable slot √√

6 Chapter 1 Product description

Category Description Computer models

equipped with an AMD processor

Computer models equipped with an Intel processor

Operating system

Preinstalled:

●

Windows 7 Home Basic (64- and 32bit)

●

Windows 7 Home Premium (64-bit)

●

Windows 7 Professional (64-bit)

●

Windows 7 Starter (32-bit, not supported on computer models equipped with a 320-GB hard drive)

●

FreeDOS

●

Windows 7 Home Basic (64- and 32bit)

●

Windows 7 Home Premium (64-bit)

●

Windows 7 Professional (64-bit)

●

Windows 7 Starter (32-bit, not available on computer models equipped with a 320-GB hard drive)

●

FreeDOS

√

●

SuseLinux

Serviceability End-user replaceable parts:

●

AC adapter

●

Battery

●

Hard drive

●

Memory modules (2)

●

Optical drive

●

WLAN module

√√

2 External component identification

Display

Item Component Description

(1) Speakers (2) Produce sound.

(2) Internal display switch Turns off the display and initiates Sleep if the display is

(3) WLAN antennas (2)* (select models only) Send and receive wireless signals to communicate

(4) Webcam light On: The webcam is in use.

(5) Webcam Records video and captures still photographs.

8 Chapter 2 External component identification

closed while the power is on.

NOTE: The display switch is not visible from the outside

of the computer.

with WLANs.

To use the webcam, select Start > All Programs >

CyberLink YouCam > CyberLink YouCam.

Item Component Description

(6) Internal microphone Records sound.

*The antennas are not visible from the outside of the computer. For optimal transmission, keep the areas immediately around the antennas free from obstructions. To see wireless regulatory notices, refer to the section of the Regulatory, Safety, and Environmental Notices that applies to your country or region. These notices are located in Help and Support.

Button

Component Description

Power button

●

When the computer is off, press the button to turn on the computer.

●

When the computer is on, press the button briefly to initiate Sleep.

●

When the computer is in the Sleep state, press the button briefly to exit Sleep.

●

When the computer is in Hibernation, press the button briefly to exit Hibernation.

If the computer has stopped responding and Windows shutdown procedures are ineffective, press and hold the power button for at least 5 seconds to turn off the computer.

To learn more about your power settings, select Start >

Control Panel > System and Security > Power Options, or refer to the HP Notebook Reference Guide.

Button

Keys

Item Component Description

(1) esc key Displays system information when pressed in combination

with the fn key.

(2) fn key Displays system information when pressed in combination

with the esc key.

(3) Windows logo key Displays the Windows Start menu.

(4) Windows applications key Displays a shortcut menu for items beneath the pointer.

(5) Action keys Execute frequently used system functions.

10 Chapter 2 External component identification

Lights

Item Component Description

(1) TouchPad light

(2) Caps lock light On: Caps lock in on.

(3) Power light

(4) Wireless light

●

Off: The TouchPad is on.

●

Amber: The TouchPad is off.

●

On: The computer is on.

●

Blinking: The computer is in the Sleep state.

●

Off: The computer is off or in Hibernation.

●

White: An integrated wireless device, such as a WLAN device and/or a Bluetooth device, is on.

●

Amber: All wireless devices are off.

Lights

TouchPad

Item Component Description

(1) TouchPad light

(2) TouchPad on/off button Turns the TouchPad on and off.

(3) TouchPad zone Moves the pointer and selects or activates items on

(4) Left TouchPad button Functions like the left button on an external mouse.

(5) Right TouchPad button Functions like the right button on an external mouse.

●

Off: The TouchPad is on.

●

Amber: The TouchPad is off.

the screen.

12 Chapter 2 External component identification

Left side

Item Component Description

(1) External monitor port Connects an external VGA monitor or projector.

(2) Vents (2) Enable airflow to cool internal components.

(3) RJ-45 (network) jack Connects a network cable.

(4) HDMI port (select models only) Connects an optional video or audio device, such as a

NOTE: The computer fan starts up automatically to cool

internal components and prevent overheating. It is normal for the internal fan to cycle on and off during routine operation.

high-definition television, or any compatible digital or audio component.

(5) USB port Connect optional USB devices.

(6) Audio-in (microphone) jack Connects an optional computer headset microphone,

stereo array microphone, or monaural microphone.

(7) Audio-out (headphone) jack Produce sound when connected to optional powered

stereo speakers, headphones, ear buds, a headset, or television audio.

WARNING! To reduce the risk of personal injury,

adjust the volume before putting on headphones, earbuds, or a headset. For additional safety information, refer to the Regulatory, Safety, and Environmental Notices.

NOTE: When a device is connected to the jack, the

computer speakers are disabled.

(8) Digital Media Slot Supports the following digital card formats:

●

MultiMediaCard (MMC)

●

Secure Digital (SD) Memory Card

●

Secure Digital High Capacity (SDHC) Memory Card

●

Secure Digital Extended Capacity (SDxC) Memory Card

Left side

Item Component Description

(9) Hard drive light

(10) Power light

Right side

Item Component Description

●

Blinking white: The hard drive is being accessed.

●

Off: The hard drive is idle.

●

White: The computer is on.

●

Blinking white: The computer is in the Sleep state.

●

Off: The computer is off or in Hibernation.

(1) Optical drive (select models only) Reads and writes to an optical disc.

(2) Optical drive light

(3) USB ports (2) Connect optional USB devices.

(4) Power connector Connects an AC adapter.

(5) Battery/AC adapter light

(6) Security cable slot Attaches an optional security cable to the computer.

●

On: The optical drive is in use.

●

Off: The optical drive is idle.

●

White: The computer is connected to external power and the battery is fully charged.

●

Amber: A battery is charging.

●

Blinking amber: The battery has reached a low battery level, or there is a battery error. When a battery reaches a critical battery level, the battery light begins blinking rapidly.

NOTE: The security cable is designed to act as a

deterrent, but it may not prevent the computer from being mishandled or stolen.

14 Chapter 2 External component identification

Bottom

Item Component Description

(1) Battery bay Holds the battery.

(2) Battery release latch Releases the battery from the battery bay.

(3) Vents (5) Enable airflow to cool internal components.

NOTE: The computer fan starts up automatically to cool

internal components and prevent overheating. It is normal for the internal fan to cycle on and off during routine operation.

(4) Hard drive bay Holds the hard drive.

(5) Memory module compartment Contains the wireless LAN (WLAN) device and the

memory module slots.

CAUTION: To prevent an unresponsive system, replace

the wireless module only with a wireless module authorized for use in the computer by the governmental agency that regulates wireless devices in your country or region. If you replace the module and then receive a warning message, remove the module to restore computer functionality, and then contact technical support through Help and Support.

Bottom

3 Illustrated parts catalog

Service tag

When ordering parts or requesting information, provide the computer serial number and model description provided on the service tag.

Item Description Function

(1) Product name This is the product name affixed to the front of

(2) Serial number (s/n) This is an alphanumeric identifier that is unique to

16 Chapter 3 Illustrated parts catalog

the computer.

each product.

Item Description Function

(3) Part number/Product number (p/n) This number provides specific information about the

product's hardware components. The part number helps a service technician to determine what components and parts are needed.

(4) Warranty period This number describes the duration of the warranty

period for the computer.

(5) Model description This is the alphanumeric identifier used to locate

documents, drivers, and support for the computer.

Service tag

Computer major components

18 Chapter 3 Illustrated parts catalog

Item Component Spare part number

(1) 14.0-in, high definition (HD), light-emitting diode (LED), BrightView display assembly (includes

microphone and wireless antenna transceivers and cables):

For use only with computer models equipped with an AMD processor:

Equipped with webcam 663603-001

Not equipped with webcam 645986-001

For use only with computer models equipped with an Intel processor, equipped with

webcam

NOTE: For more display assembly spare part information, see

(2) Keyboard (includes keyboard cable):

For use with all computer models:

For use in Canada 646125-121

For use in Latin America 646125-161

For use in the United States 646125-001

For use only with computer models equipped with an Intel processor:

For use in Brazil 646125-201

For use in India 646125-D61

For use in South Korea 646125-AD1

For use in Taiwan 646125-AB1

For use in Thailand 646125-281

(3) Top cover (includes TouchPad and TouchPad cable):

For use only with computer models equipped with an AMD processor 645962-001

Display assembly subcomponents on page 24.

645984-001

For use only with computer models equipped with an Intel processor 645963-001

(4) Power button board (includes cable) 646171-001

(5) TouchPad button board (includes bracket and cable) 646172-001

Cable Kit, includes: 645968-001

(6a) TouchPad cable

(6b) Optical drive connector cable

(6c) Hard drive connector cable

NOTE: See

(7) USB board (includes cable) 645972-001

(8) Power connector cable 646173-001

Plastics Kit, includes: 645981-001

(9a) Hard drive compartment cover (includes one captive screw, secured by a C-clip)

Cable Kit on page 23 for more Cable Kit spare part information.

Computer major components

Item Component Spare part number

(9b) Memory module/wireless module compartment cover (includes one captive screw, secured by a C-clip)

NOTE: See

(10) Speaker Kit (includes left and right speakers and cable) 645978-001

(11) System board (includes replacement thermal material):

For use only with computer models equipped with an AMD E450 1.65-GHz processor

(dual core, 18 W) and a graphics subsystem with UMA video memory

For use only with computer models equipped with an AMD E300 1.30-GHz processor

(dual core, 18 W) and a graphics subsystem with UMA video memory

For use only with computer models equipped with an AMD E240 1.50-GHz processor

(single core, 18 W) and a graphics subsystem with UMA video memory

System board for use only with computer models equipped with an Intel Core i5 or i3

processor and a graphics subsystem with discrete video memory

System board for use only with computer models equipped with an Intel Core i5 or i3

processor and a graphics subsystem with UMA video memory

For use only with computer models equipped with an Intel Pentium processor and a

graphics subsystem with discrete video memory

For use only with computer models equipped with an Intel Pentium processor and a

graphics subsystem with UMA video memory

For use only with computer models equipped with an Intel Celeron processor and a

graphics subsystem with UMA video memory

Plastics Kit on page 28 for more Plastics Kit spare part information.

657323-001

657324-001

647322-001

646179-001

646177-001

646176-001

646175-001

646174-001

Thermal Material Kit (includes replacement thermal paste and pads):

For use only with computer models equipped with an AMD processor 650277-001

For use only with computer models equipped with an Intel processor 646135-001

(12) RTC battery (includes cable and double-sided tape) 646132-001

(13) Processor (includes replacement thermal material):

Intel Core i5-2430M 2.40-GHz processor (1333-MHz FSB, 3.0-MB L3 cache,

dual core, 35 W)

Intel Core i5-2410M 2.30-GHz processor (1333-MHz FSB, 3.0-MB L3 cache,

dual core, 35 W)

Intel Core i3-2330M 2.20-GHz processor (1333-MHz FSB, 3.0-MB L3 cache,

dual core, 35 W)

Intel Core i3-2310M 2.10-GHz processor (1333-MHz FSB, 3.0-MB L3 cache,

dual core, 35 W)

Intel Core i3-370M 2.40-GHz processor (1066-MHz FSB, 3.0-MB L3 cache,

dual core, 35 W)

Intel Pentium P6300 2.26-GHz processor (3.0-MB L3 cache, dual core, 35 W) 635500-001

Intel Pentium P6200 2.13-GHz processor (3.0-MB L3 cache, dual core, 35 W) 625831-001

Intel Pentium B950 2.10-GHz processor (2.0-MB L2 cache, dual core, TJ85, 35 W) 653338-001

653341-001

638039-001

653339-001

638037-001

613584-001

20 Chapter 3 Illustrated parts catalog

Item Component Spare part number

Intel Pentium B940 2.00-GHz processor (2.0-MB L2 cache, dual core, TJ85, 35 W) 653337-001

Intel Celeron DC T3500 2.10-GHz processor (1.0-MB L2 cache, 800-MHz FSB) 625830-001

Intel Celeron SC C925 2.30-GHz processor (1.0-MB L2 cache, 800-MHz FSB) 636636-001

Intel Celeron SC C900 2.20-GHz processor (1.0-MB L2 cache, 800-MHz FSB) 534419-001

(14) Fan/heat sink assembly (includes replacement thermal material):

For use only with computer models equipped with an AMD processor 647316-001

Fan/heat sink assembly for use only with computer models equipped with an Intel

Core i5 or i3 processor and a graphics subsystem with discrete video memory

Fan/heat sink assembly for use only with computer models equipped with an Intel

Core i5 or i3 processor and a graphics subsystem with UMA video memory

For use only with computer models equipped with an Intel Pentium processor and a

graphics subsystem with discrete video memory

For use only with computer models equipped with an Intel Pentium processor and a

graphics subsystem with UMA video memory

For use only with computer models equipped with an Intel Celeron processor and a

graphics subsystem with UMA video memory

(15) Base enclosure (includes battery release latch, heat sink,

replacement thermal material, and 4 rubber feet)

(16) Battery:

6-cell, 55-Whr, 2.55-Ah Li-ion battery 593554-001

6-cell, 47-Whr, 2.20-Ah Li-ion battery 593553-001

(17) Optical drive:

DVD±RW and CD-RW Super Multi Double-Layer Combo Drive with LightScribe (select

models only)

646182-001

646183-001

646180-001

646181-001

646184-001

645961-001

645988-001

DVD±RW and CD-RW Drive 666213-001

DVD-ROM Drive 659939-001

Optical drive slot space saver (not illustrated) 659930-001

(18) Hard drive (2.5-in, 7.0-mm, SATA; does not include hard drive connector cable, hard drive bracket, or screws):

NOTE: The hard drive connector cable is included in the Cable Kit, spare part number 645968-001.

For use with all computer models:

500-GB, 5400-rpm 634932-001

250-GB, 5400-rpm 645191-001

250-GB, 5400-rpm 622641-001

For use only with computer models equipped with an Intel processor:

320-GB, 5400-rpm 622643-001

Computer major components

Item Component Spare part number

Hard Drive Hardware Kit (not illustrated, includes hard drive bracket and screws) 646969-001

(19) Memory modules (2, PC3, 10600, 1333-MHz):

4 GB 621569-001

2 GB 621565-001

1 GB 639738-001

(20) WLAN module:

Atheros 9485GN 802.11b/g/n 1×1 WiFi and 3012 Bluetooth 4.0 Combo Adapter 655795-001

Atheros AR9002WB-1NGB 802.11b/g/n 1×1 WiFi and Bluetooth 2.1+EDR Combo

Adapter (BT3.0+HS ready)

Broadcom 4313GN 802.11b/g/n 1×1 WiFi and 20702 Bluetooth 4.0 Combo

Adapter

Ralink 5390GN 802.11b/g/n 1×1 WiFi Adapter 630703-001

Realtek 8188BC8 802.11a/b/g/n 2×2 WiFi and Bluetooth 3.0+HS Combo Adapter 602993-001

Realtek 8188GN 802.11b/g/n 1×1 WiFi Adapter 640926-001

Broadcom 4313 802.11b/g/n 1×1 WiFi and 2070 Bluetooth 2.1+EDR Combo

adapter (BT3.0+HS ready) for use only with computer models equipped with an Intel processor

593127-001

657325-001

600370-201

22 Chapter 3 Illustrated parts catalog

Cable Kit

Item Component Spare part number

Cable Kit, includes: 646119-001

(1) TouchPad cable

(2) Optical drive connector cable

(3) Hard drive connector cable

Cable Kit

Display assembly subcomponents

Item Component Spare part number

(1) Display bezel 645964-001

(2) Display hinge covers (2) 645970-001

(3) 14.0-in, HD, LED, BrightView display panel 645987-001

(4) Webcam/microphone module 646138-001

(5) Display Hinge Kit (includes left and right display hinges and brackets) 645971-001

24 Chapter 3 Illustrated parts catalog

Item Component Spare part number

(6) Display Cable Kit (includes display panel cable and webcam/microphone

module cable)

(7) Antenna Kit (includes left and right wireless antenna cables and transceivers) 645966-001

(8) Display enclosure:

For use only with computer models equipped with an AMD processor 645958-001

For use only with computer models equipped with an Intel processor 645959-001

Display Screw Kit (not illustrated, includes Mylar screw covers and screws) 645976-001

645967-001

Display assembly subcomponents

Mass storage devices

Item Component Spare part number

(1) Hard drive (2.5-in, 7.0-mm, SATA; does not include hard drive connector cable, hard drive bracket, or screws):

NOTE: The hard drive connector cable is included in the Cable Kit, spare part number 645968-001.

For use with all computer models:

500-GB, 5400-rpm 634932-001

250-GB, 5400-rpm 645191-001

250-GB, 5400-rpm 622641-001

For use only with computer models equipped with an Intel processor:

320-GB, 5400-rpm 622643-001

(2) Hard Drive Hardware Kit, includes: 646969-001

Hard drive bracket

Screws (not illustrated)

(3) Optical drive:

DVD±RW and CD-RW Super Multi Double-Layer Combo Drive with LightScribe (select

models only)

DVD±RW and CD-RW Drive 666213-001

645988-001

26 Chapter 3 Illustrated parts catalog

Item Component Spare part number

DVD-ROM Drive 659939-001

Optical drive slot space saver (not illustrated) 659930-001

Miscellaneous parts

Component Spare part number

HP Smart AC adapter:

65-W RC V HP Smart AC adapter for use will all computer models 609939-001

For use only with computer models equipped with an Intel processor:

90-W PFC RC V EM HP Smart AC adapter 609940-001

90-W PFC RC V HP Smart AC adapter 609947-001

65-W RC V EM HP Smart AC adapter 609948-001

Power cord (3-pin, black, 1.83-m):

For use in Argentina 490371-D01

For use in Australia 490371-011

For use in Brazil 490371-202

For use in India 490371-D01

For use in Italy 490371-D61

For use in the People's Republic of China 490371-AA1

For use in South Korea 490371-AD1

For use in Taiwan 490371-AB1

For use in Thailand 490371-201

For use in the United Kingdom and Singapore 490371-031

For use in the United States 490371-001

Screw Kit 645977-001

Miscellaneous parts

Plastics Kit

Item Component Spare part number

Plastics Kit, includes: 646131-001

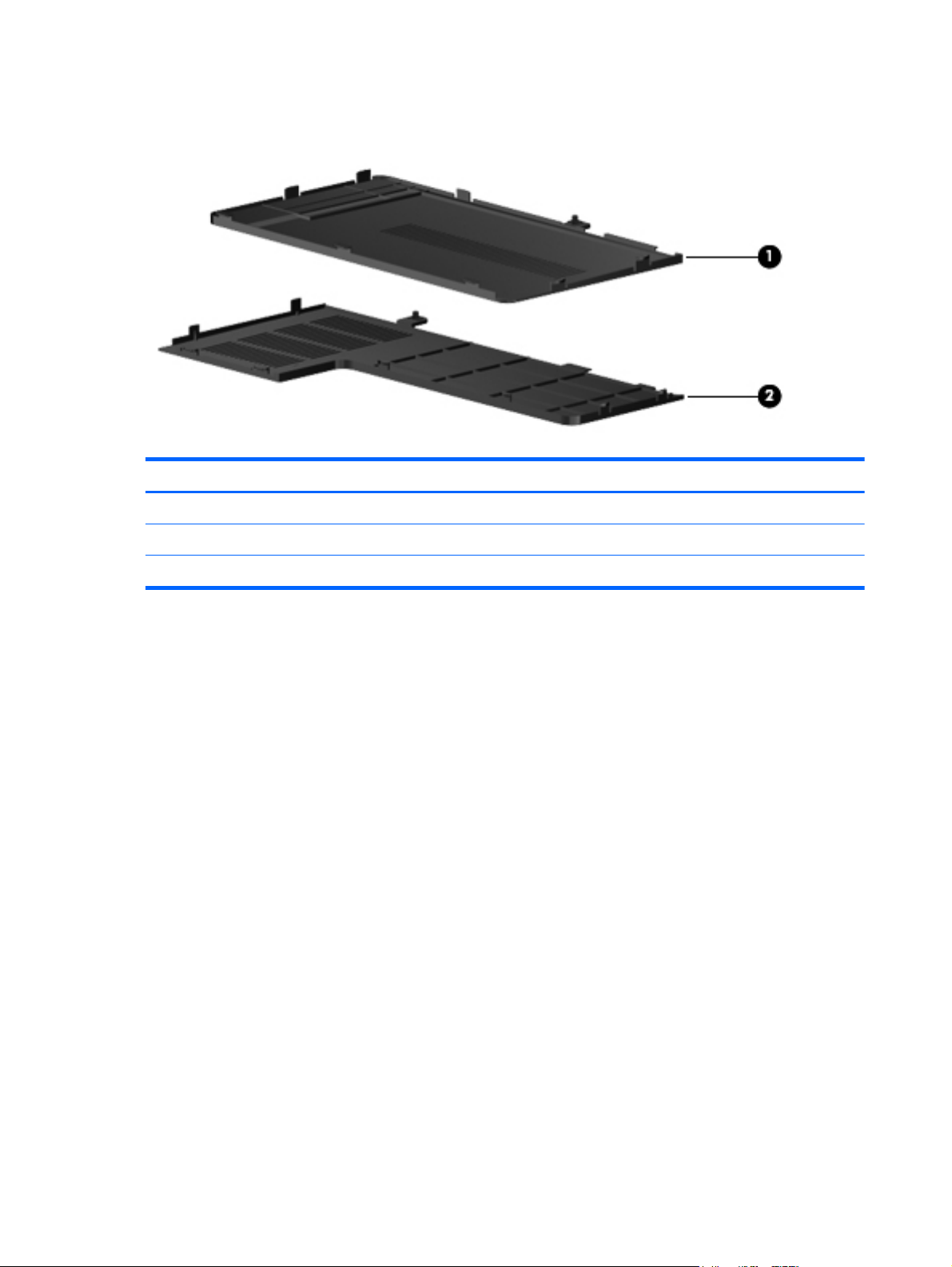

(1) Hard drive compartment cover (includes one captive screw, secured by a C-clip)

(2) Memory module/wireless module compartment cover (includes one captive screw, secured by a C-clip)

28 Chapter 3 Illustrated parts catalog

Sequential part number listing

Spare part number Description

490371-001 Power cord for use in North America (3-pin, black, 1.83-m)

490371-011 Power cord for use in Australia (3-pin, black, 1.83-m)

490371-031 Power cord for use in the United Kingdom and Singapore (3-pin, black, 1.83-m)

490371-061 Power cord for use in Italy (3-pin, black, 1.83-m)

490371-201 Power cord for use in Thailand (3-pin, black, 1.83-m)

490371-202 Power cord for use in Brazil (3-pin, black, 1.83-m)

490371-AA1 Power cord for use in the People's Republic of China (3-pin, black, 1.83-m)

490371-AB1 Power cord for use in Taiwan (3-pin, black, 1.83-m)

490371-AD1 Power cord for use in South Korea (3-pin, black, 1.83-m)

490371-D01 Power cord for use in Argentina (3-pin, black, 1.83-m)

490371-D61 Power cord for use in India (3-pin, black, 1.83-m)

534419-001 Intel Celeron SC C900 2.20-GHz processor (1.0-MB L2 cache, 800-MHz FSB; includes

replacement thermal material)

593127-001 Atheros AR9002WB-1NGB 802.11b/g/n 1×1 WiFi and Bluetooth 2.1+EDR Combo Adapter

(BT3.0+HS ready)

593553-001 6-cell, 47-Whr, 2.20-Ah Li-ion battery

593554-001 6-cell, 55-Whr, 2.55-Ah Li-ion battery

600370-201 Broadcom 4313 802.11b/g/n 1×1 WiFi and 2070 Bluetooth 2.1+EDR Combo adapter

(BT3.0+HS ready) for use only with computer models equipped with an Intel processor

602993-001 Realtek 8188BC8 802.11a/b/g/n 2×2 WiFi and Bluetooth 3.0+HS Combo Adapter

609939-001 65-W RC V HP Smart AC adapter for use will all computer models

609940-001 90-W PFC RC V EM HP Smart AC adapter for use only with computer models equipped with an

Intel processor

609947-001 90-W PFC RC V HP Smart AC adapter for use only with computer models equipped with an

Intel processor

609948-001 65-W RC V EM HP Smart AC adapter for use only with computer models equipped with an

Intel processor

613584-001 Intel Core i3-370M 2.40-GHz processor (1066-MHz FSB, 3.0-MB L3 cache, dual core, 35 W;

includes replacement thermal material)

621565-001 2-GB memory module (PC3, 10600, 1333-MHz)

621569-001 4-GB memory module (PC3, 10600, 1333-MHz)

622641-001 250-GB, 5400-rpm hard drive for use with all computer models (2.5-in, 7.0-mm, SATA; does not

include hard drive connector cable, hard drive bracket, or screws)

Sequential part number listing

Spare part number Description

622643-001 320-GB, 5400-rpm hard drive for use with all computer models (2.5-in, 7.0-mm, SATA; does not

include hard drive connector cable, hard drive bracket, or screws)

625830-001 Intel Celeron DC T3500 2.10-GHz processor (1.0-MB L2 cache, 800-MHz FSB; includes

replacement thermal material)

625831-001 Intel Pentium P6200 2.13-GHz processor (3.0-MB L3 cache, dual core, 35 W; includes

replacement thermal material)

630703-001 Ralink 5390GN 802.11b/g/n 1×1 WiFi Adapter

634932-001 500-GB, 5400-rpm hard drive for use with all computer models (2.5-in, 7.0-mm, SATA; does not

include hard drive connector cable, hard drive bracket, or screws)

635500-001 Intel Pentium P6300 2.26-GHz processor (3.0-MB L3 cache, dual core, 35 W; includes

replacement thermal material)

636636-001 Intel Celeron SC C925 2.30-GHz processor (1.0-MB L2 cache, 800-MHz FSB; includes

replacement thermal material)

638037-001 Intel Core i3-2310M 2.10-GHz processor (1333-MHz FSB, 3.0-MB L3 cache, dual core, 35 W;

includes replacement thermal material)

638039-001 Intel Core i5-2410M 2.30-GHz processor (1333-MHz FSB, 3.0-MB L3 cache, dual core, 35 W;

includes replacement thermal material)

639738-001 1-GB memory module (PC3, 10600, 1333-MHz)

640926-001 Realtek 8188GN 802.11b/g/n 1×1 WiFi Adapter

645191-001 250-GB, 5400-rpm hard drive for use with all computer models (2.5-in, 7.0-mm, SATA; does not

include hard drive connector cable, hard drive bracket, or screws)

645958-001 Display enclosure for use only with computer models equipped with an AMD processor

645959-001 Display enclosure for use only with computer models equipped with an Intel processor

645961-001 Base enclosure (includes battery release latch, heat sink, replacement thermal material,

and 4 rubber feet)

645962-001 Top cover for use only with computer models equipped with an AMD processor (includes power

button board and cable and TouchPad and TouchPad cable)

645963-001 Top cover for use only with computer models equipped with an Intel processor (includes power

button board and cable and TouchPad and TouchPad cable)

645964-001 Display bezel for use with computer models equipped with a webcam and a microphone

645966-001 Antenna Kit (includes left and right wireless antenna cables and transceivers)

645967-001 Display Cable Kit (includes display panel cable and webcam/microphone module cable)

645968-001 Cable Kit (includes TouchPad cable, optical drive connector cable, and hard drive

connector cable)

NOTE: See

645969-001 Hard Drive Hardware Kit (includes hard drive bracket and screws)

Cable Kit on page 23 for more Cable Kit spare part information.

645970-001 Display Hinge Kit (includes left and right display hinges and brackets)

645971-001 Display hinge covers

30 Chapter 3 Illustrated parts catalog

Spare part number Description

645972-001 USB board (includes cable)

645976-001 Display Screw Kit (includes Mylar screw covers and screws)

645977-001 Screw Kit

645978-001 Speaker Kit (includes left and right speakers and cable)

645981-001 Plastics Kit (includes hard drive compartment cover and memory module/wireless module

compartment cover)

NOTE: See

645984-001 14.0-in, HD, LED, BrightView display assembly for use only with computer models equipped with

an Intel processor and a webcam (includes microphone and wireless antenna transceivers and cables)

645986-001 14.0-in, HD, LED, BrightView display assembly for use only with computer models equipped with

an AMD processor but not equipped with a webcam (includes microphone and wireless antenna transceivers and cables)

645987-001 14.0-in, HD, LED, BrightView display panel

645988-001 DVD±RW and CD-RW Super Multi Double-Layer Combo Drive with LightScribe (select models

only)

646125-001 Keyboard for use in the United States (includes keyboard cable)

646125-121 Keyboard for use in Canada (includes keyboard cable)

646125-161 Keyboard for use in Latin America (includes keyboard cable)

646125-201 Keyboard for use in Brazil (includes keyboard cable)

646125-281 Keyboard for use in Thailand (includes keyboard cable)

646125-AB1 Keyboard for use in Taiwan (includes keyboard cable)

646125-AD1 Keyboard for use in South Korea (includes keyboard cable)

646125-D61 Keyboard for use only with computer models equipped with an Intel processor in India (includes

keyboard cable)

Plastics Kit on page 28 for more Plastics Kit spare part information.

646132-001 RTC battery (includes cable and double-sided tape)

646135-001 Thermal Material Kit for use only with computer models equipped with an Intel processor (includes

replacement thermal paste and pads)

646138-001 Webcam/microphone module

646171-001 Power button board (includes cable)

646172-001 TouchPad button board (includes bracket and cable)

646173-001 Power connector cable

646174-001 System board for use only with computer models equipped with an Intel Celeron processor and a

graphics subsystem with UMA video memory (includes replacement thermal material)

646175-001 System board for use only with computer models equipped with an Intel Pentium processor and a

graphics subsystem with UMA video memory (includes replacement thermal material)

Sequential part number listing

Spare part number Description

646176-001 System board for use only with computer models equipped with an Intel Pentium processor and a

graphics subsystem with discrete video memory (includes replacement thermal material)

646177-001 System board for use only with computer models equipped with an Intel Core i5 or i3 processor

and a graphics subsystem with UMA video memory (includes replacement thermal material)

646179-001 System board for use only with computer models equipped with an Intel Core i5 or i3 processor

and a graphics subsystem with discrete video memory (includes replacement thermal material)

646180-001 Fan/heat sink assembly for use only with computer models equipped with an Intel Pentium

processor and a graphics subsystem with UMA video memory (includes replacement thermal material)

646181-001 Fan/heat sink assembly for use only with computer models equipped with an Intel Pentium

processor and a graphics subsystem with UMA video memory (includes replacement thermal material)

646182-001 Fan/heat sink assembly for use only with computer models equipped with an Intel Core i5 or i3

processor and a graphics subsystem with discrete video memory (includes replacement thermal material)

646183-001 Fan/heat sink assembly for use only with computer models equipped with an Intel Core i5 or i3

processor and a graphics subsystem with UMA video memory (includes replacement thermal material)

646184-001 Fan/heat sink assembly for use only with computer models equipped with an Intel Celeron

processor and a graphics subsystem with UMA video memory (includes replacement thermal material)

647316-001 Fan/heat sink assembly for use only with computer models equipped with an AMD processor

(includes replacement thermal material)

647322-001 System board for use only with computer models equipped with an AMD E240 1.50-GHz

processor (single core, 18-W) and a graphics subsystem with UMA video memory (includes replacement thermal material)

650277-001 Thermal Material Kit for use only with computer models equipped with an AMD processor

(includes replacement thermal paste and pads)

653337-001 Intel Pentium B940 2.00-GHz processor (2.0-MB L2 cache, dual core, TJ85, 35 W; includes

replacement thermal material)

653338-001 Intel Pentium B950 2.10-GHz processor (2.0-MB L2 cache, dual core, TJ85, 35 W; includes

replacement thermal material)

653339-001 Intel Core i3-2330M 2.20-GHz processor (1333-MHz FSB, 3.0-MB L3 cache, dual core, 35 W;

includes replacement thermal material)

653341-001 Intel Core i5-2430M 2.40-GHz processor (1333-MHz FSB, 3.0-MB L3 cache, dual core, 35 W;

includes replacement thermal material)

655795-001 Atheros 9485GN 802.11b/g/n 1×1 WiFi and 3012 Bluetooth 4.0 Combo Adapter

657323-001 System board for use only with computer models equipped with an AMD E450 1.65-GHz

processor (dual core, 18 W) and a graphics subsystem with UMA video memory (includes replacement thermal material)

657324-001 System board for use only with computer models equipped with an AMD E300 1.30-GHz

processor (dual core, 18 W) and a graphics subsystem with UMA video memory (includes replacement thermal material)

32 Chapter 3 Illustrated parts catalog

Spare part number Description

657325-001 Broadcom 4313GN 802.11b/g/n 1×1 WiFi and 20702 Bluetooth 4.0 Combo Adapter

659930-001 Optical drive slot space saver

659939-001 DVD-ROM Drive

663603-001 14.0-in, HD, LED, BrightView display assembly for use only with computer models equipped with

an AMD processor and a webcam (includes microphone and wireless antenna transceivers and cables)

666213-001 DVD±RW and CD-RW Drive

Sequential part number listing

4 Removal and

replacement procedures

Preliminary replacement requirements

Tools required

You will need the following tools to complete the removal and replacement procedures:

●

Flat-bladed screwdriver

●

Magnetic screwdriver

●

Phillips P0 and P1 screwdrivers

Service considerations

The following sections include some of the considerations that you must keep in mind during disassembly and assembly procedures.

NOTE: As you remove each subassembly from the computer, place the subassembly (and all

accompanying screws) away from the work area to prevent damage.

Plastic parts

CAUTION: Using excessive force during disassembly and reassembly can damage plastic parts. Use

care when handling the plastic parts. Apply pressure only at the points designated in the maintenance instructions.

Cables and connectors

CAUTION: When servicing the computer, be sure that cables are placed in their proper locations

during the reassembly process. Improper cable placement can damage the computer.

Cables must be handled with extreme care to avoid damage. Apply only the tension required to unseat or seat the cables during removal and insertion. Handle cables by the connector whenever possible. In all cases, avoid bending, twisting, or tearing cables. Be sure that cables are routed in such a way that they cannot be caught or snagged by parts being removed or replaced. Handle flex cables with extreme care; these cables tear easily.

34 Chapter 4 Removal and replacement procedures

Drive handling

CAUTION: Drives are fragile components that must be handled with care. To prevent damage to the

computer, damage to a drive, or loss of information, observe these precautions:

Before removing or inserting a hard drive, shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.

Before handling a drive, be sure that you are discharged of static electricity. While handling a drive, avoid touching the connector.

Before removing a diskette drive or optical drive, be sure that a diskette or disc is not in the drive and be sure that the optical drive tray is closed.

Handle drives on surfaces covered with at least one inch of shock-proof foam.

Avoid dropping drives from any height onto any surface.

After removing a hard drive, an optical drive, or a diskette drive, place it in a static-proof bag.

Avoid exposing an internal hard drive to products that have magnetic fields, such as monitors or speakers.

Avoid exposing a drive to temperature extremes or liquids.

If a drive must be mailed, place the drive in a bubble pack mailer or other suitable form of protective packaging and label the package “FRAGILE.”

Grounding guidelines

Electrostatic discharge damage

Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure determine the degree of sensitivity. Networks built into many integrated circuits provide some protection, but in many cases, ESD contains enough power to alter device parameters or melt silicon junctions.

A discharge of static electricity from a finger or other conductor can destroy static-sensitive devices or microcircuitry. Even if the spark is neither felt nor heard, damage may have occurred.

An electronic device exposed to ESD may not be affected at all and can work perfectly throughout a normal cycle. Or the device may function normally for a while, then degrade in the internal layers, reducing its life expectancy.

Preliminary replacement requirements

CAUTION: To prevent damage to the computer when you are removing or installing internal

components, observe these precautions:

Keep components in their electrostatic-safe containers until you are ready to install them.

Before touching an electronic component, discharge static electricity by using the guidelines described in this section.

Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.

If you remove a component, place it in an electrostatic-safe container.

The following table shows how humidity affects the electrostatic voltage levels generated by different activities.

CAUTION: A product can be degraded by as little as 700 V.

Typical electrostatic voltage levels

Relative humidity

Event 10% 40% 55%

Walking across carpet 35,000 V 15,000 V 7,500 V

Walking across vinyl floor 12,000 V 5,000 V 3,000 V

Motions of bench worker 6,000 V 800 V 400 V

Removing DIPS from plastic tube 2,000 V 700 V 400 V

Removing DIPS from vinyl tray 11,500 V 4,000 V 2,000 V

Removing DIPS from Styrofoam 14,500 V 5,000 V 3,500 V

Removing bubble pack from PCB 26,500 V 20,000 V 7,000 V

Packing PCBs in foam-lined box 21,000 V 11,000 V 5,000 V

36 Chapter 4 Removal and replacement procedures

Packaging and transporting guidelines

Follow these grounding guidelines when packaging and transporting equipment:

●

To avoid hand contact, transport products in static-safe tubes, bags, or boxes.

●

Protect ESD-sensitive parts and assemblies with conductive or approved containers or packaging.

●

Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.

●

Place items on a grounded surface before removing items from their containers.

●

Always be properly grounded when touching a component or assembly.

●

Store reusable ESD-sensitive parts from assemblies in protective packaging or nonconductive foam.

●

Use transporters and conveyors made of antistatic belts and roller bushings. Be sure that mechanized equipment used for moving materials is wired to ground and that proper materials are selected to avoid static charging. When grounding is not possible, use an ionizer to dissipate electric charges.

Workstation guidelines

Follow these grounding workstation guidelines:

●

Cover the workstation with approved static-shielding material.

●

Use a wrist strap connected to a properly grounded work surface and use properly grounded tools and equipment.

●

Use conductive field service tools, such as cutters, screwdrivers, and vacuums.

●

When fixtures must directly contact dissipative surfaces, use fixtures made only of staticsafe materials.

●

Keep the work area free of nonconductive materials, such as ordinary plastic assembly aids and Styrofoam.

●

Handle ESD-sensitive components, parts, and assemblies by the case or PCM laminate. Handle these items only at static-free workstations.

●

Avoid contact with pins, leads, or circuitry.

●

Turn off power and input signals before inserting or removing connectors or test equipment.

Preliminary replacement requirements

Equipment guidelines

Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation.

●

When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible straps with a minimum of one megohm ±10% resistance in the ground cords. To provide proper ground, wear a strap snugly against the skin at all times. On grounded mats with banana-plug connectors, use alligator clips to connect a wrist strap.

●

When standing, use foot straps and a grounded floor mat. Foot straps (heel, toe, or boot straps) can be used at standing workstations and are compatible with most types of shoes or boots. On conductive floors or dissipative floor mats, use foot straps on both feet with a minimum of one megohm resistance between the operator and ground. To be effective, the conductive must be worn in contact with the skin.

The following grounding equipment is recommended to prevent electrostatic damage:

●

Antistatic tape

●

Antistatic smocks, aprons, and sleeve protectors

●

Conductive bins and other assembly or soldering aids

●

Nonconductive foam

●

Conductive tabletop workstations with ground cords of one megohm resistance

●

Static-dissipative tables or floor mats with hard ties to the ground

●

Field service kits

●

Static awareness labels

●

Material-handling packages

●

Nonconductive plastic bags, tubes, or boxes

●

Metal tote boxes

●

Electrostatic voltage levels and protective materials

The following table lists the shielding protection provided by antistatic bags and floor mats.

Material Use Voltage protection level

Antistatic plastics Bags 1,500 V

Carbon-loaded plastic Floor mats 7,500 V

Metallized laminate Floor mats 5,000 V

38 Chapter 4 Removal and replacement procedures

Component replacement procedures

This chapter provides removal and replacement procedures.

There are as many as 72 screws that must be removed, replaced, or loosened when servicing the computer. Make special note of each screw and size and location during removal and replacement.

Service tag

When ordering parts or requesting information, provide the computer serial number and model number provided on the service tag.

Item Component Description

(1) Product name This is the product name affixed to the front of

the computer.

(2) Serial number (s/n) This is an alphanumeric identifier that is unique to

each product.

(3) Part number/Product number (p/n) This number provides specific information about the

product’s hardware components. The part number helps a service technician determine what components and parts are needed.

Component replacement procedures

Item Component Description

(4) Warranty period This number describes the duration of the warranty

(5) Model description This is the alphanumeric identifier used to locate

Computer feet

The computer feet are adhesive-backed rubber pads. There are 4 rubber feet that attach to the base enclosure in the locations illustrated below.

period for the computer.

documents, drivers, and support for the computer.

40 Chapter 4 Removal and replacement procedures

Battery

Description Spare part number

6-cell, 55-Whr, 2.55-Ah Li-ion battery 593554-001

6-cell, 47-Whr, 2.20-Ah Li-ion battery 593553-001

Before disassembling the computer, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

Remove the battery:

1. Slide the battery release latch (1) to release the battery.

2. Pivot the front edge of the battery (2) up and back.

3. Remove the battery (3) from the computer.

To insert the battery:

1. Align the tabs on the rear edge of the battery with the notches on the rear edge of the battery bay.

2. Pivot the front edge of the battery down into the battery bay until it is seated. (The battery release

latch will automatically lock into place.)

Component replacement procedures

WLAN module

Description Spare part number

Atheros 9485GN 802.11b/g/n 1×1 WiFi and 3012 Bluetooth 4.0 Combo Adapter 655795-001

Atheros AR9002WB-1NGB 802.11b/g/n 1×1 WiFi and Bluetooth 2.1+EDR Combo Adapter (BT3.0+HS ready)

Broadcom 4313GN 802.11b/g/n 1×1 WiFi and 20702 Bluetooth 4.0 Combo Adapter 657325-001

Ralink 5390GN 802.11b/g/n 1×1 WiFi Adapter 630703-001

Realtek 8188BC8 802.11a/b/g/n 2×2 WiFi and Bluetooth 3.0+HS Combo Adapter 602993-001

Realtek 8188GN 802.11b/g/n 1×1 WiFi Adapter 640926-001

Broadcom 4313 802.11b/g/n 1×1 WiFi and 2070 Bluetooth 2.1+EDR Combo adapter (BT3.0+HS ready) for use only with computer models equipped with an Intel processor

593127-001

600370-201

CAUTION: To prevent an unresponsive system, replace the wireless module only with a wireless

module authorized for use in the computer by the governmental agency that regulates wireless devices in your country or region. If you replace the module and then receive a warning message, remove the module to restore device functionality, and then contact technical support.

Before removing the WLAN module, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove the memory module/wireless module compartment cover (see

Battery on page 41).

WLAN module

on page 42).

Remove the WLAN module:

1. Loosen the captive screw (1) that secures the memory module/wireless module compartment cover

to the computer.

42 Chapter 4 Removal and replacement procedures

Lift the rear edge of the memory module/wireless module compartment cover (2) up and forward until it rests at an angle.

Remove the memory module/wireless module compartment cover. The memory module/wireless module compartment cover is available in the Plastics Kit, spare part number 645981-001.

4. Disconnect the WLAN antenna cables (1) from the terminals on the WLAN module.

NOTE: The #1 WLAN antenna cable is connected to the WLAN module Main terminal. The #2

WLAN antenna cable is connected to the WLAN module Aux terminal.

5. Remove the Phillips PM2.0×3.0 screw (2) that secures the WLAN module to the system board.

(The WLAN module tilts up.)

Component replacement procedures

Remove the WLAN module by pulling the module away from the slot at an angle (3).

NOTE: The WLAN module is designed with a notch (4) to prevent incorrect installation into the

WLAN module socket.

NOTE: If the WLAN antennas are not connected to the terminals on the WLAN module, the protective

sleeves must be installed on the antenna connectors, as shown in the following illustration.

Reverse this procedure to install the WLAN module.

44 Chapter 4 Removal and replacement procedures

Memory module

Description Spare part number

4-GB (PC3, 10600, 1333-MHz) 621569-001

2-GB (PC3, 10600, 1333-MHz) 621565-001

1-GB (PC3, 10600, 1333-MHz) 639738-001

Before removing a memory module, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove the memory module/wireless module compartment cover (see

Battery on page 41).

WLAN module

on page 42).

Remove the memory module:

1. Spread the retaining tabs (1) on each side of the memory module slot to release the memory

module. (The memory module tilts up.)

Remove the memory module (2) by pulling it away from the slot at an angle.

Reverse this procedure to install a memory module.

Component replacement procedures

Hard drive

NOTE: The hard drive spare part kit does not include the hard drive connector cable, bracket, or

screws. The hard drive connector cable is included in the Cable Kit, spare part number 645968-001. The hard drive bracket and screws are included in the Hard Drive Hardware Kit, spare part number 646969-001.

Description Spare part number

For use with all computer models:

500-GB, 5400-rpm 634932-001

250-GB, 5400-rpm 645191-001

250-GB, 5400-rpm 622641-001

For use only with computer models equipped with an Intel processor:

320-GB, 5400-rpm 622643-001

Before removing the hard drive, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove the memory module/wireless module compartment cover (see

Battery on page 41).

WLAN module

on page 42).

Remove the hard drive:

1. Loosen the captive screw (1) that secures the hard drive compartment cover to the computer.

46 Chapter 4 Removal and replacement procedures

Lift the rear edge of the hard drive compartment cover (2) up and forward until it rests at an angle.

Remove the hard drive compartment cover. The hard drive compartment cover is available in the Plastics Kit, spare part number 645981-001.

4. Disconnect the hard drive connector cable (1) from the system board.

5. Remove the four Phillips PM 2.5×6.0 screws (2) that secure the hard drive to the computer.

Component replacement procedures

Remove the hard drive (3).

7. If it is necessary to replace the hard drive screws (1), the hard drive bracket (2), or the hard drive

connector cable (3), remove and replace the components.

Reverse this procedure to reassemble and install the hard drive.

48 Chapter 4 Removal and replacement procedures

Optical drive (select models only)

NOTE: The optical drive spare part kit includes a bezel and bracket.

Description Spare part number

DVD±RW and CD-RW Super Multi Double-Layer Combo Drive with LightScribe (select models only) 645988-001

DVD±RW and CD-RW Drive 666213-001

DVD-ROM Drive 659939-001

Optical drive slot space saver 659930-001

Before removing the optical drive, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove the memory module/wireless module compartment cover (see

Battery on page 41).

WLAN module

on page 42).

6. Remove the hard drive compartment cover (see

Hard drive on page 46).

Remove the optical drive:

1. Remove the Phillips PM2.5×6.0 screw (1) that secures the optical drive to the computer.

2. Insert an unbent paper clip or similar thin tool into the optical drive tab access (2) to release the

optical drive tray from the optical drive.

Component replacement procedures

Remove the optical drive (3) by sliding it out of the optical drive bay.

If it is necessary to replace the optical drive bracket, position the optical drive with the rear panel toward you.

5. Remove the two Phillips PM2.0×3.0 screws (1) that secure the bracket to the optical drive.

6. Remove the optical drive bracket (2).

Reverse this procedure to reassemble and install the optical drive.

50 Chapter 4 Removal and replacement procedures

Keyboard

NOTE: The keyboard spare part kit includes a keyboard cable.

Description Spare part number Description Spare part number

For use with all computer models: For use in Latin America 646125-161

For use in Canada 646125-121 For use in the United States 646125-001

For use only with computer models equipped with an Intel processor:

For use in Brazil 646125-201 For use in Taiwan 646125-AB1

For use in India 646125-D61 For use in Thailand 646125-281

For use in South Korea 646125-AD1

Before removing the keyboard, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove the memory module/wireless module compartment cover (see

Battery on page 41).

WLAN module

on page 42).

6. Remove the hard drive compartment cover (see

Hard drive on page 46).

Component replacement procedures

Remove the keyboard:

1. Remove the Phillips PM2.5×5.0 screw that secures the keyboard to the computer.

2. Rest and secure the computer on its left side.

3. Partially open the computer.

4. Insert a screw driver or similar thin tool into the keyboard release hole, and then press on the back

of the keyboard until the keyboard disengages from the computer.

5. Turn the computer right-side up with the front toward you.

52 Chapter 4 Removal and replacement procedures

Lift the rear edge of the keyboard (1), and then swing the keyboard up and forward (2) until it rests upside down on the palm rest.

7. Release the zero insertion force (ZIF) connector (1) to which the keyboard cable is attached, and

then disconnect the keyboard cable (2) from the system board.

8. Remove the keyboard.

Reverse this procedure to install the keyboard.

Component replacement procedures

Top cover

NOTE: The top cover spare part kit includes the TouchPad and TouchPad cable.

Description Spare part number

For use only with computer models equipped with an AMD processor 645962-001

For use only with computer models equipped with an Intel processor 645963-001

Before removing the top cover, follow these steps:

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

●

Memory module/wireless module compartment cover (see

●

Hard drive (see

●

Keyboard (see

Battery on page 41), and then remove the following components:

WLAN module on page 42)

Hard drive on page 46)

Keyboard on page 51)

NOTE: When replacing the top cover, be sure that the following components are removed from the

defective top cover and installed on the replacement top cover:

●

Power button board and cable (see

●

TouchPad button board and cable (see

Power button board on page 58)

TouchPad button board on page 59)

Remove the top cover:

1. Close the computer.

2. Turn the computer upside down, with the front toward you.

54 Chapter 4 Removal and replacement procedures

Remove the nine Phillips PM2.5×6.0 screws that secure the top cover to the computer.

4. Remove the two Phillips PM2.5×10.0 screws (1) and the four Phillips PM2.0×3.0 screws (2) that

secure the top cover to the computer.

Turn the computer right-side up, with the front toward you.

6. Open the computer.

Component replacement procedures

Release the ZIF connectors to which the following cables are attached, and then disconnect the cables from the system board:

●

Power button board cable (1) (included with the power button board spare part kit, spare part number 646129-001)

●

TouchPad button board cable (2) (included with the TouchPad button board spare part kit, spare part number 646130-001)

●

TouchPad cable (3) (included in the Cable Kit, spare part number 646119-001)

56 Chapter 4 Removal and replacement procedures

Remove the three Phillips PM2.5×6.0 screws that secure the top cover to the computer.

9. Lift the rear edge of the top cover (1) until the left and right sides disengage from the

base enclosure.

10.

Remove the top cover (2).

Reverse this procedure to install the top cover.

Component replacement procedures

Power button board

Description Spare part number

Power button board (includes cable) 646129-001

Before removing the power button board, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

●

Memory module/wireless module compartment cover (see

●

Hard drive (see

●

Keyboard (see

●

Top cover (see

Battery on page 41), and then remove the following components:

WLAN module on page 42)

Hard drive on page 46)

Keyboard on page 51)

Top cover on page 54)

Remove the power button board:

1. Turn the top cover upside down, with the top toward you.

2. Remove the two Phillips PM2.0×3.0 screws (1) that secure the power button board to the

top cover.

58 Chapter 4 Removal and replacement procedures

Remove the power button board and cable (2).

Reverse this procedure to install the power button board and cable.

TouchPad button board

Description Spare part number

TouchPad button board (includes cable) 646130-001

Before removing the TouchPad button board, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

Remove the battery (see

●

Memory module/wireless module compartment cover (see

●

Hard drive (see

●

Keyboard (see

Hard drive on page 46)

Keyboard on page 51)

Battery on page 41), and then remove the following components:

WLAN module on page 42)

●

Top cover (see

Top cover on page 54)

Component replacement procedures

Remove the TouchPad button board and cable:

1. Turn the top cover upside down, with the top toward you.

Release the TouchPad board cable (1) and the TouchPad button board cable (2) from the top cover. (The TouchPad board cable and the TouchPad button board cable are attached to the top cover with double-sided tape.)

3. Remove the four Phillips PM2.0×4.0 screws (3) that secure the TouchPad button board to the

top cover.

4. Remove the TouchPad button board (4).

Reverse this procedure to install the TouchPad button board and cable.

60 Chapter 4 Removal and replacement procedures

Speakers

Description Spare part number

Speaker Kit (includes left and right speakers and cable) 645978-001

Before removing the speakers, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

computer on, and then shut it down through the operating system.

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

●

Memory module/wireless module compartment cover (see

●

Hard drive (see

●

Keyboard (see

●

Top cover (see

Battery on page 41), and then remove the following components:

WLAN module on page 42)

Hard drive on page 46)

Keyboard on page 51)

Top cover on page 54)

Remove the speakers:

1. Disconnect the speaker cable (1) from the system board.

2. Release the speaker cables (2) from the clips built into the base enclosure.

3. Release the ZIF connector to which the USB board cable is attached, and then disconnect the USB

cable (3) from the system board.

4. Remove the two Phillips PM2.5×6.0 screws (4) and the Phillips PM2.0×9.0 screw (5) that secure

the speakers to the computer.

Component replacement procedures

Remove the speakers (6).

Reverse this procedure to install the speakers.

62 Chapter 4 Removal and replacement procedures

USB board

Description Spare part number

USB board (includes cable) 646128-001

Before removing the USB board, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

●

Memory module/wireless module compartment cover (see

●

Hard drive (see

●

Keyboard (see

●

Top cover (see

●

Speakers (see

Hard drive on page 46)

Keyboard on page 51)

Top cover on page 54)

Speakers on page 61)

Remove the USB board:

▲

Remove the USB board and cable.

Battery on page 41), and then remove the following components:

WLAN module on page 42)

Component replacement procedures

Reverse this procedure to install the USB board.

Power connector cable

Description Spare part number

Power connector cable 641394-001

Before removing the power connector cable, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

●

Memory module/wireless module compartment cover (see

●

Hard drive (see

●

Keyboard (see

●

Top cover (see

●

Speakers (see

●

USB board (see

Battery on page 41), and then remove the following components:

WLAN module on page 42)

Hard drive on page 46)

Keyboard on page 51)

Top cover on page 54)

Speakers on page 61)

USB board on page 63)

Remove the power connector cable:

Close the computer.

2. Turn the computer upside down, with the front toward you.

3. Disconnect the power connector cable (1) from the system board.

64 Chapter 4 Removal and replacement procedures

Release the power connector cable from the clip (2) built into the base enclosure.

5. Turn the computer right-side up, with the front toward you.

6. Open the computer.

7. Release the power connector cable (1) from the clips and routing channel built into the

base enclosure.

8. Remove the two Phillips PM2.5×5.0 screws (2) that secure the power connector and bracket to

the computer.

Remove the power connector bracket (3).

Component replacement procedures

10.

Remove the power connector (4).

Reverse this procedure to install the power connector cable.

Display assembly

Description Spare part number

14.0-in, HD, LED, BrightView display assembly (includes microphone and wireless antenna transceivers and cables)

For use only with computer models equipped with an AMD processor:

Equipped with webcam 663603-001

Not equipped with webcam 645986-001

For use only with computer models equipped with an Intel processor, equipped with webcam 645984-001

Before removing the display assembly, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

Battery on page 41).

66 Chapter 4 Removal and replacement procedures

Disconnect the WLAN module antenna cables from the WLAN module (see

WLAN module

on page 42).

6. Remove the following components:

●

Hard drive (see

●

Keyboard (see

●

Top cover (see

●

Speakers (see

●

USB board (see

●

Power connector cable (see

Hard drive on page 46)

Keyboard on page 51)

Top cover on page 54)

Speakers on page 61)

USB board on page 63)

Power connector cable on page 64)

Remove the display assembly:

1. Disconnect the display panel cable (1) from the system board.

2. Release the wireless antenna cables from the clips (2) built into the base enclosure.

CAUTION: Support the display assembly when removing the following screws. Failure to

support the display assembly can result in damage to the display assembly and other computer components.

3. Remove the four Phillips PM2.5×6.0 screws (3) that secure the display assembly to the computer.

4. Remove the display assembly (4).

Component replacement procedures

If it is necessary to replace the display bezel or any of the display assembly subcomponents:

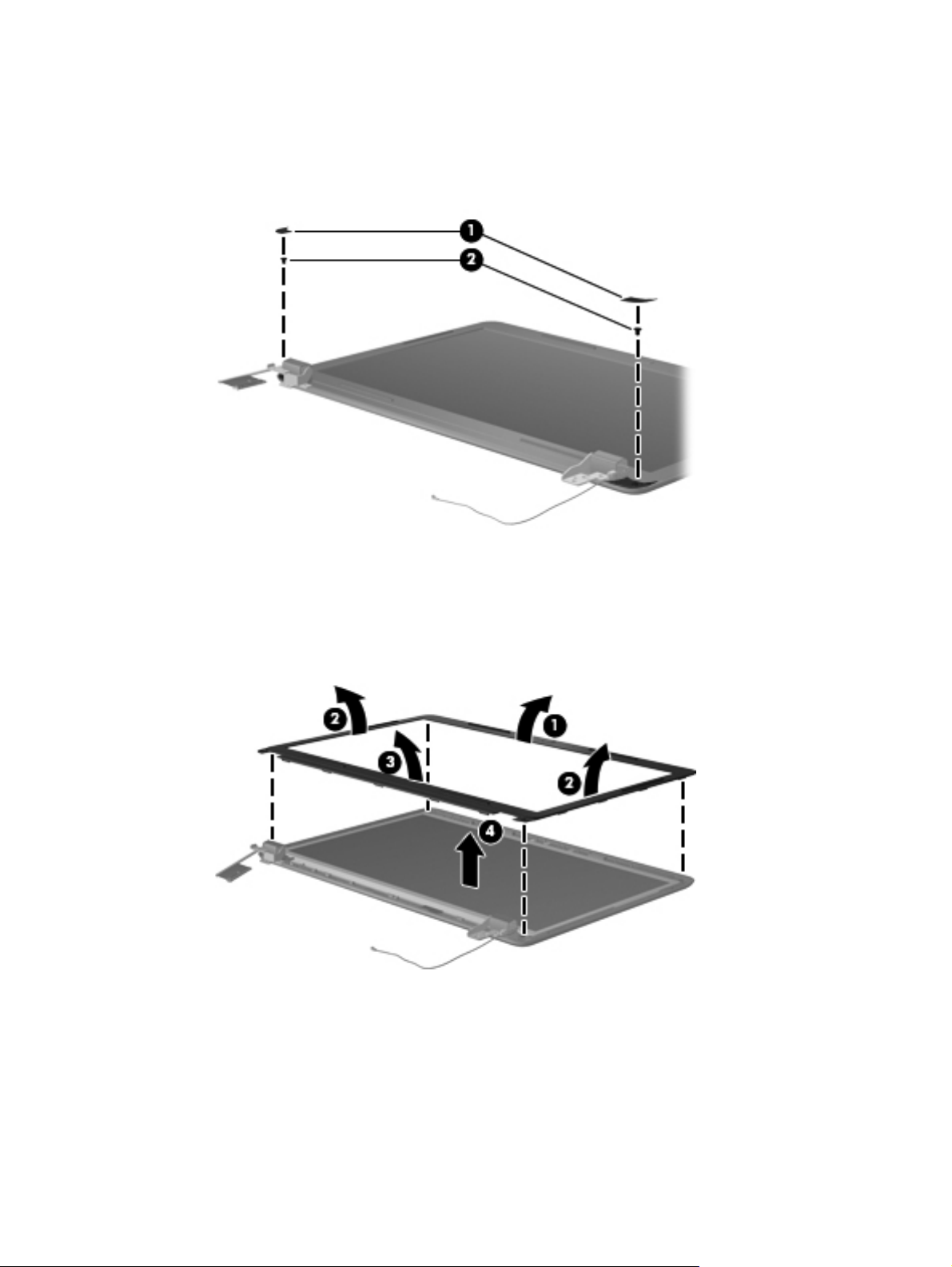

a. Remove the two Mylar screw covers (1) and the two Phillips PM2.5×4.0 screws (2) that

secure the display bezel to the display assembly. The Mylar screw covers are available in the Display Screw Kit, spare part number 645976-001.

b. Flex the inside edges of the top edge (1), the left and right sides (2), and

the bottom edge (3) of the display bezel until the bezel disengages from the display enclosure.

c. Remove the display bezel (4). The display bezel is available using spare part number

645964-001.

6. If it is necessary to replace the webcam/microphone module:

a. Detach and release the module (1) as far as the module cable allows. (The module is

attached to the display enclosure with double-sided tape.)

Disconnect the module cable (2) from the module.

68 Chapter 4 Removal and replacement procedures

Remove the webcam/microphone module (3). The webcam/microphone module is available using spare part number 646138-001.

7. If it is necessary to replace the hinge covers:

a. Remove the two Phillips PM2.5×5.0 (1) screws that secure the hinge covers to the

display enclosure.

b. Remove the hinge covers (2). The hinge covers are available using spare part number

645970-001.

Component replacement procedures

If it is necessary to replace the display panel:

a. Remove the two Phillips PM2.5×4.0 screws (1) and four Phillips PM2.5×5.0 screws (2) that

secure the display panel to the display enclosure.

b. Lift the top edge of the display panel, and then swing it up and forward until it rests upside

down in front of the display enclosure.

70 Chapter 4 Removal and replacement procedures

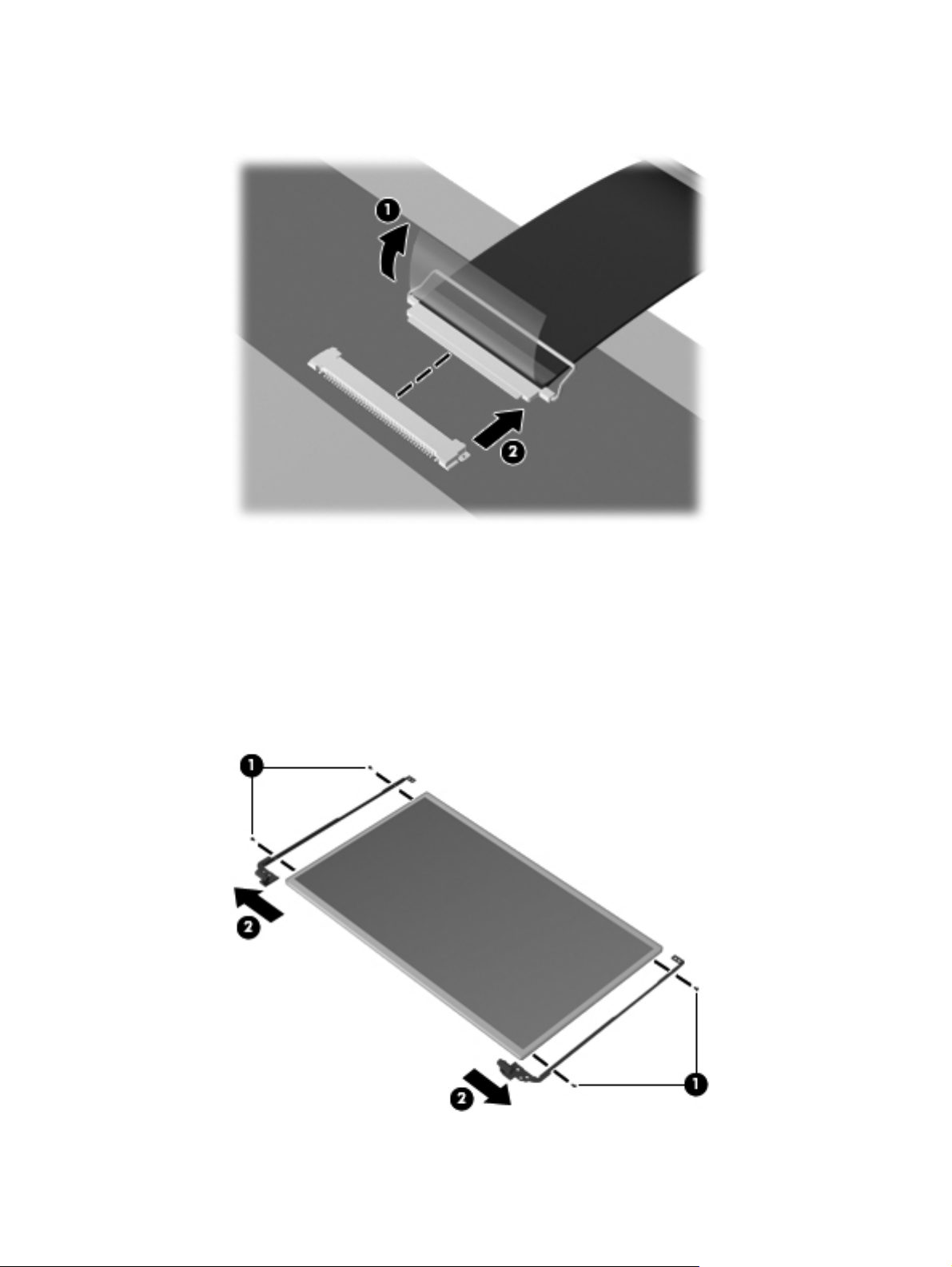

Release the adhesive strip (1) that secures the display panel cable to the display panel, and then disconnect the display panel cable (2) from the display panel.

d. Remove the display panel. The display panel is available using spare part number

645987-001.

9. If it is necessary to replace the display hinges:

a. Remove the four Phillips PM2.0×3.0 screws (1) that secure the display hinges to

the display panel.

b. Remove the display hinges (2). The display hinges include the display hinges and brackets

and are available using spare part number 645971-001.

Component replacement procedures

10.

If it is necessary to replace the display panel cable:

a. Release the tabs (1) built into the display enclosure shielding that secure the display panel

cable to the display enclosure.

b. Release the display panel cable from the clips (2) built into the display enclosure.

c. Remove the display panel cable (3). The display panel cable includes the webcam/

microphone module cable and is available in the Display Cable Kit, spare part number 645967-001.

11. If it is necessary to replace the wireless antenna cable and transceiver:

a. Release the wireless antenna transceiver (1) from the display enclosure. (The wireless

antenna transceiver is attached to the display enclosure with double-sided tape.)

b. Release the wireless antenna cable from the clips (2) built into the display enclosure.

c. Remove the wireless antenna cable and transceiver (3). The wireless antenna cable and

transceiver are available in the Antenna Kit, spare part number 645966-001.

72 Chapter 4 Removal and replacement procedures

Reverse this procedure to reassemble and install the display assembly.

System board

NOTE: The system board spare part kit includes replacement thermal material.

Replacement thermal material is also available in the Thermal Material Kit, spare part numbers 650277-001 (for use only with computer models equipped with an AMD processor) and 646135-001 (for use only with computer models equipped with an Intel processor).

Description Spare part number

For use only with computer models equipped with an AMD E450 1.65-GHz processor (dual core, 18 W) and a graphics subsystem with UMA video memory

For use only with computer models equipped with an AMD E300 1.30-GHz processor (dual core, 18 W) and a graphics subsystem with UMA video memory

For use only with computer models equipped with an AMD E240 1.50-GHz processor (single core, 18 W) and a graphics subsystem with UMA video memory

System board for use only with computer models equipped with an Intel Core i5 or i3 processor and a graphics subsystem with discrete video memory

System board for use only with computer models equipped with an Intel Core i5 or i3 processor and a graphics subsystem with UMA video memory

For use only with computer models equipped with an Intel Pentium processor and a graphics subsystem with discrete video memory

For use only with computer models equipped with an Intel Pentium processor and a graphics subsystem with UMA video memory

For use only with computer models equipped with an Intel Celeron processor and a graphics subsystem with UMA video memory

657323-001

657324-001

647322-001

646179-001

646177-001

646176-001

646175-001

646174-001

Before removing the system board, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

5. Remove the WLAN module (see

6. Disconnect the hard drive connector cable from the system board (see

Battery on page 41).

WLAN module on page 42).

Hard drive on page 46).

7. Remove the following components:

●

Keyboard (see

●

Top cover (see

Keyboard on page 51)

Top cover on page 54)

Component replacement procedures

●

Speakers (see

Speakers on page 61)

●

USB board (see

●

Power connector cable (see

●

Display assembly (see

USB board on page 63)

Power connector cable on page 64)

Display assembly on page 66)

NOTE: When replacing the system board, be sure that the following components are removed from

the defective system board and installed on the replacement system board:

●

Memory module (see

●

RTC battery (see

●

Fan/heat sink assembly (see

●

Processor (see

Memory module on page 45)

RTC battery on page 78)

Fan/heat sink assembly on page 80)

Processor on page 86)

Remove the system board:

Disconnect the optical drive connector cable from the system board.

2. Remove the Phillips PM2.5×6.0 screw (1) that secures the system board to the base enclosure.

3. Lift the right side of the system board (2) until it rests at an angle.

74 Chapter 4 Removal and replacement procedures

Remove the system board (3) by sliding it up and to the right at an angle.

NOTE: A heat sink is attached to the base enclosure to service a component on the bottom of

the system board. The thermal material must be thoroughly cleaned from the surfaces of the system board (1) and the heat sink (2) attached to the base enclosure each time the system board is removed. Replacement thermal material is included with all base enclosure and system board spare part kits.

Reverse this procedure to install the system board.

Component replacement procedures

Optical drive connector cable

NOTE: The optical drive connector cable is included in the Cable Kit, spare part number

645968-001.

Before removing the optical drive connector cable, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

●

WLAN module (see

●

Keyboard (see

●

Top cover (see

●

Speakers (see

●

USB board (see

●

Power connector cable (see

●

Display assembly (see

●

System board (see

Remove the optical drive connector cable:

1. Release the optical drive cable from the clips (1) built into the base enclosure.

2. Remove the two Phillips PM2.0×5.0 screws (2) that secure the optical drive connector to the

base enclosure.

Battery on page 41), and then remove the following components:

WLAN module on page 42)

Keyboard on page 51)

Top cover on page 54)

Speakers on page 61)

USB board on page 63)

Power connector cable on page 64)

Display assembly on page 66)

System board on page 73)

76 Chapter 4 Removal and replacement procedures

Remove the optical drive connector (3) from the base enclosure.

Reverse this procedure to install the optical drive connector cable.

Component replacement procedures

RTC battery

Description Spare part number

RTC battery (includes cable and double-sided tape) 646132-001

Before removing the RTC battery, follow these steps:

1. Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

●

WLAN module (see

●

Keyboard (see

●

Top cover (see

●

Speakers (see

●

USB board (see

●

Power connector cable (see

●

Display assembly (see

●

System board (see

Battery on page 41), and then remove the following components:

WLAN module on page 42)

Keyboard on page 51)

Top cover on page 54)

Speakers on page 61)

USB board on page 63)

Power connector cable on page 64)

Display assembly on page 66)

System board on page 73)

Remove the RTC battery:

1. Turn the system board upside down, with the front toward you.

Disconnect the RTC battery cable (1) from the system board.

78 Chapter 4 Removal and replacement procedures

Detach the RTC battery (2) from the system board. (The RTC battery is attached to the system board with double-sided tape.)

4. Remove the RTC battery.

Reverse this procedure to install the RTC battery.

Component replacement procedures

Fan/heat sink assembly

NOTE: The fan/heat sink assembly spare part kit includes replacement thermal material.

Description Spare part number

For use only with computer models equipped with an AMD processor 647316-001

Fan/heat sink assembly for use only with computer models equipped with an Intel Core i5 or i3 processor and a graphics subsystem with discrete video memory

Fan/heat sink assembly for use only with computer models equipped with an Intel Core i5 or i3 processor and a graphics subsystem with UMA video memory

For use only with computer models equipped with an Intel Pentium processor and a graphics subsystem with discrete video memory

For use only with computer models equipped with an Intel Pentium processor and a graphics subsystem with UMA video memory

For use only with computer models equipped with an Intel Celeron processor and a graphics subsystem with UMA video memory

646182-001

646183-001

646180-001

646181-001

646184-001

NOTE: To properly ventilate the computer, allow at least 7.6 cm (3 in) of clearance on the left side of

the computer. The computer uses an electric fan for ventilation. The fan is controlled by a temperature sensor and is designed to turn on automatically when high temperature conditions exist. These conditions are affected by high external temperatures, system power consumption, power management/battery conservation configurations, battery fast charging, and software requirements. Exhaust air is displaced through the ventilation grill located on the left side of the computer.

Before removing the fan/heat sink assembly, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the computer.

4. Remove the battery (see

●

Optical drive (see

●

WLAN module (see

●

Keyboard (see

●

Top cover (see

●

USB board (see

●

Power connector cable (see

Battery on page 41), and then remove the following components:

Optical drive (select models only) on page 49)

WLAN module on page 42)

Keyboard on page 51)

Top cover on page 54)

USB board on page 63)

Power connector cable on page 64)

80 Chapter 4 Removal and replacement procedures

●

Display assembly (see

Display assembly on page 66)

●

System board (see

Remove the fan/heat sink assembly:

1. Disconnect the fan cable from the system board.

System board on page 73)

2. Turn the system board upside down, with the front toward you.

3. Loosen the captive screws (1) that secure the fan/heat sink assembly to the system board.

NOTE: The number of screws used to secure the fan/heat sink assembly to the system board

varies by computer model.

NOTE: Due to the adhesive quality of the thermal material located between the heat sink and

system board components, it may be necessary to move the heat sink from side to side to detach it.

4. Remove the fan and heat sink (2).

NOTE: The following illustration shows the fan/heat sink assembly removal process on a computer

model equipped with an AMD processor.

Component replacement procedures

NOTE: The following illustration shows the fan/heat sink assembly removal process on a computer

model equipped with an Intel Pentium processor and a graphics subsystem with discrete memory.

NOTE: The following illustration shows the fan/heat sink assembly removal process on a computer

model equipped with an Intel Pentium processor and a graphics subsystem with UMA memory.

82 Chapter 4 Removal and replacement procedures

NOTE: The following illustration shows the fan/heat sink assembly removal process on a computer

model equipped with an Intel Celeron processor.

The thermal material must be thoroughly cleaned from the surfaces of the heat sink and the system board components each time the heat sink is removed. Replacement thermal material is included with the base enclosure, fan/heat sink assembly, processor, and system board spare part kits. Replacement thermal material is also available in the Thermal Material Kit, spare part numbers 650277-001 (for use only with computer models equipped with an AMD processor) and 646135-001 (for use only with computer models equipped with an Intel processor).

NOTE: The following illustration shows the replacement thermal material locations on a computer

model equipped with an AMD processor.

Component replacement procedures

●

Thermal paste is used on the processor (1) and the heat sink section (2) that services it

●

A thermal pad is used on the FCH chip (3) and the heat sink section (4) that services it

NOTE: The following illustration shows the replacement thermal material locations on a computer

model equipped with an Intel Pentium processor and a graphics subsystem with discrete memory.

●

Thermal paste is used on the processor (1) and the heat sink section (2) that services it

●

A thermal pad is used on the graphics subsystem chip (3) and the heat sink section (4) that services it

NOTE: The following illustration shows the replacement thermal material locations on a computer

model equipped with an Intel Pentium processor and a graphics subsystem with UMA memory.

84 Chapter 4 Removal and replacement procedures

●

Thermal paste is used on the processor (1) and the heat sink section (2) that services it

●

A thermal pad is used on the Northbridge chip (3) and the heat sink section (4) that services it

NOTE: The following illustration shows the replacement thermal material locations on a computer

model equipped with an Intel Celeron processor.

●

Thermal paste is used on the processor (1) and the heat sink section (2) that services it

●

A thermal pad is used on the Northbridge chip (3) and the heat sink section (4) that services it

Reverse this procedure to reassemble and install the fan/heat sink assembly.

Component replacement procedures

Processor

NOTE: This section applies only to computer models equipped with an Intel processor.

NOTE: The processor spare part kit includes replacement thermal material.

Description Spare part number

Intel Core i5-2430M 2.40-GHz processor (1333-MHz FSB, 3.0-MB L3 cache, dual core, 35 W) 653341-001

Intel Core i5-2410M 2.30-GHz processor (1333-MHz FSB, 3.0-MB L3 cache, dual core, 35 W) 638039-001

Intel Core i3-2330M 2.20-GHz processor (1333-MHz FSB, 3.0-MB L3 cache, dual core, 35 W) 653339-001

Intel Core i3-2310M 2.10-GHz processor (1333-MHz FSB, 3.0-MB L3 cache, dual core, 35 W) 638037-001

Intel Core i3-370M 2.40-GHz processor (1066-MHz FSB, 3.0-MB L3 cache, dual core, 35 W) 613584-001

Intel Pentium P6300 2.26-GHz processor (3.0-MB L3 cache, dual core, 35 W) 635500-001

Intel Pentium P6200 2.13-GHz processor (3.0-MB L3 cache, dual core, 35 W) 625831-001

Intel Pentium B950 2.10-GHz processor (2.0-MB L2 cache, dual core, TJ85, 35 W) 653338-001

Intel Pentium B940 2.00-GHz processor (2.0-MB L2 cache, dual core, TJ85, 35 W) 653337-001

Intel Celeron DC T3500 2.10-GHz processor (1.0-MB L2 cache, 800-MHz FSB) 625830-001

Intel Celeron SC C925 2.30-GHz processor (1.0-MB L2 cache, 800-MHz FSB) 636636-001

Intel Celeron SC C900 2.20-GHz processor (1.0-MB L2 cache, 800-MHz FSB) 534419-001

Before removing the processor, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.

2. Disconnect all external devices connected to the computer.

3. Disconnect the power from the computer by first unplugging the power cord from the AC outlet

and then unplugging the AC adapter from the computer.

4. Remove the battery (see

●

WLAN module (see

●

Keyboard (see

●

Top cover (see

Battery on page 41), and then remove the following components:

WLAN module on page 42)

Keyboard on page 51)

Top cover on page 54)

●

Speakers (see

●

USB board (see

●

Power connector cable (see

Speakers on page 61)

USB board on page 63)

Power connector cable on page 64)

86 Chapter 4 Removal and replacement procedures

●

Display assembly (see

Display assembly on page 66)

●

System board (see

●

Fan/heat sink assembly (see

Remove the processor:

1. Use a flat-bladed screw driver to turn the processor locking screw one-half turn

counterclockwise (1), until you hear a click.

2. Lift the processor (2) straight up, and then remove it.

NOTE: The gold triangle (3) on the processor must be aligned with the triangle icon (4)

embossed on the processor socket when you install the processor.

System board on page 73)

Fan/heat sink assembly on page 80)

Reverse this procedure to install the processor.

Component replacement procedures

5 Setup Utility (BIOS) and System

Diagnostics

Using Setup Utility

Setup Utility, or Basic Input/Output System (BIOS), controls communication between all the input and output devices on the system (such as disk drives, display, keyboard, mouse, and printer). Setup Utility includes settings for the types of peripherals installed, the startup sequence of the computer, and the amount of system and extended memory.

NOTE: Use extreme care when making changes in Setup Utility. Errors can prevent the computer from

operating properly.

Starting Setup Utility

NOTE: An external keyboard or mouse connected to a USB port can be used with Setup Utility only if

USB legacy support is enabled.

To start Setup Utility, follow these steps:

1. Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup Menu”

message is displayed at the bottom of the screen.

Press f10 to enter Setup Utility.

Changing the language of Setup Utility

1. Start Setup Utility.

2. Use the arrow keys to select System Configuration > Language, and then press enter.

3. Use the arrow keys to select a language, and then press enter.

4. When a confirmation prompt with your language selected is displayed, press enter.

5. To save your change and exit Setup Utility, use the arrow keys to select Exit > Exit Saving

Changes, and then press enter.

Your change takes effect immediately.

88 Chapter 5 Setup Utility (BIOS) and System Diagnostics

Navigating and selecting in Setup Utility

To navigate and select in Setup Utility, follow these steps:

1. Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup Menu”

message is displayed at the bottom of the screen.

●

To select a menu or a menu item, use the tab key and the keyboard arrow keys and then press enter, or use a pointing device to click the item.

●

To scroll up and down, click the up arrow or the down arrow in the upper-right corner of the screen, or use the up arrow key or the down arrow key.

●

To close open dialog boxes and return to the main Setup Utility screen, press esc, and then follow the on-screen instructions.

2. Press f10 to enter Setup Utility.

To exit Setup Utility menus, choose one of the following methods:

●

To exit Setup Utility menus without saving your changes, press the esc key, and then follow the onscreen instructions.

– or –

Use the arrow keys to select Exit > Exit Discarding Changes, and then press enter.

●

To save your changes and exit Setup Utility menus, press f10, and then follow the on-screen instructions.

– or –

Use the tab key and the arrow keys to select Exit > Exit Saving Changes, and then press enter.

Your changes go into effect when the computer restarts.

Displaying system information

1. Start Setup Utility.

2. Select the Main menu. System information such as the system time and date, and identification

information about the computer is displayed.

3. To exit Setup Utility without changing any settings, use the arrow keys to select Exit > Exit

Discarding Changes, and then press enter.

Using Setup Utility

Restoring factory settings in Setup Utility

NOTE: Restoring defaults will not change the hard drive mode.

To return all settings in Setup Utility to the values that were set at the factory, follow these steps:

1. Turn on or restart the computer, and then press esc while the “Press the ESC key for Startup Menu”

message is displayed at the bottom of the screen.

2. Press f10 to enter Setup Utility.

3. Use the arrow keys to select Exit > Load Setup Defaults.

4. Follow the on-screen instructions.

5. To save your changes and exit, press f10, and then follow the on-screen instructions.

– or –

Use the arrow keys to select Exit > Exit Saving Changes, and then press enter.

Your changes go into effect when the computer restarts.

NOTE: Your password settings and security settings are not changed when you restore the factory

settings.

Exiting Setup Utility

●

To exit Setup Utility and save your changes from the current session:

If the Setup Utility menus are not visible, press esc to return to the menu display. Then use the arrow keys to select Exit > Exit Saving Changes, and then press enter.

●

To exit Setup Utility without saving your changes from the current session:

If the Setup Utility menus are not visible, press esc to return to the menu display. Then use the arrow keys to select Exit > Exit Discarding Changes, and then press enter.

Updating the BIOS

Updated versions of the BIOS may be available on the HP Web site.

Most BIOS updates on the HP Web site are packaged in compressed files called SoftPaqs.

Some download packages contain a file named Readme.txt, which contains information regarding installing and troubleshooting the file.

90 Chapter 5 Setup Utility (BIOS) and System Diagnostics

Determining the BIOS version

To determine whether available BIOS updates contain later BIOS versions than those currently installed on the computer, you need to know the version of the system BIOS currently installed.

BIOS version information (also known as ROM date and System BIOS) can be displayed by pressing fn

+esc (if you are already in Windows) or by using Setup Utility.

1. Start Setup Utility (BIOS).

2. Use the arrow keys to select Main.

3. To exit Setup Utility (BIOS) without saving your changes, use the tab key and the arrow keys to

select Exit > Exit Discarding Changes, and then press enter.

Downloading a BIOS update

CAUTION: To reduce the risk of damage to the computer or an unsuccessful installation, download

and install a BIOS update only when the computer is connected to reliable external power using the AC adapter. Do not download or install a BIOS update while the computer is running on battery power, docked in an optional docking device, or connected to an optional power source. During the download and installation, follow these instructions:

Do not disconnect power from the computer by unplugging the power cord from the AC outlet.

Do not shut down the computer or initiate Sleep or Hibernation.

Do not insert, remove, connect, or disconnect any device, cable, or cord.

1. Windows 7—Select Start > Help and Support > Maintain.

Windows XP—Select Start > Help and Support, and then select the software and

drivers update.

Follow the on-screen instructions to identify your computer and access the BIOS update you want to download.

3. At the download area, follow these steps:

a. Identify the BIOS update that is later than the BIOS version currently installed on your

computer. Make a note of the date, name, or other identifier. You may need this information to locate the update later, after it has been downloaded to your hard drive.

Follow the on-screen instructions to download your selection to the hard drive. Make a note of the path to the location on your hard drive where the BIOS update is downloaded. You will need to access this path when you are ready to install the update.

NOTE: If you connect your computer to a network, consult the network administrator before

installing any software updates, especially system BIOS updates.

Using Setup Utility

BIOS installation procedures vary. Follow any instructions that are displayed on the screen after the download is complete. If no instructions are displayed, follow these steps:

1. Windows 7—Open Windows Explorer by selecting Start > Computer.

Windows XP—Open Windows Explorer by selecting Start > My Computer.

2. Double-click your hard drive designation. The hard drive designation is typically Local Disk (C:).

3. Using the hard drive path you recorded earlier, open the folder on your hard drive that contains

the update.

4. Double-click the file that has an .exe extension (for example, filename.exe).

The BIOS installation begins.

5. Complete the installation by following the on-screen instructions.

NOTE: After a message on the screen reports a successful installation, you can delete the

downloaded file from your hard drive.

Using System Diagnostics

System Diagnostics allows you to run diagnostic tests to determine if the computer hardware is functioning properly. The following diagnostic tests are available in System Diagnostics:

●

Start-up test—This test analyzes the main computer components that are required to start the computer.

●

Run-in test—This test repeats the start-up test and checks for intermittent problems that the start-up test does not detect.

●

Hard disk test—This test analyzes the physical condition of the hard drive, and then checks all data in every sector of the hard drive. If the test detects a damaged sector, it attempts to move the data to a good sector.

●

Memory test—This test analyzes the physical condition of the memory modules. If it reports an error, replace the memory modules immediately.

●

Battery test—This test analyzes the condition of the battery. If the battery fails the test, contact HP support to report the issue and purchase a replacement battery.

You can also view system information and error logs in the System Diagnostics window.

To start System Diagnostics:

Turn on or restart the computer. While the “Press the ESC key for Startup Menu” message is displayed in the lower-left corner of the screen, press esc. When the Startup Menu is displayed, press f2.

2. Click the diagnostic test you want to run, and then follow the on-screen instructions.

NOTE: If you need to stop a diagnostics test while it is running, press esc.

92 Chapter 5 Setup Utility (BIOS) and System Diagnostics

HP CQ43 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

1 Product description

2 External component identification

Display

Button

Keys

Lights

TouchPad

Left side

Right side

Bottom

3 Illustrated parts catalog

Service tag

Computer major components

Cable Kit

Display assembly subcomponents

Mass storage devices

Miscellaneous parts

Plastics Kit

Sequential part number listing

Preliminary replacement requirements

Tools required

Service considerations

Plastic parts

Cables and connectors

Drive handling

Grounding guidelines

Electrostatic discharge damage

Packaging and transporting guidelines

Workstation guidelines

Equipment guidelines

Component replacement procedures

Service tag

Computer feet

Battery

WLAN module

Memory module

Hard drive

Optical drive (select models only)

Keyboard

Top cover

Power button board

TouchPad button board

Speakers

USB board

Power connector cable

Display assembly

System board

Optical drive connector cable

RTC battery

Fan/heat sink assembly

Processor

Using Setup Utility

Starting Setup Utility

Changing the language of Setup Utility

Navigating and selecting in Setup Utility

Displaying system information

Restoring factory settings in Setup Utility

Exiting Setup Utility

Updating the BIOS

Determining the BIOS version

Downloading a BIOS update

Using System Diagnostics
