HP Compaq t5510 User Manual

Terminal Emulation

User's Guide

Trademarks

ADDS Viewpoint A2 is a trademark of Applied Digital Data Systems Inc. AIX is a registered trademark of International Business Machines Corporation. DEC, VT52, VT100, VT131, VT220, VT300, VT320, VT340, VT400 and VT420 are

registered trademarks of Digital Equipment Corporation. Hazeltine is a trademark of Esprit Systems, Inc. HP700/92, HP2392A and HP2622A are trademarks of Hewlett Packard Company. IBM is a registered trademark of International Business Machines Corporation. Microsoft is a registered trademark of Microsoft Corporation. Tandem, NonStop and LXN are trademarks of Tandem Computers Inc. TeleVideo is a registered trademark, and TeleVideo 910, 910+ and 925 are trademarks

of TeleVideo Systems, Inc. WYSE is a registered trademark, and WY-50, WY-50+ and WY-60 are trademarks of

Wyse Technology Inc. All other product names are trademarks of their respective manufacturers.

consent from Pericom Software PLC.

Pericom Software PLC, The Stables, Cosgrove, Milton Keynes, MK19 7JJ, UK Tel: +44 (0) 1908 267111 Fax: +44 (0) 1908 267112

Contents

Introduction....................................................... 1-1

About This User's Guide ............................................................... 1-1

Terms & Conventions.................................................................... 1-2

Getting Started.................................................. 2-1

WBT Session Configuration .......................................................... 2-1

Using The Connection Wizard .......................................................... 2-1

Terminal Emulation Configuration ................................................... 2-6

Emulation Options ...................................................................... 2-6

DEC Suite Options ..................................................................... 2-7

HP 700-92/96 Option..................................................................2-8

IBM 3151 Option........................................................................2-8

IBM 3270 Options ...................................................................... 2-8

IBM 5250 Options ...................................................................... 2-9

TCP/IP Connection Settings ........................................................... 2-10

TN3270 Options .......................................................................2-12

TN5250 Options .......................................................................2-14

5250 Printer Options.................................................................2-16

Modem Connection Settings ........................................................... 2-19

Serial Connection Settings ..............................................................2-20

Automate Login Process ................................................................. 2-22

Printer Port Settings ......................................................................... 2-24

GUI Overrides .................................................................................2-26

Aux Port Settings.............................................................................2-27

The Command Bar ...................................................................... 2-28

Setup Menus .................................................................................... 2-28

The Button Tools.............................................................................2-29

SBC Data Capture .................................................................... 2-30

The Soft Buttons..............................................................................2-30

Contents-1

Contents

The Status Bar ............................................................................. 2-31

Hotspots....................................................................................... 2-32

Keyboar d Configuration ................................... 3-1

Keyboard Mapping........................................................................ 3-1

Defining Key Functions................................................................. 3-1

Defining A Key Or Key Combination .............................................. 3-2

Entering Control Characters .............................................................. 3-3

Key Combinations & Sequences ....................................................... 3-3

Compose Character Sequences ..................................................... 3-4

Mouse Functions .............................................. 4-1

Introduction ................................................................................... 4-1

Redefining Mouse Functions ......................................................... 4-1

Selecting & Copying Text.............................................................. 4-2

Moving The Cursor In Block Mode............................................... 4-2

Send Keyword................................................................................ 4-3

Show & Action Hotspots ............................................................... 4-3

Emulating Middle Mouse Button .................................................. 4-3

Setup Menus ..................................................... 5-1

Displaying & Closing Menus ........................................................ 5-1

Using The Menus........................................................................... 5-2

Dialog Boxes ................................................................................. 5-3

Default Settings ............................................................................. 5-4

Specifying Characters In Setup Entries ........................................ 5-4

Creating A Connection Template.................................................. 5-5

Selecting A Connection Template ....................................................5-6

Menu Descriptions ........................................................................ 5-7

File Menu...........................................................................................5-7

Edit Menu ........................................................................................ 5-16

Settings Menu .................................................................................. 5-17

Emulation Settings .......................................................................... 5-19

HP 700-92/96 Settings ..................................................................... 5-22

IBM 3151 Settings...........................................................................5-28

Wyse Settings .................................................................................. 5-32

Contents-2

Contents

TA6530 Settings .............................................................................. 5-37

IBM 3270 Settings...........................................................................5-39

Notice Board Setup .........................................................................5-43

IBM 5250 Settings...........................................................................5-45

Serial Settings .................................................................................. 5-49

Auxport Setup..................................................................................5-51

Terminal Settings ............................................................................ 5-52

Tab Stops ......................................................................................... 5-58

Local Editing ................................................................................... 5-59

Block Transmission ......................................................................... 5-61

Attributes ......................................................................................... 5-65

Define Keyboard Macros ................................................................ 5-70

Defining A Key Or Key Combination ..................................... 5-71

Specifying Characters ............................................................... 5-72

Soft Buttons .....................................................................................5-73

Programming A Soft Button.....................................................5-73

Specifying Characters ............................................................... 5-74

Mouse Button Actions..................................................................... 5-76

DEC VT Em ulations .......................................... 6-1

Session Configuration ................................................................... 6-1

WBT Mode ........................................................................................ 6-1

Non-WBT Mode................................................................................6-2

The Status Bar ............................................................................... 6-4

Horizontal Scrolling...................................................................... 6-5

Keyboard Mapping........................................................................ 6-5

DG 410/412 Emulation...................................... 7-1

Session Configuration ................................................................... 7-1

WBT Mode ........................................................................................ 7-1

Non-WBT Mode................................................................................7-2

Keyboard Mapping........................................................................ 7-4

Key Functions....................................................................................7-4

Key Codes..........................................................................................7-6

HP 700-92/96 Emulation ................................... 8-1

Session Configuration ................................................................... 8-1

WBT Mode ........................................................................................ 8-1

Non-WBT Mode................................................................................8-2

Contents-3

Contents

Display Configuration................................................................... 8-3

Keyboard Mapping........................................................................ 8-3

Buttons & Function Keys .............................................................. 8-5

Mode Selection.................................................................................. 8-5

Configuration Selection .................................................................... 8-8

Device Control ................................................................................... 8-8

Device Modes .................................................................................. 8-10

Margins, Tabs & Start Column ....................................................... 8-11

Key Programming ....................................................................... 8-13

Character Display Attributes ...................................................... 8-16

IBM 3270 Emulation.......................................... 9-1

Introduction ................................................................................... 9-1

Session Configuration ................................................................... 9-1

WBT Mode ........................................................................................ 9-1

Non-WBT Mode................................................................................ 9-2

Network Virtual Terminal Mode ................................................... 9-4

Host Selection................................................................................ 9-4

IBM 3287-1 Printer Support ......................................................... 9-4

SysReq Key Support ...................................................................... 9-5

The Status Line .............................................................................. 9-5

Text Display Options..................................................................... 9-9

Keyboard Mapping...................................................................... 9-10

Record & Playback Keystrokes Facility ..................................... 9-12

Recording Keystrokes ..................................................................... 9-12

Playback Keystrokes ....................................................................... 9-13

Editing Macros ................................................................................ 9-13

Error Codes...................................................................................... 9-14

Notice Board Facility .................................................................. 9-15

Introduction .....................................................................................9-15

Key Functions.................................................................................. 9-15

Copying Screen Data To The Display ............................................9-15

Copying Screen Data To A Function Key ...................................... 9-16

IBM 5250 Emulation........................................ 10-1

Introduction ................................................................................. 10-1

Contents-4

Contents

Session Configuration ................................................................. 10-1

WBT Mode ...................................................................................... 10-1

Non-WBT Mode..............................................................................10-3

Network Virtual Terminal Mode ................................................. 10-5

The Status Line ............................................................................ 10-5

Keyboard Mapping...................................................................... 10-6

Word Processing Mode ................................................................... 10-6

Text Display Options................................................................... 10-8

Record & Playback Keystrokes Facility ..................................... 10-9

Recording Keystrokes .....................................................................10-9

Playback Keystrokes .....................................................................10-10

Error Codes.................................................................................... 10-10

Fax Image Support .................................................................... 10-11

IBM 3151 Emulation........................................ 11-1

Introduction ................................................................................. 11-1

Session Configuration ................................................................. 11-1

WBT Mode ...................................................................................... 11-1

Non-WBT Mode..............................................................................11-2

The Status Bar ............................................................................. 11-3

Keyboard Mapping...................................................................... 11-4

Defining Function Keys............................................................... 11-6

T A6530 Em ulation........................................... 12-1

Session Configuration ................................................................. 12-1

WBT Mode ...................................................................................... 12-1

Non-WBT Mode..............................................................................12-2

The Status Line ............................................................................ 12-3

Operating Modes......................................................................... 12-4

The Rule Cursor .......................................................................... 12-5

Keyboard Mapping...................................................................... 12-5

Wyse Emulations............................................ 13-1

Session Configuration ................................................................. 13-1

WBT Mode ...................................................................................... 13-1

Non-WBT Mode..............................................................................13-2

Contents-5

Contents

Display Format ........................................................................... 13-4

Status Line Messages .................................................................. 13-4

Keyboard Mapping...................................................................... 13-5

Initialization Commands ................................ 14-1

Introduction ................................................................................. 14-1

Command Summary .................................................................... 14-2

Host Connection .......................................................................... 14-5

Session Configuration ................................................................. 14-7

Display......................................................................................... 14-9

Keyboard & Mouse ................................................................... 14-18

Virtual Key Names ............................................A-1

Character Sets ..................................................B-1

Host Command Summary................................C-1

VT52 Emulation ............................................................................C-1

ANSI VT100 Emulation .................................................................C-2

ANSI VT500 Emulation .................................................................C-6

ANSI VT510 Emulation .................................................................C-9

ANSI VT420 Emulation ...............................................................C-12

AIXTerm Emulation.....................................................................C-15

DG 410/412 Emulation ...............................................................C-19

HP 700-92/96 Emulation ............................................................C-22

IBM 3151 Emulation ...................................................................C-26

SCO Console Emulation .............................................................C-29

TA6530 Emulation ......................................................................C-32

TVI 955 Emulation ......................................................................C-36

Wyse Emulations .........................................................................C-42

Wyse PC Term Emulation ...........................................................C-48

Additional Commands .................................................................C-53

Product Specification.......................................D-1

Contents-6

Introduction

This chapter introduces the contents of this User's Guide.

About This User's Guide

Chapter 1: Introduction

Introduces the contents of this User's Guide.

Chapter 2: Getting Started

Describes how to configure a session and describes various display features.

Chapter 3: Keyboard Configuration

Describes how to assign functions to keys and how to use the Compose Character function to generate special characters.

Introduction

Chapter 4: Mouse Functions

Describes the special functions assigned to the left mouse button and how to redefine them.

Chapter 5: Setup Menus

Describes all the commands and setup dialog boxes that can be accessed via drop-down menus in the command bar.

Chapter 6: DEC VT Emulations

Describes features of the DEC VT emulations.

Chapter 7: DG 410/412 Emulation

Describes features of the Data General D410/412 emulation.

Chapter 8: HP 700-92/96 Emulation

Describes features of the Hewlett Packard HP 700-92/96 emulation.

Chapter 9: IBM 3270 Emulation

Describes features of the IBM 3270 emulation.

1-1

Introduction

Chapter 10: IBM 5250 Emulation

Describes features of the IBM 5250 emulation.

Chapter 11: IBM 3151 Emulation

Describes features of the IBM 3151 emulation.

Chapter 12: TA6530 Emulation

Describes features of the Tandem 6530 emulation.

Chapter 13: Wyse Emulations

Describes features of the Wyse WY-50, WY-50+ and WY-60 emulations.

Chapter 14: Initialization Commands

Describes commands that can be included in the registry and on the command line to specify the emulator start-up configuration.

Appendix A: Virtual Key Names

Lists all the virtual key names that enable you to include a specific key function in a user definition for key macros and soft buttons.

Appendix B: Character Sets

Shows the supported character set code tables.

Appendix C: Host Command Summary

Lists the host commands that are supported in each terminal emulation mode.

Appendix D: Product Specification

Describes the level of support provided by each terminal emulation.

Terms & Conventions

This User's Guide uses the following terms and conventions.

1. When references to keys on the keyboard are shown linked by a + (plus sign), this means that two or more keys have to be pressed at the same time. For example, 'press Alt + F' means press and hold down the Alt key, press the F key then release both keys.

2. 'Click' means position the mouse pointer over an element on the display then quickly press and release the specified mouse button.

3. 'Drag the pointer' means hold down the left mouse button (or button assigned with the select function) and slide the mouse so that a selection box is displayed.

1-2

Getting Started

This chapter describes how to configure a session and describes various display features.

WBT Session Configuration

Using The Connection Wizard

This section describes the basic procedure for creating a session configuration in WBT mode. The options available are described in detail in the following sections.

1. Click the Configure tab in the Terminal Connection Manager then click the Add button to display the New Connection dialog box.

2. Select Terminal Emulation Client and click OK. The Connection Information dialog box will be displayed.

3. Specify the language to be used in all menus and dialog boxes by making a selection in the Operating Language list at the bottom of the dialog box.

2-1

Getting Started

4. Enter a name which will identify this session configuration for future selection in

the Connection Name box.

5. Select the terminal emulation required in the Emulation list box.

6. If additional configuration options are displayed, make the relevant selections. Refer to the Terminal Emulation Configuration section later in this chapter for details.

Clicking the International Settings button will display keyboard language and character set options for the selected terminal emulation. Refer to the relevant emulation settings dialog box description in the Setup Menus chapter for details. (Note that the DEC VT options are located in the Emulation and Terminal Settings dialog boxes.)

7. Click Next to display the Host Information dialog box. If the IBM 3270 emula- tion was selected, the second dialog box shown below will be displayed.

2-2

Getting Started

For a TCP/IP connection, click the TCP/IP button and enter the name or internet address of the host computer in the Host Name box. Selecting the Host Rollover On Connection Fail option will present four Host Name entry boxes. The emulator will attempt to connect to each specified host in turn until one is successful. Click Advanced for Telnet options. Refer to the TCP/IP Connection Settings section later in this chapter for details.

For a modem connection, click the Modem button then click Advanced to display configuration options. Refer to the Modem Connection Settings section later in this chapter for details.

For a serial connection, click the Serial button, specify the communications port in the Connect To box, then click Advanced for additional serial options. Refer to the Serial Connection Settings section later in this chapter for details.

The IBM 3270 emulation enables you to specify up to four hosts and you can use keyboard commands to switch between the sessions as described in the IBM 3270 Emulation chapter. Enter the name or internet address of the host computer(s) in the Host box(es), then click Advanced for Telnet options. Refer to the TCP/IP Connection Settings section later in this chapter for details.

Make the relevant selections then click OK to return to the Host Information dialog box, then click Next to display the Automate Login Process dialog box.

8. The Automate Login Process dialog box gives you the option to automate part or

all of the host login procedure. Refer to the Automate Login Process section later in this chapter for details.

2-3

Getting Started

Make the relevant selections if required then click Next to display the Printer Port Settings dialog box.

9. The next dialog box in the Connection Wizard enables you to specify Printer Port Settings. Refer to the Printer Port Settings section later in this chapter for details.

Make the relevant selections if required then click Next to display the GUI Overrides dialog box.

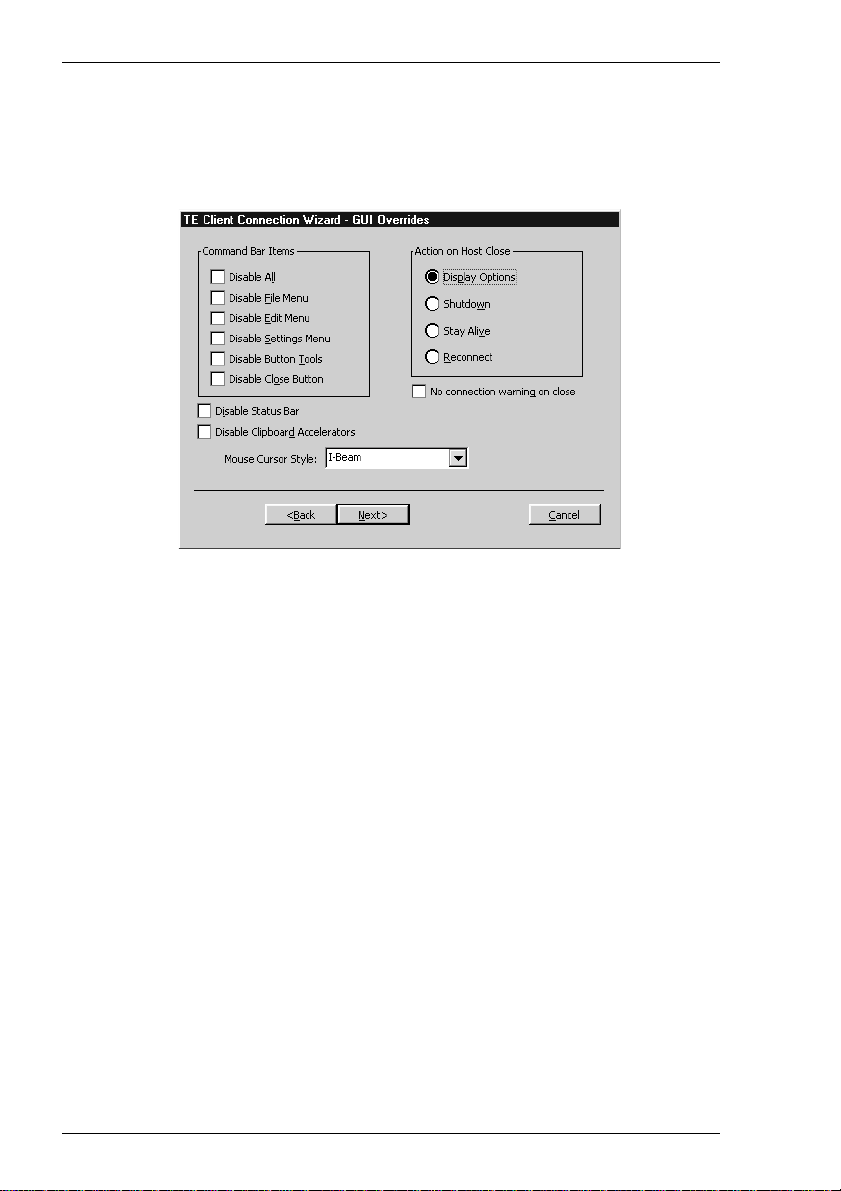

10. The GUI Overrides dialog box allows you to disable various GUI items and also enables you to specify how the emulator responds when the host closes the connection. Refer to the GUI Overrides section later in this chapter for details.

2-4

Getting Started

Make the relevant selections if required then click Next to display the Aux Port Settings dialog box.

11. The Aux Port Settings dialog box enables you to specify a COM or LPT port for

bidirectional output when in any DEC VT mode, ANSI BBS, Sco Console, HP 700-92/96 or IBM 3151 mode.

12. When you have made your selections, click Finish to return to the Terminal Connection Manager.

13. In the Terminal Connection Manager, display the Connections list, select the session name you specified earlier in step 4, then click the Connect button.

2-5

Getting Started

T erminal Emulation Configuration

Emulation Options

The Emulation options in the Connection Wizard Connection Information dialog box are as follows:

The ADDS A2 emulation provides compatibility with software designed to drive the ADDS Viewpoint A2 terminal, as emulated by the Wyse WY-50/50+/60 terminals. Refer to the Wyse Emulations chapter for details.

The AIXTerm emulation provides compatibility with software designed to drive an X terminal using X Windows.

The ANSI BBS emulation is a derivative of the ANSI device driver ANSI.SYS supplied with all DOS based PCs and which provides the screen management for the DOS console screen. PC based UNIX systems and Bulletin Board Systems (BBS) often rely on the ANSI emulation when being accessed by a PC.

The AT 386 emulation provides compatibility with software designed to drive the AT&T AT 386 terminal.

The DG 410/412 emulation provides compatibility with software designed to drive the Data General D410 and D412 terminals. Refer to the DG 410/412 Emulation chapter for details.

The HP 700-92/96 emulation provides compatibility with software designed to drive the Hewlett Packard 700/92, 2392A, 2622A, 70094 and 70096 terminals. This emulation is described in detail in the HP 700-92/96 Emulation chapter.

The HZ1500 emulation provides compatibility with software designed to drive the Hazeltine 1500 terminal, as emulated by the Wyse WY-50/50+/60 terminals. Refer to the Wyse Emulations chapter for details.

The IBM 3151 emulation provides compatibility with software designed to drive the IBM 3151 terminal. Refer to the IBM 3151 Emulation chapter for information on this emulation.

The IBM 3270 emulation provides compatibility with software designed to drive the IBM 3270 terminal. Note that the initial display will be an ASCII text screen known as Network Virtual Terminal mode (NVT mode for short). The setting of the IBM 3270 Model option determines the size of the display and whether or not extended attributes are supported. Refer to the IBM 3270 Emulation chapter for details.

The IBM 5250 emulation provides compatibility with software designed to drive IBM 5250 type alphanumeric terminals. This emulation can be used for connection to an IBM AS/400, System/36 or System/38. Note that the initial display will be an ASCII text screen known as Network Virtual Terminal mode (NVT mode for short). Refer to the IBM 5250 Emulation chapter for details.

Sco Console is an emulation of the SCO UNIX box.

2-6

Getting Started

The TA6530 emulation provides compatibility with software designed to drive the Tandem 6530 terminal. This emulation is described in the TA6530 Emulation chapter.

The TVI 910, TVI 920 and TVI 925 emulations provide compatibility with software designed to drive the TeleVideo 910+, 920 and 925 terminals, respectively, as emulated by the Wyse WY-50/50+/60 terminals. Refer to the Wyse Emulations chapter for details.

The TVI 950 and TVI 955 emulations provide compatibility with software designed to drive the TeleVideo 950 and 955 terminals, respectively.

The VT52 and VT100 emulations enable you to run applications written for the DEC VT52 and VT100 terminals, respectively. Refer to the DEC VT Emulations chapter for information on these emulations.

The VT500 7-Bit and VT500 8-Bit emulations enable you to run applications written for the DEC VT320 terminal, the difference is in their treatment of 8-bit control codes. When VT500 7-Bit is selected, all 8-bit codes are converted to their 7-bit equivalents, whereas VT500 8-Bit leaves 8-bit codes unchanged. If you are using VT200 applications, select VT500 7-Bit. Refer to the DEC VT Emulations chapter for information on these emulations.

The VT PCTerm emulation provides compatibility with software designed for the PC Term mode supported by DEC. This is the same as the VT510 emulation except that keyboard scan codes are sent on key press/release instead of ASCII codes by default.

The WYSE PCTerm emulation provides compatibility with software designed for the PC Term personality supported by Wyse. Keyboard scan codes are sent on key press/ release instead of ASCII codes by default.

The WY50, WY50+ and WY60 emulations provide compatibility with software designed to drive the Wyse WY-50, WY-50+ and WY-60 terminals, respectively. Refer to the Wyse Emulations chapter for information on these emulations.

DEC Suite Options

The VT Terminal ID option applies to the DEC VT emulations. It specifies what is reported back to the host in response to a terminal identification request. (Note that not all features of the specified terminal may be supported.)

The Cursor Moves Right to Left option applies to the DEC VT, Ansi BBS, AIXTerm, AT 386 and Sco Console emulations. It enables you change the direction in which the text cursor moves across the display.

The High Function Terminal option is displayed when the AIXTerm emulation is selected. This enables you to switch between HFT (High Function Terminal) mode (default) and VT100 mode.

2-7

Getting Started

HP 700-92/96 Option

The HP Model option specifies what is reported back to the host in response to a terminal identification request. This can be set to 70092 (default), 2392A, 2622A, 70094 or 70096. (Note that not all features of the specified terminal may be supported.)

IBM 3151 Option

The setting of the IBM 3151 Model option identifies the terminal model being emulated in response to a terminal identification request from the host. Model 11 supports only one viewport containing 24 or 25 rows and 80 columns. Model 31 supports up to three viewports (80 or 132 columns wide) and pass-through printing.

IBM 3270 Options

The setting of the IBM 3270 Model option specifies what is reported back to the host in response to a terminal identification request. (Note that not all features of the specified terminal may be supported.) TN3287 printing is supported by selecting 3287-1.

One of four display sizes can be selected:

3278/9-2 24 rows by 80 columns 3278/9-3 32 rows by 80 columns 3278/9-4 43 rows by 80 columns 3278/9-5 27 rows by 132 columns

3278 settings with the E extension provide support for the following extended

attributes (these are supported by the 3279 as standard):

3270 Field Attributes Extended Highlighting Foreground Colour Query Reply Inbound Structured Fields

The setting of the Left Ctrl acts as Reset Key option determines whether or not the left Control key performs the same function as the Reset key.

The setting of the Right Ctrl acts as Enter Key option determines whether or not the right Control key performs the same function as the keypad Enter key.

2-8

Getting Started

IBM 5250 Options

The IBM 5250 Model option specifies what is reported back to the host in response to a terminal identification request. (Note that not all features of the specified terminal may be supported.) The terminal models and their display characteristics are listed below:

Model Display Rows x Columns 5291_1 Monochrome 24 x 80

5292_2 Colour 24 x 80 5251_11 Monochrome 24 x 80 3179_2 Colour 24 x 80 (default) 3196_A1 Monochrome 24 x 80 3180_2 Monochrome 24 x 80 and 27 x 132 3477_FC Colour 24 x 80 and 27 x 132 3477_FG Monochrome 24 x 80 and 27 x 132 3486_BA Monochrome 24 x 80 3487_HA Monochrome 24 x 80 3487_HC Colour 24 x 80

The printer models are listed below:

3812-1 Single byte printer

The setting of the IBM 5250 Monochrome option will match the normal display characteristic of the selected IBM 5250 model by default. Note that the emulation of all IBM 5250 models supports both monochrome and colour display. When monochrome is selected, characters will be displayed in green and intense fields will be displayed in white. When monochrome is not selected, the settings specified in the Attributes dialog box (described in the Setup Menus chapter) will be used for the display.

The setting of the Left Ctrl acts as Reset Key option determines whether or not the left Control key performs the same function as the Reset key.

The setting of the Right Ctrl acts as Enter Key option determines whether or not the right Control key performs the same function as the keypad Enter key.

The setting of the Carriage Return acts as Enter Key option determines whether or not the Return key performs the same function as the keypad Enter key.

2-9

Getting Started

TCP/IP Connection Settings

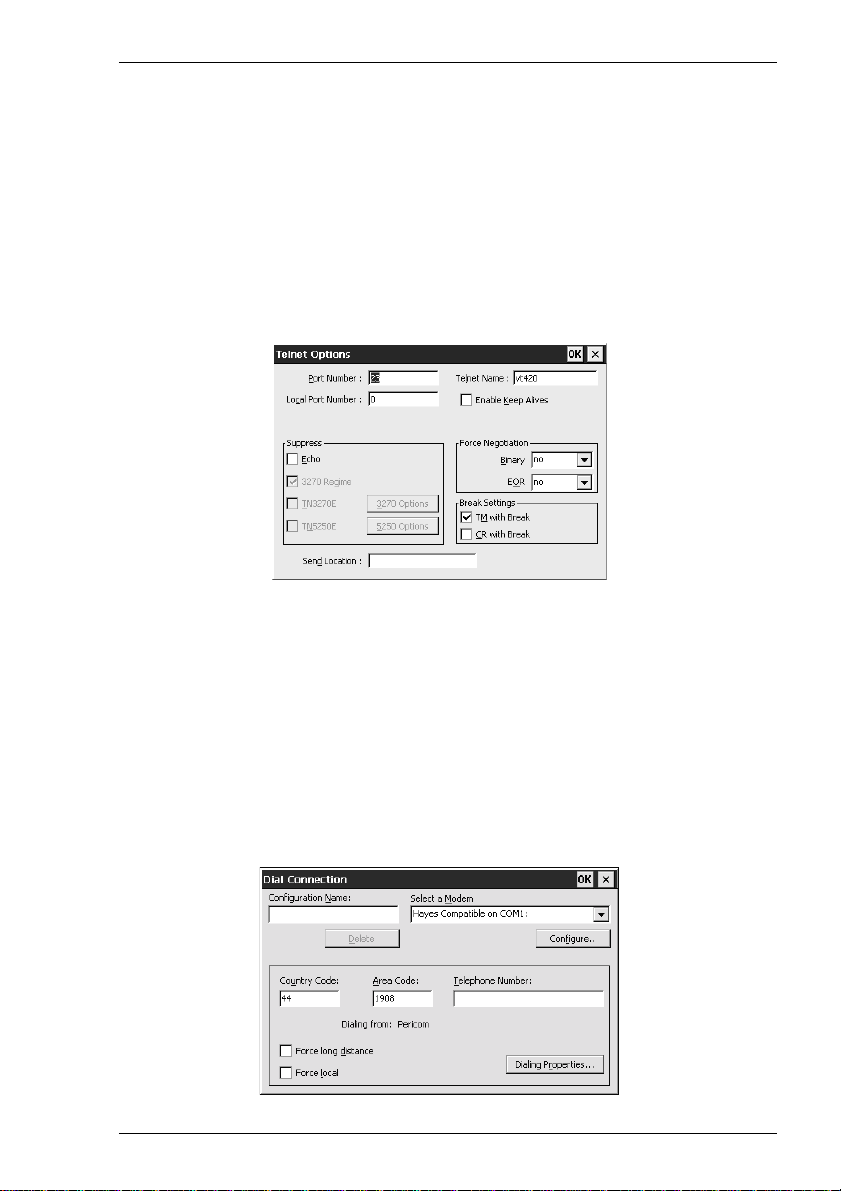

The TCP/IP Telnet Configuration dialog box can be displayed from the Connection Wizard Host Information dialog box by setting the Connection Type to TCP/IP then clicking the Advanced button, or the New Connection dialog box when in nonWBT mode by selecting TCP/IP in the Type list box then clicking the Configure button.

Note that the options available and the default settings depend on the current terminal emulation.

Host Port Number

This enables you to specify the Telnet port number. The default Telnet port number, 23, can be substituted with any valid 16 bit port number. Specifying a number outside the valid range will cause the setting to default to 1.

Local Port Number

This enables you to specify the local Telnet port number if required. Setting this to 0 will cause the number to be allocated automatically.

Telnet Name

This enables you to override the name that will be reported for the terminal type over Telnet.

Enable Keep Alives

Selecting this option will prevent the session from being disconnected from the host by an inactivity timeout.

2-10

Getting Started

Suppress Echo

When selected, this will will prevent the emulator from generating the Telnet echo option on connection.

Suppress 3270 Regime

When running the IBM 3270 emulation, the setting of this option determines whether or not support for the Telnet "3270 regime" option is suppressed.

Suppress TN3270E

When running the IBM 3270 emulation, the setting of this option determines whether or not support of TN3270E is suppressed. When this option is not selected (i.e. TN3270E is not suppressed), additional options are available by clicking the 3270 Options button. These are described in the TN3270 Options section.

Suppress TN5250E

When running the IBM 5250 emulation, the setting of this option determines whether or not support of TN5250E is suppressed. When this option is not selected (i.e. TN5250E is not suppressed), additional options are available by clicking the 5250 Options button. These are described in the TN5250 Options section.

Force Negotiation

These settings determine whether or not the Telnet Binary or EOR options are supported. Both are set to no by default.

No Will not force any negotiations. It will leave it up to the

host to decide what to do.

DO Will force negotiation. The host will be informed that the

option is supported.

DONT Will force negotiation. A negotiation packet will be sent

to the host telling it that the option is not supported.

Break Settings

The setting of these options determine whether or not a timing mark (TM) and/or carriage return (CR) is sent with a Telnet break packet. A timing mark is sent by default.

Send Location

This enables you to enter the location of this terminal which may be used by the host to provide a list of users currently logged in giving their name and location.

2-11

Getting Started

TN3270 Options

This dialog box is displayed by clicking the 3270 Options button in the TCP/IP Telnet Configuration dialog box when TN3270 is not suppressed.

Connect

This specifies the name of the device which the server will be requested to assign to the Telnet session; it may be used when requesting either a terminal or a printer session.

You can return the local host name by entering %s after the device name. To return the user name, enter %u after the device name. You can specify how many characters of the name is returned in each case. For example, %.3s will return the first three characters of the local host name, and %-.3s will return the last three characters.

To automatically assign a new device name for each successive connection, either enter %dN% after the name, where N is a decimal value, or %xN%, where N is a hexadecimal value. Each time the host requests the device name a counter will be substituted into the device name. If the host rejects the device name as in use the counter will be incremented modulus N and the name retried until all possibilities have been tried, at which point the emulation will report a device name rejected error.

For example, TEST%d4% will give TEST1 on all connections until the host rejects the name as in use, in which case TEST2 will be used. If this is already in use then TEST3 is used, or if already in use then TEST0. These values are preserved over power off, so the first connection of any given power on may not be TEST1. Assume that the start point is random.

2-12

Note: There are separate counters for the IBM 3270 and IBM 5250

emulations.

Getting Started

When you achieve a TN3270E connection, the LU device name that you are connected as will be displayed on the status line. If the specified device is rejected by the server or host, then an error message box will be displayed indicating the reason.

Associate

This is available when the IBM 3270 Model option is set to 3287-1 (a printer). It is used to request that the device name of the printer associated with a particular terminal is assigned to this Telnet session. The name of the terminal is specified here. (This is implemented as described in RFC 1647.)

TN3270E Options

TN3270E in implemented as described in RFC 1647. These options should not be changed unless required by your System Administrator.

The Bind setting determines whether or not the server is allowed to send the SNA Bind image and Unbind notification to the emulator.

When Responses is selected, positive and negative response handling is supported. It allows the server to reflect to the emulator any and all definite, exception, and no response requests sent by the host application.

When SysReq is selected, some (or all, depending on the server) of the functions of the SysReq key will be emulated and the server in an SNA environment.

The LU1 and LU3 Printer options are available when the IBM 3270 Model option is set to 3287-1 (a printer). They enable you to specify which printer type(s) to support.

2-13

Getting Started

TN5250 Options

This dialog box is displayed by clicking the 5250 Options button in the TCP/IP Telnet Configuration dialog box when TN5250 is not suppressed and the IBM 5250 Model is not set to 3812-1 or 5553-B01 (printers). Refer to the next section for 5250 Printer Options.

Device Name

This enables you to enter the name of the device which the server will be requested to assign to this Telnet session.

For example, TEST%d4% will give TEST1 on first connect, TEST2 on second,

TEST3 on third, TEST0 on fourth, TEST1 on fifth and so on. TEST%d100% will give TEST1 on first connect, TEST2 on second, ... TEST99 on

99th, TEST0 on 100th, TEST1 on 101st and so on. These values are preserved over power off, so the first connection of any given power

on may not be TEST1. Assume that the start point is random. In addition there is a single counter for the unit so concurrent sessions will start from subsequent values. For example, if session one uses TEST1 then session two will use TEST2.

Where a device name collision occurs (i.e. the device name is already in use on the host) the host will ask again for the device name during the same connection. In this

2-14

Getting Started

case TEST1, TEST2, ... may all be tried in one connection until the host accepts one, or all possibilities have been tried. In the latter case the same name is sent twice in succession to indicate to the host all names have been tried.

If concurrent 5250 sessions are started before a previous session has negotiated an acceptable device name, it is possible that the two sessions will access the counter simultaneously and not all possible names will be tried by each session. This should not cause a problem unless the separate sessions use different modulo values (for example, session one device name TEST%d4% and session two device name ANOTHER%d100%) or are connecting to different hosts.

Note: There are separate counters for the IBM 3270 and IBM 5250

emulations.

User, Password, Library, Menu

These options enable you to specify the initial entries required on the standard startup screen so that it can be bypassed. Each entry can be a maximum of ten characters.

Program

This enables you to specify the name of the initial program to run. The entry can be a maximum of ten characters.

2-15

Getting Started

5250 Printer Options

This dialog box is displayed by clicking the 5250 Options button in the TCP/IP Telnet Configuration dialog box when TN5250 is not suppressed and the IBM 5250 Model is set to 3812-1 (a printer).

Device Name

Specifies the name of the printer device.

IGC Feature

This is always set to Don't Report.

Transform

Specifies whether the printer will use the host print transform function to generate ASCII printer data. This is always set to Yes. The Mfg. Type and Model option must specify the printer manufacturer, type and model.

Mfg. Type and Model

Specifies the manufacturer, type and model of the printer. The entry must exactly match an AS400 printer type string, including the * (asterisk) character. The following valid entries are for the IBM AS/400 V3R1. Note that the list can change according to AS/400 settings.

*IBM2380 *IBM2381 *IBM2390 *IBM2391 *IBM3812 *IBM3816 *IBM3912HP *IBM3916HP *IBM39302 *IBM39303 *IBM4019 *IBM4019HP *IBM4029 *IBM4029HP *IBM4037 *IBM4039HP *IBM4070 *IBM4070EP *IBM4072 *IBM4076 *IBM42011 *IBM42012 *IBM42013 *IBM42021 *IBM42022 *IBM42023 *IBM42071 *IBM42072 *IBM42081 *IBM42082 *IBM4212 *IBM4216 *IBM4226 *IBM4230 *IBM4232 *IBM47121 *IBM47122 *IBM47221 *IBM47222 *IBM4770

2-16

Getting Started

*IBM5152 *IBM5201 *IBM5202 *IBM5204 *IBM5216 *IBM6404 *IBM6404EP *IBM6408 *IBM6408EP *IBM6412 *IBM6412EP *HPII *HPIID *HPIIP *HPIII *HPIIID *HPIIIP *HPIIISI *HP4 *HP310 *HP500 *HP520 *HP550C *HP560C *HPPAINT *CPQPM15 *CPQPM20 *EPAP2250 *EPAP3250 *EPAP5000 *EPAP5500 *EPDFX5000 *EPDFX8000 *EPFX850 *EPFX870 *EPFX1170 *EPLX810 *EPLQ510 *EPLQ570 *EPLQ860 *EPLQ870 *EPLQ1070 *EPLQ1170 *EPLQ2550 *EPSQ870 *EPSQ1170 *EPEPL7000 *EPEPL8000 *NECP2 *NECP2200 *NECP2200XE *NECP5200 *NECP5300 *NECP6200 *NECP6300 *OKI184IBM *OKI320IBM *OKI321IBM *OKI390IBM *OKI391IBM *OKI393IBM *OKI590IBM *OKI591IBM *OKI400 *OKI800 *OKI810 *OKI820 *OKI3410 *PAN1123EP *PAN1124EP *PAN1124IEP *PAN1180EP *PAN1180IEP *PAN1191EP *PAN1624EP *PAN1654EP *PAN1695EP *PAN2123EP *PAN2124EP *PAN2180EP *PAN2624EP *PAN4410HP *PAN4420HP *PAN4430HP *PAN4450IHP *PAN4451HP

*MSGQ Name

Specifies the name of the message queue to which operational messages for the printer are to be sent.

*MSGQ Library

Specifies the message queue library.

Font

Specifies the font identifier and point size used by the single-byte printer (e.g. 11).

Formfeed

This is always set to Don't Report. The Paper Source 1 option is used to specify the paper format to be used.

Paper Source 1 & 2

These options specify the paper format to be used. The possible settings are:

Don't Report No value returned.

*NONE No paper source is defined.

*MFR The system determines the paper type used based on

the manufacturer, type and model of the printer.

*LET Letter-sized paper (8.5 x 11 inches). *LEGL Legal-sized paper (8.5 x 14 inches). *EXEC Executive-sized paper (7.25 x 10.5 inches).

2-17

Getting Started

*A4 A4-sized paper (210 mm x 297 mm). *A5 A5-sized paper (148 mm x 210 mm). *B5 B5-sized paper (182 mm x 257 mm).

*C80 Continuous-form paper, 8.0 inches wide

(Paper Source 1 only).

*C132 Continuous-form paper, 13.2 inches wide

(Paper Source 1 only). *A3 A3-sized paper (297 mm x 420 mm). *B4 B4-sized paper (257 mm x 364 mm).

*LEDG Ledger-sized paper (11 inches x 17 inches).

Envelope Hopper

This specifies the envelope format to be used. The possible settings are:

Don't Report No value returned.

*NONE No envelope source is defined.

*MFR The system determines the envelope type used based on

the manufacturer, type and model of the printer.

*B5 B5-sized envelopes (176mm x 250mm).

*MON Monarch-sized envelopes (3.875 x 7.5 inches).

*N9 Number 9-sized envelopes (3.875 x 8.875 inches).

*N10 Number 10-sized envelopes (4.125 x 9.5 inches).

*C5 C5-sized envelopes (162mm x 229mm).

*DL DL-sized envelopes (110mm x 220mm).

ASCII 899 Support

Specifies whether the single-byte printer has ASCII code page 899 installed. Selecting Don't Report will cause no value to be returned.

WSCST Name

Specifies the name of the object containing pointers to the work station customizing tables.

WSCST Library

Specifies the library name of the object containing pointers to the work station customizing tables.

2-18

Getting Started

Modem Connection Settings

The Modem Settings dialog box can be displayed from the Connection Wizard Host Information dialog box by setting the Connection Type to Modem then clicking the Advanced button, or the New Connection dialog box when in non-WBT mode by

selecting Modem in the Type list box then clicking the Configure button.

This enables you to define a particular modem configuration which can be saved under a specific name for future selection in the Host Information dialog box.

1. If this is a new configuration, enter a name to identify it in the Configuration Name box.

2. Select a Modem from the list box below. The Configure button provides access to the standard Microsoft dialog boxes for specifying port settings and call options.

3. Enter the Country Code, Area Code and Telephone Number.

4. Click the Dialing Properties button to display the standard Microsoft dialog boxes for specifying a variety of dialing formats.

5. If you want the country and area codes to be ignored when dialing, select Force

Local. If you want the area code dialed even if you are in that area, select Force long distance.

6. Click OK to save the settings and the name you assigned to this configuration will appear in the Modem configuration selection box in the main Host Information dialog box.

2-19

Getting Started

Serial Connection Settings

The Serial Configuration dialog box can be displayed from the Connection Wizard Host Information dialog box by setting the Connection Type to Serial then

clicking the Advanced button, or the New Connection dialog box when in non- WBT mode by selecting Serial in the Type list box then clicking the Configure button.

Baud Rate

Factory default: 9600 This specifies the transmit and receive baud rates for the port selected for host com-

munications.

Parity

Factory default: None This option specifies the parity mode for each transmitted character. If the number of

Data Bits is 8, set this option to None. Selecting Odd will cause an eighth bit to be added with a value of 1 if the previous 7

bits add up to an even number, and 0 if the previous 7 bits add up to an odd number. Selecting Even will cause an eighth bit to be added with a value of 1 if the previous 7 bits add up to an odd number, and 0 if the previous 7 bits add up to an even number. Mark parity will set every eighth bit to 1 and Space parity every bit to 0.

Flow Control

Factory default: Input This option specifies the type of flow control used by the line port to communicate

readiness to transmit or receive data from the host.

None - No flow control Input - XON/XOFF on received data Output - XON/XOFF on transmitted data
