AB300A Server Console Solution
User Guide
February 2004 (First Edition)
Part Number AB300-90001
HP CONFIDENTIAL Codename: P art Number: AB300-90001 Last Saved On: 2/ 10/04 2:39 PM
© Copyright 2004 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and
services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
Microsoft®, MS Windows®, Windows®, and Windows N T® a r e U.S. r e gist e re d m a rks of Mic ros of t Corpor a tion. Intel®, Pentium®, Intel Inside®, and the Intel Inside logo are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries. UNIX® is a trademark of The Open Group.
Printed in the U.S.A. AB300A Console User Guide February 2004 (First Edition)
Part Number AB300-90001
HP CONFIDENTIAL Codename: P art Number: AB300-90001 Last Saved On: 2/ 10/04 2:39 PM
Contents
Abstract............................................................................................................................... 5
Audience Assumptions...................................................................................................... 5
AB300A Contents ...............................................................................................................5
Connecting the Console to the Server..............................................................................6
Thin Client Front Components............................................................................................................... 6
Thin Client Rear Components................................................................................................................7
Configuring the AB300A as an RS-232 Console.............................................................. 8
Creating a Terminal Emulator Session.........................................................................................................8
Creating the Auto Log On User Account....................................................................................................11
Configuring the TEC Session to Launch at Reboot.................................................................................... 11
Additional Reference Information...................................................................................13
HP Compaq Thin Client t5500 Options...........................................................................14
Warranty and Support...................................................................................................... 14
FRU Parts List................................................................................................................... 14
Cables..........................................................................................................................................................14
Thin Client..................................................................................................................................................15
Monitors...................................................................................................................................................... 15
Keyboards...................................................................................................................................................15
Miscellaneous Parts .................................................................................................................................... 16
AB300A Console User Guide 3
HP CONFIDENTIAL Codename: P art Number: AB300-90001 Last Saved On: 2/ 10/04 2:39 PM

Abstract

This guide provides instructions for using the HP AB300A Server Console Solution. This solution uses an HP Compaq Thin Client T5500 as a terminal emulator for the HP9000 and Integrity servers.
The HP 9000 and Integrity servers use a character cell ("dumb") terminal over a serial RS232 connection to act as the console for the system. This approach is used because the console has to be able to communicate with server hardware over a simple link that does not require an active server OS. Traditional dumb terminals offer limited functionality and they are increasingly difficult to supply.

Audience Assumptions

This guide is intended for the person who installs and administers servers.

AB300A Contents

The AB300A HP9000 & Integrity Server Console Solution Bundle includes the following components:
1. HP Compaq Thin Client t5500 Thin Client (DC641A#xxx)
2. HP S5500 15” VGA Monitor (P9006A#xxx)
3. USB Keyboard and Mouse
4. DB9 Serial Cable (5184-1894)
5. AC Power Adapter
6. 2 Power Cords
AB300A Console User Guide 5
HP CONFIDENTIAL Codename: P art Number: AB300-90001 Last Saved On: 2/ 10/04 2:39 PM

Connecting the Console to the Server

The RS-232 port on the thin client is connected to the serial console port on the server. The connection is made with the DB9 Serial Cable (5184-1894) included in the server console solution bundle.
NOTE: The HP Compaq Thin Client t5500 in the console bundle is a fully functional thin client and supports the full range of thin client connections. However, the AB300A console solution bundle is intended to provide RS-232 direct connect terminal emulation connection support only.

Thin Client Front Components

Figure 1: Front Components
Table 1: Front Components
Item Description
1 On/Off switch
6 AB300A Console User Guide
HP CONFIDENTIAL Codename: P art Number: AB300-90001 Last Saved On: 2/ 10/04 2:39 PM

Thin Client Rear Components

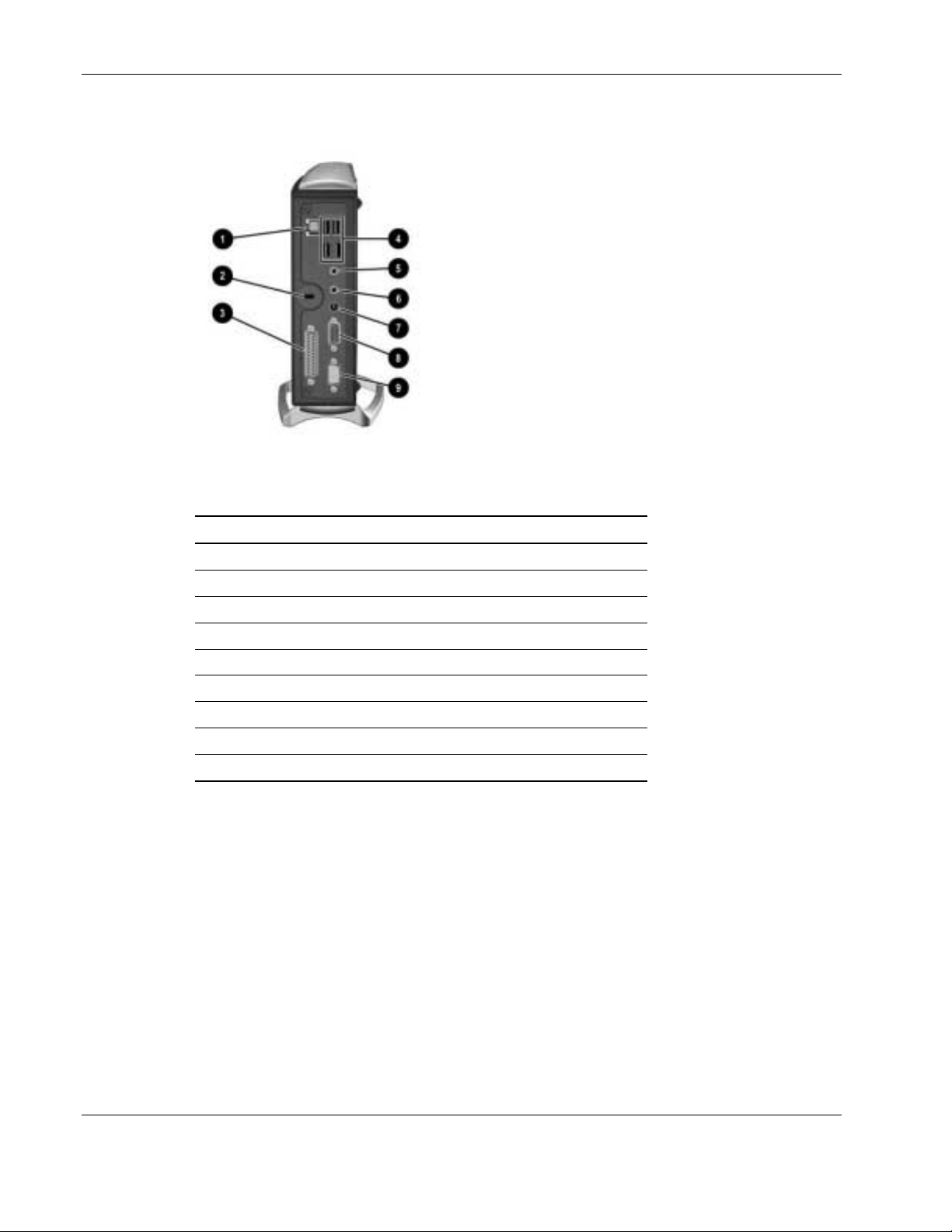

Figure 2: Rear Components
Table 2: Rear Components
Item Description
1 Ethernet RJ-45 connector 2 Cable lock slot 3 Parallel connector (burgundy) 4 Universal Serial Bus (USB) connectors (4) 5 Line-in audio, microphone (pink) 6 Line-out audio, headphone (lime) 7 Power connector (12V, 3.33A DC) 8 Graphic connector (blue) 9 Serial connector (aqua)
AB300A Console User Guide 7
HP CONFIDENTIAL Codename: P art Number: AB300-90001 Last Saved On: 2/ 10/04 2:39 PM

Configuring the AB300A as an RS-232 Console

The following section describes how to create a terminal emulator session, how to create an auto log on user account, and how to configure the terminal emulator session to automatically launch when the thin client is rebooted for any reason.
NOTE: There is currently no method of saving these configuration parameters to a file that can be retrieved at a later time. Therefore, it is imperative that all configuration parameters are recorded for future use.

Creating a Terminal Emulator Session

To create a terminal emulator session, perform the following steps:
1. Connect the HP Compaq Thin Client T5500 unit using the supplied DB9 Serial Cable (5184-1894) to the serial port of the HP9000 server.
2. Select Start > HP Connection Window.
3. From the HP Connection Window, run the New Terminal Emulation wizard.
4. Create a Connection Name for this session.
NOTE: Please note that the console solution supports two of the available teemCE emulations: VT 100 and HP 700-92/96.
5. If using the HP700-92/96 emulation mode, click the Emulation dropdown list to select the HP700-92/96 emulation mode. Click the Terminal ID dropdown list to select 70092 and click Next.
8 AB300A Console User Guide
HP CONFIDENTIAL Codename: P art Number: AB300-90001 Last Saved On: 2/ 10/04 2:39 PM
Figure 3: Connection Information
6. If selecting the VT100 emulation mode, click the Emulation dropdown list to select the VT100 emulation mode. Enter the required VT Terminal ID setting and click Next.
7. Select Serial option, and click the Configure button.
AB300A Console User Guide 9
HP CONFIDENTIAL Codename: P art Number: AB300-90001 Last Saved On: 2/ 10/04 2:39 PM

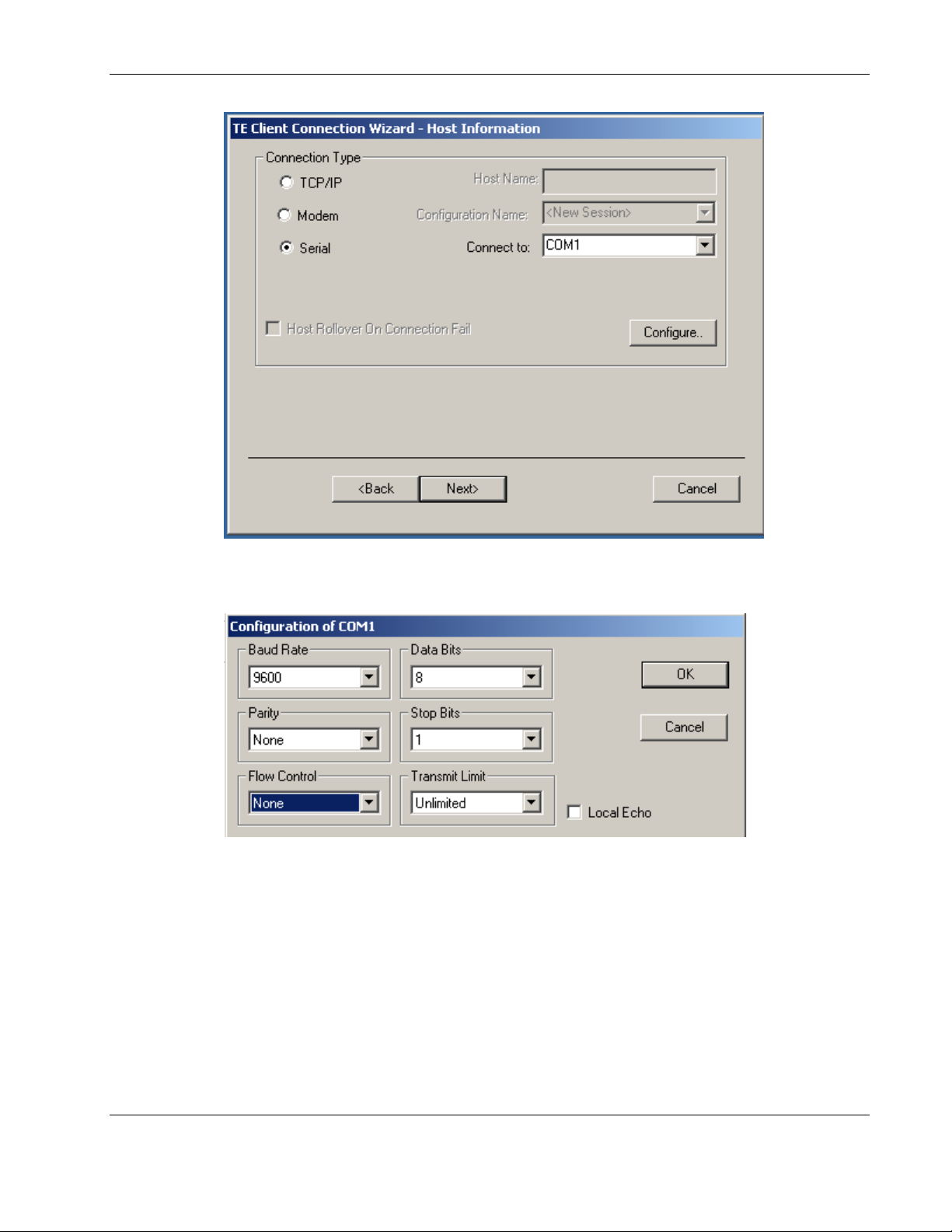

Figure 4: Host Information
8. Select None in the Flow Control dropdown list.
Figure 5: Configuration of COM1
9. Click OK button to accept and close the Configuration of COM1 dialog box.
10. Click Next on the Host Information window.
11. From the Advanced Options page, choose preferred options.
12. The Connection Wizard will create an icon with the same name you chose for the
Connection Name. This icon will appear in the HP Connection window and on the desktop. Click this icon to launch the terminal emulation session.
13. Press the Enter key to access the log in prompt.
14. To log in, enter the user name and user password assigned by the System Administrator.
10 AB300A Console User Guide
HP CONFIDENTIAL Codename: P art Number: AB300-90001 Last Saved On: 2/ 10/04 2:39 PM

Creating the Auto Log On User Account

1. Create a login user by selecting Start > Settings > Control Panel.
2. Double click the Security icon and select the Users tab.
3. Create a new user, such as vt-100 user, by clicking Add and entering the new user name. Click OK.
NOTE: Do not assign a password for the new user at this time.
4. Select the System tab on the Security screen. Click the Enable Security box and the Automatic Log On box. Select the new user name you just created as the account by
clicking on the “Account” drop down menu and selecting the new user name. Click OK.
5. Close the Control Panel by clicking on the X in the upper right hand corner of the screen.

Configuring the TEC Session to Launch at Reboot

1. Create a TEC session using one of the above mentioned methods. Assign a name to the connection, such as " connection1 (TEC).”
2. Select Start > Settings > HP Connection Administrator.
3. Click the Administration button.
4. Click the + button to expand the Connections tree. Ensure that "connection1 (TEC)" exists in the list of connections. If “connection1 (TEC)” is not on the list, go back to the previous section and ensure you have followed the steps to create the connection.
5. Right click Profiles and select New Profile to create a new profile, such as “vt-100 profile”.
NOTE: When creating a new profile, a default name of “New Profile” is created. Highlighting the newly created profile name, then single-clicking within the name text will allow the name to be modified.
6. Assign "connection1 (TEC)" to the newly created profile by drag-and-dropping it from “Connections” to “vt-100 Profile”.
7. Click the + button of “vt-100 Profile” to expand the tree. Ensure that "connection1 (TEC)" is listed.
8. Assign the “vt-100” user login to the “vt-100 Profile”. Click vt-100 Profile and then click the Users button on the right side of the screen.
9. Select “vt-100 user” and click the >> button to move to the right hand box. Click OK.
10. Under Connection Options, select the Automatically Connect option. Under Windows Start Mode, select Kiosk. Click OK.
11. Reboot. The TEC session will launch at reboot.
AB300A Console User Guide 11
HP CONFIDENTIAL Codename: P art Number: AB300-90001 Last Saved On: 2/ 10/04 2:39 PM
NOTE: When using Kiosk mode within the Windows Start Mode, the only application available for the user will be the configured terminal emulator after a thin client reboot. When using the “Auto” mode within the Windows Start Mode, the emulator will automatically launch after a thin client reboot, but full system access will be available to the user.
If Kiosk mode is selected, and the administrator wishes to access administrative features of the thin client, then the thin client must be rebooted. The reboot must be performed by recycling power on the thin client. During the reboot, a small window will appear with a 5 second countdown. During this countdown, simultaneously pressing the “Alt” and “F4” buttons will interrupt the boot, and allow the administrator to log in. If the administrator password has been set, the password will also be required.
NOTE: Modes other than “Kiosk” can be selected. The following is a description of all available modes:
Auto: Automatically starts HP Connection Administrator, HPConnection Window, and Windows Explorer.
Manual: Automatically starts Windows Explorer and HPConnection Window. There is an HP Connection Administrator option in the Start menu and an HP Connection Administrator icon in the HP Connection Window that can be selected to run HP Connection Administrator.
Shell: This mode is used to lock down the terminal with limited functionality. This automatically starts HP Connection Administrator without access to Windows Explorer.
Kiosk: This mode is used to fully lock down the terminal. It automatically runs the Connection with no user interface. If you want the terminal to run in Kiosk mode, you MUST select the Automatically Connect and Automatic Failure Recovery Connection Options at the Profile level.
12 AB300A Console User Guide
HP CONFIDENTIAL Codename: P art Number: AB300-90001 Last Saved On: 2/ 10/04 2:39 PM

Additional Reference Information

For additional reference information on configuring and using the AB300A components, please refer to the following documents. The following documents can be found at
http://www.hp.com/go/bizsupport/
Table 3: Thin Client Documentation
Title Part Number
.
Compaq Terminal Emulation Quick Reference Guide: Extended Emulation
HP Compaq Thin Client t5000 Series Troubleshooting Guide Hardware Reference Guide: HP Compaq Thin Client t5000
Series Administrator’s Guide: Microsoft Windows CE .NET-based
Thin Clients
287004-00x
335795-00x 334457-00x
349401-00x
Additional information about the HP CRT Monitor s5500 can be found at
http://www.hp.com/products/monitors/
AB300A Console User Guide 13
HP CONFIDENTIAL Codename: P art Number: AB300-90001 Last Saved On: 2/ 10/04 2:39 PM

HP Compaq Thin Client t5500 Options

NOTE: The console solution should generally be kept as configured for the HP9000 and Integrity
servers. Adding optional hardware components is not recommended nor is it supported by HP.

Warranty and Support

Your AB300A Console Solution Bundle includes a 3-year next-day on-site warranty. For service and support on all components of the AB300A bundle, contact your local HP9000 and Integrity Server support service center.
NOTE: Please use your HP9000 or Integrity Server system information when calling the HP service center for AB300A support.

FRU Parts List

Cables

Table 4: Cables
FRU Description Replace FRU Part
Number
UK Power Cord 8121-0739 N/A North America Power
Cord Europe Power Cord 8121-0731 N/A Switzerland Power
Cord Denmark Power Cord 8121-6814 N/A Japan Power Cord 8120-4753 N/A Australia Power Cord 8121-0730 N/A South Africa Power
Cord Latin America Power
Cord Chilean Power Cord 8120-8389 N/A Argentina Power Cord 8120-8390 N/A Israel Power Cord 8120-6800 N/A China Power Cord 8120-8376 N/A Cable, Serial Laplink 5184-1894 N/A
8121-0740 N/A
8121-2104 N/A
8121-5341 N/A
8121-0673 N/A
Exchange FRU Part Number
14 AB300A Console User Guide
HP CONFIDENTIAL Codename: P art Number: AB300-90001 Last Saved On: 2/ 10/04 2:39 PM

Thin Client

Table 5: Thin Client

Monitors

Keyboards

FRU Description Replace FRU Part
Number
Console (Thin Client) Base Unit
N/A 325698-001
Exchange FRU Part Number
Table 6: Monitors
FRU Description Replace FRU Part
Number
SPS-MON S5500 NH­NA-JPN
SPS-MON S5500 MPR, NH-EMEA
SPS-MON S5500 SH 261601-656 331752-006 SPS-MON S5500 EH 261601-559 331751-009
261601-553 331751-003
261601-663 331752-004
Exchange FRU Part Number
Table 7: Keyboards
FRU Description Replace FRU Part
Number
US English 326227-001 N/A Europe-English 326227-B31 N/A Germany-German 326227-041 N/A Spain-Spanish 326227-071 N/A France-French 326227-051 N/A UK English 326227-031 N/A Finland-Finnish 326227-351 N/A Italy-Italian 326227-061 N/A Japan-English 326227-291 N/A Brazil 326227-221 N/A Mexico 326227-161 N/A
AB300A Console User Guide 15
Exchange FRU Part Number
HP CONFIDENTIAL Codename: P art Number: AB300-90001 Last Saved On: 2/ 10/04 2:39 PM

Miscellaneous Parts

Table 8: Miscellaneous
FRU Description Replace FRU Part
Number
Mouse 323615-001 N/A Console (Thin Client)
Adptr AC-DC 12V Ft Stand w/screws 336604-001 N/A
325709-001 N/A
Exchange FRU Part Number
16 AB300A Console User Guide
HP CONFIDENTIAL Codename: P art Number: AB300-90001 Last Saved On: 2/ 10/04 2:39 PM
