Maintenance and Service
Guide
HP Pavilion dv1300 Entertainment
Notebook PC
HP Compaq nx4820 Notebook PC
Compaq Presario V2300 Notebook PC
Document Part Number: 396166-001
June 2005
This guide is a troubleshooting reference used for maintaining
and servicing the notebook. It provides comprehensive
information on identifying notebook features, components, and
spare parts; troubleshooting notebook problems; and performing
notebook disassembly procedures.
Page 2
© Copyright 2004, 2005 Hewlett-Packard Development Company, L.P.
Microsoft and Windows are U.S. registered trademarks of Microsoft
Corporation. Intel, Pentium, and Celeron are trademarks or registered
trademarks of Intel Corporation or its subsidiaries in the United States and
other countries. Bluetooth is a trademark owned by its proprietor and used
by Hewlett-Packard Company under license.
The information contained herein is subject to change without notice. The
only warranties for HP products and services are set forth in the express
warranty statements accompanying such products and services. Nothing
herein should be construed as constituting an additional warranty. HP shall
not be liable for technical or editorial errors or omissions contained herein.
Maintenance and Service Guide
HP Pavilion dv1300 Entertainment Notebook PC
HP Compaq nx4820 Notebook PC
Compaq Presario V2300 Notebook PC
Third Edition June 2005
First Edition September 2004
Document Part Number: 396166-001
Page 3
Contents
1 Product Description
1.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2
1.2 Resetting the Notebook . . . . . . . . . . . . . . . . . . . . . . . 1–4
1.3 Power Management. . . . . . . . . . . . . . . . . . . . . . . . . . 1–5
1.4 External Components . . . . . . . . . . . . . . . . . . . . . . . . 1–6
1.5 Design Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . 1–36
2 Troubleshooting
2.1 Computer Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–1
Accessing Computer Setup . . . . . . . . . . . . . . . . . . . . 2–2
Computer Setup Defaults . . . . . . . . . . . . . . . . . . . . . 2–3
Selecting from the Main Menu . . . . . . . . . . . . . . . . . 2–4
Selecting from the Security Menu . . . . . . . . . . . . . . 2–4
Selecting from the Advanced Menu . . . . . . . . . . . . . 2–5
Selecting from the Tools Menu. . . . . . . . . . . . . . . . . 2–6
Selecting from the Exit Menu . . . . . . . . . . . . . . . . . . 2–6

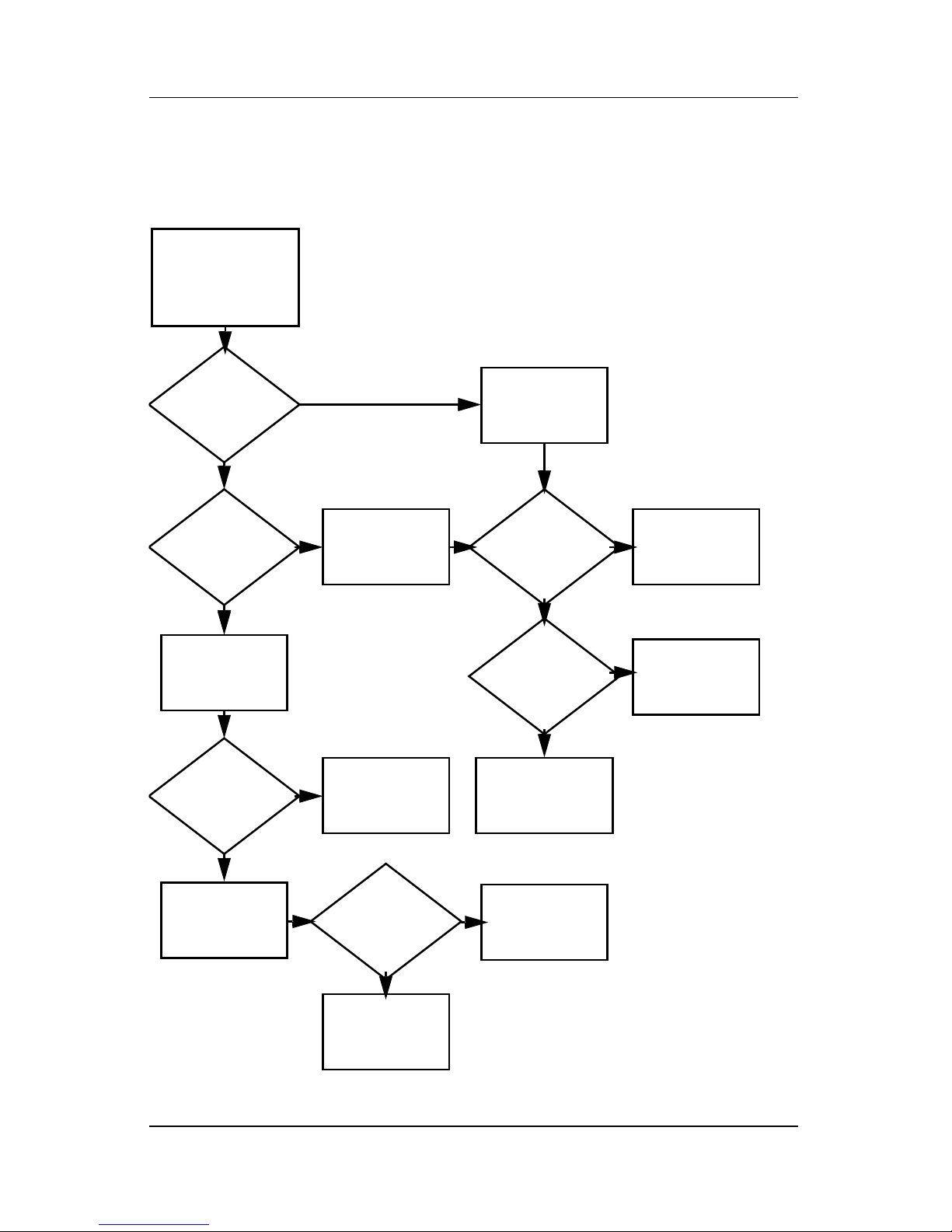

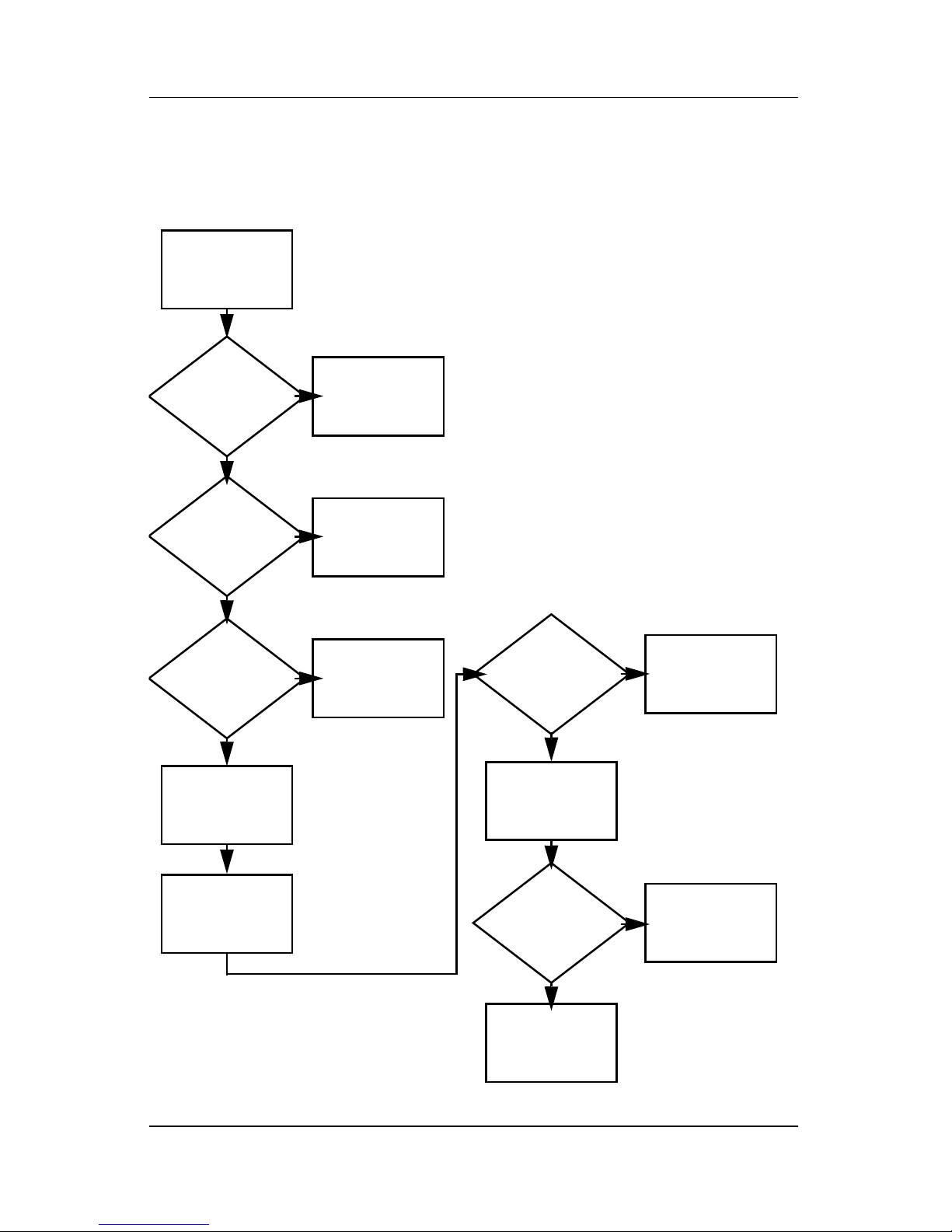

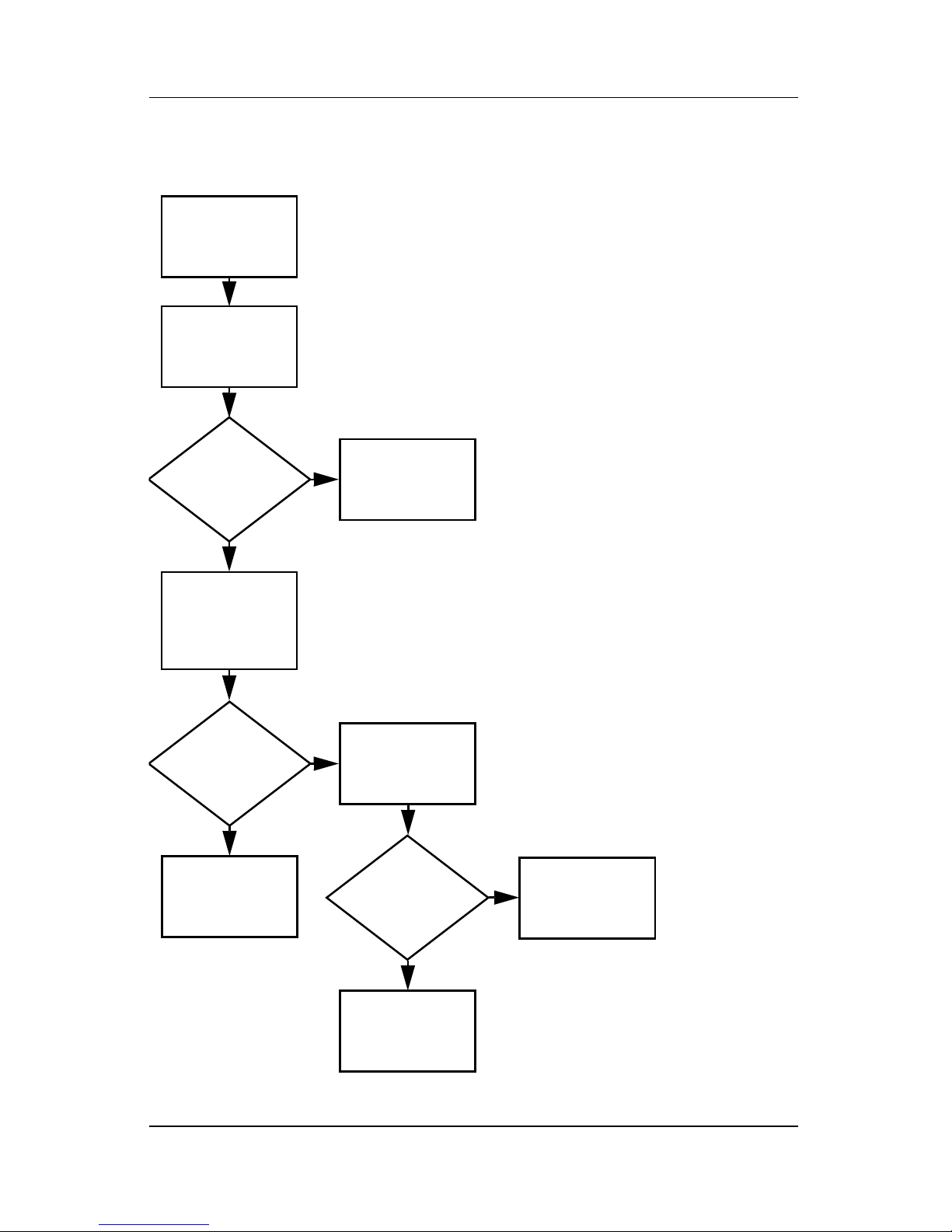

2.2 Troubleshooting Flowcharts . . . . . . . . . . . . . . . . . . . 2–7
Maintenance and Service Guide iii
Page 4
Contents
3 Illustrated Parts Catalog
3.1 Serial Number Location . . . . . . . . . . . . . . . . . . . . . . 3–1

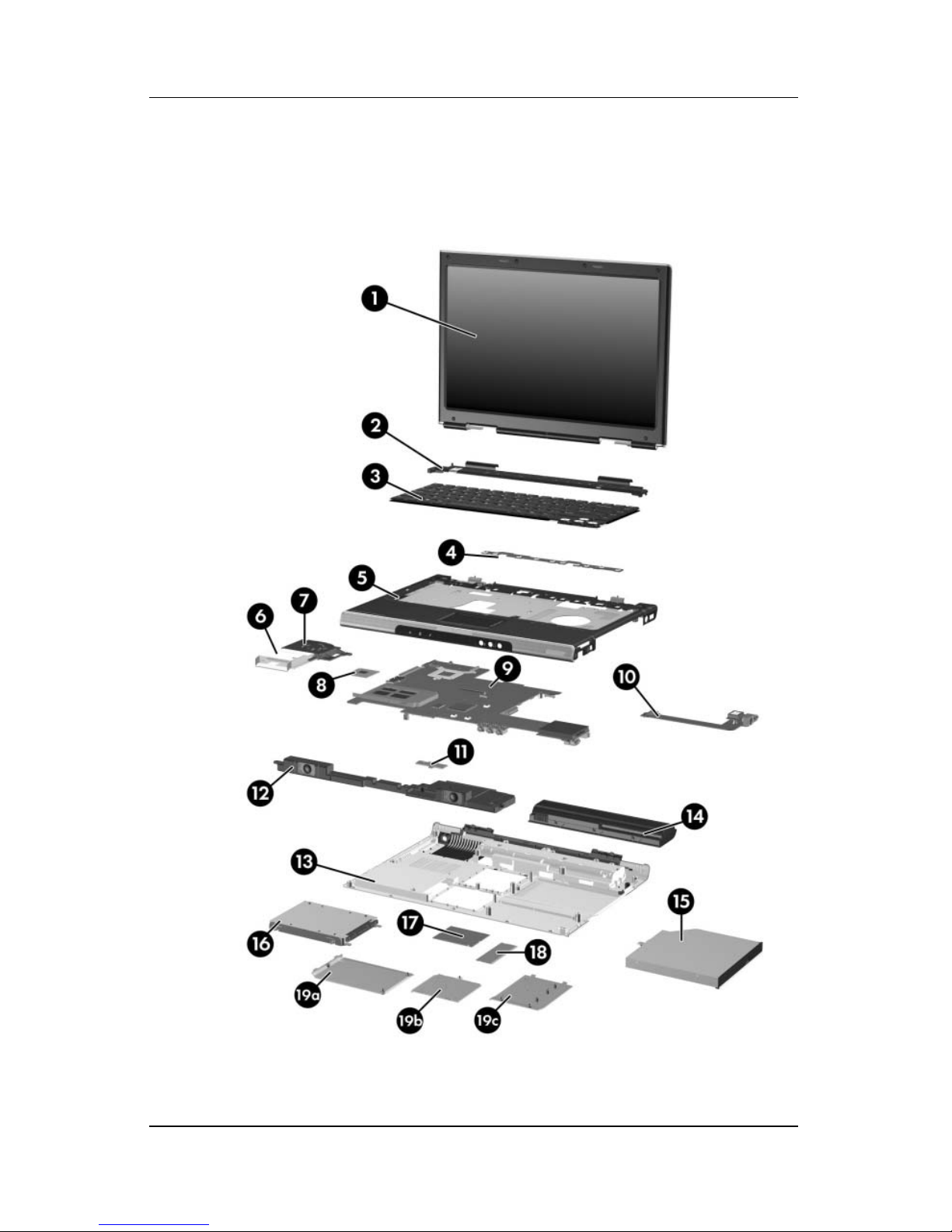

3.2 Notebook Major Components. . . . . . . . . . . . . . . . . . 3–2
3.3 Miscellaneous Plastics Kit . . . . . . . . . . . . . . . . . . . 3–14
3.4 Mass Storage Devices . . . . . . . . . . . . . . . . . . . . . . . 3–16
3.5 Miscellaneous . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–18
3.6 Sequential Part Number Listing . . . . . . . . . . . . . . . 3–20
4 Removal and Replacement Preliminaries
4.1 Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1
4.2 Service Considerations . . . . . . . . . . . . . . . . . . . . . . . 4–1
Plastic Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–2
Cables and Connectors . . . . . . . . . . . . . . . . . . . . . . . 4–2
4.3 Preventing Damage to Removable Drives . . . . . . . . 4–2
4.4 Preventing Electrostatic Damage . . . . . . . . . . . . . . . 4–3
4.5 Packaging and Transporting Precautions . . . . . . . . . 4–4
4.6 Workstation Precautions . . . . . . . . . . . . . . . . . . . . . . 4–5
4.7 Grounding Equipment and Methods . . . . . . . . . . . . . 4–6
iv Maintenance and Service Guide
Page 5
5 Removal and Replacement Procedures
5.1 Serial Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–2
5.2 Disassembly Sequence Chart . . . . . . . . . . . . . . . . . . 5–3
5.3 Preparing the Notebook for Disassembly . . . . . . . . . 5–4
5.4 Hard Drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–6
5.5 Notebook Feet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–10
5.6 Memory Module . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–11
5.7 Mini PCI Communications Card. . . . . . . . . . . . . . . 5–13
5.8 Optical Drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–16
5.9 Switch Cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–18
5.10 Keyboard . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–24
5.11 Display Assembly . . . . . . . . . . . . . . . . . . . . . . . . . 5–30
Contents
5.12 Base Enclosure . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–35
5.13 USB/S-Video Controller Board . . . . . . . . . . . . . . 5–42
5.14 Bluetooth Board . . . . . . . . . . . . . . . . . . . . . . . . . . 5–44
5.15 Speaker Assembly. . . . . . . . . . . . . . . . . . . . . . . . . 5–46
5.16 RTC Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–47
5.17 Menu Control Button Board . . . . . . . . . . . . . . . . . 5–48
5.18 Heat Sink. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–51
5.19 Fan. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–53
5.20 Processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–55
5.21 System Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–57
5.22 LED Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–63
Maintenance and Service Guide v
Page 6
Contents
6 Specifications
A Connector Pin Assignments
B Power Cord Set Requirements
3-Conductor Power Cord Set . . . . . . . . . . . . . . . . . . . . . . B–1
General Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . B–2
Country-Specific Requirements . . . . . . . . . . . . . . . . . . . . B–3
C Screw Listing
Index
vi Maintenance and Service Guide
Page 7
1
Product Description
The HP Pavilion dv1300 Entertainment Notebook PC 1 and the
HP Compaq nx4820 Notebook PC and Compaq Presario V2300
Notebook PC (both represented by 2) offer advanced modularity,
Intel® Pentium® M and Celeron® M processors, and extensive
multimedia support.
HP Pavilion dv1300, HP Compaq nx4820, and
Compaq Presario V2300
Maintenance and Service Guide 1–1
Page 8
Product Description
1.1 Features
■ The following processors are available, varying by
notebook model:
❏ Intel Pentium M 745 (1.8-GHz) with 400-MHz front
side bus (FSB)
❏ Intel Pentium M 735 (1.7-GHz) with 400-MHz FSB
❏ Intel Pentium M 725 (1.6-GHz) with 400-MHz FSB
❏ Intel Pentium M 710 TJ85 (1.4-GHz) with 400-MHz FSB;
operates at a lower temperature than other processors
❏ Intel Celeron M 340 (1.5-GHz) with 400-MHz FSB
❏ Intel Celeron M 330 (1.4-GHz) with 400-MHz FSB
■ 14.0-inch WXGA (1280 × 768) TFT display with over
16.7 million colors, varying by notebook model
■ 80-, 60-, or 40-GB high-capacity hard drive, varying by
notebook model
■ 256-MB DDR synchronous DRAM (SDRAM) at 266 MHz,
expandable to 2.0 GB on models with Intel Mobile Pentium
M processors and 1.0 GB on models with Intel Celeron M
processors
■ Microsoft® Windows® XP Home Edition or Windows XP
Professional, or Free DOS, varying by notebook model
■ Full-size Windows keyboard with embedded numeric keypad
■ TouchPad pointing device with on button and dedicated
two-way scroll region
■ Integrated 10/100 BASE-T Ethernet local area network
(LAN) network interface card (NIC) with RJ-45 jack
■ Integrated high-speed 56K modem with RJ-11 jack
■ Integrated wireless support for Mini PCI IEEE 802.11b and
802.11b/g WLAN device
1–2 Maintenance and Service Guide
Page 9
Product Description
■ Support for one Type II PC Card slots, with support for both
32-bit (CardBus) and 16-bit PC Cards
■ External 65-watt AC adapter with 3-wire power cord
■ 6-cell or 12-cell Li-Ion battery pack
■ Stereo speakers with volume up and down buttons
■ Support for the following optical drives:
❏ 8X Max DVD+RW/R and CD-RW Combo Drive
❏ 4X Max DVD+RW/R and CD-RW Combo Drive
❏ 8X Max DVD-ROM Drive
❏ 24X Max DVD/CD-RW Combo Drive
■ Connectors:
❏ External monitor
❏ Universal Serial Bus (USB) v. 2.0
❏ RJ-11 (modem)
❏ RJ-45 (network)
❏ Audio-out (headphone)
❏ Audio-in (microphone)
❏ Power
❏ IEEE 1394 digital (select models only)
❏ S-Video-out (select models only)
❏ Infrared (HP Pavilion models only)
❏ Parallel
❏ Serial
❏ Docking (select models only)
❏ Digital memory card reader (select models only)
Maintenance and Service Guide 1–3
Page 10
Product Description
1.2 Resetting the Notebook
If the notebook you are servicing has an unknown password,
follow these steps to clear the password. These steps also
clear CMOS:
1. Prepare the notebook for disassembly (refer to Section 5.3,
“Preparing the Notebook for Disassembly,” for more
information).
2. Remove the real time clock (RTC) battery (refer to
Section 5.16, “RTC Battery,” for more information).
3. Wait approximately 5 minutes.
4. Replace the RTC battery and reassemble the notebook.
5. Connect AC power to the notebook. Do not reinsert any
battery packs at this time.
6. Turn on the notebook.
All passwords and all CMOS settings have been cleared.
1–4 Maintenance and Service Guide
Page 11
1.3 Power Management
The notebook comes with power management features that
extend battery operating time and conserve power. The
notebook supports the following power management features:
■ Standby
■ Hibernation
■ Setting customization by the user
■ Hotkeys for setting the level of performance
■ Battery calibration
■ Lid switch standby/resume
■ Power/standby button
■ Advanced Configuration and Power Management (ACPM)
compliance
Product Description
Maintenance and Service Guide 1–5
Page 12
Product Description
1.4 External Components
The external components on the front of the HP Pavilion dv1300
notebook are shown below and described in Table 1-1.
Front Components, HP Pavilion dv1300
1–6 Maintenance and Service Guide
Page 13
Product Description
Table 1 -1
Front Components
HP Pavilion dv1300
Item Component Function
1 Speakers (2) Produce stereo sound.
2 Power/standby light ■ On: Notebook is turned on.
■ Blinking: Notebook is in standby.
■ Off: Notebook is off.
3 IDE (Integrated Drive
Electronics) drive light
4Battery light ■ Amber: The battery pack is charging.
5 Display release latch Opens the notebook.
6Audio-in
(microphone) jack
7Audio-out
(headphone) jack (2)
On or blinking: The internal hard drive or an
optical drive is being accessed.
■ Green: The battery pack is fully charged.
■ Off: The battery pack is discharging
or not inserted.
Connects an optional monaural (single
sound channel) microphone.
Connect optional headphones or powered
stereo speakers. Also connect the audio
function of an audio/video device such as
a television or VCR.
Maintenance and Service Guide 1–7
Page 14
Product Description
The external components on the front of the HP Compaq nx4820
and Compaq Presario V2300 notebooks are shown below and
described in Table 1-2.
Front Components, HP Compaq nx4820 and
Compaq Presario V2300
1–8 Maintenance and Service Guide
Page 15
Table 1 -2
Front Components
HP Compaq nx4820 and Compaq Presario V2300
Item Component Function
1 Speakers (2) Produce stereo sound.
Product Description
2 Wireless button light
(select models only)
3 Power/standby light ■ On: Notebook is turned on.
4 IDE (Integrated Drive
Electronics) drive light
5Battery light ■ Amber: The battery pack is charging.
6 Display release latch Opens the notebook.
7Audio-in
(microphone) jack
8Audio-out
(headphone) jack
(2 on HP Pavilion
dv1300 models)
On: An integrated wireless device is
hardware enabled.
■ Blinking: Notebook is in standby.
■ Off: Notebook is off.
■ On or blinking: The internal hard drive
or an optical drive is being accessed.
■ Green: The battery pack is fully charged.
■ Off: The battery pack is discharging
or not inserted.
Connects an optional monaural (single
sound channel) microphone.
Connect optional headphones or powered
stereo speakers. Also connect the audio
function of an audio/video device such as
a television or VCR.
Maintenance and Service Guide 1–9
Page 16
Product Description
The external components on the right side of the
HP Pavilion dv1300 notebook are shown below and described
in Table 1-3.
Right-Side Components, HP Pavilion dv1300
1–10 Maintenance and Service Guide
Page 17
Product Description
Table 1 -3
Right-Side Components
HP Pavilion dv1300
Item Component Function
1 USB connectors (2) Connect an optional USB device.
2 6-in-1 Digital Media
Reader (select models
only)
3 1394 port
(select models only)
4 6-in-1 Digital Media
Reader light
(select models only)
5 Optical drive Supports an optical disc.
6S-Video-out jack
(select models only)
In Windows, supports digital memory cards.
Connects an optional 1394a device such
as a scanner, digital camera, or digital
camcorder.
On: A digital memory card is being
accessed.
Connects an optional S-Video device, such
as a television, VCR, camcorder, projector,
or video capture card.
Maintenance and Service Guide 1–11
Page 18
Product Description
The external components on the right side of the
HP Compaq nx4820 and Compaq Presario V2300 notebooks
are shown below and described in Table 1-4.
Right-Side Components, HP Compaq nx4820 and
Compaq Presario V2300
1–12 Maintenance and Service Guide
Page 19
Product Description
Table 1 -4
Right-Side Components
HP Compaq nx4820 and Compaq Presario V2300
Item Component Function
1 USB connectors (2) Connect an optional USB device.
2 Digital memory card
reader (select models
only)
3 1394 port
(select models only)
4 Digital memory card
reader light (select
models only)
5 Optical drive Supports an optical disc.
6S-Video-out jack
(select models only)
In Windows, supports digital memory cards.
Connects an optional 1394 device such
as a scanner, digital camera, or digital
camcorder.
On: A digital memory card is being
accessed.
Connects an optional S-Video device, such
as a television, VCR, camcorder, projector,
or video capture card.
Maintenance and Service Guide 1–13
Page 20
Product Description
The external components on the rear and left side of the
HP Pavilion dv1300 notebook are shown below and described
in Table 1-5.
Rear and Left-Side Components, HP Pavilion dv1300
1–14 Maintenance and Service Guide
Page 21
Table 1 -5
Rear and Left-Side Components
HP Pavilion dv1300
Item Component Function
Product Description
1 Wireless light
(select models only)
2 Exhaust vent Provides airflow to cool internal
3 Power connector Connects an AC adapter cable.
4 External monitor port Connects an optional VGA external monitor
5 Expansion port Connects the notebook to an optional
6 RJ-45 (network) jack Connects an optional network cable.
7 RJ-11 (modem) jack Connects the modem cable.
8 USB connector Connects an optional USB device.
On: An integrated wireless device is
hardware enabled.
components.
To prevent overheating, do not
Ä
obstruct vents. Do not allow a hard
surface, such as a printer, or a soft
surface, such as pillows, thick rugs
or clothing, to block airflow.
or projector.
expansion base.
9 PC Card slot Supports an optional Type I or Type II 32-bit
10 PC Card eject button Ejects an optional PC Card from the
11 Security cable slot Attaches an optional security cable to the
Maintenance and Service Guide 1–15
(CardBus) or 16-bit PC Card.
Also serves as a storage location for the
optional HP Mobile Remote Control.
PC Card slot.
notebook.
Page 22
Product Description
The external components on the rear and left side of the
HP Compaq nx4820 and Compaq Presario V2300 notebooks are
shown below and described in Table 1-6.
Rear and Left-Side Components, HP Compaq nx4820 and
Compaq Presario V2300
1–16 Maintenance and Service Guide
Page 23
Product Description
Table 1 -6
Rear and Left-Side Components
HP Compaq nx4820 and Compaq Presario V2300
Item Component Function
1 Exhaust vent Provide airflow to cool internal components.
To prevent overheating, do not
Ä
obstruct vents. Do not allow a hard
surface, such as a printer, or a soft
surface, such as pillows, thick rugs
or clothing, to block airflow.
2 Power connector Connects an AC adapter cable.
3 External monitor port Connects an optional VGA external monitor
or projector.
4 Expansion port Connects the notebook to an optional
expansion base.
5 RJ-45 (network) jack Connects an optional network cable.
6 RJ-11 (modem) jack Connects the modem cable.
7 USB connector Connects an optional USB device.
8 PC Card slot Supports an optional Type I or Type II 32-bit
(CardBus) or 16-bit PC Card.
9 PC Card eject button Ejects an optional PC Card from the
PC Card slot.
10 Security cable slot Attaches an optional security cable to the
notebook.
Maintenance and Service Guide 1–17
Page 24
Product Description
The notebook keyboard components on the HP Pavilion dv1300
notebook are shown below and described in Table 1-7.
Keyboard Components, HP Pavilion dv1300
1–18 Maintenance and Service Guide
Page 25
Product Description
Table 1-7
Keyboard Components
HP Pavilion dv1300
Item Component Function
1 fn key Combines with other keys to perform
system tasks. For example, pressing
fn+f7 decreases screen brightness.
2 caps lock key Enables caps lock and turns on the caps
lock light.
3 f1 to f12 keys (12) Perform system and application tasks.
When combined with the fn key, several
keys and buttons perform additional tasks
as hotkeys.
4 num lock key Enables numeric lock, turns on the
embedded numeric keypad, and turns
on the num lock light.
5 Keypad keys (15) In Windows, can be used like the keys
on an external numeric keypad.
6 Arrow keys Move the cursor around the screen.
7Windows
applications key
8 Windows logo key In Windows, displays the Windows
In Windows, displays a shortcut menu
for items beneath the pointer.
Start menu.
Maintenance and Service Guide 1–19
Page 26
Product Description
The notebook keyboard components on the HP Compaq nx4820
and Compaq Presario V2300 notebooks are shown below and
described in Table 1-8.
Keyboard Components, HP Compaq nx4820 and
Compaq Presario V2300
1–20 Maintenance and Service Guide
Page 27
Product Description
Table 1-8
Keyboard Components
HP Compaq nx4820 and Compaq Presario V2300
Item Component Function
1 fn key Combines with other keys to perform
system tasks. For example, pressing
fn+f7 decreases screen brightness.
2 caps lock key Enables caps lock and turns on the caps
lock light.
3 f1 to f12 keys (12) Perform system and application tasks.
When combined with the fn key, several
keys and buttons perform additional tasks
as hotkeys.
4 num lock key Enables numeric lock, turns on the
embedded numeric keypad, and turns
on the num lock light.
5 Keypad keys (15) In Windows, can be used like the keys
on an external numeric keypad.
6 Arrows keys Move the cursor around the screen.
7Windows
applications key
8 Windows logo key In Windows, displays the Windows
In Windows, displays a shortcut menu
for items beneath the pointer.
Start menu.
Maintenance and Service Guide 1–21
Page 28
Product Description
The notebook top components on the HP Pavilion dv1300
notebook are shown below and described in Table 1-9.
Top Components, Part 1, HP Pavilion dv1300
Table 1 -9
Top Components, Part 1
HP Pavilion dv1300
Item Component Function
1 Display switch If the notebook is closed while on, turns off
the display.
2 Power button When the notebook is
■ Off, press to turn on the notebook.
■ On, briefly press to initiate Hibernation.
■ In Standby, briefly press to resume
from Standby.
■ In Hibernation, briefly press to restore
from Hibernation.
1–22 Maintenance and Service Guide
Page 29
Table 1 -9
Top Components, Part 1
Product Description
HP Pavilion dv1300
Item Component Function
3 DVD button When the notebook is
■ Off, opens QuickPlay DVD mode.
■ On in Windows, opens the default
Windows DVD application.
■ On in QuickPlay music mode, opens
QuickPlay DVD mode.
■ On in QuickPlay DVD mode, displays
the DVD setup menu.
■ In Standby, resumes from Standby
into Windows.
■ In Hibernation, opens QuickPlay
DVD mode.
4 Music button When the notebook is
■ Off, opens QuickPlay music mode.
■ On in Windows, opens the default
Windows music application.
(Continued)
■ On in QuickPlay DVD mode, opens
QuickPlay music mode.
■ In Standby, resumes from Standby
into Windows.
■ In Hibernation, opens QuickPlay
music mode.
5 Previous/Rewind
Button
6 Play/Pause button When a disc is in the optical drive and is:
Maintenance and Service Guide 1–23
When a disc is in the optical drive:
■ Press to play the previous track or
chapter.
■ Press fn+this button to rewind.
■ Not playing, press to play the disc.
■ Playing, press to pause the disc.
Page 30
Product Description
The notebook top components on the HP Pavilion dv1300
notebook are shown below and described in Table 1-10.
Top Components, Part 2, HP Pavilion dv1300
1–24 Maintenance and Service Guide
Page 31
Table 1-10
Top Components, Part 2
HP Pavilion dv1300
Item Component Function
Product Description
1Next/Fast Forward
button
2 Stop button When a disc is in the optical drive, press
3 Volume down button Decreases system volume.
4 Volume mute button
Mute light
5 Volume up button Increases system volume.
6 Wireless button Enables/disables an internal wireless
When a disc is in the optical drive:
■ Press once to play the next track or
chapter.
■ Press fn+this button to fast forward.
to stop the current disc activity.
Mutes or restores volume.
On: Volume is muted.
device.
Maintenance and Service Guide 1–25
Page 32
Product Description
The notebook top components on the HP Pavilion dv1300
notebook are shown below and described in Table 1-11.
Top Components, Part 3, HP Pavilion dv1300
1–26 Maintenance and Service Guide
Page 33
Product Description
Table 1-11
Top Components, Part 3
HP Pavilion dv1300
Item Component Function
1 TouchPad Moves the pointer.
2 TouchPad light On: TouchPad is enabled.
3 Caps lock light On: Caps lock is on.
4 Power/ button light ■ On: Notebook is turned on.
■ Blinking: Notebook is in standby.
■ Off: Notebook is off.
5 Wireless light On: an integrated wireless device is
hardware enabled.
6 Num lock light On: Num lock or the internal keypad is on.
7 Back button ■ In Windows, emulates the “back” function
of the alt+left arrow command in the
active application.
■ In QuickPlay, moves up one directory
level in an on-screen menu.
8 OK button Selects an item you have chosen on the
screen.
9 TouchPad on/off
button
10 TouchPad vertical
scroll region
11 Left and right
TouchPad buttons
Enables/disables the TouchPad.
Scrolls upward or downward.
Function like the left and right buttons on an
external mouse.
Maintenance and Service Guide 1–27
Page 34
Product Description
The notebook top components on the HP Compaq nx4820 and
Compaq Presario V2300 notebooks are shown below and
described in Table 1-12.
Top Components, Part 1, HP Compaq nx4820 and
Compaq Presario V2300
Table 1-12
Top Components, Part 1
HP Compaq nx4820 and Compaq Presario V2300
Item Component Function
1 Caps lock light On: Caps lock is on.
2 Display switch If the notebook is closed while on, turns off
the display.
1–28 Maintenance and Service Guide
Page 35
Table 1-12
Top Components, Part 1
Product Description
HP Compaq nx4820 and Compaq Presario V2300
Item Component Function
3 Wireless button Enables/disables an internal wireless
device.
Wireless light On: an integrated wireless device is
hardware enabled.
4 Power button When the notebook is
■ Off, press to turn on the notebook.
■ On, briefly press to initiate Hibernation.
■ In Standby, briefly press to resume
from Standby.
■ In Hibernation, briefly press to restore
from Hibernation.
Power/standby light ■ On: Notebook is turned on.
■ Blinking: Notebook is in standby.
■ Off: Notebook is off.
(Continued)
5 Volume down button Decreases system volume.
6 Volume mute button Mutes or restores volume.
Mute light On: Volume is muted.
7 Volume up button Increases system volume.
8 Num lock light On: Num lock or the internal keypad is on.
Maintenance and Service Guide 1–29
Page 36
Product Description
The notebook top components on the HP Compaq nx4820 and
Compaq Presario V2300 notebooks are shown below and
described in Table 1-13.
Top Components, Part 2, HP Compaq nx4820 and
Compaq Presario V2300
1–30 Maintenance and Service Guide
Page 37
Table 1-13
Top Components, Part 2
HP Compaq nx4820 and Compaq Presario V2300
Item Component Function
Product Description
1 TouchPad horizontal
scrolling region
2 TouchPad Moves the pointer.
3 TouchPad light On: TouchPad is enabled.
4 TouchPad on/off
button
5 TouchPad vertical
scroll region
6 Left and right
TouchPad buttons
Scrolls toward left side or right side.
Enables/disables the TouchPad.
Scrolls upward or downward.
Function like the left and right buttons on an
external mouse.
Maintenance and Service Guide 1–31
Page 38
Product Description
The external components on the bottom of the
HP Pavilion dv1300 notebook are shown below and described
in Table 1-14.
Bottom Components, HP Pavilion dv1300
Table 1-14
Bottom Components
HP Pavilion dv1300
Item Component Function
1 Optical drive Supports an optical disc.
2 Battery pack release latch Releases a battery pack from the
battery bay.
3 Battery pack Holds a battery pack.
1–32 Maintenance and Service Guide
Page 39
Table 1-14
Bottom Components
Product Description
HP Pavilion dv1300
Item Component Function
4 Exhaust vents (4) Provide airflow to cool internal
components.
Ä
5 Hard drive bay Holds the internal hard drive.
6 Mini PCI compartment Holds an optional wireless LAN device.
Ä
(Continued)
To prevent overheating, do not
obstruct vents. Do not allow a
hard surface, such as a printer, or
a soft surface, such as pillows,
thick rugs or clothing, to block
airflow.
To prevent an unresponsive
system and the display of a
warning message, install only a
Mini PCI device authorized for
use in your notebook by the
governmental agency that
regulates wireless devices in your
country. If you install a device and
then receive a warning message,
remove the device to restore
notebook functionality. Then
contact Customer Care.
7 Memory module
compartment
8 Label areas (2) Contain the notebook serial number and
Maintenance and Service Guide 1–33
Contains two memory slots that support
replaceable memory modules. The
number of preinstalled memory
modules varies by notebook model.
other applicable regulatory labels.
Page 40
Product Description
The external components on the bottom of the
HP Compaq nx4820 and Compaq Presario V2300 notebooks
are shown below and described in Table 1-15.
Bottom Components, HP Compaq nx4820 and
Compaq Presario V2300
Table 1-15
Bottom Components
HP Compaq nx4820 and Compaq Presario V2300
Item Component Function
1 Optical drive Supports an optical disc.
2 Battery pack release latch Releases a battery pack from the
battery bay.
3 Battery pack Holds a battery pack.
1–34 Maintenance and Service Guide
Page 41
Table 1-15
Bottom Components
Product Description
HP Compaq nx4820 and Compaq Presario V2300
Item Component Function
4 Exhaust vents (4) Provide airflow to cool internal
components.
To prevent overheating, do not
Ä
obstruct vents. Do not allow a
hard surface, such as a printer,
or a soft surface, such as pillows,
thick rugs or clothing, to block
airflow.
5 Hard drive bay Holds the internal hard drive.
6 Mini PCI compartment Holds an optional wireless LAN device.
To prevent an unresponsive
Ä
system and the display of a
warning message, install only a
Mini PCI device authorized for
use in your notebook by the
governmental agency that
regulates wireless devices in your
country. If you install a device and
then receive a warning message,
remove the device to restore
notebook functionality. Then
contact Customer Care.
(Continued)
7 Memory module
compartment
8 Label areas (2) Contain the notebook serial number and
Maintenance and Service Guide 1–35
Contains 2 memory slots that support
replaceable memory modules. The
number of preinstalled memory
modules varies by notebook model.
other applicable regulatory labels.
Page 42
Product Description
1.5 Design Overview
This section presents a design overview of key parts and features
of the notebook. Refer to Chapter 3, “Illustrated Parts Catalog,”
to identify replacement parts, and Chapter 5, “Removal and
Replacement Procedures,” for disassembly steps.
The system board provides the following device connections:
■ Memory module
■ Mini PCI communications devices
■ Hard drive
■ Display
■ Keyboard and TouchPad
■ Audio
Ä
■ Intel Pentium M and Celeron M processors
■ Fan
■ PC Card
CAUTION: To properly ventilate the notebook, allow at least a 7.6-cm
(3-inch) clearance on the left and right sides of the notebook.
The notebook uses an electric fan for ventilation. The fan is
controlled by a temperature sensor and is designed to be turned
on automatically when high temperature conditions exist. These
conditions are affected by high external temperatures, system
power consumption, power management/battery conservation
configurations, battery fast charging, and software applications.
Exhaust air is displaced through the ventilation grill located on
the left side of the notebook.
1–36 Maintenance and Service Guide
Page 43
Troubleshooting
WARNING: Only authorized technicians trained by HP should repair
Å
2.1 Computer Setup
this equipment. All troubleshooting and repair procedures are detailed
to allow only subassembly-/module-level repair. Because of the
complexity of the individual boards and subassemblies, do not attempt
to make repairs at the component level or modifications to any printed
wiring board. Improper repairs can create a safety hazard. Any
indication of component replacement or printed wiring board
modification may void any warranty or exchange allowances.
2
✎
Computer Setup is a preinstalled, ROM-based utility that can be
used even when the operating system is not working or will not
load. If the operating system is working, the notebook restarts the
operating system after you exit Computer Setup.
Pointing devices are not supported in Computer Setup; you
must use the keyboard to navigate and make selections.
The menu tables later in this chapter provide an overview of
Computer Setup options.
Maintenance and Service Guide 2–1
Page 44
Troubleshooting
Accessing Computer Setup
The information and settings in Computer Setup are accessed
from the Main, Security, Advanced, Tools, and Exit menus.
1. Open Computer Setup by turning on or restarting the
notebook. Press
message is displayed in the lower-left corner of the screen.
❏ To change the language, use the arrow keys to select the
Advanced menu, select Language Support, and then
press
F5 or F6 until the appropriate language is
highlighted. Press
Advanced menu.
❏ To view navigation information, press f1.
❏ To return to the Computer Setup menu, press esc.
f10 while the “Press <F10> to enter Setup”
F10 to save your selection and exit the
2. Select the Main, Security, Advanced, Tools, and Exit
menus.
3. To exit Computer Setup, choose one of the following:
❏ To exit without saving any changes, use the arrow keys to
select Exit > Exit Discarding Changes, and then follow
the instructions on the screen.
❏ To exit and save all the settings you have entered, use the
arrow keys to select Exit > Exit Saving Changes, and
then follow the instructions on the screen.
Your preferences are set when you exit Computer Setup and take
effect when the notebook restarts.
2–2 Maintenance and Service Guide
Page 45
Computer Setup Defaults
To return all settings in Computer Setup to the values that were
set at the factory:
1. Open Computer Setup by turning on or restarting the
notebook. Press
message is displayed in the lower-left corner of the screen.
❏ To change the language, use the arrow keys to select the
Advanced menu, select Language Support, and then
press
F5 or F6 until the appropriate language is
highlighted. Press
Advanced menu.
❏ To view navigation information, press f1.
2. Use the arrow keys to select Exit > Load Setup Defaults.
f10 while the “Press <F10> to enter Setup”
F10 to save your selection and exit the
Troubleshooting
3. Press
f9.
4. Press enter to confirm the return to default configuration.
5. To confirm the restoration, press
f10.
6. Select Exit > Exit Saving Changes, and then follow the
instructions on the screen.
When the computer restarts, the factory settings are restored,
and any identification information you have entered is saved.
Maintenance and Service Guide 2–3
Page 46
Troubleshooting
Selecting from the Main Menu
Table 2-1
Main Menu
Select To Do This
System Information ■ View identification information about the
notebook.
■ View specification information about the
processor, memory and cache size, keyboard
controller version, and system BIOS.
Selecting from the Security Menu
Table 2-2
Security Menu
Select To Do This
Administrator password Enter, change, or delete an HP Administrator
password.
Power-on password Enter, change, or delete a power-on password.
DriveLock password Enable/disable DriveLock; change a DriveLock
user or master password.
DriveLock Settings are accessible only
✎
when you enter Computer Setup by turning
on (not restarting) the notebook.
Device security Enable diskette drive or optical drive for inclusion
in MultiBoot.
2–4 Maintenance and Service Guide
Page 47
Troubleshooting
Selecting from the Advanced Menu
Table 2-3
Advanced Menu
Select To Do This
Video Graphic Mode Select UMA, SidePort, or UMA+SidePort video
memory modes.
Dedicated Video Memory View the size of the on-board video memory.
Total Video Memory View the size of the total system video memory
Language Support Change the Computer Setup language.
Boot Order Set the boot order.
Accessibility Options Provides access to electronic and information
technology to a wide range of people with
disabilities.
Embedded WLAN device Enable/disable a wireless local area network
device.
Embedded Bluetooth®
device
Enable/disable a Bluetooth device.
Maintenance and Service Guide 2–5
Page 48
Troubleshooting
Selecting from the Tools Menu
Table 2-4
Tools Menu
Select To Do This
HDD Self-test Run a quick or comprehensive self-test on any
hard drive in the system.
Selecting from the Exit Menu
Table 2-5
Exit Menu
Select To Do This
Exit Saving Changes Save changes entered during the current session.
Then exit and restart the notebook. The changes
you save are in effect when the notebook restarts.
Exit Discarding Changes Cancel changes entered during the current
session. Then exit and restart the notebook.
Load Setup Defaults Replace configuration settings in Computer Setup
with factory default settings. (Identification
information is retained.)
2–6 Maintenance and Service Guide
Page 49
2.2 Troubleshooting Flowcharts
Table 2 -6
Troubleshooting Flowcharts Overview
Flowchart Description
2.1 “Flowchart 2.1—Initial Troubleshooting”
2.2 “Flowchart 2.2—No Power, Part 1”
2.3 “Flowchart 2.3—No Power, Part 2”
2.4 “Flowchart 2.4—No Power, Part 3”
2.5 “Flowchart 2.5—No Power, Part 4”
2.6 “Flowchart 2.6—No Video, Part 1”
Troubleshooting
2.7 “Flowchart 2.7—No Video, Part 2”
2.8 “Flowchart 2.8—Nonfunctioning Docking Device (if applicable)”
2.9 “Flowchart 2.9—No Operating System (OS) Loading”
2.10 “Flowchart 2.10—No OS Loading, Hard Drive, Part 1”
2.11 “Flowchart 2.11—No OS Loading, Hard Drive, Part 2”
2.12 “Flowchart 2.12—No OS Loading, Hard Drive, Part 3”
2.13 “Flowchart 2.13—No OS Loading, Diskette Drive”
Maintenance and Service Guide 2–7
Page 50
Troubleshooting
Table 2 -6
Troubleshooting Flowcharts Overview
Flowchart Description
2.14 “Flowchart 2.14—No OS Loading, Optical Drive”
2.15 “Flowchart 2.15—No Audio, Part 1”
2.16 “Flowchart 2.16—No Audio, Part 2”
2.17 “Flowchart 2.17—Nonfunctioning Device”
2.18 “Flowchart 2.18—Nonfunctioning Keyboard”
2.19 “Flowchart 2.19—Nonfunctioning Pointing Device”
2.20 “Flowchart 2.20—No Network/Modem Connection”
(Continued)
2–8 Maintenance and Service Guide
Page 51
Flowchart 2.1—Initial Troubleshooting
Begin
troubleshooting.
N
Go to
Is there
power?
Y
N
Beeps,
LEDs, or error
messages?
Y
N
Is there video?
(no boot)
Y
N
Is the OS
loading?
Y
N
Is there
sound?
Y
“Flowchart
2.2—No Power,
Par t 1.”
Check
LED board,
speaker
connections.
Go to
“Flowchart
2.6—No Video,
Part 1.”
Go to
“Flowchart
2.9—No Operating
System (OS)
Loading.”
Go to
“Flowchart
2.15—No Audio,
Par t 1.”
N
All drives
working?
Y
N
Keyboard/
pointing
device
working?
Y
N
Connecting
to network
or modem?
Y
End
Troubleshooting
Go to
“Flowchart
2.17—Nonfunction
ing Device.”
Go to
“Flowchart
2.18—Nonfunction
ing Keyboard”
“Flowchart
2.19—Nonfunction
ing Pointing
Device.”
Go to
“Flowchart
2.20—No
Network/Modem
Connection.”
or
Maintenance and Service Guide 2–9
Page 52
Troubleshooting
N
Flowchart 2.2—No Power, Part 1
No power
(power LED
is off).
Remove from
docking device
(if applicable).
N
Power up
on battery
power?
Reset
power.*
Y
N
Power up
on AC
power?
Reset
power.*
Y
Y
Power up in
docking
device?
1. Reseat the power cables in the docking
device and at the AC outlet.
2. Ensure the AC power source is active.
3. Ensure that the power strip is working.
Done
N
Power up
on battery
power?
Go to
“Flowchart
2.3—No Power,
Par t 2.”
Y
N
Power up
on AC power?
Go to
“Flowchart
2.4—No Power,
Part 3.”
Y
*NOTES
1. On select models, there is a separate
reset button.
2. On select models, the notebook can be
reset using the standby switch and
either the lid switch or the main power
switch.
Done
YN
2–10 Maintenance and Service Guide
Power up
in docking
device?
Go to
“Flowchart
2.8—Nonfunctioning
Docking Device (if
applicable).”
Page 53
Flowchart 2.3—No Power, Part 2
N
Continued from
“Flowchart
2.2—No Power,
Par t 1.”
Visually check for
debris in battery
socket and clean
if necessary.
Y
Troubleshooting
Power on?
Check battery by
recharging it,
moving it to
another notebook,
or replacing it.
Power on?
Y
Done
N
power supply
(if applicable).
Y
Done
Replace
Power on?
N
Go to
“Flowchart
2.4—No Power,
Part 3.”
Maintenance and Service Guide 2–11
Done
Page 54
Troubleshooting
Flowchart 2.4—No Power, Part 3
Continued from
“Flowchart
2.3—No Power,
Part 2.”
Plug directly
into AC outlet.
Y
Power LED
on?
N
Reseat AC adapter
in notebook and
at power source.
Power on?
N
Power outlet
active?
Y
Replace
power cord.
Y
N
Y
Done
Done
Try different
outlet.
Internal or
external AC
adapter?
Internal
Go to
“Flowchart
2.5—No Power,
Part 4.”
External
Replace external
AC adapter.
N
Power on?
Y
Power on?
N
2–12 Maintenance and Service Guide
Done
Done
Page 55
Flowchart 2.5—No Power, Part 4
Continued from
“Flowchart
2.4—No Power,
Par t 3.”
Open
notebook.
Y
Reseat loose
Loose or
damaged
parts?
N
components and
boards and
replace damaged
items.
Troubleshooting
notebook and
Y
Close
retest.
Power on?
Done
N
Replace the following items (if applicable). Check
notebook operation after each replacement:
1. Internal DC-DC converter*
2. Internal AC adapter
3. Processor board*
4. System board*
*NOTE: Replace these items as a set to prevent
shorting out among components.
Maintenance and Service Guide 2–13
Page 56
Troubleshooting
Flowchart 2.6—No Video, Part 1
No video.
Docking Device
Stand-alone
or docking
device?
Go to
“Flowchart
2.7—No Video,
Part 2.”
*NOTE: To change from internal to
external display, use the hotkey
combination.
Internal or
display*?
External
brightness.
Video OK? Done
N
Check for bent
pins on cable.
external
Adjust
Stand-alone
Internal
Y
Y
Adjust
brightness.
Video OK? Done
N
A
Press lid
switch to ensure
operation.
Y
Video OK? Done
N
Replace the following one at a time. Test after each replacement.
1. Cable between notebook and notebook display (if applicable)
2. Display
3. System board
N
Video OK?
YY
Done
2–14 Maintenance and Service Guide
Try
another
display.
Internal and
external
video OK?
Done
N
Replace
system
board.
Page 57
Flowchart 2.7—No Video, Part 2
Continued from
“Flowchart
2.6—No Video,
Part 1.”
Remove
notebook from
docking device,
if connected.
Troubleshooting
Adjust
display
brightness.
N
Video OK?
Y
Check that notebook is properly
seated in docking device,
for bent pins on cable,
and for monitor connection.
Y
Video OK?
Go to “A” in
“Flowchart
2.6—No Video,
Part 1.”
Done
Check brightness
of external
monitor.
Video OK?
N
Try another
external
monitor.
Internal
and external
video OK?
Y
Done
Y
Done
N
Adjust external
monitor display.
Maintenance and Service Guide 2–15
N
Go to
“Flowchart
2.8—Nonfunctioning
Docking Device (if
applicable).”
Page 58
Troubleshooting
Flowchart 2.8—Nonfunctioning Docking Device
(if applicable)
Nonfunctioning
docking device.
Reseat power
cord in docking
device and
power outlet.
Check voltage
setting on docking
device.
Reset monitor
cable connector at
docking device.
Docking
device
operating?
N
Remove notebook,
replace docking
device.
Y
Done
Reinstall
notebook into
docking device.
Docking
device
operating?
N
Test replacement
docking device with
new notebook.
Y
Done
2–16 Maintenance and Service Guide
Page 59
Troubleshooting
Flowchart 2.9—No Operating System (OS)
Loading
No OS
loading.*
Reseat power
cord in docking
device and
power outlet.
No OS loading from hard drive,
“Flowchart 2.10—No OS Loading,
go to
Hard Drive, Part 1.”
No OS loading from diskette drive,
“Flowchart 2.13—No OS Loading,
go to
Diskette Drive.”
No OS loading from optical drive,
“Flowchart 2.14—No OS Loading,
go to
Optical Drive.”
No OS loading from network,
“Flowchart 2.20—No Network/Modem
go to
Connection.”
*NOTE: Before beginning troubleshooting, always
check cable connections, cable ends, and drives
for bent or damaged pins.
Maintenance and Service Guide 2–17
Page 60
Troubleshooting
Flowchart 2.10—No OS Loading, Hard Drive,
Part 1
OS not
loading from
hard drive.
Nonsystem
disk message?
N
Reseat
external
hard drive.
OS loading?
N
Boot
from
CD?
Y
Check the Setup
utility for correct
booting order.
Y
Y
N
Go to
“Flowchart
2.11—No OS
Loading,
Hard Drive, Part 2.”
Done
Boot
from
diskette?
Y
N
Go to
“Flowchart
2.13—No OS
Loading,
Diskette Drive.”
N
Boot
from
hard drive?
Y
Done
2–18 Maintenance and Service Guide
Change boot
priority through
the Setup utility
and reboot.
Boot
from
hard drive?
Y
N
Go to
“Flowchart
2.17—Nonfunctioning
Device.”
Page 61
Troubleshooting
Flowchart 2.11—No OS Loading, Hard Drive,
Part 2
Continued from
“Flowchart
2.10—No OS
Loading,
Hard Drive, Part 1.”
Disc or
diskette in
drive?
Y
Remove disc or
diskette and
reboot.
N
1. Replace
hard drive.
2. Replace
system board.
N
Reseat
hard drive.
Hard drive
accessible?
Run FDISK.
Y
Done
Boot
from
hard drive?
N
Boot
from diskette
drive?
Y
Hard drive
accessible?
Y
Go to
“Flowchart
2.12—No OS
Loading,
Hard Drive, Part 3.”
Y
N
2.13—No OS
Diskette Drive.”
N
Done
Go to
“Flowchart
Loading,
Done
Hard drive
partitioned?
Y
Hard drive
formatted?
Y
Y
Notebook
booted?
Go to
“Flowchart
2.12—No OS
Loading,
Hard Drive, Part 3.”
N
N
Create partition,
and then format
hard drive to
bootable
C:\ prompt.
Format hard drive
and bring to
abootable
C:\ prompt.
Load OS using
Operating System disc
(if applicable).
N
Maintenance and Service Guide 2–19
Page 62
Troubleshooting
Flowchart 2.12—No OS Loading, Hard Drive,
Part 3
Continued from
“Flowchart
2.11—No OS
Loading,
Hard Drive, Part 2.”
N
System
files on hard
drive?
Y
Virus
on
hard drive?
N
Run SCANDISK and
check for
bad sectors.
Can bad
sectors
be fixed?
Y
N
Clean virus.
Replace
hard drive.
Install OS
and reboot.
OS
loading from
hard drive?
N
Diagnostics on
disc or diskette?
N
Run diagnostics
and follow
recommendations.
Y
Done
Y
Replace
hard drive.
Y
Fix bad
sectors.
Y
2–20 Maintenance and Service Guide
Boot from
hard drive?
Done
N
Replace
hard drive.
Page 63
Troubleshooting
N
N
Flowchart 2.13—No OS Loading, Diskette Drive
Y
OS not loading
diskette drive.
Nonsystem
disk message?
from another
Y
drive enabled
in the Setup
Y
from
Boot
device?
Diskette
utility?
diskette drive.
Y
N
“Flowchart
2.17—Nonfunction
ing Device.”
N
and cold boot
Reseat
Go to
Enable drive
notebook.
loading?
N
Bootable
diskette
in drive?
Y
Check diskette
for system files.
Try d i fferen t
diskette.
Nonsystem
disk error?
N
OS
N
Install bootable
diskette and
reboot notebook.
Y
Replace the following
components
individually, retesting
after each
replacement:
■ Diskette drive
■ System board
Y
Done
Y
Is diskette
drive boot
order
correct?
Change boot
priority using
the Setup utility.
Maintenance and Service Guide 2–21
Reset the notebook.
Refer to
Section 1.2,
“Resetting the
Notebook,”
instructions.
“Flowchart
2.17—Nonfunctioning
Device.”
for
Go to
N
OS
loading?
Done
Page 64
Troubleshooting

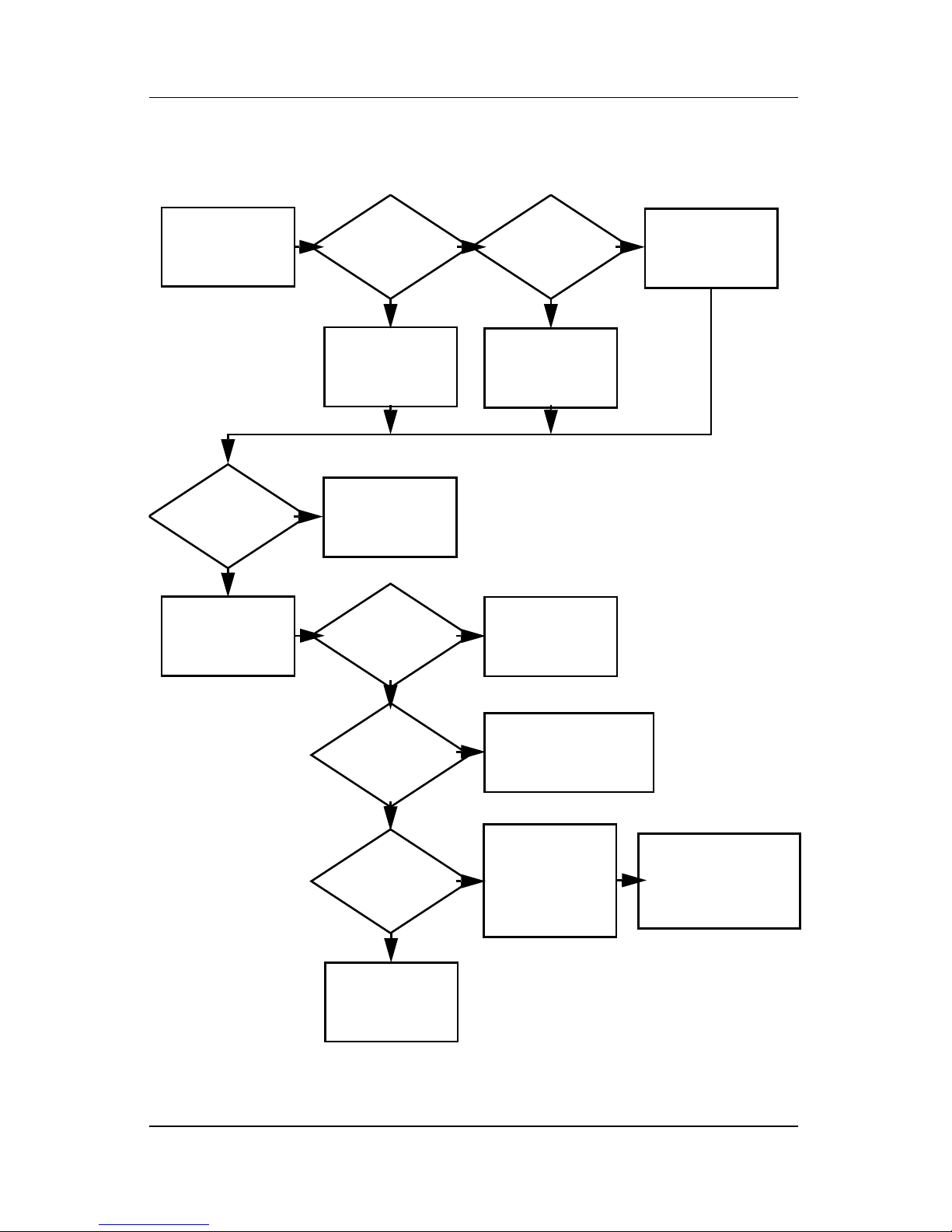

Flowchart 2.14—No OS Loading, Optical Drive
No OS
loading from
CD-ROM or
DVD-ROM drive.
Boots from
CD or DVD?
N
Reseat
drive.
Y
N
bootable disc.
Disc
in drive?
Install
Done
Boots from
CD or DVD?
Y
Y
Y
bootable disc.
Bootable
disc in
drive?
Try another
Done
N
Install bootable
disc and
reboot
notebook.
N
Booting
from another
device?
Y
Booting
correct?
N
Correct boot
order using
the Setup utility.
order
N
2.17—Nonfunctioning
Reset the notebook.
Y
Section 1.2,
“Resetting the
Notebook,”
instructions.
Go to
“Flowchart
Device.”
Refer to
for
Go to
“Flowchart
2.17—Nonfunctioning
Device.”
2–22 Maintenance and Service Guide
Page 65
Flowchart 2.15—No Audio, Part 1
N
Turn up audio
No audio.
internally or
externally.
Audio? Done
N
Troubleshooting
Y
Notebook in
docking device
(if applicable)?
Go to
“Flowchart
2.16—No Audio,
Par t 2.”
Y
Undock
Go to
“Flowchart
2.17—Nonfunctioning
Device.”
Internal
audio?
Y
Dock notebook in
replacement
docking device.
Audio? Done
N
N
Go to
“Flowchart
2.16—No Audio,
Par t 2.”
Y
Maintenance and Service Guide 2–23
Page 66
Troubleshooting
Flowchart 2.16—No Audio, Part 2
Continued from
“Flowchart
2.15—No Audio,
Part 1.”
N
Audio
driver in OS
configured?
Reload
audio drivers.
Y
N
Correct
drivers for
application?
Load drivers and
set configuration
in OS.
Y
Connect to
external
speaker.
Replace audio
board and
Audio?
YN
speaker
connections
in notebook
(if applicable).
Audio? Done
YN
2–24 Maintenance and Service Guide
Replace the following components individually,
retesting after each replacement:
■ Internal speakers.
■ Audio board (if applicable).
■ System board.
Page 67

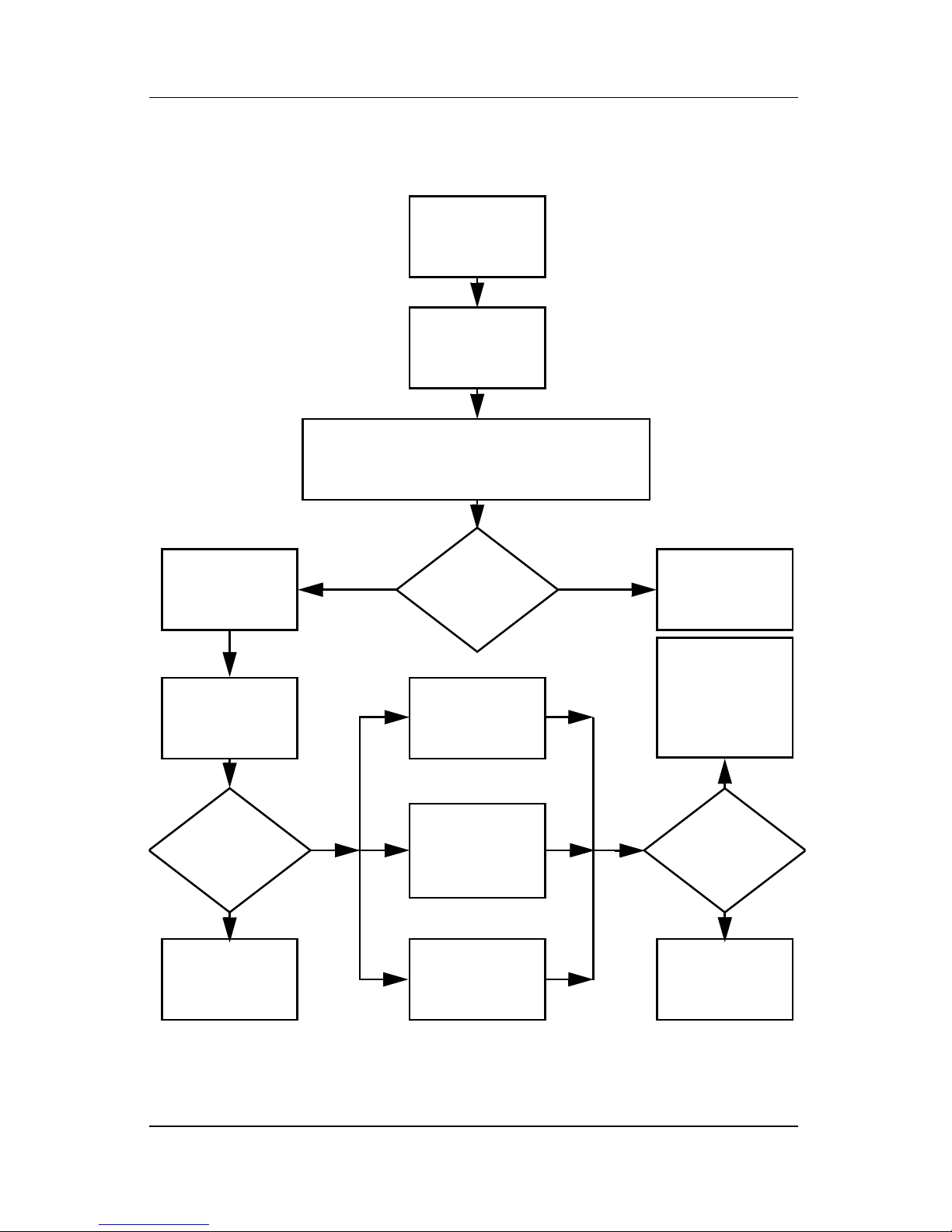

Flowchart 2.17—Nonfunctioning Device
Nonfunctioning
device.
Reseat
device.
Unplug the nonfunctioning device from the notebook
and inspect cables and plugs for bent or broken pins
or other damage.
Troubleshooting
CMOS.
Reattach device.
Close notebook,
plug in power,
and reboot.
Device
boots
properly?
Y
Done
Clear
N
Any physical
device detected?
N
Replace hard drive.
Replace NIC.
If integrated NIC,
replace system
board.
Replace diskette
drive.
Y
Fix or
replace
broken item.
Go to
“Flowchart
2.9—No
Operating System
(OS) Loading.”
N
Device
boots
properly?
Y
Done
Maintenance and Service Guide 2–25
Page 68
Troubleshooting
Flowchart 2.18—Nonfunctioning Keyboard
Keyboard
not operating
properly.
Connect notebook
to good external
keyboard.
N
Y
Reseat internal
keyboard
connector
(if applicable).
Keyboard
operating
properly?
Y
External
device
works?
Replace
system
board.
N
Replace internal
keyboard or
cable.
Y
Keyboard
Done Done
operating
properly?
2–26 Maintenance and Service Guide
N
Replace
system
board.
Page 69
Troubleshooting
Flowchart 2.19—Nonfunctioning Pointing
Device
Pointing device
not operating
properly.
Connect notebook
to good external
pointing device.
N
Y
Reseat internal
pointing device
connector
(if applicable).
Pointing device
operating
properly?
Y
External
device
works?
Replace
system
board.
N
Replace internal
pointing device
or cable.
Y
Done Done
Pointing device
operating
properly?
N
Maintenance and Service Guide 2–27
Replace
system
board.
Page 70
Troubleshooting
Flowchart 2.20—No Network/Modem
Connection
No network
or modem
connection.
N
or modem jack
Y
N
NIC/modem
configured
Y
Disconnect all
power from
the notebook
and open.
Network
active?
Digital
line?
in OS?
Y
N
Replace jack
or have jack
activated.
Connect
to nondigital
line.
Reload
drivers and
reconfigure.
Network
or modem
connection
working?
N
Replace NIC/modem
(if applicable).
Y
Done
Reseat NIC/modem
(if applicable).
2–28 Maintenance and Service Guide
N
Network
or modem
connection
working?
Replace
system
board.
Y
Done
Page 71
Illustrated Parts Catalog
This chapter provides an illustrated parts breakdown and a
reference for spare part numbers and option part numbers.
3.1 Serial Number Location
When ordering parts or requesting information, provide the
notebook serial number and model number located on the bottom
of the notebook.
3
Serial Number Location
Maintenance and Service Guide 3–1
Page 72
Illustrated Parts Catalog
3.2 Notebook Major Components
Notebook Major Components, HP Pavilion dv1300
3–2 Maintenance and Service Guide
Page 73
Illustrated Parts Catalog
Table 3 -1
Spare Parts: Notebook Major Components
Spare Part
Item Description
1 Display assemblies (include wireless antenna boards and cables)
For use on HP Pavilion dv1300 models
14.0-inch, WXGA, SVA with Brightview
14.0-inch, WXGA
For use on HP Compaq nx4820 models
14.0-inch, WXGA, SVA with Brightview
14.0-inch, WXGA
For use on Compaq Presario V2300 models
14.0-inch, WXGA, SVA with Brightview
14.0-inch, WXGA
Number
373054-001
367783-001
373060-001
373528-001
373055-001
367784-001
Left and right display hinge covers and brackets
For use on HP Pavilion dv1300 models 382077-001
For use on HP Compaq nx4820 and Compaq
Presario V2300 models
2 Switch covers (include wireless button and light)
For use on HP Pavilion dv1300 models with wireless
capability
For use on HP Pavilion dv1300 models without
wireless capability
For use on HP Compaq nx4820 and
Compaq Presario V2300 models with a 1394 port,
S-Video-out jack, expansion port, digital memory
card reader, and wireless capability
For use on HP Compaq nx4820 and
Compaq Presario V2300 models with a 1394 port,
S-Video-out jack, expansion port, and digital
memory card reader without wireless capability
382078-001
367781-001
367780-001
367782-001
367779-001
Maintenance and Service Guide 3–3
Page 74
Illustrated Parts Catalog
Notebook Major Components, HP Compaq nx4820 and
Compaq Presario V2300
3–4 Maintenance and Service Guide
Page 75
Table 3-1
Illustrated Parts Catalog
Spare Parts: Notebook Major Components
Item Description
3 Keyboards
For use on HP Pavilion dv1300 models
Belgium
Denmark
France
French Canada
Germany
Greece
Israel
International
Italy
Korea
Latin America
Europe and the
Netherlands
Norway
Portugal
Saudi Arabia
367778-A41
367778-081
367778-051
367778-121
367778-041
367778-DJ1
367778-bb1
367778-B31
367778-061
367778-ad1
367778-161
367778-331
367778-091
367778-131
367778-171
Spain
Sweden/Finland
Switzerland
Ta iw an
Thailand
United Kingdom
Asia Pacific,
Australia,
Canada,
Hong Kong,
People’s
Republic
of China, and
the United
States
(Continued)
Spare Part
Number
367778-071
367778-b71
367778-111
367778-ab1
367778-281
367778-031
367778-001
For use on HP Compaq nx4820 models
Japan 367777-291
For use on Compaq Presario V2300 models
Korea
Ta iw an
Thailand
Maintenance and Service Guide 3–5
367777-ad1
367777-AB1
367777-281
Asia Pacific,
Australia,
Hong Kong,
People’s
Republic of
China, and the
United States
367777-001
Page 76
Illustrated Parts Catalog
Notebook Major Components, HP Pavilion dv1300
3–6 Maintenance and Service Guide
Page 77
Table 3-1
Illustrated Parts Catalog
Spare Parts: Notebook Major Components
Item Description
4 LED boards (include cable, not illustrated)
For use on HP Pavilion dv1300 models 367797-001
For use on HP Compaq nx4820 and
Compaq Presario V2300 models
5 Top covers (include TouchPad)
For use on HP Pavilion dv1300 models 394905-001
For use on HP Compaq nx4820 models 373529-001
For use on Compaq Presario V2300 models with a
1394 port, S-Video-out jack, expansion port, and
Memory Reader
6 Heat sink (includes thermal pad) 395436-001
7 Fan (includes thermal pad) 367795-001
(Continued)
Spare Part
Number
367798-001
394906-001
8 Processors (include thermal pad)
Intel Pentium M 770 (2.13-GHz) with 400-MHz FSB
Intel Pentium M 760 (2.0-GHz) with 400-MHz FSB
Intel Pentium M 750 (1.8-GHz) with 400-MHz FSB
Intel Pentium M 740 (1.7-GHz) with 400-MHz FSB
Intel Pentium M 725 (1.6-GHz) with 400-MHz FSB
Intel Celeron M 370 (1.4-GHz) with 400-MHz FSB
Intel Celeron M 360 (1.4-GHz) with 400-MHz FSB
Intel Celeron M 350 (1.3-GHz) with 400-MHz FSB
Maintenance and Service Guide 3–7
394829-001
394828-001
394827-001
394826-001
394825-001
383876-001
380033-001
380032-001
Page 78
Illustrated Parts Catalog
Notebook Major Components, HP Compaq nx4820 and
Compaq Presario V2300
3–8 Maintenance and Service Guide
Page 79
Table 3 -1
Illustrated Parts Catalog
Spare Parts: Notebook Major Components
(Continued)
Spare Part
Item Description
9 System boards (include disk cell RTC battery)
915GM, for use on full-featured HP Pavilion dv1300
models
910GM, for use on defeatured HP Pavilion dv1300
models
915GM, for use on HP Compaq nx4820 and
Compaq Presario V2300 models
10 USB/S-Video controller board 367794-001
11 Menu control button board (includes bracket and
cable, for use only on HP Pavilion dv1300
notebook models)
12 Speaker assemblies
For use on HP Pavilion dv1300 models 367793-001
Number
393655-001
393656-001
394824-001
373535-001
For use on HP Compaq nx4820 and
Compaq Presario V2300 models
13 Base enclosures
For use on HP Pavilion dv1300 models 367763-001
For use on HP Compaq nx4820 and
Compaq Presario V2300 models
14 Battery packs
12-cell, 8.8-AHr 367760-001
6-cell, 4.4-AHr 367759-001
Maintenance and Service Guide 3–9
374625-001
367764-001
Page 80
Illustrated Parts Catalog
Notebook Major Components, HP Pavilion dv1300
3–10 Maintenance and Service Guide
Page 81
Table 3 -1
Illustrated Parts Catalog
Spare Parts: Notebook Major Components
Item Description
15 Optical drives (include bezel)
For use on HP Pavilion dv1300 models
8X DVD-ROM Drive
24X DVD/CD-RW Combo Drive
8X DVD±RW/R and CD-RW Combo Drive
8X DVD±RW/R and CD-RW Combo Drive,
Light Scribe
8X DVD±RW/R and CD-RW Combo Drive,
Double Layer
For use on HP Compaq nx4820 and
Compaq Presario V2300 models
8X DVD±RW/R and CD-RW Combo Drive
8X DVD±RW/R and CD-RW Combo Drive,
Light Scribe
8X DVD±RW/R and CD-RW Combo Drive,
Double Layer
(Continued)
Spare Part
Number
367789-001
367790-001
375983-001
383877-001
389896-001
375984-001
383878-001
389897-001
16 Hard drives (include frame and connector)
5400-rpm
80-GB
60-GB
40-GB
4200-rpm
100-GB
80-GB
60-GB
40-GB
Maintenance and Service Guide 3–11
377651-001
375980-001
393659-001
381721-001
367788-001
367787-001
367786-001
Page 82
Illustrated Parts Catalog
Notebook Major Components, HP Compaq nx4820 and
Compaq Presario V2300
3–12 Maintenance and Service Guide
Page 83
Table 3-1
Illustrated Parts Catalog
Spare Parts: Notebook Major Components
Item Description
17 Mini PCI communications cards
802.11b/g Broadcomm (for use in most of the world)
802.11b/g Broadcomm (for use in the rest of the
world)
802.11b/g Broadcomm (for use only on HP Compaq
nx4820 models in Japan)
802.11b/g Titus (for use in the United States)
802.11b/g Titus (for use in the rest of the world)
802.11b/g Titus (for use in Japan)
802.11b/g Intel (for use in most of the world)
802.11b/g Intel (for use in the rest of the world)
Bluetooth Wireless LAN 376651-001
18 Memory modules (266 MHz)
(Continued)
Spare Part
Number
373047-001
373048-001
373061-291
392591-001
392591-002
392591-291
373026-001
373025-001
1024-MB
512-MB
256-MB
Miscellaneous Plastics Kit
For use on HP Pavilion dv1300 models 367765-001
For use on HP Compaq nx4820 and
Compaq Presario V2300 models
Includes:
19a
19b
19c
Maintenance and Service Guide 3–13
Hard drive cover (includes two captive screws)
Memory module compartment cover (includes
2 captive screws)
Mini PCI compartment cover (includes 2 captive
screws)
Notebook feet (not illustrated)
367775-001
367774-001
367773-001
367766-001
Page 84
Illustrated Parts Catalog
3.3 Miscellaneous Plastics Kit
Miscellaneous Plastics Kit
3–14 Maintenance and Service Guide
Page 85
Spare Part Number Information
Item Description
Miscellaneous Plastics Kit
For use on HP Pavilion dv1300 models 367765-001
Includes:
1a
2a
3a
4a
Mini PCI compartment cover
Memory module compartment cover
Notebook feet (5)
Hard drive cover
Illustrated Parts Catalog
Table 3-2
Miscellaneous Plastics Kit
Spare Part
Number
1b
2b
3b
4b
For use on HP Compaq nx4820 and
Compaq Presario V2300 models
Includes:
Mini PCI compartment cover
Memory module compartment cover
Notebook feet (4)
Hard drive cover
367766-001
Maintenance and Service Guide 3–15
Page 86
Illustrated Parts Catalog
3.4 Mass Storage Devices
Mass Storage Devices
Table 3-3
Mass Storage Devices
Spare Part Number Information
Item Description
1 Hard drives (include frame and connector)
5400-rpm
80-GB
60-GB
40-GB
Spare Part
Number
377651-001
375980-001
393659-001
3–16 Maintenance and Service Guide
Page 87
Table 3-3
Mass Storage Devices
Illustrated Parts Catalog
Spare Part Number Information
Item Description
1 Hard drives
4200-rpm
100-GB
80-GB
60-GB
40-GB
2 Optical drives
For use on HP Pavilion dv1300 models
8X DVD-ROM Drive
24X DVD/CD-RW Combo Drive
8X DVD±RW/R and CD-RW Combo Drive
8X DVD±RW/R and CD-RW Combo Drive,
Light Scribe
8X DVD±RW/R and CD-RW Combo Drive,
Double Layer
(Continued)
(Continued)
Spare Part
Number
381721-001
367788-001
367787-001
367786-001
367789-001
367790-001
375983-001
383877-001
389896-001
For use on HP Compaq nx4820 and
Compaq Presario V2300 models
8X DVD±RW/R and CD-RW Combo Drive
8X DVD±RW/R and CD-RW Combo Drive,
Light Scribe
8X DVD±RW/R and CD-RW Combo Drive,
Double Layer
USB diskette drive (not illustrated) 359118-001
USB digital drive (not illustrated) 364727-001
HP USB pocket drive (not illustrated) 338796-001
Maintenance and Service Guide 3–17
375984-001
383878-001
389897-001
Page 88
Illustrated Parts Catalog
3.5 Miscellaneous
Table 3 -4
Spare Parts: Miscellaneous (not illustrated)
Spare Part
Description
Logo Kits
For use on HP Pavilion dv1300 models 373058-001
For use on HP Compaq nx4820 models 395199-001
For use on Compaq Presario V2300 models 373059-001
Wired headset with volume control 371693-001
Number
Personal Video Recorder 352950-001
HP remote control (for use only on HP dv1300
notebook models)
USB travel mouse 309674-001
Notebook entertainment cable and Y-cable 379452-001
65-watt AC adapter 371790-001
Screw Kit (includes the following screws; refer to Appendix C, “Screw Listing,”
for more information on screw specifications and usage)
For use on HP Pavilion dv1300 models 367776-001
For use on HP Compaq nx4820 and
Compaq Presario V2300 models
■ Phillips PM2.5×4.0 screw
■ Phillips PM2.0×7.0 round head screw
■ Phillips PM2.0×7.0 screw
■ Phillips PM2.0×5.0 screw
■ Phillips PM2.0×4.0 screw
■ Phillips PM2.0×3.0 screw
■ Phillips PM1.5×2.0 screw
371694-001
373534-001
3–18 Maintenance and Service Guide
Page 89
Table 3 -4
Illustrated Parts Catalog
Spare Parts: Miscellaneous (not illustrated)
Description
Power cords
For use in:
Australia and New Zealand 373979-011
Belgium, Europe, Finland, France, Germany, Greece,
the Netherlands, Norway, Portugal, Spain, and Sweden
Canada, French Canada, Latin America, Thailand, and the
United States
Denmark 373979-081
Hong Kong and the United Kingdom 373979-031
Israel 373979-BB1
Italy 373979-061
Japan 373979-291
(Continued)
Spare Part
Number
373979-021
373979-001
Korea 373979-AD1
People’s Republic of China 373979-AA1
Switzerland 373979-111
Taiwan 373979-AB1
Maintenance and Service Guide 3–19
Page 90
Illustrated Parts Catalog
3.6 Sequential Part Number Listing
Table 3-5
Spare Parts: Sequential Part Number Listing
Spare Part
Number Description
309674-001 USB travel mouse
352950-001 Personal Video Recorder
359118-001 USB diskette drive
364727-001 USB digital drive
367759-001 Battery pack, 6-cell, 4.4-AHr
367760-001 Battery pack, 12-cell, 8.8-AHr
367763-001 Base enclosure for use on HP Pavilion dv1300 models
367764-001 Base enclosure for use on HP Compaq nx4820 and
Compaq Presario V2300 models
367765-001 Miscellaneous Plastics Kit for use on HP Pavilion dv1300
models
367766-001 Miscellaneous Plastics Kit for use on HP Compaq nx4820 and
Compaq Presario V2300 models
367773-001 Memory module, 256-MB (266 MHz)
367774-001 Memory module, 512-MB (266 MHz)
367775-001 Memory module, 1024-MB (266 MHz)
367776-001 Screw Kit for use on HP Pavilion dv1300 models
367777-001 Keyboard for use on Compaq Presario V2300 models in Asia
Pacific, Australia, Hong Kong, People’s Republic of China, and
the United States
3–20 Maintenance and Service Guide
Page 91
Table 3-5
Illustrated Parts Catalog
Spare Parts: Sequential Part Number Listing
Spare Part
Number Description
367777-281 Keyboard for use on Compaq Presario V2300 models
in Thailand
367777-291 Keyboard for use on HP Compaq nx4820 notebook model
in Japan
367777-AB1 Keyboard for use on Compaq Presario V2300 models
in Taiwan
367777-AD1 Keyboard for use on Compaq Presario V2300 models
in Korea
367778-001 Keyboard for use on HP Pavilion dv1300 models in Asia
Pacific, Australia, Canada, Hong Kong, People’s Republic of
China, and the United States
367778-031 Keyboard for use on HP Pavilion dv1300 models in
the United Kingdom
367778-041 Keyboard for use on HP Pavilion dv1300 models in Germany
(Continued)
367778-051 Keyboard for use on HP Pavilion dv1300 models in France
367778-061 Keyboard for use on HP Pavilion dv1300 models in Italy
367778-071 Keyboard for use on HP Pavilion dv1300 models in Spain
367778-081 Keyboard for use on HP Pavilion dv1300 models in Denmark
367778-091 Keyboard for use on HP Pavilion dv1300 models in Norway
367778-111 Keyboard for use on HP Pavilion dv1300 models
in Switzerland
367778-121 Keyboard for use on HP Pavilion dv1300 models
in French Canada
Maintenance and Service Guide 3–21
Page 92
Illustrated Parts Catalog
Table 3-5
Spare Parts: Sequential Part Number Listing
Spare Part
Number Description
367778-131 Keyboard for use on HP Pavilion dv1300 models in Portugal
367778-161 Keyboard for use on HP Pavilion dv1300 models
in Latin America
367778-171 Keyboard for use on HP Pavilion dv1300 models
in Saudi Arabia
367778-281 Keyboard for use on HP Pavilion dv1300 models in Thailand
367778-331 Keyboard for use on HP Pavilion dv1300 models in Europe
and the Netherlands
367778-A41 Keyboard for use on HP Pavilion dv1300 models in Belgium
367778-ab1 Keyboard for use on HP Pavilion dv1300 models in Taiwan
367778-ad1 Keyboard for use on HP Pavilion dv1300 models in Korea
367778-B31 Keyboard for use on International HP Pavilion dv1300 models
(Continued)
367778-b71 Keyboard for use on HP Pavilion dv1300 models Finland
and Sweden
367778-bb1 Keyboard for use on HP Pavilion dv1300 models in Israel
367778-DJ1 Keyboard for use on HP Pavilion dv1300 models in Greece
367779-001 Switch cover for use on HP Compaq nx4820 and
Compaq Presario V2300 models with a 1394 port,
S-Video-out jack, expansion port, and Memory Reader
without wireless capability
367780-001 Switch cover for use on HP Pavilion dv1300 models without
wireless capability
3–22 Maintenance and Service Guide
Page 93
Table 3-5
Illustrated Parts Catalog
Spare Parts: Sequential Part Number Listing
Spare Part
Number Description
367781-001 Switch cover for use on HP Pavilion dv1300 models with
wireless capability
367782-001 Switch cover for use on HP Compaq nx4820 and
Compaq Presario V2300 models with a 1394 port,
S-Video-out jack, expansion port, and Memory Reader with
wireless capability
367783-001 Display assembly, 14.0-inch, WXGA for use on
for use on HP Pavilion dv1300 models
367784-001 Display assembly, 14.0-inch, WXGA for use on
Compaq Presario V2300 models
367786-001 Hard drive, 60-GB, 4200-rpm (includes frame and connector)
367787-001 Hard drive, 40-GB, 4200-rpm (includes frame and connector)
367788-001 Hard drive, 80-GB, 4200-rpm (includes frame and connector)
(Continued)
367789-001 8X DVD-ROM Drive for use on HP Pavilion dv1300 models
367790-001 24X DVD/CD-RW Combo Drive for use on HP Pavilion dv1300
models
367793-001 Speaker assembly for use on HP Pavilion dv1300 models
367794-001 USB/S-Video controller board
367795-001 Fan (includes thermal pad)
367796-001 Heat sink (includes thermal pad)
367797-001 LED board for use on HP Pavilion dv1300 models (includes
LED board cable)
Maintenance and Service Guide 3–23
Page 94
Illustrated Parts Catalog
Table 3-5
Spare Parts: Sequential Part Number Listing
Spare Part
Number Description
367798-001 LED board for use on HP Compaq nx4820 and Compaq
Presario V2300 models (includes LED board cable)
371693-001 Wired headset with volume control
371694-001 HP remote control (for use only on HP dv1300 models)
371790-001 65-watt AC adapter
373025-001 Mini PCI communications card, 802.11b/g Intel for use in the
rest of the world
373026-001 Mini PCI communications card, 802.11b/g Intel for use in most
of the world
373047-001 Mini PCI communications card, 802.11b/g Broadcomm for use
in most of the world
373048-001 Mini PCI communications card, 802.11b/g Broadcomm for use
in the rest of the world
(Continued)
373054-001 Display assembly, 14.0-inch, WXGA, SVA with Brightview for
use on HP Pavilion dv1300 models
373055-001 Display assembly, 14.0-inch, WXGA, SVA with Brightview for
use on Compaq Presario V2300 models
373058-001 Logo Kit for use on HP Pavilion dv1300 models
373059-001 Logo Kit for use on Compaq Presario V2300 models
373060-001 Display assembly, 14.0-inch, WXGA, SVA with Brightview for
use on HP Compaq nx4820 models
3–24 Maintenance and Service Guide
Page 95
Table 3-5
Illustrated Parts Catalog
Spare Parts: Sequential Part Number Listing
Spare Part
Number Description
373061-001 Mini PCI communications card, 802.11b/g Broadcomm for use
in Japan
373524-001 8X DVD-ROM Drive for use on HP Compaq nx4820 and
Compaq Presario V2300 models
373525-001 24X DVD/CD-RW Combo Drive for use on
HP Compaq nx4820 and Compaq Presario V2300 models
373528-001 Display assembly, 14.0-inch, WXGA, SVA for use on
HP Compaq nx4820 models
373529-001 Top cover for use on HP Compaq nx4820 models
(includes TouchPad)
373534-001 Screw Kit for use on HP Compaq nx4820 and Compaq
Presario V2300 models
373535-001 Menu control button board (includes bracket and cable, for use
only on HP Pavilion dv1300 notebook models)
(Continued)
373979-001 Power cord for use in Canada, French Canada, Latin America,
Thailand, and the United States
373979-011 Power cord for use in Australia and New Zealand
373979-021 Power cord for use in Belgium, Europe, Finland, France,
Germany, Greece, the Netherlands, Norway, Portugal, Spain,
and Sweden
373979-031 Power cord for use in Australia, Hong Kong, New Zealand, and
the United Kingdom
Maintenance and Service Guide 3–25
Page 96
Illustrated Parts Catalog
Table 3-5
Spare Parts: Sequential Part Number Listing
Spare Part
Number Description
373979-061 Power cord for use in Italy
373979-081 Power cord for use in Denmark
373979-111 Power cord for use in Switzerland
373979-291 Power cord for use in Japan
373979-AA1 Power cord for use in People’s Republic of China
373979-AD1 Power cord for use in Korea
373979-BB1 Power cord for use in Israel
373979-AB1 Power cord for use in Taiwan
374625-001 Speaker assembly for use on HP Compaq nx4820 and
Compaq Presario V2300 models
375759-001 Notebook entertainment cable and Y-cable
(Continued)
375980-001 Hard drive, 60-GB, 5400-rpm (includes frame and connector)
375983-001 8X DVD±RW/R and CD-RW Combo Drive for use on
HP Pavilion dv1300 models
375984-001 8X DVD±RW/R and CD-RW Combo Drive for use on
Compaq Presario V2300 models
376651-001 Mini PCI communications card, Bluetooth Wireless LAN
377651-001 Hard drive, 80-GB, 5400-rpm (includes frame and connector)
379452-001 Audio Y-cable
3–26 Maintenance and Service Guide
Page 97
Table 3-5
Illustrated Parts Catalog
Spare Parts: Sequential Part Number Listing
Spare Part
Number Description
380032-001 Processor, Intel Celeron M 350 (1.3-GHz) with
400-MHz FSB (includes thermal pad)
380033-001 Processor, Intel Celeron M 360 (1.4-GHz) with 400-MHz FSB
(includes thermal pad)
381721-001 Hard drive, 100-GB, 4200-rpm (includes frame and connector)
382077-001 Left and right display hinge covers and brackets for use on
HP Pavilion dv1300 models
382078-001 Left and right display hinge covers and brackets for use on
HP Compaq nx4820 and Compaq Presario V2300 models
383876-001 Intel Celeron M 370 (1.4-GHz) with 400-MHz FSB
383877-001 8X DVD±RW/R and CD-RW Combo Drive, Light Scribe for
use on HP Pavilion dv1300 models
383878-001 8X DVD±RW/R and CD-RW Combo Drive, Light Scribe for
use on HP Compaq nx4820 and Compaq Presario V2300
models
(Continued)
389896-001 8X DVD±RW/R and CD-RW Combo Drive, Double Layer for
use on HP Pavilion dv1300 models
389897-001 8X DVD±RW/R and CD-RW Combo Drive, Double Layer for
use on HP Compaq nx4820 and Compaq Presario V2300
models
392591-001 Mini-PCI communications card, 802.11b/g Titus for use in
the United States
392591-002 Mini-PCI communications card, 802.11b/g Titus for use in the
rest of the world
Maintenance and Service Guide 3–27
Page 98
Illustrated Parts Catalog
Table 3-5
Spare Parts: Sequential Part Number Listing
Spare Part
Number Description
392591-291 Mini-PCI communications card, 802.11b/g Titus for use
in Japan
393655-001 System board, 915GM, for use on full-featured HP Pavilion
dv1300 models
393656-001 System board, 910GM, for use on defeatured HP Pavilion
dv1300 models
394824-001 System board, 915GM, for use on HP Compaq nx4820 and
Compaq Presario V2300 models
394825-001 Processor, Intel Pentium M 725 (1.6-GHz) with 400-MHz FSB
(includes thermal pad)
394826-001 Processor, Intel Pentium M 740 (1.7-GHz) with 400-MHz FSB
(includes thermal pad)
394827-001 Processor, Intel Pentium M 750 (1.8-GHz) with 400-MHz FSB
(includes thermal pad)
(Continued)
394828-001 Processor, Intel Pentium M 760 (2.00-GHz) with 400-MHz
FSB (includes thermal pad)
394829-001 Processor, Intel Pentium M 770 (2.13-GHz) with 400-MHz
FSB (includes thermal pad)
394905-001 Top cover for use on HP Pavilion dv1300 models
(includes TouchPad)
394905-001 Top cover for use on HP Pavilion dv1300 models
394906-001 Top cover for use on HP Compaq nx4820 and Compaq
Presario V2300 models
395199-001 Label Kit for use on HP Compaq nx4820 models
395436-001 Heat sink (includes thermal pad)
3–28 Maintenance and Service Guide
Page 99
Removal and Replacement
This chapter provides essential information for proper and
safe removal and replacement service.
4.1 Tools Required
You will need the following tools to complete the removal and
replacement procedures:
■ Magnetic screwdriver
■ Phillips P0 screwdriver
4
Preliminaries
■ 5.0-mm socket for system board screwlocks
■ Flat-bladed screwdriver
■ Tool kit—includes connector removal tool, loopback plugs,
and case utility tool
4.2 Service Considerations
The following sections include some of the considerations
that you should keep in mind during disassembly and assembly
procedures.
As you remove each subassembly from the notebook, place
✎
the subassembly (and all accompanying screws) away from
the work area to prevent damage.
Maintenance and Service Guide 4–1
Page 100
Removal and Replacement Preliminaries
Plastic Parts
Using excessive force during disassembly and reassembly can
damage plastic parts. Use care when handling the plastic parts.
Apply pressure only at the points designated in the maintenance
instructions.
Cables and Connectors
CAUTION: When servicing the notebook, ensure that cables are
Ä
placed in their proper locations during the reassembly process.
Improper cable placement can damage the notebook.
Cables must be handled with extreme care to avoid damage.
Apply only the tension required to unseat or seat the cables
during removal and insertion. Handle cables by the connector
whenever possible. In all cases, avoid bending, twisting, or
tearing cables. Ensure that cables are routed in such a way that
they cannot be caught or snagged by parts being removed or
replaced. Handle flex cables with extreme care; these cables
tear easily.
4.3 Preventing Damage to
Removable Drives
Removable drives are fragile components that must be handled
with care. To prevent damage to the notebook, damage to a
removable drive, or loss of information, observe the following
precautions:
■ Before removing or inserting a hard drive, shut down the
notebook. If you are unsure whether the notebook is off or
in Hibernation, turn the notebook on, and then shut it down
through the operating system.
■ Before removing a diskette drive or optical drive, ensure that
a diskette or disc is not in the drive and ensure that the optical
drive tray is closed.
4–2 Maintenance and Service Guide
Loading...
