HP BladeSystem c-Class

Site Planning Guide

Part Number 443250-002

anuary 2009 (Second Edition)

© Copyright 2007, 2009 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express

warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Intended audience

This document is for the person who plans for and installs HP BladeSystem c-Class products. Only persons experienced in server blade technology and configuration should attempt these procedures. HP assumes you are qualified in the installation and servicing of computer equipment and trained in recognizing hazards in products with hazardous voltage levels.

Introduction.................................................................................................................................. 6

About this document .................................................................................................................................. 6

Related documentation............................................................................................................................... 6

General site preparation guidelines ................................................................................................ 7

ASHRAE guidelines for site planning............................................................................................................ 7

HP site planning assistance......................................................................................................................... 7

Site planning considerations ....................................................................................................................... 8

Computer room preparation .......................................................................................................................8

Cooling requirements................................................................................................................................. 9

Basic air conditioning equipment requirements....................................................................................9

Air conditioning system guidelines .....................................................................................................9

Air conditioning system types............................................................................................................9

Basic air distribution systems........................................................................................................... 10

Air conditioning system specifications .............................................................................................. 10

Air conditioning ducts .................................................................................................................... 11

Cabling requirements............................................................................................................................... 11

Floor loading.......................................................................................................................................... 12

Raised floor loading ...................................................................................................................... 12

Average floor loading.................................................................................................................... 12

Computer room safety.............................................................................................................................. 13

Installation and maintenance precautions.......................................................................................... 13

Fire protection............................................................................................................................... 13

Fire suppression ............................................................................................................................13

Lighting requirements for equipment servicing ...................................................................................14

Working space for component access..............................................................................................14

Environmental requirements ......................................................................................................... 15

Environmental elements............................................................................................................................15

Humidity level ............................................................................................................................... 15

Dust and pollution.......................................................................................................................... 15

Metallic particulate contamination ...................................................................................................16

Electrostatic discharge prevention....................................................................................................17

Acoustic noise specification ............................................................................................................ 17

Recommended operating environment........................................................................................................ 18

Airflow requirements................................................................................................................................ 19

Blanking panels............................................................................................................................. 19

HP Rack Airflow Optimization Kit .................................................................................................... 19

Space requirements.................................................................................................................................19

Delivery space requirements ........................................................................................................... 20

Operational space requirements...................................................................................................... 20

Equipment clearance and floor loading ............................................................................................ 20

Floor plan grid..............................................................................................................................21

HP BladeSystem enclosure environmental specifications...................................................................... 22

Rack and accessory footprints................................................................................................................... 22

Front door clearance...................................................................................................................... 23

Best practices for deployment in rows............................................................................................... 26

Contents 3

Rack placement and arrangement for proper airflow.......................................................................... 27

Rack tie-down option kit ................................................................................................................. 28

Power requirements and considerations......................................................................................... 29

Power requirements ................................................................................................................................. 29

Electrical factors...................................................................................................................................... 29

Power consumption........................................................................................................................ 30

Electrical load requirements (circuit breaker sizing) ............................................................................ 31

Power quality................................................................................................................................ 32

Power considerations ..................................................................................................................... 32

Distribution hardware..................................................................................................................... 34

Grounding requirements................................................................................................................. 35

Grounding systems ........................................................................................................................ 35

System installation guidelines .......................................................................................................... 38

Power configuration................................................................................................................................. 39

Dynamic Power Capping................................................................................................................ 39

HP BladeSystem enclosure single-phase power configuration............................................................... 39

HP BladeSystem c7000 Enclosure three-phase AC configuration.......................................................... 45

HP BladeSystem enclosure DC power configuration ...........................................................................46

Power supply specifications ...................................................................................................................... 47

Single-phase HP 2250W Power Supply specification.........................................................................47

Single-phase HP 2400W High Efficiency Power Supply specification ..................................................48

Three-phase HP 2250W Power Supply specification (North America/Japan) ........................................48

Three-phase HP 2400W High Efficiency Power Supply specification (North America/Japan) ..................49

Three-phase HP 2250W Power Supply specification (International)......................................................49

Three-phase HP 2400W Power Supply specification (International)......................................................50

DC power supply specification........................................................................................................ 50

Hardware specifications and requirements .................................................................................... 51

Enclosure specifications............................................................................................................................ 51

HP BladeSystem c7000 Enclosure specifications................................................................................ 51

HP BladeSystem c3000 Enclosure specifications................................................................................ 51

HP 10000 G2 rack specifications .............................................................................................................52

Rack requirements ................................................................................................................................... 52

Rack-free environment requirements ........................................................................................................... 53

Configuration scenarios............................................................................................................... 54

Example configurations............................................................................................................................54

Example minimum configuration......................................................................................................54

Example typical configuration ......................................................................................................... 54

Example maximum configuration ..................................................................................................... 55

Estimating power and cooling................................................................................................................... 56

Estimating total weight ............................................................................................................................. 57

Preparing for installation.............................................................................................................. 58

Warning, caution, and important messages................................................................................................ 58

Additional rack considerations.................................................................................................................. 60

General component placement guidelines .................................................................................................. 60

Rack configuration software...................................................................................................................... 61

Sample installation schedule ..................................................................................................................... 62

Sample checklists .................................................................................................................................... 62

Delivery survey ....................................................................................................................................... 64

Conversion factors and formulas................................................................................................... 66

Conversion factors................................................................................................................................... 66

Contents 4

Formulas ................................................................................................................................................ 66

Technical support........................................................................................................................ 67

Before you contact HP.............................................................................................................................. 67

HP contact information............................................................................................................................. 67

Acronyms and abbreviations........................................................................................................ 68

Glossary.................................................................................................................................... 70

Index......................................................................................................................................... 72

Contents 5

Introduction

About this document

This document helps facilities and IT staff plan for the receipt and installation of HP BladeSystem c-Class products in a dedicated computer facility.

The document is structured as follows:

• General site preparation guidelines (on page 7)

This section provides an overview of general site requirements to prepare your computer room facility to accept HP BladeSystem hardware.

• Environmental requirements (on page 15)

This section provides information on the environmental site requirements, including temperature, airflow, and space requirements.

• Power requirements and considerations (on page 29)

This section details the power requirements and electrical factors that must be considered before installation. This section also discusses PDU installation.

• Hardware specifications and requirements (on page 51)

This section provides system specifications for the HP BladeSystem c7000 Enclosure, HP 10000 and HP 10000 G2 series racks, and single-phase and three-phase power sources.

• Configuration scenarios (on page 54)

This section provides examples of maximum and typical rack configurations using HP BladeSystem cClass products, and worksheets to help determine power usage and total solution weight.

• Preparing for installation (on page 58)

This section includes tools and information to help prepare for product delivery and installation.

General site preparation guidelines

ASHRAE guidelines for site planning

The American Society of Heating, Refrigerating and Air-Conditioning Engineers has published a common set of guidelines for equipment manufacturers and data center designers to standardize on the following issues relating to a data center site:

• Operating environments for classes of equipment

• Equipment placement for optimum reliability and airflow

• Tests of performance and the operational health of the data center

• Equipment installation evaluations

• Methodology for reporting power, cooling, and environmental specifications

These guidelines were developed by an industry consortium, of which HP is a member. These guidelines are presented in the 2004 report Thermal Guidelines for Data Processing Environments, which was generated by the ASHRAE Technical Committee 9.9. For information about ASHRAE and the report, see the ASHRAE website (http://www.ashrae.org

HP site planning assistance

HP provides a wide variety of site and environmental planning services that can help to evaluate your data center site and install and configure your systems:

• HP Quick Assessment for BladeSystem Environments—The HP BladeSystem Assessment Service is

designed to help you determine the capability of your data center environment to meet current and future HP BladeSystem requirements, including the following services:

o Help you understand how to utilize your data center resources more efficiently o Help you gain a better understanding of space, power, and cooling resource requirements for

HP BladeSystems

o Recommend effective equipment racking orientation and placement for improved cooling

capacity

o Help you plan for your future capacity requirements for HP BladeSystems in the data center

For a more detailed analysis, HP provides the following services:

• HP Datacenter Assessment Service—This service provides a thorough review and analysis of your

facility's infrastructure. Findings are documented in a detailed final report. If risks or deficiencies are found, a qualitative and quantitative explanation is provided for each, including prioritized recommendations based on industry experience, industry standards, and engineering and operational best practices.

• HP Datacenter Thermal Assessment Service—The HP "intelligent cooling" approach leverages

sophisticated modeling tools and techniques to determine the unique thermal conditions within your

General site preparation guidelines 7

data center. HP Services professionals recommend changes to optimize climatic conditions and reclaim capacity, postponing or even eliminating the need for costly mechanical upgrades. Choose from three service levels to meet your specific requirements.

• HP Datacenter Site Planning Service—Obtain a comprehensive site-preparation audit to help you

successfully integrate new equipment into your facility. Service deliverables include verification of installation and service space, examination of the capacity and availability of your power distribution system, analysis of cooling system capacity and airflow distribution, and a review of installation readiness prerequisites. An in-depth report identifies any deficiencies and provides floorplan drawings locating equipment, receptacles, airflow panels, and cable cut-outs.

For more information, see the HP website (http://h20219.www2.hp.com/services/cache/114078-0-0-

225-121.aspx).

Site planning considerations

Customer facility managers and system administrators must discuss site planning, preparation, and system installation before system delivery. A common understanding of environmental requirements and how the systems will be delivered, configured, installed, and maintained helps to create a suitable data center and aids the successful installation of the servers and related equipment.

It is important to plan the facility as a whole, not design based on calculations of individual system or rack level requirements. Too many interdependencies in a modern data center make such simple calculations unreliable. Designs and plans must be made for the data center as a whole, including all of its equipment, with the realization that making one change in the data center environment can affect many other physical, mechanical, and environmental aspects of the facility.

Take into account the requirements of third-party equipment and support equipment in the room. Dense computing locations might have high power and cooling demands that could affect power and environmental constraints. Be aware of rack positioning and airflow patterns. Ensure that the raised floor space, cooling equipment, power supply equipment and generators, and other support equipment meet the demands of all the servers and other mission-critical equipment.

Computer room preparation

Observe the following guidelines when preparing a computer room for product installation:

• Locate the computer room away from the exterior walls of the building to avoid the heat gain from

windows and exterior wall surfaces.

• When exterior windows are unavoidable, use windows that are double- or triple-glazed and shaded

to prevent direct sunlight from entering the computer room.

• Maintain the computer room at a positive pressure relative to surrounding spaces.

• Use a vapor barrier installed around the entire computer room envelope to restrain moisture

migration.

• Caulk and vapor seal all pipe, conduit, and cable computer room entry and exit points.

• In underfloor distribution installations, install at least a 610 mm (24 in) raised floor system for

optimum room air distribution.

• Ensure a minimum clearance of 457 mm (18 in) between the top of the rack and the ceiling to allow

for return airflow.

General site preparation guidelines 8

• Ensure that all ceiling tiles are in place.

• Ensure a minimum of 457 mm (18 in) or local code minimum clearance, whichever is larger, from

the top of the rack to the fire sprinkler heads.

Cooling requirements

Air conditioning equipment requirements and recommendations are described in the following sections.

Basic air conditioning equipment requirements

The cooling capacity of the installed air conditioning equipment for the computer room should be sufficient to offset the computer equipment dissipation loads, as well as any space envelope heat gain. This equipment should include the following:

• Air filtration

• Temperature control

• Humidity control

• Air distribution

• System controls adequate to monitor and maintain the computer room within specified operating

ranges

Lighting and personnel heat loads must also be included when calculating the total heat load for the computer room. For example, a person dissipates about 450 BTU/h while performing a typical computer room task.

Air conditioning system guidelines

HP recommends the following guidelines when designing a computer room air conditioning system and selecting the necessary equipment:

• Design the air conditioning system for 24-hour-a-day, 365-day-a-year operation.

• Provide an air conditioning system that is independent of other systems in the building.

• Provide one of the following:

o A redundant air conditioning system o Sufficient extra cooling capacity to ensure availability of the computer equipment if a partial air

conditioning system failure occurs

• Provide space and facilities for future system expansion.

• Specify air conditioning equipment air filters with a minimum rating of 45 percent (based on

ASHRAE Standard 52-76, Dust Spot Efficiency Test).

Air conditioning system types

HP recommends the following air conditioning system types:

• Chilled water package unit with remote chilled water plant

• Air cooled package unit with remote air cooled chilling plant

General site preparation guidelines 9

• Direct-expansion refrigerant-based unit with remote air-cooled condensers

• Direct-expansion refrigerant-based unit with glycol cold condensers

An increasing number of in-row cooling solutions as well as water-cooled cabinets are available.

Basic air distribution systems

A basic air distribution system includes supply air and return air. An air distribution system should be zoned to deliver an adequate amount of supply air to the cooling air

intake vents of the racks. Supply air temperature should be maintained within the following parameters:

• Ceiling supply system—From 12.8°C to 15.6ºC (55°F to 60°F)

• Floor supply system—At least 15.6°C (60°F)

If a ceiling plenum return air system or a ducted ceiling return air system is used, the return air grill(s) in the ceiling should be above the exhaust area or the exhaust row.

The following three types of air distribution system are listed in order of recommendation:

• Underfloor air distribution system—Downflow air conditioning equipment located on the raised floor

of the computer room uses the cavity beneath the raised floor as a plenum for the supply air. Return air from an underfloor air distribution system can be DRA above the ceiling. Perforated floor panels (available from the raised floor manufacturer) should be located around the

front of the system cabinets. Supply air emitted though the perforated floor panels is then available near the cooling air intake vents of the racks.

• Ceiling plenum air distribution system—Supply air is ducted into the ceiling plenum from upflow air

conditioning equipment located in the computer room or from an air handling unit (remote). The ceiling construction should resist air leakage. Place perforated ceiling panels (with down

discharge air flow characteristics) around the front of the system cabinets. The supply air emitted downward from the perforated ceiling panels is then available near the cooling air intake vents of the racks.

Return air should be ducted back to the air conditioning equipment though the return air duct above the ceiling.

• Above ceiling ducted air distribution system—Supply air is ducted into a ceiling diffuser system from

upflow air conditioning equipment located in the computer room or from an air handling unit (remote).

Return air from an above ceiling ducted air distribution system can be DRA above the ceiling, or CPRA.

Adjust the supply air diffuser system grilles to direct the cooling air downward around the front of the racks. The supply air is then available near the cooling air intake vents of the racks.

Air conditioning system specifications

All air conditioning equipment, materials, and installation must comply with any applicable construction codes. Installation of the various components of the air conditioning system must also conform to the air conditioning equipment manufacturer’s recommendations.

General site preparation guidelines 10

Air conditioning ducts

Use separate computer room air conditioning duct work. If it is not separate from the rest of the building, it might be difficult to control cooling and air pressure levels. Duct work seals are important for maintaining a balanced air conditioning system and high static air pressure. Adequate cooling capacity means little if the direction and rate of air flow cannot be controlled because of poor duct sealing. Also, the ducts should not be exposed to warm air, otherwise humidity levels can increase.

Cabling requirements

HP recommends using overhead cabling systems in high-density environments. Placing the cables in overhead raceways maximizes airflow and makes access for servicing and upgrades more efficient.

The cable lengths are determined by the cabling specifications for the type of interconnect to which they are attached. When planning the cable installation, ensure the following:

• Cable lengths are less than the maximum allowable cable length for the cable and interconnect type.

• Cable bend radii are greater than the minimum for the cable type used.

To determine the routing restrictions, do the following:

1. Determine the cable length limits for a specific model of interconnect.

2. Estimate the cabling constraints for interrack connections, referring to the example presented in the

following figure where:

o A = rack height (such as 2 m for a 42U rack) o B = distance from the bottom of the rack to the underfloor trough or raceway o C = distance to the overhead cable raceway o D = distance between the racks

In the following figure, examples of the maximum cable run distances are shown by the dotted lines labeled Overhead and Underfloor.

General site preparation guidelines 11

Floor loading

The computer room floor must be able to support the total weight of the installed components as well as the weight of the individual racks as they are moved into position.

Floor loading is usually not an issue in nonraised floor installations. The information presented in this section is directed toward raised floor installations.

An appropriate floor system consultant should verify any floor system under consideration for installation.

Raised floor loading

Raised floor loading is a function of the manufacturer’s load specification and the positioning of the equipment relative to the raised floor grid. While HP cannot assume responsibility for determining the suitability of a particular raised floor system, it does provide information and illustrations for the customer or local agencies to determine installation requirements.

Rack static and dynamic loads are detailed below:

Rack Static load Dynamic load Notes

HP 10636G2 908 kg (2000 lb) 690 kg (1520 lb) Includes rack weight HP 10642G2 908 kg (2000 lb) 908 kg (2000 lb) Includes rack weight HP 10647G2 908 kg (2000 lb) — Cannot ship with equipment installed HP 10842G2 908 kg (2000 lb) 454 kg (1000 lb) —

For more information, see the following websites:

• Best practices for HP 10000 Series and HP 10000 G2 Series Racks on the HP website

(http://h20000.www2.hp.com/bc/docs/support/SupportManual/c00883424/c00883424.pdf

• Rack and power page on the HP website (http://www.hp.com/go/rackandpower).

HP recommends the following guidelines:

• Because many raised floor systems do not have grid stringers between floor stands, the lateral

support for the floor stands depends on adjacent panels being in place. To avoid compromising this type of floor system while gaining under-floor access, remove only one floor panel at a time.

• Larger floor grids (bigger panels) are generally rated for lighter loads.

CAUTION: Do not position or install any equipment cabinets on the raised floor system until

you have carefully examined it to verify that it is adequate to support the installation.

Average floor loading

The average floor load value is not appropriate for addressing raised floor ratings at the floor grid spacing level. However, it is useful for determining floor loading at the building level, such as the area of solid floor or span of raised floor tiles covered by the rack footprint.

General site preparation guidelines 12

Computer room safety

Inside the computer room, fire protection and adequate lighting (for equipment servicing) are important

Installation and maintenance precautions

safety considerations. Federal and local safety codes that govern equipment installations.

To reduce the risk of electric shock or damage to the equipment when installing, maintaining, or servicing Enterprise products, observe the following general precautions:

• Provide overhead clearance for fire sprinkler devices—A minimum clearance is required between the

top of the rack and any fire protection sprinkler devices. Check the local building code for details.

• Be aware of power voltages and use trained personnel—Some Enterprise products are capable of

producing hazardous voltages and hazardous energy levels. The installation of internal options and routine maintenance and service of these products should be performed only by individuals who are familiar with the procedures, precautions, and hazards associated with this type of equipment.

• Secure all equipment—Rack equipment should be operated only with all enclosures in place and

properly secured. Always refer to the equipment installation guide and observe all applicable warnings and precautions.

• Follow manufacturer instructions—Always refer to the individual equipment installation instructions

for any special considerations when installing equipment in a rack.

Fire protection

The National Fire Protection Association's Standard for the Protection of Electronic Computer Data Processing Equipment, NFPA 75, contains information on safety monitoring equipment for computer rooms.

Most computer room installations are equipped with the following fire protection devices:

• Smoke detectors

• Fire and temperature alarms

• Fire extinguishing system

• Air handling (plenum) space that is segmented from the remainder of the building

Additional safety devices:

• Circuit breakers

• An emergency power cutoff switch

• Devices specific to geographic location (such as earthquake protection)

Fire suppression

Though fires in computer rooms are rare, they are a critical safety and business consideration. HP recommends the use of gaseous agents as primary fire control, with water as a backup system. Gaseous agents include CO HP recommends the use of dry pipe water valving, with suitably rated temperature heads. Dry pipe water valving lowers the business risks associated with accidental water pipe discharge.

, and Halon substitutes, like Intergen. Where fire suppression using water is dictated,

General site preparation guidelines 13

Lighting requirements for equipment servicing

Adequate lighting and utility outlets in a computer room reduce the possibility of accidents and improve efficiency during equipment servicing. The minimum recommended illumination level is 756 lm/m foot candles) when the light level is measured at 762 mm (30 in) above the floor.

Occupancy-controlled lighting, with manual override switches for use during extended occupancy periods or for servicing, is more efficient and less costly. For example, adequate lighting reduces the chance of connector damage when cables are installed or removed. The HP Rack Light Kit (part number 361589B21) can also be installed at the rear of the rack to ensure adequate lighting is available.

Working space for component access

The recommended working space for performing maintenance is 1.2 m (4 ft) from either side of, in front of, or behind the server. The work space must permit at least a 90 degree opening of equipment doors or hinged panels. When planning for the working space area, consider whether access to the server will be at the front, the side, or the rear of the component.

(70

General site preparation guidelines 14

Environmental requirements

Environmental elements

The following environmental elements can affect HP BladeSystem c-Class product installation.

Humidity level

Maintaining proper humidity levels in the computer room is essential for reliable equipment performance. Humidity levels outside the recommended range of 25 to 45 percent, especially if these levels are sustained, lead to equipment damage and result in equipment malfunction through several mechanisms.

High humidity levels enable galvanic activity to occur between dissimilar metals. Galvanic activity can cause high resistance to develop between connections and lead to equipment malfunctions and failures. Extended periods of humidity levels greater than 60% have also been shown to adversely affect modern printed circuit board reliability. High humidity can also adversely affect some magnetic tapes and paper media.

High humidity levels are often the result of malfunctioning facility air conditioning systems. High humidity can also be the result of facility expansion in excess of air conditioning system capacity.

Humidity levels below the minimum recommended value can also have undesirable effects. Low humidity contributes to high ESD voltage potentials. ESD events can cause component damage during service operations and equipment malfunction or damage during normal operation. Low humidity levels can reduce the effectiveness of static dissipating materials and have also been shown to cause high speed printer paper feed problems.

Low humidity levels are often the result of the facility heating system and occur during the cold season. Most heating systems cause air to have a low humidity level, unless the system has a built-in humidifier.

ASHRAE and representatives of IT equipment manufacturers recommend a range of 18°C dry bulb with a

5.5°C dew point temperature to 27°C dry bulb with a 5.5°C dew point temperature. Over this range of dry bulb temperature with a 5.5°C dew point, the relative humidity varies from approximately 25% to 45%.

For more information on humidity levels, see the ASHRAE website (http://www.ashrae.org/

Dust and pollution

Dust and microscopic particles in the site environment adversely affect computer equipment. Airborne abrasive particles can cause bearing failures in disk drives, tape drives, and other mechanical devices. Dust may also blanket electronic components and printed circuit boards, causing premature failure because of excess heat, humidity buildup, or both.

Conductive metallic particles can cause power supply and other electronic component failures. A build-up of these metallic particles over time can cause short circuits on the densely packed circuit boards common in modern electronics. Use every effort to ensure that the environment is as dust- and particulate-free as possible. See "Metallic particulate contamination (on page 16)."

Environmental requirements 15

Smaller particles can pass through some filters, and over time, cause problems in mechanical parts. Selection of the appropriate filter media and maintaining the air conditioning system at a high static air pressure level can prevent small dust particles from entering the computer room.

Other dust, metallic, conductive, abrasive, or microscopic particles can result from the following sources:

• Subfloor shedding

• Raised floor shedding

• Ceiling tile shedding

These particulates are not always visible to the naked eye. A good method to determine their possible presence is to check the underside of the tiles. The tile should be shiny, galvanized, and free from rust.

To minimize dust and pollution in the computer room, observe the following guidelines:

• Smoking—Establish a no-smoking policy. Cigarette smoke particles are eight times larger than the

clearance between disk drive read/write heads and the disk surface.

• Printer location—Locate printers and paper products in a separate room to eliminate paper

particulate problems.

• Eating or drinking—Establish a no-eating or drinking policy. Spilled liquids can cause short circuits

in equipment such as keyboards.

• Floor cleaning—Use a dust-absorbent cloth mop rather than a dry mop to clean tile floors.

Special precautions are necessary if the computer room is near a source of air pollution. Some air pollutants, especially hydrogen sulfide (H

S), are not only highly toxic and unpleasant but corrosive as

well. Hydrogen sulfide damages wiring and electronic equipment. The use of activated charcoal filters reduces this form of air pollution.

Metallic particulate contamination

Metallic particulates can be especially harmful around electronic equipment. This type of contamination can enter the data center environment from a variety of sources, including but not limited to raised floor tiles, worn air conditioning parts, heating ducts, rotor brushes in vacuum cleaners, or printer component wear. Because metallic particulates conduct electricity, they have an increased potential for creating short circuits in electronic equipment. This problem is exaggerated by the increasingly dense circuitry of electronic equipment.

Over time, very fine whiskers of pure metal can form on electroplated zinc, cadmium, or tin surfaces. If these whiskers are disturbed, they may break off and become airborne, possibly causing failures or operational interruptions. For more than 50 years, the electronics industry has been aware of the relatively rare but possible threat posed by metallic particulate contamination. During recent years, a growing concern has developed in computer rooms where these conductive contaminants are formed on the bottom of some raised floor tiles.

Although this problem is relatively rare, it may be an issue within your computer room. Because metallic contamination can cause permanent or intermittent failures on your electronic equipment, HP strongly recommends that your site be evaluated for metallic particulate contamination before installation of electronic equipment.

Environmental requirements 16

Electrostatic discharge prevention

Static charges (voltage levels) occur when objects are separated or rubbed together. The voltage level of a static charge is determined by the following factors:

• Types of materials

• Relative humidity

• Rate of change or separation

Follow these precautions to minimize possible ESD-induced failures in the computer room:

• Maintain recommended humidity level and airflow rates in the computer room.

• Install conductive flooring (conductive adhesive must be used when laying tiles).

• Use conductive wax if waxed floors are necessary.

• Ensure that all equipment and flooring are properly grounded and are at the same ground potential.

• Use conductive tables and chairs.

• Use a grounded wrist strap (or other grounding method) when handling circuit boards.

• Store spare electronic modules in antistatic containers.

Acoustic noise specification

Declared noise emission values for the c7000 enclosure in accordance with ISO 9296:

Specification

Declared sound power level, LWAd Bels

Idle 7.5 Operating 7.5

Declared sound pressure level, LpAm dBA Idle 57 Operating 57

Detailed information on conformance to country Technical Regulations and certificates of conformance can be found on the HP website (http://www.hp.com/go/certificates

These levels are appropriate for dedicated computer room environments, not office environments. You must understand the acoustic noise specifications relative to operator positions within the computer

room when adding additional systems to computer rooms with existing noise sources. Ambient noise level in a computer room can be reduced as follows:

Value

• Dropped ceiling—Cover with a commercial grade of fire-resistant, acoustic rated, fiberglass ceiling

tile.

• Sound deadening—Cover the walls with curtains or other sound deadening material.

• Removable partitions—Use foam rubber models for most effectiveness.

Environmental requirements 17

Recommended operating environment

To help ensure continued safe and reliable equipment operation, install or position the rack in a well ventilated, climate-controlled environment.

Air inlet temperature to the rack should be between 20 to 25ºC under normal operating conditions in the data center, per ASHRAE standard TG9 HDEC.

The following table shows product technical requirements based on customer environments.

Environment Industry

equivalent

Operating Environment (ambient)

Temperature (ºC, dry bulb)

Allowable

Recommended

ASHRAE

Controlled

1 15 to 32 20 to 25 20 to 80 40 to 55 17 5

computer room Controlled office 2 10 to 35 20 to 25 20 to 80 40 to 55 21 5 Uncontrolled

3 5 to 35 NA8 8 to 85 NA8 28 NA8

office Home 3 5 to 35 NA8 8 to 85 NA8 28 NA8 Light industrial 4 5 to 40 NA8 8 to 90 NA8 28 NA8 Portable/mobile 4 5 to 40 NA8 8 to 90 NA8 28 NA8 Special Product specifications are controlled by contract or other requirements.

The maximum elevation for all operating environmental classes is 3050 m.

Dry bulb temperature is the regular ambient temperature. Derate maximum dry bulb temperature 1ºC/300 m above

900 m.

The values in each row meet or exceed the stated industry equivalent class specifications.

With installed media, the minimum temperature is 10ºC and maximum relative humidity is limited to 80%. Specific

media requirements may vary.

Allowable: equipment design extremes as measured at the equipment inlet.

Recommended: target facility design and operational range.

Must be noncondensing environment.

Local product groups must make business decisions for the appropriate values.

Relative humidity %;

noncondensing

Allowable5Recommended6 Dew

point (max)

Rate of chg (ºC/hr, max)

The operating temperature inside the rack is always higher than the room temperature and is dependent on the configuration of equipment in the rack. Check the TMRA for each piece of equipment before installation.

CAUTION: To reduce the risk of damage to the equipment when installing third-party options:

• Do not permit optional equipment to impede airflow around the enclosure or to increase the

internal rack temperature beyond the maximum allowable limits.

• Do not exceed the manufacturer’s TMRA.

Environmental requirements 18

Airflow requirements

HP rack-mountable products typically draw in cool air through the front and exhaust warm air out through the rear of the rack. The front door of the rack must be ventilated adequately to enable ambient room air to enter the rack with as little restriction as possible. Likewise, the rear door must offer as little restriction as possible to the warm air escaping from the rack.

The free area of a door determines the amount of airflow that can pass through the doors. Rack doors must have a minimum of 63% free area compared to the total area of the door. Some doors appear to have sufficient free area but do not.

To prevent air recirculation from the rear of the rack, the computer room air conditioning system must deliver sufficient airflow to the front of the rack to meet the airflow requirements of the installed equipment in the rack. Idle, normal operating, and maximum airflow requirements for blade configurations can be obtained from the HP Blade Power Sizer on the HP website (http://www.hp.com/go/bladesystem/powercalculator

Route cables away from fans and air inlets and outlets to ensure proper airflow. Improperly routed cables can impede airflow, cause the cooling fans to work harder, consume more power, and reduce cooling system efficiency.

Blanking panels

If the front of the rack is not filled completely with components, unused equipment mounting space between the components can adversely affect cooling within the rack. Cover unused equipment mounting space with blanking panels.

Seal air gaps in the rack and between adjacent racks to prevent recirculation of hot-air from the rear of the rack to the front of the rack. Use cable brushes to seal cable entry and exit cutouts and cabinet fillers to seal the space between the cabinets to provide improved cooling efficiency.

HP Rack Airflow Optimization Kit

The HP Rack Airflow Optimization Kit helps seal air gaps inside the rack, between two bayed racks, and the clearance between the floor and the rack. The kit also prevents hot exhaust air from the rear of the rack from reaching the front of the rack through pressure differential between the hot and cold aisles. This feature maximizes server cold air intake, which improves datacenter cooling efficiency and reduces datacenter power usage.

The HP Rack Airflow Optimization Kit supports all HP 10000 Series (G1 and G2) rack heights including 22U, 36U, 42U, and 47U. It also supports 800-mm wide HP racks.

Space requirements

When deciding where to place your rack:

• At least 1219 mm (48 in) of clearance is needed all the way around the pallet and above the rack

to enable the removal of the packing material.

• At least 1219 mm (48 in) of clearance is needed in front of the rack to enable the door to open

completely.

Environmental requirements 19

• At least 762 mm (30 in) of clearance is needed in the rear of the rack to provide access to

components.

• At least 380 mm (15 in) of clearance is needed around a power supply to facilitate servicing.

For more information, see "Working space for component access (on page 14)".

Delivery space requirements

There should be enough clearance to move equipment safely from the receiving area to the computer room. Permanent obstructions, such as pillars or narrow doorways, can cause equipment damage.

Delivery plans should include the possible removal of walls or doors.

Operational space requirements

Other factors must be considered along with the basic equipment dimensions. Reduced airflow around equipment causes overheating, which can lead to equipment failure. Therefore, the location and orientation of air conditioning ducts, as well as airflow direction, are important. Obstructions to equipment intake or exhaust airflow must be eliminated.

CAUTION: Do not block venting holes in the covers or side panels. Proper airflow is required

The locations of lighting fixtures and utility outlets affect servicing operations. Plan equipment layout to take advantage of lighting and utility outlets. Do not forget to include clearance for opening and closing equipment doors.

to prevent overheating of the unit.

Clearance at the front and rear of the racks must also be provided for proper cooling airflow through the equipment.

If other equipment is located so that it exhausts heated air near the cooling air intakes of the racks, larger space requirements are needed to keep ambient air intake to the racks and equipment within the specified temperature and humidity ranges.

Space planning should also include the possible addition of equipment or other changes in space requirements. Equipment layout plans should also include provisions for the following:

• Channels or fixtures used for routing data cables and power cables

• Access to air conditioning ducts, filters, lighting, and electrical power hardware

• Power conditioning equipment

• Cabinets for cleaning materials

• Maintenance area and spare parts

Equipment clearance and floor loading

A clearance of 1219 mm (48 in) in front of a configured rack and 762 mm (30 in) to the rear of a configured rack is recommended. All buildings and raised computer room floors are engineered to provide a specific floor loading.

Environmental requirements 20

WARNING: When configuring a solution, make sure that the floor loading specifications are

followed. Failure to do so can result in physical injury or damage to the equipment and the facility.

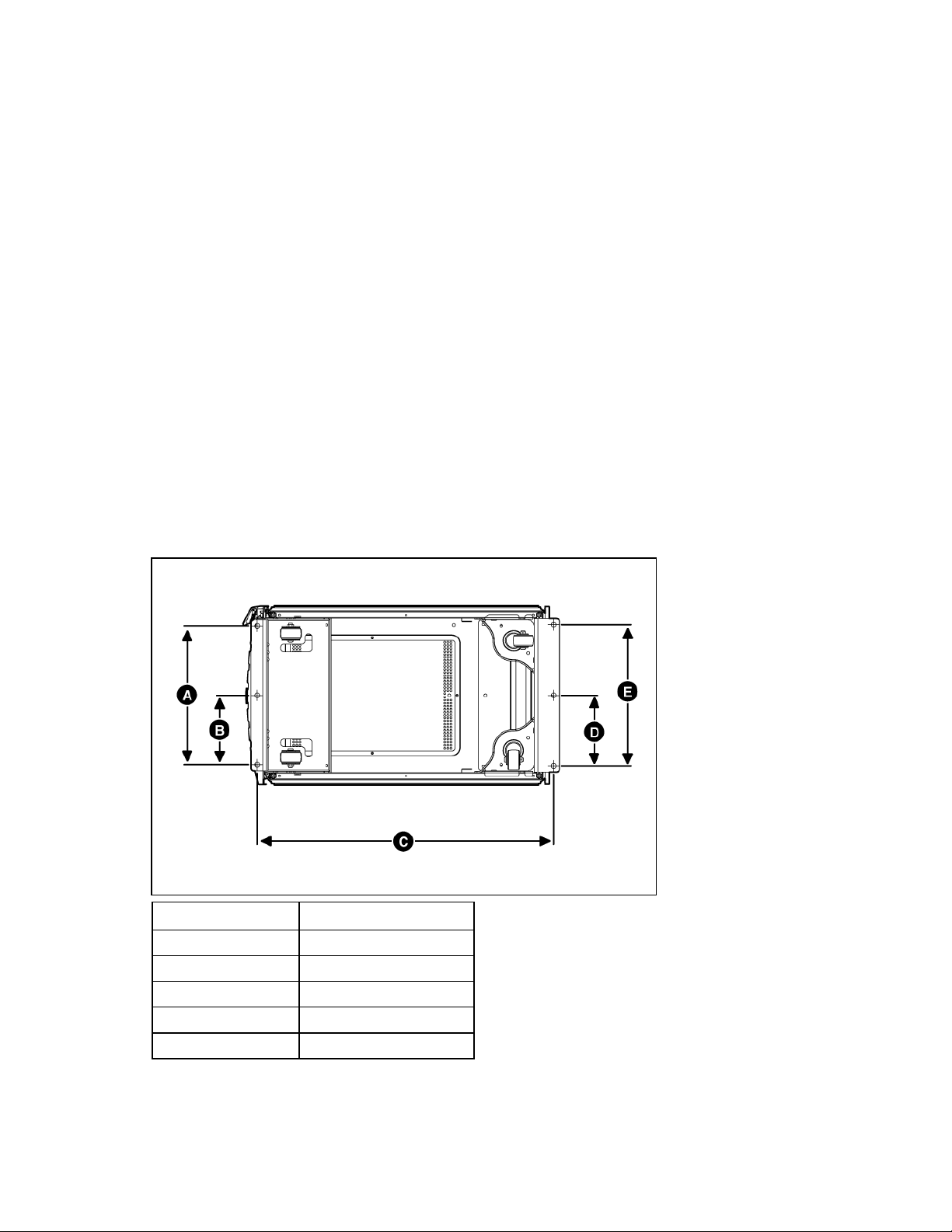

10000 and 10000 G2 Series Rack footprint (600 mm [24 in] wide)

10000 Series Rack footprint (800 mm [31.5 in] wide)

Floor plan grid

A floor plan grid is used to plan the location of equipment in the computer room. In addition to its use for planning, the floor plan grid should also be used when planning the locations of the following items:

• Air conditioning vents

• Lighting fixtures

• Utility outlets

• Doors

• Access areas for power wiring and air conditioning filters

• Equipment cable routing

Environmental requirements 21

HP BladeSystem enclosure environmental specifications

Specification Value

Temperature range*

Operating 10°C to 35°C (50°F to 95°F) Non-operating -30°C to 60°C (-22°F to 140°F) Wet bulb temperature Operating 28ºC (82.4ºF) Non-operating 38.7ºC (101.7ºF)

Relative humidity (noncondensing)**

Operating 20% to 80% Non-operating 5% to 95%

* All temperature ratings shown are for sea level. An altitude derating of 1°C per 304.8 m (1.8°F per 1000 ft) to 3048 m (10,000 ft) is applicable. No direct sunlight allowed. Upper operating limit is 3,048 m (10,000 ft) or 70 kPa/10.1 psia. Upper non-operating limit is 9,144 m (30,000 ft) or 30.3 kPa (4.4 psia). ** Storage maximum humidity of 95% is based on a maximum temperature of 45°C (113°F). Altitude maximum for storage corresponds to a pressure minimum of 70 kPa (10.1 psia).

Rack and accessory footprints

When accessories such as extensions and stabilizing kits are added to a particular rack, the footprint of the rack extends into the rack rear row and infringes upon necessary clearances.

Footprint for a 600 mm rack configuration with an extension kit installed (598 mm wide x 1184.9 mm deep):

Environmental requirements 22

+ 51 hidden pages
