HP Compaq Presario B1200 CTO, Compaq Presario B1201VU, Compaq Presario B1203VU, Compaq Presario B1204VU, Compaq Presario B1205VU Service Guide

...

Compaq Presario B1200 Notebook PC

Maintenance and Service Guide

AMD, the AMD Arrow logo, and combinations thereof, are trademarks of Advanced Micro Devices, Inc. Bluetooth is a trademark owned by its proprietor and used by Hewlett-Packard Company under license. Intel, Core, and Celeron are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries. Microsoft, Windows, and Windows Vista are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. SD Logo is a trademark of its proprietor.

The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

First Edition: July 2007

Document Part Number: 449390-001

Safety warning notice

WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not

place the computer directly on your lap or obstruct the computer air vents. Use the computer only on a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to contact the skin or a soft surface, such as pillows or rugs or clothing, during operation. The computer and the AC adapter comply with the user-accessible surface temperature limits defined by the International Standard for Safety of Information Technology Equipment (IEC 60950).

iii

iv Safety warning notice

Table of contents

1 Product description

2 External component identification

Display components ................................................................................................................. 5

Top components ...................................................................................................................... 6

Pointing devices ........................................................................................................ 6

Buttons ..................................................................................................................... 7

Keys ........................................................................................................................ 8

Lights ....................................................................................................................... 9

Front components ................................................................................................................... 11

Left-side components ............................................................................................................... 12

Right-side components ............................................................................................................ 13

Bottom components ................................................................................................................ 14

3 Illustrated parts catalog

Serial number location ............................................................................................................ 15

Computer major components ................................................................................................... 16

Cable Kit .............................................................................................................................. 21

Plastics Kit ............................................................................................................................. 22

Mass storage devices ............................................................................................................. 23

Miscellaneous parts ................................................................................................................ 24

Sequential part number listing .................................................................................................. 25

4 Removal and replacement procedures

Preliminary replacement requirements ....................................................................................... 29

Tools required ......................................................................................................... 29

Service considerations ............................................................................................. 29

Plastic parts ............................................................................................. 29

Cables and connectors ............................................................................. 30

Drive handling ......................................................................................... 30

Grounding guidelines .............................................................................................. 31

Electrostatic discharge damage .................................................................. 31

Packaging and transporting guidelines ........................................ 32

Workstation guidelines .............................................................. 32

Equipment guidelines ................................................................. 33

Unknown user password .......................................................................................... 34

Component replacement procedures ........................................................................................ 35

Serial number ......................................................................................................... 35

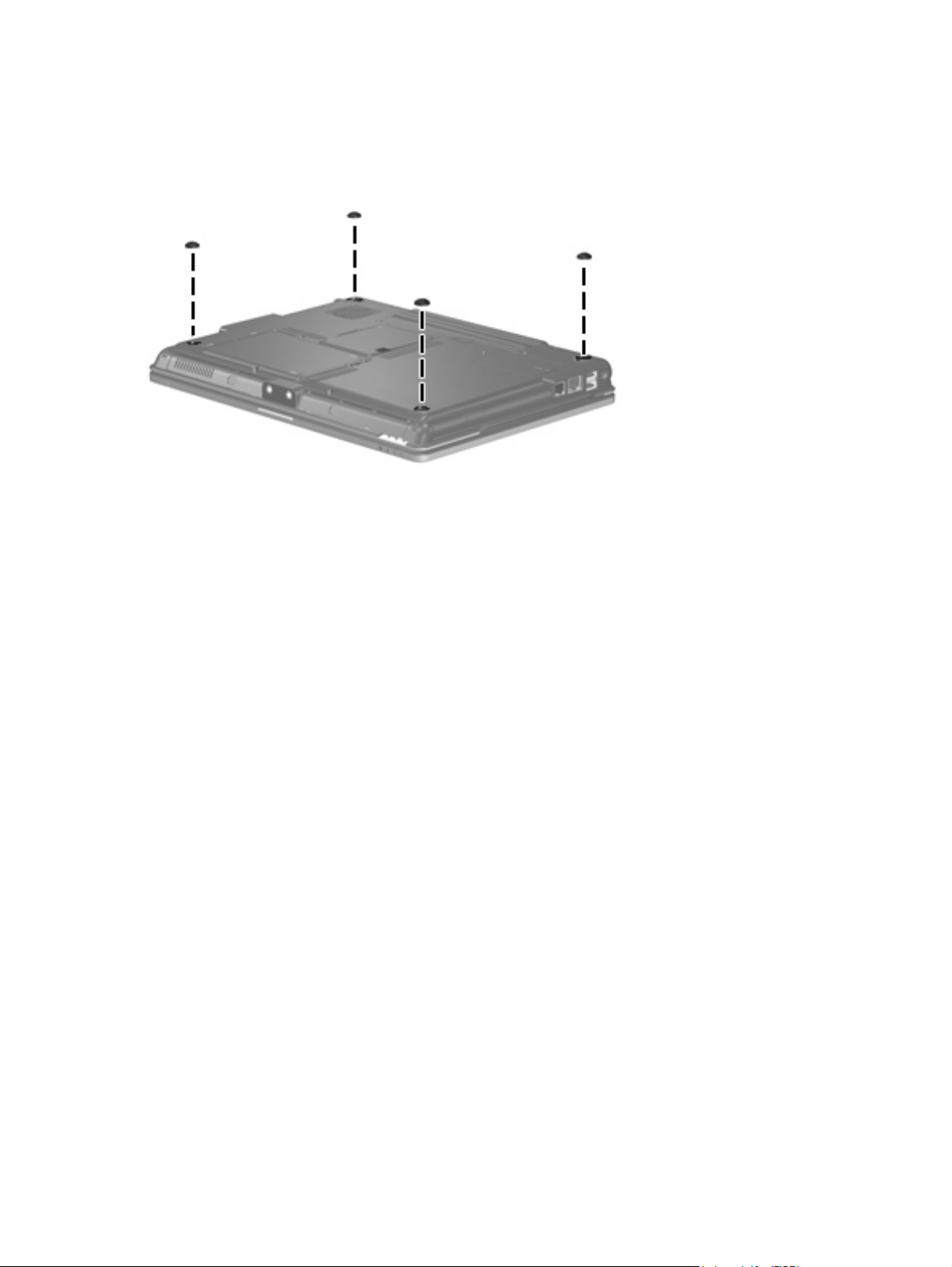

Computer feet ......................................................................................................... 36

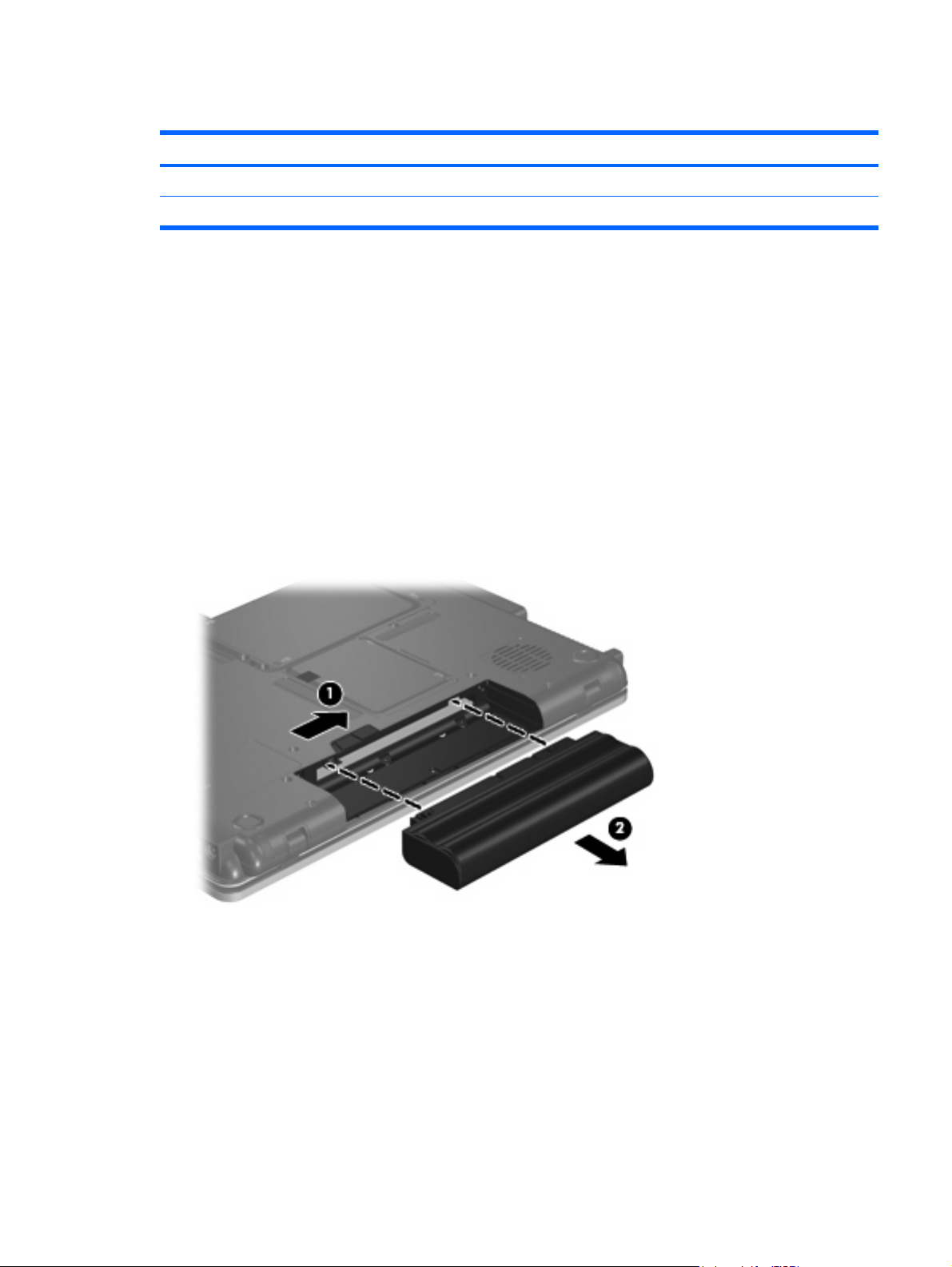

Battery ................................................................................................................... 37

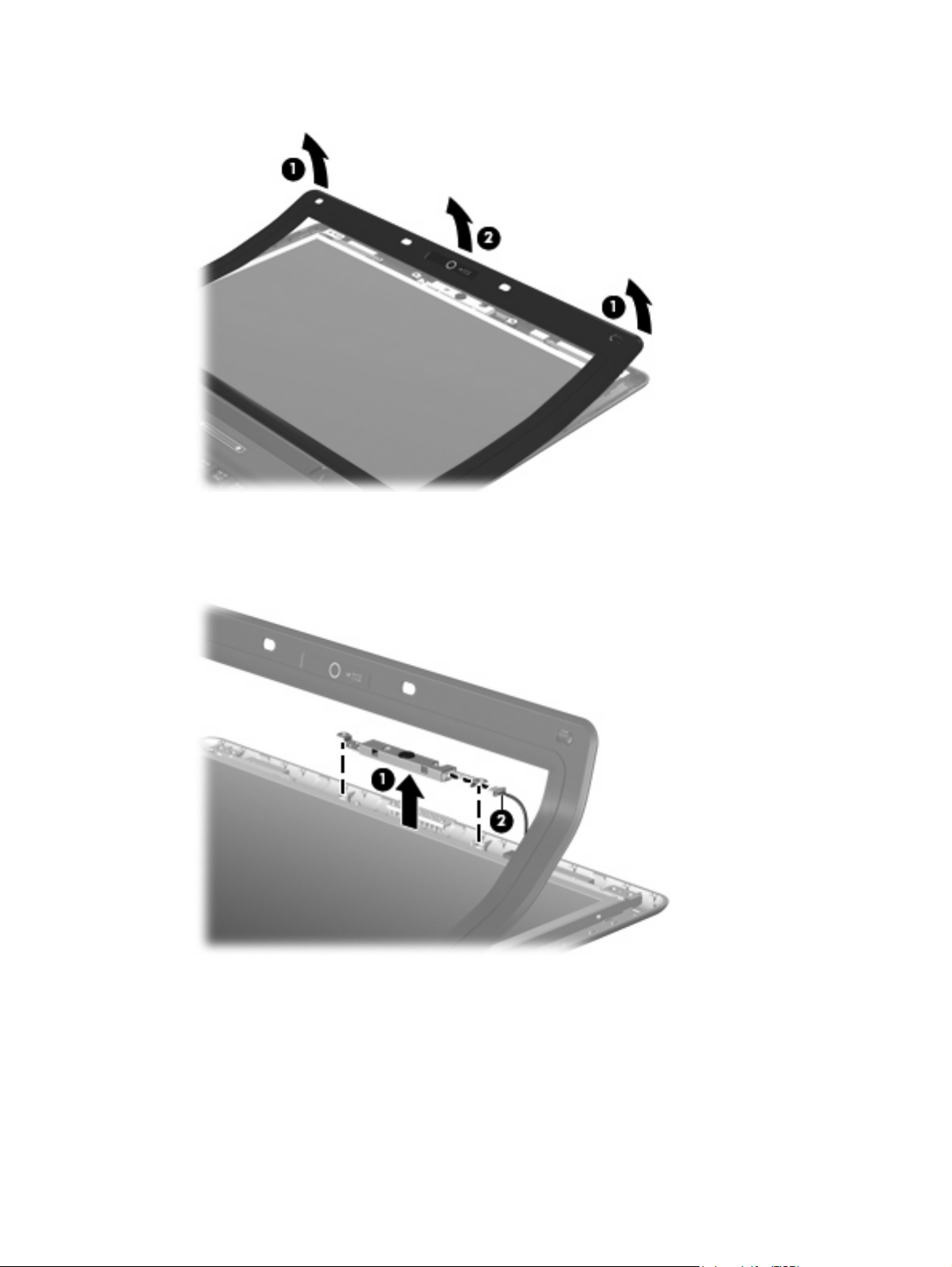

Camera module ...................................................................................................... 38

Hard drive ............................................................................................................. 41

Memory module ...................................................................................................... 43

WLAN module ........................................................................................................ 45

Optical drive .......................................................................................................... 48

Keyboard ............................................................................................................... 50

Switch cover ........................................................................................................... 52

Display assembly .................................................................................................... 54

Top cover ............................................................................................................... 59

RTC battery ............................................................................................................ 62

Front LED board ...................................................................................................... 64

Bluetooth module .................................................................................................... 65

Speaker assembly ................................................................................................... 66

Microphone ............................................................................................................ 68

System board ......................................................................................................... 69

ExpressCard assembly ............................................................................................. 71

Modem module ...................................................................................................... 73

Fan ....................................................................................................................... 75

Heat sink ............................................................................................................... 77

Processor ............................................................................................................... 79

5 Setup Utility

Starting the Setup Utility .......................................................................................................... 81

Changing the language of the Setup Utility ............................................................................... 81

Navigating and selecting in the Setup Utility .............................................................................. 82

Displaying system information .................................................................................................. 82

Restoring default settings in the Setup Utility .............................................................................. 82

Using advanced Setup Utility features ....................................................................................... 83

Closing the Setup Utility .......................................................................................................... 83

Setup Utility menus ................................................................................................................. 83

6 Specifications

Computer specifications .......................................................................................................... 85

12.1-inch, WXGA display specifications ................................................................................... 86

Hard drive specifications ........................................................................................................ 87

DVD/CD-RW Combo Drive specifications ................................................................................. 88

DVD-ROM Drive ..................................................................................................................... 89

System DMA specifications ...................................................................................................... 90

System interrupt specifications ................................................................................................. 91

System I/O address specifications ............................................................................................ 92

System memory map specifications .......................................................................................... 94

7 Screw listing

Phillips PM2.0×4.0 screw ....................................................................................................... 95

Phillips PM2.0×5.0 captive screw ............................................................................................ 98

Phillips PM2.5×12.0 captive screw .......................................................................................... 99

Phillips PM3.0×4.0 screw ..................................................................................................... 100

Phillips PM2.5×4.0 screw ..................................................................................................... 101

Phillips PM2.5×7.0 screw ..................................................................................................... 103

Phillips PM2.0×3.0 screw ..................................................................................................... 106

Phillips PM2.5×5.0 screw ..................................................................................................... 108

Torx T8M2.5×6.0 screw ....................................................................................................... 109

Torx T8M2.5×5.0 screw ....................................................................................................... 110

Phillips PM2.5×6.0 screw ..................................................................................................... 111

Phillips PM2.0×6.0 screw ..................................................................................................... 112

Phillips PM2.0×6.0 shoulder screw ........................................................................................ 113

8 Backup and Recovery

Recovering system information ............................................................................................... 114

Backing up your information ................................................................................... 114

Using system restore points ..................................................................................... 115

Creating recovery discs ......................................................................................... 116

Reinstalling software programs and drivers ............................................................... 117

Performing a recovery ........................................................................................... 118

Deleting the recovery partition on the hard drive ....................................................... 119

Updating reinstalled software ................................................................................. 119

When to back up ................................................................................... 114

Back up suggestions ............................................................................... 115

When to create restore points .................................................................. 115

Create a system restore point ................................................................... 115

Restore to a previous date and time .......................................................... 116

Reinstalling preinstalled programs and drivers ........................................... 117

Reinstalling programs from discs .............................................................. 117

Recovering from the recovery discs ........................................................... 118

Recovering from the partition on the hard drive .......................................... 118

9 Connector pin assignments

Audio-out (headphone) ......................................................................................................... 120

Audio-in (microphone) .......................................................................................................... 120

External monitor ................................................................................................................... 121

RJ-11 (modem) ..................................................................................................................... 122

RJ-45 (network) .................................................................................................................... 123

S-Video-out .......................................................................................................................... 124

Universal Serial Bus .............................................................................................................. 125

10 Power cord set requirements

Requirements for all countries and regions ............................................................................... 126

Requirements for specific countries and regions ....................................................................... 127

11 Recycling

Battery ................................................................................................................................ 128

Display ............................................................................................................................... 128

Index ............................................................................................................................... 134

vii

viii

Product description

Category Description

Product Name Compaq Presario B1200 Notebook PC

Processors Intel® Core™ 2 Duo processors:

T7800 2.6-GHz processor, 4-MB L2 cache, 800-MHz front side bus (FSB)

T7700 2.4-GHz processor, 4-MB L2 cache, 800-MHz FSB

T7500 2.2-GHz processor, 4-MB L2 cache, 800-MHz FSB

T7300 2.0-GHz processor, 4-MB L2 cache, 800-MHz FSB

T7100 1.8-GHz processor, 2-MB L2 cache, 800-MHz FSB

T5450 1.66-GHz processor, 2-MB L2 cache, 667-MHz FSB

T5250 1.50-GHz processor, 2-MB L2 cache, 667-MHz FSB

Celeron-M 540 1.86-Ghz processor, 2-MB L2 cache, 533-MHz FSB

Celeron-M 530 1.73-Ghz processor, 2-MB L2 cache, 533-MHz FSB

Chipset

Southbridge: Intel ICH8M

Graphics

Panel

All display assemblies include 2 wireless local area network (WLAN) antennae

Memory

Supports dual-channel memory

Supports up to 4 GB of system RAM

PC2-5300, 667-MHz, DDR2

Supports the following configurations:

Intel Core Duo processors:

Intel Celeron®-M processors:

Northbridge: Intel GM965 with up to 800-Mhz FSB

Intel Unified Memory Architecture (UMA) graphics subsystem integrated with shared system memory (dynamically allocated)

12.1-inch WXGA panel (1280 × 800)

2 customer-accessible/upgradable memory module slots

4096-MB total system memory (2048 × 2, dual-channel)

●

3072-MB total system memory (2048 + 1024)

●

2560-MB total system memory (2048 + 512)

●

Category Description

● 2048-MB total system memory (1024 × 2, dual-channel)

2048-MB total system memory (2048 × 1)

●

1536-MB total system memory (1024 + 512)

●

1024-MB total system memory (512 × 2, dual-channel)

●

1024-MB total system memory (1024 × 1)

●

512-MB total system memory (512 × 1)

●

Web camera

Hard drives

Customer-accessible

Serial ATA

Supports the following drives:

Optical drives

Customer-accessible

Parallel ATA

12.7-mm tray load

Supports no-optical-drive option

Supports the following drives:

Low-light, low-resolution VGA camera

Supports 9.5-mm, 2.5-inch hard drives

200-GB, 4200-rpm

●

160-GB, 5400-rpm

●

120-GB, 5400-rpm

●

80-GB, 5400-rpm

●

Fixed (removal of 1 screw required)

DVD/CD-RW Combo Drive

●

Diskette drive

Microphone

Audio

2 speakers

Modem

Modem cable included

Ethernet

S4/S5 wake on LAN: AC

NIC power-down technology

Wireless Integrated WLAN options by way of wireless module:

2 wireless antennae built into display assembly

2Chapter 1 Product description

DVD-ROM Drive

●

Supports external USB diskette drive only

Integrated mono microphone

Azalia audio

56K V.92 1.5-inch data/fax modem with digital line guard

Intel Broadcom 5787 10/100/1000 network interface card (NIC)

Category Description

Support for no-WLAN option

Support for the following WLAN formats:

Intel 802.11a/b/g/n

●

Broadcom 802.11a/b/g

●

Intel 802.11a/b/g

●

Broadcom 802.11b/g

●

Intel 802.11b/g

●

Support for no-WPAN option

Broadcom Bluetooth

External media card

Digital Media Slot supporting MMC and SD digital cards

Ports

Audio-out (stereo headphone)

S-Video-out

RJ-11 (modem)

RJ-45 (Ethernet, includes link and activity lights)

USB (3)

VGA (Dsub 15-pin) supporting 1600 × 1200 external resolution at 75-GHz (hot plug/unplug

Multi-pin AC power

Docking

Keyboard/pointing devices

Integrated personal area network (PAN) options by way of Bluetooth® module:

One Type I/II PC Card slot, supporting 16-bit and 32-bit (Cardbus) PC Card modules

Audio-in (mono microphone)

with auto-detect)

None

Spill-resistant 12.3-inch keyboard

TouchPad with 2 TouchPad buttons

Supports 2-way scroll

Taps enabled as default

Windows Vista® Hardware Start Button

Power requirements

8-cell, 2.55-Ah (73-Wh) Li-ion battery

4-cell, 2.25-Ah (37-Wh) Li-ion battery

Security

Operating system Preinstalled:

Windows Vista® Business 32

65-W AC adapter with localized and pointing stick cable plug support (3-wire plug with ground pin, supports 3-pin DC connector)

Security cable slot

Category Description

FreeDOS (Thailand)

Serviceability End-user replaceable parts:

AC adapter

Battery (system)

Hard drive

Memory module

Optical drive

WLAN module

4Chapter 1 Product description

External component identification

Display components

Item Component Description

(1)

(2)

(3)

*The antennae are not visible from the outside of the computer. For optimal transmission, keep the areas immediately around the antennae free from obstructions.

To see wireless regulatory notices, refer to the section of the Regulatory, Safety and Environmental Notices that applies to your country or region. These notices are located in Help and Support.

Wireless antennae (2)* Send and receive wireless signals to communicate with

WLANs.

Integrated camera light On: The integrated camera is in use.

Integrated camera Records video and captures still photographs.

Display components 5

Top components

Pointing devices

Item Component Function

(1)

(2)

(3)

(4)

(5)

NOTE: This table describes factory settings. View or change pointing device preferences by selecting Start > Control Panel

> Hardware and Sound > Mouse.

TouchPad Moves the pointer and selects or activates items on the

screen.

Left TouchPad button Functions like the left button on an external mouse.

Right TouchPad button Functions like the right button on an external mouse.

Vertical scroll zone Scrolls up or down.

Horizontal scroll zone Scrolls left or right.

6Chapter 2 External component identification

Buttons

Item Component Description

(1)

(2)

(3)

Power button

Media button Opens the QuickPlay program.

Wireless button Turns the wireless feature on or off, but does not establish

When the computer is off, press the button to turn on

●

the computer.

● When the computer is on, press the button to shut

down the computer.

When the computer is in the Sleep state, press the

●

button briefly to exit the Sleep state.

When the computer is in Hibernation, press the button

●

briefly to exit Hibernation.

If the computer has stopped responding and Windows® shutdown procedures are ineffective, press and hold the power button for at least 5 seconds to turn off the computer.

To learn more about power settings, select Start >

Control Panel > System and Maintenance > Power Options.

NOTE: If the computer has been set up to require a logon

password, you may be asked to log on to Windows. QuickPlay opens after you log on. Refer to the QuickPlay Help for more information.

a wireless connection.

(4)

(5)

NOTE: A wireless network must be set up in order to

establish a wireless connection.

Volume mute button (select models only) Mutes and restores speaker sound.

Volume scroll zone Adjusts speaker volume. Slide your finger to the left to

decrease volume and to the right to increase volume.

Top components 7

Keys

Item Component Function

(1)

(2)

(3)

(4)

(5)

(6)

esc key Displays system information when pressed in combination

with the fn key.

fn key Executes frequently used system functions when pressed in

combination with a function key or the esc key.

Windows logo key Displays the Windows Start menu.

Windows applications key Displays a shortcut menu for items beneath the pointer.

Embedded numeric keypad keys Can be used like the keys on an external numeric keypad.

Function keys Execute frequently used system functions when pressed in

combination with the fn key.

8Chapter 2 External component identification

Lights

Item Component Description

(1)

(2)

(3)

(4)

Wireless light

Power light

Battery light

Drive light Blinking green: The hard drive or optical drive is being

On: An integrated wireless device, such as a wireless

●

local area network (WLAN) device, the HP Broadband Wireless Module, and/or a Bluetooth® device, is on.

Off: All wireless devices are off.

●

On: The computer is on.

●

Blinking: The computer is in the Sleep state.

●

Blinking rapidly: An AC adapter with a higher power

●

rating should be connected.

Off: The computer is off or in Hibernation.

●

Amber: A battery is charging.

●

Green: A battery is close to full charge capacity.

●

Blinking amber: A battery that is the only available

●

power source has reached a low battery level. When the battery reaches a critical battery level, the battery light begins blinking rapidly.

Off: If the computer is plugged into an external power

●

source, the light turns off when all batteries in the computer are fully charged. If the computer is not plugged into an external power source, the light stays off until the battery reaches a low battery level.

accessed.

(5)

(6)

(7)

Num lock light On: Num lock is on.

Caps lock light On: Caps lock is on.

Volume mute light

Off: Computer sound is on.

●

On: Computer sound is off.

●

Top components 9

Item Component Description

(8)

(9)

Volume down light Blinking: The volume scroll zone is being used to decrease

speaker volume.

Volume up light Blinking: The volume scroll zone is being used to increase

speaker volume.

10 Chapter 2 External component identification

Front components

Item Component Function

(1)

(2)

(3)

(4)

Wireless light

Power light

Battery light

Drive light Blinking green: The hard drive or optical drive is being

On: An integrated wireless device, such as a WLAN

●

device, the HP Broadband Wireless Module, and/or a Bluetooth device, is turned on.

● Off: All wireless devices are turned off.

On: The computer is on.

●

Blinking: The computer is in the Sleep state.

●

Blinking rapidly: An AC adapter with a higher power

●

rating should be connected.

Off: The computer is off or in Hibernation.

●

Amber: A battery is charging.

●

Green: A battery is close to full charge capacity.

●

Blinking amber: A battery that is the only available

●

power source has reached a low battery level. When the battery reaches a critical battery level, the battery light begins blinking rapidly.

Off: If the computer is plugged into an external power

●

accessed.

(5)

(6)

(7)

Speakers (2) Produce sound.

Audio-out (headphone) jack Produces sound when connected to optional powered stereo

speakers, headphones, ear buds, a headset, or television audio.

Audio-in (microphone) jack Connects an optional computer headset microphone, stereo

array microphone, or monaural microphone.

Front components 11

Left-side components

Item Component Function

(1)

(2)

(3)

(4)

(5)

(6)

Power connector Connects an AC adapter.

USB ports (2) Connect optional USB devices.

RJ-45 (network) jack Connects a network cable.

NOTE: The RJ-45 (network) jack provides Gigabit Ethernet

functionality.

RJ-11 (modem) jack Connects a modem cable.

Optical drive Reads optical discs and, on select models, also writes to

optical discs.

Optical drive light On: The optical drive is being accessed.

12 Chapter 2 External component identification

Right-side components

Item Component Function

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

ExpressCard slot (select models only) Supports optional ExpressCard/54 cards.

Digital Media Slot Supports the following optional digital card formats:

MultiMedia Card (MMC) and Secure Digital (SD) Memory Card.

USB port (select models only) Connects an optional USB device.

S-Video-out jack Connects an optional S-Video device such as a television,

VCR, camcorder, overhead projector, or video capture card.

Internal microphone Records sound.

External monitor port Connects an external VGA monitor or projector.

Vent Enables airflow to cool internal components.

NOTE: The computer fan starts up automatically to cool

internal components and prevent overheating. It is normal for the internal fan to cycle on and off during routine operation.

Security cable slot Attaches an optional security cable to the computer.

NOTE: The security cable is designed to act as a

deterrent, but it may not prevent the computer from being mishandled or stolen.

Right-side components 13

Bottom components

Item Component Function

(1)

(2)

(3)

(4)

(5)

(6)

Hard drive bay Holds the hard drive.

Vents (5) Enables airflow to cool internal components.

NOTE: The computer fan starts up automatically to cool

internal components and prevent overheating. It is normal for the internal fan to cycle on and off during routine operation.

Memory module compartment Contains a memory module slot.

Battery bay Holds the battery.

WLAN module compartment Contains a WLAN module slot.

CAUTION: To prevent an unresponsive system, use only

a wireless module authorized for use in the computer by the governmental agency that regulates wireless devices in your country or region. If you install the module and then receive a warning message, remove the module to restore computer functionality, and then contact technical support through Help and Support.

Battery release latch Releases the battery from the battery bay.

14 Chapter 2 External component identification

Illustrated parts catalog

Serial number location

When ordering parts or requesting information, provide the computer serial number and model number located on the bottom of the computer.

Serial number location 15

Computer major components

16 Chapter 3 Illustrated parts catalog

Item Description Spare part

number

(1) 12.1-inch, WXGA display assembly (includes 2 WLAN antenna transceivers and cables,

Display inverter 454009-001

Display hinges 454011-001

Display enclosure (includes 2 WLAN antenna transceivers and cables, camera cable, and

(2) Switch cover (includes LED board and cable)

(3) Keyboards (include keyboard cable)

For use in South Korea 454017-AD1

For use in Taiwan 454017-AB1

For use in Thailand 454017-281

For use in the United States 454017-001

(4) Top cover (includes TouchPad and TouchPad cable)

(5) RTC battery

camera module and cable, nameplate, and logo)

Display internal components

Display bezel (includes nameplate) 454399-001

logo)

For use in Japan 454017-291

454003-001

454007-001

454005-001

453995-001

449137-001

(6) Microphone (included in the Cable Kit, spare part number 454008-001. See Cable Kit on page 21 for more Cable

Kit information.)

(7)

(8) Bluetooth module

(9a)

(9b)

(9c)

(9d)

(10)

(11) System board (includes replacement thermal material)

(12) Modem modules

Speaker assembly

NOTE: The Bluetooth module spare part kit does not include a Bluetooth module cable. The

Bluetooth module cable is included in the Cables Kit, spare part number 454008-001. See

Cable Kit on page 21 for more Cable Kit information.

Plastics Kit (see Plastics Kit on page 22 for more Plastics Kit spare part information)

ExpressCard slot bezel

WLAN module compartment cover

Memory module compartment cover

Hard drive cover

Front LED board (includes front LED board cable)

NOTE: The modem module spare part kits do not include a modem module cable. The modem module cable is included

in the Cables Kit, spare part number 454008-001. See

For use in all countries and regions except Japan and Asia Pacific countries and regions 451403-001

Cable Kit on page 21 for more Cable Kit information.

457906-001

398393-002

454010-001

453997-001

453992-001

For use only in Japan and Asia Pacific countries and regions 449139-001

Computer major components 17

Item Description Spare part

number

(13) ExpressCard assembly

(14) Processors (include replacement thermal material)

(15) Heat sink (includes replacement thermal material)

Intel Core 2 Duo processors (4-MB L2 cache, 800-MHz FSB):

T7800 2.6-GHz processor

●

T7700 2.4-GHz processor

●

T7500 2.2-GHz processor

●

T7300 2.0-GHz processor

●

T7100 1.8-GHz processor (1-MB L2 cache)

●

Intel Core Duo processors (2-MB L2 cache, 667-MHz FSB):

T5450 1.66-GHz processor

●

T5250 1.50-GHz processor

●

Intel Celeron-M processors (1-MB L2 cache, 533-MHz FSB):

540 1.86-GHz processor

●

530 1.73-GHz processor

●

Thermal Material Kit

457907-001

454016-001

446894-001

454015-001

446892-001

446891-001

454598-001

455399-001

454600-001

454599-001

453998-001

445853-001

(16) Fan

(17) Optical drives (include optical drive bezel and bracket)

DVD-ROM Drive 454334-001

(18) Base enclosure (includes rubber feet)

(19) Batteries

4-cell, 37-WH 454001-001

(20) WLAN modules

● For use in Azerbaijan, Bahrain, Belgium, Brazil, Bulgaria, Croatia, Cyprus, the Czech

DVD/CD-RW Combo Drive 454333-001

Optical Drive Bezel/Bracket Kit (not illustrated)

8-cell, 73-WH 454002-001

Intel 802.11a/b/g/n WLAN modules:

For use in Antigua and Barbuda, Argentina, Aruba, the Bahamas, Barbados, Bermuda,

●

Brunei, Canada, the Cayman Islands, Chile, Colombia, Costa Rica, the Dominican

Republic, Ecuador, El Salvador, Guam, Guatemala, Haiti, Honduras, Hong Kong, India,

Indonesia, Malaysia, Mexico, Panama, Paraguay, Peru, Saudi Arabia, Taiwan, Uruguay,

the United States, Venezuela, and Vietnam

Republic, Denmark, Egypt, Estonia, Finland, France, Georgia, Germany, Greece,

Hungary, Iceland, Ireland, Israel, Italy, Latvia, Lebanon, Liechtenstein, Lithuania,

Luxembourg, Malta, Monaco, the Netherlands, Norway, Oman, the Philippines, Poland,

Portugal, Qatar, Romania, Russia, Serbia and Montenegro, Singapore, Slovakia,

453999-001

454000-001

453993-001

441086-001

441086-002

18 Chapter 3 Illustrated parts catalog

Item Description Spare part

number

Slovenia, South Africa, Spain, Sri Lanka, Sweden, Switzerland, Turkey, Ukraine, the United Kingdom, and Uzbekistan

● For use in Australia, New Zealand, Pakistan, the People's Republic of China, and South Korea

For use in Japan

●

Broadcom 802.11a/b/g WLAN modules:

For use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda,

●

Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, People's Republic of China, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissa, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, Peru, the Philippines, Poland, Portugal, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome & Principe, Saudi Arabia, Senegal, Serbia and Montenegro, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts & Nevis, St. Lucia, St. Vincent & Grenada, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

441086-003

441086-291

441075-002

● For use in Japan 441075-291

Intel 802.11a/b/g WLAN modules:

For use in Antigua & Barbuda, Argentina, Aruba, the Bahamas, Barbados, Bermuda,

●

Brunei, Canada, the Cayman Islands, Chile, Colombia, Costa Rica, the Dominican Republic, Ecuador, El Salvador, Guam, Guatemala, Haiti, Honduras, Hong Kong, India, Indonesia, Malaysia, Mexico, Panama, Paraguay, Peru, Saudi Arabia, Taiwan, the United States, Uruguay, Venezuela, and Vietnam

For use in Austria, Azerbaijan, Bahrain, Belgium, Brazil, Bulgaria, Croatia, Cyprus, the

●

Czech Republic, Denmark, Egypt, Estonia, Finland, France, Georgia, Germany, Greece, Hungary, Iceland, Ireland, Israel, Italy, Latvia, Lebanon, Liechtenstein, Lithuania, Luxembourg, Malta, Monaco, the Netherlands, Norway, Oman, the Philippines, Poland, Portugal, Qatar, Romania, Russia, Serbia and Montenegro, Singapore, Slovakia, Slovenia, South Africa, Spain, Sri Lanka, Sweden, Switzerland, Turkey, Ukraine, the United Kingdom, and Uzbekistan

For use in Australia, New Zealand, Pakistan, the People's Republic of China, and South

●

Korea

For use in Japan

●

Broadcom 802.11b/g WLAN modules:

For use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua & Barbuda,

●

Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain,

448674-001

448674-002

448674-003

448674-291

441090-002

Computer major components 19

Item Description Spare part

number

Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia & Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cambodia, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissa, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Indonesia, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kuwait, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Palau, Panama, Papua New Guinea, Paraguay, the People's Republic of China, Peru, the Philippines, Poland, Portugal, Qatar, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome & Principe, Saudi Arabia, Senegal, Serbia and Montenegro, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts & Nevis, St. Lucia, St. Vincent & Grenada, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Thailand, Togo, Tonga, Trinidad & Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

Intel 802.11b/g WLAN module for use in Thailand 448675-004

(21) Memory modules (PC2-5300, 667-MHz, DDR2)

1024-MB 414046-001

512-MB 414045-001

(22) Hard drives (include hard drive bracket)

200-GB, 4200-rpm 454338-001

160-GB, 5400-rpm 454337-001

120-GB, 5400-rpm 454336-001

80-GB, 5400-rpm 454335-001

For use in Japan

●

2048-MB 417506-001

Cable Kit (not illustrated

441090-291

454008-001

20 Chapter 3 Illustrated parts catalog

Cable Kit

Item Description Spare part number

(1)

(2)

(3)

Cable Kit:

Bluetooth module cable

Modem module cable (includes RJ-11 jack)

Microphone (includes receiver)

454008-001

Cable Kit 21

Plastics Kit

Item Description Spare part number

Plastics Kit:

ExpressCard slot bezel

(1)

WLAN module compartment cover (includes one captive screw, secured by a C-clip)

(2)

Memory module compartment cover (includes one captive screw, secured by a C-clip)

(3)

Hard drive cover (includes 2 captive screws, secured by C-clips)

(4)

22 Chapter 3 Illustrated parts catalog

454010-001

Item Description Spare part number

Computer feet (4)

(5)

Base enclosure screw covers (4 covers, 2 sizes)

(6)

Mass storage devices

Item Description Spare part number

(1) Hard drives (include bracket )

200-GB, 4200-rpm 454338-001

160-GB, 5400-rpm 454337-001

120-GB, 5400-rpm 454336-001

80-GB, 5400-rpm 454335-001

(2) Optical drives (include bezel)

DVD/CD-RW Combo Drive 454333-001

DVD-ROM Drive 454334-001

Mass storage devices 23

Miscellaneous parts

Description Spare part number

65-W AC adapter

Power cords:

For use in Australia

For use in Japan 246959-291

For use the United States 246959-001

Screw Kit

Phillips PM3.0×4.0 screw

●

● Phillips PM2.5×12.0 captive screw

Phillips PM2.5×7.0 captive screw

●

Phillips PM2.5×7.0 screw

●

Phillips PM2.5×6.0 screw

●

Phillips PM2.5×5.0 screw

●

Phillips PM2.5×4.0 screw

●

Phillips PM2.0×6.0 screw

●

Phillips PM2.0×6.0 shoulder screw

●

Phillips PM2.0×5.0 captive screw

●

391172-001

246959-011

454014-001

Phillips PM2.0×3.0 screw

●

Torx T8M2.5×6.0 screw

●

Torx T8M2.5×5.0 screw

●

24 Chapter 3 Illustrated parts catalog

Sequential part number listing

Spare part number

246959-001 Power cord for use in the United States

246959-011 Power cord for use in Australia

246959-291 Power cord for use in Japan

391172-001 65-W AC adapter

398393-002 Bluetooth module

414045-001 512-MB memory module (PC2-5300, 667-MHz, DDR2)

414046-001 1024-MB memory module (PC2-5300, 667-MHz, DDR2)

417506-001 2048-MB memory module (PC2-5300, 667-MHz, DDR2)

441075-002 Broadcom 802.11a/b/g module for use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and

Description

NOTE: The Bluetooth module spare part kit does not include a Bluetooth module cable. The Bluetooth module

cable is included in the Cables Kit, spare part number 454008-001. See Kit information.

Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, People's Republic of China, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissa, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, Peru, the Philippines, Poland, Portugal, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome & Principe, Saudi Arabia, Senegal, Serbia and Montenegro, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts & Nevis, St. Lucia, St. Vincent & Grenada, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

Cable Kit on page 21 for more Cable

441075-291 Broadcom 802.11a/b/g module for use in Japan

441082-001 Intel 802.11a/b/g module for use in Antigua & Barbuda, Argentina, Aruba, the Bahamas, Barbados, Bermuda,

441082-003 Intel 802.11a/b/g module for use in Australia, New Zealand, Pakistan, the People's Republic of China, and

441082-291 Intel 802.11a/b/g module for use in Japan

441086-002 Intel 802.11a/b/g module for use in Austria, Azerbaijan, Bahrain, Belgium, Brazil, Bulgaria, Croatia, Cyprus,

South Korea

the Czech Republic, Denmark, Egypt, Estonia, Finland, France, Georgia, Germany, Greece, Hungary, Iceland, Ireland, Israel, Italy, Latvia, Lebanon, Liechtenstein, Lithuania, Luxembourg, Malta, Monaco, the Netherlands, Norway, Oman, the Philippines, Poland, Portugal, Qatar, Romania, Russia, Serbia and Montenegro, Singapore, Slovakia, Slovenia, South Africa, Spain, Sri Lanka, Sweden, Switzerland, Turkey, Ukraine, the United Kingdom, and Uzbekistan

Sequential part number listing 25

Spare part number

441090-002 Broadcom 802.11b/g module for use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua & Barbuda,

441090-291 Broadcom 802.11b/g module for use in Japan

445853-001 Thermal Material Kit

446891-001 Intel Core 2 Duo T7100 1.80-GHz processor (2-MB L2 cache, 800-MHz FSB, includes replacement thermal

Description

Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia & Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cambodia, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissa, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Indonesia, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kuwait, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Palau, Panama, Papua New Guinea, Paraguay, the People's Republic of China, Peru, the Philippines, Poland, Portugal, Qatar, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome & Principe, Saudi Arabia, Senegal, Serbia and Montenegro, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts & Nevis, St. Lucia, St. Vincent & Grenada, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Thailand, Togo, Tonga, Trinidad & Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

material)

446892-001 Intel Core 2 Duo T7300 2.00-GHz processor (4-MB L2 cache, 800-MHz FSB, includes replacement thermal

446894-001 Intel Core 2 Duo T7700 2.40-GHz processor (4-MB L2 cache, 800-MHz FSB, includes replacement thermal

448674-001 Intel 802.11a/b/g module for use in Antigua & Barbuda, Argentina, Aruba, the Bahamas, Barbados, Bermuda,

448674-002 Intel 802.11a/b/g module for use in Austria, Azerbaijan, Bahrain, Belgium, Brazil, Bulgaria, Croatia, Cyprus,

448674-003 Intel 802.11a/b/g module for use in Australia, New Zealand, Pakistan, the People's Republic of China, and

448674-291 Intel 802.11a/b/g module for use in Japan

448675-004 Intel 802.11b/g module for use in Thailand

449137-001 RTC battery

449139-001 Modem module for use only in Japan and Asia Pacific countries and regions

material)

South Korea

NOTE: The modem module spare part kits do not include a modem module cable. The modem module cable

is included in the Cables Kit, spare part number 454008-001. See information.

Cable Kit on page 21 for more Cable Kit

451403-001 Modem module for use in all countries and regions except Japan and Asia Pacific countries and regions

26 Chapter 3 Illustrated parts catalog

Spare part number

453992-001 System board (includes replacement thermal material)

453993-001 Base enclosure (includes rubber feet)

453995-001 Top cover (includes TouchPad and cable)

453997-001 Front LED board

453998-001 Heat sink (includes replacement thermal material)

453999-001 Fan

454000-001 Optical Drive Bezel/Bracket Kit

454001-001 4-cell, 37-WH battery

454002-001 8-cell, 73-WH battery

454003-001 12.1-inch, WXGA, display assembly

454006-001 Switch cover

454007-001 Display enclosure (includes 2 WLAN antenna transceivers and cables, camera cable, and logo)

454008-001 Cable Kit

Description

NOTE: The modem module spare part kits do not include a modem module cable. The modem module cable

is included in the Cables Kit, spare part number 454008-001. See information.

Cable Kit on page 21 for more Cable Kit

454009-001 Display inverter

454010-001 Plastics Kit

454011-001 Display hinges (includes left and right display hinges)

454012-001 Display Cable Kit (includes camera module cable and 2 WLAN transceivers and cables

454013-001 Camera module

454014-001 Screw Kit

454015-001 Intel Core 2 Duo T7500 2.4-GHz processor (4-MB L2 cache, 800-MHz FSB, includes replacement thermal

material)

454016-001 Intel Core 2 Duo T7800 2.6-GHz processor (4-MB L2 cache, 800-MHz FSB, includes replacement thermal

material)

454017-001 Keyboard for use in the United States

454017-281 Keyboard for use in Thailand

454017-291 Keyboard for use in Japan

454017-AB1 Keyboard for use in Taiwan

454017-AD1 Keyboard for use in South Korea

454333-001 DVD/CD-RW Combo Drive

454334-001 DVD-ROM Drive

454335-001 80-GB, 5400-rpm hard drive (includes hard drive bracket)

454336-001 120-GB, 5400-rpm hard drive (includes hard drive bracket)

Sequential part number listing 27

Spare part number

454337-001 160-GB, 5400-rpm hard drive (includes hard drive bracket)

454338-001 200-GB, 4200-rpm hard drive (includes hard drive bracket)

454399-001 Display bezel (includes nameplate)

454598-001 Intel Core Duo T5450 1.66-GHz processor (2-MB L2 cache, 667-MHz FSB, includes replacement thermal

454599-001 Intel Celeron-M 530 1.73-GHz processor (1-MB L2 cache, 533-MHz FSB, includes replacement thermal material)

454600-001 Intel Celeron-M 540 1.86-GHz processor (1-MB L2 cache, 533-MHz FSB, includes replacement thermal material)

455399-001 Intel Core Duo T5250 1.50-GHz processor (2-MB L2 cache, 667-MHz FSB, includes replacement thermal

457906-001 Speakers

457907-001 ExpressCard assembly

Description

material)

28 Chapter 3 Illustrated parts catalog

Removal and replacement procedures

Preliminary replacement requirements

Tools required

You will need the following tools to complete the removal and replacement procedures:

Flat-bladed screwdriver

●

Magnetic screwdriver

●

Phillips P0 and P1 screwdrivers

●

Torx T8 screwdriver

●

Service considerations

The following sections include some of the considerations that you must keep in mind during disassembly and assembly procedures.

NOTE: As you remove each subassembly from the computer, place the subassembly (and all

accompanying screws) away from the work area to prevent damage.

Plastic parts

Using excessive force during disassembly and reassembly can damage plastic parts. Use care when handling the plastic parts. Apply pressure only at the points designated in the maintenance instructions.

Preliminary replacement requirements 29

Cables and connectors

CAUTION: When servicing the computer, be sure that cables are placed in their proper locations

during the reassembly process. Improper cable placement can damage the computer.

Cables must be handled with extreme care to avoid damage. Apply only the tension required to unseat or seat the cables during removal and insertion. Handle cables by the connector whenever possible. In all cases, avoid bending, twisting, or tearing cables. Be sure that cables are routed in such a way that they cannot be caught or snagged by parts being removed or replaced. Handle flex cables with extreme care; these cables tear easily.

Drive handling

CAUTION: Drives are fragile components that must be handled with care. To prevent damage to the

computer, damage to a drive, or loss of information, observe these precautions:

Before removing or inserting a hard drive, shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.

Before handling a drive, be sure that you are discharged of static electricity. While handling a drive, avoid touching the connector.

Before removing a diskette drive or optical drive, be sure that a diskette or disc is not in the drive and be sure that the optical drive tray is closed.

Handle drives on surfaces covered with at least one inch of shock-proof foam.

Avoid dropping drives from any height onto any surface.

After removing a hard drive, an optical drive, or a diskette drive, place it in a static-proof bag.

Avoid exposing a hard drive to products that have magnetic fields, such as monitors or speakers.

Avoid exposing a drive to temperature extremes or liquids.

If a drive must be mailed, place the drive in a bubble pack mailer or other suitable form of protective packaging and label the package “FRAGILE.”

30 Chapter 4 Removal and replacement procedures

Grounding guidelines

Electrostatic discharge damage

Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure determine the degree of sensitivity. Networks built into many integrated circuits provide some protection, but in many cases, ESD contains enough power to alter device parameters or melt silicon junctions.

A discharge of static electricity from a finger or other conductor can destroy static-sensitive devices or microcircuitry. Even if the spark is neither felt nor heard, damage may have occurred.

An electronic device exposed to ESD may not be affected at all and can work perfectly throughout a normal cycle. Or the device may function normally for a while, then degrade in the internal layers, reducing its life expectancy.

CAUTION: To prevent damage to the computer when you are removing or installing internal

components, observe these precautions:

Keep components in their electrostatic-safe containers until you area ready to install them.

Use nonmagnetic tools.

Before touching an electronic component, discharge static electricity by using the guidelines described in this section.

Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.

If you remove a component, place it in an electrostatic-safe container.

The following table shows how humidity affects the electrostatic voltage levels generated by different activities.

CAUTION: A product can be degraded by as little as 700 V.

Typical electrostatic voltage levels

Relative humidity

Event 10% 40% 55%

Walking across carpet 35,000 V 15,000 V 7,500 V

Walking across vinyl floor 12,000 V 5,000 V 3,000 V

Motions of bench worker 6,000 V 800 V 400 V

Removing DIPS from plastic tube 2,000 V 700 V 400 V

Removing DIPS from vinyl tray 11,500 V 4,000 V 2,000 V

Removing DIPS from Styrofoam 14,500 V 5,000 V 3,500 V

Removing bubble pack from PCB 26,500 V 20,000 V 7,000 V

Packing PCBs in foam-lined box 21,000 V 11,000 V 5,000 V

Preliminary replacement requirements 31

Packaging and transporting guidelines

Follow these grounding guidelines when packaging and transporting equipment:

To avoid hand contact, transport products in static-safe tubes, bags, or boxes.

●

Protect ESD-sensitive parts and assemblies with conductive or approved containers or packaging.

●

Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.

●

Place items on a grounded surface before removing items from their containers.

●

Always be properly grounded when touching a component or assembly.

●

Store reusable ESD-sensitive parts from assemblies in protective packaging or nonconductive foam.

●

Use transporters and conveyors made of antistatic belts and roller bushings. Be sure that mechanized

●

equipment used for moving materials is wired to ground and that proper materials are selected to avoid static charging. When grounding is not possible, use an ionizer to dissipate electric charges.

Workstation guidelines

Follow these grounding workstation guidelines:

Cover the workstation with approved static-shielding material.

●

Use a wrist strap connected to a properly grounded work surface and use properly grounded tools

●

and equipment.

Use conductive field service tools, such as cutters, screwdrivers, and vacuums.

●

When fixtures must directly contact dissipative surfaces, use fixtures made only of static-safe

●

materials.

Keep the work area free of nonconductive materials, such as ordinary plastic assembly aids and

●

Styrofoam.

Handle ESD-sensitive components, parts, and assemblies by the case or PCM laminate. Handle these

●

items only at static-free workstations.

Avoid contact with pins, leads, or circuitry.

●

Turn off power and input signals before inserting or removing connectors or test equipment.

●

32 Chapter 4 Removal and replacement procedures

Equipment guidelines

Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation.

When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible straps

●

with a minimum of one megohm ±10% resistance in the ground cords. To provide proper ground, wear a strap snugly against the skin at all times. On grounded mats with banana-plug connectors, use alligator clips to connect a wrist strap.

When standing, use foot straps and a grounded floor mat. Foot straps (heel, toe, or boot straps) can

●

be used at standing workstations and are compatible with most types of shoes or boots. On conductive floors or dissipative floor mats, use foot straps on both feet with a minimum of one megohm resistance between the operator and ground. To be effective, the conductive strips must be worn in contact with the skin.

The following grounding equipment is recommended to prevent electrostatic damage:

Antistatic tape

●

Antistatic smocks, aprons, and sleeve protectors

●

Conductive bins and other assembly or soldering aids

●

Nonconductive foam

●

Conductive tabletop workstations with ground cords of one megohm resistance

●

Static-dissipative tables or floor mats with hard ties to the ground

●

Field service kits

●

Static awareness labels

●

Material-handling packages

●

Nonconductive plastic bags, tubes, or boxes

●

Metal tote boxes

●

Electrostatic voltage levels and protective materials

●

The following table lists the shielding protection provided by antistatic bags and floor mats.

Material Use Voltage protection level

Antistatic plastic Bags 1,500 V

Carbon-loaded plastic Floor mats 7,500 V

Metallized laminate Floor mats 5,000 V

Preliminary replacement requirements 33

Unknown user password

If the computer you are servicing has an unknown user password, follow these steps to clear the password:

NOTE: These steps also clear CMOS.

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the real-time clock (RTC) battery (see

Wait approximately 5 minutes.

Replace the RTC battery and reassemble the computer.

Connect AC power to the computer. Do not reinsert any batteries at this time.

Turn on the computer.

All passwords and all CMOS settings have been cleared.

Battery on page 37).

RTC battery on page 62).

34 Chapter 4 Removal and replacement procedures

Component replacement procedures

This chapter provides removal and replacement procedures.

There are as many as 86 screws, in 15 different sizes, that must be removed, replaced, or loosened when servicing the computer. Make special note of each screw size and location during removal and replacement.

Serial number

Report the computer serial number to HP when requesting information or ordering spare parts. The serial number is located on the bottom of the computer.

Component replacement procedures 35

Computer feet

The computer feet are adhesive-backed rubber pads. The feet are included in the Plastics Kit, spare part number 454010-001. There are 4 rubber feet that attach to the base enclosure in the locations illustrated below.

36 Chapter 4 Removal and replacement procedures

Battery

Description Spare part number

8-cell, 2.55-Ah (73-Wh) Li-ion battery 454002-001

4-cell, 2.20-Ah (37-Wh) Li-ion battery 454001-001

Before disassembling the computer, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery:

Turn the computer upside down on a flat surface, with the battery bay toward you.

2. Slide the battery release latch (1) to release the battery.

3. Remove the battery (2) from the computer.

Install the battery by inserting it into the battery bay until you hear a click.

Component replacement procedures 37

Camera module

Description Spare part number

Camera module 454013-001

Before removing the camera module, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Battery on page 37).

Remove the camera module:

Turn the computer right-side up, with the front toward you.

Open the computer as far as possible.

3. Remove the four rubber screw covers (1) and the four Torx T8M2.5×6.0 screws (2) that secure the

display bezel to the display assembly.

4. Flex the outside edges of the left and right upper corners(1) of the display bezel until the bezel

disengages from the display enclosure.

38 Chapter 4 Removal and replacement procedures

5. Separate the display bezel top edge (2) from the display assembly to access the camera module.

6. Release the camera module and bracket (1) as far from the display enclosure as the camera module

cable allows.

7. Disconnect the camera module cable (2) from the camera module.

Remove the camera module and bracket.

9. Remove the two Phillips PM2.0×4.0 screws (1) that secure the camera module to the camera module

bracket.

Component replacement procedures 39

10. Remove the camera module bracket (2) from the camera module.

Reverse this procedure to reassemble and install the camera module.

40 Chapter 4 Removal and replacement procedures

Hard drive

NOTE: All hard drive spare part kits include a hard drive bracket.

Description Spare part number

200-GB, 4200-rpm hard drive 454338-001

160-GB, 5400-rpm hard drive 454337-001

120-GB, 5400-rpm hard drive 454336-001

80-GB, 5400-rpm hard drive 454335-001

Before removing the hard drive, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Battery on page 37).

Remove the hard drive:

Position the computer with the front toward you.

2. Loosen the four Phillips PM2.0×5.0 captive screws (1) that secure the hard drive cover to the

computer.

3. Lift the rear edge of the hard drive cover (2), swing it up and forward, and remove the cover. The

hard drive cover is included in the Plastics Kit, spare part number 454010-001.

4. Loosen the Phillips PM2.5×12.0 captive screw (1) that secures the hard drive to the computer.

Component replacement procedures 41

5. Grasp the Mylar tab (2) on the hard drive and slide the hard drive (3) to the left to disconnect it

from the system board.

6. Remove the hard drive (4) from the hard drive bay.

If it is necessary to replace the hard drive bracket, remove the two Phillips PM3.0×4.0 hard drive

bracket screws (1) from each side of the hard drive.

8. Lift the bracket (2) straight up to remove it from the hard drive.

Reverse this procedure to reassemble and install the hard drive.

42 Chapter 4 Removal and replacement procedures

Memory module

Description Spare part number

2048-MB (PC2-5300, 667-MHz, DDR2) 417506-001

1024-MB (PC2-5300, 667-MHz, DDR2) 414046-001

512-MB (PC2-5300, 667-MHz, DDR2) 414045-001

Before removing the memory module, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Battery on page 37).

Remove the memory module:

Position the computer with the front toward you.

2. Loosen the two Phillips PM2.0×5.0 captive screws (1) that secure the memory module compartment

cover to the computer.

3. Lift the left side of the cover (2), swing it up and to the right, and remove the cover. The memory

module compartment cover is included in the Plastics Kit, spare part number 454010-001.

4. Spread the retaining tabs (1) on each side of the memory module slot to release the memory module.

(The edge of the module opposite the slot rises away from the computer.)

Component replacement procedures 43

5. Remove the memory module (2) by pulling the module away from the slot at an angle.

NOTE: Memory modules are designed with a notch (3) to prevent incorrect installation into the

memory module slot.

Reverse this procedure to install a memory module.

44 Chapter 4 Removal and replacement procedures

WLAN module

CAUTION: The WLAN module and the WWAN module are not interchangeable.

Description Spare part number

Intel 802.11a/b/g/n WLAN modules:

For use in Antigua and Barbuda, Argentina, Aruba, the Bahamas, Barbados, Bermuda, Brunei,

●

Canada, the Cayman Islands, Chile, Colombia, Costa Rica, the Dominican Republic, Ecuador, El Salvador, Guam, Guatemala, Haiti, Honduras, Hong Kong, India, Indonesia, Malaysia, Mexico, Panama, Paraguay, Peru, Saudi Arabia, Taiwan, Uruguay, the United States, Venezuela, and Vietnam

For use in Austria, Azerbaijan, Bahrain, Belgium, Brazil, Bulgaria, Croatia, Cyprus, the Czech

●

Republic, Denmark, Egypt, Estonia, Finland, France, Georgia, Germany, Greece, Hungary, Iceland, Ireland, Israel, Italy, Latvia, Lebanon, Liechtenstein, Lithuania, Luxembourg, Malta, Monaco, the Netherlands, Norway, Oman, the Philippines, Poland, Portugal, Qatar, Romania, Russia, Serbia and Montenegro, Singapore, Slovakia, Slovenia, South Africa, Spain, Sri Lanka, Sweden, Switzerland, Turkey, Ukraine, the United Kingdom, and Uzbekistan

For use in Australia, New Zealand, Pakistan, the People's Republic of China, and South Korea

●

For use in Japan

●

Broadcom 802.11a/b/g WLAN modules:

For use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda, Argentina,

●

Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, People's Republic of China, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, GuineaBissa, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, Peru, the Philippines, Poland, Portugal, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome & Principe, Saudi Arabia, Senegal, Serbia and Montenegro, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts & Nevis, St. Lucia, St. Vincent & Grenada, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

441086-001

441086-002

441086-003

441086-291

441075-002

For use in Japan

●

Intel 802.11a/b/g WLAN modules:

For use in Antigua & Barbuda, Argentina, Aruba, the Bahamas, Barbados, Bermuda, Brunei,

●

For use in Austria, Azerbaijan, Bahrain, Belgium, Brazil, Bulgaria, Croatia, Cyprus, the Czech

●

Component replacement procedures 45

441075-291

448674-001

448674-002

Description Spare part number

Russia, Serbia and Montenegro, Singapore, Slovakia, Slovenia, South Africa, Spain, Sri Lanka, Sweden, Switzerland, Turkey, Ukraine, the United Kingdom, and Uzbekistan

For use in Australia, New Zealand, Pakistan, the People's Republic of China, and South Korea

●

For use in Japan

●

Broadcom 802.11b/g WLAN modules:

For use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua & Barbuda, Argentina,

●

Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia & Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cambodia, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissa, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Indonesia, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kuwait, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Palau, Panama, Papua New Guinea, Paraguay, the People's Republic of China, Peru, the Philippines, Poland, Portugal, Qatar, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome & Principe, Saudi Arabia, Senegal, Serbia and Montenegro, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts & Nevis, St. Lucia, St. Vincent & Grenada, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Thailand, Togo, Tonga, Trinidad & Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

448674-003

448674-291

441090-002

For use in Japan

●

Intel 802.11b/g WLAN module for use in Japan 448675-004

441090-291

Before removing the WLAN module, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Battery on page 37).

Remove the WLAN module:

Position the computer with the front toward you.

2. Loosen the Phillips PM2.0×5.0 captive screw (1) that secures the WLAN module compartment cover

to the computer.

46 Chapter 4 Removal and replacement procedures

3. Lift the right side of the cover (2), swing it up and to the left, and remove the cover.

4. Disconnect the WLAN antenna cables (1) from the terminals on the WLAN module.

NOTE: The black WLAN antenna cable is connected to the WLAN module “Main” terminal. The

white WLAN antenna cable is connected to the WLAN module “Aux” terminal.

5. Remove the two Phillips PM2.5×4.0 screws (2) that secure the WLAN module to the computer. (The

edge of the module opposite the slot rises away from the computer.)

6. Remove the WLAN module (3) by pulling the module away from the slot at an angle.

NOTE: WLAN modules are designed with a notch (4) to prevent incorrect installation.

Reverse this procedure to install the WLAN module.

Component replacement procedures 47

Optical drive

NOTE: All optical drive spare part kits include an optical drive bezel.

Description Spare part number

DVD/CD-RW Combo Drive 454333-001

DVD-ROM Drive 454334-001

Before removing the optical drive, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Battery on page 37).

Remove the optical drive:

Position the computer with the right side toward you.

2. Remove the Torx T8M2.5×7.0 screw (1) that secures the optical drive to the computer.

3. Insert a flat-bladed screwdriver or similar tool into the optical drive tab access (2) and press the tab

to the right to release the optical drive from the computer.

4. Remove the optical drive (3) from the computer.

If it is necessary to replace the optical drive bracket, position the optical drive with the rear toward

you.

6. Remove the two Phillips PM2.0×4.0 screws (1) that secure the optical drive bracket to the optical

drive.

48 Chapter 4 Removal and replacement procedures

7. Remove the optical drive bracket (2).

Reverse this procedure to reassemble and install an optical drive.

Component replacement procedures 49

Keyboard

For use in: Spare part number For use in: Spare part number

Japan

Korea

Taiwan

454017-291

454017-AD1

454017-AB1

Thailand

The United States

454017-281

454017-001

Before removing the keyboard, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Battery on page 37).

Remove the keyboard:

Turn the computer upside down, with the front toward you.

Remove the three Phillips PM2.5×7.0 captive screws that secure the keyboard to the computer.

Turn the computer display-side up, with the front toward you.

Open the computer as far as possible.

5. Lift the rear edge of the keyboard (1) until it rests at an angle.

50 Chapter 4 Removal and replacement procedures

6. Move the keyboard (2) toward the display until the tabs on the keyboard bottom edge disengage

from the top cover.

7. Release the zero insertion force (ZIF) connector (1) to which the keyboard cable is attached, and

disconnect the keyboard cable (2) from the system board.

Remove the keyboard.

Reverse this procedure to install the keyboard.

Component replacement procedures 51

Switch cover

Description Spare part number

Switch cover (includes an LED board and LED board cable) 454005-001

Before removing the switch cover, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the keyboard (see

Battery on page 37).

Keyboard on page 50).

Remove the switch cover:

Turn the computer upside down, with the rear panel toward you.

Remove the following:

(1) Two rubber screw covers. The rubber screw covers are included in the Plastics Kit, spare part

number 454010-001.

(2) Three Phillips PM2.5×7.0 screws.

(3) Five Phillips PM2.0×3.0 screws.

Turn the computer right-side up, with the front toward you.

Open the computer as far as possible.

52 Chapter 4 Removal and replacement procedures

5. Disconnect the LED board cable (1) from the system board.

6. Remove the switch cover (2).

Reverse this procedure to install the switch cover.

Component replacement procedures 53

Display assembly

Description Spare part number

12.1-inch, WXGA display assembly (includes WLAN antenna transceivers and cables, camera module, and camera module cable)

454003-001

Before removing the display assembly, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Disconnect the wireless antenna cables from the WLAN module (see

Remove the keyboard (see

Remove the switch cover (see

Battery on page 37).

WLAN module on page 45).

Keyboard on page 50).

Switch cover on page 52).

Remove the display assembly:

Close the computer and turn it upside down, with the rear panel toward you.

2. Remove the Phillips PM2.5×7.0 screw (1) and Phillips PM2.5×5.0 screw (2) that secure the display

assembly to the computer.

Turn the computer right-side up, with the front toward you.

Open the computer as far as possible.

54 Chapter 4 Removal and replacement procedures

5. Disconnect the display panel cable (1) from the system board.

6. Disconnect the camera cable (2) from the system board.

7. Remove the WLAN antenna cables (3) from the opening in the system board.

8. Remove the four Phillips PM2.5×6.0 screws (1) that secure the display assembly to the computer.

9. Lift the display assembly (2) straight up and remove it.

Component replacement procedures 55

If it is necessary to replace the display bezel or the display assembly internal components, remove

10.

the six rubber screw covers (1) and the six Torx T8M2.5×6.0 screws (2) that secure the display bezel to the display enclosure.

NOTE: See Camera module on page 38 for camera module removal information.

11. Flex the inside edges of the left and right sides (1) and the top and bottom sides (2) of the display

bezel until the bezel disengages from the display enclosure.

12. Remove the display bezel (3). The display bezel is available using spare part number

454399-001.

13. If it is necessary to replace the display inverter, release the inverter (1) as far as the display panel

cable and backlight cable allow.

56 Chapter 4 Removal and replacement procedures

14. Disconnect the backlight cable (2) and the display panel cable (3) from the display inverter.

Remove the display inverter from the display enclosure. The display inverter is available using spare

15.

part number 454009-001.

16. If it is necessary to replace the display hinges, remove the six Torx T8M2.5×5.0 screws (1) that

secure the display panel to the display enclosure.

17. Remove the display panel (2) from the display enclosure.

18. Remove the four Phillips PM2.0×4.0 screws (1) that secure the hinges to the display panel.

Component replacement procedures 57

19. Remove the display hinges (2) from the display panel. The display hinges are available using spare

part number 454011-001.

Reverse this procedure to reassemble and install the display assembly.

58 Chapter 4 Removal and replacement procedures

Top cover

Description Spare part number

Top cover (includes TouchPad and TouchPad cable) 453995-001

Before removing the top cover, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the following components:

Hard drive (see

Optical drive (see

Keyboard (see

Switch cover (see

Display assembly (see

Battery on page 37).

Hard drive on page 41)

Optical drive on page 48)

Keyboard on page 50)

Switch cover on page 52)

Display assembly on page 54)

Remove the top cover:

Turn the computer upside down, with the front toward you.

Component replacement procedures 59

Remove the following:

(1) Two rubber screw covers. The rubber screw covers are included in the Plastics Kit, spare part

number 454010-001.

(2) Seven Phillips PM2.5×7.0 screws.

(3) Three Phillips PM2.0×3.0 screws.

Turn the computer right-side up, with the front toward you.

4. Disconnect the TouchPad cable (1) from the system board.

5. Remove the two Phillips PM2.5×7.0 screws (2) and the two Phillips PM2.5×4.0 screws (3) that

secure the top cover to the computer.

6. Lift the rear edge of the top cover (1) and swing it (2) up and forward until it rests at an angle.

60 Chapter 4 Removal and replacement procedures

7. Lift the top cover (3) straight up and remove it.

Reverse this procedure to install the top cover.

Component replacement procedures 61

RTC battery

NOTE: Removing the RTC battery and leaving it uninstalled for 5 or more minutes causes all passwords

and CMOS settings to be cleared.

Description Spare part number

RTC battery 449137-001

Before removing the RTC battery, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the following components:

Hard drive (see

Optical drive (see

Keyboard (see

Switch cover (see

Display assembly (see

Top cover (see

Battery on page 37).

Hard drive on page 41)

Optical drive on page 48)

Keyboard on page 50)

Switch cover on page 52)

Display assembly on page 54)

Top cover on page 59)

Remove the RTC battery:

1. Disconnect the RTC battery cable (1) from the system board.

62 Chapter 4 Removal and replacement procedures

2. Remove the RTC battery (2).

Reverse this procedure to install the RTC battery.

Component replacement procedures 63

Front LED board

Description Spare part number

Front LED board 453997-001

Before removing the front LED board, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the following components:

Hard drive (see

Optical drive (see

Keyboard (see

Switch cover (see

Display assembly (see

Top cover (see

Battery on page 37).

Hard drive on page 41)

Optical drive on page 48)

Keyboard on page 50)

Switch cover on page 52)

Display assembly on page 54)

Top cover on page 59)

Remove the front LED board:

1. Disconnect the front LED board cable (1) from the system board.

2. Remove the two Phillips PM2.0×3.0 screws (2) that secure the front LED board to the base enclosure.

64 Chapter 4 Removal and replacement procedures

3. Remove the front LED board (3).

Reverse this procedure to reassemble and install the front LED board.

Bluetooth module

NOTE: The Bluetooth module spare part kit does not include a Bluetooth module cable. The Bluetooth

module cable is included in the Cables Kit, spare part number 454008-001. See

Cable Kit

on page 21 for more Cable Kit information.

Description Spare part number

Bluetooth 398393-002

Before removing the Bluetooth module, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the following components:

Hard drive (see

Optical drive (see

Battery on page 37).

Hard drive on page 41)

Optical drive on page 48)

Keyboard (see

Switch cover (see

Keyboard on page 50)

Switch cover on page 52)

Component replacement procedures 65

Display assembly (see

Display assembly on page 54)

Top cover (see

Top cover on page 59)

Remove the Bluetooth module:

1. Disconnect the Bluetooth module cable (1) from the system board.

2. Remove the two Phillips PM2.0×4.0 screws (2) that secure the Bluetooth module to the system board.

3. Remove the module (3).

Reverse this procedure to install the Bluetooth module.

Speaker assembly

Description Spare part number

Speaker assembly 457906-001

Before removing the speaker assembly, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

66 Chapter 4 Removal and replacement procedures

Remove the battery (see

Remove the following components:

Battery on page 37).

Hard drive (see

Optical drive (see

Keyboard (see

Switch cover (see

Display assembly (see

Top cover (see

Bluetooth module (see

Hard drive on page 41)

Optical drive on page 48)

Keyboard on page 50)

Switch cover on page 52)

Display assembly on page 54)

Top cover on page 59)

Bluetooth module on page 65)

Remove the speaker assembly:

1. Disconnect the speaker assembly cable (1) from the system board.

2. Remove the speaker assembly (2) from the base enclosure.

Reverse this procedure to install the speaker assembly.

Component replacement procedures 67

Microphone

NOTE: The microphone is included in the Cables Kit, spare part number 454008-001. See Cable

Kit on page 21 for more Cable Kit information.

Before removing the microphone, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the following components:

Hard drive (see

Optical drive (see

Keyboard (see

Switch cover (see

Display assembly (see

Top cover (see

Bluetooth module (see

Remove the microphone:

1. Disconnect the microphone cable (1) from the system board.

2. Remove the microphone receiver (2) from the clip built into the base enclosure.

Battery on page 37).

Hard drive on page 41)

Optical drive on page 48)

Keyboard on page 50)

Switch cover on page 52)

Display assembly on page 54)

Top cover on page 59)

Bluetooth module on page 65)

68 Chapter 4 Removal and replacement procedures

Reverse this procedure to install the microphone.

System board

Description Spare part number

System board (includes replacement thermal material) 453992-001

Before removing the system board, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the following components:

Hard drive (see

Optical drive (see

Keyboard (see

Switch cover (see

Display assembly (see

Top cover (see

Bluetooth module (see

Battery on page 37).

Hard drive on page 41)

Optical drive on page 48)

Keyboard on page 50)

Switch cover on page 52)

Display assembly on page 54)

Top cover on page 59)

Bluetooth module on page 65)

When replacing the system board, be sure that the following components are removed from the defective system board and installed on the replacement system board:

Memory module (see

●

WLAN module (see

●

ExpressCard assembly (see

●

Modem module (see

●

Memory module on page 43)

WLAN module on page 45)

ExpressCard assembly on page 71)

Modem module on page 73)

Fan (see

●

Heat sink (see

●

Processor (see

●

Fan on page 75)

Heat sink on page 77)

Processor on page 79)

Remove the system board:

1. Remove the three Phillips PM2.5×6.0 screws (1) that secure the system board to the base enclosure.

Component replacement procedures 69

2. Loosen the captive standoff (2) on the fan that secures the system board to the base enclosure.

3. Flex the left side of the base enclosure (1) until the USB, RJ-45, and RJ-11 jacks (2) clear the openings

in the base enclosure.

4. Use the optical drive connector (1) to lift the left side of the system board (2) until it rests at an angle.

5. Remove the system board (3) from the base enclosure by pulling it away at an angle.

Reverse this procedure to install the system board.

70 Chapter 4 Removal and replacement procedures

ExpressCard assembly

Description Spare part number

ExpressCard assembly 457907-001

Before removing the ExpressCard assembly, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the following components:

Hard drive (see

Optical drive (see

Keyboard (see

Switch cover (see

Display assembly (see

Top cover (see

Bluetooth module (see

System board (see

Battery on page 37).

Hard drive on page 41)

Optical drive on page 48)

Keyboard on page 50)

Switch cover on page 52)

Display assembly on page 54)

Top cover on page 59)

Bluetooth module on page 65)

System board on page 69)

Remove the ExpressCard assembly:

Turn the system board upside down, with the left side toward you.

Component replacement procedures 71

Remove the four Phillips PM2.0×6.0 screws that secure the ExpressCard assembly to the system

board.

Turn the system board right-side up, with the left side toward you.

Remove the ExpressCard assembly from the system board.

Reverse this procedure to install the ExpressCard assembly.

72 Chapter 4 Removal and replacement procedures

Modem module

NOTE: The modem module spare part kits doe not include a modem module cable. The modem module

cable is included in the Cables Kit, spare part number 454008-001. See Cable Kit information.

Description Spare part number

For use in all countries and regions except Japan and Asia Pacific countries and regions 451403-001

For use only in Japan and Asia Pacific countries and regions 449139-001

Before removing the modem module, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Cable Kit on page 21 for more

Remove the battery (see

Remove the following components:

Hard drive (see

Optical drive (see

Keyboard (see

Switch cover (see

Display assembly (see

Top cover (see

Bluetooth module (see

System board (see

Battery on page 37).

Hard drive on page 41)

Optical drive on page 48)

Keyboard on page 50)

Switch cover on page 52)

Display assembly on page 54)

Top cover on page 59)

Bluetooth module on page 65)

System board on page 69)

Remove the modem module:

Turn the system board upside down, with the rear edge toward you.

2. Remove the two Phillips PM2.5×4.0 screws (1) that secure the modem module to the system board.

Component replacement procedures 73

3. Disconnect the modem module (2) from the system board by lifting it straight up.

Remove the modem module and modem module cable.

Reverse this procedure to install the modem module and modem module cable.

74 Chapter 4 Removal and replacement procedures

Fan

Description Spare part number

Fan 453999-001

Before removing the fan, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the following components:

Hard drive (see

Optical drive (see

Keyboard (see

Switch cover (see

Display assembly (see

Top cover (see

Bluetooth module (see

System board (see

Battery on page 37).

Hard drive on page 41)

Optical drive on page 48)

Keyboard on page 50)

Switch cover on page 52)

Display assembly on page 54)

Top cover on page 59)

Bluetooth module on page 65)

System board on page 69)

Remove the fan:

Turn the system board upside down, with the rear edge toward you.

2. Disconnect the fan cable (1) from the system board.

3. Remove the three Phillips PM2.0×4.0 screws (2) that secure the fan to the heat sink.

Component replacement procedures 75

4. Remove the fan (3) from the heat sink.

Reverse this procedure to install the fan.

NOTE: To properly ventilate the computer, allow at least a 7.6-cm (3-inch) clearance on the left side of

the computer.

The computer uses an electric fan for ventilation. The fan is controlled by a temperature sensor and is designed to turn on automatically when high temperature conditions exist. These conditions are affected by high external temperatures, system power consumption, power management/battery conservation configurations, battery fast charging, and software requirements. Exhaust air is displaced through the ventilation grill located on the left side of the computer.

76 Chapter 4 Removal and replacement procedures

Heat sink

Description Spare part number

Heat sink (includes a heat sink clip and replacement thermal material) 453998-001

Thermal Material Kit 445853-001

Before removing the heat sink, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the following components:

Hard drive (see

Optical drive (see

Keyboard (see

Switch cover (see

Display assembly (see

Top cover (see

Bluetooth module (see

System board (see

Fan (see

Fan on page 75)

Battery on page 37).

Hard drive on page 41)

Optical drive on page 48)

Keyboard on page 50)

Switch cover on page 52)

Display assembly on page 54)

Top cover on page 59)

Bluetooth module on page 65)

System board on page 69)

Remove the heat sink:

1. Remove the two Phillips PM2.0×6.0 shoulder screws (1) that secure the heat sink and the heat sink

retention clips to the system board.

2. Remove the heat sink retention clips (2) by sliding them to the left.

Component replacement procedures 77

3. Remove the heat sink (3) by lifting it straight up.

NOTE: The thermal material must be thoroughly cleaned from the surfaces of the heat sink (1) and

(3), the processor (2), and graphics subsystem component (4) on the system board each time the heat

sink is removed. Thermal material is included with all system board, heat sink, and processor spare part kits, and is also available in the Thermal Material Kit, spare part number 445853-001.

Reverse this procedure to install the heat sink.

78 Chapter 4 Removal and replacement procedures

Processor

NOTE: All processor spare part kits include replacement thermal material. The Thermal Material Kit is

also available using spare part number 445853-001.

Description Spare part number

Intel Core 2 Duo processors (4-MB L2 cache, 800-MHz FSB)

T7800 2.6-GHz processor

T7700 2.4-GHz processor 446894-001

T7500 2.2-GHz processor 454015-001

T7300 2.0-GHz processor 446892-001

T7100 1.8-GHz processor 446891-001

Intel Core Duo processors (2-MB L2 cache, 667-MHz FSB)

T5450 1.66-GHz processor

T5250 1.50-GHz processor 455399-001

Intel Celeron-M processors (1-MB L2 cache, 533-MHz FSB)

540 1.86-GHz processor

530 1.73-GHz processor 454599-001

454016-001

454598-001

454600-001

Before removing the processor, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the following components:

Hard drive (see

Optical drive (see

Keyboard (see

Switch cover (see

Display assembly (see

Top cover (see

Bluetooth module (see

System board (see

Battery on page 37).

Hard drive on page 41)

Optical drive on page 48)

Keyboard on page 50)

Switch cover on page 52)

Display assembly on page 54)

Top cover on page 59)

Bluetooth module on page 65)

System board on page 69)

Component replacement procedures 79

Fan (see

Fan on page 75)

Heat sink (see

Heat sink on page 77)

Remove the processor:

1. Use a flat-bladed screwdriver to turn the processor locking screw (1) one-half turn counterclockwise

until you hear a click.

2. Lift the processor (2) straight up and remove it.

NOTE: When you install the processor, the gold triangle (3) on the processor must be aligned with

the triangle (4) embossed on the processor slot.

Reverse this procedure to install the processor.

80 Chapter 4 Removal and replacement procedures

Setup Utility

WARNING! Only authorized technicians trained by HP must repair this equipment. All troubleshooting

and repair procedures are detailed to allow repair at only the subassembly or module level. Because of the complexity of the individual boards and subassemblies, do not attempt to make repairs at the component level or modify any printed wiring board. Improper repairs can create a safety hazard. Any indication of component replacement or printed wiring board modification may void any warranty or exchange allowances.

Starting the Setup Utility

The Setup Utility is a ROM-based information and customization utility that can be used even when your Windows operating system is not working or will not load.

NOTE: The fingerprint reader (select models only) does not work when accessing the Setup Utility.

The utility reports information about the computer and provides settings for startup, security, and other preferences.

To start the Setup Utility:

Turn on or restart the computer.

Before Windows opens and while “Press <F10> to enter setup” is displayed in the lower-left corner

of the screen, press f10.

Changing the language of the Setup Utility

The following procedure explains how to change the language of the Setup Utility. If the Setup Utility is not already running, begin at step 1. If the Setup Utility is already running, begin at step 2.

To start the Setup Utility, turn on or restart the computer, and then press f10 while “Press <f10> to

enter setup” is displayed in the lower-left corner of the screen.

2. Use the arrow keys to select System Configuration > Language, and then press enter.

Press f5 or f6 (or use the arrow keys) to select a language, and then press enter to select a language.

When a confirmation prompt with your preference selected is displayed, press enter to save your

preference.

To set your preferences and exit the Setup Utility, press f10 and then follow the instructions on the

screen.

Your preferences go into effect when the computer restarts in Windows.

Starting the Setup Utility 81

Navigating and selecting in the Setup Utility

Because the Setup Utility is not Windows-based, it does not support the TouchPad. Navigation and selection are by keystroke.

To choose a menu or a menu item, use the arrow keys.

●

To choose an item in a drop-down list or to toggle a field, for example an Enable/Disable field, use

●

either the arrow keys or f5 or f6.

To select an item, press enter.

●

To close a text box or return to the menu display, press esc.

●

To display additional navigation and selection information while the Setup Utility is open, press f1.

●

Displaying system information

The following procedure explains how to display system information in the Setup Utility. If the Setup Utility is not open, begin at step 1. If the Setup Utility is open, begin at step 2.

To start the Setup Utility, turn on or restart the computer, and then press f10 while “Press <F10> to

enter setup” is displayed in the lower-left corner of the screen.

2. Access the system information by using the Main menu.

3. To exit the Setup Utility without changing any settings, use the arrow keys to select Exit > Exit

Discarding Changes, and then press enter. (The computer restarts in Windows.)

Restoring default settings in the Setup Utility

The following procedure explains how to restore the Setup Utility default settings. If the Setup Utility is not already running, begin at step 1. If the Setup Utility is already running, begin at step 2.

To start the Setup Utility, turn on or restart the computer, and then press f10 while “Press <F10> to

enter setup” is displayed in the lower-left corner of the screen.

2. Select Exit > Load Setup Defaults, and then press enter.

When the Setup Confirmation is displayed, press enter to save your preferences.

To set your preferences and exit the Setup Utility, press f10, and then follow the instructions on the

screen.

The Setup Utility default settings are set when you exit the Setup Utility and go into effect when the computer restarts.

NOTE: Your password, security, and language settings are not changed when you restore the factory

default settings.

82 Chapter 5 Setup Utility

Using advanced Setup Utility features

This section describes the Setup Utility features recommended for all users. For more information about the Setup Utility features recommended for advanced users only, refer to Help and Support, which is accessible only when the computer is in Windows.

The Setup Utility features available for advanced users include a hard drive self-test, a Network Service Boot, and settings for boot order preferences.

The “<F12> to boot from LAN” message that is displayed in the lower-left corner of the screen each time the computer is started or restarted in Windows is the prompt for a Network Service Boot.

The “Press <ESC> to change boot order” message that is displayed in the lower-left corner of the screen each time the computer is started or restarted in Windows is the prompt to change the boot order.

Closing the Setup Utility

You can close the Setup Utility with or without saving changes.

To close the Setup Utility and save your changes from the current session, use either of the following

●

procedures:

Press f10, and then follow the instructions on the screen.

◦

–or–

If the Setup Utility menus are not visible, press esc to return to the menu display. Then use the

◦

arrow keys to select Exit > Exit Saving Changes, and then press enter.

When you use the f10 procedure, you are offered an option to return to the Setup Utility. When you use the Exit Saving Changes procedure, the Setup Utility closes when you press enter.

To close the Setup Utility without saving your changes from the current session:

●

If the Setup Utility menus are not visible, press esc to return to the menu display. Then use the arrow keys to select Exit > Exit Discarding Changes, and then press enter.

After the Setup Utility closes, the computer restarts in Windows.

Setup Utility menus

The menu tables in this section provide an overview of Setup Utility options.

NOTE: Some of the Setup Utility menu items listed in this section may not be supported by your computer.

Main menu

Select To do this

System information

View and change the system time and date.

●

View identification information about the computer.

●

View specification information about the processor, memory

●

size, system BIOS, and keyboard controller version (select models only).

Using advanced Setup Utility features 83

Security menu

Select To do this

Administrator password Enter, change, or delete an administrator password.

Power-On Password Enter, change, or delete a power-on password.

System Configuration menu

Select To do this

Language Support Change the Setup Utility language.

Enhanced SATA support (select models only) Enable/disable enhanced SATA mode.

Boot Options Set the following boot options:

f10 and f12 Delay (sec.)―Set the delay for the f10 and

●

f12 functions of the Setup Utility in intervals of 5 seconds

each (0, 5, 10, 15, 20).

CD-ROM boot―Enable/disable boot from CD-ROM.

●

Floppy boot―Enable/disable boot from Floppy.

●

Internal Network Adapter boot―Enable/disable boot from

●

Internal Network Adapter.

Boot Order―Set the boot order for:

●

USB Floppy

◦

ATAPI CD/DVD ROM Drive

◦

Hard drive

◦

USB Diskette on Key

◦

USB Hard drive

◦

Network adapter

◦

Button Sound (select models only) Enable/disable the Quick Launch Button tapping sound.

Video memory up to (select models only) Select the amount of video memory.

Diagnostics menu

Select To do this

Hard Disk Self Test Run a comprehensive self-test on the hard drive.

NOTE: On models with two hard drives, this menu option is

called the Primary Hard Disk Self Test.

Secondary Hard Disk Self Test (select models only) Run a comprehensive self-test on a secondary hard drive.

84 Chapter 5 Setup Utility

Specifications

Computer specifications

Metric U.S.

Dimensions

Length

Width 22.5 cm 8.86 in

Height (front to rear) 2.8 to 3.3 cm 1.10 to 1.29 in

Weight

Equipped with 8-cell battery and optical drive

Equipped with 4-cell battery and optical drive 1.92 kg 4.23 lbs

Input power

Operating voltage

Operating current 4.74 A

Temperature

Operating (not writing to optical disc)

Operating (writing to optical disc) 5°C to 35°C 41°F to 95°F

Nonoperating -20°C to 60°C -4°F to 140°F

Relative humidity

Operating

Nonoperating 5% to 95%

30.6 cm 12.01 in

2.12 kg 4.67 lbs

19.0 V dc @ 4.74 A – 65 W

0°C to 35°C 32°F to 95°F

10% to 90%

Maximum altitude (unpressurized)

Operating (14.7 to 10.1 psia)

Nonoperating (14.7 to 4.4 psia) -15 m to 12,192 m -50 ft to 40,000 ft

Shock

Operating

Nonoperating 200 g, 2 ms, half-sine

Random vibration

-15 m to 3,048 m -50 ft to 10,000 ft

125 g, 2 ms, half-sine

Computer specifications 85

Metric U.S.

Operating 0.75 g zero-to-peak, 10 Hz to 500 Hz, 0.25 oct/min sweep

Nonoperating 1.50 g zero-to-peak, 10 Hz to 500 Hz, 0.5 oct/min sweep rate

NOTE: Applicable product safety standards specify thermal limits for plastic surfaces. The computer operates well within this

range of temperatures.

rate

12.1-inch, WXGA display specifications

Metric U.S.

Dimensions

Height

Width 26.2 cm 10.3 in

Diagonal 30.8 cm 12.1 in

Number of colors

Contrast ratio

Brightness

Pixel resolution

16.9 cm 6.7 in

Up to 16.8 million

250:1 (typical)

180 nits (typical)

Pitch

Format 1280 × 800

Configuration RGB vertical stripe

Backlight

Character display

Total power consumption

Viewing angle

0.279 × 0.279 mm

Edge lit

80 × 25

4.0 W

+/-40 horizontal, +120/–40° vertical (typical)

86 Chapter 6 Specifications

Hard drive specifications

200-GB* 160-GB* 120-GB* 80-GB*

Dimensions

Height

Width 70 mm 70 mm 70 mm 70 mm

Weight 101 g 101 g 101 g 101 g

Interface type

Transfer rate

Security

Seek times (typical read, including setting)

Single track

Average 13 ms 13 ms 13 ms 13 ms

Maximum 24 ms 24 ms 24 ms 24 ms

Logical blocks

Disc rotational speed

Operating temperature

*1 GB = 1 billion bytes when referring to hard drive storage capacity. Actual accessible capacity is less. Actual drive specifications may differ slightly.

NOTE: Certain restrictions and exclusions apply. Contact technical support for details.

9.5 mm 9.5 mm 9.5 mm 9.5 mm

SATA SATA SATA SATA

100 MB/sec 100 MB/sec 100 MB/sec 100 MB/sec

ATA security ATA security ATA security ATA security

3 ms 3 ms 3 ms 3 ms

390,700,850 312,560,640 234,420,480 156,280,320

4200 rpm 5400 rpm 5400 rpm 5400 rpm

5°C to 55°C (41°F to 131°F)

Hard drive specifications 87

DVD/CD-RW Combo Drive specifications

Applicable disc Read:

CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW, DVD-RAM

Center hole diameter

Disc diameter

Standard disc

Mini disc 8 cm (3.15 in)

Disc thickness

Track pitch

Access time

Random < 110 ms < 130 ms

Full stroke < 210 ms < 225 ms

Audio output level

Cache buffer

1.5 cm (0.59 in)

12 cm (4.72 in)

1.2 mm (0.047 in)

0.74 μm

CD DVD

Line-out, 0.7 Vrms

2 MB

Write:

CD-R and CD-RW

Data transfer rate

24X CD-ROM 3,600 KB/sec

8X DVD 3,600 KB/sec

24X CD-R 3,600 KB/sec

24X CD-RW 3,600 KB/sec

Transfer mode

Startup time

Stop time

Multiword DMA mode 2

< 15 seconds

< 6 seconds

88 Chapter 6 Specifications

DVD-ROM Drive

Applicable disc

Center hole diameter

Disc diameter

Standard disc

Mini disc

Disc thickness

Track pitch

Access time

Random < 100 ms < 125 ms

Full stroke < 175 ms < 225 ms

Audio output level

Cache buffer

Data transfer rate

CD-R (24X) 3600 KB/s (150 KB/s at 1X CD rate)

CD-RW (10X) 1500 KB/s (150 KB/s at 1X CD rate)

DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18, CD-ROM (Mode 1 and 2), CD Digital Audio, CD-XA ready (Mode 2, Form 1 and Form 2), CD-I (Mode 2, Form 1 and Form 2), CD-R, CD-RW, Photo CD (single and multisession), CD-Bridge

1.5 cm (0.59 in)

12 cm (4.72 in)

8 cm (3.15 in)

1.2 mm (0.047 in)

0.74 μm

CD DVD

Line-out, 0.7 Vrms

512 KB

CD-ROM (24X) 3600 KB/s (150 KB/s at 1X CD rate)

DVD (8X) 10,800 KB/s (1,352 KB/s at 1X DVD rate)

Multiword DMA mode 2 16.6 MB/s

Startup time

Stop time

< 10 seconds

< 3 seconds

DVD-ROM Drive 89

System DMA specifications

Hardware DMA System function

DMA0 Not applicable

DMA1* Not applicable

DMA2* Not applicable

DMA3 Not applicable

DMA4 Direct memory access controller

DMA5* Available for PC Card

DMA6 Not assigned

DMA7 Not assigned

*PC Card controller can use DMA 1, 2, or 5.

90 Chapter 6 Specifications

System interrupt specifications

Hardware IRQ System function

IRQ0 System timer

IRQ1 Standard 101-/102-Key or Microsoft® Natural Keyboard

IRQ2 Cascaded

IRQ3 Intel 82801DB/DBM USB2 Enhanced Host Controller—24CD

IRQ4 COM1

IRQ5* Conexant AC—Link Audio Intel 82801DB/DBM SMBus Controller—24C3 Data Fax

Modem with SmartCP

IRQ6 Diskette drive

IRQ7* Parallel port

IRQ8 System CMOS/real-time clock

IRQ9* Microsoft ACPI-compliant system

IRQ10* Intel USB UHCI controller—24C2

Intel 82852/82855 GM/GME Graphic Controller

Realtek RTL8139 Family PCI Fast Ethernet Controller

IRQ11 Intel USB EHCI controller—24CD

Intel USB UHCI controller—24C4

Intel USB UHCI controller—24C7

Intel Pro/Wireless 2200BG

TI OHCI 1394 host controller

TI PCI1410 CardBus controller

IRQ12 Synaptics PS/2 TouchPad

IRQ13 Numeric data processor

IRQ14 Primary IDE channel

IRQ15 Secondary IDE channel

*Default configuration; audio possible configurations are IRQ5, IRQ7, IRQ9, IRQ10, or none.

NOTE: PC Cards may assert IRQ3, IRQ4, IRQ5, IRQ7, IRQ9, IRQ10, IRQ11, or IRQ15. Either the infrared or the serial port

may assert IRQ3 or IRQ4.

System interrupt specifications 91

System I/O address specifications

I/O address (hex) System function (shipping configuration)

000 - 00F DMA controller no. 1

010 - 01F Unused

020 - 021 Interrupt controller no. 1

022 - 024 Opti chipset configuration registers

025 - 03F Unused

02E - 02F 87334 “Super I/O” configuration for CPU

040 - 05F Counter/timer registers

044 - 05F Unused

060 Keyboard controller

061 Port B

062 - 063 Unused

064 Keyboard controller

065 - 06F Unused

070 - 071 NMI enable/RTC

072 - 07F Unused

080 - 08F DMA page registers

090 - 091 Unused

092 Port A

093 - 09F Unused

0A0 - 0A1 Interrupt controller no. 2

I/O Address (hex) System Function (shipping configuration)

0A2 - 0BF Unused

0C0 - 0DF DMA controller no. 2

0E0 - 0EF Unused

0F0 - 0F1 Coprocessor busy clear/reset

0F2 - 0FF Unused

100 - 16F Unused

170 - 177 Secondary fixed disk controller

178 - 1EF Unused

1F0 - 1F7 Primary fixed disk controller

1F8 - 200 Unused

201 JoyStick (decoded in ESS1688)

202 - 21F Unused

92 Chapter 6 Specifications

HP Compaq Presario B1200 CTO, Compaq Presario B1201VU, Compaq Presario B1203VU, Compaq Presario B1204VU, Compaq Presario B1205VU Service Guide

Specifications and Main Features

Frequently Asked Questions

User Manual

Product description

External component identification

Display components

Top components

Pointing devices

Buttons

Keys

Lights

Front components

Left-side components

Right-side components

Bottom components

Illustrated parts catalog

Serial number location

Computer major components

Cable Kit

Plastics Kit

Mass storage devices

Miscellaneous parts

Sequential part number listing

Removal and replacement procedures

Preliminary replacement requirements

Tools required

Service considerations

Plastic parts

Cables and connectors

Drive handling

Grounding guidelines

Electrostatic discharge damage

Packaging and transporting guidelines

Workstation guidelines

Equipment guidelines

Unknown user password

Component replacement procedures

Serial number

Computer feet

Battery

Camera module

Hard drive

Memory module

WLAN module

Optical drive

Keyboard

Switch cover

Display assembly

Top cover

RTC battery

Front LED board

Bluetooth module

Speaker assembly

Microphone

System board

ExpressCard assembly

Modem module

Heat sink

Processor

Setup Utility

Starting the Setup Utility

Changing the language of the Setup Utility

Navigating and selecting in the Setup Utility

Displaying system information

Restoring default settings in the Setup Utility

Using advanced Setup Utility features

Closing the Setup Utility

Setup Utility menus

Specifications

Computer specifications

12.1-inch, WXGA display specifications

Hard drive specifications

DVD/CD-RW Combo Drive specifications

DVD-ROM Drive

System DMA specifications

System interrupt specifications

System I/O address specifications
