Maintenance and Service
Guide
HP Compaq nw8440 Notebook PC
HP Compaq nc8430 Notebook PC
HP Compaq nx8420 Notebook PC
Document Part Number: 417790-002
September 2006
This guide is a troubleshooting reference used for maintaining
and servicing the computer. It provides comprehensive
information on identifying computer features, components, and
spare parts; troubleshooting computer problems; and performing
computer disassembly procedures.
© Copyright 2006 Hewlett-Packard Development Company, L.P.
Microsoft and Windows are U.S. registered trademarks of Microsoft
Corporation. Intel and Core are trademarks or registered trademarks of
Intel Corporation or its subsidiaries in the United States and other
countries. Bluetooth is a trademark owned by its proprietor and used by
Hewlett-Packard Company under license. SD Logo is a trademark of its
proprietor. Java is a trademark of Sun Microsystems Inc.
The information contained herein is subject to change without notice. The
only warranties for HP products and services are set forth in the express
warranty statements accompanying such products and services. Nothing
herein should be construed as constituting an additional warranty. HP shall
not be liable for technical or editorial errors or omissions contained herein.
Maintenance and Service Guide
HP Compaq nw8440 Notebook PC
HP Compaq nc8430 Notebook PC
HP Compaq nx8420 Notebook PC
Second Edition: September 2006
First Edition: June 2006
Document Part Number: 417790-002
MSG revision history
Revision Publication date Description
A
October 2010
The description for Top cover
part number 418807-001 has
been corrected to "For use
with nw8440 models without
fingerprint reader."
The description for Top cover
part number 416401-001 has
been corrected to "For use
with nw8440 models with
fingerprint reader."
The keyboard spare part
numbers have been updated.
Contents
1 Product Description
1.1 Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1–2
1.2 Resetting the Computer. . . . . . . . . . . . . . . . . . . . . . . 1–4
1.3 Power Management. . . . . . . . . . . . . . . . . . . . . . . . . . 1–5
1.4 External Components . . . . . . . . . . . . . . . . . . . . . . . . 1–6
1.5 Design Overview. . . . . . . . . . . . . . . . . . . . . . . . . . . 1–20
2Troubleshooting
2.1 Computer Setup. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2–1
Using Computer Setup . . . . . . . . . . . . . . . . . . . . . . . 2–1
Selecting from the File Menu . . . . . . . . . . . . . . . . . . 2–2
Selecting from the Security Menu . . . . . . . . . . . . . . 2–3
Selecting from the Advanced Menu . . . . . . . . . . . . . 2–4
Selecting from the Tools Menu. . . . . . . . . . . . . . . . . 2–4

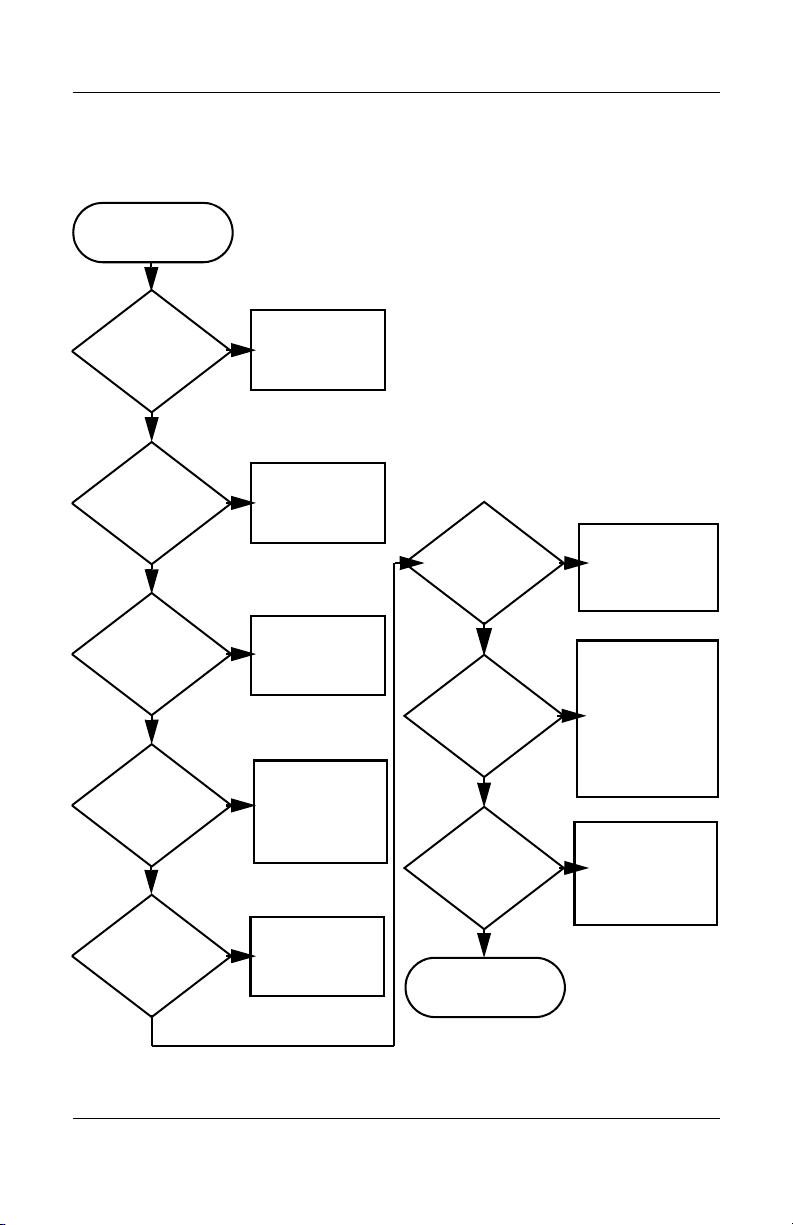

2.2 Troubleshooting Flowcharts . . . . . . . . . . . . . . . . . . . 2–5
Maintenance and Service Guide iii
Contents
3 Illustrated Parts Catalog
3.1 Serial Number Location . . . . . . . . . . . . . . . . . . . . . . 3–1
3.2 Computer Major Components. . . . . . . . . . . . . . . . . . 3–2
3.3 Plastics Kit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3–16
3.4 Mass Storage Devices . . . . . . . . . . . . . . . . . . . . . . . 3–18
3.5 Miscellaneous (Not Illustrated). . . . . . . . . . . . . . . . 3–20
3.6 Sequential Part Number Listing . . . . . . . . . . . . . . . 3–22
4 Removal and Replacement Preliminaries
4.1 Tools Required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–1
4.2 Service Considerations . . . . . . . . . . . . . . . . . . . . . . . 4–2
Plastic Parts . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4–2
Cables and Connectors . . . . . . . . . . . . . . . . . . . . . . . 4–2
4.3 Preventing Damage to Removable Drives . . . . . . . . 4–3
4.4 Preventing Electrostatic Damage . . . . . . . . . . . . . . . 4–4
4.5 Packaging and Transporting Precautions . . . . . . . . . 4–5
4.6 Workstation Precautions . . . . . . . . . . . . . . . . . . . . . . 4–6
4.7 Grounding Equipment and Methods . . . . . . . . . . . . . 4–7
iv Maintenance and Service Guide
5 Removal and Replacement Procedures
5.1 Serial Number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–2
5.2 Disassembly Sequence Chart . . . . . . . . . . . . . . . . . . 5–3
5.3 Preparing the Computer for Disassembly . . . . . . . . . 5–5
5.4 Hard Drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–6
5.5 Computer Feet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–10
5.6 Optical Drive. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–11
5.7 External Memory Module. . . . . . . . . . . . . . . . . . . . 5–13
5.8 Bluetooth Module . . . . . . . . . . . . . . . . . . . . . . . . . . 5–16
5.9 Keyboard. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–18
5.10 Fan Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–23
5.11 Heat Sink. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–28
5.12 Processor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–31
5.13 Internal Memory Module . . . . . . . . . . . . . . . . . . . 5–33
5.14 RTC Battery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–35
5.15 TouchPad. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–36
5.16 Mini Card Module. . . . . . . . . . . . . . . . . . . . . . . . . 5–39
5.17 Switch Cover. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–42
5.18 Display Assembly . . . . . . . . . . . . . . . . . . . . . . . . . 5–45
5.19 Top Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–49
5.20 Modem Module. . . . . . . . . . . . . . . . . . . . . . . . . . . 5–53
5.21 System Board . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5–55
5.22 System Board Frame. . . . . . . . . . . . . . . . . . . . . . . 5–62
5.23 Serial Connector Module . . . . . . . . . . . . . . . . . . . 5–65
5.24 USB/Audio Board . . . . . . . . . . . . . . . . . . . . . . . . . 5–67
Contents
Maintenance and Service Guide v
Contents
6 Specifications
AScrew Listing
B Software Backup and Recovery
C Display Component Recycling
D Connector Pin Assignments
E Power Cord Set Requirements
Index
vi Maintenance and Service Guide
Product Description
The HP Compaq nw8440 Notebook PC, HP Compaq nc8430
Notebook PC, and HP Compaq nx8420 Notebook PC offer
advanced modularity, Intel® Core™ Duo processors, and
extensive multimedia support.
1
HP Compaq nw8440 Notebook PC, HP Compaq nc8430
Notebook PC, and HP Compaq nx8420 Notebook PC
Maintenance and Service Guide 1–1
Product Description
1.1 Fea tu re s
■ The following processors, varying by computer model:
❏ Intel Core Duo T2600 (2.17-GHz)
❏ Intel Core Duo T2500 (2.00-GHz)
❏ Intel Core Duo T2400 (1.83-GHz)
❏ Intel Core Duo T2300 (1.66-GHz)
■ The following displays are available, varying by
computer model:
❏ 15.4-inch, WUXGA, TFT (1920 × 1200) with over
16.8 million colors with AntiGlare
❏ 15.4-inch, WSXGA, TFT (1680 × 1050) with over
16.8 million colors with AntiGlare
❏ 15.4-inch, WXGA+, TFT (1440 × 900) with over
16.8 million colors with AntiGlare
■ 120-, 100-, 80-, and 60-GB high-capacity hard drive, varying
by computer model
■ 256-MB DDR2 synchronous DRAM (SDRAM) at 533 MHz
and 667 MHz, expandable to 4.0 GB
■ Microsoft® Windows® XP Professional
■ Full-size Windows keyboard with numeric keypad
■ TouchPad and pointing stick pointing devices, including a
dedicated vertical scroll region (select models only)
■ Integrated 10 Base-T/100 Base-TX Ethernet local area
network (LAN) network interface card (NIC) with RJ-45 jack
■ Integrated high-speed 56K modem with RJ-11 jack
1–2 Maintenance and Service Guide
Product Description
■ Integrated wireless support for Mini Card IEEE 802.11a/b/g
or 802.11b/g Wireless LAN (WLAN) device
■ Support for one Type I or Type II PC Card slot, with support
for both 32-bit (CardBus) and 16-bit PC Cards, varying by
computer model
■ External 90-watt AC adapter with 3-wire power cord
■ 8-cell Li-Ion battery
■ Stereo speakers
■ Volume up, volume mute, and volume down buttons
■ Support for the following optical drives:
❏ DVD±RW and CD-RW Double-Layer Combo Drive
❏ DVD/CD-RW Combo Drive
❏ DVD-ROM drive
■ Connectors:
❏ Accessory battery
❏ Audio-in (microphone)
❏ Audio-out (headphone)
❏ Digital media slot
❏ Docking connector
❏ External monitor
❏ IEEE 1394
❏ RJ-11 (modem)
❏ RJ-45 (network)
❏ S-Video-out
❏ Smart Adapter power
❏ Three Universal Serial Bus (USB) v. 2.0
Maintenance and Service Guide 1–3
Product Description
1.2 Resetting the Computer
If the computer you are servicing has an unknown password,
follow the steps below to reset the password. These steps also
clear CMOS.
The following steps will not clear an unknown password if the
✎
stringent security option has been enabled in the BIOS. If
stringent security is enabled, the system board must be replaced
to reset an unknown password. Refer to Section 5.23, “Serial
Connector Module,” for more information on replacing the
system board.
Before replacing the system board, perform the steps below to
make sure stringent security has been properly enabled.
Enabling stringent security provides enhanced protection for the
power-on password and administrator password and other forms
of power-on authorization. Stringent security is enabled/disabled
by accessing the Password Options menu in the Computer Setup
utility. Refer to Section 2.1, “Computer Setup,” for more
information.
1. Prepare the computer for disassembly (refer to Section 5.3,
“Preparing the Computer for Disassembly,” for more
information). Remove the real-time clock (RTC) battery
(refer to Section 5.14, “RTC Battery,” for more information
on removing and replacing the RTC battery).
2. Wait approximately 5 minutes.
3. Replace the RTC battery and reassemble the computer.
4. Connect AC power to the computer. Do not reinsert any
batteries at this time.
5. Turn on the computer.
All passwords and all CMOS settings have been cleared.
1–4 Maintenance and Service Guide
1. 3 P o w e r M a n a g e m e n t
The computer comes with power management features that
extend battery operating time and conserve power. The
computer supports the following power management features:
■ Standby
■ Hibernation
■ Setting customization by the user
■ Hotkeys for setting the level of performance
■ Battery calibration
■ Lid switch standby/resume
■ Power button
■ Advanced Configuration and Power Management (ACPM)
compliance
Product Description
Maintenance and Service Guide 1–5
Product Description
1. 4 E x t e r n a l C o m p o n e n t s
The external components on the front of the computer are shown
below and described in Table 1-1.
Front Components
Table 1-1
Front Components
Item Component Function
1 Wireless light On: An integrated wireless device, such as
a wireless local area network (LAN) device
and/or a Bluetooth® device, is turned on.
2 Power light ■ On: The computer is on.
■ Blinking: The computer is in standby.
■ Blinking rapidly: An HP Smart AC
Adapter with a higher power rating
should be connected.
■ Off: The computer is off or in hibernation.
1–6 Maintenance and Service Guide
Product Description
Table 1-1
Front Components (Continued)
Item Component Function
3 Battery light ■ Amber: A battery is charging.
■ Green: A battery is close to full charge
capacity.
■ Blinking amber: A battery that is the only
available power source has reached a
low-battery condition. When the battery
reaches a critical low-battery condition,
the battery light begins blinking more
quickly.
■ Off: If the computer is connected to an
external power source, the light is turned
off when all batteries in the computer are
fully charged. If the computer is not
connected to an external power source,
the light is turned off until the battery
reaches a low-battery condition.
4 Drive light ■ Blinking green: The hard drive or optical
drive is being accessed.
■ Amber: HP Mobile Data Protection has
temporarily parked the hard drive.
5 Display release latch Opens the computer.
Maintenance and Service Guide 1–7
Product Description
The external components on the right side of the computer are
shown below and described in Table 1-2.
Right-Side Components
Table 1-2
Right-Side Components
Item Component Function
1 Audio-out
(headphone) jack
2 Internal microphone Records sound
3 Audio-in
(microphone) jack
4 USB ports (2) Connect USB 1.1- and 2.0-compliant
5 Optical drive Supports an optical disc. The type of optical
6 Serial port Connects an optional serial device.
1–8 Maintenance and Service Guide
Produces computer sound when connected
to optional power stereo speakers,
headphones, ear buds, a headset, or
television audio.
Connects an optional computer headset
microphone, stereo array microphone, or
monaural microphone.
devices to the computer using a standard
USB cable, or connect an optional External
MultiBay II to the computer. The MultiBay II
must also be connected to an external
power source.
drive varies by model.
The external components on the rear panel of the computer are
shown below and described in Table 1-3.
Rear Panel Components
Table 1- 3
Rear Panel Components
Item Component Function
1 Battery bay Holds a battery.
2 Smart adapter power
connector
Connects an AC adapter or an optional
power adapter.
Product Description
3 External monitor port Connects an optional VGA external
Maintenance and Service Guide 1–9
monitor or projector.
Product Description
The external components on the left side of the computer are
shown below and described in Table 1-4.
Left-Side Components
Table 1- 4
Left-Side Components
Item Component Function
1 Security cable slot Attaches an optional security cable to the
computer.
Security solutions are designed to
Ä
act as deterrents. These deterrents
may not prevent a product from being
mishandled or stolen.
2 RJ-45 (network) jack Connects an optional network cable.
3 RJ-11 (modem) jack Connects the modem cable.
4 S-Video-out jack Connects an optional S-Video device, such
as a television, VCR, camcorder, projector,
or video capture card.
1–10 Maintenance and Service Guide
Table 1- 4
Left-Side Components (Continued)
Item Component Function
Product Description
5 Exhaust vent Provides airflow to cool internal
6 1394 port Connects an optional 1394a device such as
7 USB port Connects USB 1.1- and 2.0-compliant
8 Smart card slot Supports optional smart cards and Java™
9 PC Card slot Supports optional Type I or Type II 32-bit
10 Digital Media Slot Supports Secure Digital (SD) Memory
components.
To prevent overheating, do not
Ä
obstruct vents. Use the computer
only a hard, flat surface. Do not allow
a hard surface, such as an adjoining
printer, or a soft surface, such as
pillows or thick rugs or clothing, to
block airflow.
a scanner, digital camera, or digital
camcorder.
devices to the computer using a standard
USB cable, or connects an optional
External MultiBay II to the computer. The
MultiBay II must also be connected to an
external power source.
Cards.
(CardBus) or 16-bit PC Cards.
Cards and MultiMediaCards.
Maintenance and Service Guide 1–11
Product Description
The standard keyboard components of the computer are shown
below and described in Table 1-5.
Standard Keyboard Components
1–12 Maintenance and Service Guide
Table 1- 5
Standard Keyboard Components
Item Component Function
Product Description
1 f1 to f12 keys (12) Perform system and application tasks.
2 caps lock key Enables caps lock and turns on the caps
3 fn key Executes frequently used system
4 Windows logo key In Windows, displays the Windows
5 Windows
applications key
6 Arrow keys Moves the cursor around the screen.
7 Keypad keys In Windows, can be used like the keys
8 num lock key Enables numeric lock, turns on the
When combined with the fn key, several
keys and buttons perform additional tasks
as hotkeys.
lock light.
functions when pressed in combination
with a function key or the esc key.
Start menu.
In Windows, displays a shortcut menu
for items beneath the pointer.
on an external numeric keypad.
embedded numeric keypad, and turns
on the num lock light.
Maintenance and Service Guide 1–13
Product Description
The computer top components are shown below and described in
Table 1-6.
Top Components, Part 1
1–14 Maintenance and Service Guide
Product Description
Table 1- 6
Top Components
Item Component Function
1 Power button When the computer is:
■ Off, press to turn on the computer.
■ On, briefly press to initiate hibernation.
■ In standby, briefly press to resume from
standby.
■ In hibernation, briefly press to restore
from hibernation.
If the system has stopped responding and
Windows shutdown procedures cannot be
used, press and hold for 5 seconds to turn
off the computer.
2 Info Center button Launches Info Center, which enables you
to open various software solutions.
3 Wireless button
(with wireless light)
Turns the wireless functionality on or off,
but does not create a wireless connection.
To establish a wireless connection,
✎
a wireless network must already be
set up.
4 Presentation button Starts the presentation feature.
5 Caps lock light On: caps lock is on.
6 Num lock light On: num lock or the numeric keypad is on.
7 Volume mute button Mutes or restores speaker volume.
8 Volume down button decreases speaker volume.
9 Volume up button Increases speaker volume.
Maintenance and Service Guide 1–15
Product Description
The computer top components are shown below and described in
Table 1-7.
Top Components, Part 2
1–16 Maintenance and Service Guide
Product Description
Table 1- 7
Top Components
Item Component Function
1 Display lid switch ■ If the computer is closed while on, turns
off the display.
■ If the computer is opened while in
standby, turns on the computer
(resumes from standby).
2 Pointing stick
(select models only)
3 Stereo speakers (2) Produce stereo sound.
4 TouchPad Moves the pointer and selects or activates
Moves the pointer and selects or activates
items on the screen.
items on the screen. Can be set to perform
other mouse functions, such as scrolling,
selecting, and double-clicking.
5 TouchPad buttons Function like the left, middle, and right
6 Fingerprint reader Allows a fingerprint logon to Windows
7 TouchPad scroll zone Scrolls up or down.
8 Pointing stick buttons
(select models only)
Maintenance and Service Guide 1–17
buttons on an external mouse.
instead of using a password.
Function like the left, middle, and right
buttons on an external mouse.
Product Description
The external components on the bottom of the computer are
shown below and described in Table 1-8.
Bottom Components
1–18 Maintenance and Service Guide
Product Description
Table 1- 8
Bottom Components
Item Component Function
1 Battery bay Holds the battery.
2 Battery release latches (2) Secure the battery in the battery bay.
3 Accessory battery
connector
4 Memory module
compartment
5 Hard drive bay Holds the primary hard drive.
Connects an optional HP Ultra-Capacity
Battery or HP Extended Life Battery.
Contains one memory slot that supports
replaceable memory modules.
6 Docking connector Connects the computer to an optional
7 Exhaust vent Provides airflow to cool internal
docking device.
components.
To prevent overheating, do not
Ä
obstruct vents. Use the computer
only a hard, flat surface. Do not
allow a hard surface, such as an
adjoining printer, or a soft
surface, such as pillows or thick
rugs or clothing, to block airflow.
Maintenance and Service Guide 1–19
Product Description
1. 5 D e s i g n O v e r v i ew
This section presents a design overview of key parts and features
of the computer. Refer to Chapter 3, “Illustrated Parts Catalog,”
to identify replacement parts, and Chapter 5, “Removal and
Replacement Procedures,” for disassembly steps.
The system board provides the following device connections:
■ Audio
■ Digital Media Slot
■ Display
■ Hard drive
■ Intel Core Duo processors
■ Keyboard, pointing stick, and TouchPad
■ Memory modules
■ Mini Card module
■ Optical drive
■ PC Card
■ Smart Adapter AC adapter
■ Smart card
CAUTION: To properly ventilate the computer, allow at least a 7.6-cm
Ä
(3-inch) clearance on the left and right sides of the computer.
The computer uses an electric fan for ventilation. The fan is
controlled by a temperature sensor and is designed to turn on
automatically when high temperature conditions exist. These
conditions are affected by high external temperatures, system
power consumption, power management/battery conservation
configurations, battery fast charging, and software. Exhaust air is
displaced through the ventilation grill located on the left side of
the computer.
1–20 Maintenance and Service Guide
Troubleshooting
WARNING: Only authorized technicians trained by HP should repair
Å
this equipment. All troubleshooting and repair procedures are detailed
to allow only subassembly-/module-level repair. Because of the
complexity of the individual boards and subassemblies, do not attempt
to make repairs at the component level or modifications to any printed
wiring board. Improper repairs can create a safety hazard. Any
indication of component replacement or printed wiring board
modification may void any warranty or exchange allowances.
2.1 Computer Setup
Computer Setup is a system information and customization utility
that can be used even when the operating system is not working
or will not load. This utility includes settings that are not
available in Windows.
2
Using Computer Setup
Information and settings in Computer Setup are accessed from
the Main, Security, Advanced, or Tools menus:
1. Turn on or restart the computer. Press
F10 = ROM-Based Setup message is displayed in
the lower-left corner of the screen.
❏ To change the language, use the cursor control keys
to navigate to the Advanced menu.
❏ To view navigation information, press f1.
❏ To return to the Computer Setup menu, press esc.
Maintenance and Service Guide 2–1
f10 while the
Troubleshooting
2. Select the Main, Security, Advanced, or Tool s menu.
3. To close Computer Setup and restart the computer:
❏ Select Exit > Exit Saving Changes, and then press enter.
– or –
❏ Select Exit > Exit Discarding Changes, and then
enter.
press
– or –
❏ Select Exit > Load Setup Defaults, and then press enter.
4. When you are prompted to confirm your action, press
Selecting from the File Menu
Table 2- 1
File Menu
Select To Do This
System Information ■ Change the system time and system date.
■ View identification information about the
computer.
■ View specification information about the
processor, memory and cache size, and
system ROM.
f10.
2–2 Maintenance and Service Guide
Troubleshooting
Selecting from the Security Menu
Table 2- 2
Security Menu
Select To Do This
Administrator Password Enter, change, or delete an Administrator
password.
Power-on Password Enter, change, or delete a power-on password.
DriveLock Passwords Enable/disable DriveLock; change a DriveLock
user or master password.
DriveLock Settings are accessible only
✎
when you enter Computer Setup by turning
on (not restarting) the computer.
Password Options
(Password options can
be selected only when
a power-on password
has been set.)
Device Security Enable/disable
*Not applicable to SuperDisk LS-120 drives.
Maintenance and Service Guide 2–3
Enable/disable
■ QuickLock.
■ QuickLock on Standby.
■ QuickBlank.
To enable QuickLock on Standby or
✎
QuickBlank, you must first enable
QuickLock.
■ Diskette drive startup.*
■ CD-ROM or diskette startup.
Settings for a DVD-ROM can be entered
✎
in the CD-ROM field.
Troubleshooting
Selecting from the Advanced Menu
Table 2- 3
Advanced Menu
Select To Do This
Language Change the Computer Setup language.
Boot Order Enable/disable MultiBoot, which sets a startup
sequence that can include most bootable devices
and media in the system.
Accessibility Options Allows electronic and information technology to
be accessible to people with varying ranges of
abilities.
Video Memory Displays the amount of video memory available
on the computer.
Selecting from the Tools Menu
Table 2- 4
Tools Menu
Select To Do This
Hard Drive Self Test Run a quick comprehensive self test on hard
drives in the system that support the test features.
2–4 Maintenance and Service Guide
Troubleshooting
2.2 Troubleshooting Flowcharts
Table 2-5
Troubleshooting Flowcharts Overview
Flowchart Description
2.1 “Flowchart 2.1—Initial Troubleshooting”
2.2 “Flowchart 2.2—No Power, Part 1”
2.3 “Flowchart 2.3—No Power, Part 2”
2.4 “Flowchart 2.4—No Power, Part 3”
2.5 “Flowchart 2.5—No Power, Part 4”
2.6 “Flowchart 2.6—No Video, Part 1”
2.7 “Flowchart 2.7—No Video, Part 2”
2.8 “Flowchart 2.8—Nonfunctioning Docking Device (if applicable)”
2.9 “Flowchart 2.9—No Operating System (OS) Loading”
2.10 “Flowchart 2.10—No OS Loading, Hard Drive, Part 1”
2.11 “Flowchart 2.11—No OS Loading, Hard Drive, Part 2”
2.12 “Flowchart 2.12—No OS Loading, Hard Drive, Part 3”
2.13 “Flowchart 2.13—No OS Loading, Diskette Drive”
Maintenance and Service Guide 2–5
Troubleshooting
Table 2-5
Troubleshooting Flowcharts Overview (Continued)
Flowchart Description
2.14 “Flowchart 2.14—No OS Loading, Optical Drive”
2.15 “Flowchart 2.15—No Audio, Part 1”
2.16 “Flowchart 2.16—No Audio, Part 2”
2.17 “Flowchart 2.17—Nonfunctioning Device”
2.18 “Flowchart 2.18—Nonfunctioning Keyboard”
2.19 “Flowchart 2.19—Nonfunctioning Pointing Device”
2.20 “Flowchart 2.20—No Network/Modem Connection”
2–6 Maintenance and Service Guide
Connecting
to network
or modem?
Begin
troubleshooting.
Is there
power?
Is the OS
loading?
Is there video?
(no boot)
Is there
sound?
Beeps,
LEDs, or error
messages?
Keyboard/
pointing
device
working?
Go to
“Flowchart
2.17—Nonfunctioning Device.”
Go to
“Flowchart
2.2—No Power,
Par t 1.”
Go to
“Flowchart
2.6—No Video,
Par t 1.”
All drives
working?
Y
Y
Y
Y
Y
Y
Y
Y
N
N
N
N
N
End
N
N
N
Go to
“Flowchart
2.9—No Operating
System (OS)
Loading.”
Go to
“Flowchart
2.15—No Audio,
Par t 1.”
Go to
“Flowchart
2.18—Nonfunc-
tioning Keyboard”
or “Flowchart
2.19—Nonfunctioning Pointing
Device.”
Check
LED board,
speaker
connections.
Go to
“Flowchart
2.20—No
Network/Modem
Connection.”
Troubleshooting
Flowchart 2.1—Initial Troubleshooting
Maintenance and Service Guide 2–7
Troubleshooting
1. Reset the power cables in the docking device
and at the AC outlet.
2. Be sure the AC power source is active.
3. Be sure that the power strip is working.
Done
Remove from
docking device
(if applicable).
Power up
on battery
power?
Power up
on AC
power?
Power up in
docking
device?
Power up
on battery
power?
Power up
in docking
device?
Done
Reset
power.*
Reset
power.*
Power up
on AC power?
N
Y
Y
N
N
Y
N
N
Y
Y
YN
1. On select models, there is a separate reset
button.
2. On select models, the computer can be reset
using the standby switch and either the lid
switch or the main power switch.
*NOTES
Go to
“Flowchart
2.4—No Power,
Part 3.”
Go to
“Flowchart
2.3—No Power,
Par t 2.”
Go to
“Flowchart
2.8—Nonfunctioning
Docking Device (if
applicable).”
No power
(power LED
is off).
Flowchart 2.2—No Power, Part 1
2–8 Maintenance and Service Guide
Flowchart 2.3—No Power, Part 2
Continued from
“Flowchart
2.2—No Power,
Par t 1.”
Visually check for
debris in battery
socket and clean
if necessary.
Done
N
Y
Power on?
Check battery by
recharging it,
moving it to
another computer,
or replacing it.
Power on?
Done
Y
Replace
power supply
(if applicable).
N
Power on?
Done
Y
N
Go to
“Flowchart
2.4—No Power,
Part 3.”
Troubleshooting
Maintenance and Service Guide 2–9
Troubleshooting
Continued from
“Flowchart
2.3—No Power,
Part 2.”
Reseat AC adapter
in computer and
at power source.
Internal or
external AC
adapter?
Done
Done
Done
Done
Power on?
Power on?
Power on?
Plug directly
into AC outlet.
Power LED
on?
Power outlet
active?
Try different
outlet.
Replace external
AC adapter.
Replace
power cord.
Y
N
Y
Y
Y
Y
N
N
N
N
External
Internal
Go to
“Flowchart
2.5—No Power,
Part 4.”
Flowchart 2.4—No Power, Part 3
2–10 Maintenance and Service Guide
Flowchart 2.5—No Power, Part 4
Y
N
Continued from
“Flowchart
2.4—No Power,
Part 3.”
Reseat loose
components and
boards and
replace damaged
items.
Open
computer.
Loose or
damaged
parts?
Y
Close
computer and
retest.
Power on?
Done
N
Replace the following items (if applicable). Check
computer operation after each replacement:
1. Internal DC-DC converter*
2. Internal AC adapter
3. Processor board*
4. System board*
*NOTE: Replace these items as a set to prevent
shorting out among components.
Troubleshooting
Maintenance and Service Guide 2–11
Troubleshooting
A
N
Stand-alone
or docking
device?
No video.
Replace the following one at a time. Test after each replacement.
1. Cable between computer and computer display (if applicable)
2. Display
3. System board
Internal or
external
display*?
Adjust
brightness.
Video OK? Done
Docking Device
Internal
Stand-alone
External
Adjust
brightness.
Video OK? Done
Y
Press lid
switch to ensure
operation.
Video OK? Done
Y
N
Video OK?
Done
Done
N
Check for bent
pins on cable.
Tr y
another
display.
Internal and
external
video OK?
Replace
system
board.
YY
N
N
*NOTE: To change from internal to
external display, use the hotkey
combination.
Y
Go to
“Flowchart
2.7—No Video,
Par t 2.”
Flowchart 2.6—No Video, Part 1
2–12 Maintenance and Service Guide
Flowchart 2.7—No Video, Part 2
Y
N
Continued from
“Flowchart
2.6—No Video,
Par t 1.”
Done
Adjust external
monitor display.
Video OK?
Adjust
display
brightness.
Video OK?
Video OK?
Done
Done
Check that computer is properly
seated in docking device, for
bent pins on cable, and for
monitor connection.
Go to “A” in
“Flowchart
2.6—No Video,
Par t 1.”
Check brightness
of external
monitor.
Try another
external
monitor.
Internal
and external
video OK?
Go to
“Flowchart
2.8—Nonfunctioning
Docking Device (if
applicable).”
Y
Y
Y
N
N
N
Remove
computer from
docking device,
if connected.
Troubleshooting
Maintenance and Service Guide 2–13
Troubleshooting
Y
N
Reset power cord in
docking device and
power outlet.
N
Test replacement
docking device with
new computer.
Check voltage
setting on docking
device.
Reset monitor
cable connector at
docking device.
Reinstall
computer into
docking device.
Docking
device
operating?
Docking
device
operating?
Replace docking
device.
Done
Done
Y
Nonfunctioning
docking device.
Flowchart 2.8—Nonfunctioning Docking Device
(if applicable)
2–14 Maintenance and Service Guide
Flowchart 2.9—No Operating System (OS)
No OS loading from hard drive,
go to
“Flowchart 2.10—No OS Loading,
Hard Drive, Part 1.”
Reset power
cord in docking
device and
power outlet.
No OS
loading.*
*NOTE: Before beginning troubleshooting, always
check cable connections, cable ends, and drives
for bent or damaged pins.
No OS loading from diskette drive,
go to
“Flowchart 2.13—No OS Loading,
Diskette Drive.”
No OS loading from CD-ROM or DVD-ROM
drive, go to
“Flowchart 2.14—No OS
Loading, Optical Drive.”
No OS loading from network,
go to
“Flowchart 2.20—No Network/Modem
Connection.”
Loading
Troubleshooting
Maintenance and Service Guide 2–15
Troubleshooting
Go to
“Flowchart
2.17—Nonfunctioning
Device.”
Y
Done
N
OS not
loading from
hard drive.
Nonsystem
disk message?
Go to
“Flowchart
2.11—No OS
Loading,
Hard Drive, Part 2.”
Reseat
external
hard drive.
OS loading?
Done
Boot
from
CD?
Go to
“Flowchart
2.13—No OS
Loading,
Diskette Drive.”
Boot
from
hard drive?
Boot
from
diskette?
Change boot
priority through
the Setup Utility
and reboot.
Boot
from
hard drive?
Y
Y
Y
Y
Y
N
N
N
N
N
Check the Setup
utility for correct
booting order.
Flowchart 2.10—No OS Loading, Hard Drive,
Part 1
2–16 Maintenance and Service Guide
Flowchart 2.11—No OS Loading, Hard Drive,
Load OS using
Operating System
disc (if applicable).
Continued from
“Flowchart
2.10—No OS
Loading,
Hard Drive, Part 1.”
Reseat
hard drive.
Done
CD or
diskette in
drive?
1. Replace
hard drive.
2. Replace system
board.
Go to
“Flowchart
2.13—No OS
Loading,
Diskette Drive.”
Format hard drive
and bring to
a bootable
C:\ prompt.
Create partition,
and then format
hard drive to
bootable
C:\ prompt.
Boot
from diskette
drive?
Remove
diskette and
reboot.
Y
N
Boot
from
hard drive?
Y
N
Y
N
Hard drive
accessible?
Y
N
Hard drive
accessible?
Done
Run FDISK.
Y
N
Hard drive
partitioned?
Hard drive
formatted?
Y
N
Y
N
Computer
booted?
Done
Y
N
Go to
“Flowchart
2.12—No OS
Loading,
Hard Drive, Part 3.”
Go to
“Flowchart
2.12—No OS
Loading,
Hard Drive, Part 3.”
Part 2
Troubleshooting
Maintenance and Service Guide 2–17
Troubleshooting
Y
System
files on hard
drive?
Continued from
“Flowchart
2.11—No OS
Loading,
Hard Drive, Part 2.”
Clean virus.
Done
N
Install OS
and reboot.
Virus
on
hard drive?
OS
loading from
hard drive?
Y
N
Y
N
Y
N
Diagnostics
on diskette?
Replace
hard drive.
Run diagnostics
and follow
recommendations.
Run SCANDISK and
check for
bad sectors.
Can bad
sectors
be fixed?
Replace
hard drive.
Y
N
Y
N
Fix bad
sectors.
Boot from
hard drive?
Replace
hard drive.
Done
Flowchart 2.12—No OS Loading, Hard Drive,
Part 3
2–18 Maintenance and Service Guide
Troubleshooting
Done
Y
N
Reseat
diskette drive.
OS not loading
from
diskette drive.
Done
Y
Y
Y
Y
Y
Y
YN
N
N
N
N
N
N
OS
loading?
Nonsystem
disk message?
Bootable
diskette
in drive?
Install bootable
diskette and
reboot computer.
Check diskette
for system files.
Try different
diskette.
1. Replace diskette
drive.
2. Replace system
board.
Nonsystem
disk error?
OS
loading?
Boot
from another
device?
Enable drive
and cold boot
computer.
Is diskette
drive boot
order
correct?
Change boot
priority using
the Setup Utility.
Go to
“Flowchart
2.17—Nonfunctioning Device.”
Diskette
drive enabled
in the Setup
Utility?
Go to
“Flowchart
2.17—Nonfunctioning
Device.”
Reset the computer.
Refer to
Section 1.2,
“Resetting the
Computer,”
for
instructions.
Flowchart 2.13—No OS Loading, Diskette Drive
Maintenance and Service Guide 2–19
Troubleshooting
Y
Done
N
Bootable
disc in
drive?
Disc
in drive?
No OS
loading from
CD-ROM or
DVD-ROM drive.
Install bootable
disc and
reboot
computer.
Go to
“Flowchart
2.17—Nonfunctioning
Device.”
Go to
“Flowchart
2.17—Nonfunctioning
Device.”
Install
bootable disc.
Boots from
CD or DVD?
Boots from
CD or DVD?
Try another
bootable disc.
Booting
from another
device?
Booting
order
correct?
Correct boot
order using
the Setup Utility.
Done
Reseat
drive.
Y
Y
Y
Y
Y
N
N
N
N
N
Reset the computer.
Refer to
Section 1.2,
“Resetting the
Computer,”
for
instructions.
Flowchart 2.14—No OS Loading, Optical Drive
2–20 Maintenance and Service Guide
Flowchart 2.15—No Audio, Part 1
No audio.
N
Computer in
docking device
(if applicable)?
Internal
audio?
Audio? Done
Undock
Audio? Done
Tur n u p a u d i o
internally or
externally.
Go to
“Flowchart
2.16—No Audio,
Part 2.”
Go to
“Flowchart
2.17—Nonfunctioning
Device.”
Y
Y
Y
Y
N
N
N
Go to
“Flowchart
2.16—No Audio,
Par t 2.”
Replace
the
docking device.
Troubleshooting
Maintenance and Service Guide 2–21
Troubleshooting
YN
Continued from
“Flowchart
2.15—No Audio,
Par t 1.”
Reload
audio drivers.
Audio
driver in OS
configured?
Audio?
Y
Y
YN
N
N
Correct
drivers for
application?
Connect to
external
speaker.
Load drivers and
set configuration
in OS.
Audio? Done
Replace audio
board and
speaker
connections
in computer
(if applicable).
1. Replace internal speakers.
2. Replace audio board (if applicable).
3. Replace system board.
Flowchart 2.16—No Audio, Part 2
2–22 Maintenance and Service Guide
Flowchart 2.17—Nonfunctioning Device
Done
Any physical
device detected?
Y
N
Unplug the nonfunctioning device from the computer
and inspect cables and plugs for bent or broken pins or
other damage.
Reseat
device.
Clear
CMOS.
Done
Fix or
replace
broken item.
Nonfunctioning
device.
Reattach device.
Close computer,
plug in power,
and reboot.
Device
boots
properly?
Go to
“Flowchart
2.9—No
Operating System
(OS) Loading.”
Device
boots
properly?
Replace hard drive.
Replace diskette
drive.
Replace NIC.
If integrated NIC,
replace system
board.
Y
N
Y
N
Troubleshooting
Maintenance and Service Guide 2–23
Troubleshooting
Y
N
OK?
Keyboard
not operating
properly.
External
device
works?
Replace
system
board.
Replace
system
board.
Connect computer
to good external
keyboard.
Reseat internal
keyboard
connector
(if applicable).
Replace internal
keyboard or
cable.
OK?
Y
N
Y
N
Done Done
Flowchart 2.18—Nonfunctioning Keyboard
2–24 Maintenance and Service Guide
Flowchart 2.19—Nonfunctioning Pointing
Y
N
OK?
Pointing device
not operating
properly.
External
device
works?
Replace
system
board.
Replace
system
board.
Connect computer
to good external
pointing device.
Reseat internal
pointing device
connector
(if applicable).
Replace internal
pointing device
or cable.
OK?
Y
N
Y
N
Done Done
Device
Troubleshooting
Maintenance and Service Guide 2–25
Y
Disconnect all
power from
the computer
and open.
No network
or modem
connection.
N
Done
Digital
line?
Network
or modem jack
active?
Replace jack
or have jack
activated.
Connect
to nondigital
line.
NIC/modem
configured
in OS?
Reload
drivers and
reconfigure.
Reseat NIC/modem
(if applicable).
Replace the
NIC/modem
(if applicable).
Replace
system
board.
OK?
OK? Done
N
N
N
N
Y
Y
Y
Y
Troubleshooting
Flowchart 2.20—No Network/Modem
Connection
2–26 Maintenance and Service Guide
Illustrated Parts Catalog
This chapter provides an illustrated parts breakdown and a
reference for spare part numbers.
3.1 Serial Number Location
When ordering parts or requesting information, provide the
computer serial number and model number located on the bottom
of the computer.
3
Serial Number Location
Maintenance and Service Guide 3–1
Illustrated Parts Catalog
3.2 Computer Major Components
Computer Major Components
3–2 Maintenance and Service Guide
Illustrated Parts Catalog
Table 3-1
Spare Parts: Computer Major Components
Spare Part
Item Description
1 Display assemblies (include wireless antenna transceivers
and cables)
15.4-inch, WUXGA
15.4-inch, WSXGA
15.4-inch, WXGA+
2 Switch covers (include LED board and LED board cable)
For use with nw8440 and nc8430 models
For use with nx8420 models
3 Keyboards
Keyboard with pointing stick (includes keyboard and pointing stick
cables) for use in:
Number
416413-001
416412-001
416411-001
416405-001
416406-001
Belgium
Brazil
The Czech
Republic
Denmark
France
French Canada
Germany
Greece
Hungary
Iceland
Internationally
Israel
Italy
Japan
Korea
Latin America
Maintenance and Service Guide 3–3
416416-A41
416416-201
416416-221
416416-081
416416-051
416416-121
416416-041
416416-151
416416-211
416416-DD1
416416-B31
416416-BB1
416416-061
416416-291
416416-AD1
416416-161
Norway
Portugal
Russia
Saudi Arabia
Slovakia
Slovenia
Spain
Sweden
Switzerland
Ta iw a n
Thailand
Tu rk ey
The United
Kingdom
The United
States
416416-091
416416-131
416416-251
416416-171
416416-231
416416-BA1
416416-071
416416-101
416416-111
416416-AB1
416416-281
416416-141
416416-031
416416-001
Illustrated Parts Catalog
Computer Major Components
3–4 Maintenance and Service Guide
Illustrated Parts Catalog
Table 3-1
Spare Parts: Computer Major Components (Continued)
Spare Part
Item Description
3 Keyboards (Continued)
Keyboard without pointing stick (includes keyboard cable) for use in:
Brazil
Japan
Korea
Latin America
4 To uchPa ds
With 3 TouchPad buttons
With 2 TouchPad buttons
416417-201
416417-291
416417-AD1
416417-161
Ta iw a n
Thailand
The United
States
Number
416417-AB1
416417-281
416417-001
382675-001
382676-001
Maintenance and Service Guide 3–5
Illustrated Parts Catalog
Computer Major Components
3–6 Maintenance and Service Guide
Illustrated Parts Catalog
Table 3-1
Spare Parts: Computer Major Components (Continued)
Spare Part
Item Description
5 Top covers (include speakers)
For use with nw8440 models without fingerprint reader
For use with nw8440 models with fingerprint reader
For use with nc8430 and nx820 models with
fingerprint reader
For use with nc8430 and nx8420 models without
fingerprint reader
Fingerprint reader board with cable (not illustrated) 416400-001
Plastics Kit 416420-001
Includes:
6a
6b
6c
6d
7 Fan assembly 416409-001
PC Card slot space saver
Bluetooth module cover
Memory module cover (includes 3 captive screws)
Hard drive cover (includes 2 captive screws)
Not illustrated: computer feet (7)
Number
418807-001
416401-001
416403-001
416402-001
8 Heat sink (includes thermal paste) 416408-001
9 Thermal plate 416410-001
10 Processors (include thermal paste)
Intel Core Duo T2600 (2.16-GHz) processor
Intel Core Duo T2500 (2.00-GHz) processor
Intel Core Duo T2400 (1.83-GHz) processor
Intel Core Duo T2300 (1.67-GHz) processor
Maintenance and Service Guide 3–7
413686-001
413685-001
413684-001
413683-001
Illustrated Parts Catalog
Computer Major Components
3–8 Maintenance and Service Guide
Illustrated Parts Catalog
Table 3-1
Spare Parts: Computer Major Components (Continued)
Spare Part
Item Description
11 Mini Card modules
802.11b/g HS WLAN module for use in North America 407253-001
802.11b/g HS WLAN module for use in the countries
listed below. These countries are categorized as the
rest of the world (ROW).
Number
407253-002
China
Ecuador
Haiti
802.11b/g HS WLAN module for use in Japan 407253-291
802.11b/g LJ WLAN module for use in North America 407254-001
802.11b/g LJ WLAN module for use in the ROW
countries listed below.
China
Ecuador
Haiti
802.11b/g LJ WLAN module for use in Japan 407254-291
802.11a/b/g GL WLAN module for use in the countries
listed below. These countries are categorized as most
of the world (MOW 1).
Antigua &
Barbuda
Argentina
Australia
Bahamas
Barbados
Brunei
Honduras
Pakistan
Peru
Honduras
Pakistan
Peru
Canada
Chile
Dominican
Republic
Guam
Guatemala
Hong Kong
Qatar
South Korea
Qatar
South Korea
Panama
India
Indonesia
Malaysia
Mexico
New Zealand
Uruguay
Venezuela
407254-002
Uruguay
Venezuela
407575-001
Paraguay
Saudi Arabia
Ta i wa n
The United
States
Vietnam
Maintenance and Service Guide 3–9
Illustrated Parts Catalog
Computer Major Components
3–10 Maintenance and Service Guide
Illustrated Parts Catalog
Table 3-1
Spare Parts: Computer Major Components (Continued)
Spare Part
Item Description
11 Mini Card modules (Continued)
802.11a/b/g GL WLAN module for use in the countries
listed below. These countries are categorized as most
of the world (MOW 2).
Aruba
Austria
Azerbaijan
Bahrain
Belgium
Bermuda
Bulgaria
Cayman Islands
Columbia
Croatia
Cyprus
Czech Republic
Denmark
Egypt
802.11a/b/g GL WLAN module for use in the ROW
countries listed below.
China
Ecuador
Haiti
El Salvador
Estonia
Finland
France
Georgia
Germany
Greece
Hungary
Iceland
Ireland
Italy
Latvia
Lebanon
The
Philippines
Honduras
Pakistan
Peru
Poland
Portugal
Romania
Russia
Serbia and
Montenegro
Singapore
Slovakia
Liechtenstein
Lithuania
Luxembourg
Malta
Monaco
The Netherlands
Qatar
South Korea
Number
407575-002
Norway
Oman
Slovenia
South Africa
Spain
Sri Lanka
Sweden
Switzerland
Tu r ke y
The United
Uzbekistan
407575-003
Uruguay
Venezuela
Kingdom
802.11a/b/g GL WLAN module for use in Japan 407575-291
Maintenance and Service Guide 3–11
Illustrated Parts Catalog
Computer Major Components
3–12 Maintenance and Service Guide
Illustrated Parts Catalog
Table 3-1
Spare Parts: Computer Major Components (Continued)
Spare Part
Item Description
Number
12 System board (includes RTC battery and 256-MB of
video memory)
13 Memory modules, 1-DIMM
PC2-5300
2048-MB
1024-MB
512-MB
256-MB
14 Modem module 413691-001
15 System board frame 416407-001
16 Serial connector module and cable 416399-001
17 Optical drives
8X Max DVD±RW and CD-RW Double-Layer
Combo Drive
4X Max DVD±RW and CD-RW Double-Layer
Combo Drive
24X Max DVD/CD-RW Combo Drive
8X Max DVD-ROM drive
18 USB/audio board (includes USB board cable and
audio board cable)
19 Base enclosure 416404-001
20 Bluetooth® module (includes Bluetooth
module cable)
417506-001
414046-001
414045-001
414044-001
PC2-4200
2048-MB
1024-MB
512-MB
256-MB
416397-001
417505-001
414042-001
414041-001
414040-001
413702-001
413700-001
413701-001
413699-001
416398-001
398393-001
Maintenance and Service Guide 3–13
Illustrated Parts Catalog
Computer Major Components
3–14 Maintenance and Service Guide
Illustrated Parts Catalog
Table 3-1
Spare Parts: Computer Major Components (Continued)
Spare Part
Item Description
21 8-cell, 4.8-AH battery pack 372771-001
22 Hard drives
7200 rpm
100-GB
80-GB
416415-001
417507-001
5400 rpm
120-GB
100-GB
80-GB
60-GB
Number
416414-001
413853-001
413852-001
413851-001
Maintenance and Service Guide 3–15
Illustrated Parts Catalog
3.3 Plastics Kit
3–16 Maintenance and Service Guide
Spare Part Number Information
Item Description
Illustrated Parts Catalog
Table 3-2
Plastics Kit
Spare Part
Number
Plastics Kit
Includes:
1 Memory module compartment cover (includes 1 captive screw,
captured by C clip)
2 Bluetooth module cover (includes 1 captive screw, captured by C clip)
3 Computer feet (8)
4 PC Card slot bezel
5 Hard drive cover (includes 2 captive screws, captured by C clips)
417527-001
Maintenance and Service Guide 3–17
Illustrated Parts Catalog
3.4 Mass Storage Devices
3–18 Maintenance and Service Guide
Table 3- 3
Mass Storage Devices
Spare Part Number Information
Item Description
1 Hard drives (include frame and connector)
7200 rpm
100-GB
80-GB
2 Optical drives (include bezel)
416415-001
417507-001
5400 rpm
120-GB
100-GB
80-GB
60-GB
Illustrated Parts Catalog
Spare Part
Number
416414-001
413853-001
413852-001
413851-001
8X Max DVD±RW and CD-RW Double-Layer
Combo Drive
4X Max DVD±RW and CD-RW Double-Layer
Combo Drive
24X Max DVD/CD-RW Combo Drive
8X Max DVD-ROM drive
Maintenance and Service Guide 3–19
413702-001
413700-001
413701-001
413699-001
Illustrated Parts Catalog
3.5 Miscellaneous (Not Illustrated)
Table 3-4
Miscellaneous (Not Illustrated)
Spare Part Information
Spare Part
Description
90-watt AC adapter 416421-021
External MultiBay II 366143-001
External MultiBay II power cable and stand 366144-001
HP Extended Life Battery 367456-001
HP Docking Station 413267-001
HP Docking Station Miscellaneous Plastics Kit 380089-001
Devices for use in External MultiBay II and HP Docking Station
2X Max DVD±RW and CD-RW Double-Layer Combo Drive 375557-001
Number
5400-rpm, 80-GB hard drive 375198-001
MultiBay 8X DVD-ROM Drive 373314-001
MultiBay 24X DVD/CD-RW Combo Drive 373315-001
USB diskette drive 359118-001
Nylon carrying case 325815-002
3–20 Maintenance and Service Guide
Illustrated Parts Catalog
Table 3-4
Miscellaneous (Not Illustrated)
Spare Part Information (Continued)
Spare Part
Description
Power cords:
For use in the United States 246959-001
For use in Australia 246959-011
For use in Europe, the Middle East, and Africa 246959-021
For use in the United Kingdom 246959-031
For use in Italy 246959-061
For use in Denmark 246959-081
For use in Brazil 246959-201
For use in Japan 246959-291
For use in Korea 246959-AD1
For use in Switzerland 246959-AG1
Number
For use in Israel 246959-BB1
Screw Kit (includes the following screws; refer to
Appendix A, “Screw Listing,” for more information on
specifications and usage)
■ Phillips PM3.0×3.0 screw
■ Phillips PM2.5×13.0 spring-loaded
screw
■ Phillips PM2.5×7.0 screw
■ Phillips PM2.5×5.0 screw
■ Phillips PM2.5×4.0 screw
■ Phillips PM2.5×3.0 screw
■ Phillips PM2.0×8.0 screw
■ Phillips PM2.0×5.0 screw
Maintenance and Service Guide 3–21
■ Phillips PM2.0×4.0 screw
■ Phillips PM2.0×3.0 screw
■ Phillips PM2.0×2.0 screw
■ Phillips PM1.5×3.0 screw
■ Torx8 TM2.5×10.0 screw
■ Torx8 T8M2.5×6.0 screw
■ Torx8 T8M2.5×4.0 screw
■ Hex HM5.0×12.0 screw lock
■ Rubber screw covers
416419-001
Illustrated Parts Catalog
3.6 Sequential Part Number Listing
Table 3- 5
Sequential Part Number Listing
Spare Part
Number Description
246959-001 Power cord for use in the United States
246959-011 Power cord for use in Australia
246959-021 Power cord for use in Europe, the Middle East, and Africa
246959-031 Power cord for use in the United Kingdom
246959-061 Power cord for use in Italy
246959-081 Power cord for use in Denmark
246959-201 Power cord for use in Brazil
246959-291 Power cord for use in Japan
246959-AD1 Power cord for use in Korea
246959-AG1 Power cord for use in Switzerland
246959-BB1 Power cord for use in Israel
325815-002 Nylon carrying case
359118-001 USB diskette drive
366143-001 External MultiBay II
366144-001 External MultiBay II power cable and stand
367456-001 HP Extended Life Battery
372771-001 8-cell, 4.8-AH battery pack
373314-001 MultiBay 8X DVD-ROM Drive for use in External MultiBay II
and HP Docking Station
373315-001 MultiBay 24X DVD/CD-RW Combo Drive for use in External
MultiBay II and HP Docking Station
3–22 Maintenance and Service Guide
Illustrated Parts Catalog
Table 3- 5
Sequential Part Number Listing (Continued)
Spare Part
Number Description
375198-001 5400-rpm, 80-GB hard drive for use in External MultiBay II and
HP Docking Station
375557-001 2X Max DVD±RW and CD-RW Double-Layer Combo Drive for
use in External MultiBay II and HP Docking Station
380089-001 HP Docking Station Miscellaneous Plastics Kit
382675-001 TouchPad with 3 TouchPad buttons
382676-001 TouchPad with 2 TouchPad buttons
398393-001 Bluetooth module (includes Bluetooth module cable)
407253-001 802.11b/g HS WLAN module for use in North America
407253-002 802.11b/g HS WLAN Mini Card module for use in the ROW
countries listed below:
China
Ecuador
Haiti
407253-291 802.11b/g HS WLAN module for use in Japan
407254-001 802.11b/g LJ WLAN module for use in North America
407254-002 802.11b/g LJ WLAN module for use in the ROW countries
listed below:
China
Ecuador
Haiti
407254-291 802.11b/g LJ WLAN module for use in Japan
Maintenance and Service Guide 3–23
Honduras
Pakistan
Peru
Honduras
Pakistan
Peru
Qatar
South Korea
Qatar
South Korea
Uruguay
Venezuela
Uruguay
Venezuela
Illustrated Parts Catalog
Table 3- 5
Sequential Part Number Listing (Continued)
Spare Part
Number Description
407575-001 802.11a/b/g GL WLAN module for use in the MOW1 countries
listed below:
Antigua &
Barbuda
Argentina
Australia
Bahamas
Barbados
Brunei
407575-002 802.11a/b/g GL WLAN module for use in the MOW2 countries
listed below:
Canada
Chile
Dominican
Republic
Guam
Guatemala
Hong Kong
Panama
India
Indonesia
Malaysia
Mexico
New Zealand
Paraguay
Saudi
Arabia
Ta i wa n
The United
States
Vietnam
Aruba
Austria
Azerbaijan
Bahrain
Belgium
Bermuda
Bulgaria
Cayman
Islands
Columbia
Croatia
Cyprus
Czech
Republic
Denmark
Egypt
3–24 Maintenance and Service Guide
El Salvador
Estonia
Finland
France
Georgia
Germany
Greece
Hungary
Iceland
Ireland
Italy
Latvia
Lebanon
The
Philippines
Poland
Portugal
Romania
Russia
Serbia and
Montenegro
Singapore
Slovakia
Liechtenstein
Lithuania
Luxembourg
Malta
Monaco
The
Netherlands
Norway
Oman
Slovenia
South Africa
Spain
Sri Lanka
Sweden
Switzerland
Tu r ke y
The United
Kingdom
Uzbekistan
Illustrated Parts Catalog
Table 3- 5
Sequential Part Number Listing (Continued)
Spare Part
Number Description
407575-003 802.11a/b/g GL WLAN module for use in the ROW countries
listed below:
China
Ecuador
Haiti
407575-291 802.11a/b/g GL WLAN module for use in Japan
413267-001 HP Docking Station
413683-001 Intel Core Duo T2300 (1.67-GHz) processor (includes
thermal paste)
413684-001 Intel Core Duo T2400 (1.83-GHz) processor (includes
thermal paste)
413685-001 Intel Core Duo T2500 (2.00-GHz) processor (includes
thermal paste)
413686-001 Intel Core DuoT2600 (2.17-GHz) processor (includes
thermal paste)
413691-001 Modem module
413699-001 8X Max DVD-ROM drive
413700-001 4X Max DVD±RW and CD-RW Double-Layer Combo Drive
413701-001 24X Max DVD/CD-RW Combo Drive
413702-001 8X Max DVD±RW and CD-RW Double-Layer Combo Drive
413851-001 5400-rpm, 60-GB hard drive
413852-001 5400-rpm, 80-GB hard drive
413853-001 5400-rpm, 100-GB hard drive
Honduras
Pakistan
Peru
Qatar
South Korea
Uruguay
Venezuela
414040-001 1-DIMM, PC2-4200 256 MB memory module
414041-001 1-DIMM, PC2-4200, 512 MB memory module
Maintenance and Service Guide 3–25
Illustrated Parts Catalog
Table 3- 5
Sequential Part Number Listing (Continued)
Spare Part
Number Description
414042-001 1-DIMM, PC2-4200, 1024 MB memory module
414044-001 1-DIMM, PC2-5300, 256 MB memory module
414045-001 1-DIMM, PC2-5300, 512 MB memory module
414046-001 1-DIMM, PC2-5300, 1024 MB memory module
416397-001 System board (includes RTC battery and 256 MB of
video memory)
416398-001 USB/audio board (includes USB board cable and audio board
cable)
416399-001 Serial connector module and cable
416400-001 Fingerprint reader board and cable
416401-001 Top cover for use with nw8440 models with fingerprint reader
(includes speakers)
416402-001 Top cover for use with nc8430 and nx8420 models without
fingerprint reader (includes speakers)
416404-001 Base enclosure
416405-001 Switch cover for use with nw8440 and nc8430 models
(includes LED board and LED board cable)
416406-001 Switch cover for use with nx8420 models (includes LED board
and LED board cable)
416407-001 System board frame
416408-001 Heat sink (includes thermal paste)
416409-001 Fan assembly
416410-001 Thermal plate
3–26 Maintenance and Service Guide
Illustrated Parts Catalog
Table 3- 5
Sequential Part Number Listing (Continued)
Spare Part
Number Description
416411-001 15.4-inch, WXGA display assembly (includes wireless antenna
transceivers and cables)
416412-001 15.4-inch, WSXGA+ display assembly (includes wireless
antenna transceivers and cables)
416413-001 15.4-inch, WUXGA display assembly (includes wireless
antenna transceivers and cables)
416414-001 5400-rpm, 120-GB hard drive
416415-001 7200-rpm, 100-GB hard drive
416416-001 Keyboard with pointing stick for use in the United States
416416-031 Keyboard with pointing stick for use in the United Kingdom
416416-041 Keyboard with pointing stick for use in Germany
416416-051 Keyboard with pointing stick for use in France
416416-061 Keyboard with pointing stick for use in Italy
416416-071 Keyboard with pointing stick for use in Spain
416416-081 Keyboard with pointing stick for use in Denmark
416416-091 Keyboard with pointing stick for use in Norway
416416-101 Keyboard with pointing stick for use in Sweden
416416-111 Keyboard with pointing stick for use in Switzerland
416416-121 Keyboard with pointing stick for use in French Canada
416416-131 Keyboard with pointing stick for use in Portugal
416416-141 Keyboard with pointing stick for use in Turkey
416416-151 Keyboard with pointing stick for use in Greece
416416-161 Keyboard with pointing stick for use in Latin America
416416-171 Keyboard with pointing stick for use in Saudi Arabia
Maintenance and Service Guide 3–27
Illustrated Parts Catalog
Table 3- 5
Sequential Part Number Listing (Continued)
Spare Part
Number Description
416416-201 Keyboard with pointing stick for use in Brazil
416416-211 Keyboard with pointing stick for use in Hungary
416416-221 Keyboard with pointing stick for use in the Czech Republic
416416-231 Keyboard with pointing stick for use in Slovakia
416416-251 Keyboard with pointing stick for use in Russia
416416-281 Keyboard with pointing stick for use in Thailand
416416-291 Keyboard with pointing stick for use in Japan
416416-AB1 Keyboard with pointing stick for use in Taiwan
416416-AD1 Keyboard with pointing stick for use in Korea
416416-B31 Keyboard with pointing stick for use internationally
416416-BA1 Keyboard with pointing stick for use in Slovenia
416416-BB1 Keyboard with pointing stick for use in Israel
416416-DD1 Keyboard with pointing stick for use in Iceland
416417-001 Keyboard without pointing stick for use in the United States
416417-161 Keyboard without pointing stick for use in Latin America
416417-201 Keyboard without pointing stick for use in Brazil
416417-281 Keyboard without pointing stick for use in Thailand
416417-291 Keyboard without pointing stick for use in Japan
416417-AB1 Keyboard without pointing stick for use in Taiwan
416417-AD1 Keyboard without pointing stick for use in Korea
416419-001 Screw Kit
416420-001 Plastics Kit
3–28 Maintenance and Service Guide
Illustrated Parts Catalog
Table 3- 5
Sequential Part Number Listing (Continued)
Spare Part
Number Description
416421-021 90-watt AC adapter
417505-001 1-DIMM, PC2-4200, 2048 MB memory module
417506-001 1-DIMM, PC2-5300, 2048 MB memory module
417507-001 7200-rpm, 80-GB hard drive
418807-001 Top cover for use with nw8440 models without fingerprint
reader (includes speakers)
Maintenance and Service Guide 3–29
Removal and Replacement
This chapter provides essential information for proper and
safe removal and replacement service.
4.1 Tools Required
You will need the following tools to complete the removal and
replacement procedures:
■ Magnetic screwdriver
■ Phillips P0 and P1 screwdrivers
■ Torx8 screwdriver
■ Flat-bladed screwdriver
■ Hex 5.0-mm socket drive for system board screw locks
4
Preliminaries
Maintenance and Service Guide 4–1
Removal and Replacement Preliminaries
4.2 Service Considerations
The following sections include some of the considerations
that you should keep in mind during disassembly and assembly
procedures.
As you remove each subassembly from the computer, place
✎
the subassembly (and all accompanying screws) away from
the work area to prevent damage.
Plastic Parts
Using excessive force during disassembly and reassembly can
damage plastic parts. Use care when handling the plastic parts.
Apply pressure only at the points designated in the maintenance
instructions.
Cables and Connectors
CAUTION: When servicing the computer, be sure that cables are
Ä
placed in their proper locations during the reassembly process.
Improper cable placement can damage the computer.
Cables must be handled with extreme care to avoid damage.
Apply only the tension required to unseat or seat the cables
during removal and insertion. Handle cables by the connector
whenever possible. In all cases, avoid bending, twisting, or
tearing cables. Be sure the cables are routed in such a way that
they cannot be caught or snagged by parts being removed or
replaced. Handle flex cables with extreme care; these cables
tear easily.
4–2 Maintenance and Service Guide
Removal and Replacement Preliminaries
4.3 Preventing Damage to Removable Drives
Removable drives are fragile components that must be handled
with care. To prevent damage to the computer, damage to a
removable drive, or loss of information, observe the following
precautions:
■ Before removing or inserting a hard drive, shut down the
computer. If you are unsure whether the computer is off or
in hibernation, turn the computer on, and then shut it down
through the operating system.
■ Before removing a diskette drive or optical drive, be sure that
a diskette or disc is not in the drive and be sure that the optical
drive tray is closed.
■ Before handling a drive, be sure that you are discharged of
static electricity. While handling a drive, avoid touching the
connector.
■ Handle drives on surfaces covered with at least one inch of
shock-proof foam.
■ Avoid dropping drives from any height onto any surface.
■ After removing a hard drive, an optical drive, or a diskette
drive, place it in a static-proof bag.
■ Avoid exposing a hard drive to products that have magnetic
fields, such as monitors or speakers.
■ Avoid exposing a drive to temperature extremes or liquids.
■ If a drive must be mailed, place the drive in a bubble pack
mailer or other suitable form of protective packaging and label
the package “FRAGILE: Handle With Care.”
Maintenance and Service Guide 4–3
Removal and Replacement Preliminaries
4.4 Preventing Electrostatic Damage
Many electronic components are sensitive to electrostatic
discharge (ESD). Circuitry design and structure determine the
degree of sensitivity. Networks built into many integrated circuits
provide some protection, but in many cases, the discharge
contains enough power to alter device parameters or melt
silicon junctions.
A sudden discharge of static electricity from a finger or other
conductor can destroy static-sensitive devices or microcircuitry.
Often the spark is neither felt nor heard, but damage occurs.
An electronic device exposed to electrostatic discharge might not
be affected at all and can work perfectly throughout a normal
cycle. Or the device might function normally for a while, then
degrade in the internal layers, reducing its life expectancy.
4–4 Maintenance and Service Guide
Removal and Replacement Preliminaries
4.5 Packaging and Transporting Precautions
Use the following grounding precautions when packaging and
transporting equipment:
■ To avoid hand contact, transport products in static-safe
containers, such as tubes, bags, or boxes.
■ Protect all electrostatic-sensitive parts and assemblies with
conductive or approved containers or packaging.
■ Keep electrostatic-sensitive parts in their containers until
the parts arrive at static-free workstations.
■ Place items on a grounded surface before removing items
from their containers.
■ Always be properly grounded when touching a sensitive
component or assembly.
■ Store reusable electrostatic-sensitive parts from assemblies
in protective packaging or nonconductive foam.
■ Use transporters and conveyors made of antistatic belts and
roller bushings. Be sure that mechanized equipment used for
moving materials is wired to ground and that proper materials
are selected to avoid static charging. When grounding is not
possible, use an ionizer to dissipate electric charges.
Maintenance and Service Guide 4–5
Removal and Replacement Preliminaries
4.6 Workstation Precautions
Use the following grounding precautions at workstations:
■ Cover the workstation with approved static-shielding material
(refer to
■ Use a wrist strap connected to a properly grounded work
surface and use properly grounded tools and equipment.
■ Use conductive field service tools, such as cutters,
screwdrivers, and vacuums.
■ When fixtures must directly contact dissipative surfaces, use
fixtures made only of static-safe materials.
■ Keep the work area free of nonconductive materials, such
as ordinary plastic assembly aids and Styrofoam.
■ Handle electrostatic-sensitive components, parts, and
assemblies by the case or PCM laminate. Handle these
items only at static-free workstations.
■ Avoid contact with pins, leads, or circuitry.
■ Turn off power and input signals before inserting or removing
connectors or test equipment.
Table 4-2, “Static-Shielding Materials”).
4–6 Maintenance and Service Guide
Removal and Replacement Preliminaries
4.7 Grounding Equipment and Methods
Grounding equipment must include either a wrist strap or a
foot strap at a grounded workstation.
■ When seated, wear a wrist strap connected to a grounded
system. Wrist straps are flexible straps with a minimum of
one megohm ±10% resistance in the ground cords. To provide
proper ground, wear a strap snugly against the skin at all times.
On grounded mats with banana-plug connectors, use alligator
clips to connect a wrist strap.
■ When standing, use foot straps and a grounded floor mat.
Foot straps (heel, toe, or boot straps) can be used at standing
workstations and are compatible with most types of shoes
or boots. On conductive floors or dissipative floor mats, use
foot straps on both feet with a minimum of one megohm
resistance between the operator and ground. To be effective,
the conductive strips must be worn in contact with the skin.
Other grounding equipment recommended for use in preventing
electrostatic damage includes
■ Antistatic tape.
■ Antistatic smocks, aprons, and sleeve protectors.
■ Conductive bins and other assembly or soldering aids.
■ Nonconductive foam.
■ Conductive tabletop workstations with ground cords of
one megohm resistance.
■ Static-dissipative tables or floor mats with hard ties to
the ground.
■ Field service kits.
■ Static awareness labels.
■ Material-handling packages.
■ Nonconductive plastic bags, tubes, or boxes.
■ Metal tote boxes.
■ Electrostatic voltage levels and protective materials.
Maintenance and Service Guide 4–7
Removal and Replacement Preliminaries
Table 4-1 shows how humidity affects the electrostatic voltage
levels generated by different activities.
Table 4- 1
Typical Electrostatic Voltage Levels
Relative Humidity
Event 10% 40% 55%
Walking across carpet 35,000 V 15,000 V 7,500 V
Walking across vinyl floor 12,000 V 5,000 V 3,000 V
Motions of bench worker 6,000 V 800 V 400 V
Removing DIPS from plastic tube 2,000 V 700 V 400 V
Removing DIPS from vinyl tray 11,500 V 4,000 V 2,000 V
Removing DIPS from Styrofoam 14,500 V 5,000 V 3,500 V
Removing bubble pack from PCB 26,500 V 20,000 V 7,000 V
Packing PCBs in foam-lined box 21,000 V 11,000 V 5,000 V
A product can be degraded by as little as 700 V.
✎
Table 4-2 lists the shielding protection provided by antistatic
bags and floor mats.
Table 4-2
Static-Shielding Materials
Material Use Voltage Protection Level
Antistatic plastic Bags 1,500 V
Carbon-loaded plastic Floor mats 7,500 V
Metallized laminate Floor mats 5,000 V
4–8 Maintenance and Service Guide
5
Removal and Replacement
Procedures
This chapter provides removal and replacement procedures.
There are as many as 72 screws and screw locks, in 14 different
sizes and types, that may have to be removed, replaced, or
loosened when servicing the computer. Make special note of each
screw and screw lock size and location during removal and
replacement.
Refer to Appendix A, “Screw Listing,” for detailed information
on screw and screw lock sizes, locations, and usage.
Maintenance and Service Guide 5–1
Removal and Replacement Procedures
5.1 Serial Number
Report the computer serial number to HP when requesting
information or ordering spare parts. The serial number is
located on the bottom of the computer.
Serial Number Location
5–2 Maintenance and Service Guide
Removal and Replacement Procedures
5.2 Disassembly Sequence Chart
Use the chart below to determine the section number to be
referenced when removing computer components.
Disassembly Sequence Chart
Section Description
5.3 Preparing the Computer for
Disassembly
Battery
5.4 Hard Drive 2 loosened to remove the
5.5 Computer Feet 0
5.6 Optical Drive 1 to remove the optical drive
5.7 External Memory Module 1 loosened to remove the
5.8 Bluetooth Module 1 loosened to remove the
5.9 Keyboard 2
5.10 Fan Assembly 4 loosened on fan assembly
# of Screws Removed
0
0
hard drive cover
1 loosened to remove the
hard drive
4 to disassemble hard drive
2 to remove the optical drive
bracket
memory module
compartment cover
Bluetooth module cover
2 removed to remove
Bluetooth module
4 removed on thermal plate
5.11 Heat Sink 4 loosened
5.12 Processor 1 loosened
Maintenance and Service Guide 5–3
Removal and Replacement Procedures
Disassembly Sequence Chart (Continued)
Section Description
5.13 Internal Memory Module 0
5.14 RTC Battery 0
5.15 TouchPad 1
5.16 Mini Card Module 2
5.17 Switch Cover 3
5.18 Display Assembly 8
To prevent an unresponsive system and the display of a
Å
warning message, install only a Mini Card device
authorized for use in your computer by the governmental
agency that regulates wireless devices in your country. If
you install a device and then receive a warning message,
remove the device to restore computer functionality. Then
contact Customer Care.
5.19 To p C ove r 16 screws
5.20 Modem Module 2
5.21 System Board 4 screws
5.22 System Board Frame 2 screw locks
5.23 Serial Connector Module 0
# of Screws Removed
2 screw locks
3 screws
5.26 USB/Audio Board 2
5–4 Maintenance and Service Guide
Removal and Replacement Procedures
5.3 Preparing the Computer for Disassembly
Before you begin any removal or installation procedures:
1. Shut down the computer. If you are unsure whether the
computer is off or in hibernation, turn the computer on,
and then shut it down through the operating system.
2. Disconnect all external devices connected to the computer.
3. Disconnect the power cord.
Battery Spare Part Number Information
8-cell, 4.8-AHr 372771-001
4. Remove the battery by following these steps:
a. Turn the computer upside down with the rear panel
toward you.
b. Slide the battery release latch on the right 1 and then the
battery release latch on the left 2 to release the battery.
c. Slide the battery pack 3 straight back and remove it.
Removing the Battery Pack
Reverse the above procedure to install the battery pack.
Maintenance and Service Guide 5–5
Removal and Replacement Procedures
5.4 Hard Drive
Hard Drive Spare Part Number Information
7200 rpm
100 GB
80 GB
416415-001
417507-001
5400 rpm
120 GB
100 GB
80 GB
60 GB
1. Prepare the computer for disassembly (Section 5.3).
416414-001
413853-001
413852-001
413851-001
5–6 Maintenance and Service Guide
Removal and Replacement Procedures
2. Loosen the two Phillips PM2.0×5.0 screws 1 that secure the
hard drive cover to the computer.
3. Lift the left side of the hard drive cover 2 and swing it to
the right.
4. Remove the hard drive cover.
The hard drive cover is included in the Plastics Kit, spare part
✎
number 417527-001.
Removing the Hard Drive Cover
Maintenance and Service Guide 5–7
Removal and Replacement Procedures
5. Loosen the Phillips PM2.5×13.0 spring-loaded hard drive
retention screw 1.
6. Grasp the mylar tab 2 on the left side of the hard drive and
slide the hard drive to the right 3 to disconnect it from the
system board.
7. Remove the hard drive 4 from the hard drive bay.
Removing the Hard Drive
5–8 Maintenance and Service Guide
Removal and Replacement Procedures
8. Remove the four Phillips PM3.0×3.0 screws 1 that secure the
hard drive frame to the hard drive.
9. Lift the frame 2 straight up to remove if from the hard drive.
Removing the Hard Drive Frame
Reverse the above procedure to reassemble and install the
hard drive.
Maintenance and Service Guide 5–9
Removal and Replacement Procedures
5.5 Computer Feet
The computer feet are adhesive-backed rubber pads. The feet are
included in the Plastics Kit, spare part number 417527-001.
Replacing the Computer Feet
5–10 Maintenance and Service Guide
Loading...
