HP Compaq L2206tm User Manual

HP Compaq L2206tm and L2206tmp LED Backlit Touch Monitors

User Guide

Microsoft, Windows, and Windows Vista are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

This document contains proprietary information that is protected by copyright. No part of this document may be photocopied, reproduced, or translated to another language without the prior written consent of Hewlett-Packard Company.

First Edition (April 2012)

Document Part Number: 685321-001

About this guide

This guide provides information on setting up the monitor, operating the touch screen, troubleshooting, and technical specifications.

WARNING! Text set off in this manner indicates that failure to follow directions could result in bodily

harm or loss of life.

CAUTION: Text set off in this manner indicates that failure to follow directions could result in damage

to equipment or loss of information.

NOTE: Text set off in this manner provides important supplemental information.

iii

iv About this guide

Table of contents

1 Product features ............................................................................................................... 1

HP LCD Touch Monitors ............................................................................................................ 1

2 Setting up the monitor ...................................................................................................... 3

Unfolding the monitor pedestal base .......................................................................................... 3

Rear components ..................................................................................................................... 4

Connecting the cables .............................................................................................................. 5

Adjusting the monitor ................................................................................................................ 7

Front components ..................................................................................................................... 9

Turning on the monitor ............................................................................................................ 10

Connecting USB devices ......................................................................................................... 11

Removing the monitor pedestal base ........................................................................................ 12

Mounting the monitor .............................................................................................. 13

Locating the rating labels ........................................................................................................ 14

Installing a cable lock ............................................................................................................. 14

3 Operating the touch screen ............................................................................................. 15

Installing the touch software ..................................................................................................... 15

Microsoft Windows 7/Vista/XP (plug and play) ......................................................... 15

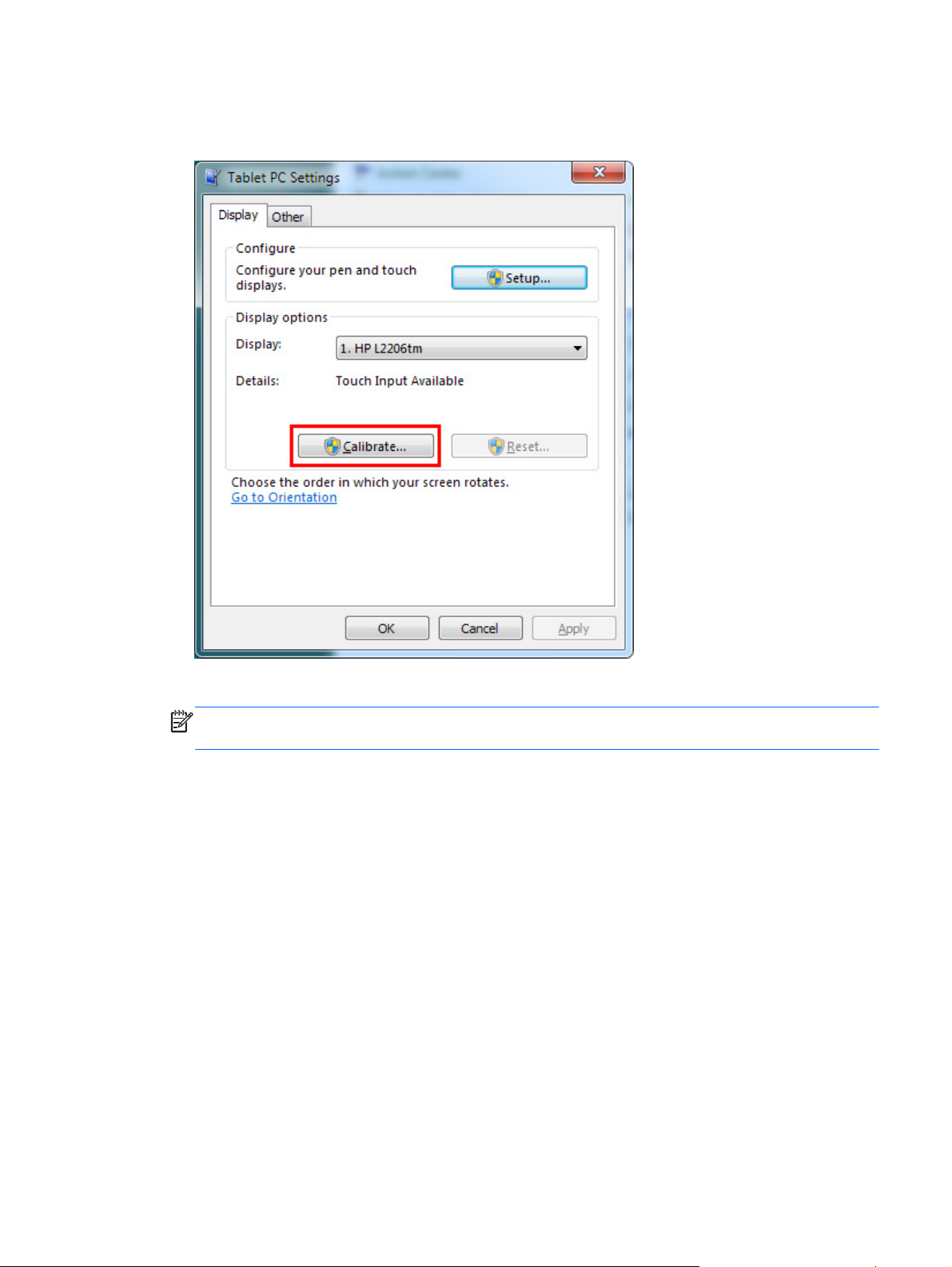

Using the touch function .......................................................................................................... 17

Using an extended display (Windows 7 only) ............................................................. 17

Tips and troubleshooting ......................................................................................................... 20

Tips ....................................................................................................................... 20

Touch screen troubleshooting .................................................................................... 21

4 Finding more information ............................................................................................... 22

Appendix A Technical specifications ................................................................................... 23

L2206tm/L2206tmp ............................................................................................................... 23

Recognizing preset display resolutions ...................................................................................... 25

L2206tm/L2206tmp ................................................................................................ 25

Entering user modes ............................................................................................................... 26

Energy saver feature ............................................................................................................... 26

Appendix B LCD monitor quality and pixel policy ............................................................... 27

1 Product features

HP LCD Touch Monitors

The LCD (liquid crystal display) monitors have an active matrix, thin-film transistor (TFT) panel. The monitor models and features include:

L2206tm model, 54.6 cm (21.5-inch) diagonal viewable area display with 1920 x 1080

●

resolution, plus full-screen support for lower resolutions; includes custom scaling for maximum image size while preserving original aspect ratio

L2206tmp model, 54.6 cm (21.5-inch) diagonal viewable area display with 1920 x 1080

●

resolution, plus full-screen support for lower resolutions; includes custom scaling for maximum image size while preserving original aspect ratio; also includes integrated privacy filter

LED backlight provides better clarity and consumes less energy than traditional CCFL backlights

●

L2206tm has wide viewing angle to allow viewing from a sitting or standing position, or moving

●

side-to-side

Optical touch technology, which is Windows 7 multi-touch logo compliant and plug and play

●

Tilt capability

●

Pivot capability to rotate display to portrait mode

●

Height adjustment capability

●

Removable stand for flexible monitor panel mounting solutions

●

Video signal input to support VGA analog with VGA signal cable provided

●

Video signal input to support DVI digital with DVI-D signal cable provided

●

Video signal input to support DisplayPort digital with DisplayPort signal cable provided

●

USB 2.0 hub with one upstream port (connects to the computer) and two downstream ports

●

(connects to USB devices)

USB cable provided to connect the monitor's USB hub to the USB connector on the computer

●

Plug and play capability, if supported by the system

●

L2206tmp has integrated privacy filter to fulfill application requirements for limited off-axis viewing

●

Security slot provision on rear of monitor for optional cable lock

●

Cable management feature for placement of cables and cords

●

On-screen display (OSD) adjustments in several languages for easy setup and screen optimization

●

HP Display Assistant for adjusting monitor settings and enabling theft deterrence feature

●

Integrated speakers

●

Cleaning kit solution (cloth and fluid)

●

HP LCD Touch Monitors

Passive stylus docked in rear enclosure

●

HDCP copy protection on DVI and DisplayPort inputs

●

Software and documentation disc that includes monitor drivers and product documentation

●

Energy saver feature to meet requirements for reduced power consumption

●

Intelligent Management AssetControl

●

Compliant with the following regulated specifications (for additional certifications and agency

●

notices, refer to the HP LCD Monitors Reference Guide on the disc included with this monitor):

European Union CE Directives

◦

Swedish TCO Requirements

◦

2 Chapter 1 Product features

2 Setting up the monitor

To set up the monitor, ensure that the power is turned off to the monitor, computer system, and other attached devices, and then follow the instructions below.

Unfolding the monitor pedestal base

1. Lift the monitor from its box and place it face down on a flat surface.

2. Hold down the monitor base with one hand (1) then grasp the top of the stand with the other hand

and unfold the display head 90 degrees (2).

CAUTION: Do not touch the surface of the LCD panel. Pressure on the panel may cause non-

uniformity of color or disorientation of the liquid crystals. If this occurs, the screen will not recover to its normal condition.

Figure 2-1 Unfolding the monitor pedestal base

NOTE: When the monitor is unfolded for the first time, the display head is locked from adjusting to a

full-height position. To adjust the display head to full height, press down on the display head to unlock it, and then pull up on the display head to raise it to the full-height position. Refer to step 2 in

the monitor on page 7.

Unfolding the monitor pedestal base

Adjusting

Rear components

Figure 2-2 Rear components

Component Description

1 AC power connector Connects the AC power cable to the monitor.

2 DisplayPort Connects the DisplayPort cable to the monitor.

3 VGA connector Connects the VGA cable to the monitor.

4 DVI-D connector Connects the DVI-D cable to the monitor.

5 Audio connector Connects the audio cable to the monitor.

6 USB upstream connector Connects the USB hub cable to the monitor's USB hub connector

and to a host USB port/hub.

7 USB downstream connectors (2) Connect optional USB devices to the monitor.

8 Passive stylus Housed in rear enclosure. When removed, it can be used as a

touch pointing device.

NOTE: The stylus is not required for optical touch applications.

Fingers and other pointing instruments may be used.

4 Chapter 2 Setting up the monitor
