HP Compaq L1506x User Manual
HP Compaq L1506x LCD Monitor
User Guide
© 2011 Hewlett-Packard Development
Company, L.P.
Microsoft, Windows, and Windows Vista are
either trademarks or registered trademarks
of Microsoft Corporation in the United
States and/or other countries.
The only warranties for HP products and
services are set forth in the express
warranty statements accompanying such
products and services . Nothing herein
should be construed as constituting an
additional warranty. HP shall not be liable
for technical or editorial errors or omissions
contained herein.
This document contains proprietary
information that is protected by copyright.
No part of this document may be
photocopied, reproduced, or translated to
another language without the prior written
consent of Hewlett-Packard Company.
First Edition (February 2011)
Document Part Number: 647372-001
About This Guide
This guide provides information on setting up the monitor, installing drivers, using the on-screen
display menu, troubleshooting and technical specifications.
WARNING! Text set off in this manner indicates that failure to follow directions could result in bodily
harm or loss of life.
CAUTION: Text set off in this manner indicates that failure to follow directions could result in
damage to equipment or loss of information.
NOTE: Text set off in this manner provides important supplemental information.
ENWW iii
iv About This Guide ENWW
Table of contents
1 Product Features ............................................................................................................................................ 1
HP LCD Monitors ................................................................................................................................. 1
2 Safety and Maintenance Guidelines .............................................................................................................. 2
Important Safety Information ................................................................................................................ 2
Maintenance Guidelines ....................................................................................................................... 2
Cleaning the Monitor ............................................................................................................ 3
Shipping the Monitor ............................................................................................................ 3
3 Setting Up the Monitor ................................................................................................................................... 4
Installing the Monitor Pedestal Base .................................................................................................... 4
Connecting the Monitor ........................................................................................................................ 4
Adjusting the Tilt ................................................................................................................................... 5
Turning on the Monitor ......................................................................................................................... 6

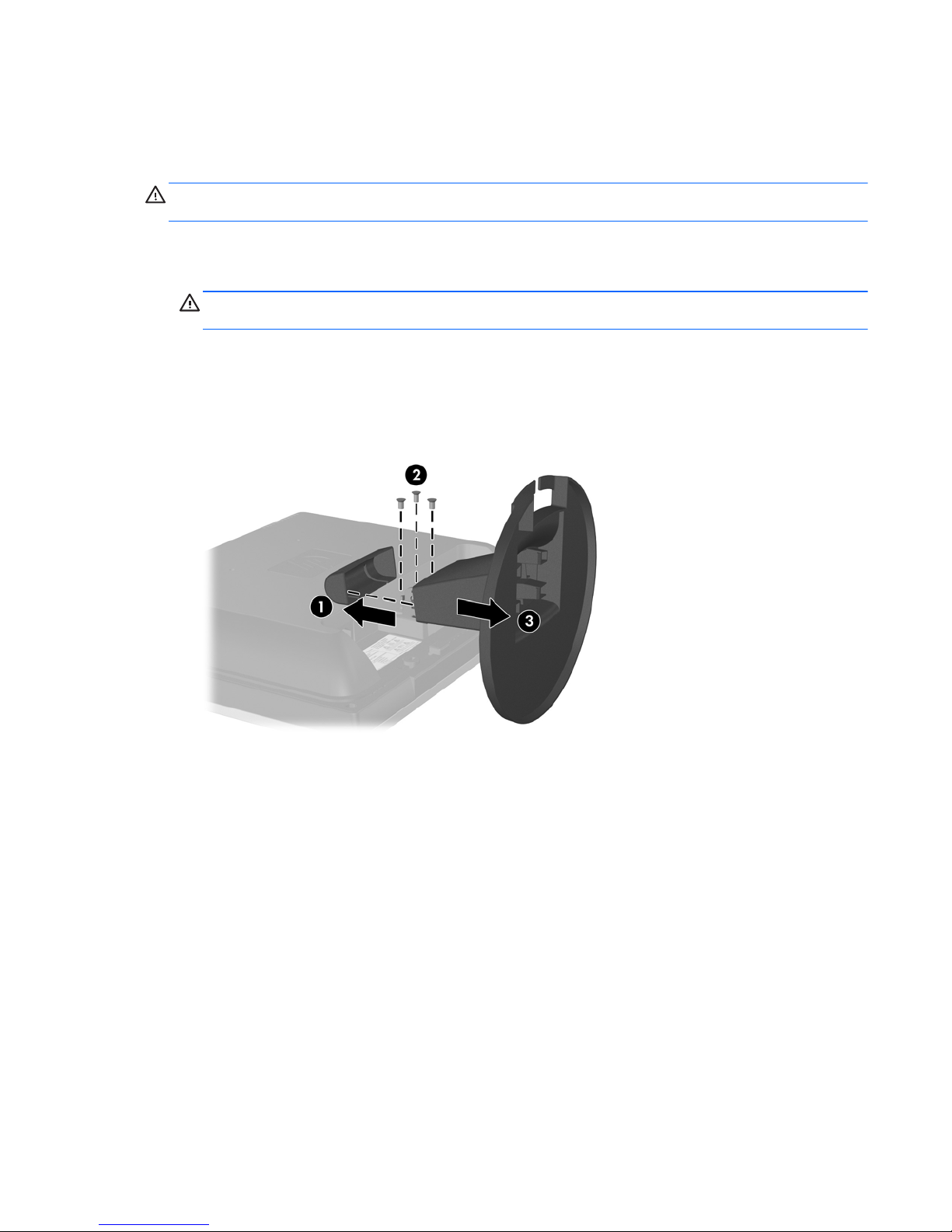

Removing the Monitor Pedestal Base .................................................................................................. 7
Mounting the Monitor ........................................................................................................... 8

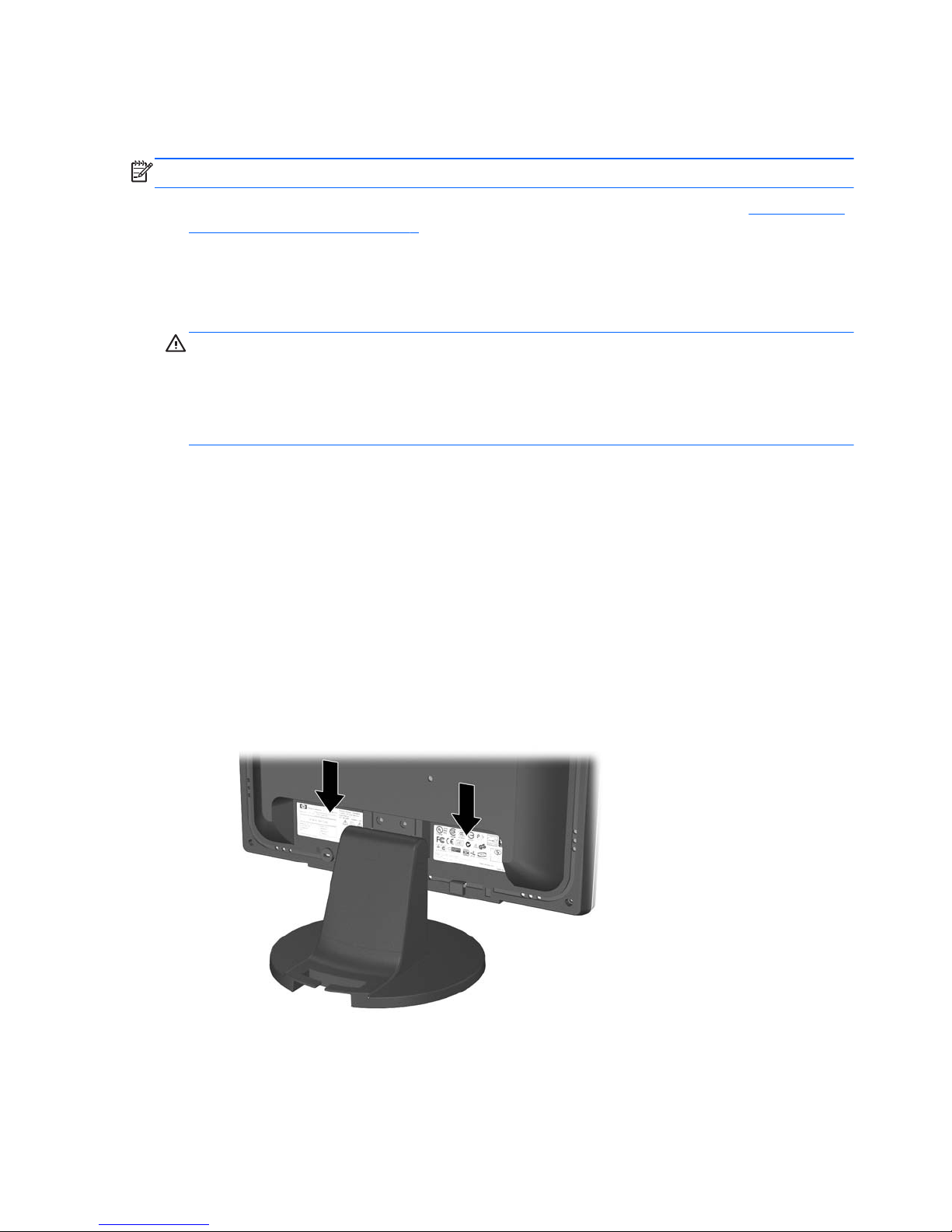

Locating the Rating Labels ................................................................................................................... 8
4 Operating the Monitor .................................................................................................................................... 9
Software and Utilities ............................................................................................................................ 9
The Information File ............................................................................................................. 9
The Image Color Matching File ............................................................................................ 9
Installing the .INF and .ICM Files ....................................................................................................... 10
Installing from the CD ........................................................................................................ 10
Downloading from the Worldwide Web .............................................................................. 10
Using the Auto-Adjustment Function .................................................................................................. 11

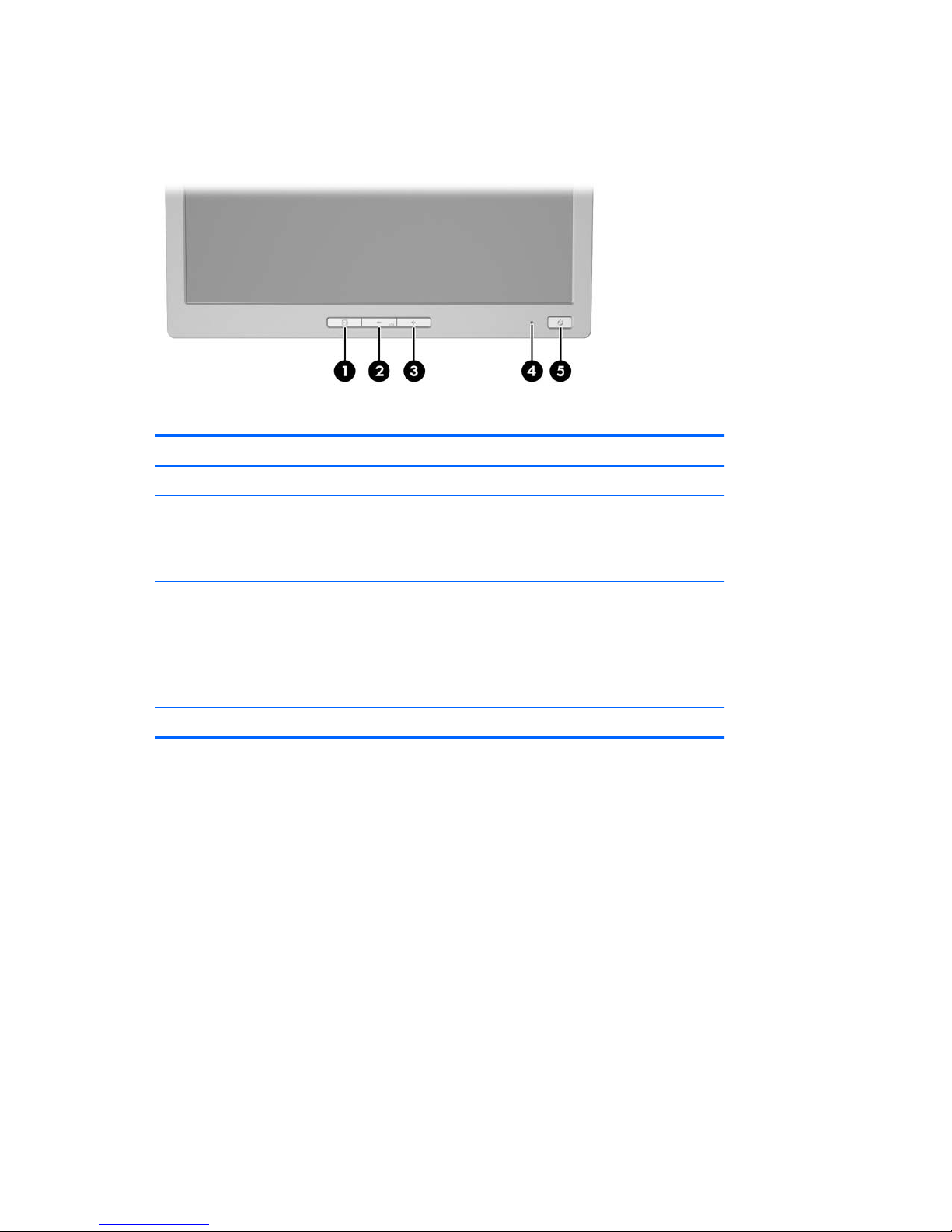

Front Panel Controls .......................................................................................................................... 12
Adjusting the Monitor Settings ............................................................................................................ 13
Using the On-Screen Display Menu .................................................................................. 13
OSD Menu Selections ....................................................................................... 13
Optimizing Image Performance ......................................................................... 16
Identifying Monitor Conditions ............................................................................................................ 18
Sleep Timer Mode .............................................................................................................................. 18
Appendix A Troubleshooting .......................................................................................................................... 20
Solving Common Problems ................................................................................................................ 20
ENWW v
Online Technical Support ................................................................................................................... 21
Preparing to Call Technical Support ................................................................................................... 21
Appendix B Technical Specifications ............................................................................................................ 22
L1506x Model ..................................................................................................................................... 22
Recognizing Preset Display Resolutions ............................................................................................ 23
L1506x Model .................................................................................................................... 23
Entering User Modes .......................................................................................................................... 23
Energy Saver Feature ........................................................................................................................ 24
Appendix C Agency Regulatory Notices ....................................................................................................... 25
Federal Communications Commission Notice ................................................................................... 25
Modifications ...................................................................................................................... 25
Cables ................................................................................................................................ 25
Declaration of Conformity for Products Marked with the FCC Logo (United States Only) ................. 25
Canadian Notice ................................................................................................................................. 26
Avis Canadien .................................................................................................................................... 26
European Union Regulatory Notice .................................................................................................... 26
German Ergonomics Notice ............................................................................................................... 27

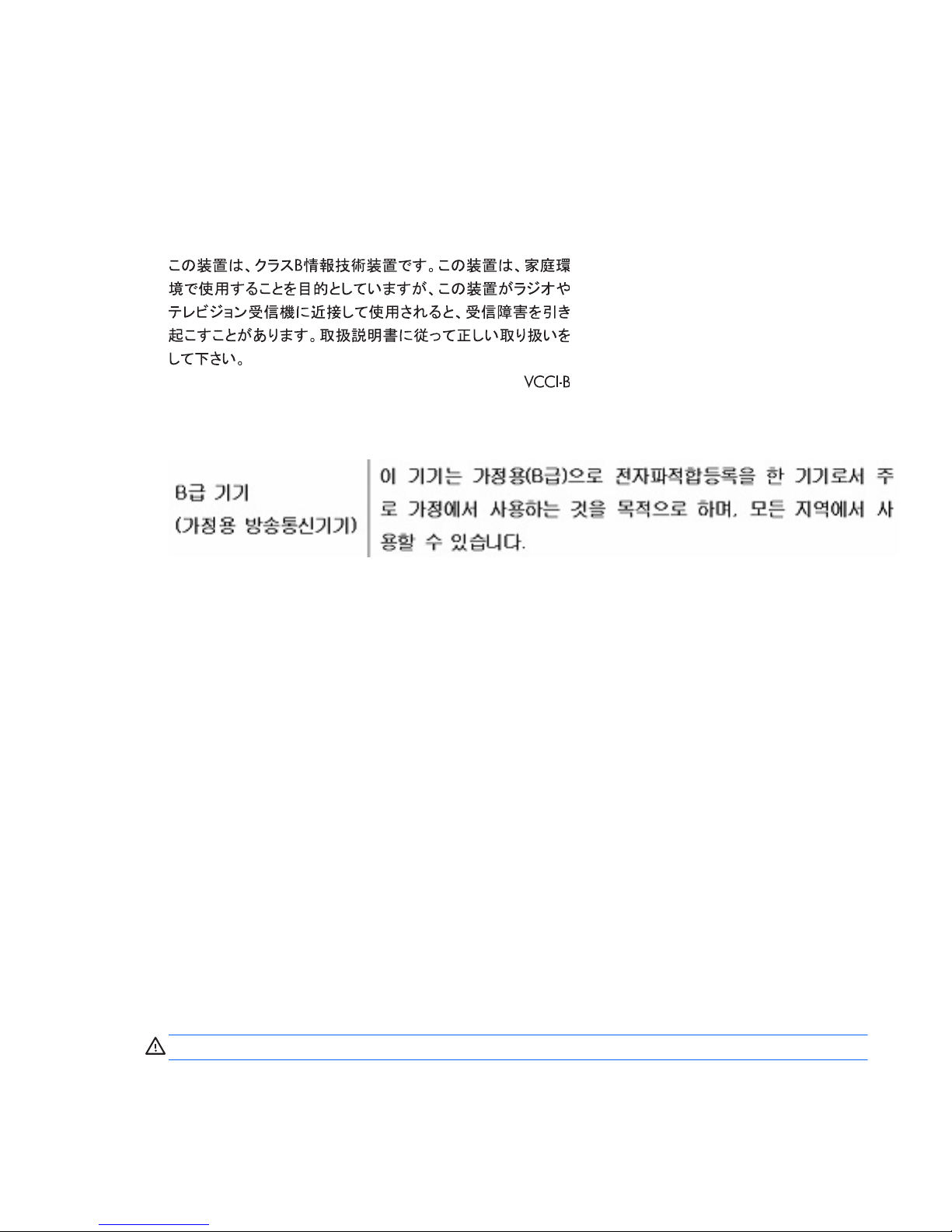

Japanese Notice ................................................................................................................................. 27
Korean Notice ..................................................................................................................................... 27
Power Cord Set Requirements ........................................................................................................... 27
Japanese Power Cord Requirements ................................................................................ 27
Product Environmental Notices .......................................................................................................... 28

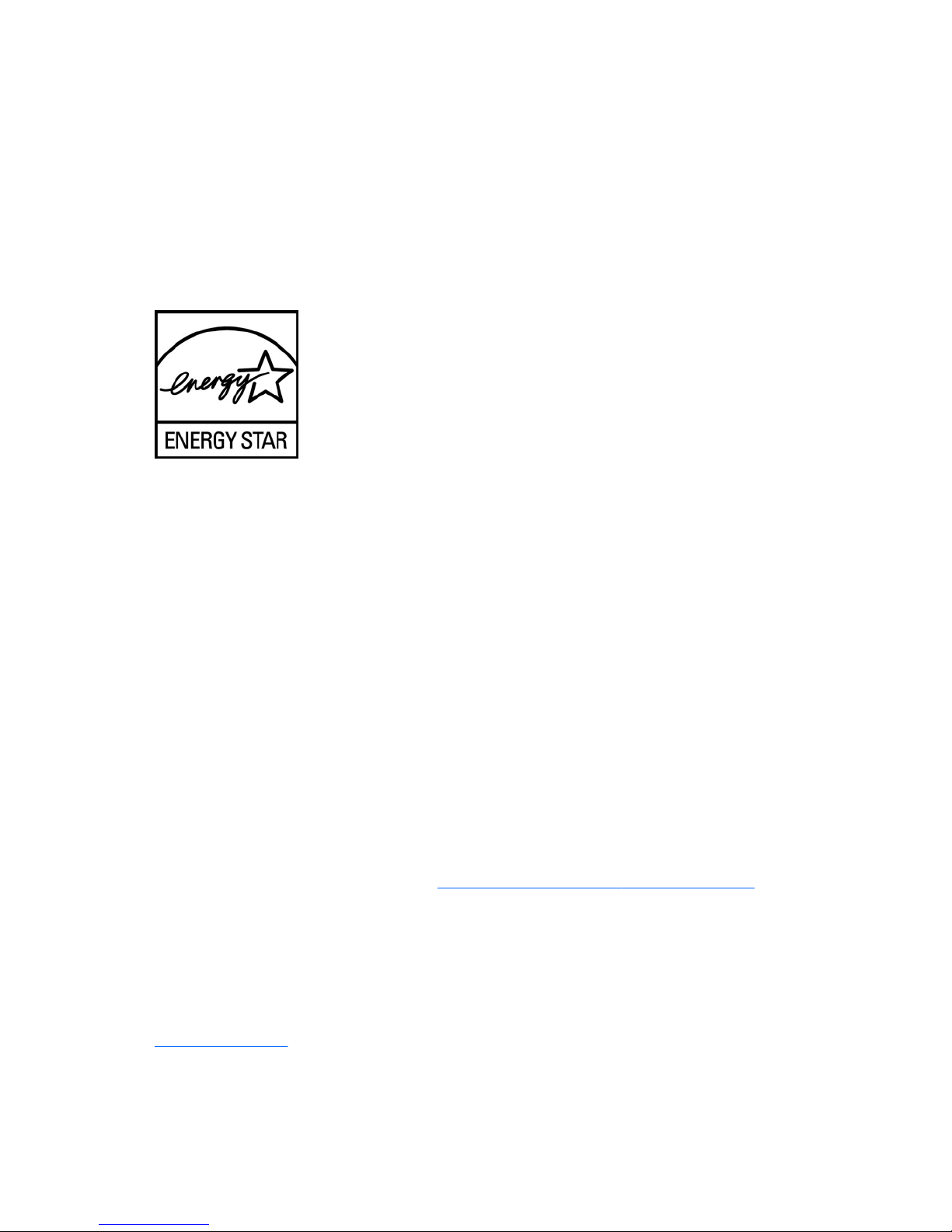

ENERGY STAR® Qualification .......................................................................................... 28

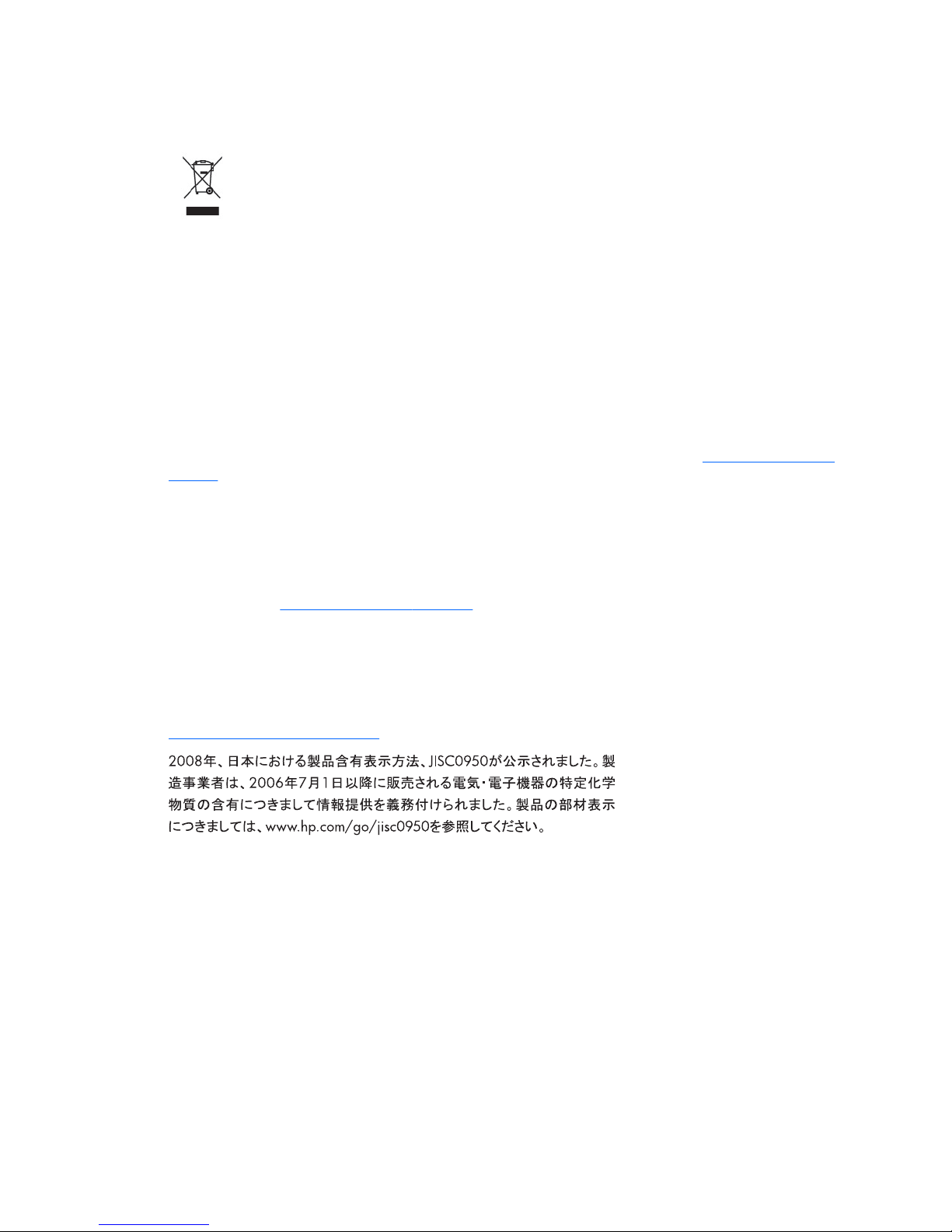

Materials Disposal ............................................................................................................. 28
Disposal of Waste Equipment by Users in Private Household in the European Union ..... 29
HP Recycling Program ...................................................................................................... 29
Chemical Substances ........................................................................................................ 29

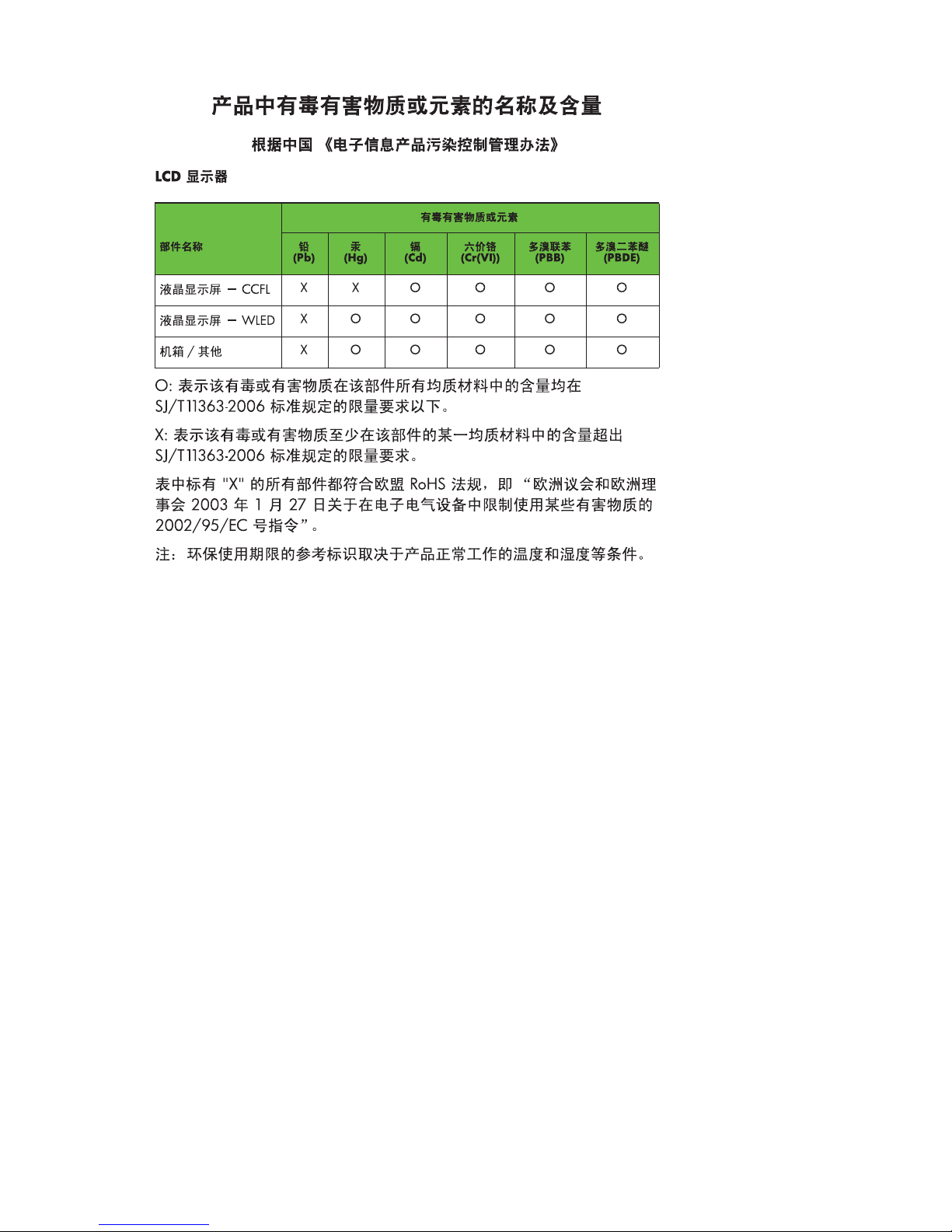

Restriction of Hazardous Substances (RoHS) ................................................................... 29
Turkey EEE Regulation ..................................................................................................... 30
Appendix D LCD Monitor Quality and Pixel Policy ....................................................................................... 31
vi ENWW
1 Product Features
HP LCD Monitors
The LCD (liquid crystal display) monitors have an active matrix, thin-film transistor (TFT) panel. The
monitor models and features include:
● 38.1 cm (15-inch) viewable area display
●
1024 x 768 resolution, plus full-screen support for lower resolutions
●
Wide viewing angle to allow viewing from a sitting or standing position, or moving side-to-side
● Tilt capability
●
Removable stand for flexible monitor panel mounting solutions
●
Video signal input to support VGA analog with VGA signal cable provided
●
Plug and play capability if supported by the system
●
Security slot provision on rear of monitor for optional cable lock
●
Cable management feature for placement of cables and cords
●
On-Screen Display (OSD) adjustments in several languages for easy setup and screen
optimization
●
Software and documentation CD that includes monitor drivers and product documentation
●
Energy saver feature to meet requirements for reduced power consumption
●
Energy Star® qualified
●
Intelligent Management AssetControl
●
Compliant with the following regulated specifications: European Union CE Directives
ENWW HP LCD Monitors 1
2 Safety and Maintenance Guidelines
Important Safety Information
A power cord is included with the monitor. If another cord is used, use only a power source and
connection appropriate for this monitor. For information on the correct power cord set to use with the
monitor, refer to the
Power Cord Set Requirements on page 27.
WARNING! To reduce the risk of electric shock or damage to the equipment:
• Do not disable the power cord grounding feature. The grounding plug is an important safety feature.
• Plug the power cord in a grounded (earthed) outlet that is easily accessible at all times.
• Disconnect power from the product by unplugging the power cord from the electrical outlet.
For your safety, do not place anything on power cords or cables. Arrange them so that no one may
accidentally step on or trip over them. Do not pull on a cord or cable. When unplugging from the
electrical outlet, grasp the cord by the plug.
To reduce the risk of serious injury, read the
Safety and Comfort Guide
. It describes proper
workstation, setup, posture, and health and work habits for computer users, and provides important
electrical and mechanical safety information. This guide is located on the Web at
http://www.hp.com/
ergo and/or on the documentation CD, if one is included with the monitor.
CAUTION: For the protection of the monitor, as well as the computer, connect all power cords for
the computer and its peripheral devices (such as a monitor, printer, scanner) to some form of surge
protection device such as a power strip or Uninterruptible Power Supply (UPS). Not all power strips
provide surge protection; the power strips must be specifically labeled as having this ability. Use a
power strip whose manufacturer offers a Damage Replacement Policy so you can replace the
equipment, if surge protection fails.
Use the appropriate and correctly sized furniture designed to properly support your HP LCD monitor.
WARNING! LCD monitors that are inappropriately situated on dressers, bookcases, shelves, desks,
speakers, chests, or carts may fall over and cause personal injury.
Care should be taken to route all cords and cables connected to the LCD monitor so that they can not
be pulled, grabbed, or tripped over.
Maintenance Guidelines
To enhance the performance and extend the life of the monitor:
●
Do not open the monitor cabinet or attempt to service this product yourself. Adjust only those
controls that are covered in the operating instructions. If the monitor is not operating properly or
has been dropped or damaged, contact an authorized HP dealer, reseller, or service provider.
●
Use only a power source and connection appropriate for this monitor, as indicated on the label/
back plate of the monitor.
●
Be sure the total ampere rating of the products connected to the outlet does not exceed the
current rating of the electrical outlet, and the total ampere rating of the products connected to the
cord does not exceed the rating of the cord. Look on the power label to determine the ampere
rating (AMPS or A) for each device.
2 Chapter 2 Safety and Maintenance Guidelines ENWW
●
Install the monitor near an outlet that you can easily reach. Disconnect the monitor by grasping
the plug firmly and pulling it from the outlet. Never disconnect the monitor by pulling the cord.
●
Turn the monitor off when not in use. You can substantially increase the life expectancy of the
monitor by using a screen saver program and turning off the monitor when not in use.
NOTE: Monitors with a “burned-in image” are not covered under the HP warranty.
●
Slots and openings in the cabinet are provided for ventilation. These openings must not be
blocked or covered. Never push objects of any kind into cabinet slots or other openings.
●
Do not drop the monitor or place it on an unstable surface.
●
Do not allow anything to rest on the power cord. Do not walk on the cord.
●
Keep the monitor in a well-ventilated area, away from excessive light, heat or moisture.
●
When removing the monitor stand, you must lay the monitor face down on a soft area to prevent
it from getting scratched, defaced, or broken.
Cleaning the Monitor
1. Turn off the monitor and unplug the power cord from the back of the unit.
2. Dust the monitor by wiping the screen and the cabinet with a soft, clean antistatic cloth.
3. For more difficult cleaning situations, use a 50/50 mix of water and Isopropyl alcohol.
CAUTION: Spray the cleaner onto a cloth and use the damp cloth to gently wipe the screen
surface. Never spray the cleaner directly on the screen surface. It may run behind the bezel and
damage the electronics.
CAUTION: Do not use cleaners that contain any petroleum based materials such as benzene,
thinner, or any volatile substance to clean the monitor screen or cabinet. These chemicals may
damage the monitor.
Shipping the Monitor
Keep the original packing box in a storage area. You may need it later if you move or ship the
monitor.
ENWW Maintenance Guidelines 3
3 Setting Up the Monitor
To set up the monitor, ensure that the power is turned off to the monitor, computer system, and other
attached devices, then follow the instructions below.
Installing the Monitor Pedestal Base
To install the monitor pedestal base:
1. Place the pedestal base on your desktop or table and check to be sure the arrow on the
underside of the base is facing forward.
NOTE: Do not install the base if the monitor will be used on a wall, swing arm, or other
mounting fixture; instead refer to
Mounting the Monitor on page 8.
2. Using both hands, position the monitor over the pedestal base and press down firmly to lock the
pedestal base in place. When the base locks, it will make a clicking sound. Make sure the
pedestal base is securely locked before continuing with the setup.
Figure 3-1 Inserting the Monitor into the Pedestal Base
Connecting the Monitor
1. Place the monitor in a convenient, well-ventilated location near the computer.
2. Connect the monitor signal cable on the back of the monitor to the video connector on the rear
panel of the computer.
4 Chapter 3 Setting Up the Monitor ENWW
3. Connect one end of the power cord to the AC power connector on the back of the monitor, and
the other end to an electrical wall outlet.
Figure 3-2 Connecting the Signal and Power Cables
WARNING! To reduce the risk of electric shock or damage to the equipment:
Do not disable the power cord grounding plug. The grounding plug is an important safety
feature.
Plug the power cord into a grounded (earthed) electrical outlet that is easily accessible at all
times.
Disconnect power from the equipment by unplugging the power cord from the electrical outlet.
For your safety, do not place anything on power cords or cables. Arrange them so that no one
may accidentally step on or trip over them. Do not pull on a cord or cable. When unplugging from
the electrical outlet, grasp the cord by the plug.
Adjusting the Tilt
Adjust the monitor as needed for your comfort using the monitor’s tilt adjustment capability.
Figure 3-3 Adjusting the Tilt
ENWW Adjusting the Tilt 5
Turning on the Monitor
1. Press the power button on the computer to turn it on.
2. Press the power button on the front of the monitor to turn it on.
CAUTION: Burn-in image damage may occur on monitors that display the same static image on
screen for a prolonged period of time.* To avoid burn-in image damage on the monitor screen, you
should always activate a screen saver application or turn off the monitor when it is not in use for a
prolonged period of time. Image retention is a condition that may occur on all LCD screens. Monitors
with a “burned-in image” are not covered under the HP warranty.
* A prolonged period of time is 12 consecutive hours of non-use.
NOTE: If pressing the power button has no effect, the Power Button Lockout feature may be
enabled. To disable this feature, press and hold the monitor power button for 10 seconds.
NOTE: You can disable the power LED in the OSD menu. Press the Menu button on the front of the
monitor, then select Management > Bezel Power LED > Off.
6 Chapter 3 Setting Up the Monitor ENWW
Loading...
