Quick Specs
Available Technology and Features
Rev 2.0 July 07
45,
10.
HP Compaq dx2280 Microtower Business PC
HP Compaq dx2280 Microtower Business PC ( rev 2.0)
Microtower
10
10
9
9
9
10
1
1
1
2
2
2
8
8
8
7
7
7
5
5
5
5
5
4
4
4
6
6
6
3
3
3

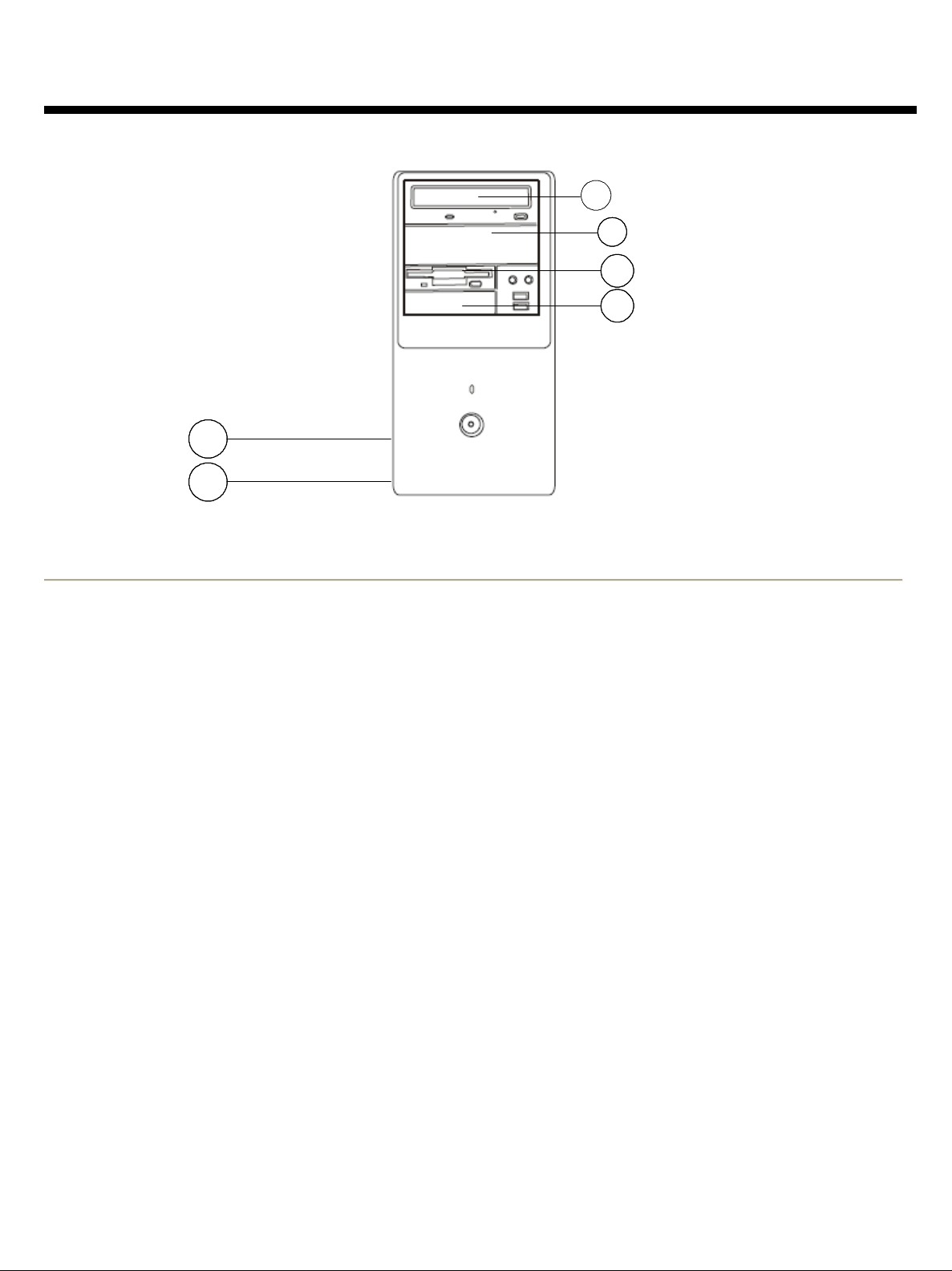

1.Monitor (sold separately) 6.2 external 3.5" drive bays for optional diskette drive
2.2-Button Scroll Mouse 7.2 PCI 2.2 slots, 1 PCI-Ex1 slot ,1 PCI Ex16 slot
3.HP Standard Keyboard 8.6 USB 2.0 ports, 1 serial port, 1 parallel port, 2 PS/2, 1 RJ1 VGA, 1 audio in, 1 audio out, 1 MIC
4.Front I/O – 2 USB 2.0 ports & MIC, Headset 9.300-watt max power supply
5.2 internal 3.5" drive bays
2 external 5.25" drive bays for optional optical drives
At A Glance
• Intel® Core 2 Duo, Pentium Dual Core, Pentium D, Celeron D, Celeron Conroe-L processors.
• Choice of operating systems:
Microsoft Windows Vista Basic, Microsoft Windows Vista Business, Microsoft Windows XP Home
Microsoft Windows XP Professional,FreeDOS
• Red hat Linux
• Intel 945G Express chipset
• Intel Graphics Media Accelerator 950
• Single or dual channel DDRII SDRAM system memory
• PCI Express I/O bus
• Integrated SATA II controller
• Integrated Ultra ATA/100 controller
• Integrated Realtek 10/100/1000 Network Connection
• Integrated Realtek High Definition Audio
• Choice of hard drives and optical drives
• Optional Internal Speaker
• UL and FCC certified
• Protected by HP Services. Terms and conditions vary by country. Certain restrictions & exclusions apply.
Quick Specs
Available Technology and Features
Rev 2.0 July 07
Intel Celeron D Processors:
Processor and Speed
One of the following
Intel Celeron D 326 Processor
(2.53-GHz, 256-KB L2 cache, 533-MHz FSB)
Intel Celeron D 331 Processor
(2.66-GHz, 256-KB L2 cache, 533-MHz FSB)
Intel Celeron D 336 Processor
(2.80-GHz, 256-KB L2 cache, 533-MHz FSB)
Intel Celeron D 346 Processor
(3.06-GHz, 256-KB L2 cache, 533-MHz FSB)
Intel Celeron D 347 Processor
(3.06-GHz, 512-KB L2 cache, 533-MHz FSB)
Intel Celeron D 351 Processor
(3.20-GHz, 256-KB L2 cache, 533-MHz FSB)
Intel Celeron D 352 Processor
(3.20-GHz, 512-KB L2 cache, 533-MHz FSB)
Intel Celeron D 355 Processor
(3.33-GHz, 256-KB L2 cache, 533-MHz FSB)
Intel Celeron D 356 Processor
(3.33-GHz, 512KB L2 cache, 533-MHz FSB)
Intel Celeron D 365 Processor
(3.6-GHz, 512KB L2 cache, 533-MHz FSB)
Intel Pentium D Processors
HP Compaq dx2280 Microtower Business PC
Intel Pentium D 915 Processor
(2.8 -GHz, 2x2MB L2 cache, 800-MHz FSB)
Intel Pentium D 925 Processor
(3.0-GHz, 2x2MB L2 cache, 800-MHz FSB)
Intel Pentium D 935 Processor
(3.2-GHz, 2x2MB L2 cache, 800-MHz FSB)
Intel Pentium D 945 Processor
(3.4-GHz,2 x 2MB L2 cache, 800-MHz FSB)
Intel Pentium D 950 Processor
(3.40-GHz, 2x2MB L2 cache, 800-MHz FSB)
Intel Pentium D 960 Processor
(3.60-GHz, 2x2MB L2 cache, 800-MHz FSB)
Intel Pentium 4 Processors
Intel Pentium 4 531 Processor
(3.0-GHz, 1MB L2 cache, 800-MHz FSB)
Intel Pentium 4 541 Processor
(3.2-GHz, 1MB L2 cache, 800-MHz FSB)
Intel Pentium 4 631 Processor
(3.0-GHz, 2MB L2 cache, 800-MHz FSB)
Intel Pentium 4 641 Processor
(3.2-GHz, 2MB L2 cache, 800-MHz FSB)
Intel Pentium 4 651 Processor
(3.4-GHz, 2MB L2 cache, 800-MHz FSB)
Intel Pentium 4 661 Processor
(3.6-GHz, 2MB L2 cache, 800-MHz FSB)
Intel Core 2 Duo Processor*
Intel Core 2 Duo E6300 Processor
Quick Specs
Available Technology and Features
Rev 2.0 July 07
System Memory
–
(1.86GHz, 2MB L2 Cache, 1066MHz)
Intel Core 2 Duo E6400 Processor
(2.13GHz, 2MB L2 Cache, 1066MHz)
Intel Core 2 Duo E6600 Processor
(2.40GHz, 4MB L2 Cache, 1066MHz)
Intel Core 2 Duo E6700 Processor
(2.66GHz, 4MB L2 Cache, 1066MHz)
Intel Core 2 Duo E4300 Processor
(1.80GHz, 2MB L2 Cache, 800MHz)
Intel Core 2 Duo E6320 Processor
(1.86GHz, 4MB L2 Cache, 1066MHz)
Intel core 2 Duo E6420 Processor
(2.13GHz,4MB L2 Cache,1066MHz)
Intel Core 2 Duo E4400 Processor
(2.0GHz, 2MB L2 Cache, 800MHz)
Intel Core 2 Duo E4500 Processor
(2.2GHz, 2MB L2 Cache, 800MHz)
Intel Pentium Dual Core Processors
Intel Pentium E2180 Processor
(2.0GHz, 1MB L2 Cache, 800MHz)
Intel Pentium E2160 Processor
(1.8GHz, 1MB L2 Cache, 800MHz)
Intel Pentium E2140 Processor
(1.6GHz, 1MB L2 Cache, 800MHz)
Intel Celeron Conroe-L Processors:
Intel Celeron –Conroe-L 440
(2.0GHz, 512KB L2 Cache, 800MHz)
Intel Celeron –Conroe-L 430
(1.8GHz, 512KB L2 Cache, 800MHz)
Intel Celeron –Conroe-L 420
(1.6GHz, 512KB L2 Cache, 800MHz)
*Core 2 Duo Processor supported only on rev 2.0
Operating Systems and
Application Software
Genuine Microsoft Windows XP
Genuine Microsoft Windows Vista Business 32 Bit
Free DOS
Symantec Antivirus (availability varies by region)
HP Insight Diagnostics (on documentation CD)
Desktop Management Tool (availability varies by region) Tool for Health management, Asset Management
and Remote Management
Smart Mon – SMART Disk Monitoring Tool (availability varies by region). Log Tool for Email Alert, Audio
able Sound Alert, Flexibility to configure Auto Launch Programs (e.g. Starting a backup program) , Alert
Pop-Up Window, View Event files
HP Compaq dx2280 Microtower Business PC
80-GB Serial ATA 3.0-Gb/s Hard Drive (7200 rpm)
160-GB Serial ATA 3.0-Gb/s Hard Drive (7200 rpm)
Hard Drives
250-GB Serial ATA 3.0-Gb/s Hard Drive (7200 rpm)
NOTE: The Serial ATA interfaces in the HP Compaq dx2280 Microtower support data transfer rates up
to 3.0 Gb/s.
256 MB DDRII Sync DRAM PC 2-4200 (533-MHz) Non-ECC (1 x 256-MB)
Quick Specs
Available Technology and Features
Rev 2.0 July 07
HP Compaq dx2280 Microtower Business PC
Single Channel
Configurations
System Memory –
Dual Channel
Configurations
Storage Support
One or more of the
following (see Storage
section below)
256-MB DDR IISynch DRAM PC2-5300 (667-MHz) Non-ECC (1 x 256-MB)
512-MB DDR II Synch DRAM PC2-4200 (533-MHz) Non-ECC (1 x 512-MB)
512-MB DDRII Synch DRAM PC2-5300 (667-MHz) Non-ECC (1 x 512-MB)
1-GB DDR II Synch DRAM PC2-4200 (533-MHz) Non-ECC (1 x 1-GB)
1-GB DDR IISynch DRAM PC2-5300 (667-MHz) Non -ECC (1 x 1-GB)
512-MB DDRII Synch DRAM PC2-5300 (667-MHz) Non-ECC (2 x 256-MB)
512-MB DDR II Synch DRAM PC2-4200 (533-MHz) Non-ECC (2 x 256-MB)
1-GB DDRII Synch DRAM PC2-4200 (533-MHz) Non-ECC (2 x 512-MB)
1-GB DDRII Synch DRAM PC2-5300 (667-MHz) Non-ECC (2 x 512-MB)
2-GB DDR Synch DRAM PC2-4200 (533-MHz) Non-ECC (2 x 1-GB)
2-GB DDR Synch DRAM PC2-5300 (667-MHz) Non -ECC (2 x 1-GB)
2-GB DDR Synch DRAM PC2-4200 (533-MHz) Non-ECC (4 x 512MB)
2-GB DDR Synch DRAM PC2-5300 (667-MHz) Non -ECC (4 x 512MB)
4-GB DDR Synch DRAM PC2-4200 (667-MHz) Non -ECC (4 x 1 GB)
4-GB DDR Synch DRAM PC2-5300 (667-MHz) Non -ECC (4 x 1 GB)
NOTE1: For best performance, memory speeds and sizes should not be mixed. See memory section for
more information.
NOTE2: Four (4) DIMM slots (4 GB maximum memory support) -As per Intel specification , in 4GB
configuration user available memory will be approx 3.2GB and remaining memory is allocated to
system resources.
Diskette Drive
1.44-MB Diskette Drive
Optical Drives(SATA)
52X CD-ROM drive (available in APJ only)
48X/32X/48X CD-RW drive
16X/48X DVD-ROM drive
48X/32X Combo CD-RW/DVD-ROM Drive
16X DVD+/-RW
* For Vista OS only DVD/COMBO/DVDRW will be supported.
** PATA ODD not supported on PCB version 2.0 and above.
Keyboard –
One of the following
One of the following
Audio
Communication
Graphics
HP PS/2 Standard Keyboard
HP USB Standard Keyboard
PS/2 2-Button Scroll Mouse Mouse –
USB 2-Button Optical Scroll Mouse
PS2 – Optical Mouse
8-channel High definition audio ( Realtek ALC 883)
Integrated Realtek 10/100/1000 Network Connection (RTL8110SX)
Agere 56K PCI Modem
On board Intel Graphics Media Accelerator 950
Quick Specs
Rev 2.0 July 07
Socket T
System Details
HP Compaq dx2280 Microtower Business PC
Base Unit
Slots
Bays
• Micro ATX Microtower chassis, including power supply and front bezel
• Six drive bays and three expansion slots
• Microsoft operating system CD
• System board with Intel 945G Express chipset, integrated Realtek 10/100/1000 Network
Connection, integrated graphics and audio, 2 PCI slots, 1 PCIEx16 ,1 PCI Express x1 slot, 4
DDR II DIMM memory slots
• (2) Serial ATA data cable
• System fan
• Product documentation on CD
• HP system restore CD
• Power cord
• Chassis intrusion alert
PCI Two (2) PCI 2.2 slots on PCA
One (1) PCI Express x1 slot on PCA
One (1) PCI Express x16 slot on PCA
Memory Expansion Four (4) DIMM slots (4 GB maximum memory support) **As per In tel
specification , in 4GB configuration user available memory will be approx
3.2GB and remaining memory is allocated to system resources**
Internal Two (2) 3.50" internal
External Two (2) 5.25" external
Two (2) 3.50" external
USB Support
Interfaces
Weight & Dimensions
High-speed USB 2.0 controller
Two (2) front ports; Six (6) rear ports
One (1) parallel port
One (1) serial port
One (1) PS/2 keyboard port
One (1) PS/2 mouse port
One (1) analog VGA video port
One (1) line in; one (1) line out; one (1) mic in
One (1) RJ45 network port
Front Audio
One (1) Speaker
One (1) MIC
Châssis Dimensions
(H x W x D)
Packaged Dimensions
(L x W x H)
System Weight ~ 12.0 kg ( depend on configuration)
Shipping Weight ~ 13.0 kg ( depend on configuration)
14.37 x 7.08 x 15.75 in
(36.5 x 18.0 x 40.0 cm)
23.2 x 19.6 x 10.9 in
(58.9 x 49.9 x 27.8 cm)
Intel Pentium Conroe
Processor
Coprocessor Integrated
CPU Socket Type/Number
Quick Specs
Rev 2.0 July 07
System Details
CPU Package LGA775
Front Side Bus Speed 533/800/1066MHz
Cache Memory 1-MB L2 /2 MB /4 MB Advanced Transfer –depend on CPU
HP Compaq dx2280 Microtower Business PC
LGA775 socket
Intel Celeron D
Processor
Chassis
Coprocessor Integrated
CPU Socket Type/Number Socket T
LGA775 socket
CPU Package LGA 775
Front Side Bus Speed 533MHz
Cache Memory 256-KB /512 KB L2 Advanced Transfer Cache
Front Panel
Cooling Solutions
Supported
Slots Supported Four (4) PCI & PCIe expansion slots
Front I/O Two (2) USB 2.0 ports
Rear I/O Standard Micro ATX I/O connectors, including Six (6) USB 2.0 ports
Drive Bays
• Power button
• Power On LED
• HDD Activity LED
• Power Supply Fan
• Active heat sink fan (variable speed)
• System fan
Two (2) Front Audio ports (1 Headphone, 1 MIC)
• Two (2) 5-1/4" external
• Two (2) 3-1/2" external
• Two (2) 3-1/2" internal
Unit Environment and
Operating Conditions
Power Supply 300-watt ATX Power Supply –non-PFC
General Unit Operating Guidelines
• Keep the computer away from excessive moisture, direct moisture and the extremes of heat and
cold, to ensure that unit is operated within the specified operating range.
• Leave a 10.2 cm (4 in) clearance on all vented sides of the computer to permit the required
airflow.
• Never restrict airflow into the computer by blocking any vents or air intakes.
• Do not stack computers on top of each other or place computers so near each other that they are
subject to each other's re-circulated or preheated air.
• Occasionally clean the air vents on the front, back, and any other vented side of the computer.
Lint, dust and other foreign matter can block the vents and limit the airflow.
• If the computer is to be operated within a separate enclosure, intake and exhaust ventilation
must be provided on the enclosure, and the same operating guidelines listed above will still
apply.
Temperature Range Operating Temperature: (10°C to 45 ° C)
Non-operating Temperature: (-30° to 60° C)
Relative Humidity Operating Humidity: 10% to 90% (non-condensing at ambient)
Non-operating Humidity: 5% to 95% (non -condensing at ambient)
Quick Specs
Rev 2.0 July 07
System Details
NOTE: Operating temperature is de-rated 1.0 deg C per 300 m (1000 ft) to 3000 m (10,000 ft) above sea
level, no direct sustained sunlight. Maximum rate of change is 10 deg C/Hr. The upper limit may be
limited by the type and number of options installed.
HP Compaq dx2280 Microtower Business PC
System Board
Socket LGA775 industry standard Micro ATX form factor
Processor
Chipset
Super I/O
Front Side Bus Frequency
Memory
Clock Generator
Integrated Graphics
Audio
• Socket T; LGA775
• Support single Intel Core 2 Duo, Pentium Dual Core, Pentium D ,
Celeron D ,Celeron Conroe-L Processors
• Intel 945G Express
• Intel ICH7
• ITE IT8712/8718 ( ITE IT8718 supports only in rev2.0 and above)
• 533/800/1066-MHz(1066-MHz supports Rev2.0 and above)
• PC4200/5300 DDRII SDRAM
• 4 x DIMM slots
• Support for single or dual-channel configurations
• Cypress CY28411
• Intel Graphics Media Accelerator (GMA) 950
• Realtek ALC883 8 channel High definition audio
LAN
IDE
SATA
Expansion Slots
BIOS
Manageability
Industrial Standard
• Integrated Realtek 10/100/1000 ( RTL8110SX ) network
controller
• Support all PIO modes
• 1 x IDE ports support up to 2 devices
• Support Ultra ATA 33/66/100
• Four Serial ATA interfaces support data transfer rates up to 3.0
Gb/s
• 2 x PCI 2.2 slots
• 1 x PCI Express x1 slot
• 1 x PCI Express x 16 slot
• 4Mbit flash EEPROM
• WfM 2.0, SMBus, DMI 2.0, WOL, PXE
• PCI 2.3 compliant
• USB 2.0
Quick Specs
Rev 2.0 July 07
System Details
HP Compaq dx2280 Microtower Business PC
Rear Side I/O Ports
On Board I/O Interfaces
Board Size
Additional Features
• 1 x PS/2 keyboard port
• 1 x PS/2 mouse port
• 6x USB 2.0 ports
• 1 x RJ-45 10/100/1000 port
• 1 x serial port
• 1 x parallel port
• 1 x DB 15 pin analog VGA port
• 3 x audio ports
• 1 x ATX power connector
• 1 x +12V power connector
• 1 x Floppy connector
• 1 x Front panel connector, Switch, LED (ON/Flash/OFF)
• 2 x Fan headers for CPU, chassis, with voltage/fan speed control
• 1 x ATAPI headers-CD IN
• 1 x header to support 2 USB 2.0 ports at front side
• Micro-ATX,
• Support S3, S4 and S5
• ACPI status
• Hardware monitor capability
• CPU fan speed control
• Wake on LAN
Network Interface
Power Supply
Integrated Realtek RTL8110SX Network Connection
Hardware Highlights
Features
• ATX Power Supply - non-PFC
• 220 to 230VAC input voltage range
• 50-60 Hz rated line frequency
• 300 watt maximum power
• power supply fan
• Realtek RTL8110SX Platform LAN Connect device
• 10/100/1000 mbps
• IEEE 802.3 10BASE-T compliant physical layer interface
• IEEE 802.3u Auto-Negotiation and 100BASE-TX support
• 10BASE-T auto-polarity correction
• 1:1 transmit transformer ratio support
• Low power (300 mW) typical in active transmit mode
• Reduced power(less than 50 mW) in "unplugged mode"
• Automatic detection of "unplugged mode"
• ACPI support
• Magic Packet filtering for Wake on LAN support
• Automatic detection of "unplugged mode"
• Low power (less than 300 mW in active transmit mode)
• Platform LAN connect interface support
• Low power 3.3 V device
Quick Specs
Rev 2.0 July 07
Random vibration at 0.008G²/Hz,
System Details
• Over Voltage Protection
• Over Current Protection
• Short Circuit Protection
• FCC ,UL approved
HP Compaq dx2280 Microtower Business PC
Power Conservation
‘Energy Saver‘
System Environmental
Specs
• ACPI 2.0 support
• Screen blanking
• Hard drive 'Idle' mode
• System Idle mode
• Processor/Cache memory power-down (S3)
• Values are subject to change without notification and are for reference only.
• Performance of system, options, and ancillary equipment will vary depending on the system
configuration.
• Levels presented do not account for non-HP/Compaq installed hardware.
Ambient Air
Temperature
Humidity
Altitude
Shock
Vibration
Operating
Storage
Operating
Storage
Operating
Non-Operating
Listed are the levels of shock the product can withstand with NO damage
being incurred? The values represent peak input acceleration during a 2~3
ms half-sine shock pulse, 11 ms trapezoidal shock pulse.
Non-Operating
Listed are the levels of vibration the product can withstand with NO damage
being incurred? The values represent a flat random vibration input
acceleration prof ile across the given frequency range.
Operating
Non-Operating
50° to 113°F (10° to 45°C) at sea level with an
altitude de-rating of 1.0°C per every 1000 ft (300
m) above sea level to a maximum of 8000 ft
(2500 m), no direct sustained sunlight.
Maximum rate of change is 77°F/Hr (25°C/Hr).
The upper limit may be limited by the type and
number of options installed.
-22° to 140°F (-30° to 60°C) –
Maximum rate of change: 410°F/Hr (210°C/Hr).
10% to 90% relative humidity (Rh), 86°F (30°C)
maximum wet bulb temperature, non-condensing
5% to 95% relative humidity (Rh), 101.66°F
(38.7°C) maximum wet bulb temperature, noncondensing
0 to 8,000 feet (0 to 2438.4 meters) – This value
may be limited by the type and number of
options installed. Maximum allowable altitude
change rate is 1,000 ft/min (304.8 m/min).
0 to 30,000 feet (0 to 9,144 meters) – Maximum
allowable altitude change rate is 1200 ft/min
(365.76 m/min).
40G's (Half-sine Shock)
40G's (Trapezoidal Shock)
Random vibration at 5Hz@0.00025G2/Hz,
10Hz@0.01G2/Hz, 100Hz@0.01G2/Hz,
300Hz@0.00001G2/Hz
5Hz to 300Hz, (0.25G's nominal).
Quick Specs
Rev 2.0 July 07
System Details
Acoustic Noise
HP Compaq dx2280 Microtower Business PC
10Hz to 500Hz, (2 Grms nominal).
Listed are the declared A-WEIGHTED SOUND POWER LEVELS (LWAd)
and declared average desktop seated operator position A-WEIGHTED
SOUND PRESSURE LEVELS (LpAm) when the product is operating in a
73.4°F (23°C) ambient environment.
IDLE (Fixed disk drive
spinning)
Operating (Random
write)
Desktop Average LpAm = 35 dBA
Desktop Average LpAm = 42 dBA
Service and Support
On-site Warranty
or second business-day
Additional configurable warranty options (sold separately) include: three years parts and one year labor
(3/1/1), or 3 years next business day, three years parts and three years labor (3/3/3).
NOTE 1: Terms and conditions may vary by country. Certain restrictions and exclusions apply.
NOTE 2: On-site service may be provided pursuant to a service contract between HP and an authorized
HP third-party provider, and is not available in certain countries. Global service response times are based
on commercially reasonable best effort and may vary by country.
NOTE 3: Technical telephone support applies only to HP-configured Compaq and third-party HPqualified hardware and software. Toll-free calling and 24 x 7 support may not be available in some
countries.
Note 1
: One-year (1-1-1) limited warranty delivers one year of on-site, next business day
Note 2
service for parts and labor and includes free telephone support
Note 3
24 x 7.
Quick Specs
After
Rev 2.0 July 07
-Market Options
Communication Modems
Agere PCI Hi-Speed 56K International SoftModem
RJ11 Modem adapter Kit ( country /network) specific
HP Compaq dx2280 Microtower Business PC
EK694AA
DC131C
Hard Disk Drives
Removable Storage
Devices
Input Devices
250-GB SATA 3.0-Gb/s Hard Drive PY278AA
160-GB SATA 3.0-Gb/s Hard Drive PY277AA
80-GB SATA 3.0-Gb/s Hard Drive PY276AA
Diskette Drive
1.44-MB Internal Diskette Drive for dx2280 EY084AA
1.44-MB USB Diskette Drive – External DC141B
USB Drive Key
512-MB HP Drive Key II (USB 2.0) ED516AA
1GB HP Drive Key II (USB 2.0) AG382AA
Keyboards
HP PS/2 Standard Keyboard DT527A
HP USB Standard Keyboard
HP USB Smart Card Keyboard
Mice
HP PS/2 2-Button Scroll Mouse DD440B
HP USB 2-Button Optical Scroll Mouse DC172B
HP PS/2 2-Button Optical Scroll Mouse EY703AA
DT528A
ED707AA
Memory
Optical Drives (Only PATA)
Optical Drives (Only SATA)
Miscellaneous
Accessories
1-GB PC4200 (DDRII-533) DIMM PB557AA
512-MB PC4200 (DDRII-533) DIMM PB560AA
256-MB PC4200 (DDRII-533) DIMM
1-GB PC5300 (DDRII-667) DIMM
512-MB PC5300 (DDRII-667) DIMM
256-MB PC5300 (DDRII-667) DIMM
Adaptec FireConnect 2100 FireWire (1394) PCI Card
USB to Serial Adaptor
PB558AA
PX976AA
PX975AA
PX974AA
52X Max CD-ROM Drive (available in Asia Pacific and Japan only) AG041AA
48X/32X/48X CD-RW Drive DL975B
48X/32X Combo Drive CD-RW / DVD-ROM Drive DL976B
16X/48X DVD-ROM Drive PR596A
16X DVD+/-RW PR595A
HP 52X SATA CD-ROM (APJ) AH045AA
HP 48X/32X SATA Combo Drive (CDRW/DVD) AH046AA
HP 16X/48X SATA DVD-ROM Drive AH047AA
HP 16X SATA DVD+/-RW Drive (Dual Format, Double Layer, Light Scribe) AH048AA
PA997A
EM449AA
Quick Specs
After
Rev 2.0 July 07
PX848AA
PX849AA
PX850AA
-Market Options
HP Compaq dx2280 Microtower Business PC
Monitors
HP L1506 Flat Panel Monitor (15" analog only)
HP L1506S Flat Panel Monitor (15" analog only) GL831AA
HP L1706 Flat Panel Monitor (17" analog only)
HP L1906 Flat Panel Monitor (19" analog only)
HP L1740 Flat Panel Monitor (17" analog only) PL766AA
HP L1755 Flat Panel Monitor (17" analog only)
HP L1940T Flat Panel Monitor (19" analog only)
HP L1955 Flat Panel Monitor (19" analog only) PD974AA
HP L2065 Flat Panel Monitor 20" analog only) EF227A4
HP S5502 15” CRT
HP S7540 17” CRT
HP v7650 FLAT FACE CRT
PL777AA
EM869AA
PQ560AA
PF997AA
PF996AA
Quick Specs
Rev 2.0 July 07
HP Compaq dx2280 Microtower Business PC
Quick Specs
Rev 2.0 July 07
Storage
55
Internal
66
HP Compaq d2x2280 Microtower Business PC
11
22
33
44
HP Compaq dx2280 Microtower Business PC
Maximum Quantity
Supported
Drive Support
Diskette Drives 1 3,4 ICH7
CD-ROM Drives 2 1, 2 ICH7
DVD-ROM Drives 2 1, 2 ICH7
CD-RW/Combo Drives 2 1, 2 ICH7
DVD+/-RW Drives 2 1, 2 ICH7
3.5" Serial ATA Hard Drives 2 5,6 ICH7
Position Supported Controller
Quick Specs
Rev 2.0 July 07
Technical Specifications - Audio
HP Compaq dx2280 Microtower Business PC
Integrated Realtek
ALC883 Audio
Type
High Definition Stereo
Codec
Sampling
Audio Jacks
Power Support
Other
Integrated
Yes
Supports 44.1KHz to 96
Khz
Support 16/20/24 bit PCM
format , 3D audio
Mic-In
Line-In
Line-Out
Digital: 3.3V
Analog: 3.0 to ~5.0 V
Meets performance requirements for audio on PC99/2001 systems
High quality differential CD input
Quick Specs
Rev 2.0 July 07
#ACP: Austria, #ABW: Belgium (Dutch/Flemish), #AKN: Bosnia,
Technical Specifications - Communications
HP Compaq dx2280 Microtower Business PC
Agere 56K PCI Modem
Data Transmission
Data Speeds
Data Standards
Fax Speeds
Fax Mode Capabilities
Error Correction and
Data Compression
Power Management
Upgradeability
Video
Other
Operating Temperature
Operating Humidity
Operating System
Support
Power
Chipset
Dimensions (L X H) Complies with PCI low profile specifications-6.7 x 2.3 in (17.0 x 5.8 cm) and
Connection
Other Features
Safety
EMC
Telecom
Health
Other
Kit Contents
56,000 Kbps maximum downstream data
NOTE: 56 Kbps technology refers to download speeds only and requires
compatible modems at server sites. Other conditions may limit modem speed.
FCC limitations allow a maximum of 53 Kbps during download transmissions.
(Upload only) 33,600/31,200/28,800/26,400/21,600/19,200/16,800/
14,400/12,000/9,600/7,200/4,800/2,400/1,200/300
ITU-T V.90, ITU-T, ITU-T V.34, V.44, V.42, V.42bis21, V.32bis, Bell 212A,
and Bell 103
14,400/12,000/9,600/7,200/4,800/2,400/300 b/s
ITU-T T.31 class 1 FAX, V. 17, V.29, V.27ter, and V.21 Channel 2
V.44, 42bis, V.42 and MNP2-5
ACPI; PPMI 1.1 and wake support with PME and Vaux; meets PCI 2.3
requirements and PC 2001 requirements
Driver upgradeable for future enhancements
ITU-T V.80 video ready interface
TIA/EIA 602 standard AT command set
Integrated DTE interface with speeds of up to 115.2 Kbps, parallel 16550a
UART-compatible interface
Optional ring wakeup signal
32° to 158° F (0° to 70° C)
20% to 90%, non-condensing
Microsoft Windows XP,Windows Vista
Requires a 3.3-V auxiliary power rail on PCI bus
Uses only one PCI load (i.e., one grant/request pair), one shared IRQ, one
electrical load
Agere Systems SV92PL – Integrated PCI interface with 5-V tolerant buffers
and CardBus support
supports high- and low-profile brackets
Single RJ-11 connector
Digital line protection, call progress monitoring via on-board piezo device,
support for high profile and low profile brackets, PnP ID support
UL recognized to UL 1950, 3rd edition (U.S. and Canada); IEC 950 (TUV,
NEMKO, DEMKO, SEMKO); CE Mark, EC 950 (TUV, NEMKO, DEMKO,
SEMKO, CE mark
FCC Part 15, IC ES003, EN 55022, 3rd edition, EN 55024, annex A, EN
61000-4-6, EN 61000-4-8
FCC Part 68, IC-CS-03 (Canada); Worldwide PTT approvals
Not available in Korea or the Republic of South Africa.
Bare PCB material compliant to 94V-0 or better (marked as such)
PC 2001 compliant, PCI version 2.3, WHQL approved; ACPI compliant
DC132D : Agere Systems PCI International Softmodem with full-height
bracket attached, additional low-profile bracket, RJ11 modem cable, driver and
documentation CD.
NOTE: RJ11 modem adapter is not included.
DC131C #xxx: RJ11 modem adapter kit for use with DC132D
Herzegovna, Croatia, Slovenia, Yugoslavia (Slovenian), #AKB: Czech
Quick Specs
Rev 2.0 July 07
Operating system driver
Technical Specifications - Communications
Republic (Czech) & Slovakia, #ABF: France, #ABD: Germany, #AB7: Greece,
#AKC: Hungary, #ABT: Israel, #ABZ: Italy, #ABH: Netherlands, #UUW:
Nordic Region, #ACB: Russia, #ACQ: South Africa, #ACD: Switzerland,
#AB8: Turkey, #ABU: UK, #ABG: Australia, New Zealand, #ACJ: India.
HP Compaq dx2280 Microtower Business PC
Realtek RTL8110SX
Integrated Gigabit
Ethernet Controller
Connector
Controller
Data rates supported
Compliance
Bus architecture
WOL Support
Data transfer mode
Power requirement
Boot ROM support
Network transfer mode
Other features
support
RJ-45
Realtek RTL8110SX PCI LAN Controller
10/100/1000 Mbps
IEEE 802.3, 802.1Q, 802.3ab and 802.3u compliant, 802.3x flow control
PCI 2.2
Yes
Bus-master DMA
+3.3 Volt signaling , 5V PCI I/O tolerant
Yes
Full-duplex
Half-duplex
WOL & PXE support
Auto Negotiation
Cross over Detection and auto correction
ACPI support
Transmit /receipt FIFO – 8K /64K support
Microsoft Windows XP, Windows Vista
Quick Specs
Rev 2.0 July 07
HP Compaq dx2280 Microtower Business PC
Quick Specs
Rev 2.0 July 07
HP Compaq dx2280 Microtower Business PC
Quick Specs
Rev 2.0 July 07
Technical Specifications - Input/Output Devices
HP Compaq dx2280 Microtower Business PC
HP PS/2 or USB
Standard Keyboard
Physical
characteristics
Electrical
Mechanical
Environmental
Operating system
support
Approvals
Ergonomic compliance
Keys
Dimensions (L x W x H) 18.0 x 6.4 x 0.98 in (45.8 x 16.3 x 2.5 cm)
Weight
Operating voltage
Power consumption
ESD
EMI - RFI
MicrosoftPC 99 - 2001
Languages
Keycaps
Switch actuation
Switch life
Switch type
Key-leveling mechanisms
Cable length
Microsoft PC 99 - 2001
Acoustics
Operating temperature
Non-operating
temperature
Operating humidity
Non-operating humidity
Operating shock
Non-operating shock
Operating vibration
Non-operating vibration
Drop (out of box) 26 in (66 cm) on carpet, six-drop sequence
Drop (in box) 42 in (107 cm) on concrete, 16-drop sequence
Microsoft Windows XP
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BSMI, C-Tick, MIC
ANSI HFS 100, ISO 9241-4, and TUVGS
104, 105, 106, 107, 109 layout (depending upon
country)
2 lb (0.9 kg) minimum
+ 5VDC ± 5%
50-mA maximum (with three LEDs ON)
CE level 4, 15-kV air discharge
Conforms to FCC rules for a Class B computing
device
Functionally compliant
38 available
Low-profile design
55-g nominal peak force with tactile feedback
20 million keystrokes (using Hasco modified
tester)
Contamination-resistant switch membrane
For all double-wide and greater-length keys
6 ft (1.8 m)
Mechanically compliant
43-dBA maximum sound pressure level
50° to 122° F (10° to 50° C)
-22° to 140° F (-30° to 60° C)
10% to 90% (non-condensing at ambient)
20% to 80% (non-condensing at ambient)
40 g, six surfaces
80 g, six surfaces
2-g peak acceleration
4-g peak acceleration
HP 2-Button Scroll
Mouse (PS/2 or USB)
Scroll Wheel
Maximum Rotation
Speed
Switch Type
Switch Life
Mechanical Life
Environmental
8 mm
30 mm/s
Light force micro-switch
1 million operations
Minimum 200,000 revolutions
Operating Temperature
Non-operating
Temperature
Operating Humidity
Non-operating Humidity
50° to 122° F (10° to 50° C)
-22° to 140° F (-30° to 60° C)
10% to 90% (non condensing at ambient)
20% to 80% (non condensing at ambient)
Quick Specs
Rev 2.0 July 07
Technical Specifications - Input/Output Devices
HP Compaq dx2280 Microtower Business PC
Electrical
Mechanical
Regulatory Approvals
Operating Shock
Non-operating Shock
Operating Vibration
Non-operating Vibration
Operating Voltage
Power Consumption
System Consumption
ESD
EMI-RFI
PC98
Resolution
Tracking Speed
Acceleration
Switch Actuation
Switch Life
Cable Length
PC98-99
UL, CSA, FCC, CE Mark, TUV, TUV GS, VCCI, BCIQ, C-Tick
40 g, 6 surfaces
80 g, 6 surfaces
2 g peak acceleration
4 g peak acceleration
+ 5VDC ± 10%
15mA
PS/2 mini-din connector
CE level 4, 15 kV air discharge
Conforms to FCC rules for a Class B computing
device
Functionally compliant
400 ± 20% DPI
10 in/s maximum
100 in/s
85 g nominal peak force
1,000,000 operations (using Hasco modified
tester)
2 m
Mechanically compliant
Quick Specs
Rev 2.0 July 07
Technical Specifications - Hard Drives
HP Compaq d2x2280 Microtower Business PC
SATA Hard disk
7200RPM
80 GB*
160 GB*
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
80,026,361,856 bytes
1 in (2.6 cm)
Media diameter: 3.5 in (8.9.x cm)
Physical size: 4 in (10.2 cm)
Serial ATA
3.0 Gb/s
8 MB
Single Track
Average
Full-Stroke
7,200 rpm
156,301,488
32° to 140° F (0° to 60° C)
160,041,885,696 bytes
1 in (2.6 cm)
Media diameter: 3.5 in (8.9.x cm)
Physical size: 4 in (10.2 cm)
Serial ATA
3.0 Gb/s
8 MB
Single Track
Average
Full-Stroke
7,200 rpm
312,581,808
32° to 140° F (0° to 60° C)
1.0 ms
8.5 ms
18 ms
1.0 ms
8.5 ms
18 ms
250 GB* Capacity
Height
Width
Interface
Synchronous Transfer
Rate (Maximum)
Buffer
Seek Time (typical reads,
includes controller
overhead, including
settling)
Rotational Speed
Logical Blocks
Operating Temperature
250,059,350,016 bytes
1 in (2.6 cm)
Media diameter: 3.5 in (8.9 cm)
Physical size: 4 in (10.2 cm)
Serial ATA
3.0 Gb/s
8 MB
Single Track
Average
Full-Stroke
7,200 rpm
488,397,168
41° to 131°F (5° to 55°C)
0.8 ms
<9.0 ms
<17 ms
Quick Specs
Rev 2.0 July 07
Technical Specifications - Optical Storage
HP Compaq dx2280 Microtower Business PC
52X CD-ROM Drive
Interface
Data Transfer Rate
Access Time (ms) Random: <125 ms Full-stroke seek: <210 ms
Data Buffer
Interface Type
Disk Capacity (CD) 180MB, 540MB, 650 MB, and 700MB
Start up time (Single)
Start up time ( Multi
Session )
Stop up time
MTBF
Disk Diameter
Disk Thickness
CD Media supported
Block Size
Operating Conditions Temperature
Dimensions (H x W x D,
maximum)
Operating Systems
Supported
ATAPI
CDR read – 16X ~ 52X ( 2400 ~ 7800 KB/s)
CDRW read - 12X ~ 24X ( 1800 ~ 3600KB/s)
Digital audio -12X ~ 24X ( 1800 ~ 3600KB/s)
2MB
E- IDE / ATPI
<7 Second
< 30 s
< 4s
150000 POH @ 25% Duty cycle
12cm , 8cm
1.2mm
CDROM , CD DA , CDR , CDRW ,
CD –DA ( 2352 and 2368, ) Mode 1 ( 2048 and 2352) , Mode 2 form1 (
2048,2328,2336,2340,2352) ,Mode 2 form 2 (2328,2336,2340,2352)
41° to 122° F (5° to 50° C)
Relative Humidity
4.1 x 14.6 x 18.5 cm
Microsoft Windows XP & Windows Vista
10% to 90%
48X/32X/48X CD-RW
Drive
Orientation
Disc loading mechanism
Interface type
Dimensions-external
(W x H x D)
Weight
Disc diameter
Disc thickness
Track pitch
Disc center hole diameter
Reference scanning
velocity
Recording/playing time
Read only disc
parameters
Either horizontal or vertical
Half-height, tray load
ATAPI IDE
7.99 x 5.88 x 1.71 in (20.3 x 14.93 x 4.34 cm)
2.6 lb (1.2 kg)
12 cm, 8 cm
1.2 mm
1.6 µm
15 mm
1.2 m/s
80 minutes with CD-R media
Formats and modes
supported
Capacity
Block size
CD-ROM-Mode 1; CD-ROM XA-Mode 2
(forms 1 and 2); CD digital audio; CD Extra;
CD-I-Mode 2 (forms 1 and 2) and CD-I-Ready;
Photo CD (single and multi-session); video CD
185 MB (Mode 2, 8cm); 540 MB (Mode 1, 12
cm); 650 MB (Mode 2, 12 cm); 700 MB (Mode
2, 12 cm)
Mode 1-2,048 and 2,352 bytes; mode 2, form 12,048; 2,328; 2,336; 2,340 and 2,352 bytes;
mode 2, form 2-2,328; 2,336; 2,340 and
2,352 bytes; CD-DA-2,352 and 2,368 bytes
Quick Specs
Rev 2.0 July 07
ACA AS/NZS 3548, ANSI C63.4
-
1992, CB Test Certificate for IEC 950,
Technical Specifications - Optical Storage
HP Compaq dx2280 Microtower Business PC
Writeable disc
parameters
Access times (typical)
Data transfer rates
Data transfer modes
Cache buffer
Start-up time (single) < 7 seconds typical
Start-up time
(multi-session)
Stop time
Power Source
Audio output level
Configuration jumper
block
Data interface connector
Environmental
(all conditions, noncondensing)
Certifications,
requirements
Disc type
Write methods
Format and modes
supported
Capacity
Block size
Random
Full stroke
CD-RW write
CD-ROM, CD-R read
CD-RW read
CD-R write
ATA PIO mode 4 (16.7MB/s); ATA multi-word DMA mode 2 (16.7 MB/s);
ATA UltraDMA mode 0 (16.7 MB/s) ;ATA UltraDMA mode 1 (24 MB/s) ;
ATA UltraDMA mode 2 (33 MB/s) - default.
2 MB (minimum)
< 30 seconds typical
< 4 seconds
DC power requirement
DC current
0.7 Vrms
Master, slave and cable select modes
40-pin IDE interface
Temperature (operating) 41° to 122° F (5° to 50° C)
Relative Humidity
(operating)
Maximum Wet Bulb
Temperature (operating)
CE Mark, CFR 47 part 15, CNS 13438, CSA C22.2 No. 60950, DHHS/FDA
- 1040, EN60825, EN55022:1998, EN55024, EN60 950:2000, ICES-003
class B, IEC 61000 4-2 - 4-11, Nordic EN60 950, TUV or VDE EN60 950,
CD-R and CD-RW
Disc at Once, Track at Once, Session at Once,
Variable Packet, Fixed Packet
CD-ROM (mode 1); CD-ROM XA (mode 2,
forms 1 and 2); CD digital audio, CD-I (mode 2,
forms 1 and 2); video CD
185 MB (Mode 2, 8cm); 540 MB (Mode 1, 12
cm);
650 MB (Mode 2, 12 cm); 700 MB (Mode 2, 12
cm)
Mode 1-2,048 bytes; mode 2, form 1-2,048 and
2,352 bytes;
mode 2, form 2-2,352 bytes; CD-DA ---2,352
bytes
< 120 ms
< 200 ms
4800 KB/s (up to 32X)
7200 KB/s (up to 48X)
7200 KB/s (up to 32X)
7200 KB/s (up to 48X)
Four-pin, DC power receptacle
5 VDC 5%-100 mV ripple p-p
12 VDC 5%-200 mV ripple p-p
5 VCD < 1A (typical)
< 1600 mA (maximum)
12 VCD < 600 mA (typical)
< 1.4A (maximum)
Total Drive Power
(Standby mode)
10% to 90%
84° F (29° C)
< 2.5 watt
Quick Specs
Rev 2.0 July 07
Environmental
Relative Humidity
Technical Specifications - Optical Storage
Operating systems
supported
HP Compaq dx2280 Microtower Business PC
UL 60950, C.I.S.P.R. Publication 22 Class B, BSMI, Microsoft P2001,
Microsoft Logo for Windows XP & Vista
Microsoft Windows XP
16X/48X DVD-ROM
Drive
Height
Interface Type
Dimensions– External,
Excluding Bezel (W x H)
Disc Diameter
Disc Thickness
Track Pitch
Disc Center Hole
Diameter
Disc Formats
Disc Capacity
Block Size (bytes) DVD-ROM - 2048; CD-ROM Mode 0 - 2352; CD-ROM Mode 1 - 2352,
Access Times
(typical reads, including
settling)
Maximum Data Transfer
Rates
Data Transfer Modes
Power
Audio Output Level
Configuration Jumper
Block
Data Interface Connector
(all conditions non-
5.25-in, half-height
ATAPI
5.88 x 1.71 in (149.5 x 43.5 mm)
12 cm, 8 cm
1.2 mm
1.6 µm (CD), 0.74 µm (DVD)
15 mm
DVD-ROM (single and dual layer); DVD-video; DVD-R version 1.0 and
2.0; DVD-RW version 1.0 and 1.1; DVD-R multi-border; DVD+RW;
DVD+R, DVD+R DL ; CD-ROM Mode 1 and 2; CD-DA; CD-ROM XA
Mode 2, Form 1 and 2; CD-extra; CD-text; CD-I Mode 2, Form 1 and 2; CDI ready; video CD, CD-bridge; PhotoCD (single and multi-session); CD-R;
CD-RW
DVD-ROM
CD-ROM
2340, 2336, 2048; CD-ROM Mode 2 - 2352, 2340, 2336, 2048
DVD-ROM Single Layer
CD-ROM Mode 1
Full Stroke DVD
Full Stroke CD
CD-ROM Read
DVD-ROM Read
PIO Mode 4 (16.6 MB/s); Multi-word DMA mode 2 (16.6 MB/s);
UltraDMA Mode 3 (44.4 MB/s)
Source
DC Power Requirement
DC Current
0.7 Vrms (typical)
Master, slave, and cable select modes
40-pin, shrouded and keyed, flat ribbon
Temperature (operating) 41° to 122° F (5° to 50° C)
4.7 GB (DVD-5), 8.54 GB (DVD-9), 9.4 GB
(DVD-10), 3.95 GB (DVD-R version 1.0), 4.7
GB (DVD-R version 2.0), 4.7 GB (DVD-RW
version 1.0 and 1.1), 4.7 GB (DVD+RW), 4.7G
(DVD+R), 8.5 GB (DVD+R DL)
540 MB (Mode 1, 12 cm), 640 MB (Mode 2, 12
cm), 700 MB (80 minimum CD-R and CD-RW),
180 MB (8 cm)
120 ms (typical)
90 ms (typical)
240 ms (seek) (typical)
160 ms (seek) (typical)
7200 KB/s (up to 48X)
21,600 KB/s (16X) Max
Four-pin, DC power receptacle
5 VDC ± 5% – 100 mV ripple p-p
12 VDC ± 5% – 200 mV ripple p-p
5 VDC – <800 mA typical, < 1000 mA
maximum
12 VDC – < 870 mA typical
10% to 85%
Quick Specs
Rev 2.0 July 07
Technical Specifications - Optical Storage
Certifications, Approvals
Operating systems
supported
HP Compaq dx2280 Microtower Business PC
(operating)condensing)
Maximum Wet Bulb
Temperature (operating)
MMC II support, multi-read certification, Microsoft WHQL certification,
ACA AS/NZS 3548 class B, CNS 13438, C.I.S.P.R. Pub 22, TUV or VDE
EN60950, EN 55022, EN55024, SEMKO, NEMKO, DEMKO, FIMKO, EN
60825-1, UL 60950, and CSA C22.2 60950-2000.
Microsoft Windows XP & Vista
86° F (30° C)
48X Combo CD-RW/
DVD-ROM
Form Factor
Orientation
Interface type
Dimensions (W x H x D) 5.77 x 1.71 x 7.36 in (14.66 x 4.34 x 18.69 cm) (external, excluding bezel)
Disc diameter
Disc thickness
Track pitch
Disc center hole diameter
Reference scanning
velocity
Read only disc
parameters
Writeable disc
parameters
Access times
(typical reads, including
settling)
Data transfer rates CD-R write
5.25-inch, half-height, tray-load
Either horizontal or vertical
ATAPI
12 cm, 8 cm
0.05 in (1.2 mm)
1.6 um (CD), 0.74 um (DVD)
0.6 in (15 mm)
1.2 m/s (CD); 3.49 m/s (DVD SL); 3.84 m/s (DVD DL)
Formats and modes
supported
Capacity
Block size
Disc type
Write methods
Format and modes
supported
Capacity
Block size
Random DVD
Random CD
Full stroke DVD
Full stroke CD
CD-ROM-Mode 1; CD-ROM XA-Mode 2; CDBridge; CD digital audio; CD Extra; Photo CD
(single and multi-session); video CD; DVD
(single- and double-layer); DVD-R; DVD-RW;
DVD-RW Multi-Border; DVD+R; DVD+R
Multi-Session , and DVD+RW
180 MB (8 cm); 540 MB (12 cm); 650 MB (12
cm); 700 MB (12 cm); 4.7 GB (DVD-5); 8.54
GB (DVD-9); 9.4 GB (DVD-10)
Mode 1-2,048 and 2,352 bytes; mode 2, form 12,048; 2,328; 2,336; 2,340 and 2,352 bytes;
mode 2, form 2-2,328; 2,336; 2,340 and 2,352
bytes; CD-DA-2,352 bytes; DVD-2,048 bytes
CD-R and CD-RW
Disc at Once, Track at Once, Session at Once,
Variable Packet, Fixed Packet
CD-ROM; CD-ROM XA; CD digital audio,
video CD; CD-Bridge
180 MB (8 cm); 540 MB (12 cm); 650 MB (12
cm); 700 MB (12 cm)
CD-DA-2,352 bytes; mode 0- 2,336 and 2,352
bytes; mode 1-2,048 and 2,352 bytes; mode 22,336 and 2,352; mode 2, form 1-2,048 and
2,352 bytes; mode 2, form 2-2,324 and 2,352
bytes
< 140 ms (typical)
< 125 ms, (typical)
< 250 ms (seek)
< 210 ms (seek)
7200 KB/s (up to 48X)
Quick Specs
Rev 2.0 July 07
Technical Specifications - Optical Storage
HP Compaq dx2280 Microtower Business PC
Data transfer modes
Power
Audio output level
Configuration jumper
block
Data interface connector
Environmental
(all conditions noncondensing)
Certifications,
requirements
Operating systems
supported
CD-RW write
CD-ROM, CD-R,
CD-RW read
DVD ROM read
ATA PIO mode 4); ATA Multi-word DMA mode 2; ATA UltraDMA mode
0; ATA UltraDMA mode 1, mode 2; ATA UltraDMA Mode 3 (default)
Cache buffer
Startup time (single) < 7 seconds (typical)
Startup time (multi-
session)
Stop time
Source
DC power requirement
DC current
Total drive power
(standby mode)
0.7 Vrms (typical)
Cable select (default), master and slave modes
40-pin, shrouded and keyed, flat ribbon
Temperature (operating) 41° to 122° F (5° to 50° C)
Relative humidity
(operating)
Maximum wet bulb
temperature (operating)
MPC-3 compliant, multi-read requirements, ACA AS/NZS 3548, ANSI
C63.4-1992, ATAPI Spec SFF-8020, ATA Spec X3T9.2, CB Bulletin No.
92A, CSA C22.2 No. 950-1995, C.I.S.P.R. Pub 22, EMKO-TSE 207/94,
TUV or VDE EN60 950, EN60825-1, Microsoft PC2001 certification,
Microsoft Logo for Windows XP, Vista
Microsoft Windows XP Professional, Windows XP Home
4800 KB/s (up to 32X)
7200 KB/s (up to 48X)
21,632 KB/s (16X ) Max
2 MB (minimum)
< 30 seconds (typical)
< 4 seconds
Four-pin, DC power receptacle
5 VDC ± 5%-100 mV ripple p-p
12 VDC ± 5%-200 mV ripple p-p
5 VDC (< 1000 mA typical, < 1600 mA
maximum)
12 VDC (< 600 mA typical, < 1400 mA
maximum)
< 2.5 Watt
10% to 90%
86° F (30° C)
16X DVD+/-RW
LightScribe Drive
(Double Layer/Dual
Format)
5.25-inch, half-height, tray-load
Orientation
Interface type
Disc recording capacity
Dimensions (W x H x D) 5.9 x 1.7 x 8.0 in (15.0 x 4.4 x 20.3 cm)
Weight (max) 2.6 lb (1.2 kg)
Write speed
Either horizontal or vertical
ATAPI/EIDE
8.5 GB DL or 4.7 GB standard
DVD+R Up to 16X
DVD+RW Up to 4X
DVD+R DL Up to 2.4X
DVD-R Up to 8X
DVD-RW Up to 4X
Quick Specs
Rev 2.0 July 07
Technical Specifications - Optical Storage
Read speed
Access time
(typical reads, including
settling)
Power
Audio output
Environmental
conditions (operating -
non-condensing)
Operating systems
support
Regulatory approvals
HP Compaq dx2280 Microtower Business PC
CD-R Up to 40X
CD-RW Up to 24X
DVD+R/-R/+RW/
-RW/+R DL
DVD-ROM Up to 16X
CD-ROM, CD-R Up to 40X
CD-RW Up to 32X
Random
Full Stroke
Startup Time
Stop Time
Cache Buffer
Data Transfer Modes
Source
DC Power Requirement
DC Current
Total Drive Power
(standby mode)
Line-Out
Signal-to-Noise Ratio
Channel Separation
Temperature
Relative humidity
Maximum wet bulb
temperature
Microsoft Windows XP & Vista
MPC-3 compliant, multi-read requirements, ATA Spec X3T9.2, ATAPI
Spec T13.1153D, ANSI C63.4-1992, UL 1950, ACA AS/NZS 3548, CB
Bulletin No. 96A, CSA C22.2 No. 950-1995, CFR 47 C.I.S.P.R. Pub 22
Class B, DHHS/FDA, EMKO-TSE 07/94, TUV EN60950, EN60825-1,
MIC, BSMI-CNS 13438, CE, Microsoft PC2001 certification, Microsoft
Logo for Windows XP and Vista.
Up to 8X
DVD: < 130 ms (typical), CD: < 120 ms
(typical)
DVD: < 240 ms (seek), CD: < 200 ms (seek)
Single-session: < 15 seconds (typical), Multi-
session: < 30 seconds (typical)
< 4 seconds
2 MB (minimum)
ATA PIO mode 4 (16.7 MB/s); ATA Multi-word
DMA mode 2 (16.7 MB/s); ATA UltraDMA
Mode 3 (44.4 MB/s -default)
Four-pin, DC power receptacle
5 VDC ± 5%-100 mV ripple p-p
12 VDC ± 5%-200 mV ripple p-p
5 VDC (< 1000 mA typical, 1600 mA
maximum)
12 VDC (< 600 mA typical, 1400 mA
maximum)
< 2.5 Watt
0.7 VRMS
74 dB
65 dB
41° to 122° F (5° to 50° C)
10% to 90%
86° F (30° C)
Quick Specs
Rev 2.0 July 07
Technical Specifications - Removable Storage
HP Compaq dx2280 Microtower Business PC
1.44-MB Diskette Drive
Size
LED Indicators (front
panel)
Read/Write Capacity per
Diskette (high/low)
Drive Height
Drive Rotation
Transfer Rate (high/low) 500/250 KB/s
Bytes/Sector
Sectors/Track (high/low) 18/9
Tracks/Side (high/low) 80/80
Access Times
Cylinders (high/low) 80/80
Read/Write Heads
3.5 in (8.89 cm)
Green
1.44 MB/720 KB
One-third
300 rpm
512
Track-to-Track (high/low) 3/6 ms
Average (high/low) 94/173 ms
Settling Time 15 ms
Latency Average 100 ms
Two
Quick Specs
Rev 2.0 July 07
HP follows these guidelines to decr
ease the environmental impact of product
Technical Specifications - Environmental Data
HP Compaq dx2280 Microtower Business PC
Environmental Data
Longevity and Upgrading
Material Usage
This product is designed to be upgraded, possibly extending its useful life by
several years. Spare parts are available throughout the warranty period and
for up to 15 months after the end of production. Upgradeability features
contained in the product include:
• 8 USB ports
• 2 external 5.25" drive bays
• 2 external 3.5” drive bays
• 2 internal 3.5" drive bays
• 2 empty standard PCI slots
• 1 empty standard PCI-EX1 slot
• 4 memoryslots
• 1 Serial port
• 1 Parallel port
This product does not contain any of the following substances in excess of
regulatorylimits (refer to the HP General Specification for the Environment
at
http://www.hp.com/hpinfo/globalcitizenship/
environment/supplychain/gen_specifications.html):
• Asbestos
• Certain Azo Colorants
• Certain Brominated Flame Retardants - may not be used as flame
retardants in plastics
• Cadmium
• Chlorinated Hydrocarbons
• Chlorinated Paraffins
• Formaldehyde
• Halogenated Diphenyl Methanes
• Lead carbonates and sulfates
• Lead and Lead compounds
• Mercuric Oxide Batteries
• Nickel - finishes must not be used on the external surface designed
to be frequently handled or carried by the user.
• Ozone Depleting Substances
• Polybrominated Biphenyls (PBBs)
• Polybrominated Biphenyl Ethers (PBBEs)
• Polybrominated Biphenyl Oxides (PBBOs)
• Polychlorinated Biphenyl (PCB)
• Polychlorinated Terphenyls (PCT)
• Polyvinyl Chloride (PVC) - except for wires and cables, and certain
retail packaging has been voluntarily removed from most
applications.
• Radioactive Substances
• Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide
(TBTO)
Packaging
packaging:
• Eliminate the use of heavy metals such as lead, chromium, mercury
and cadmium in packaging materials.
• Eliminate the use of ozone-depleting substances (ODS) in
Quick Specs
Rev 2.0 July 07
Technical Specifications - Environmental Data
HP Compaq dx2280 Microtower Business PC
packaging materials.
• Design packaging materials for ease of disassembly.
• Maximize the use of post-consumer recycled content materials in
packaging materials.
• Use readily recyclable packaging materials such as paper and
corrugated materials.
• Reduce size and weight of packages to improve transportation fuel
efficiency.
• Plastic packaging materials are marked according to ISO 11469 and
DIN 6120 standards.
End-of-life Management
and Recycling
Hewlett-Packard
Corporate
Environmental
Information
© Copyright 2005 Hewlett-Packard Development Company, L.P.
All rights reserved.
The information contained herein is subject to change without notice.
Intel and Pentium are U.S. registered trademarks of Intel Corporation. Microsoft and Windows are U.S. registered trademarks of
Microsoft Corporation. The only warranties for HP products and services are set forth in the express warranty statements
accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be
liable for technical or editorial errors or omissions contained herein.
Hewlett-Packard offers end-of-life HP product return and recycling programs
in many geographic areas. To recycle your product, please go to:
http://www.hp.com/recycle or contact your nearest HP sales office. Products
returned to HP will be recycled, recovered or disposed of in a responsible
manner.
For more information about HP's commitment to the environment:
[link to new HP white paper now in progress]
Global Citizenship Report
http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html
Eco-label certifications
http://www.hp.com/hpinfo/globalcitizenship/
environment/productdesign/ecolabels.html
ISO 14001 certificates:
http://www.hp.com/hpinfo/globalcitizenship/
environment/operations/envmanagement.html
Loading...
