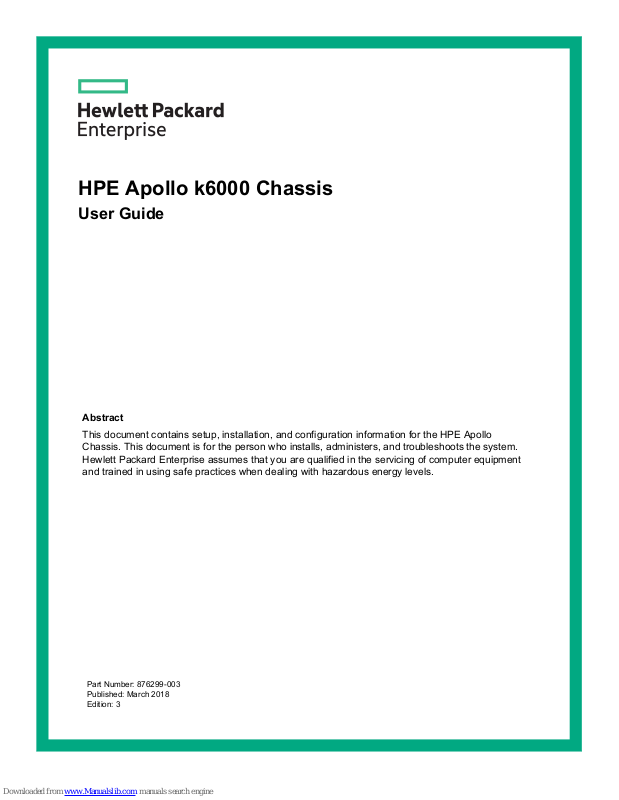

HPE Apollo k6000 Chassis

User Guide

Abstract

This document contains setup, installation, and configuration information for the HPE Apollo
Chassis. This document is for the person who installs, administers, and troubleshoots the system.
Hewlett Packard Enterprise assumes that you are qualified in the servicing of computer equipment
and trained in using safe practices when dealing with hazardous energy levels.

Part Number: 876299-003
Published: March 2018
Edition: 3

©

Copyright 2017, 2018 Hewlett Packard Enterprise Development LP

Notices

The information contained herein is subject to change without notice. The only warranties for Hewlett Packard
Enterprise products and services are set forth in the express warranty statements accompanying such
products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett
Packard Enterprise shall not be liable for technical or editorial errors or omissions contained herein.

Confidential computer software. Valid license from Hewlett Packard Enterprise required for possession, use,
or copying. Consistent with FAR 12.211 and 12.212, Commercial Computer Software, Computer Software
Documentation, and Technical Data for Commercial Items are licensed to the U.S. Government under
vendor's standard commercial license.

Links to third-party websites take you outside the Hewlett Packard Enterprise website. Hewlett Packard
Enterprise has no control over and is not responsible for information outside the Hewlett Packard Enterprise
website.

Acknowledgments

Intel®, Itanium®, Pentium®, Intel Inside®, and the Intel Inside logo are trademarks of Intel Corporation in the
United States and other countries.

Contents

Planning the installation............................................................................. 5

Identifying components and LEDs.............................................................9

Safety and regulatory compliance....................................................................................................... 5

Configuration guidelines......................................................................................................................5

Determining power and cooling configurations....................................................................................5

Power requirements..................................................................................................................5

HPE Apollo Platform Manager..................................................................................................6

Hot-plug power supply calculations.......................................................................................... 6

Compiling the documentation..............................................................................................................6

Warnings and cautions........................................................................................................................6

Space and airflow requirements..........................................................................................................7

Temperature requirements.................................................................................................................. 8

Grounding requirements......................................................................................................................8

System components............................................................................................................................9

Front chassis components.................................................................................................................10

Server bay numbering............................................................................................................ 10

Front chassis fan module numbering......................................................................................11

Rear panel components.....................................................................................................................11

Power supply numbering........................................................................................................ 12

Rear fan module numbering................................................................................................... 12

Rear fan module LED............................................................................................................. 13

I/O module bay numbering..................................................................................................... 13

Switch bay numbering............................................................................................................ 14

Chassis controller or HPE Apollo Platform Manager components......................................... 18

Chassis controller or HPE Apollo Platform Manager LEDs and buttons................................ 18

Power supply LED.................................................................................................................. 19

Installing the chassis ............................................................................... 20

Installation overview.......................................................................................................................... 20

Unpacking the system....................................................................................................................... 20

Determining the chassis rack spacing...............................................................................................20

Installing the rack rails.......................................................................................................................20

Installing the chassis in the rack........................................................................................................24

Installing the shipping bracket........................................................................................................... 27

Installing the system components..................................................................................................... 28

Installing a server....................................................................................................................28

Installing the front chassis fan modules..................................................................................28

Installing the rear chassis fan modules...................................................................................29

Installing the power supplies...................................................................................................29

Installing the chassis controller or HPE Apollo Platform Manager..........................................30

Installing an I/O module..........................................................................................................31

Installing data switch options..................................................................................................32

Installing high-speed fabric switch options............................................................................. 36

Cabling........................................................................................................41

Contents 3

Cabling requirements........................................................................................................................ 41

Cabling the chassis........................................................................................................................... 41

Configuring the system.............................................................................45

Power capping...................................................................................................................................45

Power capping modes............................................................................................................ 45

Configuring a power cap....................................................................................................................46

Setting the chassis power cap mode with HPE APM............................................................. 46

Troubleshooting.........................................................................................47

Troubleshooting resources................................................................................................................47

Electrostatic discharge............................................................................. 48

Preventing electrostatic discharge.....................................................................................................48

Grounding methods to prevent electrostatic discharge..................................................................... 48

Specifications............................................................................................ 49

Chassis environmental specifications................................................................................................49

Chassis specifications ...................................................................................................................... 49

Power specifications..........................................................................................................................49

DC power................................................................................................................................50

Single-phase power................................................................................................................50

Hot-plug power supply calculations...................................................................................................51

Websites..................................................................................................... 52

Support and other resources................................................................... 53

Accessing Hewlett Packard Enterprise Support................................................................................ 53

Accessing updates............................................................................................................................ 53

Customer self repair.......................................................................................................................... 54

Remote support.................................................................................................................................54

Warranty information......................................................................................................................... 54

Regulatory information...................................................................................................................... 55

Documentation feedback...................................................................................................................55

4 Contents

Planning the installation

Safety and regulatory compliance

For important safety, environmental, and regulatory information, see Safety and Compliance Information for
Server, Storage, Power, Networking, and Rack Products, available at the Hewlett Packard Enterprise website

http://www.hpe.com/support/Safety-Compliance-EnterpriseProducts).

(

Configuration guidelines

Operate the chassis only when a device or blank is installed in all device bays. Before powering up the
chassis, be sure to do the following:

• Install fan modules into all fan module bays.

• Install power supplies into all power supply bays.

• Install a device or a blank into the following bays:

◦ I/O module bays

◦ Server tray bays

◦ Switch bays

For additional switch installation requirements, see the following sections:

• Installing data switch options on page 32

• Installing high-speed fabric switch options on page 36

Determining power and cooling configurations

Validate power and cooling requirements based on location and installed components.

Power requirements

Installation of this equipment must comply with local and regional electrical regulations governing the
installation of IT equipment by licensed electricians. This equipment is designed to operate in installations
covered by NFPA 70, 1999 Edition (National Electric Code) and NFPA-75, 1992 (code for Protection of
Electronic Computer/Data Processing Equipment). For electrical power ratings on options, refer to the product
rating label or the user documentation supplied with that option.

WARNING: To reduce the risk of personal injury, fire, or damage to the equipment, do not overload the
AC supply branch circuit that provides power to the rack. Consult the electrical authority having
jurisdiction over wiring and installation requirements of your facility.

CAUTION: Protect the server from power fluctuations and temporary interruptions with a regulating
UPS. This device protects the hardware from damage caused by power surges and voltage spikes and
keeps the server in operation during a power failure.

Planning the installation 5

HPE Apollo Platform Manager

HPE Apollo Platform Manager is an optional point of contact for system administration. HPE Apollo Platform
Manager allows you to manage and regulate power at a rack level by connecting the chassis that contains
chassis controllers.

To configure and access APM, see the HPE Apollo Platform Manager User Guide on the Hewlett Packard
Enterprise website (http://www.hpe.com/support/APM_UG_en).

Hot-plug power supply calculations

For more information on the hot-plug power supply and calculators to determine server power consumption in
various system configurations, see the Hewlett Packard Enterprise Power Advisor website (http://

www.hpe.com/info/poweradvisor/online).

Compiling the documentation

The documentation, while delivered individually and in various formats, works as a solution. Consult the
following documents before attempting installation:

• HPE Apollo k6000 Chassis Quick Setup Instructions

• HPE Apollo k6000 Chassis Rail Kit for HPE and Third Party Racks Installation Instructions

These documents provide required important safety information and decision-making steps for configuration.
To access these documents, see the Hewlett Packard Enterprise website (

Apollok6000-docs).

http://www.hpe.com/info/

Warnings and cautions

WARNING: To reduce the risk of personal injury or damage to equipment, heed all warnings and

cautions throughout the installation instructions.

WARNING: To reduce the risk of personal injury or damage to the equipment, be sure that:

• The rack is bolted to the floor using the concrete anchor kit.

• The leveling feet extend to the floor.

• The full weight of the rack rests on the leveling feet.

• The racks are coupled together in multiple rack installations.

• Only one component is extended at a time. If more than one component is extended, a rack might
become unstable.

6 HPE Apollo Platform Manager

WARNING: The chassis is very heavy. To reduce the risk of personal injury or damage to the
equipment:

• Observe local occupational health and safety requirements and guidelines for manual material
handling.

• Remove all servers from the chassis before installing or moving the chassis.

• Use caution and get help to lift and stabilize the chassis during installation or removal, especially
when the chassis is not fastened to the rack.

WARNING: To reduce the risk of personal injury or damage to the equipment, you must adequately
support the chassis during installation and removal.

WARNING: Install the chassis starting from the bottom of the rack and work your way up the rack.

WARNING: To reduce the risk of personal injury from hot surfaces, allow the drives and the internal

system components to cool before touching them.

WARNING: To reduce the risk of electric shock or damage to the equipment:

• Never reach inside the chassis while the system is powered up.

• Perform service on system components only as instructed in the user documentation.

CAUTION: Always be sure that equipment is properly grounded and that you follow proper grounding
procedures before beginning any installation procedure. Improper grounding can result in ESD damage
to electronic components. For more information, refer to "Electrostatic discharge on page 48."

CAUTION: When performing non-hot-plug operations, you must power down the server and/or the
system. However, it may be necessary to leave the server powered up when performing other
operations, such as hot-plug installations or troubleshooting.

CAUTION: Do not operate the server for long periods with the access panel open or removed.
Operating the server in this manner results in improper airflow and improper cooling that can lead to
thermal damage.

Space and airflow requirements

Installation of the chassis is supported in 1200 mm Gen10 racks.

To allow for servicing and adequate airflow, observe the following space and airflow requirements when
deciding where to install a rack:

• Leave a minimum clearance of 63.5 cm (25 in) in front of the rack.

• Leave a minimum clearance of 76.2 cm (30 in) behind the rack.

• Leave a minimum clearance of 121.9 cm (48 in) from the back of the rack to the back of another rack or
row of racks.

Space and airflow requirements 7

Front and rear rack doors must be adequately ventilated to allow ambient room air to enter the cabinet, and
the rear door must be adequately ventilated to allow the warm air to escape from the cabinet.

CAUTION: To prevent improper cooling and damage to the equipment, do not block the ventilation
openings.

When vertical space in the rack is not filled by a chassis or rack component, the gaps between the
components cause changes in airflow through the rack and across the components. Cover all gaps with
blanking panels to maintain proper airflow.

CAUTION: Always use blanking panels to fill empty vertical spaces in the rack. This arrangement
ensures proper airflow. Using a rack without blanking panels results in improper cooling that can lead to
thermal damage.

CAUTION: If a third-party rack is used, observe the following additional requirements to ensure
adequate airflow and to prevent damage to the equipment:

• Front and rear doors—If the 42U rack includes closing front and rear doors, you must allow 5,350 sq
cm (830 sq in) of holes evenly distributed from top to bottom to permit adequate airflow (equivalent to
the required 64 percent open area for ventilation).

• Side—The clearance between the installed rack component and the side panels of the rack must be
a minimum of 7 cm (2.75 in).

Temperature requirements

To ensure continued safe and reliable equipment operation, install or position the rack in a well-ventilated,
climate-controlled environment.

The operating temperature inside the rack is always higher than the room temperature and is dependent on
the configuration of equipment in the rack. Check the TMRA for each piece of equipment before installation.

CAUTION: To reduce the risk of damage to the equipment when installing third-party options:

• Do not permit optional equipment to impede airflow around the chassis or to increase the internal
rack temperature beyond the maximum allowable limits.

• Do not exceed the manufacturer’s TMRA.

Grounding requirements

• The building installation must provide a means of connection to protective earth.

• The equipment must be connected to that means of connection.

• A service person must check whether the socket-outlet from which the equipment is to be powered
provides a connection to the building protective earth. If the outlet does not provide a connection, the
service person must arrange for the installation of a protective earthing conductor from the separate
protective earthing terminal to the protective earth wire in the building.

8 Temperature requirements

Identifying components and LEDs

System components

Item Description

1 HPE Apollo k6000 Chassis

Front chassis components

2 Server trays

1

3 Front chassis fan modules (4)

Rear chassis components

4 HPE Apollo 6000 dual-rotor hot-plug fan modules (12)

5 Chassis I/O modules in module cage or rear I/O blanks

6 Chassis power supplies

2

1

7 Chassis controller or chassis controller with optional HPE Apollo Platform Manager

8 Data switches

9 High-speed fabric switches

— HPE Apollo k6000 Chassis Rail kit

— Cables (per chassis)

2

2

3

2, 3

• Power supply cables

• 2.5M 20 Pin Consolidated Management w/Latch Cable

• APM USB to DB9 cable

1

The quantity depends on the configuration ordered.

2

The quantity and type depend on the configuration ordered.

1

Identifying components and LEDs 9

3

Not shown.

Front chassis components

Item Description

1 Server bays

2 Front chassis fan module bays

Server bay numbering

10 Front chassis components

Front chassis fan module numbering

Before powering up the chassis, install fan modules into all front and rear fan module bays, and install power
supplies into all power supply bays.

Rear panel components

Item Description

1 I/O module bays

2 Rear dual-rotor fan modules

3 Chassis controller or HPE Apollo Platform Manager

4 Power supply bays

5 Data switch bays

6 High-speed fabric switch bays

Front chassis fan module numbering 11

Power supply numbering

Rear fan module numbering

Before powering up the chassis, install fan modules into all front and rear fan module bays, and install power
supplies into all power supply bays.

12 Power supply numbering

Rear fan module LED

Status Description

Off The fan module is working or the power is off.

Solid amber The fan module has failed.

I/O module bay numbering

I/O modules are installed in the rear of the chassis in the bay that corresponds to its server tray.

If an I/O bay is populated, an I/O-enabled server must be installed in the corresponding bay.

Rear fan module LED 13

Switch bay numbering

Item Description

1 Data switch bay (A)

2 Data switch bay (B)

3 High-speed fabric switch bay (A)

4 High-speed fabric switch bay (B)

HPE Apollo InfiniBand EDR 36-port Unmanaged Switch buttons and LEDs

14 Switch bay numbering

Item Description

1 Link Status LEDs

The LED illuminates when there is a valid link
connection.

2 UID LED/button

Solid blue = Activated

Off = Deactivated

3 Reset button

Depress for three seconds for a soft reset.

4 Health LED

Solid green = Normal

Solid amber = Module degraded

Off = No power present

HPE Apollo InfiniBand EDR 36-port Unmanaged Switch components

Item Description

1-12 QSFP28 ports

HPE Apollo 100Gb 48-port Intel Omni-Path Architecture Unmanaged Switch buttons and
LEDs

HPE Apollo InfiniBand EDR 36-port Unmanaged Switch components 15

Item Description

1 Link Status LEDs

The LED illuminates when there is a valid link
connection.

2 UID LED/button

Solid blue = Activated

Off = Deactivated

3 Reset button

Depress for three seconds for a soft reset.

4 Health LED

Solid green = Normal

Solid amber = Module degraded

Off = No power present

HPE Apollo 100Gb 48-port Intel Omni-Path Architecture Unmanaged Switch components

Item Description

1-24 QSFP28 ports

HPE Apollo Ethernet 10GbE Pass-thru Module buttons and LEDs

Item Description

1 Link status LEDs

Each LED is numbered 1 through 24 and illuminates when there is a valid link to the
corresponding tray on the front of the chassis.

Table Continued

16 HPE Apollo 100Gb 48-port Intel Omni-Path Architecture Unmanaged Switch components

2 UID LED/button

Solid blue = Activated

Off = Deactivated

3 Health LED

Solid green = Normal

Solid amber = Module degraded

Off = No power present

4 Reset button

Depress for three seconds for a soft reset.

HPE Apollo Ethernet 10GbE Pass-thru Module components

QSFP+ (4x10Gb) Port Server bay mapping

Port 1

• Bay 1—Server bays 13, 1, 14, 2

• Bay 2—Server bays 24, 12, 23, 11

Port 2

• Bay 1—Server bays 15, 3, 16, 4

• Bay 2—Server bays 22, 10, 21, 9

Port 3

• Bay 1—Server bays 17, 5, 18, 6

• Bay 2—Server bays 20, 8, 19, 7

Port 4

• Bay 1—Server bays 19, 7, 20, 8

• Bay 2—Server bays 18, 6, 17, 5

Port 5

• Bay 1—Server bays 21, 9, 22, 10

• Bay 2—Server bays 16, 4, 15, 3

Port 6

• Bay 1— Server bays 23, 11, 24, 12

• Bay 2—Server bays 14, 2, 13, 1

HPE Apollo Ethernet 10GbE Pass-thru Module components 17

Chassis controller or HPE Apollo Platform Manager components

Item Description

1 Reserved

2 Consolidated Management Port (chassis 3)

3 APM Ethernet port connector

4 Serial console port

1

1

5 Consolidated Management Port (chassis 2)

6 Power Distribution Module (PDM) ports 5, 6

7 Power Distribution Module (PDM) ports 3, 4

8 Power Distribution Module (PDM) ports 1, 2

1

1

1

1

1

9 12V power connector port

10 Environmental controller port

11 iLO port

12 Consolidated Management Port

1

Available only on the HPE Apollo Platform Manager.

2

If you have a display port cable connected to each chassis controller module (up to three modules per rack)

2

2

from the HPE Apollo Platform Manager, do not connect the iLO Ethernet port on the standalone chassis
controller module. When using an APM in the rack, rack level iLO connectivity to the network is through the
APM iLO port.

Chassis controller or HPE Apollo Platform Manager LEDs and buttons

18 Chassis controller or HPE Apollo Platform Manager components

Item Description

1 iLO network 1 link LED

2 iLO network 1 activity LED

3 Health LED

4 UID LED

5 HPE Apollo Platform Manager reset button

1

To reset the HPE Apollo Platform Manager, press the button. If you press and hold the button for five

seconds or longer, the APM enters recovery mode. For more information, see the HPE Apollo Platform

Manager User Guide on the Hewlett Packard Enterprise website (http://www.hpe.com/support/
apm_ug_en).

Power supply LED

1

Power LED Condition

1

Off

• No input power to the power supply

• Power supply failure

Solid green Normal operation

Flashing amber

1

Log in to the APM or the server iLO to check for power supply error messages.

1

Warning

Power supply LED 19

Installing the chassis

Installation overview

To set up and install the chassis:

1. Unpack the system (

2. Determine the chassis rack spacing (Determining the chassis rack spacing on page 20).

3. Install the rack rails (Installing the rack rails on page 20).

4. Install the chassis into the rack (Installing the chassis in the rack on page 24).

5. Install the system components (Installing the system components on page 28).

6. Connect power to the chassis (Cabling the chassis on page 41).

Unpacking the system on page 20).

Unpacking the system

Unpack the following hardware and prepare for installation:

• HPE Apollo k6000 Chassis

• HPE Apollo k6000 Chassis Rack Rail Kit

• Chassis components and cabling

The following documents also ship with the HPE Apollo k6000 Chassis:

• Start Here for Important Setup Information

• Safety, Compliance, and Warranty Information

Determining the chassis rack spacing

The HPE 1.2 m standard rack supports installation of up to three chassis.

For more information on installing the chassis into the rack, see the HPE Apollo k6000 Chassis Rail Kit for
HPE and Third Party Racks Installation Instructions.

Installing the rack rails

WARNING: To reduce the risk of personal injury or damage to the equipment, be sure that:

• The leveling jacks are extended to the floor.

• The full weight of the rack rests on the leveling jacks.

• The stabilizing feet are attached to the rack if it is a single-rack installation.

• The racks are coupled together in multiple-rack installations.

• Only one component is extended at a time. A rack may become unstable if more than one
component is extended for any reason.

20 Installing the chassis

WARNING: If you are going to use a lift, be sure to use a lift that can handle the load of the component.

Procedure

1. Install the rails onto the rack paying attention to the labeling on the rails (Front Left and Front Right).

2. Install the screws through the rear extension and the vertical brace, attaching the screws to the threaded

holes in the rear of the rail.

3. Install the cage nuts for the front brackets.

Installing the chassis 21

4. Secure the front brackets to the rack.

a. Secure the top two screws to the cage nuts (A) installed in the previous step.

b. Secure the bottom two screws to the threaded holes of the rail.

5. Install the cage nuts for the rear brace.

22 Installing the chassis

6. Secure the rear brace to the rack.

Installing the chassis 23

Installing the chassis in the rack

WARNING: The chassis is heavy. To reduce the risk of personal injury or damage to the equipment:

• Observe local occupational health and safety requirements and guidelines for manual material
handling.

• Use a hydraulic lift to remove the chassisfrom the rack.

• Disconnect all cabling and remove all servers from the chassis before installing or moving the
chassis.

• Use caution and get help to lift and stabilize the product during installation or removal, especially
when the product is not fastened to the rails. The chassis weighs more than 113.39 kg ( 250.00 lb),
and is back heavy, so at least four people must lift the chassis into the rack together. An additional
person might be required to help align the chassis if the chassis is installed higher than chest level.

WARNING: To avoid risk of personal injury or damage to the equipment, do not stack anything on top of
rail-mounted equipment or use it as a work surface when extended from the rack.

WARNING: To reduce the risk of personal injury or damage to the equipment, be sure that:

• The rack is bolted to the floor using the concrete anchor kit.

• The leveling feet extend to the floor.

• The full weight of the rack rests on the leveling feet.

• The racks are coupled together in multiple rack installations.

• Only one component is extended at a time. If more than one component is extended, a rack might
become unstable.

WARNING: To reduce the risk of personal injury or equipment damage, be sure that the rack is
adequately stabilized before installing the chassis.

CAUTION: Always plan the rack installation so that the heaviest item is on the bottom of the rack. Install
the heaviest item first, and continue to populate the rack from the bottom to the top.

CAUTION: Be sure to keep the product parallel to the floor when installing the chassis. Tilting the
product up or down could result in damage to the slides.

CAUTION: Hewlett Packard Enterprise has not tested or validated this chassis with any third-party
racks. Before installing the chassis in a third-party rack, be sure to properly scope the limitations of the
rack. Before proceeding with the installation, consider the following:

• You must fully understand the static and dynamic load carrying capacity of the rack and be sure that
it can accommodate the weight of the chassis.

• Be sure sufficient clearance exists for cabling, installation and removal of the chassis, and actuation
of the rack doors.

24 Installing the chassis in the rack

IMPORTANT: When installing each chassis into the rack, be sure that the HPE Apollo Platform
Manager is at the top of the chassis to ensure proper orientation in the rack.

Prerequisites

Install the HPE Apollo k6000 Chassis Rail Kit into the rack (Installing the rack rails on page 20).

Procedure

1. Install the chassis into the rack.

2. Secure the chassis to the front of the rack.

Installing the chassis 25

3. Tighten the thumbscrew at the rear of the chassis.

26 Installing the chassis

Installing the shipping bracket

IMPORTANT: Before you prepare the populated rack for shipping, you must install shipping brackets.

You will need to install a shipping bracket on each side of each chassis to secure all the servers.

Procedure

1. Eject the servers but do not remove them from the chassis.

2. Line up the slots on the shipping bracket with the server release levers.

3. Insert the end of the server release level into the corresponding slot on the shipping bracket.

4. Secure the shipping bracket to the chassis by tightening the thumbscrews on the bracket.

Installing the shipping bracket 27

Installing the system components

If components were removed during the chassis installation or additional components were ordered, install
each device using the procedures in this section.

If you perform any of the procedures in this section after powering on the chassis, ensure proper airflow by
ensuring that each bay inside the chassis and at the rear of the chassis is populated with either a component
or a blank.

For component-specific replacement information, see the HPE Apollo k6000 Chassis Maintenance and
Service Guide or the server-specific maintenance and service guides on the Hewlett Packard Enterprise
website (http://www.hpe.com/info/Apollok6000-docs).

Installing a server

To ensure proper air flow, always populate the chassis from bottom to top, beginning with bay 1.

CAUTION: To prevent improper cooling and thermal damage, do not operate the chassis unless all bays
are populated with a component or a blank.

Procedure

Install the server.

When seated properly, the server will be flush with the front of the chassis and the release lever will close
completely without resistance.

Installing the front chassis fan modules

Before powering up the chassis, populate all front and rear fan module bays with a fan module.

Procedure

Install the front fan module.

28 Installing the system components

Installing the rear chassis fan modules

To ensure proper airflow, install fan modules into all fan module bays before powering up the chassis.

IMPORTANT: The left and right sides of the chassis are oriented 180° from each other. Components
that are installed on one side of the chassis must be turned 180° when they are installed on the opposite
side.

Procedure

Install the rear fan module.

Installing the power supplies

Before powering up the chassis, populate all power supply bays with a power supply.

Installing the rear chassis fan modules 29

Procedure

Install the power supply.

Installing the chassis controller or HPE Apollo Platform Manager

The chassis controller or APM must be installed in the chassis and working for the switch modules to power
on from a cold boot for the first time. If the chassis controller is not installed, the switches will not power on.

After the chassis controller or APM power on the switches, the chassis controller can be removed.

Procedure

Install the chassis controller or HPE Apollo Platform Manager.

30 Installing the chassis controller or HPE Apollo Platform Manager

Installing an I/O module

CAUTION: To prevent electrical damage, always power down the server associated with the I/O module

before installing the I/O module.

CAUTION: Remove the server from the chassis before installing the I/O module. Failure to do so can
result in damage to both components. After the I/O module is installed, install the server.

Procedure

1. Power down the server associated with the I/O module.

2. Remove the server from the chassis.

3. Remove the I/O module blank.

Installing an I/O module 31

IMPORTANT: The left and right sides of the chassis are oriented 180° from each other. Components

that are installed on one side of the chassis must be turned 180° when they are installed on the
opposite side.

4. Install the I/O module into the bay that corresponds to the server bay. For more information, see I/O
module bay numbering on page 13.

5. If not installed, install the dual-rotor fan module (Installing the rear chassis fan modules on page 29).

Installing data switch options

The chassis supports installation of the following data switches:

• 10GbE Integrated Switch

• HPE Apollo Ethernet 10GbE Pass-Thru Module

32 Installing data switch options

Population guidelines (10GbE Integrated Switch)

Install the data switch in bay 1 for the default configuration. If redundancy or a higher bandwidth is required,
install a second data switch in bay 2.

Population guidelines (HPE Apollo Ethernet 10GbE Pass-Thru Module)

Install the pass-thru module in bay 1 for the default configuration. If redundancy or a higher bandwidth is
required, install a second pass-thru module in bay 2.

When the pass-thru module is installed in bay 1, the ports and LEDs map to specific server bays as shown in
the following table.

QSFP+ Port LED-to-Server bay mapping

Port 1

Port 2

Port 3

Port 4

LED 1–Server bay 13

LED 2–Server bay 1

LED 3–Server bay 14

LED 4–Server bay 2

LED 5–Server bay 15

LED 6–Server bay 3

LED 7–Server bay 16

LED 8–Server bay 4

LED 9–Server bay 17

LED 10–Server bay 5

LED 11–Server bay 18

LED 12–Server bay 6

LED 13–Server bay 19

LED 14–Server bay 7

LED 15–Server bay 20

LED 16–Server bay 8

Table Continued

Installing the chassis 33

QSFP+ Port LED-to-Server bay mapping

Port 5

LED 17–Server bay 21

LED 18–Server bay 9

LED 19–Server bay 22

LED 20–Server bay 10

Port 6

LED 21–Server bay 23

LED 22–Server bay 11

LED 23–Server bay 24

LED 24–Server bay 12

When the pass-thru module is installed in bay 2, the ports and LEDs map to specific server bays as shown in
the following table.

QSFP+ Port LED-to-Server bay mapping

Port 1

LED 1–Server bay 24

LED 2–Server bay 12

LED 3–Server bay 23

LED 4–Server bay 11

Port 2

Port 3

Port 4

LED 5–Server bay 22

LED 6–Server bay 10

LED 7–Server bay 21

LED 8–Server bay 9

LED 9–Server bay 20

LED 10–Server bay 8

LED 11–Server bay 19

LED 12–Server bay 7

LED 13–Server bay 18

LED 14–Server bay 6

LED 15–Server bay 17

LED 16–Server bay 5

Table Continued

34 Installing the chassis

QSFP+ Port LED-to-Server bay mapping

Port 5

Port 6

Installing a data switch

CAUTION: To prevent improper cooling and thermal damage, do not operate the chassis unless all

device bays are populated with either a component or a blank.

CAUTION: To prevent damage to the connectors, carefully note the orientation in the following diagrams
before you install the switch.

IMPORTANT: The chassis controller or HPE Apollo Platform Manager must be installed for a switch to
power on for the first time. Once the switch is powered on by the chassis controller or HPE Apollo
Platform Manager, you can remove the chassis controller, if needed.

LED 17–Server bay 16

LED 18–Server bay 4

LED 19–Server bay 15

LED 20–Server bay 3

LED 21–Server bay 14

LED 22–Server bay 2

LED 23–Server bay 13

LED 24–Server bay 1

Always install the data switch in bay 1. If redundancy is required, install a second data switch in bay 2.

Procedure

1. Remove the plastic protective cover from the rear of the switch.

2. Remove the blank, if needed.

3. To install the data switch in bay 1:

Installing a data switch 35

a. Make sure that the orientation of the release lever is correct for installation in bay 1 and is fully open.

b. Install the data switch, close the release lever, and then tighten the captive screw.

4. To install the data switch in bay 2:

a. Make sure that the orientation of the release lever is correct for installation in bay 2 and is fully open.

b. Install the data switch, close the release lever, and then tighten the captive screw.

Installing high-speed fabric switch options

The chassis supports installation of the following high-speed fabric switches:

• HPE Apollo InfiniBand EDR 36-port Unmanaged Switch

• HPE Apollo 100 Gb 48-port Intel Omni-Path Architecture Unmanaged Switch

36 Installing high-speed fabric switch options

Population guidelines

High-speed fabric switches can be installed in bays 3 and 4. Populating the high-speed fabric switch bays
depends on the configuration of the installed servers in the chassis. This configuration includes:

• Mezzanine cards

◦ The number of mezzanine cards installed in the servers.

◦ The type of mezzanine card installed in the servers (EDR or OPA).

◦ How the mezzanine card is cabled.

• Processors

◦ The number of processors installed in the servers.

◦ The type of processor installed in the servers (standard socket or -F processor).

◦ How the -F processor is cabled.

Use the following table to determine bay population requirements.

Server configuration Switch bay population

1 OPA mezzanine card installed in slot 1*,
connected by a single mezzanine cable

2 OPA mezzanine cards, connected by a
dual mezzanine cable

1 EDR mezzanine card, connected by a
single mezzanine cable

2 EDR mezzanine cards, connected by a
dual mezzanine cable

1 EDR mezzanine card installed in slot 1*

1 OPA mezzanine card installed in slot 2*

Connected individually by a dual mezzanine
cables

Bay 3 = HPE Apollo 100 Gb 48-port Intel Omni-Path
Architecture Unmanaged Switch

Bay 3 = HPE Apollo 100 Gb 48-port Intel Omni-Path
Architecture Unmanaged Switch

Bay 4 = HPE Apollo 100 Gb 48-port Intel Omni-Path
Architecture Unmanaged Switch

Bay 3 = HPE Apollo InfiniBand EDR 36-port Unmanaged
Switch

Bay 4 = HPE Apollo InfiniBand EDR 36-port Unmanaged
Switch (optional)

Bay 3 = HPE Apollo InfiniBand EDR 36-port Unmanaged
Switch

Bay 4 = HPE Apollo InfiniBand EDR 36-port Unmanaged
Switch

Bay 3 = HPE Apollo InfiniBand EDR 36-port Unmanaged
Switch

Bay 4 = HPE Apollo 100 Gb 48-port Intel Omni-Path
Architecture Unmanaged Switch

Table Continued

Installing the chassis 37

Server configuration Switch bay population

1 -F processor installed in socket 1,
connected by a single-socket Omni-Path
cable

2 -F processors, connected by a dual-socket
Omni-Path cable

* For more information on mezzanine slot numbering, see the server-specific user guide on the Hewlett
Packard Enterprise website (http://www.hpe.com/info/enterprise/docs).

Installing a high-speed fabric switch

CAUTION: To prevent improper cooling and thermal damage, do not operate the chassis unless all

device bays are populated with either a component or a blank.

CAUTION: To prevent damage to the connectors, carefully note the orientation in the following diagrams
before you install the switch.

IMPORTANT: The chassis controller or HPE Apollo Platform Manager must be installed for a switch to
power on for the first time. Once the switch is powered on by the chassis controller or HPE Apollo
Platform Manager, you can remove the chassis controller, if needed.

Bay 3 = HPE Apollo 100 Gb 48-port Intel Omni-Path
Architecture Unmanaged Switch

Bay 3 = HPE Apollo 100 Gb 48-port Intel Omni-Path
Architecture Unmanaged Switch

Bay 4 = HPE Apollo 100 Gb 48-port Intel Omni-Path
Architecture Unmanaged Switch

High-speed fabric switches can be installed in bays 3 and 4. Populating the high-speed fabric switch bays
depends on the configuration of the installed servers. For more information, see "Installing high-speed

fabric switch options on page 36."

Procedure

1. Remove the blank, if needed.

2. To install the switch in bay 3:

38 Installing a high-speed fabric switch

a. Make sure that the orientation of the release lever is correct for installation in bay 3.

b. Prepare the switch for installation. Make sure that the release lever is fully open.

c. Install the switch, close the release lever, and then tighten the captive screw.

CAUTION: The switch will slide smoothly into the slot and connect to the backplane. Forcing the

switch into the slot or into the connector will damage components.

3. To Install the switch in bay 4:

a. Make sure that the orientation of the release lever is correct for installation in bay 4.

b. Prepare the switch for installation. Make sure that the release lever is fully open.

c. Install the switch, close the release lever, and then tighten the captive screw.

Installing the chassis 39

CAUTION: The switch will slide smoothly into the slot and connect to the backplane. Forcing the

switch into the slot or into the connector will damage components.

40 Installing the chassis

Cabling

Cabling requirements

The following cables are required for all configurations:

Chassis power cabling

Six power cables per chassis, one per power supply, to the PDU.

Network cabling

One Ethernet cable per iLO port on each chassis controller in a rack (remove this cable when APM is present
in the rack).

For configurations that include the HPE Apollo Platform Manager, the following additional cables are
required:

• One HPE Apollo Platform Manager USB to MicroDB9 Cable to the PDM ports on each HPE Apollo
Platform Manager.

• One consolidated management cable per chassis to the APM input ports on each chassis controller or
HPE Apollo Platform Manager.

• One Ethernet cable per APM in a rack.

• One HPE Apollo Platform Manager serial to DB9 cable for initial APM setup (869324-001).

• One Ethernet cable per rack for iLO connectivity.

Cabling the chassis

WARNING: Be sure that all circuit breakers are in the off position before connecting any power

components.

CAUTION: To avoid damaging the fiber cables, do not drape cables from one side of the rack to the
other and do not run cables over a hard corner or edge.

CAUTION: To avoid damaging the cable, squeeze the thermal boot on the cable before disconnecting
from the connector.

CAUTION: To prevent loss of data and damage to the PDU, each power supply must be connected to a
dedicated circuit breaker. Do not connect multiple power supplies to a single circuit breaker.

Procedure

1. Cable the chassis controller or HPE Apollo Platform Manager:

• Chassis with HPE Apollo Platform Manager (top) and two chassis controllers:

Cabling 41

◦ HPE Apollo Platform Manager to consolidated management ports on the chassis controllers

(orange)

◦ HPE Apollo Platform Manager to network (pink)

◦ iLO connection to network (blue)

◦ HPE Apollo Platform Manager serial cable (used for initial APM setup) (869324-001) (green)

42 Cabling

• Chassis with standard chassis controllers

◦ Chassis controllers to network (pink)

2. Connect the chassis power supply cables (blue) to a PDU.

CAUTION: The following illustration assumes that you are using one PDU per chassis that has a

minimum capacity of 17.28 kVA and a dedicated circuit breaker for each power supply in the chassis.
Connecting two or more power supplies to a single breaker will cause the breaker to trip. You might
need to add PDUs to your configuration to meet the requirement of one breaker per power supply to
avoid loss of data or damage to the PDU.

Cabling 43

3. Apply power to the chassis.

44 Cabling

Configuring the system

Power capping

The HPE ProLiant XL family of products provides a power capping feature that operates at the server
enclosure level. The capping feature can be activated using the HPE Apollo Platform Manager. After a power
cap is set for the enclosure, all the resident servers in the enclosure will have the same uniform power cap
applied to them until the cap is either modified or canceled.

Using APM, the enclosure-level power capping feature can be expanded, or different caps can be applied to
user-defined groups by using flexible zones within the same rack. A global power cap can also be applied to
all enclosures with one APM command. For more information on using the APM, see the HPE Apollo Platform
Manager User Guide on the Hewlett Packard Enterprise website (

APM_UG_en).

Power capping modes

The following Power Management modes are standard and are configurable in the power management
controller:

NOTE: Mode 4 is only supported through APM.

• Mode 0: No Redundancy

http://www.hpe.com/support/

All power-capping is disabled. This mode can be used to minimize any possible performance impact of
power-capping logic.

• Mode 1: Max Performance with Redundancy

This is the default power capping mode. This mode allows the maximum number of nodes to run by
engaging power-capping if the power draw from the chassis attempts to exceed the load supported by the
active power supplies. In this mode, the system is expected to survive (with the possibility of degraded
performance) an unexpected power loss to one or more of the power supplies.

• Mode 3: User Configurable Mode

The user can specify a valid power cap value from a pre-defined range. A cap cannot be set below a
minimum or above a maximum. The cap includes all server nodes, fans, and drives. User configurable
mode requires an iLO Scale Out or iLO Advanced license.

• Mode 4: Rack Level Dynamic Power Capping Mode

In conjunction with APM, the user can specify a maximum power capacity for the entire rack. The APM
dynamically allocates power to the applicable chassis within the rack to maximize performance given the
available power. For more information, see the HPE Apollo Platform Manager User Guide on the Hewlett
Packard Enterprise website (http://www.hpe.com/support/APM_UG_en).

• Mode 5: Power Feed Redundancy Mode

When used with an A+B power feed configuration, Power Feed Redundancy Mode throttles the system
100%, bringing the nodes to a complete stop if a power feed loss is deduced. Full throttling continues until
the power feed is brought back online. In this mode, the system is expected to survive an unexpected loss
of an entire power feed to half of the power supplies.

Configuring the system 45

Configuring a power cap

To configure power capping, you can use the HPE Apollo Platform Manager, a rack level device that can
control power caps for all enclosures in the rack. For more information, see the HPE Apollo Platform Manager

User Guide (http://www.hpe.com/support/APM_UG_en) on the Hewlett Packard Enterprise website.

Setting the chassis power cap mode with HPE APM

Procedure

1. Log in to APM.

a. When the system boots, a Login prompt appears.

b. At the prompt, enter Administrator.

2. Before setting the power cap, enter the following command to review the power baseline:

>show power baseline

The information displayed provides the minimum cap value, the maximum cap value, and the chassis that
meet the requirements for power capping.

3. To set the power cap for eligible chassis connected to the APM, enter the following command at the
prompt:

>SET POWER CAP<wattage>|NONE[zone_name]

The wattage value, if provided, represents the total wattage to be allocated among all the chassis that are
part of the baseline or partial baseline of a zone, if specified. This value is divided by the total maximum
wattage established by the baseline to calculate a percentage cap value. This percentage is then
multiplied against each chassis maximum wattage value to arrive at an appropriate cap value for that
individual chassis.

If NONE is specified instead of a cap wattage value, then APM removes all (or the specified zone) of the
power caps.

To remove baseline data from the EEPROM and to remove the power cap setting, enter the following
command:

>SET POWER BASELINE NONE

After this command is issued, the only way to re-establish a power baseline is to issue the SET POWER
BASELINE command. The system returns to the default power cap mode (mode 1).

46 Configuring a power cap

Troubleshooting

Troubleshooting resources

Troubleshooting resources are available for HPE Gen10 server products in the following documents:

• Troubleshooting Guide for HPE ProLiant Gen10 servers provides procedures for resolving common
problems and comprehensive courses of action for fault isolation and identification, issue resolution, and
software maintenance.

• Error Message Guide for HPE ProLiant Gen10 servers and HPE Synergy provides a list of error messages
and information to assist with interpreting and resolving error messages.

• Integrated Management Log Messages and Troubleshooting Guide for HPE ProLiant Gen10 and HPE
Synergy provides IML messages and associated troubleshooting information to resolve critical and
cautionary IML events.

To access the troubleshooting resources, see the Hewlett Packard Enterprise Information Library (

www.hpe.com/info/gen10-troubleshooting).

http://

Troubleshooting 47

Electrostatic discharge

Preventing electrostatic discharge

To prevent damaging the system, be aware of the precautions you must follow when setting up the system or
handling parts. A discharge of static electricity from a finger or other conductor may damage system boards or
other static-sensitive devices. This type of damage may reduce the life expectancy of the device.

Procedure

• Avoid hand contact by transporting and storing products in static-safe containers.

• Keep electrostatic-sensitive parts in their containers until they arrive at static-free workstations.

• Place parts on a grounded surface before removing them from their containers.

• Avoid touching pins, leads, or circuitry.

• Always be properly grounded when touching a static-sensitive component or assembly.

Grounding methods to prevent electrostatic discharge

Several methods are used for grounding. Use one or more of the following methods when handling or
installing electrostatic-sensitive parts:

• Use a wrist strap connected by a ground cord to a grounded workstation or computer chassis. Wrist straps
are flexible straps with a minimum of 1 megohm ±10 percent resistance in the ground cords. To provide
proper ground, wear the strap snug against the skin.

• Use heel straps, toe straps, or boot straps at standing workstations. Wear the straps on both feet when
standing on conductive floors or dissipating floor mats.

• Use conductive field service tools.

• Use a portable field service kit with a folding static-dissipating work mat.

If you do not have any of the suggested equipment for proper grounding, have an authorized reseller install
the part.

For more information on static electricity or assistance with product installation, contact an authorized reseller.

48 Electrostatic discharge

Specifications

Chassis environmental specifications

Specification Value

Temperature range

Operating 10°C to 35°C (50°F to 95°F)

Nonoperating -30°C to 60°C (-22°F to 140°F)

Maximum wet bulb temperature

Operating 28ºC (82.4ºF)

Nonoperating 38.7ºC (101.7ºF)

Relative humidity (non condensing)

Operating 10% to 90%

Nonoperating 5% to 95%

1

All temperature ratings shown are for sea level. An altitude derating of 1°C per 304.8 m (1.8°F per 1000 ft) to 3048 m
(10,000 ft) is applicable. No direct sunlight allowed. Upper operating limit is 3,048 m (10,000 ft) or 70 kPa/10.1 psia. Upper
nonoperating limit is 9,144 m (30,000 ft).

2

Storage maximum humidity of 95% is based on a maximum temperature of 45°C (113°F). Altitude maximum for storage
corresponds to a pressure minimum of 70 kPa (10.1 psia).

1

2

Chassis specifications

Specification Value

Height 53.14 cm (20.92 in)

Depth 102.60 cm (40.39 in)

Width 44.80 cm (17.64 in)

Weight, fully loaded 301.64 kg (665.00 lb)

Weight, empty 66.68 kg (147.00 lb)

Power specifications

The power requirements for the HPE Apollo k6000 Chassis are met by the following components:

• HPE 2650W Hot Plug Titanium Plus Power Supply

• HPE 2650W 277VAC Hot Plug Power Supply

• HPE 3400W 1U Hot Plug Power Supply

Specifications 49

DC power

Specification Value

Output 12V from power supplies to chassis

Minimum (V) +11.907

Nom (V) +12.25

Maximum (V) +12.593

% Reg +2.8%/-2.8%

Single-phase power

HPE 2650W Hot Plug Titanium Plus Power Supply

Specification HPE 2650W Hot Plug Titanium Plus Power Supply

Power cord

Output 2650 W per power supply

Input requirements

Rated input voltage 200 VAC to 240 VAC

Rated input frequency 50 Hz to 60 Hz

Rated input current per power supply
(maximum)

Rated input power per power supply
(maximum)

HPE 2650W 277VAC Hot Plug Power Supply

Specification HPE 2650W 277VAC Hot Plug Power Supply

IEC-320 C19-C20

2 m (6.5 ft)

14.4 A at 200 VAC

13.8 A at 208 VAC

13.1 A at 220 VAC

12.5 A at 230 VAC

12.0 A at 240 VAC

2880 VA

Power cord

Output 2650 W per power supply

Input requirements

Rated input voltage 200 VAC to 277 VAC

Rated input frequency 50 Hz to 60 Hz

50 DC power

Anderson Power Products SDG-300 dual-ended

2 m (6.5 ft)

Table Continued

Specification HPE 2650W 277VAC Hot Plug Power Supply

Rated input current per power supply
(maximum)

Rated input power per power supply
(maximum)

HPE 3400W 1U Hot Plug Power Supply

Specification HPE 3400W 1U Hot Plug Power Supply

Power cord

Output 3400 W per power supply

Input requirements

Rated input voltage 200 VDC to 240 VDC

14.4 A at 200 VAC

13.8 A at 208 VAC

13.1 A at 220 VAC

12.5 A at 230 VAC

12.0 A at 240 VAC

10.4 A at 277 VAC

2880 VA

IEC-320 C19-C20

2 m (6.5 ft)

Rated input frequency 50 to 60 Hz

Rated input current per power supply
(maximum)

Rated input power per power supply
(maximum)

15.8 A at 200 VDC

15.6 A at 208 VDC

15.7 A at 220 VDC

15.9 A at 230-240 VDC

15.2 A at 240 VDC

3620 VA

Hot-plug power supply calculations

For hot-plug power supply specifications and calculators to determine electrical and heat loading for the
server, see the Hewlett Packard Enterprise Power Advisor website (http://www.hpe.com/info/poweradvisor/
online).

Hot-plug power supply calculations 51

Websites

General websites

Hewlett Packard Enterprise Information Library

www.hpe.com/info/EIL

Single Point of Connectivity Knowledge (SPOCK) Storage compatibility matrix

www.hpe.com/storage/spock

Storage white papers and analyst reports

www.hpe.com/storage/whitepapers

For additional websites, see Support and other resources.

52 Websites

Support and other resources

Accessing Hewlett Packard Enterprise Support

• For live assistance, go to the Contact Hewlett Packard Enterprise Worldwide website:

http://www.hpe.com/assistance

• To access documentation and support services, go to the Hewlett Packard Enterprise Support Center
website:

http://www.hpe.com/support/hpesc

Information to collect

• Technical support registration number (if applicable)

• Product name, model or version, and serial number

• Operating system name and version

• Firmware version

• Error messages

• Product-specific reports and logs

• Add-on products or components

• Third-party products or components

Accessing updates

• Some software products provide a mechanism for accessing software updates through the product
interface. Review your product documentation to identify the recommended software update method.

• To download product updates:

Hewlett Packard Enterprise Support Center

www.hpe.com/support/hpesc

Hewlett Packard Enterprise Support Center: Software downloads

www.hpe.com/support/downloads

Software Depot

www.hpe.com/support/softwaredepot

• To subscribe to eNewsletters and alerts:

www.hpe.com/support/e-updates

• To view and update your entitlements, and to link your contracts and warranties with your profile, go to the
Hewlett Packard Enterprise Support Center More Information on Access to Support Materials page:

www.hpe.com/support/AccessToSupportMaterials

Support and other resources 53

IMPORTANT: Access to some updates might require product entitlement when accessed through the

Hewlett Packard Enterprise Support Center. You must have an HPE Passport set up with relevant
entitlements.

Customer self repair

Hewlett Packard Enterprise customer self repair (CSR) programs allow you to repair your product. If a CSR
part needs to be replaced, it will be shipped directly to you so that you can install it at your convenience.
Some parts do not qualify for CSR. Your Hewlett Packard Enterprise authorized service provider will
determine whether a repair can be accomplished by CSR.

For more information about CSR, contact your local service provider or go to the CSR website:

http://www.hpe.com/support/selfrepair

Remote support

Remote support is available with supported devices as part of your warranty or contractual support
agreement. It provides intelligent event diagnosis, and automatic, secure submission of hardware event
notifications to Hewlett Packard Enterprise, which will initiate a fast and accurate resolution based on your
product's service level. Hewlett Packard Enterprise strongly recommends that you register your device for
remote support.

If your product includes additional remote support details, use search to locate that information.

Remote support and Proactive Care information

HPE Get Connected

www.hpe.com/services/getconnected

HPE Proactive Care services

www.hpe.com/services/proactivecare

HPE Proactive Care service: Supported products list

www.hpe.com/services/proactivecaresupportedproducts

HPE Proactive Care advanced service: Supported products list

www.hpe.com/services/proactivecareadvancedsupportedproducts

Proactive Care customer information

Proactive Care central

www.hpe.com/services/proactivecarecentral

Proactive Care service activation

www.hpe.com/services/proactivecarecentralgetstarted

Warranty information

To view the warranty for your product or to view the Safety and Compliance Information for Server, Storage,
Power, Networking, and Rack Products reference document, go to the Enterprise Safety and Compliance

website:

www.hpe.com/support/Safety-Compliance-EnterpriseProducts

Additional warranty information

HPE ProLiant and x86 Servers and Options

www.hpe.com/support/ProLiantServers-Warranties

54 Customer self repair

HPE Enterprise Servers

www.hpe.com/support/EnterpriseServers-Warranties

HPE Storage Products

www.hpe.com/support/Storage-Warranties

HPE Networking Products

www.hpe.com/support/Networking-Warranties

Regulatory information

To view the regulatory information for your product, view the Safety and Compliance Information for Server,
Storage, Power, Networking, and Rack Products, available at the Hewlett Packard Enterprise Support Center:

www.hpe.com/support/Safety-Compliance-EnterpriseProducts

Additional regulatory information

Hewlett Packard Enterprise is committed to providing our customers with information about the chemical
substances in our products as needed to comply with legal requirements such as REACH (Regulation EC No
1907/2006 of the European Parliament and the Council). A chemical information report for this product can be
found at:

www.hpe.com/info/reach

For Hewlett Packard Enterprise product environmental and safety information and compliance data, including
RoHS and REACH, see:

www.hpe.com/info/ecodata

For Hewlett Packard Enterprise environmental information, including company programs, product recycling,
and energy efficiency, see:

www.hpe.com/info/environment

Documentation feedback

Hewlett Packard Enterprise is committed to providing documentation that meets your needs. To help us
improve the documentation, send any errors, suggestions, or comments to Documentation Feedback
([e-mail]). When submitting your feedback, include the document title, part number, edition,
and publication date located on the front cover of the document. For online help content, include the product
name, product version, help edition, and publication date located on the legal notices page.

Regulatory information 55
