HP (Hewlett-Packard) AMC20493-001, AMC20493-001-KT1, AMC20493-001-KT3, AMC20493-001-KT5 User Manual

HP Notebook PC

Reference Guide

Notice

This manual and any examples contained herein are provided “as is” and are subject to
change without notice. Hewlett-Packard Company makes no warranty of any kind with
regard to this manual, including, but not limited to, the implied warranties of
merchantability and fitness for a particular purpose. Hewlett-Packard Co. shall not be
liable for any errors or for incidental or consequential damages in connection with the
furnishing, performance, or use of this manual or the examples herein.

Consumer transactions in Australia and the United Kingdom: The above disclaimers and
limitations shall not apply to Consumer transactions in Australia and the United Kingdom
and shall not affect the statutory rights of Consumers.

© Copyright Hewlett-Packard Company 2002. All rights reserved. Reproduction,
adaptation, or translation of this manual is prohibited without prior written permission of
Hewlett-Packard Company, except as allowed under the copyright laws.

The programs that control this product are copyrighted and all rights are reserved.
Reproduction, adaptation, or translation of those programs without prior written
permission of Hewlett-Packard Co. is also prohibited.

Portions of the programs that control this product may also be copyrighted by Microsoft
Corporation, Phoenix Technologies, Ltd., ATI Technologies Inc., Intel Corporation, and
Adobe Systems Incorporated. See the individual programs for additional copyright
notices.

This product incorporates copyright protection technology that is protected by method
claims of certain U.S. patents and other intellectual property rights owned by
Macrovision Corporation and other rights owners. Use of this copyright protection
technology must be authorized by Macrovision Corporation and is intended for home and
other limited viewing uses only unless otherwise authorized by Macrovision Corporation.
Reverse engineering or disassembly is prohibited.

Microsoft®, MS-DOS®, and Windows® are U.S. registered trademarks of Microsoft
Corporation. Pentium® and the Intel Inside logo are U.S. registered trademarks and
Celeron™ and SpeedStep™ are U.S. trademarks of Intel Corporation. Adobe® and
Acrobat® are trademarks of Adobe Systems Incorporated.

Hewlett-Packard Company
HP Notebook Customer Care
1000 NE Circle Blvd., MS 425E
Corvallis, OR 97330

2 Reference Guide

Important Safety Information

CAUTION

To reduce the risk of fire, use only No. 26 AWG or larger telecommunications line
cord to connect a modem to the telephone wall jack. In Australia, the computer
must be connected to the Telecommunication Network through a line cord that
meets the requirements of ACA Technical Standard TS008.

When using your computer with a telephone connection, always follow basic safety
precautions to reduce the risk of fire, electric shock, and injury to persons:

• Do not use this product with a telephone connection near water (for example, near a

bathtub, sink, swimming pool, or in a wet basement).

• Avoid using a telephone connection (other than a cordless type) during an electrical

storm. There may be a remote risk of electric shock from lightning.

• Do not use a telephone connection to report a gas leak in the vicinity of the leak.

• Use only the power cord and batteries indicated in this manual. Do not dispose of

batteries in a fire. They may explode. Check with local codes for possible special
disposal instructions.

HP Software Product License Agreement

Your HP product contains software programs. CAREFULLY READ THIS LICENSE
AGREEMENT BEFORE PROCEEDING TO OPERATE THIS EQUIPMENT. RIGHTS
IN THE SOFTWARE ARE OFFEREDONLY ON THE CONDITION THAT THE
CUSTOMER AGREES TO ALL TERMS AND CONDITIONS OF THE LICENSE
AGREEMENT. PROCEEDING TO OPERATE THE EQUIPMENT INDICATES
YOUR ACCEPTANCE OF THESE TERMS AND CONDITIONS. IF YOU DO NOT
AGREE WITH THE TERMS OF THE LICENSE AGREEMENT, YOU MUST NOW
EITHER REMOVE THE SOFTWARE FROM YOUR HARD DISK DRIVE AND
DESTROY THE MASTER DISKETTES, OR RETURN THE COMPLETE HP
PRODUCT AND SOFTWARE FOR A FULL REFUND. PROCEEDING WITH
CONFIGURATION SIGNIFIES YOUR ACCEPTANCE OF THE LICENSE TERMS.

UNLESS OTHERWISE STATED BELOW, THIS HP SOFTWARE LICENSE
AGREEMENT SHALL GOVERN THE USE OF ALL SOFTWARE THAT IS
PROVIDED TO YOU AS PART OF THE HP PRODUCT AND SHALL SUPERSEDE
ANY OTHER SOFTWARE WARRANTY STATEMENT THAT MAY BE INCLUDED
IN THIS HP PRODUCT OR MAY BE FOUND ONLINE.

Operating system and software applications by Microsoft are licensed to you under the
Microsoft License Agreement contained in the Microsoft documentation or displayed on
your screen when Microsoft Software Products are launched.

Reference Guide 3

For a PC supplied with a Microsoft operating system: When you start the PC and accept
the Microsoft End-user License Agreement (“EULA”), your license rights are valid only

if a Certificate of Authenticity (“COA”) label corresponding to your Microsoft operating
system is provided with your PC. The COA label can usually be found on the bottom of
the computer. If the COA label does not correspond to your Microsoft operating system
or is missing, contact your HP reseller for details.

Other non-HP Software and Operating Systems are covered by the appropriate vendor
license. The following License Terms govern the use of the HP software:

USE. Customer may use the software on any one HP product. Customer may not network
the software or otherwise use it on more than one HP product. Customer may not reverse
assemble or decompile the software unless authorized by law.

COPIES AND ADAPTATIONS. Customer may make copies or adaptations of the
software a) for archival purposes or (b) when copying or adaptation is an essential step in
the use of the software with an HP product so long as the copies and adaptations are used
in no other manner.

OWNERSHIP. Customer agrees that he/she does not have any title or ownership of the
software, other than ownership of the physical media. Customer acknowledges and
agrees that the software is copyrighted and protected under the copyright laws. Customer
acknowledges and agrees that the software may have been developed by a third party
software supplier named in the copyright notices included with the software, who shall be
authorized to hold the Customer responsible for any copyright infringement or violation
of this Agreement.

PRODUCT RECOVERY CD-ROM or DVD. If your HP product was shipped with a
product recovery CD-ROM or DVD: (i) The product recovery CD-ROM or DVD and/or
support utility software may only be used for restoring the hard disk of the HP product
with which the product recovery CD-ROM or DVD was originally provided. (ii) The use
of any operating system software by Microsoft contained in any such product recovery
CD-ROM or DVD shall be governed by the Microsoft License Agreement.

TRANSFER OF RIGHTS IN SOFTWARE. Customer may transfer rights in the software
to a third party only as part of the transfer of all rights and only if Customer obtains the
prior agreement of the third party to be bound by the terms of this License Agreement.
Upon such a transfer, Customer agrees that his/her rights in the software are terminated
and that he/she will either destroy his/her copies and adaptations or deliver them to the
third party.

SUBLICENSING AND DISTRIBUTION. Customer may not lease, sublicense the
software or distribute copies or adaptations of the software to the public in physical
media or by telecommunication without the prior written consent of Hewlett-Packard.

TERMINATION. Hewlett-Packard may terminate this software license for failure to
comply with any of these terms provided Hewlett-Packard has requested Customer to
cure the failure and Customer has failed to do so within thirty (30) days of such notice.

UPDATES AND UPGRADES. Customer agrees that the software does not include
updates and upgrades which may be available from Hewlett-Packard under a separate
support agreement.

4 Reference Guide

EXPORT CLAUSE. Customer agrees not to export or re-export the software or any copy
or adaptation in violation of the U.S. Export Administration regulations or other
applicable regulation.

U.S. GOVERNMENT RESTRICTED RIGHTS. Use, duplication, or disclosure is subject
to HP standard commercial license terms and for non-DOD Departments and Agencies of
the U.S. Government, the restrictions set forth in FAR 52.227-19(c)(1-2) (June 1987)
Hewlett-Packard Company, 3000 Hanover Street, Palo Alto, CA 94304 U.S.A. Copyright
(c) 2000 Hewlett-Packard Company. All Rights Reserved. Customer further agrees that

Software is delivered and licensed as “Commercial computer software” as defined in
DFARS 252-227-7014 (June 1995) or as a “commercial item” as defined in FAR

2.101(a), or as “Restricted computer software” as defined in FAR 52.227-19 (or any
equivalent agency regulation or contract clause), whichever is applicable. The Customer
agrees that it has only those rights provided for such Software by the applicable FAR or
DFARS clause or the HP standard software agreement for the product involved.

Support Policy for Microsoft Operating Systems Service Pack. HP will provide end user
support for HP PCs that use Microsoft Operating Systems, including its latest service
packs. This support will be available 30 days after the service pack being released by
Microsoft.

Edition History

Edition 1 (KA, KB) .......................................July 2002

This manual is printed on recycled paper.

Reference Guide 5

Contents

Getting Started with Your HP Notebook ..................................................................... 11

Taking Inventory......................................................................................................... 12

What’s in the box? ................................................................................................ 12

To buy accessories................................................................................................ 12

To find more information...................................................................................... 13

Identifying Parts of the Computer............................................................................... 14

Front View ............................................................................................................ 14

Back View............................................................................................................. 15

Bottom View......................................................................................................... 16

Status Lights.......................................................................................................... 17

Setting Up Your Computer......................................................................................... 19

Step 1: Install the battery ...................................................................................... 19

Step 2: Connect AC power.................................................................................... 21

Step 3: Connect a phone line................................................................................. 22

Step 4: Turn on the computer................................................................................ 23

Step 5: Set up Windows........................................................................................ 23

Step 6: Register your notebook............................................................................. 24

To connect to the Internet ..................................................................................... 24

What to do next..................................................................................................... 24

Basic Operation .............................................................................................................. 25

Operating Your Computer.......................................................................................... 26

To turn the computer on and off ........................................................................... 26

To reset the computer............................................................................................ 27

To change the boot device..................................................................................... 27

To use the touch pad ............................................................................................. 28

To use the Fn hot keys .......................................................................................... 30

To use the One-Touch buttons.............................................................................. 31

To use the Windows and Applications keys ......................................................... 32

To use the embedded keypad................................................................................ 33

To use the ALT GR key........................................................................................ 33

To adjust the display ............................................................................................. 34

To adjust the volume.............................................................................................35

To change computer settings for a presentation.................................................... 35

Using CDs or DVDs................................................................................................... 37

To insert or remove a CD or DVD........................................................................37

To play DVD movies............................................................................................ 38

To create or copy CDs .......................................................................................... 38

Securing Your Computer............................................................................................ 39

To set up password protection............................................................................... 39

To lock your computer.......................................................................................... 39

To attach a security cable...................................................................................... 40

Reference Guide 7

To protect against viruses ..................................................................................... 41

To lock the hard disk drive.................................................................................... 41

Working in Comfort with a Notebook PC.................................................................. 42

Taking Care of Your Computer.................................................................................. 44

To protect your hard disk drive............................................................................. 44

To maintain your computer................................................................................... 44

To safeguard your data.......................................................................................... 45

To extend the life of the display............................................................................ 45

To clean your computer ........................................................................................ 46

Batteries and Power Management................................................................................ 47

Managing Power Consumption .................................................................................. 48

How the computer manages power automatically ................................................ 48

To manage power manually.................................................................................. 50

Using Battery Power................................................................................................... 51

To check battery status.......................................................................................... 51

To respond to a low-battery warning .................................................................... 52

To recharge the battery ......................................................................................... 52

To get the most from your batteries...................................................................... 52

Modem and Network Connections................................................................................ 55

Using the Modem........................................................................................................ 56

To connect the modem.......................................................................................... 57

To connect to the Internet ..................................................................................... 58

To disconnect from the Internet............................................................................ 59

To dial in to a network.......................................................................................... 59

To change your modem settings ........................................................................... 60

To send and receive e-mail ................................................................................... 61

To send and receive faxes..................................................................................... 62

Connecting to a LAN.................................................................................................. 63

To connect to a LAN............................................................................................. 63

Making Wireless Network Connections..................................................................... 64

To prepare for connections.................................................................................... 64

To turn wireless communication on and off.......................................................... 66

Making Wireless Bluetooth Connections ................................................................... 68

To turn Bluetooth communication on and off....................................................... 68

To prepare for Bluetooth connections................................................................... 70

To send or receive files using Bluetooth............................................................... 71

To connect to a Bluetooth printer or serial device................................................ 72

To make a dial-up connection via a Bluetooth phone........................................... 73

Add-On Devices.............................................................................................................. 75

Connecting PC Cards.................................................................................................. 76

To insert or remove a PC Card.............................................................................. 76

8 Reference Guide

Connecting External Devices...................................................................................... 78

To identify connectors for external devices.......................................................... 78

To connect a printer or other parallel device......................................................... 80

To connect an external keyboard or mouse........................................................... 80

To connect a USB device...................................................................................... 80

To connect an audio device................................................................................... 81

To use an external monitor.................................................................................... 82

To use a TV set as a monitor................................................................................. 83

To connect an IEEE 1394 device.......................................................................... 85

To connect a serial device..................................................................................... 85

To connect an infrared device............................................................................... 85

To use a port replicator ......................................................................................... 87

Installing Additional RAM......................................................................................... 89

To install a RAM expansion module .................................................................... 89

To remove a RAM expansion module .................................................................. 90

Replacing the Hard Disk Drive................................................................................... 91

To replace the hard disk drive............................................................................... 91

To replace the hard disk drive holder.................................................................... 92

To prepare a new hard disk drive.......................................................................... 93

Troubleshooting and Maintenance ............................................................................... 95

Troubleshooting Your Computer................................................................................ 96

Audio Problems..................................................................................................... 96

CD-ROM and DVD Problems.............................................................................. 97

Display Problems.................................................................................................. 99

Hard Disk Drive Problems.................................................................................. 100

Heat Problems..................................................................................................... 101

Infrared Problems................................................................................................ 101

Keyboard and Pointing Device Problems ........................................................... 102

LAN Problems .................................................................................................... 103

Memory Problems...............................................................................................104

Modem Problems................................................................................................ 104

PC Card (PCMCIA) Problems............................................................................ 107

Performance Problems........................................................................................ 108

Port Replicator Problems .................................................................................... 109

Power and Battery Problems............................................................................... 109

Printing Problems................................................................................................ 111

Serial, Parallel, and USB Problems..................................................................... 112

Startup Problems................................................................................................. 113

Wireless Problems............................................................................................... 114

Testing the Hardware................................................................................................ 116

To run the e-Diagtools diagnostic test ................................................................ 116

Configuring the Computer........................................................................................ 118

To run the BIOS Setup utility ............................................................................. 118

Reinstalling and Updating Software......................................................................... 122

To recover the factory installation of your hard disk.......................................... 122

To replace a damaged Recovery CD or DVD..................................................... 123

Reference Guide 9

To update the BIOS............................................................................................. 123

To update Windows drivers................................................................................ 124

HP Support and Service............................................................................................... 125

Getting Assistance for Your Computer..................................................................... 126

To get help from the Web ................................................................................... 126

To contact HP for support or service .................................................................. 126

To receive repair service..................................................................................... 128

To prepare your computer for shipment.............................................................. 129

Hewlett-Packard Limited Warranty Statement......................................................... 130

Reference Information................................................................................................. 133

Hardware Specifications........................................................................................... 134

Modem Reference Information................................................................................. 138

Modem Reference (Conexant)............................................................................ 138

Safety Information.................................................................................................... 145

Power Cords........................................................................................................ 145

Ergonomics ......................................................................................................... 146

Battery Safety...................................................................................................... 146

Laser Safety......................................................................................................... 147

LED Safety.......................................................................................................... 147

Mercury Safety.................................................................................................... 148

Exposure to Radio Frequency Radiation............................................................. 148

Regulatory Information............................................................................................. 149

U.S.A................................................................................................................... 149

Canada................................................................................................................. 150

European Union .................................................................................................. 151

Japan ................................................................................................................... 153

Russia.................................................................................................................. 154

International........................................................................................................ 154

Index ..............................................................................................................................157

10 Reference Guide

Getting Started with Your HP Notebook

Reference Guide 11

Getting Started with Your HP Notebook

Taking Inventory

Taking Inventory

Congratulations! Your notebook computer sets a new standard in personal computing.
Although compact and easy to carry, your computer is made with the quality and
attention to detail that are the hallmark of Hewlett-Packard.

This manual shows how to set up and operate your computer, as well as what to do if you
run into trouble.

What’s in the box?

• HP notebook PC.

• Battery (installed).

• AC adapter and power cord.

• Quick Start sheet.

• Startup Guide.

• Recovery CD or DVD, for restoring Windows and all software included with your

computer.

• Microsoft Windows manual.

• CD with special software (for models with certain types of drives).

In addition, your HP notebook includes preinstalled software. (The exact software
installed depends on your particular notebook model.)

To buy accessories

You can buy accessories for your computer online. For the latest accessories and options,
visit the HP Notebook Web site (www.hp.com/notebooks).

HP currently offers accessories, such as the following:

• AC adapter.

• Replacement hard disk drive module.

12 Reference Guide

Getting Started with Your HP Notebook

Taking Inventory

• RAM modules for expanding memory.

• Battery.

• Port replicator.

To find more information

The following table lists other sources of information about your computer and related
products.

Source Description and Location

Startup Guide

Online

Reference

Guide

Online HP Notes For late-breaking information available after the manuals were completed, see the

Microsoft Windows
manual

HP Notebook Web
Site

HP Business
Support Web Site

This printed manual introduces your computer. It also contains setup instructions,
basic operation guidelines, troubleshooting information, and warranty information.

The full

complete source for operating and maintaining the computer. Look in the online HP
Library, or on the
and Support Center.

HP Notes in the online HP Library, or on the
This is shipped with your computer and contains information about using the version

of Microsoft Windows shipped with your computer.
www.hp.com/notebooks

www.europe.hp.com/notebooks (European mirror).
To select another language, see www.hp.com.

www.hp.com/go/bizsupport

Reference Guide

Recovery CD

is shipped on the computer’s hard drive, and provides a

or

DVD

in \hp\Library. The HP Library is in the Help

Recovery CD

or

DVD

in \hp\Library.

Reference Guide 13

Getting Started with Your HP Notebook

Identifying Parts of the Computer

Identifying Parts of the Computer

Front View

1. Computer open/close latch.

2. One-Touch buttons.

3. Keyboard status lights.

4. Power button. Turns the computer on and off.

5. Touch pad, scroll pad, click buttons, plus on-off
button.

6. Main status lights (left to right): power mode,
battery, hard disk activity.

14 Reference Guide

7. Built-in microphone*.

8. Infrared port*.

9. Wireless on-off button and indicator light*.

10. Battery.

11. CD-ROM, DVD, or other drive.

12. PS/2 keyboard or PS/2 mouse port (supports Y
adapter).

* on certain models

Back View

Getting Started with Your HP Notebook

Identifying Parts of the Computer

13. AC adapter jack.

14. Two universal serial bus ports (USB).

15. LAN port*.

16. S-video port*.

17. Parallel port (LPT1). Use this port for a parallel
printer or other parallel device.

18. Serial port (COM1). Use this port for a serial
mouse, modem, printer, or other serial device.

19. External monitor port.

20. Kensington lock slot (security connector).

21. Modem port*.

22. PC Card and CardBus slot and button (certain
models have two slots and two buttons).

23. IEEE 1394 port*.

24. Audio jacks (left to right): external microphone,
audio out (headphones).

25. Volume control*.

26. Audio mute button and audio mute light*.

27. Floppy disk drive*.

* on certain models

Reference Guide 15

Getting Started with Your HP Notebook

Identifying Parts of the Computer

Bottom View

28. Hard disk drive.

29. Battery latch.

30. RAM cover.

31. Reset button.

32. Docking port*.

33. Mini-PCI cover (no user parts inside).

* on certain models

16 Reference Guide

Getting Started with Your HP Notebook

Identifying Parts of the Computer

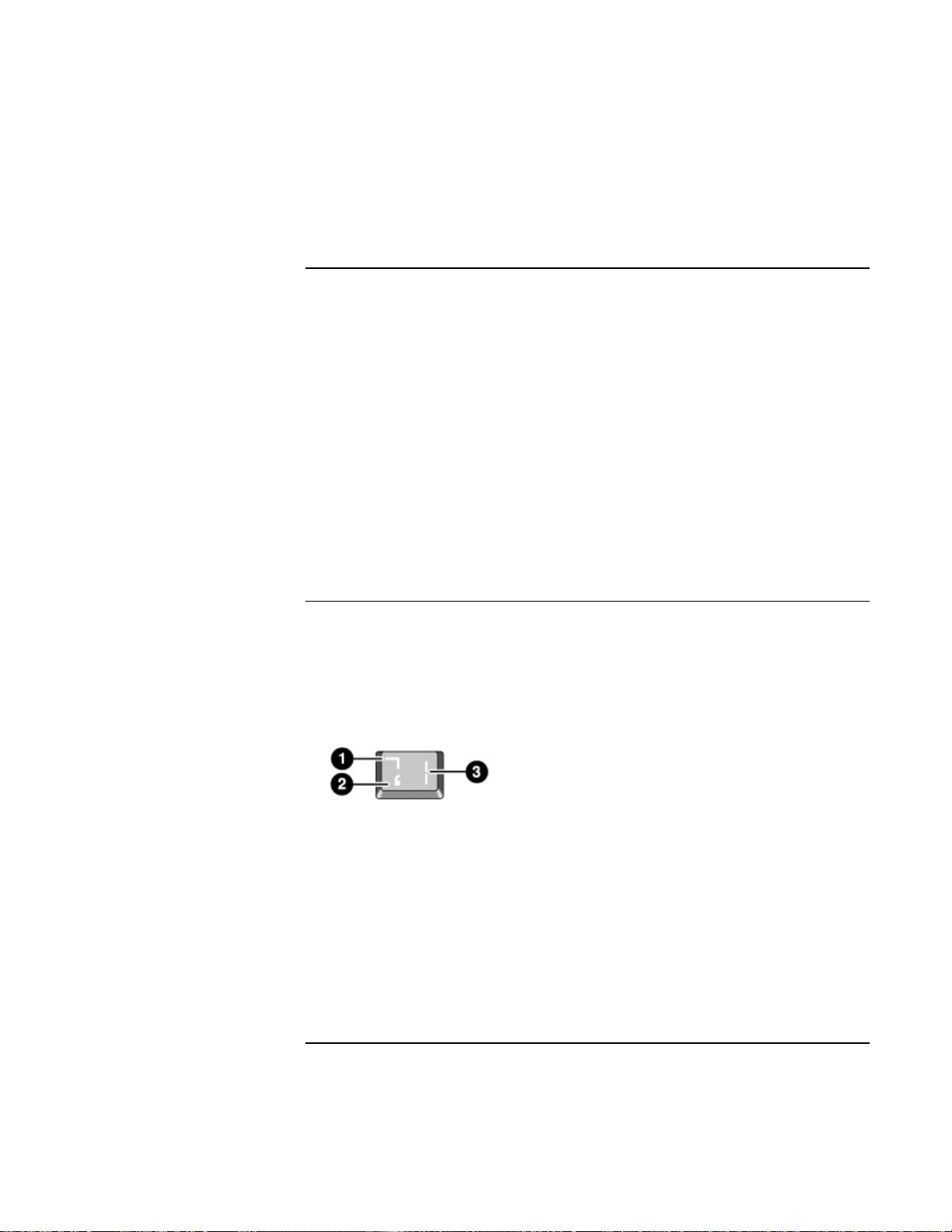

Status Lights

The computer includes a number of status lights that report power and battery status,
drive activity, and keyboard functions such as Caps Lock and Num Lock.

The following diagram shows the main status lights on the front of the computer.

1. Power mode.

• On: the computer is on (even if the display is off).

• Blinking: the computer is in Standby mode.

• Off: the computer is off or in Hibernate mode.

2. Hard disk drive activity.

• On: computer is accessing the hard disk drive.

3. Battery status.

• Green: the AC adapter is connected and the battery is fully charged.

• Amber: the AC adapter is connected and the battery is charging.

• Blinking: the AC adapter is connected and the battery is missing or has a fault.

• Off: the AC adapter is not connected.

Reference Guide 17

Getting Started with Your HP Notebook

Identifying Parts of the Computer

The keyboard status lights, located above the keyboard, indicate the states of the
keyboard locks.

1. Caps Lock. Caps Lock is active.

2. Num Lock. Num Lock is active. (The Keypad Lock must also be on to use the

embedded keypad.)

3. Keypad Lock. The embedded keypad is active (Fn+F8). Num Lock must also be on

for the numeric keys—otherwise, cursor control is active (as marked on an external
keyboard).

18 Reference Guide

Setting Up Your Computer

Getting Started with Your HP Notebook

Setting Up Your Computer

WARNING

WARNING

Improper use of keyboards and other input devices has been associated with
ergonomic injury. For information about reducing your risk, see Working in
Comfort in the online HP Library, or visit our ergonomics Web site,
www.hp.com/ergo. For a summary about working with a notebook computer, see

“Working in Comfort with a Notebook PC” on page 42.

If you are using your notebook computer as your primary computer, or using it for
extended periods, you should use it with a full-size keyboard, monitor, and mouse.
HP docking accessories offer quick, easy connections to these devices. This can
reduce the risk of ergonomic injury. See Working in Comfort in the online HP
Library.

When you set up your computer for the first time, you’ll install and charge the battery,
connect the AC adapter, turn on the computer, and run the Windows setup program.

Step 1: Install the battery

Do not mutilate or puncture batteries. Do not dispose of batteries in fire, or they
can burst or explode, releasing hazardous chemicals. Rechargeable batteries must
be recycled or disposed of properly.

Your computer is shipped with the battery installed. If the battery has been removed, you
should install it:

1. Turn the computer upside down.

2. Insert the connector end of the battery into the battery compartment and slide it in

until it latches.

Reference Guide 19

Getting Started with Your HP Notebook

Setting Up Your Computer

To remove the battery

1. Before removing the battery, do one of the following:

• Shut down the computer or put it into Hibernate mode, or

• Plug in the AC adapter.

2. Slide the battery’s release latch, and then slide the battery out of its compartment.

20 Reference Guide

Step 2: Connect AC power

Getting Started with Your HP Notebook

Setting Up Your Computer

CAUTION

Important

Use only the HP AC adapter included with your computer (or other approved
adapter that meets the power requirements of the computer).

If “75W” is printed below the AC adapter socket on the computer, do not use a 60­watt, 3.16-amp adapter, such as HP F1454A or F1781A, and do not use DC adapter
accessories F1455A and F2297A.

Using the wrong AC adapter could damage the computer or adapter and may void
your warranty (see "Hewlett-Packard Limited Warranty Statement" on page 130).

• Plug the AC adapter into the computer and connect the power cord to the AC adapter,

then plug the power cord into a wall outlet. The computer’s battery then starts
charging.

When unplugging the power cord, unplug it from the outlet before unplugging it from
the AC adapter.

While the battery is charging, you can continue with step 3.

Reference Guide 21

Getting Started with Your HP Notebook

Setting Up Your Computer

Step 3: Connect a phone line

If your computer does not include a built-in modem, you can skip this step. Also, if you
prefer, you can instead connect to a PC Card modem or an external modem.

1. Make sure the telephone line is an analog line, sometimes called a data line. (You

must not use a digital line.)

2. Connect the telephone cord into a telephone jack. If the plug on the phone cord

doesn’t fit the jack, you may need to use an adapter.

3. Plug the other end of the phone cord into the built-in modem.

For details about using the modem, see “Using the Modem” on page 56.

22 Reference Guide

Getting Started with Your HP Notebook

Setting Up Your Computer

Step 4: Turn on the computer

• Press the power button above the left side of the keyboard. The computer then boots

up, and Windows starts automatically.

Hint

If your computer does not turn on when operating on battery power, the battery may be
out of power. Plug in the AC adapter and press the power button again. Leave the AC

adapter plugged in for at least an hour—or 2–3 hours to charge it fully.

Step 5: Set up Windows

Your notebook computer has Microsoft Windows preinstalled on its hard disk drive. The
first time you turn on your computer, the Windows Setup program runs automatically so
you can customize your setup.

1. Follow the Setup program’s instructions as they appear on the screen. If the program

prompts you to enter the Product ID code, you will find this code on the bottom of the
computer.

2. If your computer has a modem, check the modem’s country or region settings: click

Start, Control Panel, Printers and Other Hardware, Phone and Modem Options, and
then click Edit on the Dialing Rules tab.

Reference Guide 23

Getting Started with Your HP Notebook

Setting Up Your Computer

Step 6: Register your notebook

Be sure to register your computer. Registering is free and fast, and ensures you will
receive quicker, more personalized support. The information you provide during
registration allows us to provide you with better products and services.

Registering your computer does the following:

• Records your ownership of the computer with Hewlett-Packard and provides access

to service, support, and information.

• Records your ownership of the Windows XP operating system with Microsoft.
If you decide not to register during Windows setup, choose the option to print the

registration form, and then fax it to HP at the fax number on the form. Or you can register

by calling HP Customer Care—see “To contact HP for support or service”on page 126 to
find the phone number.

To connect to the Internet

If you are connected to a wired or wireless LAN with Internet access or your computer
has a modem (built-in, PC Card, or external), you can connect to the Internet. For details,
see “Using the Modem” on page 56, “Connecting to a LAN” on page 63, or “Making
Wireless Network Connections” on page 64.

What to do next

• If you’re not familiar with Windows XP, click Start, Tour Windows XP, or check the

Windows manual to discover what’s new.

• See the online Reference Guide to learn more about using and maintaining your

computer—click Start, Help and Support, HP Library.

24 Reference Guide

Basic Operation

Reference Guide 25

Basic Operation

Operating Your Computer

Operating Your Computer

You can start and stop your computer using its power button. However, at certain times

you may want to use other methods to start or stop the computer—depending on power
considerations, types of active connections, and start-up time.

To turn the computer on and off

Power mode To enter this mode
On mode

Power mode status light is on.

Standby mode

Saves significant power.
Turns off the display and other components.
Maintains current session in RAM.
Restarts quickly.
Restores network connections.
Power mode status light is blinking.

Hibernate mode

Saves maximum power.
Saves current session to disk, then shuts down.
Restores network connections.
Power mode status light is off.

Shut down (off)

Saves maximum power.
Turns off without saving current session.
At startup, resets everything, starts a new
session, and restores network connections.
Power mode status light is off.

To turn on: Press the power button to restart, or to resume your session from Standby or Hibernate mode.

You can also customize the way these power modes work. See “How the computer
manages power automatically” on page 48.

Press the power button.

Press the power button

–or–
click Start, Turn Off Computer, Stand By
–or–
allow timeout.

Press Fn+F12
–or–
allow timeout.

Click Start, Turn Off Computer, Turn Off
–or–
press the power button for 4 seconds (only if the Start
menu procedure doesn’t work).

26 Reference Guide

Basic Operation

Operating Your Computer

To reset the computer

Occasionally, you may find that Windows or the computer has stopped responding, and
will not let you turn the computer off. If this happens, try the following in the order listed.

• If possible, shut down Windows: press CTRL+ALT+DEL, and then click Shut Down,

Restart.

–or, if this fails–

• Press the power button for 4 seconds until the display shuts down, and then press the

power button again to restart.
–or, if this fails–

• Insert the tip of a ballpoint pen into the reset button on the bottom of the computer,

and then press the power button to restart.

To reset the computer while it’s docked in a port replicator, you can press the reset button
on the left side of the port replicator.

To change the boot device

The computer normally boots from its internal hard disk. You can also boot the computer
from a floppy disk drive, a CD-ROM drive, or an internal network interface card.

1. Click Start, Turn Off Computer, Restart.

2. When the HP logo appears, press ESC to display the Boot menu.

Reference Guide 27

Basic Operation

Operating Your Computer

3. Use the arrow keys to select the boot device, and press ENTER.
If you want to boot from a specific device whenever it is present, change the boot order

using the BIOS Setup utility—see “To run the BIOS Setup utility” on page 118.

To use the touch pad

The touch pad includes an on-off button so you can turn off the touch pad to avoid
moving the pointer accidentally, such as by touching the pad while typing. The indicator
light turns off when you turn off the touch pad.

1. Click buttons. The click buttons work like the left and right buttons on a standard

mouse.

2. Touch pad (touch-sensitive pointing device).

3. Touch pad on-off button and indicator light.

4. Scroll pad. The scroll pad scrolls the contents of the active window.

28 Reference Guide

Basic Operation

Operating Your Computer

Moving and selecting

1. Place your hands in a normal typing position.

2. Move a thumb or finger across the touch pad in the direction you want the pointer to

move.

3. Use the left and right click buttons, which function like the left and right buttons on a

mouse, to make your selection:

• To open an application, move the pointer over the icon and double-click the left

button.

• To make menu selections, move the pointer to the menu item and click the left

button.

• To open the shortcut menu for an item, move the pointer over the item and click

the right button.

• To drag an item, move the pointer over the item. Then press and hold the left

button while you move the pointer to the new location, and release the button.

In addition, you can tap the touch pad to select items and use other advanced touch pad
features. For more information, double-click the touch pad icon in the taskbar, and then
click Help in the tab for a particular feature.

You can use Mouse in Control Panel or the touch pad icon in the taskbar to customize the

operation of your computer’s pointing devices (touch pad and external mouse): you can
change the left, right, and scroll pad actions, double-click speed, pointer speed, and more.

Scrolling with the scroll pad

• Move your finger down the scroll pad to scroll down through the contents of a

window. Move your finger up the scroll pad to scroll up.

Reference Guide 29

Basic Operation

Operating Your Computer

To use the Fn hot keys

The combination of the Fn key plus another key creates a hot key—a shortcut key

sequence—for various system controls. To use a hot key, press and hold Fn, press the
appropriate second key, and then release both keys.

This hot key Does this

Fn+F1 Decreases the display brightness.
Fn+F2 Increases the display brightness.
Fn+F5

Fn+F8 Toggles the built-in keypad on and off. Does not affect an external keyboard. If Num

Fn+F12 Enters Hibernate mode.
Fn+NumLock Toggles Scroll Lock on and off.
Fn+Page Up Increases the audio volume and cancels the mute setting.
Fn+Page Down Decreases the audio volume.
Fn+Backspace Mutes the audio output.

Toggles among the built-in display, an external display, and simultaneous display on
both.

Lock is on, then the numeric functions are active; otherwise, cursor control is active
(as marked on an external keyboard).

30 Reference Guide

Basic Operation

Operating Your Computer

To use the One-Touch buttons

Your computer includes five One-Touch buttons that can start any application or open a
document or Web site with a single press.

• Press the One-Touch button to open the corresponding application, document, or

Web site.

Your computer is preconfigured to access the following services:

1. Microsoft Outlook Express e-mail software.

2. HP TV Now—see “To use a TV set as a monitor” on page 83.

3. Microsoft Internet Explorer.

4. HP Quick Lock—see “To lock your computer” on page 39.

5. Microsoft Media Player.

–or–
Online notebook information.

To reprogram a One-Touch button

1. Click Start, All Programs, Hewlett-Packard, Notebook, HP One-Touch, HP One-

Touch Configuration.

2. On the One-Touch tab, click the button you want to reprogram.

Reference Guide 31

Basic Operation

Operating Your Computer

3. Type a label for the button, and then select the application, document, folder, or Web

site you want the button to open.

4. If you want a label to appear onscreen when you press a One-Touch button, select that

option on the Onscreen Display tab.

To use the Windows and Applications keys

The Windows key brings up the Windows Start menu. This is the same as clicking the
Start button on the taskbar.

The Applications key brings up the shortcut menu for the current application. This is the
same menu that appears when you right-click while pointing at the application.

This key combination Does this

Windows key+E Runs Windows Explorer.
Windows key+F1 Runs Windows Help.
Windows key+F Runs Windows Find: Search.
Windows key+M Minimizes all displayed windows.
Shift+Windows key+M Returns all minimized windows to original size.
Windows key+R Runs the Windows Run dialog box.

32 Reference Guide

Basic Operation

Operating Your Computer

To use the embedded keypad

Your computer’s built-in keyboard includes an embedded keypad you can use to type
numbers and arithmetic operators. The keys in this keypad are marked using light blue
characters.

• Press Fn+F8 to turn on the embedded keypad.

• Hold Fn while typing a key to turn the embedded keypad on temporarily.

When the embedded keypad is active, you can use Num Lock to change how the keypad
functions:

• Num Lock on: the keys enter the numbers and arithmetic operators printed in light

gold on the keyboard.

• Num Lock off: the keys act as cursor control keys, as marked on an external

keyboard.

To use the ALT GR key

Non-U.S. keyboards have an ALT GR key to the right of the spacebar. This is a shift key
that provides access to certain special keyboard characters.

• For a character in the lower-right corner of a key, press and hold ALT GR to type the

character.

1. Shifted.

2. Unshifted.

3. ALT GR.

Reference Guide 33

Hint

Basic Operation

Operating Your Computer

To adjust the display

Changing the brightness

• Press Fn+F1 or Fn+F2 to decrease or increase (respectively) the display’s brightness.

–or–

• Click Start, All Programs, Hewlett-Packard, Notebook, HP Display Settings. You

have the option of adding a display settings icon in the taskbar for quick access.

To maximize your battery operating time, set the brightness to the lowest level you can
view comfortably.

Changing display settings

You can customize a number of display settings for your computer, such as color depth
and screen area.

1. Click Start, Control Panel, Appearance and Themes, Display.

2. Click the Settings tab, and then choose the settings you want.
The computer has an LCD display, which behaves differently from a normal computer

monitor. If you change the display resolution, the desktop changes size, but the objects on
it do not. You normally won’t change the resolution except to use an external monitor.

Changing icon and label sizes

If the icons and labels on your screen seem too small, you can enlarge them using
HP Desktop Zoom.

• Click Start, All Programs, Hewlett-Packard, HP Desktop Zoom, HP Desktop Zoom.

Using an external monitor

If you want, you can attach an external monitor to your notebook computer. See “To use
an external monitor” on page 82.

34 Reference Guide

Basic Operation

Operating Your Computer

To adjust the volume

To increase or decrease the volume

• Press Fn+PageUp or Fn+PageDown.

• Press the back or front half of the volume control on the left side of the computer

(certain models).

• Click the speaker icon in the taskbar (if not present, see Windows Help), and drag the

volume control bar up or down.

To mute the audio

You can mute the audio output without changing the volume setting. This feature is
handy when you want to block all speaker output regardless of what your computer is
doing.

• Press Fn+Backspace.

• Press the audio mute button on the left side of the computer (certain models). The

button lights when audio is muted.

• Click the speaker icon in the taskbar (if not present, see Windows Help), and click

Mute.

To change computer settings for a presentation

When you show a presentation to an audience, you’ll often want to adjust some of your
video and power settings for the show. You can easily do this with HP Presentation
Ready, an application that automatically adjusts your computer for slide shows and
similar presentations, and also opens the presentation itself. Once the presentation is
through, HP Presentation Ready automatically returns your computer to its normal
settings.

To prepare for the presentation

1. Click Start, All Programs, Hewlett-Packard, HP Presentation Ready, Configure.

–or–
Click the HP Presentation Ready icon in the taskbar (if present), and then click

Configure.

Reference Guide 35

Basic Operation

Operating Your Computer

2. Select the presentation you want to show. If you don’t select one, you can choose one

when you start the show.

3. If you want to change the video or power settings for the show, click Settings.

To show the presentation

• Click Start, All Programs, Hewlett-Packard, HP Presentation Ready, Start

Presentation.
–or–
Click the HP Presentation Ready icon in the taskbar (if present), and then click Start

Presentation.
To adjust settings during the presentation, click the taskbar icon and choose Configure.
To end the presentation and restore the computer’s normal settings, close the presentation

application or click the taskbar icon and choose Stop Presentation.

36 Reference Guide

Using CDs or DVDs

To insert or remove a CD or DVD

Basic Operation

Using CDs or DVDs

CAUTION

Do not remove a CD or DVD while the computer is reading it. Otherwise, the
computer could stop responding and you could lose data.

Be sure to press the CD or DVD onto the spindle. You can damage the disk or
drive if you just lay it on the tray.

1. Press the button on the face of the CD-ROM or DVD drive. If you are using this drive

for the first time, be sure to remove the cardboard packing insert.

2. Place the CD or DVD into the drive (label facing up) and gently press down to seat it

on the spindle.

–or–

Remove the CD or DVD.

3. Slide the tray back into the module to close it.

If your computer loses power, you can manually open the drive to remove a CD. Insert a
straightened paper clip into the recessed hole on the front of the drive to open it.

Reference Guide 37

Hint

Basic Operation

Using CDs or DVDs

To play DVD movies

If your computer came with a DVD drive, it also includes DVD player software that lets
you play DVD movies.

• Click Start, All Programs, Multimedia, DVD Player, InterVideo WinDVD.
You can also use Windows Media Player to play DVD movies.

To play DVD movies on a TV, see “To use a TV set as a monitor” on page 83.

For best performance while playing movies on battery power, set the Control Panel
power scheme to Portable/Laptop. See “How the computer manages power
automatically” on page 48.

Important

DVDs can have regional codes embedded in the disc data. These codes prevent DVD
movies from being played outside the region of the world in which they are sold. If you
get a region code error, you are trying to play a DVD intended for a different region.

Most DVD drives let you change the region code only a limited number of times
(usually no more than four). When you reach this limit, your last change to the region
code will be hard-coded on the DVD drive, and will be permanent. Your HP warranty
does not cover the expense of correcting this situation. Refer to the help for your DVD
player software for details about setting region codes.

To create or copy CDs

If your computer came with a CD-RW drive, it also includes software that lets you copy
or create CDs.

• Click Start, All Programs, Multimedia, CD Writer, RecordNow, RecordNow.
You can use Windows Media Player to create audio CDs, and Windows Explorer to

create data CDs using a CD-RW drive.
Refer to the software’s help for details about creating or copying CDs. HP recommends

using HP C4403A (CD-R) or C4404A (CD-RW) media—read and write quality may
vary for other media.

38 Reference Guide

Securing Your Computer

To set up password protection

You can protect your computer from access by another user when you set up password
protection, which is available through Windows and through the BIOS Setup utility. For
complete protection, set passwords in Windows as well as through BIOS Setup.

To cancel password protection, set an empty password.

BIOS Setup Utility

1. Click Start, Turn Off Computer, Restart.

2. When the HP logo appears, press F2 to enter BIOS Setup.

3. From the Security menu, enter or modify the Administrator Password or User

Password as needed. See “Security Menu” on page 120.

Basic Operation

Securing Your Computer

4. Press F10 to save and exit BIOS Setup.

Windows XP

1. Click Start, Control Panel, User Accounts, and then select your account.

2. Click Create a Password, and then set the password.

3. Click Start, Control Panel, Performance and Maintenance, Power Options.

4. On the Advanced tab, select the option to prompt for a password when the computer

leaves Standby mode.
To protect your computer when you’re not using it, see “To lock your computer” below.

To lock your computer

To protect against unauthorized access while your computer is running, lock the
computer before leaving it unattended, or set up a screen saver with a password in
Control Panel Display. You can lock the computer these ways:

Reference Guide 39

Basic Operation

Securing Your Computer

• Press the HP Quick Lock button—the five One-Touch buttons are located above the

keyboard.

–or–

• Press CTRL+ALT+DEL and click Lock Computer. This option may not be available

in all configurations.
To unlock the computer, follow your normal logon steps.

To attach a security cable

Your computer includes a built-in connector you can use to secure the computer with a
cable and a lock (such as the Kensington MicroSaver lock system, available at many
computer stores).

1. Wrap the cable around a secure object, such as a table leg.

2. Loop the cable to create a slip knot around the stationary object, and make sure it

can’t slip off.

3. Insert the lock into the security connector on the left side of the computer and release

the key. Store the key in a safe place away from the computer.

40 Reference Guide

CAUTION

Basic Operation

Securing Your Computer

To protect against viruses

Virus-protection software can help protect the integrity of your data. This is especially
important if you use the Web.

Your computer comes equipped with Norton AntiVirus software. You can get detailed

instructions from the software’s online Help.

To lock the hard disk drive

The computer enables you to lock its internal hard disk drive to help keep your
information secure. Hard disk drive lock does not protect a second hard disk drive
installed in the module bay.

When you enable hard disk drive lock, the current BIOS user password (or
administrator password if that is the only password set) is encoded on the hard
disk drive.

If you move the hard disk drive to another computer, you can’t access the drive until
you set the user (or administrator) password to match the drive’s password. After you

match the drive’s password, you can change the computer (and drive) password. If
you forget the password, you cannot recover your data.

1. Click Start, Turn Off Computer, Restart.

2. When the HP logo appears, press F2 to enter the BIOS Setup utility.

3. From the Security menu, enable Password Required to Boot.

4. From the Security menu, enable Internal hard disk drive lock.

5. Press F10 to save and exit BIOS Setup.

Reference Guide 41

Basic Operation

Working in Comfort with a Notebook PC

Working in Comfort with a Notebook PC

WARNING

Note

Improper use of keyboards and other input devices has been associated with
ergonomic injury. For more information about reducing your risk, visit our
ergonomics Web site at www.hp.com/ergo—or see Working in Comfort in the

online HP Library.

You can use your HP notebook computer virtually anywhere, anytime. The following
recommendations should help you work more comfortably.

If you are using your portable computer as your primary computer, or using it for
extended periods, you should use it with a full-size keyboard, monitor, and mouse. This
will give your portable computer the adjustability and comfort features of a desktop
unit. HP docking accessories offer quick, easy connections to these devices. More
information on how to prepare your workspace environment and set up your HP
equipment is available in Working in Comfort, which is preloaded on the hard disk in
the HP Library, and also available at www.hp.com/ergo.

Your Mobile Work Environment

• Use a chair that provides good support for your lower back. If an adjustable chair is

not available, you can use a pillow or rolled-up towel to provide lower back support.

• Try to keep your thighs parallel to the floor and your feet flat on the floor. In a mobile

environment, you can do this by using a phone book or briefcase to support your feet.

• Adjust the height of either your work surface or chair to keep your arms in a neutral

position. Your arms should be relaxed and loose, elbows at your sides, with the

forearms and hands parallel with the floor.

• Position your notebook computer display to minimize glare and reflection. For

example, on an airplane, lower the window shade, or in a hotel room, draw the

curtains. You also should maintain a comfortable viewing distance–approximately 40

to 60 cm (16 to 24 inches). Adjust the angle of your display to help keep your head

angled slightly downward in a comfortable position.

42 Reference Guide

Basic Operation

Working in Comfort with a Notebook PC

Using Your Mobile Computer

• Position the computer so your wrists and hands are in a neutral position. Your wrists

should be as straight as possible and should not have to bend sideways or more than

10 degrees up or down. If your notebook computer does not have a built-in palm rest,

you can use a rolled-up towel.

• Try to type as lightly as possible. The notebook keyboard requires little force to

activate.

• Take frequent, short rest breaks–this is especially important in a mobile computing

environment.

• Portable computers weigh between approximately 1.4 and 3.7 kilos (3 and 8 pounds).

When traveling, be sure to carry your computer properly to minimize strain on your

body. Shift the bag containing your notebook equipment frequently between your left

and right hands and shoulders.

Reference Guide 43

Basic Operation

Taking Care of Your Computer

Taking Care of Your Computer

Use the following recommendations to maintain your computer during everyday use and
prevent potential physical damage or data loss.

To protect your hard disk drive

Hard disk drives, as well as other internal components, are not indestructible and can be
damaged by inappropriate handling and operation.

• Avoid bumps or jolts.

• Do not operate the computer while traveling over bumpy terrain.

• Suspend or shut down the computer before transporting it. This turns off the hard

drive. A drop of a few inches onto a rigid surface while the hard drive is operating

could destroy data or damage the drive.

• Carry the computer in a padded case to protect against bumps and jolts.

• Set down the computer gently.

To maintain your computer

• Provide adequate ventilation around the computer. Always set the computer on a flat

surface, so that air can flow freely around and underneath it.

• Always shut down the computer or put it in Hibernate mode before putting it in a

carrying case or other enclosed space.

• Do not pick up or carry the computer by its display.

• Observe the temperature limits and other specifications listed in “Hardware

Specifications” on page 134. Do not use the computer outside in the rain or snow

(inclement weather). If the computer is cold, warm it gradually to avoid condensation.

• Maintain your battery for best performance—see “To get the most from your

batteries” on page 52.

44 Reference Guide

Basic Operation

Taking Care of Your Computer

To safeguard your data

• Do not use a pointing device or activate any other device that interrupts operation

while the system is starting or stopping.

• Back up your work regularly. Copy files to floppy, CD-RW, or network drives.

• Use a virus-scanning program (such as the Norton AntiVirus program included with

your computer) to check the integrity of your files and operating system. Since new

viruses appear frequently, you will also want to update the program’s virus definitions

from time to time; updates are on the Web at www.symantec.com for Norton

AntiVirus.

• Check your disk using the Tools tab in the disk’s Properties window.

To extend the life of the display

• Set the display brightness to the lowest comfortable level (Fn+F1).

• When working at your desk, connect an external monitor and turn off the internal

display (Fn+F5).

• If you are not using an external monitor, set the Turn off monitor timeouts (for both

AC and battery operation) to the shortest comfortable interval.

• Avoid using a screen saver or other software that prevents the computer from

changing to Display-off or Standby mode after a timeout period. If you use a screen

saver, enable the option to shut off the display after a time delay.

• Do not disable Display-off or Standby timeouts.

• If you are using AC power and have no external monitor attached, put the computer in

Standby mode when not in use.

Reference Guide 45

Basic Operation

Taking Care of Your Computer

To clean your computer

• You can clean the computer with a soft cloth dampened with clean water or with

water containing a mild detergent. Do not use an excessively wet cloth, and take care

to keep water out of the case.

• Do not use abrasive cleaners, especially on the display. Do not apply any cleaner

directly to the display. Instead, apply the cleaner to a soft cloth and then gently wipe

the display.

• You can clean the keyboard with a vacuum cleaner to remove accumulated dust.

46 Reference Guide

Batteries and Power Management

Reference Guide 47

Batteries and Power Management

Managing Power Consumption

Managing Power Consumption

When you’re running your computer on battery power, you will want to maximize
operating time without compromising performance. Your computer is designed to help
you reduce power consumption and extend battery life without needing to turn it off.

• During idle periods, the computer automatically enters power-saving modes after

specified timeout periods. You can adjust these timeouts to suit your working habits.

• You can manually send the computer into a power-saving mode at any time by

pressing the appropriate key—see “To manage power manually” on page 50.

How the computer manages power automatically

Your computer automatically enters Hibernate mode and Standby mode, and turns off the
hard disk and display based on values set in Power Options in Control Panel.

Automatic action Occurs after… To resume…
Turns off hard disk.

Turns off the hard disk drive. This is usually
set to occur shortly after the display is turned
off.

Turns off display.

Turns off the display to conserve battery
power and extend the life of the display.

Enters Standby mode.

Maintains your current session in RAM, and
turns off the display and other components
to conserve battery power.

Enters Hibernate mode.

Saves your current session to the hard disk,
and then turns off the computer.

The hard disk is not accessed
for the specified interval.

No keyboard, pointing device,
or other input activity occurs for
the specified interval.

No pointing devices are used,
no disk drive is accessed, and
no port (serial, parallel, or IR) is
active for the specified interval.

The computer stays in Standby
mode for the specified interval.

Begin using the computer:
the hard disk turns on
when needed.

Press any key or move a
pointing device to turn on
the display.

Press the power button to
return to your current
session.

Press the power button to
restore your previous
session.

CAUTION

Make a habit of saving your work before allowing your computer to enter Standby
mode. If power is interrupted while the computer is in Standby mode, any
information that was not saved will be lost.

48 Reference Guide

CAUTION

Batteries and Power Management

Managing Power Consumption

The computer can also enter Hibernate mode if battery power reaches a critically low

level. (See “To respond to a low-battery warning” on page 52.) If this happens, you will
find on resuming that all your data has been saved, but some functions may be disabled.
To resume normal operation, restore power by connecting an AC adapter or installing a
charged battery, and then shut the computer off and restart it.

Changing timeout settings and creating power schemes

You can adjust the periods of non-use after which your computer automatically shuts
down components or enters a power-saving mode. You can also save these settings as a
power scheme.

1. Open Power Options in Control Panel: click Start, Control Panel, Performance and

Maintenance, Power Options.

2. Click the Power Schemes tab, and enter the settings you want. If you don’t want a

particular timeout to occur, set the value to Never. See Windows Help for details.

If you want to save the settings as a power scheme, click Save As and enter a name

for the scheme.

Do not disable Hibernate support in the Power settings, or you will lose any

unsaved data if the computer’s battery runs down completely.

Managing CPU power

If your computer contains a multispeed processor with AMD PowerNow! or Intel
SpeedStep Technology, the processor can automatically switch to lower, power-saving
speeds or to higher-performance speeds according to the workload.

You can customize CPU speed to best suit your working environment: click Start,
Control Panel, Performance and Maintenance, Power Options. On the Power Schemes
tab, select a power scheme. This scheme automatically controls the processor speeds:

• The Max Battery scheme uses the lowest processor speeds while running on battery

power, but uses low and high processor speeds on AC power.

• The Portable/Laptop option uses low and high processor speeds on battery and AC

power.

• The Presentation option uses the lowest processor speeds on battery power, but uses

low and high processor speeds on AC power.
See Windows Help for additional information about power schemes.

Reference Guide 49

Batteries and Power Management

Managing Power Consumption

To manage power manually

In addition to allowing the computer to enter its power-saving modes automatically, you
can also put it into any of the following three modes whenever you need to.

Power mode Does this… Use when… To enter this mode…
Standby Maintains your current

session in RAM, and turns off
the display and other
components.

Hibernate Saves the current session to

disk, and then shuts down.
Provides maximum power
savings while still allowing
you to recover the current
session.

Off Turns off your computer,

providing maximum power
savings. The current session
will not be saved, and any
unsaved data will be lost.

You will be away
from your computer
for up to several
hours.

You will be away
from your computer
for a day or more,
but want to continue
your session.

You’re done with
your work.

Press the power button

–or–
click Start, Turn Off Computer,
Stand By.

Press Fn+F12.

Click Start, Turn Off
Computer, Turn Off
–or–
press the power button (only if
the Start menu procedure
doesn’t work).

You can also turn off the display by closing the lid.

50 Reference Guide

Using Battery Power

To check battery status

From the battery status light

You computer has a battery status light—see “Status Lights” on page 17.

From the Windows taskbar

The Windows taskbar can display a power icon that provides detailed battery status
information (see Windows Help for details). The icon looks like a battery when AC is not
connected.

• Place the pointer over the power icon to display the remaining battery charge. This

value is shown as either a percentage of charge remaining, or as time remaining.

Batteries and Power Management

Using Battery Power

• Double-click the power icon to open the Battery Meter window.

From the Windows Control Panel

• Click Start, Control Panel, Performance and Maintenance, Power Options, and then

click the Power Meter tab to see the battery status. The Alarms and Advanced tabs

provide additional Windows’ power-information options.

On the battery

1. Remove the battery from the computer—see “Step 1: Install the battery” on page 19.

2. Press the contact pad on the side of the battery. The number of lights that turn on

indicates the remaining charge (each light represents 20% of a full charge).

Reference Guide 51

Note

Batteries and Power Management

Using Battery Power

To respond to a low-battery warning

The computer automatically alerts you when the battery power drops to a critically low
level. The computer first emits a high-pitched beep or displays a warning message. Then,
if you do not restore power within a short time, the computer goes into Hibernate mode.

Once the computer enters Hibernate mode in this way, you won’t be able to turn it on
again until you restore power by doing one of the following:

• Replace the battery with a charged one. See “Step 1: Install the battery” on page 19.

• Plug in the AC adapter. See “Step 2: Connect AC power” on page 21.

If you plug in the AC adapter, you can continue to work while your battery recharges.

To recharge the battery

CAUTION

The AC adapter is normally warm whenever plugged into an AC outlet. The

computer is normally warm while recharging. Don’t recharge the computer in a
briefcase or other confined space, or its battery could overheat.

• Plug the AC adapter into the computer.

To get the longest operating time, wait until the battery’s charge is below 50% before
recharging, and then charge it fully (100%). Charging can take up to approximately
2 hours. If you continue working while the battery charges, the charging time may
increase to 3 hours.

A fully charged battery can operate the computer for up to 2 to 3 hours, depending on
your computer’s model, power management settings, and level of use.

To get the most from your batteries

Follow these suggestions to make your battery’s power last as long as possible.

• Plug in the AC adapter, especially when using a CD-ROM or DVD drive, or any

external connections such as a PC Card or a modem.

• Set the display brightness to the lowest comfortable level (Fn+F1).

52 Reference Guide

Batteries and Power Management

Using Battery Power

• Put the computer in Standby mode whenever you are not using it for a short while:

press the power button, or click Start, Turn Off Computer, Standby.

• Put the computer in Hibernate mode whenever you want to save your current session,

but will not be using the computer for a day or more: press Fn+F12.

• Set the automatic timeout settings to emphasize saving power. If your computer has a

multispeed processor, use the lower speed on battery power (the default settings

conserve battery power)—see “How the computer manages power automatically” on

page 48.

• If your computer has a wireless on-off button, turn off the wireless function when

you’re not using it. Press the wireless on-off button so the light turns off.

• If your model has technology code KB (shown on the serial number label), check that

the display is using the Powerplay option. In Control Panel Display, on the Settings

tab click Advanced, and then on the Powerplay tab check whether Powerplay is

enabled. This allows the computer to save power when it’s not needed by the display.

• If you have an I/O PC Card—that is, a PC Card having an external connection, such

as a network card—remove it when you’re not using it. Some I/O cards use

significant power even while they’re inactive.

• If you work with an application that uses the serial port or an I/O PC Card, exit the

application when you finish using it.
In addition, follow these suggestions to extend the life of your batteries.

• Do not leave batteries unused for long periods. If you have more than one, rotate

them.

• If you normally use AC power, make a practice of using the battery as your power

source at least once a week.

• Unplug the AC adapter when the computer is not in use.

• To preserve the life of a battery, be sure to charge it regularly.

• For long-term storage, the battery must be charged 20–50% to minimize capacity loss

by self-discharge and to avoid deterioration of battery performance.

• To maintain maximum battery capacity and accuracy of the battery gauge, perform

this calibration procedure every few months:

1. Click Start, All Programs, Hewlett-Packard, Notebook, HP Battery Optimizer.

2. Follow the displayed instructions to test and condition your battery. The process

could take 4–6 hours or more per battery. You can use the computer during the
process. If you interrupt the process, the battery might be left with a low charge.

Reference Guide 53

Modem and Network Connections

Reference Guide 55

Modem and Network Connections

Using the Modem

Using the Modem

If your computer has a modem port, you can connect your modem to a telephone line and
communicate with other computers throughout the world. You can explore the Internet,
send and receive e-mail messages, and use your PC to send and receive faxes. Your
computer contains several software programs that work with your modem:

• Internet Explorer, for browsing the World Wide Web

• Outlook Express, for sending and receiving e-mail messages

• Windows XP Fax Console software for sending and receiving faxes

The modem is a high-speed 56-Kbps modem. For best performance, you can connect to
any Internet Service Provider (ISP) or modem network that has V.90 or V.92
interoperable modems. Check with your ISP for a list of telephone numbers that support
V.90 or V.92.

The maximum speed for faxing is 14.4 Kbps. Even though the modem is capable of
downloading at 56 Kbps, your ISP or modem network may not operate at this speed or
support this technology. Please check with your service provider for information on its
capabilities. Furthermore, download transmission rates depend on the condition of the
telephone line.

56 Reference Guide

To connect the modem

Modem and Network Connections

Using the Modem

CAUTION

CAUTION

To reduce the risk of fire, use only No. 26 AWG or larger telecommunications line
cord to connect the modem to the telephone wall jack.

1. Check that the telephone line is an analog line, sometimes called a data line. (You

must not use a digital line.)

2. Connect a telephone cord with an RJ-11 plug into a telephone jack. If the plug on the

phone cord doesn’t fit the jack, you may need to use an adapter.

3. Plug the other end of the phone cord into the built-in modem.

4. Check your modem’s country or region settings: click Start, Control Panel, Printers

and Other Hardware, Phone and Modem Options.

Your built-in modem may not work with multiple phone lines or a private branch
exchange (PBX), cannot be connected to a coin-operated telephone, and does not
work with party lines. Some of these connections may result in excess electrical
voltage and could cause a malfunction in the internal modem. Check your
telephone line type prior to connecting your phone line.

Special restrictions in certain countries

• Many countries impose a blackout period after a modem repeatedly fails to connect to

a service provider. The number of failed attempts and the period you must wait before

trying again differ from country to country: check with your telephone company.

For example, if you are dialing from Italy and fail to connect to your server or cancel

the connection, you must wait one minute before dialing that number again. If you

dial before then, you will get an error message that says “delay.” After the fourth

Reference Guide 57

Modem and Network Connections

Using the Modem

failed connection, you must wait one hour before trying the number again. If you dial

before the hour is up, you will get a message that says “black list.”

• When using a modem in the Republic of South Africa, an external surge protector

may be necessary in order to prevent computer damage by lightning or other electrical

surges. Connect any approved surge protector to the modem cable whenever you are

using the modem.

To connect to the Internet

Signing up with an Internet Service Provider

Before you can connect to the Internet, you need to set up an account with an Internet
Service Provider (ISP). For some countries and models, Hewlett-Packard provides easy
Internet signup so that you can connect quickly to an ISP.

1. Connect your built-in modem—see the previous topic. (If your computer does not

have a built-in modem, you can instead use a PC Card modem or an external modem.)

2. If available, double-click the Connect to the Internet or Easy Internet Signup icon on

the desktop. This launches the Internet Connection or New Connection wizard, which

helps you locate an ISP in your area, transfer an existing Internet account to this

computer, or set up an Internet connection manually.

–or–

If available, click Start, All Programs, Online Services, or click Start, All Programs,

Easy Internet Signup, and select one of the listed ISPs. This begins the registration

process for the ISP you choose.

Connecting to the Internet

1. Double-click the Internet Explorer icon on the desktop. For your first connection,

you’ll be prompted for information about your connection.

2. Click the Connect button in the Dial-up Connection or Network Connections window.
To display an icon for your connection, open Network Connections in Control Panel,

right-click the connection, select Properties, and select the icon option.

58 Reference Guide

Modem and Network Connections

Using the Modem

To disconnect from the Internet

You remain connected to the Internet until you shut down the computer, disconnect the
phone line from the computer, or give a command to hang up the connection.

• Click Start, Control Panel, Network and Internet Connections, Network Connections,

and then right-click the connection and select Disconnect.

–or–

Double-click the connect icon in the taskbar, and click Disconnect. (You can enable

this icon as described in “To connect to the Internet,” above.)

To dial in to a network

You can use the modem to dial in to a LAN (local area network) that supports dial-in
connections. This gives you access to network resources from a remote location.

• See Windows Help for information about setting up and using dial-in network

connections—click Start, Help and Support.

Reference Guide 59

Modem and Network Connections

Using the Modem

To change your modem settings

The modem is already set up to be compatible with telephone systems and modems in
most areas. However, in some situations, you may have to change modem settings to
match local conditions. If you have questions about local requirements, contact your
telephone company.

• Control Panel. Open Phone and Modem Options in Control Panel to change many

modem settings. On the Modems tab, click Properties to set connection speeds, or on

the Dialing Rules tab click Edit to set dialing options.

• Communications software. Many communications applications provide options for

controlling modem settings. See the help for your software.

• AT commands. You can control many aspects of modem operation using modem AT

commands. AT commands are special strings of characters sent to the modem to set

up specific conditions. Those command strings normally start with “AT”. For a list of

AT commands for the built-in modem, see “Modem Reference Information” on

page 138.

Open Phone and Modem Options in Control Panel. On the Modems tab, click

Properties. You can type AT commands on the Advanced tab in the space for extra

settings.
For example, to force a built-in modem to turn off its speaker, you can use the M0

command as shown in table of AT commands—type ATM0 in the space for extra
settings.

60 Reference Guide

Modem and Network Connections

Using the Modem

To send and receive e-mail

Sending and receiving e-mail requires an e-mail account with an Internet Service

Provider or with your company’s communications system. If you are using AOL, e-mail
services are part of your AOL service. For another ISP, you can use Outlook Express
(included with your computer) or an e-mail system of your choice. This topic includes
instructions for using Outlook Express.

To start Outlook Express

1. Click Start, All Programs, Outlook Express, or double-click Outlook Express on the

desktop (if available).

2. If you are not currently connected to the Internet, the Dial-up Connection window

appears. Choose Connect to connect to the Internet.

To send an e-mail message

1. In Outlook Express, click the New Mail or Create Mail tool on the toolbar.

2. Fill in the information in the New Message window.

3. When you’re finished, click the Send button.

To receive e-mail messages

1. In Outlook Express, click the Send/Recv tool on the toolbar to have Outlook deliver

new messages.

2. Click the Inbox folder to view the list of messages. Unread messages appear bold on

the screen.

3. To view a message, click it once. (Or double-click to view the message in its own

window.)

Reference Guide 61

Modem and Network Connections

Using the Modem

To send and receive faxes

Sending and receiving faxes requires just a telephone connection—you don’t need an
Internet connection. You can use the modem and fax software to send and receive faxes
on your computer. Fax Console fax software is included with Windows XP.

To set up Fax Console

Before you can use Fax Console, you need to install it.

1. Click Start, Control Panel, Add or Remove Programs.

2. Click Add/Remove Windows Components, select Fax Services, and follow the

instructions on the screen. If prompted for the Windows CD, point instead to the

c:\i386 directory.

To start Fax Console

• Click Start, All Programs, Accessories, Communications, Fax, Fax Console.
The first time you start Fax Console, the Fax Configuration Wizard steps you through the

process of setting options and customizing the program for your personal use. Follow the
onscreen instructions. If you’re not sure which setting to choose, accept the default
choice.

To send a fax

• Click Start, All Programs, Accessories, Communications, Fax, Send a Fax, and then

follow the instructions that appear on the screen.
If instead you want to send a document as a fax, open the document in its application

window, and then open the Print dialog box. Change the selected printer to Fax, and then
print it.

To receive faxes

Faxes are automatically received when Fax Console is running in an open or minimized
window. New faxes are indicated in the status box in the Fax Console window. To
receive a fax manually:

• When a fax call is coming in, click Receive now on the Fax Console menu bar.

To view and print a fax

1. In the Fax Console tree, click Inbox, and then double-click the fax you want to view.

2. Click the printer icon to print the fax.

62 Reference Guide

Connecting to a LAN

If your model has a LAN port, you can connect to local area networks (LANs). LANs
give you access to network resources, such as printers and file servers on your corporate
network, and possibly to the Internet.

To connect to a LAN

1. Check that the existing LAN supports Ethernet 10Base-T (10 Mbps) or 100Base-TX

(100 Mbps) connections.

2. Plug the LAN cable (not supplied) into the built-in LAN port. The cable must have an

RJ-45 connector.

3. Windows automatically detects and sets up a LAN connection. To edit settings, open

Network and Dial-up Connections in Control Panel.
See Windows Help for information about setting up and using LAN connections—click

Start, Help and Support (or Help). Contact your network administrator for network
information.

Modem and Network Connections

Connecting to a LAN

Two lights next to the LAN port indicate the status of the connection:

• The yellow light indicates network activity.

• The green light indicates a 100 MB per second link.

Reference Guide 63

Modem and Network Connections

Making Wireless Network Connections

Making Wireless Network Connections

If your computer includes a wireless on-off button—located on the right side of the front
of the computer—you can connect by radio to an 802.11 wireless local area network
(LAN) and access computers and other resources on the network.

A wireless network provides all the functions of a typical “wired” network, but also
provides for “roaming.” Since your computer connects to the network by radio rather
than through cables, you can move from place to place within the network—from your
office to a conference room, for example—and remain on the network the entire time.

To prepare for connections

Before you can connect your computer to a particular 802.11 wireless network, you have
to configure the computer for the specific wireless connection.

Connecting to an Existing Wireless Network

You can connect to an access point that gives you access to a local area network, or you
can connect directly to other computers in an “adhoc” network.

1. Right-click the wireless network connection icon in the taskbar, and then select View

Available Wireless Networks from the pop-up menu.

2. A list of available networks appears. Select the network you want, enter the

encryption key if required, and click Connect.

If the network you want is not on the list, click Advanced, Configure, and enter the

required network parameters. If the network is not using 802.1x authentication

protocol, clear the automatic key option.

3. On the General tab, edit network settings as needed for your local network. See your

network administrator. You can also display an icon in the taskbar when connected to

a network.

4. On the Wireless Networks tab, view the wireless networks available within range.

Each network SSID is listed. Click the network you want and click Configure.

5. If the wireless network uses standard encrypted communication, uncheck the

automatic key option, and then select the following parameters—see your network

administrator for the required settings:

• Key: ASCII passphrase or hexadecimal key string.

64 Reference Guide

Modem and Network Connections

Making Wireless Network Connections

• Key format: ASCII for passphrase, hexadecimal for key string.

• Key length: smaller number for 64-bit encryption, larger number for 128-bit.

6. Click OK to save the configuration. This network is added to your list of preferred

networks.

The computer automatically connects to the first preferred network that’s within range if
wireless communication is turned on—see “To turn wireless communication on and off”
on page 66.

Creating a New Computer-to-Computer Network (AdHoc)

You can set up a new network available to other local computers.

1. Click Start, Control Panel, Network and Internet Connections, Network Connections.

2. Double-click the wireless connection to show its status, and then click Properties.

3. On the Wireless Networks tab, click Add to create a new network.

4. Type a name for the new network.

5. If you want to use encrypted communication, uncheck the automatic key option, and

then select the following parameters:

• Key: ASCII passphrase or hexadecimal key string.

• Key format: ASCII for passphrase, hexadecimal for key string.

• Key length: smaller number for 64-bit encryption, larger number for 128-bit.

6. Mark the option to make this a computer-to-computer (adhoc) network.

7. Click OK to save the configuration. This network is added to your list of preferred

networks and becomes available to other computers.

Reference Guide 65

Modem and Network Connections

Making Wireless Network Connections

To turn wireless communication on and off

Important

Wireless networks and cellular modems are examples of devices that use wireless
communication. Such devices may be restricted in some situations or environments,
such as when traveling in an airplane. If in doubt, be sure to ask for authorization before

turning on your computer’s wireless networking.

In Italy, Singapore, and possibly other countries, you may be required to ask the
responsible authority for a license paid for by you before using the wireless function.

Turning on communication and making a connection

If your computer has both wireless 802.11 and Bluetooth capabilities, the wireless
indicator light on the front of the computer turns on when Bluetooth or 802.11
communication is turned on, but it doesn’t show whether Bluetooth, 802.11, or both
functions are active. You must use HP Wireless Configuration to control the individual
wireless functions.

1. If the computer isn’t on, turn it on.

2. If you normally press the wireless on-off button on the front of the computer to turn

wireless 802.11 communication on and off, press the button so the indicator light

turns on. This restores your previous wireless configuration.

–or–

Click Start, All Programs, Hewlett-Packard, Notebook, HP Wireless Configuration,

then click the 802.11 button to turn on wireless 802.11 communication.

–or–

Click Start, Control Panel, Network and Internet Connections, Network Connections,

and then double-click the wireless network connection icon.

66 Reference Guide

Modem and Network Connections

Making Wireless Network Connections

If you’re within range of your wireless network, your computer automatically connects.
To check the status of your wireless connection, open Network Connections in Control
Panel and double-click the connection.

Turning off communication and ending a connection

1. Important: close any files that reside on other network computers.

2. To turn off the wireless 802.11 communication without turning off the computer,

press the wireless on-off button—this also turns off Bluetooth communication if it

was enabled.

–or–

Click Start, All Programs, Hewlett-Packard, Notebook, HP Wireless Configuration,

then click the 802.11 button to turn off wireless 802.11 communication—without

affecting Bluetooth communication.

–or–

Right-click the wireless network connection icon in the taskbar and select Disable.
Suspending or shutting down the computer also turns off the wireless function.

Reference Guide 67

Modem and Network Connections

Making Wireless Bluetooth Connections

Making Wireless Bluetooth Connections

If your computer includes Bluetooth wireless capabilities, you can use it to make short­range radio connections to a wireless personal area network (PAN) and access other
Bluetooth-compatible devices, such as other computers, cell phones, and printers.

Since the Bluetooth function connects your computer by radio rather than through cables,
you can move around and remain connected, and you can detect new Bluetooth devices
automatically when they enter your area.

To turn Bluetooth communication on and off

Important

Wireless communication may be restricted in some situations or environments, such as
when traveling in an airplane. If in doubt, be sure to ask for authorization before turning

on your computer’s wireless networking.

In Italy, Singapore, and possibly other countries, you may be required to purchase a
license from the responsible authority before using the wireless function.

Turning on Bluetooth communication

The wireless indicator light on the front of the computer turns on when Bluetooth or

802.11 communication is turned on, but it doesn’t show whether Bluetooth, 802.11, or
both functions are active. You must use HP Wireless Configuration to control the
individual wireless functions.

1. If your computer isn’t on, turn it on.

2. If you normally press the wireless on-off button on the front of the computer to turn

Bluetooth communication on and off, press the button so the indicator light turns on.

This restores your previous wireless configuration.

–or–

Click Start, All Programs, Hewlett-Packard, Notebook, HP Wireless Configuration,

then click the Bluetooth button to turn on Bluetooth communication.

–or–

If the HP Wireless Configuration icon is present in the taskbar, double-click the icon,

then click the Bluetooth button to turn on Bluetooth communication.

68 Reference Guide

Modem and Network Connections

Making Wireless Bluetooth Connections

Turning off Bluetooth communication

Turning off communication ends any connection you have open.

1. Important: close any files that reside on other network computers.

2. To turn off Bluetooth communication without turning off your computer, press the

wireless on-off button—this also turns off 802.11 communication if it was enabled.

–or–

Click Start, All Programs, Hewlett-Packard, Notebook, HP Wireless Configuration,

then click the Bluetooth button to turn off Bluetooth communication—without

affecting 802.11 communication.

–or–

If the HP Wireless Configuration icon is present in the taskbar, double-click the icon,

then click the Bluetooth button to turn off Bluetooth communication—without

affecting 802.11 communication.
Turning off the computer or putting it into hibernation also turns off the Bluetooth

function.

Reference Guide 69

Modem and Network Connections

Making Wireless Bluetooth Connections

To prepare for Bluetooth connections

Before you use your computer to access other Bluetooth devices, you should configure
some basic settings.

1. Make sure Bluetooth communication is turned on—see the previous topic.

2. Double-click the Bluetooth icon in the taskbar.

3. In the menu bar, click Bluetooth, Device Configuration. (This menu is available only

while Bluetooth folders are selected.)

4. On the General tab, check the following settings:

Give your computer a unique name that will identify it to other Bluetooth users.

Set the computer type to Laptop.

Select the security mode you want to use.

5. On the Information Exchange tab, check the following settings:

Check the directory you want to make available to other Bluetooth users for sharing

files, both sent and received.

Check the directory where you want to store your business card file so you can easily

send it to other Bluetooth users.

Check the inbox directory where you want delivered files from other Bluetooth users

to be stored automatically.
Detailed information about these and other advanced settings are included in the online

help.
To create your business card, you can open Microsoft Outlook, then open the address

book and create a new contact. After entering your personal information, click File,
Export To vCard File and store the file in your business card directory.

70 Reference Guide

Modem and Network Connections

Making Wireless Bluetooth Connections

To send or receive files using Bluetooth

If your computer includes Bluetooth wireless capabilities, it supports the following
common protocols for transferring data. To use either protocol, both computers must

support that protocol—check the other computer’s Bluetooth documentation.

• FTP, meaning files can be copied into and out of shared directories (folders) by both

computers. This service is equivalent to common network file sharing.

• OPP (object push profile), meaning both computers can send certain types of

Microsoft Outlook data to the other computer’s Bluetooth inbox, but cannot retrieve

files from the other computer.

Sharing files with another Bluetooth device (FTP)

1. Double-click the Bluetooth icon in the taskbar.

2. In My Bluetooth Places, select and open the other device to view files in its shared

directory.

3. Use Windows Explorer or other software to copy or move files between your

computer and other other device.

Sending Outlook data to another Bluetooth device (OPP)

1. Double-click the Bluetooth icon in the taskbar.

2. In My Bluetooth Places, select and open the other device.

3. To send a calendar item, note, or message, right-click the device’s inbox and select

the option you want, then select the file to send. The file arrives in the device’s inbox

directory.

–or–

To send your business card, right-click the device’s inbox and select the option to

send your business card.

Reference Guide 71

Modem and Network Connections

Making Wireless Bluetooth Connections

To connect to a Bluetooth printer or serial device

You can connect your computer to a Bluetooth serial device—for example, you could
print from a word processor to a Bluetooth serial printer.

1. Make sure Bluetooth communication is turned on—see “To turn Bluetooth

communication on and off” on page 68.

2. Install the printer software that comes with the Bluetooth printer. The following

details are for the HP Deskjet 995C printer:

a. Insert the CD that came with the printer. If the setup program doesn’t run, click

Start, Run and run \setup.exe on the CD.

b. When prompted, click the option for installing the printer software. Follow the

displayed instructions. For each screen, click the right arrow to continue.

c. When prompted to select how the printer is connecting, select the Bluetooth

option.

d. When you reach the Bluetooth information screen with no right arrow, click the X

to exit.

3. Double-click the Bluetooth icon in the taskbar.

4. In the menu bar, click Bluetooth, Device Configuration. (This menu is available only

while Bluetooth folders are selected.)

5. On the Client Applications tab, find the Bluetooth serial port and note the name of the

COM port at the far right, such as COM4. You can also create new COM ports for

multiple serial devices.

6. After writing down the COM port number, close the Bluetooth configuration window.

7. Click Start, Printers and Faxes.

8. Right-click the printer icon for the Bluetooth printer and select Properties.

9. On the Ports tab, find the Bluetooth COM port you noted above, click the box next to

the port name so it is checked, then click OK. This enables access to the printer via

the Bluetooth serial port.

10. Double-click the Bluetooth icon in the taskbar.

11. In the menu bar, click Bluetooth, Search For Devices.

72 Reference Guide

Modem and Network Connections

Making Wireless Bluetooth Connections

12. Double-click the printer icon for the Bluetooth printer you want to use, then double-

click the serial port icon that is shown. When you see a message confirming this

printer will use the Bluetooth COM port, click OK.

Whenever you print to this printer, it will use the Bluetooth connection you

established.

To make a dial-up connection via a Bluetooth phone

If you have a Bluetooth cellular phone, you can use it with your computer to make a dial­up connection to your Internet service provider.

1. Make sure your Bluetooth phone is available for connection—see the manufacturer’s

instructions. Some phones must be set for detection and may be detectable by other

Bluetooth devices for only a short time.

2. On the computer, double-click the Bluetooth icon in the taskbar, then select Entire

Bluetooth Neighborhood.

3. In the menu bar, click Bluetooth, Search For Devices.

4. In the left half of the window, double-click the Bluetooth phone to discover its

available services.

5. Optional: In the left half of the window, right-click the Bluetooth phone and select

Pair Devices, then type a passkey on the computer and phone when prompted. Some

phones may require this step. For others, this keeps the phone on your list of

Bluetooth devices for future use.

6. In the right half of the window, double-click Dial-Up Networking.

7. When prompted, type your user name, password, and phone number to dial., then

click Dial.
To close the dial-up connection, click the Bluetooth phone in the left side of the Windows

Explorer window, then in the right half of the window right-click Dial-Up Networking
and select the option to disconnect.

Reference Guide 73

Add-On Devices

Reference Guide 75

Add-On Devices

Connecting PC Cards

Connecting PC Cards

The computer’s PC Card slot is available for storing data and expanding the
communication capabilities of the computer. The computer supports standard Type II and
III PC Cards (PCMCIA and CardBus). If your model has two eject buttons, you can
insert two Type II cards or one Type III card. If it has only one button, you can insert one
card of any type.

To insert or remove a PC Card

Inserting a PC Card

1. Hold the PC Card with its face up and its connector holes toward the card slot.

2. Slide the PC Card all the way into the slot. Most cards are properly seated when the

outer edge is flush with the casing of the computer, but some cards are designed to

protrude from the case.

76 Reference Guide

CAUTION

Add-On Devices

Connecting PC Cards

Removing a PC Card

Before removing a PC Card, you must use the Eject Hardware or Safely Remove
Hardware icon in the taskbar, or shut down the computer. Otherwise, you could
lose data.

1. Before removing the card, click the Eject Hardware or Safely Remove Hardware icon

in the taskbar, and then click the card you want to remove. This protects your data and

helps avoid unexpected problems.

If needed, you can restart the card by removing and then reinserting it.

2. Press the eject button to pop the button out, and then press it in to eject the PC Card.

Reference Guide 77

Add-On Devices

Connecting External Devices

Connecting External Devices

To identify connectors for external devices

The diagrams below show your computer’s connectors for external devices and for the
port replicator.

Locating connectors on the computer

1. PS/2 keyboard or PS/2 mouse port (supports Y adapter).

2. AC adapter jack.

3. Two universal serial bus (USB) ports.

4. LAN port (on certain models).

5. S-video port (on certain models).

6. Parallel port (LPT1). Use this port for a parallel printer or other parallel device.

7. Serial port (COM1).

8. External monitor port.

9. Modem port (on certain models).

78 Reference Guide

Connecting External Devices

10. PC Card and CardBus slot. See “Connecting PC Cards” on page 76.

11. IEEE 1394 port (on certain models).

12. Audio ports.

13. Infrared port (on certain models).

Locating connectors on the port replicator

Add-On Devices

14. AC adapter jack.

15. PS/2 keyboard and PS/2 mouse ports.

16. USB ports.

17. External monitor port.

18. Parallel port.

19. Serial port.

20. LAN port (works only if the computer has a built-in LAN port).

21. Digital audio port (SPDIF).

22. S-video port.

23. Audio ports (microphone, headphone, line-in).

24. USB port.

Reference Guide 79

Add-On Devices

Connecting External Devices

Note

Before you connect any device, check its documentation to see if you need to make any
settings or adjustments to the equipment before using it. This might include setting
switches to configure the equipment so that it will operate properly with your computer
and the software you plan to use.

To connect a printer or other parallel device

The computer’s parallel port uses a standard 25-pin connector, most commonly used for
connecting dot-matrix, ink-jet, and laser printers. You can also use it to connect a parallel
Zip drive.

• Connect the cable from the parallel printer or other parallel device to the computer’s

parallel port.

To connect an external keyboard or mouse

• Plug a USB mouse or keyboard into a USB port.

–or–

• Plug a PS/2 mouse or keyboard into a PS/2 port.
The pointing stick and touch pad are normally disabled while an external PS/2 mouse is

connected.
To connect a PS/2 mouse and keyboard at the same time, use the HP F1469A Y adapter.

To connect a USB device

Your computer’s universal serial bus (USB) provides a bi-directional serial interface for
adding peripheral devices such as game controllers, serial and parallel ports, and scanners
on a single bus.

• Attach the device’s USB cable to one of the USB ports. Windows automatically

recognizes the USB device. Some USB devices can be connected to the computer in

series—this is called a daisy-chain connection.

80 Reference Guide

Add-On Devices

Connecting External Devices

Note

CAUTION

If you have problems making this connection, contact the device manufacturer and the
HP Business Support Web site (www.hp.com/go/bizsupport) for the latest version of the
driver for the device.

To connect an audio device

If your model has a built-in microphone—look for a microphone icon near the right click

button on the touch pad—you can use it to record voice, sound, and music. You can also
plug in an external microphone, external speakers, or headphones. In addition, if you
connect your computer to the port replicator, you can plug in a stereo source (such as a
CD player) or a device that accepts digital audio (such as a digital audio recorder).

The headphone and line-in jacks are three-terminal stereo jacks. They are not
compatible with two-terminal mono plugs. Connecting a mono plug into either of
these jacks may damage the computer.

• Attach the audio cable to the corresponding audio port on the computer or port

replicator.

1. External microphone.

2. Audio out (headphones).

3. Volume control (on certain models).

4. Audio mute button and audio mute light (on certain models).

Reference Guide 81

Add-On Devices

Connecting External Devices

Note

If your model has a built-in microphone and you plug a device into the external
microphone port, the built-in microphone automatically turns off. When you plug a
device into the headphone port, the built-in speakers automatically turn off. When you
plug a device into either audio port on the computer, any device connected to the
corresponding port on the port replicator is ignored.

To use an external monitor

Connecting an external monitor

1. Click Start, Turn Off Computer, Turn Off.

2. Connect the monitor cable from the monitor to the monitor port on the back of the

computer.

3. Connect the monitor to a power source and turn it on.

4. Press the power button to turn on the computer.

Switching the display to the external monitor

• Press Fn+F5 to cycle through the display options: notebook display, external monitor,

both.

–or–

Click Start, All Programs, Hewlett-Packard, Notebook, HP Display Settings.

You can also add a display settings icon in the taskbar for quick access.

• If you need to use both displays at once, press Fn+F5 repeatedly until the image

shows on both displays. With the default display settings, the external monitor uses

the same settings as the internal display. The external monitor displays the same

image as the internal display, regardless of the screen area, colors, and other settings,

and the refresh rate is the same for as the internal display (60 Hz). If you use only the

external monitor, you can select different settings that aren’t limited by the internal

display.

Adjusting monitor resolution and other settings

1. Click Start, Control Panel, Appearance and Themes, Display.

2. On the Settings tab, adjust the Screen area. Other settings are also available.
For high-resolution external monitors, see “Hardware Specifications” on page 134 for the

maximum supported resolutions, colors, and refresh rates. The capabilities of external

82 Reference Guide

Add-On Devices

Connecting External Devices

monitors vary greatly, and the display quality of your monitor may not be optimal at
higher settings.

If you need to increase the refresh rate on the external monitor, you can switch to only the

external monitor. An alternative is to make one display a “secondary” display so you can
select independent refresh rates:

1. Click Start, Control Panel, Appearance and Themes, Display.

2. On the Settings tab, click the Advanced button, and then the Displays or Monitor tab.

Set the refresh rate on the Monitor tab.

Using dual display mode

You can extend your desktop by connecting an external monitor to your computer.

1. Click Start, Control Panel, Appearance and Themes, Display.

2. Click the Settings tab.

3. Click the second display, and then select the option to extend the desktop.
You can set different resolutions and numbers of colors for each display. However, using

the Extended Desktop requires video memory for each display. For this reason, higher
resolutions and higher numbers of colors may cause unexpected behavior on the displays.
Try starting with 1024 × 768 resolution on the external display and 64 K colors (16-bit)
on both displays. You can then try higher settings to see whether they work for your
applications. In addition, certain operations such as playing DVDs and running 3D
graphics require extra video memory, so you may have to adjust display settings.

If you’re playing a DVD movie, the movie will show only on the primary display. To
change the primary display, go to the Settings tab of Display Properties (see the steps
above), right-click the display you want, and select Primary.

To use a TV set as a monitor

If your model has an S-video port on the back, you can connect a television set or other
video device to your computer to use as a display.

To connect a TV set

1. Connect the TV set to the S-video port using a standard S-video cable, or a

composite-video adapter with a standard RCA-type video cable.

For best quality and operation, use a TV with an S-video input and connect an S-

video cable from the computer to the TV. If the only connection available is a

Reference Guide 83

Add-On Devices

Connecting External Devices

composite phono (RCA-type) connection, a good-quality standard cable is

recommended. However, some S-video/composite adapters will not work for this

application. Contact HP Customer Care for more information.

2. Optional: connect an audio cable from the computer’s headphone output jack to the

TV audio input. The S-video port doesn’t include audio output.

To activate the TV display

HP TV Now automatically adjusts your computer for using a TV. For example, the
display timeout is disabled to prevent the screen from turning off, and the resolution is
optimized for TV viewing.

• If a One-Touch button is assigned to HP TV Now, press that button. (The five One-

Touch buttons are located above the keyboard.)

–or–

• Click Start, All Programs, Hewlett-Packard, Notebook, HP TV Now.
To adjust the HP TV Now options, click Start, All Programs, Hewlett-Packard,

Notebook, HP TV Now Options.
To return the display to its normal settings, run HP TV Now again. Normal display

settings are also restored if the computer suspends or turns off.
If the image on the TV is bad, the format used for TV output may be incorrect for your

TV. In North America, the normal setting is NTSC. In Europe, Asia, and Africa, the
normal setting is PAL. To change the TV format, open Control Panel Display, then on the
Settings tab click Advanced. On the Displays tab, click the TV button, then set the format
on the Format tab.

To play DVD movies on the TV

The movie shows only on the main display. If the movie doesn’t appear on the TV, open
Display in Control Panel, click the Settings tab, then click Advanced and make the TV a
“primary” display.

For more information, see “To play DVD movies” on page 38.

84 Reference Guide

Note

Add-On Devices

Connecting External Devices

To connect an IEEE 1394 device

If your computer has an IEEE 1394 port (located on the computer’s left side), you can

use it to connect devices such as audio and video equipment, disk drives, printers, and
other computers.

• Attach the device’s cable to the IEEE 1394 port on the computer’s left side. Windows

automatically recognizes the device.

The IEEE 1394 port is a 4-wire port. If you want to connect a device that has a 6-wire
plug, you should buy a simple adapter if the device is unpowered, or a hub if the device
requires power.

If you have problems making this connection, contact the device manufacturer and the
HP Business Support Web site (www.hp.com/go/bizsupport) for the latest version of the
driver for the device.

To connect a serial device

The computer includes a standard 9-pin serial port that you can use to connect devices
such as external modems and fax modems.

• Connect the device’s serial cable to the computer’s serial port.

To connect an infrared device

If your model has an infrared port—a small, rectangular lens located on the front of the
computer—it provides wireless, serial communication between the computer and other
infrared devices such as printers or other computers.

By default, the infrared port is not enabled, so you must enable it before you can use it.

1. Click Start, Control Panel, Performance and Maintenance, System.

2. On the Hardware tab, click Device Manager and expand the infrared devices. Double-

click the infrared port and select the option to enable the device.

Reference Guide 85

Add-On Devices

Connecting External Devices

Using the infrared port

• Make sure the infrared ports of your computer and the other device lie in as straight a

line as possible. The two ports should be no more than 1 meter apart, with no

obstructions in between. Noise from nearby equipment can cause transmission errors.

• To check the status of communications, open Wireless Link in Control Panel.

Disabling the infrared port

You should generally disable infrared communication when you aren’t using it.

1. Close any applications that are using infrared, and any folders on an infrared link.

2. Click Start, Control Panel, Performance and Maintenance, System.

3. On the Hardware tab, click Device Manager and expand the infrared devices. Double-

click the infrared port and select the option to disable the device.

Printing to an infrared printer

• Install your printer and assign it to the computer’s infrared port. You can then print

from your applications as you would to any other printer.

Transferring files through an infrared connection

You can use your computer’s infrared port to transfer files by using Wireless Link. See
the Windows online help for instructions on using Wireless Link.

86 Reference Guide

CAUTION

Add-On Devices

Connecting External Devices

To use a port replicator

A port replicator provides your computer with external connections that you can leave in
place whenever you remove the computer from your desk. Instead of disconnecting and
reconnecting peripheral devices, you can simply undock and dock the computer.

Use only the HP AC adapter included with your computer (or other approved
adapter that meets the power requirements of the computer).

If “75W” is printed below the AC adapter socket on the computer, do not use a 60­watt, 3.16-amp adapter, such as HP F1454A or F1781A, and do not use DC adapter
accessories F1455A and F2297A.

Using the wrong AC adapter could damage the computer or adapter and may void
your warranty (see "Hewlett-Packard Limited Warranty Statement" on page 130).

You can dock or undock the computer in any power state: on, off, standby, or
hibernation. Make sure, however, that the computer is not entering into or resuming from
standby or hibernation when you dock or undock, or the computer could lock up.

To dock to the port replicator

1. Plug in the AC adapter, and then connect it to the back of the port replicator. You can

also operate the port replicator using power from the computer battery.

2. Remove the rubber cover from the docking connector on the bottom of the computer.

3. Align the computer with the locator posts on the port replicator.

Reference Guide 87

Note

Add-On Devices

Connecting External Devices

4. Press the computer down until both sides click into place.

5. If the computer is off, open the computer and press the power button to turn it on. The

lights on the port replicator turn on.

When the computer is docked, you can use the computer’s security connector to secure
the computer. To secure both the computer and port replicator, install the Kensington
lock in the security connector next to the undock button—this locks the undock button.

If a device is connected to an audio port on the computer, any device connected to the
corresponding port on the port replicator is ignored.

To undock from the port replicator

1. Press down the undock button on the right side of the port replicator.

2. Lift the computer out of the port replicator.

88 Reference Guide

Installing Additional RAM

The computer has no memory (RAM) built in but has two slots that hold two RAM
modules. At least one slot contains a RAM module installed at the factory. You can use
both slots to expand your RAM.

To install a RAM expansion module

Use HP PC2100 DDR-266 or higher RAM only.

You’ll need a small Phillips screwdriver for these steps.

CAUTION

Your computer’s chips are extremely sensitive to static electricity, and can be
permanently damaged by it. Handle the RAM module only by its edges. Before
installing the memory module, discharge your body’s static electricity by touching
the metal shielding around the connectors on the back of the computer.

1. Click Start, Turn Off Computer, Turn Off.

Add-On Devices

Installing Additional RAM

2. Important: unplug the AC adapter, if present, and remove the battery.

3. Turn the unit bottom-side up, loosen the screws holding the RAM cover, and remove

the cover.

4. Insert the RAM board into the connector at about a 30° angle until it is fully inserted.

Then press down at both sides until both latches snap closed.

5. Replace the cover.

6. Insert the battery.

Reference Guide 89

CAUTION

Add-On Devices

Installing Additional RAM

To remove a RAM expansion module

You may want to remove a RAM module so you can install a larger one. You’ll need a

small Phillips screwdriver for these steps.

Your computer’s chips are extremely sensitive to static electricity, and can be
permanently damaged by it. Handle the RAM module only by its edges. Before
installing the memory module, discharge your body’s static electricity by touching
the metal shielding around the connectors on the back of the computer.

1. Click Start, Turn Off Computer, Turn Off.

2. Important: unplug the AC adapter, if present, and remove the battery.

3. Turn the unit bottom-side up, loosen the screws holding the RAM cover, and remove

the cover.

4. Release the two latches at the sides of the RAM board, so the free edge of the board

pops up.

5. Pull the board out of the connector.

6. Replace the cover.

7. Insert the battery.

90 Reference Guide

Replacing the Hard Disk Drive

To replace the hard disk drive

You’ll need a small Phillips screwdriver for this procedure.

1. Unplug the AC adapter if you’re using one, and remove the battery.

2. Turn the unit bottom side up.

3. Use a pointed tool to remove the plugs from the two screw holes, and then remove the

two screws.

4. Gently pull the hard drive out of the computer.

Add-On Devices

Replacing the Hard Disk Drive

Important

5. Gently slide the new drive into the hard drive compartment. Press firmly to make sure

the connector seats properly.

6. Reinstall the hard drive screws and plugs.

If you are installing a new hard disk drive, you should create a Utility partition on the
drive before loading any software. See “To recover the factory installation of your hard
disk” on page 122.

Reference Guide 91

Add-On Devices

Replacing the Hard Disk Drive

To replace the hard disk drive holder

If you are installing a new hard drive that does not have a holder, you can remove the

holder parts from the old hard drive. You’ll need a small Phillips screwdriver for this
procedure.

1. Remove the four screws from the sides of the holder and drive case, and then slide the

drive out of the holder.

2. Notice that the hard drive has a pin connector attachment at one end. Carefully

remove this connector from the end of the drive. Work alternately at each end so that

the connector slides off evenly without bending the connector pins.

3. Carefully put the pin connector attachment back onto the pins on the end of the new

hard drive. Work alternately at each end so that the connector slides on evenly

without bending the connector pins.

4. Insert the drive into the holder.

5. Reinstall the screws into the holder and drive case.

92 Reference Guide

Add-On Devices

Replacing the Hard Disk Drive

To prepare a new hard disk drive

When you install a new hard disk drive, you also need to prepare it to be able to work
with your computer.

• If you want to restore the Windows software and operating system that were

originally installed on your computer, you can do so using the Recovery CD or DVD

that also came with your computer. See “To recover the factory installation of your

hard disk” on page 122.

Reference Guide 93

Troubleshooting and Maintenance

Reference Guide 95

Troubleshooting and Maintenance

Troubleshooting Your Computer

Troubleshooting Your Computer

This section contains solutions to a many types of problems you might have with your
computer. Try the solutions one at a time, in the order in which they are presented.

Here are some other sources of information for troubleshooting:

• Open the HP Web-based troubleshooting tool: click Start, All Programs, HP Instant

Support. Search or browse the troubleshooting database for the information related to

your problem.

• Click Start, Help and Support, Fixing a Problem, and use the Windows

troubleshooters.

• See the Microsoft Windows manual shipped with the computer.

• See the HP Notes in the online HP Library for updated information.

• Find technical tips and software updates for the computer at the HP Business Support

Web site (www.hp.com/go/bizsupport).

• Test your computer by running the e-Diagtools test program. See “Testing the

Hardware” on page 115.

• Contact your dealer or Hewlett-Packard—see “To contact HP for support or service”

on page 126. Please have your computer with you when you call.

Audio Problems

If no sound is audible

• If your model has a volume control, press the back end of it several times.

• Click the speaker icon on the taskbar (if present), and make sure that Mute is not

checked and the Volume Control slider is not set to the bottom. Or, if your model has

an audio mute button, press it so the indicator light goes off.

• When you are operating your computer in MS-DOS mode (for example, when

running MS-DOS games), you may find that the sound does not operate properly. Use

Windows applications for full use of sound capabilities.

96 Reference Guide

Troubleshooting and Maintenance

Troubleshooting Your Computer

If sound does not record

• Try plugging in an external microphone. Your model may not have a built-in

microphone.

• Check the software controls for recording sound: click Start, All Programs,

Accessories, Multimedia (or Entertainment), Sound Recorder.

• In Volume Control, click Options, Properties, and make sure the microphone is

enabled in the recording controls.

• Test the audio with the e-Diagtools diagnostics. See “Testing the Hardware” on

page 115.

If you hear a loud high-pitched whine (feedback) from the speakers

• In the Volume Control, try reducing the Master volume: double-click the speaker icon

in the taskbar.

• In Volume Control, click Options, Properties, and select the microphone option for

the playback settings. Then in Volume Control, make sure the microphone is muted.

• If your model has a built-in microphone, avoid using it and the built-in speakers at the

same time.

CD-ROM and DVD Problems

If you can’t boot from a CD or DVD in the CD/DVD drive

• Make sure the CD or DVD is bootable, such as the Recovery CD or DVD.

• Make sure the CD-ROM/DVD drive is selected as the boot device—see “To change

the boot device” on page 27.

• Restart the computer: click Start, Turn Off Computer, Restart.

• Test the DVD drive with the e-Diagtools diagnostics. See “Testing the Hardware” on

page 115.

If a DVD plays erratically

• Dirt or smudges can cause a disc to skip. Clean the disc with a soft cloth. If the disc is

badly scratched, it will probably have to be replaced.

• If you’re playing the DVD on battery power, try changing the power scheme. See the

hint under “To play DVD movies” on page 38.

Reference Guide 97

Troubleshooting and Maintenance

Troubleshooting Your Computer

If a DVD movie stops playing in the middle

• The DVD may be double-sided. Open the DVD tray, and read the text near the center

hole of the disc. If it says Side A, flip the disc over, close the tray, and press the Play

button to continue playing the movie.

• You may have accidentally paused the DVD movie. Press the Play button to resume.

If you get a Region Code error when playing a DVD movie

• DVDs can have regional codes embedded in the disc data. These codes prevent DVD

movies from being played outside the region of the world in which they are sold. If

you get a Region Code error, you are trying to play a DVD intended for a different

region.

If the computer cannot read a CD or DVD

• For a single-sided CD or DVD, make sure the disc is placed in the drive with the label

facing up.

• Clean the disc.

• Wait 5 to 10 seconds after closing the tray to give the computer time to recognize the

disc.

• Restart the system: remove the disc from the drive, and click Start, Turn Off

Computer, Restart.

• If you created the CD on a CD-RW-type drive, try using a different media brand, such

as the recommended HP C4403A (CD-R) or C4404A (CD-RW) media. Read and

write quality may vary for other media.

If a DVD movie doesn’t fill the screen

• Each side of a double-sided DVD has a different format (standard or widescreen). In

widescreen format, black bands appear at the top and bottom of the screen. To view

the standard format, flip the disc over and play the other side.

If a DVD doesn’t play with two displays

• If you’re using the Extended Desktop (dual displays), move the player window to the

display selected as primary. If you’re not using Extended Desktop and both displays

are active, press Fn+F5 to switch to one display.

If the computer can’t find Wordpad.exe after inserting a CD

• The system is trying to open a .doc file in WordPad, but cannot find the Wordpad.exe

program file. Type C:\Program Files\Accessories in the error message box.

98 Reference Guide

Troubleshooting and Maintenance

Troubleshooting Your Computer

Display Problems

If the computer is on, but the screen is blank

• Move the mouse or tap the touch pad. This will wake the display if it is in Display-off

mode.

• Press Fn+F5 in case the internal display was disabled. (Do this three times to return to

the state you started from.)

• If the computer is cold, allow it to warm up.

If the screen is difficult to read

• Try setting the display resolution to its default setting of 1024×768 or higher,

depending on your model: click Start, Control Panel, Appearance and Themes,

Display.

• Try adjusting the size of the desktop icons and labels—see “To adjust the display” on

page 34.

If an external display does not work

• Check the connections.

• Press Fn+F5 in case the external monitor was disabled. (Do this three times to return

to the state you started from.)

• The external monitor may not be detected. In the BIOS Setup utility, try setting Video

Display Device to Both in the System Devices menu.

• If you’re using a TV connected to the S-video port, you must activate the TV—see

“To use a TV set as a monitor” on page 83.

• Test the display with the e-Diagtools diagnostics. See “Testing the Hardware” on

page 115.

If HP Presentation Ready does not switch to your video settings

• If you’re using an external monitor that isn’t a plug-and-play device, open Control

Panel Display and set up a monitor that supports the video settings you intend to use

for your presentation.

If one or more display pixels look bad

TFT display manufacturing is a highly precise but imperfect technology, and
manufacturers cannot produce displays that are cosmetically perfect. Most, if not all, TFT

Reference Guide 99

Troubleshooting and Maintenance

Troubleshooting Your Computer

displays exhibit some level of cosmetic imperfection. These cosmetic imperfections may
be visible under varying display conditions, and can appear as bright, dim, or dark spots.

This issue is common across all vendors supplying TFT displays in their products and is
not specific to the HP notebook display.

HP notebook TFT displays meet or exceed all HP standards for cosmetic quality of TFT
displays. HP does not warrant that the displays will be free of cosmetic imperfections.

TFT displays can have a small number of cosmetic imperfections and still conform to

HP’s cosmetic quality specifications, including the following:

• No more than 6 pixels remain on (always one color, such as white, red, green, or blue

dots).

• No more than 6 pixels remain off (always dark).

• No more than a total of 8 pixels stuck on or off.

• No other stuck pixel within 15 mm of a stuck pixel.

Contact HP Customer Care if you have a display quality problem and require a more

comprehensive explanation of HP display quality—see “To contact HP for support or
service” on page 126. We expect that over time the industry will continue to produce
displays with fewer inherent cosmetic imperfections, and we will adjust our HP
guidelines as these improvements are implemented.

Hard Disk Drive Problems

If the computer’s hard drive doesn’t spin

• Make sure the computer has power. If necessary, connect the AC adapter, and make

sure it is fully plugged into a power source and into the back of the computer.

• Remove and reinsert the hard drive. See “Replacing the Hard Disk Drive” on page 91.

If the hard disk makes a buzzing or whining noise

• Back up the drive immediately.

• See whether the noise is coming from elsewhere, such as from the fan or a PC Card

drive.

If files are corrupted

• Open My Computer, select the disk you want to scan, click File, Properties, and use

the Tools tab.

100 Reference Guide
