HP AlphaServer GS1280 Model 16 Specification

Download

Page 1

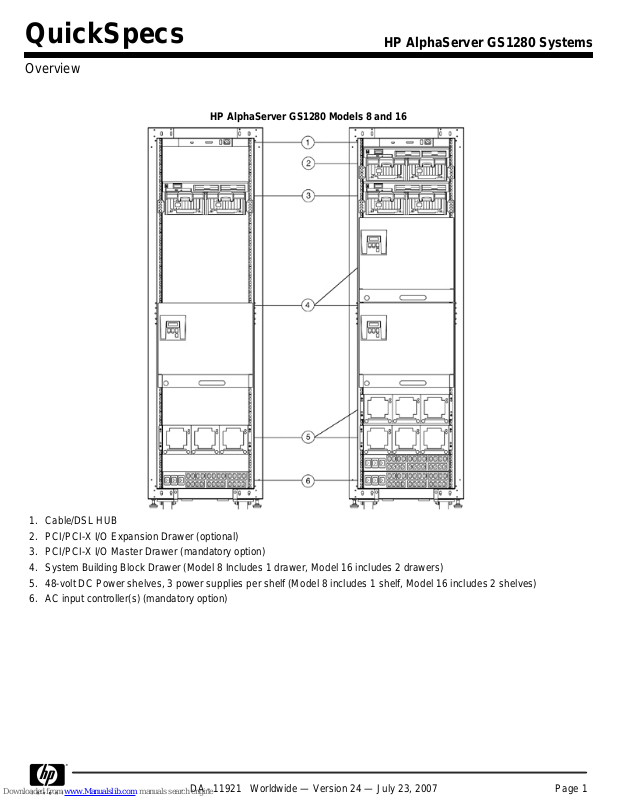

HP AlphaServer GS1280 Models 8 and 16

Cable/DSL HUB

PCI/PCI-X I/O Expansion Drawer (optional)

PCI/PCI-X I/O Master Drawer (mandatory option)

System Building Block Drawer (Model 8 Includes 1 drawer, Model 16 includes 2 drawers)

48-volt DC Power shelves, 3 power supplies per shelf (Model 8 includes 1 shelf, Model 16 includes 2 shelves)

AC input controller(s) (mandatory option)

QuickSpecs

HP AlphaServer GS1280 Systems

Overview

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 1

Page 2

HP AlphaServer GS1280 Model 32

Cable/DSL HUB

I/O Expansion Drawer (optional)

I/O Master Drawer (mandatory option)

System Building Block Drawer (Model 32 includes four drawers)

Power supply, dual AC input is standard

AC input controllers (two mandatory options for Model 32)

QuickSpecs

HP AlphaServer GS1280 Systems

Overview

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 2

Page 3

HP AlphaServer GS1280 Model 64

Cable/DSL HUB

I/O Expansion Drawer (optional)

I/O Master Drawer (one drawer is optional)

System Building Block Drawer (Model 64 includes eight drawers)

Power supply, dual AC input is standard (two included for Model 64)

AC input controllers (two mandatory options for Model 64)

QuickSpecs

HP AlphaServer GS1280 Systems

Overview

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 3

Page 4

At A Glance

AlphaServer GS1280 Systems

Up to 64 Alpha 21364 EV7 processors at 1300 MHz and 1150 MHz with advanced on-chip memory controllers and switch logic capable of providing 12.3 GB/s of memory bandwidth per processor Choice of memory options; up to 8 GB of RDRAM memory per CPU supported (512 GB total for a 64P system) Redundant features providing maximum uptime - N+1 Voltage Regulator Modules (VRMs); hot- plug redundant power supplies; cooling provided by hot-plug redundant system fans; dual AC input is standard Optional RAID memory support Standard I/O Drawer with 11 configurable PCI-X/PCI slots and one AGP slot; hot-swap power supplies High-performance I/O Drawer with eight PCI-X slots @133 MHz; hot-swap power supplies Enhanced reliability with ECC-protected memory, processor cache, and system data paths Tru64 UNIX or OpenVMS factory installed software (FIS); optional high availability support with Tru64 UNIX and OpenVMS cluster solutions Product warranty, 1-year hardware, on-site next business day and 90-day software, telephone support delivered by HP Services

Base Systems Contents

Step 1

Requirements

Step 1a

System Requirements

Step 1b

Requirements for Partitions

Step 1c

Licensing Systems for Both OpenVMS and Tru64 UNIX

Step 1d

System Management Hardware/Software Requirements

Step 2

Select Base System - Mandatory

Step 3

CPU Building Blocks - Mandatory

Step 4

Select Memory Options - Mandatory

Step 5

System I/O Expansion - Mandatory

Step 6

Power Distribution Units - Mandatory

Step 7

Dual AC Power - Optional

Step 8

Internal System Expansion - Optional

Step 9

External Rack Expansion - Optional

ES/GS Common Options - Hardware Options & Peripherals, Software, and Services Upgrades Technical Specifications

QuickSpecs

HP AlphaServer GS1280 Systems

Overview

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 4

Page 5

Processor

Up to 64 Alpha 21364 EV7 processors at 1300 MHz and 1150 MHz

Cache Memory

1.75-MB ECC L2 on-chip cache, 7-way set associative

Architecture

Glue-less processor-to-processor multiprocessor architecture constructed from a set of basic components:

System Building Block Drawers CPU Building Block Modules I/O Expansion Building Block Drawers

CPUs, Memory, and I/O slots

GS1280 Model

Maximum CPUs supported

64 (64 per hard partition for Tru64 UNIX, 32 per hard partition for OpenVMS)

Maximum memory supported

512 GB

Maximum PCI-X/PCI slots supported

704, 176 per hard partition

Maximum AGP slots supported

64, 16 per hard partition

Interfaces

USB

One Dual USB port per Master I/O Drawer

Server Management

Server Management LAN Connection to Cable/DSL hub.

Serial

One MBM serial connection per System Building Block Drawer

Form Factor

1 x 41U Rack (Model 8 and Model 16) 2 x 41U Rack (Model 32) 3 x 41U Rack (Model 64)

Boot/Diagnostic Devices

Load Device

One slim-line DVD/CD-RW per Master I/O Drawer

NOTE:

Only bootable CD media is supported for firmware and operating system

booting. Bootable DVD media is not supported.

Hard Drives

Choice of 18.2/36.4/72.8/146-GB/300-GB SCSI disk drives in each Master I/O Drawer

Power Supplies

3-phase power subsystem with power cords, redundant 48 Vdc hot-swap power supplies, and dual AC feed included

OS Support

Tru64 UNIX V5.1B + IPK, or later required for EV7 CPU at 1150 MHz Tru64 UNIX V5.1B* + PK4, or later required for EV7 CPU at 1300 MHz AlphaServer Tru64 UNIX systems include pre-installed software, Base license, Unlimited User license, Server Extension license, Internet Express, and Secure Web Server

OpenVMS V7.3-1 plus Update Kit, or later AlphaServer OpenVMS systems include pre-installed software, Base license with System Manager license and Enterprise Integration Server License Package for OpenVMS

QuickSpecs

HP AlphaServer GS1280 Systems

Standard Features

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 5

Page 6

Service and Support

Protected by HP Services including a 1-year on-site hardware warranty. Training, consulting, network integration, software support, comprehensive system maintenance and guaranteed uptime services are also available for customers requiring higher levels of service and support.

QuickSpecs

HP AlphaServer GS1280 Systems

Standard Features

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 6

Page 7

Step 1 - Requirements

Step 1a - System Requirements

Mandatory Purchases:

The system cannot function without these options or services - the option or service must be

ordered with the system.

Base System (Step 2) Dual CPU Building Block Modules (Step 3) Memory (Step 4) Master I/O Building Block Drawer (Step 5) Power Distribution Unit(s) (Step 6)

Optional Purchases:

I/O Building Block Drawer(s) (Step 5) System disk(s) (Step 5) Dual AC Power (Step 7) Internal System Expansion (Step 8) External Rack Expansion - (Step 9) Other (see ES/GS Common Options)

Recommended Services:

HP Care Pack Service Package (see ES/GS Common Options - Step 12)

Step 1b - Requirements for Partitions

A single AlphaServer GS1280 can be divided into logical hardware partitions as small as two processors, each running an instance of Tru64 UNIX or an instance of OpenVMS. Each partition is allocated its own dedicated "shared-nothing" set of hardware resources: CPU module(s), memory module(s), and I/O. Each hardware partition is viewed as a unique node, from a system point-of-view, with its own instance of Tru64 UNIX or OpenVMS operating system and application software, independent system console, and error log.

Minimum Hardware and Software Required per Hardware Partition

QuickSpecs

HP AlphaServer GS1280 Systems

Systems

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 7

Page 8

2. a.

a. b.

ii.

iii.

One Dual CPU Building Block Module (Step 3) Memory (Step 4) I/O Drawer (Step 5)

One Standard I/O Drawer (Master or Expansion), or

Shared (up to four hard partitions) access to one High Performance I/O Drawer (Master or Expansion) One local disk (Step 5) or external storage for the system software. Network boot can be used in place of the disk storage. User access via the USB port in a Master I/O Drawer, a network connection (requires a LAN or WAN I/O adapter), or local terminal (requires an async I/O adapter). All systems require the following minimum firmware and software revisions to run hard partitions:

Minimum Firmware console rev: V6.5-8

Tru64 UNIX: V5.1B + Patch kit - T64V51BB22AS0002-20030415.tar

OpenVMS: V7.3-1 + TIMA Kits (available at

http://h18003.www1.hp.com/alphaserver/gs1280/gs1280_tech.html

): DEC-AVPVMS-VMS731_PARTITIONING-V0100-4.PCSI AVPVMS-VMS731_PARTITIONING-V0100_CVRLET AVPVMS-VMS731_PARTITIONING-V0100_SUBFORM

Configuration Guidelines

The two processors on a Dual Processor CPU Module cannot be split between hard partitions. The set of processors assigned to a partition must form a continuous rectangle on the system interconnect mesh network. CPU modules in an 8P Building Block Drawer share the same 48v power feed (from a redundant power supply). If the 8P Building Block Drawer contains all or portions of several hard partitions, a power fault in the drawer could affect all the partitions in that drawer. Hard partitions that consist of whole 8P Building Block Drawers limit the risk of a power fault in one drawer to one partition. Base systems include an operating system license (Tru64 UNIX or OpenVMS) that licenses all hardware partitions of the system. The license for an HP software product, the license(s) and license key(s) that represent those licenses, may be applied to any partition (OpenVMS Galaxy instance or hardware partition) within that system. Different versions of the operating system or layered products may be used on different partitions. In this case, the customer must be licensed for the latest version in use. Software products from other suppliers may have different licensing requirements for partitions.

Step 1c - Licensing Systems for Both OpenVMS and Tru64 UNIX

A System requires licenses for both OpenVMS and Tru64 UNIX operating systems, either for dual O/S boot of the entire system or for different operating systems in separate hard partitions. To use a second operating system, order the appropriate base system upgrade license and as many dual CPU SMP licenses as needed.

OpenVMS software base system upgrade for GS1280

QB-63PAQ-AC

Tru64 UNIX software base system upgrade for GS1280

QB-595AN-AB

OpenVMS Alpha dual CPU SMP license for GS1280

QL-MT1A9-6T

Tru64 UNIX Alpha dual CPU SMP license for GS1280

QL-MT4A9-6T

QuickSpecs

HP AlphaServer GS1280 Systems

Systems

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 8

Page 9

Step 1d - System Management Hardware/Software Requirements

Each AlphaServer ES47, ES80, and GS1280 system includes System Management software that can significantly enhance and simplify monitoring and control of the system. Use of the System Management software is optional. The software, which runs on a separate Intel or Alpha system, consists of two major components:

Alpha Management Station (AMS) - for monitoring and control of multiple ES47, ES80, and GS1280 Alpha Systems. AMS offers the highest level of server management functionality for a single or multi-platform environment. The AMS software requires the following hardware in order to operate:

Tru64 UNIX platform with 512-MB memory, 4-GB disk space, and two network interface cards running Tru64 UNIX V5.1B or later. Intel IA-32 platform running Linux, 500-MHz CPU or faster, 256-MB memory, 4-GB disk space, and one network

interface card. Alpha Management Utility (AMU) - for monitoring and control of a single ES47, ES80, or GS1280 Alpha System. The AMU is a GUI based application that provides a sophisticated, yet user-friendly graphics interface. The AMU is a Webbased utility, which allows a user local and remote access from a browser. The AMU software requires one of the following hardware platforms in order to operate:

Intel IA-32 platform running Windows 2000 or later, 500-MHz CPU or faster, 256-MB memory, 4-GB disk space,

and one network interface card.

Intel IA-32 platform running Linux, 500-MHz CPU or faster, 256-GB memory, 4-GB disk space, and one network

interface card.

Tru64 UNIX platform running V5.1B or later, 512-MB memory, 4-GB disk space, and one network interface card.

OpenVMS platform running V7.3-1 or later, 512-MB memory, 4-GB disk space, and one network interface card. Both the AMS and AMU software require Internet Explorer 5.5 or later or Netscape 4.76 or later. AMS/AMU software kits and instructions may be downloaded from:

http://ftp.digital.com/pub/Digital/Alpha/firmware/interim/ams/index.html

Step 2 - Select Base System - Mandatory Mandatory

selection of at least one Base System required.

AlphaServer GS1280 Base Systems

Model

System

Building Block

Drawers

Included

Total CPUs

Supported

(see Note 1)

41U

Rack(s)

Dual

(see Note 3)

Part Number

Model 8

Tru64 UNIX

1 8 1

Option

DA-1280A-AA

Model 8

OpenVMS

1 8 1

Option

DY-1280A-AA

Model 16

Tru64 UNIX

2 16 1

Option

DA-1280A-BA

Model 16

OpenVMS

2 16 1

Option

DY-1280A-BA

Model 32

Tru64 UNIX

4 32 2

Included

DA-1280A-CC

Model 32

OpenVMS

4 32 2

Included

DY-1280A-CC

Model 64

Tru64 UNIX

8 64 3

Included

DA-1280A-BD

Model 64

OpenVMS

64 (see Note 2)

Included

DY-1280A-BD

NOTES:

Base systems do not include CPUs or memory (see Steps 3 and 4). OpenVMS maximum processor support is 32P per partition. To achieve 64 processors, 2 x 32P OpenVMS partitions are required.

QuickSpecs

HP AlphaServer GS1280 Systems

Systems

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 9

Page 10

Step 3 - CPU Building Block Modules – Mandatory

=Mandatory

=Optional

Supported Configurations

CPUs

2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 36 40 44 48 52 56 60 64

Dual CPU Modules

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 18 20 22 24 26 28 30 32

GS1280 Model 8

O O O

- - - - - - - - - - - - - - - - - - - -

GS1280 Model 16

O O O O O O O

- - - - - - - - - - - - - - - -

GS1280 Model 32

O O O O O O O O O O O O O O O

- - - - - - - -

GS1280 Model 64

- - - - - - -

- - -

O O O O O O O O O

Configuration Guidelines

CPU Building Blocks with different clock speeds can co-exist in one system, but must be separated into hard partitions where the CPUs have the same speed. CPU Building Block or instant Capacity (iCAP) CPU Building Block Modules type (Tru64 UNIX or OpenVMS) must match the base system operating system selected in Step 2, or purchase a base operating system upgrade license to match the license with the CPU Building Block Module.

Full Use CPU Building Block Modules

AlphaServer GS1280 Dual CPU Building Block Module, 2xEV7 CPUs, 1300 MHz, Tru64 UNIX SMP License

3X-KN72D-AB

AlphaServer GS1280 Dual CPU Building Block Module, 2xEV7 CPUs, 1300 MHz, OpenVMS SMP License

3X-KN72D-AC

AlphaServer GS1280 Dual CPU Building Block Module, 2xEV7 CPUs, 1150 MHz, Tru64 UNIX SMP License

3X-KN72C-AB

AlphaServer GS1280 Dual CPU Building Block Module, 2xEV7 CPUs, 1150 MHz, OpenVMS SMP License

3X-KN72C-AC

Configuration and Use of instant Capacity (iCAP) CPUs

The instant Capacity (iCAP) program gives HP customers the option to purchase add-on CPU modules at a reduced price and install those modules in systems ready to activate instantly when needed for extra computational capacity. To use the iCAP program for AlphaServers:

Order and install iCAP CPU modules along with Full Use CPUs. The total number of Full Use CPU Building Block Modules plus iCAP CPU Building Bock Modules must adhere to the limits outlined above for GS1280 systems. Use the iCAP software (supplied with the iCAP CPU Module) to set iCAP CPUs inactive. As long as the total number of active CPUs does not exceed the number of licensed CPUs owned for the system, the owner may choose which CPUs to designate as iCAP. Inactive iCAP CPUs cannot include the primary CPU, CPUs responsible for hardware interrupts, CPUs being used by an application when configuring iCAP, or a CPU connected to an I/O Building Block Drawer. Activate the iCAP CPUs for First Use when extra capacity is needed, and then promptly purchase the iCAP Enablement (Right-to-Use).

iCAP CPU Building Block Module + iCAP Enablement = Full Use CPU Building Block Module

QuickSpecs

HP AlphaServer GS1280 Systems

Systems

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 10

Page 11

iCAP CPU Building Block Modules

AlphaServer GS1280 iCAP Dual CPU Building Block Module, 1300 MHz, Tru64 UNIX SMP License

3X-KN72D-CB

AlphaServer GS1280 iCAP Dual CPU Building Block Module, 1300 MHz, OpenVMS SMP License

3X-KN72D-CC

AlphaServer GS1280 iCAP Dual CPU Building Block Module, 1150 MHz, Tru64 UNIX SMP License

3X-KN72C-CB

AlphaServer GS1280 iCAP Dual CPU Building Block Module, 1150 MHz, OpenVMS SMP License

3X-KN72C-CC

iCAP Enablement

AlphaServer GS1280 iCAP Enable Dual CPU Building Block Module, 1300 MHz, Tru64 UNIX

3X-KN72D-EB

AlphaServer GS1280 iCAP Enable Dual CPU Building Block Module, 1300 MHz, OpenVMS

3X-KN72D-EC

AlphaServer GS1280 iCAP Enable Dual CPU Building Block Module, 1150 MHz, Tru64 UNIX

3X-KN72C-EB

AlphaServer GS1280 iCAP Enable Dual CPU Building Block Module, 1150 MHz, OpenVMS

3X-KN72C-EC

TERMS and DEFINITIONS iCAP CPU MODULE

AlphaServer CPU add-on module including the OpenVMS SMP or Tru64 Unix SMP extension license, end user product warranty, iCAP software, plus limited Rights-to-Access the CPU module and leave inactive until First Use.

FIRST USE

First Use takes place when one or more processors on the iCAP CPU Module are activated for permanent use.

Temporary replacement of a failed CPU with an iCAP CPU does not constitute First Use. Activation of an iCAP CPU after deactivation of a full use CPU does not constitute First Use. For example, owners are permitted to deactivate a Full Use CPU in one hard partition of the system and activate an iCAP CPU in another hard partition without First Use of the iCAP CPU. First Use of an iCAP CPU Module is considered to have taken place only when the number of active CPUs in the system is greater than the number of purchased full use CPUs.

iCAP ENABLEMENT

Grants full Right-to-Use for a previously purchased iCAP CPU Module.

PROGRAM PERIOD

There is no time limit to activate an iCAP CPU.

QuickSpecs

HP AlphaServer GS1280 Systems

Systems

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 11

Page 12

Step 4 - Select Memory Options - Mandatory

Configuration Guidelines

Mandatory selection of one memory option per CPU (two memory options per Dual CPU Building Block Module). Optional selection of a second memory option for each CPU. Both options must be the same size and speed for a CPU, but different size options can be used on different CPUs. Each memory option consists of four RDRAM Inline Memory Modules (RIMMs). An optional fifth RIMM (RAID option) may be selected for redundancy that will allow uninterrupted operation in case of the loss of an entire RIMM. RAID options must be selected and matched for each memory option on one CPU, but RAID options do not have to be selected for all CPUs.

NOTE:

Memory must be ordered for iCAP CPU Modules as well as Full Use CPU Modules. The system will use memory

installed on the iCAP CPU Module even when the iCAP CPU is inactive.

Memory Application Examples

The following examples illustrate different ways of configuring one 8P System Building Block Drawer with eight CPUs and a total of 16 GB of memory.

CPU Building Block Module #1 CPU Building Block Module #2

Case

Memory

Option

CPU 1 CPU 2 CPU 3 CPU 4

Controller 1 Controller 2 Controller 1 Controller 2 Controller 1 Controller 2 Controller 1 Controller 2

3X-MS7AB-

(4 x 256

MB)

1 1 1 1 1 1 1 1

3X-MS7AB-

(4 x 512

MB)

CPU Building Block Module #3 CPU Building Block Module #4

CPU 5 CPU 6 CPU 7 CPU 8

Controller 1 Controller 2 Controller 1 Controller 2 Controller 1 Controller 2 Controller 1 Controller 2

3X-MS7AB-

(4 x 256

MB)

1 1 1 1 1 1 1 1

3X-MS7AB-

(4 x 512

MB)

QuickSpecs

HP AlphaServer GS1280 Systems

GS Options

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 12

Page 13

Configuring memory is a compromise between cost, total memory capacity, and memory bandwidth requirements. The following may be used as guidelines:

Applications, in which large amounts of memory can substantially reduce I/O throughput, may be optimized for total memory capacity and future capacity growth. (Case B) Typical commercial applications, such as transaction processing (OLTP) and multi-user timesharing, usually operate efficiently from cache and may not be materially affected by memory bandwidth. Memory configuration is a balance between memory bandwidth and future capacity growth. (Case B) Data mining can benefit from additional memory bandwidth. It is best to match the number of memory base modules to the number of CPUs. (Case A) The most demanding high-performance technical applications achieve a performance level that is directly proportional to memory bandwidth. In these cases, configure two memory options per CPU. (Case A)

Memory Specification

800 MHz

1066 MHz

Use only with the indicated CPU Modules (mandatory)

Must be used

only with

EV7 1.15 GHz

(3X-KN72C-**)

May be used

with either

EV7 1.3 GHz

(3X-KN72D-**)

EV7 1.15 GHz

(3X-KN72C-**)

1-GB RDRAM Memory (4x256) Option

3X-MS7AB-BA

3X-MS7AC-BA

1-GB RDRAM Memory (1x256) RAID Option

3X-MS7AB-BC

3X-MS7AC-BC

2-GB RDRAM Memory (4x512) Option

3X-MS7AB-CA

3X-MS7AC-CA

2-GB RDRAM Memory (1x512) RAID Option

3X-MS7AB-CC

3X-MS7AC-CC

4-GB RDRAM Memory (4x1024) Option

3X-MS7AB-DB

3X-MS7AC-DA

4-GB RDRAM Memory (1x1024) RAID Option

3X-MS7AB-DD

3X-MS7AC-DC

Step 5 - System I/O Expansion - Mandatory

Configuration Guidelines

Each AlphaServer GS1280 system requires one I/O Master Building Block Drawer per system. Additional I/O Building Block Drawers are optional. Each additional hard partition in the system requires:

One Standard I/O Drawer (Master or Expansion), or

Shared (up to four hard partitions) access to one High Performance I/O Drawer (Master or Expansion) Each CPU in a GS1280 System Building Block Drawer can provide one I/O connection to an I/O Drawer. Either a Standard I/O Drawer (Expansion or Master) or High Performance I/O Drawer (Expansion or Master) can be used for optional I/O expansion. Any combination of drawers is supported up to the I/O connection limit of 32 per hard partition or 64 per system with 2 or more hard partitions.

The Standard I/O Drawer requires one I/O connection.

The High Performance I/O Drawer requires one and optionally up to four connections.

Example - AlphaServer GS1280 Model 16 with 12 processors

Twelve Processors, one I/O connection each

=12 I/O connections available

Six Standard I/O Drawers, one I/O connection each

= 6 I/O connections

One High Performance I/O Drawer with four I/O connections

= 4 I/O connections

One High Performance I/O Drawer with two I/O connections

= 2 I/O connections

QuickSpecs

HP AlphaServer GS1280 Systems

GS Options

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 13

Page 14

Total I/O Drawer Connections

=12 I/O connections used

I/O Module

for

Connection

to CPU in a

System

Building

Block

Drawer

I/O Buses

I/O Slots

Dual

Redundant

Power

Supplies

USB/

Ultra3

SCSI

Adapter

Card

DVD/

CD-RW

Drive

Universal

Slot for

Disks

Part Number

Standard I/O Drawer, Expansion

3 PCI-X

1 AGP 4X

8 PCI-X

1 PCI 3.3V;

2 PCI, 5V

1 AGP 4X

Yes

No No

None

3X-BA70A-BA

Standard I/O Drawer, Master

3 PCI-X

1 AGP 4X

8 PCI-X

1 PCI 3.3V;

2 PCI, 5V

1 AGP 4X

Yes

1 in PCI

3.3V Slot

1 2

3X-BA70A-AA

High Performance I/O Drawer, Expansion

1 standard

3 additional,

optional

2 to 8

PCI-X

2 to 8

PCI-X

Yes

No No

None

3X-BA70B-BA

High Performance I/O Drawer, Master

1 standard

3 additional,

optional

2 to 8

PCI-X

2 to 8

PCI-X

Yes

1 in PCI-X

Slot

1 2

3X-BA70B-AA

Add-in I/O Module for High Performance I/O Drawers. Each module supports two PCI-X slots. Up to three modules may be added to the base High Performance I/O Drawer.

3X-KFMHA-AA

I/O 3.3-meter cable for connection between GS1280 System Building Block Drawer and I/O Building Block Drawers mounted in a system rack or adjacent expansion rack; select one cable for each I/O drawer ordered and one cable per Add-in I/O Module (3X-KFMHA-AA) if ordered.

3X-BNPSA-04

I/O 4.5-meter cable for connection spanning one or two racks between GS1280 System Building Block Drawer and I/O Building Block Drawer mounted in an expansion rack; select one cable for each I/O drawer ordered and one cable per Add-in I/O Module (3X-KFMHA-AA) if ordered.

3X-BNPSA-05

I/O 6.0-meter cable for connection spanning three racks between GS1280 System Building Block Drawer and I/O Building Block Drawer mounted in an expansion rack; select one cable for each I/O drawer ordered and one cable per Add-in I/O Module (3X-KFMHA-AA) if ordered.

3X-BNPSA-06

QuickSpecs

HP AlphaServer GS1280 Systems

GS Options

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 14

Page 15

NOTES:

One High Performance I/O Drawer can be used by up to four separate hard partitions. Each of the four I/O connections (and two associated PCI-X slots) in the High Performance I/O Drawer can be independently controlled (e.g. power on/off) in conjunction with a separate partition. A Master I/O Drawer consists of a Standard or High Performance I/O Drawer plus a Combination Adapter in one slot. The Combination Adapter provides an Ultra3 SCSI connection for two disks and a DVD/CD-RW drive in the drawer, plus a USB connection for keyboard, mouse, and monitor. The Master I/O Drawer is required for all GS1280 systems integrated at the manufacturing plant by HP. If the final system configuration does not require these I/O devices, the Combination Adapter may be removed and replaced with the following alternatives:

System Boot - External storage or network boot can be used in place of the disk storage internal to the I/O

Drawer.

Software Load - Software can be loaded over the network from a disk on another system or directly from a CD

reader attached to another system by using remote mount.

User I/O - User access via a network connection can be used in place of the direct connection via the USB port. The two disks in the Master I/O Drawer can only be connected to the system via the Combination Adapter's Ultra3 SCSI connection. The I/O Drawer design does not permit connection from other storage adapters, such as a RAID adapter, that might be installed in the I/O Drawer. Each Master I/O Drawer supports up to two, optional, hard disk drives. See the Disks step of the ES/GS Common Options section of this QuickSpec for the selection of supported disk drives.

Step 6 - Power Distribution Units - Mandatory

GS1280 Model8GS1280 Model16GS1280 Model32GS1280 Model

DA/DY-1280A-AADA/DY-1280A-BADA/DY-1280A-CCDA/DY-1280A-

Type A Power Distribution Units

Select one variant.

North America/Japan 200

-208V, NEMA L21-30P 30A; 3 x C19 outlets plus 24 x C13 outlets

3X-H7606-

1 required

(provides

receptacles for

power cords

from all system

components)

2 required

(provides

receptacles for

power cords

from all system

components)

2 required

(provides

receptacles for

power cords

from I/O

Drawers, LAN

Hub, and

storage

shelves)

2 required

(provides

receptacles for

power cords

from I/O

Drawers, LAN

Hub, and

storage

shelves)

International 380/415V Y, IEC 309 32A; 3 x C19 outlets plus 24 x C13 outlets

3X-H7606-

Type B Power Distribution Units

Select one variant.

North America/Japan 200 - 208V, IEC 309 60A

3X-H7606-BANot applicable Not applicable

2 required

(for M32/M64

Dual AC power

supply

exclusively for

8P system

drawers)

4 required

(for M32/M64

Dual AC power

supply

exclusively for

8P system

drawers)

International 380/415V Y, IEC 309 32A

3X-H7606-

NOTES

Select the same power supply voltage variant for both Type A and Type B Power Distribution Units, e.g. both 200208V or both 380/415V. IEC 309 is a general spec that can encompass 3 different pin types. The 3X-H7606-BA PDU uses the Hubbell 460P9W, a 4 pin connector. The 3X-H7606-AA PDU uses an L21-30P 30 amp plug, Hubbell 2811, a 4 pin connector.

QuickSpecs

HP AlphaServer GS1280 Systems

GS Options

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 15

Page 16

Step 7 - Dual AC Power - Optional

A Dual AC power option provides the capability to connect to two separate AC feeds: a primary AC feed and a secondary AC feed. The feeds can be direct from the power utility, or they can be a combination of utility feeds and UPS or generator feeds. The preferred (primary) feed is determined by the user. In the event of failure of the primary feed, the system will automatically transfer the load to the secondary feed without power interruption.

Dual AC is included as a standard feature in the:

GS1280 Model 32 with Dual AC (DA/DY-1280A-CC)

GS1280 Model 64 with Dual AC (DA/DY-1280A-BD) Dual AC is an option for:

GS1280 Model 8

GS1280 Model 16

GS1280 Model 32 Single AC (DA/DY-1280A-AC)

GS1280 Model 64 Single AC (DA/DY-1280A-AD)

Dual AC Power Options for GS1280 Model 8 and Model 16 Systems Configuration Guidelines

Dual AC power options can be factory configured or installed as a field upgrade.

The dual AC assemblies for the Model 16 requires that a second rack (3X-H9A45-ZA Expansion Rack) be

mounted adjacent to the system power rack - see Step 9.

Dual AC option for use with AlphaServer GS1280 Model 8 systems

3X-H7514-AC

Dual AC option for use with AlphaServer GS1280 Model 16 systems

3X-H7514-AB

Mandatory

with Dual AC

options above.

Type A Power Distribution Units

Select one variant.

Two required for Model 16 Dual AC Option One required for Model 8 Dual AC Option

North America/Japan 200 -208V, NEMA L21-30P 30A; 3 x C19 outlets plus 24 x C13 outlets

3X-H7606-AA

International 380/415V Y, IEC 309 32A; 3 x C19 outlets plus 24 x C13 outlets

3X-H7606-AB

QuickSpecs

HP AlphaServer GS1280 Systems

GS Options

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 16

Page 17

AlphaServer GS1280 Model 8 with Dual AC Option

AlphaServer GS1280 Model 16 with Dual AC Option

QuickSpecs

HP AlphaServer GS1280 Systems

GS Options

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 17

Page 18

Dual AC Power Options for GS1280 Model 32 and Model 64 Systems not originally equipped with Dual AC (DA/DY1280A-AC/AD)

GS1280 Model 32 and Model 64 systems that were not originally equipped with power supplies that included dual AC capability (DA/DY-1280A-AC/AD) may be upgraded in the field to a power supply with Dual AC.

Configuration Guidelines

The upgrade consists of one new power supply rack that replaces the existing power supply rack(s). I/O Drawers, storage shelves or other components in the existing power supply racks must be moved to the new power supply rack or an expansion rack. Two Type A Power Distribution Units (3X-H7606-Ax) must be moved from the existing power rack to the new power rack to provide power for I/O Drawers and/or storage in the new power rack.

Dual AC option for AlphaServer GS1280 Model 32 system (DA/DY-1280A-AC)

3X-H7514-BC

Dual AC option for AlphaServer GS1280 Model 64 system (DA/DY-1280A-AD)

3X-H7514-BD

Mandatory

with Dual AC options above. Type B Power Distribution Units Select one variant.

Two required for Model 32 Dual AC Option Four required for Model 64 Dual AC Option

North America/Japan 200

- 208V, IEC 309 60A

3X-H7606-BA

International 380/415V Y, IEC 309 32A

3X-H7606-BB

Step 8 - Internal System Expansion - Optional

AlphaServer GS1280 systems can support optional configurations shown below.

AlphaServer GS1280 Model 8 - Internal System Expansion Options

QuickSpecs

HP AlphaServer GS1280 Systems

GS Options

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 18

Page 19

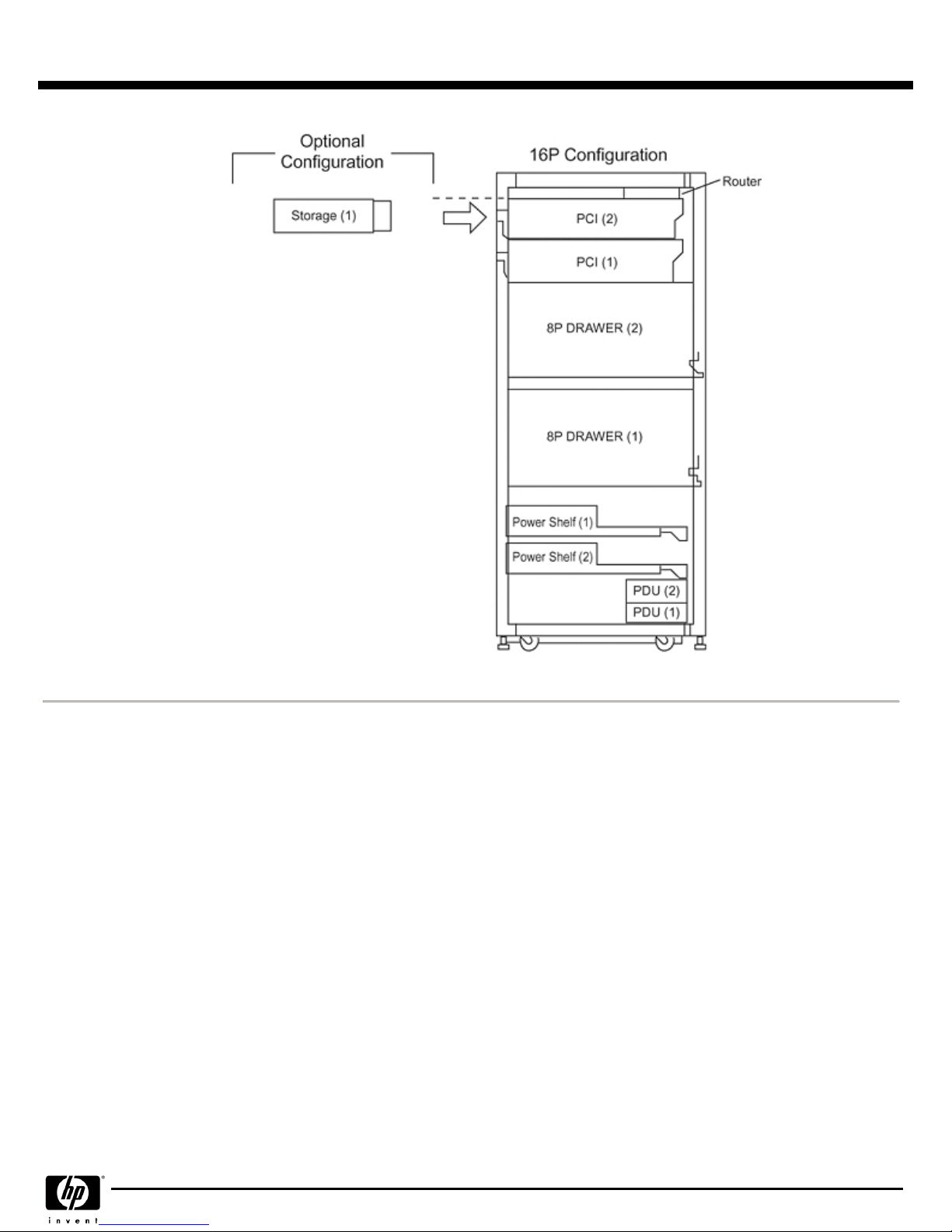

AlphaServer GS1280 Model 16 - Internal System Expansion Options

QuickSpecs

HP AlphaServer GS1280 Systems

GS Options

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 19

Page 20

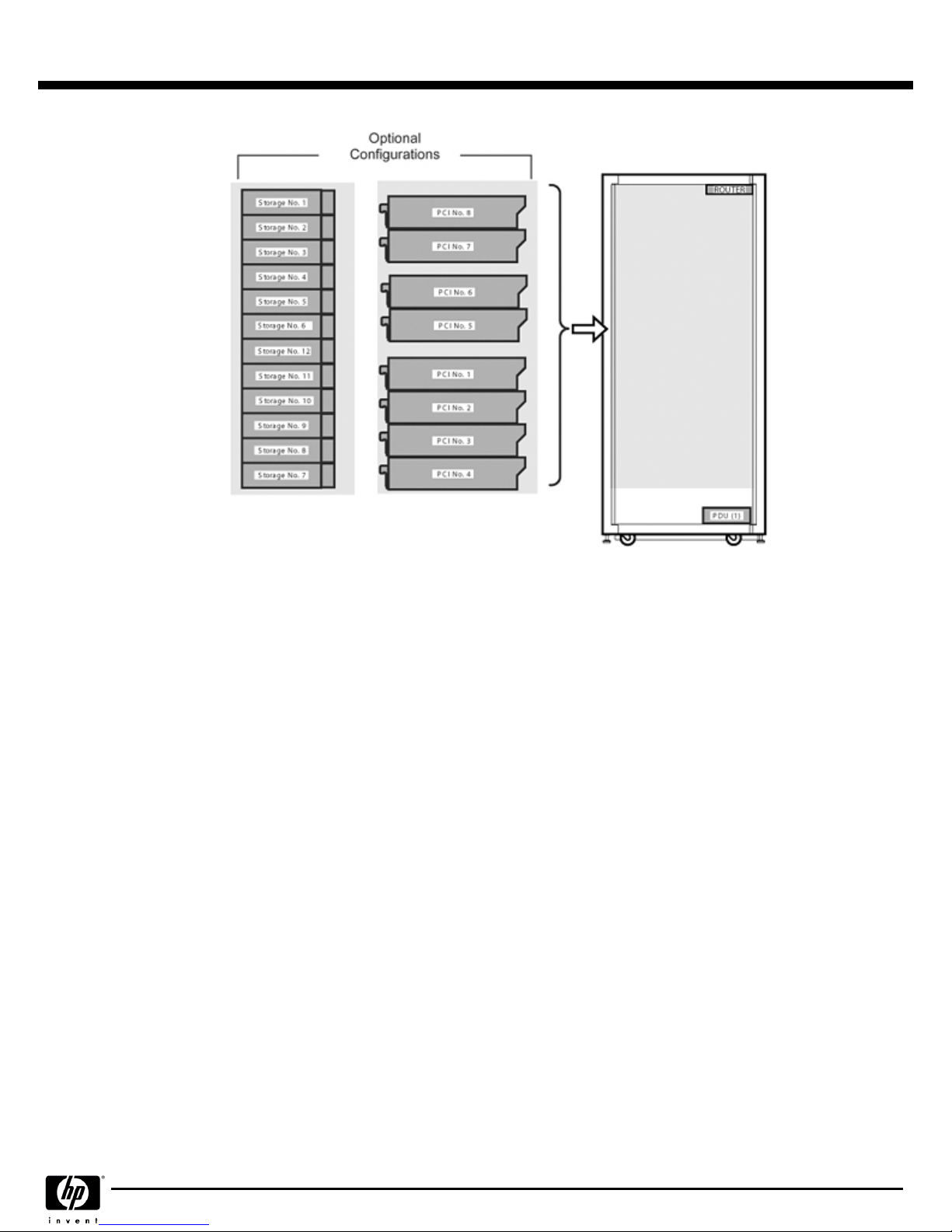

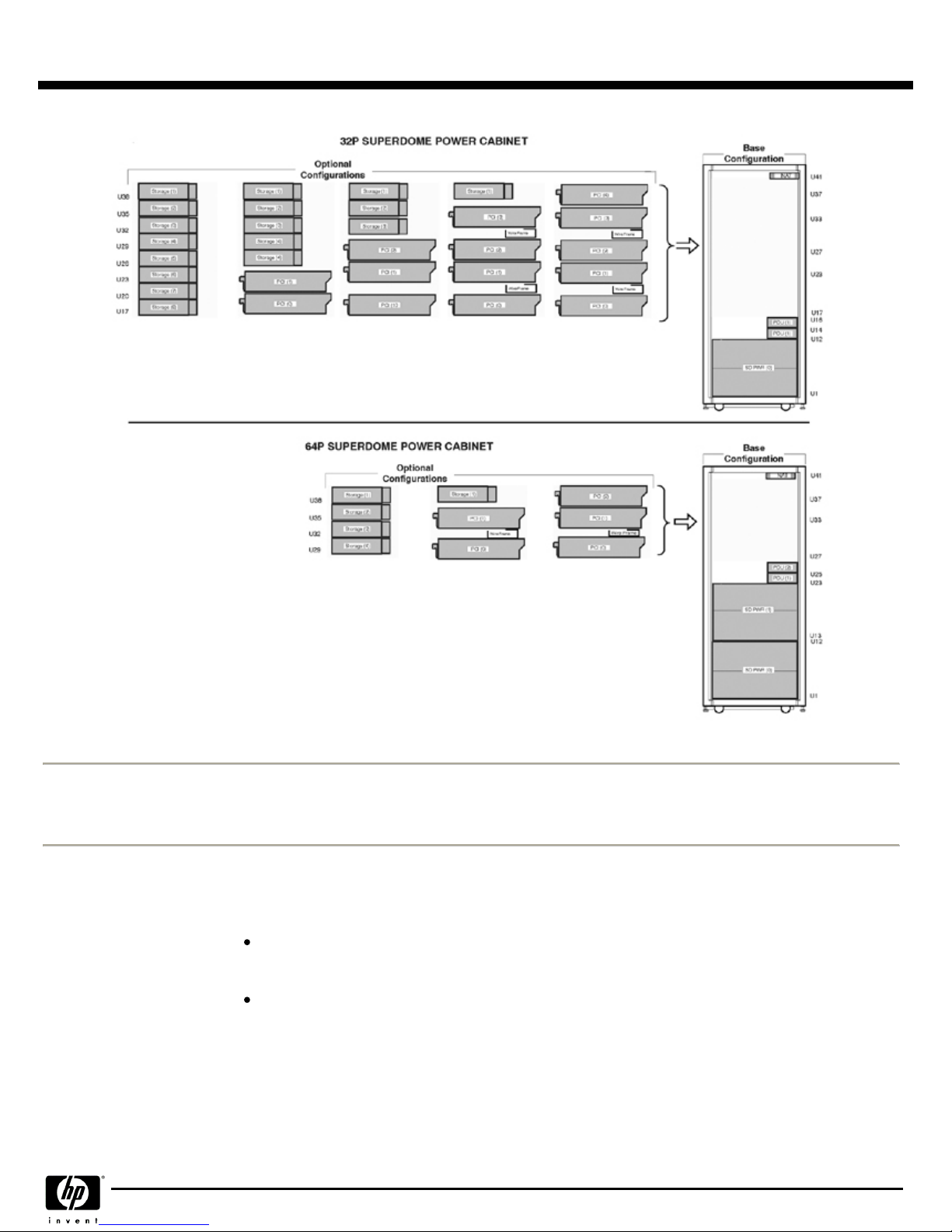

AlphaServer GS1280 Model 32 and Model 64 - Internal System Expansion

Step 9 - External Rack Expansion - Optional

Expansion Racks can be configured to hold I/O Drawers and StorageWorks components.

External Expansion Rack, 41U, 2m

3X-H9A45-ZA

Mandatory

with External Expansion Rack, above Type A Power Distribution Units Select one variant

One required for Model 8 or Model 16 systems. Second optional for Dual AC capability Two required for Model 32 and Model 64 system for Dual AC capability

North America/Japan 200 -208V, NEMA L21-30P 30A; 3 x C19 outlets plus 24 x C13 outlets

3X-H7606-AA

International 380/415V Y, IEC 309 32A; 3 x C19 outlets plus 24 x C13 outlets

3X-H7606-AB

QuickSpecs

HP AlphaServer GS1280 Systems

GS Options

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 20

Page 21

QuickSpecs

HP AlphaServer GS1280 Systems

GS Options

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 21

Page 22

Hardware Options & Peripherals, Software, and Services for

AlphaServers ES47, ES80, and GS1280

At A Glance

This section serves as a reference for selection and configuration of currently available host based adapters and controllers, peripheral storage and load devices, operating system software add-on products, and services. For the complete list of all supported options (both currently available and retired) plus detailed configuration guidelines, refer to "Alpha Options:"

http://h18002.www1.hp.com/alphaserver/products/options.html

ES/GS Common Options — Contents

Reference 1

I/O Capacity for AlphaServer ES47/ES80 and AlphaServer GS1280 Systems

Reference 2

Adapter to Peripheral Cross Connect Table

Reference 3

Rack Specifications and Rackmount Kits

Step 1

Networks and Communications — Optional

Step 2

Memory Channel — Optional

Step 3

Storage Adapters/Controllers — Optional

Step 4

StorageWorks Enclosures for Disks and Tapes — Optional

Step 5

Disks — Optional

Step 6

Storage Systems — Optional

Step 7

Tape Drives — Optional

Step 8

Tape Storage Systems — Optional

Step 9

Storage Network Switches, Hubs, and Interconnects — Optional

Step 10

Keyboards, Mouse, Monitors, Power Cords — Optional

Step 11

Graphics Support — Optional

Step 12

System Software — Optional

Step 13

Hardware and Software Support Services — Optional

Reference 1 – I/O Capacity for AlphaServer ES47/ES80 and AlphaServer GS1280 Systems

QuickSpecs

HP AlphaServer GS1280 Systems

ES/GS Common Options

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 22

Page 23

AlphaServer ES47/ES80 and GS1280 systems offer three types of I/O bus standards for adapters and controllers.

PCI-X

— Peripheral Component Interconnect Extended is a computer bus interface standard for connecting a microprocessor and attached devices. PCI-X doubles the speed and amount of data exchanged between the computer processor and peripherals from the predecessor PCI bus. PCI-X is backwards-compatible, meaning that users can, for example, install a PCI-X card in a standard PCI slot but expect a decrease in speed to 66 MHz or 33 MHz. Users can also use both PCI and PCI-X cards on the same PCI-X bus, but the bus will run at the speed of the slowest card. PCI-X is more fault tolerant than PCI. For example, PCI-X is able to reinitialize a faulty card or take it offline before computer failure occurs.

PCI

— Peripheral Component Interconnect is a computer bus interface standard for connecting a microprocessor and

attached devices.

AGP 4 —

Accelerated Graphics Port (AGP) is an interface specification that enables 3-D graphics to display quickly. It is especially useful in conjunction with three-dimensional (3D) video, and sophisticated scientific and engineering graphics programs. AGP runs at several times the bus speed of conventional Peripheral Component Interconnect (PCI). Because of this, the data transfer rate using AGP is significantly greater than with PCI video cards. The AGP 4X mode provides high performance levels with a peak bandwidth of 1066 MB/s. AGP 4X mode is a superset to the 1X and 2X modes; thus, all components supporting AGP 4X must also support 1X and 2X modes.

The following table presents the matrix of maximum, theoretical I/O throughput for the different standards. Actual I/O throughput will be less than calculated because of protocol overhead and contention for bus capacity.

Calculated Maximum Throughput

32-bit data path 64-bit data path

PCI, 33 MHz

0.133 GB/s 0.267 GB/s

PCI or PCI-X, 66 MHz

0.267 GB/s 0.533 GB/s

PCI-X, 100 MHz

N/A

0.8 GB/s

PCI-X, 133 MHz

N/A

1.067 GB/s

Calculated Maximum Throughput

1X 2X 4X

AGP

0.133 GB/s 0.267 GB/s 1.067 GB/s

Overall System Capacities for I/O Adapters and Controllers

QuickSpecs

HP AlphaServer GS1280 Systems

ES/GS Common Options

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 23

Page 24

ES47 Tower or

Workstation

ES47 ES80 GS1280

Maximum Hard Partitions per system

1 2 4 32

Maximum Quantity Tested & Supported

per system per system per system

per hard partition: per

system

Maximum 2P Building Block Drawers per System

1 2 4

N/A

PCI-X/PCI slots in 2P Drawers

5 10 20

N/A

133-MHz PCI-X/PCI slots in 2P Drawers

2 4

N/A

AGP slots in 2P Drawers

1 2 4

N/A

Maximum External I/O Connections

0 2 4

32 : 64

Maximum Standard I/O Drawers

(One I/O

connection per drawer)

0 2 4

32 : 64

PCI-X/PCI slots in Standard I/O Drawers

18 36

288 : 576

5V PCI slots in Standard I/O Drawers

4 8

64 : 128

AGP slots in Standard I/O Drawers

2 4

32 : 64

Maximum High Performance I/O Drawers

(One

I/O connection per drawer)

0 2 4

32 : 64

Maximum High Performance I/O Drawers

(Four

I/O connections per drawer)

0 1 1

8 : 16

133-MHz PCI-X/PCI slots in High Performance I/O Drawers

4 8

64 : 128

Total Slots

per system per system per system

per

hard partition:

per system

PCI-X/PCI slots

5 28 56

288 : 576

133-MHz PCI-X/PCI slots

1 4 8

32: 128

5V PCI slots

4 8

32 : 64

AGP slots

1 4 8

32 : 64

Maximum Possible Slots

(PCI-X/PCI plus 5V PCI

plus AGP slots)

6 36 72

384 : 768

I/O for Two-processor System Building Block Drawer used in ES47 and ES80 Systems

QuickSpecs

HP AlphaServer GS1280 Systems

ES/GS Common Options

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 24

Page 25

For PCI-X capable slots:

All universal or 3.3V PCI and PCI-X cards are supported,

EXCEPT: UltraSCSI wide differential adapter, 32-bit/33-MHz PCI adapter (3X-KZPBA-CC)

PCI-X protocol is used on the bus, but reverts to PCI protocol in these cases:

When one or more PCI cards are in a bus segment

Gigabit Ethernet, Rev A (DEGXA-SA/TA) is in the bus segment An I/O bus segment will operate at the least common denominator of the adapters installed or the lower speeds dictated by bus loading (as shown in the tables), whichever is less. The PCI-X card slots must be populated contiguously starting with slot 1; otherwise the bus will run at 33 MHz PCI.

2P Building Block Drawer Slot Specifications

Port (Bus) #

Slot #

Maximum Bus Speed

Signal Voltage

Bus Loading,

Adapters Installed

(contiguously starting

with Slot 1)

Max Bus Speed

133 MHz

3.3V

1 PCI 1 PCI-X

66 MHz 133 MHz

1 1

66 MHz

3.3V 1 or 2 PCI

3 or 4 PCI 1 to 4 PCI-X

66 MHz 50 MHz 66 MHz

66 MHz

3.3V

66 MHz

3.3V

66 MHz

3.3V

3 1

4X AGP

1.5V

1 AGP

Standard I/O Drawer used in ES47, ES80, and GS1280 Systems

For PCI-X capable slots:

All universal or 3.3V PCI and PCI-X cards are supported, EXCEPT: UltraSCSI wide differential adapter, 32-bit/33-MHz PCI adapter (3X-KZPBA-CC) PCI-X protocol is used on the bus, but reverts to PCI protocol in these cases:

When one or more PCI cards are in a bus segment With more than five (5) cards in a bus segment Gigabit Ethernet, Rev A (DEGXA-SA/TA) is in the bus segment

PCI 5V slots support ONLY:

For cluster support, CI host bus adapter (CIPCA-BA)

A legacy UltraSCSI wide differential adapter 32-bit/33-MHz PCI adapter (3X-KZPBA-CC) An I/O bus segment will operate at the least common denominator of the adapters installed or the lower speeds dictated by bus loading (as shown in the tables), whichever is less. The PCI-X card slots must be populated contiguously starting with slot 1; otherwise the bus will run at 33-MHz PCI.

QuickSpecs

HP AlphaServer GS1280 Systems

ES/GS Common Options

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 25

Page 26

Standard I/O Building Block Drawer Slot Specifications

Port (Bus) #

Slot #

Maximum Bus Speed

Signal Voltage

Bus Loading,

Adapters Installed

(contiguously starting

with Slot 1)

Max Bus Speed

0 1

100 MHz

3.3V

1 PCI 1 PCI-X 2 or 3 PCI

66 MHz 100 MHz 33 MHz

33 MHz

5.0V

33 MHz

5.0V

1 1

133 MHz

3.3V

1 PCI-X 2 PCI-X 1 or 2 PCI

133 MHz 100 MHz 66 MHz

133 MHz

3.3V

2 1

66 MHz

3.3V 1 to 3 PCI

4 or 5 PCI 6 PCI 1 to 5 PCI-X 6 PCI-X

66 MHz 50 MHz 33 MHz 66 MHz 33 MHz

66 MHz

3.3V

66 MHz

3.3V

66 MHz

3.3V

66 MHz

3.3V

66 MHz

3.3V

3 1

4X AGP

1.5V

1 AGP

Modules designed for 3.3V signaling and 66-MHz bus speed cannot operate in Port 0 - slots 2 and 3. In Port 2 of a Standard I/O Drawer, if PBXGG-AA (RADEON PCI Graphics adapter) is installed together with another card instead of 66 MHz, the bus will run at 50 MHz maximum. If RADEON is alone in slot 1, the bus will run at 66 MHz. For Port 0, slots 2 and 3 are keyed for 5V adapters

High Performance I/O Drawer used in ES47, ES80, and GS1280 Systems

When a PCI card is in the slot When Gigabit Ethernet, Rev A (DEGXA-SA/TA) is in the slot

High-performance I/O Drawer Slots Specifications

I/O

Connection

to EV7

Processor

Port (Bus) #

Slot #

Maximum Bus

Speed

Signal Voltage

Bus Loading,

Adapters Installed

(contiguously starting

with Slot 1)

Max Bus Speed

0 1

Slot 1

133 MHz

3.3V

For each slot

1 PCI

1 PCI-X

66 MHz

133 MHz

0 2

Slot 1

133 MHz

3.3V

1 1

Slot 1

133 MHz

3.3V

1 2

Slot 1

133 MHz

3.3V

2 1

Slot 1

133 MHz

3.3V

2 2

Slot 1

133 MHz

3.3V

3 1

Slot 1

133 MHz

3.3V

3 2

Slot 1

133 MHz

3.3V

QuickSpecs

HP AlphaServer GS1280 Systems

ES/GS Common Options

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 26

Page 27

Reference 2 – Adapter to Peripheral Cross Connect Table

SCSI Ultra3 LVD SCSI Ultra2 LVD

Ultra3 SCSI

Backplane RAID,

2 or 4 channel

U320 LVD SCSI

Backplane RAID,

2 or 4 channel

3X-KZPEA-DB

3X-KZPCA-AA

3X-KZPDC-BE/DF

3X-KZPEC-BF/DG

MSA30 Rack Disk & Tape Drive Enclosure

Yes Yes Yes Yes

4300 Rack Disk & Tape Drive Enclosure

Yes Yes Yes Yes

1U Rackmount Tape Drive Enclosure

Yes Yes

no no

3U Rackmount Tape Drive Enclosure

Yes Yes

no no

MSA1000 Storage System

no no no no

HP StorageWorks Enterprise Virtual Arrays; EVA4000; EVA6000; EVA8000

no no no no

HP StorageWorks Disk Arrays; xp10000; xp12000

no no no no

DAT Tape Drives; 40; 72

Yes Yes

no no

DLT VS Tape Drives; 80; 160

Yes Yes

no no

Ultrium LTO Tape Drives; 232; 448; 920, 460; 960

Yes Yes

no no

SDLT Tape Drive; 320; 600

Yes Yes

no no

DAT 72/10 Autoloader

Yes Yes

no no

1/8 Autoloader; Ultrium 232, 448, 960

Yes Yes

no no

MSL2024/4048 Tape Libraries

Yes Yes

no no

MSL6000 Tape Libraries

Yes Yes

no no

ESL E-Series Tape Libraries

Yes Yes

no no

VSL 6000 Virtual Library System

no no no no

Cross Connect Table

2-Gbit Fibre Channel Adapter, single

channel, PCI-X LP10000, FCA2684

2-Gbit Fibre Channel Adapter, dual

channel, PCI-X LP10000, FCA2684DC

DS-A5132-AA DS-A5134-AA

MSA30 Rack Disk & Tape Drive Enclosure

no no

4300 Rack Disk & Tape Drive Enclosure

no no

1U Rackmount Tape Drive Enclosure

no no

3U Rackmount Tape Drive Enclosure

no no

MSA1000 Storage System

Yes

HP StorageWorks Enterprise Virtual Arrays; EVA4000; EVA6000; EVA8000

Yes

HP StorageWorks Disk Arrays; xp10000; xp12000

Yes

DAT Tape Drives; 40; 72

Yes

DLT VS Tape Drives; 80; 160

Yes

1/8 Autoloader; Ultrium 232, 448, 960

Yes

SDLT Tape Drive; 320; 600

Yes

DAT 72/10 Autoloaders

Yes

QuickSpecs

HP AlphaServer GS1280 Systems

ES/GS Common Options

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 27

Page 28

1/8 Autoloader; Ultrium 232, 448, 960

Yes

MSL2024/4048 Tape Libraries

Yes

MSL6000 Tape Libraries

Yes

ESL E-Series Tape Libraries

no no

VSL 6000 Virtual Library System

Yes Yes

NOTE 1

: Fibre Channel connection to a SCSI tape device requires a Network Storage Router (NSR) (see Step 8) in a

Storage Area Network (SAN).

Reference 3 – Rack Specifications and Rackmount Kits

High-performance I/O Drawer slots specifications: HP Racks

H9A10 H9A15

9142

10642

H9A45-ZA H9A45-ZD

M-series M-series

Series 9000

Series 10000

For GS1280

(includes

Operator

Control Panel

(OCP))

For ES47/80

(no OCP)

Vertical Rack Capacity

59.5"

71.75"

73.5" 73.5"

71.75" 71.75"

(1.75" per Rack Unit)

34U 41U 42U 42U 41U 41U

Rail Spacing

19 inch 19 inch 19 inch 19 inch 19 inch 19 inch

(side-to-side)

RETMA RETMA RETMA RETMA RETMA RETMA

Rail Spacing

(front-to-back)

25 inches 25 inches 29 inches 29 inches 29 inches 29 inches

Hole Pattern

0.281" Round 0.281" Round

Euro-Square Euro-Square Euro-Square Euro-Square

RETMA RETMA RETMA RETMA RETMA RETMA

Max Payload

(spec'd)

1000 lbs 1000 lbs 1200 lbs 1600 lbs 1600 lbs 1600 lbs

(equipment weight only, dynamic)

454 kg 454 kg 544 kg 720 kg 720 kg 720 kg

Height

66.9" 78.7" 78.7" 78.7" 78.7" 78.7"

(external dim w/o packaging)

1700 mm

2 meters 2 meters 2 meters 2 meters 2 meters

Width

23.6" 23.6" 23.7" 23.7" 23.6" 23.6"

(external dim w/o packaging)

600 mm 600 mm 603 mm 603 mm 600 mm 603 mm

Depth w/o Extender

36.1" 36.1" 35.8" 39.7" NA

39.4"

(external dim w/o packaging)

916 mm 916 mm 909 mm

1009 mm 1000 mm

Depth w Rear Extender

41.5" 41.5" 39.7"

Not Available

48.1" Optional

(external dim w/o packaging)

1054 mm 1054 mm 1009 mm 1222 mm

Useable Depth

31.7" 31.7"

30"

35.25" 40.25" 32.25"

(front rail to back door)

804 mm 804 mm 762 mm 895 mm

1022 mm

819 mm

QuickSpecs

HP AlphaServer GS1280 Systems

ES/GS Common Options

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 28

Page 29

Usable Depth w/Extender

37.1" 37.1" 33.9" NA NA

40.25

(front rail to back door)

943 mm 943 mm 862 mm

1022 mm

Side Panels

Standard Standard Standard Standard Standard Standard

Stabilizer

Single

Deployable

Dual

Deployable

Single

Deployable

Single

Deployable

Heavy duty Deployable

None

Top Cover

Vented Vented Vented Vented Vented Vented

Rear Door

Standard

w/Lock

Standard

w/Lock

Standard

Split

Standard

w/Lock

Standard

w/Lock

Short

Long door

w/Lock w/Lock

Front Door

Optional Optional

Standard Standard Standard Standard

Kit w/Lock Kit w/Lock

w/Lock w/Lock w/Lock w/Lock

Front Trim Kit

Required if

no Front Door

Required if

no Front Door

Standard

w/Lock

Not Available Not Available Not Available

PDUs

Standard Standard

Optional Optional Optional Optional

Joiner Kit

(aka Baying Kit)

Optional Optional Optional Optional

NA NA

Shipping Height

76.4" 84.4" 84.4"

86.22" 84.75" 84.75"

(external dim with packaging)

1940 mm 2144 mm 2144 mm 2190 mm 2153 mm 2153 mm

Shipping Width

36" 36" 36" 32"

43.1" 43.1"

(external dim with packaging)

914 mm 914 mm 914 mm

812.8 mm

1096 mm 1096 mm

Shipping Depth

53.75" 53.75"

48" 48" 48" 48"

(external dim with packaging)

1366 mm 1366 mm 1219 mm 1219 mm 1219 mm 1219 mm

Shipping Weight

325 lbs 355 lbs 445 lbs 284 lbs 570 lbs 570 lbs

(empty cab with full packaging)

147 kg 161 kg 202 kg 129 kg 259 kg 259 kg

RACKMOUNT KITS DS15

3X-PBX01-DA 3X-PBX01-DA 3X-PBX01-DB 3X-PBX01-DB 3X-PBX01-DB13X-PBX01-DB

DS25

3X-BA57R-RA 3X-BA57R-RA

3X-BA57R-RC 3X-BA57R-RC 3X-BA57R-RC13X-BA57R-RC

ES45

BA61R-CR BA61R-CR

3X-BA61R-RD 3X-BA61R-RD 3X-BA61R-RD13X-BA61R-RD

ES47

No kit available No kit available No kit available

CK-BA60B-AR

Included Included

ES80

No kit available No kit available No kit available

CK-BA60B-AR

Included Included

Mem. Channel 2

3X-BA61R-MC 3X-BA61R-MC 3X-BA61R-MD 3X-BA61R-MD 3X-BA61R-MD 3X-BA61R-MD

3U LVD enclosure

3R-A3804-AA 3R-A3804-AA

Included Included Included Included

5U LVD/MSL5000 enclosure

254795-001 254795-001

Included Included Included Included

StorageWorks 4315/4354

Included Included Included Included Included Included

MSA30/MSA1000

3R-A5281-AA 3R-A5281-AA

Standard Standard Standard Standard

QuickSpecs

HP AlphaServer GS1280 Systems

ES/GS Common Options

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 29

Page 30

NOTES:

HP will not install system in the rack at the factory unless optional integration services are purchased. System/E racks are not configurable with AlphaServers.

Step 1 - Networks and Communications — Optional

Step 1a - Ethernet — Optional

NOTE:

If an Ethernet NIC is not selected, at least one I/O slot in the system must remain open for connection of the system

to the factory test network.

Description

Device Type

Part Number

Maximum Quantity Tested & Supported

U=Tru64 UNIX

O=OpenVMS

L=Redhat V7.2 Linux

per system

per hard partition: per system

ES47

Tower

Workstation

ES47 ES80 GS1280

Ethernet Network Interface Cards

Gigabit Ethernet NIC, Twisted-Pair Copper with single-port RJ45, 10/100/1000 Mbps Use BN25G, BN26M, BN24Q, BN28Q, or equivalent cables with RJ45 connectors.

PCI-X 3.3V,

64 b,

133 MHz

3X-DEGXA-TR

5/U 5/O

1/L

16:28/U

16:28/O

1:2L

16:56/U

16:56/O

1:4/L

16:512/U 16:512/O

Gigabit Ethernet NIC, Fiber with duplexSC connectors, 1000 Mbps only. Use BN34B, or equivalent cables with SC connectors.

PCI-X 3.3V,

64 b,

133 MHz

3X-DEGXA-SR

5/U 5/O

1/L

16:28/U

16:28/O

1:2L

16:56/U

16:56/O

1:4/L

16:512/U 16:512/O

10/100 Ethernet (dual-port UTP/RJ45s) NIC and Base Module. Use BN25G, BN26M, BN24Q, or BN28Q twisted pair RJ45 cables. (Optional, add-on daughter cards 3X-DE602-TR or 3X-DE602-FR)

PCI 3.3V,

64 b, 66 MHz

3X-DE602-BR

5/U 5/O

1/L

8:16/U 8:16/O

1:2L

8:32/U 8:32/O

1:4/L

8:256/U

8:256/O

10/100 Ethernet (dual-port UTP/RJ45s) add-on to 3X-DE602-BR only. Total of four ports for combined 3X-DE602-BR and 3X-DE602-TR modules. Use BN25G, BN26M, BN24Q, BN28Q, or equivalent cables with RJ45 connectors.

NOTE:

3X-DE602-TR cannot be used

standalone.

3X-DE602-TR

Single-port 100 Mbps (MMF/duplex-SC) add-on daughter card for use with the 3X-DE602-BR. Combined 3X-DE602-BR and 3X-DE602-FR provides two 10/100 (UTP/RJ45s) and one 100Mbps (MMF/SC) ports. Use BN34B cables.

NOTE:

3X-DE602-FR cannot be used

standalone.

3X-DE602-FR

QuickSpecs

HP AlphaServer GS1280 Systems

ES/GS Common Options

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 30

Page 31

Step 1b - Networks and Communications — Optional

Description

Device Type

Part Number

Maximum Quantity Tested & Supported

U=Tru64 UNIX

O=OpenVMS

L=Redhat V7.2 Linux

per system

per hard partition: per system

ES47

Tower

Workstation

ES47 ES80 GS1280

Synchronous Communications Network Interface Cards

Dual-port Intelligent Synchronous Communications NIC; requires one or two BC3xx sync cables.

PCI 3.3V,

32 b,

33 MHz

3X-PBXDD-AA

4/U 4/O

4:8/U

4:8/O

4:16/U 4:16/O

4:128/U

4:128/O

Quad-port Intelligent Synchronous Communications NIC; requires one to four BC3xx sync cables.

PCI 3.3V,

32 b,

33 MHz

3X-PBXDD-AB

4/U 4/O

4:8/U

4:8/O

4:16/U 4:16/O

4:128/U

4:128/O

Asynchronous Communications Network Interface Cards

4-port Async Communications NIC with DB-25 cable

PCI 3.3V,

32 b,

33 MHz

PBXDA-BA 2/U

2/O

2:4/U

2:4/O

2:8/U

2:8/O

2:64/U 2:64/O

8-port Async Communications NIC

PCI 3.3V,

32 b,

33 MHz

PBXDA-BB 2/U

2/O

2:4/U

2:4/O

2:8/U

2:8/O

2:64/U 2:64/O

16-port Async Communications Controller and rackmount 16-port distribution box with RJ45 connectors

PCI 3.3V,

32 b,

33 MHz

PBXDA-AC

2/U 2/O

2:4/U

2:4/O

2:8/U

2:8/O

2:64/U 2:64/O

Cables for Ethernet, ATM, Synchronous, and Asynchronous Network Interface Cards

Multimode fiber optic (MMF) 62.5/125um duplex cable, with SC-to-SC connectors. xx = 2E, 4E, 01, 03, 10, 20, 30 for 2.4, 4.5, 1, 3, 10, 20, and 30 meters

BN34B-xx

Category 5e (4-Unshielded Twisted Pairs / UTP) straight-through cable with RJ45-to-RJ45 connectors for system to switch, repeater, or hub connectivity. xx = 0B, 0E, 01, 03, 04, 07 for 0.2, 0.5, 1, 3, 4, and 7 meters

BN25G-xx

Category 5e (4-Twisted Pairs, Screened/ ScTP) straight-through cable with RJ45-to-RJ45 connectors for system to switch, repeater, or hub connectivity. xx = 0B, 0E, 01, 03, 04, 07 for 0.2, 0.5, 1, 3, 4, and 7 meters

BN26M-xx

Category 5e (4-Unshielded Twisted Pairs / UTP) Xover cable with RJ45-to-RJ45 connectors for system to switch, repeater, or hub connectivity. xx = 0E, 01, 03, 04, 07 for 0.5, 1, 3, 4, and 7 meters

BN24Q-xx

Category 5e (4-Twisted Pairs, Screened / ScTP) Xover cable with RJ45-to-RJ45 connectors for system to switch, repeater, or hub connectivity. xx = 0E, 01, 03, 04, 07 for 0.5, 1, 3, 4, and 7 meters

BN28Q-xx

EIA-530 Single-port synchronous cable

3X-

BC34G-06

V.24/EIA-232 Single-port synchronous cable

3X-

BC34L-06

V.11/x.21 Single-port synchronous cable

3X-

BC33S-06

V.35 Single-port synchronous cable

3X-

BC34T-06

RJ45-to-DB-25 Asynchronous Converter Cable

CXI01-AC

QuickSpecs

HP AlphaServer GS1280 Systems

ES/GS Common Options

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 31

Page 32

Step 2 - MEMORY CHANNEL — Optional

Configuration Guidelines

Each Memory Channel adapter must be the only device on the PCI/PCI-X bus segment. Two-node clusters can be configured by ordering one adapter (CCMAB-BA) for each node and one cable (BN39B-04 or BN39B-10) between the two systems. For a two-node cluster that will not need to be rebooted when adding additional members, order one adapter (CCMAB-BA) and one cable (BN39B-04 or BN39B-10) for each node plus one hub (CCMHB-AA) for the cluster. For three or four node clusters, order one adapter (CCMAB-BA) and one cable (BN39B-04 or BN39B-10) for each node and one hub (CCMHB-AA) for the cluster. The hub (CCMHB-AA) includes four line cards and supports up to four nodes; expansion up to eight system nodes can be achieved by adding up to four line cards (CCMLB-AA). If two adapters (CCMAB-BA) are configured in each system, a second hub (CCMHB-AA) is required. If nodes must be separated by a distance longer than standard copper cables allow, the CCMFB option converts the output of the standard controller or line card to single-mode fiber optic cable. The fiber optic connection may be up to 2,000 meters long between two controllers connected in virtual hub mode, or 3,000 meters between a controller and a hub. (The connection from the hub to a second system may also be 3,000 meters.) The CCMFB option requires a second PCI slot in the system from which it draws power only. It is normally connected to the corresponding controller with the short cable, BN39B-01. The CCMFB option is also used in the hub where it occupies a slot normally used by a line card, limiting expansion to four radial fiber optic connections. The hub expansion box (CCMHB-BA) provides additional slots for up to eight fiber optic connections. Two standard length single-mode fiber optic cables are available (BN34R-10 and BN34R-31); however, users normally provide this fiber optic connection. Fiber optic connectivity is completely transparent to the systems using it and has no performance impact

Description

Device Type

Part Number

Maximum Quantity Tested & Supported

U=Tru64 UNIX

O=OpenVMS

L=Redhat V7.2 Linux

per system

per hard partition: per system

ES47

Tower

Workstation

ES47 ES80 GS1280

Memory Channel Adapter

PCI 5.0/3.3V, 32 b, 33 MHz

CCMAB-BA

2/U 2/O

2:4/U

2:4/O

2:8/U

2:8/O

2:64/U 2:64/O

Copper-to-single mode fiber optic converter

PCI 5.0/3.3V, 32 b, 33 MHz

CCMFB-BA

2/U 2/O

2:4/U

2:4/O

2:8/U

2:8/O

2:64/U 2:64/O

QuickSpecs

HP AlphaServer GS1280 Systems

ES/GS Common Options

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 32

Page 33

Infrastructure for Memory Channel

System Area Network Hub with four line cards; includes BN19P-1K` power cord for Canada, Japan, and U.S. For other regions, order appropriate power cord from list that follows.

CCMHB-AA

Hub expansion box with no line cards

CCMHB-BA

Expansion line card for CCMHB hub

CCMLB-AA

1-meter cable for CCMAB and CCMHB

BN39B-01

4-meter cable for CCMAB and CCMHB

BN39B-04

7-meter cable for CCMAB and CCMHB

BN39B-07

10-meter cable for CCMAB and CCMHB

BN39B-10

Rackmount kit (3U) for CCMHB (Memory Channel Hub II); required for mounting in H9A40/H9A45 Cabinets and Series 10000 Racks.

3X-BA61R-MD

Power cord for rackmount CCMHB hub

BN35S-02

Country-specific Power Cords for Standalone MEMORY CHANNEL Hubs

Australia, New Zealand

3R-A6023-AA

Central Europe

BN19C-2E

Denmark

BN19K-2E

Egypt, India

BN19S-2E

Ireland, United Kingdom

BN19A-2E

Israel

3R-A6883-AA

Italy

BN19M-2E

Japan, 2.5-meter, Dentori approved

3X-BN46F-02

Switzerland

BN19E-2E

Step 3 - Storage Adapters/Controllers — Optional

Description

Device Type

Part Number

Maximum Quantity Tested & Supported

U=Tru64 UNIX

O=OpenVMS

L=Redhat V7.2 Linux

per system

per hard partition: per system

ES47

Tower

Workstation

ES47 ES80 GS1280

SCSI Adapters

Ultra3 (LVD) SCSI adapter, dualchannel. Requires 3X-BC56J-xx cable.

Restrictions:

HSZxx RAID controllers not supported; Tru64 UNIX requires a graphics adapter to run console utilities (RUN BIOS).

PCI, 3.3V,

64b, 66 MHz

3X-KZPEA-DB

5/U 5/O

1/L

Shared Bus

5/U 0/O

28:28/U

12:24/O

1:2/L

Shared

Bus

6:12/U

0/O

32:56/U

12:48/O

1:4/L

Shared

Bus

6:24/U

0/O

32:576/U 12:384/O

0/L

Shared

Bus

6:192/U

0/O

QuickSpecs

HP AlphaServer GS1280 Systems

ES/GS Common Options

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 33

Page 34

Ultra2 (LVD) SCSI adapter, singlechannel. Requires BN38C-xx cable.

Restrictions

: HSZxx RAID controllers not supported. No support for shared SCSI.

PCI, 3.3/5.0V

Universal,

32b, 33 MHz

3X-KZPCA-AA

5/U 5/O

1/L

8:16/U 8:16/O

1:2/L

8:32/U 8:32/O

1:4/L

8:256/U

8:256/O

0/L

Backplane RAID SCSI Controllers

U320 LVD SCSI Backplane Raid Controller, 64 bit, 2 Channel

PCI-X, 3.3V,

64b

133 MHz

3X-KZPEC-BF

5/O

8:16/O 8:32/O

8:256/O

U320 LVD SCSI Backplane Raid Controller, 64 bit, 4 Channel

PCI-X, 3.3V,

64b

133 MHz

3X-KZPEC-DG

5/O

8:16/O 8:32/O

8:256/O

Ultra3 SCSI, 2-channel, RAID controller

PCI, 3.3V,

64b, 66 MHz

3X-KZPDC-BE

5/U

5/O

1/L

8:16/U

8:16/O

1:2/L

8:32/U

8:32/O

1:4/L

8:256/U 8:256/O

0/L

Ultra3 SCSI, 4-channel, RAID controller

PCI, 3.3V,

64b, 66 MHz

3X-KZPDC-DF

5/U

5/O

1/L

8:16/U

8:16/O

1:2/L

8:32/U

8:32/O

1:4/L

8:256/U 8:256/O

0/L

Cables for SCSI and Backplane RAID Controllers

Ultra3 SCSI cable, VHDCI to VHDCI; xx = 02, 03, 04, meters

3X-BC56J-xx

Ultra2 SCSI 68-pin HD male-to-VHDCI male cable; xx = 02, 03, 05, 10, 20 meters

BN38C-xx

Description

Device Type

Part Number

Maximum Quantity Tested & Supported

U=Tru64 UNIX

O=OpenVMS

L=Redhat V7.2 Linux

per system

per hard partition: per system

ES47

Tower

Workstation

ES47 ES80 GS1280

Fibre Channel Controllers

2-Gbit Fibre Channel Adapter, single channel, PCI-X LP10000, FCA2684

PCI-X, 3.3/5.0V

Universal,

64b, 133 MHz

DS-A5132-AA

5/U 5/O

28:28/U

26:28/O

56:56/U

26:56/O

64:576/U 26:576/O

2-Gbit Fibre Channel Adapter, dual channel, PCI-X LP10000, FCA2684DC

PCI-X, 3.3/5.0V

Universal,

64b, 133 MHz

DS-A5134-AA

5/U 5/O

28:28/U

13:26/O

32:56/U

13:56/O

32:576/U 13:416/O

CIPCA Adapter

Computer Interconnect (CI) adapter; each CI adapter requires a Standard I/O Building Block Drawer with 5V PCI slots.

PCI, 5V,

32b, 33 MHz,

two slots

CIPCA-BA

2:2/O 4:4/O

12:64/O

Cables for Fibre Channel

Fibre Channel SC-SC cables (BNGBX-xx); xx=02, 03, 05, 10, 15, 30, 50 meters

BNGBX-xx

QuickSpecs

HP AlphaServer GS1280 Systems

ES/GS Common Options

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 34

Page 35

Step 4 – StorageWorks Enclosures for Disks and Tapes — Optional

HP StorageWorks Modular Smart Array 30 Enclosure

(formerly known as HP StorageWorks 4400 Enclosure)

The HP StorageWorks Modular Smart Array 30 (MSA30) Enclosure is an Ultra320 SCSI disk drive storage enclosure. The drive carrier is designed to support Ultra320, Ultra3, and Ultra2 hard drives; and DAT tape drives on the same SCSI bus. StorageWorks 4200 or StorageWorks 4300 may be upgraded to the MSA30. See

HP StorageWorks Modular Smart Array 30 Enclosure QuickSpecs

for configuration details:

http://h18000.www1.hp.com/products/quickspecs/11738_div/11738_div.HTML

See

HP StorageWorks Modular Smart Array 30 Multi-Initiator Enclosure QuickSpecs

for configuration details:

http://h18000.www1.hp.com/products/quickspecs/11967_div/11967_div.html

Model MSA30, Singlebus

Rackmount, 14-drive enclosure with single bus, dual power supplies

3R-A4075-AA

Model MSA30, Dualbus

Rackmount, 14-drive enclosure with dual bus, dual power supplies

NOTE:

Not supported for shared bus operation.

3R-A4076-AA

Model MSA30 MultiInitiator

(Shared)

Rackmount, 14-drive enclosure with dual bus, multi-initiator shared access, and dual power supplies.

NOTE:

Use SCSI Ultra3 LVD host adapter (3X-KZPEA-DB) for shared bus

operation.

359645-B21

HP StorageWorks 4300 Enclosure

The HP StorageWorks Enclosure 4300 is an Ultra3 SCSI disk drive storage enclosure. The drive carrier is designed to support Ultra3 and Ultra2 hard drives and DAT Tape Drives on the same SCSI bus. See

HP StorageWorks 4300 Enclosure QuickSpecs

for configuration details:

http://h18000.www1.hp.com/products/quickspecs/10624_div/10624_div.HTML

NOTE:

The depth of a 4300 shelf does not allow front and rear mounting.

Model 4314R

Rackmountable 14-drive enclosure with single bus, single power supply

DS-SL13R-Ax

Model 4354R

Rackmountable 14-drive enclosure with dual bus, dual power supplies

DS-SL13R-Bx

HP StorageWorks Rackmount Tape Drive Enclosures

The 1U and 3U Rackmount Kits are rackmount tape drive enclosures for direct-attach SCSI backup and archiving applications. See

HP StorageWorks Rack-Mount Tape Drive Kits QuickSpecs

for configuration details:

http://h18000.www1.hp.com/products/quickspecs/10854_div/10854_div.HTML

1U Rackmount Tape Drive Enclosure

Supports up to two internal half-height devices including: DAT 40, and DAT 72 Tape Drives DLT VS80, DLT VS160 Tape Drives Ultrium

232 and 448 Tape Drives

A7445B

3U Rackmount Tape Drive Enclosure

Wide SCSI LVD rackmount enclosure. Supports up to two internal, full-height or four internal, half-height devices including:

DAT 40, and DAT 72 Tape Drives DAT 72x6 Tape Autoloader DLT VS80, DLT VS160 Tape Drives SDLT 320, SDLT 600 Tape Drives Ultrium

232, 448, 460, and 960 Tape Drives

274338-B22

QuickSpecs

HP AlphaServer GS1280 Systems

ES/GS Common Options

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 35

Page 36

Step 5 - Disks — Optional

HP SCSI Ultra320 Hard Disk Drives

(for use in StorageWorks MSA30 and 4300 Enclosures; ES47/80 2P System Building

Block Drawer; and I/O Building Block Drawers for ES47/80 and GS1280) See

HP SCSI Ultra320 Hard Drive Option Kits QuickSpecs

for configuration details:

http://h18000.www1.hp.com/products/quickspecs/11531_div/11531_div.HTML

300-GB Pluggable Ultra320 SCSI 10,000 rpm Hard Drive

3R-A4952-AA

146.8-GB Pluggable Ultra320 SCSI 10,000 rpm Hard Drive

3R-A3841-AA

72.8-GB Pluggable Ultra320 SCSI 10,000 rpm Hard Drive

3R-A3839-AA

300-GB Pluggable Ultra320 SCSI 15,000 rpm Hard Drive

3R-A6726-AA

146.8-GB Pluggable Ultra320 SCSI 15,000 rpm Hard Drive

3R-A4945-AA

72.8-GB Pluggable Ultra320 SCSI 15,000 rpm Hard Drive

3R-A3851-AA

36.4-GB Pluggable Ultra320 SCSI 15,000 rpm Hard Drive

3R-A3849-AA

Step 6 – Storage Systems — Optional

HP StorageWorks Modular Smart Array 1000

The HP StorageWorks Modular Smart Array 1000 is a 2-Gb Fibre Channel storage system designed for the entry-level to mid-range Storage Area Network (SAN). The MSA1000 combines the array controller shelf and the drive shelf, which holds up to 14 universal disk drives in a single 4U rackmount enclosure. More storage can be deployed with the addition of up to two drive enclosures for a maximum storage capacity of 6 TB when using the146-GB drives. Besides the single-port 2-Gb Fibre Channel I/O module that comes standard, there is an 8-port switch that mounts internally. The MSA1000 provides Ultra3 SCSI connections to the hard drives and uses HP Universal Ultra2, Ultra3, and/or Ultra320 drives. See

HP StorageWorks Modular Smart Array 1000 Specific for Tru64 UNIX or OpenVMS Only QuickSpecs

for

configuration details:

http://h18000.www1.hp.com/products/quickspecs/11621_div/11621_div.HTML

Modular Smart Array 1000

MSA1000 with 256-MB cache

201723-B22

HP StorageWorks Enterprise Virtual Array

The HP Enterprise Virtual Array storage array products have been designed for high performance, high capacity, and high availability. These products are supported by a powerful and simple suite of management software. EVA storage is designed for improved storage utilization and scalability. EVA storage offers easy capacity expansion, instantaneous replication, and simplified storage administration.

See

HP StorageWorks Enterprise Virtual Array QuickSpecs

for configuration details:

http://h18000.www1.hp.com/products/quickspecs/12408_div/12408_div.HTML

QuickSpecs

HP AlphaServer GS1280 Systems

ES/GS Common Options

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 36

Page 37

Model

EVA4000 EVA6000 EVA8000

EVA8000

with expansion

cabinet

Drive Interface

Dual ported

2 Gb/s FC-AL

Dual ported

2 Gb/s FC-AL

Dual ported

2 Gb/s FC-AL

Dual ported

2 Gb/s FC-AL

Cache per controller pair

4GB 4GB 8GB 8GB

Host ports

Four 2 Gb/s FC Four 2 Gb/s FC

Eight 2 Gb/s FC Eight 2 Gb/s FC

Device ports

Four 2 Gb/s

FC-AL

Four 2 Gb/s

FC-AL

Eight 2 Gb/s

FC-AL

Eight 2 Gb/s

FC-AL

Device FC-AL switches

0 2 4 4

Maximum Drives per model

112 168 240

HP StorageWorks Disk Array xp10000

The HP StorageWorks Disk Array xp1000 is an enterprise storage system that supports up to 240 Fibre Channel disk drives with up to 69 TB of capacity. The xp10000 supports up to 48 Fiber Channel (2-Gb or 4-Gb) interface connections. See

HP StorageWorks Disk Array xp10000 Product Information

for configuration details:

http://h18000.www1.hp.com/products/quickspecs/12275_div/12275_div.HTML

HP StorageWorks Disk Array xp12000

The HP StorageWorks Disk Array xp12000 is an enterprise storage system that supports up to 1152 Fibre Channel disk drives with up to 332 TB of capacity. The xp12000 supports up to 128 Fiber Channel (2-Gb or 4-Gb) interface connections. See

HP StorageWorks Disk Array xp12000 QuickSpecs

for configuration details:

http://h18006.www1.hp.com/products/quickspecs/12072_div/12072_div.html

Step 7 – Tape Drives — Optional

HP StorageWorks DAT Tape Drive Family

The HP StorageWorks DAT Tape Drives are an entry-level solution for small to medium server storage backup needs. The DAT Tape Drives have backwards compatibility with previous DDS technologies. See

HP StorageWorks DAT Drives QuickSpecs

for configuration details:

http://h18000.www1.hp.com/products/quickspecs/11883_div/11883_div.HTML

DAT Hot-Plug Tape Drives

(for use in StorageWorks MSA30 and 4300 Enclosures; and ES47/80 2P System Drawer)

40-GB hot-plug DAT tape drive, uses two Universal storage device slots

3R-A4745-AA

or Q1546A

72-GB hot-plug DAT tape drive, uses two Universal storage device slots

3R-A4547-AA

or Q1529A

DAT Internal Tape Drives

(for use in Rackmount Tape Drive Enclosures)

40-GB internal DAT tape drive, half-height device (carbon)

3R-A6831-AA

or C5686C

72-GB internal DAT tape drive, half-height device (carbon)

3R-A6663-AA

or Q1522B

DAT External

(tabletop)

Tape Drives

40-GB external (tabletop) DAT tape drive

C5687D

72-GB external (tabletop) DAT tape drive

Q1523B

QuickSpecs

HP AlphaServer GS1280 Systems

ES/GS Common Options

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 37

Page 38

HP StorageWorks SDLT Tape Drive Family

The HP StorageWorks SDLT Tape Drive is a high-capacity, high-performance streaming tape drive. The HP StorageWorks SDLT 320-GB Tape Drive is backward read compatible with DLT Type IV media. The SDLT 600 offers backward-read compatibility to the DLT VS 160 and to the SDLT 320 and SDLT 220. See

HP StorageWorks SDLT Tape Drive Family QuickSpecs

for configuration details:

http://h18000.www1.hp.com/products/quickspecs/11840_div/11840_div.HTML

SDLT Internal Tape Drives

(for use in Rackmount Tape Drive Enclosures)

320-GB internal SDLT tape drive, full-height device

257319-B21

600-GB internal SDLT tape drive, full-height device

A7518B

SDLT External

(tabletop)

Tape Drives

320-GB external (tabletop) SDLT tape drive, North America (Carbon)

257319-001

320-GB external (tabletop) SDLT tape drive, International (Carbon)

257319-B31

320-GB external (tabletop) SDLT tape drive, Japan (Carbon)

257319-291

600-GB external (tabletop) SDLT tape drive, North America

A7519B

600-GB external (tabletop) SDLT tape drive, Worldwide

A7520B

HP StorageWorks DLT VS Tape Drive Family

The HP StorageWorks DLT VS80 Tape Drive is an upgrade drive for current DLT 40 customers, offering a 100% increase in capacity. Utilizing industry standard DLT Type IV Media, the DLT VS80 Tape Drive offers backward-read compatibility with media previously written in the DLT 40 format. The DLT VS80 drive is also read and write compatible with data protection solutions utilizing the HP StorageWorks DLT1 Tape Drive, such as the HP StorageWorks DLT1 1280 SuperLoader, and can be read by the HP StorageWorks SDLT 220 and 320 Tape Drives.

See

HP StorageWorks DLT VS Family Tape Drive QuickSpecs

for configuration details:

http://h18000.www1.hp.com/products/quickspecs/11403_div/11403_div.HTML

DLT VS Internal Tape Drives

(for use in Rackmount Tape Drive Enclosures)

80-GB DLT VS internal tape drive, full-height device, (carbon), Worldwide

3R-A5071-AA

337699-B21

160-GB DLT VS internal tape drive, full-height device, (carbon), Worldwide

A7569B

DLT VS External

(tabletop)

Tape Drives

80-GB DLT VS external (tabletop) tape drive, North America (carbon)

3R-A4982-AA

337699-B22

80-GB DLT VS external (tabletop) tape drive, International (carbon)

3R-A4984-AA

337699-B31

160-GB DLT VS external (tabletop) tape drive, North America (carbon)

A7570B

160-GB DLT VS external (tabletop) tape drive, International (carbon)

A7571B

QuickSpecs

HP AlphaServer GS1280 Systems

ES/GS Common Options

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 38

Page 39

HP StorageWorks Ultrium LTO Tape Drive Family

HP StorageWorks Ultrium tape drives are based on LTO Ultrium format, an open standard with a well-defined fourgeneration roadmap.

See

HP StorageWorks Ultrium Full-Height Tape Drives QuickSpecs

for configuration details:

http://h18000.www1.hp.com/products/quickspecs/11739_div/11739_div.HTML

See

HP StorageWorks Ultrium Half-Height Tape Drives QuickSpecs

for configuration details:

http://h18000.www1.hp.com/products/quickspecs/12128_div/12128_div.HTML

Ultrium LTO Internal Tape Drives

(for use in Rackmount Tape Drive Enclosures)

Ultrium 232, 200-GB LTO internal tape drive, half-height device

DW064A

Ultrium 448, 400-GB LTO internal tape drive, half-height device

DW016A

Ultrium 920, 800-GB LTO internal tape drive, half-height device

EH841A

Ultrium 460, 400-GB LTO internal tape drive, full height device

Q1518B

Ultrium 960, 800-GB LTO internal tape drive, full-height device

Q1538A

Ultrium LTO External

(tabletop)

Tape Drives

Ultrium 232, 200-GB LTO external (tabletop) tape drive

DW065B

Ultrium 448, 400-GB LTO external (tabletop) tape drive

DW017B

Ultrium 920, 800-GB LTO external tape drive, half-height device

EH842A

Ultrium 460, 400-GB LTO external (tabletop) tape drive

Q1520B

Ultrium 960, 800-GB LTO external (tabletop) tape drive

Q1539B

Step 8 – Tape Storage Systems — Optional

HP StorageWorks DAT Tape Autoloaders

Backup solution for small to medium companies with limited IT support or remote sites of larger companies. The autoloader includes a single tape drive inside an enclosure that holds ten data cartridges in two removable magazine. HP DDS tape drives are backward read-write compatible with the two previous DDS generations, thus this DDS-4 autoloader also reads and writes DDS-3 and DDS-2.

See

HP StorageWorks DAT 72x10 Tape Autoloader QuickSpecs

for configuration details:

http://h18000.www1.hp.com/products/quickspecs/12486_div/12486_div.HTML

DAT 72x10 Autoloader

AE313A

QuickSpecs

HP AlphaServer GS1280 Systems

ES/GS Common Options

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 39

Page 40

HP StorageWorks 1/8 Tape Autoloader Family

The HP StorageWorks 1/8 Tape Autoloader provides unattended backup in a datacenter rack or on a desk next to the office server. The 1/8 Tape Autoloader in a 2U form factor can house up to eight cartridges.

See HP StorageWorks 1/8 Tape Autoloader Family QuickSpecs

for configuration details:

http://h18000.www1.hp.com/products/quickspecs/11841_div/11841_div.HTML

1/8 Ultrium LTO 232 Autoloader

Table Top

AA202A

1/8 Ultrium LTO 448 Autoloader

Table Top

AA203A

1/8 Ultrium LTO 960 Autoloader

Table Top

AA204A

Rack Mount Kit

Use to mount Table Top units in a 19" RETMA rack

C9268R

HP StorageWorks MSL2024 Tape Library

The HP StorageWorks MSL2024 Tape Library combines compressed capacity (2:1) of up to 19.2 TB and tape library features in a compact 2U form factor. The HP StorageWorks MSL2024 Tape Library offers two 12-slot removable magazines, one mail slot and a barcode reader for efficient media management.

See

HP StorageWorks MSL2024 Tape Library QuickSpecs

for configuration details:

http://h18006.www1.hp.com/products/quickspecs/12383_div/12383_div.html

Family Comparison

MSL2024 Ultrium 960 Tape

Library

MSL2024 Ultrium 920 Tape

Library

MSL2024 Ultrium 448 Tape

Library

Drive Technology

Ultrium 960 SCSI

Ultrium 920 Ultrium 448

Number of Drives

1 or 2 1 or 2

Capacity

(compressed 2:1)

19.2 TB 19.2 TB

9.6 TB

Maximum Data Transfer

(compressed 2:1)

160 MB/s

240 MB/s (2 drives)

96 MB/s (2 drives)

Interface

4Gb Native Fibre Channel

Ultra320 SCSI LVD/SE

3Gb/sec SAS

Ultra320 SCSI LVD/SE

Ultra160 SCSI LVD/SE

HP StorageWorks MSL4048 Tape Libraries

The HP StorageWorks MSL4048 Tape Library provides up to 19.2 TB of storage density in a 4U form factor. Web-based management features reduce the dependencies on local IT resources, allowing multiple sites to be supported centrally. The MSL4048 Tape Library can support two Ultrium 960 Tape Drives or four Ultrium 448 Tape Drives. Each library includes four removable 12-slot magazines, and a user configurable 3 slot mail-slot dedicated for import/export of data cartridges. A barcode reader is part of the standard configuration for facilitating media management.

See

HP StorageWorks MSL4048 Series Tape Libraries QuickSpecs

for configuration details:

http://h18000.www1.hp.com/products/quickspecs/12422_div/12422_div.HTML

QuickSpecs

HP AlphaServer GS1280 Systems

ES/GS Common Options

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 40

Page 41

Family Comparison

MSL4048 Ultrium 960FCMSL4048 Ultrium 960 MSL4048 Ultrium 920 MSL4048 Ultrium 448

Number of Drives

1 or 2 1 or 2

1 to 4 1 to 4

Capacity

(native)

19.2 TB 19.2 TB 19.2 TB

9.6 TB

Maximum Data Transfer

(native)

288 MB/s ( one drive)

576 MB/s (two drives)

288 MB/s ( one drive)

576 MB/s (two drives)

216 MB/s ( one drive)

864 MB/s (four drives)

86 MB/s (one drive)

346 MB/s (four drives)

Interface

4Gb Native Fibre

Channel

Ultra320 SCSI LVD/SE Ultra320 SCSI LVD/SE

3 Gb/sec SAS

Ultra160 SCSI LVD/SE

HP StorageWorks MSL6000 Tape Libraries

The MSL6000 Tape Libraries offer storage in two enclosures (5U or 10U form factor), in tabletop or rack configurations. The MSL6000 has the capability for multi-unit scalability. The Libraries support interface connections using Ultra3 LVD SCSI Interface or Fibre Channel (2 Gb).

See

HP StorageWorks MSL6000 Series Tape Libraries QuickSpecs

for configuration details:

http://h18000.www1.hp.com/products/quickspecs/11863_div/11863_div.HTML

MSL6026 MSL6030 MSL6052 MSL6060

Form Factor

5U 5U

10U 10U

Tape Drives

SDLT 600

Ultrium 460 or 960

SDLT 600

Ultrium 460 or 960

Number of Drives

up to 2 up to 2 up to 4 up to 4

Media Slots

26 30 52 60

Storage per Library, TB

15.6

31.2

Libraries per rack

8 8 4 4

Storage per Rack, TB

124.8 192.0 124.8 192.0

Interface Connection

Ultra3 LVD SCSI

Interface or

Embedded Fibre (2 Gb)

Ultra3 LVD SCSI

Interface or

Embedded Fibre (2 Gb)

Ultra3 LVD SCSI

Interface or

Embedded Fibre (2 Gb)

Ultra3 LVD SCSI

Interface or

Embedded Fibre (2 Gb)

HP StorageWorks EML E-Series Tape Libraries

With up to 16 HP Ultrium tape drives, the EML E-Series offers native throughput of over 4.6 TB/hr. Through the addition of expansion modules, the EML E-Series library scales to 16 drives and 442 slots for maximum performance or 8 drives and 505 slots for maximum capacity.

See

HP StorageWorks EML E-Series Series Tape Libraries QuickSpecs

for configuration details:

http://h18000.www1.hp.com/products/quickspecs/12238_div/12238_div.HTML

QuickSpecs

HP AlphaServer GS1280 Systems

ES/GS Common Options

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 41

Page 42

Configuration

EML 103e EML 245e EML 442e

Maximum

Performance

EML 505e

Maximum Capacity

# of drives possible

1-4 1-8

1-16

1-8

# of slots

103

5 in configurable load

port

245

15 in configurable load

port

442

35 in configurable load

port

505

35 in configurable load

port

Product height within rack

12U 24U 40U 40U

Maximum Capacity

(native)

41.2

98.0 TB

176.8 TB

202 TB

Maximum throughput

(native)

1.1 TB/hr 2.3 TB/hr 4.6 TB/hr 2.3 TB/hr

HP StorageWorks ESL E-Series Tape Libraries

The HP StorageWorks Enterprise Storage Libraries (ESL) E-Series enterprise tape libraries offer drive and cartridge density and are available in a variety of configurations, with up to 28.4 TB of native Ultrium 960 storage capacity per square foot. Fully integrated into HP StorageWorks Extended Tape Library Architecture (ETLA), HP provides self-aware tape storage designed specifically for the SAN. ETLA also offers remote management of the entire library system including robotics, drives, Interface Controllers, and the Interface Manager management card.

See

HP StorageWorks ESL E-Series Tape Libraries QuickSpecs

for configuration details:

http://h18006.www1.hp.com/products/quickspecs/11877_div/11877_div.html

ESL 712e ESL 322e ESL 630e

ESL286e

Drive Technology

Ultrium 960 FC

Ultrium 460 SCSI

Ultrium 460 FC

Ultrium 960 FC

Ultrium 460 SCSI

Ultrium 460 FC

SDLT 320 SDLT 600

Maximum Cartridge Count

712 322 630 286

Maximum Drive Count

24 24 24 24

Maximum Capacity

(native)

284.8 TB 128.8 TB

189 TB

85.8 TB

HP StorageWorks 6000 Virtual Library System

The HP StorageWorks 6000 Virtual Library System (VLS 6000) emulates popular tape libraries and tape drives. By emulating multiple tape drives simultaneously, more backup jobs can be done in parallel resulting in reduced backup times. Additionally, because the data resides on disk, single file restores are exceptionally fast.

See

HP StorageWorks 6000 Virtual Library System QuickSpecs

for configuration details:

http://h18006.www1.hp.com/products/quickspecs/12233_div/12233_div.html

QuickSpecs

HP AlphaServer GS1280 Systems

ES/GS Common Options

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 42

Page 43

VLS 6105 VLS 6109 VLS 6510 VLS 6518 VLS 6840 VLS 6870

Raw Capacity

3TB 6TB 6TB

12TB 12TB 24TB

Maximum Raw Capacity

6TB

12 TB

12TB 24TB 48TB 96TB

Usable Capacity

2.5TB

4.4 TB

5TB

8.8TB

10TB

17.6TB

Maximum Usable Capacity

5TB

8.8TB

10TB

17.6TB

40TB

70.4TB

Interface - 2Gb Fibre Channel Ports

(LC connectors, autonegotiating)

Two Two

Four Four Four Four

Step 9 – Storage Network Switches, Hubs, and Interconnects — Optional

Network Storage Routers

Network Storage Routers enable multiple host servers to communicate with a SCSI tape device over a Fibre Channel link. For configuration details, see the

Switches, Hubs, and Interconnects QuickSpecs

at:

http://www.compaq.com/products/quickspecs/North_America/10490.html

Fibre Channel Switches

HP supports three product lines of Fibre Channel switch products that may be used to build SAN fabrics. Each product line provides certain advantages that apply to specific applications. For more information on specific switch models and selection, please refer to Part II in the

SAN

Design Guidelines

referenced on the SAN Infrastructure page:

http://h18006.www1.hp.com/storage/saninfrastructure/index.html

The B-Series product line includes a wide range of Fibre Channel switches, described as "SAN switches" and "Core switches." Products in this family include switches from the HP StorageWorks SAN Switch 2/16 to the HP StorageWorks Core Switch 2/64. This product line includes switches with 8, 16, 32, and 64 ports, including both full-function and entry-level models. The HP StorageWorks Core Switch 2/64 includes a pair of independent 64-port switches in a single chassis with a high level internal redundancy.

The C-Series product line includes the Cisco MDS 9506 and 9509 Multilayer Directors and the Cisco MDS 9216, 9120, and 9140 Multilayer Fabric Switches. The MDS 9506 is supported with 224 ports, over seven modular chassis consisting of both 16-port and 32-port modules. The MDS 9506 is supported with 128 ports, over four modular chassis consisting of both 16-port and 32-port modules. The MDS 9216 has a basic configuration with 16 ports. It has an expansion slot that supports either a 16- or a 32-port card, for 32 or 48 ports in total.

The M-Series Fabric product line includes a wide range of Fibre Channel switches described as "Directors" and "Edge switches." A partial list of products in this family includes the HP StorageWorks Director 2/140 and the HP StorageWorks Edge Switch 2/32. This product line includes switches with 16, 24, 32, 64, and 140 ports internal microcode. The HP StorageWorks Director 2/64 and 2/140 switches have a high level of internal redundancy.

QuickSpecs

HP AlphaServer GS1280 Systems

ES/GS Common Options

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 43

Page 44

Step 10 – Keyboards, Mouse, Monitors, Power Cords – Optional

Keyboards - USB Keyboard/Language

Tru64 UNIX

OpenVMS

(Note 1)

N.A./International keyboard

3R-A6554-AA

3X-LK464-A2

Arabic keyboard

3R-A6540-AA

Belgian keyboard

3R-A6541-AA

3X-LK464-AB

BHCSY keyboard

3R-A6542-AA

Canadian/English keyboard

3X-LK464-AQ

Canadian/French keyboard

3R-A6543-AA 3X-LK464-AC

Cyrillic keyboard (Russian)

3R-A6544-AA

3X-LK464-BT

Czech keyboard

3R-A6545-AA

3X-LK464-BV

Danish keyboard

3R-A6546-AA 3X-LK464-AD

Dutch keyboard

3R-A6547-AA 3X-LK464-AH

Finnish keyboard

3R-A6548-AA

3X-LK464-AF

French keyboard

3R-A6549-AA

3X-LK464-AP

German keyboard

3R-A6550-AA

3X-LK464-AG

Greek keyboard

3R-A6551-AA 3X-LK464-BH

Hebrew keyboard

3R-A6552-AA

3X-LK464-AT

Hungarian keyboard

3R-A6553-AA

3X-LK464-BQ

International keyboard

3R-A6554-AA

Italian keyboard

3R-A6555-AA

3X-LK464-AI

Japanese keyboard

3R-A6556-AA

Korean keyboard

3R-A6557-AA

Latin-American keyboard

3R-A6558-AA

Norwegian keyboard

3R-A6559-AA 3X-LK464-AN

Polish keyboard

3R-A6560-AA

3X-LK464-BP

Portuguese keyboard

3R-A6561-AA

3X-LK464-AV

Romanian keyboard

3X-LK464-BL

Simplified Chinese keyboard

3R-A6562-AA

Slovak keyboard

3R-A6563-AA

3X-LK464-CZ

Spanish keyboard

3R-A6564-AA

3X-LK464-AS

Swedish keyboard

3R-A6565-AA

3X-LK464-AM

Swiss/French keyboard

3R-A6566-AA

3X-LK464-AK

Swiss/German keyboard

3X-LK464-AL

Traditional Chinese keyboard

3R-A6567-AA

Thai keyboard

3R-A6568-AA

Turkish Q keyboard

3R-A6569-AA 3X-LK464-BU

Turkish/F keyboard

3X-LK464-BW

UK keyboard

3R-A6570-AA

3X-LK464-A2

Yugoslavian keyboard

3X-LK464-BY

NOTE 1

: OpenVMS keyboard (3X-LK464-xx) comes with PS/2 and USB connectors

QuickSpecs

HP AlphaServer GS1280 Systems

ES/GS Common Options

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 44

Page 45

Rackmount Keyboard/Drawer and Keyboard/Monitor Options

PS2 to USB Converter – allows for connection of a PS2 keyboard and/or mouse to an AlphaServer ES47 System

3R-A4495-AA

HP Rackmount Flat Panel Monitor – TF T721OR 17-inch (17-inch viewable image area) 1U rackmount flat panel display. 0.264mm pixel pitch, 1280 x1024 @60/75 Hz high and low voltage power cords, Worldwide

3R-A5187-AA

Keyboard, Video, Mouse (KVM) Switches

HP Server 1 x 8-Port KVM Switch (Tru64 UNIX and OpenVMS)

336044-B21

USB Interface Adapter – 1 pack (Mandatory option with 336044-B21)

336047-B21

For more information, refer to the Release Notes at:

http://h18002.www1.hp.com/alphaserver/download/es47_es80_gs1280_Console_Switch _Release_Notes.pdf http://h18002.www1.hp.com/alphaserver/download/es47_es80_gs1280_Console_Switch _Release_Notes.html

CAT5e Cables

3 foot (1m) – 4 pack

263474-B21

6 foot (2m) – 8 pack

263474-B22

12 foot (4m) – 8 pack

263474-B23

20 foot (6m) – 4 pack

263474-B24

40 foot (12m) – 1 pack

263474-B25

Integrated Keyboard and Drawer

Integrated Keyboard and Drawer (1U), North America

3R-A4404-AA

Integrated Keyboard and Drawer (1U), International

3R-A4405-AA

Integrated Keyboard and 17" Monitor

(TFT7600RKM)

Integrated Keyboard and Monitor, North America

AG052A

Integrated Keyboard and Monitor, United Kingdom

AG053A

Integrated Keyboard and Monitor, Germany

AG054A

Integrated Keyboard and Monitor, France

AG055A

Integrated Keyboard and Monitor, Italy

AG056A

Integrated Keyboard and Monitor, Spain

AG057A

Integrated Keyboard and Monitor, International

AG066A

Mouse

3-button mouse – USB

3R-A6641-AA

Monitors Configuration Guidelines

Graphics monitors other than those listed can be used if compatible with SVGA graphics ordered with system. A video cable, 6-foot/1.8-meter length, is included with all variants of monitors. Video extension cable required if monitor is located more than 1-meter from server. Monitors will ship with, but not be integrated with systems. –

NOTE:

Taiwan and Australia/New Zealand models ship

separately.

QuickSpecs

HP AlphaServer GS1280 Systems

ES/GS Common Options

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 45

Page 46

Carbon/Silver Monitors

V7650 17-inch (16-inch viewable image size) 0.24mm FST multi-frequency color monitor, 2-tone (carbon/silver), VGA to 1024 x 768 @85 Hz, MPRII/TCO 03/Energy Star Compliant, Northern Hemisphere with NA power cord, VGA cable

3R-A5853-AA

Same as above, with Euro power cord

3R-A5854-AA

Same as above, Taiwan, NA power cord

3R-A5855-AA

Same as above, PRC power cord, CCIB

PF996AA#AB2

Same as above, Southern Hemisphere with Australia/New Zealand power cord

PF996AA#ABG

Carbon/Silver Flat Panel Monitors

L2065, 20-inch (20.1-inch viewable image area) flat panel monitor 0.255mm pixel pitch, 1600 x 1200 @60 Hz, A + D, TCO 03, Energy Star compliant, four video input connectors, (VGA, DVI-I, composite video and s-video), North America power cord, VGA and DVI-I cables

3R-A6701-AA

3R-A6702-AA

L1506, 15" (15" viewable image size) TFT flat panel monitor, 0.297 mm pixel pitch, 1024 x 768 @60 Hz, multi-mode support, MPR-II/TCO 03/Energy Star compliant, NA power cord, VGA cable

3R-A6515-AA

Same as above, Euro power cord

3R-A6516-AA

Monitor Power Cords

North America, 120V, 75-inch

BN26J-1K

Australia, New Zealand, 2.5-meter

3R-A6023-AA

Central Europe, 2.5-meter

BN19C-2E

Denmark, 2.5-meter

BN19K-2E

Egypt, India, South Africa, 2.5-meter

BN19S-2E

Italy, 2.5-meter

BN19M-2E

Israel, 1.9-meter

3R-A6883-AA

Japan, 2.5-meter, Dentori approved

3X-BN46F-02

Republic of China (103541-001)

BN19H-2E

Switzerland, 2.5-meter

BN19E-2E

UK, Ireland, 2.5-meter

BN19A-2E

Keyboard or Mouse Extension Cable

6-foot/1.8-meter keyboard or mouse extension cable; to extend both keyboard and mouse order two cables

3X-BC34A-06

Video Extension Cable

6-foot/1.8-meter video extension cable

BN39C-02

Step 11 - Graphics Support — Optional

QuickSpecs

HP AlphaServer GS1280 Systems

ES/GS Common Options

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 46

Page 47

Description

Device Type

Part Number

Maximum Quantity Tested & Supported

U=Tru64 UNIX

O=OpenVMS

L=Redhat V7.2 Linux

per system

per hard partition: per system

ES47 Tower

Workstation

ES47 ES80 GS1280

Graphics Adapters

ATI RADEON 7500 2D/3D AGP graphics accelerator

AGP 4X

3X-PBXGG-AB

1/U

1/O

4:4/U

4:4/O

4:8/U

4:8/O

4:64/U 4:64/O

ATI RADEON 7500 2D/3D PCI graphics accelerator

PCI 3.3V,

66MHz

3X-PBXGG-AA

4/U

4/O

4:4/U

4:4/O

4:8/U

4:8/O

4:64/U 4:64/O

For

RADEON 7500

option information see:

PCI:

http://h18002.www1.hp.com/alphaserver/options/ases47/ases47_3x-pbxgg-aa.html

AGP:

http://h18002.www1.hp.com/alphaserver/options/ases47/ases47_3x-pbxgg-ab.html

Performance NOTE:

The AGP version of the Radeon graphics accelerator will deliver significantly better performance for EV7 systems because the AGP bus is faster than the PCI bus; plus the AGP accelerator does not contend with other adapters on the AGP bus (each AGP bus has only one adapter slot). The Radeon AGP graphics accelerator delivers about the same performance on EV7 and EV68 systems. However, the Radeon PCI graphics accelerator delivers noticeably better performance on EV68 systems compared to EV7 systems because the EV7 systems' hardware implementation of "Programmable I/O" is not as fast as the EV68 implementation.

Graphics Software

Tru64 UNIX Open3D license for RADEON 7500 (required for 3D functionality)

QL-6ZRA9-AA

OpenVMS Open3D license for RADEON 7500 (required for 3D functionality for OpenVMS 7.3.x and earlier versions. Later versions of OpenVMS include the license for 3D functionality)

QL-0ADA9-AA

Additional Tru64 UNIX media kit for RADEON 7500 (initial kit ships with RADEON card)

QA-6ZRAA-H8

Step 12 - System Software — Optional

Licensing Policy for HP Add-on Software on Systems with Partitions

The license for an hp software product, the license(s) and license key(s) that represent those licenses, may be applied to any partition (OpenVMS Galaxy instance or hardware partition) within that system. Different versions of the operating system or layered products may be used on different partitions. In this case, the customer must be licensed for the latest version in use. Software products from other suppliers may have different licensing requirements for partitions.

Tru64 UNIX

Tru64 UNIX base systems include pre-installed software, Base license, Unlimited User license, Server Extension license, Internet Express, and Secure Web Server Media and documentation required for first system on site

Software Processor Codes in part numbers

QuickSpecs

HP AlphaServer GS1280 Systems

ES/GS Common Options

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 47

Page 48

Layered Software Tier

Part Number Code for 8th character

ES47 Tower and ES47

Workgroup

x = E

ES80

Departmental

x = G

GS1280

Enterprise

x = Q

Tru64 UNIX media and online documentation on CD-ROM

QA-6ADAA-H8

Tru64 UNIX full hard copy documentation

QA-6ADAA-GZ

TruCluster Plus Software Package with licenses for TruCluster Server, Logical Storage Manager and AdvFS Utilities

QP-6R9Ax-AA

TruCluster Server license

QL-6BRAx-AA

Logical Storage Manager license

QL-2GVAx-AA

AdvFS Utilities license

QL-0EGAx-AA

Advanced Server for Tru64 UNIX, 25 client concurrent use license

QL-5U29M-3D

Advanced Server for Tru64 UNIX, 50 client concurrent use license

QL-5U29M-3E

Advanced Server for Tru64 UNIX, 100 client concurrent use license

QL-5U29M-3F

Advanced Server for Tru64 UNIX, 250 client concurrent use license

QL-5U29M-3G

Advanced Server for Tru64 UNIX, 500 client concurrent use license

QL-5U29M-3H

Layered products media and documentation for Tru64 UNIX on CD-ROM

QA-054AA-H8

DECnet/OSI end-system function license for Tru64 UNIX

QL-MTJAx-AA

DECnet/OSI extended license for Tru64 UNIX

QL-MTKAx-AA

OpenVMS

OpenVMS system base packages include Base license, Enterprise Integration Server for OpenVMS License Package. Media and documentation required for first system on site Enterprise Integration Package includes licenses for TCP/IP Services for OpenVMS, DECwindows Motif for OpenVMS Alpha, DECnet-Plus for OpenVMS Alpha End System, Archive/Backup System for OpenVMS Management Tools, Archive/Backup Agent for Windows NT, Office Server for OpenVMS, Office Server Client Access, PATHWORKS 32, Advanced Server/PATHWORKS for OpenVMS. OpenVMS Concurrent Use licenses provide the right to interactively use the operating system by the specified number of concurrent users on a designated OpenVMS system. OpenVMS Concurrent Use licenses can be moved from one system to another at user discretion and can be shared in a mixed OpenVMS VAX and OpenVMS Alpha cluster. OpenVMS Traditional Unlimited Use license is system specific and can only be used on one single system at a time. It cannot be shared between systems or in an OpenVMS VAX or OpenVMS Alpha Cluster.

Software Processor Codes in part numbers

Layered Software Tier

Part Number Code for 8th character

ES47 Tower and ES47

Workgroup

x = E

ES80

Departmental

x = G

GS1280

Enterprise

x = Q

QuickSpecs

HP AlphaServer GS1280 Systems

ES/GS Common Options

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 48

Page 49

Concurrent Use 1-user license

QL-MT3AA-3B

Concurrent Use 2-user license

QL-MT3AA-3C

Concurrent Use 4-user license

QL-MT3AA-3D

Concurrent Use 8-user license

QL-MT3AA-3E

Concurrent Use 16-user license

QL-MT3AA-3F

Concurrent Use 32-user license

QL-MT3AA-3G

Concurrent Use 64-user license

QL-MT3AA-3H

Concurrent Use 128-user license

QL-MT3AA-3J

Concurrent Use 256-user license

QL-MT3AA-3K

Traditional unlimited-user license

QL-MT2Ax-AA

OpenVMS media and online documentation on CD-ROM

QA-MT1AA-H8

OpenVMS hard copy documentation

QA-001AA-GZ

OpenVMS base hard copy documentation

QA-09SAA-GZ

OpenVMS Alpha Software Products Library Package: Layered products media and documentation for OpenVMS on CD-ROM, includes media and documentation for all products licensed in the Enterprise Integration Package.

QA-03XAA-H8

DECnet-Plus/DECnet end-system license

QL-MTFAx-AA

DECnet-Plus/DECnet extended-function license

QL-MTHAx-AA

Cluster License for OpenVMS Alpha

QL-MUZAx-AA

OpenVMS Volume shadowing license

QL-2A1Ax-AA

OpenVMS Galaxy Galaxy Soft Partition

Rules

OpenVMS Galaxy hardware requirements:

One or more CPUs per instance. One or more I/O modules per instance. Console port or network access per instance. Memory:

Enough private memory for OpenVMS and applications Enough shared memory for the shared memory cluster interconnect, global

sections, and so on Maximum of eight Galaxy instances per system or hard partition. Display for configuration management with either an Alpha or VAX workstation running DECwindows or a Windows NT workstation with an X terminal emulator. For each CPU in an OpenVMS Galaxy, one OpenVMS Galaxy License if mandatory.

For more information about OpenVMS Galaxy requirements, configurations, and procedures, refer to the

OpenVMS Alpha Galaxy Guide

. The latest version is always available at

http://h71000.www7.hp.com/availability/galaxy.html

Galaxy 1-CPU License

QL-66XAA-3B

Galaxy 2-CPU License

QL-66XAA-3C

Galaxy 4-CPU License

QL-66XAA-3D

Galaxy 8-CPU License

QL-66XAA-3E

Galaxy 16-CPU License

QL-66XAA-3F

QuickSpecs

HP AlphaServer GS1280 Systems

ES/GS Common Options

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 49

Page 50

Step 13 - Hardware and Software Support Services — Optional

HP Care Pack Services

HP Care Pack Services are available for AlphaServer systems running Tru64 UNIX or OpenVMS operating systems. HP Care Pack Services are designed for customers who need support beyond that provided by the hardware product warranty with coverage for both Principal Server systems and SSPs (Subsequent System Packages) - that meet a full range of customer support requirements.

System Codes for Service Part Numbers

ES47 Tower and Workstation

x = F, yy = GA, aaa = 6JM, bbb = 5LA

ES47 Model 2 and Model 4

x = F, yy = GB, aaa = 6JN, bbb = 5LB

ES80 Model 2 and Model 4

x = F, yy = HA, aaa = 6JP, bbb = 5LB

ES80 Model 6 and Model 8

x = F, yy = HB, aaa = 6JQ, bbb = 5LC

GS1280 Model 8

x = W, yy = BA, aaa = 6JR, bbb = 5LG

GS1280 Model 16

x = W, yy = BB, aaa = 6JS, bbb = 5LG

GS1280 Model 32

x = W, yy = BD, aaa = 6JT, bbb = 5LH

GS1280 Model 64

x = W, yy = BE, aaa = 6JU, bbb = 5LH

Program Features - Principal Server HP Support Plus

13x5 HW/SW support 4-hour response on-site hardware support 2-hour response for software support License Subscription for HP O/S software and embedded L/P (i.e., EIS for OpenVMS, unlimited users, and server extensions for Tru64 UNIX) Consolidated Software Media Update Distribution for OpenVMS or Tru64 UNIX and their layered products. (Some layered products are not on the Consolidated Media Update Distribution, but can be ordered separately.)

HP Support Plus, Principal Server, 12 months

HA109A1-aaa

FP-x01yy-12

HP Support Plus, Principal Server, 36 months

HA109A3-aaa

FP-x01yy-36

HP Support Plus 24

24x7 HW/SW support Named HW engineer 4-hour response on-site hardware support 2-hour response for software support License Subscription for HP O/S software and embedded L/P (i.e., EIS for OpenVMS, unlimited users, and server extensions for Tru64 UNIX) Consolidated Software Media Update Distribution for OpenVMS or Tru64 UNIX and their layered products. (Some layered products are not on the Consolidated Media Update Distribution, but can be ordered separately.)

HP Support Plus 24, Principal Server, 12 months

HA110A1-aaa

FP-x02yy-12

HP Support Plus 24, Principal Server, 36 months

HA110A3-aaa

FP-x02yy-36

QuickSpecs

HP AlphaServer GS1280 Systems

ES/GS Common Options

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 50

Page 51

HP Proactive 24

Service-level management

Assigned account manager Account support plan Onsite support planning meetings Quarterly activity reviews One HP technical service engagement for selected hardware environments

Availability management

Site environmental survey System healthcheck assessment for central server

Configuration, change, and release management

Semi-annual operating systems patch analysis and management Semi-annual firmware updates and micro-code recommendations Remote monitoring for event notification

Incident and problem management

24x7 HW/SW support 4-hour response on-site hardware support 2-hour response for software support Phone number for problem resolution

HP Proactive 24, 12 months

HA111A1-aaa

HP Proactive 24, 36 months

HA111A3-aaa

Critical Services

Service-level management

Assigned HP-certified customer support team Remote monitoring of IT environment's stability Quarterly onsite support planning and activity report meetings Two HP technical service engagement for selected hardware environments

Availability management

Site environmental survey Availability checkup to assess state of IT environment against availability objectives

Configuration, change, and release management

Quarterly operating systems patch analysis and management Quarterly firmware updates and micro-code recommendations Remote monitoring for event notification

Incident and problem management

24x7 HW/SW support Dedicated, mission critical phone number for problem resolution Immediate connection to experts and intervention for critical hardware and software problems Immediate dispatch of an engineer for critical hardware problems Accelerated escalation management

Critical Services, 12 months

HA112A1-aaa

Critical Services, 36 months

HA112A3-aaa

QuickSpecs

HP AlphaServer GS1280 Systems

ES/GS Common Options

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 51

Page 52

Program Features - Additional Services SSPs

(Subsequent

System Packages)

For HP Care Pack Support Plus and Support Plus 24 HW Support at same level as corresponding package for Principal server License Subscription: HP O/S (where applicable) Telephone support through Principal server covered by full support package

HP Support Plus, Subsequent System, 12 months

FP-x21yy-12

HP Support Plus, Subsequent System, 36 months

FP-x21yy-36

HP Support Plus 24, Subsequent System, 12 months

FP-x22yy-12

HP Support Plus 24, Subsequent System, 36 months

FP-x22yy-36

Installation

Pre-installation review Unpacking of equipment Assemble and test Basic product usage info No software installation added

Installation

HA113A1-bbb

FP-xINST-yy

Installation and Startup HP O/S

Pre-installation review Unpacking of equipment Assemble and test Basic product usage info Install operating systems Product configuration Print and network access Orientation

Installation and Startup

HA114A1-bbb

FP-xSTAR-yy

NOTES:

AlphaServer ES47/ES80 and GS1280 systems include one-year parts and labor warranty with 5x9, on-site Next Business Day response. HP Care Pack Services include support for new HP branded hardware options internal to the AlphaServer enclosure plus a monitor (17-inch or less excluding flat panel models). External storage devices/racks carry their own level of warranty and should be quoted separately for uplifted warranty services. In addition to the HP Care Pack Services shown above, other service packages are available for separate hardware and support. For more information on Hardware and Software Upfront Services and other HP service options available for AlphaServers, consult your Sales Account Manager, HP Services Principal, or visit:

http://www.hp.com/hps/

QuickSpecs

HP AlphaServer GS1280 Systems

ES/GS Common Options

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 52

Page 53

Recommended Factory Integration Services

Value-added Implementation Services (VIS) provides systems integration and delivery services. VIS services, including system integration, extended burn-in, custom documentation, and on-site services can be custom-quoted for the full range of AlphaServer configurations. These prepackaged services are offered for systems shipped to North America and Japan. For similar services in Europe, e-mail specific requirements to: customsystems.europe@hp.com For similar services in Asia/Pacific, e-mail specific requirements to: customsystems.asiapacific@hp.com

Pre-packaged VIS services are recommended for system configurations that include up to one storage array:

Basic Integration Service (YT-VISIT-B1) System integration, testing, extended burn-in, custom documentation, and installation of a single operating system instance Extra RAID pair service (YT-VISIT-R1) Clustering Service (YT-VISIT-C1) Partitioning Service (YT-VISIT-P1)

Basic Integration Service

Systems integration and delivery services related to the configuration of the first and/or only instance of an operating system on a single AlphaServer. Includes the following:

YT-VISIT-B1

Staging and Integration of the AlphaServer Software load of a single instance of an operating system and current revisions of firmware Hardware configuration, custom placement, and integration of internal options of the server per customer specifications Installation of a single instance of either Tru64 UNIX or OpenVMS Operating System Configuration, exercise, and test of up to one intelligent RAID array controller and associated disks per customer requirements Testing of the system and its components for a full 100-hour burn-in Mini-CCD (Custom Configuration Documentation) containing equipment listing, system environmental information, and software version levels

Extra RAID Pair Service

Configuration of additional Intelligent RAID controller pairs beyond the internal and external RAID controller pairs included within the scope of the prerequisite YT-VISIT-B1 on the same single AlphaServer platform. The following services are included in the optional YT-VISIT-R1 Extra RAID Pair Service per each additional pair of Intelligent RAID controllers configured:

YT-VISIT-R1

Technical edit of order to guide component selection and option placement Configuration of the disks of the additional controller pair per customer specifications Hardware configuration verification Custom disk placement and verification Installation of current revisions of firmware Configuration, exercise and testing of up to one pair of additional intelligent array controller pair and associated disk drives for each YT-VISIT-R1 Controller and disk testing with the system and its components during the 100-hour burn-in

QuickSpecs

HP AlphaServer GS1280 Systems

ES/GS Common Options

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 53

Page 54

Clustering Service

Configuration of a single cluster instance for AlphaServer platforms. This is a per-cluster service and is ordered along with the prerequisite YT-VISIT-B1 services.

YT-VISIT-C1

Technical edit of order to guide component selection and option placement Configuration of a cluster per specifications Hardware and software configuration verification Installation of either Tru64 UNIX TruCluster software or OpenVMS cluster software and configuration of node functions Installation of current revisions of firmware Cluster failover testing with the system and its components during the full 100-hour burn-in

Partitioning Service

Configuration of multiple, non-clustered instances of a second or subsequent operating system on a single AlphaServer platform. This is a per-partition service and is ordered along with the prerequisite YT-VISIT-B1 services. The first instance of an operating system is included in the YT-VISIT-B1 service, subsequent partitions require the YT-VISIT-P1 partitioning service.

YT-VISIT-P1

Technical edit of order to guide component selection and option placement Configuration and hardware integration of the server partition per specifications Software load of either Tru64 UNIX operating system or OpenVMS operating system on a hardware/software partition. Partition testing with the system and its components during the full 100hour burn-in

Full Custom Configurations

The Integration Service Packages address the most-common customer requirements. For a wider range of configurations, customers can also choose additional customized services based upon a Statement of Work agreement. This includes: cluster add-on nodes, larger storage configurations, custom option support, custom system packaging, mixed operating system partitions, and configured multi-system clusters. Contact your local sales representative for these services.

QuickSpecs

HP AlphaServer GS1280 Systems

ES/GS Common Options

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 54

Page 55

Upgrades for Single Systems

Conversion of Two Systems Already in Place

GS1280 Model 64

GS1280 Model 32 to

Model 64 Upgrade Kit

3X-BA65D-AA

GS1280 Conversion

Kit;

two Model 32s to Model

64,

3X-BNPSB-04

GS1280 Model 32

One CPU Rack plus one Power Rack

x 2

GS1280 Model 32

Two side-by-side CPU/Power Racks

(Not Upgradeable to Model 64)

GS1280 Model 16 to

Model 32 Upgrade Kit

3X-BA65C-AA

GS1280 Conversion Kit;

two Model 16s to Model 32,

3X-BNPSB-03

GS1280 Model 16

x 2

GS1280 Model 8 to

Model 16 Upgrade Kit

3X-BA65B-AA

GS1280 Model 8

AlphaServer GS1280, Upgrades for Single Systems GS1280 Model 8 to

Model 16 Upgrade Kit

System expansion hardware to upgrade an AlphaServer GS1280 Model 8 to an AlphaServer GS1280 Model 16. Includes one System Building Block Drawer with one power shelf with three power supplies; one rackmount slide kit; and associated inter-processor cabling.

NOTE:

Requires the purchase of one Type A Power Distribution Unit (3X-H7606-

AA/AB) - see Step 6 for description of choices.

3X-BA65B-AA

QuickSpecs

HP AlphaServer GS1280 Systems

Upgrades

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 55

Page 56

GS1280 Model 16 to Model 32 Upgrade Kit

System expansion hardware to upgrade an AlphaServer GS1280 Model 16 to an AlphaServer GS1280 Model 32. Includes:

One CPU rack with four 8P System drawers One power rack.

Installation involves transfer of CPU modules, I/O Drawers and storage from original M16 rack to new Upgrade racks (any new CPU modules and drawers ordered with the Upgrade are integrated at the factory).

NOTE:

Upgrade order must conform to configuration requirements for a GS1280

Model 32 system (see Configuration starting at Step 3), with:

At least one Dual CPU Module One I/O Master Drawer Power Distribution Units - see Step 6 for description of choices.

3X-BA65C-AA

GS1280 Model 32 to Model 64 Upgrade Kit

System expansion hardware to upgrade an AlphaServer GS1280 Model 32 to an AlphaServer GS1280 Model 64. Includes:

One CPU rack with four 8P System drawers One power rack. Cable Kit to convert two AlphaServer GS1280 Model 32 systems to one AlphaServer GS1280 Model 64 system.

NOTE:

Upgrade order must conform to configuration requirements for a GS1280

Model 32 system (see Configuration starting at Step 3), with:

At least one Dual CPU Module One I/O Master Drawer Power Distribution Units - see Step 6 for description of choices.

Final configuration of the GS1280 Model 32 to Model 64 Upgrade combined with the existing GS1280 M32 must conform to configuration requirements for a GS1280 Model 64 system (see Configuration starting at Step 3).

3X-BA65D-AA

AlphaServer GS1280, Conversion for Two Systems GS1280 Conversion

Kit; two Model 16s to Model 32

Cable Kit to convert two AlphaServer GS1280 Model 16 systems to one AlphaServer GS1280 Model 32 system.

NOTE:

Mechanical configuration of the GS1280 M32 consists of two side-byside CPU & Power combination racks. This configuration is not upgradeable to a GS1280 Model 64.

3X-BNPSB-03

GS1280 Conversion Kit; two Model 32s to Model 64

Cable Kit to convert two AlphaServer GS1280 Model 32 systems to one AlphaServer GS1280 Model 64 system.

3X-BNPSB-04

QuickSpecs

HP AlphaServer GS1280 Systems

Upgrades

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 56

Page 57

North America

Japan

Europe

Power Requirements

Voltage

120/208

200

380/415

Phase/Frequency

3W+G, 50-60 Hz 3W+G, 50-60 Hz

3W+N+G, 50-60 Hz

Power Distribution Unit (PDU) required for all GS1280 Models

3X-H7606-AA 3X-H7606-AA 3X-H7606-AB

Rated Current, each PDU

24A 24A 24A

Typical Current for Models 8 and16, each PDU

18.5A

19A 10A

Typical Current for Models 32 and 64, each PDU

2.5A 2.5A 1.3A

Line Connection

Fixed cord & plug Fixed cord & plug Fixed cord & plug

Power Cord

5 x 10AWG 5 x 10AWG

5 x 4 mm2

Power Plug

L21-30P, Hubbell 2811 L21-30P, Hubbell 2811

IEC 32A, Hubbell 532P6W

Main Breaker

30A 30A 30A

Sub-breakers

3 x 20A(2p), 1 x 20A(3p) 3 x 20A(2p), 1 x 20A(3p) 3 x 15A(2p), 1 x 15A(3p)

Agency

UL Listed, cUL UL Listed, cUL

TUV & CB report

Power Distribution Unit (PDU) required for GS 1280 Models 32 and 64

3X-H7606-BA 3X-H7606-BA 3X-H7606-BB

Rated Current, each PDU

48A 48A 25A

Typical Current, each PDU

24A 25A 16A

Line Connection

Fixed cord & plug Fixed cord & plug Fixed cord & plug

Power Cord

5 x 8AWG 5 x 8AWG

5 x 4 mm2

Power Plug

IEC 60A, Hubbell 460P9W IEC 60A, Hubbell 460P9W IEC 32A, Hubbell 532P6W

Agency

UL Listed, cUL UL Listed, cUL

TUV & CB report

QuickSpecs

HP AlphaServer GS1280 Systems

Technical Specifications

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 57

Page 58

GS1280 Model 8

1 I/O Drawer, 1 SW Shelf

GS1280 Model 16

1 I/O Drawer, 1 SW Shelf

GS1280 Model 32

1 I/O Drawer, 1 SW Shelf

GS1280 Model 64

1 I/O Drawer, 1 SW Shelf

Power Required, Kva

3.5 5.7

10.1 18.7

Power Distribution Unit (PDU) required for all GS1280 Models 3X-H7606Ax

1 required; 2 for dualAC2 required; 4 for dualAC2 required, dual AC

included

2 required, dual AC included

Power Distribution Unit (PDU) required for GS 1280 Models 32 and 64, 3XH7606-Bx

Not applicable Not applicable

2 required, dual AC included

4 required, dual AC included

Physical Characteristics

Dimensions (H x W x D)

79 x 24 x 47 in (200 x 60 120 cm) (one 41U Rack)

Shipping Dimensions

86 x 32 x 48 in (217 x 92.5 142 cm) (one 41U Rack)

GS1280 Model 8

GS1280 Model 16 GS1280 Model 32 GS1280 Model 64

Installed Weight, base system

870 lb (395 kg)

1,272 lb (577 kg)

2,118 lbs (961 kg)

4,800 lbs (2,176 kg)

Heat dissipation

Max Heat Output, Base Model only, watts

3,405 6,810

14,820 28,440

Max heat Output, Base Model only, Btu/hr

11,622 23,243 50,581 97,066

Typical Heat Output, Base Model only, watts

2,430 3,700 8,000

14,800

Typical Heat Output, Base Model only, Btu/hr

8,297

12,632 27,304 50,513

Airflow, cfm, minimum full rack, each CPU rack

912

1,562 1,800

1,800 x 2 racks

Airflow, cfm, maximum full rack, each CPU rack

1,404 2,454 3,400

3,400 x 2 racks

Airflow, cfm, minimum full rack, power rack for Model 32 and 64

1,324 1,455

Airflow, cfm, maximum full rack, power rack for Model 32 and 64

1,508 1,685

QuickSpecs

HP AlphaServer GS1280 Systems

Technical Specifications

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 58

Page 59

Service Clearances-All Models

Operating

Service

Front

32 in (81 cm) 32 in (81 cm)

Rear

44 in (111 cm) 44 in (111 cm)

Left Side

None None

Right Side

None None

Environmental

Operating

Non-Operating

Temperature

50° to 95° F (10° to 35° C)

-40° to 151° F (-40° to 66° C)

Humidity

10% to 90%

10% to 95%, Storage (60 days) 115° F (16° C)

Altitude

10,000 ft (3,050 m)

NOTE:

Maximum operating temperature at sea level; reduce by

1.8° F (1° C) for each 2,000 ft (600 m) above sea level

40,000 ft (12,200 m)

Vibration

10 to 500 Hz 0.1G peak

1.03 Grms 5-300 Hz

Shock 5G 30ms, half sine

Acoustics (Declared values per ISO 9296 and ISO 7779)

Standard I/O Expansion or Master Drawer 3X-BA70A-BA

4300 Series StorageWorks Shelf DS-SL13R-xx

GS1280 Model 8

1 I/O Drawer

GS1280 Model 16

1 I/O Drawer

GS1280 Model 32

1 I/O Drawer

GS1280 Model 64

1 I/O Drawer

Idle/Operating, LwAd, B

7.1 6.9 7.4 7.6 7.7 7.9

Bystander pos., LpAm, dBA

51 53 55 57 58 60

NOTE:

Current values for specific configurations are available. 1 B = 10 dBA

© Copyright 2007 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. UNIX is a registered trademark or trademark of The Open Group in the U.S. and/or other countries. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

QuickSpecs

HP AlphaServer GS1280 Systems

Technical Specifications

DA - 11921 Worldwide — Version 24 — July 23, 2007

Page 59

HP AlphaServer GS1280 Model 16 Specification

Specifications and Main Features

Frequently Asked Questions

User Manual
