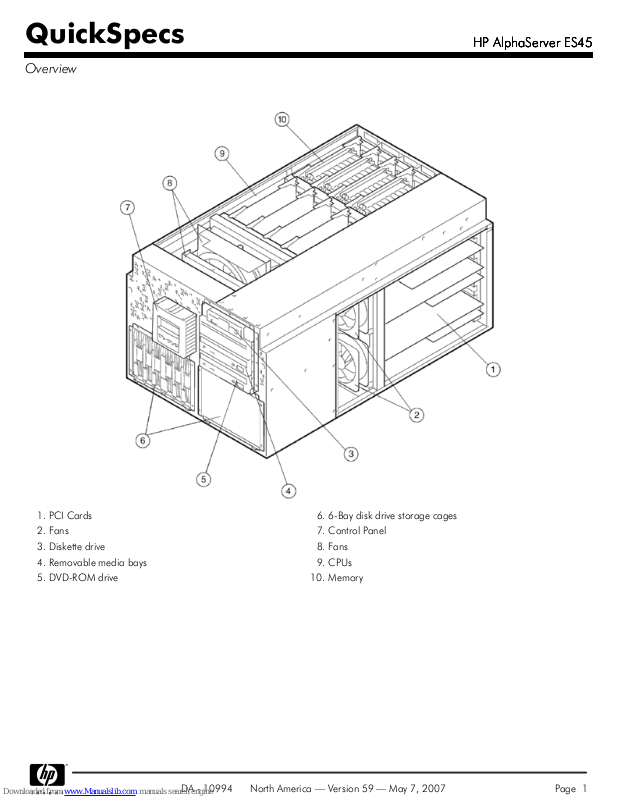

Page 1
1.
PCI Cards
6.
6-Bay disk drive storage cages
2.
Fans
7.
Control Panel
3.
Diskette drive
8.
Fans
4.
Removable media bays
9.
CPUs
5.
DVD-ROM drive
10.
Memory
QuickSpecs
HP AlphaServer ES45
HP AlphaServer ES45HP AlphaServer ES45
HP AlphaServer ES45
Overview
DA - 10994 North America — Version 59 — May 7, 2007
Page 1
Page 2
At A Glance
At A GlanceAt A Glance
At A Glance
AlphaServer ES45 Systems include:
Alpha 21264C 68/1250-MHz CPU with 16-MB L2 Dual Data Rate Cache
Six 64-bit PCI I/O expansion slots for Model 1B plus one AGP 4X graphics slot
Ten 64-bit PCI I/O expansion slots for Models 2B and 3B
Up to four PCI buses
Model 1B
- Two 64-bit/66-MHz PCI buses
- One 64-bit/33-MHz PCI bus
- One AGP 4X bus
Model 2B
- Three 64-bit/66-MHz PCI buses
- One 64-bit/33-MHz PCI bus
Model 3B
- One 64-bit/66-MHz PCI bus
- Three 64-bit/33-MHz PCI buses
Up to 32-GB memory using 512-MB, 1-GB, 2-GB, or 4-GB memory options
1.44-MB diskette drive
16X DVD-ROM drive
Two 9-pin serial ports
One 25-pin parallel port
Remote Management Console (RMC) – dedicated serial port, 6-pin MMJ connector
Keyboard and mouse port
Knockouts for two additional 68-pin external SCSI connections
One power supply
Integral remote system management console
Customer documentation
Tru64UNIX or OpenVMS Factory Installed Software
Protected by HP Services, including one-year hardware warranty, on-site with 5 x 9 next business day response.
QuickSpecs
HP AlphaServer ES45
HP AlphaServer ES45HP AlphaServer ES45
HP AlphaServer ES45
Overview
DA - 10994 North America — Version 59 — May 7, 2007
Page 2
Page 3
Processor
ProcessorProcessor
Processor
Alpha 21264C 68/1250-MHz CPU
Cache Memory
Cache MemoryCache Memory
Cache Memory
8-MB (1 GHz) or 16-MB (1.25 GHz) L2 Dual Data Rate Backup Cache
Upgradability
UpgradabilityUpgradability
Upgradability
Supports additional processors and upgrades of memory and hard drives
Memory
MemoryMemory
Memory
Minimum
1 GB – AlphaServer ES45
Maximum
16 GB (16 DIMM slots) - Model 1B
32 GB (32 DIMM slots) - Model 2B or Model 3B
Network Controller
Network ControllerNetwork Controller
Network Controller
Choice of Ethernet controllers
Expansion
ExpansionExpansion
Expansion
PCI I/O slots
Up to ten PCI slots – See PCI Configuration Guidelines
Storage
StorageStorage
Storage
Diskette Drive
1.44-MB diskette drive in dedicated slot
DVD-ROM Drive
16X DVD-ROM drive
Hard Drives
Choice of 36.4-GB, 72.8-GB, 146-GB or 300-GB drives
Interfaces
InterfacesInterfaces
Interfaces
Parallel
One 25-pin parallel port
Serial
Two 9-pin serial ports
Keyboard
One port
Mouse
One port
Remote
Management
Console port
(RMC)
One 6-pin MMJ dedicated port
SCSI connections
Knockouts for two additional 68-pin external SCSI connections
Graphics
GraphicsGraphics
Graphics
Optional
Form Factor
Form FactorForm Factor
Form Factor
Tower
Up to 12 Universal disk drives
Pedestal
Up to 40 Universal disk drives
Rackmount
Up to 152 Universal disk drives
Power Supply
Power SupplyPower Supply
Power Supply
One auto-sensing power supply, hot swappable, N+1, power factor corrected
Manageability
ManageabilityManageability
Manageability
Insight Manager
QuickSpecs
HP AlphaServer ES45
HP AlphaServer ES45HP AlphaServer ES45
HP AlphaServer ES45
Standard Features
DA - 10994 North America — Version 59 — May 7, 2007
Page 3
Page 4
OS Support
OS SupportOS Support
OS Support
AlphaServer ES45 Tru64 UNIX systems include pre-installed software, Base license, Unlimited User
license, Server Extension license, Internet Express, and Secure Web Server
AlphaServer ES45 OpenVMS systems include pre-installed software, Base license with System Manager
license and Enterprise Integration Server License Package for OpenVMS
Minimum OS support - Tru64 UNIX V5.1A or OpenVMS V7.3
Service and Support
Service and SupportService and Support
Service and Support
Protected by HP Services including a one-year on-site hardware warranty with next business day
response. Training, consulting, network integration, software support, comprehensive system
maintenance and guaranteed uptime services are also available for customers requiring higher levels of
service and support.
AlphaServer ES45 systems are available in the following models or configurations:
Model 1B (1.25 GHz)
Model 2B (1.25 GHz)
Model 3B (1.25 GHz)
When configuring an AlphaServer ES45 system, refer to the following chart that summarizes the features
of each model as well as the differences between each model.
AlphaServer ES45 Model
AlphaServer ES45 ModelAlphaServer ES45 Model
AlphaServer ES45 Model
Summary
SummarySummary
Summary
Model 1B
Model 1BModel 1B
Model 1B
(1.25 GHz)
Model 2B
Model 2BModel 2B
Model 2B
(1.25 GHz)
Model 3B
Model 3BModel 3B
Model 3B
(1.25 GHz)
I/O Slots
I/O SlotsI/O Slots
I/O Slots
7
10 10
- 33-MHz PCI Slots
2 4 8
- 66-MHz PCI Slots
4 6 2
- 4X AGP Slots
1 0 0
Power Supplies
Power SuppliesPower Supplies
Power Supplies
(Minimum/Maximum)
1-3 1-3 1-3
Power Supply
Power SupplyPower Supply
Power Supply
(DC Watts) One
included – maximum three
power supplies per system
3X-H7514-AA 3X-H7514-AA 3X-H7514-AA
1080 Watts 1080 Watts 1080 Watts
Memory
MemoryMemory
Memory
(Minimum/Maximum)
1 GB – 16 GB 1 GB – 32 GB 1 GB – 32 GB
Memory Option
Memory OptionMemory Option
Memory Option
(4-GB Option)
MS620-DB MS620-DB MS620-DB
Higher Power DIMM Higher Power DIMM Higher Power DIMM
Memory Channel I/O Space
Memory Channel I/O SpaceMemory Channel I/O Space
Memory Channel I/O Space
(CCMAB-AA)
See Memory Channel – Step 9
128K 128K
512K or 128K
NOTE:
NOTE: NOTE:
NOTE:
Minimum firmware for 1.25-GHz systems is V6.2-8, minimum SROM firmware is V2.22-F. Firmware files are available at:
http://ftp.digital.com/pub/Digital/Alpha/firmware/interim/es45/v6.2C/
QuickSpecs
HP AlphaServer ES45
HP AlphaServer ES45HP AlphaServer ES45
HP AlphaServer ES45
Standard Features
DA - 10994 North America — Version 59 — May 7, 2007
Page 4
Page 5
PCI Configuration
PCI ConfigurationPCI Configuration
PCI Configuration
Guidelines
GuidelinesGuidelines
Guidelines
Modules designed for 5.0 V signaling and 33-MHz bus speed can only operate in 5.0 V/33-MHz
slots
Modules designed for 3.3 V signaling and 66-MHz bus speed can only operate in 66-MHz slots
Universal PCI modules can operate in all slots (3.3 V and 5.0 V)
Universal PCI modules operating at 33 MHz placed in a 66-MHz slot will reduce the entire hose
to operate at 33 MHz
Universal PCI modules capable of operating at 66 MHz when placed in a 33-MHz slot will
operate at 33 MHz
PCI Module Descriptions:
PCI modules listed in this document as 33 MHz or 66 MHz refer to the module's maximum PCI
bus speed.
Modules that can only operate at 5 V are designated as 5 V – 33-MHz modules.
Universal PCI modules are designated as 3.3/5 V and can be installed into 33-MHz or 66-MHz
slots.
AlphaServer ES45 systems provide four I/O hoses, each is configured differently as illustrated in the
following charts for Models 1B, 2B, and 3B.
AlphaServer ES45 PCI bus and slot specification for Model 1B follows:
AlphaServer ES45 PCI bus and slot specification for Model 1B follows:AlphaServer ES45 PCI bus and slot specification for Model 1B follows:
AlphaServer ES45 PCI bus and slot specification for Model 1B follows:
PCI Slot
PCI SlotPCI Slot
PCI Slot
PCI Bus Speed
PCI Bus SpeedPCI Bus Speed
PCI Bus Speed
Signal Voltage
Signal VoltageSignal Voltage
Signal Voltage
PCI Hose Number
PCI Hose NumberPCI Hose Number
PCI Hose Number
1
33 MHz
5.0 V
0
2
33 MHz
5.0 V
0
3
AGP 4X
1.5 V
2
4
66 MHz
3.3 V
3
5
66 MHz
3.3 V
3
6
- - -
7
66 MHz
3.3 V
1
8
66 MHz
3.3 V
1
AlphaServer ES45 PCI bus and slot specification for Model 2B follows:
AlphaServer ES45 PCI bus and slot specification for Model 2B follows:AlphaServer ES45 PCI bus and slot specification for Model 2B follows:
AlphaServer ES45 PCI bus and slot specification for Model 2B follows:
PCI Slot
PCI SlotPCI Slot
PCI Slot
PCI Bus Speed
PCI Bus SpeedPCI Bus Speed
PCI Bus Speed
Signal Voltage
Signal VoltageSignal Voltage
Signal Voltage
PCI Hose Number
PCI Hose NumberPCI Hose Number
PCI Hose Number
1
66 MHz
3.3 V
2
2
66 MHz
3.3 V
2
3
33 MHz
5.0 V
0
4
66 MHz
3.3 V
3
5
66 MHz
3.3 V
3
6
33 MHz
5.0 V
0
7
66 MHz
3.3 V
1
8
66 MHz
3.3 V
1
9
33 MHz
5.0 V
0
10
33 MHz
5.0 V
0
AlphaServer ES45 PCI bus and slot specification for Model 3B follows:
AlphaServer ES45 PCI bus and slot specification for Model 3B follows:AlphaServer ES45 PCI bus and slot specification for Model 3B follows:
AlphaServer ES45 PCI bus and slot specification for Model 3B follows:
PCI Slot
PCI SlotPCI Slot
PCI Slot
PCI Bus Speed
PCI Bus SpeedPCI Bus Speed
PCI Bus Speed
Signal Voltage
Signal VoltageSignal Voltage
Signal Voltage
PCI Hose Number
PCI Hose NumberPCI Hose Number
PCI Hose Number
1
33 MHz
5.0 V
2
2
33 MHz
5.0 V
2
3
33 MHz
5.0 V
0
4
66 MHz
3.3 V
3
5
66 MHz
3.3 V
3
QuickSpecs
HP AlphaServer ES45
HP AlphaServer ES45HP AlphaServer ES45
HP AlphaServer ES45
Standard Features
DA - 10994 North America — Version 59 — May 7, 2007
Page 5
Page 6
6
33 MHz
5.0 V
0
7
33 MHz
5.0 V
1
8
33 MHz
5.0 V
1
9
33 MHz
5.0 V
0
10
33 MHz
5.0 V
0
QuickSpecs
HP AlphaServer ES45
HP AlphaServer ES45HP AlphaServer ES45
HP AlphaServer ES45
Standard Features
DA - 10994 North America — Version 59 — May 7, 2007
Page 6
Page 7
Step 1 – Select system
Step 1 – Select systemStep 1 – Select system
Step 1 – Select system
AlphaServer ES45 Model 1B, Model 2B, and Model 3B Systems require the mandatory selection of the following items. AlphaServer
ES45 Base Systems require the selection of a minimum of 1-GB memory in addition to the following mandatory items.
Disk drive cage or StorageWorks shelf (Step 5)
System disk drive (Step 5)
Tower, Pedestal, or Rack Kit (Step 6)
Ethernet adapter (Step 8)
Storage adapter (Step 10)
Order country-specific keyboard and mouse only if required (Step 14)
Software media and documentation for first system onsite (Step 16)
NOTE:
NOTE: NOTE:
NOTE:
Only 2-5-2 part numbers are factory integrated.
AlphaServer ES45 Systems (1250 MHz)
AlphaServer ES45 Systems (1250 MHz)AlphaServer ES45 Systems (1250 MHz)
AlphaServer ES45 Systems (1250 MHz)
ES45
ES45ES45
ES45
OS
OSOS
OS
CPU
CPUCPU
CPU
PCI I/O Slots
PCI I/O SlotsPCI I/O Slots
PCI I/O Slots
Memory/Cache
Memory/CacheMemory/Cache
Memory/Cache
Order Number
Order NumberOrder Number
Order Number
Model 1B
Tru64 UNIX
1250 MHz
6 PCI, 1 AGP 4X
1 GB/16 MB
DA-66EBA-BA
Model 1B
Tru64 UNIX
1250 MHz
6 PCI, 1 AGP 4X
2 GB/16 MB
DA-66EBA-CA
Model 1B
Tru64 UNIX
1250 MHz
6 PCI, 1 AGP 4X
4 GB/16 MB
DA-66EBA-DA
Model 1B
OpenVMS
1250 MHz
6 PCI, 1 AGP 4X
1 GB/16 MB
DY-66EBA-BA
Model 1B
OpenVMS
1250 MHz
6 PCI, 1 AGP 4X
2 GB/16 MB
DY-66EBA-CA
Model 1B
OpenVMS
1250 MHz
6 PCI, 1 AGP 4X
4 GB/16 MB
DY-66EBA-DA
Model 2B
Tru64 UNIX
1250 MHz
10 PCI
1 GB/16 MB
DA-68EBA-BA
Model 2B
Tru64 UNIX
1250 MHz
10 PCI
2 GB/16 MB
DA-68EBA-CA
Model 2B
Tru64 UNIX
1250 MHz
10 PCI
4 GB/16 MB
DA-68EBA-DA
Model 2B
OpenVMS
1250 MHz
10 PCI
1 GB/16 MB
DY-68EBA-BA
Model 2B
OpenVMS
1250 MHz
10 PCI
2 GB/16 MB
DY-68EBA-CA
Model 2B
OpenVMS
1250 MHz
10 PCI
4 GB/16 MB
DY-68EBA-DA
Model 3B
Tru64 UNIX
1250 MHz
10 PCI
1 GB/16 MB
DA-67EBA-BA
Model 3B
Tru64 UNIX
1250 MHz
10 PCI
2 GB/16 MB
DA-67EBA-CA
Model 3B
Tru64 UNIX
1250 MHz
10 PCI
4 GB/16 MB
DA-67EBA-DA
Model 3B
OpenVMS
1250 MHz
10 PCI
1 GB/16 MB
DY-67EBA-BA
Model 3B
OpenVMS
1250 MHz
10 PCI
2 GB/16 MB
DY-67EBA-CA
Model 3B
OpenVMS
1250 MHz
10 PCI
4 GB/16 MB
DY-67EBA-DA
QuickSpecs
HP AlphaServer ES45
HP AlphaServer ES45HP AlphaServer ES45
HP AlphaServer ES45
Systems
DA - 10994 North America — Version 59 — May 7, 2007
Page 7
Page 8
AlphaServer ES45 Base Systems (1250 MHz)
AlphaServer ES45 Base Systems (1250 MHz)AlphaServer ES45 Base Systems (1250 MHz)
AlphaServer ES45 Base Systems (1250 MHz)
NOTE:
NOTE:NOTE:
NOTE:
Selection of a minimum of 1-GB memory is mandatory for AlphaServer ES45 Base systems.
ES45
ES45ES45
ES45
OS
OSOS
OS
CPU
CPUCPU
CPU
PCI I/O Slots
PCI I/O SlotsPCI I/O Slots
PCI I/O Slots
Order Number
Order NumberOrder Number
Order Number
Model 1B
Tru64 UNIX
1250 MHz/16 MB
6 PCI, 1 AGP 4X
DA-66EBA-AA
Model 1B
OpenVMS
1250 MHz/16 MB
6 PCI, 1 AGP 4X
DY-66EBA-AA
Model 2B
Tru64 UNIX
1250 MHz/16 MB
10 PCI
DA-68EBA-AA
Model 2B
OpenVMS
1250 MHz/16 MB
10 PCI
DY-68EBA-AA
Model 3B
Tru64 UNIX
1250 MHz/16 MB
10 PCI
DA-67EBA-AA
Model 3B
OpenVMS
1250 MHz/16 MB
10 PCI
DY-67EBA-AA
Step 2 - Additional CPU Modules - Optional
Step 2 - Additional CPU Modules - OptionalStep 2 - Additional CPU Modules - Optional
Step 2 - Additional CPU Modules - Optional
One CPU included, three additional CPUs are supported
SMP upgrade, includes one 68/1000-MHz CPU with 8-MB cache and Tru64 UNIX
SMP license
KN610-DB
SMP upgrade, includes one 68/1000-MHz CPU with 8-MB cache and OpenVMS SMP
license
KN610-DC
SMP upgrade, includes one 68/1250-MHz CPU with 16-MB cache and Tru64 UNIX
SMP license
KN610-EB
SMP upgrade, includes one 68/1250-MHz CPU with 16-MB cache and OpenVMS
SMP license
KN610-EC
NOTE:
NOTE: NOTE:
NOTE:
Minimum firmware for 1.25-GHz systems is V6.2-8, minimum SROM firmware
is V2.22-F. Firmware files are available at:
http://ftp.digital.com/pub/Digital/Alpha/firmware/interim/es45/v6.2C/
NOTE:
NOTE: NOTE:
NOTE:
Existing AlphaServer ES45 1-GHz Model 2 (xx-68DAA-xx) customers who
upgrade to 1.25-GHz CPUs should continue to follow Model 2 configuration
guidelines. The following options are required: H7906-A9 power supply and MS620AA, MS620-BA, and MS620-CA memory options. Do not order 3X-H7514-AA power
supplies or MS5620-DB memory options.
QuickSpecs
HP AlphaServer ES45
HP AlphaServer ES45HP AlphaServer ES45
HP AlphaServer ES45
Systems
DA - 10994 North America — Version 59 — May 7, 2007
Page 8
Page 9
Step 3 - Memory - Optional
Step 3 - Memory - OptionalStep 3 - Memory - Optional
Step 3 - Memory - Optional
Base systems do not include memory; select a minimum of 1-GB memory; this is a mandatory selection. All other systems
include one memory option.
Maximum four memory options (total of 16 DIMMs) for Model 1B (one per array)
Maximum eight memory options (total of 32 DIMMs) for Model 2B and Model 3B (two per array)
AlphaServer ES45 system includes two memory buses
AlphaServer ES45 system includes two arrays per bus
For Model 2B and Model 3B, memory options within an array must be identical
512-MB memory option (4 x 128-MB DIMMs)
MS620-AA
1-GB memory option (4 x 256-MB DIMMs)
MS620-BA
2-GB memory option (4 x 512-MB DIMMs)
MS620-CA
4-GB memory option (4 x 1024-MB DIMMs)
MS620-DB
NOTE:
NOTE: NOTE:
NOTE:
Do not order MS620-DB memory option for installation in ES45 1-GHz Model
2 (xx-68DAA-xx) system. MS620-DB memory option can only be installed in (xx-6xDBAxx) and (xx-6xEBA-xx) systems.
Memory performance considerations:
The AlphaServer ES45 system has two memory buses. When two or more memory options are installed, both buses are
utilized, enhancing system performance.
The AlphaServer ES45 system has two arrays per bus. Interleaved operations reduce the average latency and increase the
memory throughput. When all four arrays are populated with the same amount of memory, read-write operations are four-way
interleaved, enhancing system performance.
The following examples illustrate different ways of configuring a 4-GB system. Case C yields the best performance and is the
recommended method for configuring memory on an AlphaServer ES45 system.
ES45 System
ES45 SystemES45 System
ES45 System
(one memory option
included)
Add-on Memory Options
Add-on Memory OptionsAdd-on Memory Options
Add-on Memory Options
Total Memory
Total MemoryTotal Memory
Total Memory
Total DIMMs
Total DIMMsTotal DIMMs
Total DIMMs
Performance
PerformancePerformance
Performance
Case A
Case ACase A
Case A
- DA-68EBA-DA
(MS620-DB)
None
4-GB
4
Good
Case B
Case BCase B
Case B
- DA-68EBA-CA
(MS620-CA)
MS620-CA
4-GB
8
Better
Case C
Case CCase C
Case C
- DA-68EBA-BA
(MS620-BA)
MS620-BA + MS620-BA
+ MS620-BA
4-GB
16
Best
*
* NOTE:
* NOTE:* NOTE:
* NOTE:
Operating system and application dependent. Up to an 18% performance enhancement has been measured in Case C
over Case A.
QuickSpecs
HP AlphaServer ES45
HP AlphaServer ES45HP AlphaServer ES45
HP AlphaServer ES45
Systems
DA - 10994 North America — Version 59 — May 7, 2007
Page 9
Page 10
Step 4 - Additional Power Supply - Optional
Step 4 - Additional Power Supply - OptionalStep 4 - Additional Power Supply - Optional
Step 4 - Additional Power Supply - Optional
One Power Supply
Standard with Model 1B, 2B, and 3B systems; provides system support for:
Two CPUs
One disk drive cage (up to six disk drives)
Four memory options (up to 16 DIMMs)
Two Power Supplies
Optional – Provides system support for:
Four CPUs
Two disk drive cages (up to 12 disk drives)
Eight memory Options (up to 32 DIMMs)
Third Power Supply
Optional - Provides (N+1) power redundancy system support for two power
supply configuration
Additional power supply ordered with a tower system requires an additional country-specific power cord
Pedestal system and Rack kit include three internal IEC/IEC power cords (for internal connection to power distribution unit or
power strip) regardless of the number of power supplies ordered
ES45 1080 W power supply; order for Models 1B, 2B, and 3B (1-GHz) and Models
1B, 2B, and 3B (1.25-GHz) systems only; do not order for Model 2 (xx-68DAA-xx)
systems.
3X-H7514-AA
ES45 720 W power supply; order for Model 2 (1-GHz xx-68DAA-xx) systems only.
H7906-A9
Step 5 - Disk Drive Cage, Universal Drive Shelf, or Universal Disk Drive - Mandatory
Step 5 - Disk Drive Cage, Universal Drive Shelf, or Universal Disk Drive - MandatoryStep 5 - Disk Drive Cage, Universal Drive Shelf, or Universal Disk Drive - Mandatory
Step 5 - Disk Drive Cage, Universal Drive Shelf, or Universal Disk Drive - Mandatory
Each system supports up to two disk drive cages
Each disk drive cage supports six 1-inch Universal disk drives
StorageWorks 43xx shelves support up to 14 Universal disk drives
Pedestal enclosure supports one system and two disk drive cages, two Universal 43xx StorageWorks shelves
M-Series and Series 10000 cabinets support up to five systems or one system with up to ten StorageWorks shelves
Step 5a - Disk Drive Cage - Requires selection of system disk drive
Step 5a - Disk Drive Cage - Requires selection of system disk driveStep 5a - Disk Drive Cage - Requires selection of system disk drive
Step 5a - Disk Drive Cage - Requires selection of system disk drive
Disk drive cage with storage cable accommodates up to six internal 1-inch Universal
disk drives – Requires mandatory selection of a Storage Adapter in the system.
Requires an internal Ultra2 SCSI or Ultra3 SCSI channel per disk drive cage.
Maximum of two storage cages in system.
BA610-6D
NOTE:
NOTE: NOTE:
NOTE:
See ES45 Configuration Chart for Storage Adapters in Step 10.
QuickSpecs
HP AlphaServer ES45
HP AlphaServer ES45HP AlphaServer ES45
HP AlphaServer ES45
Options
DA - 10994 North America — Version 59 — May 7, 2007
Page 10
Page 11
Universal Disk Drives
Universal Disk DrivesUniversal Disk Drives
Universal Disk Drives
(Supported in Disk Drive
Cage and Universal
StorageWorks Shelves)
36.4-GB Ultra320 SCSI 15,000 rpm 1-inch Universal disk drive
3R-A3849-AA
72.8-GB Ultra320 SCSI 10,000 rpm 1-inch Universal disk drive
3R-A3839-AA
72.8-GB Ultra320 SCSI 15,000 rpm 1-inch Universal disk drive
3R-A3851-AA
146-GB Ultra320 SCSI 10,000 rpm 1-inch Universal disk drive
3R-A3841-AA
146-GB Ultra320 SCSI 15,000 rpm 1-inch Universal disk drive
3R-A4945-AA
300-GB Ultra320 SCSI 10,000 rpm 1-inch Universal disk drive
3R-A4952-AA
300-GB Ultra320 SCSI 15,000 rpm 1-inch Universal disk drive
3R-A6726-AA
Step 5b - StorageWorks Model 4314R and Model 4354R Universal Drive Shelves
Step 5b - StorageWorks Model 4314R and Model 4354R Universal Drive ShelvesStep 5b - StorageWorks Model 4314R and Model 4354R Universal Drive Shelves
Step 5b - StorageWorks Model 4314R and Model 4354R Universal Drive Shelves
Up to two shelves in Pedestal form factor
See Step 7 for rack configurations with M-Series and Series 10000 cabinets
StorageWorks Model 4314R, 4314T and 4354R Ultra3 SCSI (LVD) single-bus and split-bus Universal drive
shelves; refer to StorageWorks Enclosure 4300 Family QuickSpecs when configuring shelves. When
selecting a DS-SL13R-xx split-bus shelf, two SCSI channels are required from selected storage adapters.
BN38C-05 cable is required per channel if the connection is not VHDCI/VHDCI. DS-SL13R shelves include
one 12-foot VHDCI/VHDCI SCSI cable.
StorageWorks Model 4314R Ultra3 SCSI (LVD) single-bus Universal drive rackmount
shelf, includes one power supply, U.S.
DS-SL13R-AA
StorageWorks Model 4314R Ultra3 SCSI (LVD) single-bus Universal drive rackmount
shelf, includes one power supply, Japan
DS-SL13R-AJ
StorageWorks Model 4354R Ultra3 SCSI (LVD) split-bus Universal drive rackmount
shelf, includes two redundant power supplies, U.S.
DS-SL13R-BA
StorageWorks Model 4354R Ultra3 SCSI (LVD) split-bus Universal drive rackmount
shelf, includes two redundant power supplies, Japan
DS-SL13R-BJ
Step 5c - StorageWorks Modular Storage Array 30 (MSA30) Universal Drive Shelves
Step 5c - StorageWorks Modular Storage Array 30 (MSA30) Universal Drive ShelvesStep 5c - StorageWorks Modular Storage Array 30 (MSA30) Universal Drive Shelves
Step 5c - StorageWorks Modular Storage Array 30 (MSA30) Universal Drive Shelves
Up to two shelves in Pedestal form factor
See Step 7 for rack configurations with M-Series and Series 10000 cabinets
StorageWorks Model 4414R and 4454R Ultra320 single-bus and split-bus Universal drive shelves; refer to
StorageWorks Modular Storage Array 30 Family QuickSpecs when configuring shelves. When selecting a
3R-A4076-AA split-bus shelf, two SCSI channels are required from selected storage adapters. BN38C-05
cable is required per channel if the connection is not VHDCI/VHDCI.
MSA30 shelves are not currently supported in SCSI cluster configurations
For OpenVMS 7.3-2, DEC-AXPVMS-VMS732_FIBRE_SCSI-V0100-4.PCSI is required to support dual-port
I/O module (287483-B21) and/or the MSA30DB dual bus enclosure (3R-A4076-AA) in an OpenVMS
cluster environment
Hardware to mount into a Series 10000 Cabinet is included. When mounting into an M-Series Cabinet or
ES45 Pedestal Enclosure, a rail kit (3R-A5281-AA/313877-B21) must be ordered separately.
StorageWorks Modular Smart Array SW4414R Single Bus Ultra320 rackmountable
SCSI disk drive, 4-node Storage Enclosure (302969-B21). Includes one 12-foot
VHDCI/VHDCI SCSI cable and two IEC-C13 power cords. See Supported Options List
for configuration details --
http://h18002.www1.hp.com/alphaserver/options/ases45/ases45_options.html
3R-A4075-AA
StorageWorks Modular Smart Array SW4454R Dual Bus Ultra320 rackmountable
SCSI disk drive, 4-node Storage Enclosure (302970-B21). Includes two 12-foot
VHDCI/VHDCI SCSI cables and two IEC-C13 power cords. See Supported Options
List for configuration details --
http://h18002.www1.hp.com/alphaserver/options/ases45/ases45_options.html
3R-A4076-AA
QuickSpecs
HP AlphaServer ES45
HP AlphaServer ES45HP AlphaServer ES45
HP AlphaServer ES45
Options
DA - 10994 North America — Version 59 — May 7, 2007
Page 11
Page 12
M-series Rack Rail Kit Option
3R-A5281AA/
313877-B21
NOTE:
NOTE: NOTE:
NOTE:
The 3R-A4075-AA and 3R-A4076-AA enclosures are not supported in a
shared-SCSI cluster using the 3X-KZPEA-DB adapter.
Step 6 - System Enclosures - Mandatory selection of Tower, Pedestal, Rack Kit, Power Cords
Step 6 - System Enclosures - Mandatory selection of Tower, Pedestal, Rack Kit, Power CordsStep 6 - System Enclosures - Mandatory selection of Tower, Pedestal, Rack Kit, Power Cords
Step 6 - System Enclosures - Mandatory selection of Tower, Pedestal, Rack Kit, Power Cords
All AlphaServer ES45 enclosures are carbon black
Power cords are mandatory for tower and pedestal enclosures
Power cords are included in Rack Kits
Step 6a – Tower Enclosure
Step 6a – Tower EnclosureStep 6a – Tower Enclosure
Step 6a – Tower Enclosure
Tower enclosure supports one system
Selection of one country-specific power cord is mandatory
Additional power cord is mandatory if additional power supply is ordered.
200–240V Tower Enclosure
BA61M-CT
Step 6b – Pedestal Enclosure
Step 6b – Pedestal EnclosureStep 6b – Pedestal Enclosure
Step 6b – Pedestal Enclosure
Pedestal enclosure supports one system, and up to two Universal 43xx StorageWorks shelves.
Selection of two country-specific power cords (for external connection from power strip to wall outlet) is mandatory for all
systems.
200-240V Pedestal Enclosure
BA61P-CB
Step 6c – Rack Kit for M-Series Cabinet or Series 10000 G2 Rack
Step 6c – Rack Kit for M-Series Cabinet or Series 10000 G2 RackStep 6c – Rack Kit for M-Series Cabinet or Series 10000 G2 Rack
Step 6c – Rack Kit for M-Series Cabinet or Series 10000 G2 Rack
Rack Kit required for each AlphaServer ES45 system installed in an M-Series Cabinet or Series 10000 Rack
Rack Kit supports one system
M-Series
M-SeriesM-Series
M-Series
Rack kit for AlphaServer ES45, includes dress bezel, slides, three internal IEC/IEC
power cords, all brackets and hardware for mounting in M-Series cabinets, 200-240V
BA61R-CR
Series 10000
Series 10000Series 10000
Series 10000
Rack kit for AlphaServer ES45, includes slides, three internal IEC/IEC power cords, all
brackets and hardware for mounting in Series 10000 racks
3X-BA61R-RD
QuickSpecs
HP AlphaServer ES45
HP AlphaServer ES45HP AlphaServer ES45
HP AlphaServer ES45
Options
DA - 10994 North America — Version 59 — May 7, 2007
Page 12
Page 13
Step 6d – Power Cords – (for Tower/Pedestal Models)
Step 6d – Power Cords – (for Tower/Pedestal Models)Step 6d – Power Cords – (for Tower/Pedestal Models)
Step 6d – Power Cords – (for Tower/Pedestal Models)
North America, 200 to 240V, 75-inch – Tower
BN18J-1K
North America, 200 to 240V, 108-inch – Pedestal
3X-BN64A-1C
Australia, New Zealand, China, 2.5-meter (8121-0838)
3R-A6023-AA
Central Europe, 2.5-meter
BN19C-2E
Denmark, 2.5-meter (103541-481)
BN19K-2E
Egypt, India, South Africa, 2.5-meter (103541-AR1)
BN19S-2E
Israel, 2.5-meter
3R-A6883-AA
Italy, 2.5-meter (103541-461)
BN19M-2E
Japan, 2.5-meter, Dentori approved
3X-BN46F-02
Switzerland, 2.5-meter (103541-511)
BN19E-2E
UK, Ireland, 2.5-meter
BN19A-2E
Step 7 - Cabinets
Step 7 - CabinetsStep 7 - Cabinets
Step 7 - Cabinets
Step 7a - M-Series Cabinets - Optional
Step 7a - M-Series Cabinets - OptionalStep 7a - M-Series Cabinets - Optional
Step 7a - M-Series Cabinets - Optional
M-Series Cabinet enclosures support up to five systems, or one system with up to 10 StorageWorks shelves.
M-Series Cabinets require mandatory selection of the following items:
Rear cabinet extender based on cabinet height
Cabinet front door or trim kit based on cabinet height
Second power distribution unit (PDU)
Factory integration
Ballast kit, if only one system is ordered for the H9A15 cabinet
NOTE:
NOTE:NOTE:
NOTE:
For more information on M-Series Cabinet Enclosures, see
http://www.compaq.com/alphaserver/products/m-
series/specs.html
Cabinet Configuration Chart for AlphaServer ES45 (8U) with 43xx Series StorageWorks Shelves (3U) – Supports high-density
Cabinet Configuration Chart for AlphaServer ES45 (8U) with 43xx Series StorageWorks Shelves (3U) – Supports high-densityCabinet Configuration Chart for AlphaServer ES45 (8U) with 43xx Series StorageWorks Shelves (3U) – Supports high-density
Cabinet Configuration Chart for AlphaServer ES45 (8U) with 43xx Series StorageWorks Shelves (3U) – Supports high-density
configurations
configurationsconfigurations
configurations
Cabinet
CabinetCabinet
Cabinet
(b)
Front Door
Front DoorFront Door
Front Door
or Trim Kit
or Trim Kitor Trim Kit
or Trim Kit
Cabinet Depth
Cabinet DepthCabinet Depth
Cabinet Depth
Extender
ExtenderExtender
Extender
Power Distribution
Power DistributionPower Distribution
Power Distribution
Unit
UnitUnit
Unit
ES45
ES45ES45
ES45
Systems
SystemsSystems
Systems
43xx/MSA30
43xx/MSA3043xx/MSA30
43xx/MSA30
Storage Shelves
Storage ShelvesStorage Shelves
Storage Shelves
Unused U Spaces
Unused U SpacesUnused U Spaces
Unused U Spaces
H9A10-ME/-MF
3X-H9C10-RF
or
H9C10-ZT
H9C10-ZE
With second
H7609
1 8 1
(34U)
2 5 2
3 3 0
4 0 1
H9A15-ME/-MF
3X-H9C15-RF
or
H9C15-ZT
H9C15-ZE
With second
H7609
1(a)
10
2
(41U)
2 8 0
3 3 7
4 0 8
(b)
3
3 or 5
1
QuickSpecs
HP AlphaServer ES45
HP AlphaServer ES45HP AlphaServer ES45
HP AlphaServer ES45
Options
DA - 10994 North America — Version 59 — May 7, 2007
Page 13
Page 14
With second
H7609
4
0 or 2
2
5 0 0
NOTES
NOTESNOTES
NOTES
:
a. Installation of only one AlphaServer ES45 system in an H9A15 cabinet requires the mandatory selection of a ballast kit.
b. H9A1x-ME includes one H7609-EB PDU; H9A1x-MF includes one H7609-DB PDU - Order second PDU.
- Single Input - 3X-H7609-DB/EB, 240V
- Dual Input - 3X-H7609-DB/EB, 240V
M-Series Cabinets
M-Series CabinetsM-Series Cabinets
M-Series Cabinets
-
Specify cabinet selection
67-inch carbon black cabinet with 59.5-inch or 34U of usable vertical space, 200240V dual-16A PDU, 16 IEC C13 outlets, two input power plug NEMA L620P,
Americas, Asia Pacific; includes rear door.
H9A10-ME
67-inch carbon black cabinet with 59.5-inch or 34U of usable vertical space, 240V
dual-16A PDU, 16 IEC C13 outlets, two input power plug IEC 309, 20A, Europe;
includes rear door.
H9A10-MF
79-inch carbon black cabinet with 71.7-inch or 41U of usable vertical space, 200240V dual-16A PDU, 16 IEC C13 outlets, two input power plug NEMA L620P,
Americas, Asia Pacific; includes rear door.
H9A15-ME
79-inch carbon black cabinet with 71.7-inch or 41U of usable vertical space, 240V
dual-16A PDU, 16 IEC C13 outlets, two input power plug IEC 309, 20A, Europe;
includes rear door.
H9A15-MF
Rear Cabinet Extender
Rear Cabinet Extender Rear Cabinet Extender
Rear Cabinet Extender
Mandatory based on
cabinet height
Rear cabinet extender for carbon black H9A10 cabinets
H9C10-ZE
Rear cabinet extender for carbon black H9A15 cabinets
H9C15-ZE
Front Cabinet Treatment
Front Cabinet TreatmentFront Cabinet Treatment
Front Cabinet Treatment
Mandatory based on
cabinet height
Front door for carbon black H9A10 cabinet enclosure
3X-H9C10-RF
Front trim kit for carbon black H9A10 cabinet enclosure
H9C10-ZT
Front door for carbon black H9A15 cabinet enclosure
3X-H9C15-RF
Front trim kit for carbon black H9A15 cabinet enclosure
H9C15-ZT
Factory Integration
Factory IntegrationFactory Integration
Factory Integration
-
Mandatory
Factory Integration of systems and storage devices assembled and configured in
cabinet enclosure in predefined locations
YS-ASCAA-AA
Ballast Kit
Ballast KitBallast Kit
Ballast Kit
- Mandatory if
only one ES45 system
drawer is ordered for the
H9A15 cabinet
Ballast is added to a cabinet at particular locations for specific configurations to
meet safety regulations for installation, operation, and service; see Cabinet
Configuration Charts.
Two 35–40 lb (16–18 kg) steel plates
H9C10-MC
Power Distribution Unit -
Power Distribution Unit -Power Distribution Unit -
Power Distribution Unit Mandatory
Single Phase, Double Power Controller, 16 outlet North America/Japan 240V
3X-H7609-EB
Single Phase, Double Power Controller, 16 outlet, Europe 240V
3X-H7609-DB
QuickSpecs
HP AlphaServer ES45
HP AlphaServer ES45HP AlphaServer ES45
HP AlphaServer ES45
Options
DA - 10994 North America — Version 59 — May 7, 2007
Page 14
Page 15
1.
2.
Storage Shelves
Storage ShelvesStorage Shelves
Storage Shelves
Supported in M-Series
Supported in M-SeriesSupported in M-Series
Supported in M-Series
Cabinets
CabinetsCabinets
Cabinets
- Optional
For supported StorageWorks shelves, see Step 5b.
Step 7b - Rack 10000 G2 Series - Optional
Step 7b - Rack 10000 G2 Series - OptionalStep 7b - Rack 10000 G2 Series - Optional
Step 7b - Rack 10000 G2 Series - Optional
The HP Rack 10000 Series were designed to the19-inch RETMA standard. The Racks accommodate all HP equipment (ProLiant,
Alpha Systems, StorageWorks, UPS, and PDUs) in addition to select third-party equipment.
See HP Rack 10000 G2 Series QuickSpecs for details:
http://h18000.www1.hp.com/products/quickspecs/12402_div/12402_div.HTML
Configuration Guidelines
Configuration GuidelinesConfiguration Guidelines
Configuration Guidelines
All DS/ES Base Systems require a rack kit to mount systems in a 10000 G2 Series Rack (see below).
All Base Systems include all required internal IEC/IEC power cords.
10000 G2 Series Rack
10000 G2 Series Rack10000 G2 Series Rack
10000 G2 Series Rack
10000 G2 Series 42U Rack - mandatory selection of three-phase or two single-phase
Power Distribution Units required
AF004A
Rack Kit - Mandatory
Rack Kit - MandatoryRack Kit - Mandatory
Rack Kit - Mandatory
for 10000 G2 Series Rack
Order one for each ES45 System for mounting in 10000 G2 Series Rack
3X-BA61R-RD
Side Panel Kit -
Side Panel Kit -Side Panel Kit -
Side Panel Kit Mandatory
MandatoryMandatory
Mandatory
Choice of Side Panel Kit or
Baying Kit for 10000 G2
Series Rack
Order one per 10000 G2 Series Rack
AF054A
Baying Kit - Mandatory
Baying Kit - MandatoryBaying Kit - Mandatory
Baying Kit - Mandatory
Choice of Side Panel Kit or
Baying Kit for 10000 G2
Series Rack
Used to join two or more Series 10000 G2 Racks
248931-B21
Power Distribution Units - Mandatory
Power Distribution Units - MandatoryPower Distribution Units - Mandatory
Power Distribution Units - Mandatory
for 10000 G2 Series Rack
Single-phase PDU
Single-phase PDUSingle-phase PDU
Single-phase PDU
Single-phase PDU for North America/Japan
200-240V 20A input plug NEMA L620P; 16 outlets
3X-H7609-EB
Single-phase PDU for International,
240V 20A input plug IEC309, 16 outlets
3X-H7609-DB
QuickSpecs
HP AlphaServer ES45
HP AlphaServer ES45HP AlphaServer ES45
HP AlphaServer ES45
Options
DA - 10994 North America — Version 59 — May 7, 2007
Page 15
Page 16
Step 7c - KVM (Keyboard, Video, Mouse) Switch - Optional
Step 7c - KVM (Keyboard, Video, Mouse) Switch - OptionalStep 7c - KVM (Keyboard, Video, Mouse) Switch - Optional
Step 7c - KVM (Keyboard, Video, Mouse) Switch - Optional
KVM
KVM KVM
KVM
(Keyboard, Video,
Mouse)
Switch - Optional
Switch - OptionalSwitch - Optional
Switch - Optional
The HP Server Console Switch 1 x 8 (8-port) is supported on Alpha Systems using PS/2
mouse and keyboard with VGA video - this includes support for the PS/2 interface
adapter, part number 262588-B21, required for operation. The switch is supported
on systems running Tru64 UNIX operating system - minimum version V5.1A and the
OpenVMS operating system - minimum version 7.3-2. The KVM is 1U high and can
be installed in the M-Series cabinet or Series 10000 rack. Supports up to eight servers.
HP Server 1 x 8-port KVM Console Switch
336044-B21
CAT5e Cables
CAT5e CablesCAT5e Cables
CAT5e Cables
3 foot (1m) - 4 pack
263474-B21
6 foot (2m) - 8 pack
263474-B22
12 foot (4m) - 8 pack
263474-B23
20 foot (6m) - 4 pack
263474-B24
40 foot (12m) - 1 pack
263474-B25
Interface Adapters
Interface AdaptersInterface Adapters
Interface Adapters
PS/2 Interface Adapter - 1 pack
262588-B21
PS/2 Interface Adapter - 8 pack
262587-B21
NOTE:
NOTE:NOTE:
NOTE:
Supported graphics cards - ELSA GLoria Synergy (SN-PBXGK-BB), 3Dlabs
Oxygen VX1 (SN-PBXGF-AB), and ATI RADEON 7500 (3X-PBXGG-AA)
For more information, refer to the Release Notes at:
http://h18002.www1.hp.com/alphaserver/download/console_switch_rn.pdf
http://h18002.www1.hp.com/alphaserver/download/html/console_switch_rn.html
Step 8 - Networking Adapters/Controllers
Step 8 - Networking Adapters/ControllersStep 8 - Networking Adapters/Controllers
Step 8 - Networking Adapters/Controllers
– Mandatory Ethernet Adapter
Step 8a – Networking Adapters/Controllers
Step 8a – Networking Adapters/ControllersStep 8a – Networking Adapters/Controllers
Step 8a – Networking Adapters/Controllers
– Mandatory
Select mandatory Ethernet adapter
Adapters require a minimum of Tru64 UNIX V5.1A or OpenVMS V7.3
Each adapter uses one PCI slot
QuickSpecs
HP AlphaServer ES45
HP AlphaServer ES45HP AlphaServer ES45
HP AlphaServer ES45
Options
DA - 10994 North America — Version 59 — May 7, 2007
Page 16
Page 17
Maximum # Supported
Maximum # SupportedMaximum # Supported
Maximum # Supported
Tru64
Tru64Tru64
Tru64
UNIX
UNIXUNIX
UNIX
Open
OpenOpen
Open
VMS
VMSVMS
VMS
PCI Slot
PCI SlotPCI Slot
PCI Slot
Ethernet 10/100
Ethernet 10/100Ethernet 10/100
Ethernet 10/100
PCI (32/64-bit, 33-MHz to 66-MHz) dual-port 10/100
Ethernet (UTP/RJ45s) NIC and Base Module. (One 3XDE602-TR or 3X-DE602-FR optional add-on daughter
card can be combined with this module.)
NOTE:
NOTE: NOTE:
NOTE:
Use BN25G, BN26M, BN24Q, BN28Q twisted
pair RJ45 cables.
4 4
3.3/
5 V66MHz
3X-DE602-BR
Ethernet 10/100/1000
Ethernet 10/100/1000Ethernet 10/100/1000
Ethernet 10/100/1000
PCI single-port 10/100/1000 Mbps (Twisted-Pair Copper
with RJ45) Gigabit Ethernet; Tru64 UNIX V5.1B/TruCluster
V5.1B supports up to eight nodes and requires: T64V51BB22AS0002-20030415.tar
Requires Early Release Patch to update driver to V1.0.21:
T64V51BB22-C0019200-19212-E-20030710.tar
http://ftp1.support.compaq.com/public/unix/v5.1b/
t64v51bb1-0003000-16672-e-20030130.README
Tru64 UNIX V5.1A/TruCluster V5.1A supports up to eight
nodes and requires Early Release Patch: - T64V51AB21C0127901-19213-E-20030710.tar
OpenVMS V7.301 support as a standalone network
interface and as a cluster interconnect requires that users
download and install the following two ECO Kits:
DEC-AXPVMS-VMS731_PCSI_V0100-4.PCSI
DEC-AXPVMS-VMS731_LAN_V0600-4.PCSI
NOTE:
NOTE:NOTE:
NOTE:
Use BN25G, BN26M, BN24Q, BN28Q twisted
pair RJ45 cables.
8 8
3.3/
5 V66MHz
3X-DEGXA-TR
Step 8b – Networking Adapters/Controllers
Step 8b – Networking Adapters/ControllersStep 8b – Networking Adapters/Controllers
Step 8b – Networking Adapters/Controllers
– Optional
Maximum # Supported
Maximum # SupportedMaximum # Supported
Maximum # Supported
Tru64
Tru64Tru64
Tru64
UNIX
UNIXUNIX
UNIX
Open
OpenOpen
Open
VMS
VMSVMS
VMS
PCI Slot
PCI SlotPCI Slot
PCI Slot
Ethernet 10/100/1000
Ethernet 10/100/1000Ethernet 10/100/1000
Ethernet 10/100/1000
PCI single-port 1000 Mbps (MMF with duplex-SC)
Gigabit Ethernet; Tru64 UNIX V5.1B/TruCluster V5.1B
supports up to eight nodes and requires: T64V51BB22AS0002-20030415.tar
Requires Early Release Patch to update driver to
V1.0.21:
T64V51BB22-C0019200-19212-E-20030710.tar
http://ftp1.support.compaq.com/public/unix/v5.1b/
t64v51bb1-0003000-16672-e-20030130.README
Tru64 UNIX V5.1A/TruCluster V5.1A supports up to
eight nodes and requires Early Release Patch: T64V51AB21-C0127901-19213-E-20030710.tar
OpenVMS V7.301 support as a standalone network
interface and as a cluster interconnect requires that users
download and install the following two ECO Kits:
DEC-AXPVMS-VMS731_PCSI_V0100-4.PCSI
DEC-AXPVMS-VMS731_LAN_V0600-4.PCSI
NOTE:
NOTE: NOTE:
NOTE:
Use BN34A, BN34B, or equivalent cables with
SC connectors.
8 8
3.3/
5 V66MHz
3X-DEGXA-SR
QuickSpecs
HP AlphaServer ES45
HP AlphaServer ES45HP AlphaServer ES45
HP AlphaServer ES45
Options
DA - 10994 North America — Version 59 — May 7, 2007
Page 17
Page 18
Ethernet 10/100
Ethernet 10/100Ethernet 10/100
Ethernet 10/100
Dual-port 10/100 Ethernet (UTP/RJ45) add-on
daughter card for use with the 3X-DE602-BR only. The
combined 3X-DE602-BR and 3X-DE602-TR modules,
running at 66MHz, provide four 10/100 (UTP/RJ45s)
ports in a single PCI slot option; allows for a maximum
of 16 ports per system.
OpenVMS V7.3 requires Tima Kit:
- DEC-AXPVMS-VMS73_LAN-V0100-4.PCSI
NOTE:
NOTE: NOTE:
NOTE:
3X-DE602-TR cannot be used standalone.
Use BN25G, BN26M, BN24Q, or BN28Q twisted pair
RJ45 cables.
4 4
3.3/
5 V66MHz
3X-DE602-TR
Single-port 100 Mbps (MMF/duplex-SC) add-on
daughter card for use with the 3X-DE602-BR. The
combined 3X-DE602-BR and 3X-DE602-FR modules,
running at 66 MHz, provide two 10/100 (UTP/RJ45s)
and one 100Mbps (MMF/SC) ports in a single PCI slot
option.
NOTE:
NOTE: NOTE:
NOTE:
3X-DE602-FR cannot be used standalone. Use
BN34A or BN34B cables.
4 1
per
3X-
DE602-
BR
3.3/
5 V66MHz
3X-DE602-FR
Multi-function Module
Multi-function ModuleMulti-function Module
Multi-function Module
PCI 32-bit, 33-MHz multi-function (single-port 10/100
Ethernet UTP/RJ45, Ultra2 LVD SCSI, and 2D graphics)
adapter. Model 1B requires installation on PCI Bus 0 in
slots 1 or 2; Models 2B and3B require installation on
PCI Bus 0 in slots 3, 6, 9, or 10
NOTE:
NOTE:NOTE:
NOTE:
Tru64 UNIX V5.1A requires Patch Kit 3:
T64V51AS0003-20010413.tar. Only one 3X-KZPEA-DB
allowed on same PCI bus; no multi-head graphics
support; TruCluster support restricted to non-shared
SCSI buses only.
Use BN25G, BN26M, BN24Q, or BN28Q twisted pair
RJ45 cables.
1 1
5V
33
MHz
3X-DEPVZ-AA
3X-DEPVZ-AA specific-use 3-meter LVD2 SCSI cable
BN37A-03
Synchronous
SynchronousSynchronous
Synchronous
Communications
CommunicationsCommunications
Communications
PCI (32-bit, 33-MHz) to Dual-port Intelligent
Synchronous Communications NIC – Requires at least
one (maximum two) 3X-BC34x sync cable listed below.
4 4
3.3/
5 V33MHz
3X-PBXDD-AA
PCI (32-bit, 33-MHz) to Quad-port Intelligent
Synchronous Communications NIC – Requires at least
one (maximum four) 3X-BC34x sync cable listed below.
4 4
3.3/
5 V33MHz
3X-PBXDD-AB
Synchronous-specific
Synchronous-specificSynchronous-specific
Synchronous-specific
Cables
CablesCables
Cables
V.24/EIA-232 Single-port cable
3X-BC34L-06
V.11/x.21 Single-port cable
3X-BC34S-06
V.35 Single-port cable
3X-BC34T-06
QuickSpecs
HP AlphaServer ES45
HP AlphaServer ES45HP AlphaServer ES45
HP AlphaServer ES45
Options
DA - 10994 North America — Version 59 — May 7, 2007
Page 18
Page 19
Asynchronous
AsynchronousAsynchronous
Asynchronous
Communications
CommunicationsCommunications
Communications
PCI (32-bit, 33-MHz) to 4-port Async Communications
NIC with DB-25 octopus cable
NOTE:
NOTE: NOTE:
NOTE:
The Tru64 UNIX driver (UNIX Tar File
4001180K.tar) is located at:
http://support.digi.com/support/indexes/tru64-xr.html
The OpenVMS driver kit (Filename 4001778L.bin) is
located at
http://support.digi.com/support/drivers/vms/indexasync.html
2 2
3.3/
5 V33MHz
PBXDA-BA
PCI (32-bit, 33-MHz) to 8-port Async Communications
NIC with DB-25 octopus cables
NOTE:
NOTE: NOTE:
NOTE:
The Tru64 UNIX driver (UNIX Tar File
4001180K.tar) is located
at:
http://support.digi.com/support/indexes/tru64-xr.html
The OpenVMS driver kit (Filename 4001778L.bin) is
located at
http://support.digi.com/support/drivers/vms/indexasync.html
2 2
3.3/
5 V33MHz
PBXDA-BB
PCI (32-bit, 33-MHz) to 16-port Async Communications
Controller and tabletop 16-port distribution box with
RJ45 connectors.
2 2
3.3/
5 V33MHz
PBXDA-AC
Step 8c – Multi-use Cables
Step 8c – Multi-use CablesStep 8c – Multi-use Cables
Step 8c – Multi-use Cables
Ethernet, FDDI,
Ethernet, FDDI,Ethernet, FDDI,
Ethernet, FDDI,
ATM
ATMATM
ATM
Multimode fiber optic (MMF) 62.5/125um duplex cable,
with SC-to-ST connectors
xx = available lengths: (2E, 4E, 01, 03, 10, 20, 30) for
2.4, 4.5, 1, 3, 10, 20, and 30 meters
BN34A-xx
Multimode fiber optic (MMF) 62.5/125um duplex cable,
with SC-to-SC connectors
xx = available lengths: (2E, 4E, 01, 03, 10, 20, 30) for
2.4, 4.5, 1, 3, 10, 20, and 30 meters
BN34B-xx
Category 5e (4-Unshielded Twisted Pairs / UTP) straightthrough cable with RJ45-to-RJ45 connectors for system
to switch, repeater, or hub connectivity
xx = available lengths: (0B, 0E, 01, 03, 04, 07) for 0.2,
0.5, 1, 3, 4, and 7 meters
BN25G-xx
Category 5e (4-Twisted Pairs, Screened/ ScTP) straightthrough cable with RJ45-to-RJ45 connectors for system
to switch, repeater, or hub connectivity
xx = available lengths: (0E, 01, 03, 04, 07) for 0.5, 1,
3, 4, and 7 meters
BN26M-xx
Category 5e (4-Unshielded Twisted Pairs / UTP) Xover
cable with RJ45-to-RJ45 connectors for system to switch,
repeater, or hub connectivity
xx = available lengths: (0E, 01, 03, 04, 07) for 0.5, 1,
3, 4, and 7 meters
BN24Q-xx
Category 5e (4-Twisted Pairs, Screened / ScTP) Xover
cable with RJ45-to-RJ45 connectors for system to switch,
repeater, or hub connectivity
xx = available lengths: (0E, 01, 03, 04, 07) for 0.5, 1,
3, 4, and 7 meters
BN28Q-xx
QuickSpecs
HP AlphaServer ES45
HP AlphaServer ES45HP AlphaServer ES45
HP AlphaServer ES45
Options
DA - 10994 North America — Version 59 — May 7, 2007
Page 19
Page 20
Step 9 - Memory Channel - Optional
Step 9 - Memory Channel - OptionalStep 9 - Memory Channel - Optional
Step 9 - Memory Channel - Optional
Tru64 UNIX Systems
Tru64 UNIX SystemsTru64 UNIX Systems
Tru64 UNIX Systems
(V5.1A)
Each system node in the cluster requires a TruCluster software license
(QL-6BRAE-AA) or TruCluster Plus Software Package (QP-6R9AE-AA)
OpenVMS Systems
OpenVMS SystemsOpenVMS Systems
OpenVMS Systems
OpenVMS V7.3 and OpenVMS Cluster license (QL-MUZAE-AA) are required
Configuring Information
Configuring InformationConfiguring Information
Configuring Information
Memory Channel adapters (CCMAB-BA) must be configured in 5-volt PCI slots.
Up to two PCI-to-System Area Network adapters (CCMAB-BA) are supported in a single system.
Two-node clusters can be configured by ordering a CCMAB-BA for each node and one BN39B04 or BN39B-10 cable; cable connects directly to CCMAB-BA in each node.
Two-node clusters can also be configured by ordering two CCMAB-BA adapters for each node
and two BN39B-04 or BN39B-10 cables; cables connect directly to CCMAB-BA in each node.
For a two-node cluster that will not need to be rebooted when adding additional members, order
one CCMAB-BA adapter and one BN39B-04 or BN39B-10 cable for each node, and one
CCMHB-AA hub for the cluster.
For three- or four- node clusters, order one CCMAB-BA adapter and one BN39B-04 or BN39B10 cable for each node, and one CCMHB-AA hub for the cluster. If two CCMAB-BAs are
configured in each system, a second CCMHB-AA is required.
CCMHB-AA includes four CCMLB-AA line cards and supports up to four nodes; expansion up to
eight system nodes can be achieved by adding up to four CCMLB-AA line cards.
If nodes must be separated by a distance longer than standard copper cables allow the CCMFB
option converts the output of the standard CCMAB controller or CCMLB line card to single-mode
fiber optic cable. The fiber optic connection may be up to 2,000 meters long between two
CCMAB controllers connected in virtual hub mode, or 3,000 meters between a CCMAB controller
and a CCMHB hub. (The connection from the CCMHB hub to a second system may also be
3,000 meters.) The CCMFB option requires a second PCI slot in the system from which it draws
power only. It is normally connected to the corresponding CCMAB controller with the short
BN39B-01 cable. The CCMFB is also used in the CCMHB hub where it occupies a slot normally
used by the CCMLB line card, limiting expansion to four radial fiber optic connections.
CCMHB-BA hub expansion box provides additional slots for up to eight fiber optic connections.
Two standard length single-mode fiber optic cables are available (BN34R-10 and BN34R-31);
however, users normally provide this fiber optic connection. Fiber optic connectivity is completely
transparent to the systems using it and has no performance impact.
NOTE:
NOTE:NOTE:
NOTE: When configuring Model 1B or Model 2B with two Memory Channel Controllers (CCMAB-BA)
installed in hose 0 only, all nodes in a Memory Channel cluster must have the window size jumper set to
the same size, specifically 128. When configuring Model 3B with two Memory Channel Controllers
(CCMAB-BA), all nodes in a Memory Channel cluster must have the window size jumper set to the same
size, specifically 128; Memory Channel Hub must be installed on a different hose (hose 0, 1, or 2). Refer
to the TruCluster QuickSpecs for Memory Channel details.
QuickSpecs
HP AlphaServer ES45
HP AlphaServer ES45HP AlphaServer ES45
HP AlphaServer ES45
Options
DA - 10994 North America — Version 59 — May 7, 2007
Page 20
Page 21
Model 1B
Model 1BModel 1B
Model 1B Model 2B
Model 2BModel 2B
Model 2B Model 3B
Model 3BModel 3B
Model 3B
128K I/O 128K I/O 128K I/O
Use for new or existing clusters; if existing
cluster at 512K, shut down and configure
all nodes to 128K
Use for new or existing clusters; if existing
cluster at 512K, shut down and configure
all nodes to 128K
Use for new or existing clusters; if existing
cluster at 512K, shut down and configure
all nodes to 128K
Supports dual-rail, (two)
Memory Channel controllers on single PCI
Bus 0
Supports dual-rail, (two)
Memory Channel controllers on single PCI
Bus 0
Supports dual-rail, (two)
Memory Channel controllers on separate
PCI Bus (0, 1, or 2)
MEMORY CHANNEL
MEMORY CHANNELMEMORY CHANNEL
MEMORY CHANNEL
Controller/System Area
Controller/System AreaController/System Area
Controller/System Area
Network Hub
Network HubNetwork Hub
Network Hub
PCI-to-System Area Network Controller, maximum two - 5V/3.3V
CCMAB-BA
System Area Network Hub with four line cards; includes BN19P-2E power cord for
Canada, Japan, and U.S. - for other regions, order appropriate power cord from the
following list:
CCMHB-AA
Hub expansion box with no line cards
CCMHB-BA
Expansion line card for CCMHB hub
CCMLB-AA
1-meter cable for CCMAB and CCMHB
BN39B-01
4-meter cable for CCMAB and CCMHB
BN39B-04
10-meter cable for CCMAB and CCMHB
BN39B-10
Copper-to-single mode fiber optic converter – 5V (clock not affected)
CCMFB-BA
Rackmount kit (3U) for CCMHB (Memory Channel Hub II); required for mounting in
H9A1x cabinets.
3X-BA61R-MC
Power cord for rackmount CCMHB hub
BN35S-02
MEMORY CHANNEL
MEMORY CHANNELMEMORY CHANNEL
MEMORY CHANNEL
Power Cords
Power CordsPower Cords
Power Cords
Australia, New Zealand, China (8121-0838)
3R-A6023-AA
Central Europe
BN19C-2E
Denmark (103541-481)
BN19K-2E
Egypt, India (103541-AR1)
BN19S-2E
Ireland, United Kingdom
BN19A-2E
Israel
3R-A6883-AA
Italy (103541-461)
BN19M-2E
Japan, 2.5-meter, Dentori approved
3X-BN46F-02
Switzerland (103541-511)
BN19E-2E
NOTE:
NOTE: NOTE:
NOTE:
When using MEMORY CHANNEL, refer to the TruCluster QuickSpecs for
configuration guidelines and restrictions:
http://www.compaq.com/products/quickspecs/Division/10657.html
The MEMORY CHANNEL controller, CCMAB-AA, must be revision D01 or later.
NOTE:
NOTE: NOTE:
NOTE:
This Web Site is available in English only.
Step 10 - Storage Adapters/Controllers - Mandatory
Step 10 - Storage Adapters/Controllers - MandatoryStep 10 - Storage Adapters/Controllers - Mandatory
Step 10 - Storage Adapters/Controllers - Mandatory
NOTE:
NOTE: NOTE:
NOTE:
Refer to the following chart when configuring adapters, shelves, and disks.
QuickSpecs
HP AlphaServer ES45
HP AlphaServer ES45HP AlphaServer ES45
HP AlphaServer ES45
Options
DA - 10994 North America — Version 59 — May 7, 2007
Page 21
Page 22
AlphaServer ES45 Configuration Chart for Storage Adapters
AlphaServer ES45 Configuration Chart for Storage AdaptersAlphaServer ES45 Configuration Chart for Storage Adapters
AlphaServer ES45 Configuration Chart for Storage Adapters
Storage Adapters
Storage AdaptersStorage Adapters
Storage Adapters
Shelf
ShelfShelf
Shelf
Disk Drives
Disk DrivesDisk Drives
Disk Drives
Tru64 UNIX
Tru64 UNIXTru64 UNIX
Tru64 UNIX
OpenVMS
OpenVMSOpenVMS
OpenVMS
3X-KZPCA-AA
3X-KZPCA-AA3X-KZPCA-AA
3X-KZPCA-AA
BA610-6D
DS-SL13R-xx
3R-A4075-AA/3R-A4076-AA
3R-A0xxx-AA 1-inch Universal
3R-A1xxx-AA 1-inch Universal
3R-A3xxx-AA 1-inch Universal
V5.1A
V7.3
3.3/5 V
33 MHz
3X-KZPEA-DB
3X-KZPEA-DB3X-KZPEA-DB
3X-KZPEA-DB
BA610-6D
DS-SL13R-Bx
3R-A4075-AA/3R-A4076-AA
3R-A0xxx-AA 1-inch Universal
3R-A1xxx-AA 1-inch Universal
3R-A3xxx-AA 1-inch Universal
V5.1A
V7.3
3.3/5 V
33 MHz
* Requires 3X-DWZCV-BA/CA, HVD-to-LVD converter
RAID Controller
RAID ControllerRAID Controller
RAID Controller
3X-KZPDC-BE/DF
3X-KZPDC-BE/DF3X-KZPDC-BE/DF
3X-KZPDC-BE/DF
BA610-6D
DS-SL13R-xx
3R-A4075-AA/3R-A4076-AA
3R-A0xxx-AA 1-inch Universal
3R-A1xxx-AA 1-inch Universal
3R-A3xxx-AA 1-inch Universal
V5.1B/V5.1A
V7.3-1
Maximum # Supported
Maximum # SupportedMaximum # Supported
Maximum # Supported
Tru64
Tru64Tru64
Tru64
UNIX
UNIXUNIX
UNIX
Open
OpenOpen
Open
VMS
VMSVMS
VMS
PCI Slot
PCI SlotPCI Slot
PCI Slot
SCSI
SCSISCSI
SCSI
PCI 2-port Ultra3 (LVD2) SCSI adapter, 64-bit/66-MHz
dual-channel (uses one PCI slot); includes internal 68pin and external 68-pin VHDCI connectors; requires 3XBC56J-xx cable to connect adapter to DS-SL13R-Bx
shelf; supports internal SDLT tape drives and external
SDLT tape libraries. HSZxx RAID controllers not
supported. Supports dual-bus (Models 4354R and
4454R) and single-bus (Models 4314R and 4414R)
shelves with 3X-KZPEA-DB adapter. Tru64 UNIX requires
graphics adapter to run console utilities (RUN BIOS).
MSA30 enclosures (Models 4414R and 4454R) are not
supported in shared SCSI configurations.
3X-KZPEA-DB adapter supports shared SCSI under
Tru64 UNIX V5.1B and TruCluster V5.1B with Initial
Patch Kit installed; supports maximum of two nodes per
shared bus; requires 3X-BN55A-01 Y-cable and
connector plug assembly, and 3X-H32CT-AA external
LVD terminator per shared bus.
NOTE:
NOTE: NOTE:
NOTE:
Tru64 UNIX Initial Patch Kit for V5.1B is located
at:
http://ftp1.support.compaq.com/public/unix/v5.1b
6 6
3.3/
5 V66MHz
3X-KZPEA-DB
Ultra160 cable, VHDCI to VHDCI (341174-B21 - 6feet, 341175-B21 - 12-feet, 164604-B21 - 24-feet)
xx = 02 (6-feet), 03 (12-feet), 04 (24-feet)
3X-BC56J-xx
PCI 1-port Ultra2 (LVD) SCSI adapter, 32-bit/33-MHz,
single-channel (uses one PCI slot); includes internal 68pin and external 68-pin HD connectors; order BN38C-xx
cable to connect adapter to Ultra3 shelf, or order
VHDCI converter (BN38E-0B) for use with included
cable; HSZxx RAID controllers not supported. No
support for shared SCSI.
6 6
3.3/
5 V33MHz
3X-KZPCA-AA
68-pin HD male-to-VHDCI male UltraSCSI cable;
xx = 02, 03, 05, 10, 20 meters
BN38C-xx
QuickSpecs
HP AlphaServer ES45
HP AlphaServer ES45HP AlphaServer ES45
HP AlphaServer ES45
Options
DA - 10994 North America — Version 59 — May 7, 2007
Page 22
Page 23
Fibre Channel
Fibre ChannelFibre Channel
Fibre Channel
PCI-X 64-bit 144-MHz 2-GB StorageWorks Fibre
Channel Host Bus Adapter - FCA2684 - single channel
NOTE:
NOTE: NOTE:
NOTE:
For configuration details refer to the Supported
Options List at http:
http://h18002.www1.hp.com/alphaserver/
options/ases45/ases45_options.html
The following pointer also provides additional
information regarding this FCA:
http://h18006.www1.hp.com/products/
storageworks/fca2684/index.html
6 6
3.3/
5 V66MHz
DS-A5132-AA
PCI-X 64-bit 144-MHz 2-GB StorageWorks Fibre
Channel Host Bus Adapter - FCA2684 - dual channel
NOTE:
NOTE: NOTE:
NOTE:
For configuration details refer to the Supported
Options List at
http://h18002.www1.hp.com/alphaserver/
options/ases45/ases45_options.html
The following pointer also provides additional
information regarding this FCA:
http://h18006.www1.hp.com/products/
storageworks/fca2684/index.html
4 4
3.3/
5 V66MHz
DS-A5134-AA
See Fibre Channel cables and switches, Step 11
Multi-function Module
Multi-function ModuleMulti-function Module
Multi-function Module
PCI 32-bit, 33-MHz multi-function (single-port 10/100
Ethernet UTP/RJ45, Ultra2 LVD SCSI, and 2D graphics)
adapter. Model 1B requires installation on PCI Bus 0 in
slots 1 or 2; Models 2B and 3B require installation on
PCI Bus 0 in slots 3, 6, 9, or 10
NOTE:
NOTE:NOTE:
NOTE:
Tru64 UNIX V5.1A requires Patch Kit 3:
T64V51AS0003-20010413.tar. Only one 3X-KZPEA-DB
allowed on same PCI bus; no multi-head graphics
support
Use BN25G, BN26M, BN24Q, or BN28Q twisted pair
RJ45 cables.
1 1
5 V
33
MHz
3X-DEPVZ-AA
3X-DEPVZ-AA specific-use 3-meter LVD2 SCSI cable
BN37A-03
RAID
RAIDRAID
RAID
PCI 2-port PCI to Ultra3, 64-bit, 66 MHz, LVD
backplane RAID controller with 128-MB cache (uses one
PCI slot); requires connection to DS-SL13R-xx shelves or
BA610-6D card cage.
NOTE:
NOTE: NOTE:
NOTE:
Tru64 UNIX requires V5.1B and TruCluster
V5.1B (non- shared buses only) with Initial Patch Kit:
T64V51BV1AS0001-20021229.tar
Tru64 UNIX requires V5.1A with Initial Patch Kit:
T64V51AV21AS0004-20030206.tar
NOTE:
NOTE: NOTE:
NOTE:
No host-based volume shadowing or shared bus
support under OpenVMS.
6 per
system,
3 per
PCI
bus
6 per
system,
3 per
PCI
bus
3.3/
5 V66MHz
3X-KZPDC-BE
QuickSpecs
HP AlphaServer ES45
HP AlphaServer ES45HP AlphaServer ES45
HP AlphaServer ES45
Options
DA - 10994 North America — Version 59 — May 7, 2007
Page 23
Page 24
PCI 4-port PCI to Ultra3, 64-bit, 66 MHz, LVD
backplane RAID controller with 256-MB cache (uses one
PCI slot); requires connection to DS-SL13R-xx shelves or
BA610-6D card cage.
NOTE:
NOTE: NOTE:
NOTE:
Tru64 UNIX requires V5.1B and TruCluster
V5.1B (non-shared buses only) with Initial Patch Kit:
T64V51BV1AS0001-20021229.tar
Tru64 UNIX requires V5.1A with Initial Patch Kit:
T64V51AV21AS0004-20030206.tar
6 per
system,
3 per
PCI
bus
6 per
system,
3 per
PCI
bus
3.3/
5 V66MHz
3X-KZPDC-DF
U320 LVD SCSI Backplane Raid Controller, 64 bit, 2
Channel
6 per
system,
3 per
PCI
bus
3.3/
5 V66MHZ
3X-KZPEC-BF
U320 LVD SCSI Backplane Raid Controller, 64 bit, 4
Channel
6 per
system,
3 per
PCI
bus
3.3/
5 V66MHz
3X-KZPEC-DG
HVD to LVD Converters
HVD to LVD ConvertersHVD to LVD Converters
HVD to LVD Converters
HVD (High Voltage Differential) adapters and LVD (Low Voltage Differential) devices are normally
incompatible due to their different signaling voltage levels. This incompatibility does not allow direct
communication between the different technologies. The HVD to LVD converter allows connectivity between
legacy HVD Host Bus Adapters and today's LVD devices. The converter provides:
Connectivity in direct attach or shared configurations of all currently available LVD devices,
including disks, tapes, libraries, and shelves (4314 or 4354) when used with the KZPBA-CB and 3XKZPBA-CC HVD adapters. With the retirement of StorageWorks 1 disks and HVD shelves (BA36R),
converters are desirable where upgrades to LVD HBAs, or upgrades to current operating system
versions are not possible.
Shared and direct attach configurations are interconnected much the same as those previously
configured with homogeneous HVD solutions, except that the HVD output is now passed through the
converter before proceeding to the LVD device. Where required, Y cables (BN21W-0B), terminators
(H879-AA), cables (BN38C-10, BN37A-20), one or two HVD/LVD converters (one-port, two-port),
Memory Channel adapters (CCMAB), one Memory Channel cable (BN39B-10), are used in
conjunction with the LVD device of choice.
HVD to LVD one-port converter
3X-DWZCV-
BA
HVD to LVD two-port converter
3X-DWZCV-
CA
Step 11 - Storage Devices - Optional
Step 11 - Storage Devices - OptionalStep 11 - Storage Devices - Optional
Step 11 - Storage Devices - Optional
QuickSpecs
HP AlphaServer ES45
HP AlphaServer ES45HP AlphaServer ES45
HP AlphaServer ES45
Options
DA - 10994 North America — Version 59 — May 7, 2007
Page 24
Page 25
Step 11a - Tape Devices
Step 11a - Tape DevicesStep 11a - Tape Devices
Step 11a - Tape Devices
For detailed tape drive information see
http://www.compaq.com/products/storageworks/sitemap.html#tapedrives
System includes embedded 1.44-MB diskette drive
System includes embedded 5.25-inch half-height 600-MB 16X ATPI DVD-ROM drive
Removable media slots provide support for up to two 5.25-inch half-height devices, or
one 5.25-inch full-height (remove slot separator) removable media device; select up to
two DAT devices or one DLT/SDLT tape device
For maximum performance, tape libraries must be configured with Fast Wide Differential
(FWD) controllers for tape backup
DAT Tape Drives
DAT Tape Drives DAT Tape Drives
DAT Tape Drives
(Internal)
Select up to two DAT devices
The following DAT tape drives are supported with 3X-KZPCA-AA adapter;
TLZ10 tape drives are supported with 3X-KZPEA-DB adapters on Tru64 UNIX
and OpenVMS systems (4 per bus).
DAT 40-GB LVD internal tape drive (C5686C)
3R-A6831-AA
DAT 72-GB LVD internal tape drive (Q1522B)
3R-A6663-AA
1-meter Ultra2 68-pin LVD cable with two connectors, multimode terminator and two
wide-to-narrow adapters
3X-BN46M-01
DAT Tabletop Tape Drives
DAT Tabletop Tape DrivesDAT Tabletop Tape Drives
DAT Tabletop Tape Drives
DAT 40-GB LVD tabletop tape drive with North America power cord
C5687D
DAT 72-GB LVD tabletop SCSI tape drive with 120V North America power cord,
carbon black
Q1523B
DAT Hot-plug Tape Drive
DAT Hot-plug Tape DriveDAT Hot-plug Tape Drive
DAT Hot-plug Tape Drive
DAT 40-GB hot-plug LVD tape drive (Q1546A), uses two slots in BA610-6D or 43xxx
shelves (cannot be sold in Europe)
3R-A4745-AA
DAT 72-GB hot-plug LVD tape drive (Q1529A), uses two slots in BA610-6D or 43xxx
shelves (cannot be sold in Europe)
3R-A4547-AA
DAT Autoloaders
DAT AutoloadersDAT Autoloaders
DAT Autoloaders
DAT 20/40-GB auto loader external
AE313A
DLT/SDLT Tape Drives
DLT/SDLT Tape DrivesDLT/SDLT Tape Drives
DLT/SDLT Tape Drives
(Internal)
Select one DLT/SDLT tape device
The following DLT/SDLT tape drives are supported with 3X-KZPCA-AA or 3X-KZPEA-DB LVD
adapters
VS160 HH DLT 80/160-GB tape drive
A7569B
SDLT 600-GB 32MB/s tape drive
A7518B
DLT/SDLT Tabletop Tape
DLT/SDLT Tabletop TapeDLT/SDLT Tabletop Tape
DLT/SDLT Tabletop Tape
Drives
DrivesDrives
Drives
SDLT 600--GB external tape driveNA
A7519B
SDLT 600GB external tape drive, WW
A7520B
VS160 HH DLT 80/160GB tape drive, external NA
A7570B
VS160 HH DLT 10/160GB tape drive, external WW
A7571B
QuickSpecs
HP AlphaServer ES45
HP AlphaServer ES45HP AlphaServer ES45
HP AlphaServer ES45
Options
DA - 10994 North America — Version 59 — May 7, 2007
Page 25
Page 26
3U Rackmount Tape Drive
3U Rackmount Tape Drive3U Rackmount Tape Drive
3U Rackmount Tape Drive
Enclosure
EnclosureEnclosure
Enclosure
3U LVD Rackmount Tape Drive Enclosure for use in M-Series Cabinets and Series
10000 Cabinets, 0 drives, carbon black
274338-B22
Rackmount Kit for H9Axx M-Series Cabinets, carbon black – required for mounting 3U
Rackmount Tape Drive Enclosure in M-Series cabinet
3R-A3804-AA
NOTE:
NOTE: NOTE:
NOTE:
The 3U Rackmount Tape Enclosure supports up to four internal half-height
removable devices, or up to two full-height devices; select up to four DAT devices or
two DLT/SDLT devices with 3U Rackmount Tape Enclosure (274338-B22) or select
one of the preconfigured configurations listed below.
Step 11b –Modular Data Routers
Step 11b –Modular Data RoutersStep 11b –Modular Data Routers
Step 11b –Modular Data Routers
Network Storage Routers
Network Storage RoutersNetwork Storage Routers
Network Storage Routers
NOTE:
NOTE:NOTE:
NOTE:
e2400 and e1200 support LVD tape drives and tape libraries
e2400 supports ESL family tape drives and tape libraries
e1200 supports MSL family tape drives and tape libraries
e1200-320 One Fibre Channel x 2 LVD FC to SCSI Data Router, Tru64 UNIX and
OpenVMS
AD577A
e2400160 One Fibre Channel x 4 LVD FC to SCSI Data Router with card cage, Tru64
UNIX and OpenVMS
AA960A
NSR e2400 One Fibre Channel x 4 LVD FC to SCSI Data Router with no card cage,
Tru64 UNIX and OpenVMS
AA928A
e1200-320 One Fibre Channel x 2 LVD FC to SCSI Data Router, Tru64 UNIX and
OpenVMS
AD576A
Step 11c – External Storage Solutions/Controllers
Step 11c – External Storage Solutions/ControllersStep 11c – External Storage Solutions/Controllers
Step 11c – External Storage Solutions/Controllers
Enterprise Virtual
Enterprise VirtualEnterprise Virtual
Enterprise Virtual
Array 5000
Array 5000Array 5000
Array 5000
ES45 servers support HP Enterprise Virtual Array 5000 (EVA5000) StorageWorks products running Tru64
UNIX and OpenVMS.
The EVA5000 is available in pre-defined configurations with controllers and/or expansion configurations
without controllers. The EVA5000 also offers a pre-defined configuration that is optimized for High
Performance Technical Computing (HPTC) environments. For ordering information and configuration
rules, refer to the EVA5000 QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/11006_div/11006_div.HTML
Enterprise Virtual Array
Enterprise Virtual ArrayEnterprise Virtual Array
Enterprise Virtual Array
3000
30003000
3000
ES45 servers support HP Enterprise Virtual Array 3000 (EVA3000) StorageWorks products running Tru64
UNIX and OpenVMS. Available in one of four integrated "independent bundle" configurations, the
EVA3000 includes one pair of HSV100 controllers, two Fibre Channel drive enclosures and 8 to 16
Fibre Channel disk drives (bundle dependent). The EVA3000 is a full 2-Gb end-to-end Fibre Channel
Array solution, which operates in 1-Gb, 2-Gb, or mixed 1-Gb/2-Gb SAN fabrics. For ordering
information and configuration rules, refer to the EVA3000 QuickSpecs at:
http://h18000.www1.hp.com/products/quickspecs/11619_div/11619_div.HTML
QuickSpecs
HP AlphaServer ES45
HP AlphaServer ES45HP AlphaServer ES45
HP AlphaServer ES45
Options
DA - 10994 North America — Version 59 — May 7, 2007
Page 26
Page 27
Modular SAN Array 1000
Modular SAN Array 1000Modular SAN Array 1000
Modular SAN Array 1000
(msa 1000)
(msa 1000)(msa 1000)
(msa 1000)
Modular SAN Array 1000, supported on Tru64 UNIX and two-node clusters
(maximum); supported with DS-A5132-AA and DS-A5134-AA adapters; requires
connection via a switch - no direct connect; no support for FC arbitrated loop
Tru64 UNIX V5.1A requires Patch Kit 4: T64V51AB21AS0004-20030206.tar
Tru64 UNIX V5.1B requires Patch Kit 1: T64V51BB03AS0001-20021229.tar
OpenVMS V7.3-1 requires TIMA Kit: VMS731_MSA1000-V0100
OpenVMS V7.3 requires TIMA Kit: VMS73_FIBRE_SCSI-V0500
OpenVMS V7.2-2 requires TIMA Kit: VMS722_FIBRE_SCSI-V0400
HP recommends OpenVMS customers run the default msa1000 cache settings at 50%
read cache and 50% write cache; if a change to the default cache is required,
msa1000 cache must be set to 50% write cache or higher (lower than 50% write
cache is not supported)
NOTE:
NOTE: NOTE:
NOTE:
Requires M-Series Rack Kit.
201723-B22
M-series Rack Kit
313877-B21
3R-A5281-AA
StorageWorks Disk
StorageWorks DiskStorageWorks Disk
StorageWorks Disk
Array Family
Array FamilyArray Family
Array Family
NOTE: The HP StorageWorks Disk Array Family, specifically the XP128 and XP1024, are supported on
AlphaServer ES45 systems. For product and ordering information, refer to the following Web pages:
http://www.hp.com/products1/storage/products/disk_arrays/highend/xp1024/index.html
http://www.hp.com/products1/storage/products/disk_arrays/highend/xp128/index.html
The following part numbers have been assigned for reference purposes only:
3R-A4417-AA
A7876A
XP128 Disk Array Control Frame
3R-A4418-AA
A7906A
XP1024 Disk Array Control Frame
AE001A
XP12000 Disk Array Control
Frame
Step 12 - Graphics Adapters - Optional
Step 12 - Graphics Adapters - OptionalStep 12 - Graphics Adapters - Optional
Step 12 - Graphics Adapters - Optional
Select graphics adapter, monitor, and country-specific keyboard for Tru64 UNIX and OpenVMS systems if required.
Maximum # Supported
Maximum # SupportedMaximum # Supported
Maximum # Supported
Tru64
Tru64Tru64
Tru64
UNIX
UNIXUNIX
UNIX
Open
OpenOpen
Open
VMS
VMSVMS
VMS
PCI/
PCI/PCI/
PCI/
AGP Slot
AGP SlotAGP Slot
AGP Slot
2D/3D Graphics
2D/3D Graphics2D/3D Graphics
2D/3D Graphics
RADEON 7500 PCI 3D graphics accelerator;
Tru64 UNIX: Requires V5.1B with latest patch kit. Dual
head on first card only (unique video DVI port for 2D or
3D.
OpenVMS: Requires V7.3-1 with TIMA Kit:
DEC-AXPVMS-VMS731_GRAPHICS-V0300-4.PCSI or
latest version. Dual head on first card only (cloned video
using DVI port for 2D or 3D.
NOTE:
NOTE: NOTE:
NOTE:
For multi-head support, refer to Read Me First
document/Release Notes. Do not mix with other
graphics cards.
4 -
(2D
only)
1 - 3D
4 -
2D/3D
3.3/
5 V66MHz
3X-PBXGG-AA
QuickSpecs
HP AlphaServer ES45
HP AlphaServer ES45HP AlphaServer ES45
HP AlphaServer ES45
Options
DA - 10994 North America — Version 59 — May 7, 2007
Page 27
Page 28
RADEON 7500 AGP 2D/3D graphics accelerator;
Tru64 UNIX V5.1B with latest patch kit: Tru64 UNIX
supports a maximum of 4 graphics heads when
configured with additional RADEON PCI cards (3XPBXGG-AA)
OpenVMS requires: DEC-AXPVMSVMS731_GRAPHICS-V0200-4.PCSI or latest version
NOTE:
NOTE: NOTE:
NOTE:
Can only operate in Model 1B in slot 3; supports
2X mode only; do not mix with other graphic card types.
1 1
1.5 V
4X
3X-PBXGG-AB
2D
2D2D
2D
PCI 32-bit, 33-MHz multi-function (single-port 10/100
Ethernet UTP/RJ45, Ultra2 LVD SCSI, and 2D graphics)
adapter. Model 1B requires installation on PCI Bus 0 in
slots 1 or 2; Models 2B and 3B require installation on
PCI Bus 0 in slots 3, 6, 9, or 10.
NOTE:
NOTE: NOTE:
NOTE:
Tru64 UNIX V5.1A requires Patch Kit 3:
T64V51AS0003-20010413.tar
Only one 3X-KZPEA-DB allowed on same PCI bus; no
multi-head graphics support; TruCluster support
restricted to non-shared SCSI buses only.
Use BN25G, BN26M, BN24Q, or BN28Q twisted pair
RJ45 cables.
1 1
5 V
33
MHz
3X-DEPVZ-AA
Step 13 - Monitors
Step 13 - MonitorsStep 13 - Monitors
Step 13 - Monitors
Graphics monitors other than those listed can be used if compatible with SVGA graphics ordered with
system
A video cable, 6-foot/1.8-meter length, is included with all variants of monitors
Video extension cable required if monitor is located more than 1 meter from server
Monitors will ship with, but not be integrated with systems.
CRT Monitors
CRT MonitorsCRT Monitors
CRT Monitors
V7600 17-inch (16-inch viewable image size) 0.24mm FST multi-frequency color
monitor, 2-tone (carbon/silver), VGA to 1024 x 768 @85 Hz, MPRII/TCO 99/Energy
Star Compliant, Northern Hemisphere with NA power cord, VGA cable
3R-A5853-AA
Same as above, with Euro power cord
3R-A5854-AA
Same as above, Taiwan, NA power cord
PF996AA#AB0
Same as above, with PRC power cord, CCIB
3R-A5857-AA
Same as above, Southern Hemisphere with Australia/New Zealand power cord
PF996AA#ABG
QuickSpecs
HP AlphaServer ES45
HP AlphaServer ES45HP AlphaServer ES45
HP AlphaServer ES45
Options
DA - 10994 North America — Version 59 — May 7, 2007
Page 28
Page 29
Flat Panel Monitors
Flat Panel MonitorsFlat Panel Monitors
Flat Panel Monitors
L2065 20" (20.1" viewable image area) flat panel monitor 0.255mm pixel pitch,
1600 x 1200 @60 Hz, A + D, TCO 03, Energy Star compliant, 4 video input
connectors, (VGA, DVI-I, composite video and s-video), NA power cord, VGA and
DVI-I cables
3R-A6701-AA
L2035 20" (20.1" viewable image area) flat panel monitor 0.255mm pixel pitch,
1600 x 1200 @60 Hz, A + D, TCO 03, Energy Star compliant, 4 video input
connectors, (VGA, DVI-I, composite video and s-video), Euro power cord, VGA and
DVI-I cables
3R-A6702-AA
L1955, 19" (19" viewable image size) TFT flat panel monitor, 0.294mm pixel pitch,
1280 x 1024 @60Hz, multi-mode support, MPRII/TCO 03/Energy Star compliant,
one VGA, one DVI-I input connector. NA power cord, VGA and DVI-D cables
PD974AA#ABA
L1955, 19" (19" viewable image size) TFT flat panel monitor, 0.294mm pixel pitch,
1280 x 1024 @60Hz, multi-mode support, MPRII/TCO 03/Energy Star compliant,
one VGA, one DVI-I input connector. Euro power cord, VGA and DVI-D cables
PH466A#ABB
L1506, 15." (15" viewable image size) TFT flat panel monitor, 0.297 mm pixel pitch,
1024 x 768 @60 Hz, multi-mode support, MPRII/TCO99/Energy Star compliant, NA
power cord, VGA cable
3R-A6515-AA
L1530, 15." (15" viewable image size) TFT flat panel monitor, 0.297 mm pixel pitch,
1024 x 768 @60 Hz, multi-mode support, MPRII/TCO99/Energy Star compliant,
Euro power cord, VGA cable
3R-A6516-AA
Flat Panel Monitor – Rack
Flat Panel Monitor – RackFlat Panel Monitor – Rack
Flat Panel Monitor – Rack
Mountable
MountableMountable
Mountable
TFT7210R 17" (17" viewable image area) 1U rack-mount flat panel display,
0.264mm pixel pitch, 1280 x 1024 @60/75 Hz, high and low voltage power cords,
worldwide
3R-A5187-AA
Video Extension Cable
Video Extension CableVideo Extension Cable
Video Extension Cable
6-foot/1.8-meter video extension cable optional
BN39C-02
Monitor Power Cords
Monitor Power CordsMonitor Power Cords
Monitor Power Cords
North American, 120 V, 75-inch
BN26J-1K
Australia, New Zealand, China, 2.5-meter
3R-A6023-AA
Central Europe, 2.5-meter
BN19C-2E
Denmark, 2.5-meter
BN19K-2E
Egypt, India, South Africa, 2.5-meter
BN19S-2E
Israel, 2.5-meter
3R-A6883-AA
Italy, 2.5-meter
BN19M-2E
Japan, 2.5-meter, Dentori approved
3X-BN46F-02
Switzerland, 2.5-meter
BN19E-2E
UK, Ireland, 2.5-meter
BN19A-2E
Step 14 - Keyboards, Mouse, Documentation
Step 14 - Keyboards, Mouse, DocumentationStep 14 - Keyboards, Mouse, Documentation
Step 14 - Keyboards, Mouse, Documentation
QuickSpecs
HP AlphaServer ES45
HP AlphaServer ES45HP AlphaServer ES45
HP AlphaServer ES45
Options
DA - 10994 North America — Version 59 — May 7, 2007
Page 29
Page 30
Keyboards
KeyboardsKeyboards
Keyboards
- Optional
Select a keyboard and mouse
All keyboards listed may not be available in all geographies
Select an opal OpenVMS keyboard for use with VT5xx text terminals.
Opal
OpalOpal
Opal
Carbon
CarbonCarbon
Carbon
Keyboard/Language
Keyboard/LanguageKeyboard/Language
Keyboard/Language
OpenVMS
OpenVMSOpenVMS
OpenVMS
Tru64 UNIX
Tru64 UNIXTru64 UNIX
Tru64 UNIX
OpenVMS*
OpenVMS*OpenVMS*
OpenVMS*
U.S. keyboard
3X-LK465-A2
3R-A6586-AA
3X-LK464-A2
Arabic keyboard
-
3R-A6572-AA
-
Belgian keyboard
3X-LK465-AB
3R-A6573-AA
3X-LK464-AB
BHCSY keyboard
-
3R-A6574-AA
-
Canadian/English keyboard
3X-LK465-AQ
-
3X-LK464-AQ
Canadian/French keyboard
3X-LK465-AC
3R-A6575-AA
3X-LK464-AC
Cyrillic keyboard (Russian)
3X-LK465-BT
3R-A6576-AA
3X-LK464-BT
Czech keyboard
3X-LK465-BV
3R-A6577-AA
3X-LK464-BV
Danish keyboard
3X-LK465-AD
3R-A6578-AA
3X-LK464-AD
Dutch keyboard
3X-LK465-AH
3R-A6579-AA
3X-LK464-AH
Finnish keyboard
3X-LK465-AF
3R-A6580-AA
3X-LK464-AF
French keyboard
3X-LK465-AP
3R-A6581-AA
3X-LK464-AP
German keyboard
3X-LK465-AG
3R-A6582-AA
3X-LK464-AG
Greek keyboard
3X-LK465-BH
3R-A6583-AA
3X-LK464-BH
Hebrew keyboard
3X-LK465-AT
3R-A6584-AA
3X-LK464-AT
Hungarian keyboard
3X-LK465-BQ
3R-A6585-AA
3X-LK464-BQ
International keyboard
-
3R-A6586-AA
-
Italian keyboard
3X-LK465-AI
3R-A6587-AA
3X-LK464-AI
Japanese keyboard
-
3R-A6588-AA
-
Korean keyboard
-
3R-A6589-AA
-
Latin-American keyboard
-
3R-A6590-AA
-
Norwegian keyboard
3X-LK465-AN
3R-A6591-AA
3X-LK464-AN
Polish keyboard
3X-LK465-BP
3R-A6592-AA
3X-LK464-BP
Portuguese keyboard
3X-LK465-AV
3R-A6593-AA
3X-LK464-AV
Romanian keyboard
3X-LK465-BL
-
3X-LK464-BL
Simplified Chinese keyboard
-
3R-A6594 -AA
-
Slovak keyboard
3X-LK465-CZ
3R-A6595-AA
3X-LK464-CZ
Spanish keyboard
3X-LK465-AS
3R-A6596-AA
3X-LK464-AS
Swedish keyboard
3X-LK465-AM
3R-A6597-AA
3X-LK464-AM
Swiss/French keyboard
3X-LK465-AK
3R-A6598-AA
3X-LK464-AK
Swiss/German keyboard
3X-LK465-AL
-
3X-LK464-AL
Traditional Chinese keyboard
-
3R-A6599-AA
-
Thai keyboard
-
3R-A6600-AA
-
Turkish Q keyboard
3X-LK465-BU
3R-A6601-AA
3X-LK464-BU
Turkish/F keyboard
3X-LK465-BW
-
3X-LK464-BW
QuickSpecs
HP AlphaServer ES45
HP AlphaServer ES45HP AlphaServer ES45
HP AlphaServer ES45
Options
DA - 10994 North America — Version 59 — May 7, 2007
Page 30
Page 31
UK keyboard
-
3R-A6602-AA
3X-LK464-A2
Yugoslavian keyboard
3X-LK465-BY
-
3X-LK464-BY
*OpenVMS keyboard (3X-LK464-xx) comes with PS/2 and USB connectors
Keyboard or Mouse
Keyboard or MouseKeyboard or Mouse
Keyboard or Mouse
Extension Cable
Extension CableExtension Cable
Extension Cable
6-foot/1.8-meter keyboard or mouse extension cable; to extend both keyboard and
mouse order two cables
3X-BC34A-06
Mouse
MouseMouse
Mouse
3-button mouse – carbon
3X-PBQWS-PS
Documentation
DocumentationDocumentation
Documentation
Additional AlphaServer ES45 System Information Kit (print and CD), Owners Guide,
User Interface Guide, and Release Notes
QA-6E88A-G8
Step 15 - Software - Media and documentation required for first system on sit
Step 15 - Software - Media and documentation required for first system on sitStep 15 - Software - Media and documentation required for first system on sit
Step 15 - Software - Media and documentation required for first system on sit
e
Software Processor Code = E
Tru64 UNIX
Tru64 UNIXTru64 UNIX
Tru64 UNIX
AlphaServer ES45 Tru64 UNIX systems include Unlimited User license, Server
Extension license, Internet Express, and Secure Web Server
When using Tru64 UNIX
When using Tru64 UNIXWhen using Tru64 UNIX
When using Tru64 UNIX
V5.1A
V5.1AV5.1A
V5.1A
Tru64 UNIX media and online documentation on CD-ROM
QA-6ADAA-H8
Tru64 UNIX full hard copy documentation
QA-6ADAA-GZ
TruCluster Plus Software Package, licenses for TruCluster Server, Logical Storage
Manager and AdvFS Utilities
QP-6R9AE-AA
TruCluster Server License
QL-6BRAE-AA
Logical Storage Manager License
QL-2GVAE-AA
AdvFS Utilities License
QL-0EGAE-AA
Advanced Server for Tru64 UNIX, 25 client concurrent use license
QL-5U29M-3D
Advanced Server for Tru64 UNIX, 50 client concurrent use license
QL-5U29M-3E
Advanced Server for Tru64 UNIX, 100 client concurrent use license
QL-5U29M-3F
Advanced Server for Tru64 UNIX, 250 client concurrent use license
QL-5U29M-3G
Advanced Server for Tru64 UNIX, 500 client concurrent use license
QL-5U29M-3H
Layered products media and documentation for Tru64 UNIX on CD-ROM
QA-054AA-H8
DECnet/OSI extended function license for Tru64 UNIX
QL-MTKAE-AA
DECnet/OSI end-system license for Tru64 UNIX
QL-MTJAE-AA
Open3D for Tru64 UNIX on CD-ROM, includes graphics drivers
QA-OAFAA-H8
QuickSpecs
HP AlphaServer ES45
HP AlphaServer ES45HP AlphaServer ES45
HP AlphaServer ES45
Options
DA - 10994 North America — Version 59 — May 7, 2007
Page 31
Page 32
OpenVMS
OpenVMSOpenVMS
OpenVMS
AlphaServer ES45 OpenVMS systems include Base license with System Manager
license and Enterprise Integration Server License Package for OpenVMS
Revision V3.1
Enterprise Integration Package includes licenses for TCP/IP Services for
OpenVMS, DECwindows Motif for OpenVMS Alpha, DECprint Supervisor for
OpenVMS Alpha Plus, DECprint Supervisor for OpenVMS Open, DECnet-Plus
for OpenVMS Alpha End System, Archive/Backup System for OpenVMS
Management Tools, Archive/Backup Agent for Windows NT, OpenVMS Disk
Services for Windows NT, Office Server for OpenVMS, PATHWORKS 32,
PATHWORKS V6 for OpenVMS – Advanced Server, and DIGITAL Office Server
Client Access License
OpenVMS Concurrent Use licenses provide the right to interactively use the
operating system by the specified number of concurrent users on a designated
OpenVMS system. OpenVMS Concurrent Use licenses can be moved from one
system to another at user discretion and can be shared in a mixed OpenVMS
VAX and OpenVMS Alpha cluster.
OpenVMS Traditional Unlimited Use license is system specific and can only be
used on one system at a time. It cannot be shared between systems or in an
OpenVMS VAX or OpenVMS Alpha Cluster.
Concurrent Use 1-user license
QL-MT3AA-3B
Concurrent Use 2-user license
QL-MT3AA-3C
Concurrent Use 4-user license
QL-MT3AA-3D
Concurrent Use 8-user license
QL-MT3AA-3E
Concurrent Use 16-user license
QL-MT3AA-3F
Concurrent Use 32-user license
QL-MT3AA-3G
Concurrent Use 64-user license
QL-MT3AA-3H
Concurrent Use 128-user license
QL-MT3AA-3J
Concurrent Use 256-user license
QL-MT3AA-3K
Traditional unlimited user license
QL-MT2AE-AA
OpenVMS media and documentation on CD-ROM
QA-MT1AA-H8
OpenVMS full hard copy documentation
QA-001AA-GZ
Layered products media and documentation for OpenVMS on CD-ROM, includes
Enterprise Integration Server for OpenVMS media and documentation.
QA-03XAA-H8
DECnet extended function license for OpenVMS
QL-MTGAE-AA
DECnet end-system to extended function upgrade license for OpenVMS
QL-MTHAE-AA
OpenVMS Cluster license for Alpha systems
QL-MUZAE-AA
OpenVMS Volume Shadowing license
QL-2A1AE-AA
Step 16 - Hardware and Software Support Services for Tru64 UNIX and OpenVMS
Step 16 - Hardware and Software Support Services for Tru64 UNIX and OpenVMSStep 16 - Hardware and Software Support Services for Tru64 UNIX and OpenVMS
Step 16 - Hardware and Software Support Services for Tru64 UNIX and OpenVMS
Select one of the optional HP Care Pack Service Packages described below that best support the customer's operational
requirements for system availability.
QuickSpecs
HP AlphaServer ES45
HP AlphaServer ES45HP AlphaServer ES45
HP AlphaServer ES45
Options
DA - 10994 North America — Version 59 — May 7, 2007
Page 32
Page 33
HP Care Pack Services
HP Care Pack ServicesHP Care Pack Services
HP Care Pack Services
HP Care Pack Services are available for AlphaServer systems running Tru64
UNIX or OpenVMS operating systems. HP Care Pack Services are designed for
customers who require support beyond that provided by the hardware product
warranty with coverage for both Principal server systems and SSPs (Subsequent
System Packages) - that meet a full range of customer support requirements.
Program Features
Program FeaturesProgram Features
Program Features
HP Support Plus
HP Support PlusHP Support Plus
HP Support Plus
HP Support Plus offers combined hardware and software services in one
package, providing support during standard HP office hours.
HP Support Plus 24
HP Support Plus 24HP Support Plus 24
HP Support Plus 24
HP Support Plus 24 offers combined hardware and software services in one
package to help enhance the availability and performance of your IT
infrastructure 24x7.
HP Proactive 24
HP Proactive 24HP Proactive 24
HP Proactive 24
HP Proactive 24 (P24) is a combined hardware and software support solution
designed to help you get more from your IT investment. P24 improves the
effectiveness, performance, and availability of the technologies in your IT
infrastructure.
HP Critical Service
HP Critical ServiceHP Critical Service
HP Critical Service
HP Critical Service (CS) is a comprehensive hardware and software support
solution, designed for organizations running business critical applications. CS
provides a combination of proactive and reactive services for mission critical
environments with little or nor tolerance for downtime.
Installation
InstallationInstallation
Installation
Pre-installation review
Unpacking of equipment
Assemble and test
Basic product usage info
No software installation added
Installation & Startup HP
Installation & Startup HPInstallation & Startup HP
Installation & Startup HP
O/S
O/SO/S
O/S
Pre-installation review
Unpacking of equipment
Assemble and test
Basic product usage info
Install operating systems
Product configuration
Print & network access
Orientation
QuickSpecs
HP AlphaServer ES45
HP AlphaServer ES45HP AlphaServer ES45
HP AlphaServer ES45
Options
DA - 10994 North America — Version 59 — May 7, 2007
Page 33
Page 34
HP Care Pack Services for AlphaServer ES45 Systems
HP Care Pack Services for AlphaServer ES45 Systems HP Care Pack Services for AlphaServer ES45 Systems
HP Care Pack Services for AlphaServer ES45 Systems
(sold via Fusion Order Management System)
1-year Package ID#
1-year Package ID#1-year Package ID#
1-year Package ID#
Option ID#
Option ID#Option ID#
Option ID#
3-year Package ID#
3-year Package ID#3-year Package ID#
3-year Package ID#
Option ID#
Option ID#Option ID#
Option ID#
AlphaServer ES45 Model 1B
AlphaServer ES45 Model 1BAlphaServer ES45 Model 1B
AlphaServer ES45 Model 1B
HP Support Plus
HA109A1
6JL
HA109A3
6JL
HP Support Plus 24
HA110A1
6JL
HA110A3
6JL
HP Proactive 24
HA111A1
6JL
HA111A3
6JL
HP Critical Service
HA112A1
6JL
HA112A3
6JL
AlphaServer ES45 Model 2B, 3B
AlphaServer ES45 Model 2B, 3BAlphaServer ES45 Model 2B, 3B
AlphaServer ES45 Model 2B, 3B
HP Support Plus
HA109A1
6JH
HA109A3
6JH
HP Support Plus 24
HA110A1
6JH
HA110A3
6JH
HP Proactive 24
HA111A1
6JH
HA111A3
6JH
HP Critical Service
HA112A1
6JH
HA112A3
6JH
NOTES
NOTESNOTES
NOTES
:
AlphaServer ES45 systems include one-year parts and labor warranty with 5x9, on-site Next Business Day response.
HP Care Pack Services include support for new HP branded hardware options internal to the AlphaServer enclosure plus a
monitor (17-inch or less excluding flat panel models).
External storage devices/cabinets carry their own level of warranty and should be quoted separately for uplifted warranty
services.
In addition to the HP Care Pack Services shown above, other service packages are available for separate hardware and
software support. For more information on Hardware and Software Upfront Services and other HP service options available for
AlphaServers, please consult your Sales Account Manager, HP Services Principal, or visit:
http://www.hp.com/hps/
NOTE:
NOTE: NOTE:
NOTE:
This Web site is available in English only.
QuickSpecs
HP AlphaServer ES45
HP AlphaServer ES45HP AlphaServer ES45
HP AlphaServer ES45
Options
DA - 10994 North America — Version 59 — May 7, 2007
Page 34
Page 35
Tower Configuration
Tower ConfigurationTower Configuration
Tower Configuration
Dimensions
DimensionsDimensions
Dimensions
(H x W x D)
20 x 15.25 x 31 in (50.8 x 38.7 x 78.7 cm)
Shipping Dimensions
Shipping DimensionsShipping Dimensions
Shipping Dimensions
32.2 x 24 x 40 in (82.48 x 60.2 x 101.6 cm)
Weight
WeightWeight
Weight
Typical Configuration
144.3 lb (65.6 kg)
Maximum Configuration
212.8 lb (96.7 kg)
Shipping Weight
Shipping WeightShipping Weight
Shipping Weight
Typical Configuration
172 lb (78 kg)
Maximum Configuration
242 lb (110 kg)
Clearances
ClearancesClearances
Clearances
Operating
OperatingOperating
Operating
Service
ServiceService
Service
Front
29.5 in (75 cm) 29.5 in (75 cm)
Rear
6 in (15 cm)
29.5 in (75 cm)
Left Side
None
29.5 in (75 cm)
Right Side
None None
Pedestal Configuration
Pedestal ConfigurationPedestal Configuration
Pedestal Configuration
Dimensions
DimensionsDimensions
Dimensions
(H x W x D)
30.8 x 20 x 31.75 in (78.2 x 50.8 x 80.6 cm)
Shipping Dimensions
Shipping DimensionsShipping Dimensions
Shipping Dimensions
42.4 x 39.5 x 23.9 in (107.7 x 100.3 x 60.7 cm)
Weight
WeightWeight
Weight
Typical Configuration
280 lb (127 kg)
Maximum Configuration
350 lb (159 kg)
Shipping Weight
Shipping WeightShipping Weight
Shipping Weight
Typical Configuration
328 lb (149 kg)
Maximum Configuration
407 lb (185 kg)
Clearances
ClearancesClearances
Clearances
Operating
OperatingOperating
Operating
Service
ServiceService
Service
Front
29.5 in (75 cm) 29.5 in (75 cm)
Rear
6 in (15 cm)
29.5 in (75 cm)
Left Side
None None
Right Side
None
29.5 in (75 cm)
Rackmount System
Rackmount SystemRackmount System
Rackmount System
Dimensions
DimensionsDimensions
Dimensions
(H x W x D)
13.87 x 17.6 x 30.1 in (35.2 x 44.7 x 76.5 cm)
(fits 14 in [8U] standard RETMA cabinet)
Shipping Dimensions
Shipping DimensionsShipping Dimensions
Shipping Dimensions
28.8 x 24 x 40 in (73.2 x 60.7 x 101.6 cm)
Weight
WeightWeight
Weight
When lifting:
Typical Configuration
110 lb (50 kg)
Maximum
167.2 lb (76 kg)
Total added to cabinet
(brackets, slides, cables):
Total added to cabinet
(brackets, slides, cables)
130 lb (59 kg)
Maximum
202.4 lb (92 kg)
Shipping Weight
Shipping WeightShipping Weight
Shipping Weight
Nominal
158 lb (72 kg)
Maximum
233 lb (106 kg)
Clearances
ClearancesClearances
Clearances
Operating
Service
See specific cabinet
requirements
Minimum 4 ft (121.9 cm),
32.4 in (82.2) cm withdrawal on rails
QuickSpecs
HP AlphaServer ES45
HP AlphaServer ES45HP AlphaServer ES45
HP AlphaServer ES45
Technical Specifications
DA - 10994 North America — Version 59 — May 7, 2007
Page 35
Page 36
Cabinet Configuration
Cabinet ConfigurationCabinet Configuration
Cabinet Configuration
H9A10 M-Series
H9A10 M-SeriesH9A10 M-Series
H9A10 M-Series H9A15 M-Series
H9A15 M-SeriesH9A15 M-Series
H9A15 M-Series
Series 10000 Rack
Series 10000 RackSeries 10000 Rack
Series 10000 Rack
(10642)
Dimensions
DimensionsDimensions
Dimensions
(H x W x D)
67 x 23.6 x 41.5 in
(170 x 60 x 105.4 cm)
79 x 23.6 x 41.5 in
(200 x 60 x 105.4 cm)
78.7 x 24 x 39.69 in
(199.9 x 60.96 x
100.82 cm)
Shipping Dimensions
Shipping DimensionsShipping Dimensions
Shipping Dimensions
73 x 36 x 48 in
(185.5 x 91.5 x 122 cm)
85 x 36 x 48 in
(216 x 91.5 x 122 cm)
78.7 x 24 x 39.69 in
(199.9 x 60.96 x
100.82 cm)
Weight
WeightWeight
Weight
Configuration dependent Configuration dependent Configuration dependent
Shipping Weight
Shipping WeightShipping Weight
Shipping Weight
Nominal: 946 lb (430
kg)
Nominal: 1,056 lb (550
kg)
284 lb/129 kg (empty)
Maximum: 1,375 lb
(625 kg)
Maximum: 1,408 lb
(640 kg)
Maximum: 2,000 lb
(909.1 kg)
System Unit
Environmental
EnvironmentalEnvironmental
Environmental
Temperature
TemperatureTemperature
Temperature
Operating (Tower,
Pedestal, Rackmount)
50° to 95° F (10° to 35° C)
Non-operating
–40° to 151° F (–40° to 66° C)
Storage (60 days)
–40° to 151° F (–40° to 66° C)
Rate of change
20° F/hr (11° C/hr)
NOTE:
NOTE: NOTE:
NOTE:
Maximum operating temperature at sea level; reduce by 1.8° F (1°
C) for each 2,000 ft (600 m) above sea level.
Humidity
HumidityHumidity
Humidity
Operating
20% to 80%
Non-operating
20% to 80%
Storage (60 days)
10% to 95%
Rate of change
20% hr
Maximum Wet Bulb
Maximum Wet BulbMaximum Wet Bulb
Maximum Wet Bulb
Temperature
TemperatureTemperature
Temperature
Operating
82° F (28° C)
Storage (60 days)
115° F (46° C)
Maximum Dew Point
Maximum Dew PointMaximum Dew Point
Maximum Dew Point
Temperature
TemperatureTemperature
Temperature
Operating
36° F (2° C)
Heat Dissipation
Heat DissipationHeat Dissipation
Heat Dissipation
Nominal
NominalNominal
Nominal
Maximum
MaximumMaximum
Maximum
Tower and Rack
980W, 3347 BTU/hr
1300 W, 4,440 BTU/hr
Pedestal
1560W, 5328 BTU/hr
2400 W. 8,196 BTU/hr
H9A10/H9A15 Cabinets
Configuration
dependent
4800 W, 16,392
BTU/hr
Air Flow and Quality
Air Flow and QualityAir Flow and Quality
Air Flow and Quality
Intake location
Front
Exhaust location
Rear Tower, Pedestal, Rack; Rear/top
H9A10/H9A15
Particle size
N/A
Concentration
N/A
Altitude
Altitude Altitude
Altitude
(unpressurized)
Operating
10,000 ft (3,048 m)
Non-operating
40,000 ft (12,192 m)
QuickSpecs
HP AlphaServer ES45
HP AlphaServer ES45HP AlphaServer ES45
HP AlphaServer ES45
Technical Specifications
DA - 10994 North America — Version 59 — May 7, 2007
Page 36
Page 37
NOTE:
NOTE: NOTE:
NOTE:
Higher altitudes are possible if maximum operating temperature is
reduced (see Temperature); other restrictions may apply such as maximum
permissible altitude for hard drives.
Acoustics
Acoustics Acoustics
Acoustics
(Declared values per ISO 9296 and ISO 7779)
Acoustics
AcousticsAcoustics
Acoustics
LLLL
WAd3
BBBB
LLLL
nAm5
dBA
dBAdBA
dBA
(bystander position)
Tower or
Rackmount
Idle
6.4
47
Operating
6.4
47
Pedestal
Idle
6.6
48
Operating
6.6
48
NOTE:
NOTE:NOTE:
NOTE:
Current values for specific configurations are available, 1 B = 10
dBA.
Vibration
VibrationVibration
Vibration
Operating
10 to 500 Hz 0.1 G peak
Non-operating
1.03 Grms 5-300 Hz
Electrical
ElectricalElectrical
Electrical
(Power supplies are universal, PFC, auto ranging, 100/240 VAC)
Nominal Voltage
Nominal Voltage Nominal Voltage
Nominal Voltage
(VAC)
200 to 240
Voltage Range
Voltage RangeVoltage Range
Voltage Range
(VAC)
(temporary condition)
180 to 250
Power Source Phase
Power Source PhasePower Source Phase
Power Source Phase
Single
Nominal Frequency
Nominal FrequencyNominal Frequency
Nominal Frequency
(Hz)
50/60
Frequency Range
Frequency Range Frequency Range
Frequency Range
(Hz)
47 to 53/57 to 63
Maximum Inrush Current
Maximum Inrush CurrentMaximum Inrush Current
Maximum Inrush Current
Tower and Rackmount
Single power cord
5.6A
Multiple power cords
3.6A
Maximum VA
1440
Pedestal
Each power cord
8.6A
Maximum VA
2070
M-Series Cabinet
(configuration dependent)
Nominal voltage (VAC)
200 to 240
Each power cord
16A
Power Cords
Power CordsPower Cords
Power Cords
Tower (mandatory)
Up to 3
(Country specific)
IEC 320 to
country-specific
Pedestal (mandatory)
2
(Country specific)
IEC 320 C13 to
country-specific
Rackmount (included)
3
(14 ft 10 in/52 cm)
IEC 320 C13 to IEC
320 C14
Cabinet (included)
Up to 4
(10 ft /305 cm)
200-240 V
non-removable NEMA
L6-20P for North
America or 200-240 V
non-removable IEC 309
Regulatory
RegulatoryRegulatory
Regulatory
Agency Approvals
UL: Listed to UL1950 3rd edition
UL CNL: Certified to CAN/CSA-C22.2
No. 950-1995
TUV: EN 60950/A11:1997, GS marked
QuickSpecs
HP AlphaServer ES45
HP AlphaServer ES45HP AlphaServer ES45
HP AlphaServer ES45
Technical Specifications
DA - 10994 North America — Version 59 — May 7, 2007
Page 37
Page 38
FCC: Part 15.B Class A
IC ICES-003 Class A
CE: EN55022:1998, EN55024:1998,
EN61000-3-2:1995, EN61000-3-3:1995
VCCI:V-3/97.04 Class A
BSMI: CNS13438 Class A
C-Tick: AS/NZS 3548:1995 Class A
Reviewed to
AS/NZ 3260:1993 Australian/New Zealand
Standard
EN 60950:2000
IEC 60950:1999, 3rd edition
UL 60950, 3rd edition, 2000
© Copyright 2001-2007 Hewlett-Packard Development Company, L.P.
The information contained herein is subject to change without notice.
UNIX is a registered trademark or trademark of The Open Group in the U.S. and/or other countries. The only warranties for HP
products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein
should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions
contained herein.
QuickSpecs
HP AlphaServer ES45
HP AlphaServer ES45HP AlphaServer ES45
HP AlphaServer ES45
Technical Specifications
DA - 10994 North America — Version 59 — May 7, 2007
Page 38
Loading...
