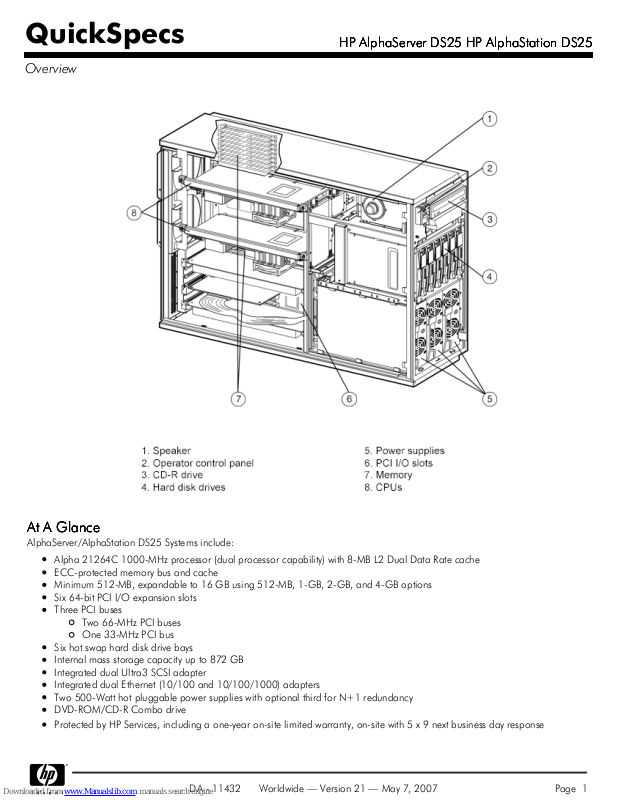

HP AlphaServer DS25, AlphaStation DS25 Quickspecs

At A Glance

At A GlanceAt A Glance

At A Glance

AlphaServer/AlphaStation DS25 Systems include:

Alpha 21264C 1000-MHz processor (dual processor capability) with 8-MB L2 Dual Data Rate cache
ECC-protected memory bus and cache
Minimum 512-MB, expandable to 16 GB using 512-MB, 1-GB, 2-GB, and 4-GB options
Six 64-bit PCI I/O expansion slots
Three PCI buses

Two 66-MHz PCI buses

One 33-MHz PCI bus
Six hot swap hard disk drive bays
Internal mass storage capacity up to 872 GB
Integrated dual Ultra3 SCSI adapter
Integrated dual Ethernet (10/100 and 10/100/1000) adapters
Two 500-Watt hot pluggable power supplies with optional third for N+1 redundancy
DVD-ROM/CD-R Combo drive

Protected by HP Services, including a one-year on-site limited warranty, on-site with 5 x 9 next business day response

QuickSpecs

HP AlphaServer DS25 HP AlphaStation DS25

HP AlphaServer DS25 HP AlphaStation DS25HP AlphaServer DS25 HP AlphaStation DS25

HP AlphaServer DS25 HP AlphaStation DS25

Overview

DA - 11432 Worldwide — Version 21 — May 7, 2007

Page 1

Processor

ProcessorProcessor

Processor

Alpha 21264C 1000-MHz processor

Cache Memory

Cache MemoryCache Memory

Cache Memory

8-MB level 2 dual data rate cache per processor

Upgradability

UpgradabilityUpgradability

Upgradability

System upgradeable to dual processing

Memory

MemoryMemory

Memory

Minimum

512-MB

Maximum

16 GB

Network Controller

Network ControllerNetwork Controller

Network Controller

Integrated dual Ethernet adapters (one 10/100 and one 10/100/1000)

Expansion

ExpansionExpansion

Expansion

PCI I/O slots

6 total slots

- Slots 1-4 run @ 64-bit/66 MHz

- Slots 5 and 6 run @ 64-bit/33 MHz

Storage Controller

Storage ControllerStorage Controller

Storage Controller

Integrated dual Ultra3 SCSI adapter

Storage

StorageStorage

Storage

CD-R

IDE DVD-ROM/CD-R Combo Drive

Internal Hard
Drives

Choice of 36.4-GB, 72.8-GB, 146-GB, or 300-GB drives

Maximum
Internal Storage

872 GB

Interfaces

InterfacesInterfaces

Interfaces

Parallel

1

Serial

2

Pointing Device
(Mouse)

1

Keyboard

1

SCSI knockouts
on rear of chassis

2 SCSI knockouts, 1 used by one channel on onboard Adaptec

Ethernet

2 (10/100 and 10/100/1000)

Form Factor

Form FactorForm Factor

Form Factor

Rackmount or Tower

Manageability

ManageabilityManageability

Manageability

Insight Manager

Power Supply

Power SupplyPower Supply

Power Supply

Two 500-Watt hot plug power supplies, standard; optional third N+1 for redundancy
hot-plug redundant power supply support; hot-plug fan support

QuickSpecs

HP AlphaServer DS25 HP AlphaStation DS25

HP AlphaServer DS25 HP AlphaStation DS25HP AlphaServer DS25 HP AlphaStation DS25

HP AlphaServer DS25 HP AlphaStation DS25

Standard Features

DA - 11432 Worldwide — Version 21 — May 7, 2007

Page 2

OS Support

OS SupportOS Support

OS Support

AlphaServer DS25 Tru64 UNIX systems include pre-installed software, Base license, Unlimited User
license, Server Extension license, Internet Express, and Secure Web Server
AlphaStation DS25 Tru64 UNIX systems include pre-installed software, 2-user Base license.
AlphaServer DS25 OpenVMS systems include pre-installed software, Base license with System Manager
license and Enterprise Integration Server License Package for OpenVMS
AlphaStation DS25 OpenVMS systems include pre-installed software, Base license,
Concurrent Use1-user license, NAS 150 Client license
Minimum OS support: Tru64 UNIX V5.1A NHD5, OpenVMS V7.3-1

Service and Support

Service and SupportService and Support

Service and Support

Protected by HP Services including a one-year on-site hardware warranty with next business day
response. Training, consulting, network integration, software support, comprehensive system
maintenance and guaranteed uptime services are also available for customers requiring higher levels of
service and support

QuickSpecs

HP AlphaServer DS25 HP AlphaStation DS25

HP AlphaServer DS25 HP AlphaStation DS25HP AlphaServer DS25 HP AlphaStation DS25

HP AlphaServer DS25 HP AlphaStation DS25

Standard Features

DA - 11432 Worldwide — Version 21 — May 7, 2007

Page 3

PCI Configuration

PCI ConfigurationPCI Configuration

PCI Configuration
Guidelines

GuidelinesGuidelines

Guidelines

Modules designed for 5.0V signaling and 33-MHz bus speed can only operate in

5.0V/33-MHz slots (slots 5 and 6).
A maximum of two 5V modules can be installed in the system.
Modules designed for 3.3 V signaling and 66-MHz bus speed can only operate in
66-MHz slots (slots 1, 2, 3, 4).
Universal PCI modules can operate in all slots (3.3V and 5.0V).
Universal PCI modules can operate at a maximum bus speed of 33 MHz or
66 MHz.
Universal PCI modules operating at 33 MHz placed in a 66-MHz slot will reduce the
entire hose to operate at 33 MHz.
Universal PCI modules capable of operating at 66 MHz when placed in a 33-MHz
slot will operate at 33 MHz.

PCI Module Descriptions

PCI Module DescriptionsPCI Module Descriptions

PCI Module Descriptions

:
PCI modules listed in this document as 33 MHz or 66 MHz refers to the module's maximum
PCI bus speed.

Modules that can only operate at 5V are designated as 5V – 33-MHz modules.
Universal PCI modules are designated as 3.3/5V and can be installed into 33-MHz
or 66-MHz slots.

The AlphaServer DS25 provides three PCI buses (hoses) that drive the six slots. A fourth
hose drives the on-board Gbit Ethernet and dual channel Ultra3 SCSI adapter.

Hose 0 – 33 MHz driving slots 5 and 6
Hose 3 – 66 MHz driving slots 3 and 4
Hose 1 – 66 MHz driving slots 1 and 2

The DS25 PCI bus and slot specifications follow:

PCI Slot

PCI SlotPCI Slot

PCI Slot

PCI Bus Speed

PCI Bus SpeedPCI Bus Speed

PCI Bus Speed

Signal Voltage

Signal VoltageSignal Voltage

Signal Voltage

PCI Hose Number

PCI Hose NumberPCI Hose Number

PCI Hose Number

1

66 MHz

3.3V

1

2

66 MHz

3.3V

1

3

66 MHz

3.3V

3

4

66 MHz

3.3V

3

5

33 MHz

5.0V

0

6

33 MHz

5.0V

0

Step 1 – Select system

Step 1 – Select systemStep 1 – Select system

Step 1 – Select system

AlphaServer/AlphaStation DS25 systems require the

mandatory

mandatorymandatory

mandatory

selection of the following items:

System memory (Step 2a)
Pedestal/tower or rackmount bezel kit (Step 2b)
Disk drive cage (Step 2c)
System disk drive (Step 2d)
Two power cords (Step 2e)
Order country-specific keyboard and mouse only if required. (Step 14)
Software media and documentation for first system onsite. (Step 16)

NOTES

NOTESNOTES

NOTES

: DS25 minimum OS support - Tru64 UNIX V5.1A NHD5, OpenVMS V7.3-1.

Only 2-5-2 part numbers are factory integrated.

QuickSpecs

HP AlphaServer DS25 HP AlphaStation DS25

HP AlphaServer DS25 HP AlphaStation DS25HP AlphaServer DS25 HP AlphaStation DS25

HP AlphaServer DS25 HP AlphaStation DS25

Systems

DA - 11432 Worldwide — Version 21 — May 7, 2007

Page 4

AlphaServer DS25 Systems

AlphaServer DS25 SystemsAlphaServer DS25 Systems

AlphaServer DS25 Systems

OS

OSOS

OS

CPU

CPUCPU

CPU

Order Number

Order NumberOrder Number

Order Number

Tru64 UNIX

1000 MHz

DA-57AAB-AA

OpenVMS

1000 MHz

DY-57AAB-AA

AlphaStation DS25 Systems

AlphaStation DS25 SystemsAlphaStation DS25 Systems

AlphaStation DS25 Systems

Tru64 UNIX

1000 MHz

DA-57AAB-AW

OpenVMS

1000 MHz

DY-57AAB-AW

Step 2 – Select Mandatory Options

Step 2 – Select Mandatory OptionsStep 2 – Select Mandatory Options

Step 2 – Select Mandatory Options

Step 2a – Memory – Mandatory

Step 2a – Memory – MandatoryStep 2a – Memory – Mandatory

Step 2a – Memory – Mandatory

System does not include memory; selection of one memory option for each system is mandatory. Up to
three additional memory options can be added for a total of 16 GB. (In earlier (D*-57AAA-**) models,
configurations with more than 8 GB require three power supplies; N+1 functionality is not supported in
configurations with over 8 GB.)

512-MB memory option (4 x 128-MB DIMMs)

3X-MS350-CA

1-GB memory option (4 x 256-MB DIMMs)

3X-MS350-DA

2-GB memory option (4 x 512-MB DIMMs)

3X-MS350-EA

4-GB memory option (4 x 1-GB DIMMs)

3X-MS350-FA

Step 2b – Bezel Kits – Mandatory

Step 2b – Bezel Kits – MandatoryStep 2b – Bezel Kits – Mandatory

Step 2b – Bezel Kits – Mandatory

Pedestal/Tower kit or Rackmount kit is mandatory for each system

Pedestal/Tower bezel kit

3X-BA57P-PA

Rackmount bezel kit (M-Series Cabinets)

3X-BA57R-RA

Rackmount bezel kit for 10000 Series Cabinets

3X-BA57R-RC

Step 2c – Disk Drive Cage – Mandatory

Step 2c – Disk Drive Cage – MandatoryStep 2c – Disk Drive Cage – Mandatory

Step 2c – Disk Drive Cage – Mandatory

Systems support one disk drive cage; disk drive cage supports six 1-inch hard disk drives or a
combination of 1-inch disk drives and hot-plug Universal tape devices. Each tape device uses two slots
in the BA610-6D.

6-bay disk drive cage

BA610-6D

QuickSpecs

HP AlphaServer DS25 HP AlphaStation DS25

HP AlphaServer DS25 HP AlphaStation DS25HP AlphaServer DS25 HP AlphaStation DS25

HP AlphaServer DS25 HP AlphaStation DS25

Systems

DA - 11432 Worldwide — Version 21 — May 7, 2007

Page 5

Step 2d – System Disk Drive (Supported in Disk Drive Cage) – Mandatory

Step 2d – System Disk Drive (Supported in Disk Drive Cage) – MandatoryStep 2d – System Disk Drive (Supported in Disk Drive Cage) – Mandatory

Step 2d – System Disk Drive (Supported in Disk Drive Cage) – Mandatory

Selection of one disk drive is mandatory

36.4-GB Ultra320 SCSI 15,000 rpm 1-inch Universal disk drive

3R-A3849-AA

72.8-GB Ultra320 SCSI 10,000 rpm 1-inch Universal disk drive

3R-A3839-AA

72.8-GB Ultra320 SCSI 15,000 rpm 1-inch Universal disk drive

3R-A3851-AA

146-GB Ultra320 SCSI 15,000 rpm 1-inch Universal disk drive

3R-A4945-AA

146-GB Ultra320 SCSI 10,000 rpm 1-inch Universal disk drive

3R-A3841-AA

300-GB Ultra320 SCSI 10,000 rpm 1-inch Universal disk drive

3R-A4952-AA

300-GB Ultra320 SCSI 15,000 rpm 1-inch Universal disk drive

3R-A6726-AA

Step 2e – Power Cords – Mandatory

Step 2e – Power Cords – MandatoryStep 2e – Power Cords – Mandatory

Step 2e – Power Cords – Mandatory

Selection of two power cords is mandatory for all systems

Pedestal Power Cords

Pedestal Power CordsPedestal Power Cords

Pedestal Power Cords

North America, 120V, 75-inches

BN26J-1K

Australia, New Zealand, China, 2.5-meter

3R-A6023-AA

Central Europe, 2.5-meter

BN19C-2E

Denmark, 2.5-meter

BN19K-2E

Egypt, India, South Africa, 2.5-meter

BN19S-2E

Israel, 2.5-meter

3R-6883-AA

Italy, 2.5-meter

BN19M-2E

Japan, 2.5-meter

3X-BN46F-02

Switzerland, 2.5-meter

BN19E-2E

UK, Ireland, 2.5-meter

BN19A-2E

Republic of China

BN19H-2E

Rackmount Power Cords

Rackmount Power CordsRackmount Power Cords

Rackmount Power Cords

All Countries

BN35S-4E

QuickSpecs

HP AlphaServer DS25 HP AlphaStation DS25

HP AlphaServer DS25 HP AlphaStation DS25HP AlphaServer DS25 HP AlphaStation DS25

HP AlphaServer DS25 HP AlphaStation DS25

Systems

DA - 11432 Worldwide — Version 21 — May 7, 2007

Page 6

Step 3 – Additional CPU Modules – Optional

Step 3 – Additional CPU Modules – OptionalStep 3 – Additional CPU Modules – Optional

Step 3 – Additional CPU Modules – Optional

One 68/1000-MHz CPU included, one additional CPU supported

SMP upgrade includes one 68/1000-MHz CPU with 8-MB cache and Tru64 UNIX
SMP license

3X-KN410-CB

SMP upgrade includes one 68/1000-MHz CPU with 8-MB cache and OpenVMS SMP
license

3X-KN410-CC

Step 4 – Additional Power Supplies – Optional

Step 4 – Additional Power Supplies – OptionalStep 4 – Additional Power Supplies – Optional

Step 4 – Additional Power Supplies – Optional

Two 500-watt power supplies included with system; optional third power supply provides N+1 redundancy
(power cord not included, select power cord from Step 2e). Earlier (D*-57AAA-**) models with 375-watt
power supplies require three power supplies when configured with greater than 8 GB of memory. N+1
functionality is not supported in earlier models in configurations with over 8 GB.

DS25 500-watt redundant power supply

3X-H7911-AA

Step 5 – Internal Tape Storage – Optional

Step 5 – Internal Tape Storage – OptionalStep 5 – Internal Tape Storage – Optional

Step 5 – Internal Tape Storage – Optional

BA610-6D drive cage drives connected to integrated Ultra3 SCSI adapter supports LVD Universal tape.
Each device uses two slots.

DAT 20/40-GB hot-plug LVD tape drive, carbon black; uses two slots in BA610-6D or
43xxx shelves (Q1546A) (cannot be sold in Europe)

3R-A4745-AA

DAT 36/72-GB hot-plug LVD tape drive, carbon black; uses two slots in BA610-6D or
43xxx shelves (Q1529A) (cannot be sold in Europe)

3R-A4547-AA

Step 6 – External Storage – Optional

Step 6 – External Storage – OptionalStep 6 – External Storage – Optional

Step 6 – External Storage – Optional

StorageWorks Model 4314R and Model 4354R Universal Drive Shelves

StorageWorks Model 4314R and Model 4354R Universal Drive ShelvesStorageWorks Model 4314R and Model 4354R Universal Drive Shelves

StorageWorks Model 4314R and Model 4354R Universal Drive Shelves

StorageWorks Model 4314R, 4314T, and 4354R Ultra3 SCSI (LVD) single-bus and split-bus Universal drive
shelves; refer to StorageWorks Enclosure 4300 Family QuickSpecs when configuring shelves. When
selecting a DS-SL13R-Bx split-bus shelf, two SCSI channels are required. BN38C-xx cable is required when
connecting to embedded Ultra3 SCSI adapter. Note that the depth of a DS-SL13R-xx shelf does not allow
front and rear mounting.

StorageWorks Model 4314R Ultra3 SCSI (LVD) single-bus Universal drive rackmount
shelf, includes one power supply, U.S./International

DS-SL13R-AA

StorageWorks Model 4314R Ultra3 SCSI (LVD) single-bus Universal drive rackmount
shelf, includes one power supply, Japan

DS-SL13R-AJ

StorageWorks Model 4354R Ultra3 SCSI (LVD) split-bus Universal drive rackmount
shelf, includes two redundant power supplies, U.S./International

DS-SL13R-BA

StorageWorks Model 4354R Ultra3 SCSI (LVD) split-bus Universal drive rackmount
shelf, includes two redundant power supplies, Japan

DS-SL13R-BJ

StorageWorks Modular Storage Array 30

StorageWorks Modular Storage Array 30StorageWorks Modular Storage Array 30

StorageWorks Modular Storage Array 30

(MSA30)

Universal Drive Shelves

Universal Drive ShelvesUniversal Drive Shelves

Universal Drive Shelves

QuickSpecs

HP AlphaServer DS25 HP AlphaStation DS25

HP AlphaServer DS25 HP AlphaStation DS25HP AlphaServer DS25 HP AlphaStation DS25

HP AlphaServer DS25 HP AlphaStation DS25

Options

DA - 11432 Worldwide — Version 21 — May 7, 2007

Page 7

See Step 9 for rack configurations with M-Series and Series 10000 cabinets
StorageWorks Model 4414R and 4454R Ultra320 single-bus and split-bus Universal drive shelves; refer to
StorageWorks Modular Storage Array 30 Family QuickSpecs when configuring shelves. When selecting a
3R-A4076-AA split-bus shelf, two SCSI channels are required from selected storage adapters. BN38C-05
cable is required per channel if the connection is not VHDCI/VHDCI.
MSA30 shelves are not currently supported in SCSI cluster configurations
For OpenVMS 7.3-2, DEC-AXPVMS-VMS732_FIBRE_SCSI-V0100-4.PCSI is required to support dual-port
I/O module (287483-B21) and/or the MSA30DB dual bus enclosure (3R-A4076-AA) in an OpenVMS
cluster environment
Hardware to mount into a Series 10000 cabinet is included. When mounting into an M-Series cabinet a rail
kit (3R-A5281-AA/313877-B21) must be ordered separately

StorageWorks Modular Smart Array SW4414R Single Bus Ultra320 Rackmountable
SCSI disk drive, 4-node Storage Enclosure (302969-B21). Includes one 12-foot
VHDCI/VHDCI SCSI cable and two IEC-C13 power cords. See Supported Options List
for configuration details --

http://h18002.www1.hp.com/alphaserver/options/ases45/ases45_options.html

3R-A4075-AA

StorageWorks Modular Smart Array SW4454R Dual Bus Ultra320 Rackmountable
SCSI disk drive, 4-node Storage Enclosure (302970-B21). Includes two 12-foot
VHDCI/VHDCI SCSI cables and two IEC-C13 power cords. See Supported Options
List for configuration details --

http://h18002.www1.hp.com/alphaserver/options/ases45/ases45_options.html

3R-A4076-AA

M-series Rack Rail Kit Option

3R-A5281-AA

313877-B21

NOTE:

NOTE: NOTE:

NOTE:

The 3R-A4075-AA and 3R-A4076-AA enclosures are not supported in a

shared-SCSI cluster using the 3X-KZPEA-DB adapter.

Step 7 – Storage Devices – Optional

Step 7 – Storage Devices – OptionalStep 7 – Storage Devices – Optional

Step 7 – Storage Devices – Optional

Disk Drives

Disk DrivesDisk Drives

Disk Drives
(Supported in Model
4314R and Model 4354R
Universal Drive Shelves)

36.4-GB Ultra320 SCSI 15,000 rpm 1-inch Universal disk drive

3R-A3849-AA

72.8-GB Ultra320 SCSI 10,000 rpm 1-inch Universal disk drive

3R-A3839-AA

72.8-GB Ultra320 SCSI 15,000 rpm 1-inch Universal disk drive

3R-A3851-AA

146-GB Ultra320 SCSI 10,000 rpm 1-inch Universal disk drive

3R-A3841-AA

146-GB Ultra320 SCSI 15,000 rpm 1-inch Universal disk drive

3R-A4945-AA

300-GB Ultra320 SCSI 10,000 rpm 1-inch Universal disk drive

3R-A4952-AA

300-GB Ultra320 SCSI 15,000 rpm 1-inch Universal disk drive

3R-A6726-AA

UltraSCSI Configuration

UltraSCSI ConfigurationUltraSCSI Configuration

UltraSCSI Configuration
Rules

RulesRules

Rules

UltraSCSI configurations require UltraSCSI components (controllers, adapters, shelves, disks, and
cables)
UltraSCSI adapters and RAID controllers support UltraSCSI disks at UltraSCSI speeds in UltraSCSI
shelves
Mixing faster SCSI devices with slower SCSI devices will slow that entire SCSI bus to the slower
speed.

Tape Drives

Tape DrivesTape Drives

Tape Drives

Tabletop tape drives require LVD host bus adapter and country-specific power cord
Tape media may not be included, for more information see

http://www.compaq.com/storage/productindextape.html

QuickSpecs

HP AlphaServer DS25 HP AlphaStation DS25

HP AlphaServer DS25 HP AlphaStation DS25HP AlphaServer DS25 HP AlphaStation DS25

HP AlphaServer DS25 HP AlphaStation DS25

Options

DA - 11432 Worldwide — Version 21 — May 7, 2007

Page 8

DAT Tape Drives

DAT Tape DrivesDAT Tape Drives

DAT Tape Drives

DAT 40-GB LVD tape drive, tabletop, with North America power cord

C5687D

DAT 72-GB LVD tape drive, tabletop, with North America power cord

Q1523B

DAT Autoloaders

DAT AutoloadersDAT Autoloaders

DAT Autoloaders

DAT 20/40-GB autoloader, external

AE313A

DLT/SDLT Tabletop Tape

DLT/SDLT Tabletop TapeDLT/SDLT Tabletop Tape

DLT/SDLT Tabletop Tape
Drives

DrivesDrives

Drives

SDLT 600-GB external tape drive; NA

A7519B

SDLT 600-GB external tape drive, WW

A7520B

VS160 HH DLT 80/160GB external tape drive, NA

A7570B

VS160 HH DLT 80/160GB external tape drive, WW

A7571B

3U Rackmount Tape

3U Rackmount Tape3U Rackmount Tape

3U Rackmount Tape
Drive Enclosure

Drive EnclosureDrive Enclosure

Drive Enclosure

3U LVD Rackmount Tape Drive Enclosure for use in H9Axx M-Series Cabinets, 0
drives, carbon black

274338-B21

Rackmount Kit for H9Axx M-Series Cabinets, carbon black - required for mounting 3U
Rackmount Tape Drive Enclosure in M-Series cabinet

3R-A3804-AA

NOTE:

NOTE: NOTE:

NOTE:

The 3U Rackmount Tape Enclosure supports up to four internal half-height
removable devices, or up to two full-height devices; select up to four DAT devices or
two DLT/SDLT devices with 3U Rackmount Tape Enclosure (274338-B21) or select one
of the preconfigured configurations listed below.

MSA1000 Modular SAN

MSA1000 Modular SANMSA1000 Modular SAN

MSA1000 Modular SAN
Array

ArrayArray

Array

MSA1000 StorageWorks Modular SAN Array. For configuration details see

http://h18002.www1.hp.com/alphaserver/products/storage/index.html

.

201723-B22

NOTE:

NOTE: NOTE:

NOTE:

Requires M-Series Rack Kit.

313877-B21

M-series Rack Kit

3R-A5281-AA

Step 8 – Storage Adapters/Controllers

Step 8 – Storage Adapters/ControllersStep 8 – Storage Adapters/Controllers

Step 8 – Storage Adapters/Controllers

NOTE:

NOTE: NOTE:

NOTE:

Refer to the following chart when configuring adapters, shelves, and disks.

DS25 Configuration Chart for Storage Adapters

DS25 Configuration Chart for Storage AdaptersDS25 Configuration Chart for Storage Adapters

DS25 Configuration Chart for Storage Adapters

QuickSpecs

HP AlphaServer DS25 HP AlphaStation DS25

HP AlphaServer DS25 HP AlphaStation DS25HP AlphaServer DS25 HP AlphaStation DS25

HP AlphaServer DS25 HP AlphaStation DS25

Options

DA - 11432 Worldwide — Version 21 — May 7, 2007

Page 9
