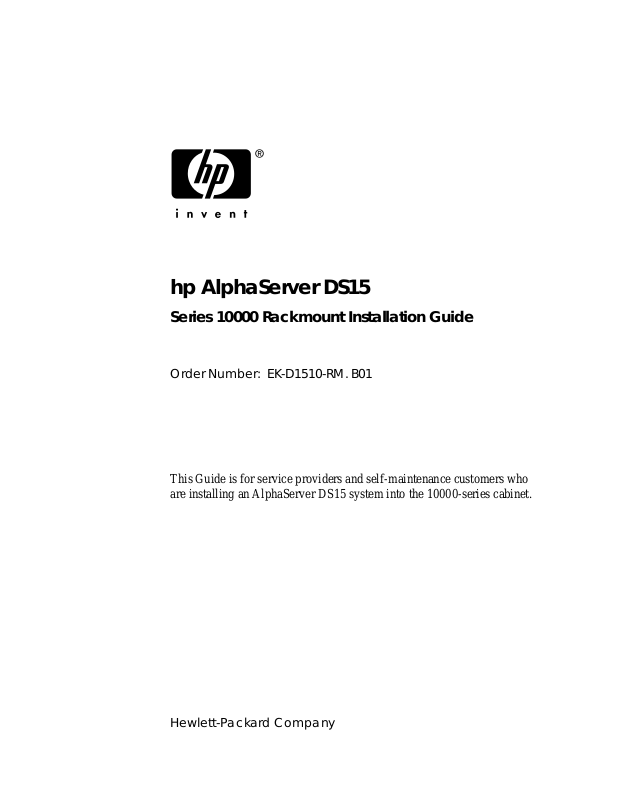

HP AlphaServer DS15 Installation Manual

hp AlphaServer DS15

Series 10000 Rackmount Installation Guide

Order Number: EK-D1510-RM. B01

This Guide is for service providers and self-maintenance customers who
are installing an AlphaServer DS15 system into the 10000-series cabinet.

Hewlett-Packard Company

August 2003

© 2003 Hewlett-Packard Company.
Linux is a registered trademark of Linus Torvalds in several countries. UNIX is a trademark of

The Open Group in the United States and other countries. All other product names mentioned
herein may be trademarks of their respective companies.

HP shall not be liable for technical or editorial errors or omissions contained herein. The
information in this document is provided “as is” without warranty of any kind and is subject to
change without notice. The warranties for HP products are set forth in the express limited
warranty statements accompanying such products. Nothing herein should be construed as
constituting an additional warranty.

FCC Notice

Part 15 of the Federal Communications Commission (FCC) Rules and Regulations has
established Radio Frequency (RF) emission limits to provide an interference-free radio
frequency spectrum. Many electronic devices, including computers, generate RF energy
incidental to their intended function and are, therefore, covered by these rules. These rules place
computers and related peripheral devices into two classes, A and B, depending upon their
intended installation. Class A devices are those that may reasonably be expected to be installed
in a business or commercial environment. Class B devices are those that may reasonably be
expected to be installed in a residential environment (i.e., personal computers). The FCC
requires devices in both classes to bear a label indicating the interference potential of the device
as well as additional operating instructions for the user.

FCC Rating Label

The rating label on the device shows which class (A or B) of the equipment. Class B devices
have an FCC ID on the label. Class A devices do not have an FCC ID on the label. After you
determined the class of the device, refer to the following corresponding statement.

Class A Equipment

This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial environment. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed and used
in accordance with the instructions, may cause harmful interference to radio communications.
Operation of this equipment in a residential area is likely to cause harmful interference, in which
case the user will be required to correct the interference at personal expense.

Class B Equipment

This equipment has been tested and found to comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to corre ct the interference by one or
more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the

receiver is connected.

• Consult the dealer or an experienced radio or television technician for help.

Declaration of Conformity for products marked with the FCC logo – United States only

This device complies with Part 15 of the FCC rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
For questions regarding your product, contact:

• Hewlett-Packard Company
P.O. Box 692000, Mail Stop 530113
Houston, Texas 77269-2000

• 1-800-652-6672 (For continuous quality improvement, calls may be recorded or
monitored.)

For questions regarding this FCC declaration, contact us by mail or telephone:

• Hewlett-Packard Company
P.O. Box 692000, Mail Stop 530113
Houston, Texas 77269-2000

• 1-281-514-3333

Modifications

The FCC requires the user to be notified that any changes or modifications made to this device
that are not expressly approved by Hewlett-Packard Company may void the user's authority to
operate the equipment.

Cables

Connections to this device must be made with shielded cables with metallic RFI/EMI connector
hoods in order to maintain compliance with FCC rules and regulations.

Mouse Compliance Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) this device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.

Canadian Notice (Avis Canadien)

Class A Equipment

This Class A digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulations.

Cet appareil numérique de la classe A respecte toutes les exigences du Règlement sur le
matériel brouilleur du Canada.

Class B Equipment

This Class B digital apparatus meets all requirements of the Canadian Interference-Causing
Equipment Regulations.

Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matériel
brouilleur du Canada.

European Union Notice

Products with the CE marking comply with the EMC Directive (89/336/EEC) and the Low
Voltage Directive (73/23/EEC) issued by the Commission of the European Community and if
this product has telecommunication functionality, the R&TTE Directive (1999/5/EC).

Compliance with these directives implies conformity to the following European Norms (in
parentheses are the equivalent international standards and regulations):

• EN55022 (CISPR 22) – Electromagnetic Interference

• EN55024 (IEC61000-4-2, 3, 4, 5, 6, 8, 11) – Electromagnetic Immunity

• EN61000-3-2 (IEC61000-3-2) – Power Line Harmonics

• EN61000-3-3 (IEC61000-3-3) – Power Line Flicker

• EN60950 (IEC60950) – Product Safety

Taiwanese Notice

Japanese Notice

Contents

Preface

..............................................................................................................................ix

Chapter 1 Rackmount Installation

1.1 Overview......................................................................................................1-1

1.2 Rackmount Guidelines.................................................................................1-1

1.3 Unpack Rackmount Box..............................................................................1-2

1.4 Determine Base Zero....................................................................................1-2

1.5 Install the Rack Rail Brackets......................................................................1-4

1.6 Attach the Rackmount Ears..........................................................................1-5

1.7 Insert and Secure the AlphaServer DS15.....................................................1-6

1.8 Check Power and Secure Cables..................................................................1-7

1.9 For More Information ..................................................................................1-8

Index
Examples
Figures

Figure 1-1 Unpacking the Rackmount Kit..........................................................................1-2

Figure 1-2 Rack Bracket Location on the Rails..................................................................1-3

Figure 1-3 Installing the Rack Brackets..............................................................................1-4

Figure 1-4 Attaching the Rackmount Ears..........................................................................1-5

Figure 1-5 Inserting and Securing the Unit.........................................................................1-6

Figure 1-6 Securing Power .................................................................................................1-8

Tables

Table 1 HP AlphaServer DS15 Documentation..........................................................ix

vii

viii

Preface

Intended Audience

This manual is for service providers and self maintenance customers of the HP AlphaServer
DS15 systems.

Document Structure

This manual uses a structured documentation design. Topics are organized into small
sections, usually consisting of two facing pages. Most topics begin with an abstract that
provides an overview of the section, followed by an illustration or example. The facing
page contains descriptions, procedures , a nd sy nt ax definitions.

This manual has 1 chapter.

• Chapter 1, Rackmount Installation, Instructions for installing the DS15 AlphaServer

into a rack system.

Documentation Titles

Table 1 HP AlphaServer DS15 Documentation

Title Order Number

hp AlphaServer DS15 and AlphaStation
DS15 Owner’s Guide

hp AlphaServer DS15 and AlphaStation
DS15 Service Guide

hp AlphaServer DS15 Series 10000
Rackmount PDU Installation Guide

hp AlphaServer DS15 10000 Rackmount
Template

EK–DS150–OG

EK–DS150–SG

EK–D1510–PD

EK–D1510–RT

Information on the Internet

Visit the AlphaServer Web site at http://h18002.www1.hp.com/alphaserver/ for service tools
and more information about the AlphaServer DS15 system.

ix

x

1.1 Overview

•

Rackmount Guidelines

Chapter 1

Rackmount Installation

Unpack Rackmount Box

•

•

Determine Base Zero
Install the Rack Brackets

•

•

Attach the Rackmount Ears

•

Insert and Secure the Unit
Check Power and Secure Cables

•

•

For More Information

!

WARNING: To prevent injury, access is limited to persons who have
appropriate technical training and experience. Such persons are expected to
understand the hazards of working within this equipment and take
measures to minimize danger to themselves or others.

1.2 Rackmount Guidelines

The hp AlphaServer DS15 is a three U unit and the PDU used is one U in size. This allows
for a maximum of 13 s ystems in a 10000-Series cabinet.

DS15 Rackmo unt Installati o n G uide 1-1

1.3 Unpack Rackmount Box

The rackmount box is one of three long boxes found in the unit’s shipping carton (see
Figure 1-1 ). It contains these instructions, two rack brackets, screws, two front brackets for
securing the unit in the rack, template, and a power cord bracket.

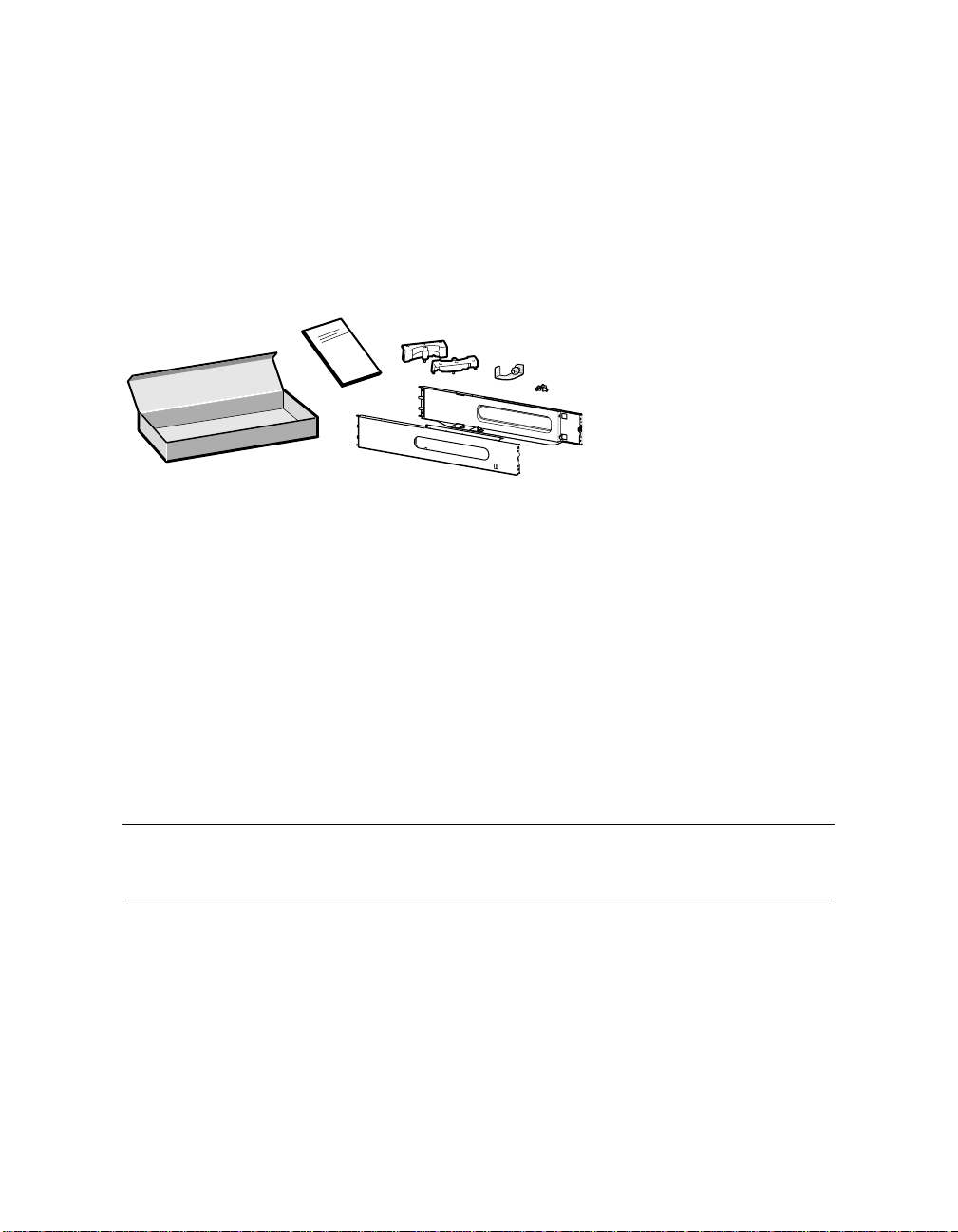

Figure 1-1 Unpacking the Rackmount Kit

MR0274A

1.4 Determine Base Zero

Decide the relative position of the AlphaServer DS15 in the rack. Base zero is where the
bottom of the unit will be when installed in the rack.

Base zero should be the horizontal centerline between the two square openings that are
closest to each other on the vertical rack rail.

If you are adding your AlphaServer DS15 to a rack already populated with other units, then
base zero is near the top of the unit that will be underneath the AlphaServer DS15 you are
installing. Each AlphaServer DS15 needs a clearance of 9 holes (square openi ngs on the
vertical rack rail) to accommodate the three U height.

NOTE: One U of space must be left on the bottom of the rack for a PDU. All population

of rack systems must begin above this one U area."

1-2 Series 10000 Rackmount Insta llation

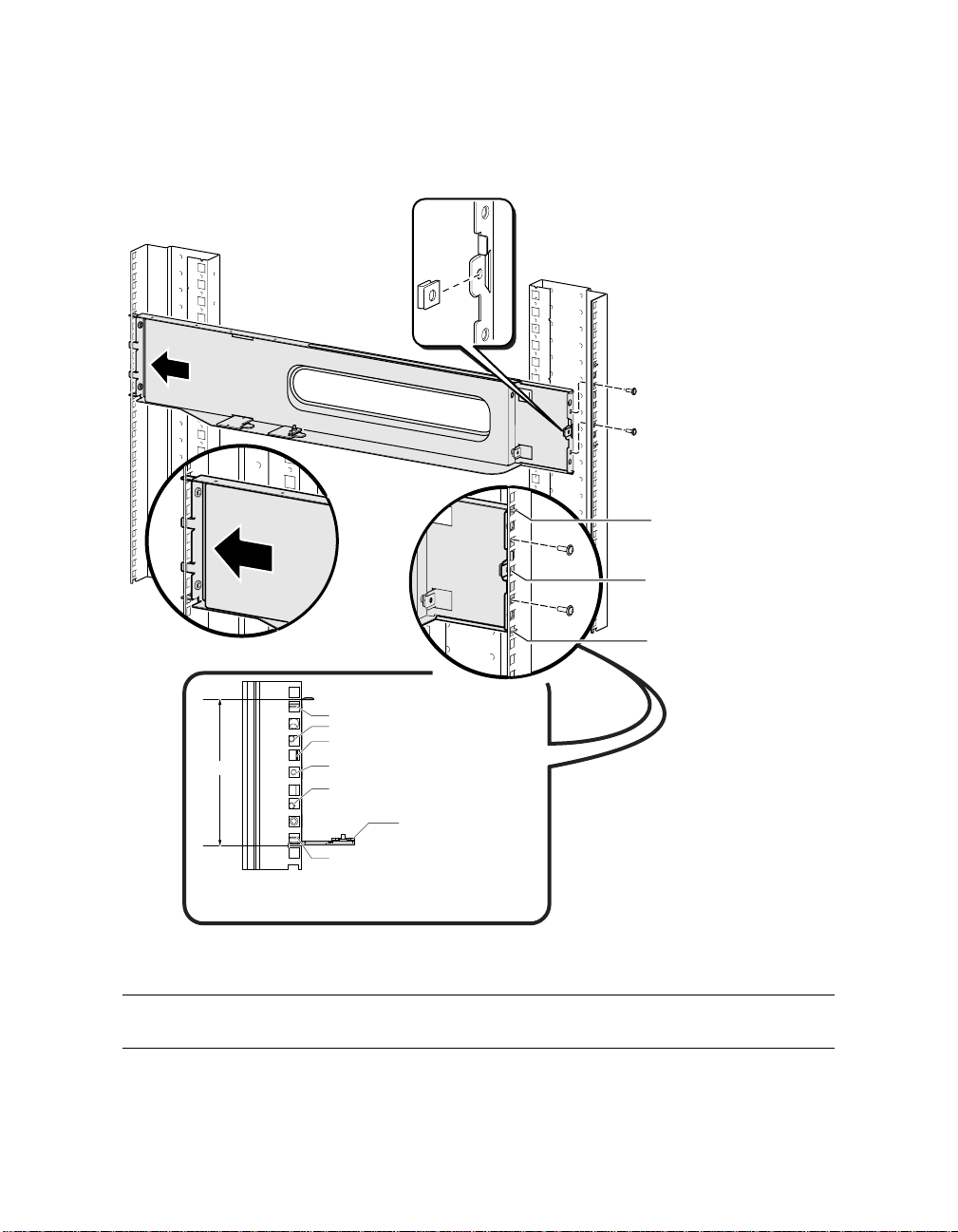

Figure 1-2 Rack Bracket Location on the Rails

Front Rack Rail

Rear Rack Rail

To p

Locating Tab (in front)
Screw attachment point (in front)
Locating Tab (in front)

3U

U-nut on Mounting Bracket
Screw attachment point (in front)

Locating Tab (in front)

U-nut on Mounting Bracket

Locating Tab (in front)

Left-side Rack Bracket

Base 0

Locating Tab (in front)

Left Rail

MR0275C

NOTE: Space must be left for a PDU which is installed on the bottom of the rack.

DS15 Rackmo unt Installati o n G uide 1-3

1.5 Install the Rack Rail Brackets

Figure 1-2 shows the correct positioning of the AlphaServer DS15 on the rack rails. To
install the rack brackets, refer to Figure 1-3 and follow these steps.

1. Insert the longer rear tabs into the corresponding openings on the rear rack rail and push
the bracket slightly toward the rear of the rack
toward the side of the cabinet aligning the shorter front tabs into their corresponding

Y

openings in the front rack rail

.

2. Use two screws to secure the front of each bracket to the front rack rail.

3. Repeat these procedures to install the other bracket in the exact same position on the
other side of the rack.

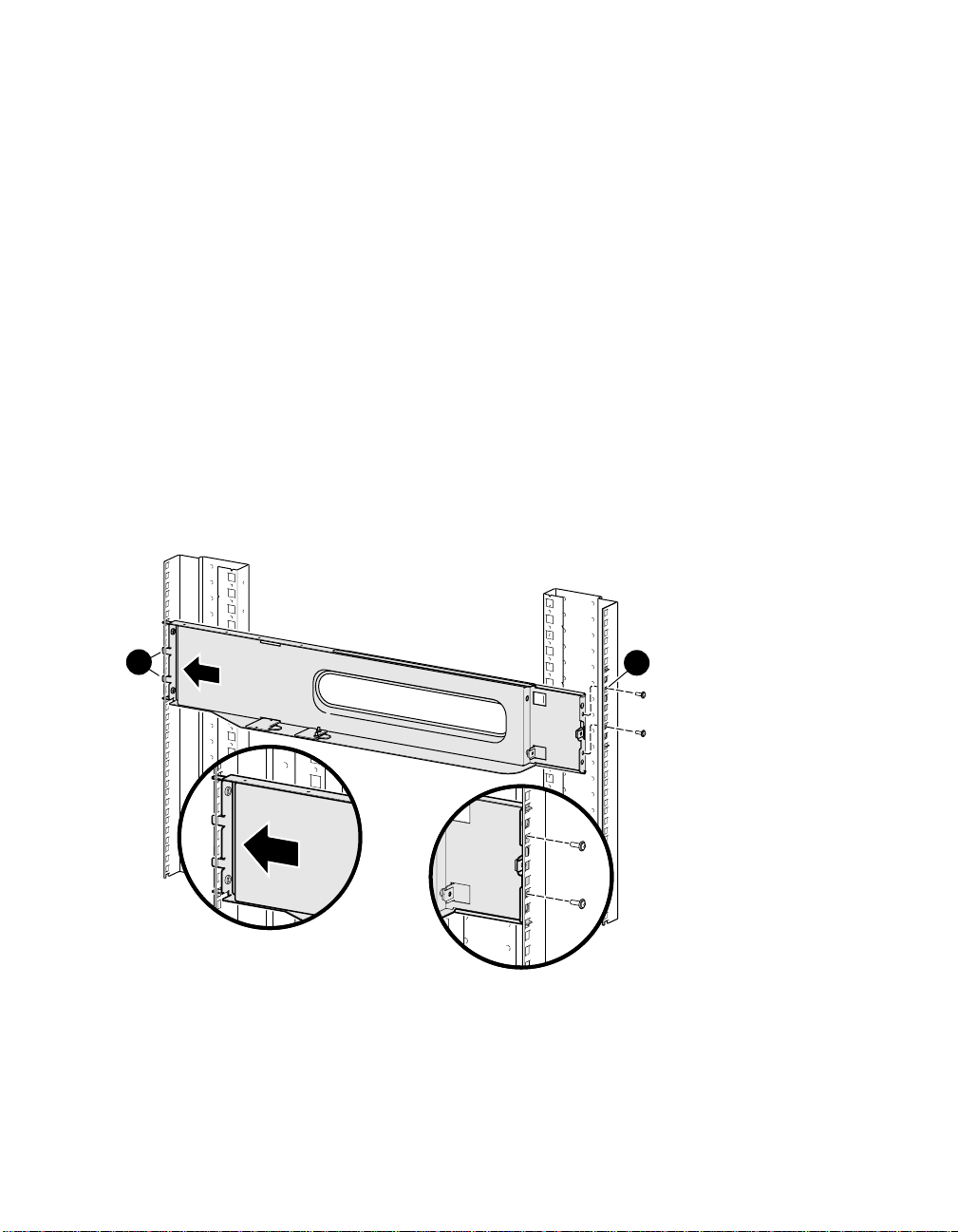

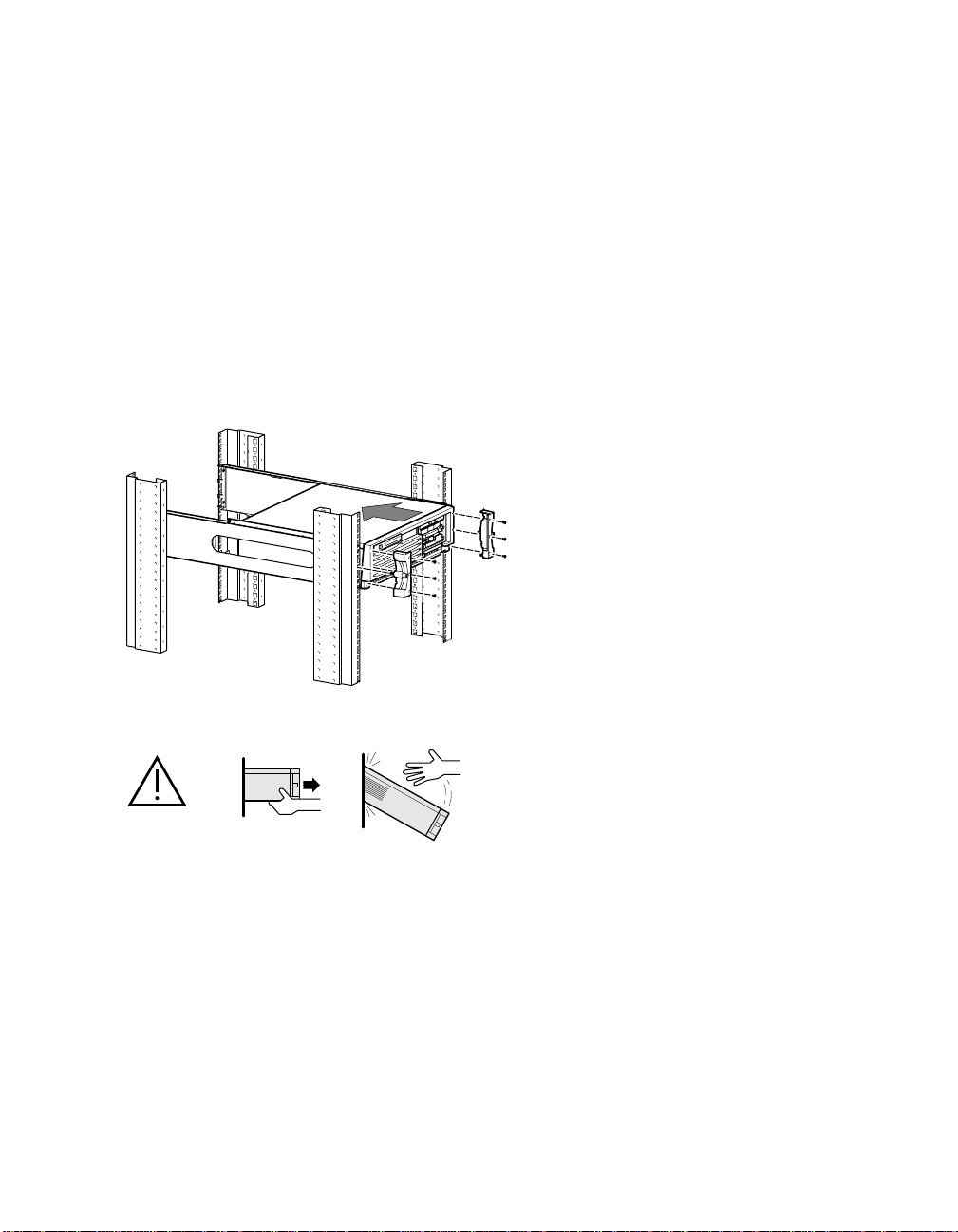

Figure 1-3 Installing the Rack Brackets

Front Rack Rail

Rear Rack Rail

X

. Pull the bracket forward and in

1

1-4 Series 10000 Rackmount Insta llation

2

MR0276A

1.6 Attach the Rackmount Ears

1. Align the three vertical holes located on the front edge of the system with the three
holes on the rackmount ears (see Figure 1-4).

2. Using a Phillips screwdriver, screw the ears onto the system. Do not apply excessive
force.

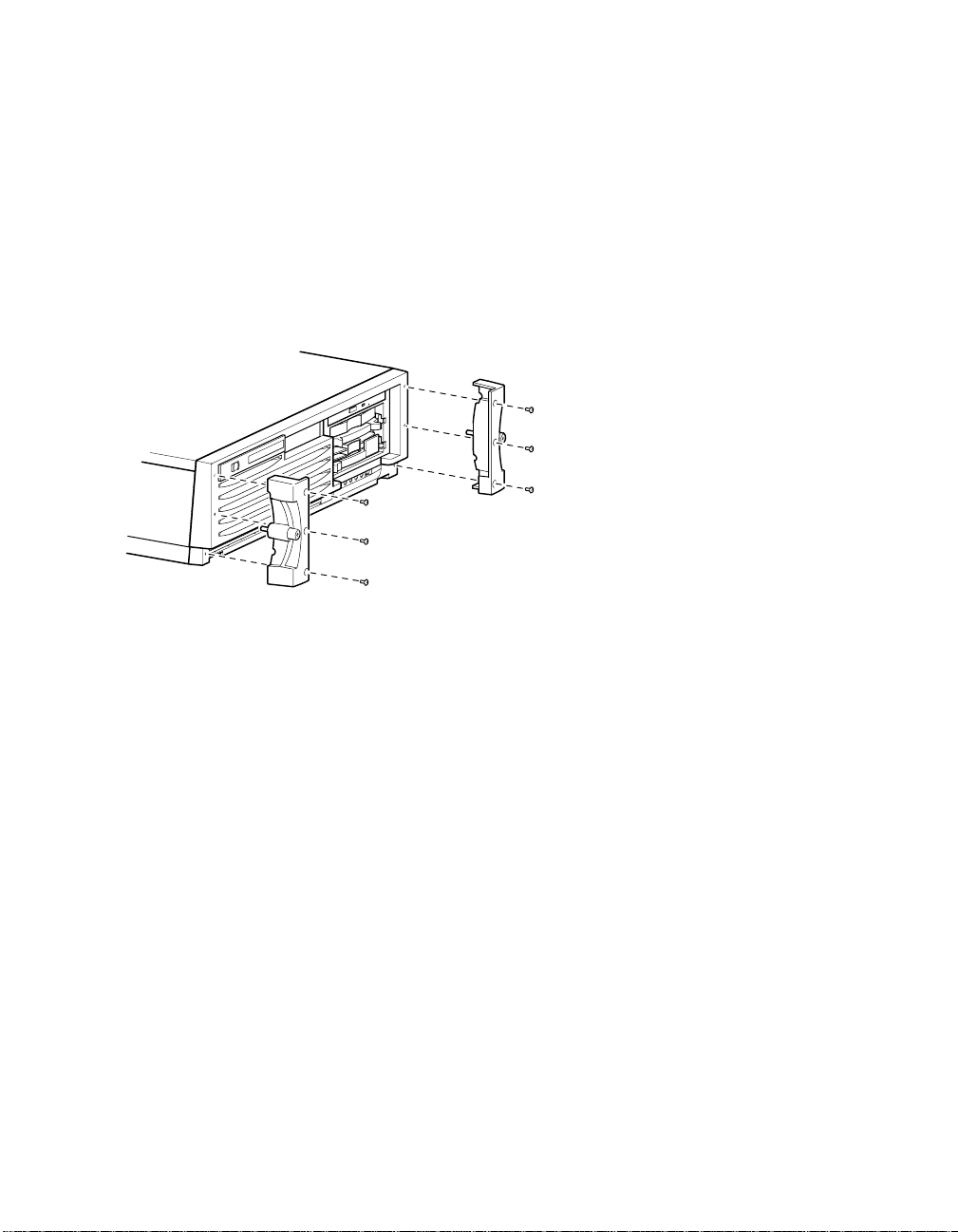

Figure 1-4 Attaching the Rackmount Ears

MR0551

DS15 Rackmo unt Installati o n G uide 1-5

1.7 Insert and Secure the AlphaServer DS15

1. Using both hands, place the AlphaServer DS15 onto the rails and push it back into the
cabinet (see Figure 1-5).

2. Push the AlphaServer DS15 back into the rack.

3. Secure the AlphaServer DS15 into the cabinet by fastening the right and left front
rackmount ears.

Figure 1-5 Inserting and Securing the Unit

MR0554A

Caution: During removal, system box not tethered.
Attention: Pendant le déplacement, le boîtier système n'est pas fixé.
Precaución: Durante el traslado, no debe atarse la caja del sistema.
Achtung: Beim Entfernen ist das Systemgehäuse nicht gesichert.

PK1037-99

1-6 Series 10000 Rackmount Insta llation

1.8 Check Power and Secure Cables

1. Remove the thumbscrew X (see Figure 1-6).

Y

2. Attach the power cord bracket with attached screw
tight.

3. Route the power cord over the back of the rail, into the cabinet side area.

4. Continue cabling. When all cabling is complete, connect power co rd
controller unit.

, turning it clockwise, but not

Z

to the power

5. To hold the power cord connector tightly in place, move the power cord bracket
over the rear of the power cord connector and tighten the attached screw Y.

[

DS15 Rackmo unt Installati o n G uide 1-7

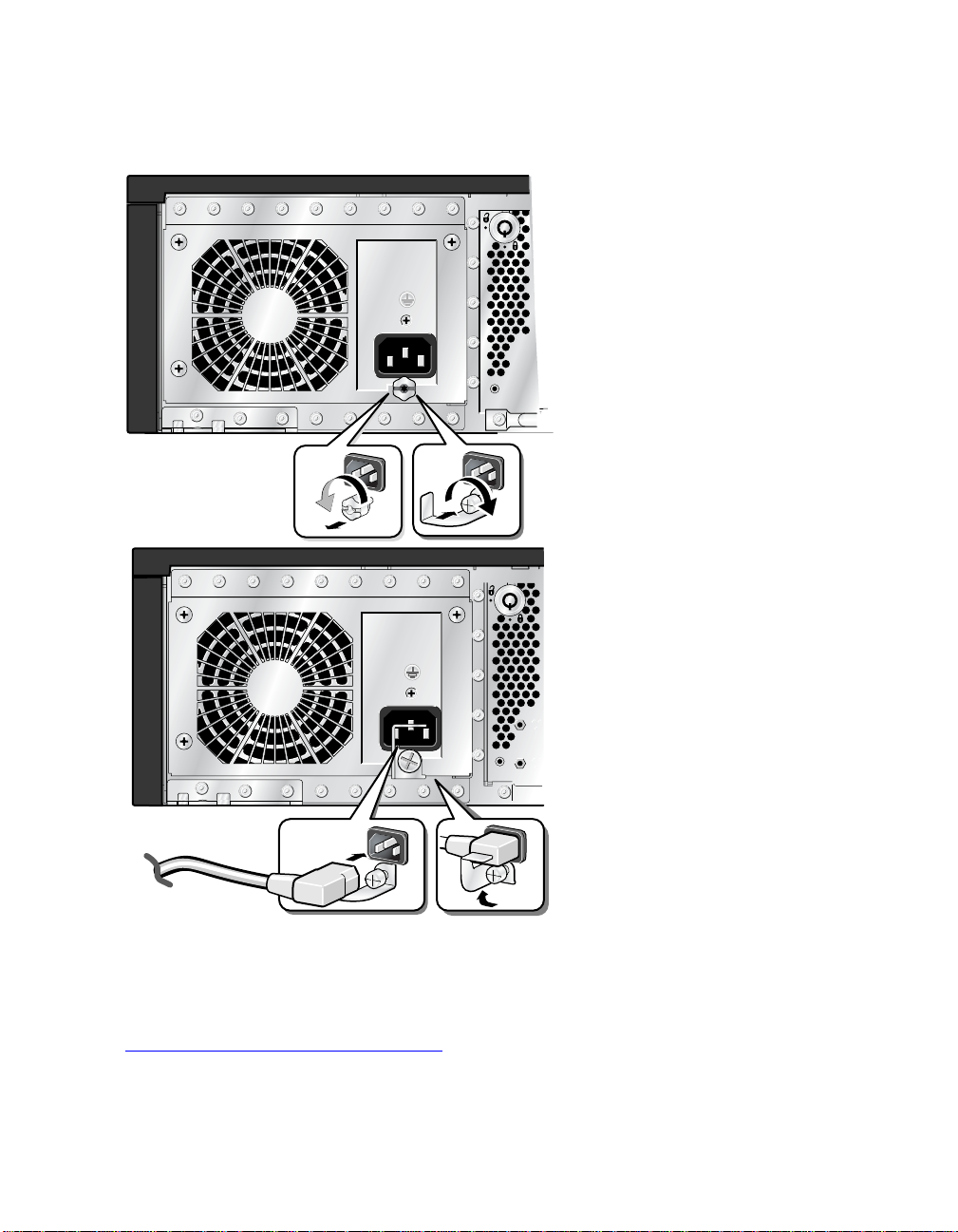

Figure 1-6 Securing Power

1 2

3

4

MR0553B

1.9 For More Information

Using a Web browser, you can access additional documentation at

http://h18003.www1.hp.com/alphaserver/

1-8 Series 10000 Rackmount Insta llation
