HP 971A Multimeter

User’s Guide

Part Number 00971-90002
March 1995

HP 971A Multimeter

Table of Contents

Safety Summary . . . . . . . . . . . . . . . 1-4

Safety Symbols . . . . . . . . . . . . . . 1-4

Maximum Overvoltage Limitations . . . 1-5

Probes and Test Leads . . . . . . . . . 1-6

Operation . . . . . . . . . . . . . . . . . . . 1-7

Terminals, Shutter, & Test Leads . . . 1-7

Function Switch . . . . . . . . . . . . . . 1-8

Function Keys . . . . . . . . . . . . . . . 1-9

Function Keys/Function Switch Matrix . . 1-12

Display . . . . . . . . . . . . . . . . . . . 1-13

Audio . . . . . . . . . . . . . . . . . . . . 1-13

Calibration and Adjustment . . . . . . . . 1-14

Required Test Equipment . . . . . . . . 1-14

Calibration Procedure . . . . . . . . . . 1-14

Maintenance . . . . . . . . . . . . . . . . . 1-15

Battery Replacement . . . . . . . . . . . 1-15

Fuse Replacement . . . . . . . . . . . . 1-15

Troubleshooting . . . . . . . . . . . . . . 1-16

Cleaning . . . . . . . . . . . . . . . . . . 1-16

Replaceable Parts/Accessories . . . . 1-16

Specifications . . . . . . . . . . . . . . . . 1-17

General . . . . . . . . . . . . . . . . . . . 1-17

DC Voltage . . . . . . . . . . . . . . . . . 1-17

AC Voltage . . . . . . . . . . . . . . . . 1-18

DC Current . . . . . . . . . . . . . . . . . 1-18

AC Current . . . . . . . . . . . . . . . . 1-19

Resistance . . . . . . . . . . . . . . . . . 1-19

Continuity . . . . . . . . . . . . . . . . . . 1-19

Diode . . . . . . . . . . . . . . . . . . . . 1-20

Temperature . . . . . . . . . . . . . . . 1-20

Frequency . . . . . . . . . . . . . . . . . 1-20

Adjustments . . . . . . . . . . . . . . . . . 6-1

Calibration Table . . . . . . . . . . . . . . . 6-2

Replaceable Parts/Accessories . . . . . . 6-4

Disassembly . . . . . . . . . . . . . . . . 6-5

Declaration of Conformity

1-3

Safety Summary

The CAUTIONS and WARNINGS w hich appe ar on the followi ng p ages mu st b e foll owed t o
ensure operator safety and to retain the operating condition of the Multimeter.

1. Do not use this product beyond its specifications or for uses not intended for this product
as identified by th e prod uct fu nctions , rang es, an d ha zard s as i ndicte d be low.

2. To minimize po ssible el ectric shoc k hazard condition , connect on ly two leads at any one
time to any of the multimeter terminals.

3. To prevent po ssible el ectric shoc k hazard condition when using the curre nt function , do not
leave one probe connected to the circuit under test and the other probe disconnected,
exposed, and rea dily acces sible (tou chab le).

Safety Symbols

Indicates the operator must refer to an explanation in this manual.

Indicates term inals at whic h danger ous volta ges may exis t.

WARNING
TO AVOID ELECTRICAL SHOCK or damage to the multi meter, do n ot app ly mor e th an

±100 0 Vdc or 100 0 Vrms betwee n any termi nal and ea rth ground . Use cauti on when wo rking with
voltages a bove 6 0 Vd c or 4 2 Vp eak. E nsure test lead s ar e in good condi tion .

WARNING
POSSIBLE EL ECTR ICAL SH OCK. Do not make meas ureme nts if the case is d amage d or the

rear cover is removed. Remove all electrical inputs before removing the rear cover.

WARNING
POSSIBLE EL ECTR ICAL SH OCK. Ca libr ation and per forma nce te sts ar e to be pe rfor med b y

qualified personnel only. Do not attempt calibration or test procedures unless qualified to do so.
CAUTION
To avoid damage to the multimete r for inputs ab ove 250 Vdc or Vac, disconnec t the test leads

before changing functions. Do not exceed the maximum input limits.

Maximum Overvoltage Limitations (AC and DC Voltage Functions)

1000V
M A X indicates the maxi mu m volt ag e betw ee n inp ut termi na ls an d eart h is ± 1000 V (dc or ac rms).

Do not use the multimeter on any ACV circuit where the maximum impulse overvoltage may
be more tha n 40 00Vpk or a ny D CV circ uit w here t he ma ximu m imp uls e over volta ge ma y be
more than 2500Vpk between the COM and VOLT terminals. Excessive impulse overvoltage
can damage the multimeter voltage functions. Do not measure branch circuits (CAT 11) over
600V to earth or servic e panel circ uits (CAT III) over 30 0V to earth.

Safety Summary

Function Maximum Operating Input

10 A

± 10 A (dc or ac rms) / 600 V

mA or µA ± 500 mA (d c or ac rms) / 25 0 V

Diode Test, Resi stance
Continuity, Temperature

660 Vrms (sin ewav e)

Frequency

660 Vrms (5 Hz to 10 kHz)
100 Vrms (10 kHz to 100 kHz)

V

± 1000 Vdc or Vrms (sinewave)

Probes and Test Leads

1. Always inspect probes before use. Do not use test leads whose insulation has cuts,

cracks, or o ther d ama ge tha t may res ult in red uced elec tric sh ock protec tion.

2. Keep insulation surface clean between the probe tip connector and the finger guards.

3. If probes other than th e ones specif ied are to be use d with the mult imeter, be sure the

probes and their leads are rated for the voltage and current to which they will be subjected.
Do not exceed the voltage ratings for the multimeter.

4. Probes supplied with this multimeter are rated for use up to 1000Vrms or Vdc.

Safety Summary

Operation

Terminals, Shutter, & Test Leads

RED LEAD

Current Measurements
(0 A to 10 A)

RED LEAD

RED LEAD

DC & AC Voltage,
Diode, Resistance, Frequency,
Temperature, and Continuity
Measurements

SAFETY SHUTTER

Slide up to open shutters
for current measurement
inputs. Must have the
function switch in one of
the Current Measurement
positions to open shutter.
Close shutter to change
function switch to any
other measurement
function.

Function Swi tch

Switch

Position

Display

10A

DC Curren t

(10 mA to 10 A)

AC Current

(10 mA to 10 A)

mA

DC Curren t

(10 µA to 0.4 A)

AC Curr ent

(10 µA to 0.4 A)

µA

DC Curren t

(0.1 µA to 4 mA)

AC Curr ent

(0.1 µA to 4 mA)

Diode Test

(0 to 2 V)

Auto Diode Test

( 0 to ± 2 V)

Ω

Resistance

(0.1 Ω to 40 MΩ)

Continuity

(alarm at < 20 Ω)

Temperature in °F
(-112° F to 302 ° F)

Temperature in °C

(-80° C to 150° C)

Hz

Frequency

(5 Hz to 99.9 kHz)

mV

DC volts

AC volt s

Operation

Function K eys

Power

Automatic power off/power save after 30 minute s. Alarm sounds 30 seconds before po wer off.
Power off if input < 80 V or < 400 mA. Power save if input > 80 V or > 400 mA, last measurement
displayed, power consumption is reduced. Press any key or change any function to cancel. Defeat
by holding the key for 2 seconds while applying power.

Relative/Percent

Press Action Main Display

Secondary

Display

Makes the l ast displa yed

measurement the reference

Each measur ed val ue relat ive t o the

reference value (difference)

Range

Calculates the percentage change

from the re ferenc e

Each measured value as a percent

change of the reference value

Range

Cancels the R elativ e/% func tion Measured v alue Range

Operation

Minimum/Maximum 1

Press Action Main Display

Secondary

2

Display

Begin recording of

minimum and maximum values

Each measured value Elapsed time

Display recorded maximum Maximum measurement Time of maximum

Display recorded minimum Minimum measurement Time of Minimum

Display las t reco rded meas ureme nt Latest mea surem ent Elapsed time

Pause recording of

minimum and maximum values

3

Holds displa y Total elapsed time

Resume reco rding of

minimum and maximum values

Each measured value Elapsed time

Press and hold 1 se cond to canc el ——

1

Automatic power off and auto ranging are disabled when Min/Max is selected. Bargraph will indicate
and hold maximum values.

2

Time is recorded and displayed in minutes up to the maxim um recording time of 1999 minutes.
Recording will stop at the maximum time.

3

The H annunciator is displayed when Min/Max recording i s paused.

Average

Press Action Main Display Secondary Display

Makes the dis played m easure ment the

average of t he la st eigh t mea surem ents

Average value of last

eight measurements

Range

Disables the av eraging of

measurements

Each measurement Range

Operation

Hold/Auto-Hold

Press Action Main Display

Secondary

Display

Holds the measur ement value i n the displa y

Measurement value when

hold pressed

Range

Enters Au to- Hol d fu ncti on

1

Input value Range

Cancels Hold functi on Measurement valu e Range

1

Auto-Hold Operation. When measurement becomes stable, multimeter will beep and save the stable
reading. Removing probe from measuring circuit will display and hold the last stable reading.

Range

Press Action Main Display

Secondary

Display

Changes from auto-ranging to manual ranging Measurement value Range

Change manu al ra nge

UP once w ith eac h ke ypre ss

1

Measurement valu e Range

Returns to auto-ranging when key is

held for 1 second

Measurement valu e Range

1 When upper range is reached, the sequence begins again at the lowest range.

Select

Press this key to use the functions indicated in blue on the multimeter. See table on page 1-8.
Hold this key to test display when turning meter on.

Operation

Function Keys and Function Switch Matrix

Function Relative

%

(Percent)

Min/Max 5 Average Data Hold4Auto-Hold Range

µA, mA

•••••••

10A

••••••

•• • •

•

Ω

•

1

••••••

•

°F, °C

2

•• •

Hz

2

••3

mV

•• • • • •

mV

•• • • • •

V

•••••••

V

•••••••

1

Invokes zero adjust when display is less than 9.9 Ω.

2

Bargraph not available.

3

Changes input attenuator, frequency is always auto range.

4

Bargraph updates with input value.

5

Secondary display shows elapsed time (in minutes).

Operation

Display

Audio

Power on

First beep at powe r on.
Second beep when beginning to make measurements.

Single beep
Indicates any valid function key press.
Indicates a new High or Low value recorded when in Min/Max function.

Steady repeatin g be ep
Indicates when measurement is steady when using Auto-Hold function.

Rapid repea ting beeps
Indicate s w rong in pu t te rmin als use d fo r fu nc tio n se lec ted.
Indicates an over load co ndition at the measur ement term inals.

Continuous tone
Indicates a resistance of < 20 Ω when using the Continuity function.

Low Battery indicator

Replace batteries when on.

Secondary Display

Shows:

Range (most functions)
Elapsed time (Min/Max)

Main Display

(Annunciators shown inside front cover)
Number of digits is set by range and function
Displays O.L to indicate an overload condition
Entire display flashes if:

Input overvoltage or
During Amps fuse check

Bargraph

Active for all functions except:

Temperature and Frequency

Operation

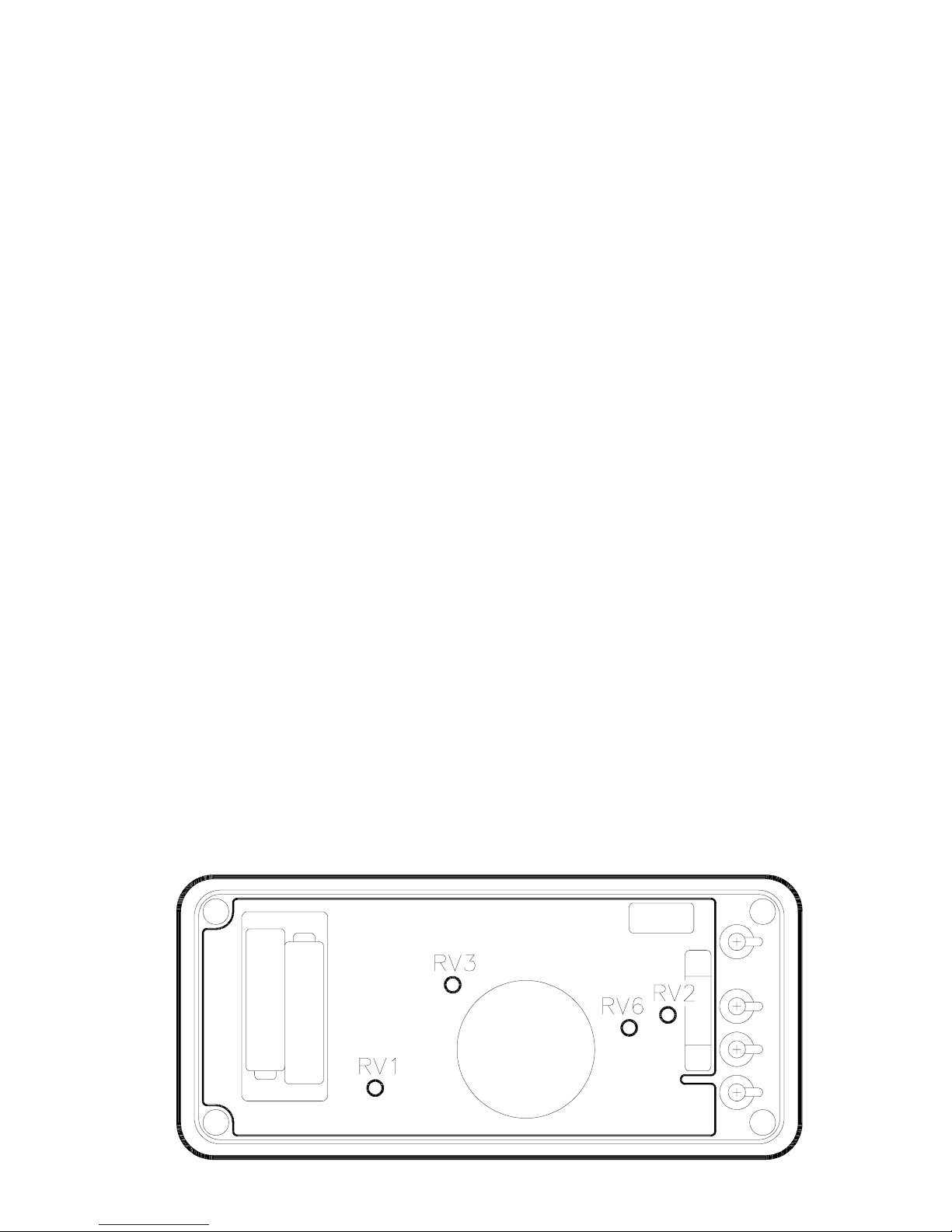

Calibration and A djustment

Required Test Equipment

The source used for the calibration should have an output accuracy as good or better than
that listed in the specifications.

Calibration Procedure

Environmental range for calibration: 23° C ± 5° C, < 80% RH
Calibration interval: 1 Year

1 Dis connec t all inputs fr om the multi meter and open the ca se as shown on page 6-5.
2 Install new batteries (described below) and close the cover. Turn the multimeter on and allow a

30 minute warm-up. Open the case.

3 Set the multimeter function and range and the source output to the values specified at each step

in the calibrat ion table on page 6-2.

4 Whe n approp riate, mak e the adjus tments ind icated in th e calibr ation tabl e to bring th e multimet er

display within the limits.

CAUTION
Dangerous voltages are present during the calibration procedure. Calibration should only be

performed by qualifie d service technicia ns. Use a non- conduc tive adjus tment tool .

Maintenance

Operator protection from electric shock hazard is provided by a double insulated enclosure.
Refer to pages 1-4 and 1-5 for maximum voltage specifications. When servicing, use only
specified repl acemen t parts.

Battery Replacement

Replace the battery when the symbol appears in the display or before calibration. Replace
both batteries at the same time. Use high-quality type AA alkaline (IEC LR6) batteries.
Remove the batteries if the multimeter is to be stored for extended periods of time. Refer to
the disassembl y dra wing on p age 6- 5.

Fuse Replacement

Fuse locations are sh own in the dia gram on pag e 6-5. Fuses are listed in the re placeab le
part list on page 6-4. See fuse check pr ocedure i n Troubles hooting tab le below.

CAUTION
For continued protection use only the specified manufacturer part number or HP part number

fuse for replace ment purpos es.

Troublesh ooting

Problem Poss ible Cause Suggested Action

Unit won ’t turn on Dead Batter ies

Replace batteries

Unit won’t turn of f Input limit excee ded

Remove test le ads and pr ess any ke y to reset.

Display fl ashes

and

Rapid beeps

Input limit exceeded

Remove test le ads and pr ess any ke y to reset.

Test leads in wr ong

terminal for meas ureme nt

functio n

Change test lea ds or functio n switch po sition

Battery Annunciator on Low battery voltage

Replace batteries

Unable to me asure

current

10 A or mA - µA

Open input protec tion fu se

Check fuse. Connect test l ead be twe en V in put
terminal and 10 A or 10 mA µA terminal. Select
10A or 10mA range, unit will rapidly beep if
fuse is OK. Replace fuse if no beep.

Cleaning

Wipe instrum ent wi th a soft r ag d amp ened w ith s oap and water. Do no t im merse in w ater .
Do not use any chemical cleaner or solvents.

Replaceable Parts/Accessories

Refer to the table on page 6-4.

Maintenance

Specifications

Calibration period: one year minimum. Specificati ons apply at 23° C ± 5° C, < 80% RH
Accuracy = ± (% of reading + number of digits).
Temperature Coefficient = Accuracy X 0.1/° C (-10° C to 18° C; 28° C to 55° C)

General

Do not expose product to moisture or rain. Do not use product in flammable atmosphere.
Operating Temperature: -10° to 50°C.

Humidity: 0°C to 40°C / 80% RH max, 40°C to 50°C / 70% RH max (no condensation).
Storage Temperature: -25° to 60°C / 70% RH m ax (no condensation).

Display reading rate: Approximately 2.3 times/second (Frequency 1/second)
Bargraph reading rate: Approximately 23 times/second
Battery life: Approximately 1000 hours

DC Voltage

Range Resolution Accuracy Input Resistance

400 mV

100 µV

± (0.3% + 1)

10 MΩ

4.0 V 1 mV

11 MΩ (nominal)

40 V 10 mV

10 MΩ (nominal)

400 V 100 mV

1000 V 1 V

Normal Mode Rejection Ratio (NMR): > 60 dB @ 50 or 60 Hz
Effective Common Mode Rejection Ratio (CMR) 1 k Ω imbalance: > 120 dB @ 50 or 60 Hz

AC Voltage (Average responding, calibrated to display rms)

Range Resolution

Accuracy

Input Impedance (nominal)

40 Hz to 500 Hz 500 Hz to 1 kHz

400 mV 0.1 mV

± (1% + 2)

± (1.5 % + 4)

10 MΩ < 50 pF

4 V 1 mV

11 MΩ < 50 pF

40 V 10 m V

10 MΩ < 50 pF

400 V 100 mV

1000 V 1 V Not Specified

Common Mode Rejection Ratio (CMR )1 kΩ imbalance: > 60 dB @ DC to 60 Hz
Response time: 2 seconds maximum

DC Current

Range Res olution Accuracy

Input

Resistance

Maximum Input

400 µA

100 nA

± (0.5 % + 2)

< 550 Ω

± 0.5 A (fused)

4000 µA1 µA

± (1% + 2)

40 mA

10 µA

< 8 Ω

400 mA

100 µA

± (1.2 % + 2)

10 A 10 mA

< 0.05 Ω ± 15 A (fused)

Specifications

AC Current (Average responding, 40 Hz to 500 Hz, calibrated to display r ms)

Range Resolution Accuracy

Input

Resistance

Maximum Input

400 µA

100 nA

± (1.5% + 5)

< 550 Ω

0.5 Arms (fused)

4000 µA1 µA

40 mA

10 µA

< 8 Ω

400 mA

100 µA

10 A 10 mA

< 0.05 Ω

15 Arms (fused)

Resistance

Range Resolution Accuracy Test Current

Maximum

Open Circuit Voltage

400 Ω 100 mΩ± (0.5% + 1)

1

< 0.8 mA < 3.2 V

4.0 kΩ 1 Ω
± (0.5% + 1)

< 80 µA

< 1.1 V

40 kΩ 10 Ω < 10 µA

400 kΩ 100 Ω < 1.1 µA

4.0 MΩ 1 kΩ
< 110 nA

40 MΩ 10 kΩ ± (1.0% + 1)

1

After zero adjust of input leads. Zero adjust range up to 9.9 Ω.

Response time: 400 Ω to 400 kΩ — 2 seconds, 10 MΩ to 40 MΩ — 10 seconds.

Continuity

Measurement Current: 0.8 mA maximum Open circuit voltage: < 3.2 Vpeak
Displayed resistance: 0 Ω to 400 Ω Input protecti on: 660 Vrms (sinewave)

Specifications

Diode

Measurement current: +0.5 mA nominal @ 0.6 V O pen circuit voltage: < 3.2 Vpeak
Displayed Voltage: 0 V to 2.000 V Input protection: 660 Vrms (sinewave)
Accuracy: ± (1% + 2) R esolution: 1 mV

Temperature (5 k Ω @ 25° C Thermistor probe)

° C ° F

Measurement

Range

-80° to 150° -112° to 302°

Resolution

0.1° 0.2°

Accuracy

1

± 0.5° ± 1.0°

1

Accuracy does not include 5 kΩ Thermistor error

Frequency (AC Coupled)

Frequency Range Resolution Accuracy Maximum Input

5 Hz to 9999 Hz 1 Hz

± (0 .02% + 1)

660 Vrms

9.0 kHz to 99.9 kHz 10 Hz 100 Vrms

Input

Attenuator

Input Voltage

Input Impedance

5 Hz to 10 kHz 10 kHz to 100 kHz

4 100 mV to 4 V rms 800 mV to 4 V rms

2.3 MΩ < 50 p F

40 4 V to 40 V rm s 4 V to 4 0 V rms

1.3 MΩ < 50 p F

400 40 V to 400 Vrms 40 V to 100 V rm s

1.2 MΩ < 50 p F

Specificat ions

Adjustments

Calibration Table

CAUTION
Dangerous voltages are present during the calibration procedure. Calibration should only be

performed by q ualifi ed se rvice techn icia ns u sing a non- cond uctiv e tool .

Step Function Range Input Signal

Adjustment

(limits)

Tolerance

(counts)

1

mV

400 mV

Short —

±1

2 380.0 mV

RV1 (±1) ±12

3 -380.0 mV —

±12

4

V

4 V 3.800 V

RV2 (±1) ±12

5 40 V 38.00 V —

±12

6 400 V 380.0 V —

±12

7 1000 V 1000 V —

±4

8

V

400 V

380.0 V @ 100 Hz

RV3 (±1) ±40

9 380.0 V @ 1 kHz —

±61

10

mV

400 mV

380.0 mV @ 100 Hz —

±40

11 380.0 mV @ 1 kHz —

±61

12

V

4 V

3 .800 V @ 10 0 Hz —

±40

13 3.800 V @ 1 kHz —

±61

14

40 V

38.00 V @ 100 H z —

±40

15 38.00 V @ 1 kHz —

±61

16 1000 V 1000 V @ 100 H z —

±12

17

400 µA380.0 µA

—

±21

Step Function Range Input Signal

Adjustment

(limits)

Tolerance

(counts)

21

10 A

10 A 10.00 A

RV6 (±2) ±14

22

µA

400 µA380.0 µA @ 100 Hz

—

±62

23

4000 µA 3800 µA @ 100 Hz

—

±62

24

mA

40 mA 38.00 mA @ 10 0 Hz —

±62

25 400 mA 380.0 mA @ 100 Hz —

±62

26

10 A

10 A 10.00 A @ 100 Hz —

±20

27

Ω

400 Ω

Short zero adjust

1

±1

28

380.0 Ω

—

±20

29

4 kΩ 3.800 kΩ

—

±20

30

40 kΩ 38.00 kΩ

—

±20

31

400 kΩ 380.0 kΩ

—

±20

32

4 MΩ 3.800 MΩ

—

±20

33

40 MΩ 38.00 MΩ

—

±40

34

400 Ω 0 Ω to 100 Ω

—

Tone < 20 Ω

35 2 V 1.000 V —

±12

36 Hz 4 9000 Hz @ 1 Vrms —

±2

1

Perform zero adjustment using key.

Calibration Table

Replaceable Pa rts/Accessorie s

Refer to the disassembly diagram on page 6-5.

Call out Description HP Part Number

F1

Fuse, 500 mA, 250 V fast blow Littlefuse 216-500

DO NOT SUBSTITUTE

2110-0940

F2

Fuse, 1 5 A , 60 0 V fast bl ow L itt lef use KL K15

DO NOT SUBSTITUTE

2110-0941

MP1 Top case assem bly 00 971-64 401
MP2 Du st/moistu re seal 00971-6440 3
MP3 B ottom c ase as sembl y (inc ludes stand ) 00971-6440 2

Rubber Boot 00971-8600 1

Replacement Test Leads, 2 pair E2305A

Temperature pr obe,

5 KΩ @ 25 ° C Thermistor

E2308A

Surface temperature sensor,

Thermistor ±0.1°C

12" lead, requi res dual bana na plug

40653B

Soft Case

(fits meter wit h rubber boot)

E2304A

Operator protection from electric shock hazard is provided by a double insulated enclosure.
refer to the Safety Summa ry for maxi mum voltag e sp ecific ation s. Whe n se rvicin g, u se onl y

Disassembly

WARNING

Always disconnect the test leads before opening the case.

Replaceable Parts/Accessories

DECLARATION OF CONFORMITY

according to ISO / IEC Guide 22 and EN 45014

Manufacture r’s Nam e: Hewlett- Packard Company, Personal Measurements Operation
Manufactur er’s A ddress: 815 14th S treet S.W., Loveland, Colorado 80537 U.S.A.

declares, that the products
Product Name:

Handheld Multimeter

Model Number: HP 971A, HP 972A, HP 973A, HP 974A
Product Options: None

conforms to the following Product Specifications:
Safety:

IEC 1010-01 (1990) Incl. Amend 1 (1992) / EN61010 (1993)
CSA C22.2 #1010.1 (1992)
UL 1244

EMC: CISPR 11:1990 / EN55011 (1991): Group 1, Class A

IEC801-2:1991 / EN50082-1 (1992): 4 kV CD, 8 kV AD
IEC 801-3:1984 / EN50082-1 (1992): 3 V/m
IEC 801-4:1988 / EN50082-1 (1992): 0.5 kV Signal Lines

Supplemental Information: The product herewith complies with the requirements of the

Low Voltage Directive 73 / 23 / EEC and the EMC Directive 89 / 336 / EEC amended
by 93 / 68 / EEC (inclusive 93 / 68 / EEC) and carries the CE mark accordingly.

Loveland, Colorado April 1, 1994

Jim White, QA Manager

Warranty/Service

Limited 3 Year Warranty

What is Covered

The HP 971A Mu ltime ter is wa rran ted by Hewl ett-Pack ard again st def ects i n ma teria ls an d
workmanshi p for three year s from the date of or igin al pu rcha se. If y ou s ell your u nit o r giv e it as
a gift, the warranty is automatically transferred to the new owner and remains in effect for the
original three year period. During the warranty period, we will repair, or at our option, replace at
no charge, a pro duct tha t prov es to be d efective, pro vided y ou r eturn the pr oduc t, ship ping
prepaid, to a Hew lett- Packar d se rvice c ente r.

What is Not Covered

This warranty do es not appl y if the produc t has been d amaged by accident of m isuse or as the
result of servic e or modifica tion by oth er than an authoriz ed Hewlett- Packard se rvice cen ter.

No other express warranty is given. The repair or replacement of a product is your exclusive
remedy. ANY OTHER IMPLIED WARRANTY OF MERCHANTABILITY OR FITNESS IS LIMITED
TO THE THREE YEAR DURATION OF THIS WRITTEN WARRANTY. Some states, provinces, or
countries d o no t allo w the exclu sion or l imitat ion o r in cide ntal or con sequ entia l dama ges, so th e
above limitatio n or exclus ion may no t apply to you.

The warranty gives you specific legal rights, and you may also have other rights which vary
from state to state , prov ince to p rovin ce, or cou ntry to coun try.

Service

Hewlett-Packard maintains service centers in many countries throughout the world. You may
have your unit repaired at a Hewlett-Packard service center any time it needs service, whether
the unit is under warranty or not. There is a charge for repairs after the warranty period.
Repair or replacement during the first 30 days after purchase will be provided by the sales
channel. After 30 days, contact the nearest service office.
