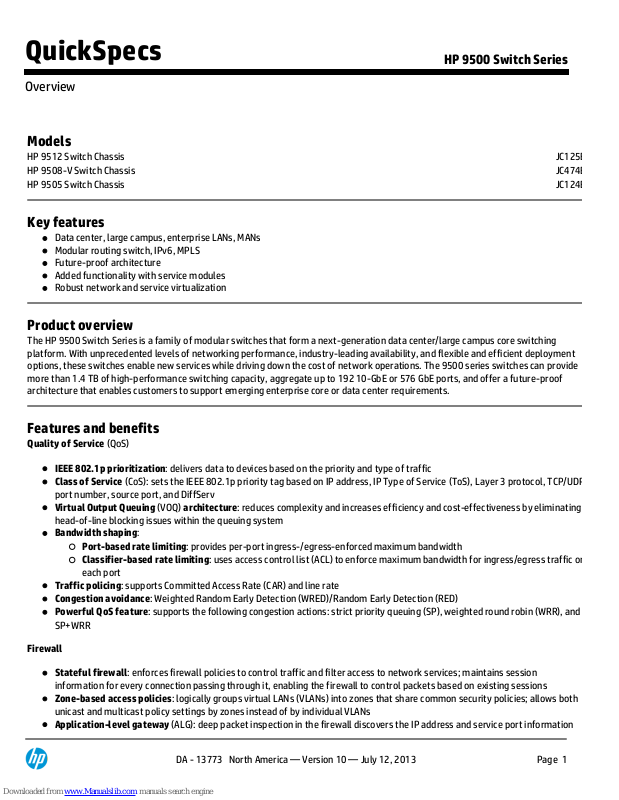

HP 9512 Switch Chassis

JC125B

HP 9508-V Switch Chassis

JC474B

HP 9505 Switch Chassis

JC124B

Key features

Data center, large campus, enterprise LANs, MANs Modular routing switch, IPv6, MPLS Future-proof architecture Added functionality with service modules Robust network and service virtualization

Product overview

The HP 9500 Switch Series is a family of modular switches that form a next-generation data center/large campus core switching platform. With unprecedented levels of networking performance, industry-leading availability, and flexible and efficient deployment options, these switches enable new services while driving down the cost of network operations. The 9500 series switches can provide more than 1.4 TB of high-performance switching capacity, aggregate up to 192 10-GbE or 576 GbE ports, and offer a future-proof architecture that enables customers to support emerging enterprise core or data center requirements.

Features and benefits

Quality of Service

(QoS)

IEEE 802.1p prioritization

: delivers data to devices based on the priority and type of traffic

Class of Service

(CoS): sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP

port number, source port, and DiffServ

Virtual Output Queuing

(VOQ)

architecture

: reduces complexity and increases efficiency and cost-effectiveness by eliminating

head-of-line blocking issues within the queuing system

Bandwidth shaping

Port-based rate limiting

: provides per-port ingress-/egress-enforced maximum bandwidth

Classifier-based rate limiting

: uses access control list (ACL) to enforce maximum bandwidth for ingress/egress traffic on

each port

Traffic policing

: supports Committed Access Rate (CAR) and line rate

Congestion avoidance

: Weighted Random Early Detection (WRED)/Random Early Detection (RED)

Powerful QoS feature

: supports the following congestion actions: strict priority queuing (SP), weighted round robin (WRR), and

SP+WRR

Firewall

Stateful firewall

: enforces firewall policies to control traffic and filter access to network services; maintains session

information for every connection passing through it, enabling the firewall to control packets based on existing sessions

Zone-based access policies

: logically groups virtual LANs (VLANs) into zones that share common security policies; allows both

unicast and multicast policy settings by zones instead of by individual VLANs

Application-level gateway

(ALG): deep packet inspection in the firewall discovers the IP address and service port information

QuickSpecs

HP 9500 Switch Series

Overview

DA - 13773 North America — Version 10 — July 12, 2013

Page 1

Page 2

embedded in the application data; the firewall then dynamically opens appropriate connections for specific applications

NAT/PAT

: choice of dynamic or static network address translation (NAT) preserves a network's IP address pool or conceals the

private address of network resources, such as Web servers, which are made accessible to users of a guest or public wireless LAN

Virtual private network

(VPN)

IPSec

: provides secure tunneling over an untrusted network such as the Internet or a wireless network; offers data

confidentiality, authenticity, and integrity between two endpoints of the network

Layer 2 Tunneling Protocol

(L2TP): an industry standard-based traffic encapsulation mechanism supported by many common operating systems such as Windows® XP and Windows Vista®; will tunnel the Point-to-Point Protocol (PPP) traffic over the IP and non-IP networks; may use the IP/UDP transport mechanism in IP networks

Generic Routing Encapsulation

(GRE): can be used to transport Layer 2 connectivity over a Layer 3 path in a secured way;

enables the segregation of traffic from site to site

Manual or automatic Internet Key Exchange

(IKE): provides both manual or automatic key exchange required for the algorithms used in encryption or authentication; auto-IKE allows automated management of the public key exchange, providing the highest levels of encryption

Management

Management interface control

: provides management access through a modem port and terminal interface, as well as in-band

and out-of-band Ethernet ports; provides access through terminal interface, telnet, or Secure Shell (SSH)

Industry-standard CLI with a hierarchical structure

: reduces training time and expenses, and increases productivity in

multivendor installations

Management security

: multiple privilege levels with password protection restrict access to critical configuration commands;

ACLs provide telnet and SNMP access; local and remote syslog capabilities allow logging of all access

SNMPv1, v2, and v3

: provide complete support of SNMP; provide full support of industry-standard Management Information

Base (MIB) plus private extensions; SNMPv3 supports increased security using encryption

sFlow

(RFC 3176): provides scalable ASIC-based wire-speed network monitoring and accounting with no impact on network performance; this allows network operators to gather a variety of sophisticated network statistics and information for capacity planning and real-time network monitoring purposes

Remote monitoring

(RMON): uses standard SNMP to monitor essential network functions; supports events, alarm, history, and

statistics group plus a private alarm extension group

FTP, TFTP, and SFTP support

: FTP allows bidirectional transfers over a TCP/IP network and is used for configuration updates;

Trivial FTP is a simpler method using User Datagram Protocol (UDP)

Debug and sampler utility

: supports ping and traceroute for both IPv4 and IPv6

Network Quality Analyzer

(NQA): analyzes network performance and service quality by sending test packets, and provides network performance and service quality parameters such as jitter, TCP, or FTP connection delays and file transfer rates; allows a network manager to determine overall network performance and to diagnose and locate network congestion points or failures

Network Time Protocol

(NTP): synchronizes timekeeping among distributed time servers and clients; keeps consistent timekeeping among all clock-dependent devices within the network so that the devices can provide diverse applications based on the consistent time

Info center

: provides a central information center for system and network information; aggregates all logs, traps, and debugging information generated by the system and maintains them in order of severity; outputs the network information to multiple channels based on user-defined rules

IEEE 802.1AB Link Layer Discovery Protocol

(LLDP): automated device discovery protocol provides easy mapping of network

management applications

Multiple configuration files

: can be stored to the flash image

Dual flash images

: provide independent primary and secondary operating system files for backup while upgrading

USB support

QuickSpecs

HP 9500 Switch Series

Overview

DA - 13773 North America — Version 10 — July 12, 2013

Page 2

Page 3

File copy

: allows users to copy switch files to and from a USB flash drive

Connectivity

High-density port connectivity

: provides up to 12 interface module slots, up to 192 10-GbE ports, or 576 GbE ports (fiber or

copper) per system

Flexible port selection

: provides a combination of fiber and copper interface modules, 100/1000BASE-X auto-speed selection,

and 10/100/1000BASE-T auto-speed detection plus auto duplex and MDI/MDI-X

Jumbo frames

: are supported on 10 GbE and GbE ports; up to 9,000 sizes allow high-performance backups and disaster-

recovery systems

Loopback

: supports internal loopback testing for maintenance purposes and an increase in availability; loopback detection protects against incorrect cabling or network configurations and can be enabled on a per-port or per-VLAN basis for added flexibility

Packet storm protection

: protects against broadcast, multicast, or unicast storms with user-defined thresholds

Ethernet OAM

: provides a Layer 2 link performance and fault detection monitoring tool, which reduces failover and network

convergence times

Flow control

: using standard IEEE 802.3x, it provides back pressure to reduce congestion in heavy traffic situations

Monitor link

: collects statistics on performance and errors on physical links, increasing system availability

Performance

Scalable system design

: backplane is designed for bandwidth increases; provides investment protection to support future

technologies and higher-speed connectivity

Flexible chassis selection

: provides a choice of three chassis, ranging from a 12-slot or 8-slot vertical chassis for data center

applications and a 5-slot chassis; allows you to tailor your needs to meet your budget

High-speed fully distributed architecture

: provides switching capacity up to 1440 Gbps; supports a bandwidth of 857 Mpps and up to 192 10-GbE ports or 576 GbE fiber or copper ports; all switching and routing is performed in the I/O modules; meets today's and future demand for an enterprise's bandwidth-intensive applications

Resiliency and high availability

Redundant/Load-sharing fabrics, management, fan assemblies, and power supplies

: increase total performance and power

available while providing hitless, stateful failover

Hot-swappable modules

: help ensure the replacement of hardware interface modules without impacting the traffic flow

through the system

Redundant power supplies

: services module has the same level of power supply redundancy as the switch in which it is

installed

Passive design system

: backplane has no active components for increased system reliability

Separate data and control paths

: increases security and performance

Hitless patch upgrades

: allow patches and new service features to be installed without restarting the equipment, increasing

network uptime and facilitating maintenance

IEEE 802.3ad Link Aggregation Control Protocol

(LACP): supports up to 240 trunks, each with 12 links per trunk; supports static

or dynamic groups and user-selectable hashing algorithm

Virtual Router Redundancy Protocol

(VRRP): allows a group of routers to dynamically back each other up to create highly

available routed environments

Intelligent Resilient Framework

(IRF): creates virtual resilient switching fabrics, where two or more switches perform as a single Layer 2 switch and Layer 3 router; switches do not have to be co-located and can be part of a disaster-recovery system; servers or switches can be attached using standard LACP for automatic load balancing and high availability; simplifies network operation by eliminating the complexity of Spanning Tree Protocol, Equal-Cost Multipath (ECMP), or VRRP

QuickSpecs

HP 9500 Switch Series

Overview

DA - 13773 North America — Version 10 — July 12, 2013

Page 3

Page 4

Smart link

: allows 50 ms failover between links

Graceful restart

: features are fully supported, including graceful restart for OSPF, IS-IS, BGP, LDP, and RSVP; network remains stable during the active-standby switchover; after the switchover, the device quickly learns the network routes by communicating with adjacent routers; forwarding remains uninterrupted during the switchover to realize nonstop forwarding (NSF)

IP/LDP FRR

: nodes are configured with backup ports, routes, and LSPs; local implementation requires no cooperation of adjacent devices, simplifying the deployment; solves the traditional convergence faults in IP forwarding and MPLS forwarding, protecting the links, nodes, and paths without establishing respective backup LSPs for them; realizes restoration within 50 ms, with the restoration time independent of the number of routes and fast link switchovers, without route convergence

Ring Resiliency Protection Protocol

(RRPP): provides standard sub-200 ms recovery for ring Ethernet-based topology

Layer 2 switching

VLANs

: support up to 4,096 port or IEEE 802.1Q-based VLANs

Spanning Tree Protocol

: fully supports standard IEEE 802.1D Spanning Tree Protocol, IEEE 802.1w Rapid Spanning Tree

Protocol for faster convergence, and IEEE 802.1s Multiple Spanning Tree Protocol

Internet Group Management Protocol

(IGMP)

and Multicast Listener Discovery

(MLD)

protocol snooping

: effectively control

and manage the flooding of multicast packets in a Layer 2 network

Port isolation

: increases security by isolating ports within a VLAN while still allowing them to communicate with other VLANs

GARP VLAN Registration Protocol

: allows automatic learning and dynamic assignment of VLANs

Bridge Protocol Data Unit

(BPDU)

tunneling

: transmits Spanning Tree Protocol BPDUs transparently, allowing correct tree

calculations across service providers, WANs, or MANs

Port mirroring

: duplicates port traffic (ingress and egress) to a local or remote monitoring port; supports 64 mirroring groups,

with an unlimited number of ports per group

Device Link Detection Protocol

(DLDP): monitors link connectivity and shuts down ports at both ends if uni-directional traffic is

detected, preventing loops in STP-based networks

IEEE 802.1ad QinQ and Selective QinQ

: increase the scalability of an Ethernet network by providing a hierarchical structure;

connect multiple LANs on a high-speed campus or metro network

Layer 3 services

Address Resolution Protocol

(ARP): determines the MAC address of another IP host in the same subnet; supports static ARPs; gratuitous ARP allows detection of duplicate IP addresses; proxy ARP allows normal ARP operation between subnets or when subnets are separated by a Layer 2 network

User Datagram Protocol

(UDP)

helper

: redirects UDP broadcasts to specific IP subnets to prevent server spoofing

Dynamic Host Configuration Protocol

(DHCP): simplifies the management of large IP networks and supports client and server;

DHCP Relay enables DHCP operation across subnets

Layer 3 routing

Static IPv4 routing

: provides simple, manually configured IPv4 routing

Routing Information Protocol

: uses a distance vector algorithm with UDP packets for route determination; supports RIPv1 and

RIPv2 routing; includes loop protection

OSPF

: Interior Gateway Protocol (IGP) uses link-state protocol for faster convergence; supports ECMP, NSSA, and MD5

authentication for increased security and graceful restart for faster failure recovery

Border Gateway Protocol 4

(BGP-4): Exterior Gateway Protocol (EGP) with path vector protocol uses TCP for enhanced reliability for the route discovery process, reduces bandwidth consumption by advertising only incremental updates, and supports extensive policies for increased flexibility, as well as scales to very large networks

Intermediate system to intermediate system

(IS-IS): Interior Gateway Protocol (IGP) uses path vector protocol, which is

QuickSpecs

HP 9500 Switch Series

Overview

DA - 13773 North America — Version 10 — July 12, 2013

Page 4

Page 5

defined by the ISO organization for IS-IS routing and extended by IETF RFC 1195 to operate in both TCP/IP and the OSI reference model (Integrated IS-IS)

Policy-based routing

: makes routing decisions based on policies set by the network administrator

IP performance enhancement

: is a set of tools that enhances the performance of IPv4 networks; includes directed broadcasts,

customization of TCP parameters, support of ICMP error packets, and extensive display capabilities

Unicast Reverse Path Forwarding

(uRPF): is defined by RFC 3704 and limits erroneous or malicious traffic

Static IPv6 routing

: provides simple, manually configured IPv6 routing

Dual IP stack

: maintains separate stacks for IPv4 and IPv6 to ease transition from an IPv4-only network to an IPv6-only

network design

Routing Information Protocol next generation

(RIPng): extends RIPv2 to support IPv6 addressing

OSPFv3

: provides OSPF support for IPv6

IS-IS for IPv6

: extends IS-IS to support IPv6 addressing

BGP+

: extends BGP-4 to support Multiprotocol BGP (MBGP), including support for IPv6 addressing

IPv6 tunneling

: is an important element for the transition from IPv4 to IPv6; allows IPv6 packets to traverse IPv4-only networks by encapsulating the IPv6 packet into a standard IPv4 packet; supports manually configured, 6to4, and Intra-Site Automatic Tunnel Addressing Protocol (ISATAP) tunnels

Multiprotocol Label Switching

(MPLS): uses BGP to advertise routes across Label Switched Paths (LSPs), but uses simple labels to forward packets from any Layer 2 or Layer 3 protocol, thus reducing complexity and increasing performance; supports graceful restart for reduced failure impact; supports LSP tunneling and multilevel stacks

Multiprotocol Label Switching

(MPLS)

Layer 3 VPN

: allows Layer 3 VPNs across a provider network; uses MP-BGP to establish

private routes for increased security; supports RFC 2547bis multiple autonomous system VPNs for added flexibility

Multiprotocol Label Switching

(MPLS)

Layer 2 VPN

: establishes simple Layer 2 point-to-point VPNs across a provider network using only MPLS LDPs; requires no routing and therefore decreases complexity, increases performance, and allows VPNs of nonroutable protocols; uses no routing information for increased security; supports Martini draft technologies

Virtual Private LAN Service

(VPLS): establishes point-to-multipoint Layer 2 VPNs across a provider network

Multiprotocol Label Switching Traffic Engineering

(MPLS TE): Traffic Engineering (TE) is used to enhance traffic over large MPLS networks based on type of traffic and available resources; TE dynamically tunes traffic management attributes and enables true load balancing; MPLS TE supports route backup using Fast Reroute (FRR)

Service loopback

: allows any module to take advantage of higher-featured modules, including OAA modules, by redirecting

traffic; reduces investment and enables higher bandwidth and load sharing; supports IPv6, IPv6 multicast, tunneling, and MPLS

Bidirectional Forwarding Detection

(BFD): enables link connectivity monitoring and reduces network convergence time for RIP,

OSPF, BGP, IS-IS, VRRP, MPLS, and IRF

Multicast VPN

: supports Multicast Domain (MD) multicast VPN, which can be distributed on separate service cards, providing

high performance and flexible configuration

Security

DHCP protection

: blocks DHCP packets from unauthorized DHCP servers, preventing denial-of-service attacks

DHCP snooping

: helps ensure that DHCP clients receive IP addresses from authorized DHCP servers and maintain a list of DHCP

entries for trusted ports; prevents reception of fake IP addresses and reduces ARP attacks, improving security

RADIUS

: eases switch security access administration by using a password authentication server

TACACS+

: is an authentication tool using TCP with encryption of the full authentication request that provides additional security

Switch management logon security

: can require either RADIUS or TACACS+ authentication for secure switch CLI logon

Media access control

(MAC)

authentication

: provides simple authentication based on a user's MAC address; supports local or

RADIUS-based authentication

Secure Shell

(SSHv2): uses external servers to securely log in to a remote device; with authentication and encryption, it protects

against IP spoofing and plain-text password interception; increases the security of Secure FTP (SFTP) transfers

Attack protection

: protects network from attacks that use a large number of ARP requests by using a host-specific, user-

selectable threshold; provides Address Scanning Attack Prevention, MAC Address Flooding Attack Prevention, and STP Attack

QuickSpecs

HP 9500 Switch Series

Overview

DA - 13773 North America — Version 10 — July 12, 2013

Page 5

Page 6

Prevention

Access control list

(ACL): supports powerful ACLs for both IPv4 and IPv6; filters traffic to prevent unauthorized users from accessing the network, or controls network traffic to save resources; rules can either deny or permit traffic to be forwarded; rules can be based on Layer 2 header or Layer 3 protocol header; rules can be set to operate on specific dates or times

IP Source Guard

: filters packets on a per-port basis, which prevents illegal packets from being forwarded

Network address translation

(NAT): provides a method for translating private IP addresses to public IP addresses, reducing the

number of IP addresses used, and isolates the enterprise addressing environment

Multiple user authentication methods

IEEE 802.1X:

is an industry-standard method of user authentication using an IEEE 802.1X supplicant on the client in

conjunction with a RADIUS server

Web-based authentication

: similar to IEEE 802.1X, it provides a browser-based environment to authenticate clients that

do not support the IEEE 802.1X supplicant

MAC-based authentication

: authenticates the client with the RADIUS server based on the client's MAC address

Endpoint Admission Defense

(EAD): provides security policies to users accessing a network

Port isolation

: secures and adds privacy, and prevents malicious attackers from obtaining user information

Convergence

Multicast Source Discovery Protocol

(MSDP): is used for inter-domain multicast applications, allowing multiple PIM-SM

domains to interoperate

Internet Group Management Protocol

(IGMP): is used by IP hosts to establish and maintain multicast groups; supports IGMPv1,

v2, and v3; utilizes Any-Source Multicast (ASM) or Source-Specific Multicast (SSM) to manage IPv4 multicast networks

Protocol Independent Multicast

(PIM): is used for IPv4 and IPv6 multicast applications; supports PIM Dense Mode (PIM-DM),

Sparse Mode (PIM-SM), and Source-Specific Mode (PIM-SSM)

Multicast Border Gateway Protocol

(MBGP): allows multicast traffic to be forwarded across BGP networks and kept separate

from unicast traffic

Multicast Listener Discovery

(MLD)

protocol

: is used by IP hosts to establish and maintain multicast groups; supports v1 and v2

and utilizes Any-Source Multicast (ASM) or Source-Specific Multicast (SSM) to manage IPv6 multicast networks

Multicast VLAN

: allows multiple VLANs to receive the same IPv4 or IPv6 multicast traffic, reducing network bandwidth demand

by eliminating multiple streams to each VLAN

Integration

Open Application Architecture

(OAA): provides high-performance application-specific modules fully integrated with the switching architecture; uses the chassis high-speed backplane to access network-related data; increases performance, reduces costs, and simplifies network management

VPN firewall module

: provides enhanced stateful packet inspection and filtering; supports flexible security zones and virtual firewall containment; provides advanced VPN services with 3DES and AES encryption at high performance and low latency, Web content filtering, and application prioritization and enhancement

Load-balancing module

: local and global server load-balancing module improves traffic distribution using powerful scheduling

algorithms, including Layer 4 to 7 services; monitors the health status of servers and firewalls

NetStream module

: provides traffic analysis and statistics capture to allow network administrators to rapidly identify network

anomalies and security threats, as well as capacity planning information; supports NetFlow v5 and v9

Wireless controller module

: supports up to 640 access points (APs) per module; supports IEEE 802.11s/b/g/n APs; provides full user access management and QoS policies on a per-user basis; supports enterprise-class encryption; supports RF monitoring and control, MAP control, rogue AP detection, and location policy enforcement

Additional information

QuickSpecs

HP 9500 Switch Series

Overview

DA - 13773 North America — Version 10 — July 12, 2013

Page 6

Page 7

Green initiative support

: provides support for RoHS and WEEE regulations

Low power consumption

: is rated to have one of the lowest power usages in the industry by Miercom independent tests

Unified, modular Comware operating system with modular architecture

: all switching, routing, and security platforms leverage Comware, a common unified modular operating system; provides an easy-to-enhance-and-extend feature set without wholesale changes

OPEX savings

: is a common operating system that simplifies and streamlines deployment, management, and training, thereby cutting costs as well as reducing the chance for human errors associated with having to manage multiple operating systems across different platforms and network layers

Warranty and support

1-year warranty

: with advance replacement and 10-calendar-day delivery (available in most countries)

Electronic and telephone support

: limited electronic and telephone support is available from HP; to reach our support centers,

refer to

www.hp.com/networking/contact-support

; for details on the duration of support provided with your product purchase,

refer to

www.hp.com/networking/warrantysummary

Software releases

: to find software for your product, refer to

www.hp.com/networking/support

; for details on the software

releases available with your product purchase, refer to

www.hp.com/networking/warrantysummary

QuickSpecs

HP 9500 Switch Series

Overview

DA - 13773 North America — Version 10 — July 12, 2013

Page 7

Page 8

Build To Order:

BTO is a standalone unit with no integration. BTO products ship standalone are not part of a CTO or Rack-Shippable solution.

HP 9505 Switch Chassis

JC124B

5 - I/O module slots Must select min 1 Power Supply

HP 9508-V Switch Chassis

JC474B

8 - I/O module slots Must select min 1 Power Supply

HP 9512 Switch Chassis

JC125B

12 - I/O module slots Must select min 1 Power Supply

Modules

Ethernet Modules

(JC124B Switch Only ) System (std 0 // max 5) User Selection (min 0 // max 5) per enclosure

(JC474B Switch Only ) System (std 0 // max 8) User Selection (min 0 // max 8) per enclosure

(JC125B Switch Only ) System (std 0 // max 12) User Selection (min 0 // max 12) per enclosure

HP 9500 16-port 10GbE SFP+ Module

JC108A

min=0 \ max=16 SFP + Transceivers

See Configuration

Note:2

HP 9500 4-port 10GbE XFP Module

JC114A

min=0 \ max=4 XFP Transceivers

See Configuration

Note:3

HP 9500 2-port 10GbE XFP Module

JC112A

min=0 \ max=2 XFP Transceivers

See Configuration

Note:3

HP 9500 48-port GbE SFP Module

JC113A

min=0 \ max=48 SFP Transceivers

See Configuration

Note:1

HP 9500 24-port GbE SFP Module

JC123A

min=0 \ max=24 SFP Transceivers

See Configuration

Note:1

QuickSpecs

HP 9500 Switch Series

Configuration

DA - 13773 North America — Version 10 — July 12, 2013

Page 8

Page 9

HP 9500 48-port Gig-T Module

JC107A

No Transceivers

HP 9500 48-port Gig-T 2.4:1 Module

JC116A

No Transceivers

HP 9500 24-port Gig-T Module

JC122A

min=0 \ max=24 SFP Transceivers

See Configuration

Note:1

HP 9500 4-port 10GbE XFP Advanced Module

JC118A

min=0 \ max=4 XFP Transceivers

See Configuration

Note:3

HP 9500 2-p 10GBASE-X XFP Advanced Mod

JC470A

min=0 \ max=2 XFP Transceivers

See Configuration

Note:3

HP 9500 48p 1000BASE-X SFP Advanced Mod

JC471A

min=0 \ max=48 SFP Transceivers

See Configuration

Note:1

HP 9500 24-port GbE SFP Advanced Module

JC117A

min=0 \ max=24 SFP Transceivers

See Configuration

Note:1

HP 9500 48-port Gig-T Advanced Module

JC115A

No Transceivers

HP 9500 24-port Gig-T Advanced Module

JC119A

min=0 \ max=24 SFP Transceivers

See Configuration

Note:1

HP 9500 Access Controller Module for 128-640 Aps

JD442A

No Transceivers

HP 9500 NetStream Monitoring Module

JD246A

No Transceivers

HP 9500 Load Balancing Module

JD247A

No Transceivers

HP 9500 VPN Firewall Module

JD245A

QuickSpecs

HP 9500 Switch Series

Configuration

DA - 13773 North America — Version 10 — July 12, 2013

Page 9

Page 10

min=0 \ max=2 SFP Transceivers

See Configuration

Note:4

Configuration Rules:

Note 1

The following Transceivers install into this Module: HP X170 1G SFP LC LH70 1550 Transceiver

JD109A

HP X170 1G SFP LC LH70 1570 Transceiver

JD110A

HP X170 1G SFP LC LH70 1590 Transceiver

JD111A

HP X170 1G SFP LC LH70 1610 Transceiver

JD112A

HP X170 1G SFP LC LH70 1470 Transceiver

JD113A

HP X170 1G SFP LC LH70 1490 Transceiver

JD114A

HP X170 1G SFP LC LH70 1510 Transceiver

JD115A

HP X170 1G SFP LC LH70 1530 Transceiver

JD116A

HP X120 1G SFP LC LH100 Transceiver

JD103A

HP X125 1G SFP LC LH40 1310nm Transceiver

JD061A

HP X120 1G SFP LC LH40 1550nm Transceiver

JD062A

HP X125 1G SFP LC LH70 Transceiver

JD063B

HP X120 1G SFP RJ45 T Transceiver

JD089B

HP X120 1G SFP LC SX Transceiver

JD118B

HP X120 1G SFP LC LX Transceiver

JD119B

HP X120 1G SFP LC BX 10-U Transceiver

JD098B

HP X120 1G SFP LC BX 10-D Transceiver

JD099B

HP X110 100M SFP LC FX Transceiver

JF832A

HP X110 100M SFP LC FX Transceiver

JF833A

Note 2

The following Transceivers install into this Module: HP X130 10G SFP+ LC SR Transceiver

JD092A

HP X130 10G SFP+ LC LRM Transceiver

JD093A

HP X130 10G SFP+ LC LR Transceiver

JD094A

HP X240 10G SFP+ SFP+ 3m DA Cable

JD097B

HP X240 10G SFP+ SFP+ 3m DAC Cable

JD097C

HP X240 10G SFP+ SFP+ 5m DA Cable

JG081B

HP X240 10G SFP+ SFP+ 5m DAC Cable

JG081C

Note 3

The following Transceivers install into this Module: HP X130 10G XFP SC LR Transceiver

JD108B

HP X130 10G XFP LC SR Transceiver

JD117B

HP X130 10G XFP LC ZR 1550nm Transceiver

JD107A

Note 4

The following Transceivers install into this Module: HP X125 1G SFP LC LH40 1310nm Transceiver

JD061A

HP X120 1G SFP LC LH40 1550nm Transceiver

JD062A

HP X125 1G SFP LC LH70 Transceiver

JD063B

HP X120 1G SFP LC SX Transceiver

JD118B

QuickSpecs

HP 9500 Switch Series

Configuration

DA - 13773 North America — Version 10 — July 12, 2013

Page 10

Page 11

HP X120 1G SFP LC LX Transceiver

JD119B

Fabric Modules

System (std 0 // max 2) User Selection (min 1 // max 2) per enclosure

See Configuration

Note:3

HP 9500 360Gbps Fabric Module

JC121A

min=0 \ max=2 XFP Transceivers

See Configuration

Note:2

HP 9500 720Gbps Fabric Module

JC120A

min=0 \ max=2 XFP Transceivers

See Configuration

Note:1

Cofiguration Rules:

Note 1

These Modules install to the following switches only: JC125B - HP A9512 Switch Chassis JC474B - HP A9508-V Switch Chassis

Note 2

These Modules install to the following switches only: JC124B - HP A9505 Switch Chassis

Note 3

Mixing of Fabric Module types is not allowed.

Transceivers

SFP Transceivers

HP X125 1G SFP LC LH40 1310nm XCVR

JD061A

HP X120 1G SFP LC LH40 1550nm XCVR

JD062A

HP X120 1G SFP RJ45 T Transceiver

JD089B

HP X120 1G SFP LC SX Transceiver

JD118B

HP X120 1G SFP LC LX Transceiver

JD119B

HP X125 1G SFP LC LH70 Transceiver

JD063B

HP X120 1G SFP LC BX 10-U Transceiver

JD098B

HP X120 1G SFP LC BX 10-D Transceiver

JD099B

QuickSpecs

HP 9500 Switch Series

Configuration

DA - 13773 North America — Version 10 — July 12, 2013

Page 11

Page 12

HP X120 1G SFP LC LH100 Transceiver

JD103A

HP X170 1G SFP LC LH70 1470 Transceiver

JD113A

HP X170 1G SFP LC LH70 1490 Transceiver

JD114A

HP X170 1G SFP LC LH70 1510 Transceiver

JD115A

HP X170 1G SFP LC LH70 1530 Transceiver

JD116A

HP X170 1G SFP LC LH70 1550 Transceiver

JD109A

HP X170 1G SFP LC LH70 1570 Transceiver

JD110A

HP X170 1G SFP LC LH70 1590 Transceiver

JD111A

HP X170 1G SFP LC LH70 1610 Transceiver

JD112A

HP X110 100M SFP LC FX Transceiver

JF833A

HP X120 100M/1G SFP LC LX Transceiver

JF832A

SFP+ Transceivers

HP X130 10G SFP+ LC SR Transceiver

JD092B

HP X130 10G SFP+ LC LRM Transceiver

JD093B

HP X130 10G SFP+ LC LR Transceiver

JD094B

HP X240 10G SFP+ SFP+ 3m DAC Cable

JD097C

HP X240 10G SFP+ to SFP+ 3m Direct Attach Copper Cable

JD097B

HP X240 10G SFP+ SFP+ 5m DAC Cable

JG081C

HP X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable

JG081B

XFP Transceivers

HP X130 10G XFP LC ZR 1550nm Transceiver

JD107A

HP X130 10G XFP LC SR Transceiver

JD117B

QuickSpecs

HP 9500 Switch Series

Configuration

DA - 13773 North America — Version 10 — July 12, 2013

Page 12

Page 13

HP X130 10G XFP LC LR 1310nm Transceiver

JD108B

Internal Power Supplies

System (std 0 // max 2) User Selection (min 1 // max 2) per switch enclosure

HP 9500/8800 1800W AC Power Supply

JC110B

includes 1 x c13, 1800w

See Configuration

Note:1, 2

HP 9500/8800 2000W DC Power Supply

JC029B

See Configuration

Note:1

HP 9500/8800 3500W DC Power Supply

JC473A

See Configuration

Note:1

Configuration Rules:

Note 1

If 2 power supplies are selected they must be the same Sku number.

Note 2

Localization required. (See Localization Menu for list.)

Power Supply Power Frame

System (std 0 // max 2) User Selection (min 1 // max 2) per switch enclosure

HP 9500 3500W AC Power Frame

JC111A

See Configuration

Note:1

Configuration Rules:

Note 1

If more than 2 AC Power Supplies are selected Then Min = 2 // Max = 2 of this sku is required.

Switch Enclosure Options

Fans

HP 9512/9505/8800 Spare Fan Assembly

JC109A

HP 9508-V Fan Assembly

JC475A

QuickSpecs

HP 9500 Switch Series

Configuration

DA - 13773 North America — Version 10 — July 12, 2013

Page 13

Page 14

Licenses

HP WX Blade 128 AP License Upgrade

JD464B

Memory

HP 12500 additional 1 GB SDRAM DDR2

JC071A

Compact Flash cards

HP X600 1G Compact Flash Card

JC684A

See Configuration

Note:1

HP X600 512M Compact Flash Card

JC685A

See Configuration

Note:1

HP X600 256M Compact Flash Card

JC686A

See Configuration

Note:1

Cofiguration Rules:

Note 1

These CF Cards are supported on the following Modules only: JD245A - HP 9500 VPN Firewall Module

QuickSpecs

HP 9500 Switch Series

Configuration

DA - 13773 North America — Version 10 — July 12, 2013

Page 14

Page 15

HP 9512 Switch Chassis

(JC125B)

Included accessories

2 HP 9512/9505/8812/8805 Spare Fan Assembly (JC109A)

Ports

2 switch fabric slots 12 I/O module slots Supports a maximum of 192 10-GbE ports or 576 autosensing 10/100/1000 ports or 576 SFP ports, with

optional module

Power supplies

2 power supply slots 1 minimum power supply required (ordered separately)

Fan tray

includes: 2 x JC109A 2 fan tray slots

Physical characteristics

Dimensions

17.4(w) x 17.72(d) x 29.65(h) in (44.2 x 45.0 x 75.3 cm) (17U height)

Weight

132.28 lb. (60 kg), Fully loaded chassis, two fabrics, two power supplies, and a full complement of typical I/O modules

Full configuration weight

242.5 lb. (110 kg)

Memory and processor

Fabric

PowerPC @ 1000 MHz, 128 MB flash, 1 GB RAM, 256 MB compact flash

I/O Module

PowerPC @ 667 MHz, 512 MB RAM

Mounting

Mounts in an EIA standard 19-in. rack or other equipment cabinet (hardware included); horizontal surface mounting only

Performance

1000 Mb Latency

< 6.0 µs (FIFO 64-byte packets)

10 Gbps Latency

< 6.0 µs (FIFO 64-byte packets)

Throughput

857 million pps

Routing/Switching capacity

1440 Gbps

Routing table size

256000 entries

Reliability

Availability

99.999%

Environment

Operating temperature

32°F to 113°F (0°C to 45°C)

Operating relative humidity

5% to 95%, noncondensing

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage relative humidity

5% to 95%, noncondensing

Electrical characteristics

Voltage

100-120/200-240 VAC

DC Voltage

-48 V/-60 V

Current

16/92 A

Power output

3500 W

Frequency

50/60 Hz

Notes

Based on a 3500 W DC power supply

Safety

UL 60950-1; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60950-1/A11

QuickSpecs

HP 9500 Switch Series

Technical Specifications

DA - 13773 North America — Version 10 — July 12, 2013

Page 15

Page 16

Emissions

VCCI Class A; EN 55022 Class A; ICES-003 Class A; ANSI C63.4 2003; AS/NZS CISPR22 Class A; EN 61000-32:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A

Immunity

Generic

ETSI EN 300 386 V1.3.3

EN 61000-4-2:1995+A1:1998+A2:2001

ESD

EN 61000-4-2

Radiated

EN 61000-4-3

EFT/Burst

EN 61000-4-4

Surge

EN 61000-4-5

Conducted

EN 61000-4-6

Power frequency magnetic field

IEC 61000-4-8

Voltage dips and interruptions

EN 61000-4-11

Harmonics

EN 61000-3-2, IEC 61000-3-2

Flicker

EN 61000-3-3, IEC 61000-3-3

Management

IMC - Intelligent Management Center; command-line interface; out-of-band management (serial RS-232C); SNMP Manager; Telnet; terminal interface (serial RS-232C); modem interface; IEEE 802.3 Ethernet MIB; Ethernet Interface MIB

Notes

IPSec/IKE functionality provided by HP 9500 VPN/Firewall Module (JD245A)

Services

3-year, parts only, global next-day advance exchange (HP763E) 3-year, 4-hour onsite, 13x5 coverage for hardware (HP764E) 3-year, 4-hour onsite, 24x7 coverage for hardware (HP767E) 3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 SW phone support and SW updates (HP770E) 3-year, 24x7 SW phone support, software updates (HP773E) Installation with minimum configuration, system-based pricing (UX033E) 4-year, 4-hour onsite, 13x5 coverage for hardware (HP765E) 4-year, 4-hour onsite, 24x7 coverage for hardware (HP768E) 4-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (HP771E) 4-year, 24x7 SW phone support, software updates (HP774E) 5-year, 4-hour onsite, 13x5 coverage for hardware (HP766E) 5-year, 4-hour onsite, 24x7 coverage for hardware (HP769E) 5-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (HP772E) 5-year, 24x7 SW phone support, software updates (HP775E) 3 Yr 6 hr Call-to-Repair Onsite (HP776E) 4 Yr 6 hr Call-to-Repair Onsite (HP777E) 5 Yr 6 hr Call-to-Repair Onsite (HP778E) 1-year, 4-hour onsite, 13x5 coverage for hardware (HR499E) 1-year, 4-hour onsite, 24x7 coverage for hardware (HR500E) 1-year, 6 hour Call-To-Repair Onsite for hardware (HR503E) 1-year, 24x7 software phone support, software updates (HR502E) 1-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone support and software updates (HR501E)

Refer to the HP website at:

www.hp.com/networking/services

for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

QuickSpecs

HP 9500 Switch Series

Technical Specifications

DA - 13773 North America — Version 10 — July 12, 2013

Page 16

Page 17

HP 9508-V Switch Chassis

(JC474B)

Included accessories

1 HP 9508-V/8808-V Spare Fan Assembly (JC475A)

Ports

2 switch fabric slots 8 I/O module slots Supports a maximum of 128 10-GbE ports or 384 autosensing 10/100/1000 ports or 384 SFP ports, with

optional module

Power supplies

2 power supply slots 1 minimum power supply required (ordered separately)

Fan tray

includes: 1 x JC475A 1 fan tray slot

Physical characteristics

Dimensions

17.17(w) x 17.72(d) x 38.39(h) in (43.6 x 45.0 x 97.5 cm) (22U height)

Weight

127.87 lb. (58 kg), Fully loaded chassis, two fabrics, two power supplies, and a full complement of typical I/O modules

Full configuration weight

220.46 lb. (100 kg)

Memory and processor

Fabric

PowerPC @ 1000 MHz, 128 MB flash, 1 GB RAM, 256 MB compact flash

I/O Module

PowerPC @ 667 MHz, 512 MB RAM

Mounting

Mounts in an EIA standard 19-in. rack or other equipment cabinet (hardware included); horizontal surface mounting only

Performance

1000 Mb Latency

< 6.0 µs (FIFO 64-byte packets)

10 Gbps Latency

< 6.0 µs (FIFO 64-byte packets)

Throughput

571 million pps

Routing/Switching capacity

960 Gbps

Routing table size

256000 entries

Reliability

Availability

99.999%

Environment

Operating temperature

32°F to 113°F (0°C to 45°C)

Operating relative humidity

5% to 95%, noncondensing

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage relative humidity

5% to 95%, noncondensing

Electrical characteristics

Voltage

100-120/200-240 VAC

DC Voltage

-48 V/-60 V

Current

16/92 A

Power output

3500 W

Frequency

50/60 Hz

Notes

Based on a 3500 W DC power supply

Safety

UL 60950-1; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60950-1/A11

QuickSpecs

HP 9500 Switch Series

Technical Specifications

DA - 13773 North America — Version 10 — July 12, 2013

Page 17

Page 18

Emissions

Immunity

Generic

ETSI EN 300 386 V1.3.3

EN 61000-4-2:1995+A1:1998+A2:2001

ESD

EN 61000-4-2

Radiated

EN 61000-4-3

EFT/Burst

EN 61000-4-4

Surge

EN 61000-4-5

Conducted

EN 61000-4-6

Power frequency magnetic field

IEC 61000-4-8

Voltage dips and interruptions

EN 61000-4-11

Harmonics

EN 61000-3-2, IEC 61000-3-2

Flicker

EN 61000-3-3, IEC 61000-3-3

Management

Notes

IPSec/IKE functionality provided by HP 9500 VPN/Firewall Module (JD245A)

Services

3-year, parts only, global next-day advance exchange (UX016E) 3-year, 4-hour onsite, 13x5 coverage for hardware (UX017E) 3-year, 4-hour onsite, 24x7 coverage for hardware (UX020E) 3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 SW phone support and SW updates (UX023E) 3-year, 24x7 SW phone support, software updates (UX026E) Installation with minimum configuration, system-based pricing (UX033E) 4-year, 4-hour onsite, 13x5 coverage for hardware (UX018E) 4-year, 4-hour onsite, 24x7 coverage for hardware (UX021E) 4-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UX024E) 4-year, 24x7 SW phone support, software updates (UX027E) 5-year, 4-hour onsite, 13x5 coverage for hardware (UX019E) 5-year, 4-hour onsite, 24x7 coverage for hardware (UX022E) 5-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UX025E) 5-year, 24x7 SW phone support, software updates (UX028E) 3 Yr 6 hr Call-to-Repair Onsite (UX029E) 4 Yr 6 hr Call-to-Repair Onsite (UX030E) 5 Yr 6 hr Call-to-Repair Onsite (UX031E) 1-year, post-warranty, 4-hour onsite, 13x5 coverage for hardware (HR504E) 1-year, post-warranty, 4-hour onsite, 24x7 coverage for hardware (HR505E) 1-year, 6 hour Call-To-Repair Onsite for hardware (HR508E) 1-year, 24x7 software phone support, software updates (HR507E) 1-year, post-warranty, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone support (HR506E)

Refer to the HP website at:

www.hp.com/networking/services

for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

QuickSpecs

HP 9500 Switch Series

Technical Specifications

DA - 13773 North America — Version 10 — July 12, 2013

Page 18

Page 19

HP 9505 Switch Chassis

(JC124B)

Included accessories

1 HP 9512/9505/8812/8805 Spare Fan Assembly (JC109A)

Ports

2 switch fabric slots 5 I/O module slots Supports a maximum of 80 10-GbE ports or 240 autosensing 10/100/1000 ports or 240 SFP ports, with

optional module

Power supplies

2 power supply slots 1 minimum power supply required (ordered separately)

Fan tray

includes: 1 x JC109A 1 fan tray slot

Physical characteristics

Dimensions

17.4(w) x 17.72(d) x 19.13(h) in (44.2 x 45.0 x 48.6 cm) (11U height)

Weight

88.18 lb. (40 kg), Fully loaded chassis, two fabrics, two power supplies, and a full complement of typical I/O modules

Full configuration weight

154.32 lb. (70 kg)

Memory and processor

Fabric

PowerPC @ 1000 MHz, 128 MB flash, 1 GB RAM, 256 MB compact flash

I/O Module

PowerPC @ 667 MHz, 512 MB RAM

Mounting

Mounts in an EIA standard 19-in. rack or other equipment cabinet (hardware included); horizontal surface mounting only

Performance

1000 Mb Latency

< 6.0 µs (FIFO 64-byte packets)

10 Gbps Latency

< 6.0 µs (FIFO 64-byte packets)

Throughput

357 million pps

Routing/Switching capacity

600 Gbps

Routing table size

256000 entries

Reliability

Availability

99.999%

Environment

Operating temperature

32°F to 113°F (0°C to 45°C)

Operating relative humidity

5% to 95%, noncondensing

Nonoperating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage relative humidity

5% to 95%, noncondensing

Electrical characteristics

Voltage

100-120/200-240 VAC

DC Voltage

-48 V/-60 V

Current

16/92 A

Power output

3500 W

Frequency

50/60 Hz

Notes

Based on a 3500 W DC power supply

Safety

UL 60950-1; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; EN 60950-1/A11

QuickSpecs

HP 9500 Switch Series

Technical Specifications

DA - 13773 North America — Version 10 — July 12, 2013

Page 19

Page 20

Emissions

Immunity

Generic

ETSI EN 300 386 V1.3.3

EN 61000-4-2:1995+A1:1998+A2:2001

ESD

EN 61000-4-2

Radiated

EN 61000-4-3

EFT/Burst

EN 61000-4-4

Surge

EN 61000-4-5

Conducted

EN 61000-4-6

Power frequency magnetic field

IEC 61000-4-8

Voltage dips and interruptions

EN 61000-4-11

Harmonics

EN 61000-3-2, IEC 61000-3-2

Flicker

EN 61000-3-3, IEC 61000-3-3

Management

Notes

IPSec/IKE functionality provided by HP 9500 VPN/Firewall Module (JD245A)

Services

Refer to the HP website at:

www.hp.com/networking/services

for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

QuickSpecs

HP 9500 Switch Series

Technical Specifications

DA - 13773 North America — Version 10 — July 12, 2013

Page 20

Page 21

Standards and protocols

(applies to all products in series)

BGP

RFC 1771 BGPv4 RFC 1772 Application of the BGP RFC 1965 BGP4 confederations RFC 1997 BGP Communities Attribute RFC 1998 PPP Gandalf FZA Compression Protocol RFC 2385 BGP Session Protection via TCP MD5 RFC 2439 BGP Route Flap Damping RFC 2547 BGP/MPLS VPNs RFC 2796 BGP Route Reflection RFC 2858 BGP-4 Multi-Protocol Extensions RFC 2918 Route Refresh Capability RFC 3065 Autonomous System Confederations for BGP RFC 3107 Support BGP carry Label for MPLS RFC 3392 Capabilities Advertisement with BGP-4 RFC 4271 A Border Gateway Protocol 4 (BGP-4) RFC 4272 BGP Security Vulnerabilities Analysis RFC 4273 Definitions of Managed Objects for BGP-4 RFC 4274 BGP-4 Protocol Analysis RFC 4275 BGP-4 MIB Implementation Survey RFC 4276 BGP-4 Implementation Report RFC 4277 Experience with the BGP-4 Protocol RFC 4360 BGP Extended Communities Attribute RFC 4456 BGP Route Reflection: An Alternative to Full Mesh Internal BGP (IBGP) RFC 4724 Graceful Restart Mechanism for BGP RFC 4760 Multiprotocol Extensions for BGP-4

Denial of service protection

RFC 2267 Network Ingress Filtering Automatic filtering of well-known denial-of-service packets CPU DoS Protection Rate Limiting by ACLs

Device management

RFC 1157 SNMPv1/v2c RFC 1305 NTPv3 RFC 1902 (SNMPv2) RFC 2271 FrameWork RFC 2579 (SMIv2 Text Conventions) RFC 2580 (SMIv2 Conformance) RFC 2819 (RMON groups Alarm, Event, History and Statistics only) Multiple Configuration Files Multiple Software Images SSHv1/SSHv2 Secure Shell TACACS/TACACS+

MIBs

RFC 1156 (TCP/IP MIB) RFC 1157 A Simple Network Management Protocol (SNMP) RFC 1213 MIB II RFC 1215 A Convention for Defining Traps for use with the SNMP RFC 1229 Interface MIB Extensions RFC 1271 Remote Network Monitoring Management Information Base RFC 1493 Bridge MIB RFC 1643 Ethernet MIB RFC 1657 BGP-4 MIB RFC 1724 RIPv2 MIB RFC 1757 Remote Network Monitoring MIB RFC 1850 OSPFv2 MIB RFC 2012 SNMPv2 MIB for TCP RFC 2013 SNMPv2 MIB for UDP RFC 2021 RMONv2 MIB RFC 2096 IP Forwarding Table MIB RFC 2127 ISDN Management Information Base using SMIv2 RFC 2233 Interfaces MIB RFC 2268 Definitions of Managed Objects for IEEE

802.3 Medium Attachment Units (MAUs) RFC 2452 IPV6-TCP-MIB RFC 2454 IPV6-UDP-MIB RFC 2465 IPv6 MIB RFC 2466 ICMPv6 MIB RFC 2571 SNMP Framework MIB RFC 2572 SNMP-MPD MIB RFC 2573 SNMP-Target MIB RFC 2578 Structure of Management Information Version 2 (SMIv2) RFC 2579 Textual Conventions for SMIv2 RFC 2580 Conformance Statements for SMIv2 RFC 2613 SMON MIB RFC 2618 RADIUS Client MIB RFC 2620 RADIUS Accounting MIB RFC 2665 Ethernet-Like-MIB RFC 2674 802.1p and IEEE 802.1Q Bridge MIB RFC 2787 VRRP MIB RFC 2819 RMON MIB RFC 2856 Textual Conventions for Additional High Capacity Data Types RFC 2863 The Interfaces Group MIB RFC 2925 Ping MIB RFC 2932IP (Multicast Routing MIB) RFC 2933 IGMP MIB RFC 2934 Protocol Independent Multicast MIB for

QuickSpecs

HP 9500 Switch Series

Technical Specifications

DA - 13773 North America — Version 10 — July 12, 2013

Page 21

Page 22

General protocols

IEEE 802.1ad Q-in-Q IEEE 802.1p Priority IEEE 802.1Q VLANs IEEE 802.1s Multiple Spanning Trees IEEE 802.1w Rapid Reconfiguration of Spanning Tree IEEE 802.1X PAE IEEE 802.3ab 1000BASE-T IEEE 802.3ac (VLAN Tagging Extension) IEEE 802.3ad Link Aggregation Control Protocol (LACP) IEEE 802.3ae 10-Gigabit Ethernet IEEE 802.3ah Ethernet in First Mile over Point to Point Fiber - EFMF IEEE 802.3u 100BASE-X IEEE 802.3x Flow Control IEEE 802.3z 1000BASE-X RFC 768 UDP RFC 783 TFTP Protocol (revision 2) RFC 791 IP RFC 792 ICMP RFC 793 TCP RFC 826 ARP RFC 854 TELNET RFC 894 IP over Ethernet RFC 903 RARP RFC 906 TFTP Bootstrap RFC 925 Multi-LAN Address Resolution RFC 950 Internet Standard Subnetting Procedure RFC 951 BOOTP RFC 959 File Transfer Protocol (FTP) RFC 1027 Proxy ARP RFC 1042 IP Datagrams RFC 1058 RIPv1 RFC 1142 OSI IS-IS Intra-domain Routing Protocol RFC 1195 OSI ISIS for IP and Dual Environments RFC 1213 Management Information Base for Network Management of TCP/IP-based internets RFC 1256 ICMP Router Discovery Protocol (IRDP) RFC 1293 Inverse Address Resolution Protocol RFC 1305 NTPv3 RFC 1350 TFTP Protocol (revision 2) RFC 1519 CIDR RFC 1531 Dynamic Host Configuration Protocol RFC 1533 DHCP Options and BOOTP Vendor Extensions RFC 1541 DHCP RFC 1591 DNS (client only)

IPv4 RFC 3273 HC-RMON MIB RFC 3414 SNMP-User based-SM MIB RFC 3415 SNMP-View based-ACM MIB RFC 3417 Simple Network Management Protocol (SNMP) over IEEE 802 Networks RFC 3418 MIB for SNMPv3 RFC 3593 Textual Conventions for MIB Modules Using Performance History Based on 15 Minute Intervals RFC 3595 Textual Conventions for IPv6 Flow Label RFC 3621 Power Ethernet MIB RFC 3811 Definitions of Textual Conventions (TCs) for Multiprotocol Label Switching (MPLS) Management RFC 3812 Multiprotocol Label Switching (MPLS) Traffic Engineering (TE) Management Information Base (MIB) RFC 3813 MPLS LSR MIB RFC 3814 MPLS FTN MIB RFC 3815 MPLS LDP MIB RFC 3826 AES for SNMP's USM MIB RFC 4113 UDP MIB RFC 4444 Management Information Base for Intermediate System to Intermediate System (IS-IS)

MPLS

RFC 2205 Resource ReSerVation Protocol (RSVP) Version 1 Functional Specification RFC 2209 Resource ReSerVation Protocol (RSVP) RFC 2702 Requirements for Traffic Engineering Over MPLS RFC 2858 Multiprotocol Extensions for BGP-4 RFC 3031 Multiprotocol Label Switching Architecture RFC 3032 MPLS Label Stack Encoding RFC 3107 Carrying Label Information in BGP-4 RFC 3479 Fault Tolerance for the Label Distribution Protocol (LDP) RFC 3487 Graceful Restart Mechanism for LDP RFC 4090 Fast Reroute Extensions to RSVP-TE for LSP Tunnels RFC 4364 BGP/MPLS IP Virtual Private Networks (VPNs) RFC 4379 Detecting Multi-Protocol Label Switched (MPLS) Data Plane Failures RFC 4447 Pseudowire Setup and Maintenance Using LDP RFC 4448 Encapsulation Methods for Transport of Ethernet over MPLS Networks

QuickSpecs

HP 9500 Switch Series

Technical Specifications

DA - 13773 North America — Version 10 — July 12, 2013

Page 22

Page 23

RFC 1631 NAT RFC 1701 Generic Routing Encapsulation RFC 1721 RIP-2 Analysis RFC 1723 RIP v2 RFC 1812 IPv4 Routing RFC 2030 Simple Network Time Protocol (SNTP) v4 RFC 2131 DHCP RFC 2138 Remote Authentication Dial In User Service (RADIUS) RFC 2338 VRRP RFC 2453 RIPv2 RFC 2644 Directed Broadcast Control RFC 2763 Dynamic Name-to-System ID mapping support RFC 2784 Generic Routing Encapsulation (GRE) RFC 2865 Remote Authentication Dial In User Service (RADIUS) RFC 2966 Domain-wide Prefix Distribution with Two-Level IS-IS RFC 2973 IS-IS Mesh Groups RFC 3022 Traditional IP Network Address Translator (Traditional NAT) RFC 3277 IS-IS Transient Blackhole Avoidance RFC 3567 Intermediate System to Intermediate System (IS-IS) Cryptographic Authentication RFC 3619 Ethernet Automatic Protection Switching (EAPS) RFC 3719 Recommendations for Interoperable Networks using Intermediate System to Intermediate System (IS-IS) RFC 3784 ISIS TE support RFC 3786 Extending the Number of IS-IS LSP Fragments Beyond the 256 Limit RFC 3787 Recommendations for Interoperable IP Networks using Intermediate System to Intermediate System (IS-IS) RFC 3847 Restart signaling for IS-IS RFC 4251 The Secure Shell (SSH) Protocol Architecture RFC 5130 A Policy Control Mechanism in IS-IS Using Administrative Tags

IP multicast

RFC 2236 IGMPv2 RFC 2710 Multicast Listener Discovery (MLD) for IPv6 RFC 3376 IGMPv3 RFC 3446 Anycast Rendezvous Point (RP)

RFC 4664 Framework for Layer 2 Virtual Private Networks RFC 4665 Service Requirements for Layer 2 Provider Provisioned Virtual Private Networks RFC 4761 Virtual Private LAN Service (VPLS) Using BGP for Auto-Discovery and Signaling RFC 4762 Virtual Private LAN Service (VPLS) Using Label Distribution Protocol (LDP) Signaling RFC 5036 LDP Specification

Network management

IEEE 802.1AB Link Layer Discovery Protocol (LLDP) RFC 1155 Structure of Management Information RFC 1157 SNMPv1 RFC 1448 Protocol Operations for version 2 of the Simple Network Management Protocol (SNMPv2) RFC 2211 Controlled-Load Network RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events) RFC 3164 BSD syslog Protocol RFC 3176 sFlow RFC 3411 SNMP Management Frameworks RFC 3414 SNMPv3 User-based Security Model (USM) RFC 3415 SNMPv3 View-based Access Control Model VACM)

OSPF

RFC 1245 OSPF protocol analysis RFC 1246 Experience with OSPF RFC 1765 OSPF Database Overflow RFC 1850 OSPFv2 Management Information Base (MIB), traps RFC 2328 OSPFv2 RFC 2370 OSPF Opaque LSA Option RFC 3101 OSPF NSSA RFC 3137 OSPF Stub Router Advertisement RFC 3623 Graceful OSPF Restart RFC 3630 Traffic Engineering Extensions to OSPF Version 2 RFC 4061 Benchmarking Basic OSPF Single Router Control Plane Convergence RFC 4062 OSPF Benchmarking Terminology and Concepts RFC 4063 Considerations When Using Basic OSPF Convergence Benchmarks RFC 4222 Prioritized Treatment of Specific OSPF Version 2 Packets and Congestion Avoidance RFC 4577 OSPF as the Provider/Customer Edge Protocol for BGP/MPLS IP Virtual Private Networks

QuickSpecs

HP 9500 Switch Series

Technical Specifications

DA - 13773 North America — Version 10 — July 12, 2013

Page 23

Page 24

mechanism using Protocol Independent Multicast (PIM) and Multicast Source Discovery Protocol (MSDP) RFC 3618 Multicast Source Discovery Protocol (MSDP) RFC 3973 PIM Dense Mode RFC 4601 Draft 10 PIM Sparse Mode RFC 4604 Using Internet Group Management Protocol Version 3 (IGMPv3) and Multicast Listener Discovery Protocol Version 2 (MLDv2) for Source-Specific Multicast RFC 4605 IGMP/MLD Proxying RFC 4607 Source-Specific Multicast for IP RFC 4610 Anycast-RP Using Protocol Independent Multicast (PIM) RFC 5059 Bootstrap Router (BSR) Mechanism for Protocol Independent Multicast (PIM) draft-rosen-vpn-mcast-08

IPv6

RFC 1886 DNS Extension for IPv6 RFC 1887 IPv6 Unicast Address Allocation Architecture RFC 1981 IPv6 Path MTU Discovery RFC 2080 RIPng for IPv6 RFC 2081 RIPng Protocol Applicability Statement RFC 2292 Advanced Sockets API for IPv6 RFC 2373 IPv6 Addressing Architecture RFC 2375 IPv6 Multicast Address Assignments RFC 2460 IPv6 Specification RFC 2461 IPv6 Neighbor Discovery RFC 2462 IPv6 Stateless Address Auto-configuration RFC 2463 ICMPv6 RFC 2464 Transmission of IPv6 over Ethernet Networks RFC 2473 Generic Packet Tunneling in IPv6 RFC 2526 Reserved IPv6 Subnet Anycast Addresses RFC 2529 Transmission of IPv6 Packets over IPv4 RFC 2545 Use of MP-BGP-4 for IPv6 RFC 2553 Basic Socket Interface Extensions for IPv6 RFC 2710 Multicast Listener Discovery (MLD) for IPv6 RFC 2740 OSPFv3 for IPv6 RFC 2767 Dual stacks IPv46 & IPv6 RFC 2893 Transition Mechanisms for IPv6 Hosts and Routers RFC 3056 Connection of IPv6 Domains via IPv4 Clouds RFC 3307 IPv6 Multicast Address Allocation RFC 3315 DHCPv6 (client and relay)

(VPNs) RFC 4811 OSPF Out-of-Band LSDB Resynchronization RFC 4812 OSPF Restart Signaling RFC 4813 OSPF Link-Local Signaling RFC 4940 IANA Considerations for OSPF

QoS/CoS

IEEE 802.1P (CoS) RFC 1349 Type of Service in the Internet Protocol Suite RFC 2211 Specification of the Controlled-Load Network Element Service RFC 2212 Guaranteed Quality of Service RFC 2474 DSCP DiffServ RFC 2475 DiffServ Architecture RFC 2597 DiffServ Assured Forwarding (AF) RFC 2598 DiffServ Expedited Forwarding (EF) RFC 2697 A Single Rate Three Color Marker RFC 2698 A Two Rate Three Color Marker

Security

IEEE 802.1X Port Based Network Access Control RFC 1321 The MD5 Message-Digest Algorithm RFC 1334 PPP Authentication Protocols (PAP) RFC 1492 An Access Control Protocol, Sometimes Called TACACS RFC 1492 TACACS+ RFC 1994 PPP Challenge Handshake Authentication Protocol (CHAP) RFC 2082 RIP-2 MD5 Authentication RFC 2104 Keyed-Hashing for Message Authentication RFC 2138 RADIUS Authentication RFC 2408 Internet Security Association and Key Management Protocol (ISAKMP) RFC 2409 The Internet Key Exchange (IKE) RFC 2716 PPP EAP TLS Authentication Protocol RFC 2865 RADIUS Authentication RFC 2866 RADIUS Accounting RFC 2867 RADIUS Accounting Modifications for Tunnel Protocol Support RFC 2868 RADIUS Attributes for Tunnel Protocol Support RFC 2869 RADIUS Extensions Access Control Lists (ACLs) Guest VLAN for 802.1x MAC Authentication Secure Sockets Layer (SSL) SSHv1/SSHv2 Secure Shell

QuickSpecs

HP 9500 Switch Series

Technical Specifications

DA - 13773 North America — Version 10 — July 12, 2013

Page 24

Page 25

RFC 3484 Default Address Selection for IPv6 RFC 3513 IPv6 Addressing Architecture RFC 3587 IPv6 Global Unicast Address Format RFC 3736 Stateless Dynamic Host Configuration Protocol (DHCP) Service for IPv6 RFC 3810 MLDv2 for IPv6 RFC 4007 IPv6 Scoped Address Architecture RFC 4214 Intra-Site Automatic Tunnel Addressing Protocol (ISATAP) RFC 4291 IP Version 6 Addressing Architecture RFC 4293 MIB for IP RFC 4862 IPv6 Stateless Address Auto-configuration RFC 4940 IANA Considerations for OSPF RFC 5178 OSPFv3 Graceful Restart

VPN

RFC 2403 - HMAC-MD5-96 RFC 2404 - HMAC-SHA1-96 RFC 2405 - DES-CBC Cipher algorithm RFC 2407 - Domain of interpretation RFC 2547 BGP/MPLS VPNs

IPsec

RFC 1828 IP Authentication using Keyed MD5 RFC 1829 The ESP DES-CBC Transform RFC 2085 HMAC-MD5 IP Authentication with Replay Prevention RFC 2401 IP Security Architecture RFC 2402 IP Authentication Header RFC 2406 IP Encapsulating Security Payload RFC 2410 - The NULL Encryption Algorithm and its use with IPsec RFC 2411 IP Security Document Roadmap RFC 2451 The ESP CBC-Mode Cipher Algorithms RFC 3602 The AES-CBC Cipher Algorithm and Its Use with IPsec

QuickSpecs

HP 9500 Switch Series

Technical Specifications

DA - 13773 North America — Version 10 — July 12, 2013

Page 25

Page 26

HP 9500 Switch Series accessories

Modules

HP 9500 48-port GbE SFP LEB Module

JC113A

HP 9500 48-port Gig-T LEB Module

JC107A

HP 9500 48-port Gig-T

JC116A

HP 9500 16-port GbE SFP/8-port GbE Combo LEB Module

JC123A

HP 9500 16-port Gig-T/8-port GbE Combo LEB Module

JC122A

HP 9500 16-port 10-GbE SFP+ REB Module

JC108A

HP 9500 4-port 10-GbE XFP LEB Module

JC114A

HP 9500 2-port 10-GbE XFP LEB Module

JC112A

HP 9500 48-port GbE SFP LEC Module

JC471A

HP 9500 48-port Gig-T LEC Module

JC115A

HP 9500 16-port GbE SFP/8-port GbE Combo LEC Module

JC117A

HP 9500 16-port Gig-T/8-port GbE Combo LEC Module

JC119A

HP 9500 4-port 10-GbE XFP LEC Module

JC118A

HP 9500 2-port 10-GbE XFP LEC Module

JC470A

Transceivers

HP X114 100M SFP LC FX Transceiver

JF833A

HP X120 100M/1G SFP LC LX Transceiver

JF832A

HP X125 1G SFP RJ45 T Transceiver

JD089B

HP X120 1G SFP LC SX Transceiver

JD118B

HP X120 1G SFP LC LX Transceiver

JD119B

HP X124 1G SFP LC LH40 1310nm Transceiver

JD061A

HP X120 1G SFP LC LH40 1550nm Transceiver

JD062A

HP X125 1G SFP LC LH70 Transceiver

JD063B

HP X120 1G SFP LC LH100 Transceiver

JD103A

HP X120 1G SFP LC BX 10-U Transceiver

JD098B

HP X120 1G SFP LC BX 10-D Transceiver

JD099B

HP X130 10G XFP LC SR Transceiver

JD117B

HP X130 10G XFP LC LR Transceiver

JD108B

HP X135 10G XFP LC ER Transceiver

JD121A

HP X130 10G XFP LC ZR Transceiver

JD107A

HP X130 SFP+ LC SR Transceiver

JD092B

HP X130 SFP+ LC LRM Transceiver

JD093B

HP X130 SFP+ LC LR Transceiver

JD094B

HP X170 1G SFP LC LH70 1470 Transceiver

JD113A

HP X170 1G SFP LC LH70 1490 Transceiver

JD114A

HP X170 1G SFP LC LH70 1510 Transceiver

JD115A

HP X170 1G SFP LC LH70 1530 Transceiver

JD116A

HP X170 1G SFP LC LH70 1550 Transceiver

JD109A

HP X170 1G SFP LC LH70 1570 Transceiver

JD110A

HP X170 1G SFP LC LH70 1590 Transceiver

JD111A

HP X170 1G SFP LC LH70 1610 Transceiver

JD112A

HP X240 10G SFP+ to SFP+ 3m Direct Attach Copper Cable

JD097C

HP X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable

JG081C

QuickSpecs

HP 9500 Switch Series

Accessories

DA - 13773 North America — Version 10 — July 12, 2013

Page 26

Page 27

Cables

HP 50 m Multimode OM3 LC/LC Optical Cable

AJ839A

HP 30 m Multimode OM3 LC/LC Optical Cable

AJ838A

HP 15 m Multimode OM3 LC/LC Optical Cable

AJ837A

HP 5 m Multimode OM3 LC/LC Optical Cable

AJ836A

HP 2 m Multimode OM3 LC/LC Optical Cable

AJ835A

HP 1 m Multimode OM3 LC/LC Optical Cable

AJ834A

HP 0.5 m Multimode OM3 LC/LC Optical Cable

AJ833A

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 1m Cable

QK732A

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 2m Cable

QK733A

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 5m Cable

QK734A

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 15m Cable

QK735A

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 30m Cable

QK736A

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 50m Cable

QK737A

Power Supply

HP 9500 3500W AC Power Frame

JC111A

HP 9500/8800 3500W DC Power Supply

JC473A

HP 9500/8800 1800W AC Power Supply

JC110B

HP 9500/8800 2000W DC Power Supply

JC029B

License

HP WX Blade 128 AP License Upgrade

JD464B

WLAN

HP 9500 Access Controller Module

JD442A

Appliance

HP 9500 VPN Firewall Module

JD245A

HP 9500 Load Balancing Module

JD247A

HP 9500 NetStream Monitoring Module

JD246A

Memory

HP 12500 additional 1 GB SDRAM DDR2

JC071A

HP 9512 Switch Chassis (JC125B)

HP 9500 720Gbps Fabric Module

JC120A

HP 9512/9505/8800 Spare Fan Assembly

JC109A

HP 9508-V Switch Chassis (JC474B)

HP 9500 720Gbps Fabric/Main Processing Unit

JC120A

HP 9508-V Fan Assembly

JC475A

HP 9505 Switch Chassis (JC124B)

HP 9505 360Gbps Fabric/Main Processing Unit

JC121A

HP 9512/9505/8800 Spare Fan Assembly

JC109A

QuickSpecs

HP 9500 Switch Series

Accessories

DA - 13773 North America — Version 10 — July 12, 2013

Page 27

Page 28

NOTE:

Details are not available for all accessories. The following specifications were available at the time of publication.

HP 9500 48-port GbE SFP Module

(JC113A)

Ports

48 SFP 100/1000 Mbps ports

Physical characteristics

Dimensions

14.96(d) x 15.75(w) x 1.57(h) in. (38 x 40 x 4 cm)

Weight

7.47 lb. (3.39 kg)

Services

Refer to the HP website at

www.hp.com/networking/services

for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

HP 9500 48-port Gig-T Module (JC107A)

Ports

48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE

802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

Physical characteristics

Dimensions

14.96(d) x 15.75(w) x 1.57(h) in. (38 x 40 x 4 cm)

Weight

7.1 lb. (3.22 kg)

Services

Refer to the HP website at

www.hp.com/networking/services

for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

HP 9500 48-port Gig-T

2.4:1 Module

(JC116A)

Physical characteristics

Dimensions

14.96(d) x 15.75(w) x 1.57(h) in. (38 x 40 x 4 cm)

Weight

7.32 lb. (3.32 kg

Services

Refer to the HP website at

www.hp.com/networking/services

for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

HP 9500 24-port GbE SFP Module

(JC123A)

Ports

16 SFP 100/1000 Mbps ports 8 dual-personality ports; 1000M Combo ports (SFP or RJ-45)

Physical characteristics

Dimensions

14.96(d) x 15.75(w) x 1.57(h) in. (38 x 40 x 4 cm)

Weight

6.77 lb. (3.07 kg)

Services

Refer to the HP website at

www.hp.com/networking/services

for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

QuickSpecs

HP 9500 Switch Series

Accessory Product Details

DA - 13773 North America — Version 10 — July 12, 2013

Page 28

Page 29

HP 9500 24-port Gig-T Module

(JC122A)

Ports

16 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE

802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 8 dual-personality ports; 1000M Combo ports (SFP or RJ-45)

Physical characteristics

Dimensions

14.96(d) x 15.75(w) x 1.57(h) in. (38 x 40 x 4 cm)

Weight

6.66 lb. (3.02 kg)

Services

Refer to the HP website at

www.hp.com/networking/services

for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

HP 9500 16-port 10GbE SFP+ Module (JC108A)

Ports

16 SFP+ 10-GbE ports; Duplex: full only

Physical characteristics

Dimensions

14.96(d) x 15.75(w) x 1.57(h) in. (38 x 40 x 4 cm)

Weight

7.32 lb. (3.32 kg)

Services

Refer to the HP website at

www.hp.com/networking/services

for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

HP 9500 4-port 10GbE XFP Module

(JC114A)

Ports

4 XFP 10-GbE ports; Duplex: full only

Physical characteristics

Dimensions

14.96(d) x 15.75(w) x 1.57(h) in. (38 x 40 x 4 cm)

Weight

6.79 lb. (3.08 kg)

Services

Refer to the HP website at

www.hp.com/networking/services

for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

HP 9500 2-port 10GbE XFP Module (JC112A)

Ports

2 XFP 10-GbE ports; Duplex: full only

Physical characteristics

Dimensions

14.96(d) x 15.75(w) x 1.57(h) in. (38 x 40 x 4 cm)

Weight

6.48 lb. (2.94 kg)

Services

Refer to the HP website at

www.hp.com/networking/services

for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

QuickSpecs

HP 9500 Switch Series

Accessory Product Details

DA - 13773 North America — Version 10 — July 12, 2013

Page 29

Page 30

HP 9500 48-port 1000BASE-X SFP Advanced Module

(JC471A)

Ports

48 SFP 100/1000 Mbps ports

Physical characteristics

Dimensions

14.96(d) x 15.75(w) x 1.57(h) in. (38 x 40 x 4 cm)

Weight

7.67 lb. (3.48 kg)

Services

Refer to the HP website at

www.hp.com/networking/services

for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

HP 9500 48-port Gig-T Advanced Module

(JC115A)

Ports

48 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE

802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only

Physical characteristics

Dimensions

14.96(d) x 15.75(w) x 1.57(h) in. (38 x 40 x 4 cm)

Weight

6.94 lb. (3.15 kg)

Services

Refer to the HP website at

www.hp.com/networking/services

for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

HP 9500 24-port GbE SFP Advanced Module

(JC117A)

Ports

16 SFP 100/1000 Mbps ports 8 dual-personality ports; 1000M Combo ports (SFP or RJ-45)

Physical characteristics

Dimensions

14.96(d) x 15.75(w) x 1.57(h) in. (38 x 40 x 4 cm)

Weight

6.99 lb. (3.17 kg)

Services

Refer to the HP website at

www.hp.com/networking/services

for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

HP 9500 24-port Gig-T Advanced Module

(JC119A)

Ports

16 RJ-45 autosensing 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE

802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T); Duplex: 10BASE-T/100BASE-TX: half or full; 1000BASE-T: full only 8 dual-personality ports; 1000M Combo ports (SFP or RJ-45)

Physical characteristics

Dimensions

14.96(d) x 15.75(w) x 1.57(h) in. (38 x 40 x 4 cm)

Weight

6.83 lb. (3.10 kg)

Services

Refer to the HP website at

www.hp.com/networking/services

for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

QuickSpecs

HP 9500 Switch Series

Accessory Product Details

DA - 13773 North America — Version 10 — July 12, 2013

Page 30

Page 31

HP 9500 4-port 10GbE XFP Advanced Module

(JC118A)

Ports

4 XFP 10-GbE ports; Duplex: full only

Physical characteristics

Dimensions

14.96(d) x 15.75(w) x 1.57(h) in. (38 x 40 x 4 cm)

Weight

6.99 lb. (3.17 kg)

Services

Refer to the HP website at

www.hp.com/networking/services

for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

HP 9500 2-port 10GBASEX XFP Advanced Module

(JC470A)

Ports

2 XFP 10-GbE ports; Duplex: full only

Physical characteristics

Dimensions

14.96(d) x 15.75(w) x 1.57(h) in. (38 x 40 x 4 cm)

Weight

6.66 lb. (3.02 kg

Services

Refer to the HP website at

www.hp.com/networking/services

for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

HP X125 1G SFP RJ45 T Transceiver

(JD089B)

A small form factor pluggable (SFP) Gigabit 1000Base-T transceiver that provides a full duplex Gigabit solution up to 100m on a Cat-5+ cable.

Ports

1 RJ-45 1000BASE-T port (IEEE 802.3ab Type 1000BASE-T)

Connectivity

Connector type

RJ-45

Physical characteristics

Dimensions

2.71(d) x 0.54(w) x 0.55(h) in. (6.88 x 1.37 x 1.4 cm)

Full configuration weight

0.07 lb. (0.03 kg)

Electrical characteristics

Power consumption typical

0.8 W

Power consumption maximum

1.0 W

Cabling

Cable type: 1000BASE-T: Category 5 (5E or better recommended), 100 Ù differential 4pair unshielded twisted pair (UTP) or shielded twisted pair (STP) balanced, complying with IEEE 802.3ab 1000BASE-T;

Maximum distance:

• 100m

Services

Refer to the HP website at

www.hp.com/networking/services

for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

QuickSpecs

HP 9500 Switch Series

Accessory Product Details

DA - 13773 North America — Version 10 — July 12, 2013

Page 31

Page 32

HP X120 1G SFP LC SX Transceiver

(JD118B)

A small form-factor pluggable (SFP) Gigabit SX transceiver that provides a full-duplex Gigabit solution up to 550m on a Multimode fiber.

Ports

1 LC 1000BASE-SX port

Connectivity

Connector type

Wavelength

850 nm

Physical characteristics

Dimensions

2.17(d) x 0.6(w) x 0.46(h) in. (5.51 x 1.52 x 1.17 cm)

Full configuration weight

0.04 lb. (0.02 kg)

Electrical characteristics

Power consumption typical

0.8 W

Power consumption maximum

1.0 W

Cabling

Maximum distance:

• FDDI Grade distance = 220m

• OM1 = 275m

• OM2 = 500m

• OM3 = Not Specified by standard Cable length

up to 550m

Fiber type

Multi Mode

Services

Refer to the HP website at

www.hp.com/networking/services

for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

HP X120 1G SFP LC LX Transceiver

(JD119B)

A small form-factor pluggable (SFP) Gigabig LX transceiver that provides a full duplex Gigabit solution up to 550m on MMF or 10Km on SMF

Ports

1 SFP 1000BASE-LX port (IEEE 802.3z Type 1000BASE-LX)

Connectivity

Connector type

Wavelength

1300 nm

Physical characteristics

Dimensions

2.17(d) x 0.6(w) x 0.46(h) in. (5.51 x 1.52 x 1.17 cm)

Full configuration weight

0.04 lb. (0.02 kg)

Electrical characteristics

Power consumption typical

0.8 W

Power consumption maximum

1.0 W

Cabling

Cable type: Either single mode or multimode;

Maximum distance:

• 550m for Multimode

• 10km for Singlemode Fiber type

Both

Services

Refer to the HP website at

www.hp.com/networking/services

for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

QuickSpecs

HP 9500 Switch Series

Accessory Product Details

DA - 13773 North America — Version 10 — July 12, 2013

Page 32

Page 33

HP X124 1G SFP LC LH40 1310nm Transceiver

(JD061A)

A small form-factor pluggable SFP Gigabit LH40 transceiver that provides a full duplex Gigabit solution up to 40km on a singlemode fiber.

Ports

1 LC 1000Base-LH port (no IEEE standard exists for 1550 nm optics)

Connectivity

Connector type

Wavelength

1310 nm

Physical characteristics

Dimensions

2.17(d) x 0.6(w) x 0.46(h) in. (5.51 x 1.52 x 1.17 cm)

Full configuration weight

0.04 lb. (0.02 kg)

Electrical characteristics

Power consumption typical

0.8 W

Power consumption maximum

1.0 W

Cabling

Cable type: Single-mode fiber optic, complying with ITU-T G.652;

Maximum distance:

40km distance

Fiber type

Single Mode

Services

Refer to the HP website at

www.hp.com/networking/services

for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

HP X120 1G SFP LC LH40 1550nm Transceiver

(JD062A)

A small form-factor pluggable (SFP) Gigabit LH40 transceiver that provides a full-duplex Gigabit solution up to 40 km on a single mode fiber.

Ports

1 LC 1000BASE-LH port (no IEEE standard exists for 1550 nm optics)

Connectivity

Connector type

Wavelength

1550 nm

Physical characteristics

Dimensions

2.17(d) x 0.6(w) x 0.46(h) in. (5.51 x 1.52 x 1.17 cm)

Full configuration weight

0.04 lb. (0.02 kg)

Electrical characteristics

Power consumption typical

0.8 W

Power consumption maximum

1.0 W

Cabling

Cable type: Single-mode fiber optic, complying with ITU-T G.652;

Maximum distance:

40km distance

Fiber type

Single Mode

Services

Refer to the HP website at

www.hp.com/networking/services

for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

QuickSpecs

HP 9500 Switch Series

Accessory Product Details

DA - 13773 North America — Version 10 — July 12, 2013

Page 33

Page 34

HP X125 1G SFP LC LH70 Transceiver

(JD063B)

A small form-factor pluggable (SFP) Gigabit LH70 transceiver that provides a full-duplex Gigabit solution up to 70km on a single-mode fiber.

Ports

1 LC 1000BASE-LH port (no IEEE standard exists for 1550 nm optics)

Connectivity

Connector type

Wavelength

1550 nm

Physical characteristics

Dimensions

2.17(d) x 0.6(w) x 0.46(h) in. (5.51 x 1.52 x 1.17 cm)

Full configuration weight

0.04 lb. (0.02 kg)

Electrical characteristics

Power consumption typical

0.8 W

Power consumption maximum

1.0 W

Cabling

Cable type: Single-mode fiber optic, complying with ITU-T G.652;

Maximum distance:

• 70km Fiber type

Single Mode

Services

Refer to the HP website at

www.hp.com/networking/services

for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

HP X120 1G SFP LC LH100 Transceiver

(JD103A)

A small form factor pluggable (SFP) Gigabit LH100 transceiver that provides a full-duplex Gigabit solution up to 100km on a single mode fiber.

Ports

1 LC 1000BASE-LH port (no IEEE standard exists for 1550 nm optics)

Connectivity

Connector type

Wavelength

1550 nm

Electrical characteristics

Power consumption typical

0.8 W

Power consumption maximum

1.0 W

Cabling

Cable type: Single-mode fiber optic, complying with ITU-T G.652;

Maximum distance:

• Up to 100km Fiber type

Single Mode

Services

Refer to the HP website at

www.hp.com/networking/services

for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

QuickSpecs

HP 9500 Switch Series

Accessory Product Details

DA - 13773 North America — Version 10 — July 12, 2013

Page 34

Page 35

HP X120 1G SFP LC BX 10U Transceiver

(JD098B)

A small form-factor pluggable (SFP) Gigabit LXBX10-U transceiver that provides a full duplex Gigabit solution up to 10km on a single mode cable.

Ports

1 LC 1000BASE-BX10 port (IEEE 802.3ah Type 1000BASE-BX10-U); Duplex: full only

Connectivity

Connector type

Physical characteristics

Dimensions

2.17(d) x 0.6(w) x 0.46(h) in. (5.51 x 1.52 x 1.17 cm)

Full configuration weight

0.04 lb. (0.02 kg)

Electrical characteristics

Power consumption typical

0.8 W

Power consumption maximum

1.0 W

Cabling

Maximum distance:

• 10km Fiber type

Single Mode

Notes

TX 1310nm RX 1490nm

Services

Refer to the HP website at:

www.hp.com/networking/services

for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

HP X120 1G SFP LC BX 10D Transceiver

(JD099B)

A small form-factor pluggable (SFP) Gigabit LXBX10-D transceiver that provides a full duplex Gigabit solution up to 10km on a single mode cable.

Ports

1 LC 1000BASE-BX10 port (IEEE 802.3ah Type 1000BASE-BX10-D); Duplex: full only

Connectivity

Connector type

Physical characteristics

Dimensions

2.17(d) x 0.6(w) x 0.46(h) in. (5.51 x 1.52 x 1.17 cm)

Full configuration weight

0.04 lb. (0.02 kg)

Electrical characteristics

Power consumption typical

0.8 W

Power consumption maximum

1.0 W

Cabling

Maximum distance:

• Up to 10km Fiber type

Single Mode

Notes

TX 1490nm RX 1310nm

Services

Refer to the HP website at

www.hp.com/networking/services

for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

QuickSpecs

HP 9500 Switch Series

Accessory Product Details

DA - 13773 North America — Version 10 — July 12, 2013

Page 35

Page 36

HP 50 m Multimode OM3 LC/LC Optical Cable

(AJ839A)

Cabling

Cable type

: 50/125 µm (core/cladding) diameter, mulitimode fiber optic, with effective modal bandwidth of 2000 MHz/km as detailed in TIA-492AAAC for distances of up to 300 m;

Maximum distance

10Gbps Transfer Rate (Ethernet): 300m

Notes

Cable Specs: Tight buffered duplex fiber optic multimode OM3 50/125 um fiber optic cable and Ethernet assembly with LC duplex connectors on one end and LC duplex connectors on other end.

Dimensions: Core diameter: 50 ± 3.0um Cladding diameter: 125 ± 2.0um Coating diameter: 245 ± 10um Optical Glass Bandwidth: For LED sources: 1500/500 MHz-km @850/1300nm. Optical Glass: For Laser sources: 2000/500 MHz-km @850/1300nm. VCSEL Laser sources: Shall achieve 600 / 600 meters @850/1300nm for Gigabit Ethernet compliant links. CABLE: The cable is duplex zipcord graded index 50/125um multimode optical fiber. The cable is designed to work in both the 850 and 1300 nm wavelength windows. BULK CABLE & CABLE ASSEMBLY CONFIGURATION: Jacket Material: Riser Grade - Low Smoke Zero Halogen thermoplastic. Jacket Color: Aqua for OM3 multimode per TIA 598 Boot Color: White Insertion Loss: less than 0.5 dB @ 850 with LED source, 0.003 dB/M added for lengths > 30 meters. Maximum Cable attenuation: 3.0 dB/km @ 850 nm, 1.0 dB/Km @ 1310 nm @ 23°C as tested in accordance with EIA 455-46. Weight: Air Packed Weight: 1 LB Net Weight: 0.454Kg

Services

Refer to the HP website at

www.hp.com/networking/services

for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

QuickSpecs

HP 9500 Switch Series

Accessory Product Details

DA - 13773 North America — Version 10 — July 12, 2013

Page 36

Page 37

HP 30 m Multimode OM3 LC/LC Optical Cable

(AJ838A)

Cabling

Cable type

: 50/125 µm (core/cladding) diameter, mulitimode fiber optic, with effective modal bandwidth of 2000 MHz/km as detailed in TIA-492AAAC for distances of up to 300 m;

Maximum distance

10Gbps Transfer Rate (Ethernet): 300m

Notes

Cable Specs: Tight buffered duplex fiber optic multimode OM3 50/125 um fiber optic cable and Ethernet assembly with LC duplex connectors on one end and LC duplex connectors on other end.

Services

Refer to the HP website at

www.hp.com/networking/services

for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

QuickSpecs

HP 9500 Switch Series

Accessory Product Details

DA - 13773 North America — Version 10 — July 12, 2013

Page 37

Page 38

HP 15 m Multimode OM3 LC/LC Optical Cable

(AJ837A)

Cabling

Cable type

: 50/125 µm (core/cladding) diameter, mulitimode fiber optic, with effective modal bandwidth of 2000 MHz/km as detailed in TIA-492AAAC for distances of up to 300 m;

Maximum distance

10Gbps Transfer Rate (Ethernet): 300m

Notes

Cable Specs: Tight buffered duplex fiber optic multimode OM3 50/125 um fiber optic cable and Ethernet assembly with LC duplex connectors on one end and LC duplex connectors on other end.

Services

Refer to the HP website at

www.hp.com/networking/services

for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

QuickSpecs

HP 9500 Switch Series

Accessory Product Details

DA - 13773 North America — Version 10 — July 12, 2013

Page 38

Page 39

HP 5 m Multimode OM3 LC/LC Optical Cable

(AJ836A)

Cabling

Cable type

: 50/125 µm core/cladding) diameter, mulitimode fiber optic, with effective modal bandwidth of 2000 MHz/km as detailed in TIA-492AAAC for distances of up to 300 m;

Maximum distance

10Gbps Transfer Rate (Ethernet): 300m

Notes

Cable Specs: This specification defines the detail requirements for a tight buffered duplex fiber optic multimode OM3 50/125 um fiber optic cable and Ethernet assembly with LC duplex connectors on one end and LC duplex connectors on other end.

Services

Refer to the HP website at

www.hp.com/networking/services

for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

QuickSpecs

HP 9500 Switch Series

Accessory Product Details

DA - 13773 North America — Version 10 — July 12, 2013

Page 39

Page 40

HP 2 m Multimode OM3 LC/LC Optical Cable

(AJ835A)

Cabling

Cable type

: 50/125 µm (core/cladding) diameter, mulitimode fiber optic, with effective modal bandwidth of 2000 MHz/km as detailed in TIA-492AAAC for distances of up to 300 m;

Maximum distance

10Gbps Transfer Rate (Ethernet): 300m

Notes

Cable Specs: Tight buffered duplex fiber optic multimode OM3 50/125 um fiber optic cable and Ethernet assembly with LC duplex connectors on one end and LC duplex connectors on other end.

Services

Refer to the HP website at

www.hp.com/networking/services

for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

QuickSpecs

HP 9500 Switch Series

Accessory Product Details

DA - 13773 North America — Version 10 — July 12, 2013

Page 40

Page 41

HP 1 m Multimode OM3 LC/LC Optical Cable

(AJ834A)

Cabling

Cable type

: 50/125 µm (core/cladding) diameter, mulitimode fiber optic, with effective modal bandwidth of 2000 MHz/km as detailed in TIA-492AAAC for distances of up to 300 m

Maximum distance

10Gbps Transfer Rate (Ethernet): 300m

Notes

Cable Specs: Tight buffered duplex fiber optic multimode OM3 50/125 um fiber optic cable and Ethernet assembly with LC duplex connectors on one end and LC duplex connectors on other end.

Services

Refer to the HP website at

www.hp.com/networking/services

for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

QuickSpecs

HP 9500 Switch Series

Accessory Product Details

DA - 13773 North America — Version 10 — July 12, 2013

Page 41

Page 42

HP 0.5 m Multimode OM3 LC/LC Optical Cable

(AJ833A)

Cabling

Cable type

: 50/125 µm (core/cladding) diameter, mulitimode fiber optic, with effective modal bandwidth of 2000 MHz/km as detailed in TIA-492AAAC for distances of up to 300 m

Maximum distance

10Gbps Transfer Rate (Ethernet): 300m

Notes

Cable Specs: Tight buffered duplex fiber optic multimode OM3 50/125 um fiber optic cable and Ethernet assembly with LC duplex connectors on one end and LC duplex connectors on other end.

Dimensions: Core diameter: 50 ± 3.0um Cladding diameter: 125 ± 2.0um Coating diameter: 245 ± 10um Optical glass: Bandwidth: For LED sources: 1500/500 MHz-km @850/1300nm. Optical glass: Bandwidth: For Laser sources: 2000/500 MHz-km @850/1300nm. VCSEL Laser sources: 600 / 600 meters @850/1300nm for Gigabit Ethernet compliant links. CABLE: The cable is duplex zipcord graded index 50/125um multimode optical fiber and designed to work in both the 850 and 1300 nm wavelength windows. BULK CABLE & CABLE ASSEMBLY CONFIGURATION: Jacket Material: Riser Grade - Low Smoke Zero Halogen thermoplastic. Jacket Color: Aqua for OM3 multimode per TIA 598 Boot Color: White Insertion Loss: less than 0.5 dB @ 850 with LED source, 0.003 dB/M added for lengths > 30 meters. Maximum Cable attenuation: 3.0 dB/km @ 850 nm, 1.0 dB/Km @ 1310 nm @ 23°C as tested in accordance with EIA 455-46. Weight: Air Packed Weight: 1 LB Net Weight: 0.454Kg

Services

Refer to the HP website at

www.hp.com/networking/services

for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

QuickSpecs

HP 9500 Switch Series

Accessory Product Details

DA - 13773 North America — Version 10 — July 12, 2013

Page 42

Page 43

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 1m Cable (QK732A)

Notes

Cable Specs: Graded-index, "bendable" fiber optic multimode OM3+ 50/125um duplex cable and Ethernet assembly with LC duplex connectors on each end.

• Core Diameter: 50um ±3um, Cladding diameter: 125um ±2um; Coating diameter: 245 ± 10um

• Bandwidth: 3000 MHz-km @ 850nm (Laser)

• Jacket Color: Blue

• Jacket Material: Riser Grade – Low Smoke Zero Halogen (LSZH) thermoplastic

• Boot Color: White

• Outer Jacket Print: HP PremierFlex OM3+ Fiber Optic Cable, 50/125um, Type OFNR (UL), LSZH, cUL, OFN FT4, ROHS. Cable also has a longitudinal white stripe that runs the entire length of the cable.

• Insertion Loss: Less than 0.5dB @ 850nm with LED source, 0.003dB/m added for lengths >30m

• Maximum Cable Attenuation: 3.0 dB/km @ 850nm, 1.0 dB/km @ 1310nm @ 23°C as tested in accordance with EIA 455-45

Services

Refer to the HP website at

www.hp.com/networking/services

for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 2m Cable (QK733A)

Notes

Cable Specs: Graded-index, "bendable" fiber optic multimode OM3+ 50/125um duplex cable and Ethernet assembly with LC duplex connectors on each end.

• Core diameter: 50um ±3um, Cladding diameter: 125um ±2um; Coating diameter: 245 ± 10um

• Bandwidth: 3000 MHz-km @ 850nm (Laser)

• Jacket Color: Blue

• Jacket Material: Riser Grade – Low Smoke Zero Halogen (LSZH) thermoplastic

• Boot Color: White

• Outer Jacket Print: HP PremierFlex OM3+ Fiber Optic Cable, 50/125um, Type OFNR (UL), LSZH, cUL, OFN FT4, ROHS. Cable also has a longitudinal white stripe that runs the entire length of the cable.

• Insertion Loss: Less than 0.5dB @ 850nm with LED source, 0.003dB/m added for lengths >30m

• Maximum Cable Attenuation: 3.0 dB/km @ 850nm, 1.0 dB/km @ 1310nm @ 23°C as tested in accordance with EIA 455-45

Services

Refer to the HP website at

www.hp.com/networking/services

for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

QuickSpecs

HP 9500 Switch Series

Accessory Product Details

DA - 13773 North America — Version 10 — July 12, 2013

Page 43

Page 44

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 5m Cable (QK734A)

Notes

Cable Specs: Graded-index, "bendable" fiber optic multimode OM3+ 50/125um duplex cable and Ethernet assembly with LC duplex connectors on each end.

• Core diameter: 50um ±3um, Cladding diameter: 125um ±2um; Coating diameter: 245 ± 10um

• Bandwidth: 3000 MHz-km @ 850nm (Laser)

• Jacket Color: Blue

• Jacket Material: Riser Grade – Low Smoke Zero Halogen (LSZH) thermoplastic

• Boot Color: White

• Outer Jacket Print: HP PremierFlex OM3+ Fiber Optic Cable, 50/125um, Type OFNR (UL), LSZH, cUL, OFN FT4, ROHS. Cable also has a longitudinal white stripe that runs the entire length of the cable.

• Insertion Loss: Less than 0.5dB @ 850nm with LED source, 0.003dB/m added for lengths >30m

• Maximum Cable Attenuation: 3.0 dB/km @ 850nm, 1.0 dB/km @ 1310nm @ 23°C as tested in accordance with EIA 455-45

Services

Refer to the HP website at

www.hp.com/networking/services

for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 15m Cable

(QK735A)

Notes

Cable Specs: Graded-index, "bendable" fiber optic multimode OM3+ 50/125um duplex cable and Ethernet assembly with LC duplex connectors on each end.

• Core diameter: 50um ±3um, Cladding diameter: 125um ±2um; Coating diameter: 245 ± 10um

• Bandwidth: 3000 MHz-km @ 850nm (Laser)

• Jacket Color: Blue

• Jacket Material: Riser Grade – Low Smoke Zero Halogen (LSZH) thermoplastic

• Boot Color: White

• Outer Jacket Print: HP PremierFlex OM3+ Fiber Optic Cable, 50/125um, Type OFNR (UL), LSZH, cUL, OFN FT4, ROHS. Cable also has a longitudinal white stripe that runs the entire length of the cable.

• Insertion Loss: Less than 0.5dB @ 850nm with LED source, 0.003dB/m added for lengths >30m

• Maximum Cable Attenuation: 3.0 dB/km @ 850nm, 1.0 dB/km @ 1310nm @ 23°C as tested in accordance with EIA 455-45

Services

Refer to the HP website at

www.hp.com/networking/services

for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

QuickSpecs

HP 9500 Switch Series

Accessory Product Details

DA - 13773 North America — Version 10 — July 12, 2013

Page 44

Page 45

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 30m Cable

(QK736A)

Notes

Cable Specs: Graded-index, "bendable" fiber optic multimode OM3+ 50/125um duplex cable and Ethernet assembly with LC duplex connectors on each end.

• Core diameter: 50um ±3um, Cladding diameter: 125um ±2um; Coating diameter: 245 ± 10um

• Bandwidth: 3000 MHz-km @ 850nm (Laser)

• Jacket Color: Blue

• Jacket Material: Riser Grade – Low Smoke Zero Halogen (LSZH) thermoplastic

• Boot Color: White

• Outer Jacket Print: HP PremierFlex OM3+ Fiber Optic Cable, 50/125um, Type OFNR (UL), LSZH, cUL, OFN FT4, ROHS. Cable also has a longitudinal white stripe that runs the entire length of the cable.

• Insertion Loss: Less than 0.5dB @ 850nm with LED source, 0.003dB/m added for lengths >30m

• Maximum Cable Attenuation: 3.0 dB/km @ 850nm, 1.0 dB/km @ 1310nm @ 23°C as tested in accordance with EIA 455-45

Services

Refer to the HP website at

www.hp.com/networking/services

for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 50m Cable

(QK737A)

Notes

Cable Specs: Graded-index, "bendable" fiber optic multimode OM3+ 50/125um duplex cable and Ethernet assembly with LC duplex connectors on each end.

• Core diameter: 50um ±3um, Cladding diameter: 125um ±2um; Coating diameter: 245 ± 10um

• Bandwidth: 3000 MHz-km @ 850nm (Laser)

• Jacket Color: Blue

• Jacket Material: Riser Grade – Low Smoke Zero Halogen (LSZH) thermoplastic

• Boot Color: White

• Outer Jacket Print: HP PremierFlex OM3+ Fiber Optic Cable, 50/125um, Type OFNR (UL), LSZH, cUL, OFN FT4, ROHS. Cable also has a longitudinal white stripe that runs the entire length of the cable.

• Insertion Loss: Less than 0.5dB @ 850nm with LED source, 0.003dB/m added for lengths >30m

• Maximum Cable Attenuation: 3.0 dB/km @ 850nm, 1.0 dB/km @ 1310nm @ 23°C as tested in accordance with EIA 455-45

Services

Refer to the HP website at

www.hp.com/networking/services

for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

HP 9500 Access Controller Module for 128-640 Access Points

(JD442A)

Ports

1 RJ-45 serial console port 1 RJ-45 out-of-band management port 2 USB 1.0 12 Mbps ports

Physical characteristics

Dimensions

14.45(d) x 13.39(w) x 1.6(h) in. (36.7 x 34 x 4.06 cm) (1U height)

Weight

7.89 lb. (3.58 kg)

QuickSpecs

HP 9500 Switch Series

Accessory Product Details

DA - 13773 North America — Version 10 — July 12, 2013

Page 45

Page 46

Memory and processor

Processor

Eight core @ 950 MHz, 256 MB compact flash, 1 GB DDR2 DIMM

Performance

Switch fabric speed

20 Gbps

MAC address table size

24,000 entries

Environment

Operating temperature

32°F to 113°F (0°C to 45°C)

Operating relative humidity

5% to 95%, non-condensing

Non-operating/Storage temperature

-40°F to 158°F (-40°C to 70°C)

Non-operating/Storage relative humidity

5% to 95%, non-condensing

Electrical characteristics

Maximum heat dissipation

358 BTU/hr (377.69 kJ/hr)

Maximum power rating

105 W

Safety

UL 60950-1; EN 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel; GOST; C-Tick; NOM; IEC 60950-1(with CB report)

Emissions

EN 55022; VCCI; ICES-003; AS/NZS CISPR 22; EN 300 386; FCC Part 15; EN 61000-3-2:2006; EN 61000-3-3:1995 +A1:2001+A2:2005; EMC Directive 2004/108/EC

Immunity

EN 61000-4-2:1995+A1:1998+A2:2001; EN 61000-4-3:2006; EN 61000-4-4:2004; EN 610004-5:2006; EN 61000-4-6: 1996 +A1:2001:A2:2007; EN 61000-4-8:2001; EN 61000-4-11:2004; EN 55024:1998+ A1:2001 + A2:2003

Management

IMC - Intelligent Management Center; command-line interface; Web browser; configuration menu; SNMP Manager; Telnet; HTTPS; RMON1; FTP; in-line and out-of-band; IEEE 802.3 Ethernet MIB; Ethernet Interface MIB

Features

A9500 ACM License system

The A9500 ACM is an access controller module for the HP A9500 series Ethernet switches. It supports 128 APs by default. After license upgrade, the access controller module can support up to 640 APs.

Notes

Max. number of users: 20K. Max. number of users that are supported by local authentication: 1K. Max. number of SSIDs that can be configured: 512. Max. number of users that are supported by local portal authentication: 4K. Number of ACLs: 32K.

Services

Refer to the HP website at:

www.hp.com/networking/services

for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

Standards and protocols

General protocols

RFC 768 UDP RFC 791 IP RFC 792 ICMP RFC 793 TCP

MIBs

RFC 1229 Interface MIB Extensions RFC 1643 Ethernet MIB RFC 1757 Remote Network Monitoring MIB

QuickSpecs

HP 9500 Switch Series

Accessory Product Details

DA - 13773 North America — Version 10 — July 12, 2013

Page 46

Page 47

RFC 826 ARP RFC 854 TELNET RFC 855 Telnet Option Specification RFC 858 Telnet Suppress Go Ahead Option RFC 894 IP over Ethernet RFC 950 Internet Standard Subnetting Procedure RFC 959 File Transfer Protocol (FTP) RFC 1122 Host Requirements RFC 1141 Incremental updating of the Internet checksum RFC 1144 Compressing TCP/IP headers for low-speed serial links RFC 1256 ICMP Router Discovery Protocol (IRDP) RFC 1321 The MD5 Message-Digest Algorithm RFC 1334 PPP Authentication Protocols (PAP) RFC 1350 TFTP Protocol (revision 2) RFC 1812 IPv4 Routing RFC 1944 Benchmarking Methodology for Network Interconnect Devices RFC 1994 PPP Challenge Handshake Authentication Protocol (CHAP) RFC 2104 HMAC: Keyed-Hashing for Message Authentication RFC 2246 The TLS Protocol Version 1.0 RFC 2284 EAP over LAN RFC 2644 Directed Broadcast Control RFC 2864 The Inverted Stack Table Extension to the Interfaces Group MIB RFC 2866 RADIUS Accounting RFC 2869 RADIUS Extensions RFC 3268 Advanced Encryption Standard (AES) Ciphersuites for Transport Layer Security (TLS) RFC 3619 Ethernet Automatic Protection Switching (EAPS) draft-ietf-capwap-protocolspecification-00.txt:CAPW

RFC 2011 SNMPv2 MIB for IP RFC 2012 SNMPv2 MIB for TCP RFC 2013 SNMPv2 MIB for UDP RFC 2571 SNMP Framework MIB RFC 2572 SNMP-MPD MIB RFC 2613 SMON MIB RFC 2863 The Interfaces Group MIB RFC 2932IP (Multicast Routing MIB) RFC 2933 IGMP MIB

Mobility

IEEE 802.11a High Speed Physical Layer in the 5 GHz Band IEEE 802.11b Higher-Speed Physical Layer Extension in the 2.4 GHz Band IEEE 802.11d Global Harmonization IEEE 802.11g Further Higher Data Rate Extension in the 2.4 GHz Band IEEE 802.11i Medium Access Control (MAC) Security Enhancements IEEE 802.11n WLAN Enhancements for Higher Throughput

Network management

RFC 1155 Structure of Management Information RFC 1905 SNMPv2 Protocol Operations RFC 2573 SNMPv3 Applications RFC 2574 SNMPv3 User-based Security Model (USM) RFC 2575 VACM for SNMP SNMPv1/v2c

QoS/CoS

RFC 2474 DS Field in the IPv4 and IPv6 Headers RFC 2475 DiffServ Architecture RFC 3168 The Addition of Explicit Congestion Notification (ECN) to IP

Security

IEEE 802.1X Port Based Network Access Control

QuickSpecs

HP 9500 Switch Series

Accessory Product Details

DA - 13773 North America — Version 10 — July 12, 2013

Page 47

Page 48

AP Protocol Specification draft-ohara-capwap-lwapp-

03.txt:Light Weight Access Point Protocol

IP multicast

RFC 1112 IGMP RFC 2236 IGMPv2 RFC 2934 Protocol Independent Multicast MIB for IPv4

IPv6

RFC 1350 TFTP RFC 1881 IPv6 Address Allocation Management RFC 1887 IPv6 Unicast Address Allocation Architecture RFC 1981 IPv6 Path MTU Discovery RFC 2292 Advanced Sockets API for IPv6 RFC 2373 IPv6 Addressing Architecture RFC 2375 IPv6 Multicast Address Assignments RFC 2460 IPv6 Specification RFC 2461 IPv6 Neighbor Discovery RFC 2462 IPv6 Stateless Address Auto-configuration RFC 2463 ICMPv6 RFC 2464 Transmission of IPv6 over Ethernet Networks RFC 2526 Reserved IPv6 Subnet Anycast Addresses RFC 2563 ICMPv6 RFC 2925 Definitions of Managed Objects for Remote Ping, Traceroute, and Lookup Operations (Ping only) RFC 3484 Default Address Selection for IPv6 RFC 3587 IPv6 Global Unicast Address Format RFC 4443 ICMPv6 RFC 4541 IGMP & MLD Snooping Switch RFC 4861 IPv6 Neighbor Discovery RFC 4862 IPv6 Stateless Address

RFC 3394 Advanced Encryption Standard (AES) Key Wrap Algorithm RFC 3579 RADIUS Support For Extensible Authentication Protocol (EAP) Access Control Lists (ACLs) Guest VLAN for 802.1x MAC Authentication Secure Sockets Layer (SSL) SSHv1.5 Secure Shell SSHv2 Secure Shell Web Authentication WPA (Wi-Fi Protected Access)/WPA2

IKEv1

RFC 3748 - Extensible Authentication Protocol (EAP)

QuickSpecs

HP 9500 Switch Series

Accessory Product Details

DA - 13773 North America — Version 10 — July 12, 2013

Page 48

Page 49

Auto-configuration RFC 5095 Deprecation of Type 0 Routing Headers in IPv6

HP 9500 VPN Firewall Module (JD245A)

Ports

2 RJ-45 auto-negotiating 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) 2 dual-personality ports; auto-sensing 10/100/1000Base-T or SFP 1 RJ-45 serial console port 1 Compact Flash port

Physical characteristics

Dimensions

15.71(w) x 14.92(d) x 1.58(h) in (39.9 x 37.9 x 4.01 cm)

Weight

7.72 lb (3.5 kg)

Environment

Operating temperature

32°F to 113°F (0°C to 45°C)

Operating relative humidity

10% to 95%, noncondensing

Management

IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet; HTTPS; RMON1; FTP

Features

PerfoPerformance

- 8Gbps Firewall Throughput

- 2M Concurrent connection

- 60K New connection per second

- Max 20480 security policies

- 2Gbps 3DES/AES VPN Throughput

- 5000 IPSec tunnel

- 4K VLAN Firewall operation mode

- Routing mode

- Transparent mode

- Hybrid mode AAA service

- Local Authentication

- Standard Radius

- HWTACACS+

- RADIUS domain Authentication ASPF

- General TCP / UDP application

- FTP/SMTP/HTTP/RTSP/H323 Protocol State Detection

- SIP/MGCP/QQ/MSN Protocol State Detection

- Java/ActiveX Blocking and Detection

- Port mapping

- Support for the fragmented packets Virtualization

- 256 Virtual Firewall

- 4 default Security Zone

- Max 256 Security Zone NAT

- NAPT

QuickSpecs

HP 9500 Switch Series

Accessory Product Details

DA - 13773 North America — Version 10 — July 12, 2013

Page 49

Page 50

- PAT

- NAT Server

- Port mapping

- Bidirectional NAT

- Static NAT Network Security

- Add blacklist by hand or automatically

- IP+MAC Binding

- ARP Reverse Query

- ARP Cheat Check

- Management ports closed by default DDOS

- DNS Query Flood

- SYN Flood

- Auto start TCP Proxy when Detect SYN Flood

- ICMP Flood

- UDP Flood

- IP Spoofing

- SQL injection filter L2TP VPN

- LNS,LAC

- L2TP Multi-instance GRE

- GRE tunneling protocol IPSec

- AH/ESP

- ESP

- Transport/tunnel

- NAT traversal

- Strategy template IKE

- DH

- Pre-share Key authentication-method

- Support aggressive mode and main exchange mode

- IKE DPD, PKI / CA Network Feature

- 802.1q VLAN

- 4K sub-interface

- Static and dynamic ARP

- Multicast, PIM

- IGMP v1/v2/v3 Routing

- RIP

- OSPF

- BGP

- Static Route

- policy Route High Availability

- Active/Active mode

- Active/Passive mode

QuickSpecs

HP 9500 Switch Series

Accessory Product Details

DA - 13773 North America — Version 10 — July 12, 2013

Page 50

Page 51

- Session Synchronization for Firewall System management

- Web Management support IE/Firefox

- Command line interface (Console/Telnet/SSH)

- Classification Manager

- Unified management through iMC

- SNMP v2c/v3 Administration

- Software Upgrades

- Configuration Backup and Restore Logging/Monitoring

- Syslog

- Mini RMON

- NTP

- NAT/ASPF/firewall log stream(Binary log) IPv6 Routing & Multicast

- RIPng

- OSPFv3

- BGP4+

- Static Route

- Policy Route

- PIM-SM/DM IPv6 Security

- NAT-PT

- Manual tunnel

- IPV6 OVER ipv4 GRE tunnel

- 6to4 tunnel (RFC3056)

- ISATAP Tunnel

- IPv6 Packet Filter

- Radius

- NAT64

Services

3-year, parts only, global next-day advance exchange (UZ896E) 3-year, 4-hour onsite, 13x5 coverage for hardware (UZ897E) 3-year, 4-hour onsite, 24x7 coverage for hardware (UZ900E) 3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 SW phone support and SW updates (UZ904E) 3-year, 24x7 SW phone support, software updates (UZ907E) 1-year, post-warranty, 4-hour onsite, 13x5 coverage for hardware (HR735E) 1-year, post-warranty, 4-hour onsite, 24x7 coverage for hardware (HR736E) 1-year, post-warranty, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone support (HR737E) 4-year, 4-hour onsite, 13x5 coverage for hardware (UZ898E) 4-year, 4-hour onsite, 24x7 coverage for hardware (UZ901E) 4-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UZ941E) 4-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UZ905E) 4-year, 24x7 SW phone support, software updates (UZ908E) 5-year, 4-hour onsite, 13x5 coverage for hardware (UZ899E) 5-year, 4-hour onsite, 24x7 coverage for hardware (UZ902E)

QuickSpecs

HP 9500 Switch Series

Accessory Product Details

DA - 13773 North America — Version 10 — July 12, 2013

Page 51

Page 52

5-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UZ906E) 5-year, 24x7 SW phone support, software updates (UZ909E) 3 Yr 6 hr Call-to-Repair Onsite (UZ910E) 4 Yr 6 hr Call-to-Repair Onsite (UZ911E) 5 Yr 6 hr Call-to-Repair Onsite (UZ912E) 1-year, 6 hour Call-To-Repair Onsite for hardware (HR739E) 1-year, 24x7 software phone support, software updates (HR738E)

Refer to the HP website at

www.hp.com/networking/services

for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

Standards and protocols

IPv6

RFC 1981 IPv6 Path MTU Discovery RFC 2460 IPv6 Specification RFC 2465 Management Information Base for IP Version 6: Textual Conventions and General Group(partially support, only "IPv6 Interface Statistics table") RFC 3484 Default Address Selection for IPv6 RFC 3513 IPv6 Addressing Architecture RFC 3587 IPv6 Global Unicast Address Format RFC 4007 IPv6 Scoped Address Architecture RFC 4862 IPv6 Stateless Address Auto-configuration

Security

RFC 1321 The MD5 Message-Digest Algorithm RFC 1334 PPP Authentication Protocols (PAP) RFC 1994 PPP Challenge Handshake Authentication Protocol (CHAP) RFC 2104 Keyed-Hashing for Message Authentication RFC 2138 RADIUS Authentication RFC 2618 RADIUS Authentication Client MIB RFC 2620 RADIUS Accounting Client MIB RFC 2716 PPP EAP TLS Authentication Protocol RFC 2865 RADIUS (client only) RFC 2865 RADIUS Authentication RFC 2867 RADIUS Accounting Modifications for Tunnel Protocol Support RFC 2868 RADIUS Attributes for Tunnel Protocol Support RFC 2869 RADIUS Extensions draft-grant-tacacs-02 (TACACS)

VPN

RFC 1701 Generic Routing Encapsulation (GRE) RFC 1702 Generic Routing Encapsulation over IPv4 networks. RFC 1828 IP Authentication using Keyed MD5 RFC 1829 The ESP DES-CBC Transform RFC 1853 IP in IP Tunneling RFC 2085 HMAC-MD5 IP Authentication with Replay Prevention RFC 2401 Security Architecture for the Internet Protocol RFC 2402 IP Authentication Header RFC 2403 - HMAC-MD5-96 RFC 2403 The Use of HMAC-MD5-96 within ESP and AH

QuickSpecs

HP 9500 Switch Series

Accessory Product Details

DA - 13773 North America — Version 10 — July 12, 2013

Page 52

Page 53

RFC 2404 The Use of HMAC-SHA-1-96 within ESP and AH RFC 2405 The ESP DES-CBC Cipher Algorithm With Explicit IV RFC 2406 IP Encapsulating Security Payload (ESP) RFC 2410 The NULL Encryption Algorithm and Its Use With IPsec RFC 2411 IP Security Document Roadmap RFC 2451 The ESP CBC-Mode Cipher Algorithms RFC 2473 Generic Packet Tunneling in IPv6 Specification RFC 2529 Transmission of IPv6 over IPv4 Domains without Explicit Tunnels RFC 2661 Layer Two Tunneling Protocol "L2TP" RFC 2784 Generic Routing Encapsulation (GRE) RFC 2868 RADIUS Attributes for Tunnel Protocol Support RFC 2893 Transition Mechanisms for IPv6 Hosts and Routers RFC 3602 The AES-CBC Cipher Algorithm and Its Use with IPsec RFC 4214 Intra-Site Automatic Tunnel Addressing Protocol (ISATAP)

IKEv1

RFC 2407 The Internet IP Security Domain of Interpretation for ISAKMP RFC 2408 Internet Security Association and Key Management Protocol (ISAKMP). RFC 2409 The Internet Key Exchange (IKE) RFC 2412 The OAKLEY Key Determination Protocol RFC 3526 More Modular Exponential (MODP) Diffie-Hellman groups for Internet Key Exchange (IKE) RFC 3706 A Traffic-Based Method of Detecting Dead Internet Key Exchange (IKE) Peers

PKI

RFC 2511 Internet X.509 Certificate Request Message Format RFC 3279 Algorithms and Identifiers for the Internet X.509 Public Key Infrastructure Certificate and Certificate Revocation List (CRL) Profile RFC 3280 Internet X.509 Public Key Infrastructure Certificate and Certificate Revocation List (CRL) Profile draft-nourse-scep-06: PKCS#1 PKCS#10 PKCS#12 PKCS#7

HP 9500 Load Balancing Module

(JD247A)

Ports

Physical characteristics

Dimensions

14.92(d) x 15.71(w) x 1.57(h) in. (37.9 x 39.9 x 4 cm)

QuickSpecs

HP 9500 Switch Series

Accessory Product Details

DA - 13773 North America — Version 10 — July 12, 2013

Page 53

Page 54

Weight

7.94 lb. (3.6 kg)

Memory and processor

2 GB DDR2 SDRAM Mb, 4 MB flash

Environment

Operating temperature

32°F to 113°F (0°C to 45°C)

Operating relative humidity

10% to 90%, noncondensing

Features

Performance

- 2Gbps throughput

- Concurrent connections: 2M

- L4 Connection Per Second: 50K

- L7 Connection Per Second: 30K

- Max number of virtual servers: 1K

- Max number of real server groups: 1K

- Max number of real servers: 16K

- Max number of real servers in one real server group: 1K Load balancing scheduling algorithm

- Round robin

- Weighted round robin

- Least connections

- Weighted least connections

- Random

- Weighted random

- Source IP address hashing

- Destination IP address hashing

- Source IP-port hashing

- UDP Packet Load Hash

- Best-case Response Time

- L7 Content Health Monitor Algorithm

- ICMP

- TCP

- FTP

- HTTP

- SSL

- DNS

- Radius

- SMTP

- POP3

- RTSP

- IMAP4

- SNMP

- SIP User Session Persistence for L4 Load Balance

- Source IP based

- Cookie based

- HTTP Header based

- Source/Destination IP/ Port/ Port+IP based User session persistence for L7 Load Balance

- HTTP Header based

- HTTP Cookie

QuickSpecs

HP 9500 Switch Series

Accessory Product Details

DA - 13773 North America — Version 10 — July 12, 2013

Page 54

Page 55

- SIP based

- Radius attributes based

- DHCP based Real Service Group Method for L7 Load Balance

- HTTP Request URL-File

- HTTP Request URL-Function

- HTTP Host

- HTTP User-Agent

- HTTP Accept-Language

- HTTP Accept-Encoding

- HTTP Request-Method

- HTTP header

- RTSP URL

- DHCP Relay Agent IP IPv6 load balancing algorithm

- Round Robin

- Weighted Round Robin

- Least Connection

- Weighted Least Connection

- Random

- Weighted Random

- Source IP/IP-Port Hash

- Destination IP Hash IPv6 Health monitoring Algorithm

- ICMP

- HTTP User-Session Persistence for IPv6

- Source IP based Operation Mode

- NAT Mode

- DR Mode

- Firewall Load Balance Security Features

- ACL

- NAPT

- PAT

- NAT Server

- Port mapping

- DNS Query Flood

- SYN Flood

- ICMP Flood

- UDP Flood

- IP Spoofing

- Hotfix

- standard Radius HA

- VRRP

- Dual Hot Standby

- Configuration Sync System Management

QuickSpecs

HP 9500 Switch Series

Accessory Product Details

DA - 13773 North America — Version 10 — July 12, 2013

Page 55

Page 56

- Web UI

- Command line

- Management at different grades

- SSH1.5

- SSH2.0

- FTP/TFTP/Telnet

- SNMPv1/v2c/v3

- Mini RMON

- NTP Log

- Syslog

- NAT/ASPF/Firewall Flow Log

Services

3-year, parts only, global next-day advance exchange (UZ950E) 3-year, 4-hour onsite, 13x5 coverage for hardware (UZ951E) 3-year, 4-hour onsite, 24x7 coverage for hardware (UZ954E) 3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 SW phone support and SW updates (UZ958E) 3-year, 24x7 SW phone support, software updates (UZ961E) 1-year, post-warranty, 4-hour onsite, 13x5 coverage for hardware (HR750E) 1-year, post-warranty, 4-hour onsite, 24x7 coverage for hardware (HR751E) 1-year, post-warranty, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone support (HR752E) 4-year, 4-hour onsite, 13x5 coverage for hardware (UZ952E) 4-year, 4-hour onsite, 24x7 coverage for hardware (UZ955E) 4-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UZ959E) 4-year, 24x7 SW phone support, software updates (UZ962E) 5-year, 4-hour onsite, 13x5 coverage for hardware (UZ953E) 5-year, 4-hour onsite, 24x7 coverage for hardware (UZ956E) 5-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UZ960E) 5-year, 24x7 SW phone support, software updates (UZ963E) 3 Yr 6 hr Call-to-Repair Onsite (UZ964E) 4 Yr 6 hr Call-to-Repair Onsite (UZ965E) 5 Yr 6 hr Call-to-Repair Onsite (UZ966E) 1-year, 6 hour Call-To-Repair Onsite for hardware (HR754E) 1-year, 24x7 software phone support, software updates (HR753E)

Refer to the HP website at

www.hp.com/networking/services

for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

HP 9500 NetStream Monitoring Module

(JD246A)

Ports

2 RJ-45 auto-negotiating 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T) 2 RJ-45 dual-personality ports; auto-sensing 10/100/1000Base-T or SFP 1 RJ-45 serial console port 1 Compact Flash port

QuickSpecs

HP 9500 Switch Series

Accessory Product Details

DA - 13773 North America — Version 10 — July 12, 2013

Page 56

Page 57

Physical characteristics

Dimensions

14.92(d) x 15.71(w) x 1.57(h) in. (37.9 x 39.9 x 4 cm)

Weight

7.28 lb. (3.3 kg)

Memory and processor

2 GB DDR2 SDRAM, 4 MB flash

Performance

Throughput

4 Gbps

Concurrent sessions

2.4M

Environment

Operating temperature

32°F to 104°F (0°C to 40°C)

Operating relative humidity

10% to 90%, noncondensing

Management

IMC - Intelligent Management Center; command-line interface; Web browser; SNMP Manager; Telnet; HTTPS; FTP

Features

PerConfiguration of NetStream on an interface Setting of the interface sampling mode

- Rule-based mode

- Random mode Configuration of packet filtering on an interface Configuration of aggregate IP traffic accounting

- protocol-port aggregation Setting of buffer size for NetStream data Setting of the output address for NetStream data Setting of the output version Setting of the output rate Setting of the packet refresh rate for templates of NetStream data of version 9 Setting of the time refresh rate for templates of NetStream data of version 9 Aging of NetStream data

- Active aging time

- Inactive aging time

- Forced aging Format of output NetStream data

- Version 5

- Version 8

- Version 9 Management mode

- CLI (Telnet or SSH)

- Support of standard SNMPv3; SNMPv2c and SNMPv1 compatible

Services

3-year, parts only, global next-day advance exchange (UZ932E) 3-year, 4-hour onsite, 13x5 coverage for hardware (UZ933E) 3-year, 4-hour onsite, 24x7 coverage for hardware (UZ936E) 3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 SW phone support and SW updates (UZ940E) 3-year, 24x7 SW phone support, software updates (UZ943E) 1-year, post-warranty, 4-hour onsite, 13x5 coverage for hardware (HR745E) 1-year, post-warranty, 4-hour onsite, 24x7 coverage for hardware (HR746E) 1-year, post-warranty, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone support (HR747E) 4-year, 4-hour onsite, 13x5 coverage for hardware (UZ934E) 4-year, 4-hour onsite, 24x7 coverage for hardware (UZ937E)

QuickSpecs

HP 9500 Switch Series

Accessory Product Details

DA - 13773 North America — Version 10 — July 12, 2013

Page 57

Page 58

4-year, 24x7 SW phone support, software updates (UZ944E) 5-year, 4-hour onsite, 13x5 coverage for hardware (UZ935E) 5-year, 4-hour onsite, 24x7 coverage for hardware (UZ938E) 5-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UZ942E) 5-year, 24x7 SW phone support, software updates (UZ945E) 3 Yr 6 hr Call-to-Repair Onsite (UZ946E) 4 Yr 6 hr Call-to-Repair Onsite (UZ947E) 5 Yr 6 hr Call-to-Repair Onsite (UZ948E) 1-year, 6 hour Call-To-Repair Onsite for hardware (HR749E) 1-year, 24x7 software phone support, software updates (HR748E)

Refer to the HP website at

www.hp.com/networking/services

for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

HP 9500 720Gbps Fabric Module

(JC120A)

Ports

1 RJ-45 serial console port 1 RJ-45 out-of-band management port 1 RJ-45 autosensing 10/100 port (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX); Duplex: half or full 1 RJ-45 Serial port 1 Compact Flash port 1 USB 2.0

Physical characteristics

Dimensions

15.75(w) x 14.96(d) x 1.57(h) in (40 x 38 x 4 cm)

Weight

7.83 lb. (3.55 kg)

Services

Refer to the HP website at

www.hp.com/networking/services

for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

HP 9500 360Gbps Fabric Module (JC121A)

Ports

Physical characteristics

Dimensions

15.75(w) x 14.96(d) x 1.57(h) in (40 x 38 x 4 cm)

Weight

7.25 lb. (3.29 kg)

Services

Refer to the HP website at

www.hp.com/networking/services

for details on the service-level descriptions and product numbers. For details about services and response times in your area, please contact your local HP sales office.

QuickSpecs

HP 9500 Switch Series

Accessory Product Details

DA - 13773 North America — Version 10 — July 12, 2013

Page 58

Page 59

To learn more, visit:

www.hp.com/networking

© Copyright 2010-2013 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Windows and Windows Vista are U.S. registered trademarks of Microsoft Corporation.

QuickSpecs

HP 9500 Switch Series

Accessory Product Details

DA - 13773 North America — Version 10 — July 12, 2013

Page 59
