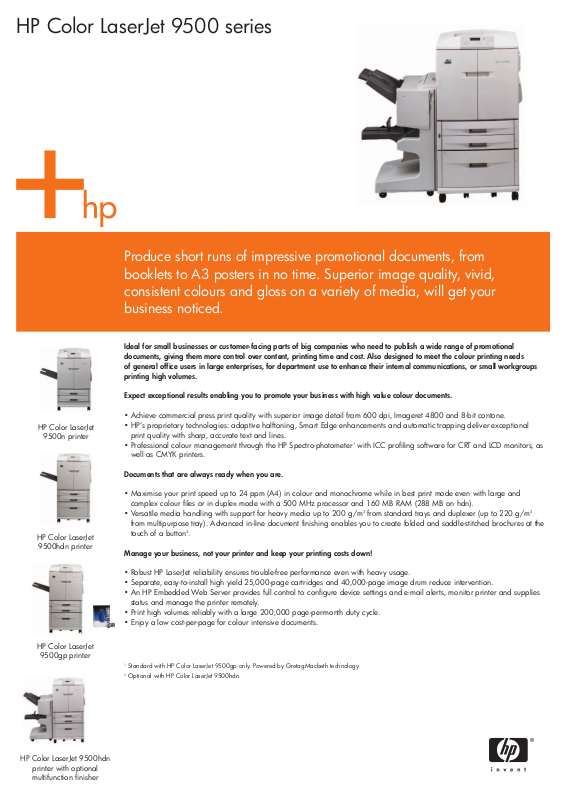

HP 9500 Datasheet

Produce short runs of impressive promotional documents, from
booklets to A3 posters in no time. Superior image quality, vivid,
consistent colours and gloss on a variety of media, will get your
business noticed.

HP Color LaserJet 9500 series

Ideal for small businesses or customer-facing parts of big companies who need to publish a wide range of promotional
documents, giving them more control over content, printing time and cost. Also designed to meet the colour printing needs
of general office users in large enterprises, for department use to enhance their internal communications, or small workgroups
printing high volumes.

Expect exceptional results enabling you to promote your business with high value colour documents.

•Achieve commercial press print quality with superior image detail from 600 dpi, Imageret 4800 and 8-bit contone.

•HP’s proprietary technologies: adaptive halftoning, Smart Edge enhancements and automatic trapping deliver exceptional
print quality with sharp, accurate text and lines.

•Professional colour management through the HP Spectro-photometer

1

with ICC profiling software for CRT and LCD monitors, as

well as CMYK printers.

Documents that are always ready when you are.

•Maximise your print speed up to 24 ppm (A4) in colour and monochrome while in best print mode even with large and
complex colour files or in duplex mode with a 500 MHz processor and 160 MB RAM (288 MB on hdn).

•Versatile media handling with support for heavy media up to 200 g/m

2

from standard trays and duplexer (up to 220 g/m

2

from multipurpose tray). Advanced in-line document finishing enables you to create folded and saddle-stitched brochures at the
touch of a button2.

Manage your business, not your printer and keep your printing costs down!

•Robust HP LaserJet reliability ensures trouble-free performance even with heavy usage.

•Separate, easy-to-install high yield 25,000-page cartridges and 40,000-page image drum reduce intervention.

•An HP Embedded Web Server provides full control to configure device settings and e-mail alerts, monitor printer and supplies
status and manage the printer remotely.

•Print high volumes reliably with a large 200,000 page-per-month duty cycle.

• Enjoy a low cost-per-page for colour intensive documents.

1

Standard with HP Color LaserJet 9500gp only. Powered by GretagMacbeth technology.

2

Optional with HP Color LaserJet 9500hdn.

HP Color LaserJet

9500n printer

HP Color LaserJet

9500hdn printer

HP Color LaserJet

9500gp printer

HP Color LaserJet 9500hdn

printer with optional
multifunction finisher

Technical specifications

Print speed Black/colour A4: up to 24 ppm

Black/colour A3: up to 12 ppm
First page out: 17.5 secs from “Ready”
Warm up time: “Powersave”: 3.5 minutes (idle for more than one hour), 2.5 minutes (idle for less than one hour),

“Blue Angel” mode and “Cold start”: 5.6 minutes.

Exact speed varies depending on the system configuration, software application, driver and document complexity.

Processor 500 MHz; RM7000B-500 Symmetric Superscalar MIPS microprocessor from PMC-Sierra capable of doubling number of

instructions per one clock cycle

Memory Standard: HP Color LaserJet 9500n printer: 160 MB; HP Color LaserJet 9500hdn/gp printers: 288 MB and HP 20 GB EIO hard

disk, expandable 384 MB through additional 168-pin, non-parity, SDRAM slots. Using Memory Enhancement technology
(MEt).

Print technology In-line colour laser printing technology
Print resolution 600 dpi with Imageret 4800, supports colour management systems based on ICC profiles: Apple ColorSync, Microsoft®ICM,

Adobe

®

, Corel®, Quark, and others, PANTONE®CALIBRATED for PANTONE PMS support; supports SWOP, Euro, and DIC

press emulations

Languages PostSc ript®3™emulation, PCL 5c, PCL 6, direct PDF
Typefaces/fonts 80 TrueType™internal scalable in PCL, 80 TrueType internal scalable in PostScript®; Euro symbol supported (€)
Print margins (mm) A3/A4: top: 4.23 mm; left: 4.23 mm; right: 4.23 mm; bottom: 4.23 mm.
Duty cycle Up to 200,000 pages per month
Media handling Input: Capacity Weight Size

Tray 1 100 sheets, 50 transparencies 64 to 220 g/m

2

98 x 191 mm to 306 x 470 mm, A3,

up to 10 envelopes A4, JIS B5, A5, C5/B5/DL envelopes

(maximum printable area 297 x 461 mm)

Tray 2/3 500 sheets 64 to 200 g/m

2

148 x 210 mm to 297 x 432 mm

Tray 4* 2,000 sheets 64 to 200 g/m

2

182 x 210 mm to 297 x 432 mm

Output: Standard: Top bin (face down) with up to 500 sheet capacity, left bin (face up - reverse order) with up to 100 sheet
capacity; optional: 3000 sheet stacking (face down), 125 sheet (face up) with 3000-sheet stacker or stapler/stacker*

Duplex printing: Two sided printing capability: HP Color LaserJet 9500n printer: Automatic (optional with purchase of a duplex
printing accessory), HP Color LaserJet 9500hdn/gp printers: Automatic (standard).

*HP Color LaserJet 9500hdn/gp printer only.

Interface and connectivity Standard: HP Color LaserJet 9500n printer: IEEE 1284-compliant bi-directional parallel port (with C-type connector),
compatibility HP Jetdirect 615n Fast Ethernet (10/100Base-TX) internal network print server in EIO slot, 2 open EIO slots

HP Color LaserJet 9500hdn/gp printer: IEEE 1284-compliant bi-directional parallel port (with C-type connector),
HP Jetdirect 615n Fast Ethernet (10/100Base-TX) internal network print server in EIO slot, 20 GB hard disk in EIO slot,
1 open EIO slot.
Optional: HP Fast Infrared (FIR) enabled via FIR pod, HP Jetdirect EIO print servers (including 802.11b wireless, Ethernet,
Token Ring, Fast Ethernet 10/100TX, LocalTalk, Serial & USB). For more information, refer to http://www.HP.com/go/jetdirect

Operating systems compatibility Drivers included: Drivers included: PCL 5c, PCL 6 drivers for Microsoft

®

Windows®98, Me, NT 4.0, 2000, XP; PostScript®3

™

emulation driver for Microsoft Windows 95, 98, Me, NT 4.0, 2000, XP, Mac OS 8.6 and higher. Driver download: OS/2,
UNIX®, Linux; basic printing support for DOS. Current drivers and software are available from the internet.

Network operating systems Supported: Via HP Jetdirect print servers: Microsoft®Windows®98, Me, NT 4.0, 2000, XP, XP 64-bit, Novell™ NetWare 3.2, 4.2,

5.x, 6, Red Hat Linux 6.x and later, SuSE Linux 6.x and later, HP-UX 10.20, 11.x, Solaris

™

2.5x, 2.6, 7, 8, (SPARC systems only),
IBM AIX 3.2.5 and later, MPE-iX, Mac OS 8.6 and later.
Compatible network protocols*: TCP/IP, IPX/SPX, AppleTalk (not supported on Token Ring print servers), DLC/LLC, IP Direct Mode,
LPD, FTP Printing, IPP, NDS, Bindery, NCP, NDPS, iPrint, Telnet, SLP, IGMP, BOOTP/DHCP, WINS, SNMP, HTTP. Advanced
management security with: SNMP v3, SSL/TLS (HTTPS). Wireless networking security: 40/64- and 128-bit WEP encryption, 802.1x,
authentication (EAP-PEAP, LEAP, EARTTLS, EAPTLS, EAP-MD5) with Radius servers for wireless products RADIUS (MD5 and TLS)

*Note: not all protocol and operating system combinations are supported. For more information, refer to http://www.HP.com/go/jetdirect

Minimum system requirements Microsoft®Windows®98: Pentium®90 with 16 MB of RAM, Windows Me: Pentium 150 with 32 MB of RAM, Windows NT®4.0:

Pen tium 90 with 32 MB of RAM, Windows 2000: 300 MHz Processor with 64 MB of RAM, Windows XP: 233 MHz Processor with
64 MB of RAM, 180 MB free hard disk space for Windows; 160 MB for Mac, Mac OS 8.6, 9.0, 9.04, 9.1, 9.2, 10.1, CD-ROM drive
or Internet connection, dedicated IEEE 1284 parallel port.

Control panel LCD backlit panel display with up to 4 lines of text and animated printer graphics, 3 LED status lights
Power consumption < 2 watts (off), 173 watts maximum (standby), 741 watts maximum (printing)
Power requirements Input voltage 110 to 127 VAC (±10 %), 50/60 Hz (± 2 Hz), 15 amps; 220 to 240 VAC (±10 %), 50/60 Hz (± 2 Hz), 10 amps.
Dimensions (w x d x h) Out of package: HP Color LaserJet 9500n printer: 682 x 767 x 887 mm; HP Color LaserJet 9500hdn/gp printers: 682 x 767 x

1212 mm. Packaged: HP Color LaserJet 9500n printer: 1200 x 1022 x 1313 mm; HP Color LaserJet 9500hdn/gp printers: 1200 x
1022 x 1488 mm.

Product weight Packaged: HP Color LaserJet 9500n printer: 174.27 kg; HP Color LaserJet 9500hdn printer: 198.32 kg; HP LaserJet 9500gp

printer: 200.25kg.

Printer management HP Web Jetadmin, HP LaserJet Utility for Mac, Embedded Web Server, Printer Status and Alerts
Operating environment Environmental ranges: Operating temperature: 10 to 30º C. Operating humidity: 10 to 80% RH.

Recommended operating humidity: 20 to 50% RH. Recommended operating temperature: 20 to 26º C. Storage temperature: 0 to
35º C. Storage humidity: 5 to 95% RH. Noise level per ISO 9296: Sound power: LwAd: 6.7 B(A) printing, 5.5 B(A) powersave.
Sound pressure LpAm: 52 dB(A) printing, 39 dB(A) powersave.

Energy Star

®

Yes

Certifications Regulatory standards: Czech Republic (CSN-IEC 60950-IEC 60825-1), Estonia (EEI-EN 60950-IEC 60825-1), EU (CE Mark-Low

Voltage Directive 73/23/EEC), Germany (TÜV-EN 60950-IEC 60825-1), Hungary (MEEI- IEC 60950-IEC 60825-1), Lithuania
(LS-IEC 60950-IEC 60825-1), Poland (B Mark- IEC 60950-IEC 60825-1), (Russia (GOST-R50377), Slovakia (IEC 60950-IEC 60825-1),
Slovenia (SQI-IEC 60950-EN 60825-1), South Africa (IEC 60950-IEC 60825-1), Class 1 Laser/LED Product

Warranty 1 year on-site warranty. Optional HP Care Pack services

Ordering information

C8546A HP Color LaserJet 9500n

printer includes: HP Jetdirect 615n

(EIO) 10/100Base-T print server,
tray 1: 100-sheet multipurpose tray;
tray 2/3: 2 x 500-sheet input trays,

160 MB memory

C8547A HP Color LaserJet 9500hdn

printer, as above plus: automatic

duplex unit (installed), tray 4:

2000-sheet paper feeder, additional

128 MB memory (installed),

20 GB hard disk (installed)

Q6466A HP Color LaserJet 9500gp

printer, as above plus:

HP Spectro-photometer

with ICC profiling software

Accessories

C9674A Duplex printing accessory
C7848A HP 168-pin SDRAM DIMM

64 MB memory module

C7850A HP 168-pin SDRAM DIMM

128 MB memory module

C9653A HP 168-pin SDRAM DIMM

256 MB memory module

C4287A 4 MB Flash DIMM
J6073A HP EIO hard disk, 20 GB
C4103A HP Fast Infrared (FIR) pod
C8088A HP Multifunction Finisher
C8084A HP 3000-sheet stacker

1

C8085A HP 3000-sheet

stapler/stacker

1

Connectivity

J4167A HP Jetdirect 610n Token Ring

internal print server

J6058A HP Jetdirect 680n 802.11b

internal wireless print server

J4135A HP Jetdirect connectivity card

for USB, serial and LocalTalk

Cables

C2946A HP IEEE 1284-compliant

bi-directional parallel cable

(C-type) connector

92215N HP LocalTalk cable kit (2 m)
92215S HP serial printer cable

Supplies

C8550A HP Color LaserJet smart print

cartridge, black

2

C8551A HP Color LaserJet smart print

cartridge, cyan

2

C8552A HP Color LaserJet smart

print cartridge, yellow

2

C8553A HP Color LaserJet smart print

cartridge, magenta

2

C8560A HP black image drum

3

C8561A HP cyan image drum

3

C8562A HP yellow image drum

3

C8563A HP magenta image drum

3

C8554A HP image cleaning kit

(up to 50,000 pages)

C8555A HP image transfer kit

(up to 200,000 pages)

C8556A HP image fuser kit, 110

and 220 volt (up to 100,000 pages)

Service & support

U6487A/E HP Care Pack, next business

day on-site response, 3 years

U6488A/E HP Care Pack, same business

day on-site response within

4 hours of call, 3 years

H2872A/E Installation & network

configuration for 1 network printer

1

HP Color LaserJet 9500hdn only

2

Up to 25,000 pages, based on 5% coverage

3

Up to 40,000 pages
