HP Intelligent, 636, 642, 647, 842 Specification
The HP Intelligent Series Rack family is the next generation of enterprise-class racks designed to meet the current and future
requirements of demanding datacenters. It offers innovative intelligence capabilities for asset management, unparalleled structural
integrity, cooling and cable management advances, and a wide choice of power and switching options.
The HP Intelligent Series is the first rack family to offer optional location discovery intelligence for advanced asset management. This
new capability integrates with HP Lights-Out Management (iLO) and HP Intelligent Power Distribution Units (iPDU) to communicate to
the datacenter manager the U space, row, and rack location of each server and also helps to manage and place the desired workload by
carefully mapping current demands and available resources.

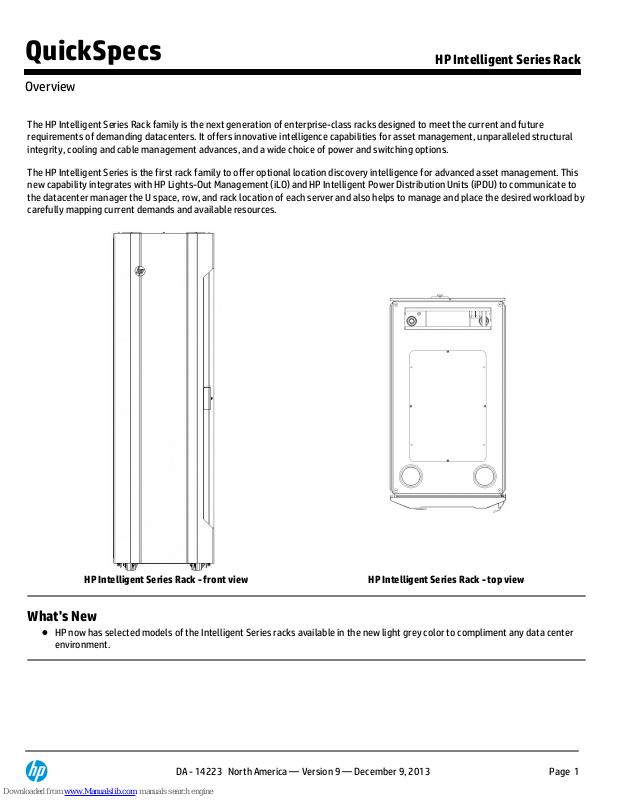

HP Intelligent Series Rack - front view
HP Intelligent Series Rack - top view
What's New
HP now has selected models of the Intelligent Series racks available in the new light grey color to compliment any data center
environment.
QuickSpecs
HP Intelligent Series Rack
Overview
DA - 14223 North America — Version 9 — December 9, 2013
Page 1
At a Glance
The HP Intelligent Series Rack is an universal rack compatible with all HP rack mounted products including ProLiant, Integrity,
Nonstop servers, Networking and as well as Storage products. This effort simplifies the HP rack product line by consolidating all
previous rack offerings into a single universal rack for all HP server and storage platforms. The HP Intelligent Series Rack also
offers many improvements over the HP Rack 10000 G2 Series racks:
6 castors on 1200mm deep models supports highest dynamic load up to 3000lbs
Front door with updated design to provide the maximum airflow
Front and rear door handles and lock bars for improved security
Side panels come in 3 parts for easier manageability and mounting
Cable management accessories and cable management bracket in every Intelligent Series rack.
Improved CTO pallet for increased load capacity
Three year limited warranty, parts only (3/0/0)
QuickSpecs
HP Intelligent Series Rack
Overview
DA - 14223 North America — Version 9 — December 9, 2013
Page 2
HP Intelligent Series Rack
HP 636 1075mm Pallet Intelligent Series Rack
BW895A
HP 636 1075mm Shock Intelligent Series Rack
BW896A
HP 636 1075mm Crate Intelligent Series Rack
BW897A
HP 636 1200mm Pallet Intelligent Series Rack
BW899A
HP 636 1200mm Shock Intelligent Series Rack
BW900A
HP 642 1075mm Pallet Intelligent Series Rack
BW903A
HP 642 1075mm Shock Intelligent Series Rack
BW904A
HP 642 1075mm Crate Intelligent Series Rack
BW905A
HP 642 1200mm Pallet Intelligent Series Rack
BW907A
HP 642 1200mm Shock Intelligent Series Rack
BW908A
HP 642 Intelligent Series Air Duct Rack
BW910A
HP 642 1200mm Shock Intelligent Network Series Rack
BW966A
HP 647 1075mm Pallet Intelligent Series Rack
BW911A
HP 647 1075mm Shock Intelligent Series Rack
BW912A
HP 647 1200mm Pallet Intelligent Series Rack
BW913A
HP 647 1200mm Shock Intelligent Series Rack
BW914A
HP 647 Intelligent Series Air Duct Rack
BW936A
HP 842 1075mm Pallet Intelligent Series Rack
BW917A
HP 842 1075mm Shock Intelligent Series Rack
BW918A
HP 842 1200mm Pallet Intelligent Series Rack
BW919A
HP 842 1200mm Shock Intelligent Series Rack
BW920A
HP 842 1200mm Shock Intelligent Network Series Rack
BW968A
HP Grey Intelligent Series Rack
HP 642 1200mm Shock Grey Intelligent Series Rack
TK756A
HP 642 1200mm Grey Intelligent Air Duct Rack
TK766A
HP 647 1200mm Shock Grey Intelligent Series Rack
TK757A
HP 647 1200mm Grey Intelligent Air Duct Rack
TK767A
HP 842 1200mm Shock Grey Intelligent Series Rack
TK760A
HP 842 1200mm Shock Grey Intelligent Network Rack
TK772A
QuickSpecs
HP Intelligent Series Rack
Models
DA - 14223 North America — Version 9 — December 9, 2013
Page 3
Intelligent Racks
All HP Intelligent Series Racks are industry standard EIA-310 19 inch RETMA and will support all HP rack
mountable equipment as well as third-party equipment designed to mount in 19-inch wide racks
Intelligent Network Racks
HP Intelligent Network Racks are designed for dense network equipment. These racks have the front
vertical rails moved back 75mm to facilitate front to rear cabling and have additional bristle covered cable
pass through slots in the front and on top of the racks to prevent mixing of hot and cold air. These racks
are available in standard 600mm and 800mm widths. The 800mm wide HP Intelligent Network Racks
include slotted vertical cable channels on both sides in the rear of the rack.
Intelligent Air Duct Racks
HP Intelligent Air Duct Racks work with the HP Rack Air Duct Kit to direct hot exhaust air from the rear of
the rack to air returns in the ceiling. These racks are perfect for racks up to 14kW where the mixing of hot
and cold air in the datacenter needs to be eliminated to improve efficiency without the cost of additional
fans.
EIA
The HP Intelligent Series Rack conforms to EIA-310D Type A cabinet per section 4.1.1
UL/CES Certification
Yes
WEEE
Yes
RoHS compliant
Yes
Innovative
Breakthroughs
OPEX saving as HP has 81% total open area on HP rack front doors. More than anyone in the
industry
Up to 3000 lbs of dynamic loading
Compatible with HP Location Discovery Services
