HPE ProLiant DL560 Gen10 Server

Overview

Page 1

HPE ProLiant DL560 Gen10 Server

The HPE ProLiant DL560 Gen10 Server is a high-density, four-socket (4S) server with high performance, scalability and reliability, all in a 2U chassis. Supporting the latest Intel® Xeon® Scalable processors, the HPE ProLi processing power, up to 3 management

The HPE ProLiant DL560 Gen10 Server is the database, business processing, and general 4P data paramount.

Front View – DL560 Gen10

Quick removal access panel

Optional Universal Media bay. 2 USB 2.0 and VGA standard (8 SFF bay or 6 SFF+2NVMe optional)

Optional Optical drive. Requires Universal Media bay

Drive Box 2. (8 SFF, 6SFF+2NVMe or 8 NVMe PCIe SSD optional)

Drive Bos 3. (8 SFF, 6SFF+2NVMe optional)

Power On/Standby button and system power LED button

Health LED

NIC status

UID button

10.

iLO Front Service Port

11.

USB 3.0

12.

Serial label pull tag

13.

Box 3

14.

Box 2

15.

Box 1

16.

Optional 2 SFF HDD, requires optional Universal Media bay

17.

Optional front display port (via Universal Media Bay)

18.

Optional USB 2.0 (via Universal Media Bay)

ant DL560 Gen10 Server offers greater

TB of faster memory, IO of up to eight PCIe 3.0 slots, plus the intelligence and simplicity of automated

with HPE OneView and HPE iLO 5.

ideal server for business critical workloads, virtualization, server consolidation,

-intensive applications where data center space and the right performance are

QuickSpecs

HPE ProLiant DL560 Gen10 Server

Overview

Page 2

Rear View – DL560 Gen10

PCIe Slots (Slots 1-3 top to bottom, riser shipped standard)

PCIe Slots (Slots 4-6 top to bottom, requires second riser card and second processor)

PCIe Slots (Slots 7-8 top to bottom), requires tertiary riser card and second processor, Not available with 4x Flex Slot power supplies

Power supply power connection

HPE Flexible Slot Power Supply bay 1 (800W PS shown)

Power supply power connection

Power supply power LED

HPE Flexible Slot Power Supply bay 2 (800W PS shown)

10.

Serial connector

11.

Dedicated iLO connector

12.

VGA (video) connector

13.

USB connectors 2.0 (2)

14.

USB connectors 3.0 (2)

15.

Unit ID LED

16.

FlexibleLOM ports (Port 1 on right side)

5. Power supply power LED

QuickSpecs

HPE ProLiant DL560 Gen10 Server

Overview

Page 3

Internal View: DL560 Gen10 with upper CPU mezzanine tray

Left connector used for DL560 4-port NVMe Mezzanine card (Daughter card)

DDR4 DIMM slots. Shown fully populated in 24 slots (12 per processor)

Upper CPU Mezzanine Board Kit

Optional secondary PCIe riser

Default primary PCIe riser

DDR4 DIMM slots on upper CPU mezzanine board kit. Shown fully populated in 24 slots (12 per processor)

2 Processors, heatsink showing

Fan cage shown with 6 standard Hot-plug fans

(Under) Hot Plug redundant HPE Flexible Slot Power supplies

10.

Optional Tertiary riser

11.

Handle for removing upper CPU Mezzanine Board Kit

12.

2 Processors, heatsink showing on upper CPU mezzanine board kit

What’s New

• Supports up to 4 Flex Slot power supplies with 96% efficiency

• Support for the Intel® Xeon® Processor Scalable Family supporting up to 4 processors with core count ranging from 4 to 28

per processor

• Support for up to 12 NVMe drives

• Up to 3 TB of 2666 MT/s HPE DDR4 Smart Memory modules for increased performance for data-intensive application

workloads

• HPE innovation with Intelligent System Tuning

QuickSpecs

HPE ProLiant DL560 Gen10 Server

Platform Information

Page 4

Platform Information

Form Factor

2U Rack Form Factor

Entry, Base and Performance pre-configured models ship with Gen10 Easy Install Rail Kits and Cable Management Assembly

Chassis Types

24 SFF with optional Universal Media Bay

NOTE: The Universal Media Bay (872267-B21) is not available with the 24 SFF front end, and can

drives. Optional HPE Smart Array Controllers can be added.

System Fans

6 Hot Plug Fans (with N+1 redundancy)

NOTE: 6 hot plug fans are shipped as standard.

only be populated in Box 1. NOTE: The 8 SFF can be upgraded with a drive cage to 16 or 24 SFF with field upgrades. For optimal upgrade Box 2 should be populated second, with Box 1 the last to be populated for a field upgrade to 24 SFF.

NOTE: All pre-configured models come with embedded software RAID support for 10 SATA

QuickSpecs

HPE ProLiant DL560 Gen10 Server

Standard Features

Page 5

Processors

One, two or four of the following depending on model.

NOTE: For more information regarding Intel Xeon processors, please see thefollowing http://www.intel.com/xeon.

Platinum Processors

Platinum 8180M Processor

2.5 GHz

38.50 MB

205W

3 @ 10.4 GT/s

2666 MT/s

1.5 TB

Platinum 8180 Processor

2.5 GHz

38.50 MB

205W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Platinum 8176M Processor

2.1 GHz

38.50 MB

165W

3 @ 10.4 GT/s

2666 MT/s

1.5 TB

Platinum 8176 Processor

2.1 GHz

38.50 MB

165W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Platinum 8170M Processor

2.1 GHz

35.75 MB

165W

3 @ 10.4 GT/s

2666 MT/s

1.5 TB

Platinum 8170 Processor

2.1 GHz

35.75 MB

165W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Platinum 8168 Processor

2.7 GHz

33.00 MB

205W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Platinum 8164 Processor

2.0 GHz

35.75 MB

150W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Platinum 8160M Processor

2.1 GHz

33.00 MB

150W

3 @ 10.4 GT/s

2666 MT/s

1.5 TB

Platinum 8160 Processor

2.1 GHz

33.00 MB

150W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Platinum 8156 Processor

3.6 GHz

16.50 MB

105W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Platinum 8153 Processor

2.0 GHz

22.00 MB

125W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold Processors

Gold 6154 Processor

3.0 GHz

24.75 MB

200W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6152 Processor

2.1 GHz

30.25 MB

140W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6150 Processor

2.7 GHz

24.75 MB

165W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6148 Processor

2.4 GHz

27.50 MB

150W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6142M Processor

2.6 GHz

22.00 MB

150W

3 @ 10.4 GT/s

2666 MT/s

1.5 TB

Gold 6142 Processor

2.6 GHz

22.00 MB

150W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6140M Processor

2.3 GHz

24.75 MB

140W

3 @ 10.4 GT/s

2666 MT/s

1.5 TB

Gold 6140 Processor

2.3 GHz

24.75 MB

140W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6138 Processor

2.0 GHz

27.50 MB

125W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6136 Processor

3.0 GHz

24.75 MB

150W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6134M Processor

3.2 GHz

24.75 MB

130W

3 @ 10.4 GT/s

2666 MT/s

1.5 TB

Gold 6134 Processor

3.2 GHz

24.75 MB

130W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6132 Processor

2.6 GHz

19.25 MB

140W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6130 Processor

2.1 GHz

22.00 MB

125W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6128 Processor

3.4 GHz

19.25 MB

115W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 6126 Processor

2.6 GHz

19.25 MB

125W

3 @ 10.4 GT/s

2666 MT/s

768 GB

Gold 5120 Processor

2.2 GHz

19.25 MB

105W

2 @ 10.4 GT/s

2400 MT/s

768 GB

Gold 5118 Processor

2.3 GHz

16.50 MB

105W

2 @ 10.4 GT/s

2400 MT/s

768 GB

Gold 5115 Processor

2.4 GHz

13.75 MB

85W

2 @ 10.4 GT/s

2400 MT/s

768 GB

NOTE: Platinum - 2 and 4 socket capable, 2S - 2UPI, 4S - 3UPI, 8S - 3UPI @ 10.4 GT/s, 6-Channel DDR4 @ 2666 MT/s, 768 GB

Intel Xeon Models

CPU

Frequency

Cores L3 Cache Power UPI DDR4 MT/s

Memory

per socket

Platinum 8158 Processor 3.0 GHz 12 24.75 MB 150W 3 @ 10.4 GT/s 2666 MT/s 768 GB

Gold 5122 Processor 3.6 GHz 4 16.50 MB 105W 2 @ 10.4 GT/s 2666 MT/s 768 GB

memory capacity (1.5 TB on select skus), Intel Turbo Boost Technology, Intel Hyper-Threading Technology Intel AVX-512 (2x 512-bit FMA), 48 lanes PCIe 3.0, advanced RAS.

NOTE: Gold - 2 and 4 socket capable, 2S - 2UPI, 4S - 3UPI @ 10.4 GT/s, 6-Channel DDR4 @ 2400 MHz (SKU 5122=supports

QuickSpecs

HPE ProLiant DL560 Gen10 Server

Standard Features

Page 6

2666), 768 GB memory capacity (1.5 TB on select skus), Intel Turbo Boost Technology, Intel Hyper-Threading Technology,

are connected in a ring configuration with processors 1, 3 and 2, 4 not connected directly in a four processor system.

Chipset

Intel C621 Chipset

NOTE: For more information regarding Intel® chipsets, please see the following URL:

http://www.intel.com/products/server/chipsets/

On System Management Chipset

HPE iLO 5 ASIC

NOTE: Read and learn more in the iLO QuickSpecs.

Memory

One of the following depending on model

Type:

SmartMemory Registered (RDIMM), Load Reduced (LRDIMM)

DIMM Slots Available

12 DIMM slots per processor, 6 channels per processor, 2 DIMMs per channel

Maximum capacity (LRDIMM)

3 TB

48 x 64 GB LRDIMM @ 2666 MT/s

Maximum capacity (RDIMM)

1.5 TB

48 x 32 GB RDIMM @ 2666 MT/s

NOTE: Mixing of RDIMM and LRDIMM memory is not supported. NOTE: Memory speed depends on the processor selected.

Memory Protection

For details on the HPE Server Memory Options RAS feature, visit: http://www.hpe.com/docs/memory-ras-feature.

Expansion Slots

Primary Riser

Expansion

Slots #

Technology

Bus/Connector

Width

Form Factor/Connector

Notes

PCIe 3.0

¾ length/full height

Proc 1

PCIe 3.0

X16

¾ length/full height

Proc 1

PCIe 3.0

¾ length/full height

Proc 1

None

2 x M.2

SATA lanes

M.2

Chipset

Primary/Secondary

Expansion

(Primary/

Secondary) #

Technology

Bus/Connector

Form Factor/

(Primary)

Form Factor/

(Secondary)

Notes

secondary)

2/5

PCIe 3.0

x16

¾ length/full height

Half length/full height

Proc 1/2

3/6

PCIe 3.0

x16

¾ length/full height

Half length/full height

Proc 1/2

Intel AVX-512(1x 512-bit FMA) (SKU 5122 supports 2x 512 bit FMA), 48 lanes PCIe 3.0, advanced RAS.

NOTE: All processors with power above 130W ship with a high performance heatsink NOTE: 61xx and 81xx processors support 3 UPI links and all processors are connected in a cross bar configuration with each

processor connected to another directly in a four processor system. 51xx processors support 2 UPI links only and all processors

(Standard)

Riser (Optional) 826704-B21

Slots

Width

Connector

(Primary/

QuickSpecs

HPE ProLiant DL560 Gen10 Server

Standard Features

Page 7

Primary/Secondary

Expansion Slots

Secondary) #

Technology

Bus/Connector

Form Factor

Notes (Primary/ secondary)

None

NVMe

Slimline

Proc 1/2

None

NVMe

Slimline

Proc 1/2

None

NVMe

Slimline

Proc 1/2

None

NVMe

Slimline

Proc 1/2

Primary/Secondary

Expansion Slots

Secondary)#

Technology

Bus/Connector

Form Factor/

(Primary)

Form Factor/

(Secondary)

Notes (Primary/

1/4

PCIe 3.0

¾ length/full

height

Half length/full

height

Proc 1/2

2/5

PCIe 3.0

¾ length/full

height

Half length/full

height

Proc 1/2

3/6

PCIe 3.0

¾ length/full

Half length/full

Proc 1/2

None

NVMe

Slimline

Proc 1/2

Secondary Riser

Expansion Slots

Technology

Bus Width

Form Factor

Notes

PCIe 3.0

Half length/full height

Proc 2

PCIe 3.0

x16

Half length/full height

Proc 2

PCIe 3.0

Half length/full height

Proc 2

Tertiary riser

Expansion Slots

Technology

Bus Width

Form Factor

Notes

PCIe 3.0

Half length/full height

Proc 2

PCIe 3.0

Half length/full height

Proc 2

Tertiary riser

Expansion Slots

Technology

Bus Width

Form

Factor/Connector

Notes

PCIe 3.0

Half length/full height

Proc 2

None

NVMe

Slimline

Proc 2

Tertiary riser

Expansion Slots

Technology

Bus Width

Form

Factor/Connector

Notes

None

NVMe

Slimline

Proc 2

None

NVMe

Slimline

Proc 2

4-port NVMe

Expansion Slots

Technology

Bus Width

Form

Factor/Connector

Notes

None

NVMe

Slimline

Proc 3

None

NVMe

Slimline

Proc 3

Riser (Optional) 873418-B21

Riser (Optional) 873420-B21

(Optional) 870548-B21

(Primary/

Width

/Connector

Connector

height

Connector

height

Secomdary)

(Optional) 872253-B21

(Optional) 872255-B21

(Optional) 872257-B21

Mezzanine card (Optional) 874633-B21

QuickSpecs

HPE ProLiant DL560 Gen10 Server

Standard Features

Page 8

None

NVMe

Slimline

Proc 3

None

NVMe

Slimline

Proc 3

NOTE: The secondary and tertiary risers need the 2nd processor to be installed.

NOTE: Slimline riser kit (873418-B21) does not contain any additional PCIe slots.

Network Controller

The HPE ProLiant DL560 Gen10 servers offer a flexible network technology - FlexibleLOMs, which offers customers a choice of

also available to enhance networking capabilities.

NOTE: For additional details see the Networking Section of this document.

Model

Adapter

Entry Model

HPE Ethernet 1Gb 4-port 331FLR Adapter

Base Model

HPE FlexFabric 10Gb 2P 533FLR-T Adapter

Performance Model

HPE FlexFabric 10/25 Gb 2P 640FLR-SFP28 Adapter or HPE FlexFabric 10/25Gb 2P 631FLR-SFP28 Adapter

Storage Controllers

The Gen10 controller naming framework has been updated to simplify identification as depicted below. For a more detailed breakout of the available Gen10 Smart Array controllers visit the HPE Smart Array Gen10 Controllers Data Sheet.

Software RAID

HPE Smart Array S100i SR Gen10 SW RAID

NOTE: HPE Smart Array S100i SR Gen10 SW RAID will operate in UEFI mode only. For legacy support an additional

FIO Enable Smart Array SW RAID (784308-B21).

Essential RAID

HPE Smart Array E208i-a SR G10 LH Controller

HPE Smart Array E208i-p SR Gen10 Controller

HPE Smart Array E208e-p SR Gen10 Controller

Performance RAID

HPE Smart Array P408i-a SR G10 LH Controller

HPE Smart Array P408i-p SR Gen10 Controller

HPE Smart Array P408e-p SR Gen10 Controller

HPE Smart Array P816i-a SR G10 LH Controller

Internal Storage Devices

One of the following depending on model

Optical Drive

Optional: DVD-ROM, DVD-RW

Hard Drives

None ship standard

Hard Drive Bays

8 hot plug SFF SAS/SATA HDD Bays in Entry and Base Models 16 hot plug SFF SAS/SATA HDD Bays in Performance Models

NOTE: The expansion slots at the back are numbered in ascending order from top to bottom and from left to right. NOTE: Some riser kits (826704-B21, 873418-B21, 873420-B21) have FIO options with separate numbers and they do not

ship with riser cages. Please review the FIO section for details. NOTE: The optional 4-port NVMe Mezzanine card 874633-B21 supports a maximum of 8 NVMe drives and does not consume a PCIe slot. It goes on top of the HPE DL5x0 Gen10 CPU Mezzanine Board Kit (872222-B21) and requires a four processor configuration. NOTE: The tertiary risers can only be installed when using two PSUs. There is no space for tertiary risers when the four PSU’s are installed. If a secondary riser is required it needs to be ordered separately. Please refer section HPE I/O Expansion Options. NOTE: A maximum of 1 primary, 1 secondary and 1 tertiary riser can be installed in one server.

1 Gb, 10 Gb, 25 Gb or 10 Gb base-T Ethernet or converged networking in their embedded adapter. A range of NIC cards are

controller will be needed, and for CTO orders please also select the Legacy mode settings part, 758959-B22.

NOTE: HPE Smart Array S100i SR Gen10 SW RAID is off by default and must be enabled. For enabling, please select HPE

QuickSpecs

HPE ProLiant DL560 Gen10 Server

Standard Features

Page 9

NOTE: Box 3 is populated by 8 SFF SAS/SATA bay and shipped as default. NOTE: The 8 NVMe drive option can only placed in Bay 2.

NOTE: The Universal Media Bay (872267-B21) not available with the 24 SFF front end,

SATA drives. Optional HPE Smart Array Controllers can be added.

Maximum Internal Storage

CAPACITY

CONFIGURATION

Hot Plug SFF SATA HDD

48 TB

24 x 2 TB

Hot Plug SFF SAS HDD

48 TB

24 x 2 TB

Hot Plug SFF SATA SSD

92 TB

24 x 3.84 TB

Hot Plug SFF SAS SSD

92 TB

24 x 3.84 TB

SFF NVMe SSD

24 TB

12 x 2 TB

Power Supply

One of the following depending on model

HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

NOTE: Available in 94% and 96% efficiency.

NOTE: Must order 4x800W Flex Slot PSU.

HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

NOTE: Available in 94% efficiency.

HPE Flexible Slot (Flex Slot) Power Supplies share a common electrical and physical design that allows for hot plug, tool-less

For information on power specifications and technical content visit HPE Server power supplies

Interfaces

Serial

1 rear

Video

1 front (optional with Universal Media Bay), 1 rear

HPE iLO Remote Management Network Port

1 HPE iLO Front Service Port

Micro SD Slot

1 (Internal), 2 (optional, internal)

NOTE: Requires the optional HPE Dual Micro SD 8GB USB kit.

USB 2.0 Ports

4 total: 2 front (optional); 2 rear

and can only be populated in Box 1. NOTE: The 8 SFF can be upgraded with a drive cage to 16 or 24 SFF with field upgrades. For optimal upgrade Box 2 should be populated second, with Box 1 the last to be populated for a field upgrade to 24 SFF. NOTE: A maximum of 12 NVMe drives can be supported with 2 NVMe drives in Bay 1, 8 NVMe drives in Bay 2 and 2 NVMe drives in Bay 3.

NOTE: All pre-configured models come with embedded software RAID support for 10

NOTE: Also available in -48VDC and 227VAC/380VDC power inputs.

installation into HPE ProLiant Gen10 Servers. Flex Slot power supplies are certified for high-efficiency operation and offer multiple power output options, allowing users to "right-size" a power supply for specific server configurations. This flexibility helps to reduce power waste, lower overall energy costs, and avoid "trapped" power capacity in the data center.

All pre-configured servers ship with a standard 6-foot IEC C-13/C-14 jumper cord (416151-B21). This jumper cord is also included with each standard AC power supply option kit. If a different power cord is required, please check the ProLiant Power Cables web page.

To review the power requirements for your selected system, please use the HPE Power Advisor Tool.

QuickSpecs

HPE ProLiant DL560 Gen10 Server

Standard Features

Page 10

USB 3.0 Ports

5 total: 1 front; 2 rear, 2 internal

NOTE: 2 front (optional) USB 2.0 ports need the HPE DL560 Gen10 Universal Media Bay Kit (872267-B21).

Operating Systems and Virtualization Software Support for ProLiant Servers

Windows Server 2012 R2

Windows Server 2016

VMware ESXi 6.0 U3

VMware ESXi 6.5 and U1 upon release

Red Hat Enterprise Linux (RHEL) 6.9 and 7.3

SUSE Linux Enterprise Server (SLES) 11 SP4 and 12 SP2

CentOS 6.9 and 7.3

NOTE: Not directly supported / Community Supported (Based on RHEL so RHEL testing and enablement applicable to Cent

http://h20566.www2.hpe.com/portal/site/hpsc/public/psi/home?sp4ts.oid=1010026837.

Industry Standard Compliance

ACPI 6.1 Compliant

PCIe 3.0 Compliant

WOL Support

Microsoft® Logo certifications

PXE Support

USB 3.0 Compliant (internal); USB 2.0 Compliant (external ports via SUV)

SMBIOS 3.1

UEFI 2.6

Redfish API

NOTE: For additional technical thermal details regarding ambient temperatures, humidity and features support please visit:

http://www.hpe.com/servers/ashrae.

Graphics

• Integrated Video Standard

• 16MB Video Memory

• HPE iLO 5 on system management memory

HPE Server UEFI/Legacy ROM

Unified Extensible Firmware Interface (UEFI) is an industry standard that provides better manageability and more secured

• Operating system specific functionality

OS) CentOS 6.9 / CentOS 7.3. NOTE: For more information on Hewlett Packard Enterprise Certified and Supported ProLiant Servers for OS and Virtualization Software and latest listing of software drivers available for your server.

• Video modes up to 1920 x 1200@60Hz (32 bpp)

• 32 MB Flash

• 4 Gbit DDR 3 with ECC protection

configuration than the legacy ROM while interacting with your server at boot time. HPE ProLiant Gen10 servers have a UEFI Class 2 implementation and support both UEFI Mode (default) and Legacy BIOS Mode.

NOTE: The UEFI System Utilities tool is analogous to the HPE ROM-Based Setup Utility (RBSU) of legacy BIOS. For more information, please visit http://www.hpe.com/servers/uefi

UEFI enables numerous new capabilities specific to HPE ProLiant servers such as:

• Secure Boot and Secure Start enable for enhanced security

QuickSpecs

HPE ProLiant DL560 Gen10 Server

Standard Features

Page 11

• Support for > 2.2 TB (using GPT) boot drives

ProLiant Gen10 Server.

Embedded Management

HPE Integrated Lights-Out (HPE iLO)

Monitor your servers for ongoing management, service alerting, reporting and remote

UEFI

Configure and boot your servers securely with industry standard Unified Extensible Firmware

http://www.hpe.com/servers/uefi

Intelligent Provisioning

Hassle free server and OS provisioning for one or more servers with Intelligent Provisioning. Learn more at http://www.hpe.com/servers/intelligentprovisioning.

iLO RESTful API

iLO RESTful API is Redfish API conformance and offers simplified server management

http://www.hpe.com/info/restfulapi

Server Utilities

Active Health System

The HPE Active Health System (AHS) is an essential component of the iLO management portfolio that provides continuous, proactive health monitoring of HPE servers. Learn more at

http://www.hpe.com/servers/ahs.

Active Health System

Use the Active Health System Viewer, a web-based portal, to easily read AHS logs and speed

http://www.hpe.com/servers/ahsv

Smart Update

Keep your servers up to date with the HPE Smart Update solution by using Smart Update

iLO Amplifier Pack

Designed for large enterprise and service provider environments with hundreds of HPE

http://www.hpe.com/servers/iLOamplifierpack

HPE iLO Mobile

Enables the ability to access, deploy, and manage your server anytime from anywhere from

• USB 3.0 Stack

• Embedded UEFI Shell

• Mass Configuration Deployment Tool using iLO RESTful API that is Redfish API Conformant

• PXE boot support for IPv6 networks

• Workload profiles for simple performance optimization

UEFI Boot Mode only:

• TPM 2.0 support

• NVMe Boot Support

• Platform Trust Technology (PTT) can be enabled

• iSCSI Software Initiator Support

• HTTP/HTTPs Boot support as a PXE alternative

• Boot support for option cards that only support a UEFI option ROM

NOTE: For UEFI Boot Mode, boot environment and OS image installations should be configured properly to support UEFI. NOTE: UEFI FIO Setting (758959-B22) can be selected to configure the system in Legacy mode in the factory for your HPE

management with HPE iLO. Learn more at http://www.hpe.com/info/ilo.

Interface (UEFI). Learn more at

automation such as configuration and maintenance tasks based on modern industry standards. Learn more at

Viewer

problem resolution with HPE self-repair recommendations, to learn more visit:

Manager (SUM) to optimize the firmware and driver updates of the Service Pack for ProLiant (SPP). Learn more at

http://www.hpe.com/info/smartupdate.

servers, the iLO Amplifier Pack is a free, downloadable open virtual application (OVA) that delivers the power to discover, inventory and update Gen8, Gen9 and Gen10 HPE servers at unmatched speed and scale. Use with an iLO Advanced License to unlock full capabilities. Learn more at

QuickSpecs

HPE ProLiant DL560 Gen10 Server

Standard Features

Page 12

Application

select smartphones and mobile devices. For additional information please visit:

http://www.hpe.com/info/ilo/mobileapp.

RESTful Interface Tool

RESTful Interface tool (iLOREST) is a single scripting tool to provision using iLO RESTful API

http://www.hpe.com/info/resttool

Scripting Tools

Provision one to many servers using your own scripts to discover and deploy with Scripting

HPE OneView Standard

HPE OneView Standard can be used for inventory, health monitoring, alerting, and reporting

http://www.hpe.com/info/oneview

HPE Systems Insight

Ideal for environments already using HPE SIM, it allows you to monitor the health of your HPE

firmware updates. Learn more at http://www.hpe.com/info/hpesim.

Security

UEFI Secure Boot and Secure Start support

Immutable Silicon Root of Trust

FIPS 140-2 validation (iLO 5 certification in progress)

Common Criteria certification (iLO 5 certification in progress)

Configurable for PCI DSS compliance

Advanced Encryption Standard (AES) and Triple Data Encryption Standard (3DES) on browser

Support for Commercial National Security Algorithms (CNSA)

iLO Security Modes including a New iLO Advance Premium Security Edition License

Granular control over iLO interfaces

Smart card (PIV/CAC) and Kerberos based 2-factor Authentication

Tamper-free updates – components digitally signed and verified

Secure Recovery – recover critical firmware to known good state on detection of compromised firmware

Ability to rollback firmware

Secure erase of NAND/User data

TPM (Trusted Platform Module) 1.2 option

TPM (Trusted Platform Module) 2.0 option Bezel Locking Kit

Chassis Intrusion detection option

NOTE: HPE Trusted Platform Module 2.0 Option (864279-B21) works with Gen10 servers with UEFI Mode and not Legacy

The Trusted Platform Module 2.0 Option can be configured to the 1.2 version through the UEFI BIOS to support TPM

TPM module.

Manager (HPE SIM)

to discover and deploy servers at scale. Learn more at

Tool (STK) for Windows and Linux or Scripting Tools for Windows PowerShell. Learn more at http://www.hpe.com/servers/stk or http://www.hpe.com/servers/powershell.

without additional fees. It can monitor multiple HPE server generations. The user interface is similar to the HPE OneView Advanced version, but the software-defined functionality is not available. Learn more at

ProLiant Servers and HPE Integrity Servers. Also provides you with basic support for non-HPE servers. HPE SIM also integrates with Smart Update Manager to provide quick and seamless

Mode.

1.2 functionality.

NOTE: HPE server systems can have a TPM module (of any type) installed only once. It cannot be replaced with any other

QuickSpecs

HPE ProLiant DL560 Gen10 Server

Standard Features

Page 13

About Trusted Platform Module

Trusted Platform Module (TPM) is a separate processor that monitors the system state. TPM is a passive component needing

module is installed, it locks into place and cannot be removed, nor can it be replaced with a different TPM device.

HPE Silicon Root of Trust

HPE’s Silcon Root of Trust provides protection because as soon as the server is powered on and the iLO firmware comes alive, it

r the immutable fingerprint that verifies all the firmware code is valid and uncompromised. Over a million

n9,

t is anchored

license called, HPE iLO Advanced Premium Security Edition.

Warranty

This product is covered by a global limited warranty and supported by HPE Services and a worldwide network of HPE

http://h17007.www1.hpe.com/us/en/enterprise/servers/warranty/.

to be updated and not able to lock down any component in the system except access to its own memory. It also provides some cryptographic operations - among them: creating RSA key pairs, and working with them.

The first verification of signatures happens by code on the CPU, which can be intercepted and replaced. Emulating a "properly" booted system is possible by sending the right values to the TPM.

HPE supports two version of TPM, the 1.2 device and the 2.0 device. The TPM 2.0 device works with Gen10 servers that are using a Linux operating system or Microsoft Windows Server 2016. Both TPM 1.2 and 2.0 are compatible with HPE ProLiant Gen9 and Gen10 servers. These TPM modules are not compatible with server generations prior to Gen9. Once the TPM

looks into the silicon fo lines of firmware code run, before the operating system starts, making it essential to confirm that all server essential firmware is free from malware or compromised code.

Silicon Root of Trust is included with iLO5 Standard with all platforms that contain the iLO5 chip. That includes ML, DL, Apollo, C-Class Blades, and Synergy Compute Modules. HPE Cloudline and the HPE Microserver do not have silicon root of trust, since they do not contain an iLO5 silicon chip. This technology is NOT available on any previous version of HP ProLiant like the Ge Gen8, or Gen 7 servers, nor can those previous generations be retrofitted to accommodate the silicon root of trust.

The silicon validates the iLO 5 firmware code before it is fetched and executed. If any malware or compromised code has been inserted in the iLO 5 firmware, the silicon will detect that, because any infected firmware code will not match-up with the hash burned into the silicon. From there, the iLO 5 firmware validates the rest of the server firmware, namely the UEFI, CPLD, IE, and ME. The UEFI then validates the connection to the operating system, thus completing a complete root, or chain, tha into the silicon.

During operation of the server, HPE has a new technology that conducts run-time firmware validation that checks the firmware stored in the server. At any point, if compromised code or malware is inserted in any of the critical firmware, an iLO audit log alert is created to notify the customer that a compromised has occurred.

In the unlikely event of a breach into the HPE server firmware, after detection has been completed, the customer may then securely recover the firmware automatically to a previous known good state. HPE provides this function through a new HPE

Authorized Channel Partners resellers. Hardware diagnostic support and repair is available for three years from date of purchase. Support for software and initial setup is available for 90 days from date of purchase. Enhancements to warranty services are available through HPE Care Pack services or customized service agreements. Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details. Server Warranty includes 3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response. Warranty repairs may be accomplished through the use of Customer Self Repair (CSR) parts. These parts fall into two categories: 1) Mandatory CSR parts are designed for easy replacement. A travel and labor charge will result when customers decline to replace a Mandatory CSR part; 2) Optional CSR parts are also designed for easy replacement but may involve added complexity. Customers may choose to have Hewlett Packard Enterprise replace Optional CSR parts at no charge. Additional information

regarding worldwide limited warranty and technical support is available at:

QuickSpecs

HPE ProLiant DL560 Gen10 Server

Optional Features

Page 14

Server Management

HPE iLO Advanced

HPE iLO Advanced licenses offer smart remote functionality without compromise, for all HPE

http://www.hpe.com/servers/iloadvanced.

HPE iLO Advanced

HPE iLO Advanced Premium Security Edition for iLO 5 includes iLO Advanced License plus

like Automatic FW recovery; Runtime FW verification, and Secure erase. Learn more about HPE iLO Advanced Premium Security Edition at: http://www.hpe.com/servers/ilopremium.

HPE OneView Advanced

HPE OneView brings a new level of automation to infrastructure management by taking a

http://www.hpe.com/info/oneview.

HPE Insight Cluster

HPE Insight Cluster Management Utility is a HyperScale management framework that includes

infrastructure. Learn more at http://www.hpe.com/info/cmu.

HPE Insight Control

HPE Insight Control is recommended for current implementation on HPE Servers to deploy,

http://www.hpe.com/info/insightcontrol

GPGPU Information

HPE NVIDIA Quadro P2000 Graphics Accelerator

Rack and Power Infrastructure

The story may end with servers, but it starts with the foundation that makes compute go – and business grow. We’ve

Learn more about HPE Racks, KVM, PDUs and UPSs at HPE Rack and Power Infrastructure.

ProLiant servers. The license includes the full integrated remote console, virtual keyboard, video, and mouse (KVM), multi-user collaboration, console record and replay, and GUI-based and scripted virtual media and virtual folders. You can also activate the enhanced security and power management functionality. Learn more about HPE iLO Advanced at

Premium Security Edition

Management Utility (CMU)

high-end security modes, unique security capabilities,

template driven approach to provisioning, updating, and integrating compute, storage, and networking infrastructure. It provides full-featured licenses which can be purchased for managing Gen8, Gen9 and Gen10 servers. To learn more visit

software for the centralized provisioning, management and monitoring of nodes and

migrate, monitor, remote control, and optimize your IT infrastructure through a single, simple management console. For more information, see

reinvented our entire portfolio of rack and power products to make IT infrastructure more secure, more practical, and more efficient. In other words, we’ve created a stronger, smarter, and simpler infrastructure to help you get the most out of your IT equipment. As an industry leader, Hewlett Packard Enterprise is uniquely positioned to address the key concerns of power, cooling, cable management and system access.

HPE G2 Advanced and Enterprise Racks are perfect for the server room or today’s modern data center with enhanced airflow and thermal management, flexible cable management, and a 10 year Warranty to support higher density computing.

HPE G2 PDUs offer reliable power in flexible form factors that operate at temperatures up to 60°, include color-coded outlets and load segments and a low-profile design for optimal access to the rack and support for dense rack environments.

HPE Uninterruptible Power Systems are cost-effective power protection for any type workload. Some UPSs include options for remote management and extended runtime modules so you’re critical dense data center is covered in power outages.

HPE KVM Solutions include a console and switches designed to work with your server and IT equipment reliably. We’ve got a cost-effective KVM switch for your first rack and multiple connection IP switches with remote management and security capabilities to keep your data center rack up and running.

QuickSpecs

HPE ProLiant DL560 Gen10 Server

Optional Features

Page 15

One Config Simple (SCE)

SCE is a guided self-service tool to help sales and non-technical people provide customers with initial configurations in 3 to 5

https://h22174.www2.hpe.com/SimplifiedConfig/Welcome#

minutes. You may then send the configuration on for configuration help, or use in your existing ordering processes. If you require "custom" rack configuration or configuration for products not available in SCE, please contact Hewlett Packard Enterprise Customer Business Center or an Authorized Partner for assistance.

QuickSpecs

HPE ProLiant DL560 Gen10 Server

Service and Support

Page 16

HPE Pointnext

Protect your business beyond warranty with HPE Support Services

Connect your devices:

n. All

Learn more about getting connected at http://www.hpe.com/services/getconnected

Parts and Materials

HPE Education Services

HPE Support Center

For more information: http://www.hpe.com/services

HPE Pointnext provides a comprehensive portfolio including Advisory and Transformational, Professional, and Operational Services to help accelerate your digital transformation. From the onset of your transformation journey, Advisory and Transformational Services focus on designing the transformation and creating a solution roadmap. Professional Services specializes in creative configurations with flawless and on-time implementation, and on-budget execution. Finally, operational services provides innovative new approaches like Flexible Capacity and Datacenter Care, to keep your business at peak performance. HPE is ready to bring together all the pieces of the puzzle for you, with an eye on the future, and make the complex simple.

Unlock all of the benefits of your technology investment by connecting your products to Hewlett Packard Enterprise. Reduce down time and improve diagnostic accuracy with a single consolidated view of your environment. By connecting, you will receiv 24x7monitoring, pre-failure alerts, automatic call logging, and automatic parts dispatch. HPE Proactive Care Service and HPE

Datacenter Care Service customers will also benefit from proactive activities to help prevent issues and increase optimizatio of these benefits are already available to you with your server storage and networking products, securely connected to HPE support.

HPE will provide HPE-supported replacement parts and materials necessary to maintain the covered hardware product in operating condition, including parts and materials for available and recommended engineering improvements.

Parts and components that have reached their maximum supported lifetime and/or the maximum usage limitations as set forth in the manufacturer's operating manual, product quick-specs, or the technical product data sheet will not be provided, repaired, or replaced as part of these services.

The defective media retention service feature option applies only to Disk or eligible SSD/Flash Drives replaced by HPE due to malfunction.

Keep your IT staff trained making sure they have the right skills to deliver on your business outcomes. Book on a class today and learn how to get the most from your technology investment. http://www.hpe.com/ww/learn

The HPE Support Center is a personalized online support portal with access to information, tools and experts to support HPE business products. Submit support cases online, chat with HPE experts, access support resources or collaborate with peers. Learn more http://www.hpe.com/support/hpesc

HPE's Support Center Mobile App* allows you to resolve issues yourself or quickly connect to an agent for live support. Now, you can get access to personalized IT support anywhere, anytime. HPE Insight Remote Support and HPE Support Center are available at no additional cost with a HPE warranty, HPE Support Service or HPE contractual support agreement.

*HPE Support Center Mobile App is subject to local availability.

QuickSpecs

HPE ProLiant DL560 Gen10 Server

Pre

-configured Models

Page 17

Entry Models

Base Models

SKU Number

840369-B21

875807-B21

840370-B21

Model Name

HPE DL560 Gen10 5120 32GB

HPE DL560 Gen10 6130

HPE DL560 Gen10 6148

Processor

Intel® Xeon® 5120

Intel® Xeon® 6130

Intel® Xeon® 6148

Number of Processors

Memory

32 GB (2x16GB Registered DIMMs,

64 GB (4x16GB Registered

(872222-B21).

128 GB (8x16GB Registered

Network Controller

1 Gb 4-port 331FLR Adapter

10GbE

Adapter

10GbE

Adapter

Storage Controller

HPE Smart Array S100i Software

(FBWC).

HPE Smart Array P408i-a

Power Supply

1x 1600W

2x 1600W

PCI-Express Slots

3 PCIe 3.0 slots available

riser installed.

3 PCIe 3.0 slots available

and tertiary riser installed.

6 PCIe 3.0 slots available

Hard Drive

None ship standard

Internal Storage

8 SFF Drive Bays

NOTE: Alternatively, optional HPE DL560 Gen10 Universal Media Bay Kit.

Optical Drive Bay

Optional via Universal Media Bay

Optical Drive

Optional via Universal Media Bay

Fans

6 hot plug fans, redundant

Management

HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires

OneView Advanced (require licenses)

Form Factor

Rack (2U), HPE Easy Install Rails with CMA

Warranty

3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response

2P Entry Svr

2 2 4

2666 MT/s)

NOTE: 24 DIMM slots available

with Entry Model; 2 more

processor slots and 24 more

DIMMs available via optional HPE

DL5x0 Gen10 CPU Mezzanine

Board Kit (872222-B21).

RAID

NOTE: Additional Storage

controllers are available as

options, to enable both SAS

capability as well as provide data

retention

with flash-backed write cache

64GB 2P Entry 2 Svr

DIMMs, 2666 MT/s)

NOTE: 24 DIMM slots

available with Entry Model; 2

more processor slots and 24

more DIMMs available via

optional HPE DL5x0 Gen10

CPU Mezzanine Board Kit

FlexFabric 2-port 533FLR-T

NOTE: Additional storage

controllers are available as

options.

128GB 4P Base Svr

DIMMs, 2666 MT/s )

FlexFabric 2-port 533FLR-T

NOTE: Additional storage

controllers are available as

options.

NOTE: 8 PCIe 3.0 slots available

with the secondary and tertiary

NOTE: 8 PCIe 3.0 slots

available with the secondary

NOTE: Can be expanded up to a max of 24 SFF drives, with optional HPE DL560 Gen10 8SFF HDD Bay2 Kit (872235-B21) and HPE DL560 Gen10 8 SFF HDD Bay1 Kit (872231-B21). NOTE: Optionally NVMe SSD drives can be added with HPE DL560 Gen10 Premium 6SFF and 2 NVMe or 8 SFF Bay1 Kit (872227-B21) or HPE DL560 Gen10 Prem 6 SFF+2 NVMe Bay2 Kit(872229-B21) or HPE DL560 Gen10 Premium 6 SFF and 2 NVMe or 8 SFF Bay3 Kit (872231-B21) or HPE DL560 NVMe 8 SSD Express Bay Enablement Kit (872225-B21).

download); HPE iLO Advanced, HPE iLO Advanced Premium Security Edition, Insight Control and HPE

NOTE: 8 PCIe 3.0 slots available

with the tertiary riser installed.

QuickSpecs

HPE ProLiant DL560 Gen10 Server

Pre

-configured Models

Page 18

Performance Models

SKU Number

840371-B21

880173-B21

Model Name

HPE DL560 Gen10 8170 256GB 4P Adv Svr

HPE DL560 Gen10 8164 256GB 4P Adv 2 Svr

Processor

Intel® Xeon® 8170

Intel® Xeon® 8164

Number of Processors

Memory

256 GB (8x 16 GB Registered DIMMs, 2666 MT/s)

Network Controller

10/25Gb2p 640FLR-SFP28 Adapter

10/25Gb 2p 631FLR-SFP28 Adapter

Storage Controller

Smart Array P816i-a

PCI-Express Slots

8 PCIe 3.0 slots available

Power Supply

2x 1600W

Hard Drive

None ship standard

Internal Storage

8 SFF Drive Bays

Optical Drive Bay

None ship standard. optional via Universal Media Bay

Optical Drive

None ship standard. optional via Universal Media Bay

Fans

6 hot plug fans, redundant

Management

HPE iLO Standard with Intelligent Provisioning (embedded), HPE OneView Standard (requires

licenses), Insight Control (require licenses) and HPE OneView Advanced (included)

Form Factor

Rack (2U), HPE Easy Install Rails with CMA

Warranty

3-Year Parts, 3-Year Labor, 3-Year Onsite support with next business day response

NOTE: UEFI is the standard default for all pre-defined models.

Country Code Key

xx1 = B21

Worldwide

NOTE: The -B21 WW SKU is to be ordered in all countries other than Japan or PRC.

xx1 = 291

Japan

xx1 = AA1

PRC

download); HPE iLO Advanced (included), HPE iLO Advanced Premium Security Edition (require

QuickSpecs

HPE ProLiant DL560 Gen10 Server

Configuration Information

- Factory Integrated Models

Page 19

This section lists some of the steps required to configure a Factory Integrated Model. To ensure only valid configurations are

Step 1: Base Configuration (choose one of the following configurable models)

Server description

HPE DL560 Gen10 CTO Svr

SKU Number

841730-B21

TAA SKU

875797-B21

Chipset

Intel® C621 Chipset

Processor

2U Server Chassis with 2 processor slots available; 4 processor configuration would require optional HPE ProLiant HPE DL5x0 Gen10 CPU Mezzanine Board Kit (872222

DIMM Slots

24 DIMM slots for RDIMM, LRDIMM DDR4 Memory; 48 DIMM configuration would require optional HPE ProLiant HPE DL5x0 Gen10 CPU Mezzanine Board Kit (872222-B21) and 4 processors

Network Controller

None. FlexibleLOM slot (various options can be chosen for networking; NIC cards also available via expansion slots)

Storage Controller

HPE Smart Array S100i

NOTE:

please select HPE FIO Enable Smart Array SW RAID (784308-B21).

PCIe

3 PCIe 3.0 slots (8 PCIe 3.0 slots are available if second processor is chosen and a Secondary and Tertiary Riser Kits has been installed)

Drive Cage - included

8 SFF, no drives

Fans

6 hot plug fans, redundant

Management

HPE iLO Standard with Intelligent Provisioning and (Standard); HPE OneView Standard (requires download) and HPE iLO Advanced, HPE iLO Advanced Premium Secur OneView Advanced (require additional licenses)

microSD Slots

1 microSD card slot (internal)

TPM Connector

1 Trusted Platform Module (TPM) connector

UEFI

BIOS Legacy mode (field configurable) or Unified Extensible Firmware Interface (UEFI) mode (default)

USB

7 USB ports (2 USB 2.0 and 5 USB 3.0)

Video Ports

2 video ports (1 front optional via the Universal Media Kit upgrade option, 1 rear)

Rails

Easy install rails and cable management arm are optional

NOTE: Trade Agreement Act (TAA) and means that these SKUs are manufactured in countries that are part of the global trade

NOTE: This aplies to CTO configurations, field upgrades may differ depending on field configuration.

ordered, Hewlett Packard Enterprise recommends the use of an HPE approved configurator. Contact your local sales representative for information on configurable product offerings and requirements.

1. Factory Integrated Models must start with a CTO Server.

2. FIO indicates that this option is only available as a factory installable option.

3. All Factory Integrated Models will be populated with sufficient hard drive blanks based on the number of initial hard drives ordered with the server.

4. Some options may not be integrated at the factory. Contact your local sales representative for additional information.

-B21)

HPE Smart Array S100i SR Gen10 SW RAID is off by default and must be enabled. For enabling,

ity Edition, Insight Control, HPE

act. This provides greater security assurance that these servers come from countries that signed the agreement act. This is particularly important to HPE customers in our federal sector and other verticals that have concerns about the country of origin

for our solutions. NOTE: PCIe slot availability is dependent on the number of processors and riser kits installed. Please refer to the "Expansion slots" section for more details. NOTE: For the DL560 Gen10, the number of processors can be one, two or four installed. For four processors, the HPE DL5x0 Gen10 CPU Mezzanine Board Kit is required.

QuickSpecs

HPE ProLiant DL560 Gen10 Server

Configuration Information

- Factory Integrated Models

Page 20

Step 2a: Choose Processor Options

Processor Option Kits

Required Processor

HPE DL560 Gen10 Intel® Xeon-Platinum 8180M (2.5GHz/28-core/205W) FIO Processor Kit

875335-L21

NOTE: Ships with Performance Heatsink.

HPE DL560 Gen10 Intel® Xeon-Platinum 8180 (2.5GHz/28-core/205W) FIO Processor Kit

872766-L21

NOTE: Ships with Performance Heatsink.

HPE DL560 Gen10 Intel® Xeon-Platinum 8176M (2.1GHz/28-core/165W) FIO Processor Kit

875336-L21

NOTE: Ships with Performance Heatsink.

HPE DL560 Gen10 Intel® Xeon-Platinum 8176 (2.1GHz/28-core/165W) FIO Processor Kit

840379-L21

NOTE: Ships with Performance Heatsink.

HPE DL560 Gen10 Intel® Xeon-Platinum 8170M (2.1GHz/26-core/165W) FIO Processor Kit

875337-L21

NOTE: Ships with Performance Heatsink.

HPE DL560 Gen10 Intel® Xeon-Platinum 8170 (2.1GHz/26-core/165W) FIO Processor Kit

870730-L21

NOTE: Ships with Performance Heatsink.

HPE DL560 Gen10 Intel® Xeon-Platinum 8168 (2.7GHz/24-core/205W) FIO Processor Kit

872768-L21

NOTE: Ships with Performance Heatsink.

HPE DL560 Gen10 Intel® Xeon-Platinum 8164 (2.0GHz/26-core/145W) FIO Processor Kit

840383-L21

NOTE: Ships with Performance Heatsink.

HPE DL560 Gen10 Intel® Xeon-Platinum 8160M (2.1GHz/24-core/145W) FIO Processor Kit

875338-L21

NOTE: Ships with Performance Heatsink.

HPE DL560 Gen10 Intel® Xeon-Platinum 8160 (2.1GHz/24-core/145W) FIO Processor Kit

840381-L21

NOTE: Ships with Performance Heatsink.

HPE DL560 Gen10 Intel® Xeon-Platinum 8158 (3.0GHz/12-core/105W) FIO Processor Kit

840397-L21

NOTE: Ships with Performance Heatsink.

HPE DL560 Gen10 Intel® Xeon-Platinum 8156 (3.6GHz/4-core/105W) FIO Processor Kit

840395-L21

HPE DL560 Gen10 Intel® Xeon-Platinum 8153 (2.0GHz/16-core/125W) FIO Processor Kit

872841-L21

HPE DL560 Gen10 Intel® Xeon-Gold 6154 (3.0GHz/18-core/200W) FIO Processor Kit

872770-L21

NOTE: Ships with Performance Heatsink.

HPE DL560 Gen10 Intel® Xeon-Gold 6152 (2.1GHz/22-core/135W) FIO Processor Kit

840387-L21

NOTE: Ships with Performance Heatsink.

HPE DL560 Gen10 Intel® Xeon-Gold 6150 (2.7GHz/18-core/165W) FIO Processor Kit

870732-L21

NOTE: Ships with Performance Heatsink.

HPE DL560 Gen10 Intel® Xeon-Gold 6148 (2.4GHz/20-core/145W) FIO Processor Kit

840385-L21

NOTE: Ships with Performance Heatsink.

HPE DL560 Gen10 Intel® Xeon-Gold 6142M (2.6GHz/16-core/150W) FIO Processor Kit

875342-L21

NOTE: Ships with Performance Heatsink.

HPE DL560 Gen10 Intel® Xeon-Gold 6142 (2.6GHz/16-core/145W) FIO Processor Kit

872828-L21

NOTE: Ships with Performance Heatsink.

HPE DL560 Gen10 Intel® Xeon-Gold 6140M (2.3GHz/18-core/135W) FIO Processor Kit

875339-L21

NOTE: Ships with Performance Heatsink.

HPE DL560 Gen10 Intel® Xeon-Gold 6140 (2.3GHz/18-core/135W) FIO Processor Kit

840389-L21

NOTE: Ships with Performance Heatsink.

HPE DL560 Gen10 Intel® Xeon-Gold 6138 (2.0GHz/20-core/120W) FIO Processor Kit

872835-L21

HPE DL560 Gen10 Intel® Xeon-Gold 6136 (3.0GHz/12-core/150W) FIO Processor Kit

872831-L21

QuickSpecs

HPE ProLiant DL560 Gen10 Server

Configuration Information

- Factory Integrated Models

Page 21

NOTE: Ships with Performance Heatsink.

HPE DL560 Gen10 Intel® Xeon-Gold 6134M (3.2GHz/8-core/130W) FIO Processor Kit

875343-L21

NOTE: Ships with Performance Heatsink.

HPE DL560 Gen10 Intel® Xeon-Gold 6134 (3.3GHz/8-core/130W) FIO Processor Kit

872833-L21

NOTE: Ships with Performance Heatsink.

HPE DL560 Gen10 Intel® Xeon-Gold 6132 (2.6GHz/14-core/140W) FIO Processor Kit

840391-L21

NOTE: Ships with Performance Heatsink.

HPE DL560 Gen10 Intel® Xeon-Gold 6130 (2.1GHz/16-core/120W) FIO Processor Kit

840393-L21

HPE DL560 Gen10 Intel® Xeon-Gold 6128 (3.4GHz/6-core/115W) FIO Processor Kit

872839-L21

HPE DL560 Gen10 Intel® Xeon-Gold 6126 (2.6GHz/12-core/120W) FIO Processor Kit

870734-L21

HPE DL560 Gen10 Intel® Xeon-Gold 5122 (3.6GHz/4-core/105W) FIO Processor Kit

870736-L21

HPE DL560 Gen10 Intel® Xeon-Gold 5120 (2.2GHz/14-core/105W) FIO Processor Kit

870738-L21

HPE DL560 Gen10 Intel® Xeon-Gold 5118 (2.3GHz/12-core/105W) FIO Processor Kit

840399-L21

HPE DL560 Gen10 Intel® Xeon-Gold 5115 (2.4GHz/10-core/85W) FIO Processor Kit

875349-L21

NOTE: If more than one processor is desired select one xxxxxx-L21 and one or three corresponding xxxxxx-B21 processors. Mixing different processor models is not supported.

Step 2b: Choose Memory Options

Only one of the following from each list unless otherwise noted

HPE 8GB (1x8GB) Single Rank x8 DDR4-2666 CAS-19-19-19 Registered Memory Kit

815097-B21

HPE 16GB (1x16GB) Single Rank x4 DDR4-2666 CAS-19-19-19 Registered Memory Kit

815098-B21

HPE 32GB (1x32GB) Dual Rank x4 DDR4-2666 CAS-19-19-19 Registered Memory Kit

815100-B21

HPE 64GB (1x64GB) Quad Rank x4 DDR4-2666 CAS-19-19-19 Load Reduced Memory Kit

815101-B21

HPE 16GB (1x16GB) Dual Rank x8 DDR4-2666 CAS-19-19-19 Registered Memory Kit

835955-B21

NOTE: LRDIMM and RDIMM are distinct memory technologies and cannot be mixed within a server.

Step 2c: Choose Power Supplies

Only one or more of the following from each list unless otherwise noted

HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit

865438-B21

HPE 800W Flex Slot Universal Hot Plug Low Halogen Power Supply Kit

865428-B21

HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

865414-B21

HPE 800W Flex Slot -48VDC Hot Plug Low Halogen Power Supply Kit

865434-B21

HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

830272-B21

NOTE: Select one or more power supplies. For 800W, 4 power supplies need to be selected

Step 2d: Choose network adapters

Only one of the following from each list unless otherwise noted

HPE Ethernet 10/25Gb 2-port 631FLR-SFP28 FIO Adapter

817710-B21

HPE FlexFabric 10Gb 4-port 536FLR-T FIO Adapter

764303-B21

HPE FlexFabric 10Gb 2-port 534FLR-SFP+ FIO Adapter

700752-B21

HPE Ethernet 10Gb 2-port 535FLR-T FIO Adapter

817722-B21

HPE Ethernet 1Gb 4-port 331FLR FIO Adapter

684208-B21

HP FlexFabric 10Gb 2-port 533FLR-T FIO Adapter

700760-B21

NOTE: Prior to making a power supply selection it is highly recommended that the HPE Power Advisor is run to determine the right size power supply for your server configuration. The HPE Power Advisor is located at: http://www.hpe.com/info/hppoweradvisor

NOTE: All power supplies in a server should match. Mixing Power Supplies is not supported. NOTE: HPE ProLiant servers ship with an IEC-IEC power cord used for rack mounting with

Power Distribution Units (PDUs). Visit HPE power cords

for a full list of optional power cords.

QuickSpecs

HPE ProLiant DL560 Gen10 Server

Configuration Information

- Factory Integrated Models

Page 22

HP Ethernet 10Gb 2-port 562FLR-SFP+ FIO Adapter

789006-B21

HPE Ethernet 1Gb 4-port 366FLR FIO Adapter

684217-B21

HPE Ethernet 10/25Gb 2-port 640FLR-SFP28 FIO Adapter

817750-B21

Step 3: Choose Additional Factory Integratable Options

Only one of the following from each list unless otherwise noted

Risers

HPE DL560 Gen10 4-port 8 NVMe Slimline FIO Riser Kit

876242-B21

HPE DL560 Gen10 x8/x8/x8 1-port 2 NVMe Slimline FIO Riser Kit

876245-B21

HPE DL38X Gen10 x16/x16 GPU Slot2/3 FIO Riser Kit

871676-B21

HPE OneView

HPE OneView w/o iLO including 3yr 24x7 Support 1-server FIO LTU

P8B31A

HPE OneView for ProLiant DL Server including 3yr 24x7 Support FIO Bundle Physical 1-server LTU

E5Y43A

BIOS Mode

HP Legacy FIO Mode Setting

758959-B22

NOTE: Selecting this option will change the UEFI BIOS setting into Legacy BIOS Setting.

Controller State

HP FIO Enable Smart Array B140i Setting

784308-B21

NOTE: If not selecting an HPE Storage Controller, this option may be selected to

hard drives.

Step 4: Choose Additional Options for Factory Integration from Core and additional Options sections below

support RAID and Hot-plug capabilities for SATA hard drives. The S100i does not support SAS

QuickSpecs

HPE ProLiant DL560 Gen10 Server

Core Options

Page 23

NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard

representative for additional information.

HPE Unique Options

HPE DL5x0 Gen10 12Gb SAS Expander Card Kit with Cables

873444-B21

HPE DL560 Gen10 2SFF Premium HDD Front NVMe/SAS/SATA Kit

872223-B21

NOTE: Needs to be ordered with the HPE DL560 Gen10 Uni Media Bay Kit (872267-B21).

HPE DL560 NVMe 8 SSD Express Bay Enablement Kit

872225-B21

HPE DL560 Gen10 Premium 6SFF and 2 NVMe or 8SFF Bay1 Kit

872227-B21

HPE DL560 Gen10 Premium 6SFF and 2 NVMe or 8SFF Bay2 Kit

872229-B21

HPE DL560 Gen10 Premium 6SFF and 2 NVMe or 8SFF Bay3 Kit

872231-B21

HPE DL560 Gen10 4-port NVMe Mezzanine Card

874633-B21

HPE DL560 Gen10 8SFF HDD Bay1 Kit

872233-B21

HPE DL560 Gen10 8SFF HDD Bay2 Kit

872235-B21

HPE DL560 Gen10 8SFF HDD Bay3 Kit

872237-B21

HPE DL560 Gen10 Universal Media Bay Kit

872267-B21

NOTE: An optional Optical Disk Drive can be added, either DVD-ROM (726536-B21) or DVD-RW (726537-B21).

HPE DL5x0 Gen10 System Insight Display Kit

872261-B21

HPE DL560 Gen10 4x Power Supply Enablement Kit

875675-B21

NOTE:

HPE DL5x0 Gen10 CPU Mezzanine Board Kit

872222-B21

HPE DL5x0 Gen10 CPU Mezzanine Board Kit

875608-B21

NOTE: The HPE DL5x0 Gen10 CPU Mezz Kit (872222-B21) is needed for four processor configurations.

priority order of drive box population is Box 3, followed by Box 2 and then Box 1.

HPE Processors

HPE DL560 Gen10 Intel® Xeon-Platinum 8180M (2.5GHz/28-core/205W) Processor Kit

875335-B21

NOTE: Ships with Performance Heatsink.

HPE DL560 Gen10 Intel® Xeon-Platinum 8180 (2.5GHz/28-core/205W) Processor Kit

872766-B21

NOTE: Ships with Performance Heatsink.

HPE DL560 Gen10 Intel® Xeon-Platinum 8176M (2.1GHz/28-core/165W) Processor Kit

875336-B21

NOTE: Ships with Performance Heatsink.

HPE DL560 Gen10 Intel® Xeon-Platinum 8176 (2.1GHz/28-core/165W) Processor Kit

840379-B21

NOTE: Ships with Performance Heatsink.

HPE DL560 Gen10 Intel® Xeon-Platinum 8170M (2.1GHz/26-core/165W) Processor Kit

875337-B21

NOTE: Ships with Performance Heatsink.

HPE DL560 Gen10 Intel® Xeon-Platinum 8170 (2.1GHz/26-core/165W) Processor Kit

870730-B21

NOTE: Ships with Performance Heatsink.

HPE DL560 Gen10 Intel® Xeon-Platinum 8168 (2.7GHz/24-core/205W) Processor Kit

872768-B21

NOTE: Ships with Performance Heatsink.

HPE DL560 Gen10 Intel® Xeon-Platinum 8164 (2.0GHz/26-core/150W) Processor Kit

840383-B21

NOTE: Ships with Performance Heatsink.

Enterprise recommends the use of an Hewlett Packard Enterprise approved configurator. Contact your local sales

Must be ordered when selecting 4 power supplies.

NOTE: The HPE DL5x0 Gen10 CPU Mezz Perf Kit (875608-B21) can only be used in a two processor configuration. This kit ships with the mezzanine tray and connects the two processors with 3 UPI (2 UPI links for 51xx processors) links.

NOTE: The HPE DL560 Gen10 8 SFF Bay 3 Cage/Backplane Kit (872237-B21) is shipped default with the server. The

QuickSpecs

HPE ProLiant DL560 Gen10 Server

Core Options

Page 24

HPE DL560 Gen10 Intel® Xeon® -Platinum 8160M (2.1GHz/24-core/145W) Processor Kit

875338-B21

NOTE: Ships with Performance Heatsink.

HPE DL560 Gen10 Intel® Xeon-Platinum 8160 (2.1GHz/24-core/145W) Processor Kit

840381-B21

NOTE: Ships with Performance Heatsink.

HPE DL560 Gen10 Intel® Xeon-Platinum 8158 (3.0GHz/12-core/105W) Processor Kit

840397-B21

NOTE: Ships with Performance Heatsink.

HPE DL560 Gen10 Intel® Xeon-Platinum 8156 (3.6GHz/4-core/105W) Processor Kit

840395-B21

HPE DL560 Gen10 Intel® Xeon-Platinum 8153 (2.0GHz/16-core/125W) Processor Kit

872841-B21

HPE DL560 Gen10 Intel® Xeon-Gold 6154 (3.0GHz/18-core/200W) Processor Kit

872770-B21

NOTE: Ships with Performance Heatsink.

HPE DL560 Gen10 Intel® Xeon-Gold 6152 (2.1GHz/22-core/135W) Processor Kit

840387-B21

NOTE: Ships with Performance Heatsink.

HPE DL560 Gen10 Intel® Xeon-Gold 6150 (2.7GHz/18-core/165W) Processor Kit

870732-B21

NOTE: Ships with Performance Heatsink.

HPE DL560 Gen10 Intel® Xeon-Gold 6148 (2.4GHz/20-core/145W) Processor Kit

840385-B21

NOTE: Ships with Performance Heatsink.

HPE DL560 Gen10 Intel® Xeon-Gold 6142M (2.6GHz/16-core/150W) Processor Kit

875342-B21

NOTE: Ships with Performance Heatsink.

HPE DL560 Gen10 Intel® Xeon-Gold 6142 (2.6GHz/16-core/145W) Processor Kit

872828-B21

NOTE: Ships with Performance Heatsink.

HPE DL560 Gen10 Intel® Xeon-Gold 6140M (2.3GHz/18-core/140W) Processor Kit

875339-B21

NOTE: Ships with Performance Heatsink.

HPE DL560 Gen10 Intel® Xeon-Gold 6140 (2.3GHz/18-core/140W) Processor Kit

840389-B21

NOTE: Ships with Performance Heatsink.

HPE DL560 Gen10 Intel® Xeon-Gold 6138 (2.0GHz/20-core/125W) Processor Kit

872835-B21

HPE DL560 Gen10 Intel® Xeon-Gold 6136 (3.0GHz/12-core/150W) Processor Kit

872831-B21

NOTE: Ships with Performance Heatsink.

HPE DL560 Gen10 Intel® Xeon-Gold 6134M (3.2GHz/8-core/130W) Processor Kit

875343-B21

NOTE: Ships with Performance Heatsink.

HPE DL560 Gen10 Intel® Xeon-Gold 6134 (3.3GHz/8-core/130W) Processor Kit

872833-B21

NOTE: Ships with Performance Heatsink.

HPE DL560 Gen10 Intel® Xeon-Gold 6132 (2.6GHz/14-core/140W) Processor Kit

840391-B21

NOTE: Ships with Performance Heatsink.

HPE DL560 Gen10 Intel® Xeon-Gold 6130 (2.1GHz/16-core/125W) Processor Kit

840393-B21

HPE DL560 Gen10 Intel® Xeon-Gold 6128 (3.4GHz/6-core/115W) Processor Kit

872839-B21

HPE DL560 Gen10 Intel® Xeon-Gold 6126 (2.6GHz/12-core/125W) Processor Kit

870734-B21

HPE DL560 Gen10 Intel® Xeon-Gold 5122 (3.6GHz/4-core/105W) Processor Kit

870736-B21

HPE DL560 Gen10 Intel® Xeon-Gold 5120 (2.2GHz/14-core/105W) Processor Kit

870738-B21

HPE DL560 Gen10 Intel® Xeon-Gold 5118 (2.3GHz/12-core/105W) Processor Kit

840399-B21

HPE DL560 Gen10 Intel® Xeon-Gold 5115 (2.4GHz/10-core/85W) Processor Kit

875349-B21

NOTE: If more than one processor is desired select one xxxxxx-L21 and one or three corresponding xxxxxx-B21 processors. Mixing different processor models is not supported.

Memory Selection

To streamline the configuration process for HPE ProLiant Gen10 servers and to provide the best product availability, HPE

http://www.hpe.com/products/recommend

recommends memory from the list located here:

QuickSpecs

HPE ProLiant DL560 Gen10 Server

Core Options

Page 25

Best product availability is limited to US, Canada, and Latin America at this time.

HPE Memory

NOTE: Hewlett Packard Enterprise memory from previous generation servers is not qualified or warranted

NOTE: LRDIMM and RDIMM are all distinct memory technologies and cannot be mixed within a server.

HPE 8GB (1x8GB) Single Rank x8 DDR4-2666 CAS-19-19-19 Registered Memory Kit

815097-B21

HPE 16GB (1x16GB) Single Rank x4 DDR4-2666 CAS-19-19-19 Registered Memory Kit

815098-B21

HPE 32GB (1x32GB) Dual Rank x4 DDR4-2666 CAS-19-19-19 Registered Memory Kit

815100-B21

HPE 64GB (1x64GB) Quad Rank x4 DDR4-2666 CAS-19-19-19 Load Reduced Memory Kit

815101-B21

HPE 16GB (1x16GB) Dual Rank x8 DDR4-2666 CAS-19-19-19 Registered Memory Kit

835955-B21

NOTE: The maximum memory speed is a function of the memory type, memory configuration, and processor model.

HPE Optical Drives

HP 9.5mm SATA DVD-ROM JackBlack Gen9 Optical Drive

726536-B21

NOTE: The optional Universal Media Bay Kits are required for this option. (HPE ProLiant DL560 Gen10

Universal Media Bay kit (872267-B21).

HP 9.5mm SATA DVD-RW JackBlack G9 Optical Drive

726537-B21

NOTE: The optional Universal Media Bay Kits are required for this option. (HPE ProLiant DL560 Gen10 Universal Media Bay kit - 872267-B21).

HP Mobile USB Non Leaded System DVD RW Drive

701498-B21

NOTE: External

HPE Drives

NOTE: The components of a storage subsystem (e.g. the drive, the HBA/controller, firmware, and the server backplane)

NOTE: Hard drives have either a one year or three year warranty; refer to the specific hard drive QuickSpecs for details.

Enterprise - 12G SAS - SFF Drives

HPE 300GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD

870753-B21

HPE 300GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD

872475-B21

HPE 600GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD

870757-B21

HPE 600GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty 512e Digitally Signed Firmware HDD

870763-B21

HPE 600GB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD

872477-B21

HPE 900GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD

870759-B21

HPE 900GB SAS 12G Enterprise 15K SFF (2.5in) SC 3yr Wty 512e Digitally Signed Firmware HDD

870765-B21

HPE 1.2TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty Digitally Signed Firmware HDD

872479-B21

HPE 1.8TB SAS 12G Enterprise 10K SFF (2.5in) SC 3yr Wty 512e Digitally Signed Firmware HDD

872481-B21

Midline - 12G SAS - SFF Drives

HPE 1TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty HDD

832514-B21

HPE 1TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e HDD

765464-B21

HPE 2TB SAS 12G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e HDD

765466-B21

Midline - 6G SATA - SFF Drives

HPE 1TB SATA 6G Midline 7.2K SFF (2.5in) SC 1yr Wty Digitally Signed Firmware HDD

655710-B21

HPE 1TB SATA 6G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD

765453-B21

HPE 2TB SATA 6G Midline 7.2K SFF (2.5in) SC 1yr Wty 512e Digitally Signed Firmware HDD

765455-B21

with this HPE ProLiant Server. HPE SmartMemory is required to realize the memory performance improvements and enhanced functionality listed in this document for Gen10. For additional information, please see the

HPE SmartMemory QuickSpecs.

should operate at the same data transfer rate or the system bandwidth will be negotiated down to an acceptable level for all components.

QuickSpecs

HPE ProLiant DL560 Gen10 Server

Core Options

Page 26

SSD Selection

http://ssd.hpe.com

Write Intensive - PCIe/NVMe - SFF - Solid State Drives

HPE 400GB NVMe x4 Lanes Write Intensive SFF (2.5in) SCN 3yr Wty SSD

736936-B21

HPE 800GB NVMe x4 Lanes Write Intensive SFF (2.5in) SCN 3yr Wty SSD

736939-B21

HPE 1.6TB NVMe x4 Lanes Write Intensive SFF (2.5in) SCN 3yr Wty SSD

764892-B21

HPE 2TB NVMe x4 Lanes Write Intensive SFF(2.5in) SCN 3yr Wty SSD

764894-B21

Write Intensive - 6G SATA - SFF - Solid State Drives

HPE 400GB SATA 6G Write Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872355-B21

HPE 800GB SATA 6G Write Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872359-B21

HPE 1.6TB SATA 6G Write Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872363-B21

Read Intensive - 6G SATA - SFF - Solid State Drives

HPE 240GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

868814-B21

HPE 480GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

868818-B21

HPE 960GB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

868822-B21

HPE 1.92TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

868826-B21

HPE 3.8TB SATA 6G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

868830-B21

Read Intensive - 12G SAS - SFF - Solid State Drives

HPE 960GB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872390-B21

HPE 1.92TB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872392-B21

HPE 3.84TB SAS 12G Read Intensive SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872394-B21

Read Intensive - 6G SATA - M.2 - UFF - Solid State Drives

HPE 340GB SATA 6G Read Intensive UFF 3yr Wty Dual M.2 Kit

815605-B21

HPE 340GB SATA 6G Read Intensive UFF 3yr Wty M.2 Kit

815606-B21

NOTE: M.2 drives go in the Primary Riser and use S100i SATA controller only.

Read Intensive - NVMe - SFF - Solid State Drives

HPE 400GB NVMe x4 Lanes Read Intensive SFF (2.5in) SCN 3yr Wty SSD

764904-B21

HPE 1.2TB NVMe x4 Lanes Read Intensive SFF (2.5in) SCN 3yr Wty SSD

764906-B21

NOTE: A NVME (872225-B21 or 872227-B21 or 872229-B21, 872231-B21) or Premium (872223-B21) drive cage are

NOTE:

Mixed Use - 12G SAS - SFF - Solid State Drives

HPE 400GB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872374-B21

HPE 800GB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872376-B21

HPE 1.6TB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872382-B21

HPE 3.2TB SAS 12G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872386-B21

Mixed Use - 6G SATA - SFF - Solid State Drives

HPE 480GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872344-B21

HPE 960GB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872348-B21

HPE 1.92TB SATA 6G Mixed Use SFF (2.5in) SC 3yr Wty Digitally Signed Firmware SSD

872352-B21

Mixed Use - NVMe - SFF - Solid State Drives

HPE 400GB NVMe x4 Lanes Mixed Use SFF (2.5in) SCN 3yr Wty SSD

765034-B21

To streamline the configuration process for HPE ProLiant Gen10 servers and to provide the best product availability, HPE recommends SSDs from the list located here: http://www.hpe.com/products/recommend. Best product availability is limited to US, Canada, and Latin America at this time.

To further assist with configuration, HPE also offers an SSD Selector Tool located here:

NOTE: M.2 supports Software RAID only.

required to support these drives in conjunction with a NVMe riser kit or 4-port NVMe Mezzanine card .

Not supported by HPE Smart Array controllers.

QuickSpecs

HPE ProLiant DL560 Gen10 Server

Core Options

Page 27

HPE 800GB NVMe x4 Lanes Mixed Use SFF (2.5in) SCN 3yr Wty SSD

765036-B21

HPE 1.6TB NVMe x4 Lanes Mixed Use SFF (2.5in) SCN 3yr Wty SSD

765038-B21

HPE 2TB NVMe x4 Lanes Mixed Use SFF (2.5in) SCN 3yr Wty SSD

765044-B21

NOTE: A NVME (872225-B21 or 872227-B21 or 872229-B21, 872231-B21) or Premium (872223-B21) drive cage are

NOTE: Not supported by HPE Smart Array controllers.

Hard Drive Blank Kits

HPE Small Form Factor Hard Drive Blank Kit

666987-B21

Hard Drive Kits

HPE DL560 Gen10 8SFF HDD Bay1 Kit

872233-B21

HPE DL560 Gen10 8SFF HDD Bay2 Kit

872235-B21

HPE DL560 Gen10 8SFF HDD Bay3 Kit

872237-B21

NVMe Kit

HPE DL560 NVMe 8 SSD Express Bay Enablement Kit

872225-B21

HPE DL560 Gen10 Premium 6SFF and 2 NVMe or 8SFF Bay1 Kit

872227-B21

HPE DL560 Gen10 Premium 6SFF and 2 NVMe or 8SFF Bay2 Kit

872229-B21

HPE DL560 Gen10 Premium 6SFF and 2 NVMe or 8SFF Bay3 Kit

872231-B21

Media Bay Kits

HPE DL560 Gen10 Universal Media Bay Kit

872267-B21

HPE DL560 Gen10 2SFF Premium HDD Front NVMe/SAS/SATA Kit

872223-B21

HPE Networking

25 Gigabit Ethernet adapters

HPE Ethernet 10/25Gb 2-port 640FLR-SFP28 Adapter

817749-B21

HPE Ethernet 10/25Gb 2-port 640SFP28 Adapter

817753-B21

HPE Ethernet 4x25Gb 1-port 620QSFP28 Adapter

817762-B21

HPE Ethernet 10/25Gb 2-port 631FLR-SFP28 Adapter

817709-B21

HPE Ethernet 10/25Gb 2-port 631SFP28 Adapter

817718-B21

10 Gigabit Ethernet adapters

HPE Ethernet 10Gb 2-port 530SFP Adapter

652503-B21

HPE Ethernet 10Gb 2-port 530T Adapter

656596-B21

HPE Ethernet 10Gb 2-port 535T Adapter

813661-B21

HPE Ethernet 10Gb 2-port 562SFP+ Adapter

727055-B21

NOTE: A minimum of two Gigabytes (2 GB) of server memory is required per each adapter.

adapters.hits-12.html

1 Gigabit Ethernet adapters

HPE Ethernet 1Gb 4-port 331T Adapter

647594-B21

HPE Ethernet 1Gb 2-port 332T Adapter

615732-B21

HPE Ethernet 1Gb 2-port 361T Adapter

652497-B21

HPE Ethernet 1Gb 4-port 366T Adapter

811546-B21

FlexibleLOM Adapters

HPE Ethernet 1Gb 4-port 331FLR Adapter

629135-B22

HPE Ethernet 1Gb 4-port 366FLR Adapter

665240-B21

required to support these drives in conjunction with a NVMe riser kit.

NOTE: Direct Attach Cable (DAC) for copper environments or fiber transceivers and cables for fiber-optic environments must be purchased separately. Please see the related NIC QuickSpecs for Technical Specifications and additional information: https://www.hpe.com/us/en/product-catalog/servers/server-

QuickSpecs

HPE ProLiant DL560 Gen10 Server

Core Options

Page 28

HPE FlexFabric 10Gb 2-port 533FLR-T Adapter

700759-B21

HPE FlexFabric 10Gb 2-port 534FLR-SFP+ Adapter

700751-B21

HPE Ethernet 10Gb 2-port 535FLR-T Adapter

817721-B21

HPE Ethernet 10Gb 2-port 562FLR-SFP+ Adapter

727054-B21

HPE FlexFabric 10Gb 4-port 536FLR-T Adapter

764302-B21

NOTE: Please see the NIC QuickSpecs for Technical Specifications and additional information:

https://www.hpe.com/us/en/product-catalog/servers/server-adapters.hits-12.html

HPE InfiniBand

HPE InfiniBand FDR/Ethernet 10Gb/40Gb 2-port 544+QSFP Adapter

764284-B21

HPE InfiniBand FDR/Ethernet 10Gb/40Gb 2-port 544+FLR-QSFP Adapter

764285-B21

HPE InfiniBand EDR/Ethernet 100Gb 1-port 840QSFP28 Adapter

825110-B21

HPE InfiniBand EDR/Ethernet 100Gb 2-port 840QSFP28 Adapter

825111-B21

HPE 100Gb 1-port OP101 QSFP28 x8 PCIe Gen3 with Intel® Omni-Path Architecture Adapter

829334-B21

HPE 100Gb 1-port OP101 QSFP28 x16 PCIe Gen3 with Intel® Omni-Path Architecture Adapter

829335-B21

NOTE: For additional InfiniBand information:

https://www.hpe.com/h20195/v2/GetHTML.aspx?docname=c04154440

HPE I/O Expansion Options

HPE DL560 Gen10 x8/x8/x8 1-port 2 NVMe Slimline Riser Kit

873420-B21

HPE DL560 Gen10 4-port 8 NVMe Slimline Riser Kit

873418-B21

HPE DL560 Gen10 x8/x8 Tertiary Riser Kit

872253-B21

HPE DL Gen10 x16/x16 GPU Riser Kit

826704-B21

HPE DL Gen10 x8/x16/x8 Riser Kit

870548-B21

HPE DL560 Gen10 x8 2-port 4 NVMe Slimline Riser Kit

872255-B21

HPE DL560 Gen10 2-port 4 NVMe Slimline Tertiary Riser Kit

872257-B21

NOTE: Secondary and Tertiary risers are optional kits which can be utilized when system is populated with at least two (2) processors. Refer to “Expansion Slots” section for additional details on risers.

HPE Power Supplies

HPE 1600W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

830272-B21

NOTE: Flex Slot Platinum Plus power supplies support power efficiency of up to 94% and include a C-14 power inlet connector that can support HPE Power Discovery Services (blue connector).

HPE 800W Flex Slot -48VDC Hot Plug Low Halogen Power Supply Kit

865434-B21

NOTE: Flex Slot -48VDC power supplies support power efficiency of up to 94%.

HPE 800W Flex Slot Platinum Hot Plug Low Halogen Power Supply Kit

865414-B21

NOTE: Flex Slot Platinum power supplies support power efficiency of up to 94% and include a standard C14 power inlet connector.

HPE 800W Flex Slot Universal Hot Plug Low Halogen Power Supply Kit

865428-B21

NOTE: Flex Slot universal power supplies support power efficiency of up to 94% and support both 277VAC/380VDC power inputs.

HPE 800W Flex Slot Titanium Hot Plug Low Halogen Power Supply Kit

865438-B21

NOTE: Flex Slot Titanium power supplies support power efficiency of up to 96% and include a standard C14 power inlet connector.

NOTE: Prior to making a power supply selection it is highly recommended that the HPE Power Advisor is

NOTE:

run to determine the right size power supply for your server configuration. The HPE Power Advisor is located at:

http://www.hpe.com/info/hppoweradvisor.

All power supplies in a server should match. Mixing Power Supplies is not supported.

QuickSpecs

HPE ProLiant DL560 Gen10 Server

Core Options

Page 29

NOTE: Option kits contain the specified power supply and a PDU IEC cable.

HPE power cords

GPGPU information

NOTE: Check the power usage via the HPE Power Advisor Tool located at http://www.hpe.com/info/hppoweradvisor.

expansion slot 5. Refer Expansion Slots sections for additional details on risers.

NOTE: 1600W power supplies only support high line voltage. NOTE: HPE ProLiant servers ship with an IEC-IEC power cord used for rack mounting with Power

Distribution Units (PDUs). Visit

for a full list of optional HPE power cords.

Part

number

Q0V77A

Card

NVIDIA Quadro P2000

GPU Module

Qty

support

Processor

support

PCIe

speed

8/16/24 SFF

Max. 8 NVMe

Greater than 8

2 All Gen3 35C 35C 30C

NVMe

NOTE: A maximum of 2 GPU cards can be supported, 1 in primary riser expansion slot 2 and another in secondary riser

QuickSpecs

HPE ProLiant DL560 Gen10 Server

Additional Options

Page 30

NOTE: Some options may not be integrated at the factory. To ensure only valid configurations are ordered, Hewlett Packard Enterprise recommends the use of an HPE ap information.

iLO Advanced

HPE iLO Advanced including 1yr 24x7 Technical Support and Updates E-LTU

E6U59ABE

HPE iLO Advanced including 3yr 24x7 Technical Support and Updates E-LTU

E6U64ABE

HPE iLO Advanced including 3yr 24x7 Tech Support and Updates 1-server LTU

BD505A

HPE iLO Advanced including 3yr 24x7 Tech Support and Updates Flexible Quantity LTU

BD506A

HPE iLO Advanced including 3yr 24x7 Tech Support and Updates Tracking LTU

BD507A

HPE iLO Advanced including 1yr 24x7 Technical Support and Updates 1-server LTU

512485-B21

HPE iLO Advanced including 1yr 24x7 Technical Support and Updates Flexible Quantity LTU

512486-B21

HPE iLO Advanced including 1yr 24x7 Technical Support and Updates Tracking LTU

512487-B21

HPE Converged Infrastructure Management Software

HPE OneView Physical Media Kit LTU

E5Y37A

HPE OneView Advanced (with HPE iLO Advanced)

HPE OneView including 3yr 24x7 Support Physical 1-server LTU

E5Y34A

HPE OneView including 3yr 24x7 Support Flexible Quantity E-LTU

E5Y35AAE

HPE OneView for ProLiant DL Server including 3yr 24x7 Support FIO Bundle Physical 1-server LTU

E5Y43A

HPE OneView Advanced (without HPE iLO Advanced)

HPE OneView w/o iLO including 3yr 24x7 Support 1-server LTU

P8B24A

HPE OneView w/o iLO including 3yr 24x7 Support Track 1-server LTU

P8B25A

HPE OneView w/o iLO including 3yr 24x7 Support Flexible Quantity E-LTU

P8B26AAE

HPE OneView w/o iLO including 3yr 24x7 Support 1-server FIO LTU

P8B31A

NOTE: Full licenses of HPE OneView Advanced also provide the right-to-use HPE Insight Control without

NOTE:

HPE OneView QuickSpecs

HPE PCIe Workload Accelerator Options

HPE Write Intensive PCIe Workload Accelerator

HPE 1.6TB NVMe Write Intensive HH/HL PCIe Workload Accelerator

803197-B21

HPE 800GB NVMe Write Intensive HH/HL PCIe Workload Accelerator

803195-B21

HPE Mixed Use PCIe Workload Accelerator

HPE 2.0TB NVMe Mixed Use HH/HL PCIe Workload Accelerator

803204-B21

HPE 1.6TB NVMe Mixed Use HH/HL PCIe Workload Accelerator

803202-B21

HPE 800GB NVMe Mixed Use HH/HL PCIe Workload Accelerator

803200-B21

NOTE: Please see the HPE PCIe Workload Accelerators for ProLiant Servers QuickSpecs for Technical Specifications and additional information.

proved configurator. Contact your local sales representative for additional

additional charge. NOTE: Server provisioning (via 'HPE Insight Control server provisioning') is licensed as part of HPE OneView Advanced and provides multi-server OS and driver provisioning. NOTE: Licenses ship without media. The HPE OneView Media Kit can be ordered separately, or can be downloaded at: https://www.hpe.com/us/en/integrated-systems/software.html. NOTE: Electronic and flexible-quantity licenses can be used to purchase multiple licenses with a single activation key.

Please see the

for technical specifications and additional information.

QuickSpecs

HPE ProLiant DL560 Gen10 Server

Additional Options

Page 31

HPE Security

HPE Trusted Platform Module 2.0 Kit

864279-B21

HPE iLO Adv Security Upg Elc Lic 3yr Sup

Q7E12AAE

HPE iLO Advanced Premium Security Edition License with 1yr Support on Licensed Features

Q7E31A

HPE iLO Advanced Premium Security Flex Qty License with 1yr Support on Licensed Features

Q7E32A

HPE iLO Advanced Premium Security Edition Electronic License with 1yr Support on Licensed Features

Q7E32AAE

HPE iLO Advanced Premium Security Edition License with 3yr Support on Licensed Features

Q7E33A

HPE iLO Advanced Premium Security Flex Qty License with 3yr Support on Licensed Features

Q7E34A

HPE iLO Advanced Premium Security Edition Electronic License with 3yr Support on Licensed Features

Q7E34AAE

HPE iLO Advanced Premium Security AKA Tracking License with 1yr Support on Licensed Features

Q7E35A

HPE iLO Advanced Premium Security AKA Tracking License with 1yr Support on Licensed Features

Q7E36A

NOTE: HPE Trusted Platform Module 2.0 Option (864279-B21) works with Gen10 servers with UEFI Mode not Legacy

TPM module (of any type) installed only once. It cannot be replaced with any other TPM module.

HPE Smart Array Controllers

The Gen10 controller naming framework has been updated to simplify identification as depicted below. For a more detailed

Performance RAID Controllers

NOTE: All performance RAID controllers are supported by the HPE Smart Storage Battery (875241-B21),

which supports multiple devices and is sold separately.

HPE Smart Array P816i-a SR Gen10 (16 Int Lanes/4GB Cache/SmartCache) 12G SAS Modular LH Controller

869083-B21

NOTE: Does not occupy a PCIe expansion slot.

HPE Smart Array P408i-a SR Gen10 (8 Internal Lanes/2GB Cache) 12G SAS Modular LH Controller

869081-B21

NOTE: Does not occupy a PCIe expansion slot.

HPE Smart Array P408i-p SR Gen10 (8 Internal Lanes/2GB Cache) 12G SAS PCIe Plug-in Controller

830824-B21

HPE Smart Array P408e-p SR Gen10 (8 External Lanes/4GB Cache) 12G SAS PCIe Plug-in Controller

804405-B21

Essential RAID Controllers

HPE Smart Array E208i-a SR Gen10 (8 Internal Lanes/No Cache) 12G SAS Modular LH Controller

869079-B21

NOTE: Does not occupy a PCIe expansion slot.

HPE Smart Array E208i-p SR Gen10 (8 Internal Lanes/No Cache) 12G SAS PCIe Plug-in Controller

804394-B21

HPE Smart Array E208e-p SR Gen10 (8 External Lanes/No Cache) 12G SAS PCIe Plug-in Controller

804398-B21

Optional Software

HPE Smart Array Secure Encryption/Data at Rest Encryption/per Server Entitlement E-LTU

Q2F26AAE

HPE SmartCache No Media 24x7 Technical Support 1-server LTU

D7S26A

HPE SmartCache No Media 24x7 Technical Support Flexible LTU

D7S27A

Mode. It is not compatible with HPE ProLiant Gen9 servers or earlier generation variants.HPE server systems can have a

breakout of the available Gen10 Smart Array controllers visit the HPE Smart Array Gen10 Controllers Data Sheet.

QuickSpecs

HPE ProLiant DL560 Gen10 Server

Additional Options

Page 32

HPE SmartCache No Media 24x7 Technical Support E-LTU

D7S27AAE

NOTE: SmartCache is offered on HPE Smart Array performance RAID controllers and comes standard (no licensing is required) if the HPE Smart Array P816i-a SR Gen10 LH Controller is installed in the server.

Optional Upgrades

HPE 96W Smart Storage Battery (up to 20 Devices/145mm Cable) Kit

875241-B21

NOTE: Provides backup power for multiple HPE Smart Array controllers or other devices. Is required with performance RAID controllers.

HPE Tape Backup

NOTE: For the complete range of tape drives, autoloaders, libraries and media see:

Packard Enterprise tape backup products http://www.hpe.com/storage/BURAcompatibility.

HPE Storage Options

Emulex Fibre Channel HBAs

HPE StoreFabric SN1200E 16Gb Single Port Fibre Channel Host Bus Adapter

Q0L13A

HPE StoreFabric SN1200E 16Gb Dual Port Fibre Channel Host Bus Adapter

Q0L14A

HPE StoreFabric SN1600E 32Gb Single Port Fibre Channel Host Bus Adapter

Q0L11A

HPE StoreFabric SN1600E 32Gb Dual Port Fibre Channel Host Bus Adapter

Q0L12A

QLogic Fibre Channel HBAs

HPE StoreFabric SN1100Q 16Gb Single Port Fibre Channel Host Bus Adapter

P9D93A

HPE StoreFabric SN1100Q 16Gb Dual Port Fibre Channel Host Bus Adapter

P9D94A

HPE StoreFabric SN1600Q 32Gb Single Port Fibre Channel Host Bus Adapter

P9M75A

HPE StoreFabric SN1600Q 32Gb Dual Port Fibre Channel Host Bus Adapter

P9M76A

Converged Network Adapter

HPE StoreFabric CN1100R Dual Port Converged Network Adapter

QW990A

HPE StoreFabric CN1100R 10GBASE-T Dual Port Converged Network Adapter

N3U52A

HPE StoreFabric CN1200E 10Gb Converged Network Adapter

E7Y06A

HPE StoreFabric CN1200E 10GBASE-T Dual Port Converged Network Adapter

N3U51A

HPE Racks

NOTE: Please see the HPE Advanced Series Racks QuickSpecs for information on additional racks options and rack

specifications.

NOTE: Please see the HPE Enterprise Series Racks QuickSpecs for information on additional racks options and rack specifications.

NOTE: Please see the HPE Standard Series Racks QuickSpecs for information on additional racks options and rack specifications.

HPE Power Distribution Units (PDUs)

NOTE: Please see the HPE Basic Power Distribution Units (PDU) QuickSpecs for information on these products and their

specifications.

NOTE: Please see the HPE Metered Power Distribution Units (PDU) QuickSpecs for information on these products and their specifications.

NOTE: Please see the HPE Intelligent Power Distribution Unit (PDU) QuickSpecs for information on these products and their specifications.

NOTE: Please see the HPE Metered and Switched Power Distribution Units (PDU) QuickSpecs for information on these products and their specifications.

https://www.hpe.com/us/en/storage/storeever-tape-storage.html. For hardware and software compatibility of Hewlett

QuickSpecs

HPE ProLiant DL560 Gen10 Server

Additional Options

Page 33

HPE Uninterruptible Power Systems (UPS)

NOTE: To learn more, please visit the HPE Uninterruptible Power Systems (UPS) web page.

NOTE: Please see the HPE DirectFlow Three Phase Uninterruptible Power System QuickSpecs for information on these

products and their specifications.

NOTE: Please see the HPE Line Interactive Single Phase UPS QuickSpecs for information on these products and their specifications.

HPE Rack Options

NOTE: Please see the HPE KVM Switches web page for information on these products and their

specifications.

Rail Kits

HP 2U Large Form Factor Easy Install Rail Kit

733662-B21

NOTE: Does not include CMA (733664-B21).

HP 2U Cable Management Arm for Easy Install Rail Kit

733664-B21

HPE 2U Large Form Factor Ball Bearing Rail Kit

720864-B21

NOTE: Does not include CMA (720865-B21).

HPE 2U Cable Management Arm for Ball Bearing Rail Kit

720865-B21

NOTE: Rail kits are optional for DL560 Gen10 and are no longer included standard with the server. Customers have the

Please refer to your installation instructions for proper tools and number of people to use for any installation.

HPE USB and SD Options

HPE Enterprise Mainstream Flash Media Kits for Memory Cards

HPE 32GB microSD Mainstream Flash Media Kit

700139-B21

HPE 8GB microSD Enterprise Mainstream Flash Media Kit

726116-B21

HP Dual 8GB microSD Enterprise Midline USB Kit

741279-B21

NOTE: Please see the HPE Flash Media Kits QuickSpecs for additional information.

option to purchase their server without a rail kit.

NOTE: Ball bearing and Easy Install rail kits contain telescoping rails which allow for in-rack serviceability. NOTE: Hewlett Packard Enterprise recommends that a minimum of two people are required for all Rack Server installations.

QuickSpecs

HPE ProLiant DL560 Gen10 Server

Memory

Page 34

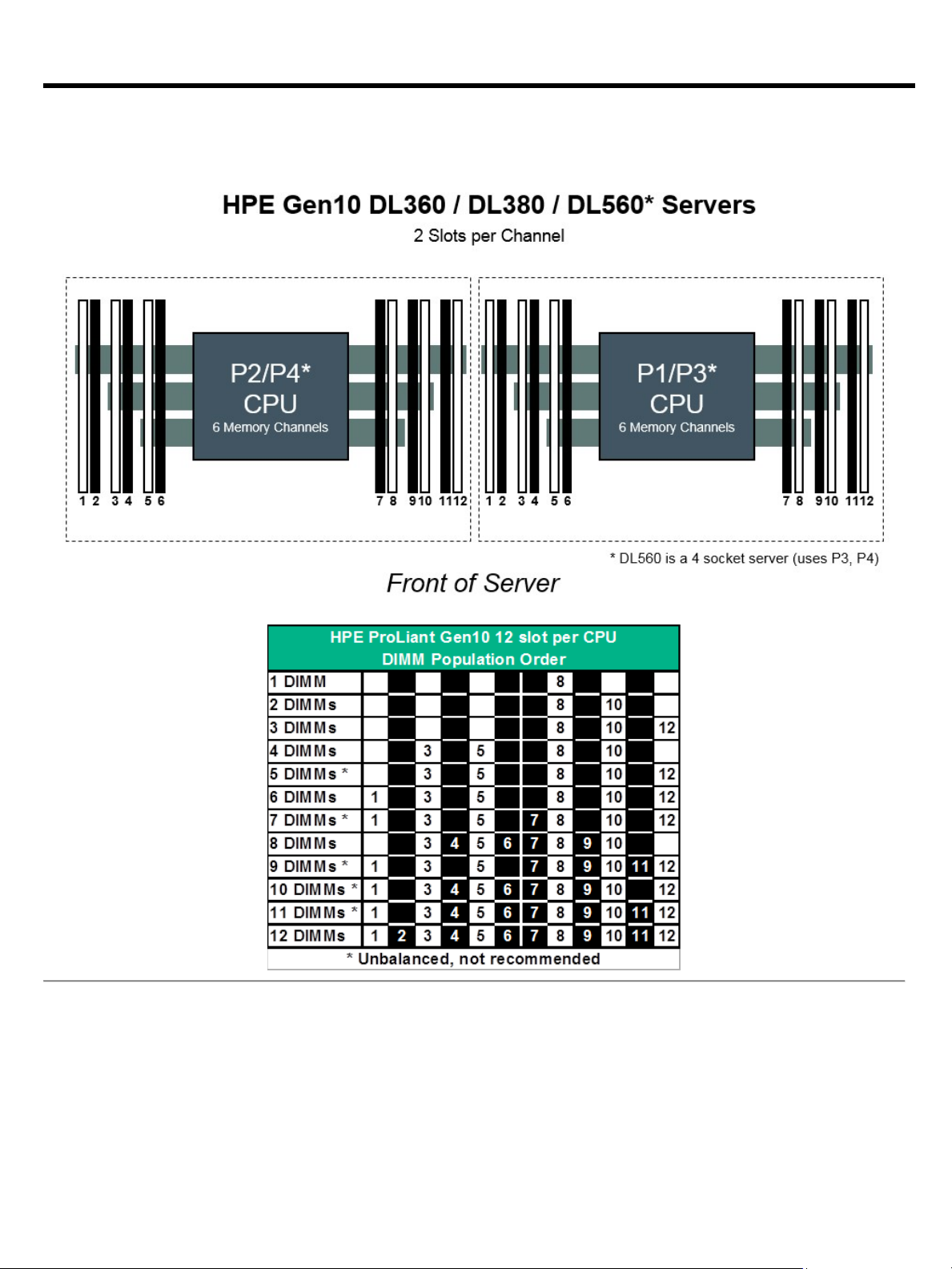

Memory Population guidelines

General Memory Population Rules and Guidelines:

Install DIMMs only if the corresponding processor is installed.

If only one processor is installed in a two-processor system, only half of the DIMM slots are available.

To maximize performance, it is recommended to balance the total memory capacity between all installed processors.

When two processors are installed, balance the DIMMs across the two processors.

White DIMM slots denote the first slot to be populated in a channel.

Mixing of DIMM types (UDIMM, RDIMM, and LRDIMM) is not supported.

The maximum memory speed is a function of the memory type, memory configuration, and processor model.

QuickSpecs

HPE ProLiant DL560 Gen10 Server

Memory

Page 35

The maximum memory capacity is a function of the number of DIMM slots on the platform, the largest DIMM capacity qualified on the platform, the number and model of installed processors qualified on the platform.

For details on the HPE Server Memory Options Population Rules, visit:

http://www.hpe.com/docs/memory-population-rules

To realize the performance memory capabilities listed in this document, HPE DDR4 SmartMemory is required. For additional information, please see the HPE DDR4 SmartMemory QuickSpecs.

Memory Speed Table

500 Series Platforms - DL560 Gen 10

DIMM Type

HPE SKU P/N

815097-B21

815098-B21

835955-B21

815100-B21

SKU Description

HPE 8GB 1Rx8 PC4-

2666V-R Kit

HPE 16GB 1Rx4 PC4-

2666V-R Kit

HPE 16GB 2Rx8 PC4-

2666V-R Kit

HPE 32GB 2Rx4 PC4-

2666V-R Kit

DIMM Rank ->

Single Rank (1R)

Dual Rank (2R)

DIMM Capacity ->

8 GB

16 GB

32 GB

Voltage

1.2V

DRAM depth [bit]

DRAM Width [bit]

DRAM Density

8 Gb

CAS Latency

19-19-19

DIMM Native Speed (MT/s)

Intel® Xeon® Platinum 81xx Processors Officially Supported Memory Speed (MT/s)

1 DIMM Per Channel

2666 MT/s

2 DIMM Per Channel

2666 MT/s

Intel® Xeon® Gold and Silver 51xx/61xx Processors Officially Supported Memory Speed (MT/s)

1 DIMM Per Channel

2400 MT/s

2 DIMM Per Channel

2400 MT/s

HPE Server Memory Speed (MT/s): Intel® Xeon® Platinum 81xx Processors *

1 DIMM Per Channel

2666 MT/s

2 DIMM Per Channel

2666 MT/s

HPE Server Memory Speed (MT/s): Intel® Xeon® Gold and Silver 51xx/61xx Processors *

1 DIMM Per Channel

2400 MT/s

2 DIMM Per Channel

2400 MT/s

DIMM Type

Load Reduced (LRDIMM)

HPE SKU P/N

815101-B21

SKU Description

HPE 64 GB 4Rx4 PC4-2666V-L Kit

DIMM Rank ->

Quad Rank (4R)

DIMM Capacity ->

64 GB

Voltage

1.2V

DRAM depth [bit]

DRAM Width [bit]

DRAM Density

8 Gb

CAS Latency

19-19-19

DIMM Native Speed (MT/s)

2666 MT/s

Intel® Xeon® Platinum 81xx Processors Officially Supported Memory Speed (MT/s)

1 DIMM Per Channel

2666 MT/s

2 DIMM Per Channel

2666 MT/s

Intel® Xeon® Gold and Silver 51xx/61xx Processors Officially Supported Memory Speed (MT/s)

1 DIMM Per Channel

2400 MT/s

2 DIMM Per Channel

2400 MT/s

2666 MT/s 2666 MT/s 2666 MT/s 2666 MT/s

QuickSpecs

HPE ProLiant DL560 Gen10 Server

Memory

Page 36

HPE Server Memory Speed (MT/s): Intel® Xeon® Platinum 81xx Processors *

1 DIMM Per Channel

2666 MT/s

2 DIMM Per Channel

2666 MT/s

HPE Server Memory Speed (MT/s): Intel® Xeon® Gold and Silver 51xx/61xx Processors *

1 DIMM Per Channel

2400 MT/s

2 DIMM Per Channel

2400 MT/s

For details on the HPE Server Memory speed, visit: https://www.hpe.com/docs/memory-speed-table

Standard and Maximum Memory Capacity (Pre-configured Models)

Pre Configured

Models

Maximum Memory Plus

Optional Memory

Standard Memory Replaced

with Optional Memory

5120

32 GB (2 x16 GB)

384 GB (24 x16 GB)

3072GB (48 x64 GB)

6130

64 GB (4 x16 GB)

384 GB (24 x16 GB)

3072GB (48 x64 GB)

6148

128 GB (8 x16 GB)

384 GB (48 x16 GB)

3072GB (48 x64 GB)

8170

256 GB (16 x16 GB)

384 GB (48 x16 GB)

3072GB (48 x64 GB)

8164

256 GB (16 x16 GB)

384 GB (48 x16 GB)

3072GB (48 x64 GB)

DDR4 memory options part number decoder

NOTE: Capacity references are rounded to the common gigabyte (GB) values.

• 64 GB = 65,536 MB

For more information on memory, please see the Memory Quickspecs: HPE DDR4 SmartMemory

• 4 GB = 4,096 MB

• 8 GB = 8,192 MB

• 16 GB = 16,384 MB

• 32 GB = 32,768 MB

Standard Memory

QuickSpecs

HPE ProLiant DL560 Gen10 Server

Storage

Page 37

8 SFF (+2 SFF) hot-plug drive model with Universal Media Bay

24 SFF (incl 12 NVMe SSDs) hot-plug drive model

QuickSpecs

HPE ProLiant DL560 Gen10 Server

Technical Specifications

Page 38

System Unit

Dimensions

(with bezel)

8.75cm x 44.54cm x 75.47cm

Weight

34.12 kg

75.23 lb

Maximum: (all hard drives, power supplies, DIMMs and processors installed)

18.45 kg

Minimum: (one processor, one standard heatsink, one air baffle, one

Input Requirements

Rated Input Voltage

100 - 127 VAC, 200 – 240 VAC, 240VDC for China Only (800W

-40 VDC to -72 VDC, -48 VDC nominal input (800W -48VDC PS only)

200 - 240 VAC, 240 VDC for China only (1600W PS Only)

Rated Input Current

9.4 A (100 VAC), 4.5 A (200 VAC), 3.8 A at 240VDC for China Only

48 VDC input, nominal input, 12.4 A at

8.7 A at 200 VAC, 7.2 A at 240 VAC - (1600W PS Only)

Rated Input Frequency

50 to 60 Hz (Not applicable for VDC ranges)

Maximum Rated Input

940 W (100 VAC), 900 W (200VAC), 912 W at 240 VDC for China

1734 W at 200 VAC 1720 W at 240 VAC - (1600W PS Only)

BTU Rating

Maximum

3207 BTU/hr at 100 VAC, 3071 BTU/hr at 200 VAC, 3112 BTU/hr at

2969 BTU/hr at 200 VAC, 2969 BTU/hr at 240 VAC, 2969 BTU/hr at

Only)

Power Supply Output

Rated Steady-State

800 W at 100 VAC to 127 VAC input, 800 W at 200 VAC to 240 VAC

(H x W x D)

(approximate)

(per power supply)

3.44 x 17.54 x 29.71 in

40.67 lb

hard drive, one power supply, one DIMM, one rail kit with CMA and one primary riser installed)

Platinum PS only) 200 – 240 VAC, 240VDC for China Only (800W Titanium PS only) 200 V to 277 VAC, 380 VDC (800W Universal PS only)

(800W Platinum PS only)

4.35 A at 200 VAC 3.62 A at 240 VAC, 3.62 A at 240 VDC for China Only (800W Titanium PS only)

4.5 A at 200 V AC, 3.2 A at 277 V AC, 2.3 A at 380 VDC - (800W Universal PS only) 26 A at -40 VDC input, 19 A at -

-72 VDC input - (800W -48VDC PS only)

Power

Only - (800W Platinum PS only) 870 W at 200 VAC, 870 W at 240 VAC, 870 W at 240 VDC for China only - (800W Titanium PS only) 900 W at 200 VAC, 887 W at 277 VAC, 874 W at 380 VDC - (800W Universal PS only) 936 W at -40 VDC input 912 W at -48 VDC input, nominal input 900 W at -72 VDC input - (800W -48VDC PS only)

240 for China only - (800W Platinum PS only)

240 VDC for China only - (800W Titanium PS only) 3071 BTU/hr at 200 VAC, 3026 BTU/hr at 277 VAC, 2982 BTU/hr at 380 VDC - (800W Universal PS only) 3194 BTU/hr at -40 VDC input, 3112 BTU/hr at -48 VDC input (nominal input), 3071 BTU/hr at -72 VDC input - (800W -48VDC PS only) 5918 BTU/hr at 200 VAC, 5884 BTU/hr at 240 VAC - (1600W PS

(per power supply)

Power

input, 800 W at 240 VDC input for China only - (800W Platinum PS only) 800 W at 200 VAC to 240 VAC input, 800 W at 240 VDC input for China only - (800W Titanium PS only)

QuickSpecs

HPE ProLiant DL560 Gen10 Server

Technical Specifications

Page 39

800 W at 200 VAC to 277 VAC input, 800 W at 380 VDC input -

(1600W PS Only)

Maximum Peak Power

800 W at 100 VAC to 127 VAC input, 800 W at 200 VAC to 240 VAC

NOTE: To review typical system power ratings use the HPE Power

http://www.hpe.com/info/hppoweradvisor.

System Inlet Temperature

Standard Operating

10° to 35°C (50° to 95°F) at sea level with an altitude derating of 1.0°C

reduced if operating with a fan fault or above 30°C (86°F).

Extended Ambient

Non-operating

Relative Humidity

Operating

8% to 90% relative humidity (Rh), 28°C (82.4°F) maximum wet bulb temperature, non-condensing.

(non-condensing)

Non-operating

5 to 95% relative humidity (Rh), 38.7°C (101.7°F) maximum wet bulb temperature, non-condensing.

Altitude

Operating

3050 m (10,000 ft). This value may be limited by the type and number

m/min (1500 ft/min).

Non-operating

9144 m (30,000 ft). Maximum allowable altitude change rate is 457

(800W Universal PS only) 800 W at -40 VDC to -72 VDC - (800W -48VDC PS only) 1600 W at 200 VAC to 240 VAC input, 1600 W at 240 VDC input -

input, 800 W at 240 VDC input for China only - (800W Platinum PS only) 800 W at 200 VAC to 240 VAC input, 800 W at 240 VDC input for China only - (800W Titanium PS only) 800 W at 200 VAC to 277 VAC input, 800 W at 380 VDC input(800W Universal PS only) 800 W at -40 VDC to -72 VDC - (800W -48VDC PS only) 2200 W for 1ms (turbo mode) at 200 VAC to 240 VAC input (1600W PS Only)

Advisor which is available online located at url:

Support

Operating Support

per every 305 m (1.8°F per every 1000 ft) above sea level to a maximum of 3050 m (10,000 ft), no direct sustained sunlight. Maximum rate of change is 20°C/hr (36°F/hr). The upper limit and rate of change may be limited by the type and number of options installed. System performance during standard operating support may be

For approved hardware configurations, the supported system inlet range is extended to be: 5° to 10°C (41° to 50°F) and 35° to 40°C (95° to 104°F) at sea level with an altitude derating of 1.0°C per every 175 m (1.8°F per every 574 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft). The approved hardware configurations for this system are listed at the URL:

http://www.hpe.com/servers/ashrae

For approved hardware configurations, the supported system inlet range is extended to be: 40° to 45°C (104° to 113°F) at sea level with an altitude derating of 1.0°C per every 125 m (1.8°F per every 410 ft) above 900 m (2953 ft) to a maximum of 3050 m (10,000 ft). The approved hardware configurations for this system are listed at the URL:

http://www.hpe.com/servers/ashrae

System performance may be reduced if operating in the extended ambient operating range or with a fan fault.

-30° to 60°C (-22° to 140°F). Maximum rate of change is 20°C/hr (36°F/hr).

of options installed. Maximum allowable altitude change rate is 457

QuickSpecs

HPE ProLiant DL560 Gen10 Server

Technical Specifications

Page 40

m/min (1500 ft/min).

Acoustic Noise

Listed are the declared A-Weighted sound power levels (LWAd) and declared average bystander

and declared in accordance with ISO 9296 (ECMA 109). The listed sound levels apply to standard

t in increased sound levels. Please have your HPE representative provide information from the HPE EMESC website for further technical details regarding the configurations listed below.

Product Configuration

Entry

Base

Performance

Idle -

5.0 B

5.1 B

Idle -

47 dBA

48 dBA

Operating -

5.3 B

5.7 B

5.6 B

Operating -

50 dBA

54 dBA

53 dBA

NOTE: Acoustics levels presented here are generated by the test configuration only. Acoustics

notification and are for reference only.

Regulatory Information

To view the regulatory information for your product, view the Safety and Compliance Information

http://www.hpe.com/support/Safety-Compliance-EnterpriseProducts

Please refer to the appropriate QuickSpecs listes below for technical specifications on controllers.

For information on the HPE Smart Array E208i-a SR G10 LH Controller please refer to their QuickSpecs.

For information on the HPE Smart Array E208i-p SR Gen10 Controller please refer to their QuickSpecs.

For information on the HPE Smart Array E208e-p SR Gen10 Controller please refer to their QuickSpecs.

For information on the HPE Smart Array P408i-a SR G10 LH Controller please refer to their QuickSpecs.

For information on the HPE Smart Array P408i-p SR Gen10 Controller please refer to their QuickSpecs.

For information on the HPE Smart Array P408e-p SR Gen10 Controller please refer to their QuickSpecs.

For information on the HPE Smart Array P816i-a SR G10 LH Controller please refer to their QuickSpecs.

Environment-

End-of-life Management and

Hewlett Packard Enterprise offers end-of-life product return, trade-in,

Products returned to Hewlett Packard Enterprise will be recycled, recovered

Enterprise equipment.

position A-Weighted sound pressure levels (LpAm) when the product is operating in a 23°C ambient environment. Noise emissions were measured in accordance with ISO 7779 (ECMA 74)

shipping configurations. Additional options may resul

levels will vary depending on system configuration. Values are subject to change without

for Server, Storage, Power, Networking, and Rack Products, available at the Hewlett Packard Enterprise Support Center:

friendly Products

Recycling

and recycling programs, in many geographic areas, for our products.

and Approach

or disposed of in a responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard Enterprise web site. These instructions may be used by recyclers and other WEEE treatment facilities as well as Hewlett Packard Enterprise OEM customers who integrate and re-sell Hewlett Packard

QuickSpecs

HPE ProLiant DL560 Gen10 Server

Summary of Changes

Page 41

Date

Version History

Action

Description of Change

11-Jul-2017

Version 1

New

New QuickSpecs.

© Copyright 2017 Hewlett Packard Enterprise Development LP. The information contained herein is subject to change without notice. The only warranties forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. Hewlett Packard Enterprise shall not technical or editorial errors or omissions contained herein.

Intel® and Xeon® are registered trademarks of Intel Corporation in the U.S. and other countries.

Microsoft®, Windows®, and Windows Server® are U.S. registered trademarks of the companies.

For hard drives, 1GB = 1 billion bytes. Actual formatted capacity is less

a00008181 - 15931 - Worldwide - V1 - 11-July-2017

for Hewlett Packard Enterprise products and services are set

be liable for

Microsoft group of

HP 841730-B21 Product Data Sheet

Specifications and Main Features

Frequently Asked Questions

User Manual

Overview

Platform Information

Standard Features

Optional Features

Service and Support

Core Options

Additional Options

Memory

Storage

Technical Specifications

Summary of Changes

a00008181 - 15931 - Worldwide - V1 - 11-July-2017
