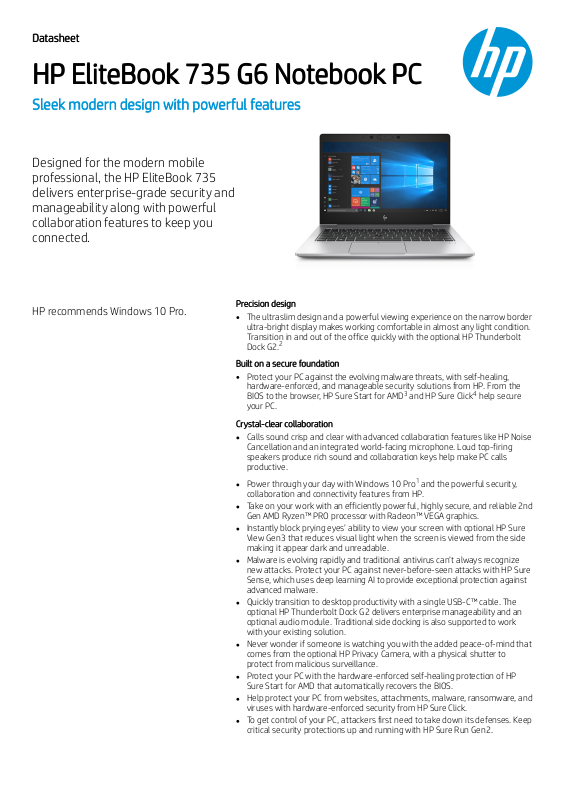

Page 1
DatasheetDatasheet
HP EliteBook 735 G6 Notebook PCHP EliteBook 735 G6 Notebook PC
Sleek modern design with powerful featuresSleek modern design with powerful features
Designed for the modern mobile
professional, the HP EliteBook 735
delivers enterprise-grade security and
manageability along with powerful
collaboration features to keep you
connected.
HP recommends Windows 10 Pro.
Precision designPrecision design
The ultraslim design and a powerful viewing experience on the narrow border
ultra-bright display makes working comfortable in almost any light condition.
Transition in and out of the office quickly with the optional HP Thunderbolt
Dock G2.
Built on a secure foundationBuilt on a secure foundation
Protect your PC against the evolving malware threats, with self-healing,
hardware-enforced, and manageable security solutions from HP. From the
BIOS to the browser, HP Sure Start for AMD and HP Sure Click help secure
your PC.
Crystal-clear collaborationCrystal-clear collaboration
Calls sound crisp and clear with advanced collaboration features like HP Noise
Cancellation and an integrated world-facing microphone. Loud top-firing
speakers produce rich sound and collaboration keys help make PC calls
productive.
Power through your day with Windows 10 Pro and the powerful security,
collaboration and connectivity features from HP.
Take on your work with an efficiently powerful, highly secure, and reliable 2nd
Gen AMD Ryzen™ PRO processor with Radeon™ VEGA graphics.
Instantly block prying eyes’ ability to view your screen with optional HP Sure
View Gen3 that reduces visual light when the screen is viewed from the side
making it appear dark and unreadable.
Malware is evolving rapidly and traditional antivirus can’t always recognize
new attacks. Protect your PC against never-before-seen attacks with HP Sure
Sense, which uses deep learning AI to provide exceptional protection against
advanced malware.
Quickly transition to desktop productivity with a single USB-C™ cable. The
optional HP Thunderbolt Dock G2 delivers enterprise manageability and an
optional audio module. Traditional side docking is also supported to work
with your existing solution.
Never wonder if someone is watching you with the added peace-of-mind that
comes from the optional HP Privacy Camera, with a physical shutter to
protect from malicious surveillance.
Protect your PC with the hardware-enforced self-healing protection of HP
Sure Start for AMD that automatically recovers the BIOS.
Help protect your PC from websites, attachments, malware, ransomware, and
viruses with hardware-enforced security from HP Sure Click.
To get control of your PC, attackers first need to take down its defenses. Keep
critical security protections up and running with HP Sure Run Gen2.
2
3 4
1
Page 2
Data sheet | HP EliteBook 735 G6 Notebook PC
HP recommends Windows 10 Pro.
HP EliteBook 735 G6 Notebook PC Specifications TableHP EliteBook 735 G6 Notebook PC Specifications Table
Available Operating SystemsAvailable Operating Systems
Windows 10 Pro 64
Windows 10 Home 64 – HP recommends Windows 10 Pro.
Windows 10 Home Single Language 64
Windows 10 Pro (Windows 10 Enterprise available with a Volume Licensing Agreement)
FreeDOS
Processor familyProcessor family AMD Ryzen™ PRO APU processor
Available ProcessorsAvailable Processors
AMD Ryzen™ 5 3500U APU with Radeon™ Vega 8 Graphics (2.1 GHz base clock, up to 3.7 GHz max boost clock, 4 MB
cache, 4 cores); AMD Ryzen™ 3 3300U APU with Radeon™ Vega 6 Graphics (2.1 GHz base clock, up to 3.5 GHz max
boost clock, 4 MB cache, 4 cores); AMD Ryzen™ 7 PRO 2700U APU with Radeon™ Vega 10 Graphics (2.2 GHz base clock,
up to 3.8 GHz max boost clock, 4 MB cache, 4 cores)
Maximum memoryMaximum memory
32 GB DDR4-2400 SDRAM
Both slots are customer accessible/upgradeable. Supports dual channel memory.
Memory slotsMemory slots 2 SODIMM
Internal storageInternal storage
512 GB up to 1 TB PCIe® Gen3x4 NVMe™ M.2 SSD TLC
up to 512 GB PCIe® Gen3x4 NVMe™ M.2 SED SSD TLC
256 GB up to 512 GB PCIe® M.2 Value SSD
up to 256 GB PCIe® Gen3x4 NVMe™ M.2 SSD TLC
up to 256 GB M.2 SATA-3 SED SSD
up to 128 GB M.2 SATA-3 SSD TLC
DisplayDisplay
33.8 cm (13.3") diagonal FHD IPS eDP + PSR anti-glare WLED-backlit ultraslim, 400 nits, 72% NTSC (1920 x 1080); 33.8
cm (13.3") diagonal FHD IPS eDP anti-glare WLED-backlit slim, 250 nits, 45% NTSC (1920 x 1080); 33.8 cm (13.3")
diagonal FHD IPS eDP + PSR anti-glare WLED-backlit ultraslim with HP Sure View Integrated Privacy Screen, 1000 nits,
72% NTSC (1920 x 1080); 33.8 cm (13.3") diagonal FHD IPS eDP anti-glare On-Cell WLED-backlit slim touch screen, 250
nits, 45% NTSC (1920 x 1080)
Available GraphicsAvailable Graphics
Integrated: AMD Radeon™ Vega Graphics
(Support HD Decode, DX12, and HDMI.)
AudioAudio Bang & Olufsen, dual stereo speakers, 3 multi array microphone
Wireless technologiesWireless technologies
Intel® XMM™ 7360 LTE-Advanced Cat 9; Intel® Dual Band Wireless-AC 9260 802.11a/b/g/n/ac (2x2) Wi-Fi® and
Bluetooth® 5 Combo, non-vPro™; Realtek RTL8822BE 802.11ac (2x2) Wi-Fi® and Bluetooth® 4.2 Combo;
Intel®AX200Wi-Fi 6 (2x2) and Bluetooth® 5 Combo, non-vPro™
(Compatible with Miracast-certified devices.)
Ports and ConnectorsPorts and Connectors
2 USB 3.1 Gen 1 (1 charging); 1 USB Type-C™; 1 Smartcard reader; 1 SIM card slot (optional); 1 RJ-45; 1
headphone/microphone combo; 1 HDMI 2.0; 1 docking connector; 1 AC power
(Cables are not included.)
Input devicesInput devices
HP Premium Collaboration Keyboard, spill resistant with drain, optional backlit keyboard and DuraKeys; Clickpad with
multi-touch gesture support, taps enabled as default; Precision Touchpad with multi-touch gesture support; Ambient
light sensor
CommunicationsCommunications HP Module with NXP NFC Controller NPC300 I2C NCI; Realtek 10/100/1000 GbE ;
CameraCamera 720p HD camera; HD IR webcam
Available SoftwareAvailable Software
HP Connection Optimizer; HP Hotkey Support; HP Image Assistant; HP JumpStart; HP Noise Cancellation Software; HP
Support Assistant; Native Miracast support; Buy Office (Sold separately)
Security managementSecurity management
Absolute persistence module; HP DriveLock and Automatic DriveLock; HP Fingerprint Sensor; HP Secure Erase; Power-on
authentication; Preboot authentication; TPM 2.0 embedded security chip shipped with Windows 10 (Common Criteria
EAL4+ Certified); HP Sure Click; Windows Defender; HP Sure Start Gen5; HP Sure Run Gen2; HP Sure Recover Gen2; HP
BIOSphere Gen5; HP Client Security Gen5; HP Sure Sense
Management featuresManagement features
HP Driver Packs; HP System Software Manager (SSM); HP BIOS Config Utility (BCU); HP Client Catalog; Ivanti Management
Suite; HP Manageability Integration Kit Gen3
PowerPower
HP Smart 65 W External AC power adapter; HP Smart 65 W USB Type-C™ adapter; HP Smart 45 W External AC power
adapter; HP Smart 45 W USB Type-C™ adapter
Battery typeBattery type HP Long Life 3-cell, 50 Wh Li-ion
DimensionsDimensions 31.04 x 22.93 x 1.77 cm
WeightWeight Starting at 1.33 kg (non-touch) (Weight will vary by configuration.)
Energy efficiency complianceEnergy efficiency compliance ENERGY STAR® certified; EPEAT® 2019 Silver
Environmental specificationsEnvironmental specifications Low halogen; TCO 8.0 Certified
WarrantyWarranty 3 year limited parts, labor (3-3-0) warranty. Certain restrictions and exclusions apply.
1
1
1
1
55
3,4,53,4,5
6
7
7
7
7
7
7
13,14,15
13
8,9,10
11,12
13,16,17
10,18
21,22,23,24,25,26,27,28,29,30,37,38,39
19,20,36
32
31
34
35
Page 3
Data sheet | HP EliteBook 735 G6 Notebook PC
HP recommends Windows 10 Pro.
HP EliteBook 735 G6 Notebook PCHP EliteBook 735 G6 Notebook PC

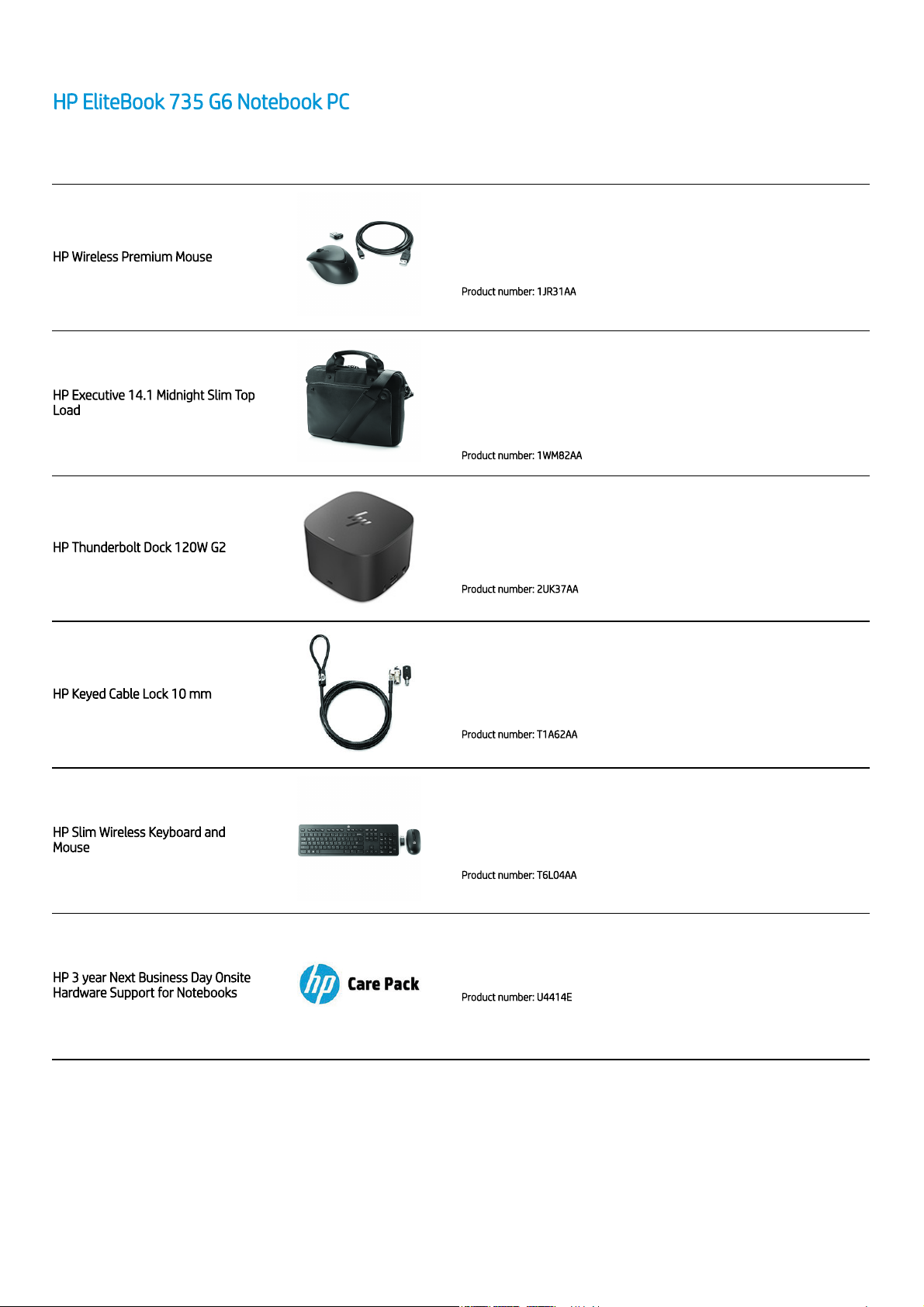

Accessories and services (not included)
HP Wireless Premium MouseHP Wireless Premium Mouse
Create a sleek, professional, clutter-free workspace and give yourself room to move around
with the HP Wireless Premium Mouse, which integrates seamlessly with your HP notebook.
HP's best-in-class, packed with features, functionality and premiere design for the most
discerning business professional HP's extensive range of notebook PCs enable increased
productivity and efficiency, by providing the perfect combination of built-in mobility features to
match the particular needs of individuals from businesses large and small.
Product number: 1JR31AAProduct number: 1JR31AA
HP Executive 14.1 Midnight Slim TopHP Executive 14.1 Midnight Slim Top
LoadLoad
Keep your bag’s contents safe on your daily commute with the HP Executive 14.1" Midnight
Slim Top Load in stylish midnight black. It has a lockable , double-teeth zippered notebook
compartment, secure RFID pocket to safeguard your ID, and a discrete pocket for an optional
tracking device. Keep your bag’s contents safe on your daily commute with the HP Executive
14.1" Midnight Slim Top Load in stylish midnight black. It has a lockable , double-teeth
zippered notebook compartment, secure RFID pocket to safeguard your ID, and a discrete
pocket for an optional tracking device. HP's extensive range of notebook PCs enable
increased productivity and efficiency, by providing the perfect combination of built-in mobility
features to match the particular needs of individuals from businesses large and small.
Product number: 1WM82AAProduct number: 1WM82AA
HP Thunderbolt Dock 120W G2HP Thunderbolt Dock 120W G2
Reinvent docking and boost productivity with our most versatile Thunderbolt™ dock, the
small, sophisticated HP Thunderbolt Dock G2. Designed for workspace flexibility and network
manageability , it delivers USB-C™ device connectivity and optional integrated audio. HP's
best-in-class, packed with features, functionality and premiere design for the most discerning
business professional HP's extensive range of notebook PCs enable increased productivity and
efficiency, by providing the perfect combination of built-in mobility features to match the
particular needs of individuals from businesses large and small.
Product number: 2UK37AAProduct number: 2UK37AA
HP Keyed Cable Lock 10 mmHP Keyed Cable Lock 10 mm
Help keep your notebook safe in the office and high-traffic areas by tethering it to a secure
surface with the HP Master Keyed Cable Lock 10mm, designed specifically for ultra-thin profile
notebooks. Help keep your notebook safe in the office and high-traffic areas by tethering it to
a secure surface with the HP Master Keyed Cable Lock 10mm, designed specifically for ultrathin profile notebooks. HP's extensive range of notebook PCs enable increased productivity
and efficiency, by providing the perfect combination of built-in mobility features to match the
particular needs of individuals from businesses large and small.
Product number: T1A62AAProduct number: T1A62AA
HP Slim Wireless Keyboard andHP Slim Wireless Keyboard and
MouseMouse
Boost productivity and maximize your workspace with the stylish and compact HP Slim
Wireless Keyboard and Mouse, designed to complement the 2015 class of HP Business PCs.
HP's best-in-class, packed with features, functionality and premiere design for the most
discerning business professional HP's extensive range of notebook PCs enable increased
productivity and efficiency, by providing the perfect combination of built-in mobility features to
match the particular needs of individuals from businesses large and small.
Product number: T6L04AAProduct number: T6L04AA
HP 3 year Next Business Day OnsiteHP 3 year Next Business Day Onsite
Hardware Support for NotebooksHardware Support for Notebooks
Receive 3 years of next business day onsite HW support from an HP-qualified technician for
your computing device, if the issue cannot be solved remotely.
Product number: U4414EProduct number: U4414E
1
2
1
2
1 2 3
Page 4
Data sheet | HP EliteBook 735 G6 Notebook PC
HP recommends Windows 10 Pro.
HP EliteBook 735 G6 Notebook PCHP EliteBook 735 G6 Notebook PC
Messaging FootnotesMessaging Footnotes
Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately purchased hardware, drivers and/or software to take full advantage of Windows functionality. Windows 10 is
automatically updated, which is always enabled. ISP fees may apply and additional requirements may apply over time for updates. See http://www.windows.com.
Thunderbolt not supported on 700 series only supports USB-C™.
HP Sure Start for AMD is available on select HP PCs with AMD processors. See product specifications for availability.
HP Sure Click is available on select HP platforms and supports Microsoft Internet Explorer, Google Chrome™, and Chromium™. Supported attachments include Microsoft Office (Word, Excel, PowerPoint) and PDF files in read only mode, when
Microsoft Office or Adobe Acrobat are installed.
Multi-core is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. Performance and clock frequency will vary depending on
application workload and your hardware and software configurations. AMD’s numbering is not a measurement of clock speed.
HP Sure View Gen3 integrated privacy screen is an optional feature that must be configured at purchase and is designed to function in landscape orientation.
USB-C™ notebooks must be able to support power and video.
HP Sure Sense requires Windows 10. See product specifications for availability.
HP Audio Module sold separately and required for audio.
HP Privacy Camera only available on non-touch screens equipped with HD or IR camera and must be installed at the factory.
HP Sure Run Gen2: See product specifications for availability.
Technical Specifications FootnotesTechnical Specifications Footnotes
Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. Windows 10 is
automatically updated, which is always enabled. ISP fees may apply and additional requirements may apply over time for updates. See http://www.windows.com/.
Processor speed denotes maximum performance mode; processors will run at lower speeds in battery optimization mode.
Multicore is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. Performance and clock frequency will vary depending on application
workload and your hardware and software configurations. AMD’s numbering is not a measurement of clock speed.
In accordance with Microsoft’s support policy, HP does not support the Windows 8 or Windows 7 operating system on products configured with Intel and AMD 7th generation and forward processors or provide any Windows 8 or Windows 7
drivers on http://www.support.hp.com.
Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.
For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 30 GB (for Windows 10) is reserved for system recovery software.
Wireless access point and Internet service required and sold separately. Availability of public wireless access points limited.
Wireless access point and internet service required and sold separately. Availability of public wireless access points limited. Wi-Fi 6 is backwards compatible with prior 802.11 specs. The specifications for Wi-Fi 6 (802.11ax) are draft and are
not final. If the final specifications differ from the draft specifications, it may affect the ability of the notebook to communicate with other 802.11ax devices. Only available in countries where 802.11ax is supported.
Miracast is a wireless technology your PC can use to project your screen to TVs, projectors, and streaming.
The term "10/100/1000" or "Gigabit" Ethernet indicates compatibility with IEEE standard 802.3ab for Gigabit Ethernet, and does not connote actual operating speed of 1 Gb/s. For high-speed transmission, connection to a Gigabit Ethernet
server and network infrastructure is required.
WWAN module requires separately purchased service contract. Check with service provider for coverage and availability in your area. Connection speeds will vary due to location, environment, network conditions, and other factors. 4G LTE
not available on all products, in all regions.
HD content required to view HD images.
HP Sure View Gen3 integrated privacy panel is an option feature that must be configured at purchase and is designed to function in landscape orientation.
Resolutions are dependent upon monitor capability, and resolution and color depth settings.
Sold separately or as an optional feature.
Internet access required.
HP Support Assistant requires Windows and Internet access.
HP Driver Packs not preinstalled, however available for download at http://www.hp.com/go/clientmanagement.
HP Manageability Integration Kit can be downloaded from http://www.hp.com/go/clientmanagement.
Absolute agent is shipped turned off, and will be activated when customers activate a purchased subscription. Subscriptions can be purchased for terms ranging multiple years. Service is limited, check with Absolute for availability outside
the U.S. The Absolute Recovery Guarantee is a limited warranty. Certain conditions apply. For full details visit: http://www.absolute.com/company/legal/agreements/ computrace-agreement. Data Delete is an optional service provided by
Absolute Software. If utilized, the Recovery Guarantee is null and void. In order to use the Data Delete service, customers must first sign a Pre-Authorization Agreement and either obtain a PIN or purchase one or more RSA SecurID tokens
from Absolute Software.
HP Fingerprint Sensor sold separately or as an optional feature.
HP Secure Erase for the methods outlined in the National Institute of Standards and Technology Special Publication 800-88 "Clear" sanitation method. HP Secure Erase does not support platforms with Intel® Optane™.
Firmware TPM is version 2.0. Hardware TPM is v1.2, which is a subset of the TPM 2.0 specification version v0.89 as implemented by Intel Platform Trust Technology (PTT). TPM is version 2.0. Hardware TPM is v1.2, which is a subset of the
TPM 2.0 specification version v0.89 as implemented by Intel Platform Trust Technology (PTT).
HP Sure Click is available on most HP PCs and supports Microsoft® Internet Explorer and Chromium™. Supported attachments include Microsoft Office (Word, Excel, PowerPoint) and PDF files in read only mode, when Microsoft Office or
Adobe Acrobat are installed.
Windows Defender Opt in and internet connection required for updates.
HP Sure Start for AMD is available on select HP PCs with AMD processors. See product specifications for availability.
HP BIOSphere Gen5 is available on select HP Pro and Elite PCs. See product specifications for details. Features may vary depending on the platform and configurations.
HP Client Security Manager Gen5 requires Windows and is available on the select HP Pro and Elite PCs. See product specifications for details.
Supports HP Fast Charge with 65W AC Adapter.
Availability may vary by country.
HP Care Packs are sold separately. Service levels and response times for HP Care Packs may vary depending on your geographic location. Service starts on date of hardware purchase. Restrictions and limitations apply. For details, visit
www.hp.com/go/cpc. HP services are governed by the applicable HP terms and conditions of service provided or indicated to Customer at the time of purchase. Customer may have additional statutory rights according to applicable local laws,
and such rights are not in any way affected by the HP terms and conditions of service or the HP Limited Warranty provided with your HP Product.
EPEAT® registered where applicable. EPEAT registration varies by country. See http://www.epeat.net for registration status by country. Search keyword generator on HP’s 3rd party option store for solar generator accessories at
www.hp.com/go/options.
External power supplies, power cords, cables and peripherals are not Low Halogen. Service parts obtained after purchase may not be Low Halogen.
Ivanti Management Suite subscription required.
HP Sure Run Gen2: See product specifications for availability.
HP Sure Recover Gen2: See product specifications for availability. Requires an open, wired network connection. Not available on platforms with multiple internal storage drives. You must back up important files, data, photos, videos, etc.
before using HP Sure Recover to avoid loss of data. HP Sure Recover (Gen1) does not support platforms with Intel® Optane™.
HP Sure Sense requires Windows 10. See product specifications for availability.
Sign up for updatesSign up for updates hp.com/go/getupdatedhp.com/go/getupdated
Copyright © 2019 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products are set forth in the express limited
warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions
contained herein.
Intel vPro is a trademarks or registered trademark of Intel Corporation or its subsidiaries in the United States and other countries. AMD, Ryzen and Radeon are trademarks of Advanced Micro
Devices, Inc. Bluetooth is a trademark owned by its proprietor and used by HP Inc. under license. USB Type-C™ and USB-C™ are trademarks of USB Implementers Forum. ENERGY STAR is a
registered trademark of the U.S. Environmental Protection Agency. All other trademarks are the property of their respective owners.
June 2019
DOC-M
1
2
3
4
5
6
8
7
9
10
11
1
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
Loading...
