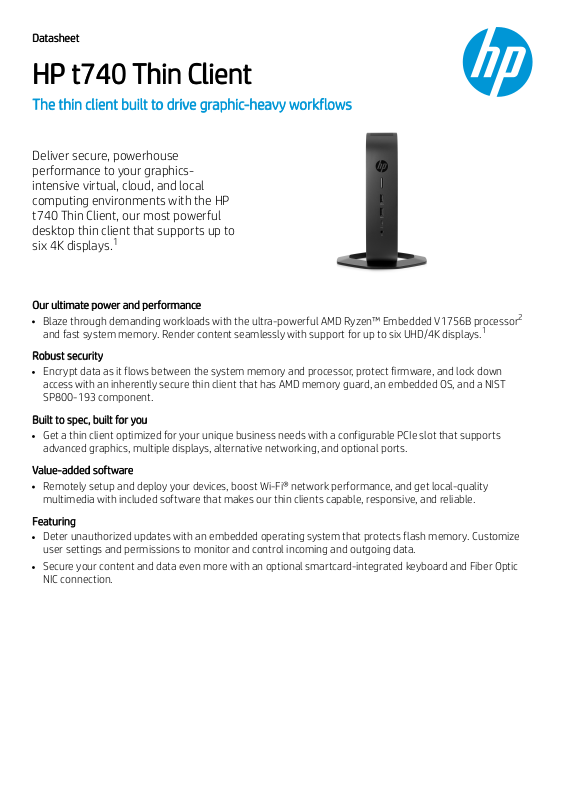

DatasheetDatasheet
HP t740 Thin ClientHP t740 Thin Client
The thin client built to drive graphic-heavy workflowsThe thin client built to drive graphic-heavy workflows
Deliver secure, powerhouse
performance to your graphicsintensive virtual, cloud, and local
computing environments with the HP
t740 Thin Client, our most powerful
desktop thin client that supports up to
six 4K displays.
Our ultimate power and performanceOur ultimate power and performance
Blaze through demanding workloads with the ultra-powerful AMD Ryzen™ Embedded V1756B processor
and fast system memory. Render content seamlessly with support for up to six UHD/4K displays.
Robust securityRobust security
Encrypt data as it flows between the system memory and processor, protect firmware, and lock down
access with an inherently secure thin client that has AMD memory guard, an embedded OS, and a NIST
SP800-193 component.
Built to spec, built for youBuilt to spec, built for you
Get a thin client optimized for your unique business needs with a configurable PCIe slot that supports
advanced graphics, multiple displays, alternative networking, and optional ports.
Value-added softwareValue-added software
Remotely setup and deploy your devices, boost Wi-Fi® network performance, and get local-quality
multimedia with included software that makes our thin clients capable, responsive, and reliable.
FeaturingFeaturing
Deter unauthorized updates with an embedded operating system that protects flash memory. Customize
user settings and permissions to monitor and control incoming and outgoing data.
Secure your content and data even more with an optional smartcard-integrated keyboard and Fiber Optic
NIC connection.
1
2
1
Data sheet | HP t740 Thin Client
HP t740 Thin Client Specifications TableHP t740 Thin Client Specifications Table
Available Operating SystemsAvailable Operating Systems
Windows 10 IoT Enterprise LTSC 2019
HP ThinPro
BrowserBrowser
Internet Explorer (for models with Windows 10 IoT Enterprise LTSC 2019); Mozilla Firefox (for models with HP
ThinPro)
Available ProcessorsAvailable Processors
AMD Ryzen™ V1756B with Radeon™ Vega 8 Graphics (3.25 GHz base clock, up to 3.6 GHz max boost clock, 2
MB cache, 4 cores)
Maximum memoryMaximum memory
32 GB DDR4-3200 SDRAM
Transfer rates up to 3200 MT/s
Memory slotsMemory slots 2 SODIMM
Internal storageInternal storage 16 GB up to 512 GB Flash memory
Display supportDisplay support
Up to four displays UHD/4K with four DisplayPort™ 1.2 video outputs provided at the back of the system.
Optional support for up to 6 displays using a discrete graphics card providing an additional two DisplayPort™
1.2 video outputs at the back of the system.
Available GraphicsAvailable Graphics Integrated: AMD Radeon™ Vega 8
ProtocolsProtocols Citrix® HDX; Microsoft RFX/RDP; VMware Horizon® View™ through RDP/PCoIP, and Blast Extreme
AudioAudio Internal amplified speaker system for basic audio playback
Expansion slotsExpansion slots 1 half-height PCIe x16 (x8)
Ports and ConnectorsPorts and Connectors
Front: 1 headphone/microphone combo; 1 USB 3.1 Gen 1; 1 USB 3.1 Type-C™; 1 USB 3.1 Type-C™ Gen 2
Back: 2 USB 2.0; 2 USB 3.1 Gen 1; 4 DisplayPort™ 1.2
Input devicesInput devices HP USB Business Slim Keyboard; HP USB Optical Mouse;
CommunicationsCommunications
LAN: Realtek RTL8111HSH GbE; Allied Telesis AT-2711FX/SC PCIe Fast Ethernet; Allied Telesis AT-2914 SX/SC
PCIe Gigabit; Allied Telesis AT-2914 SX/LC PCIe Gigabit ; WLAN: Intel® Wireless-AC 9260 Wi-Fi 5 (2x2) and
Bluetooth® 5 Combo ;
Available SoftwareAvailable Software
HP Device Manager; HP Easy Shell; HP Easy Tools; HP Smart Zero Client Services; HP ThinUpdate; HP True
Graphics; Microsoft SCCM/EDM Agent
PowerPower 90 W smart external power adapter
DimensionsDimensions 5 x 21 x 21 cm (Vertical orientation.)
WeightWeight 1.33 kg (Weight will vary depending on configuration.)
Energy efficiency complianceEnergy efficiency compliance ENERGY STAR® certified; EPEAT® 2019 registered
Environmental specificationsEnvironmental specifications Low halogen
11
3
2
4,5
6
7
8
Data sheet | HP t740 Thin Client
HP t740 Thin ClientHP t740 Thin Client
Accessories and services (not included)
HP Z23n G2 23-inch DisplayHP Z23n G2 23-inch Display
Be a productive powerhouse with the sleek HP Z23n G2 58.42 cm (23”) Display. This virtually
seamless Full HD display is factory-tested for reliability and longevity with integrated color
calibration, uninterrupted multi-screen tiling, and expansive device connections. Stable, lowcost and desktop-like performance providing maximum security. Industry leading and proven
enterprise technology that delivers lower ownership costs to server-based computing – ideal
for transaction-based applications that require maximum security. HP Thin Clients are
designed for businesses requiring desktop-like performance and PCs that are easy to deploy
and manage, providing unprecedented investment protection and guaranteed uptime.
Product number: 1JS06A4Product number: 1JS06A4
HP Z24n G2 24-inch DisplayHP Z24n G2 24-inch Display
Be a productive powerhouse with the sleek WUXGA HP Z24n G2 60.96 cm (24”) Display. This
virtually seamless display is factory-tested for reliability and longevity with integrated color
calibration, uninterrupted multi-screen tiling, and expansive device connections, including
USB-C™. Stable, low-cost and desktop-like performance providing maximum security. Industry
leading and proven enterprise technology that delivers lower ownership costs to server-based
computing – ideal for transaction-based applications that require maximum security. HP Thin
Clients are designed for businesses requiring desktop-like performance and PCs that are easy
to deploy and manage, providing unprecedented investment protection and guaranteed
uptime.
Product number: 1JS09A4Product number: 1JS09A4
HP 5 year Next Business DayHP 5 year Next Business Day
Advanced Exchange HardwareAdvanced Exchange Hardware
Support for Thin ClientsSupport for Thin Clients
HP provides quick replacement of your failed hardware unit the day after it goes down, if the
problem can't be resolved remotely, for 5 years.
Product number: U7929EProduct number: U7929E
1
1
Data sheet | HP t740 Thin Client
HP t740 Thin ClientHP t740 Thin Client
Messaging FootnotesMessaging Footnotes
DisplayPort™ cables and displays sold separately. The HP t740 Thin Client must be configured with optional AMD Radeon™ E9173 PCI Express graphics card to support more than four displays.
Multicore is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. Performance and clock frequency will vary depending on application
workload and your hardware and software configurations. AMD’s numbering is not a measurement of clock.
Keyboard and network adapter sold separately or as configurable options at the time of purchase.
Technical Specifications FootnotesTechnical Specifications Footnotes
Multi-Core is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. Performance and clock frequency will vary depending on
application workload and your hardware and software configurations. AMD’s numbering is not a measurement of clock speed.
For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes.
Graphics chipset uses part of the total system memory (RAM) for graphics performance. System memory dedicated to graphics performance is not available for other use by other programs.
Optional or add-on feature.
Wireless cards are optional or add-on features and requires separately purchased wireless access point and internet service. Availability of public wireless access points limited.
Software is dependent on operating system installed. Please refer to this product's QuickSpec for more details.
Based on US EPEAT® registration according to IEEE 1680.1-2018 EPEAT®. Status varies by country. Visit www.epeat.net for more information.
External power supplies, power cords, cables and peripherals are not low halogen. Service parts obtained after purchase may not be low halogen.
Sign up for updatesSign up for updates hp.com/go/getupdatedhp.com/go/getupdated
© Copyright 2019 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the
express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein. AMD and Radeon are trademarks of Advanced Micro Devices, Inc. DisplayPort™ and the DisplayPort™ logo are trademarks owned by the Video Electronics
Standards Association (VESA®) in the United States and other countries. Wi-Fi® is a registered trademark of Wi-Fi Alliance®.
AMD and Radeon are trademarks of Advanced Micro Devices, Inc. DisplayPort™ and the DisplayPort™ logo are trademarks owned by the Video Electronics Standards Association (VESA®) in the
United States and other countries. Wi-Fi® is a registered trademark of Wi-Fi Alliance®.
August 2019
