QuickSpecs

HP ZBook 15v G5 Mobile Workstation

Overview

c05941104 — DA - 16149 Worldwide — Version 1 —April 5, 2018

Page 1

HP ZBook 15v G5 Mobile Workstation

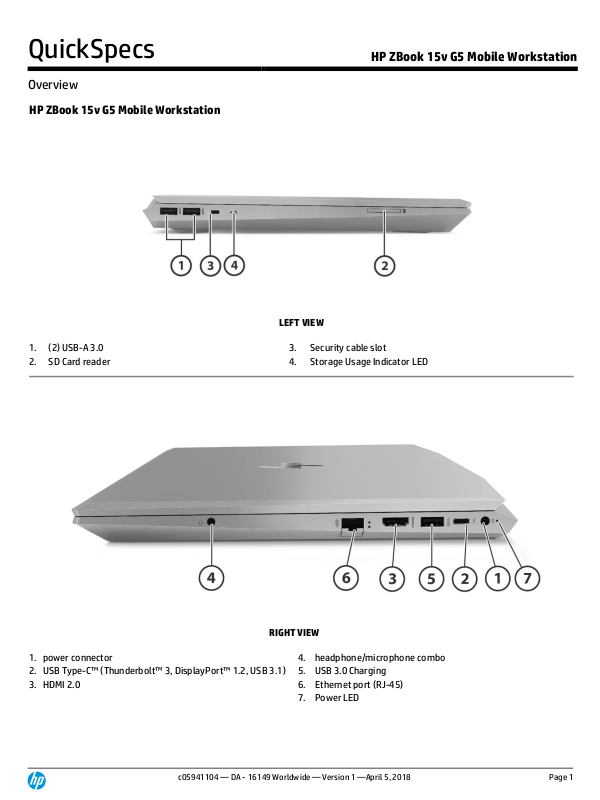

LEFT VIEW

1.

(2) USB-A 3.0

3.

Security cable slot

2.

SD Card reader

4.

Storage Usage Indicator LED

RIGHT VIEW

1.

power connector

4.

headphone/microphone combo

2.

USB Type-C™ (Thunderbolt™ 3, DisplayPort™ 1.2, USB 3.1)

5.

USB 3.0 Charging

3.

HDMI 2.0

6.

Ethernet port (RJ-45)

7.

Power LED

QuickSpecs

HP ZBook 15v G5 Mobile Workstation

Overview

c05941104 — DA - 16149 Worldwide — Version 1 —April 5, 2018

Page 2

BOTTOM VIEW

1.

Fan Venting

QuickSpecs

HP ZBook 15v G5 Mobile Workstation

Overview

c05941104 — DA - 16149 Worldwide — Version 1 —April 5, 2018

Page 3

At A Glance

• Eye-catching industrial design, aluminum and magnesium-reinforced chassis with HP’s turbo silver color provides optimal

durability with minimal weight.

• Featuring HP Spill Resistant Keyboard with Clickpad to manage most commonly used functions with a single keystroke..

• ISV certified to provide fast and reliable performance with workstation applications, including manipulation of 3D

textures

• HP Performance Advisor for optimal configuration, compatibility and performance

• Optional Workstation-caliber graphics:

o NVIDIA ® Quadro® discrete graphics featuring NVIDIA® Optimus technology:

▪ NVIDIA® Quadro® P600 (4GB GDDR5)

• Intel® Integrated graphics: Intel® UHD Graphics 630 integrated on Core™ i7. Intel® UHD Graphics P630 integrated on

Xeon® processors.

• Choice of 8th generation Intel® Core™ i5 quad-core and Intel® Core™ i7 hexa-core or Intel® Xeon® hexa-core processors

with option Intel® vPro™ technology.

• Populate up to two SODIMM slots supporting up to 32 GB DDR4-2667MHz dual-channel memory. Up to 32GB ECC DDR4-

2667MHz dual-channel memory available with Intel® Xeon® processors.

• Supports multi-display, including up to three (3) displays without a docking solution, with hybrid graphics enabled.

Supports up to five (5) displays or (2) 4K displays with HP Thunderbolt™ Dock G2 (sold separately), with hybrid graphics
enabled.

• Choice of 15.6-inch diagonal LED-backlit displays:

o FHD IPS anti-glare, 220nits (1920 x 1080);
o FHD IPS touch screen with Corning® Gorilla® Glass 4, 250 nits (1920 x 1080);
o UHD IPS anti-glare, 340nits (3840 x 2160)

• One (1) Thunderbolt

™

3 port (supporting DP 1.3, USB 3.1, PCIe Gen 3 devices) on the new USB-CTM connector, for high speed

data/video/audio transfer support.

• Flexible wireless connectivity options:
o Intel® Dual Band Wireless-AC 9560 802.11 AC/a/b/g/n (2x2) WiFi and Bluetooth 5.0 combo adaptor (non-vPro™)

or Intel® Dual Band Wireless-AC 9560 802.11 AC/a/b/g/n (2x2) WiFi and Bluetooth 5.0 combo adaptor (vPro™)

• Optimize your audio experience for conference calls and remote collaboration with optional HD webcam, dual-array

microphones, and premium speakers. Custom-tuned by HP and Bang & Olufsen optimized for high fidelity audio with
immersive surround sound with deep, rich bass and crystal-clear dialog without distortion at high volume, and new
discrete amp.

• HP Long life battery solution: 4-cell (70 WHr) or 3-cell (52.5 WHr) supporting HP Fast Charge capability

• Three dedicated drive slots. (2) M.2 slots and (1) 2.5” drive bays supporting up to 6TB of data.

• Security features including HP Client Security Manager, managed via single console.

NOTE: See important legal disclosures for all listed specs in their respective features sections.

QuickSpecs

HP ZBook 15v G5 Mobile Workstation

Features

c05941104 — DA - 16149 Worldwide — Version 1 —April 5, 2018

Page 4

OPERATING SYSTEM

Preinstalled

Windows 10 Pro 64 – HP recommends Windows 10 Pro*
Windows 10 Home 64 Plus*
Windows 10 Pro 64*
Windows 10 Pro 64 Workstation Plus*

FreeDOS 2.0

Supported

Windows 10 Enterprise 64*

*Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately
purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. Windows 10 is
automatically updated, which is always enabled. ISP fees may apply and additional requirements may apply over time for
updates. See http://www.windows.com

PROCESSOR*

8th Generation Intel® Core™ i7-8850H vPro™ processor with Intel® UHD Graphics 630 (2.6 GHz base frequency, up to 4.3 GHz

with Intel® Turbo Boost Technology, 9 MB cache, 6 cores)

8th Generation Intel® Core™ i7-8750H with Intel® UHD Graphics 630 (2.2 GHz base frequency, up to 4.1 GHz with Intel® Turbo

Boost Technology, 9 MB cache, 6 cores)

8th Generation Intel® Core™ i5-8400H vPro™ processor with Intel® UHD Graphics 630 (2.5 GHz base frequency, up to 4.2 GHz

with Intel® Turbo Boost Technology, 8 MB cache, 4 cores)

8th Generation Intel® Core™ i5-8300H with Intel® UHD Graphics 630 (2.6 GHz base frequency, up to 4.0 GHz with Intel® Turbo

Boost Technology, 8 MB cache, 4 cores)

Intel® Xeon® E-2176M vPro™ processor with Intel® UHD Graphics P630 (2.7 GHz base frequency, up to 4.4 GHz with Intel® Turbo
Boost Technology, 12 MB cache, 6 cores)

*Multicore is designed to improve performance of certain software products. Not all customers or software applications will
necessarily benefit from use of this technology. Performance and clock frequency will vary depending on application workload
and your hardware and software configurations. Intel’s numbering, branding and/or naming is not a measurement of higher
performance.

Note: In accordance with Microsoft’s support policy, HP does not support the Windows® 8 or Windows 7 operating system on
products configured with Intel® and AMD 7th generation and forward processors or provide any Windows®8 or Windows 7 drivers
on http://www.support.hp.com

CHIPSET

Mobile Intel® CM246 integrated with processor

QuickSpecs

HP ZBook 15v G5 Mobile Workstation

Features

c05941104 — DA - 16149 Worldwide — Version 1 —April 5, 2018

Page 5

INTEL® CORE™ I5 WITH VPRO/CORE I7 WITH VPRO/XEON® WITH VPRO TECHNOLOGY CAPABLE

Intel® Core™ i5 with vPro™, Core™ i7 with vPro™ and Xeon® with vPro™ technology is a selectable feature that is available on
units configured with select processors, a qualified Intel® WLAN module and a preinstalled Windows® operating system. It
provides advances in remote manageability, security, energy efficient performance, and wireless connectivity. Intel® Active
Management Technology (iAMT) offers built-in manageability and proactive security for networked mobile workstations,
even when they are powered off* or when the operating system is inoperable. It can help identify threats before they reach
the network, isolate infected systems, and update regardless of their power state.

* Requires a Windows operating system, network hardware and software, connection with a power source, and a direct (non­VPN) corporate network connection which is either cable or wireless LAN.

NOTE: Some functionality of Intel® Core™ i5 with vPro™/Core™ i7 with vPro™/Xeon® with vPro™ technology, such as Intel®

Active Management technology and Intel® Virtualization technology, requires additional third- party software in order to run.

Availability of future "virtual appliances" applications for Intel® Core™ i5 with vPro™/Core i7 with vPro™/XEON® with vPro™

technology is dependent on third- party software providers. Compatibility with future "virtual appliances" is yet to be
determined.

GRAPHICS

Integrated

Intel® UHD Graphics 630

1,2

Intel® UHD Graphics P630

1,2

Discrete

NVIDIA® Quadro® P600 (4 GB GDDR5 dedicated)

NOTE 1: UHD content required to view UHD images
NOTE 2: Intel® UHD graphics 630 is configurable as a standalone graphics option; Intel® UHD graphics P630 only used when

NVIDIA® Optimus™ Technology is enabled.

Multi-Display Support

Without HP Thunderbolt™ Dock G2:

HP ZBook 15v with hybrid graphics and without the use of the dock supports up to a maximum of 3 independent displays.
These three displays are the internal panel plus two external displays connected to the two following ports: HDMI 2.0,
Thunderbolt™ 3.

With HP Thunderbolt™ Dock G2:

HP Thunderbolt™ Dock when used together with the HP ZBook 15v configuration with hybrid graphics, supports a maximum
of 5 independent displays provided DisplayPort™ is connected. These five displays are internal panel, one external display
connected to the system’s HDMI port and 3 external displays connected to the dock’s Type-C, or VGA, and two DisplayPort™
ports. If Thunderbolt™ only port on the dock is connected, then the 3 external displays will not function.

QuickSpecs

HP ZBook 15v G5 Mobile Workstation

Features

c05941104 — DA - 16149 Worldwide — Version 1 —April 5, 2018

Page 6

DISPLAY

15.6" diagonal FHD IPS anti-glare LED-backlit 220nits (1920 x 1080);

15.6" diagonal FHD IPS LED-backlit touch screen with Corning® Gorilla® Glass 4, 250 nits (1920 x 1080);

15.6" diagonal 4K IPS anti-glare LED-backlit 340nits (3840 x 2160)

STORAGE AND DRIVES*

(2) M.2
SATA SED Solid State Drive

256GB SATA Solid State Drive
1TB SATA State Solid Drive
256GB M.2 SATA Self-Encrypting Drive (SED) Solid State Drive
512GB M.2 SATA FIPS 140-2 Solide State Drive

HP Z Turbo Drive (PCIe NVMe Solid State Drive)

256GB M.2 PCIe NVMe™ TLC Solid State Drive
2TB M.2 PCIe® NVMe™ TLC Solid State Drive
256GB M.2 PCIe® NVMe™ TLC Self-Encrypting Drive (SED) Solid State Drive
512GB M.2 PCIe® NVMe™ TLC Self-Encrypting Drive (SED) Solid State Drive

360GB M.2 PCIe NVMe TLC Solid State Drive

(1) 2.5” Storage Bay Drives*

2TB SATA (5400 rpm) Hard Disk Drive
500GB SATA (7200 rpm) Hard Disk Drive
1TB SATA (7200 rpm) Hard Disk Drive
500GB SATA Self-Encrypting Drive (SED) (7200 rpm) Hard Disk Drive
500GB SATA FIPS 140-2 (7200 rpm) Hard Disk Drive
500GB SATA SSHD (Hybrid Drive) (8 GB cache)
2TB SATA SSHD (Hybrid Drive) (8 GB cache)

HP 3D DriveGuard (Windows only)
The hard drive is mounted directly to the notebook frame, reducing the transmission of shock to the hard drive. Uses three­axis digital motion detection with intelligent sensitivity to help protect the hard drive during normal use from shock and
vibration. The digital accelerometer temporarily halts all data transfer and parks the hard drive when abrupt motion is
detected.

*For storage drives GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 30 GB (for Windows 10) is
reserved for system recovery software.

QuickSpecs

HP ZBook 15v G5 Mobile Workstation

Features

c05941104 — DA - 16149 Worldwide — Version 1 —April 5, 2018

Page 7

DRIVE CONTROLLERS

2.5” Storage Bays and M.2 Storage Bay (SATA):

SATA-3 or SATA-2 for HDD and SATA-3 for SSD

RAID:

0, 1 supported*

NOTE: Raid 0, 1 supported only on SATA drives.

MEMORY

32 GB DDR4-2667 ECC or non-ECC SDRAM
Two SODIMM slots supporting dual-channel memory

4 GB, 8GB and 16 GB SODIMMs (for Intel® Core™ Processors)
8GB and 16 GB ECC SODIMMs (for Intel® XEON® Processors)

Maximum
Upgradeable to 32 GB with optional 16 GB SODIMMs in 2 slots

Dual-channel
Maximized dual-channel performance requires SODIMMs of the same size and speed in both memory channels.

NOTE: Transfer rates up to 2667 MT/s for systems with less than 32 GB. ECC memory only available with Intel® Xeon®
processors.

NETWORKING/COMMUNICATIONS

LAN*

Integrated Intel® I219-LM Gigabit Network Connection

Wireless
Support for a broad range of secure, integrated wireless LAN options featuring support for the latest industry standards.
Integrated Bluetooth® is also available (factory configurable only) and can be combined with any of the supported wireless
LAN options.

802.11 Wireless LAN options**

Intel® Dual Band Wireless-AC 9560 802.11ac (2x2) Wi-Fi and Bluetooth® 5.0 Combo
Intel® Dual Band Wireless-AC 9560 802.11ac (2x2) Wi-Fi® and Bluetooth® 5.0 Combo, non-vPro™

*The term "10/100/1000" or "Gigabit" Ethernet indicates compatibility with IEEE standard 802.3ab for Gigabit Ethernet, and does
not connote actual operating speed of 1 Gb/s. For high-speed transmission, connection to a Gigabit Ethernet server and network
infrastructure is required.
**Wireless cards are optional or add-on features and requires separately purchased wireless access point and internet service.
Availability of public wireless access points limited. The specifications for the 802.11ac WLAN are draft specifications and are not
final. If the final specifications differ from the draft specifications, it may affect the ability of the notebook to commun icate with
other 802.11ac WLAN devices.

QuickSpecs

HP ZBook 15v G5 Mobile Workstation

Features

c05941104 — DA - 16149 Worldwide — Version 1 —April 5, 2018

Page 8

AUDIO/MULTIMEDIA

Audio

Bang & Olufsen HD audio. Integrated stereo speakers and microphone (dual-microphone array when equipped with optional
webcam and optional world facing microphone). Functions keys for volume mute, up and down. Combo microphone­in/stereo headphone-out jack.

Webcam*

Optional (720p HD webcam)

Optional (720p HD webcam) IR camera (1080p FHD) for face authentication with Windows Hello

• HD format (widescreen)

• Supports videoconferencing and still image capture

• High quality fixed focus lens

• Video capture at various resolutions up to 1280x720 resolution (720p) and up to 30fps

• M-JPEG compression supports higher frame rates for video capture and videoconferencing

• Improved low light sensitivity

• Improved dynamic range

*HD content required to view HD images
**Optional or add-on feature

KEYBOARDS/POINTING DEVICES/BUTTONS & FUNCTION KEYS

Keyboard

HP Backlit Keyboard* with function key control and numeric keypad

*the Spill resistance is 1mm/min for 10mins not traditional Commercial spill Keyboard

Pointing Devices
Clickpad with multi-touch gesture support

Buttons and Function Keys
Discrete buttons provide easy access to the following features:
F1 – Open App
F2 – Brightness Down
F3 - Brightness Up
F4 – Display Switching
F5 – Keyboard backlight
F6 – Speaker mute
F7 – Volume down
F8 – Volume up Microphone mute
F9 – Plays previous track
F10 – Pause / Play
F11 – Plays next track
F12 – Wireless on/off

QuickSpecs

HP ZBook 15v G5 Mobile Workstation

Features

c05941104 — DA - 16149 Worldwide — Version 1 —April 5, 2018

Page 9

SOFTWARE AND SECURITY

Preinstalled Software with Windows® Operating System

Bing search for IE11; Buy Office (sold separately); HP Client Security Suite Gen4; HP ePrint Driver + JetAdvantage; HP Hotkey
Support; HP Noise Cancellation Software; HP Performance Advisor; HP Recovery Manager; HP Remote Graphics Software; HP
Support Assistant; HP Velocity; HP WorkWise (requires Bluetooth); Skype for Business Certified; HP LAN-WLAN Protection; HP
JumpStart

1,2,3

Security Management

Absolute persistence module; Common Criteria EAL4+ Augmented Certified Discrete TPM 2.0 Embedded Security Chip;
DriveLock and Automatic DriveLock; HP FingerPrint Sensor; One-step log-on; Optional USB port disable at factory (user
configurable via BIOS); Power-on password (via BIOS); RAID (available as a configurable option); Removable media write/boot
control; SATA port disablement (via BIOS); Security lock slot; Serial enable/disable (via BIOS); Setup password (via BIOS);
Support for Intel® Anti-Theft Technology; IR camera with Windows Hello

4,5,6,7,8,9

HP Remote Graphics Software

The remote desktop solution for serious workstation users and their most demanding applications.
Download at: http://www.hp.com/go/RGS

HP Performance Advisor

HP Performance Advisor enables optimal configuration of HP Mobile Workstations delivering stability and best performance.
HP Performance Advisor will guide your system setup allowing a "custom" configuration that best matches the workstation to
user requirements.
Download at: http://www.hp.com/go/performanceadvisor

1. HP Remote Graphics Software requires a Windows, Linux®, or Mac®OS X 10.10 and newer operating system and network

access.

2. HP Workwise smartphone app is available as a free download on the App Store and Google Play. See requirements at

www.hp.com/go/workwise.

3. HP Client Security Suite Gen 4 requires Windows and Intel® or AMD 8th generation processors.

4. BIOS Absolute Persistence module is shipped turned off, and will be activated when customers purchase and activate

a subscription. Service may be limited. Check with Absolute for availability outside the U.S. The optional

5. subscription service of Absolute Recovery Guarantee is a limited warranty. Certain conditions apply. For full details

visit: http://www.absolute.com/company/legal/agreements/computrace-agreement.

6. Finger Sensor is optional

7. HP Manageability Integration Kit can be downloaded from http://www.hp.com/go/clientmanagement.

8. HP BIOSphere Gen4 requires Intel® or AMD 8th generation processors. HP Sure Start Gen4 is available on HP Z

Workstations products equipped with 8th generation Intel® or AMD processors.

9. HP Password manager requires Windows.

QuickSpecs

HP ZBook 15v G5 Mobile Workstation

Features

c05941104 — DA - 16149 Worldwide — Version 1 —April 5, 2018

Page 10

POWER

Power Supply

120 W Slim Smart AC adapter (external)*
150 W Slim Smart AC adapter (external)

Battery

HP Long Life 3-cell Polymer 52.5Whr (optional)
HP Long Life 4-cell Polymer 70Whr

NOTE: Battery is internal and not replaceable by the customer

*120 W Slim Smart AC adapter (external) for UMA Configurations Only

ENVIRONMENTAL

US ENERGY STAR ®
IT ECO declaration
EPEAT® registered*
Low Halogen**

* EPEAT ® registered where applicable. EPEAT registration varies by country. See www.epeat.net for registration status by
country. See HP’s 3rd party option store for solar energy accessory www.hp.com/go/options.
**External power supplies, power cords, cables and peripherals are not low halogen. Service parts obtained after purchase
may not be low halogen.

WEIGHTS & DIMENSIONS

Weight

Starting at

4.77 lb (2.165kg)

Dimensions (w x d x h)

10.1 x 14.37 x 1 in

256.5 x 365 x 25.4 mm

PORTS/SLOTS

Ports

Left side:

(2) USB 3.0

Right side:

(1) HDMI 2.0
(1) USB Type-C™ (Thunderbolt™ 3, DisplayPort™ 1.3, USB 3.1)
(1) USB 3.0 Port Charging
(1) Headphone/Microphone Combo
(1) RJ-45 / Ethernet

QuickSpecs

HP ZBook 15v G5 Mobile Workstation

Features

c05941104 — DA - 16149 Worldwide — Version 1 —April 5, 2018

Page 11

(1) Power connector

Digital Media Slots
(1) SD UHS-II Flash Media slot – Supports next generation SD (Secure Digital), backward compatible to SDHC, SDXC

SERVICE AND SUPPORT

Limited 3-year or 1-year limited warranty options available, depending on country. Batteries have a default one year limited
warranty except for Long Life batteries which will have same 1-year or 3-year limited warranty as the platform. Optional* HP
Care Pack Services are extended service contracts which go beyond your standard limited warranties. To choose the right
level of service for your HP product, use the HP Care Pack Services Lookup Tool at http://www.hp.com/go/cpc.

1. HP Care Services are sold separately or as an optional feature. Service levels and response times for HP Care Packs

may vary depending on your geographic location. Service starts on date of hardware purchase. Restrictions and
limitations apply. HP services are governed by the applicable HP terms and conditions of service provided or
indicated to Customer at the time of purchase. Customer may have additional statutory rights according to
applicable local laws, and such rights are not in any way affected by the HP terms and conditions of service or the HP
Limited Warranty provided with your HP Product. Consult your local HP Customer Support Center for details.

QuickSpecs

HP ZBook 15v G5 Mobile Workstation

Technical Specifications – System Unit

c05941104 — DA - 16149 Worldwide — Version 1 —April 5, 2018

Page 12

SYSTEM UNIT

Stand-Alone Power
Requirements (AC Power)

Nominal Operating
Voltage

19.5 V

Average Operating Power

System in idle mode +
max panel brightness

UMA 10.58W
DIS 9.21W

Adapter Safety test
condition

UMA 116.6W
DIS 144.7W

Max Operating Power

UMA < 120W
DIS < 150W

Temperature

Operating

41°F to 95°F
5°C to 35°C

Non-operating

-4°F to 140°F

-20°C to 60°C

Relative Humidity
Operating

10% to 90%

Non-operating

5% to 95%

Shock
Operating

SVTP test condition: 40G, 2ms, half-sine

Non-operating

SVTP test condition: 240G, 2ms, half-sine

Random Vibration
Operating

SVTP test condition: 1.043 grms

Non-operating

SVTP test condition: 3.50 grms

Maximum Altitude
(unpressurized)

Operating

-50 ft to 10,000 ft (-15 m to 3,048 m)

Non-operating

-50 ft to 40,000 ft (15 m to 12,192 m)

Industry Standard
Certifications

UL

Yes

CSA

NA

FCC Compliance

Yes

ENERGY STAR®

Yes, 6.1 & 7.0

EPEAT

Yes, Silver

ICES

Yes

Australia /
NZ A-Tick Compliance

Yes

CCC

Yes

Japan VCCI Compliance

Yes

KC

Yes

BSMI

Yes

CE Marking Compliance

Yes MIL STD 810G

Temperature, Relative Humidity, Shock, Random Vibration and Altitude

QuickSpecs

HP ZBook 15v G5 Mobile Workstation

Technical Specifications - Displays

c05941104 — DA - 16149 Worldwide — Version 1 —April 5, 2018

Page 13

DISPLAYS

15.6" diagonal LED­backlit FHD IPS AG (1920
x 1080) (220 nits)

Active Area (W x H)

13.54 x 7.59 in (34.4 x 19.4 cm)

Dimensions (W x H)

15.6 in (39.6 cm)

Weight

360 g (max)

Surface Treatment

Anti-glare

Contrast Ratio

600:1 (typical)

Refresh Rate

60 Hz

Brightness*

220nits (typical)

Pixel Resolution
Format

1920 x 1080 (FHD)

Configuration

RGB Stripe

Backlight

LED

PPI

141

Viewing Angle

85/85/85/85 (Left/Right/Down/Up) (typical)

* All specifications represent the typical specifications provided by HP's component manufacturers;
actual performance may vary either higher or lower."

15.6” diagonal LED FHD
IPS Touch (1920 x 1080)
(250 nits)

Active Area (W x H)

13.54 x 7.59 in (34.4 x 19.4 cm)

Dimensions (W x H)

15.6 in (39.6 cm)

Weight

380 g (max)

Surface Treatment

Touch with Gorilla® Glass 4

Contrast Ratio

400:1 (typical)

Refresh Rate

60 Hz

Brightness*

250 nits (typical)

Pixel Resolution
Format

1920 X 1800 (FHD)

Configuration

RGB Stripe

Backlight

LED

PPI

141

Viewing Angle

45/45/35/25 (Left/Right/Down/Up) (typical)

* All specifications represent the typical specifications provided by HP's component manufacturers;
actual performance may vary either higher or lower."

15.6” diagonal UHD IPS
LED AG (3840x2160) (340
nits)

Dimensions (W x H)

13.62 x 7.59 in (3.6 x 19.4 cm)

Diagonal Size

15.6 in (39.6 cm)

Weight

345 g (max)

Surface Treatment

Anti-glare

Contrast Ratio

1000:1 (min)

Refresh Rate

60 Hz

Brightness*

340 nits (typical)

Pixel Resolution

Pitch

0.090 x 0.090 mm

Format

3840x2160

Configuration

RGB Stripe

Interface

eDP

QuickSpecs

HP ZBook 15v G5 Mobile Workstation

Technical Specifications - Displays

c05941104 — DA - 16149 Worldwide — Version 1 —April 5, 2018

Page 14

Backlight

LED

PPI

282

Viewing Angle

85/85/85/85 (Left/Right/Down/Up) (typical)

* All specifications represent the typical specifications provided by HP's component manufacturers;
actual performance may vary either higher or lower."

QuickSpecs

HP ZBook 15v G5 Mobile Workstation

Technical Specifications - Storage and Drives

c05941104 — DA - 16149 Worldwide — Version 1 —April 5, 2018

Page 15

STORAGE AND DRIVES

Internal Storage

2 TB 5400 rpm SATA Hard
Disk Drive

Drive Weight

0.21 lbs ( 95 g)

Capacity

2 TB

Height

0.28 in (7 mm)

Width

2.75 in (69.85 mm)

Interface

ATA-8, SATA 3.0

Transfer Rate

Synchronous (maximum)

600 MB/s

Seek Time
(typical reads, including
settling)

Single Track

2 ms

Average

12 ms-13 ms

Maximum

18 ms-22 ms

Cache

128 MB

Rotational Speed

5400 rpm

Logical Blocks

3,907,029,168

Operating Temperature

32° to 140° F (0° to 60° C) [case temp]

Features

ATA Security, S.M.A.R.T., NCQ, Ultra DMA

500 GB 7200 rpm SATA
Disk Hard Drive

Drive Weight

0.20 lbs (92 g) ~ 0.25 lbs (115 g)

Capacity

500 GB

Height

0.28 in (7 mm)

Width

2.75 in (69.85mm)

Interface

ATA-8, SATA 3.0

Transfer Rate

Synchronous (maximum)

600 MB/s (Drive Capability)

Seek Time
(typical reads, including
settling)

Single Track

1.5 ms ~ 2 ms

Average

11 ms ~ 13 ms

Maximum

18 ms ~ 22 ms

Cache

Up To 32 MB

Rotational Speed

7200 rpm

Logical Blocks

976,773,168

Operating Temperature

32° to 140° F (0° to 60° C) [top cover temp]

Features

ATA Security, S.M.A.R.T., NCQ, Ultra DMA

QuickSpecs

HP ZBook 15v G5 Mobile Workstation

Technical Specifications - Storage and Drives

c05941104 — DA - 16149 Worldwide — Version 1 —April 5, 2018

Page 16

1 TB 7200 rpm SATA Hard
Disk Drive

Drive Weight

0.21 lbs (95 g)

Capacity

1 TB

Height

0.28 in (7 mm)

Width

2.75 in (69.85mm)

Interface

ATA-8, SATA 3.0

Transfer Rate

Synchronous (maximum)

600 MB/s (Drive Capability)

Seek Time
(typical reads, including
settling)

Single Track

1.5 ms

Average

13 ms

Maximum

32 ms

Cache

128 MB

Rotational Speed

7200 rpm

Logical Blocks

1,953,525,168

Operating Temperature

32° to 140° F (0° to 60° C) [top cover temp]

Features

ATA Security, S.M.A.R.T., NCQ, Ultra DMA

500 GB Hybrid Drive,
8 GB cache

Drive Weight

0.198 lbs (90 g) ~ 0.20 lbs (92 g)

Capacity

500 GB

Height

0.28 in (7 mm)

Width

2.75 in (69.85 mm)

Interface

ATA-8, SATA 3.0

Transfer Rate

Synchronous (maximum)

600 MB/s

Seek Time
(typical reads, including
settling)

Single Track

1.5 ms ~ 2 ms

Average

12 ms ~13 ms

Maximum

22 ms ~ 32 ms

Cache

Up to 128MB

Rotational Speed

5400 rpm

Logical Blocks

976,773,168

Operating Temperature

32° to 140° F (0° to 60° C) [case temp]

Features

ATA Security, S.M.A.R.T., NCQ, Ultra DMA

1 TB Hybrid Drive,
8 GB cache

Drive Weight

90g

Capacity

1 TB

Height

0.28 in (7 mm)

Width

2.75 in (69.85 mm)

Interface

ATA-8, SATA 3.0

Transfer Rate

Synchronous (maximum)

600 MB/s (Drive Capability)

Seek Time
(typical reads, including
settling)

Single Track

600 MB/s

Average

1.5 ms

Maximum

13 ms

Cache

Up to 128MB

Rotational Speed

5400 rpm

Logical Blocks

1,953,525,168

Operating Temperature

32° to 140° F (0° to 60° C) [case temp]

QuickSpecs

HP ZBook 15v G5 Mobile Workstation

Technical Specifications - Storage and Drives

c05941104 — DA - 16149 Worldwide — Version 1 —April 5, 2018

Page 17

Features

ATA Security, S.M.A.R.T., NCQ, Ultra DMA

2 TB Hybrid Drive,
8 GB cache

Drive Weight

90g

Capacity

2 TB

Height

0.28 in (7 mm)

Width

2.75 in (69.85 mm)

Interface

ATA-8, SATA 3.0

Transfer Rate

Synchronous (maximum)

600 MB/s

Seek Time
(typical reads, including
settling)

Single Track

1.5 ms

Average

13 ms

Maximum

32 ms

Cache

Up to 128MB

Rotational Speed

5400 rpm

Logical Blocks

3,907,029,168

Operating Temperature

32° to 140° F (0° to 60° C) [case temp]

Features

ATA Security, S.M.A.R.T., NCQ, Ultra DMA

500 GB 7200 rpm SATA
SED Hard Disk Drive

Drive Weight

0.21 lbs (95g)

Capacity

500 GB

Height

0.28 in (7 mm)

Width

2.75 in (69.85 mm)

Interface

ATA-8, SATA 3.0

Transfer Rate

Synchronous (maximum)

600 MB/s (Drive Capability)

Seek Time
(typical reads, including
settling)

Single Track

2 ms

Average

12 ms

Maximum

18-22 ms

Cache

32 MB

Rotational Speed

7200 rpm

Logical Blocks

976,773,168

Operating Temperature

32° to 140° F (0° to 60° C) [case temp]

Features

ATA Security, TCG Opal v1.00, S.M.A.R.T., NCQ, Ultra DMA

256 GB SATA TLC Solid
State Drive (2.5”)

Drive Weight

0.17 lb (78 g)

Capacity

256 GB

Height

0.28 in (7 mm)

Width

2.75 in (69.85 mm)

Interface

ATA-8, SATA 3.0

NAND

TLC

Form Factor (I/O)

2.5 inch

Performance

Maximum Sequential Read

Maximum Sequential Write

530 MB/s～ 560 MB/s

500 MB/s～ 525 MB/s

Logical Blocks

500,118,192

QuickSpecs

HP ZBook 15v G5 Mobile Workstation

Technical Specifications - Storage and Drives

c05941104 — DA - 16149 Worldwide — Version 1 —April 5, 2018

Page 18

Operating Temperature

32° to 158°F (0° to 70°C) [ambient temp]

Features

ATA Security; DIPM; TRIM; DEVSLP

1 TB SATA TLC Solid State
Drive (2.5”)

Drive Weight

0.17 lb (78 g)

Capacity

1 TB

Height

0.28 in (7 mm)

Width

2.75 in (69.85 mm)

Interface

ATA-8, SATA 3.0

NAND

TLC

Form Factor (I/O)

2.5 inch

Performance

Maximum Sequential Read

Maximum Sequential Write

530 MB/s～ 560 MB/s

500 MB/s～ 530 MB/s

Logical Blocks

2,000,409,264

Operating Temperature

32° to 158°F (0° to 70°C) [ambient temp]

Features

ATA Security; DIPM; TRIM; DEVSLP

256 GB M2 SED TLC Solid
State Drive

Drive Weight

0.02 lb (<10 g)

Capacity

256 GB

Height

0.14 in (3.58 mm)- 0.09 in (2.23 mm)

Width

0.87 in (22 mm)

Interface

ATA-8, SATA 3.0

Generation

??

NAND

TLC

Form Factor (I/0)

M.2 2280

Performance
Maximum Sequential Read

Maximum Sequential Write

Up to 530 MB/s

UP to 515 MB/s

Logical Blocks

500,118,192

Operating Temperature

32° to 158°F (0° to 70°C) [ambient temp]

Features

ATA Security; TCG Opal 2.0, DIPM; TRIM; DEVSLP

256 GB M.2 NVMe TLC
Solid State Drive

Drive Weight

0.02 lb (<10 g)

Capacity

256 GB

Height

0.09 in (2.3 mm)

Width

0.87 in (22 mm)

Generation

Samsung PM961/ Toshiba XG5

NAND Type

TLC

Form-Factor (I/O)

M.2 2280

Interface

PCIe NVMe Gen3X4

Performance

Maximum Sequential Read

Maximum Sequential Write

2580 MB/s～ 2600 MB/s

1000 MB/s～ 1100 MB/s

Logical Blocks

500,118,192

QuickSpecs

HP ZBook 15v G5 Mobile Workstation

Technical Specifications - Storage and Drives

c05941104 — DA - 16149 Worldwide — Version 1 —April 5, 2018

Page 19

Operating Temperature

32° to 158°F (0° to 70°C) [ambient temp]

Features

ATA Security (Option),TRIM; L1.2

256 GB M.2 NVMe TLC SED
Solid State Drive

Drive Weight

0.02 lb (<10 g)

Capacity

256 GB

Height

0.09 in (2.3 mm)

Width

0.87 in (22 mm)

Generation

Samsung PM961 SED Opal2/ Toshiba XG5 SED Opal2

NAND Type

TLC

Form-Factor (I/O)

M.2 2280

Interface

PCIe NVMe Gen3X4

Performance

Maximum Sequential Read

Maximum Sequential Write

2580 MB/s～ 2600 MB/s

Up to 1000 MB/s

Logical Blocks

500,118,192

Operating Temperature

32° to 158°F (0° to 70°C) [ambient temp]

Features

ATA Security (Option); TCG Opal 2.0; TRIM; L1.2

512 GB M.2 NVMe TLC
Solid State Drive

Drive Weight

0.02 lb (<10 g)

Capacity

512 GB

Height

0.09 in (2.3 mm)

Width

0.87 in (22 mm)

Generation

Samsung PM981 / Toshiba XG5

NAND Type

TLC

Form-Factor (I/O)

M.2 2280

Interface

PCIe NVMe Gen3X4

Performance

Maximum Sequential Read

Maximum Sequential Write

2800 MB/s～ 2900 MB/s

1000 MB/s～ 1800 MB/s

Logical Blocks

1,000,215,215

Operating Temperature

32° to 158°F (0° to 70°C) [ambient temp]

Features

ATA Security,TRIM; L1.2

512 GB M.2 NVMe TLC SED
Solid State Drive

Drive Weight

0.02 lb (<10 g)

Capacity

512 GB

Height

0.09 in (2.3 mm)

Width

0.87 in (22 mm)

Generation

Samsung PM981 SED Opal2/ Toshiba XG5 SED Opal2

NAND Type

TLC

Form-Factor (I/O)

M.2 2280

Interface

PCIe NVMe Gen3X4

Performance

Maximum Sequential Read

Maximum Sequential Write

QuickSpecs

HP ZBook 15v G5 Mobile Workstation

Technical Specifications - Storage and Drives

c05941104 — DA - 16149 Worldwide — Version 1 —April 5, 2018

Page 20

2800 MB/s～ 2900 MB/s

1000 MB/s～ 1800 MB/s

Logical Blocks

1,000,215,215

Operating Temperature

32° to 158°F (0° to 70°C) [ambient temp]

Features

ATA Security (Option); TCG Opal 2.0 ; TRIM; L1.2

1 TB, M.2 NVMe TLC Solid
State Drive

Drive Weight

0.02 lb (<10 g)

Capacity

1 TB

Height

0.09 in (2.3 mm)

Width

0.87 in (22 mm)

Generation

Samsung PM981 / Toshiba XG5

NAND Type

TLC

Form-Factor (I/O)

M.2 2280

Interface

PCIe NVMe Gen3X4

Performance

Maximum Sequential Read

Maximum Sequential Write

2900 MB/s～ 3000 MB/s

Up to 2000MB/s

Logical Blocks

2,000,409,264

Operating Temperature

32° to 158°F (0° to 70°C) [ambient temp]

Features

ATA Security,TRIM; L1.2

2 TB, M.2 NVMe TLC Solid
State Drive

Drive Weight

0.02 lb (<10 g)

Capacity

2 TB

Height

0.09 in (2.3 mm)

Width

0.87 in (22 mm)

Generation

Toshiba XG5P

NAND Type

TLC

Form-Factor (I/O)

M.2 2280

Interface

PCIe NVMe Gen3X4

Performance
Maximum Sequential Read

Maximum Sequential Write

Up to 2900MB/s

Up to 2100 MB/s

Logical Blocks

3,907,029,168

Operating Temperature

32° to 158°F (0° to 70°C) [ambient temp]

Features

ATA Security,TRIM; L1.2

*For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 30 GB (for Windows 10) disk
is reserved for system recovery software.

QuickSpecs

HP ZBook 15v G5 Mobile Workstation

Technical Specifications - Security

c05941104 — DA - 16149 Worldwide — Version 1 —April 5, 2018

Page 21

SECURITY

HP Fingerprint Reader

Mobile Voltage Operation

3.0V-3.6V Single Supply

Operating Temperature

14° - 167°F (-10° - 75°C)

Current consumption

36mA

Low latency wait for
finger

950 uA

Capture rate

3000 lines/sec

ESD Resistance

IEC 6100-4-2 4B (+/-15KV)

Detection Matrix

200*1 (plus another secondary line); 508 dpi, sensor area 12*3 mm

QuickSpecs

HP ZBook 15v G5 Mobile Workstation

Technical Specifications – Networking

c05941104 — DA - 16149 Worldwide — Version 1 —April 5, 2018

Page 22

NETWORKING/COMMUNICATION

Intel® I219-LM Gigabit
Network Connection

Ethernet Features

10 Mbit/s operation (10BASE-T; IEEE 802.3i; IEEE 802.3 clauses 13-

14)
100 10 Mbit/s operation (10BASE-T; IEEE 802.3i; IEEE 802.3 clauses
13-14)
100 Mbit/s operation (100BASE-TX; IEEE 802.3u; IEEE 802.3 clauses
21-30)
1000 Mbit/s operation (1000BASE-T; IEEE 802.3ab; IEEE 8023.
Clauses 40)
Auto-Negotiation (Automatic Speed Selection)
Full Duplex Operation at all Speeds, Half Duplex operation at 10 and
100 Mbit/s
IEEE 802.1p QoS (Quality of Service) Support
IEEE 802.1q VLAN support
IEEE 802.3x Flow Control (IEEE 802.3 clauses 31-32; configurable)
IEEE 802.3az EEE(Energy Efficient Ethernet)
Jumbo Frame 9K
Auto MDI/MDIX Crossover cable detection

Power
Management

ACPI compliant - multiple power modes
Energy Detect Low Power Mode(Green Ethernet)

Performance
Features

TCP/IP/UDP Checksum Offload (configurable)
Protocol Offload( ARP & NS)
Large send offload and Giant send offload
Receiving Side Scaling
MACSec Offload (802.3ae)
Intel® vPro
iSCSI Boot
RSS is kernel based support (e.g. in Win Server 2013)
Ultra Low Power at cable disconnect (<1mW) enables platform
support for connected standby.

Manageability

Wake-on-LAN from standby and hibernation (Magic Packet and
Microsoft Wake-Up Frame); Wake-on-LAN from off (Magic Packet
only)
PXE 2.1 Remote Boot
Statistics Gathering (SNMP MIB II, Ethernet-like MIB, Ethernet MIB
(802.3x, clause 30))
Comprehensive diagnostic and configuration software suite
Virtual Cable Doctor for Ethernet cable status

Interface

PCI Express 1.1 x1 to fully support ASPM L0s/L1 and CLKREQ.

NOTE: Intel® I219-LM Gigabit interface is not PCIe compliant. It
operates at half of PCIe specification V1.1 (2.5GT/S) speed.

NIC Device Driver Name

Intel® Ethernet Network Connection I219-LM

QuickSpecs

HP ZBook 15v G5 Mobile Workstation

Technical Specifications – Networking

c05941104 — DA - 16149 Worldwide — Version 1 —April 5, 2018

Page 23

Intel® Dual Band
Wireless-N 9560AC

802.11 a/b/g/n (2x2)
WiFi + Bluetooth 5.0
Combo Adaptor*

Wireless LAN Standards

IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11ac

Interoperability

Wi-Fi certified

Frequency Band

802.11b/g/n

2.402 - 2.482 GHz

Note: The FCC has declared as of January 1, 2015
products that utilize passive scanning on channel
12/13 and are capable of transmitting must fully
comply with requirements of 15.247 or otherwise
disable those channels

802.11a/n

4.9 - 4.95 GHz (Japan)

5.15 - 5.25 GHz

5.25 - 5.35 GHz

5.47 - 5.725 GHz

5.825 - 5.850 GHz

Note: Indonesia only supports 5.725 - 5.825 GHz
(CH149 - CH161)

Data Rates

802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11b: 1, 2, 5.5, 11 Mbps

802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps

802.11n: MCS 0 ~ MCS 15 (20MHz and 40MHz)

802.11ac : MCS0 ~ MCS9, (1SS, and 2SS) (20MHz, 40MHz, and
80MHz)

Modulation

Direct Sequence Spread Spectrum
CCK, BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM

Security1

• IEEE and WiFi compliant 64 / 128 bit WEP encryption for

a/b/g mode only

• AES-CCMP: 128 bit in hardware

• 802.1x authentication

• WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.

• WPA2 certification

• IEEE 802.11i

• Cisco Certified Extensions, all versions through CCX4 and

CCX Lite

• WAPI

Network Architecture
Models

Ad-hoc (Peer to Peer)
Infrastructure (Access Point Required)

Roaming

IEEE 802.11 compliant roaming between band Access Points

Output Power2

802.11b : +16dBm minimum

802.11g : +14dBm minimum

802.11a : +14dBm minimum

802.11n HT20(2.4GHz) : +14dBm minimum

802.11n HT40(2.4GHz) : +12dBm minimum

802.11n HT20(5GHz) : +14dBm minimum

802.11n HT40(5GHz) : +12dBm minimum

Power Management

ACPI and PCI Express compliant power management

802.11 compliant power saving mode

Receiver Sensitivity3

802.11b, 1Mbps : -94dBm maximum

802.11b, 11Mbps : -86dBm maximum

QuickSpecs

HP ZBook 15v G5 Mobile Workstation

Technical Specifications – Networking

c05941104 — DA - 16149 Worldwide — Version 1 —April 5, 2018

Page 24

802.11g, 6Mbps : -88dBm maximum

802.11g, 54Mbps : -74dBm maximum

802.11a, 6Mbps : -88dBm maximum

802.11a, 54Mbps : -74dBm maximum

802.11n, MCS07 : -69dBm maximum

802.11n, MCS15 : -66dBm maximum

802.11ac, 1SS, MCS-0 : -86dBm maximum

802.11ac, 1SS, MCS-9 : -61dBm maximum

802.11ac, 2SS, MCS-0 : -83dBm maximum

802.11ac, 2SS, MCS-9 : -58dBm maximum

Antenna Type

High efficiency antenna with spatial diversity, mounted in the
display enclosure
Two embedded dual band 2.4/5 GHz antennas are provided to the
card to support WLAN MIMO communications and Bluetooth
communications

Form Factor

PCI-Express M.2 MiniCard

Dimensions

Type 2230 : 2.3 x 22.0 x 30.0 mm
Or
Type 1630 : 2.3 x 16.0 x 30.0 mm

Weight

Type 2230 : 2.8g
Or
Type 1630 : 2g

Operating Voltage

3.3v +/- 9%

Temperature

Operating
Non-operating

14° to 158° F (-10° to 70° C)

-40° to 176° F (-40° to 80° C)

Humidity

Operating
Non-operating

10% to 90% (non-condensing)
5% to 95% (non-condensing)

Altitude

Operating
Non-operating

0 to 10,000 ft (3,048 m)
0 to 50,000 ft (15,240 m)

LED Activity

LED Amber - Radio OFF; LED White - Radio ON

1. Check latest software/driver release for updates on supported security features.

2. Maximum output power may vary by country according to local regulations.

3. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and a
packet error rate of 10% for 802.11a/g (OFDM modulation).
* Wireless access point and internet service required. Availability of public wireless access points
limited.

HP Integrated Module with Bluetooth 4.2 Wireless Technology

Bluetooth Specification

4.2 Compliant

Frequency Band

2402 to 2480 MHz

Number of Available
Channels

Legacy : 0~79 (1 MHz/CH)
BLE : 0~39 (2 MHz/CH)

Data Rates and
Throughput

Legacy : 3 Mbps data rate; throughput up to 2.17 Mbps

BLE : 1 Mbps data rate; throughput up to 0.2 Mbps
Legacy : Synchronous Connection Oriented links up to 3, 64 kbps, voice
channels

Legacy : Asynchronous Connection Less links 2178.1 kbps/177.1 kbps
asymmetric (3-DH5) or 864 kbps symmetric (3-EV5)

Transmit Power

The Bluetooth component shall operate as a Class II Bluetooth device with
a maximum transmit power of + 4 dBm for BR and EDR.

QuickSpecs

HP ZBook 15v G5 Mobile Workstation

Technical Specifications – Networking

c05941104 — DA - 16149 Worldwide — Version 1 —April 5, 2018

Page 25

Receiver Sensitivity

Modulation

0.01% BER

0.001% BER

GFSK

-80 dBm

-70 dBm

π/4-DQPSK

-80 dBm

-70 dBm

8DPSK

-80 dBm

-70 dBm

Power Consumption

Peak (Tx) 330 mW
Peak (Rx) 230 mW
Selective Suspend 17 mW

Range

Legacy Up to 33 ft (10 m)
BLE Up to 99 ft (30 m)

Electrical Interface

USB 2.0 compliant

Bluetooth Software
Supported

Microsoft Windows® Bluetooth Software

Link Topology

Point to Point, Multipoint Pico Nets up to 7 slaves

Security

Full support of Bluetooth Security Provisions

Power Management

Microsoft Windows® ACPI, and USB Bus Support

Self-configurable to optimize power conservation in all operating modes,
including Standby, Hold, Park, and Sniff

Certifications

All necessary regulatory approvals for supported countries, including:

FCC (47 CFR) Part 15C, Section 15.247 & 15.249

ETS 300 328, ETS 300 826

Low Voltage Directive IEC950

UL, CSA, and CE Mark

Bluetooth Profiles
Supported

Serial Port Profile (SPP)
Service Discovery Application Profile (SDAP)
Dial-Up Networking (DUN)
Generic Object Exchange Profile (GOEP)
Object Push Profile (OPP)
Hard Copy Cable Replacement (HCRP)
Personal Area Networking Profile (PAN)
Human Interface Device Profile (HID)
Hands Free Profile (HFP)
Advanced Audio Distribution Profile (A2DP)
Audio Video Remote Control Profile (AVRCP)

AUDIO/MULTIMEDIA – BANG & OLUFSEN

Hardware

Implementation

Realtek ALC3258

Function Key
Volume Controls

Volume up, volume down, and Mute

Full Duplex

Yes

Microphone In

Mono, (combo jack)

Headphone/Line Out

Stereo

Integrated Microphone

Yes, Digital Microphone Array

Audio Output Quality

Frequency Response

20 Hz ~ 20kHz

Signal to Noise Ratio

100dBFSA

Total Harmonic
Distortion

<-45 dBFS / Headphone Out @32ohms

QuickSpecs

HP ZBook 15v G5 Mobile Workstation

Technical Specifications – Networking

c05941104 — DA - 16149 Worldwide — Version 1 —April 5, 2018

Page 26

Noise Floor

< -80 dB

Play Sampling Rate(s)

48kHz

Record Sampling Rate(s)

Up to 192kHz

DAC

16 or 24-Bit

ADC

16, 20 or 24-Bit

Internal Stereo Speaker
Power Rating

2 Watts

Impedance

4 ohms

QuickSpecs

HP ZBook 15v G5 Mobile Workstation

Technical Specifications - Power

c05941104 — DA - 16149 Worldwide — Version 1 —April 5, 2018

Page 27

POWER

HP 150W Slim Smart AC
Adapter

Dimensions

6.02 x 2.60 x .87 in (153 x 66 x 22 mm)

Weight

325 g

Input

100 to 240 VAC

Input Efficiency

88% min at 115 VAC
89% min at 230VAC

Input frequency range

47 to 63 Hz

Input AC current

2.7 A at 90 VAC

Output

Output power

150W

DC output

19.5V

Hold-up time

5 msec at 115 VAC input

Output current limit

<15A, Over voltage protection- 29V max
automatic shutdown

Connector

3 pin/grounded, mates with interchangeable cords

Environmental Design

Operating
temperature

32° to 95° F (0° to 35° C)

Non-operating (storage)
temperature

-4° to 185° F (-20° to 85° C)
Altitude

0 to 16,400 ft (0 to 5,000 m)

Humidity

5% to 95%

Storage Humidity

5% to 95%

EMI and Safety
Certifications

CE Mark- full compliance with LVD and EMC directives; Worldwide safety
standards- IEC60950, EN60950, UL60950, Class1, SELV; Agency approvals

- C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC Class B, CISPR22 Class
B, CCC, NOM-1 NYCE; MTBF - over 100,000 hours at 25°C ambient condition.

HP 120W Slim Smart AC
Adapter

Dimensions

148 x 75.5 x 25.4mm

Weight

485 g

Input

100 to 240 VAC

Input Efficiency

88% min at 115 VAC
89% min at 230VAC

Input frequency range

47 to 63 Hz

Input AC current

2.2 A at 90 VAC

Output

Output power

120W

DC output

19.5V

Hold-up time

5 msec at 115 VAC input

Output current limit

<16A, Over voltage protection- 29V max
automatic shutdown

Connector

3 pin/grounded, mates with interchangeable cords

Environmental Design

Operating
temperature

32° to 95° F (0° to 35° C)

Non-operating (storage)
temperature

-4° to 185° F (-20° to 85° C)
Altitude

0 to 16,400 ft (0 to 5,000 m)

Humidity

5% to 95%

QuickSpecs

HP ZBook 15v G5 Mobile Workstation

Technical Specifications - Power

c05941104 — DA - 16149 Worldwide — Version 1 —April 5, 2018

Page 28

Storage Humidity

5% to 95%

EMI and Safety
Certifications

CE Mark- full compliance with LVD and EMC directives; Worldwide safety
standards- IEC60950, EN60950, UL60950, Class1, SELV; Agency approvals

- C-UL-US, NORDICS, DENAN, EN55022 Class B, FCC Class B, CISPR22 Class
B, CCC, NOM-1 NYCE; MTBF - over 100,000 hours at 25°C ambient condition.

HP Long Life 4-cell
Polymer Battery (70
WHr)

Dimensions (H x W x L)

0.31 x 3.66 x 9.56 in (0.79 x 9.29 x 24.3 cm)

Weight (max)

0.61lb (275g)

Cells/Type

4-cell; Polymer

Energy

Voltage

15.4V

Amp-hour capacity

4.55Ah

Watt-hour capacity

70Wh

Temperature

Operating (Charging)

32° to 113° F (0° to 45° C)

Operating (Discharging)

14° to 140° F (-10° to 60° C)

Non-operating

-4° to 140° F (-20° to 60° C)

Battery Re-Charge Time

System in OFF or Standby
Mode

3 hours
System ON

3 to 5 hours

Charge Rate

0.7C; HP Fast Charge 90% in 90 minutes

Fuel Gauge LED

No

Warranty*

3 year

Compatible with optional
Travel Battery

N/A
* 3-year platform warranty is required for a 3-year Long Life Battery warranty.

HP Long Life 3-cell
Polymer Battery (52.5
WHr)

Dimensions (H x W x L)

0.31 x 3.66 x 9.56 in (0.79 x 9.29 x 24.3 cm)

Weight (max)

0.49 lb (220g)

Cells/Type

3-cell; Polymer

Energy

Voltage

11.55V

Amp-hour capacity

4.55Ah

Watt-hour capacity

52.5Wh

Temperature

Operating (Charging)

32° to 113° F (0° to 45° C)

Operating (Discharging)

14° to 140° F (-10° to 60° C)

Non-operating

-4° to 140° F (-20° to 60° C)

Battery Re-Charge Time

System in OFF or Standby
Mode

3 hours
System ON

3 to 5 hours

Charge Rate

0.7C; HP Fast Charge 90% in 90 minutes

Fuel Gauge LED

No

Warranty*

3 year

Compatible with optional
Travel Battery

N/A
* 3-year platform warranty is required for a 3-year Long Life Battery warranty.

QuickSpecs

HP ZBook 15v G5 Mobile Workstation

Technical Specifications - Environmental Data

c05941104 — DA - 16149 Worldwide — Version 1 —April 5, 2018

Page 29

ENVIRONMENTAL DATA

Eco-Label Certifications &
declarations

This product has received or is in the process of being certified to the following approvals and
may be labeled with one or more of these marks:

• IT ECO declaration

• US ENERGY STAR®

• EPEAT® Gold registered in the United States. See http://www.epeat.net for registration

status in your country.

System Configuration

The configuration used for the Energy Consumption and Declared Noise Emissions data for the
Notebook model is based on a “Typically Configured Notebook”.

Energy Consumption
(in accordance with US
ENERGY STAR® test method)

115VAC, 60Hz

230VAC, 50Hz

100VAC, 50Hz

Normal Operation (Sort idle)

TBD

TBD

TBD

Normal Operation (Long idle)

TBD

TBD

TBD

Sleep

TBD

TBD

TBD

Off

TBD

TBD

TBD

Note:

Energy efficiency data listed is for an ENERGY STAR® compliant product if offered within the
model family. HP computers marked with the ENERGY STAR® Logo are compliant with the
applicable U.S. Environmental Protection Agency (EPA) ENERGY STAR® specifications for
computers. If a model family does not offer ENERGY STAR® compliant configurations, then
energy efficiency data listed is for a typically configured PC featuring a hard disk drive, a high
efficiency power supply, and a Microsoft Windows® operating system.

Heat Dissipation*

115VAC, 60Hz

230VAC, 50Hz

100VAC, 50Hz

Normal Operation (Short idle)

TBD

TBD

TBD

Normal Operation (Long idle)

TBD

TBD

TBD

Sleep

TBD

TBD

TBD

Off

TBD

TBD

TBD

*NOTE: Heat dissipation is calculated based on the measured watts, assuming the service level is
attained for one hour.

Declared Noise Emissions
(in accordance with
ISO 7779 and ISO 9296)

Sound Power

(L

WAd

, bels)

Sound Pressure

(L

pAm

, decibels)

Typically Configured – Idle

TBD

TBD

Fixed Disk – Random writes

TBD

TBD

Optical Drive – Sequential reads

TBD

TBD

Longevity and Upgrading

This product can be upgraded, possibly extending its useful life by several years. Upgradeable
features and/or components contained in the product may include:

• 4 USB ports

• 2 Thunderbolt™ 3 ports

• 2 2.5” Storage Bay Drives

• 2 M.2 SATA SED Solid State Drives

QuickSpecs

HP ZBook 15v G5 Mobile Workstation

Technical Specifications - Environmental Data

c05941104 — DA - 16149 Worldwide — Version 1 —April 5, 2018

Page 30

• 1 Smart Card Reader

• 1 SD Card reader

• 4 SODIMM memory slots

• 1 HDMI 1.4 port

Spare parts are available throughout the warranty period and or for up to “5” years after the end
of production.

Batteries

This battery(s) in this product comply with EU Directive 2006/66/EC

Batteries used in the product do not contain:

Mercury greater the1ppm by weight
Cadmium greater than 20ppm by weight

Battery size: CR2032 (coin cell)
Battery type: Lithium
Battery size: 4-cell high capacity Lithium-Ion battery (optional 3 cell available)
Battery type:

Additional Information

• This product is in compliance with the Restrictions of Hazardous Substances (RoHS)

directive - 2011/65/EC.

• This HP product is designed to comply with the Waste Electrical and Electronic

Equipment (WEEE) Directive – 2002/96/EC.

• This product is in compliance with California Proposition 65 (State of California; Safe

Drinking Water and Toxic Enforcement Act of 1986).

• This product is in compliance with the IEEE 1680 (EPEAT) standard at the Gold level, see

www.epeat.net

• Plastics parts weighing over 25 grams used in the product are marked per ISO11469 and

ISO1043.

• This product contains 0.0% post-consumer recycled plastic (by wt.)

This product is 95.2% recycle-able when properly disposed of at end of life.

Packaging Materials

External:

PAPER/Corrugated

445 g

Internal:

PLASTIC/Polyethylene low density - LDPE

19 g

PLASTIC/Polyethylene Expanded - EPE

90 g

PLASTIC/Polypropylene - PP

7 g

The plastic packaging material contains at least 81.5% recycled content.

The corrugated paper packaging materials contains at least 80.0% recycled content.

Material Usage

This product does not contain any of the following substances in excess of regulatory limits (refer
to the HP General Specification for the Environment at

http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/gse.pdf):

• Asbestos

• Certain Azo Colorants

• Certain Brominated Flame Retardants – may not be used as flame retardants in plastics

• Cadmium

• Chlorinated Hydrocarbons

• Chlorinated Paraffins

• Formaldehyde

• Halogenated Diphenyl Methanes

• Lead carbonates and sulfates

• Lead and Lead compounds

• Mercuric Oxide Batteries

• Nickel – finishes must not be used on the external surface designed to be frequently

handled or carried by the user.

QuickSpecs

HP ZBook 15v G5 Mobile Workstation

Technical Specifications - Environmental Data

c05941104 — DA - 16149 Worldwide — Version 1 —April 5, 2018

Page 31

• Ozone Depleting Substances

• Polybrominated Biphenyls (PBBs)

• Polybrominated Biphenyl Ethers (PBBEs)

• Polybrominated Biphenyl Oxides (PBBOs)

• Polychlorinated Biphenyl (PCB)

• Polychlorinated Terphenyls (PCT)

• Polyvinyl Chloride (PVC) – except for wires and cables, has been voluntarily removed

from most applications.

• Radioactive Substances

• Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)

Packaging Usage

HP follows these guidelines to decrease the environmental impact of product packaging:

• Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in

packaging materials.

• Eliminate the use of ozone-depleting substances (ODS) in packaging materials.

• Design packaging materials for ease of disassembly.

• Maximize the use of post-consumer recycled content materials in packaging materials.

• Use readily recyclable packaging materials such as paper and corrugated materials.

• Reduce size and weight of packages to improve transportation fuel efficiency.

• Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards.

End-of-life Management and
Recycling

HP offers end-of-life HP product return and recycling programs in many geographic areas. To
recycle your product, please go to: http://www.hp.com/go/reuse-recycle or contact your nearest
HP sales office. Products returned to HP will be recycled, recovered or disposed of in a
responsible manner.

The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information
for each product type for use by treatment facilities. This information (product disassembly
instructions) is posted on the HP web site at: http://www.hp.com/go/recyclers. These
instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM
customers who integrate and re-sell HP equipment.

HP, Inc. Corporate
Environmental Information

For more information about HP’s commitment to the environment:

Global Citizenship Report

http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html

Eco-label certifications

http://www8.hp.com/us/en/hp-information/environment/ecolabels.html

ISO 14001 certificates:

http://h20195.www2.hp.com/V2/GetDocument.aspx?docname=c04755842

and

http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/cert.pdf

COUNTRY OF ORIGIN

China

QuickSpecs

HP ZBook 15v G5 Mobile Workstation

Options and Accessories (sold separately and availability may vary by country)

c05941104 — DA - 16149 Worldwide — Version 1 —April 5, 2018

Page 32

Type

Description

Part #

Memory

HP 8GB DDR4-2666 SODIMM

TBD

HP 16GB DDR4-2666 SODIMM

TBD

HP 32GB DDR4-2666 SODIMM

TBD

HP 8GB DDR4-2666 ECC SODIMM

TBD

HP 16GB DDR4-2666 ECC SODIMM

TBD

HP 32GB DDR4-2666 ECC SODIMM

TBD

Cases

HP Professional slim Top Load Case

H4J91AA

Docking

HP ZBook Dock with Thunderbolt™ 3 (150W)

P5Q58AA

HP ZBook Dock with Thunderbolt™ 3 (200W)

P5Q61AA

HP Executive Travel Hub

T0K29AA

HP Travel Hub

T0K30AA

HP Elite USB-C Desk Dock

Z9R42AA

HP Elite USB-C Desk Dock 2

2DW60AA

HP Thunderbolt™ Dock 230W G2

2UK38AA

HP USB-C Universal Dock

1MK33AA

HP USB-C Mini Dock

1PM64AA

HP USB-C to USB-A Hub

Z6A00AA

Elite USB-C Dock

X7W54AA

HP ZBook Thunderbolt™ 3 1m cable

Z4P20AA

HP Thunderbolt™ 1m combo cable

3AQ25AA

Input/Output ­Mice

HP Slim USB Keyboard and Mouse

T6T83AA

HP Slim Wireless Keyboard and Mouse

T6L04AA

HP Wireless (Link-5) Keyboard

T6U20AA

HP 3-Button Laser Mouse

H4B81AA#xxx

HP USB Essential Keyboard and Mouse

H6L29AA

HP Ultra Mobile Wireless Mouse

H6F25AA#xxx

HP X4000 Bluetooth Mouse

H3T50AA#xxx

HP Comfort Grip Wireless Mouse

H2L63AA

HP Bluetooth mouse

F3J92AA#xxx

HP USB Premium Mouse

1JR32AA

HP Wireless Premium Mouse

1JR31AA

Displays

HP DreamColor Z27x Studio Display

D7R00A8

Power Adapters

HP 150W Slim A/C Adapter

W2F74AA

Adapters

HDMI to DVI adapter

F5A28AA

HP USB Smart Card Reader

F6V67AA

HP dual output wireless adapter

C5U89AA

USB-C to RJ45

V7W66AA

QuickSpecs

HP ZBook 15v G5 Mobile Workstation

Options and Accessories (sold separately and availability may vary by country)

c05941104 — DA - 16149 Worldwide — Version 1 —April 5, 2018

Page 33

USB 3.0 to RJ45

N7P47AA

USB-C to HDMI 1.4

N9K77AA

HP USB-C to VGA Adapter

N9K76AA

HP USB-C to DisplayPort™ Adapter

N9K78AA

HDMI to VGA Adapter

H4F02AA

HDMI to DVI adapter

F5A28AA

USB-C to DP

TBD

USB-C to TB1/TB2

TBD

7.4 to 4.5mm Adapter

K0Q39AA

Collaboration

HP USB Collaboration Keyboard

Z9N38AA#xxx

HP Wireless Collaboration Keyboard

Z9N39AA#xxx

HP USB Speaker Phone

X7N17AA

HP Stereo 3.5mm Headset

T1A66AA

HP Stereo USB Headset

T1A67AA

UCC Wireless Earpiece

W3K08AA

UCC Wireless Duo Headset

W3K09AA

HP Conferencing Keyboard

K8P74AA#xxx

HP Speaker Phone

K7V16AA

HP Wired Headset

K7V17AA

Storage - External
Storage

HP 1TB 7200RPM 9.5mm SATA HDD

L3M56AA

HP 500GB 7200rpm HDD

F3B97AA

HP 256GB TLC SDD

M0F34AA

HP 256GB M2 PCIe SSD (2280)

V3K66AA

HP 512GB M2 PCIe SSD (2280)

V3K67AA

HP 256GB TLC PCI-e 3x4 NVMe M.2 SSD

1FU87AA

HP 512GB TLC PCI-e 3x4 NVMe M.2 SSD

1FU88AA

HP USB External DVDRW Drive

F2B56AA

Security

HP 15.6" Notebook PC Privacy Filter

J7H71AA

HP Nano Keyed Cable Lock

1AJ39AA

HP Nano Dual Head Keyed Cable Lock

1AJ41AA

HP 3 year Next business day onsite Hardware Support w/Accidental Damage Protection-G2
for Notebooks

UF631E

QuickSpecs

HP ZBook 15v G5 Mobile Workstation

Summary of Changes

c05941104 — DA - 16149 Worldwide — Version 1 —April 5, 2018

Page 34

Date of change:

Version History:

Description of change:

From v1 to v2

QuickSpecs

HP ZBook 15v G5 Mobile Workstation

c05941104 — DA - 16149 Worldwide — Version 1 —April 5, 2018

Page 35

Copyright © 2018 HP Development Company, L.P.

The information contained herein is subject to change without notice. The only warranties for HP products are set forth in the
express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an
additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Intel, Core, vPro, Xeon, Celeron and Thunderbolt™ are registered trademarks or trademarks of Intel Corporation in the U.S. and/or
other countries. Bluetooth is a registered trademark of its proprietor, used by HP Inc. under license. Adobe is a trademark of
Adobe Systems Incorporated. Qualcomm and Snapdragon are trademarks of Qualcomm, Inc. ENERGY STAR is a registered
trademark mark of the U.S. Environmental Protection Agency. Microsoft and Windows are registered trademarks of Microsoft
Corporation in the United States and/or other countries. AMD, Enduro and FirePro are trademarks of Advanced Micro Devices, Inc.
NVIDIA, the NVIDIA logo, Optimus and Quadro are trademarks and/or registered trademarks of NVIDIA Corporation in the U.S. and
other countries. SD, SDHC, and SDXC are trademarks or registered trademarks of SD-3C in the United States, other countries or
both. USB Type-C and USB-C are trademarks of USB Implementers Forum. DisplayPort™ and the DisplayPort™ logo are
trademarks owned by the Video Electronics Standards Association (VESA®) in the United States and other countries.
