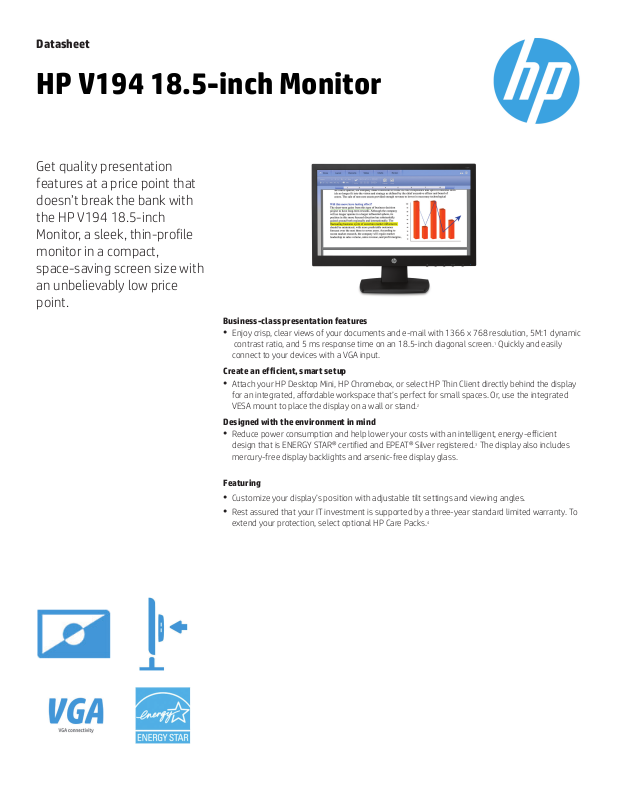

Datasheet
HP V194 18.5-inch Monitor
Get quality presentation
features at a price point that
doesn’t break the bank with
the HP V194 18.5-inch
Monitor, a sleek, thin-profile
monitor in a compact,
space-saving screen size with
an unbelievably low price
point.
Business-class presentation features
●
Enjoy crisp, clear views of your documents and e-mail with 1366 x 768 resolution, 5M:1 dynamic
contrast ratio, and 5 ms response time on an 18.5-inch diagonal screen.1Quickly and easily
connect to your devices with a VGA input.
Create an efficient, smart setup
●
Attach your HP Desktop Mini, HP Chromebox, or select HP Thin Client directly behind the display
for an integrated, affordable workspace that’s perfect for small spaces. Or, use the integrated
VESA mount to place the display on a wall or stand.
Designed with the environment in mind
●
Reduce power consumption and help lower your costs with an intelligent, energy-efficient
design that is ENERGY STAR® certified and EPEAT® Silver registered.3The display also includes
mercury-free display backlights and arsenic-free display glass.
2
Featuring
●
Customize your display’s position with adjustable tilt settings and viewing angles.
●
Rest assured that your IT investment is supported by a three-year standard limited warranty. To
extend your protection, select optional HP Care Packs.
4
Page 2
Datasheet | HP V194 18.5-inch Monitor
HP V194 18.5-inch Monitor Specifications Table
Product Number
Display Size (diagonal)
Display Type
Panel Active Area
Viewing Angle
Brightness
Contrast Ratio
Response Time
Aspect Ratio
Native Resolution
Resolutions Supported
Display Features
User Controls
Input Signal
Input Power
Power Consumption
Dimensions with Stand
(W x D x H)
Dimensions without
Stand (W x D x H)
Weight
Ergonomic Features
Environmental
What's in the box
See important legal disclaimers on the last page
V5E94AA
46.99 cm (18.5")
TN w/LED backlight
16.13 X 9; 409.8 x 230.4 mm
90° horizontal; 65° vertical
200 cd/m²
600:1 static; 5000000:1 dynamic
5 ms on/off
16:9
1366 x 768 @ 60 Hz
1366 x 768; 1280 x 720; 1024 x 768; 800 x 600; 720 x 400; 640 x 480
Anti-glare; Plug and Play; User programmable; Language selection; On-screen controls; LED Backlights
Menu; Minus ("-"); Plus ("+"); OK; Power
1 VGA;
Input voltage: 100 to 240 VAC
17 W (maximum), 15 W (typical), 0.5 W (standby)
17.38 x 8.59 x 13.33 in
44.14 x 21.81 x 33.86 cm
17.38 x 1.79 x 10.94 in
44.14 x 4.54 x 27.77 cm
Without stand
5.73 lb
2.6 kg
With stand
Tilt: -5 to +22°
Mercury-free display backlights; Arsenic-free display glass
Monitor; AC power cord; VGA cable
1
1
1
2
Page 3
Datasheet | HP V194 18.5-inch Monitor
Accessories and services (not included)
HP Adjustable Dual Display
Stand
HP Single Monitor Arm
HP Quick Release Bracket
HP UHD USB Graphics
Adapter
HP Business PC Security Lock
Kit
The HP Adjustable Dual Display Stand allows you to use two displays to maximize your productivity and optimize
efficiency. Either or both displays can be rotated to landscape or portraitorientation, and thestand is depth-, height- , tilt-,
and angle-adjustable so you can view both screens at eye-level as well as slightly facing each other, letting you track
multiple applications and information sources at the same time. Integrated base rollers let you rotate the stand so you can
more easily share your work.
Product number: AW664AA
The HP Single Monitor Arm is the perfect desk accessory for your work life. Sleek and streamlined, the HP Single Monitor
Arm is designed to complement the way you work.
Product number: BT861AA
HP Quick Release is an easy to use, 100 mm VESA-compliant, LCD monitor mounting solution that allows you to quickly
and securely attach a flat panel monitor to a variety of stands, brackets, arms or wall mounts. HP Quick Release can also
be used for mounting any combination of devices that are compatible with the 100 mm VESA Flat Display Mounting
Interface Standard. The failsafe "Sure-Lock" mechanism snaps the monitor (or mounted device) securely in place, and can
be further secured with a theft-deterrent security screw.
Product number: EM870AA
Boost your productivity by extending or mirroring your desktop to a UHD display with the HP UHD USB Graphics Adapter.
Product number: N2U81AA
Protect your HP Business PC from tampering or theft in public locations by locking-down peripherals such as keyboards,
mice, monitors or USB security devices and preventing the removal of the PC chassis cover.
Product number: PV606AA
HP 4 year Next business day
Exchange Standard Monitor
Service
HP Hardware Support
targeted at products that can easily be shipped and on which customers may easily restore data from backup files, HP
Hardware Support Exchange Service is a cost-efficient but still convenient alternative to onsite support. HP Hardware
Support Exchange Service provides a replacement product or part to be delivered free of freight charges to your
location within a specified period of time. Replacement products or parts are new or equivalent to new in performance.
Product number: U0J10E
Exchange Service offers a reliable and fast exchange service for eligible HP products. Specifically
3
Page 4
Datasheet | HP V194 18.5-inch Monitor
Messaging Footnotes
1
All performance specifications represent the typical specifications provided by HP's component manufacturers; actual performancemay vary either higher orlower.
2
Sold separately. See product QuickSpecs for exact compatibility. HP Quick Release required and sold separately. Mounting hardware sold separately.
3
EPEAT® registered where applicable. EPEAT registration varies by country. See www.epeat.net for registration status in your country.
4
Sold separately. Service levels and response times for HP Care Packs may vary depending onyour geographiclocation. Servicestarts on date of hardware purchase. Restrictions and limitations apply. For details, visit
www.hp.com/go/cpc. HP Services are governed by the applicable HP terms andconditions of service provided or indicatedto Customer at thetime of purchase. Customer may haveadditional statutory rights according to
applicable local laws, andsuch rights are not in any way affected by the HP terms and conditions of service or the HP Limited Warranty provided with yourHP Product.
Technical Specifications Footnotes
1
All specifications represent the typical specificationsprovided byHP's component manufacturers, actual performancemay vary either higher orlower.
Sign up for updates
hp.com/go/getupdated
Learn more at
hp.com
© Copyright 2016 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products
and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting
an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
ENERGY STAR® and the ENERGY STAR® mark are registered trademarks of the U.S. Environmental Protection Agency.
4AA6-3899ENUC, January 2016
