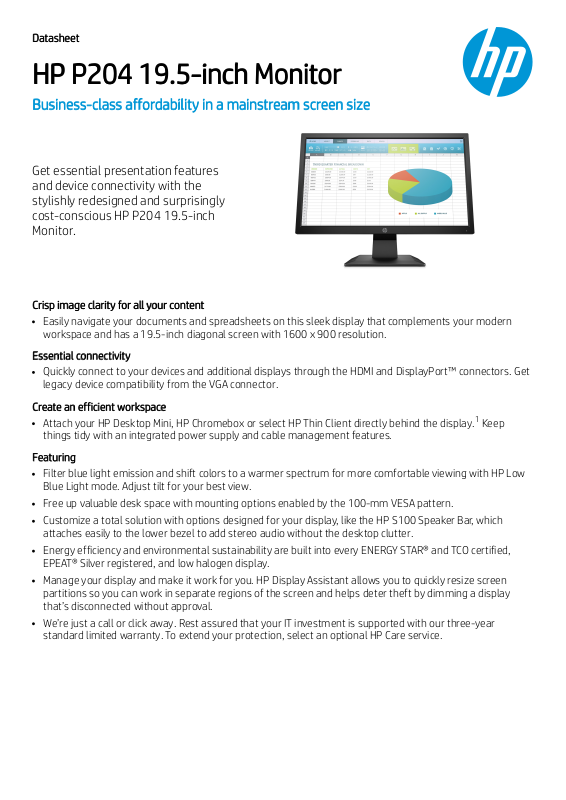

HP 5RD65AA Product Data Sheet

Page 1

DatasheetDatasheet

HP P204 19.5-inch MonitorHP P204 19.5-inch Monitor

Business-class affordability in a mainstream screen sizeBusiness-class affordability in a mainstream screen size

Get essential presentation features and device connectivity with the stylishly redesigned and surprisingly cost-conscious HP P204 19.5-inch Monitor.

Crisp image clarity for all your contentCrisp image clarity for all your content

Easily navigate your documents and spreadsheets on this sleek display that complements your modern workspace and has a 19.5-inch diagonal screen with 1600 x 900 resolution.

Essential connectivityEssential connectivity

Quickly connect to your devices and additional displays through the HDMI and DisplayPort™ connectors. Get legacy device compatibility from the VGA connector.

Create an efficient workspaceCreate an efficient workspace

Attach your HP Desktop Mini, HP Chromebox or select HP Thin Client directly behind the display. Keep things tidy with an integrated power supply and cable management features.

FeaturingFeaturing

Filter blue light emission and shift colors to a warmer spectrum for more comfortable viewing with HP Low Blue Light mode. Adjust tilt for your best view.

Free up valuable desk space with mounting options enabled by the 100-mm VESA pattern. Customize a total solution with options designed for your display, like the HP S100 Speaker Bar, which

attaches easily to the lower bezel to add stereo audio without the desktop clutter. Energy efficiency and environmental sustainability are built into every ENERGY STAR® and TCO certified,

EPEAT® Silver registered, and low halogen display. Manage your display and make it work for you. HP Display Assistant allows you to quickly resize screen

partitions so you can work in separate regions of the screen and helps deter theft by dimming a display that’s disconnected without approval.

We’re just a call or click away. Rest assured that your IT investment is supported with our three-year standard limited warranty. To extend your protection, select an optional HP Care service.

Page 2

Data sheet | HP P204 19.5-inch Monitor

HP P204 19.5-inch Monitor Specifications TableHP P204 19.5-inch Monitor Specifications Table

Display typeDisplay type TN with LED backlight Display size (diagonal)Display size (diagonal) 19.5" Viewing angleViewing angle 160° vertical; 170° horizontal BrightnessBrightness 250 cd/m² Contrast ratioContrast ratio 1000:1 static; 10000000:1 dynamic Response RatioResponse Ratio 5 ms gray to gray Product colourProduct colour Black Aspect ratioAspect ratio 16:9 Native resolutionNative resolution HD+ (1600 x 900 @ 60 Hz)

Resolutions supportedResolutions supported

1024 x 768; 1280 x 1024; 1280 x 800; 1366 x 768; 1440 x 900; 1600 x 900; 640 x 480; 720 x 400; 800 x 600

Display featuresDisplay features Anti-glare; LED backlights

User controlsUser controls

Brightness; Color control; Energy saving; Exit; Image control; Information; Management; Menu; PIP control;

Input control Input signalInput signal 1 DisplayPort™ 1.2 in (with HDCP support); 1 HDMI 1.4 (with HDCP support); 1 VGA EnvironmentalEnvironmental Operating temperature: 5 to 35°C; Operating humidity: 20 to 80% non-condensing PowerPower Input voltage 100 to 240 VAC Power consumptionPower consumption 18 W (maximum), 15 W (typical), 0.3 W (standby) DimensionsDimensions 46.26 x 4.87 x 27.87 cm (Without stand.) WeightWeight 2.84 kg (With stand.) Ergonomic featuresErgonomic features Tilt: -5 to +25° Physical security featuresPhysical security features Security lock-ready Energy efficiency complianceEnergy efficiency compliance ENERGY STAR® certified; EPEAT® Silver

Certification and complianceCertification and compliance

Australian-New Zealand MEPS; BIS; BSMI; CB; CCC; CEL; cTUVus; EAC; Energy Star; ErP; FCC; HSMI; ICES; KC; KCC;

Mexico CoC; MSIP; PSB; RCM; TCO Certified; VCCI; Vietnam MEPS; WEEE; ISC; South Africa Energy; ISO 9001;

TUS-GS; eStandby; EC1062; S-mark Environmental specificationsEnvironmental specifications Arsenic-free display glass; Low halogen; Mercury-free display backlights; TCO Certified What's in the boxWhat's in the box AC power cord; DisplayPort™ cable; Documentation; VGA cable



Page 3

Data sheet | HP P204 19.5-inch Monitor

HP P204 19.5-inch MonitorHP P204 19.5-inch Monitor

Accessories and services (not included)

HP Business PC Security Lock v3 KitHP Business PC Security Lock v3 Kit

Help prevent chassis tampering and secure your PC and display in workspaces and public areas with the affordable HP Business PC Security Lock v3 Kit. Crisp, clear, high-resolution monitors for the business environment. CRT and TFT monitors designed to deliver picture perfection to the most demanding of users. HP works closely with many component and monitor suppliers to ensure every model meets user needs for image brightness, contrast, focus, purity, convergence and geometry. All HP Business monitors are compliant with the main environmental standards, such as MPR-II, TCO '99. Product number: 3XJ17AAProduct number: 3XJ17AA

HP 3 year Next business day OnsiteHP 3 year Next business day Onsite Standard Monitor Hardware SupportStandard Monitor Hardware Support

Receive 3 years of next business day onsite HW Support from an HP-qualified technician for your computing device, if the issue cannot be solved remotely.

Page 4

Data sheet | HP P204 19.5-inch Monitor

HP P204 19.5-inch MonitorHP P204 19.5-inch Monitor

Messaging FootnotesMessaging Footnotes

HP Desktop Mini, HP Chromebox, and HP Thin Client sold separately. Requires HP B300 PC Mounting Bracket for Monitors, sold separately.

Technical Specifications FootnotesTechnical Specifications Footnotes

All specifications represent the typical specifications provided by HP's component manufacturers, actual performance may vary either higher or lower. External power supplies, power cords, cables and peripherals are not Low Halogen. Service parts obtained after purchase may not be Low Halogen. Lock is sold separately.

© Copyright 2019 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. EPEAT® registered where applicable. EPEAT registration varies by country. See www.epeat.net for registration status by country. See HP’s 3rd party option store for solar energy accessory at www.hp.com/go/options  ENERGY STAR® and the ENERGY STAR® mark are registered trademarks of the U.S. Environmental Protection Agency. DisplayPort™ and the DisplayPort™ logo are trademarks owned by the Video Electronics Standards Association (VESA®) in the United States and other countries.

May 2019
