HP 5920AF-24XG Installation Manual

Download

Page 1

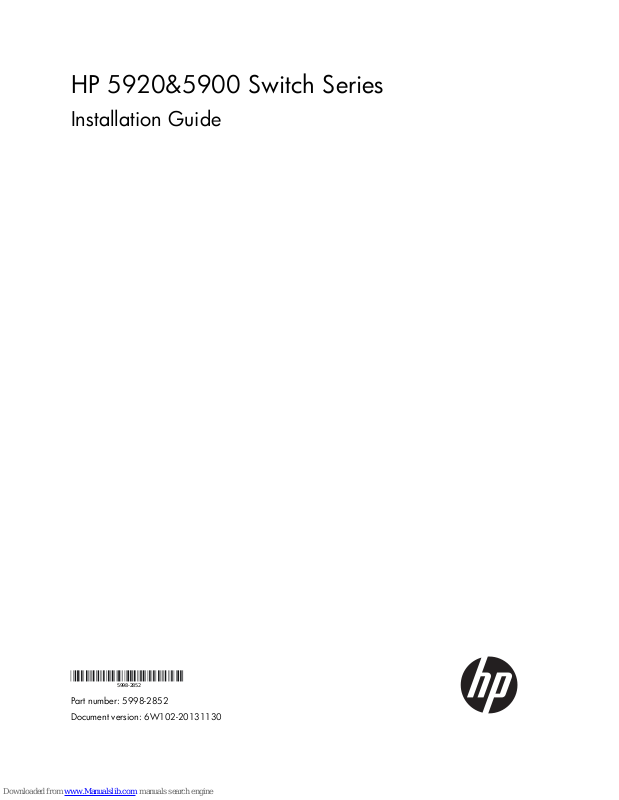

HP 5920&5900 Switch Series

Installation Guide

Part number: 5998-2852

Document version: 6W102-20131130

5998-2852

Page 2

Legal and notice information

No part of this documentation may be reproduced or transmitted in any form or by any means without prior written consent of Hewlett-Packard Development Company, L.P.

The information contained herein is subject to change without notice.

HEWLETT-PACKARD COMPANY MAKES NO WARRANTY OF ANY KIND WITH REGARD TO THIS MATERIAL, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Hewlett-Packard shall not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance, or use of this material.

The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

Page 3

Contents

Preparing for installation ············································································································································· 1

Safety recommendations ·················································································································································· 2 Examining the installation site ········································································································································· 3

Temperature/humidity ············································································································································· 3 Cleanness ·································································································································································· 3 EMI ············································································································································································· 4 Laser safety ································································································································································ 4

Installation tools ································································································································································· 4

Installing the switch ······················································································································································ 5

Installing the switch in a 19-inch rack ····························································································································· 5

Installation prerequisites ·········································································································································· 5 Mounting bracket and rack mounting rail kits ······································································································ 6 Rack-mounting procedures at a glance ·················································································································· 7 Attaching the mounting brackets, chassis rails, and grounding cable to the chassis ······································· 7 Attaching the slide rails to the rack ····················································································································· 10 Mounting the switch in the rack ··························································································································· 11

Grounding the switch ···················································································································································· 12

Grounding the switch with a grounding strip ····································································································· 13 Grounding the switch by using the AC power cord ·························································································· 14

Installing/removing a fan tray ······································································································································ 15

Installing a fan tray ··············································································································································· 15 Removing a fan tray ·············································································································································· 16

Installing/removing a power supply ···························································································································· 17

Installing a power supply ····································································································································· 17 Removing a power supply ···································································································································· 18

Connecting the power cord ·········································································································································· 20

Connecting the 650W AC power supply ·········································································································· 20 Connecting the 650W DC power supply ··········································································································· 20

Verifying the installation ················································································································································ 21

Accessing the switch for the first time ······················································································································· 22

Setting up the configuration environment ···················································································································· 22 Connecting the console cable ······································································································································ 22

Console cable ························································································································································ 22

Connection procedure ·········································································································································· 22 Setting terminal parameters ·········································································································································· 23 Powering on the switch·················································································································································· 26

Setting up an IRF fabric ············································································································································· 27

IRF fabric setup flowchart ·············································································································································· 27 Planning IRF fabric setup ··············································································································································· 28

Planning IRF fabric size and the installation site ································································································ 28

Identifying the master switch and planning IRF member IDs ············································································ 28

Planning IRF topology and connections ·············································································································· 29

Identifying physical IRF ports on the member switches ····················································································· 30

Planning the cabling scheme ······························································································································· 30 Configuring basic IRF settings ······································································································································· 32 Connecting the physical IRF ports ································································································································ 32 Accessing the IRF fabric to verify the configuration ··································································································· 32

Page 4

Maintenance and troubleshooting ···························································································································· 34

Power supply failure ······················································································································································ 34 Fan failure ······································································································································································· 34 Configuration terminal problems ·································································································································· 34

No terminal display ·············································································································································· 34

Garbled terminal display ······································································································································ 35

Appendix A Chassis views and technical specifications ························································································ 36

Chassis views ································································································································································· 36

HP 5920AF-24XG/HP 5920AF-24XG TAA ······································································································ 36

HP 5900AF-48XG-4QSFP+/HP 5900AF-48XG-4QSFP+ TAA/HP 5900CP-48XG-4QSFP+/HP

5900CP-48XG-4QSFP+8Gb FC B-F ··················································································································· 37



HP 5900AF-48XGT-4QSFP+ ································································································································ 38

HP 5900AF-48G-4XG-2QSFP+ ··························································································································· 39 Technical specifications ················································································································································· 40

Appendix B FRUs and compatibility matrixes ·········································································································· 43

Hot swappable power supplies ···································································································································· 43 Hot swappable fan trays ··············································································································································· 43

Appendix C Ports and LEDs ······································································································································ 46

Ports ················································································································································································· 46

Console port ·························································································································································· 46

Management Ethernet port ··································································································································· 46

USB port ································································································································································· 46

SFP+ port ································································································································································ 47

QSFP+ port ···························································································································································· 49

10/100/1000Base-T autosensing Ethernet port ······························································································· 50

1/10GBase-T autosensing Ethernet port ············································································································ 51 LEDs ················································································································································································· 51

System status LED··················································································································································· 51

SFP+ port LED ························································································································································ 52

QSFP+ port LED ····················································································································································· 52

Management Ethernet port LEDs ·························································································································· 52

10/100/1000Base-T autosensing Ethernet port LEDs ······················································································ 53

1/10GBase-T autosensing Ethernet port LEDs ··································································································· 53

Appendix D Cooling system ······································································································································ 54

HP 5920 cooling system ··············································································································································· 54 HP 5900 cooling system ··············································································································································· 55

Support and other resources ····································································································································· 57

Contacting HP ································································································································································ 57

Subscription service ·············································································································································· 57 Related information ························································································································································ 57

Documents ······························································································································································ 57

Websites ································································································································································· 57 Conventions ···································································································································································· 58

Index ··········································································································································································· 60

Page 5

Preparing for installation

Table 1 describes the HP 5920 and 5900 Switch Series models and power supplies.

Table 1 HP 5920 and 5900 Switch Series models and power supplies

Product code HP description Alias

HP 5920 switches:

JG296A HP 5920AF-24XG Switch HP 5920AF-24XG

JG555A HP 5920AF-24XG TAA-compliant Switch HP 5920AF-24XG TAA

HP 5900 switches:

JC772A HP 5900AF-48XG-4QSFP+ Switch HP 5900AF-48XG-4QSFP+

JG554A HP 5900AF-48XG-4QSFP+ TAA-compliant Switch HP 5900AF-48XG-4QSFP+ TAA

JG838A HP FlexFabric 5900CP-48XG-4QSFP+ Switch HP 5900CP-48XG-4QSFP+

E7W29A

HP StoreFabric 5900CP-48XG-4QSFP+8Gb FC B-fan Trays Converged Switch

HP 5900CP-48XG-4QSFP+8Gb FC B-F

JG336A HP 5900AF-48XGT-4QSFP+ Switch HP 5900AF-48XGT-4QSFP+

JG510A HP 5900AF-48G-4XG-2QSFP+ Switch HP 5900AF-48G-4XG-2QSFP+

Power supplies:

JC680A A58x0AF 650W AC Power Supply 650W AC power supply

JC681A A58x0AF 650W DC Power Supply 650W DC power supply

Fan trays:

JC682A

HP A5820AF/A5800AF back (power side) to front (port side) airflow Fan Tray

N/A

JC683A

HP A5820AF/A5800AF front (port side) to back (power side) airflow Fan Tray

N/A

JG552A

HP X711 Front (port side) to Back (power side) Airflow High Volume Fan Tray

N/A

JG553A

HP X712 Back (power side) to Front (port side) Airflow High Volume Fan Tray

N/A

JG297A

HP 5920AF-24XG Back (power-side) to Front (port-side) Airflow Fan Tray

N/A

JG298A

HP 5920AF-24XG Front (port-side) to Back (power-side) Airflow Fan Tray

N/A

• For regulatory identification purposes, the HP 5920AF-24XG and HP 5920AF-24XG TAA products

are assigned Regulatory Model Numbers (RMN). The Regulatory Model Numbers for these products are listed below. These regulatory numbers should not be confused with the marketing names HP 5920AF, or product numbers JG296A and JG555A.

Product code RMN HP description

Page 6

Product code RMN HP description

JG296A BJNGA-AC0007 HP 5920AF-24XG Switch

JG555A BJNGA-AC0007 HP 5920AF-24XG TAA-compliant Switch

• For regulatory identification purposes, the HP 5900AF-48XG-4QSFP+ and HP

5900AF-48XG-4QSFP+ TAA products are assigned Regulatory Model Numbers (RMN). The Regulatory Model Numbers for these products are listed below. These regulatory numbers should not be confused with the marketing names HP 5900AF, or product numbers JC772A and JG554A.

Product code RMN HP description

JC772A BJNGA-AD0016 HP 5900AF-48XG-4QSFP+ Switch

JG554A BJNGA-AD0016

HP 5900AF-48XG-4QSFP+ TAA-compliant Switch

• For regulatory identification purposes, the HP FlexFabric 5900CP-48XG-4QSFP+ Switch and HP

StoreFabric 5900CP-48XG-4QSFP+ 8Gb FC B-fan Trays Converged Switch product are assigned Regulatory Model Number (RMN). The Regulatory Model Number for these products is listed below. This regulatory number should not be confused with the marketing names HP FlexFabric 5900CP, HP StoreFabric 5900CP, or product numbers JG838A, E7W29A.

Product code RMN HP description

JG838A BJNGA-AD0023 HP FlexFabric 5900CP-48XG-4QSFP+ Switch

E7W29A BJNGA-AD0023

HP StoreFabric 5900CP-48XG-4QSFP+ 8Gb FC B-fan Trays Converged Switch

• For regulatory identification purposes, the HP 5900AF-48XGT-4QSFP+ Switch is assigned a

regulatory model number (RMN) BJNGA-AD0018. This regulatory number should not be confused with the marketing name HP 5900AF, or product code JG336A.

• For regulatory identification purposes, the HP 5900AF-48G-4XG-2QSFP+ Switch is assigned a

regulatory model number (RMN) BJNGA-AD0017. This regulatory number should not be confused with the marketing name HP 5900AF, or product code JG510A.

Safety recommendations

To avoid any equipment damage or bodily injury, read the following safety recommendations before installation. Note that the recommendations do not cover every possible hazardous condition.

• Before cleaning the switch, unplug all power cords from the switch. Do not clean the switch with wet

cloth or liquid.

• Do not place the switch near water or in a damp environment. Prevent water or moisture from

entering the switch chassis.

• Do not place the switch on an unstable case or desk. The switch might be severely damaged in case

of a fall.

• Ensure good ventilation of the equipment room and keep the air inlet and outlet vents of the switch

free of obstruction.

• Make sure the operating voltage is in the required range.

Page 7

• To avoid electrical shocks, do not open the chassis while the switch is operating or when the switch

is just powered off.

• When replacing FRUs, including power supplies and fan trays, wear an ESD wrist strap to avoid

damaging the units.

Examining the installation site

The HP 5920 and 5900 switches must be used indoors.

Mount your switch in a rack and make sure:

• Adequate clearance is reserved at the air inlet and exhaust vents for ventilation.

• The rack has a good ventilation system.

• Identify the hot aisle and cold aisle at the installation site, and make sure ambient air flows into the

switch from the cold aisle and exhausts to the hot aisle.

• Identify the airflow designs of neighboring devices, and prevent hot air flowing out of the bottom

device from entering the top device.

• The rack is sturdy enough to support the switch and its accessories.

• The rack is correctly grounded.

To ensure normal operation and long service life of your switch, install it in an environment that meets the requirements described in the following subsections.

Temperature/humidity

Maintain appropriate temperature and humidity in the equipment room.

• Lasting high relative humidity can cause poor insulation, electricity creepage, mechanical property

change of materials, and metal corrosion.

• Lasting low relative humidity can cause washer contraction and ESD and bring problems including

loose captive screws and circuit failure.

• High temperature can accelerate the aging of insulation materials and significantly lower the

reliability and lifespan of the switch.

For the temperature and humidity requirements of different switch models, see "Appendix A Chassis

iews and technical specifications."

Cleanness

Dust buildup on the chassis might result in electrostatic adsorption, which causes poor contact of metal components and contact points, especially when indoor relative humidity is low. In the worst case, electrostatic adsorption can cause communication failure.

Table 2 Dust concentration limit in the equipment room

Substance Concentration limit (particles/m³)

Dust

≤ 3 x 104 (no visible dust on the tabletop over three days)

NOTE:

Dust diameter ≥ 5 μm

Page 8

The equipment room must also meet limits on salts, acids, and sulfides to eliminate corrosion and premature aging of components, as shown in Table 3.

Table 3 Harmful gas li

mits in the equipment room

Gas Maximum concentration (mg/m

)

0.2

H2S 0.006

NH3 0.05

Cl2 0.01

EMI

Electromagnetic interference (EMI) might be coupled from the source to the switch through the following coupling mechanisms:

• Capacitive coupling

• Inductive coupling

• Radiative coupling

• Common impedance coupling

• Conductive coupling

To prevent EMI, take the following actions:

• If AC power is used, use a single-phase three-wire power receptacle with protection earth (PE) to

filter interference from the power grid.

• Keep the switch far away from radio transmitting stations, radar stations, and high-frequency

devices to make sure the EMI levels do not exceed the compliant range.

• Use electromagnetic shielding, for example, shielded interface cables, when necessary.

• To prevent signal ports from getting damaged by over-voltage or over-current caused by lightning

strikes, only route interface cables indoors.

Laser safety

ARNING!

Do not stare into any fiber port when the switch has power. The laser li

ht emitted from the optical fiber

might hurt your eyes.

The HP 5920 and 5900 switches are Class 1 laser devices.

Installation tools

• Phillips screwdriver

• ESD wrist strap

All these installation tools are user supplied.

Page 9

Installing the switch

CAUTION:

Keep the tamper-proof seal on a mountin

screw on the chassis cover intact, and if you want to open the

chassis, contact HP for permission. Otherwise, HP shall not be liable for any consequence caused thereby.

Figure 1 Hardware installation flow

Installing the switch in a 19-inch rack

Installation prerequisites

The rack depth for the HP 5920AF-24XG, 5920AF-24XG TAA, 5900AF-48XGT- 4QSFP+, 5900AF-48XGT-4QSFP+ TAA, 5900CP-48XG-4QSFP+, 5900CP-48XG-4QSFP+8Gb FC B-F, and 5900AF-48XG-4QSFP+ must be 1000 mm (39.37 in).

The distance from the front to the rear posts of the rack must meet the requirements described in Table 4.

ou must use both the mounting bracket and the rack mounting rail kit to rack-mount the switch.

Page 10

Table 4 Requirements for the distance from the front to rear posts

Switch model Installation method Minimum distance Maximum distance

• HP 5920AF-24XG

• HP 5920AF-24XG TAA

Using mounting brackets and short slide rails (supplied with the switch)

401 mm (15.79 in) 895 mm (35.24 in)

• HP 5900AF-48XG-4QSFP+

TAA

• HP 5900CP-48XG-4QSFP+

• HP

5900CP-48XG-4QSFP+8G b FC B-F

• HP 5900AF-48XGT-4QSFP+

Using mounting brackets and short slide rails (supplied with the switch)

405 mm (15.94 in) 854 mm (33.62 in)

HP 5900AF-48G-4XG-2QSFP+

Using mounting brackets and short slide rails (supplied with the switch)

401 mm (15.79 in) 654 mm (25.75 in)

Using mounting brackets and long slide rails (optional)

621 mm (24.45 in) 874 mm (34.41 in)

Mounting bracket and rack mounting rail kits

Every HP 5920 and 5900 switch comes with a pair of mounting brackets and a rack mounting kit that includes a pair of chassis rails and a pair of slide rails. See Figure 2 and Figure 3.

Figure 2 1U mounting

bracket kit

Figure 3 Rack mounting rail kit

Page 11

(1) Chassis rail (2) Slide rail

Rack-mounting procedures at a glance

Figure 4 Rack-mounting procedure

NOTE:

If a rack shelf is available, you can put the switch on the rack shelf, slide the switch to an appropriate location, and attach the switch to the rack with the mounting brackets.

Attaching the mounting brackets, chassis rails, and grounding cable to the chassis

Each of the HP 5920 and 5900 switches has one front mounting position (near the network ports) and one rear mounting position (near the power supplies).

Each of the HP 5920AF-24XG and 5920AF-24XG TAA switches has one primary grounding point (with a grounding sign) and one auxiliary grounding point, and each of the HP 5900AF-48XG-4QSFP+, 5900AF-48XG-4QSFP+ TAA, 5900CP-48XG-4QSFP+, 5900CP-48XG-4QSFP+8Gb FC B-F, 5900AF-48XGT-4QSFP+, and 5900AF-48G-4XG-2QSFP+ switches has one primary grounding point (with a grounding sign) and two auxiliary grounding points. Use the primary grounding point whenever possible. If the primary grounding point fails or is not suitable for the installation site, use one of the auxiliary grounding points.

Figure 5 Mounting and grounding positions of the HP 5920AF-24XG/5920AF-24XG TAA

Page 12

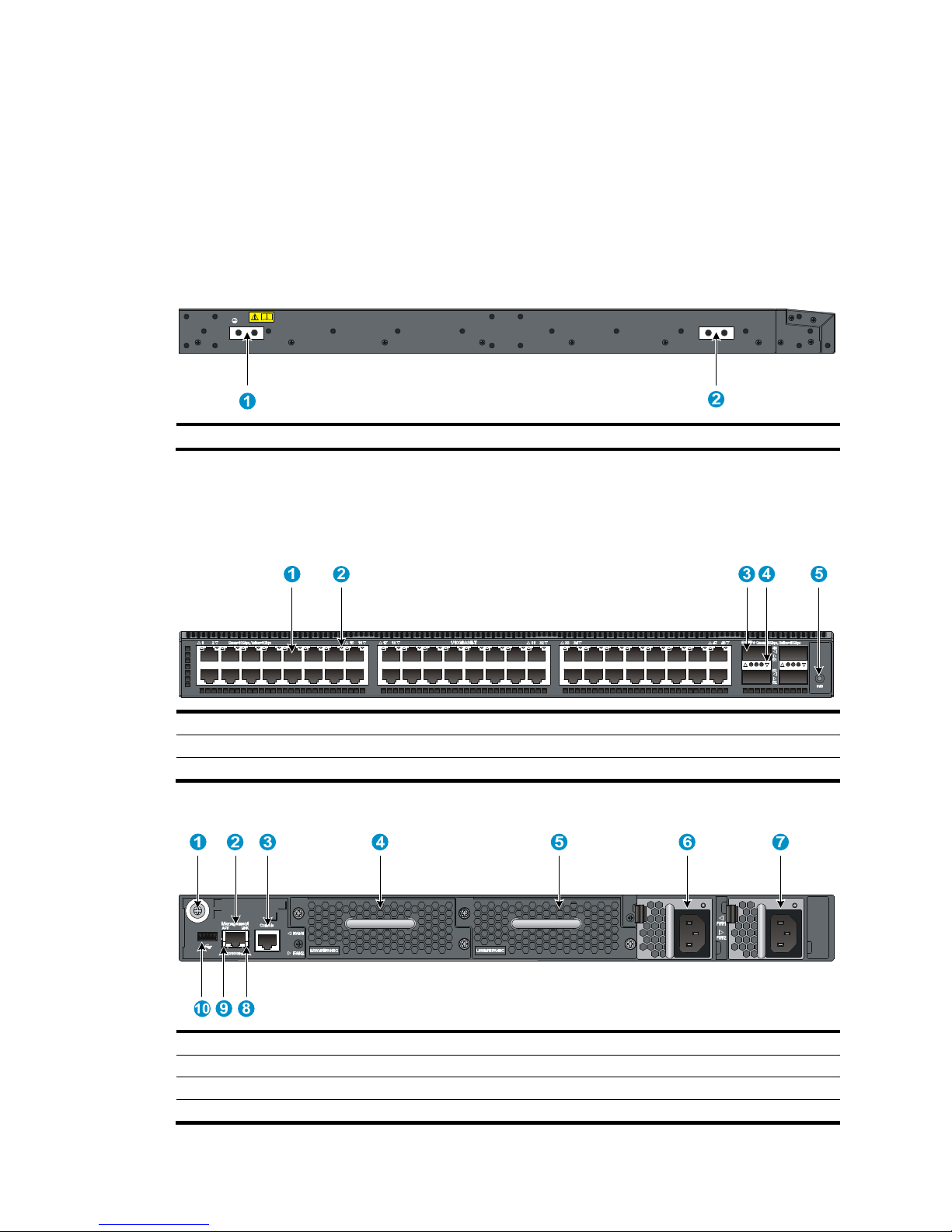

(1) Rear mounting position (2) Primary grounding point (3) Auxiliary grounding point 1 (4) Front mounting position

Figure 6 Mounting and grounding positions of the HP 5900AF-48XG-4QSFP+/5900AF-48XG-4QSFP+ TAA/5900CP-48XG-4QSFP+/5900CP-48XG-4QSFP+8Gb FC B-F/5900AF-48XGT-4QSFP+

(1) Auxiliary grounding point 2 (2) Rear mounting position (3) Primary grounding point (4) Auxiliary grounding point 1 (5) Front mounting position

Figure 7 Mounting and grounding positions of the HP 5900AF-48G-4XG-2QSFP+

1 2 3 4 5

Page 13

(1) Auxiliary grounding point 2 (2) Rear mounting position (3) Primary grounding point (4) Auxiliary grounding point 1 (5) Front mounting position

Attaching the mounting brackets and chassis rails to the chassis

1. Align the mounting brackets with the screw holes in the rear mounting position or front mounting

position. See Figure 8 and Figure 9.

2. Use M4

screws (supplied with the switch) to attach the mounting brackets to the chassis.

3. Align the chassis rails with the rail mounting holes in the chassis:

{ If the mounting brackets are in the rear mounting position, align the chassis rails with the screw

holes at the front of the side panels. See Figure 8.

{ If the mounting brackets are in the front mounting position, align the chassis rails with the screw

holes at the rear of the side panels. See Figure 9.

4. Use M4

screws (supplied with the switch) to attach the chassis rails to the chassis.

NOTE:

Secure the mounting brackets and chassis rails to both sides of the chassis in the same way.

Connecting the grounding cable to the chassis

CAUTION:

The primary grounding point and auxiliary grounding point 1 are located on the left side panel. If you use one of these grounding points, you must connect the grounding cable to the grounding point before you mount the switch in the rack.

NOTE:

• HP recommends that you use the primary grounding point or auxiliary grounding point 1 because the

grounding cable and grounding screw that come with the switch are suitable only for these two grounding points.

• To use auxiliary grounding point 2 on the HP 5900AF-48XG-4QSFP+, 5900AF-48XG-4QSFP+ TAA,

5900CP-48XG-4QSFP+, 5900CP-48XG-4QSFP+8Gb FC B-F, 5900AF-48XGT-4QSFP+, and 5900AF-48G-4XG-2QSFP+ switches, you must prepare a grounding cable yourself.

To connect the grounding cable to a chassis grounding point, for example, the primary grounding point:

4 5

Page 14

1. Choose a grounding point.

2. Unpack the grounding cable and grounding screws.

You can use the cable and screws shipped with the switch only for connecting to the primary grounding point or auxiliary grounding point 1.

3. Align the two-hole grounding lug at one end of the cable with the grounding holes of the

grounding point, insert the grounding screws into the holes, and tighten the screws with a screwdriver to attach the grounding lug to the chassis, as shown in Figure 8.

Figure 8 Attaching th

e rear mounting brackets/chassis rails/grounding cable to the chassis

Figure 9 Attaching the front mounting brackets/chassis rails to the chassis

Attaching the slide rails to the rack

Page 15

1. Identify the rack attachment position for the slide rails.

2. Install cage nuts (user-supplied) in the mounting holes in the rack posts.

3. Align the screw holes in one slide rail with the cage nuts in the rack post on one side, and use

screws (user supplied) to attach the slide rail to the rack, as shown in Figure 10.

4. Repeat the pr

eceding step to attach the other slide rail to the rack post on the other side.

Keep the two slide rails at the same height so the slide rails can attach into the chassis rails.

Figure 10 Installing the slide rails

Mounting the switch in the rack

This task requires two people. To mount the switch in the rack:

1. Wear an ESD wrist strap and make sure it makes good skin contact and is well grounded.

2. Verify that the mounting brackets and chassis rails have been securely attached to the switch

chassis.

3. Verify that the slide rails have been correctly attached to the rear rack posts.

4. Install cage nuts (user-supplied) to the front rack posts and make sure they are at the same level as

the slide rails.

5. Supporting the bottom of the switch, align the chassis rails with the slide rails on the rack posts, as

shown in Figure 11. Work with another person to slid

e the chassis rails along the slide rails until

the mounting brackets are flush with the rack posts.

6. Use screws (user-supplied) to attach the mounting brackets to the rack, as shown in Figure 12.

secure the switch in the rack, make sure the front ends of the slide rails reach out of the chassis

rails.

Page 16

Figure 11 Mounting the switch in the rack (1)

Figure 12 Mounting the switch in the rack (2)

Grounding the switch

ARNING!

Correctly connecting the switch grounding cable is crucial to lightning protection and EMI protection.

Page 17

The power input end of the switch has a noise filter, whose central ground is directly connected to the chassis to form the chassis ground (commonly known as PGND). You must securely connect this chassis ground to the earth so the faradism and leakage electricity can be safely released to the earth to minimize EMI susceptibility of the switch.

You can ground a switch by using a grounding strip at the installation site or the AC power cord connected to the switch.

NOTE:

The power and grounding terminals in this section are for illustration only.

Grounding the switch with a grounding strip

ARNING!

Connect the

rounding cable to the grounding system in the equipment room. Do not connect it to a fire

main or lightning rod.

If a grounding strip is available at the installation site, connect the grounding cable to the grounding strip.

To connect the grounding cable:

1. Attach the two-hole grounding lug at one end of the grounding cable to a grounding point on the

switch chassis. See "Connecting the grounding cable to the chassis."

2. Remove the hex nut of a grounding post on the grounding strip.

3. Attach the ring terminal at the other end of the grounding cable to the grounding strip through the

grounding post, and fasten the ring terminal with the removed hex nut.

Figure 13 Connecting the grounding cable to a grounding strip

(1) Hex nut (2) Rin

terminal

(3) Grounding post

(4) Grounding strip

Page 18

NOTE:

• HP recommends that you use the primary grounding point or auxiliary grounding point 1, because the

grounding cable and grounding screw provided with the switch are applicable only to these two grounding points.

• To use auxiliary grounding point 2 on the HP 5900AF-48XG-4QSFP+, 5900AF-48XG-4QSFP+ TAA,

5900CP-48XG-4QSFP+, 5900CP-48XG-4QSFP+8Gb FC B-F, 5900AF-48XGT-4QSFP+, and 5900AF-48G-4XG-2QSFP+ switches, you must prepare a grounding cable yourself. The connection method is the same as connecting to the other two grounding points.

Grounding the switch by using the AC power cord

If the installation site has no grounding strips, you can ground an AC-powered switch through the protective earth (PE) wire of the power cord, but must make sure:

• The power cord has a PE terminal.

• The ground contact in the power outlet is securely connected to the ground in the power distribution

room or on the AC transformer side.

• The power cord is securely connected to the power outlet.

NOTE:

If the ground contact in the power outlet is not connected to the

round, report the problem and reconstruc

the grounding system.

Figure 14 Grounding through the PE wire of the AC power cord

(1) Three-wire AC power cable (2) Chassis rear panel

Page 19

NOTE:

To guarantee the grounding effect, use the grounding cable provided with the switch to connect to the grounding strip in the equipment room as long as possible.

Installing/removing a fan tray

CAUTION:

Every HP 5920 and 5900 switch requires two same direction air flow fan trays to function correctly.

• Do not operate the system with one failed fan tray for more than 24 hours.

• Do not remove the failed fan tray until you are ready for replacing it.

• Do not operate the system without any fan tray for more than 2 minutes.

• Do not operate the system outside of the temperature range 0°C to 45°C (32°F to 113°F) degrees.

Failure to comply with these operating requirements might void the warranty.

Installing a fan tray

CAUTION:

To prevent damage to the fan tray or the connectors on the backplane, insert the fan tray gently. If you encounter a hard resistance while inserting the fan tray, pull out the fan tray and insert it again.

Select appropriate fan trays as needed. For the optional fan trays and their specifications, see "Hot

swappable fan trays."

To install a fan tray:

1. Wear an ESD wrist strap and make sure it makes good skin contact and is well grounded.

2. Unpack the fan tray and verify that the fan tray model is correct.

3. Grasp the handle of the fan tray with one hand and support the fan tray bottom with the other, and

slide the fan tray along the guide rails into the slot until the fan tray seats in the slot and has a firm contact with the backplane. See callout 1 in Figure 15 or Figure 16.

4. Fasten the

captive screw on the fan tray with a Philips screwdriver until the fan tray is securely

attached in the chassis. See callout 2 in Figure 15 or Figure 16.

If the captive

screw cannot be tightly fastened, verify the installation of the fan tray.

Page 20

Figure 15 Installing an LSWM1FANSC/LSWM1FANSCB/LSWM1HFANSC/LSWM1HFANSCB fan tray (to the HP 5900AF-48XG-4QSFP+)

Figure 16 Installing an LSVM1FANSC/LSVM1FANSCB fan tray to the HP 5920AF-24XG

Removing a fan tray

ARNING!

• Take out the fan tray after the fans completely stop rotating.

• To avoid an unbalanced fan causing loud noise, do not touch the fans, even if they are not rotating.

To remove a fan tray:

1. Wear an ESD wrist strap and make sure it makes good skin contact and is well grounded.

2. Loosen the captive screw of the fan tray with a Philips screwdriver until it is fully disengaged from

the switch chassis.

3. Grasp the handle of the fan tray with one hand and pull the fan tray part way out the slot. Support

the fan tray bottom with the other hand, and pull the fan tray slowly along the guide rails out of the slot.

4. Put away the removed fan tray in an antistatic bag for future use.

Page 21

Installing/removing a power supply

ARNING!

In power redundancy mode, you can replace a power supply without powering off the switch but must strictly follow the installation and procedures in Figure 17 and Figure 18 to avoid a

ny bodily injury or

damage to the switch.

The switches do not support intermixing of AC and DC power supplies.

The HP 5920 and 5900 switches come with both power supply slots empty and the power filler modules as accessories.

You can install one or two power supplies for these switches as needed. For more information about the power supplies available for the switches, see "Hot swappable power supplies."

Figure 17 Installation pr

ocedure

Figure 18 Removal procedure

NOTE:

The HP A58x0AF 650W AC power supply and the HP A58x0AF 650W DC power supply are referred to as the 650W AC power supply and the 650W DC power supply throughout this installation guide.

Installing a power supply

CAUTION:

• Follow the forward inertia of the power supply when inserting it into the chassis, and make sure the

power supply has firm contact with the connectors on the backplane.

• To prevent damage to the connectors inside the switch chassis, insert the power supply gently. If you

encounter a hard resistance while inserting the power supply, pull out the power supply and insert it again.

• If only one power supply is installed, install a power filler module in the empty power supply slot for

good ventilation of the switch.

To install a 650W AC power supply or 650W DC power supply into the switch:

1. Wear an ESD wrist strap and make sure it makes good skin contact and is well grounded.

2. Unpack the power supply and verify that the power supply model is correct.

3. Correctly orient the power supply with the power supply slot (as shown in Figure 19), grasp the

handle of the power su

pply with one hand and support its bottom with the other, and slide the

power supply slowly along the guide rails into the slot.

The slot is foolproof. If you cannot insert the power supply into the slot, re-orient the power supply rather than use excessive force to push it in.

Page 22

Figure 19 Installing a power supply

Figure 20 Installing a power filler module

Removing a power supply

CAUTION:

If the switch has two power supplies, removing one power supply does not affect the operation of the switch. If the switch has only one power supply, removing the power supply powers off the switch.

To remove a 650W AC or DC power supply from the switch:

1. Wear an ESD wrist strap and make sure it makes good skin contact and is well grounded.

2. Squeeze the tabs on the power cord connector with your thumb and forefinger, and pull the

connector out to remove the power cord, as shown in Figure 21.

3. Hold the handle on the power supply with one hand,

pivot the latch on the power supply to the

right with your thumb, and pull the power supply part way out of the slot, as shown in Figure 22.

4. Su

pporting the power supply bottom with one hand, slowly pull the power supply out with the other

hand.

5. Put away the removed power supply in an antistatic bag for future use.

Page 23

Figure 21 Removing the DC power cord

(1) Press the tabs on the power cord connector with your thumb and forefin

(2) Pull the power cord connector out

Figure 22 Removing the power supply

(1) Pivot the latch to the right with your thumb (2) Pull the power supply out

Page 24

Connecting the power cord

Connecting the 650W AC power supply

1. Insert the female connector of the AC power cord supplied with the power supply into the power

receptacle on the power supply.

2. Use a cable tie to secure the power cord to the handle of the power supply, as shown in Figure 23.

3. Connec

t the other end of the power cord to an AC power outlet.

Figure 23 Connecting the 650W AC power supply

(1) Cable tie (2) Tighten the cable tie to secure the power cord to the handle of the power supply

Connecting the 650W DC power supply

1. Unpack the DC power cord, identify the plug for connecting to the power supply, orient the plug

with the power receptacle on the power supply, and insert the plug into the receptacle. See Figure

24.

he receptacle is foolproof. If you cannot insert the plug into the receptacle, re-orient the plug

rather than use excessive force to push it in.

2. Use a cable tie to secure the power cord to the handle of the power supply, as shown in Figure 23.

3. Connect the other end of th

e power cord to the DC power source.

Figure 24 Connecting the 650W DC power supply

Page 25

Verifying the installation

After you complete the installation, verify that:

• There is enough space for heat dissipation around the switch, and the rack is stable.

• The grounding cable is securely connected.

• The correct power source is used.

• The power cords are correctly connected.

• All the interface cables are cabled indoors. If any cable is routed outdoors, verify that the socket

strip with lightning protection and lightning arresters for network ports have been correctly connected.

Page 26

Accessing the switch for the first time

Setting up the configuration environment

The first time you access the switch you must use a console cable to connect a console terminal, for example, a PC, to the console port on the switch.

Figure 25 Connecting the console port to a terminal

Connecting the console cable

Console cable

A console cable is an 8-core shielded cable, with a crimped RJ-45 connector at one end for connecting to the console port of the switch, and a DB-9 female connector at the other end for connecting to the serial port on the console terminal.

Figure 26 Console cable

Connection procedure

To connect a terminal (for example, a PC) to the switch:

Main label

B side

Pos.9

Pos.1

A side

Page 27

1. Plug the DB-9 female connector of the console cable to the serial port of the PC.

2. Connect the RJ-45 connector to the console port of the switch.

NOTE:

• Identify the mark on the console port and make sure you are connecting to the correct port.

• The serial ports on PCs do not support hot swapping. If the switch has been powered on, connect the

console cable to the PC before connecting to the switch, and when you disconnect the cable, first disconnect from the switch.

Setting terminal parameters

To configure and manage the switch, you must run a terminal emulator program on the console terminal.

The following are the required terminal settings:

• Bits per second—9,600

• Data bits—8

• Parity—None

• Stop bits—1

• Flow control—None

• Emulation—VT100

To set terminal parameters, for example, on a Windows XP HyperTerminal:

1. Select Start > All Programs > Accessories > Communications > HyperTerminal.

The Connection Description dialog box appears.

2. Enter the name of the new connection in the Name field and click OK. Figure 27 Connection description

3. Select the serial port to be used from the Connect using list, and click OK. Figure 28 Setting the serial port used by the HyperTerminal connection

Page 28

4. Set Bits per second to 9600, Data bits to 8, Parity to None, Stop bits to 1, and Flow control to None,

and click OK.

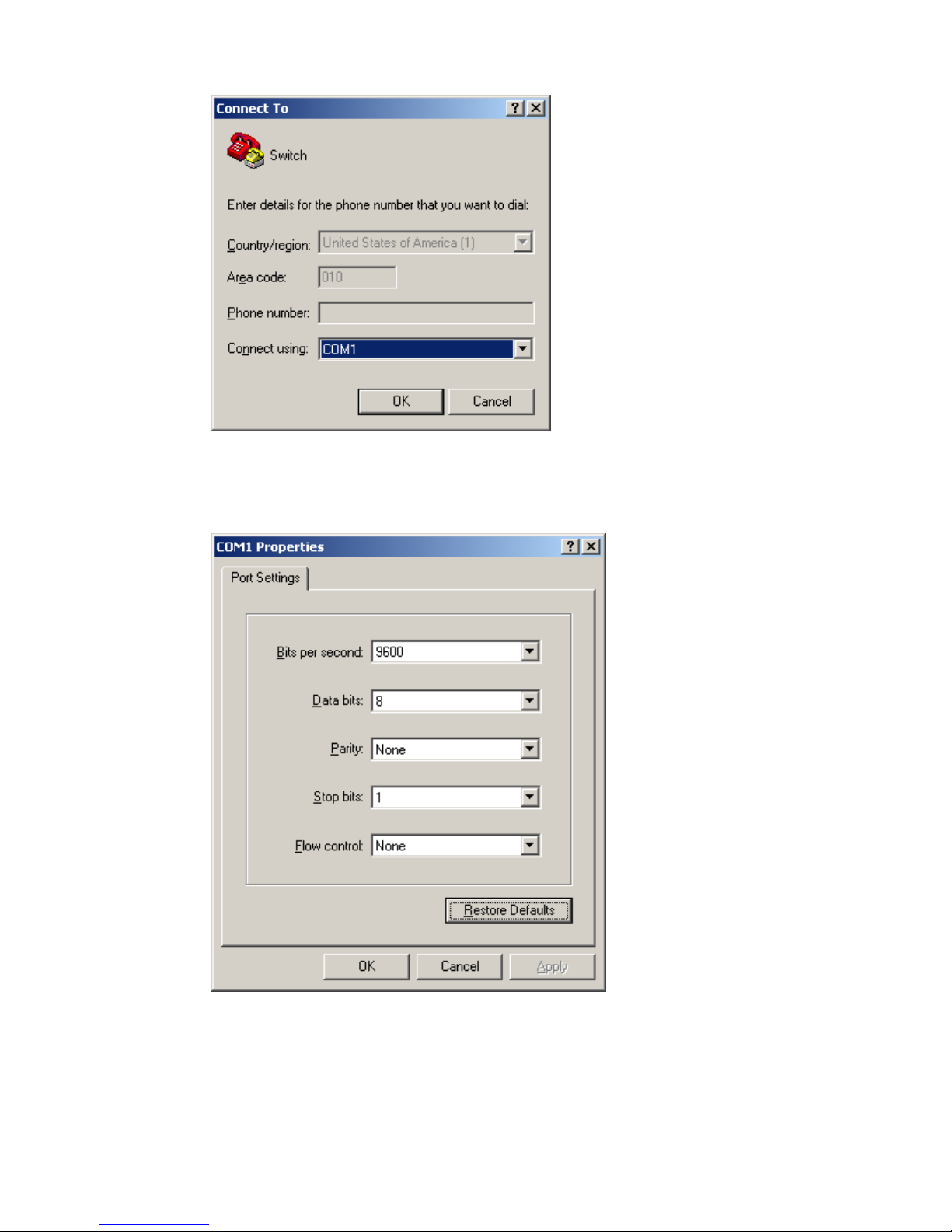

Figure 29 Setting the serial port parameters

5. Select File > Properties in the HyperTerminal window. Figure 30 HyperTerminal window

Page 29

6. On the Settings tab, set the emulation to VT100 and click OK. Figure 31 Setting terminal emulation in Switch Properties dialog box

Page 30

Powering on the switch

Before powering on the switch, verify that the following conditions are met:

• The power cord is correctly connected.

• The input power voltage meets the requirement of the switch.

• The console cable is correctly connected.

• The configuration terminal (a PC, for example) has started, and its serial port settings are consistent

with the console port settings on the switch.

Power on the switch. During the startup process, you can access Boot ROM menus to perform tasks such as software upgrade and file management. The Boot ROM interface and menu options differ with software versions. For more information about Boot ROM menu options, see the software-matching release notes for the device.

After the startup completes, you can access the CLI to configure the switch.

For more information about the configuration commands and CLI, see HP 5920 & 5900 Switch Series Configuration Guide and HP 5920 & 5900 Switch Series Command References.

Page 31

Setting up an IRF fabric

You can use HP IRF technology to connect and virtualize HP 5920 and 5900 switches into a large virtual switch called an "IRF fabric" for flattened network topology, and high availability, scalability, and manageability.

To set up IRF links between HP 5920 and 5900 switches, use SFP+ ports, 1/10-GE Ethernet ports, or QSFP+ ports.

IRF fabric setup flowchart

Figure 32 IRF fabric setup flowchart

To set up an IRF fabric:

Step Description

Start

Plan IRF fabric setup

Install IRF member switches

Connect the grounding cable

and power cords

Power on the switches

Configure basic IRF settings

Connect the physical IRF ports

Slave switches reboot and the

IRF fabric is automatically

established

End

Page 32

Step Description

1. Plan IRF fabric setup.

Plan the installation site and IRF fabric setup parameters:

• Planning IRF fabric size and the installation site

• Identifying the master switch and planning IRF member IDs

• Planning IRF topology and connections

• Identifying physical IRF ports on the member switches

• Planning the cabling scheme

2. Install IRF member

switches.

See "Installing the switch in a 19-inch rack."

3. Connect ground wires

and power cords.

See "Grounding the switch" a

nd "Connecting the power cord."

4. Power on the switches.

N/A

5. Configure basic IRF

settings.

See HP 5920 & 5900 Switch Series IRF Configuration Guide.

6. Connect the physical

IRF ports.

Connect the physical IRF ports on switches. Use SFP+ or QSFP+ transceiver modules and fibers for long-distance connection. Use SFP+ or QSFP+ cables for short-distance connection.

All switches except the master switch automatically reboot, and the IRF fabric is established.

Planning IRF fabric setup

This section describes issues that an IRF fabric setup plan must cover.

Planning IRF fabric size and the installation site

Choose switch models and identify the number of required IRF member switches, depending on the user density and upstream bandwidth requirements. The switching capacity of an IRF fabric equals the total switching capacities of all member switches.

Plan the installation site depending on your network solution, as follows:

• Place all IRF member switches in one rack for centralized high-density access.

• Distribute the IRF member switches in different racks to implement the top-of-rack (ToR) access

solution for a data center.

NOTE:

s your business grows, you can plug an HP 5920 or 5900 switch into an IRF fabric to increase the

switching capacity without any topology change or replacement.

Identifying the master switch and planning IRF member IDs

Determine which switch you want to use as the master for managi ng all member switches in the IRF fabric. An IRF fabric has only one master switch. You configure and manage all member switches in the IRF fabric at the command line interface of the master switch.

Page 33

NOTE:

IRF member switches will automatically elect a master. You can affect the election result by assigning a high member priority to the intended master switch. For more information about master election, see

5920 & 5900 Switch Series IRF Configuration Guide

Prepare an IRF member ID assignment scheme. An IRF fabric uses member IDs to uniquely identify and manage its members, and you must assign each IRF member switch a unique member ID.

Planning IRF topology and connections

You can create an IRF fabric in daisy chain topology, or more reliably, ring topology. In ring topology, the failure of one IRF link does not cause the IRF fabric to split as in daisy chain topology. Rather, the IRF fabric changes to a daisy chain topology without interrupting network services.

You connect the IRF member switches through IRF ports, the logical interfaces for the connections between IRF member switches. Each IRF member switch has two IRF ports: IRF-port 1 and IRF-port 2. To use an IRF port, you must bind at least one physical port to it.

When connecting two neighboring IRF member switches, you must connect the physical ports of IRF-port 1 on one switch to the physical ports of IRF-port 2 on the other switch.

The HP 5900AF-48XG-4QSFP+, 5900AF-48XG-4QSFP+ TAA, 5900CP-48XG-4QSFP+, 5900CP-48XG-4QSFP+8Gb FC B-F, and 5900AF-48G-4XG-2QSFP+ switches can provide 10-GE and 40-GE IRF connections through SFP+ ports and QSFP+ ports, respectively. You can bind several SFP+ or QSFP+ ports to an IRF port for increased bandwidth and availability.

The HP 5900AF-48XGT-4QSFP+ switch can provide 10-GE and 40-GE IRF connections through 1/10-GE Ethernet ports or QSFP+ ports. You can bind several 1/10-GE Ethernet ports or QSFP+ ports to an IRF port for increased bandwidth and availability.

The HP 5920AF-24XG, and 5920AF-24XG TAA switches can provide 10-GE IRF connections through SFP+ ports. You can bind several SFP+ ports to an IRF port for increased bandwidth and availability.

NOTE:

• Figure 33 an

d Figure 34 show the topologies of an IRF fabric made up of three HP

5900AF-48XG-4QSFP+ switches that use SFP+ ports for IRF connections.

• The IRF port connections in the two fi

ures are for illustration only, and more connection methods are

available.

Figure 33 IRF fabric in daisy chain topology

Page 34

Figure 34 IRF fabric in ring topology

Identifying physical IRF ports on the member switches

Identify the SFP+ or QSFP+ ports to be used for IRF connections on the member switches according to your topology and connection scheme.

All the SFP+ and QSFP+ ports on the HP 5900AF-48XG-4QSFP+, 5900AF-48XG-4QSFP+ TAA, 5900CP-48XG-4QSFP+, 5900CP-48XG-4QSFP+8Gb FC B-F, and 5900AF-48G-4XG-2QSFP+ switches, all the 1/10-GE Ethernet ports and QSFP+ ports on the HP 5900AF-48XGT-4QSFP+ switch, and all the SFP+ ports on the HP 5920AF-24XG and 5920AF-24XG TAA switches can be used for IRF connections.

Follow these guidelines when you identify 1/10-GE Ethernet ports and SFP+ ports to be used for IRF connections:

• On the HP 5920AF-24XG, 5920AF-24XG TAA, 5900CP-48XG-4QSFP+,

5900CP-48XG-4QSFP+8Gb FC B-F, 5900AF-48XG-4QSFP+, and 5900AF-48XG-4QSFP+ TAA switches, the SFP+ ports are grouped by port number in ascending order, starting from one. Every four SFP+ ports form one group.

• On the HP 5900AF-48G-4XG-2QSFP+ switch, SFP+ ports numbered 49, 50, 51, and 52 form one

group.

• On the HP 5900AF-48XGT-4QSFP+ switch, the 1/10-GE Ethernet ports are grouped by port

number in ascending order, starting from one. Every four 1/10-GE Ethernet ports form one group.

• All 1/10-GE Ethernet ports and SFP+ ports in the same group must be used for the same purpose

(physical IRF ports or service ports, but not both).

A common practice is to use one 1/10-GE Ethernet port or SFP+ port group for IRF connections, and bind every two 1/10-GE Ethernet port or SFP+ ports in the group to an IRF port for increased bandwidth and availability.

Planning the cabling scheme

For the HP 5920AF-24XG, 5920AF-24XG TAA, 5900AF-48XG-4QSFP+, 5900AF-48XG-4QSFP+ TAA, 5900CP-48XG-4QSFP+, 5900CP-48XG-4QSFP+8Gb FC B-F, and 5900AF-48G-4XG-2QSFP+ switches, use SFP+/QSFP+ cables or SFP+/QSFP+ transceiver modules and fibers to connect the IRF member

IRF-port1

IRF-port2

IRF-port1

IRF-port2

2 3

Page 35

switches. For the HP 5900AF-48XGT-4QSFP+ switches, use twisted pair cables, QSFP+ cables, or QSFP+ transceiver modules and fibers to connect the IRF member switches. If the IRF member switches are far away from one another, choose the SFP+/QSFP+ transceiver modules with optical fibers. If the IRF member switches are all in one equipment room, choose twisted pair/SFP+/QSFP+ cables. For more information about available SFP+/QSFP+ cables and transceiver modules, see "SFP+ port" an

"QSFP+ port."

he following subsections describe several HP recommended IRF connection schemes, and all these

schemes use a ring topology.

Connecting the IRF member switches in one rack

Use short-haul and long-haul SFP+ cables to connect the IRF member switches (four switches in this example) in a rack as shown in Figure 35. T

he switches in the ring topology (as shown in Figure 36) are

in the same order as connected in the rack.

Figure 35 Connecting the switches in one rack

Figure 36 IRF fabric topology

Connecting the IRF member switches in a ToR solution

You can install IRF member switches in different racks side by side to deploy a top of rack (ToR) solution.

Page 36

Figure 37 shows an example for connecting four top of rack IRF member switches by using SFP+/QSFP+

cables, and SFP+/QSFP+ transceiver modules, and optical fibers. The topology is the same as Figure

36.

Figure 37 ToR cabling

Configuring basic IRF settings

After you install the IRF member switches, power on the switches, and log in to each IRF member switch to configure their member IDs, member priorities, and IRF port bindings. For more information, see HP 5920 & 5900 Switch Series Fundamentals Configuration Guide.

Follow these guidelines when you configure the switches:

• Assign the master switch higher member priority than any other switch.

• Bind physical ports to IRF port 1 on one switch and to IRF port 2 on the other switch. You perform

IRF port binding before or after connecting IRF physical ports depending on the software release.

• Execute the display irf configuration command to verify the basic IRF settings.

For more information about configuring basic IRF settings, see HP 5920 & 5900 Switch Series IRF Configuration Guide.

Connecting the physical IRF ports

Use SFP+/QSFP+ cables or SFP+/QSFP+ transceiver modules and fibers to connect the IRF member switches as planned.

NOTE:

ear an ESD wrist strap when you connect SFP+ cables or SFP+ transceiver modules and fibers. For ho

to connect them, see

SFP/SFP+/XFP Transceiver Modules Installation Guide and QSFP+ Transceiver

Modules/Cables Installation Guide

Accessing the IRF fabric to verify the configuration

To verify the basic functionality of the IRF fabric after you finish configuring basic IRF settings and connecting IRF ports:

1. Log in to the IRF fabric through the console port of any member switch.

2. Create a Layer 3 interface, assign it an IP address, and make sure the IRF fabric and the remote

network management station can reach each other.

3. Use Telnet, web, or SNMP to access the IRF fabric from the network management station. See HP

5920 & 5900 Switch Series Fundamentals Configuration Guide.

Page 37

4. Check that you can manage all member switches as if they were one node.

5. Display the running status of the IRF fabric by using the commands in Table 5.

Table 5 Display and

maintain IRF configuration and running status

Task Command

Display information about the IRF fabric. display irf

Display all members' IRF configurations that take effect at a reboot.

display irf configuration

Display IRF fabric topology information. display irf topology

NOTE:

To avoid IP address collision and network problems, configure at least one multi-active detection (MAD) mechanism to detect the presence of multiple identical IRF fabrics and handle collisions. For more information about MAD detection, see

HP 5920 & 5900 Switch Series IRF Configuration Guide

Page 38

Maintenance and troubleshooting

Power supply failure

You can use the LEDs on the power supply to identify a power supply failure. For more information about the LEDs on a power supply, see HP A58x0AF 650W AC (JC680A) & 650W DC (JC681A) Power Supplies User Guide.

The LEDs on the power supply are steady green (active) or blinking green (standby) while the power supply system is correctly working. If the LEDs behave in any other way, verify the following items:

• The switch power cord is correctly connected.

• The power source meets the requirement.

• The operating temperature of the switch is in the normal range and the power supply has good

ventilation.

NOTE:

If the problem persists, contact the HP technical support for help.

To replace a hot swappable power supply, see "Installing/removing a power supply."

Fan failure

CAUTION:

Every HP 5920 and 5900 switch requires two same direction air flow fan trays to function correctly.

• Do not operate the system with one failed fan tray for more than 24 hours.

• Do not remove the failed fan tray until you are ready for replacing it.

• Do not operate the system without any fan tray for more than 2 minutes.

• Do not operate the system outside of the temperature range 0°C to 45°C (32°F to 113°F) degrees.

Failure to comply with these operating requirements might void the warranty.

When a fan tray has problems, the system status LED is steady red and the system outputs alarm messages.

To replace a failed fan tray, see "Installing/removing a fan tray."

Configuration terminal problems

If the configuration environment setup is correct, the configuration terminal displays booting information when the switch is powered on. If the setup is incorrect, the configuration terminal displays nothing or garbled text.

No terminal display

Page 39

If the configuration terminal displays nothing when the switch is powered on, verify the following items:

• The power supply is supplying power to the switch.

• The console cable is correctly connected.

• The console cable has no problem and the terminal settings are correct.

Garbled terminal display

If terminal display is garbled, verify that the following settings are configured for the terminal, for example, HyperTerminal:

• Baud rate—9,600

• Data bits—8

• Parity—none

• Stop bits—1

• Flow control—none

• Emulation—VT100

Page 40

Appendix A Chassis views and technical specifications

Chassis views

HP 5920AF-24XG/HP 5920AF-24XG TAA

Figure 38 Front panel

(1) SFP+ port (2) SFP+ port LED (3) Management Ethernet port (4) Console port (5) System status LED (SYS) (6) ACT LED for the management Ethernet port (7) LINK LED for the management Ethernet port

Figure 39 Rear panel

(1) Power supply slot 1 (2) Power supply slot 2 (3) Fan tray slot 1

(4) Fan tray slot 2

The HP 5920AF-24XG and 5920AF-24XG TAA switches come with the power supply slots empty and the filler modules for the slots as accessories. You can install one or two power supplies for the switch as needed. In this figure, two 650W AC power supplies are installed. For more information about installing and removing the power supply, see "Installing/removing a power supply."

he HP 5920AF-24XG and 5920AF-24XG TAA switches also come with the fan tray slots empty. You must install two fan trays for the 5920AF-24XG and 5920AF-24XG TAA for adequate heat dissipation, and their models must be the same. In this figure, two LSVM1FANSC fan trays are installed. For more information about installing and removing the fan tray, see "Installing/removing a fan tray."

Page 41

Figure 40 Left side panel

(1) Primary grounding point (2) Auxiliary grounding point 1

HP 5900AF-48XG-4QSFP+/HP 5900AF-48XG-4QSFP+ TAA/HP 5900CP-48XG-4QSFP+/HP 5900CP-48XG-4QSFP+8Gb FC B-F

Figure 41 Front panel

(1) SFP+ port (2) SFP+ port LED (3) QSFP+ port (4) QSFP+ port LED (5) System status LED (SYS)

Figure 42 Rear panel

(1) Grounding screw (auxiliary grounding point 2)

(2) Management Ethernet port (3) Console port (4) Fan tray slot 1 (5) Fan tray slot 2

(6) Power supply slot 1 (7) Power supply slot 2 (8) LINK LED for the management Ethernet port (9) ACT LED for the management Ethernet port (10) USB port

The HP 5900AF-48XG-4QSFP+, 5900AF-48XG-4QSFP+ TAA, 5900CP-48XG-4QSFP+, and 5900CP-48XG-4QSFP+8Gb FC B-F switches come with the power supply slots empty and the filler modules for the slots as accessories. You can install one or two power supplies for the switch as needed.

Page 42

In this figure, two 650W AC power supplies are installed. For more information about installing and removing the power supply, see "Installing/removing a power supply."

The HP 5900AF-48XG-4QSFP+, 5900AF-48XG-4QSFP+ TAA, 5900CP-48XG-4QSFP+, and 5900CP-48XG- 4QSF P+8Gb FC B-F switches als o come with t h e fan tray sl o ts empt y. You must i n stall two fan trays for the 5900AF-48XG-4QSFP+, 5900AF-48XG-4QSFP+ TAA, 5900CP-48XG-4QSFP+, and 5900CP-48XG-4QSFP+8Gb FC B-F for adequate heat dissipation, and their models must be the same. In this figure, two LSWM1FANSC fan trays are installed. For more information about installing and removing the fan tray, see "Installing/removing a fan tray."

Figure 43 Left side panel

(1) Primary grounding point (2) Auxiliary grounding point 1

HP 5900AF-48XGT-4QSFP+

Figure 44 Front panel

(1) 1/10GBase-T autosensing Ethernet port

(2) 1/10GBase-T autosensing Ethernet port LED (3) QSFP+ port (4) QSFP+ port LED (5) System status LED (SYS)

Figure 45 Rear panel

(1) Grounding screw (auxiliary grounding point 2)

(2) Management Ethernet port (3) Console port (4) Fan tray slot 1 (5) Fan tray slot 2

(6) Power module slot 1 (7) Power module slot 2 (8) LINK LED for the management Ethernet port

Page 43

(9)

CT LED for the management Ethernet port

(10) USB port

The HP 5900AF-48XGT-4QSFP+ switch comes with the power supply slots empty and the filler modules for the slots as accessories. You can install one or two power supplies for the switch as needed. In Figure

48, t

wo LSVM1AC650 power supplies are installed. For more information about installing and removing

the power supply, see "Installing/removing a power supply."

The HP 5900AF-48XGT-4QSFP+ switch also comes with the fan tray slots empty. You must install two fan trays for the 5900AF-48XGT-4QSFP+ for adequate heat dissipation, and their models must be the same. In Figure 48, t

wo LSWM1HFANSC fan trays are installed. For more information about installing and

removing the fan tray, see "Installing/removing a fan tray."

Figure 46 Left side panel

(1) Primary grounding point (2) Auxiliary grounding point 1

HP 5900AF-48G-4XG-2QSFP+

Figure 47 Front panel

(1) 10/100/1000Base-T autosensing Ethernet port (2) 10/100/1000Base-T autosensing Ethernet port LED (3) SFP+ port (4) SFP+ port LED (5) QSFP+ port (6) QSFP+ port LED (7) System status LED (SYS)

Figure 48 Rear panel

(1) Grounding screw (auxiliary grounding point 2)

(2) Management Ethernet port

Page 44

(3) Console port (4) Fan tray slot 1 (5) Fan tray slot 2 (6) Power supply slot 1 (7) Power supply slot 2 (8) LINK LED for the management Ethernet port (9) ACT LED for the management Ethernet port

(10) USB port

The HP 5900AF-48G-4XG-2QSFP+ switch comes with the power supply slots empty and the filler modules for the slots as accessories. You can install one or two power supplies for the switch as needed. In Figure 48, t

wo LSVM1AC650 power supplies are installed. For more information about installing and

removing the power supply, see "Installing/removing a power supply."

The HP 5900AF-48G-4XG-2QSFP+ switch also comes with the fan tray slots empty. You must install two fan trays for the 5900AF-48G-4XG-2QSFP+ for adequate heat dissipation, and their models must be the same. In Figure 48, t

wo LSWM1FANSC fan trays are installed. For more information about installing and

removing the fan tray, see "Installing/removing a fan tray."

Figure 49 Left side panel

(1) Primary grounding point (2) Auxiliary grounding point 1

Technical specifications

Item

HP 5920AF-24XG/HP 5920AF-24XG TAA

HP 5900AF-48XG-4Q SFP+/HP 5900AF-48XG-4Q SFP+ TAA/HP 5900CP-48XG-4Q SFP+/HP 5900CP-48XG-4Q SFP+8Gb FC B-F

HP 5900AF-48G-4XG

-2QSFP+

HP 5900AF-48XGT-4 QSFP+

Dimensions (H × W × D)

43.6 × 440 × 700 mm (1.72 × 17.32 ×

27.56 in)

43.6 × 440 × 660 mm (1.72 × 17.32 ×

25.98 in)

43.6 × 440 × 460 mm (1.72 × 17.32 ×

18.11 in)

43.6 × 440 × 660 mm (1.72 × 17.32 ×

25.98 in)

Weight

≤ 13.5 kg (29.76 lb)

≤ 13 kg (28.66 lb) ≤ 10 kg (22.05 lb) ≤ 13 kg (28.66 lb)

Console ports 1 1 1 1

Management Ethernet ports

1 1 1 1

USB ports N/A 1 1 1

SFP+ ports 24 48 4 N/A

QSFP+ ports N/A 4 2 4

Page 45

Item

HP 5920AF-24XG/HP 5920AF-24XG TAA

HP 5900AF-48XG-4Q SFP+/HP 5900AF-48XG-4Q SFP+ TAA/HP 5900CP-48XG-4Q SFP+/HP 5900CP-48XG-4Q SFP+8Gb FC B-F

HP 5900AF-48G-4XG

-2QSFP+

HP 5900AF-48XGT-4 QSFP+

10/100/100 0Base-T autosensing Ethernet ports

N/A N/A 48 N/A

1/10GBase-T autosensing Ethernet ports

N/A N/A N/A 48

Fan tray slots

2, hot swappable, on the rear panel

Power supply slots

2, hot swappable, on the rear panel

AC-input voltage

Rated voltage:

100 VAC to 240 VAC @ 50 or 60 Hz

Max voltage:

90 VAC to 264 VAC @ 47 to 63 Hz

Rated voltage:

100 VAC to 240 VAC @ 50 or 60 Hz

Max voltage:

90 VAC to 264 VAC @ 47 to 63 Hz

Rated voltage:

100 VAC to 240 VAC @ 50 or 60 Hz

Max voltage:

90 VAC to 264 VAC @ 47 to 63 Hz

Rated voltage:

100 VAC to 240 VAC @ 50 or 60 Hz

Max voltage:

90 VAC to 264 VAC @ 47 to 63 Hz

DC-input voltage

Rated voltage: –40 VDC to –60 VDC

Max voltage: –40 VDC to –72 VDC

Rated voltage: –40 VDC to –60 VDC

Max voltage: –40 VDC to –72 VDC

Rated voltage: –40 VDC to –60 VDC

Max voltage: –40 VDC to –72 VDC

Rated voltage: –40 VDC to –60 VDC

Max voltage: –40 VDC to –72 VDC

Minimum power consumption

Single AC input: 334 W

Dual AC inputs: 343 W

Single DC inp u t: 333 W

Dual DC inputs: 339 W

Single AC input: 183 W

Dual AC inputs: 200 W

Single DC input: 182 W

Dual DC inputs: 197 W

Single AC input: 98 W

Dual AC inputs: 115 W

Single DC input: 95 W

Dual DC inputs: 110 W

Single AC input: 124 W

Dual AC inputs: 139 W

Single DC input: 121 W

Dual DC inputs: 133 W

Maximum power consumption

Single AC input: 357 W

Dual AC inputs: 366 W

Single DC inp u t: 360 W

Dual DC inputs: 366 W

AC: 257 W

DC: 250 W

Single AC input: 157 W

Dual AC inputs: 175 W

Single DC input: 151 W

Dual DC inputs: 169 W

Single AC input: 446 W

Dual AC inputs: 455 W

Single DC input: 444 W

Dual DC inputs: 444 W

Page 46

Item

HP 5920AF-24XG/HP 5920AF-24XG TAA

HP 5900AF-48XG-4Q SFP+/HP 5900AF-48XG-4Q SFP+ TAA/HP 5900CP-48XG-4Q SFP+/HP 5900CP-48XG-4Q SFP+8Gb FC B-F

HP 5900AF-48G-4XG

-2QSFP+

HP 5900AF-48XGT-4 QSFP+

Chassis leakage current compliance

UL60950-1, EN60950-1, IEC60950-1, GB4943

Melting current of power supply fuse

10 A @ 250 VAC

30 A @ 250 VDC

10 A @ 250 VAC

30 A @ 250 VDC

10 A @ 250 VAC

30 A @ 250 VDC

10 A @ 250 VAC

30 A @ 250 VDC

Operating temperature

0°C to 45°C (32°F to 113°F)

Operating humidity

10% to 90%, noncondensing

Fire resistance compliance

UL60950-1, EN60950-1, IEC60950-1, GB4943

Page 47

Appendix B FRUs and compatibility matrixes

This appendix describes the field replaceable units (FRUs) available for the HP 5920 and 5900 Switch Series and their compatibility.

All the FRUs in this appendix are hot swappable.

Hot swappable power supplies

Power supply Specifications Reference

650W AC Power Supply

• Rated input voltage:

100 VAC to 240 VAC @ 50 Hz or 60 Hz

• Max input voltage:

90 VAC to 264 VAC @ 47 Hz to 63 Hz

• Max output power:

650 W

HP A58x0AF 650W AC (JC680A) & 650W DC (JC681A) Power Supplies User Guide

650W DC Power Supply

• Rated input voltage:

–40 VDC to –60 VDC

• Max input voltage:

–40 VDC to –72 VDC

• Max output power:

650 W

HP A58x0AF 650W AC (JC680A) & 650W DC (JC681A) Power Supplies User Guide

Hot swappable fan trays

Item Specifications

LSWM1FANSC (for the HP 5900AF-48XG-4QSFP+, 5900AF-48XG-4QSFP+ TAA, 5900CP-48XG-4QSFP+ ,5900CP-48XG-4QSFP+8Gb FC B-F, and 5900AF-48G-4XG-2QSFP+ switches)

Fans Two 40 × 40 × 28 mm (1.57 × 1.57 × 1.1 in) fans

Fan speed 18500 R.P.M

Max airflow 45 CFM

Airflow direction

Back to front

(Fans blow air from the power supply side to the network port side.)

Input voltage 12 V

Maximum power consumption 19.5 W

Docuementation reference HP LSWM1FANSC & LSWM1FANSCB Fan Assemblies Installation

LSWM1FANSCB (for the HP 5900AF-48XG-4QSFP+, 5900AF-48XG-4QSFP+ TAA, 5900CP-48XG-4QSFP+ ,5900CP-48XG-4QSFP+8Gb FC B-F, and 5900AF-48G-4XG-2QSFP+ switches)

Page 48

Item Specifications

Fans Two 40 × 40 × 28 mm (1.57 × 1.57 × 1.1 in) fans

Fan speed 18500 R.P.M

Max airflow 45 CFM

Airflow direction

Front to back

(Fans draw air from the network port side to the power supply side.)

Input voltage 12 V

Maximum power consumption 19.5 W

Documentation reference HP LSWM1FANSC & LSWM1FANSCB Fan Assemblies Installation

LSWM1HFANSC (for the HP 5900AF-48XGT-4QSFP+ switch)

Fans Two 40 × 40 × 56 mm (1.57 × 1.57 × 2.2 in) fans

Fan speed 21000 R.P.M

Max airflow 70 CFM

Airflow direction

Back to front

(Fans draw air from the power module side to the network port side.)

Input voltage 12 V

Maximum power consumption 60 W

Documentation reference HP LSWM1HFANSC & LSWM1HFANSCB Installation Manual

LSWM1HFANSCB (for the HP 5900AF-48XGT-4QSFP+ switch)

Fans Two 40 × 40 × 56 mm (1.57 × 1.57 × 2.2 in) fans

Fan speed 21000 R.P.M

Max airflow 70 CFM

Airflow direction

Front to back

(Fans draw air from the network port side to the power module side.)

Input voltage 12 V

Maximum power consumption 60 W

Documentation reference HP LSWM1HFANSC & LSWM1HFANSCB Installation Manual

LSVM1FANSC ( for the HP 5920AF-24XG and 5920AF-24XG TAA switches)

Fans Three 40 × 40 × 28 mm (1.57 × 1.57 × 1.1 in) fans

Fan speed 18500 R.P.M

Max airflow 57 CFM

Airflow direction

Back to front

(Fans blow air from the power supply side to the network port side.)

Input voltage 12 V

Maximum power consumption 22.7 W

Docuementation reference HP LSVM1FANSC & LSVM1FANSCB Fan Assemblies Installation Manual

Page 49

Item Specifications

LSVM1FANSCB ( for the HP 5920AF-24XG and 5920AF-24XG TAA switches)

Fans Three 40 × 40 × 28 mm (1.57 × 1.57 × 1.1 in) fans

Fan speed 18500 R.P.M

Max airflow 57 CFM

Airflow direction

Front to back

(Fans draw air from the network port side to the power supply side.)

Input voltage 12 V

Maximum power consumption 22.7 W

Documentation reference HP LSVM1FANSC & LSVM1FANSCB Fan Assemblies Installation Manual

Page 50

Appendix C Ports and LEDs

Ports

Console port

Every HP 5920 and 5900 switch has one console port.

Table 6 Console port specifications

Item Specification

Connector type

RJ-45

Compliant standard

EIA/TIA-232

Transmission baud rate 9600 bps (default) to 115200 bps

Services

• Provides connection to an ASCII terminal.

• Provides connection to the serial port of a local or remote (through a pair of

modems) PC running terminal emulation program.

Management Ethernet port

Every HP 5920 and 5900 switch has one management Ethernet port. You can connect this port to a PC or management station for loading and debugging software or remote management.

Table 7 Management Ethernet port specifications

Item Specification

Connector type RJ-45

Connector quantity 1

Port transmission rate 10/100/1000 Mbps, half/full duplex

Transmission medium and max transmission distance

100 m (328.08 ft) over category-5 twisted pair cable

Functions and services Switch software and Boot ROM upgrade, network management

USB port

Every HP 5900 switch has one OHC-compliant USB2.0 port that can upload and download data at a rate up to 12 Mbps. You can use this USB port to access the file system on the Flash of the switch, for example, to upload or download application and configuration files.

Page 51

NOTE:

USB devices from different vendors vary in compatibility and driver. HP does not guarantee correct operation of USB devices from other vendors on the switch. If a USB device does not operate correctly on the switch, replace it with one from another vendor.

SFP+ port

HP 5920AF-24XG, 5920AF-24XG TAA, 5900AF-48XG-4QSFP+, 5900AF-48XG-4QSFP+ TAA, 5900CP-48XG-4QSFP+, 5900CP-48XG-4QSFP+8Gb FC B-F, and 5900AF-48G-4XG-2QSFP+ switches have fixed SFP+ ports. You can plug the SFP transceiver modules in Table 8, the SFP+ tr

ansceiver

modules in Table 9, and the SFP+ c

ables in Table 10 into the SFP+ ports as needed. You can use the

SFP+ ports as IRF physical ports to connect the switches in an IRF deployment.

Table 8 1000 Mbps SFP transceiver modules available for the SFP+ ports

Product Code

Module description

Central wavelength (nm)

Cable/fiber diameter (μm)

Multimode fiber modal bandwidth (MHz × km)

Max transmission distance

JD089B

HP X120 1G SFP RJ45 T transceiver

N/A

Category-5 twisted pair

N/A

100 m (328.08 ft)

JD118B

HP X120 1G SFP LC SX transceiver

850

50/125

500

550 m (1804.46 ft)

400

500 m (1640.42 ft)

62.5/125

200

275 m (902.23 ft)

160

220 m (721.78 ft)

JD119B

HP X120 1G SFP LC LX transceiver

1310

9/125 N/A

10 km (6.21 miles)

50/125

500

550 m (1804.46 ft)

400

62.5/125 500

550 m (1804.46 ft)

JD061A

HP X125 1G SFP LC LH40 1310nm transceiver

1310 9/125 N/A

40 km (24.86 miles)

JD062A

HP X120 1G SFP LC LH40 1550nm transceiver

1550 9/125 N/A

40 km (24.86 miles)

JD063B

HP X125 1G SFP LC LH70 transceiver

1550 9/125 N/A

70 km (43.50 miles)

Table 9 10 Gbps SFP+ transceiver modules available for the SFP+ ports

Page 52

Product Code

Module description

Central wavelength (nm)

Fiber diameter (μm)

Multimode fiber modal bandwidth (MHz × km)

Max transmission distance

JD092B

HP X130 10G SFP+ LC SR transceiver

850

50/125

2000 300 m (984.25 ft)

500 82 m (269.03 ft)

400 66 m (216.54 ft)

62.5/125

200 33 m (108.27 ft)

160 26 m (85.3 ft.)

JD093B

HP X130 10G SFP+ LC LRM transceiver

1310

50/125

1500

220 m (721.78 ft)

500

400 100 m (328.08 ft)

62.5/125

200

220 m (721.78 ft)

160

JD094B

HP X130 10G SFP+ LC LR transceiver

1310 9/125 N/A 10 km (6.21 miles)

Table 10 SFP+ cables available for the SFP+ ports

Product code

Cable description Cable length

JD095C HP X240 10G SFP+ SFP+ 0.65m DA Cable 0.65 m (2.13 ft)

JD096C HP X240 10G SFP+ SFP+ 1.2m DA Cable 1.2 m (3.94 ft)

JD097C HP X240 10G SFP+ SFP+ 3m DA Cable 3 m (9.84 ft)

JG081C HP X240 10G SFP+ SFP+ 5m DA Cable 5 m (16.40 ft)

JC784C HP X240 10G SFP+ SFP+ 7m Direct Attach Copper Cable 7 m (22.97 ft)

NOTE:

• To guarantee the functionality of the SFP+ ports, use only HP SFP or SFP+ transceiver modules.

• The SFP and SFP+ transceiver modules available for this switch series are subject to chan

e over time. For the most up-to-date list of SFP transceiver modules, consult your HP sales representative or technical support engineer.

For the SFP transceiver module specifications, see HP A-Series Switches Transceiver Modules User Guide.

The SFP+ cables available for the HP 5920 and 5900 Switch Series are 10 Gbps SFP+ Cu cables, as shown in Figure 50.

Figure 50 SFP+ cable

Page 53

(1) Connector (2) Pull latch

QSFP+ port

HP 5900 switches provide QSFP+ ports. You can plug the QSFP+ transceiver modules in Table 11 and the QSFP+ cables in Table 12 in

to the SFP+ ports as needed.

Table 11 QSFP+ transceiver modules available for the HP 5900 switches

Product Code

Module description

Central wavelength (nm)

Fiber diameter (μm)

Max transmission distance

JG325A

HP X140 40G QSFP+ MPO SR4 Transceiver

850

Multimode, 50/125, OM3

100 m (328.08 ft)

JG661A

HP X140 40G QSFP+ LC LR4 SM 10km 1310nm Transceiver Module

1310 Single-mode, 9/125 10km (6.21 miles)

Table 12 40G QSFP+ cables available for the HP 5900 switches

Product code Cable description Cable length

JG326A

HP X240 40G QSFP+ QSFP+ 1m Direct Attach Copper Cable

1 m (3.28 ft)

JG327A

HP X240 40G QSFP+ QSFP+ 3m Direct Attach Copper Cable

3 m (9.84 ft)

JG328A

HP X240 40G QSFP+ QSFP+ 5m Direct Attach Copper Cable

5 m (16.40 ft)

JG329A

HP X240 40G QSFP+ to 4x10G SFP+ 1m Direct Attach Copper Splitter Cable

1 m (3.28 ft)

JG330A

HP X240 40G QSFP+ to 4x10G SFP+ 3m Direct Attach Copper Splitter Cable

3 m (9.84 ft)

JG331A

HP X240 40G QSFP+ to 4x10G SFP+ 5m Direct Attach Copper Splitter Cable

5 m (16.40 ft)

Page 54

Figure 51 40G QSFP+ cable

(1) Connector (2) Pull latch

Figure 52 40G QSFP+ to 4 x 10G SFP+ cable

(1) QSFP+ module

(2) QSFP+ side pull latch

(3) SFP+ side pull latch (4) SFP+ module

NOTE:

• To guarantee the functionality of the QSFP+ ports, use only HP QSFP+ transceiver modules and cables.

• The QSFP+ transceiver modules and cables available for this switch series are subject to change over

time. For the most up-to-date list of SFP transceiver modules, consult your HP sales representative or technical support engineer.

For QSFP+ transceiver module and cable specifications, see Transceiver Modules User Guide.

10/100/1000Base-T autosensing Ethernet port

Every HP 5900AF-48G-4XG-2QSFP+ switch has 10/100/1000Base-T autosensing Ethernet ports.

Table 13 10/100/1000Base-T autosensing Ethernet port specifications

Item Specification

Connector type RJ-45

Port transmission rate 10/100/1000 Mbps, half/full duplex, MDI/MDI-X autosensing

Transmission medium and max transmission distance

100 m (328.08 ft) over category-5 twisted pair cable



Page 55

Item Specification

Compatible standards

• IEEE 802.3i

• IEEE 802.3u

• IEEE 802.3ab

1/10GBase-T autosensing Ethernet port

Every HP 5900AF-48XGT-4QSFP+ switch has 1/10GBase-T autosensing Ethernet ports.

Table 14 1/10GBase-T autosensing Ethernet port specifications

Item Specification

Connector type RJ-45

Port transmission rate 1/10 Gbps, full duplex, MDI/MDI-X autosensing

Transmission medium and max transmission distance

• 55 m (180.45 ft) over category-6 unshielded twisted pair cable

• 100 m (328.08 ft) over category-6 shielded twisted pair cable

• 100 m (328.08 ft) over category-6A or above twisted pair cable

Compatible standards

• IEEE 802.3ab

• IEEE 802.3an

To avoid interference between cables, HP recommends that you layer cables as follows:

• Use category-6A or above twisted pair cables and connectors.

• Do not bundle cables in their first 20 m (65.62 ft).

• Separate power cables and twisted pair cables at and around the distribution frame.

• For ports adjacent to one another on the device, the peer ports on the distribution frame is

preferably not adjacent, for example:

{ If the device connects to one distribution frame, connect port 1 on the device to port 1 on the

distribution frame, port 2 on the device to port 3 on the distribution frame, and port 3 on the device to port 5 on the distribution frame.

{ If the device connects to two distribution frames, connect port 1 on the device to port 1 on

distribution frame 1, port 2 on the device to port 1 on distribution frame 2, and port 3 on the device to port 2 on distribution frame 1.

LEDs

System status LED

The system status LED shows the operating status of the switch.

Table 15 System status LED description

LED mark Status Description

SYS Steady green The switch is operating correctly.

Page 56

LED mark Status Description

Flashing green The switch is performing power-on self test (POST).

Steady red

The system has failed to pass POST or has problems such as fan failure.

Flashing red Some ports have failed to pass POST.

Off The switch is powered off or has failed to start up.

SFP+ port LED

Each SFP+ port has a status LED to show port operating status and activities.

Table 16 SFP+ port LED description

Transmission technology LED status Description

Ethernet

Steady green

A transceiver module or cable has been correctly installed. The port has a link and is operating at 10 Gbps.

Flashing green The port is sending or receiving data at 10 Gbps.

Steady yellow

A transceiver module or cable has been correctly installed. The port has a link and is operating at 1 Gbps.

Flashing yellow The port is sending or receiving data at 1 Gbps.

Off

No transceiver module or cable has been installed or no link is present on the port.

QSFP+ port LED

Each QSFP+ port has a status LED to show port operating status and activities.

Table 17 QSFP+ port LED description

LED status Description

Steady green

A transceiver module or cable has been correctly installed. The port has a link and is operating at 40 Gbps.

Flashing green The port is sending or receiving data at 40 Gbps.

Steady yellow

A transceiver module or cable has been correctly installed. The port has a link and is operating at 10 Gbps.

Flashing yellow The port is sending or receiving data at 10 Gbps.

Off No transceiver module or cable has been installed or no l ink is present on the port.

Management Ethernet port LEDs

A management Ethernet port has one LINK LED and one ACT LED to show its link and data transmission status.

Page 57

Table 18 Management Ethernet port LEDs description

LED mark Status Description

LINK

Off The management Ethernet port is not connected.

Steady green The management Ethernet port is operating at 10/100/1000 Mbps.

ACT

Off The management Ethernet port is not receiving or sending data.

Flashing yellow The management Ethernet port is sending or receiving data.

10/100/1000Base-T autosensing Ethernet port LEDs

Table 19 10/100/1000Base-T autosensing Ethernet port LED description

Status Description

Steady green The port has a link and is operating at 1000 Mbps.

Flashing green The port is sending or receiving data at 1000 Mbps.

Steady yellow The port has a link and is operating at 10/100 Mbps.

Flashing yellow The port is sending or receiving data at 10/100 Mbps.

Off No link is present on the port.

1/10GBase-T autosensing Ethernet port LEDs

Table 20 1/10GBase-T autosensing Ethernet port LED description

Status Description

Steady green The port has a link and is operating at 10 Gbps.

Flashing green The port is sending or receiving data at 10 Gbps.

Steady yellow The port has a link and is operating at 1 Gbps.

Flashing yellow The port is sending or receiving data at 1 Gbps.

Off No link is present on the port.

Page 58

Appendix D Cooling system

The cooling system of the HP 5920 and 5900 switches comprises the ventilation holes in the chassis, fan trays, and built-in fans of hot swappable power supplies. To guarantee that this cooling system can effectively work, you must consider the site ventilation design when you plan the installation site for the switches.

HP 5920 cooling system

The fan trays in the HP 5920AF-24XG and 5920AF-24XG TAA switches must be the same type: LSVM1FANSC or LSVM1FANSCB.

• When LSVM1FANSC fan trays are used, cool air flows in through the air vents in the fan tray panel

and the power supply panels, circulates through the chassis and the power supplies, and exhausts at the network port side, as shown in Figure 55.

• W

hen LSVM1FANSCB fan trays are used, cool air flows in through the air vents in the network port-side panel and the power supply panels, circulates through the chassis and the power supplies, and exhausts through the air vents in the fan tray panels, as shown in Figure 56.

Figure 53 Airflow through the chassis (with LSVM1FANSC fan tr

ays)

(1) Fan tray air vents (2) Power supply air vents (3) Network port-side air vents

Page 59

Figure 54 Airflow through the chassis (with LSVM1FANSCB fan trays)

(1) Fan tray air vents (2) Power supply air vents (3) Network port-side air vents

IMPORTANT:

The chassis and the power supplies use separate air aisles. Make sure both aisles are not blocked.

HP 5900 cooling system

The fan trays in the HP 5900AF-48XG-4QSFP+, 5900AF-48XG-4QSFP+ TAA, 5900CP-48XG-4QSFP+, 5900CP-48XG-4QSFP+8Gb FC B-F, and 5900AF-48G-4XG-2QSFP+ switches must be the same type: LSWM1FANSC or LSWM1FANSCB.

The fan trays in the HP 5900AF-48XGT-4QSFP+ switch must be the same type: LSWM1HFANSC or LSWM1HFANSCB.

• When LSWM1FANSC/LSWM1HFANSC fan trays are used, cool air flows in through the air vents

in the fan tray panel and the power supply panels, circulates through the chassis and the power supplies, and exhausts at the network port side, as shown in Figure 55.

• W

hen LSWM1FANSCB/LSWM1HFANSCB fan trays are used, cool air flows in through the air vents in the network port-side panel and the power supply panels, circulates through the chassis and the power supplies, and exhausts through the air vents in the fan tray panels, as shown in Figure 56.

1 1 2 2

Page 60

Figure 55 Airflow through the HP 5900AF-48XG-4QSFP+ chassis (with LSWM1FANSC fan trays)

(1) Power supply air vents (2) Fan tray air vents (3) Network port-side air vents

Figure 56 Airflow through the HP 5900AF-48XG-4QSFP+ chassis (with LSWM1FANSCB fan trays)

(1) Power supply air vents (2) Fan tray air vents (3) Network port-side air vents

IMPORTANT:

The chassis and the power supplies use separate air aisles. Make sure both aisles are not blocked.

1 1 2 2

Page 61

Support and other resources

Contacting HP

For worldwide technical support information, see the HP support website:

http://www.hp.com/support

Before contacting HP, collect the following information:

• Product model names and numbers

• Technical support registration number (if applicable)

• Product serial numbers

• Error messages

• Operating system type and revision level

• Detailed questions

Subscription service

HP recommends that you register your product at the Subscriber's Choice for Business website:

http://www.hp.com/go/wwalerts

After registering, you will receive email notification of product enhancements, new driver versions, firmware updates, and other product resources.

Related information

Documents

To find related documents, browse to the Manuals page of the HP Business Support Center website:

http://www.hp.com/support/manuals

• For related documentation, navigate to the Networking section, and select a networking category.

• For a complete list of acronyms and their definitions, see HP FlexNetwork Technology Acronyms.

Websites

• HP.com http://www.hp.com

• HP Networking http://www.hp.com/go/networking

• HP manuals http://www.hp.com/support/manuals

• HP download drivers and software http://www.hp.com/support/downloads

• HP software depot http://www.software.hp.com

• HP Education http://www.hp.com/learn

Page 62

Conventions

This section describes the conventions used in this documentation set.

Command conventions

Convention Description

Boldface Bold text represents commands and keywords that you enter literally as shown.

Italic Italic text represents arguments that you replace with actual values.

[ ] Square brackets enclose syntax choices (keywords or arguments) that are optional.

{ x | y | ... }

Braces enclose a set of required syntax choices separated by vertical bars, from which you select one.

[ x | y | ... ]

Square brackets enclose a set of optional syntax choices separated by vertical bars, from which you select one or none.

{ x | y | ... } *

Asterisk-marked braces enclose a set of required syntax choices separated by vertical bars, from which you select at least one.

[ x | y | ... ] *

Asterisk-marked square brackets enclose optional syntax choices separated by vertical bars, from which you select one choice, multiple choices, or none.

&<1-n>

The argument or keyword and argument combination before the ampersand (&) sign can be entered 1 to n times.

# A line that starts with a pound (#) sign is comments.

GUI conventions

Convention Description

Boldface

Window names, button names, field names, and menu items are in bold text. For example, the New User window appears; click OK.

> Multi-level menus are separated by angle brackets. For example, File > Create > Folder.

Symbols

Convention Description

WARNING

An alert that calls attention to important information that if not understood or followed can result in personal injury.

CAUTION

An alert that calls attention to important information that if not understood or followed can result in data loss, data corruption, or damage to hardware or software.

IMPORTANT

An alert that calls attention to essential information.

NOTE

An alert that contains additional or supplementary information.

TIP

An alert that provides helpful information.

Network topology icons

Page 63

Represents a generic network device, such as a router, switch, or firewall.

Represents a routing-capable device, such as a router or Layer 3 switch.

Represents a generic switch, such as a Layer 2 or Layer 3 switch, or a router that supports Layer 2 forwarding and other Layer 2 features.

Port numbering in examples

The port numbers in this document are for illustration only and might be unavailable on your device

Page 64

Index

A C E F G H I L P R S T V

Accessing the IRF fabric to verify the configuration,32

hassis views,36

onfiguration terminal problems,34

onfiguring basic IRF settings,32

onnecting the console cable,22

onnecting the physical IRF ports,32

onnecting the power cord,20

ntacting HP,57

nventions,58

amining the installation site,3

n failure,34

ounding the switch,12

Hot s

wappable fan trays,43

Hot s

wappable power supplies,43

HP 5

900 cooling system,55

HP 5

920 cooling system,54

nstallation tools,4

Inst

alling the switch in a 19-inch rack,5

Inst

alling/removing a fan tray,15

Installing/r

emoving a power supply,17

RF fabric setup flowchart,27

LEDs

,51

lanning IRF fabric setup,28

rts,46

ower supply failure,34

wering on the swi tch,26

elated information,57

afety recommendations,2

etting terminal parameters,23

Set

ting up the configuration environment,22

echnical specifications,40

erifying the installation,21

HP 5920AF-24XG Installation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
