HP 5810-48G Datasheet

HP 5810-48G Switch

Data sheet

Product overview

The HP 5810-48G Switch delivers unparalleled QoS
across 48 10/100/1000BASE-T Ethernet ports, two
multiplex Gigabit Ethernet (GbE) combination SFP
ports, and two 10-GbE SFP+ ports for the most
demanding enterprise network environments.

Key features

High performance for core and distribution

•
Powerful IPv4/IPv6 ACL/QoS/VoQ

•
Powerful buffer capability—24M buffering

•
Redundant, hot-swappable power supplies

•

Features and benefits

Management

•

Remote configuration and management: is
available through a secure Web browser or a
command-line interface (CLI)

•

IEEE 802.1ab LLDP discovery: advertises and
receives management information from adjacent
devices on a network

•

USB support:

– File copy: allows users to copy switch files to

and from a USB flash drive

•

DHCP options: client allows automatic setting of
IP address

•

SNMPv1, v2c, and v3: facilitate centralized
discovery, monitoring, and secure management of
networking devices

•

NEW Network Time Protocol (NTP):

synchronizes timekeeping among distributed time
servers and clients; keeps consistent timekeeping
among all clock-dependent devices within the
network so that the devices can provide diverse
applications based on the consistent time

Connectivity

•

Auto-MDIX: automatically adjusts for
straight-through or crossover cables on all 10/100
and 10/100/1000 ports

•

Jumbo frames: on Gigabit Ethernet and
10-Gigabit ports, they allow high-performance
remote backup and disaster-recovery services

Performance

•

Hardware-based wire-speed access control
lists (ACLs): feature-rich ACL implementation

(TCAM-based) helps ensure high levels of security
and ease of administration without impacting
network performance

Resiliency and high availability

•

Virtual Router Redundancy Protocol
(VRRP): allows groups of two routers to

dynamically back each other up to create highly
available routed environments

•

Device Link Detection Protocol (DLDP):

monitors link connectivity and shuts down ports at
both ends if unidirectional traffic is detected,
preventing loops in STP-based networks

•

Link Aggregation Control Protocol (LACP):

allows users to bundle several physical ports
together to form a single logical channel

Manageability

•

RMON (remote monitoring): provides
advanced monitoring and reporting capabilities for
statistics, history, alarms, and events

•

Web interface: allows configuration of the switch
from any Web browser on the network

•

Multiple configuration files: allow multiple
configuration files to be stored to a flash image

•

Troubleshooting: ingress and egress port
monitoring enable network problem solving

Layer 2 switching

•

16K MAC address table: provides access to
many Layer 2 devices

•

4,094 port-based VLANs: provide security
between workgroups

•

Gigabit Ethernet port aggregation: allows
grouping of ports to increase overall data
throughput to a remote device

•

10 GbE port aggregation: allows grouping of
ports to increase overall data throughput to a remote
device

•

Spanning Tree/MSTP, RSTP, and STP Root
Guard: prevent network loops

Layer 3 services

•

Address Resolution Protocol (ARP):

determines the MAC address of another IP host in
the same subnet; supports static ARPs; gratuitous
ARP allows detection of duplicate IP addresses

Layer 3 routing

•

Layer 3 IP routing:

– Static IP routing: provides basic routing

(supporting up to 1K static routes); allows manual
configuration of routing

Security

•

Advanced processor queuing mechanism:

helps prevent denial-of-service (DoS) attacks, while
DHCP snooping helps ensure that devices can only
receive an IP address from a legitimate DHCP server
on the network

•

IP Source Guard: helps prevent IP spoofing
attacks

•

HTTPS management: provides secure Web
management

2

•

RADIUS/HWTACACS: eases switch management
security administration by using a password
authentication server

•

Secure Shell (SSHv2): encrypts all transmitted
data for secure, remote CLI access over IP networks

Convergence

•

LLDP-MED: is a standard extension that
automatically configures network devices, including
LLDP-capable IP phones

Monitor and diagnostics

•

Port mirroring: enables traffic on a port to be
simultaneously sent to a network analyzer for
monitoring

•

Remote Span (Rspan): RSPAN extends SPAN
by enabling remote monitoring of multiple switches
across your network.

Additional information

•

Green IT and power: use the latest advances in
silicon development, shut off unused ports, and use
variable-speed fans to improve energy efficiency

Warranty and support

•

Lifetime warranty: for as long as you own the
product with advance replacement and
next-business-day delivery (available in most
countries)†

•

Electronic and telephone support: limited
electronic and telephone support is available from
HP; to reach our support centers, refer to

www.hp.com/networking/contact-support; for

details on the duration of support provided with your
product purchase, refer to

www.hp.com/networking/warrantysummary

•

Software releases: to find software for your
product, refer to www.hp.com/networking/support;
for details on the software releases available with
your product purchase, refer to

www.hp.com/networking/warrantysummary

†HP warranty includes repair or replacement of hardware for as long as you own the product, with next business day advance replacement (available in most countries). The disk
drive included with HP AllianceOne Advanced Services and Services zl Modules, HP Threat Management Services zl Module, HP AllianceOne Extended zl Module with Riverbed
Steelhead, HP MSM765zl Mobility Controller and HP Survivable Branch Communication zl Module powered by Microsoft Lync has a five-year hardware warranty. For details, refer
to the Software license and hardware warranty statements at www.hp.com/networking/warranty.

3

HP 5810-48G Switch

Specifications

Ports

Power supplies

Physical characteristics

Weight

Memory and processor

Mounting

Performance

Throughput
Routing/Switching capacity
MAC address table size

Environment

Operating temperature
Operating relative humidity

Electrical characteristics

Maximum heat dissipation
Voltage
Frequency

Safety

Emissions

Immunity

Generic
EN
ESD
Radiated
EFT/Burst
Surge
Conducted
Power frequency magnetic field
Voltage dips and interruptions
Harmonics
Flicker

Management

Notes

Services

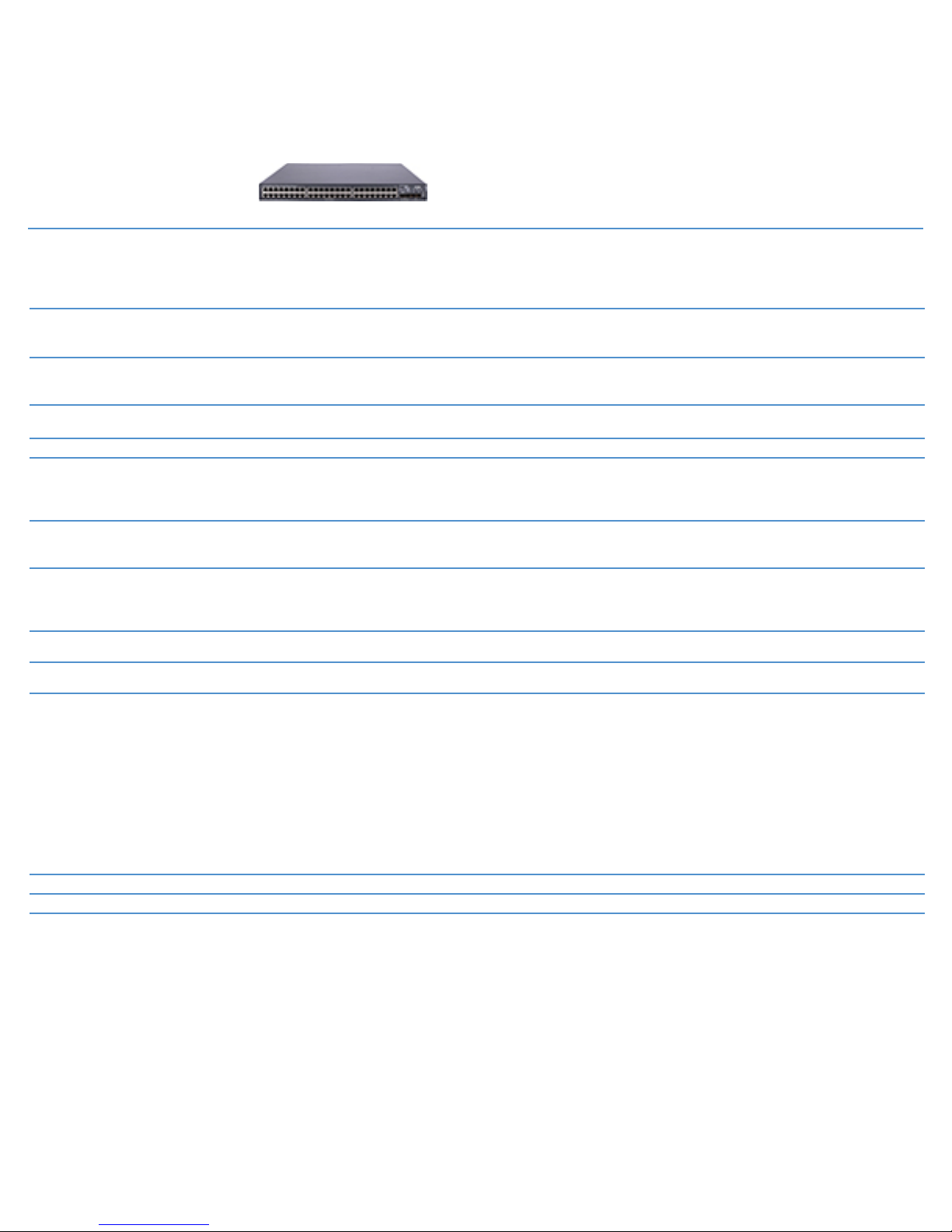

HP 5810-48G Switch (JF242A)

48 RJ-45 auto-negotiating 10/100/1000 ports (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE 802.3ab Type 1000BASE-T)
2 SFP 100/1000 Mbps ports
2 SFP+ 10-GbE ports; Duplex: full only
1 RJ-45 serial console port
1 RJ-45 out-of-band management port

2 power supply slots
1 minimum power supply required
includes: 1 x JC087A (HP 5800 300W AC Power Supply)

17.32(w) x 16.54(d) x 1.72(h) in (44 x 42 x 4.36 cm) (1U height)

17.64 lb (8 kg)

512 MB SDRAM, 512 MB flash; packet buffer size: 24 MB

Mounts in EIA-standard 19 in. telco rack or equipment cabinet (hardware included)

up to 101 million pps
136 Gbps
16000 entries

32°F to 113°F (0°C to 45°C)
10% to 90%, noncondensing

614 BTU/hr (647.77 kJ/hr)
100-120/200-240 VAC
50/60 Hz

UL 60950-1; EN 60825-1 Safety of Laser Products-Part 1; EN 60825-2 Safety of Laser Products-Part 2; IEC 60950-1; CAN/CSA-C22.2 No. 60950-1; Anatel;
ULAR; GOST; EN 60950-1/A11; FDA 21 CFR Subchapter J; NOM; ROHS Compliance

VCCI Class A; EN 55022 Class A; ICES-003 Class A; ANSI C63.4 2003; AS/NZS CISPR22 Class A; EN 61000-3-2:2006; EN 61000-3-3:1995
+A1:2001+A2:2005; EMC Directive 2004/108/EC; FCC (CFR 47, Part 15) Class A

ETSI EN 300 386 V1.3.3
EN 55024:1998+ A1:2001 + A2:2003
EN 61000-4-2; IEC 61000-4-2
EN 61000-4-3; IEC 61000-4-3
EN 61000-4-4; IEC 61000-4-4
EN 61000-4-5; IEC 61000-4-5
EN 61000-4-6; IEC 61000-4-6
IEC 61000-4-8; EN 61000-4-8
EN 61000-4-11; IEC 61000-4-11
EN 61000-3-2, IEC 61000-3-2
EN 61000-3-3, IEC 61000-3-3

IMC - Intelligent Management Center; command-line interface; Web browser; out-of-band management; SNMP Manager; Telnet; HTTPS; RMON1; FTP

The 5810 switch provides a power module when shipped. Customer can select two power modules to implement 1+1 power supply redundancy.

3-year, 4-hour onsite, 13x5 coverage for hardware (HQ063E)
3-year, 4-hour onsite, 24x7 coverage for hardware (HQ064E)
3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 SW phone support and SW updates (HQ067E)
3-year, 24x7 SW phone support, software updates (HQ066E)
1-year, post-warranty, 4-hour onsite, 13x5 coverage for hardware (HR569E)
1-year, post-warranty, 4-hour onsite, 24x7 coverage for hardware (HR570E)
4-year, 4-hour onsite, 13x5 coverage for hardware (HQ068E)
4-year, 4-hour onsite, 24x7 coverage for hardware (HQ069E)
4-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (HQ076E)
4-year, 24x7 SW phone support, software updates (HQ074E)
5-year, 4-hour onsite, 13x5 coverage for hardware (HQ071E)
5-year, 4-hour onsite, 24x7 coverage for hardware (HQ072E)
5-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (HQ077E)
5-year, 24x7 SW phone support, software updates (HQ075E)

4

HP 5810-48G Switch

Specifications (continued)

HP 5810-48G Switch (JF242A)

3 Yr 6 hr Call-to-Repair Onsite (HQ065E)
4 Yr 6 hr Call-to-Repair Onsite (HQ070E)
5 Yr 6 hr Call-to-Repair Onsite (HQ073E)
1-year, 6 hour Call-To-Repair Onsite for hardware (HR573E)
1-year, 24x7 software phone support, software updates (HR572E)
1-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone support and software updates (HR571E)
1-year, 24x7 software phone support, software updates + Next Business Day Hardware Exchange (HS666E)
1-year, 24x7 software phone support, software updates + 4 hour hardware exchange (HS667E)

Refer to the HP website at www.hp.com/networking/services for details on the service-level descriptions and product numbers. For details about services and
response times in your area, please contact your local HP sales office.

Standards and protocols General protocols

IEEE 802.1D MAC Bridges
IEEE 802.1p Priority
IEEE 802.1Q VLANs
IEEE 802.1s (MSTP)
IEEE 802.1v VLAN classification by Protocol and
Port
IEEE 802.1w Rapid Reconfiguration of Spanning
Tree
IEEE 802.3ad Link Aggregation Control Protocol
(LACP)
IEEE 802.3ae 10-Gigabit Ethernet
IEEE 802.3x Flow Control
RFC 768 UDP
RFC 792 ICMP
RFC 793 TCP
RFC 826 ARP
RFC 854 TELNET
RFC 925 Multi-LAN Address Resolution
RFC 951 BOOTP
RFC 1519 CIDR
RFC 1542 BOOTP Extensions
RFC 2131 DHCP
RFC 3576 Ext to RADIUS (CoA only)
RFC 4675 RADIUS VLAN & Priority

MIBs

IEEE8021-PAE-MIB
IEEE8023-LAG-MIB
RFC 1213 MIB II
RFC 1493 Bridge MIB
RFC 2011 SNMPv2 MIB for IP
RFC 2013 SNMPv2 MIB for UDP
RFC 2233 Interface MIB
RFC 2273 SNMP-NOTIFICATION-MIB
RFC 2571 SNMP Framework MIB
RFC 2572 SNMP-MPD MIB
RFC 2573 SNMP-Notification MIB
RFC 2618 RADIUS Client MIB
RFC 2620 RADIUS Accounting MIB
RFC 2665 Ethernet-Like-MIB
RFC 2674 802.1p and IEEE 802.1Q Bridge MIB
RFC 2688 MAU-MIB
RFC 2819 RMON MIB
RFC 2925 Ping MIB
RFC 3414 SNMP-User based-SM MIB
RFC 3415 SNMP-View based-ACM MIB
RFC 3418 MIB for SNMPv3
RFC 3826 AES for SNMP's USM MIB
RFC 4133 Entity MIB (Version 3)
LLDP-EXT-DOT1-MIB
LLDP-EXT-DOT3-MIB
LLDP-MIB

Network management

IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
RFC 2819 Four groups of RMON: 1 (statistics), 2
(history), 3 (alarm) and 9 (events)
RFC 3176 sFlow
ANSI/TIA-1057 LLDP Media Endpoint Discovery
(LLDP-MED)
SNMPv1/v2c/v3

Security

RFC 1492 TACACS+
RFC 2865 RADIUS (client only)
RFC 2866 RADIUS Accounting
Secure Sockets Layer (SSL)
SSHv2 Secure Shell

5

HP 5810-48G Switch accessories

Transceivers

HP X125 1G SFP LC LH40 1310nm Transceiver (JD061A)
HP X120 1G SFP LC LH40 1550nm Transceiver (JD062A)
HP X125 1G SFP LC LH70 Transceiver (JD063B)
HP X110 100M SFP LC LH40 Transceiver (JD090A)
HP X110 100M SFP LC LH80 Transceiver (JD091A)
HP X130 10G SFP+ LC SR Transceiver (JD092B)
HP X130 10G SFP+ LC LRM Transceiver (JD093B)
HP X130 10G SFP+ LC LR Transceiver (JD094B)
HP X110 100M SFP LC FX Transceiver (JD102B)
HP X120 1G SFP LC SX Transceiver (JD118B)
HP X120 1G SFP LC LX Transceiver (JD119B)
HP X110 100M SFP LC LX Transceiver (JD120B)
HP X240 10G SFP+ to SFP+ 0.65m Direct Attach Copper

Cable (JD095C)
HP X240 10G SFP+ to SFP+ 1.2m Direct Attach Copper

Cable (JD096C)
HP X240 10G SFP+ to SFP+ 3m Direct Attach Copper Cable

(JD097C)
HP X240 10G SFP+ to SFP+ 5m Direct Attach Copper Cable

(JG081C)

Cables

HP 1 m PremierFlex OM3+ LC/LC Optical Cable (BK838A)
HP 2 m PremierFlex OM3+ LC/LC Optical Cable (BK839A)
HP 5 m PremierFlex OM3+ LC/LC Optical Cable (BK840A)
HP 15 m PremierFlex OM3+ LC/LC Optical Cable

(BK841A)
HP 30 m PremierFlex OM3+ LC/LC Optical Cable

(BK842A)
HP 50 m PremierFlex OM3+ LC/LC Optical Cable

(BK843A)

Power Supply

HP 5800 300W AC Power Supply (JC087A)

Fan Tray

HP 5800 1RU Spare Fan Assembly (JC098A)

To learn more, visit www.hp.com/networking

© Copyright 2010-2012 Hewlett-Packard Development Company, L.P. The information contained herein is
subject to change without notice. The only warranties for HP products and services are set forth in the express
warranty statements accompanying such products and services. Nothing herein should be construed as
constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained
herein.

Microsoft is a U.S. registered trademark of Microsoft Corporation.
4AA3-0704ENW, Created September 2010; Updated May 2012, Rev. 3
