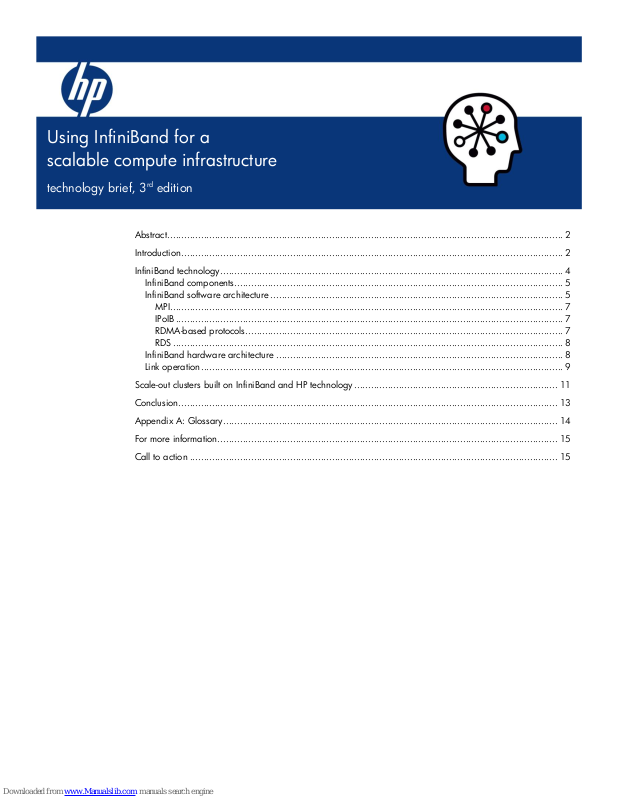

Using InfiniBand for a
scalable compute infrastructure
technology brief, 3rd edition
Abstract .............................................................................................................................................. 2
Introduction ......................................................................................................................................... 2
InfiniBand technology ........................................................................................................................... 4
InfiniBand components ...................................................................................................................... 5
InfiniBand software architecture ......................................................................................................... 5
MPI ............................................................................................................................................. 7
IPoIB ........................................................................................................................................... 7
RDMA-based protocols .................................................................................................................. 7
RDS ............................................................................................................................................ 8
InfiniBand hardware architecture ....................................................................................................... 8
Link operation .................................................................................................................................. 9
Scale-out clusters built on InfiniBand and HP technology ......................................................................... 11
Conclusion ........................................................................................................................................ 13
Appendix A: Glossary ........................................................................................................................ 14
For more information .......................................................................................................................... 15
Call to action .................................................................................................................................... 15
2
CPU(s)
Memory
Controller
Processor 1
Memory
PCI-X
Bridge
PCIe
Port
Controller
Ultra-3 SCSI
Fibre Channel
Gigabit Ethernet
320 MBps
400 MBps
> 1 Gbps
Memory
Controller
Processor 2
CPU(s)
Processor
Input/Output
InfiniBand
> 10 Gbps*
* 4x link, single data rate
Abstract
With business models constantly changing to keep pace with today’s Internet-based, global economy,
IT organizations are continually challenged to provide customers with high performance platforms
while controlling their cost. An increasing number of enterprise businesses are implementing scale-out
architectures as a cost-effective approach for scalable platforms, not just for high performance
computing (HPC) but also for financial services and Oracle-based database applications.
InfiniBand (IB) is one of the most important technologies that enable the adoption of cluster computing.
This technology brief describes InfiniBand as an interconnect technology used in cluster computing,
provides basic technical information, and explains the advantages of implementing InfiniBand-based
scale-out architectures.
Introduction
The overall performance of enterprise servers is determined by the synergetic relationship between
three main subsystems: processing, memory, and input/output. The multiprocessor architecture used
in the latest single-server systems (Figure 1) provides a high degree of parallel processing capability.
However, multiprocessor server architecture cannot scale cost effectively to a large number of
processing cores. Scale-out cluster computing that builds an entire system by connecting stand-alone
systems with interconnect technology has become widely implemented for HPC and enterprise data
centers around the world.
Figure 1. Architecture of a dual-processor single server (node)
3
Figure 2 shows an example of cluster architecture that integrates computing, storage, and
visualization functions into a single system. Applications are usually distributed to compute nodes
through job scheduling tools.
Figure 2. Sample clustering architecture
Scale-out systems allow infrastructure architects to meet performance and cost goals, but interconnect
performance, scalability, and reliability are key areas that must be carefully considered. A cluster
infrastructure works best when built with an interconnect technology that scales easily, reliably, and
economically with system expansion.
Ethernet is a pervasive, mature interconnect technology that can be cost-effective for some application
workloads. The emergence of 10-Gigabit Ethernet (10GbE) offers a cluster interconnect that meets
higher bandwidth requirements than 1GbE can provide. However, 10GbE still lags the latest
InfiniBand technology in latency and bandwidth performance, and lacks native support for the fat-tree
and mesh topologies used in scale-out clusters. InfiniBand remains the interconnect of choice for
highly parallel environments where applications require low latency and high bandwidth across the
entire fabric.
4
InfiniBand Link
InfiniBand technology
InfiniBand is an industry-standard, channel-based architecture in which congestion-management
capabilities and zero-copy data transfers using remote direct memory access (RDMA) are core
capabilities—resulting in high-speed, low-latency interconnects for scale-out compute infrastructures.
InfiniBand uses a multi-layer architecture to transfer data from one node to another. In the InfiniBand
layer model (Figure 3), separate layers perform different tasks in the message passing process.
The upper layer protocols (ULPs) work closest to the operating system and application; they define the
services and affect how much software overhead the data transfer will require. The InfiniBand
transport layer is responsible for communication between applications. The transport layer splits the
messages into data payloads and encapsulates each data payload and an identifier of the
destination node into one or more packets. Packets can contain data payloads of up to four kilobytes.
The packets are passed to the network layer, which selects a route to the destination node and, if
necessary, attaches the route information to the packets. The data link layer attaches a local identifier
(LID) to the packet for communication at the subnet level. The physical layer transforms the packet into
an electromagnetic signal based on the type of network media—copper or fiber.
Figure 3. Distributed computing using InfiniBand architecture
InfiniBand has these important characteristics:
Very high bandwidth—up to 40Gbps Quad Data Rate (QDR)
Low latency end-to-end communication—MPI ping-pong latency approaching 1 microsecond
Hardware-based protocol handling, resulting in faster throughput and low CPU overhead due to
efficient OS bypass and RDMA
Native support for fat-tree and other common mesh topologies in fabric design
5
InfiniBand components
InfiniBand architecture involves four key components:
Host channel adapter
Subnet manager
Target channel adapter
InfiniBand switch
A host node or server requires a host channel adapter (HCA) to connect to an InfiniBand
infrastructure. An HCA can be a card installed in an expansion slot or integrated onto the host’s
system board. An HCA can communicate directly with another HCA, with a target channel adapter,
or with an InfiniBand switch.
InfiniBand uses subnet manager (SM) software to manage the InfiniBand fabric and to monitor
interconnect performance and health at the fabric level. A fabric can be as simple as a point-to-point
connection or multiple connections through one or more switches. The SM software resides on a node
or switch within the fabric, and provides switching and configuration information to all of the switches
in the fabric. Additional backup SMs may be located within the fabric for failover should the primary
SM fail. All other nodes in the fabric will contain an SM agent that processes management data.
Managers and agents communicate using management datagrams (MADs).
A target channel adapter (TCA) is used to connect an external storage unit or I/O interface to an
InfiniBand infrastructure. The TCA includes an I/O controller specific to the device’s protocol (SCSI,
Fibre Channel, Ethernet, etc.) and can communicate with an HCA or an InfiniBand switch.
An InfiniBand switch provides scalability by allowing a number of HCAs, TCAs, and other IB switches
to connect to an InfiniBand infrastructure. The switch handles network traffic by checking the local link
header of each data packet received and forwarding the packet to the proper destination.
The most basic InfiniBand infrastructure will consist of host nodes or servers equipped with HCAs, an
InfiniBand switch, and subnet manager software. More expansive networks will include multiple
switches.
InfiniBand software architecture
InfiniBand, like Ethernet, uses a multi-layer processing stack to transfer data between nodes.
InfiniBand architecture, however, provides OS-bypass features such as the communication processing
duties and RDMA operations as core capabilities and offers greater adaptability through a variety of
services and protocols.
While the majority of existing InfiniBand clusters operate on the Linux platform, drivers and HCA
stacks are also available for Microsoft® Windows®, HP-UX, Solaris, and other operating systems
from various InfiniBand hardware and software vendors.
The layered software architecture of the HCA allows writing code without specific hardware in mind.
The functionality of an HCA is defined by its verb set, which is a table of commands used by the
application programming interface (API) of the operating system being run. A number of services and
software protocols are available (Figure 4) and, depending on type, can be implemented from user
space or from the kernel.
6
User APIs
uDAPL
SDP Library
MAD API
Open Fabrics Verbs, CMA, and API
IPoIB
Upper Level Protocols
Provider
User
space
Kernel
space
Hardware-Specific Driver
Hardware
MPIs
Open SM
Application Level
Mid-Layer Modules
Connection Manager
SA Client
MAD Services
Diag Tools
RDS
RDMA-based Protocols
(kDAPL, SDP, SRP, iSER, NFS)
InfiniBand HCA
Open Fabrics Verbs and API
SMA
Clustered DB
VNIC
IP-Based Access
Sockets-Based Access
Block Storage Access
File System Access
Figure 4. InfiniBand software layers
As indicated in Figure 4, InfiniBand supports a variety of upper level protocols (ULPs) and libraries
that have evolved since the introduction of InfiniBand. The key protocols are discussed in the following
pages.
7
MPI
The message passing interface (MPI) protocol is a library of calls used by applications in a parallel
computing environment to communicate between nodes. MPI calls are optimized for performance in a
compute cluster that takes advantage of high-bandwidth and low-latency interconnects. In parallel
computing environments, code is executed across multiple nodes simultaneously. MPI facilitates the
communication and synchronization among these jobs across the entire cluster.
To take advantage of the features of MPI, an application must be written and compiled to include the
libraries from the particular MPI implementation used. Several implementations of MPI are on the
market:
HP-MPI
Intel MPI
Publicly available versions such as MVAPICH2 and Open MPI
MPI has become the de-facto IB ULP standard. In particular, HP-MPI has been accepted by more
independent software vendors (ISVs) than any other commercial MPI. By using shared libraries,
applications built on HP-MPI can transparently select interconnects that significantly reduce the effort
for applications to support various popular interconnect technologies. HP-MPI is supported on HP-UX,
Linux, True64 UNIX, and Microsoft Windows Compute Cluster Server 2003.
IPoIB
Internet Protocol over InfiniBand (IPoIB) allows the use of TCP/IP or UDP/IP-based applications
between nodes connected to an InfiniBand fabric. IPoIB supports IPv4 or IPv6 protocols and
addressing schemes. An InfiniBand HCA is configured through the operating system as a traditional
network adapter that can use all of the standard IP-based applications such as PING, FTP, and
TELNET. IPoIB does not support the RDMA features of InfiniBand. Communication between IB nodes
using IPoIB and Ethernet nodes using IP will require a gateway/router interface.
RDMA-based protocols
DAPL - The Direct Access Programming Library (DAPL) allows low-latency RDMA communications
between nodes. The uDAPL provides user-level access to RDMA functionality on InfiniBand while the
kDAPL provides the kernel-level API. To use RDMA for the data transfers between nodes, applications
must be written with a specific DAPL implementation.
SDP – Sockets Direct Protocol (SDP) is an RDMA protocol that that operates from the kernel.
Applications must be written to take advantage of the SDP interface. SDP is based on the WinSock
Direct Protocol used by Microsoft server operating systems and is suited for connecting databases to
application servers.
SRP – SCSI RDMA Protocol (SRP) is a data movement protocol that encapsulates SCSI commands over
InfiniBand for SAN networking. Operating from the kernel level, SRP allows copying SCSI commands
between systems using RDMA for low-latency communications with storage systems.
iSER – iSCSI Enhanced RDMA (iSER) is a storage standard originally specified on the iWARP RDMA
technology and now officially supported on InfiniBand. The iSER protocol provides iSCSI
manageability to RDMA storage operations.
NFS – The Network File System (NFS) is a storage protocol that has evolved since its inception in the
1980s, undergoing several generations of development while remaining network-independent. With
the development of high-performance I/O such as PCIe and the significant advances in memory
subsystems, NFS over RDMA on InfiniBand offers low-latency performance for transparent file sharing
across different platforms.
8
Link
SDR
Signal rate
DDR
Signal rate
QDR
Signal rate
1x
2.5 Gbps
5 Gbps
10 Gbps
4x
10 Gbps
20 Gbps
40 Gbps
12x
30 Gbps
60 Gbps
120 Gbps
1x Link
(1 send channel,
1 receive channel,
each using differential voltage or
fiber optic signaling)
4x Link
12x Link
RDS
The Reliable Datagram Sockets (RDS) is a low-overhead, low-latency, high-bandwidth transport
protocol that yields high performance for cluster interconnect-intensive environments such as Oracle
Database or Real Application Cluster (RAC). The RDS protocol offloads error-checking operations to
the InfiniBand fabric, freeing more CPU time for application processing.
InfiniBand hardware architecture
InfiniBand fabrics use high-speed, bi-directional serial interconnects between devices. Interconnect
bandwidth and distances are characteristics determined by the type of cabling and connections
employed. The bi-directional links contain dedicated send and receive lanes for full duplex operation.
For quad data rate (QDR) operation, each lane has a signaling rate of 10 Gbps. Bandwidth is
increased by adding more lanes per link. InfiniBand interconnect types include 1x, 4x, or 12x wide
full-duplex links (Figure 5)., The 4x is the most popular configuration and provides a theoretical fullduplex QDR bandwidth of 80 (2 x 40) gigabits per second.
Figure 5. InfiniBand link types
Encoding overhead in the data transmission process limits the maximum data bandwidth per link to
approximately 80 percent of the signal rate. However, the switched fabric design of InfiniBand allows
bandwidth to grow or aggregate as links and nodes are added. Double data rate (DDR) and
especially quad data rate (QDR) operation increase bandwidth significantly (Table 1).
Table 1. InfiniBand interconnect bandwidth
9
Sources
Targets
QSFP
CX4
The operating distances of InfiniBand interconnects are contingent upon the type of cabling (copper or
fiber optic), the connector, and the signal rate. The common connectors used in InfiniBand
interconnects today are CX4 and quad small-form-factor pluggable (QSFP) as shown in Figure 6.
Figure 6. InfiniBand connectors
Fiber optic cable with CX4 connectors generally offers the greatest distance capability. The adoption
of 4X DDR products is widespread, and deployment of QDR systems is expected to increase.
Link operation
Each link can be divided (multiplexed) into a set of virtual lanes, similar to highway lanes (Figure 7).
Each virtual lane provides flow control and allows a pair of devices to communicate autonomously.
Typical implementations have each link accommodating eight lanes1; one lane is reserved for fabric
management and the other lanes for packet transport. The virtual lane design allows an InfiniBand
link to share bandwidth between various sources and targets simultaneously. For example, if a
10Gb/s link were divided into five virtual lanes, each lane would have a bandwidth of 2Gb/s. The
InfiniBand architecture defines a virtual lane mapping algorithm to ensure inter-operability between
end nodes that support different numbers of virtual lanes.
Figure 7. InfiniBand virtual lane operation
1
The IBTA specification defines a minimum of two and a maximum of 16 virtual lanes per link.
10
When a connection between two channel adapters is established, one of the following transport layer
communication protocols is selected:
Reliable connection (RC) – data transfer between two entities using receive acknowledgment
Unreliable connection (UC) – same as RC but without acknowledgement (rarely used)
Reliable datagram (RD) – data transfer using RD channel between RD domains
Unreliable datagram (UD) – data transfer without acknowledgement
Raw packets (RP) – transfer of datagram messages that are not interpreted
These protocols can be implemented in hardware; some protocols more efficient than others. The UD
and Raw protocols, for instance, are basic datagram movers and may require system processor
support depending on the ULP used.
When the reliable connection protocol is operating (Figure 8), hardware at the source generates
packet sequence numbers for every packet sent, and the hardware at the destination checks the
sequence numbers and generates acknowledgments for every packet sequence number received. The
hardware also detects missing packets, rejects duplicate packets, and provides recovery services for
failures in the fabric.
Figure 8. Link operation using reliable connection protocol
11
The programming model for the InfiniBand transport assumes that an application accesses at least one
Send and one Receive queue to initiate the I/O. The transport layer supports four types of data
transfers for the Send queue:
Send/Receive – Typical operation where one node sends a message and another node receives the
message
RDMA Write – Operation where one node writes data directly into a memory buffer of a remote
node
RDMA Read – Operation where one node reads data directly from a memory buffer of a remote
node
RDMA Atomics – Allows atomic update of a memory location from an HCA perspective.
The only operation available for the receive queue is Post Receive Buffer transfer, which identifies a
buffer that a client may send to or receive from using a Send or RDMA Write data transfer.
Scale-out clusters built on InfiniBand and HP technology
In the past few years, scale-out cluster computing has become a mainstream architecture for high
performance computing. As the technology becomes more mature and affordable, scale-out clusters
are being adopted in a broader market beyond HPC. HP Oracle Database Machine is one example.
The trend in this industry is toward using space- and power-efficient blade systems as building blocks
for scale-out solutions . HP BladeSystem c-Class solutions offer significant savings in power, cooling,
and data center floor space without compromising performance.
The c7000 enclosure supports up to 16 half-height or 8 full-height server blades and includes rear
mounting bays for management and interconnect components. Each server blade includes mezzanine
connectors for I/O options such as the HP 4x QDR IB mezzanine card. HP c-Class server blades are
available in two form-factors and server node configurations to meet various density goals. To meet
extreme density goals, the half-height HP BL2x220c server blade includes two server nodes. Each
node can support two quad-core Intel Xeon 5400-series processors and a slot for a mezzanine board,
providing a maximum of 32 nodes and 256 cores per c7000 enclosure.
NOTE:
The DDR HCA mezzanine card should be installed in a PCIe x8
connector for maximum InfiniBand performance. The QDR HCA
mezzanine card is supported on the ProLiant G6 blades with PCIe
x8 Gen 2 mezzanine connectors
Figure 9 shows a full bandwidth fat-tree configuration of HP BladeSystem c-Class components
providing 576 nodes in a cluster. Each c7000 enclosure includes an HP 4x QDR IB Switch, which
provides 16 downlinks for server blade connection and 16 QSFP uplinks for fabric connectivity.
Spine-level fabric connectivity is provided through sixteen 36-port Voltaire 4036 QDR InfiniBand
Switches2. The Voltaire 36-port switches provide 40-Gbps (per port) performance and offer fabric
management capabilities.
2
Qualified, marketed, and supported by HP.
12
HP c7000 Enclosure
16 HP BL280c G6
server blades
w/4x QDR HCAs
16
36-Port QDR
IB Switch
HP c7000 Enclosure
16 HP BL280c G6
server blades
w/4x QDR HCAs
16
HP c7000 Enclosure
16 HP BL280c G6
server blades
w/4x QDR HCAs
16
1
2
36
HP 4x QDR IB
Interconnect Switch
HP 4x QDR IB
Interconnect Switch
HP 4x QDR IB
Interconnect Switch
Total nodes
576 (1 per blade)
Total processor cores
4608 (2 Nehalem processors per node, 4 cores per processor
Memory
28 TB w/4 GB DIMMs (48 GB per node)
or 55 TB w/ 8 GB DIMMS (96 GB per node)
Storage
2 NHP SATA or SAS per node
Interconnect
1:1 full bandwidth (non-blocking),
3 switch hops maximum, fabric redundancy
36-Port QDR
IB Switch
36-Port QDR
IB Switch
1
2
16
Figure 9. HP BladeSystem c-Class 576-node cluster configuration
The HP Unified Cluster Portfolio includes a range of hardware, software, and services that provide
customers a choice of pre-tested, pre-configured systems for simplified implementation, fast
deployment, and standardized support.
HP solutions optimized for HPC:
HP Cluster Platforms – flexible, factory integrated/tested systems built around specific platforms,
backed by HP warranty and support, and built to uniform, worldwide specifications
HP Scalable File Share (HP SFS) – high-bandwidth, scalable HP storage appliance for Linux clusters
HP Financial Services Industry (FSI) solutions – defined solution stacks and configurations for real-
time market data systems
HP and partner solutions optimized for scale-out database applications:
HP Oracle Exadata Storage
HP Oracle Database Machine
HP BladeSystem for Oracle Optimized Warehouse (OOW)
HP Cluster Platforms are built around specific hardware and software platforms and offer a choice of
interconnects. For example, the HP Cluster Platform CL3000BL uses the HP BL2x220c G5, BL280c
G6, and BL460c blade servers as the compute node with a choice of GbE or InfiniBand
interconnects. No longer unique to Linux or HP-UX environments, HPC clustering is now supported
through Microsoft Windows Server HPC 2003, with native support for HP-MPI.
13
Conclusion
InfiniBand offers an industry standard, high-bandwidth, low-latency, scalable interconnect with a high
degree of connectivity between servers connected to a fabric. While zero-copy (RDMA) protocols
have been applied to TCP/IP networks such as Ethernet, RDMA is a core capability of InfiniBand
architecture. Flow control support is native to the HCA design, and the latency time for InfiniBand
data transfers is generally less—approaching 1 microsecond for MPI pingpong latency—than that for
10Gb Ethernet.
InfiniBand provides native support for fat-tree and other mesh topologies, allowing simultaneous
connections across multiple links. This gives the fabric the ability to scale or aggregate bandwidth as
more nodes and/or additional links are connected.
InfiniBand is further strengthened by HP-MPI becoming the leading solution among ISVs for
developing and running MPI-based applications across multiple platforms and interconnect types.
Software development and support become simplified since interconnects from a variety of vendors
can be supported by an application written to the HP-MPI protocol.
Parallel compute applications that involve a high degree of message passing between nodes benefit
significantly from InfiniBand. HP BladeSystem c-Class clusters and similar rack-mounted clusters
support IB QDR and DDR HCAs and switches.
InfiniBand offers solid growth potential in performance, with DDR infrastructure currently accepted as
mainstream, QDR becoming available, and Eight Data Rate (EDR) with a per-port rate of 80 Gbps
being discussed by the InfiniBand Trade Association (IBTA) as the next target level.
The decision to use Ethernet or InfiniBand should be based on interconnect performance and cost
requirements. HP is committed to support both InfiniBand and Ethernet infrastructures, and to help
customers choose the most cost-effective fabric interconnect solution.
14
Acronym or abbreviation
Description
API
Application Programming Interface: software routine or object written in support of a language
DDR
Double Data Rate: for InfiniBand, clock rate of 5.0 Gbps (2.5 Gbps x 2)
GbE
Gigabit Ethernet: Ethernet network operating at 1 Gbps or greater
HCA
Host Channel Adapter: hardware interface connecting a server node to the IB network
HPC
High Performance Computing: the use of computer and/or storage clusters
IB
InfiniBand: interconnect technology for distributed computing/storage infrastructure
IP
Internet Protocol: standard of data communication over a packet-switched network
IPoIP
Internet Protocol over InfiniBand: protocol allowing the use of TCP/IP over IB networks
iSER
iSCSI Enhanced RDMA: file storage protocol
iWARP
Internet Wide Area RDMA Protocol: protocol enhancement allowing RDMA over TCP
MPI
Message Passing Interface: library of calls used by applications in parallel compute systems
NFS
Network File System: file storage protocol
NHP
Non Hot Pluggable (drive)
QDR
Quad Data Rate: for InfiniBand, clock rate of 10 Gbps (2.5 Gbps x 4)
QSFP
Quad Small Form factor Pluggable: interconnect connector type
RDMA
Remote Direct Memory Access: protocol allowing data movement in and out of system memory
without CPU intervention
RDS
Reliable Datagram Sockets: transport protocol
SATA
Serial ATA (hard drive)
SAS
Serial Attached SCSI (hard drive)
SDP
Sockets Direct Protocol: kernel-level RDMA-based protocol
SDR
Single Data Rate: for InfiniBand, standard clock rate of 2.5 Gbps
SM
Subnet Manager: management software for InfiniBand network
SRP
SCSI RDMA Protocol: data movement protocol
TCA
Target Channel Adapter: hardware interface connecting a storage or I/O node to the IB
network
TCP
Transmission Control Protocol: core high-level protocol for packet-based data communication
TOE
TCP Offload Engine: accessory processor and/or driver that assumes TCP/IP duties from
system CPU
ULP
Upper Level Protocol: protocol layer that defines the method of data transfer over InfiniBand
VNIC
Virtual Network Interface Controller: software interface that allows a host on an InfiniBand
fabric access to nodes on an external Ethernet network
Appendix A: Glossary
The following table lists InfiniBand-related acronyms and abbreviations used in this document.
Table 1. Acronyms and abbreviations
15
Resource
Hyperlink
HP products
www.hp.com
HPC/IB/cluster products
www.hp.com/go/hptc
HP InfiniBand products
http://h18004.www1.hp.com/products/servers/networki
ng/index-ib.html
InfiniBand Trade Organization
http://www.infinibandta.org
Open Fabrics Alliance
http://www.openib.org/
RDMA Consortium
http://www.rdmaconsortium.org.
Technology brief discussing iWARP RDMA
http://h20000.www2.hp.com/bc/docs/support/Support
Manual/c00589475/c00589475.pdf
HP BladeSystem
http://h18004.www1.hp.com/products/blades/compone
nts/c-class-tech-function.html
© 2009 Hewlett-Packard Development Company, L.P. The information contained herein is
subject to change without notice. The only warranties for HP products and services are set forth
in the express warranty statements accompanying such products and services. Nothing herein
should be construed as constituting an additional warranty. HP shall not be liable for technical
or editorial errors or omissions contained herein.
Microsoft, Windows, and Windows NT are US registered trademarks of Microsoft Corporation.
Linux is a U.S. registered trademark of Linux Torvalds.
TC090403TB, April 2009
For more information
For additional information, refer to the resources listed below.
Call to action
Send comments about this paper to: TechCom@HP.com.
Loading...
