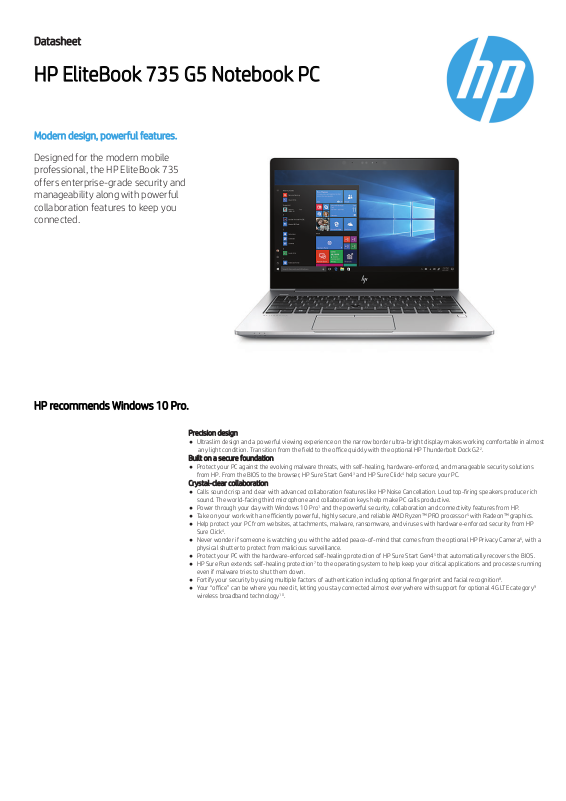

Datasheet

HP EliteBook 735 G5 Notebook PC

Modern design, powerful features.

Designed for the modern mobile professional, the HP EliteBook 735 offers enterprise-grade security and manageability along with powerful collaboration features to keep you connected.

HP recommends Windows 10 Pro.

Precision design

Ultraslim design and a powerful viewing experience on the narrow border ultra-bright display makes working comfortable in almost

●

any light condition. Transition from the field to the office quickly with the optional HP Thunderbolt Dock G22.

Built on a secure foundation

Protect your PCagainst the evolvingmalware threats, with self-healing, hardware-enforced, and manageable security solutions

●

from HP. From the BIOS to the browser, HP Sure Start Gen43and HP Sure Click4help secure your PC.

Crystal-clear collaboration

Calls sound crisp and clear with advanced collaboration features like HP Noise Cancellation. Loud top-firing speakers produce rich

●

sound. The world-facing third microphone and collaboration keys help make PC calls productive. Power through your day with Windows 10 Pro1and the powerful security, collaboration and connectivity features fromHP.

●

Take on your work with an efficiently powerful, highly secure, and reliable AMD Ryzen™ PRO processor5with Radeon™ graphics.

●

Help protect your PC from websites, attachments,malware, ransomware, and viruses with hardware-enforced security from HP

●

Sure Click4. Never wonder if someone is watching you with the added peace-of-mind that comes from the optionalHP Privacy Camera6, with a

●

physical shutter to protect from malicious surveillance. Protect your PCwith the hardware-enforced self-healing protection of HP Sure Start Gen45that automatically recovers the BIOS.

●

HP Sure Run extends self-healing protection7to the operating system to help keep your critical applications and processes running

●

even if malware tries to shut them down. Fortify your security by using multiple factors ofauthentication including optional fingerprint and facial recognition8.

●

Your “office” can be where you need it, letting you stay connected almost everywhere with support for optional 4GLTE category

●

wireless broadband technology10.

Page 2

Datasheet

HP EliteBook 735 G5 Notebook PC Specifications Table

HP recommends Windows 10 Pro.

Available Operating System Windows 10 Pro 64 – HP recommends Windows 10 Pro.

Processor Family

Available Processors

3,4,5

Maximum Memory Up to 32 GB DDR4-2400 SDRAM

Windows 10 Home 64 Windows 10 Home Single Language 64 FreeDOS 2.0

AMD® Ryzen™ APU processor

AMD Ryzen™ 7 2700U APU with Radeon™ Vega Graphics (2.2 GHz base frequency, up to 3.8 GHz burst frequency, 6 MB cache, 4 cores); AMD Ryzen™ 52500U APU with Radeon™ Vega Graphics (2 GHz basefrequenc y, up to 3.6 GHz burst frequency, 6MB cache, 4 cores); AMD Ryzen™ 3 2300U APU with Radeon™Vega Graphics (2GHz base frequency, up to 3.4 GHz burst frequency,6 MB cache, 4 cores)

Standard memory note: Transfer rates up to 2400MT/s. Both slotsare customer accessible/upgradeable. Supports dual channel memory.

Memory Slots 2 SODIMM

Internal Storage 256 GB up to 512 GB PCIe® NVMe™ M.2 SSD

Display 33.8 cm (13.3") diagonal FHD IPS anti-glare LED-backlit, 220 cd/m²,45% sRGB (1920 x 1080); 33.8 cm (13.3") diagonal FHD IPS LED-backlit touchscreen with Corning® Gorilla®

128 GB up to 256 GB SATA SSD

Glass 3, 220 cd/m², 45% sRGB (1920 x 1080); 33.8 cm (13.3")diagonal FHD IPS anti-glare LED-backlit, 400 cd/m², 72% sRGB (1920 x 1080)

12,14,15

Available Graphics Integrated: AMD Radeon™ Vega Graphics

Wireless Technologies Intel® Dual Band Wireless-AC 8265 802.11a/b/g/n/ac (2x2) Wi-Fi® and Bluetooth® 4.2 Combo, non-vPro™; Realtek 802.11ac(2x2) Wi-Fi® and Bluetooth® 4.2 Combo, non-vPro™; HP

Communications Realtek 10/100/1000 GbE

Ports and Connectors 1 AC power; 1 docking connector; 1 headphone/microphone combo; 1R J-45;1 USB Type-C™ (charging); 2 USB 3.1 Gen 1; 1 HDMI2.0

Input Device HP Premium CollaborationKeyboard spill resistant with drain, optional backlit

Webcam HD camera; HD IR webcam

Available Software Native Miracast support; HPLAN Protection; HP Velocity; HP ePrint Driver + JetAdvantage; HP Hotkey Support; HPRecovery Manager; HP JumpStart; HP Support Assistant; HP Noise

Security Management Absolute persistence module; HP BIOSphereGen4; HP DriveLock and Automatic DriveLock; HP Fingerprint Sensor; HP Password Manager; HP Secure Erase;Microsoft Security

Power HP Smart 45 W External ACpower adapter; HP Smart 45 W USB Type-C™ adapter;HP Smart 65 W External AC power adapter; HP Smart 65W USB Type-C™ adapter

lt4132 LTE /HSPA+ 4G Mobile Broadband; Intel® XMM™ 7360 LTE-Advanced

(Cables are not included.)

Clickpad with multi-touchgesture support, taps enabled as default Ambient light sensor

Cancellation Software; HPPhoneWise; Buy Office

Defender; Power-onauthentication; Preboot authentication; TPM 2.0 embedded security chip shipped with Windows 10 (Common Criteria EAL4+ Certified); HP Sure Click; HP SureStart Gen4; HP Wireless Wakeup; HP Client SecurityGen4; RAID configurations; HP Sure Recover; HP Sure Run

HP Long Life 3-cell, 50 WhLi-ion Up to 12 hours (Battery is internal and not replaceable by customer. Serviceable by warranty.)

12,13

10,16,17,18

8,9,10

22,23,24,25,26,27,28,29,30,31

Dimensions 31.04 x 22.93 x 1.77 cm

Weight Starting at 1.33 kg (non-touch); Starting at 1.51kg (touch) (Weight will vary by configuration.)

Environmental Low halogen

Energy Efficiency Compliance ENERGY STAR® certified and EPEAT® Gold registered

Warranty 3-year limited warranty (optional Care Packs available, sold separately), 3-year limited warranty onHP Long Life Battery (available only with the3-year limited platform warranty)

Page 3

Datasheet

HP EliteBook 735 G5 Notebook PC

Accessories and services (not included)

HP recommends Windows 10 Pro.

HP Executive 14.1 Midnight Slim Top Load

HP External USB DVDRW Drive

HP 65W Smart AC Adapter

HP Keyed Cable Lock 10 mm

Keep your bag’s contents safe on your daily commute with the HP Executive 14.1" Midnight Slim Top Load in stylish midnight black. It has a lockable1, double-teeth zippered notebook compartment, secure RFID pocket to safeguard your ID, and a discrete pocket for an optional tracking device.

Product number: 1WM82AA

Connect the HP External USB DVD/RW to any available USB port onyour PC1to get immediate read/write access to your optical media.

Product number: F2B56AA

Feed your notebook with controlled servings of electricity. HP’s new 65W Smart AC Adapter regulates power andoffsets electrical spikes, is designed to reduce cable stress, andincludes a special dongle to support current and priorHP models – perfect for replacingyour notebook’s power adapter or as a needed back-up.

Product number: H6Y89AA

Help keep your notebook safe in the office and high-traffic areas by tethering it to a secure surface with theHP Master Keyed Cable Lock 10mm, designed specifically for ultra-thin profile notebooks.

Product number: T1A62AA

HP Wireless Collaboration Keyboard

HP 3 year Next Business Day Onsite Hardware Support for Notebooks

Make your Skype for Business® voice andvideo calls1easier than ever and declutter your workspacewith the elegant HP Wireless Collaboration Keyboard, redesigned for enhanced every day and collaborative productivity.

Product number: Z9N39AA

Receive 3 years of next business day onsite HW support from an HP-qualified technician for your computing device, if the issue cannot be solvedremotely.

Product number: U4414E

Page 4

Datasheet

HP recommends Windows 10 Pro.

HP EliteBook 735 G5 Notebook PC

Messaging Footnotes

Not all featuresare available in all editions or versions ofWindows. Systems may require upgraded and/orseparately purchased hardware,drivers and/or software to takefull advantage of Windows functionality. Windows 10 is automaticallyupdated, which is

always enabled. ISPfees may apply and additional requirements may applyover time for updates. See http://www.windows.com.

Thunderbolt not supportedon 700 series only supports USB-C.

HP Sure Start Gen5 isavailable on HP EliteBook products equipped with AMD 8th generationprocessors.

HP Sure Click is availableon select HP platforms and supports Microsoft® InternetExplorer, GoogleChrome, and Chromium™. Supported attachments include MicrosoftOf fice(Word, Excel, PowerPoint) and PDF filesin read only mode. Check

http://h20195.www2.hp.com/v2/GetDocument.aspx?docname=4AA7-0922ENWfor all compatible platforms as they becomeavailable.

Multi-core is designedto improve performance of certain softwareproducts. Not all customers or software applications willnecessarily benefit from use of this technology.Performance and clock frequency will vary depending on application workload and your

hardware and softwareconfigurations. AMD’s numbering is not a measurement ofclock speed.

HP Privacy Camera only availableon non-touch screens equipped with HD or IR cameraand must be installed at the factory.

HP Sure Run is availableon HP Elite products equipped with Intel® or AMD® 8thgeneration processors.

Sold separatelyor as an optional feature.

HP Client Security Manager requiresWindows and 8th Generation AMD processors or later.

Optional featuressold separately or as add on features.WWAN requires separately purchased servicecontract. Check with service provider for coverage andavailability in your area. 4G LTEnot available on all products, in allregions.

Technical specifications disclaimers

Not all featuresare available in all editions or versions ofWindows. Systems may require upgraded and/orseparately purchased hardware,drivers, software or BIOS update to takefull advantage of Windows functionality. Windows 10 is automaticallyupdated,

which is always enabled.ISP fees may apply and additional requirements may applyover time for updates. See http://www.windows.com/.

hardware and softwareconfigurations. AMD’s numbering is not a measurement ofclock speed.

Processor speed denotesmaximum performance mode; processors will run atlower speeds in battery optimization mode.

NOTE: In accordancewith Microsoft’s support policy, HP does notsupport the Windows 8 or Windows 7 operating system on productsconfigured with Intel and AMD 7th generation and forwardprocessors or provide any Windows 8 or Windows 7 driverson

http://www.support.hp.com.

Due to the non-industry standardnature of some third-party memory modules, we recommendHP branded memory to ensure compatibility. If you mix memory speeds,the system will perform at the lower memory speed.

For storage drives,GB = 1 billion bytes. TB = 1 trillion bytes.Actual formatted capacity is less. Up to 30 GB (forWindows 10) is reserved for system recoverysoftware.

Wireless accesspoint and Internet service required and sold separately. Availability of public wireless access points limited.The specifications for the 802.11ac WLAN are draft specifications and arenot final. If the final specifications differ from the draft

specifications, it may affect theability of the notebook to communicate with other 802.11ac WLANdevices.

WWAN module is optionaland requires separately purchased service contract.Check with service provider for coverage andavailability in your area. Connection speeds will vary dueto location, environment, network conditions, and other factors.4G LTE not

available on allproducts, in all regions.

Miracast is a wirelesstechnology your PC can use to project yourscreen to TVs, projectors, and streaming mediaplayers that also support Miracast. You can useMiracast to share what you’re doing on yourPC and present a slide show. For more information:

http://windows.microsoft.com/en-us/windows-8/project-wireless-screen-miracast.

The term "10/100/1000" or "Gigabit" Ethernetindicates compatibility with IEEE standard 802.3ab for Gigabit Ethernet,and does not connote actual operating speed of 1 Gb/s. For high-speed transmission,connection to a Gigabit Ethernet server and network

infrastructure is required.

HD content requiredto view HD images.

Internet access required.

Sold separatelyor as an optional feature.

Resolutions are dependent uponmonitor capability, and resolution and colordepth settings.

HP ePrint Drive requiresan Internet connection to HP web-enabled printer and HPePrint account registration (for a list ofeligible printers, supported documents and image types and other HP ePrintdetails, see www.hp.com/go/eprintcenter). Print times and

connection speeds may vary.

HP Support Assistant requiresWindows and Internet access.

HP PhoneWise Client is only availableon select platforms. For supported platformsand HP PhoneWise system requirements see www.hp.com/go/HPPhoneWise.

HP Driver Packs notpreinstalled, however available for downloadat http://www.hp.com/go/clientmanagement.

HP Manageability Integration Kitcan be downloaded from http://www8.hp.com/us/en/ads/clientmanagement/overview.html

Ivanti Management Suite subscriptionrequired.

HP BIOSphere Gen4 featuresmay vary depending on the PC platform and configurations.Requires Intel® or AMD 8th generation processors.

Secure Erase for themethods outlined in the National Institute of Standards and Technology Special Publication 800-88. Supportedon Elite platforms with BIOS version F.03 or higher.

Absolute agent is shippedturned off, and will be activated whencustomers activate a purchased subscription. Subscriptions can be purchasedfor terms ranging multiple years. Serviceis limited, check with Absolute for availability outside the U.S. TheAbsolute Recovery Guaranteeis a limited warranty. Certain conditions apply. For fulldetails visit: http://www.absolute.com/company/legal/agreements/ computrace-agreement. Data Delete isan optional service provided by Absolute Software.If utilized, the Recovery Guarantee is null andvoid. In order to use the Data Delete service,customers must first sign a Pre-Authorization Agreement andeither obtain a PIN or purchase one or more RSA SecurID tokensfrom Absolute Software.

HP Client Security Suite Gen 4 requiresWindows and Intel® or AMD 8th generation processors.

HP Password Managerrequires Internet Explorer or Chrome or FireFox.Some websites and applications may not be supported. Usermay need to enable or allow the add-on /extension in the internet browser.

HP Fingerprint Sensor sold separately or as an optional feature.

Microsoft Defender Optin and internet connection required for updates.

RAID configuration is optional anddoes require a second hard drive.

HP Sure Click is availableon select HP platforms and supports Microsoft® InternetExplorer and Chromium™. Check http://h20195.www2.hp.com/v2/GetDocument.aspx?docname=4AA7-0922ENWfor all compatible platforms as they becomeavailable.

HP Sure Start Gen4 isavailable on HP Elite products equipped with 8th generationIntel® or AMD processors.

Windows 10 MM14 battery lifewill vary depending on various factors including product model, configuration,loaded applications, features, use, wirelessfunctionality, and power management settings. The maximum capacityof the battery will naturally decrease with time and usage.See www.bapco.com for additional details.

Supports HP Fast Chargewith 65W AC Adapter.

Availability may vary bycountry.

HP Care Packs aresold separately. Service levels and responsetimes for HP Care Packs may vary depending onyour geographic location. Service starts on date of hardware purchase. Restrictions and limitationsapply. For details, visit www.hp.com/go/cpc. HP services are governedby the applicable HP terms and conditions of service providedor indicated to Customer at the time of purchase.Customer may have additional statutory rights accordingto applicable local laws, and such rights are notin any way affected by the HP terms and conditionsof service or the HP Limited Warranty provided with yourHP Product.

EPEAT® registered where applicable. EPEAT registration variesby country. See http://www.epeat.net for registration statusby country. Search keyword generatoron HP’s 3rd party option store for solar generatoraccessories at www.hp.com/go/options.

External power supplies, powercords, cables and peripherals are not LowHalogen. Service parts obtained after purchase may not beLow Halogen.

www.hp.com/go/getupdated

Copyright © 2018 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errorsor omissions contained herein. AMD is a trademark of Advanced Micro Devices, Inc. Intel vPro is a trademark or registered trademark of Intel Corporation or its subsidiaries in the U.S. and/or other countries. USB Type-C™ and USB-C™ are trademarks of USB Implementers Forum. ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency. All other trademarks are the property of their respective owners.

4AA7-2801EEE, May 2018
