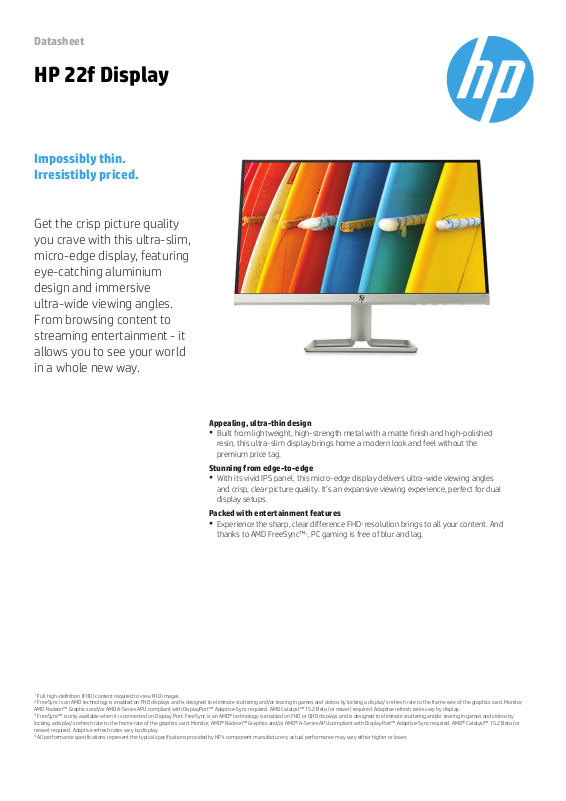

Page 1
Datasheet
HP 22f Display
Impossibly thin.
Irresistibly priced.
Get the crisp picture quality
you crave with this ultra-slim,
micro-edge display, featuring
eye-catching aluminium
design and immersive
ultra-wide viewing angles.
From browsing content to
streaming entertainment - it
allows you to see your world
in a whole new way.
Appealing, ultra-thin design
●
Built from lightweight, high-strength metal with a matte finish and high-polished
resin, this ultra-slim display brings home a modern look and feel without the
premium price tag.
Stunning from edge-to-edge
●
With its vivid IPS panel, this micro-edge display delivers ultra-wide viewing angles
and crisp, clear picture quality. It’s an expansive viewing experience, perfect for dual
display setups.
Packed with entertainment features
●
Experience the sharp, clear difference FHD1resolution brings to all your content. And
thanks to AMD FreeSync™2, PC gaming is free of blur and lag.
1
Full high-definition (FHD)content required to viewFHD images.
2
FreeSync is anAMD technology is enabled onFHD displays and is designed to eliminate stutteringand/or tearing in games and videos by locking a display’s refresh rate to the frame rate of the graphics card. Monitor,
AMD Radeon™ Graphics and/or AMD A-Series APU compliant with DisplayPort™ Adaptive-Sync required. AMD Catalyst™ 15.2 Beta (or newer) required. Adaptive refresh rates vary by display.
3
FreeSync™ is only available when it is connected on Display Port. FreeSync is an AMD® technology is enabled on FHD or QHD displays and is designed to eliminate stuttering and/or tearing in games and videos by
locking a display’s refresh rate to the frame rate of the graphics card. Monitor, AMD® Radeon™ Graphics and/or AMD® A-Series APU compliant with DisplayPort™ Adaptive-Sync required. AMD® Catalyst™ 15.2 Beta (or
newer) required. Adaptive refresh rates vary by display.
4
All performance specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher or lower.
Page 2
Datasheet
HP 22f Display
Featuring
Full HD display / 1080p display
Be prepared for brilliant visuals and crisp images with the unforgettable quality of this stunning FHD display.
1
Micro-edge display
With virtually no bezel encircling the display, an ultra-wide viewing experience provides for seamless multi-monitor set-ups.
Anti-glare panel
Enjoy the sun and your favorite content with this anti-glare panel. Non-reflective and low gloss, means you'll get less glare while you're outside.
Low Blue Light
Using the Low Blue Light mode subtly shifts your display’s colors to a warmer spectrum, while making whites more natural and putting less strain on your eyes.
Share the panoramic view
Vibrant detail from practically any position with consistent color and image clarity maintained across an ultra-wide 178° horizontal and vertical viewing angles.
Compact, sleek design
Get everything you need in one elegant package. Just one connection to the wall eliminates cable clutter. Slim design gives you more room for an enhanced
computing experience.
Modern design
With a sleek design this contemporary display perfectly compliments your latest device and seamlessly integrates within the modern home.
Adjust your view
Adjust the screen to your personal preference with a 5° forward or 25° backward tilt.
Seamless visuals
Videos and games come to life with less stutter or blur for more realistic play with smooth 5 milisecond gray-to-gray response time.
Extreme detail
Amazing clarity is delivered by 10,000,000:1 Dynamic Contrast Ratio for deeper blacks, brighter whites, and crisper colors.
1
Full high-definition (FHD) content required to view FHD images.
2
FreeSync is an AMD technology is enabled on FHD displays and is designed to eliminate stuttering and/or tearing in games and videos by locking a display’s refresh rate to the frame rate of the graphics card. Monitor,
AMD Radeon™ Graphics and/or AMD A-Series APU compliant with DisplayPort™ Adaptive-Sync required. AMD Catalyst™ 15.2 Beta (or newer) required. Adaptive refresh rates vary by display.
3
FreeSync™ is only available when it is connected on Display Port. FreeSync is an AMD® technology is enabled on FHD or QHD displays and is designed to eliminate stuttering and/or tearing in games and videos by locking
a display’s refresh rate to the frame rate of the graphics card. Monitor,AMD® Radeon™ Graphics and/or AMD® A-Series APU compliant with DisplayPort™ Adaptive-Sync required. AMD® Catalyst™ 15.2 Beta (or newer)
required. Adaptive refresh rates vary by display.
4
All performance specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher or lower.
4
Page 3
Datasheet
HP 22f Display
Display Size 54.61 cm (21.5”)
Aspect Ratio 16:9
Display type IPS with LED backlight
Pixel pitch 0.247 mm
Response time 5 ms gray to gray (with overdrive)
Brightness 300 cd/m²
Contrast ratio 1000:1 static; 10000000:1 dynamic
Viewing angle 178° horizontal; 178° vertical
Resolution FHD (1920 x 1080 @60 Hz)
Display Scan Frequency (horizontal) Up to 86 kHz
Display Scan Frequency (vertical) Up to 75 Hz
Display features Anti-glare; Anti-static; In plane switching; Language selection; LED backlights; On-screen controls; Plug and Play; User programmable
Display input type 1 VGA; 1 HDMI 2.0
Physical security features Security lock-ready
Display moving angle Tilt: -5 to +25°
Environmental Specifications Arsenic-free display glass; Mercury-free display backlights; Low halogen
Energy Efficiency Energy Efficiency class: A On-mode power consumption: 18 W; Annual energy consumption: 27 kWh; Standby: 0.23 W; Power consumption (off-mode): 0.16 W
Display User Control Options Brightness; Color control; Contrast; Exit; Image control; Information; Input source; Language; Management; Menu; OK; Power
Dimensions (W x D x H) 48.98 x 3.97 x 29.67 cm
Dimension Note (metric) Without stand.
Weight 2.33 kg
Operating Temperature Range 5 to 35°C
Operating Humidity Range 20 to 80% RH
Certifications and compliances BSMI; CB; CCC; CE; CEL Grade 2; CSA; CSA-NRTL; EAC; E-standby; EUP Lot-6; FCC; GEMS; HRN N N0.201; ICES; IEC 60950-1; IS 1121; ISO 9241-307;KC; KCC; MEPS;
Warranty 1 year limited warranty
Box Content AC power cord;Documentation; HDMI cable; Warranty card;Set up poster; Power adapter
Ordering info 2XN58AA#ABB: 192018365148; 2XN58AA#A2N: 192018365223; 2XN58AA#ABT: 192018365186; 2XN58AA#ABU: 192018365155; 2XN58AA#ABV:
Microsoft WHQL Certification (Windows 10, Windows 8 and Windows 7); PSB; RCM; SABS IEC 60950-1; SASO; SmartWay Transport Partnership (NA); TUV Bauart;
VCCI; ISC; Low blue light
192018365209; 2XN58AA#ABY: 192018365179; 2XN58AA#ACQ: 192018365193; 2XN58AA#UUG: 192018365216; 2XN58AA#UUZ: 192018365162
© Copyright 2018 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products and services
are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty.
HP shall not be liable for technical or editorial errors or omissions contained herein. EPEAT® registered where applicable. EPEAT registration varies by country. See
www.epeat.net for registration status by country. See HP’s 3rd party option store for solar energy accessory at www.hp.com/go/options All other trademarks are the
property of their respective owners.
May 2018
