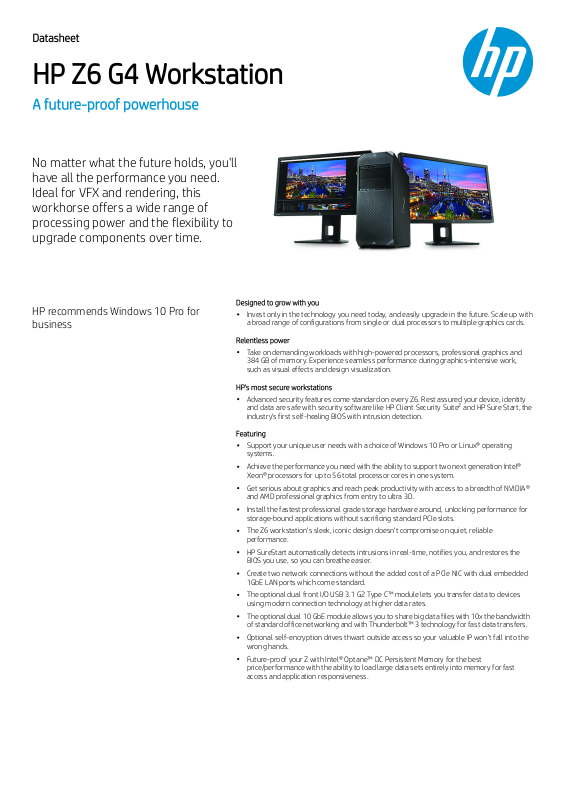

Datasheet

HP Z6 G4 Workstation

A future-proof powerhouse

No matter what the future holds, you'll have all the performance you need. Ideal for VFX and rendering, this workhorse offers a wide range of processing power and the flexibility to upgrade components over time.

HP recommends Windows 10 Pro for business

Designed to grow with you

Invest only in the technology you need today, and easily upgrade in the future. Scale up with a broad range of configurations from single or dual processors to multiple graphics cards.

Relentless power

Take on demanding workloads with high-powered processors, professional graphics and 384 GB of memory. Experience seamless performance during graphics-intensive work, such as visual effects and design visualization.

HP's most secure workstations

Advanced security features come standard on every Z6. Rest assured your device, identity and data are safe with security software like HP Client Security Suite and HP Sure Start, the industry's first self-healing BIOS with intrusion detection.

Featuring

Support your unique user needs with a choice of Windows 10 Pro or Linux® operating systems.

Achieve the performance you need with the ability to support two next generation Intel® Xeon® processors for up to 56 total processor cores in one system.

Get serious about graphics and reach peak productivity with access to a breadth of NVIDIA® and AMD professional graphics from entry to ultra 3D.

Install the fastest professional grade storage hardware around, unlocking performance for storage-bound applications without sacrificing standard PCIe slots.

The Z6 workstation’s sleek, iconic design doesn't compromise on quiet, reliable performance.

HP SureStart automatically detects intrusions in real-time, notifies you, and restores the BIOS you use, so you can breathe easier.

Create two network connections without the added cost of a PCIe NIC with dual embedded 1GbE LAN ports which come standard.

The optional dual front I/O USB 3.1 G2 Type C™ module lets you transfer data to devices using modern connection technology at higher data rates.

The optional dual 10 GbE module allows you to share big data files with 10x the bandwidth of standard office networking and with Thunderbolt™ 3 technology for fast data transfers.

Optional self-encryption drives thwart outside access so your valuable IP won’t fall into the wrong hands.

Future-proof your Z with Intel® Optane™ DC Persistent Memory for the best price/performance with the ability to load large data sets entirely into memory for fast access and application responsiveness.

Page 2

Data sheet | HP Z6 G4 Workstation

HP recommends Windows 10 Pro for business

HP Z6 G4 Workstation Specifications Table

Available Operating Systems

Windows 10 Pro for Workstations 64 - HP recommends Windows 10 Pro Ubuntu 20.04 LTS HP Installer Kit for Linux® Red Hat® Enterprise Linux®

Processor family Intel® Xeon® Scalable processor

Available Processors

Intel® Xeon® Silver 4214 (2.2 GHz base frequency, up to 3.2 GHz with Intel® Turbo Boost Technology, 16.5 MB L3 cache, 12 cores); Intel® Xeon® Silver 4214Y (2.2 GHz base frequency, up to 3.2 GHz with Intel® Turbo Boost Technology, 16.5 MB L3 cache, 12 cores); Intel® Xeon® Silver 4214R (2.4 GHz base frequency, up to 3.5 GHz with Intel® Turbo Boost Technology, 16.5 MB L3 cache, 12 cores); Intel® Xeon® Silver 4215 (2.5 GHz base frequency, up to 3.5 GHz with Intel® Turbo Boost Technology, 11 MB L3 cache, 8 cores); Intel® Xeon® Silver 4215R (3.2 GHz base frequency, up to 4.0 GHz with Intel® Turbo Boost Technology, 11 MB L3 cache, 8 cores); Intel® Xeon® Silver 4216 (2.1 GHz base frequency, up to 3.2 GHz with Intel® Turbo Boost Technology, 22 MB L3 cache, 16 cores); Intel® Xeon® Gold 5118 (2.3 GHz base frequency, up to 3.2 GHz with Intel® Turbo Boost Technology, 16.5 MB L3 cache, 12 cores); Intel® Xeon® Gold 5215 (2.5 GHz base frequency, up to 3.4 GHz with Intel® Turbo Boost Technology, 13.75 MB L3 cache, 10 cores); Intel® Xeon® Gold 5218 (2.3 GHz base frequency, up to 3.9 GHz with Intel® Turbo Boost Technology, 22 MB L3 cache, 16 cores); Intel® Xeon® Gold 5218R (2.1 GHz base frequency, up to 4.0 GHz with Intel® Turbo Boost Technology, 27.5 MB L3 cache, 20 cores); Intel® Xeon® Gold 5220 (2.2 GHz base frequency, up to 3.9 GHz with Intel® Turbo Boost Technology, 24.75 MB L3 cache, 18 cores); Intel® Xeon® Gold 5220R (2.2 GHz base frequency, up to 4.0 GHz with Intel® Turbo Boost Technology, 35.75 MB L3 cache, 24 cores); Intel® Xeon® Gold 5222 (3.8 GHz base frequency, up to 3.9 GHz with Intel® Turbo Boost Technology, 16.5 MB L3 cache, 4 cores); Intel® Xeon® Gold 6128 (3.4 GHz base frequency, up to 3.7 GHz with Intel® Turbo Boost Technology, 19.25 MB L3 cache, 6 cores); Intel® Xeon® Gold 6132 (2.6 GHz base frequency, up to 3.7 GHz with Intel® Turbo Boost Technology, 19.25 MB L3 cache, 14 cores); Intel® Xeon® Gold 6136 (3.0 GHz base frequency, up to 3.7 GHz with Intel® Turbo Boost Technology, 24.75 MB L3 cache, 12 cores); Intel® Xeon® Gold 6154 (3.0 GHz base frequency, up to 3.7 GHz with Intel® Turbo Boost Technology, 24.75 MB L3 cache, 18 cores); Intel® Xeon® Gold 6226 (2.7 GHz base frequency, up to 3.7 GHz with Intel® Turbo Boost Technology, 19.25 MB L3 cache, 12 cores); Intel® Xeon® Gold 6226R (2.9 GHz base frequency, up to 3.9 GHz with Intel® Turbo Boost Technology, 22 MB L3 cache, 16 cores); Intel® Xeon® Gold 6230 (2.1 GHz base frequency, up to 3.9 GHz with Intel® Turbo Boost Technology, 27.5 MB L3 cache, 20 cores); Intel® Xeon® Gold 6230R (2.1 GHz base frequency, up to 4.0 GHz with Intel® Turbo Boost Technology, 35.75 MB L3 cache, 26 cores); Intel® Xeon® Gold 6234 (3.3 GHz base frequency, up to 4.0 GHz with Intel® Turbo Boost Technology, 24.75 MB L3 cache, 8 cores); Intel® Xeon® Gold 6238 (2.1 GHz base frequency, up to 3.7 GHz with Intel® Turbo Boost Technology, 30.25 MB L3 cache, 22 cores); Intel® Xeon® Gold 6238R (2.2 GHz base frequency, up to 4.0 GHz with Intel® Turbo Boost Technology, 38.5 MB L3 cache, 28 cores); Intel® Xeon® Gold 6240 (2.6 GHz base frequency, up to 3.9 GHz with Intel® Turbo Boost Technology, 24.75 MB L3 cache, 18 cores); Intel® Xeon® Gold 6240Y (2.6 GHz base frequency, up to 3.9 GHz with Intel® Turbo Boost Technology, 24.75 MB L3 cache, 18 cores); Intel® Xeon® Gold 6240R (2.4 GHz base frequency, up to 4.0 GHz with Intel® Turbo Boost Technology, 35.75 MB L3 cache, 24 cores); Intel® Xeon® Gold 6242 (2.8 GHz base frequency, up to 3.9 GHz with Intel® Turbo Boost Technology, 22 MB L3 cache, 16 cores); Intel® Xeon® Gold 6242R (3.1 GHz base frequency, up to 4.1 GHz with Intel® Turbo Boost Technology, 35.75 MB L3 cache, 20 cores); Intel® Xeon® Gold 6244 (3.6 GHz base frequency, up to 4.4 GHz with Intel® Turbo Boost Technology, 24.75 MB L3 cache, 8 cores); Intel® Xeon® Gold 6246R (3.4 GHz base frequency, up to 4.1 GHz with Intel® Turbo Boost Technology, 35.75 MB L3 cache, 16 cores)

Chipset Intel® C622

Maximum memory

384 GB DDR4-2666 ECC RAM; 768 GB DDR4-2933 ECC RAM Transfer rates up to 2933MT/s.

Memory slots 12 DIMM with 2 processors

Internal storage

up to 300 GB SAS (15000 rpm) 500 GB up to 2 TB SATA (7200 rpm) up to 500 GB SATA SED (7200 rpm) 1 TB up to 6 TB 7200 rpm SATA Enterprise 256 GB up to 2 TB SATA SSD 256 GB up to 512 GB SATA SED Opal 2 SSD 240 GB up to 480 GB SATA Enterprise SSD 256 GB up to 1 TB HP Z Turbo Drive PCIe® NVMe™ SSD 256 GB up to 1 TB HP Z Turbo Drive PCIe® NVMe™ SSD M.2 256 GB up to 512 GB HP Z Turbo Drive PCIe® NVMe™ SED SSD M.2 256 GB up to 8 TB HP Z Turbo Drive Quad Pro PCIe® SSD 256 GB up to 4 TB HP Z Turbo Drive Dual Pro PCIe® SSD

Additional storage HP SD 4 Media Card Reader (optional)

Optical drive HP Slim DVD-ROM; HP Slim Blu-ray Writer; HP Slim DVD-Writer

Available Graphics

Entry 3D: NVIDIA® Quadro® P400 (2 GB GDDR5 dedicated); NVIDIA® Quadro® P620 (2 GB GDDR5 dedicated) Mid-range 3D: AMD Radeon™ Pro WX 3100 Graphics (4 GB GDDR5 dedicated); AMD Radeon™ Pro WX 4100 Graphics (4 GB GDDR5 dedicated); NVIDIA® Quadro® P1000 (4 GB GDDR5 dedicated); NVIDIA® Quadro® P2000 (5 GB GDDR5 dedicated); NVIDIA® Quadro® P2200 (5 GB GDDR5X dedicated); AMD Radeon™ Pro WX 3200 Graphics (4 GB GDDR5 dedicated) High-end 3D: NVIDIA® Quadro® P4000 (8 GB GDDR5 dedicated); AMD Radeon™ Pro WX 7100 Graphics (8 GB GDDR5 dedicated); NVIDIA® Quadro® RTX 4000 (8 GB GDDR6 dedicated) Ultra High-end 3D: AMD Radeon™ Pro WX 9100 Graphics (16 GB HBM2 dedicated); NVIDIA® Quadro® GP100 (16 GB HBM2 dedicated); NVIDIA® Quadro® P5000 (16 GB GDDR5X dedicated); NVIDIA® Quadro® P6000 (24 GB GDDR5X dedicated); NVIDIA® Quadro® SYNC II; NVIDIA® Quadro® RTX 5000 (16 GB GDDR6 dedicated); NVIDIA® Quadro® RTX 6000 (24 GB GDDR6 dedicated); NVIDIA® Quadro® RTX 8000 (48 GB GDDR6 dedicated)

Audio Realtek HD ALC221

Expansion slots

3 PCIe x4; 1 PCIe x8; 2 PCIe x16; 2 M.2 PCIe x4 (Slot 1: CPU with open-ended connector. Slots 3 and 6: PCH with open-ended connector. Slot 4: CPU with open-ended connector (slot converts to x4 electrical when SSD is installed in 2nd M.2 slot). M.2 Slots 1 and 2: CPU up to 80 mm storage devices.)

Ports and Connectors

Front: 1 headset connector; 4 USB 3.1 (1 charging) Rear: 6 USB 3.1 Gen 1; 2 RJ-45 (1 GbE); 1 audio-in; 1 audio-out; 1 PS/2 mouse port; 1 PS/2 keyboard port; 1 serial (Premium front includes: 1 headset, 2 USB 3.1 Gen1 (1 charging), 2 USB 3.1 Gen 2 Type-C™.)

Input devices

HP Wireless Business Slim Keyboard and Mouse Combo; HP USB Business Slim Keyboard; USB Premium wired keyboard; USB Smart Card (CCID) keyboard ; 3Dconnexion CADMouse; HP USB Optical Mouse; HP PS/2 Mouse; HP USB Hardened Mouse ;

Communications

LAN: HP dual-port 10GBase-T NIC; Integrated Intel® I219-LM PCIe® GbE; Integrated Intel® X722 PCIe® GbE; Intel® 10 GbE SFP+ SR transceiver; Intel® I210-T1 PCIe® GbE; Intel® I350-T4 dual-port GbE NIC; Intel® X550-T2 dual-port GbE NIC; Intel® X710-DA2 dual-port GbE NIC; Intel® I350-T2 GbE NIC ; WLAN: Intel® Dual Band Wireless-AC 8265 802.11a/b/g/n/ac (2x2) Wi-Fi® and Bluetooth® 4.2 Combo, non-vPro™ ;

Drive Bays Two 5.25"; Two 2.5" or 3.5"

Software HP Performance Advisor; HP Remote Graphics Software (RGS)

Security management HP Sure Start Gen3; Secure authentication; Kensington lock slot; Full volume encryption; HP Keyed Cable Lock Kit; TPM 2.0 certified; HP Secure Erase

Power 1000 W internal power supply, up to 90% efficiency, active PFC; 700 W internal power supply, up to 90% efficiency, active PFC

Dimensions 16.9 x 46.5 x 44.5 cm

Weight Starting at 13.1 kg (Exact weight depends on configuration.)

Energy efficiency compliance ENERGY STAR® certified and EPEAT® 2019 registered where applicable. EPEAT® registration varies by country. See www.epeat.net for registration status by country.

Sustainable impact specifications Low halogen

Compatible displays All HP Z Displays and HP DreamColor Displays are supported. For more information see www.hp.com/go/zdisplays.

Warranty 3 year (3-3-3) limited warranty and service offering includes 3 years of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply.



1,21,22

2,3

5,6

7,17,20

14,15,18

Page 3

Data sheet | HP Z6 G4 Workstation

HP recommends Windows 10 Pro for business

HP Z6 G4 Workstation

Accessories and services (not included)

3Dconnexion CadMouse

Simplify scroll, click, and zoom functions and comfortably drive your CAD projects with the 3Dconnexion CADMouse. Simplify scroll, click, and zoom functions and comfortably drive your CAD projects with the 3Dconnexion CADMouse. Product number: M5C35AA

HP Wireless Premium Keyboard

Boost your productivity and work comfortably at your desk or across the room with the elegant, redesigned, anodized aluminum-trimmed HP Wireless Premium Keyboard. Engineered for demanding graphics and processor intensive applications. Product number: Z9N41AA

HP 5 year Next Business Day Onsite Hardware Support for Workstations

Receive 5 years of next business day onsite HW Support from an HP-qualified technician for your computing device, if the issue cannot be solved remotely. Product number: U7944E

Page 4

Data sheet | HP Z6 G4 Workstation

HP recommends Windows 10 Pro for business

HP Z6 G4 Workstation

Messaging Footnotes

automatically updated, which is always enabled. ISP fees may apply and additional requirements may apply over time for updates.See http://www.windows.com

HP Client Security Suite features vary by platform. Multicore is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. Performance and clock frequency will vary depending on application

workload and your hardware and software configurations. Intel’s numbering is not a measurement of higher performance.

Sold separately or as an optional feature. HP Z Premium Front I/O 2xUSB-A 2xUSB-C is sold separately or as an optional feature. HP dual-port 10GBase-T NIC is sold separately or as an optional feature.

Available in the first half of 2019. Screen image courtesy of Chris McLennan Screen image courtesy of Renault Sport Racing

Supported only with Xeon 82xx, 62xx, 52xx and 4215 processors. Available as factory configured in Memory Mode or Storage Mode. See Quick Specs for more information.

Technical Specifications Footnotes

Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. Windows 10 is automatically updated, which is always enabled. ISP fees may apply and additional requirements may apply over time for updates. See http://www.windows.com.

Multicore is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. Performance and clock frequency will vary depending on application workload and your hardware and software configurations. Intel’s numbering, branding and/or naming is not a measurement of higher performance.

Some vPro functionality of this technology, such as Intel® Active management technology and Intel Virtualization technology, requires additional 3rd party software in order to run. Availability of future "virtual appliances" applications for Intel vPro technology is dependent on 3rd party software providers. Microsoft Windows required.

For hard drives and solid state drives, 1 GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 30 GB of system disk is reserved for system recovery software.

Duplication of copyrighted material is strictly prohibited. Actual speeds may vary. Double Layer media compatibility will widely vary with some home DVD players and DVD-ROM drives. Note that DVD-RAM cannot read or write to 2.6GB Single Sided/5.2 Double Sided-Version 1.0 Media. No support for DVD RAM.

With Blu-Ray, certain disc, digital connection, compatibility and/or performance issues may arise, and do not constitute defects in the product. Flawless playback on all systems is not guaranteed. In order for some Blu-ray titles to play, they may require a DVI or HDMI digital connection and your display may require HDCP support. HD-DVD movies cannot be played on this Desktop PC.

HP VR Ready Configurations available.

For systems installed with Microsoft Windows 7 (Ultimate, Enterprise or Professional), the maximum accessible system memory is 192 GB. For systems installed with Microsoft Windows 8.x (Enterprise or Pro), the maximum accessible system memory is 512 GB.

Wireless access point and Internet access required. Availability of public wireless access points limited. The specifications for the 802.11ac WLAN are draft specifications and are not final. If the final specifications differ from the draft specifications, it may affect the ability of the notebook to communicate with other 802.11ac WLAN devices.

Optional or add-on feature. Based on US EPEAT® registration according to IEEE 1680.1-2018 EPEAT®. Status varies by country. Visit www.epeat.net for more information. External power supplies, power cords, cables and peripherals are not low halogen. Service parts obtained after purchase may not be low halogen. HP Remote Graphics Software requires a Windows, Linux®, or Mac®OS X 10.10 and newer operating system and network access. HP Sure Start Gen3 is available on HP EliteBook, HP ZBook, and HP Z Workstation products equipped with Intel® 7th generation processors. HP Secure Erase: For the methods outlined in the National Institute of Standards and Technology Special Publication 800-88. Supported on Elite platforms with BIOS version F.03 or higher. Each bay is configurable to 2.5” or 3.5”. NVIDIA® Quadro® SYNC II sold separately HP Keyed Cable Lock Kit is available only as an aftermarket option. HP dual-port 10GBase-T NIC is sold separately or as an optional feature. Available in the first half of 2019. Windows 10 Pro is preinstalled. Windows 7 media is only available upon request from HP Customer Support. You may only use one version of the Windows software at a time. Switching between versions will require you to uninstall one

version and install the other version. You must back up all data (files, photos, etc.) before uninstalling and installing operating systems to avoid loss of your data.

NOTE: In accordance with Microsoft’s support policy, HP does not support the Windows 8 or Windows 7 operating system on products configured with Intel and AMD 7th generation and forward processors or provide any Windows 8 or

Windows 7 drivers on http://www.support.hp.com.

Notes: For detailed Linux® OS/hardware support information, see: http://www.hp.com/support/linux_hardware_matrix Intel® I350-T4 dual/quad-port GbE NIC is sold separately or as an optional feature. Not all features are available in all editions or versions of Ubuntu. Systems may require upgraded and/or separately purchased hardware, drivers, software or BIOS to take full advantage of Ubuntu functionality. Ubuntu may be automatically

updated. ISP fees may apply and additional requirements may apply over time for updates.

Copyright © 2019 HP Development Company, L.P. The only warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.  Intel, Xeon and Intel vPro are trademarks of Intel Corporation or subsidiaries in the U.S. and/or other countries. Bluetooth is a trademark of its proprietor and used by HP Inc. under license. USB Type-C™ and USB-C™ are trademarks of USB Implementers Forum. ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency. DisplayPort™ and the DisplayPort™ logo are trademarks owned by the Video Electronics Standards Association (VESA®) in the United States and other countries. AMD and Radeon are trademarks of Advanced Micro Devices, Inc. NVIDIA. The NVIDIA logo and Quadro are trademarks and/or registered trademarks of NVIDIA Corporation in the U.S. and other countries. All other trademarks are the property of their respective owners.

4AA7-0913, December 2020
