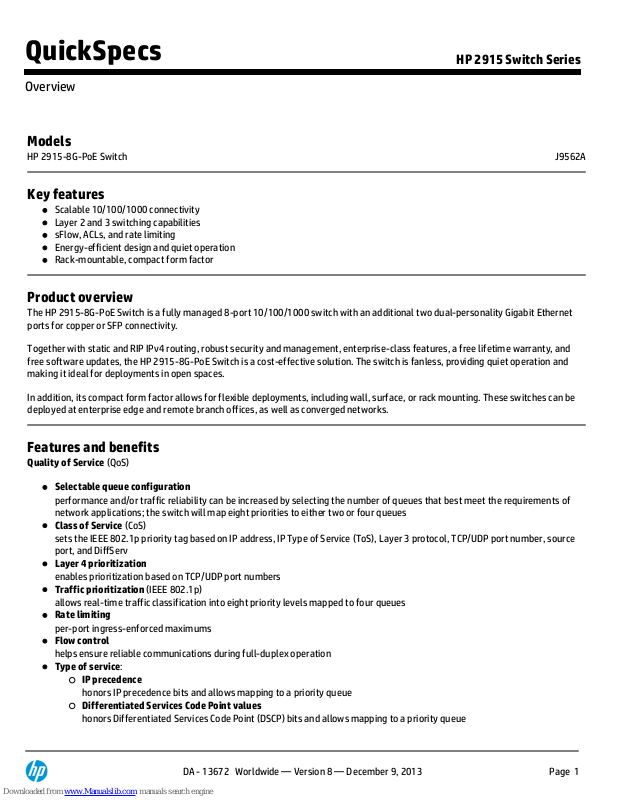

HP 2915-8G-PoE Specifications

Models

HP 2915-8G-PoE Switch

J9562A

Key features

Scalable 10/100/1000 connectivity
Layer 2 and 3 switching capabilities
sFlow, ACLs, and rate limiting
Energy-efficient design and quiet operation
Rack-mountable, compact form factor

Product overview

The HP 2915-8G-PoE Switch is a fully managed 8-port 10/100/1000 switch with an additional two dual-personality Gigabit Ethernet
ports for copper or SFP connectivity.

Together with static and RIP IPv4 routing, robust security and management, enterprise-class features, a free lifetime warranty, and
free software updates, the HP 2915-8G-PoE Switch is a cost-effective solution. The switch is fanless, providing quiet operation and
making it ideal for deployments in open spaces.

In addition, its compact form factor allows for flexible deployments, including wall, surface, or rack mounting. These switches can be
deployed at enterprise edge and remote branch offices, as well as converged networks.

Features and benefits

Quality of Service

(QoS)

Selectable queue configuration

performance and/or traffic reliability can be increased by selecting the number of queues that best meet the requirements of
network applications; the switch will map eight priorities to either two or four queues

Class of Service

(CoS)
sets the IEEE 802.1p priority tag based on IP address, IP Type of Service (ToS), Layer 3 protocol, TCP/UDP port number, source
port, and DiffServ

Layer 4 prioritization

enables prioritization based on TCP/UDP port numbers

Traffic prioritization

(IEEE 802.1p)

allows real-time traffic classification into eight priority levels mapped to four queues

Rate limiting

per-port ingress-enforced maximums

Flow control

helps ensure reliable communications during full-duplex operation

Type of service

:

IP precedence

honors IP precedence bits and allows mapping to a priority queue

Differentiated Services Code Point values

honors Differentiated Services Code Point (DSCP) bits and allows mapping to a priority queue

QuickSpecs

HP 2915 Switch Series

Overview

DA - 13672 Worldwide — Version 8 — December 9, 2013

Page 1

Management

Choice of management interfaces

Web GUI

easy-to-use graphical interface allows configuration of the switch from any Web browser

Command-line interface (CLI)

robust CLI provides advanced configuration and diagnostics

Simple Network Management Protocol (SNMPv2c/SNMPv3)

allows switch to be managed with a variety of third-party network management applications

Multiple configuration files

configuration file management tools allow up to three configuration files to be managed and stored on the switch

Dual flash images

provide independent primary and secondary operating system files for backup while upgrading

Command authorization

leverages RADIUS to link a custom list of CLI commands to an individual network administrator's login; also provides an audit
trail

Front-panel LEDs

Locator LED

allows users to set the locator LED on a specific switch to either turn on, blink, or turn off; simplifies troubleshooting by
making it easy to locate a particular switch within a rack of similar switches

Per-port LEDs

provides an at-a-glance view of status, activity, speed, and full-duplex operation

Power and fault LED

display any issues

Integration with HP PCM

enables discovery, mapping, logging, and configuration via PCM, which is available as a free download from the Web

Connectivity

Dual-personality functionality

two 10/100/1000 ports or SFP slots provide optional fiber connectivity such as Gigabit-SX, -LX, -LH, 100-FX, 100-BX, and 1000­BX

IEEE 802.3af Power over Ethernet

provides up to 15.4 W per port to IEEE 802.3af-compliant PoE-powered devices such as IP phones, wireless access points, and
security cameras (see product specifications for total PoE power available)

Auto-MDIX

|

automatically adjusts for straight-through or crossover cables on all 10/100/1000 ports

RJ-45 serial console port

provides easy accessibility on the front of unit to the switch CLI

IPv6

:

IPv6 host
the switches can be managed and deployed at the edge of IPv6 networks
Dual stack (IPv4/IPv6)
provides transition mechanism from IPv4 to IPv6; supports connectivity for both protocols

Single IP address management

provides single IP address management for a virtual stack of up to 16 switches

Resiliency and high availability

IEEE 802.1s Multiple Spanning Tree

QuickSpecs

HP 2915 Switch Series

Overview

DA - 13672 Worldwide — Version 8 — December 9, 2013

Page 2

provides high link availability in multiple VLAN environments by allowing multiple spanning trees; provides legacy support for
IEEE 802.1d and IEEE 802.1w

Port trunking and link aggregation

Trunking

supports up to eight links per trunk to increase bandwidth and create redundant connections

IEEE 802.3ad Link Aggregation Protocol (LACP)

eases configuration of trunks through automatic configuration

Layer 2 switching

GARP VLAN Registration Protocol

allows automatic learning and dynamic assignment of VLANs

VLAN support and tagging

supports IEEE 802.1Q (4,094 VLAN IDs) and 256 VLANs simultaneously

Layer 3 routing

Static IP routing

provides manually configured routing; includes ECMP capability

Routing Information Protocol

(RIP)

provides RIPv1 and RIPv2 routing

Security

Access control lists

(ACLs)

provide IP Layer 3 filtering based on source/destination IP address/subnet and source/destination TCP/UDP port number

Identity-driven ACL

enables implementation of a highly granular and flexible access security policy and VLAN assignment specific to each
authenticated network user

Source-port filtering

allows only specified ports to communicate with each other

RADIUS/TACACS+

eases switch management security administration by using a password authentication server

Secure protocols for encryption of management traffic

Secure Shell (SSHv2)

encrypts all transmitted data for secure remote CLI access over IP networks

Secure Sockets Layer (SSL)

encrypts all HTTP traffic, allowing secure access to the browser-based management GUI in the switch

Secure FTP (SFTP)

encrypts uploads and downloads of configuration files

Port security

allows access only to specified MAC addresses, which can be learned or specified by the administrator

Dynamic IP lockdown

works with DHCP protection to block traffic from unauthorized hosts, preventing IP source address spoofing

DHCP protection

blocks DHCP packets from unauthorized DHCP servers, preventing denial-of-service attacks

Dynamic ARP protection

blocks ARP broadcasts from unauthorized hosts, preventing eavesdropping or theft of network data

MAC address lockout

prevents configured particular MAC addresses from connecting to the network

QuickSpecs

HP 2915 Switch Series

Overview

DA - 13672 Worldwide — Version 8 — December 9, 2013

Page 3

MAC address lockdown

allows only specified MAC addresses access to the network on a specified port

Multiple user authentication methods

IEEE 802.1X

is an industry-standard method of user authentication using an IEEE 802.1X supplicant on the client in conjunction with a
RADIUS server

Web-based authentication

similar to IEEE 802.1X, it provides a browser-based environment to authenticate clients that do not support the IEEE

802.1X supplicant

MAC-based authentication

client is authenticated with the RADIUS server based on the client's MAC address

Authentication flexibility—2 IEEE 802.1X

provides authentication of multiple IEEE 802.1X users per port; prevents user "piggybacking" on another user's IEEE 802.1X
authentication

Protected ports

prevents designated ports from communicating with each other while allowing access to unprotected ports

Per-port broadcast throttling

selectively configures broadcast control on heavy traffic port uplinks

Physical security

Front-panel buttons

provides the ability to disable reset and clear buttons on the front panel for added security

Kensington Lock slot

includes a Kensington Lock slot for securing the switches in open-space deployments

Spanning Tree Protocol Root Guard

when running the Spanning Tree Protocol, it protects the root bridge from malicious attacks or configuration mistakes

STP BPDU port protection

blocks Bridge Protocol Data Units (BPDUs) on ports that do not require BPDUs, preventing forged BPDU attacks

Convergence

IP multicast snooping and data-driven IGMP

automatically prevent flooding of IP multicast traffic

LLDP-MED

(Media Endpoint Discovery)
is a standard extension of LLDP that stores values for parameters such as QoS and VLAN to automatically configure network
devices such as IP phones

IEEE 802.1AB Link Layer Discovery Protocol

(LLDP)

is an automated device discovery protocol that provides easy mapping of network management applications

PoE allocations

support multiple methods (automatic, IEEE 802.3af class, LLDP-MED, or user specified) to allocate PoE power for more efficient
energy savings

Monitor and diagnostics

Port mirroring

enables traffic on a port to be simultaneously sent to a network analyzer for monitoring

Network tools

CLI includes telnet client, ping, traceroute, and Layer 2 link test tools for diagnostics

Logging

local and remote logging of events via SNMP (v2c and v3) and syslog

Troubleshooting

QuickSpecs

HP 2915 Switch Series

Overview

DA - 13672 Worldwide — Version 8 — December 9, 2013

Page 4

ingress and egress port monitoring enable network problem solving

Uni-Directional Link Detection

(UDLD)
monitors a link between two switches and blocks the ports on both ends of the link if the link goes down at any point between
the two devices

Find-Fix-Inform

finds and fixes common network problems automatically, then informs the administrator

RMON, XRMON, sFlow, and SMON

provide advanced monitoring and reporting capabilities for statistics, history, alarms, and events

Port monitoring for network threats

provides sampled port traffic using sFlow technology to the HP Network Immunity Manager application for Network Behavior
Anomaly Detection (NBAD) analysis to detect threats and mitigate threats at the port where they originated

Flexibility

Flexible mounting

Rackable

can be mounted in a standard 19-inch rack with included hardware

Wall mountable

can be mounted to a wall using included hardware

Surface mountable

can be mounted above or below a surface (such as a desk or table) using included hardware

Compact siz

product is designed to reduce space requirements (see product specifications for exact dimensions)

NEW Power supply clip

provides the ability to attach or detach the power supply from the device, allowing for either an integrated solution or a separate
one, depending on deployment requirements

Product Architecture

Energy-efficient design

Fans

fanless design helps reduce power consumption

Port LEDs

port link and activity LEDs can be turned off to conserve energy

Port low-power mode option

when no link is detected on a port, the port will automatically go into low-power mode to conserve energy

Warranty and support

Lifetime Warranty 2.0

advance hardware replacement for as long as you own the product with next-business-day delivery (available in most countries)†

Electronic and telephone support (for Lifetime Warranty 2.0)

limited 24x7 telephone support is available from HP for the first 3 years; limited electronic and business hours telephone
support is available from HP for the entire warranty period; to reach our support centers, refer to

www.hp.com/networking/contact-support

; for details on the duration of support provided with your product purchase, refer

to

www.hp.com/networking/warrantysummary

Software releases

to find software for your product, refer to

www.hp.com/networking/support

; for details on the software

releases available with your product purchase, refer to

www.hp.com/networking/warrantysummary

QuickSpecs

HP 2915 Switch Series

Overview

DA - 13672 Worldwide — Version 8 — December 9, 2013

Page 5

† Hardware warranty replacement for as long as you own the product, with next business day advance replacement (available in most
countries) with a five-year hardware warranty replacement for the disk drive included with HP AllianceONE Services zl Module, HP
Threat Management Services zl Module, HP PCM+ Agent with AllianceONE Services zl Module, and HP MSM765 zl Mobility Controller.
For details, refer to the HP Software License, Warranty, and Support booklet at:

www.hp.com/networking/warranty

.

QuickSpecs

HP 2915 Switch Series

Overview

DA - 13672 Worldwide — Version 8 — December 9, 2013

Page 6

HP 2915-8G-PoE Switch

(J9562A)

Included accessories

1 HP X520 1U Power Adapter Shelf (J9701A)

I/O ports and slots

8 RJ-45 autosensing 10/100/1000 PoE ports; Media Type: Auto-MDIX; Duplex: 10BASE-T/100BASE-TX:
half or full; 1000BASE-T: full only (IEEE 802.3 Type 10BASE-T, IEEE 802.3u Type 100BASE-TX, IEEE

802.3ab Type 1000BASE-T, IEEE 802.3af PoE)
2 dual-personality ports; each port can be used as either an RJ-45 10/100/1000 port (IEEE 802.3 Type

10BASE-T; an IEEE 802.3u Type 100BASE-TX; an IEEE 802.3ab 1000BASE-T Gigabit Ethernet); or an SFP
slot (for use with SFP transceivers)

1 RJ-45 serial console port

Physical characteristics

Dimensions

10(w) x 6.28(d) x 1.75(h) in (25.4 x 15.95 x 4.45 cm) (1U height)

Weight

3.66 lb (1.66 kg) including power adapter and power cord

Memory and processor

Processor

Freescale PowerPC 8313 @ 333 MHz, 32 MB flash, 128 MB DDR2 SDRAM;
packet buffer size: 512 KB dynamically all

Mounting and enclosure

Mounts in an EIA-standard 19 in. telco rack or equipment cabinet; horizontal surface mounting, wall
mounting

Performance

100 Mb Latency

< 5.3 µs (LIFO 64-byte packets)

1000 Mb Latency

< 2.7 µs (LIFO 64-byte packets)

Throughput

14.8 million pps

Switching capacity

20 Gb/s

MAC address table size

8000 entries

Environment

Operating temperature

32°F to 113°F (0°C to 45°C)

Operating relative
humidity

15% to 95% @ 104°F (40°C), noncondensing

Nonoperating/Storage
temperature

-40°F to 158°F (-40°C to 70°C)

Nonoperating/Storage
relative humidity

15% to 95% @ 149°F (65°C), noncondensing

Altitude

up to 10,000 ft (3 km)

Acoustic

Power: 0 dB, Pressure: 0 dB

Electrical characteristics

Description

Use only the external power adapter module (5070-6082, PA1 AC adapter)
supplied with this product.

Maximum heat
dissipation

89 BTU/hr (93.9 kJ/hr)

AC voltage

100-240 VAC

Current

1.5 A

Maximum power rating

86 W

Idle power

11 W

PoE power

67 W

Frequency

50/60 Hz

Notes

Idle power is the actual power consumption of the device with no ports
connected.

QuickSpecs

HP 2915 Switch Series

Technical Specifications

DA - 13672 Worldwide — Version 8 — December 9, 2013

Page 7

Maximum power rating and maximum heat dissipation are the worst-case
theoretical maximum numbers provided for planning the infrastructure with
fully loaded PoE (if equipped), 100% traffic, all ports plugged in, and all
modules populated.
PoE power is the total power budget available to all PoE ports.

Safety

cUL (CSA 22.2 No. 60950); CE Labeled; UL 60950-1; UL Listed; CAN/CSA 22.2 No. 60950; EN 60825; AS/NZS
60950; IEC 60950-1; EN 60950-1

Emissions

FCC part 15 Class A; VCCI Class A; EN 55022 Class A; CISPR 22 Class A; ICES-003 (Canada); AS/NZS CISPR 22;
IEC/EN 61000-3-2; IEC/EN 61000-3-3; IEC 61000:4-2, 4-3, 4-4, 4-5, 4-6, 4-8, 4-11

Immunity

Generic

EN 55024, CISPR 24

EN

EN 55024, CISPR 24

ESD

IEC 61000-4-2

Radiated

IEC 61000-4-3

EFT/Burst

IEC 61000-4-4

Surge

IEC 61000-4-5

Conducted

IEC 61000-4-6

Power frequency
magnetic field

IEC 61000-4-8

Voltage dips and
interruptions

IEC 61000-4-11

Harmonics

EN 61000-3-2, IEC 61000-3-2

Flicker

EN 61000-3-3, IEC 61000-3-3

Management

HP PCM+; HP PCM (included); command-line interface; Web browser; configuration menu; out-of-band
management (serial RS-232C); IEEE 802.3 Ethernet MIB; Repeater MIB; Ethernet Interface MIB

Notes

When using mini-GBICs with this product, mini-GBICs with revision "B" or later (product number ends with
the letter "B" or later, e.g., J4858B, J4859C) are required.

This product comes with a power supply clip adapter. The adapter dimensions are 1.7(d) x 10.7(w) x 3.8(h)
in. (4.35 x 27.25 x 9.6 cm). The weight of the power supply clip adapter is .31 lb (.14 kg).

Services

3-year, 4-hour onsite, 13x5 coverage for hardware (U4683E)
3-year, 4-hour onsite, 24x7 coverage for hardware (U4835E)
3-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 SW phone support and SW updates (U6321E)
3-year, 24x7 SW phone support, software updates (UF792E)
1-year, post-warranty, 4-hour onsite, 13x5 coverage for hardware (HR849E)
1-year, post-warranty, 4-hour onsite, 24x7 coverage for hardware (HR850E)
1-year, post-warranty, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone support
(HR851E)
Installation with minimum configuration, system-based pricing (U4826E)
Installation with HP-provided configuration, system-based pricing (U4830E)
4-year, 4-hour onsite, 13x5 coverage for hardware (UR948E)
4-year, 4-hour onsite, 24x7 coverage for hardware (UR949E)
4-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UR950E)
4-year, 24x7 SW phone support, software updates (UR951E)
5-year, 4-hour onsite, 13x5 coverage for hardware (UR952E)
5-year, 4-hour onsite, 24x7 coverage for hardware (UR953E)
5-year, 4-hour onsite, 24x7 coverage for hardware, 24x7 software phone (UR954E)

QuickSpecs

HP 2915 Switch Series

Technical Specifications

DA - 13672 Worldwide — Version 8 — December 9, 2013

Page 8

5-year, 24x7 SW phone support, software updates (UR955E)
3 Yr 6 hr Call-to-Repair Onsite (UW368E)
4 Yr 6 hr Call-to-Repair Onsite (UW369E)
5 Yr 6 hr Call-to-Repair Onsite (UW370E)
1-year, 6 hour Call-To-Repair Onsite for hardware (HR853E)
1-year, 24x7 software phone support, software updates (HR852E)
1-year, 24x7 software phone support, software updates + Next Business Day Hardware Exchange
(HS554E)
1-year, 24x7 software phone support, software updates + 4 hour hardware exchange (HS555E)
3-year, 24x7 software phone support, software updates + Next Business Day Hardware Exchange
(HS556E)
3-year, 24x7 software phone support, software updates + 4 hour Hardware Exchange (HS557E)
4-year, 24x7 software phone support, software updates + Next Business Day Hardware Exchange
(HS558E)
4-year, 24x7 software phone support, software updates + 4 hour Hardware Exchange (HS559E)
5-year, 24x7 software phone support, software updates + Next Business Day Hardware Exchange
(HS560E)
5-year, 24x7 software phone support, software updates + 4 hour Hardware Exchange (HS561E)

Refer to the HP website at:

www.hp.com/networking/services

for details on the service-level descriptions
and product numbers. For details about services and response times in your area, please contact your local
HP sales office.

Standards and protocols

Denial of service protection

Automatic Filtering of well known Denial of Service
Packets

Device management

RFC 1591 DNS (client)
Multiple Configuration Files
Multiple Software Images
SSHv1/SSHv2 Secure Shell
TACACS/TACACS+
Web UI

General protocols

IEEE 802.1D MAC Bridges
IEEE 802.1p Priority
IEEE 802.1Q VLANs
IEEE 802.1s Multiple Spanning Trees
IEEE 802.1w Rapid Reconfiguration of Spanning
Tree
IEEE 802.3 Type 10BASE-T
IEEE 802.3ab 1000BASE-T
IEEE 802.3ad Link Aggregation Control Protocol
(LACP)
IEEE 802.3af Power over Ethernet
IEEE 802.3u 100BASE-X
IEEE 802.3x Flow Control
RFC 768 UDP
RFC 783 TFTP Protocol (revision 2)
RFC 792 ICMP

RFC 4113 MIB for UDP
RFC 4251 SSHv6 Architecture
RFC 4252 SSHv6 Authentication
RFC 4253 SSHv6 Transport Layer
RFC 4293 MIB for IP
RFC 4419 Key Exchange for SSH
RFC 4443 ICMPv6
RFC 4861 IPv6 Neighbor Discovery
RFC 4862 IPv6 Stateless Address Auto-configuration

MIBs

RFC 1213 MIB II
RFC 1493 Bridge MIB
RFC 2021 RMONv2 MIB
RFC 2613 SMON MIB
RFC 2618 RADIUS Client MIB
RFC 2620 RADIUS Accounting MIB
RFC 2665 Ethernet-Like-MIB
RFC 2668 802.3 MAU MIB
RFC 2674 802.1p and IEEE 802.1Q Bridge MIB
RFC 2737 Entity MIB (Version 2)
RFC 2863 The Interfaces Group MIB

Network management

IEEE 802.1AB Link Layer Discovery Protocol (LLDP)
RFC 1098 A Simple Network Management Protocol
(SNMP)
RFC 2819 Four groups of RMON: 1 (statistics), 2
(history), 3 (alarm) and 9 (events)

QuickSpecs

HP 2915 Switch Series

Technical Specifications

DA - 13672 Worldwide — Version 8 — December 9, 2013

Page 9

RFC 793 TCP
RFC 826 ARP
RFC 854 TELNET
RFC 868 Time Protocol
RFC 951 BOOTP
RFC 1058 RIPv1
RFC 1350 TFTP Protocol (revision 2)
RFC 1723 RIP v2
RFC 1812 IPv4 Routing
RFC 2030 Simple Network Time Protocol (SNTP) v4
RFC 2131 DHCP
RFC 2453 RIPv2
UDLD (Uni-directional Link Detection)

IP multicast

RFC 3376 IGMPv3 (host joins only)

IPv6

RFC 1981 IPv6 Path MTU Discovery
RFC 2460 IPv6 Specification
RFC 2925 Remote Operations MIB (Ping only)
RFC 3315 DHCPv6 (client only)
RFC 3513 IPv6 Addressing Architecture
RFC 3596 DNS Extension for IPv6
RFC 4022 MIB for TCP

RFC 3176 sFlow
SNMPv1/v2c/v3

QoS/CoS

RFC 2474 DiffServ precedence, with 4 queues per
port
RFC 2475 DiffServ Architecture
RFC 2597 DiffServ Assured Forwarding (AF)
RFC 2598 DiffServ Expedited Forwarding (EF)
Ingress Rate Limiting

Security

IEEE 802.1X Port Based Network Access Control
RFC 1492 TACACS+
RFC 2138 RADIUS Authentication
RFC 2866 RADIUS Accounting
Access Control Lists (ACLs)
MAC Authentication
MAC Lockdown
MAC Lockout
Port Security
Secure Sockets Layer (SSL)
Web Authentication

QuickSpecs

HP 2915 Switch Series

Technical Specifications

DA - 13672 Worldwide — Version 8 — December 9, 2013

Page 10

HP 2915 Switch Series
accessories

HP 2915-8G-PoE Switch (J9562A)

HP X121 1G SFP LC SX Transceiver

J4858C

HP X121 1G SFP LC LX Transceiver

J4859C

HP X121 1G SFP LC LH Transceiver

J4860C

HP X111 100M SFP LC FX Transceiver

J9054B

HP X112 100M SFP LC BX-D Transceiver

J9099B

HP X112 100M SFP LC BX-U Transceiver

J9100B

HP X122 1G SFP LC BX-D Transceiver

J9142B

HP X122 1G SFP LC BX-U Transceiver

J9143B

HP 0.5 m Multimode OM3 LC/LC Optical Cable

AJ833A

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 1m Cable

QK732A

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 2m Cable

QK733A

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 5m Cable

QK734A

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 15m Cable

QK735A

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 30m Cable

QK736A

HP Premier Flex LC/LC Multi-mode OM4 2 fiber 50m Cable

QK737A

HP X510 1U Cable Guard

J9700A

HP X520 1U Power Adapter Shelf

J9701A

QuickSpecs

HP 2915 Switch Series

Accessories

DA - 13672 Worldwide — Version 8 — December 9, 2013

Page 11

NOTE:

Details are not available for all accessories. The following specifications were available at the time of publication.

HP X121 1G SFP LC SX
Transceiver

(J4858C)

A small form-factor
pluggable (SFP) Gigabit SX
transceiver that provides a
full-duplex Gigabit solution
up to 550 m on multimode
fiber.

Ports

1 LC 1000BASE-SX port; Duplex: full only

Physical characteristics

Dimensions: 2.24(d) x 0.54(w) x 0.48(h) in. (5.69 x 1.37 x 1.22 cm)
Weight: 0.04 lb. (0.02 kg)
Transceiver form factor: SFP

Environment

Operating temperature: 32°F to 158°F (0°C to 70°C)
Operating relative humidity: 5% to 85%, noncondensing
Nonoperating/Storage temperature: -40°F to 203°F (-40°C to 85°C)
Altitude: up to 10,000 ft. (3 km)

Electrical characteristics

Power consumption typical: 0.4 W
Power consumption maximum: 0.7 W

Cabling

Type:

62.5/125 µm or 50/125 µm (core/cladding) diameter, graded-index, low
metal content, multimode fiber optic, complying with ITU-T G.651 and
ISO/IEC 793-2 Type A1b or A1a, respectively;

Maximum distance:

2-220 m (62.5 µm core diameter, 160 MHz*km bandwidth
2-275 m (62.5 µm core diameter, 200 MHz*km bandwidth
2-500 m (50 µm core diameter, 400 MHz*km bandwidth)

2-550 m (50 µm core diameter, 500 MHz*km bandwidth)
Cable length: 2-550m
Fiber type: Multi Mode

Services

Refer to the HP website at

www.hp.com/networking/services

for details on the
service-level descriptions and product numbers. For details about services and
response times in your area, please contact your local HP sales office.

HP X121 1G SFP LC LX
Transceiver

(J4859C)

HP X121 1G SFP LC LX
Transceiver: An SFP format
gigabit transceiver with LC
connectors using LX
technology.

Ports

1 LC 1000BASE-LX port (IEEE 802.3z Type 1000BASE-LX); Duplex: full only

Physical characteristics

Dimensions: 2.24(d) x 0.54(w) x 0.486(h) in. (5.69 x 1.37 x 1.23 cm)
Weight:0.04 lb. (0.02 kg)

Environment

Operating temperature: 32°F to 158°F (0°C to 70°C)
Operating relative humidity: 0% to 85%, noncondensing
Nonoperating/Storage temperature: -40°F to 212°F (-40°C to 100°C)
Altitude: up to 10,000 ft. (3 km)

Cabling

Type:

Either single mode or multimode; 62.5/125 µm or 50/125 µm
(core/cladding) diameter, graded-index, low metal content, multimode
fiber optic, complying with ITU-T G.651 and ISO/IEC 793-2 Type A1b or
A1a, respectively; Low metal content, single-mode fiber-optic,
complying with ITU-T G.652 and ISO/IEC 793-2 Type B1;

Maximum distance:

QuickSpecs

HP 2915 Switch Series

Accessory Product Details

DA - 13672 Worldwide — Version 8 — December 9, 2013

Page 12

2-550 m (multimode 62.5 µm core diameter, 500 MHz*km bandwidth)
2-550 m (multimode 50 µm core diameter, 400 MHz*km bandwidth)
2-550 m (multimode 50 µm core diameter, 500 MHz*km bandwidth)
2-10,000 m (single-mode fiber)

Notes

A mode conditioning patch cord may be needed in some multimode fiber
installations.
Wavelength: 1310nm
Power Consumption: < 500mW Typical

Services

Refer to the HP website at

www.hp.com/networking/services

for details on the
service-level descriptions and product numbers. For details about services and
response times in your area, please contact your local HP sales office.

HP X121 1G SFP LC LH
Transceiver

(J4860C)

A small form-factor
pluggable (SFP) Gigabit LH
transceiver that provides a
full-duplex Gigabit solution
up to 70 km on single­mode fiber.

Ports

1 LC 1000BASE-LH port (no IEEE standard exists for 1550 nm optics); Duplex:
full only

Physical characteristics

Dimensions: 2.17(d) x 0.60(w) x 0.46(h) in. (5.5 x 1.53 x 1.18 cm)
Weight: 0.04 lb. (0.02 kg)

Environment

Operating temperature: -40°F to 185°F (-40°C to 85°C)
Operating relative humidity: 0% to 95% @ 77°F (25°C), noncondensing
Nonoperating/Storage temperature: -40°F to 185°F (-40°C to 85°C)
Altitude: up to 10,000 ft. (3 km)

Cabling

Cable type:

Low metal content, single-mode fiber-optic, complying with ITU-T
G.652 and ISO/IEC 793-2 Type B1;

Maximum distance:

10-70,000 m (single-mode fiber)

Notes

Power consumption is 0.8 watts typical with 1 watt maximum at 100%
utilization.
For distances less than 20 km, a 10 dB attenuator must be used.
For distances between 20 km and 40 km, a 5 dB attenuator must be used.
Attenuators can be purchased from most cable vendors.

Services

Refer to the HP website at

www.hp.com/networking/services

for details on the
service-level descriptions and product numbers. For details about services and
response times in your area, please contact your local HP sales office.

QuickSpecs

HP 2915 Switch Series

Accessory Product Details

DA - 13672 Worldwide — Version 8 — December 9, 2013

Page 13

HP X111 100M SFP LC FX
Transceiver

(J9054C)

HP X111 100M SFP LC FX
Transceiver: An SFP format
100-megabit transceiver
with LC connectors using
FX technology.

Ports

1 LC 100BASE-FX port (IEEE 802.3u Type 100BASE-FX); Duplex: half or full

Physical characteristics

Dimensions: 2.7(d) x 0.54(w) x 0.48(h) in. (6.86 x 1.38 x 1.22 cm)
Weight: 0.06 lb. (0.03 kg)

Environment

Operating temperature: 32°F to 158°F (0°C to 70°C)
Operating relative humidity: 5% to 95%
Nonoperating/Storage temperature: -40°F to 185°F (-40°C to 85°C)
Nonoperating/Storage relative humidity: 5% to 85%
Altitude: up to 10,000 ft. (3 km)

Cabling

Cable type:

62.5/125 ìm or 50/125 ìm (core/cladding) diameter, graded-index, low metal
content, multimode fiber optic, complying with ITU-T G.651 and ISO/IEC 793-2
Type A1b or A1a, respectively; Maximum distance:

• 2 km (full duplex) or 412 m (half duplex)

Notes

Transmitter wavelength: 1310nm
Power consumption is 1.1 watt maximum.
For supported platforms and minimum software requirements to support this
product, see the document titled "Support for the J9054B 100-FX SFP-LC
Transceiver" on the "ProCurve Mini-GBICs and SFPs" Manuals Web page.

Services

Refer to the HP website at

www.hp.com/networking/services

for details on the
service-level descriptions and product numbers. For details about services and
response times in your area, please contact your local HP sales office.

HP X112 100M SFP LC BX-D
Transceiver

(J9099B)

A small form-factor
pluggable (SFP) 100­Megabit BX (bi-directional)
"downstream" transceiver
that provides 100 Mbps
full-duplex connectivity up
to 10 km on one strand of
singlemode fiber. The
J9099B connects to the
J9100B "upstream"
transceiver, or to any IEEE­standard 100BASE-BX10-U
("upstream") device.

Ports

1 LC 100BASE-BX10 port (IEEE 802.3ah Type 100BASE-BX10-D); Duplex: full
only

Physical characteristics

Dimensions

2.7(d) x 0.55(w) x 0.48(h) in. (6.86 x 1.39 x 1.22
cm)

Weight

0.04 lb. (0.03 kg)

Environment

Operating temperature

32ºF to 158ºF (0ºC to 70ºC)

Operating relative
humidity

0% to 95%, noncondensing

Nonoperating/Storage
temperature

-40ºF to 185ºF (-40ºC to 85ºC)

Cabling

Type:

Single-mode fiber optic, complying with ITU-T G.652;

Maximum distance:

0.5-10,000 m (single-mode fiber)

Notes

Transmit wavelength: 1550 nm. Receive wavelength: 1310 nm.
Power consumption is 1.1 watt maximum.
For supported platforms and minimum software requirements to support this
product, see the document titled "Support for the HP BX Transceivers" on the
"HP Mini-GBICs and SFPs" Manuals Web page.
The J9099B connects to the J9100B "upstream" transceiver, or to any IEEE­standard 100BASE-BX10-U ("upstream") device. (A 100-BX-D transceiver can

QuickSpecs

HP 2915 Switch Series

Accessory Product Details

DA - 13672 Worldwide — Version 8 — December 9, 2013

Page 14

only connect to a 100-BX-U product. You cannot connect two 100-BX-D
transceivers together.)

Services

Refer to the HP website at

www.hp.com/networking/services

for details on
the service-level descriptions and product numbers. For details about services
and response times in your area, please contact your local HP sales office.

HP X112 100M SFP LC BX-U
Transceiver

(J9100B)

A small form-factor
pluggable (SFP) 100­Megabit BX (bi-directional)
"upstream" transceiver
that provides 100 Mbps
full-duplex connectivity up
to 10 km on one strand of
singlemode fiber. The
J9100B connects to the
J9099B "downstream"
transceiver, or to any IEEE­standard 100BASE-BX10-D
("downstream")
device.

Ports

1 LC 100BASE-BX10 port (IEEE 802.3ah Type 100BASE-BX10-U); Duplex: full
only

Physical characteristics

Dimensions

2.7(d) x 0.55(w) x 0.48(h) in. (6.86 x 1.39 x 1.22
cm)

Weight

0.07 lb. (.03 kg)

Environment

Operating temperature

32ºF to 158ºF (0ºC to 70ºC)

Operating relative
humidity

0% to 95%, noncondensing

Nonoperating/Storage
temperature

-40ºF to 185ºF (-40ºC to 85ºC)

Cabling

Type:

Single-mode fiber optic, complying with ITU-T G.652;

Maximum distance:

0.5-10,000 m (single-mode fiber)

Notes

For supported platforms and minimum software requirements to support this
product, see the document titled "Support for the HP BX Transceivers" on the
"HP Mini-GBICs and SFPs" Manuals Web page.
The J9100B connects to the J9099B "downstream" transceiver, or to any IEEE­standard 100BASE-BX10- D ("downstream") device. (A 100-BX-U transceiver
can only connect to a 100-BX-D product. You cannot connect two 100-BX-U
transceivers together.)
Transmit wavelength: 1310 nm. Receive wavelength: 1550 nm.
Power consumption is 1.1 watts maximum.

Services

Refer to the HP website at

www.hp.com/networking/services

for details on
the service-level descriptions and product numbers. For details about services
and response times in your area, please contact your local HP sales office.

QuickSpecs

HP 2915 Switch Series

Accessory Product Details

DA - 13672 Worldwide — Version 8 — December 9, 2013

Page 15

HP X122 1G SFP LC BX-D
Transceiver

(J9142B)

A small form-factor
pluggable (SFP) Gigabit-BX
(bi-directional)
"downstream" transceiver
that provides a full-duplex
Gigabit solution up to 10
km on one strand of
single-mode fiber. The
J9142B connects to the
J9143B "upstream"
transceiver, or to any IEEE­standard 1000BASE-BX10­U ("upstream") device.

Ports

1 LC 1000BASE-BX10 port (IEEE 802.3ah Type 1000BASE-BX10-D); Duplex:
full only

Physical characteristics

Dimensions

2.19(d) x 0.54(w) x 0.46(h) in. (5.57 x 1.37 x 1.18
cm)

Weight

0.04 lb. (0.02 kg)

Environment

Operating temperature

32ºF to 158ºF (0ºC to 70ºC)

Operating relative
humidity

0% to 95%, non-condensing

Non-operating/
Storage temperature

–40ºF to 185ºF –40ºC to 85ºC)

Cabling

Type:
Single-mode fiber optic, complying with ITU-T G.652;

Maximum distance:

0.5-10,000 m (single-mode fiber)

Notes

Transmit wavelength: 1490 nm. Receive wavelength: 1310 nm.
Power consumption is 1 watt maximum.
For supported platforms and minimum software requirements to support this
product, see the document titled "Support for the HP BX Transceivers" on the
"HP Mini-GBICs and SFPs" Manuals Web page.
The J9142B connects to the J9143B "upstream" transceiver, or to any IEEE­standard 1000BASE-BX10-U ("upstream") device. (A 1000-BX-D transceiver
can only connect to a 1000-BX-U product. You cannot connect two 1000-BX-D
transceivers together.)

Services

Refer to the HP website at

www.hp.com/networking/services

for details on
the service-level descriptions and product numbers. For details about services
and response times in your area, please contact your local HP sales office.

HP X122 1G SFP LC BX-U
Transceiver

(J9143B)

A small form-factor
pluggable (SFP) Gigabit-BX
(bi-directional) "upstream"
transceiver that provides a
full-duplex Gigabit solution
up to 10 km on one strand
of single-mode fiber. The
J9143B connects to the
J9142B "downstream"
transceiver, or to any IEEE­standard 1000BASE-BX10­D ("downstream")
device.

Ports

1 LC 1000BASE-BX10 port (IEEE 802.3ah Type 1000BASE-BX10-U); Duplex:
full only

Physical characteristics

Dimensions

2.19(d) x 0.54(w) x 0.46(h) in. (5.57 x 1.37 x 1.18
cm)

Weight

0.04 lb. (0.02 kg)

Environment

Operating temperature

32ºF to 158ºF (0ºC to 70ºC)

Operating relative
humidity

0% to 95%, non-condensing

Non-operating/
Storage temperature

–40ºF to 185ºF –40ºC to 85ºC)

Cabling

Type:
Single-mode fiber optic, complying with ITU-T G.652;

Maximum distance:

0.5-10,000 m (single-mode fiber)

Notes

Transmit wavelength: 1310 nm. Receive wavelength: 1490 nm.

QuickSpecs

HP 2915 Switch Series

Accessory Product Details

DA - 13672 Worldwide — Version 8 — December 9, 2013

Page 16

For supported platforms and minimum software requirements to support this
product, see the document titled "Support for the HP BX Transceivers" on the
"HP Mini-GBICs and SFPs" Manuals Web page.
The J9143B connects to the J9142B "downstream" transceiver, or to any IEEE­standard 1000BASE-BX10-D ("downstream") device. (A 1000-BX-U
transceiver can only connect to a 1000-BX-D product. You cannot connect two
1000-BX-U transceivers together.)
Power consumption is 1 watt maximum.

Services

Refer to the HP website at

www.hp.com/networking/services

for details on
the service-level descriptions and product numbers. For details about services
and response times in your area, please contact your local HP sales office.

HP 0.5 m Multimode OM3
LC/LC Optical Cable

(AJ833A)

Cabling

Cable type

:
50/125 µm (core/cladding) diameter, mulitimode fiber optic, with effective
modal bandwidth of 2000 MHz/km as detailed in TIA-492AAAC for distances of
up to 300 m

Maximum distance

:

10Gbps Transfer Rate (Ethernet): 300m

Notes

Cable Specs: Tight buffered duplex fiber optic multimode OM3 50/125 um
fiber optic cable and Ethernet assembly with LC duplex connectors on one end
and LC duplex connectors on other end.

Dimensions: Core diameter: 50 ± 3.0um Cladding diameter: 125 ± 2.0um
Coating diameter: 245 ± 10um
Optical glass: Bandwidth: For LED sources: 1500/500 MHz-km
@850/1300nm.
Optical glass: Bandwidth: For Laser sources: 2000/500 MHz-km
@850/1300nm. VCSEL Laser sources: 600 / 600 meters @850/1300nm
for Gigabit Ethernet compliant links.
CABLE: The cable is duplex zipcord graded index 50/125um multimode
optical fiber and designed to work in both the 850 and 1300 nm
wavelength windows.
BULK CABLE & CABLE ASSEMBLY CONFIGURATION:
Jacket Material: Riser Grade - Low Smoke Zero Halogen thermoplastic.
Jacket Color: Aqua for OM3 multimode per TIA 598
Boot Color: White
Insertion Loss: less than 0.5 dB @ 850 with LED source, 0.003 dB/M
added for lengths > 30 meters.
Maximum Cable attenuation: 3.0 dB/km @ 850 nm, 1.0 dB/Km @ 1310
nm @ 23°C as tested in accordance with EIA 455-46.
Weight: Air Packed Weight: 1 LB Net Weight: 0.454Kg

Services

Refer to the HP website at

www.hp.com/networking/services

for details on
the service-level descriptions and product numbers. For details about services
and response times in your area, please contact your local HP sales office.

QuickSpecs

HP 2915 Switch Series

Accessory Product Details

DA - 13672 Worldwide — Version 8 — December 9, 2013

Page 17

HP Premier Flex LC/LC
Multi-mode OM4 2 fiber
1m Cable (QK732A)

Notes

Cable Specs: Graded-index, "bendable" fiber optic multimode OM3+ 50/125um
duplex cable and Ethernet assembly with LC duplex connectors on each end.

• Core Diameter: 50um ±3um, Cladding diameter: 125um ±2um; Coating
diameter: 245 ± 10um

• Bandwidth: 3000 MHz-km @ 850nm (Laser)

• Jacket Color: Blue

• Jacket Material: Riser Grade – Low Smoke Zero Halogen (LSZH) thermoplastic

• Boot Color: White

• Outer Jacket Print: HP PremierFlex OM3+ Fiber Optic Cable, 50/125um, Type
OFNR (UL), LSZH, cUL, OFN FT4, ROHS. Cable also has a longitudinal white
stripe that runs the entire length of the cable.

• Insertion Loss: Less than 0.5dB @ 850nm with LED source, 0.003dB/m added
for lengths >30m

• Maximum Cable Attenuation: 3.0 dB/km @ 850nm, 1.0 dB/km @ 1310nm @
23°C as tested in accordance with EIA 455-45

Services

Refer to the HP website at

www.hp.com/networking/services

for details on
the service-level descriptions and product numbers. For details about services
and response times in your area, please contact your local HP sales office.

HP Premier Flex LC/LC
Multi-mode OM4 2 fiber
2m Cable (QK733A)

Notes

Cable Specs: Graded-index, "bendable" fiber optic multimode OM3+ 50/125um
duplex cable and Ethernet assembly with LC duplex connectors on each end.

• Core diameter: 50um ±3um, Cladding diameter: 125um ±2um; Coating
diameter: 245 ± 10um

• Bandwidth: 3000 MHz-km @ 850nm (Laser)

• Jacket Color: Blue

• Jacket Material: Riser Grade – Low Smoke Zero Halogen (LSZH) thermoplastic

• Boot Color: White

• Outer Jacket Print: HP PremierFlex OM3+ Fiber Optic Cable, 50/125um, Type
OFNR (UL), LSZH, cUL, OFN FT4, ROHS. Cable also has a longitudinal white
stripe that runs the entire length of the cable.

• Insertion Loss: Less than 0.5dB @ 850nm with LED source, 0.003dB/m added
for lengths >30m

• Maximum Cable Attenuation: 3.0 dB/km @ 850nm, 1.0 dB/km @ 1310nm @
23°C as tested in accordance with EIA 455-45

Services

Refer to the HP website at

www.hp.com/networking/services

for details on
the service-level descriptions and product numbers. For details about services
and response times in your area, please contact your local HP sales office.

QuickSpecs

HP 2915 Switch Series

Accessory Product Details

DA - 13672 Worldwide — Version 8 — December 9, 2013

Page 18

HP Premier Flex LC/LC
Multi-mode OM4 2 fiber
5m Cable (QK734A)

Notes

Cable Specs: Graded-index, "bendable" fiber optic multimode OM3+ 50/125um
duplex cable and Ethernet assembly with LC duplex connectors on each end.

• Core diameter: 50um ±3um, Cladding diameter: 125um ±2um; Coating
diameter: 245 ± 10um

• Bandwidth: 3000 MHz-km @ 850nm (Laser)

• Jacket Color: Blue

• Jacket Material: Riser Grade – Low Smoke Zero Halogen (LSZH) thermoplastic

• Boot Color: White

• Outer Jacket Print: HP PremierFlex OM3+ Fiber Optic Cable, 50/125um, Type
OFNR (UL), LSZH, cUL, OFN FT4, ROHS. Cable also has a longitudinal white
stripe that runs the entire length of the cable.

• Insertion Loss: Less than 0.5dB @ 850nm with LED source, 0.003dB/m added
for lengths >30m

• Maximum Cable Attenuation: 3.0 dB/km @ 850nm, 1.0 dB/km @ 1310nm @
23°C as tested in accordance with EIA 455-45

Services

Refer to the HP website at

www.hp.com/networking/services

for details on
the service-level descriptions and product numbers. For details about services
and response times in your area, please contact your local HP sales office.

HP Premier Flex LC/LC
Multi-mode OM4 2 fiber
15m Cable

(QK735A)

Notes

Cable Specs: Graded-index, "bendable" fiber optic multimode OM3+ 50/125um
duplex cable and Ethernet assembly with LC duplex connectors on each end.

• Core diameter: 50um ±3um, Cladding diameter: 125um ±2um; Coating
diameter: 245 ± 10um

• Bandwidth: 3000 MHz-km @ 850nm (Laser)

• Jacket Color: Blue

• Jacket Material: Riser Grade – Low Smoke Zero Halogen (LSZH) thermoplastic

• Boot Color: White

• Outer Jacket Print: HP PremierFlex OM3+ Fiber Optic Cable, 50/125um, Type
OFNR (UL), LSZH, cUL, OFN FT4, ROHS. Cable also has a longitudinal white
stripe that runs the entire length of the cable.

• Insertion Loss: Less than 0.5dB @ 850nm with LED source, 0.003dB/m added
for lengths >30m

• Maximum Cable Attenuation: 3.0 dB/km @ 850nm, 1.0 dB/km @ 1310nm @
23°C as tested in accordance with EIA 455-45

Services

Refer to the HP website at

www.hp.com/networking/services

for details on
the service-level descriptions and product numbers. For details about services
and response times in your area, please contact your local HP sales office.

QuickSpecs

HP 2915 Switch Series

Accessory Product Details

DA - 13672 Worldwide — Version 8 — December 9, 2013

Page 19

HP Premier Flex LC/LC
Multi-mode OM4 2 fiber
30m Cable

(QK736A)

Notes

Cable Specs: Graded-index, "bendable" fiber optic multimode OM3+ 50/125um
duplex cable and Ethernet assembly with LC duplex connectors on each end.

• Core diameter: 50um ±3um, Cladding diameter: 125um ±2um; Coating
diameter: 245 ± 10um

• Bandwidth: 3000 MHz-km @ 850nm (Laser)

• Jacket Color: Blue

• Jacket Material: Riser Grade – Low Smoke Zero Halogen (LSZH) thermoplastic

• Boot Color: White

• Outer Jacket Print: HP PremierFlex OM3+ Fiber Optic Cable, 50/125um, Type
OFNR (UL), LSZH, cUL, OFN FT4, ROHS. Cable also has a longitudinal white
stripe that runs the entire length of the cable.

• Insertion Loss: Less than 0.5dB @ 850nm with LED source, 0.003dB/m added
for lengths >30m

• Maximum Cable Attenuation: 3.0 dB/km @ 850nm, 1.0 dB/km @ 1310nm @
23°C as tested in accordance with EIA 455-45

Services

Refer to the HP website at

www.hp.com/networking/services

for details on
the service-level descriptions and product numbers. For details about services
and response times in your area, please contact your local HP sales office.

HP Premier Flex LC/LC
Multi-mode OM4 2 fiber
50m Cable

(QK737A)

Notes

Cable Specs: Graded-index, "bendable" fiber optic multimode OM3+ 50/125um
duplex cable and Ethernet assembly with LC duplex connectors on each end.

• Core diameter: 50um ±3um, Cladding diameter: 125um ±2um; Coating
diameter: 245 ± 10um

• Bandwidth: 3000 MHz-km @ 850nm (Laser)

• Jacket Color: Blue

• Jacket Material: Riser Grade – Low Smoke Zero Halogen (LSZH) thermoplastic

• Boot Color: White

• Outer Jacket Print: HP PremierFlex OM3+ Fiber Optic Cable, 50/125um, Type
OFNR (UL), LSZH, cUL, OFN FT4, ROHS. Cable also has a longitudinal white
stripe that runs the entire length of the cable.

• Insertion Loss: Less than 0.5dB @ 850nm with LED source, 0.003dB/m added
for lengths >30m

• Maximum Cable Attenuation: 3.0 dB/km @ 850nm, 1.0 dB/km @ 1310nm @
23°C as tested in accordance with EIA 455-45

Services

Refer to the HP website at

www.hp.com/networking/services

for details on
the service-level descriptions and product numbers. For details about services
and response times in your area, please contact your local HP sales office.

HP X510 1U Cable Guard

(J9700A)

Notes

Dimensions:10.94" x 3.62" x 1.69" or 27.8cm x 9.2cm x 4.3cm w/ears

10.94" x 1.69" x 1.69" or 27.8cm x 4.3cm x 4.3cm without ears
Weight: 1.262 lbs or .57 kg (including faceplate, ears, and screws) 1.026 lbs or
.47 kg (faceplate only)

Services

Refer to the HP website at:

www.hp.com/networking/services

for details

QuickSpecs

HP 2915 Switch Series

Accessory Product Details

DA - 13672 Worldwide — Version 8 — December 9, 2013

Page 20

HP X520 1U Power Adapter
Shelf

(J9701A)

Notes

Dimensions: 10.75" x 3.75" x 1.75" or 27.3cm x 9.5cm x 4.4cm Weight: 0.316
lbs or .143 kg

Services

Refer to the HP website at:

www.hp.com/networking/services

for details

To learn more, visit:

www.hp.com/networking

© Copyright 2010-2013 Hewlett-Packard Development Company, L.P. The information contained herein is subject to change without
notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products
and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial
errors or omissions contained herein.

QuickSpecs

HP 2915 Switch Series

Accessory Product Details

DA - 13672 Worldwide — Version 8 — December 9, 2013

Page 21
