QuickSpecs

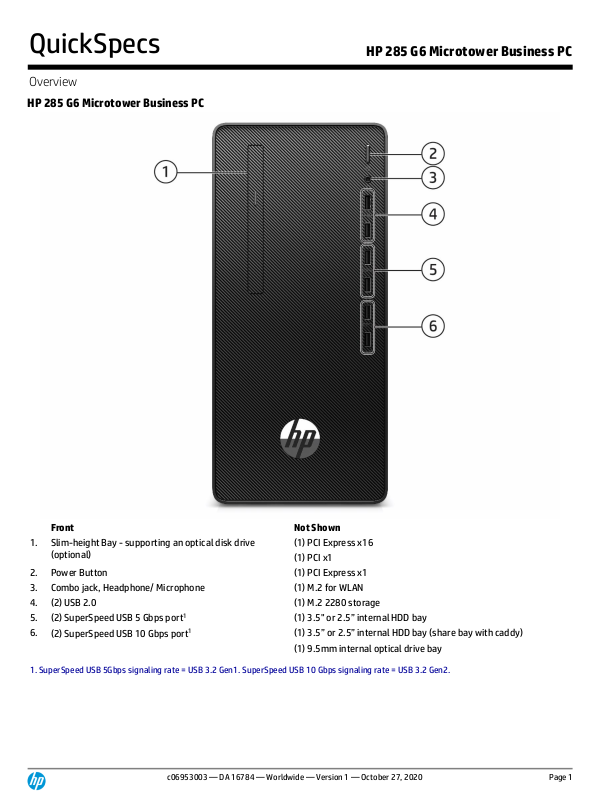

HP 285 G6 Microtower Business PC
Overview
c06953003 — DA 16784 — Worldwide — Version 1 — October 27, 2020
Page 1
Front
Not Shown
1.
Slim-height Bay - supporting an optical disk drive (optional)
(1) PCI Express x16
(1) PCI x1
2.
Power Button
(1) PCI Express x1
3.
Combo jack, Headphone/ Microphone
(1) M.2 for WLAN
4.
(2) USB 2.0
(1) M.2 2280 storage
5.
(2) SuperSpeed USB 5 Gbps port1
(1) 3.5" or 2.5” internal HDD bay
6.
(2) SuperSpeed USB 10 Gbps port1
(1) 3.5” or 2.5” internal HDD bay (share bay with caddy)
(1) 9.5mm internal optical drive bay
1. SuperSpeed USB 5Gbps signaling rate = USB 3.2 Gen1. SuperSpeed USB 10 Gbps signaling rate = USB 3.2 Gen2.
QuickSpecs
HP 285 G6 Microtower Business PC
Overview
c06953003 — DA 16784 — Worldwide — Version 1 — October 27, 2020
Page 2
Rear
1.
Audio Line out
7.
Serial Port
2.
Audio Line in
8.
Connector (2) SuperSpeed USB 5 Gbps
3.
Standard lock slot
9.
RJ-45 Network Connector
4
HDMI Port
10.
2nd Serial Port (Optional)
5.
VGA Port
11.
Integrated accessories cable lock
6.
Connector (2) USB 2.0 port (Optional)
12.
Power Cord Connector
13.
Padlock Loop
Not Shown
(1) Parallel Port (Optional via PCIex1 slot)
(1) 4 Serial Port PCIe Card (Optional via PCIex1 slot)*
(1) PS/2 Ports (Optional)
(1) Internal Speaker (Optional)
(1) Intrusion Sensor (Optional)
*NOTE: Only available on selected models.
QuickSpecs
HP 285 G6 Microtower Business PC
Standard Features and Configurable Modules
c06953003 — DA 16784 — Worldwide — Version 4 — March 3, 2021
Page 3
• Windows 10 Pro, Windows 10 Home or FreeDos 2.0
• AMD PRO565 Chipset, latest AMD® Ryzen™ PRO, AMD® Ryzen™, and Athlon PRO processors with AMD Integrated
RadeonTM Vega Graphics
• Supports an optional discrete graphics card
• Integrated 10/100/1000 Ethernet Controller or Realtek ac 1x1+BT 4.2 LE with 1 Antenna
• Up to 32 GB DDR4- 3200 Unbuffered Memory (UDIMM)
1
• Independent monitor support via VGA/HDMI interfaces
• Supports both Hard Disk Drives and / M.2 PCIe NVMe Solid State Drives
• Up to 10 USB ports (including native 2 USB 2.0, 2 SuperSpeed USB 5Gbps ports and 2 SuperSpeed USB 10Gbps at front,
and native 2 SuperSpeed USB 5Gbps at rear and optional 2 USB 2.0 at rear)2
• 180W/310W 90% HE power supply
• Security cable lock supported (sold separately)
• Integrated accessory cable lock helps secure cabled mouse, keyboard and accessories
• Intrusion sensor supported (Optional)
• Optional HP Care Service available; terms and conditions vary by country; certain restrictions and exclusions apply
3
• TPM 2.0 support (fTPM)
4
1. Memory modules support data transfer rates up to 3200 MT/s; actual data rate is determined by the system’s configured processor. See processor specifications for supported memory data rate.
2. SuperSpeed USB 10Gbps signaling rate = USB 3.2 Gen2. SuperSpeed USB 5Gbps signaling rate= USB 3.2 Gen1
3. HP Care Services are optional. Service levels and response times for HP Care Services may vary depending on your geographic location. Service starts on date of hardware purchase. Restrictions and limitations apply. For details, visit http://www.hp.com/go/cpc. HP services are governed by the applicable HP terms and conditions of service provided or indicated to Customer at the time of purchase. Customer may have
additional statutory rights according to applicable local laws, and such rights are not in any way affected by the HP terms and conditions of service or the HP Limited Warranty provided with your HP Product.
4. TPM feature will be supported on machine pre-configured with FreeDOS, and will be default set as enabled in BIOS setup menu if the machine is dTPM, but will be default set as disabled in BIOS setup menu if the machine is fTPM.
NOTE: See important legal disclosures for all listed specs in their respective features sections.
QuickSpecs
HP 285 G6 Microtower Business PC
Standard Features and Configurable Modules
c06953003 — DA 16784 — Worldwide — Version 4 — March 3, 2021
Page 4
HP 285 G6 Microtower Business PC
Preinstalled
Windows 10 Pro 641 Windows 10 Home 641
Pre-installed (other)
FreeDOS
1. Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. Windows 10 is automatically updated, which is always enabled. ISP fees may apply and additional requirements may apply over time for updates. See http://www.windows.com/
AMD® Ryzen™ 4000 Series Processors
AMD® Ryzen™ 7 PRO 4750G 65W, 8 Cores, 16 threads, 3.6 GHz base frequency, up to 4.4 GHz max3. 384 KB L1 cache, 4 MB L2 cache, 8 MB L3 cache Integrated RadeonTM Vega 8 Graphics Supports DDR4 memory up to 3200 MT/s data rate
AMD® Ryzen™ 5 PRO 4650G 65W, 6 Cores, 12 threads, 3.7 GHz base frequency, up to 4.2 GHz max3. 384 KB L1 cache, 3 MB L2 cache,8 MB L3 cache Integrated Radeon™ Vega 7 Graphics Supports DDR4 memory up to 3200 MT/s data rate
AMD® Ryzen™ 3 PRO 4350G 65W, 4 Cores, 8 threads, 3.8 GHz base frequency, up to 4.0 GHz max3. 384 KB L1 cache, 2 MB L2 cache, 4 MB L3 cache Integrated Radeon™ Vega 6 Graphics Supports DDR4 memory up to 3200 MT/s data rate
AMD® Ryzen™ 7 4700G 65W, 8 Cores, 16 threads, 3.6 GHz base frequency, up to 4.4 GHz max3. 512 KB L1 cache, 4 MB L2 cache, 8 MB L3 cache Integrated RadeonTM Vega 8 Graphics Supports DDR4 memory up to 3200 MT/s data rate
AMD® Ryzen™ 5 4600G 65W, 6 Cores, 12 threads, 3.7 GHz base frequency, up to 4.2 GHz max3. 384 KB L1 cache, 3 MB L2 cache,8 MB L3 cache Integrated Radeon™ Vega 7 Graphics Supports DDR4 memory up to 3200 MT/s data rate
AMD® Ryzen™ 3 4300G 65W, 4 Cores, 8 threads, 3.8 GHz base frequency, up to 4.0 GHz max3. 256 KB L1 cache, 2 MB L2 cache, 4 MB L3 cache Integrated Radeon™ Vega 6 Graphics
QuickSpecs
HP 285 G6 Microtower Business PC
Standard Features and Configurable Modules
c06953003 — DA 16784 — Worldwide — Version 4 — March 3, 2021
Page 5
Supports DDR4 memory up to 3200 MT/s data rate
AMD® Ryzen™ 3000 Series Processors
APU AMD Ryzen™ 5 PRO 3400G 65W, 4 Cores, 8 threads, 3.7 GHz base frequency, up to 4.2 GHz max3. 384 KB L1 cache, 2 MB L2 cache, 4 MB L3 cache Integrated Radeon™ Vega 11 Graphics Supports DDR4 memory up to 2933 MT/s data rate
APU AMD Ryzen™ 5 PRO 3350G 65W, 4 Cores, 8 threads, 3.6 GHz base frequency, up to 4.0 GHz max3. 384 KB L1 cache, 2 MB L2 cache, 4 MB L3 cache Integrated Radeon™ Vega 11 Graphics Supports DDR4 memory up to 2933 MT/s data rate
APU AMD Ryzen™ 3 PRO 3200G 65W, 4 Cores, 4 threads, 3.6 GHz base frequency, up to 4.0 GHz max3. 384 KB L1 cache, 2 MB L2 cache, 4 MB L3 cache Integrated Radeon™ Vega 8 Graphics Supports DDR4 memory up to 2933 MT/s data rate
AMD® Athlon™ 3000 Series Processors
APU AMD Athlon™ Gold PRO 3150G 65W, 4 Cores, 4 threads, 3.5 GHz base frequency, up to 3.9 GHz max3. 384 KB L1 cache, 2 MB L2 cache, 4 MB L3 cache Integrated RadeonTM Graphics Supports DDR4 memory up to 2933 MT/s data rate
2. Multi-core is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. Performance and clock frequency will vary depending on application workload and your hardware and software configurations. AMD’s numbering is not a measurement of clock speed.
3. AMD Max Boost frequency performance varies depending on hardware, software and overall system configuration.
AMD PRO565
QuickSpecs
HP 285 G6 Microtower Business PC
Standard Features and Configurable Modules
c06953003 — DA 16784 — Worldwide — Version 4 — March 3, 2021
Page 6
Integrated
AMD Integrated Radeon™ Vega Graphics
Discrete Graphics5
AMD Radeon™ RX550X 4GB DP+HDMI GFX AMD Radeon™ R7 430 2GB DP+VGA GFX AMD Radeon™ 520 1GB DP+VGA GFX
4. HD content required to view HD images.
5. Sold separately or as an optional feature.
Form Factor
Microtower
Type
DDR4 2666 (Transfer rates up to 2666 MT/s) DDR4 3200 (Transfer rates up to 3200 MT/s)
Maximum
32 GB capacity
# of Slots
2 DIMM 4GB DDR4-2666 UDIMM NECC (1x4GB) 8GB DDR4-2666 UDIMM NECC (1x8GB) 8GB DDR4-2666 UDIMM NECC (2x4GB) 16GB DDR4-2666 UDIMM NECC (1x16GB) 16GB DDR4-2666 UDIMM NECC (2x8GB) 32GB DDR4-2666 UDIMM NECC (1x32GB) 32GB DDR4-2666 UDIMM NECC (2x16GB) 4GB DDR4-3200 UDIMM NECC (1x4GB) 8GB DDR4-3200 UDIMM NECC (1x8GB) 8GB DDR4-3200 UDIMM NECC (2x4GB) 16GB DDR4-3200 UDIMM NECC (1x16GB) 16GB DDR4-3200 UDIMM NECC (2x8GB) 32GB DDR4-3200 UDIMM NECC (2x16GB)
6. Running at 3200 MT/s when configure w/ Renoir 4000 -series APU.
QuickSpecs
HP 285 G6 Microtower Business PC
Standard Features and Configurable Modules
c06953003 — DA 16784 — Worldwide — Version 4 — March 3, 2021
Page 7
SATA3 - 3.5" or 2.5” HDDs
2TB 7200 RPM SATA Hard Disk Drive 1TB 7200 RPM SATA Hard Disk Drive 500GB 7200 RPM SATA Hard Disk Drive
M.2 Solid State Drives
128 GB M.2 2280 PCIe NVMe SSD 256 GB M.2 2280 PCIe NVMe SSD 512 GB M.2 2280 PCIe NVMe SSD
7. For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 36 GB (for Windows 10) of system disk is reserved for the system recovery software. Storage DriveLock does not work with Self Encrypting or Optane based storage.
DVD-ROM 9.5mm DVD-Writer 9.5mm
8. Optical drives are optional or add on features. Duplication of copyrighted material is strictly prohibited. Actual speeds may vary. Double Layer media compatibility will widely vary with some home DVD players and DVD-ROM drives.
Networking
Integrated 10/100/1000M GbE LAN
Wi-Fi® and Bluetooth®
802.11 ac (1x1) Wi-Fi® and Bluetooth® 4.2 Combo
9. Wireless cards are optional or add-on features and requires separately purchased wireless access point and internet service. Availability of public wireless access points limited.
Realtek ALC3601 Combo Jack, Headphone/ Microphone Line-in/Line-out (3.5mm) Support 2W Internal speaker
QuickSpecs
HP 285 G6 Microtower Business PC
Standard Features and Configurable Modules
c06953003 — DA 16784 — Worldwide — Version 4 — March 3, 2021
Page 8
Keyboards
USB Business Slim Wired Keyboard HP USB Keyboard Business Slim USB Antimicrobial Wired Keyboard (China) Business Slim PS/2 Wired Keyboard No KB Option
Mouse
Antimicrobial USB Mouse (China) HP Optical USB Mouse Universal Wired Mouse USB USB Hardened Mouse (India) HP PS/2 Mouse (for machine configured with PS/2 port) No Mouse Option
10. Keyboards and mouse are optional or add-on features.
Front
(1) Combo jack (Headphone/Microphone) (2) USB 2.0 (2) SuperSpeed USB 5Gbps (2) SuperSpeed USB 10Gbps
Not Shown
(2) DIMM (1) PCIEX16 (1) PCIEX1 (1) PCI (1) SATA-ODD (2) SATA-HDD (2*3.5“, could support dual 2.5 drive caddy) (1) M.2- PCIE SSD (1) M.2 –WLAN
Rear
(1) Audio Line out (1) Audio Line in (1) HDMI Port (1) VGA Port (1) Serial Port (2) USB 2.0 Port(optional) (1) RJ-45 (2) USB 3.2 Gen1
Not Shown
(2) PS/2 Port (Optional) (1) Parallel Port (Optional via PCIex1 slot) (1) 4x Serial port (Optional via PCIex1 slot) (1) Internal Speaker (Optional) (1) Intrusion Sensor (Optional)
QuickSpecs
HP 285 G6 Microtower Business PC
Standard Features and Configurable Modules
c06953003 — DA 16784 — Worldwide — Version 4 — March 3, 2021
Page 9
(1) 9.5mm external slimline ODD bay (1)3.5" internal HDD bay (1)3.5 or 2.5” internal HDD bay (share bay)
QuickSpecs
HP 285 G6 Microtower Business PC
Standard Features and Configurable Modules
c06953003 — DA 16784 — Worldwide — Version 4 — March 3, 2021
Page 10
Security and Protection
McAfee* LiveSafe™
12
Productivity
Buy Office (sold separately) Dropbox
13
Xerox® DocuShare® (30 day free trial offer)14
ODD Playback
sMedio True DVD for HP
Movies
Netflix
App Stores and Content Purchasing
Amazon
15
HP Utilities and Support
HP Documentation HP JumpStart HP Audio Switch16 HP Support Assistant
BTB
HP Setup Integrated OOBE
Hardware Enabling Drivers or software utility
HP System Event Utility
12. Free 1-year subscription of McAfee LiveSafe service included. Internet access required and not included. Subscription required after expiration.
13. New Dropbox users are eligible to get 25 GB of Dropbox space free for 12 months from date of registration. For complete details and terms of use, including cancellation policies, visit the Dropbox website at https://www.dropbox.com/help/space/hp-promotion. Internet service required and not included.
14. Simply sign up and start using Xerox® DocuShare® Go. No credit card. No obligation. Data will become unavailable unless a subscription is entered before the end of the 30 day free trial period. See visit http://www.xerox.com/docusharego for details.
15. Internet access required and not included. Apps sold separately.
16. Easily switch between speaker and microphone sources with intuitive controls and a consistent app experience.
*NOTE: Available for LA region only.
QuickSpecs
HP 285 G6 Microtower Business PC
Standard Features and Configurable Modules
c06953003 — DA 16784 — Worldwide — Version 4 — March 3, 2021
Page 11
Power Supply
180 W
EStar Libra2 EPA90 (Gold) Full range 115V/230V
310 W
310W MT Sirius2 ENTL EPA90 (Gold) Full range 115V/230V
(configured with 1 HDD and 1 ODD)
Chassis (H x W x D)
13.3 x 6.12 x 11.7 in (337.4 x 155.4 x 297.2 mm)
System Weight
12.17 lbs / 5.52 kg
Packaging dimensions and weight
Dimensions
11.30 x 15.75 x 19.65 in 287 x400 x499 mm
Weight
20.06 lb / 9.10 kg
Security Features
TPM 2.0 support (fTPM)17 Security cable slot
17.TPM feature will not be supported on machines pre-configured with FreeDOS. In selected countries, machines pre-configured with Windows OS will be shipped with TPM disabled.
General Unit Operating Guidelines
Environmental and Industry
• Keep the computer away from excessive moisture, direct moisture and the extremes of
heat and cold, to ensure that unit is operated within the specified operating range.
• Leave a 10.2 cm (4 in) clearance on all vented sides of the computer to permit the required airflow.
• Never restrict airflow into the computer by blocking any vents or air intakes.
• Do not stack computers on top of each other or place computers so near each other that
they are subject to each other's re-circulated or preheated air.
• Occasionally clean the air vents on the front, back, and any other vented side of the
computer. Lint, dust and other foreign matter can block the vents and limit the airflow.
• If the computer is to be operated within a separate enclosure, intake and exhaust ventilation must be provided on the enclosure, and the same operating guidelines listed above will still apply.
Temperature Range Operating:
5° to 35° C18
Non-operating:
-30° to 60°18
Relative Humidity Operating:
5% to 90% (non-condensing at ambient)
Non-operating:
5% to 90% (non-condensing at ambient)
Maximum Altitude (unpressurized)
Operating:
5,000 m
Non-operating:
50,000 ft (15240 m)
QuickSpecs
HP 285 G6 Microtower Business PC
Standard Features and Configurable Modules
c06953003 — DA 16784 — Worldwide — Version 4 — March 3, 2021
Page 12
18. Operating temperature is de-rated 1.0 deg C per 300 m (1000 ft) to 3000 m (10,000 ft) above sea level, no direct sustained sunlight. Maximum rate of change is 10 deg C/Hr. The upper limit may be limited by the type and number of options installed.
Eco-Label Certifications & declarations
This product has received or is in the process of being certified to the following approvals and may be labeled with one or more of these marks:
• IT ECO declaration
• US ENERGY STAR®
• EPEAT® 2019 registered where applicable. EPEAT ® registration varies by country. See
http://www.epeat.net for registration status by country. Search keyword generator on HP’s 3rd
party option store for solar generator accessories at http://www.hp.com/go/options.
*Based on US EPEAT® registration according to IEEE 1680.1-2018 EPEAT®. Status varies by country. Visit
http://www.epeat.net for more information.
System Configuration
The configuration used for the Energy Consumption and Declared Noise Emissions data for the Desktop model is based on a “Typically Configured Desktop”.
Energy Consumption (in accordance with US ENERGY STAR® test method)
115VAC, 60Hz
230VAC, 50Hz
100VAC, 50Hz
Normal Operation (Short idle)
35.98W
36.76W
36.52W
Normal Operation (Long idle)
33.27W
33.03W
33.26W
Sleep
1.08W
1.1W
1.27W
Off
0.27W
0.3W
0.26
NOTE: Energy efficiency data listed is for an ENERGY STAR® compliant product if offered within the model family. HP computers marked with the ENERGY STAR® Logo are compliant with the applicable U.S. Environmental Protection Agency (EPA) ENERGY STAR® specifications for computers. If a model family does not offer ENERGY STAR® compliant configurations, then energy efficiency data listed is for a typically configured PC featuring a hard disk drive, a high efficiency power supply, and a Microsoft Windows® operating system. Search keyword generator on HP’s 3rd party option store for solar generator accessories at http://www.hp.com/go/options.
Heat Dissipation*
115VAC, 60Hz
230VAC, 50Hz
100VAC, 50Hz
Normal Operation (Short idle)
122.69 BTU/hr
125.35 BTU/hr
124.53 BTU/hr
Normal Operation (Long idle)
113.45 BTU/hr
112.63 BTU/hr
113.42 BTU/hr
Sleep
3.68 BTU/hr
3.75 BTU/hr
4.33 BTU/hr
Off
0.92 BTU/hr
1.02 BTU/hr
0.89 BTU/hr
NOTE: Heat dissipation is calculated based on the measured watts, assuming the service level is attained for one hour.
QuickSpecs
HP 285 G6 Microtower Business PC
Standard Features and Configurable Modules
c06953003 — DA 16784 — Worldwide — Version 4 — March 3, 2021
Page 13
Declared Noise Emissions (in accordance with ISO 7779 and ISO 9296)
Sound Power
(L
WAd
, bels)
Sound Pressure
(L
pAm
, decibels)
Typically Configured – Idle
3.8
25.4
Fixed Disk – Random writes 4 27.9
Longevity and Upgrading
This product can be upgraded, possibly extending its useful life by several years. Upgradeable features and/or components contained in the product may include:
Spare parts are available throughout the warranty period and or for up to “3” years after the end of production.
Batteries
This battery(s) in this product comply with EU Directive 2006/66/EC
Batteries used in the product do not contain: Mercury greater the1ppm by weight Cadmium greater than 20ppm by weight
Battery size: CR2032 (coin cell) Battery type: Lithium
Additional Information
• This product is in compliance with the Restrictions of Hazardous Substances (RoHS) directive ­2011/65/EC.
• This HP product is designed to comply with the Waste Electrical and Electronic Equipment (WEEE) Directive – 2002/96/EC.
• This product is in compliance with California Proposition 65 (State of California; Safe Drinking
Water and Toxic Enforcement Act of 1986).
• This product is in compliance with the IEEE 1680.1 (EPEAT) standard at the <Silver> level, see
www.epeat.net
• Plastics parts weighing over 25 grams used in the product are marked per ISO11469 and
ISO1043.
• This product contains 28.2% post-consumer recycled plastic (by wt.)
• This product is 91.7% recycle-able when properly disposed of at end of life.
Packaging Materials
External:
PAPER/Paperboard
1220 g
Internal:
PAPER/Molded Pulp
520 g
PLASTIC/Polyethylene low density - LDPE
53 g
Material Usage
This product does not contain any of the following substances in excess of regulatory limits (refer to the HP General Specification for the Environment at http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/gse.pdf):
• Asbestos
• Certain Azo Colorants
• Certain Brominated Flame Retardants – may not be used as flame retardants in plastics
• Cadmium
• Chlorinated Hydrocarbons
• Chlorinated Paraffins
• Formaldehyde
• Halogenated Diphenyl Methanes
• Lead carbonates and sulfates
• Lead and Lead compounds
• Mercuric Oxide Batteries
• Nickel – finishes must not be used on the external surface designed to be frequently handled or
carried by the user.
• Ozone Depleting Substances
• Polybrominated Biphenyls (PBBs)
QuickSpecs
HP 285 G6 Microtower Business PC
Standard Features and Configurable Modules
c06953003 — DA 16784 — Worldwide — Version 4 — March 3, 2021
Page 14
• Polybrominated Biphenyl Ethers (PBBEs)
• Polybrominated Biphenyl Oxides (PBBOs)
• Polychlorinated Biphenyl (PCB)
• Polychlorinated Terphenyls (PCT)
• Polyvinyl Chloride (PVC) – except for wires and cables, and certain retail packaging has been
voluntarily removed from most applications.
• Radioactive Substances
• Tributyl Tin (TBT), Triphenyl Tin (TPT), Tributyl Tin Oxide (TBTO)
Packaging Usage
HP follows these guidelines to decrease the environmental impact of product packaging:
• Eliminate the use of heavy metals such as lead, chromium, mercury and cadmium in packaging materials.
• Eliminate the use of ozone-depleting substances (ODS) in packaging materials.
• Design packaging materials for ease of disassembly.
• Maximize the use of post-consumer recycled content materials in packaging materials.
• Use readily recyclable packaging materials such as paper and corrugated materials.
• Reduce size and weight of packages to improve transportation fuel efficiency.
• Plastic packaging materials are marked according to ISO 11469 and DIN 6120 standards.
End-of-life Management and Recycling
HP Inc. offers end-of-life HP product return and recycling programs in many geographic areas. To recycle your product, please go to: http://www.hp.com/go/reuse-recycle or contact your nearest HP sales office. Products returned to HP will be recycled, recovered or disposed of in a responsible manner.
The EU WEEE directive (2002/95/EC) requires manufacturers to provide treatment information for each product type for use by treatment facilities. This information (product disassembly instructions) is posted on the Hewlett Packard web site at: http://www.hp.com/go/recyclers. These instructions may be used by recyclers and other WEEE treatment facilities as well as HP OEM customers who integrate and re-sell HP equipment.
Global Citizenship Report
http://www.hp.com/hpinfo/globalcitizenship/gcreport/index.html
Eco-label certifications
http://www8.hp.com/us/en/hp-information/environment/ecolabels.html
ISO 14001 certificates:
http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/PC_GBU_Product_Design_ISO_1 4K_Certificate.pdf
and
http://www.hp.com/hpinfo/globalcitizenship/environment/pdf/cert.pdf
QuickSpecs
HP 285 G6 Microtower Business PC
Standard Features and Configurable Modules
c06953003 — DA 16784 — Worldwide — Version 4 — March 3, 2021
Page 15
On-site Warranty: One-year (1-1-1) limited warranty delivers, next business day service for parts and labor and includes free support 24 x 7. One-year onsite and labor are not available in all countries. Service offers terms up to 3 years by choosing an optional HP Care Pack. To choose the right level of service for your HP product, visit HP Care Pack Central:
http://www.hp.com/go/cpc.
NOTE 1: Terms and conditions may vary by country. Certain restrictions and exclusions apply. Other warranty variations may be offered in your region. NOTE 2: On-site service may be provided pursuant to a service contract between HP and an authorized HP third-party provider, and is not available in certain countries. Global service response times are based on commercially reasonable best effort and may vary by country. NOTE 3: Technical support applies only to HP-configured and third-party HP qualified hardware and software. 24 x 7 support may not be available in some countries. NOTE 4: HP Care Packs are sold separately. Service levels and response times for HP Care Packs may vary depending on your geographic location. Service starts on date of hardware purchase. Restrictions and limitations apply. For details, visit www.hp.com/go/cpc. HP Services are governed by the applicable HP terms and conditions of service provided or indicated to Customer at the time of purchase. Customer may have additional statutory rights according to applicable local laws, and such rights are not in any way affected by the HP terms and conditions of service or the HP Limited Warranty provided with your HP Product.
QuickSpecs
HP 285 G6 Microtower Business PC
Technical Specifications - Storage
c06953003 — DA 16784 — Worldwide — Version 4 — March 3, 2021
Page 16
AMD Radeon™ Vega Graphics (integrated)
Graphics Controller
Integrated
DisplayPort™
Multimode capable; supports HDCP, DisplayPort™ Audio (2 streams), HBR2 link rates and Multi­Stream Technology for a maximum of 3 displays connected to any output controlled by AMD® Graphics
HDMI
Supports HDMI 2.0a features Supports HDCP 2.3 Supports audio over HDMI
VGA
VGA output
USB Type-C® DP Alt Mode
DisplayPort™ over the USB Type-C® module
Memory
The actual amount of maximum graphics memory can be >4GB. System memory is allocated for graphics as needed, to provide an optimal balance between graphics and system memory use.
Maximum Color Depth
up to 10 bits/color
Graphics/Video API Support
VP9 10b Dec HW HDR Rec. 2020 DX12
Max. Resolution (VGA)
2048 x 1536@60Hz
Max. Resolution (HDMI)
4096 x 2160@60Hz
Max. Resolution (DP)
4096 x 2160@60Hz
AMD® Radeon™ RX 550X 4 GB FH 2DP+HDMI
Engine Clock
1183MHz
Memory Clock
6 Gbps
Memory Size (width)
4 GB (128-bit)
Memory Type
GDDR5
Max. Resolution (HDMI)
4096x2160 @ 60Hz
Max. Resolution (DP)
5120x2880 @ 60Hz
Multi Display Support
2 displays
HDCP Compliance
Yes
Rear I/O connectors (bracket)
HDMI, DP
Cooling (active/passive)
Active fan-sink (Active cooling with dynamic speed)
Total power consumption (W)
<50W
PCB form-factor with bracket
LP (low profile) PCB with FH/LP bracket
AMD® Radeon™ R7 430 2GB VGA+DP 64bit Graphics Card
Engine Clock
780 MHz
Memory Clock
1100 MHz
Memory Size (width)
2 GB (64-bit)
Memory Type
256M x 32 GDDR5
Max. Resolution (HDMI)
2048x1536
Max. Resolution (DP)
4096x2160@60Hz
Multi Display Support
2 displays
HDCP Compliance
Yes
QuickSpecs
HP 285 G6 Microtower Business PC
Technical Specifications - Storage
c06953003 — DA 16784 — Worldwide — Version 4 — March 3, 2021
Page 17
Rear I/O connectors (bracket)
VGA+DP
Cooling (active/passive)
Active fan-sink (Active cooling with dynamic speed)
Total power consumption (W)
<50W
PCB form-factor with bracket
LP PCB with FH/LP bracket
AMD® Radeon™ R7 430 2GB GDDR5 2DP 64 bit Graphics Card
Engine Clock
780 MHz
Memory Clock
1100 MHz
Memory Size (width)
2 GB (64-bit)
Memory Type
256M x 32 GDDR5
Max. Resolution (DP)
4096x2160@60Hz
Multi Display Support
2 displays
HDCP Compliance
yes
Rear I/O connectors (bracket)
DPx2
Cooling (active/passive)
Active fan-sink (Active cooling with dynamic speed)
Total power consumption (W)
<50W
PCB form-factor with bracket
LP PCB with FH/LP bracket
QuickSpecs
HP 285 G6 Microtower Business PC
Technical Specifications - Storage
c06953003 — DA 16784 — Worldwide — Version 4 — March 3, 2021
Page 18
2 TB 7.2K rpm SATA 6.0Gb/s 3.5” Hard Disk Drive
Capacity
2 TB
Rotational Speed
7,200 rpm
Interface
SATA 6.0 Gb/s
Cache, Multi-segmented (MB)
64 MB
Height
1.028 in/26.11 mm
Width
4.0 in/101.6 mm
Depth
5.787 in/146.99 mm
Weight
1.38 lb/626 g
Operating Temperature
41° to 131° F (5° to 55° C)
1 TB 7.2K rpm SATA 6.0Gb/s 3.5” Hard Disk Drive
Capacity
1 TB
Rotational Speed
7,200 rpm
Interface
SATA 6.0 Gb/s
Buffer Size
32 MB
Logical Blocks
1,953,525,168
Seek Time (typical reads, includes controller overhead, including settling)
Single Track: 2.0 ms Average: 11 ms Full-Stroke: 21 ms
Height
1 in/2.54 cm
Width (nominal)
Media diameter: 3.5 in/8.89 cm Physical size: 4 in/10.2 cm
Operating Temperature
41° to 131° F (5° to 55° C)
500 GB 7.2K rpm SATA 6.0Gb/s
3.5” Hard Disk Drive
Capacity
500 GB
Rotational Speed
7,200 rpm
Drive Type
Serial ATA 3.0 (6.0 Gb/s)
Interface
32 MB
Buffer Size
976,773,168
Seek Time
Single Track: 2.0 ms Average: 11 ms Full-Stroke: 21 ms
Height (nominal)
1 in/2.54 cm
Width
Media diameter: 3.5 in/8.89 cm Physical size: 4 in/10.2 cm
Operating Temperature
41° to 131° F (5° to 55° C)
QuickSpecs
HP 285 G6 Microtower Business PC
Technical Specifications - Storage
c06953003 — DA 16784 — Worldwide — Version 4 — March 3, 2021
Page 19
128 GB M.2 2280 PCIe NVMe Three Layer Cell SSD
Drive Weight
< 10g
Capacity
128GB
Height
2.38mm
Length
80mm
Width
22mm
Interface
PCIE Gen3x4
Maximum Sequential Read
Up to 2800MB/s
Maximum Sequential Write
Up to 600MB/s
Logical Blocks
250,069,680
Operating Temperature
0° to 70°C (32° to 158°F) [ambient temp]
Features
APST; ASPM L1.2; NVME spec 1.2
256 GB M.2 2280 PCIe NVMe Three Layer Cell SSD
Drive Weight
< 10g
Capacity
256GB
Height
2.38mm
Length
80mm
Width
22mm
Interface
PCIE Gen3x4
Maximum Sequential Read
Up to 2700MB/s
Maximum Sequential Write
Up to 1000MB/s
Logical Blocks
500,118,192
Operating Temperature
0° to 70°C (32° to 158°F) [ambient temp]
Features
APST; ASPM L1.2; NVME spec 1.2
512 GB M.2 2280 PCIe NVMe Three Layer Cell SSD
Drive Weight
< 10g
Capacity
512GB
Height
2.38mm
Length
80mm
Width
22mm
Interface
PCIE Gen3x4
Maximum Sequential Read
Up to 2900MB/s
Maximum Sequential Write
Up to 1100MB/s
Logical Blocks
1,000,215,216
Operating Temperature
0° to 70°C (32° to 158°F) [ambient temp]
Features
APST; ASPM L1.2; NVME spec 1.2
256 GB M.2 2280 PCIe NVMe SSD
Drive Weight
< 10g
Capacity
256 GB
Height
2.38mm
Length
80mm
QuickSpecs
HP 285 G6 Microtower Business PC
Technical Specifications - Storage
c06953003 — DA 16784 — Worldwide — Version 4 — March 3, 2021
Page 20
Width
22mm
Interface
PCIE Gen3
Maximum Sequential Read
Up to 1600MB/s
Maximum Sequential Write
Up to 780MB/s
Logical Blocks
500,118,192
Operating Temperature
0° to 70°C (32° to 158°F) [ambient temp]
Features
APST; ASPM L1.2; NVME spec 1.2
512 GB M.2 2280 PCIe NVMe SSD
Drive Weight
< 10g
Capacity
512 GB
Height
2.38mm
Length
80mm
Width
22mm
Interface
PCIE Gen3
Maximum Sequential Read
Up to 1600MB/s
Maximum Sequential Write
Up to 860MB/s
Logical Blocks
1,000,215,216
Operating Temperature
0° to 70°C (32° to 158°F) [ambient temp]
Features
APST; ASPM L1.2; NVME spec 1.2
500 GB 7200RPM 2.5in SATA HDD
Capacity
500 GB
Rotational Speed
7,200 rpm
Interface
SATA 6 Gb/s
Buffer Size
32 MB
Logical Blocks
976,773,168
Seek Time
12 ms (Average)
Height
0.267 in/6.8 mm (nominal)
Width (nominal)
2.75 in/70 mm (nominal)
Operating Temperature
41° to 131° F (5° to 55° C)
1TB 7200RPM 2.5in SATA HDD
Capacity
1 TB
Rotational Speed
7,200 rpm
Interface
SATA 6 Gb/s
Buffer Size
32 MB
Logical Blocks
1,953,525,168
Seek Time
12 ms (Average)
Height
0.374 in/9.5 mm (nominal)
Width (nominal)
2.75 in/70 mm (nominal)
Operating Temperature
41° to 131° F (5° to 55° C)
QuickSpecs
HP 285 G6 Microtower Business PC
Technical Specifications - Storage
c06953003 — DA 16784 — Worldwide — Version 4 — March 3, 2021
Page 21
HP 9.5mm Desktop G2 Slim DVD Writer Drive
Height
9.5 mm height
Orientation
Either horizontal or vertical
Interface type
SATA/ATAPI
Disc recording capacity
Up to 8.5 GB DL or 4.7 GB standard
Dimensions (W x H x D)
5.04 x 0.37 x 5.0 in (128 x 9.5 x 127 mm) without bezel
Weight (max)
0.31 lb (140 g)
Read Speeds
DVD-R DL - Up to 6X DVD+R - Up to 8X DVD+RW - Up to 8X DVD+R DL - Up to 6X DVD-R - Up to 8X DVD-RW - Up to 6X CD-R - Up to 24X CD-RW - Up to 10X DVD-RW, DVD+RW - Up to 8X DVD-R DL, DVD+R DL - Up to 8X DVD+R, DVD-R - Up to 8X DVD-ROM DL, DVD-ROM - Up to 8X CD-ROM, CD-R - Up to 24X CD-RW - Up to 24X
Access time (typical reads, including settling)
Random DVD-ROM: 170 ms (typical), CD-ROM: 170 ms (typical) Full Stroke DVD-ROM: 320 ms (typical), CD-ROM: 320 ms (typical) Stop Time 6 seconds (typical)
Power
Source Slimline SATA DC power receptacle DC Power Requirement 5 VDC ± 5%-100 mV ripple p-p DC Current 5 VDC (< 1000 mA typical, 1600 mA maximum)
Environmental conditions (operating - non­condensing)
Temperature 41° to 122° F (5° to 50° C) Relative Humidity 10% to 80% Maximum Wet Bulb Temperature 84° F (29° C)
HP 9.5mm Desktop G2 Slim DVD­ROM Drive
Height
9.5 mm height
Orientation
Either horizontal or vertical
Interface type
SATA/ATAPI
Dimensions (W x H x D)
5.04 x 0.37 x 5.0 in (128 x 9.5 x 127 mm) without bezel
Weight (max)
Up to 0.31 lb (140g) without bezel
Read Speeds
DVD-R DL - Up to 6X DVD+R - Up to 8X DVD+RW - Up to 8X DVD+R DL - Up to 6X DVD-R - Up to 8X DVD-RW - Up to 6X CD-R - Up to 24X CD-RW - Up to 10X DVD-RW, DVD+RW - Up to 8X DVD-R DL, DVD+R DL - Up to 8X DVD+R, DVD-R - Up to 8X DVD-ROM DL, DVD-ROM - Up to 8X
QuickSpecs
HP 285 G6 Microtower Business PC
Technical Specifications - Storage
c06953003 — DA 16784 — Worldwide — Version 4 — March 3, 2021
Page 22
CD-ROM, CD-R - Up to 24X CD-RW - Up to 24X
Access time (typical reads, including settling)
Random: DVD-ROM: 170 ms (typical), CD-ROM: 170 ms (typical) Full stroke: DVD-ROM: 320 ms (typical), CD-ROM: 320 ms (typical)
Power
Source Slimline SATA DC power receptacle DC Power Requirement 5 VDC ± 5%-100 mV ripple p-p DC Current 5 VDC (< 1000 mA typical, 1600 mA maximum)
Environmental conditions (operating - non­condensing)
Temperature 41° to 122° F (5° to 50° C) Relative Humidity 10% to 80% Maximum Wet Bulb Temperature 84° F (29° C)
For hard drives and solid state drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 36 GB (for Windows 10) of system disk is reserved for the system recovery software. Storage DriveLock does not work with Self Encrypting or Optane based storage.
QuickSpecs
HP 285 G6 Microtower Business PC
Technical Specifications - Audio
c06953003 — DA 16784 — Worldwide — Version 4 — March 3, 2021
Page 23
Type
Integrated
HD Stereo Codec
Realtek ALC3601
Audio I/O Ports
Front Combo jack, Headphone/ Microphone (Headphone-out 0.5 Ohm Output Impedance, expects at least a 32 ohm load, Microphone-in 150-K ohm Input Impedance)
Rear Line-out (190 ohms Output Impedance, expects at least a 10-K ohm load). Mic-in (150-K ohm Input Impedance) Line-in (Input the audio signal to system via the loopback cable)
When plug in all rear side jacks, can switch the function to 5.1 ch via audio GUI.
Internal Speaker Amplifier
Codec embeded amp for supportting 2W mono speaker.
Multi-streaming Capable
Multi-streaming can be enabled in the Realtek control panel to allow independent audio streams to be sent to/from the front and rear jacks.
Sampling
Independent sampling rates for DAC’s and ADC’s; supports resolutions from 16 to 24-bit,
44.1K/ 48 K/96K / 192K Hz for DAC and16 bit, 44.1K/ 48K/ 96K/ 192K Hz for ADC
Wavetable Syntheses
Yes
Analog Audio
Yes
# of Channels on Line-Out
Stereo (Left channel / Right channel)
Internal Speaker
Yes
External Speaker Jack
2W class D mono amplifier for the internal speaker only. External speakers must be powered externally.
QuickSpecs
HP 285 G6 Microtower Business PC
Technical Specifications - Networking
c06953003 — DA 16784 — Worldwide — Version 4 — March 3, 2021
Page 24
Integrated 10/100/1000 NIC
Ethernet Features
10 Mbit/s operation (10BASE-T; IEEE 802.3i; IEEE 802.3 clauses 13-
14) 100 Mbit/s operation (100BASE-TX; IEEE 802.3u; IEEE 802.3 clauses 21-30) 1000 Mbit/s operation (1000BASE-T; IEEE 802.3ab; IEEE 8023 clauses 40) Auto-Negotiation (Automatic Speed Selection) Full Duplex Operation at all Speeds, Half Duplex operation at 10 and 100 Mbit/s
Power Management
ACPI compliant – multiple power modes Situation-sensitive features reduce power consumption Advanced link down power saving for reducing link down power consumption
Performance Features
TCP/IP/UDP Checksum Offload (configurable) Protocol Offload (ARP & NS) Large send offload and Giant send offload Receiving Side Scaling Jumbo Frame 9K
Manageability
Wake-on-LAN from standby and hibernation (Magic Packet and Microsoft Wake-Up Frame); Wake-on-LAN from off (Magic Packet only) PXE 2.1 Remote Boot Statistics Gathering (SNMP MIB II, Ethernet-like MIB, Ethernet MIB (802.3x, clause 30)) Comprehensive diagnostic and configuration software suite Virtual Cable Doctor for Ethernet cable status
Interface
PCIe + SMBus
NIC Device Driver Name
PCIe GBE Ethernet Family Controller
Realtek 802.11ac (1x1) WiFi and Bluetooth® 4.2 Combo
*
Wireless LAN Standards1
IEEE 802.11a IEEE 802.11b IEEE 802.11g IEEE 802.11n IEEE 802.11ac
1. Wireless access point and Internet service required and not included. Availability of public wireless access points limited.
Interoperability
Wi-Fi® certified
Frequency Bands
802.11b/g/n
• 2.402 – 2.482 GHz
NOTE: The FCC has declared products that utilize passive scanning on channel 12/13 and are capable of transmitting must fully comply with requirements of 15.247 & 15.249 or otherwise disable those channels.
802.11a/n
• 4.9 – 4.95 GHz (Japan)
• 5.15 – 5.25 GHz
• 5.25 – 5.35 GHz
• 5.47 – 5.725 GHz
• 5.825 – 5.850 GHz
Data Rates
• 802.11b: 1, 2, 5.5, 11 Mbps
• 802.11g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11a: 6, 9, 12, 18, 24, 36, 48, 54 Mbps
• 802.11n: MCS 0 ~ MCS 15, (20MHz, and 40MHz)
• 802.11ac: MCS0 ~ MCS9, (1SS, and 2SS) (20MHz, 40MHz, and 80MHz)
QuickSpecs
HP 285 G6 Microtower Business PC
Technical Specifications - Networking
c06953003 — DA 16784 — Worldwide — Version 4 — March 3, 2021
Page 25
Modulation
Direct Sequence Spread Spectrum BPSK, QPSK, CCK, 16-QAM, 64-QAM, 256-QAM
Security2
• IEEE and WiFi compliant 64/128 bit WEP encryption for a/b/g mode only
• AES-CCMP: 128 bit in hardware
• 802.1x authentication
• WPA, WPA2: 802.1x. WPA-PSK, WPA2-PSK, TKIP, and AES.
• WPA2 certification
• IEEE 802.11i
• Cisco Certified Extensions, all versions through CCX4 and CCX Lite
• WAPI
2. Check latest software/driver release for updates on supported security features.
Network Architecture Models
Ad-hoc (Peer to Peer) Infrastructure (Access Point Required)
Roaming
IEEE 802.11 compliant roaming between access points
Output Power3
• 802.11b: +14dBm minimum
• 802.11g: +12dBm minimum
• 802.11a: +12dBm minimum
• 802.11n HT20(2.4GHz): +12dBm minimum
• 802.11n HT40(2.4GHz): +12dBm minimum
• 802.11n HT20(5GHz): +10dBm minimum
• 802.11n HT40(5GHz): +10dBm minimum
• 802.11ac VHT80(5GHz): +10dBm minimum
3. Maximum output power may vary by country according to local regulations.
Power Consumption
• Transmit mode2.0 W
• Receive mode1.6 W
• Idle mode (PSP)180 mW (WLAN Associated)
• Idle mode50 mW (WLAN unassociated)
• Connected Standby 10mW
• Radio disabled8 mW
Power Management
ACPI and PCI Express compliant power management
802.11 compliant power saving mode
Receiver Sensitivity4
02.11b, 1Mbps: -93.5dBm maximum
802.11b, 11Mbps: -84dBm maximum
802.11a/g, 6Mbps: -86dBm maximum
802.11a/g, 54Mbps: -72dBm maximum
802.11n, MCS07: -67dBm maximum
802.11n, MCS15: -64dBm maximum
802.11ac, MCS0: -84dBm maximum
802.11ac, MCS9: -59dBm maximum
4. Receiver sensitivity is measured at a packet error rate of 8% for 802.11b (CKK modulation) and a packet error rate of 10% for 802.11a/g (OFDM modulation).
Antenna type
High efficiency antenna. One embedded dual band 2.4/5 GHz antenna is provided to the card to support WLAN communications and Bluetooth communications
Form Factors
PCI-Express M.2 MiniCard
QuickSpecs
HP 285 G6 Microtower Business PC
Technical Specifications - Networking
c06953003 — DA 16784 — Worldwide — Version 4 — March 3, 2021
Page 26
Dimensions
Type 2230 : 2.3 x 22.0 x 30.0 mm
Weight
Type 2230 : 2.8g
Operating Voltage
3.3v +/- 9%
Temperature
Operating: Non-operating:
14° to 158° F (–10° to 70° C) –40° to 176° F (–40° to 80° C)
Humidity
Operating: Non-operating:
10% to 90% (non-condensing) 5% to 95% (non-condensing)
Altitude
Operating: Non-operating:
0 to 10,000 ft (3,048 m) 0 to 50,000 ft (15,240 m)
LED Activity
LED Amber – Radio OFF; LED White – Radio ON
HP Integrated Module with Bluetooth 4.0/4.1/4.2 Wireless Technology
Bluetooth® Specification
4.0/4.1/4.2 Compliant
Frequency Band
2402 to 2480 MHz
Number of Available Channels
Legacy: 0~79 (1 MHz/CH) BLE: 0~39 (2 MHz/CH)
Data Rates and Throughput
Legacy: 3 Mbps data rate; throughput up to 2.17 Mbps BLE: 1 Mbps data rate; throughput up to 0.2 Mbps Legacy: Synchronous Connection Oriented links up to 3, 64 kbps, voice channels Legacy: Asynchronous Connection Less links 2178.1 kbps/177.1 kbps asymmetric (3-DH5) or 864 kbps symmetric (3-EV5)
Transmit Power
The Bluetooth® component shall operate as a Class II Bluetooth® device with a maximum transmit power of + 4 dBm for BR and EDR.
Receiver Sensitivity Legacy
Power Consumption
Peak (Tx) 330 mW Peak (Rx) 230 mW Selective Suspend 17 mW
Range
Legacy : 0~79 (1 MHz/CH) BLE : 0~39 (2 MHz/CH)
Electrical Interface
USB 2.0 compliant
Bluetooth® Software Supported Link Topology
Microsoft Windows Bluetooth® Software
Power Management Certifications
ETS 300 328, ETS 300 826 Low Voltage Directive IEC950 UL, CSA, and CE Mark
Bluetooth® Profiles Supported
FCC (47 CFR) Part 15C, Section 15.247 & 15.249
Power Management Certifications
Microsoft Windows ACPI, and USB Bus Support
QuickSpecs
HP 285 G6 Microtower Business PC
Technical Specifications - Networking
c06953003 — DA 16784 — Worldwide — Version 4 — March 3, 2021
Page 27
Certifications Bluetooth® Profiles Supported
BT4.1-ESR 5/6/7 Compliance LE Link Layer Ping LE Dual Mode LE Link Layer LE Low Duty Cycle Directed Advertising LE L2CAP Connection Oriented Channels Train Nudging & Interlaced Scan BT4.2 ESR08 Compliance LE Secure Connection- Basic/Full LE Privacy 1.2 –Link Layer Privacy LE Privacy 1.2 –Extended Scanner Filter Policies LE Data Packet Length Extension FAX Profile (FAX) Basic Imaging Profile (BIP)2 Headset Profile (HSP) Hands Free Profile (HFP) Advanced Audio Distribution Profile (A2DP)
QuickSpecs
HP 285 G6 Microtower Business PC
Technical Specifications - Power
c06953003 — DA 16784 — Worldwide — Version 4 — March 3, 2021
Page 28
Operating Voltage Range
90 – 264 VAC
Rated Voltage Range
100-240V AC
Rated Line Frequency
50/60 HZ
Operating Line Frequency
47 – 63 Hz
Rated Input Current
180W: <2.3A; 310W: <4A
Rated Input Current with Energy Efficient* Power Supply
180W active PFC 87/90/87% efficient at 20/50/100% load (115V) 88/91/88% efficient at 20/50/100% load (230V); 310W active PFC 87/90/87% efficient at 20/50/100% load (115V) 88/91/88% efficient at 20/50/100% load (230V)
DC Output
+12.1V
Current Leakage (NFPA 99: 2102)
Less than 500 microamps of leakage current at 120 Vac with the ground wire disconnected, as required for Non-patient Electrical Appliances and Equipment used in a patient care facility or that contact patients in normal use. Per section 10.3.5.1. Less than 100 microamps of leakage current at 120 Vac with the ground wire intact with normal polarity, as required for Non-patient Electrical Appliances and Equipment used in a patient care facility or that contact patients in normal use. Per section 10.3.5.1.
Power Supply Fan
70*25mm (linear type)
QuickSpecs
HP 285 G6 Microtower Business PC
Technical Specifications – Dimensions and weight
c06953003 — DA 16784 — Worldwide — Version 4 — March 3, 2021
Page 29
Chassis (H x W x D)
13.3 x 6.12 x 11.7 in (337.4 x 155.4 x 297.2 mm)
System Volume
15.1 L
System Weight*
12.17 lbs / 5.52 kg
Tower Stand (H x W x D)
N/A
Packaged (H x W x D)
11.3 x 15.75 x 19.65 in 287 x 400 x 499 mm
Shipping Weight
20.06 lb / 9.10 kg
Palletization Profile
6 units per layer 7 layer max 42 per pallet Footprint
-85.31x39.37x47.24 in (2167 x 1000 x1200 mm)
QuickSpecs
HP 285 G6 Microtower Business PC
Options and Accessories (sold separately and availability may vary by country)
c06953003 — DA 16784 — Worldwide — Version 4 — March 3, 2021
Page 30
Type
Description
Part #
Memory
HP 4GB DDR4-2666 DIMM
3TK85AA
HP 8GB DDR4-2666 DIMM
3TK87AA
HP 16GB DDR4-2666 DIMM
3TK83AA
HP 4GB DDR4-3200 DIMM
13L78AA
HP 8GB DDR4-3200 DIMM
13L76AA
HP 16GB DDR4-3200 DIMM
13L74AA
Storage
HP 500GB 7200rpm 3.5 SATA 6.0Gb/s Smart IV Hard Drive
QK554AA
HP 1TB 7200rpm SATA 6Gbps Hard Drive
QK555AA
Graphics
AMD Radeon R7 430 Card
1MX32AA
Security
HP Keyed Cable Lock 10mm kit
T1A62AA
Adapters
HP HDMI Standard Cable Kit
T6F94AA
Input
HP USB Mouse
QY777AA
HP Wired Desktop 320M Mouse
9VA80AA
HP USB Keyboard
QY776AA
HP PS/2 Business Slim Keyboard
N3R86AA
HP USB Business Slim Keyboard
N3R87AA
HP Wired Desktop 320K Keyboard
9SR37AA
Others
HP Business Headset v2
T4E61AA
QuickSpecs
HP 285 G6 Microtower Business PC
Summary of Changes
c06953003 — DA 16784 — Worldwide — Version 4 — March 3, 2021
Page 31
Date of change:
Version History:
Description of change:
October 30,2020
V1 to V2
Corrections
Call out images, typo in port section and typo in software section
March 2, 2021
V2 to V3
Update
Xerox specs and disclaimer updated in Software section
March 3, 2021
V3 to V4
Addition
Environmental specs added
V4 to V5
V5 to V6
V6 to V7
V7 to V8
V8 to V9
V9 to V10
Copyright © 2021 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. AMD and Radeon are trademarks of Advanced Micro Devices, Inc. Bluetooth is a trademark of its proprietor and used by HP Inc. under license. USB-C® are trademarks of USB Implementers Forum. ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency. Microsoft and Windows are either registered trademarks or trademarks of Microsoft Corporation in the United States and/or other countries.
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
