DesignJet 230 (D-size)

HP Parts Reference Guide™

www.hp.com/go/hpparts

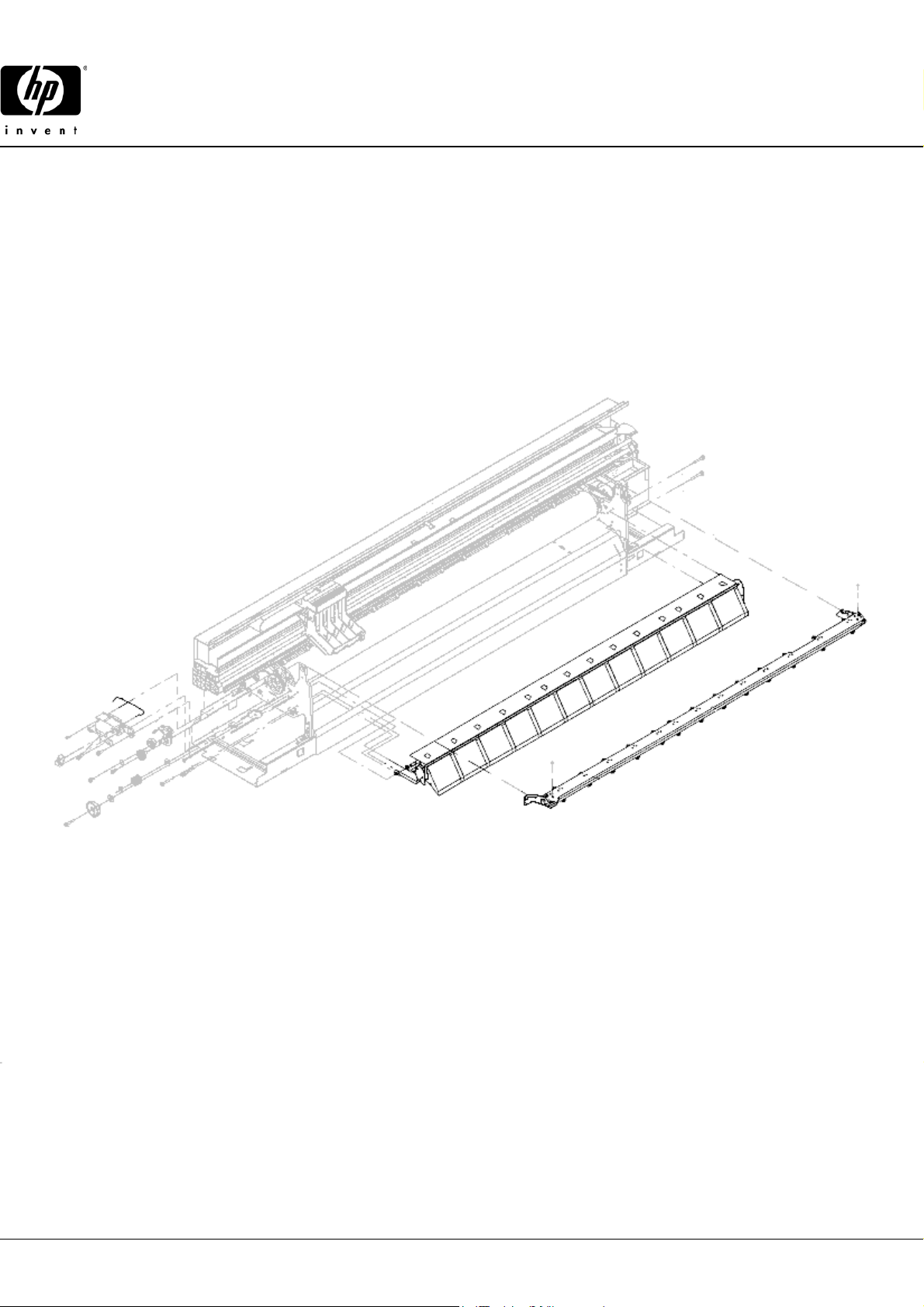

Carriage Drive Parts

Belt

C4705-60082 Carriage belt (D-size) - Long/wide belt attached to the carriage

Cable

C4713-60181 Carriage assembly trailing cable (D-size) - Has 60 pin (F) connectors - 1.6m (5.2ft) long

Carriage

C4694-60050 Carriage assembly - Includes carriage PC board

NO LONGER SUPPLIED

Motor

C3190-60145 Carriage motor assembly

NO LONGER SUPPLIED

Pulley

C3190-60132 Idler pulley - For main drive belt - On left end of plotter - Includes pulley, shaft and spacer

Spring

C3190-80010 Belt tensioner spring

Electronic Accessories

Cable (Interface)

17255D RS-232C serial cable - 25 pin (M) to 25 pin (F) - 1.2m (3.9ft) long

NO LONGER SUPPLIED

17302A RS-232C serial cable - 25 pin (M) to 8 pin (M) DIN - 1.5m (4.9ft) long

NO LONGER SUPPLIED 24540-80010 Centronics (parallel) cable - 36 pin (M) to 25 pin (M) - 2.0m (6.6ft) long 24542G RS-232C serial cable - 25 pin (M) to 9 pin (F) - 3.0m (9.8ft) long - Used to connect to HP Vectra and IBM PC/AT

compatibles 5063-1256 IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36 pin Centronics (M) connector (type B) - 2.0m

(6.6ft) long 5063-1257 IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36 pin Centronics (M) connector (type B) - 3.0m

(9.8ft) long C2913A RS-232C serial cable - 25 pin (M) to 25 pin (F) - 1.2m (3.9ft) long

NO LONGER SUPPLIED C2950A IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36 pin Centronics (M) connector (type B) - 2.0m

(6.6ft) long

5063-1256 New Part for C2950A

C2951A IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) connector (type A) to 36 pin Centronics (M) connector (type B) - 3.0m

(9.8ft) long C2990A IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) (type A) to 36 pin (M) Centronics (type B) - 1.8m (6ft) long

NO LONGER SUPPLIED C2991A IEEE-1284 Bi-Tronics parallel cable - DB-25 (M) (type A) to 36 pin (M) Centronics (type B) - 3.0m (10ft) long

NO LONGER SUPPLIED

Memory (Product)

C2065A 4MB, 80nS, 36-bit SIMM memory module - For HP LaserJet IIISi, 4/4M, 4Si/MX

NO LONGER SUPPLIED

C2066A 8MB, 80nS, 36-bit SIMM memory module - For HP LaserJet IIISi, 4/4M, 4Si/MX

D2297A 16MB, 70nS, 36-bit parity SIMM memory module

NO LONGER SUPPLIED

D3578A 32MB, 70nS, 36-bit parity SIMM memory module

NO LONGER SUPPLIED

Memory (SIMM)

D2152-69001 8MB, 80nS, 36-bit SIMM memory module

REQUIRES RETURN OF DEFECTIVE PART

D2152-63001 New Part for D2152-69001

DesignJet 230 (D-size)

HP Parts Reference Guide™

www.hp.com/go/hpparts

Electronic Accessories

Memory (SIMM)

D2156-69001 4MB, 80nS, 36-bit SIMM memory module

REQUIRES RETURN OF DEFECTIVE PART

D2156-63001 New Part for D2156-69001

D2297-69001 16MB, 70nS, 36-bit SIMM memory module

REQUIRES RETURN OF DEFECTIVE PART

D2297-63001 New Part for D2297-69001

D2298-69001 32MB, 70nS, 36-bit SIMM memory module

REQUIRES RETURN OF DEFECTIVE PART

D3578-63001 New Part for D2298-69001

D3578-69001 32MB, 70nS, 36-bit parity SIMM memory module

REQUIRES RETURN OF DEFECTIVE PART

D3578-63001 New Part for D3578-69001

Electronics/Power Supply

Control Panel

C3180-60010 Control panel - Mounts in control panel support

NO LONGER SUPPLIED

C3190-60144 Control panel assembly - Mounts in right side cover - Includes control panel, panel support, and cover sensor

Firmware

C3190-60168 ROM SIMM (Rev A.01.06) - Plugs into main logic board slot

NO LONGER SUPPLIED

Module

C3190-69139 Electronics module - Contains power supply, cooling fan, main logic PC board, and interface connectors

NO LONGER SUPPLIED

Power Cord

8120-0698 Power cord (Black) - 18 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (For 220V/240V in the USA and Canada) 8120-1351 Power cord (Mint Gray) - 17 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (For 240V in the UK, Hong Kong,

Singapore, Malaysia, and Brunei) 8120-1369 Power cord (Mint Gray) - 17 AWG, 2.0m (6.6ft) long - Has straight (F) receptacle (For 240V in Australia, New Zealand,

and China) 8120-1378 Power cord (Jade Gray) - 18 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (For 120V in USA, Canada, Latin

America, Korea, Taiwan, Thailand, Spain, Brazil, and Vietnam) 8120-1689 Power cord (Mint Gray) - 17 AWG, 2.0m (6.6ft) long - Has straight (F) receptacle (For 220V in Europe, Bangladesh,

Indonesia, Pakistan, Burma, Sri Lanka, and Vietnam) 8120-2104 Power cord (Mint Gray) - 2.0m (6.6ft) long - Has straight (F) receptacle (For 220V in Switzerland) 8120-2956 Power cord (Mint Gray) - 2.0m (6.6ft) long - Has straight (F) receptacle (For 220V in Denmark) 8120-4211 Power cord (Mint Gray) - 17 AWG, 2.0m (6.6ft) long - Has straight (F) receptacle (For 240V in South Africa and India)

Power Supply

0950-2623 Switching power supply (Delta DPS-158ABA) - 100-240VAC input, 47-63Hz - Four DC outputs (5.15V, +12V, -12V,

24V), 158 watts

Sensor

C3190-60012 Cover sensor assembly

NO LONGER SUPPLIED

C3190-60144 New Part for C3190-60012

External Case Parts

Caster

1492-0145 Lockable caster assembly - Includes stem and washer

NO LONGER SUPPLIED

DesignJet 230 (D-size)

HP Parts Reference Guide™

www.hp.com/go/hpparts

External Case Parts

Cover

C3190-60082 Rear cover - Has cutouts to access SIMM slot, interface connectors, and AC receptacle

NO LONGER SUPPLIED

C4694-40002 Carriage top cover

NO LONGER SUPPLIED

C4699-00015 Optional SIMM slot cover

C4699-40003 Cover - Lift up top cover

NO LONGER SUPPLIED

C4699-40004 Left end cover

NO LONGER SUPPLIED

C4699-40005 Right end cover

Cross-Brace

C3192-60001 Cross-brace - Main structure that extends between stand legs

Foot

C4696-60006 Foot assembly (includes casters)

Hardware Kit

C4704-60095 Hardware kit for printer stand - Includes screwdriver, screws, washers, and media bin retaining clips

Hinge

C3190-40041 Top cover hinge

NO LONGER SUPPLIED

Holder

C3190-40052 Holder - For quick reference guide

Keycap

C3190-40045 Keycap - For the power switch

Label

C4705-00017 Instruction label

Leg

C4696-60007 Leg assembly - Side support for the plotter - Does NOT include the foot assembly

Manual

C4694-60011 C4694A and C4695A DesignJet 230 users manual (English) - Includes control panel overlay (NOT sold separately)

NO LONGER SUPPLIED

C4694-60012 C4694A and C4695A DesignJet 230 users manual (Korean) - Includes control panel overlay (NOT sold separately)

NO LONGER SUPPLIED

C4694-60013 C4694A and C4695A DesignJet 230 users manual (Taiwan) - Includes control panel overlay (NOT sold separately)

NO LONGER SUPPLIED

C4694-60014 C4694A and C4695A DesignJet 230 users manual (German) - Includes control panel overlay (NOT sold separately)

NO LONGER SUPPLIED

C4694-60015 C4694A and C4695A DesignJet 230 users manual (French) - Includes control panel overlay (NOT sold separately)

NO LONGER SUPPLIED

C4694-60016 C4694A and C4695A DesignJet 230 users manual (Spanish) - Includes control panel overlay (NOT sold separately)

NO LONGER SUPPLIED C4694-60017 C4694A and C4695A DesignJet 230 users manual (Italian) - Includes control panel overlay (NOT sold separately)

NO LONGER SUPPLIED

C4694-60018 C4694A and C4695A DesignJet 230 users manual (Japanese) - Includes control panel overlay (NOT sold separately)

NO LONGER SUPPLIED

C4694-60019 C4694A and C4695A DesignJet 230 users manual (Portuguese) - Includes control panel overlay (NOT sold separately)

NO LONGER SUPPLIED

C4694-60020 C4694A and C4695A DesignJet 230 users manual (Chinese) - Includes control panel overlay (NOT sold separately)

NO LONGER SUPPLIED

DesignJet 230 (D-size)

HP Parts Reference Guide™

www.hp.com/go/hpparts

External Case Parts

Nameplate/Logo

C4694-00001 Nameplate - DesignJet 230

NO LONGER SUPPLIED

Stand

C3192A DesignJet 230/250C Optional Stand (D/A1) - Includes legs, casters and brace - Does NOT include the paper bin

NO LONGER SUPPLIED

Optional Interfaces

Interface (Module)

J4101-61011 External JetDirect 300X print server module (10Base-T and 100Base-T) - Connects between printer parallel port and

LAN network - Does NOT include power module - (J4101A, J4101B)

Interface (Product)

J2590A External JetDirect LAN interface module with RJ-45 connector for EtherTwist (10Base-T) or 100VG/802.12 input and 3

parallel (DB-25) output connectors

NO LONGER SUPPLIED J2591A External JetDirect LAN interface module and power module - Has EtherTwist (10Base-T) and ThinLAN (10Base-2)

connectors

NO LONGER SUPPLIED J3258B External JetDirect 170X LAN interface module - Interfaces a parallel printer to an ethernet 10Base-T (RJ-45) LAN J3264A External JetDirect 500X token ring interface module - Interfaces up to 3 parallel printers to a token ring (DB-9 or RJ-45)

LAN J3265A External JetDirect 500X LAN interface module - Interfaces up to 3 parallel printers to an ethernet 10Base-T (RJ-45),

10Base2 (BNC), or 100Base-TX (RJ-45) LAN

Module

J2382-69003 External JetDirect LAN interface module with ethertwist (10Base-T) and ThinLAN (10BASE-2) connectors J2383-61005 External token ring interface module - Has DB-9 connector J2590-69001 External JetDirect LAN interface module with RJ-45 connector for ethertwist (10Base-T) or 100VG/802.12 input and 3

parallel (DB-25) output connectors

REQUIRES RETURN OF DEFECTIVE PART

J2590-61011 New Part for J2590-69001

J2591-69001 External JetDirect LAN interface module with ethertwist (10Base-T) and ThinLAN (10BASE-2) connectors J2592-69001 External JetDirect LAN interface module with ethertwist (10Base-T) connector

REQUIRES RETURN OF DEFECTIVE PART

J2592-61001 New Part for J2592-69001

J2593-69001 External JetDirect LAN interface module with Ethertwist (10Base-T) and ThinLAN (10BASE-2) input connectors and 3

parallel (DB-25) output connectors - (part of J2593A) J2594-69001 External JetDirect token ring interface module with DB-9 and RJ-45 input connectors and 3 parallel (DB-25) output

connectors - (part of J2594A)

REQUIRES RETURN OF DEFECTIVE PART

J2594-61011 New Part for J2594-69001

J3258-61011 External JetDirect LAN interface module with EtherTwist (10Base-T) connector - (J3258A, J3258B) J4102-69011 External JetDirect LAN interface module with EtherTwist (10Base-T) connector - (J4102A, J4102B)

REQUIRES RETURN OF DEFECTIVE PART

J4102-61011 New Part for J4102-69011

Module (Product)

J4101B External JetDirect LAN interface module with EtherTwist (10Base-T/Base-TX) connector J4102B External JetDirect LAN interface module with EtherTwist (10Base-T) connector

Power Cord

8120-1351 Power cord (Mint Gray) - 17 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (For 240V in the UK, Hong Kong,

Singapore, Malaysia, and Brunei) 8120-1369 Power cord (Mint Gray) - 17 AWG, 2.0m (6.6ft) long - Has straight (F) receptacle (For 240V in Australia, New Zealand,

and China)

DesignJet 230 (D-size)

HP Parts Reference Guide™

www.hp.com/go/hpparts

Optional Interfaces

Power Cord

8120-1378 Power cord (Jade Gray) - 18 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (For 120V in USA, Canada, Latin

America, Korea, Taiwan, Thailand, Spain, Brazil, and Vietnam) 8120-1689 Power cord (Mint Gray) - 17 AWG, 2.0m (6.6ft) long - Has straight (F) receptacle (For 220V in Europe, Bangladesh,

Indonesia, Pakistan, Burma, Sri Lanka, and Vietnam) 8120-2104 Power cord (Mint Gray) - 2.0m (6.6ft) long - Has straight (F) receptacle (For 220V in Switzerland) 8120-2956 Power cord (Mint Gray) - 2.0m (6.6ft) long - Has straight (F) receptacle (For 220V in Denmark) 8120-4753 Power cord (Flint Gray) - 18 AWG, 2.3m (7.5ft) long - Has straight (F) receptacle (For 100V in Japan) 8120-6302 'Daisy chain' power cord (Dove Gray) - 18 AWG, 1.2m (4.0ft) long - Has C14 (M) plug for power input and C13 (F) plug

for power output

Power Module

0950-2372 Power supply module - 100-240VAC input, 47-63Hz, requires separate AC power cord - 5VDC output, 1A, 5 watts - For

J2382/83A/B 0950-3169 Wall mount power supply module - 110-127V AC 57-63Hz input - 13V DC output at 300mA (USA, Canada) - For use

with the J2592A external JetDirect LAN interface module 0950-3170 Power supply module - 209-253VAC input, 47-53Hz - 13VDC output, 300mA (Europe, Israel) - For use with the J2592A

external JetDirect LAN interface module 0950-3171 Power supply module - 220-240VAC input, 47-53Hz - 13VDC output, 300mA (U.K., Hong Kong) - For use with the

J2592A external JetDirect LAN interface module 0950-3172 Power supply module - 240VAC input, 47-53Hz - 13VDC output, 300mA (Australia) - For use with the J2592A external

JetDirect LAN interface module 0950-3348 Wall mount power supply module (MEI-AH ED12006) - 110-127VAC input, 57-63Hz - 13VDC output, 800mA, 10.4 watts

(for use in the United States and Canada) - For models J2590/91/93/94A, J2964A, J3258A/B, J3263/64/65A, J3282B,

J4101A/B, J4102A/B 0950-3349 Wall mount power supply module (MEI-AH ED12007) - 230VAC input, 47-53Hz - 13VDC output, 800mA, 10.4 watts (for

use in Europe and Israel) - For JetDirect/infrared interface models J2590/91/93/94A, J2964A, J3258A/B, J3263/64/65A,

J3282B, J4101A/B, J4102A/B 0950-3350 Wall mount power supply module (MEI-AH ED12008) - 220-240VAC input, 47-53Hz - 13VDC output, 800mA, 10.4 watts

(for use in the United Kingdom) - For JetDirect/infrared interfaces J2590/91/93/94A, J2964A, J3258A/B, J3263/64/65A,

J3282B, J4101A/B, J4102A/B 0950-3351 Wall mount power supply module (MEI-AH ED12009) - 220VAC input, 47-63Hz - 13VDC output, 800mA, 10.4 watts (for

use in South Korea) - For JetDirect/infrared interface models J2590/91/93/94A, J2964A, J3258A/B, J3263/64/65A,

J3282B, J4101A/B, J4102A/B 0950-3352 Wall mount power supply module (MEI-AH ED12010) - 100VAC input, 47-63Hz - 13VDC output, 800mA, 10.4 watts (for

use in Japan) - For JetDirect/infrared interface models J2590/91/93/94A, J2964A, J3258A/B, J3263/64/65A, J3282B,

J4101A/B, J4102A/B 0950-3354 Wall mount power supply module (MEI-AH ED12010) - 220-250VAC input, 47-53Hz - 13VDC output, 800mA, 10.4 watts

(for use in South Africa) - For JetDirect/infrared interface models J2590/91/93/94A, J2964A, J3258A/B, J3263/64/65A,

J3282B, J4101A/B, J4102A/B 9100-5176 Wall mount power supply module (Leader Electronics 48130625HK) - 200VAC input, 48-52Hz - 13VDC output, 625mA

(Hong Kong) - For JetDirect Modules and Infrared Interface Models J2590/91/93/94A, J2964A, J3258A/B,

J3263/64/65A, J3282B, J4101A/B, J4102A/B

0950-3350 New Part for 9100-5176

Other Accessories

CD-ROM (Support)

C7769-90066 DesignJet support CD ROM - Version A.04.01 - Has product information, user's manuals, service manuals, diagnostic

software, test drawings, newsletters, and service notes

Cartridge

51640A Black print cartridge (w/ level indicator) - Prints approx.1120 pages based on 5% density on a 8 inch by 10 inch print

area (for USA) 51640AA Black print cartridge (with level indicator) - Prints approx.1120 pages based on 5% density on a 8 inch by 10 inch print

area (for Asia/Pacific)

DesignJet 230 (D-size)

HP Parts Reference Guide™

www.hp.com/go/hpparts

Other Accessories

Cartridge

51640AE Black print cartridge (with level indicator) - Prints approx.1120 pages based on 5% density on a 8 inch by 10 inch print

area (for Europe) 51640AL Black print cartridge (with level indicator) - Prints approx.1120 pages based on 5% density on a 8 inch by 10 inch print

area (for Latin America)

Label

C3195-00057 Safety label - Provides warning that encoder strip is sharp

Lubricant

6040-0858 Special lubricating oil - For carriage slider rod surface - 4oz (113g) plastic bottle of synthetic oil C3190-60155 Grease - For helical gear (Drive roller gear)

Manual

5959-9733 HP-GL/2 & HP RTL reference guide - Programming information, handbook for developers C3190-90157 C3190/91A DesignJet 250C, C4694/5A DesignJet 230, C4701/02A DesignJet 330 and C4699A/C4700A DesignJet

350C - Combined service manual update

115

C4694-60011 C4694A and C4695A DesignJet 230 users manual (English) - Includes control panel overlay (NOT sold separately)

NO LONGER SUPPLIED

116

C4694-60012 C4694A and C4695A DesignJet 230 users manual (Korean) - Includes control panel overlay (NOT sold separately)

NO LONGER SUPPLIED

117

C4694-60013 C4694A and C4695A DesignJet 230 users manual (Taiwan) - Includes control panel overlay (NOT sold separately)

NO LONGER SUPPLIED

118

C4694-60014 C4694A and C4695A DesignJet 230 users manual (German) - Includes control panel overlay (NOT sold separately)

NO LONGER SUPPLIED

119

C4694-60015 C4694A and C4695A DesignJet 230 users manual (French) - Includes control panel overlay (NOT sold separately)

NO LONGER SUPPLIED

120

C4694-60016 C4694A and C4695A DesignJet 230 users manual (Spanish) - Includes control panel overlay (NOT sold separately)

NO LONGER SUPPLIED C4694-60017 C4694A and C4695A DesignJet 230 users manual (Italian) - Includes control panel overlay (NOT sold separately)

NO LONGER SUPPLIED

122

C4694-60018 C4694A and C4695A DesignJet 230 users manual (Japanese) - Includes control panel overlay (NOT sold separately)

NO LONGER SUPPLIED

123

C4694-60019 C4694A and C4695A DesignJet 230 users manual (Portuguese) - Includes control panel overlay (NOT sold separately)

NO LONGER SUPPLIED

124

C4694-60020 C4694A and C4695A DesignJet 230 users manual (Chinese) - Includes control panel overlay (NOT sold separately)

NO LONGER SUPPLIED C4699-90000 C3190/91A DesignJet 250C, C4694/5A DesignJet 230, C4701/02A DesignJet 330 and C4699A/C4700A DesignJet

350C - Combined service manual (English)

Return Kit

5183-5268 Return kit with box and instructions - For returning defective Thermal InkJet (TIJ) 2.5 InkJet cartridges covered under the

CREW program - For USA 5184-2833 Return kit with box and instructions - For returning defective Thermal InkJet (TIJ) 2.5 InkJet cartridges covered under the

CREW program - For use outside of the USA

Software

C6072-60281 Toolbox and driver software - HP-GL/2 and RTL drivers for Windows 3.1/95/98/NT 4.0 (all DesignJets), and toolbox

software for Windows 95/NT 4.0 (Only for DesignJet 430/450C/455CA/1050C/1055CM) - On 3.5-inch 1.44MB floppy

disks (English) C6072-60284 Toolbox and driver software - HP-GL/2 and RTL drivers for Windows 3.1/95/98/NT 4.0 (all DesignJets), and toolbox

software for Windows 95/NT 4.0 (Only for DesignJet 430/450C/455CA/1050C/1055CM) - On 3.5-inch 1.44MB floppy

disks (German) C6072-60285 Toolbox and driver software - HP-GL/2 and RTL drivers for Windows 3.1/95/98/NT 4.0 (all DesignJets), and toolbox

software for Windows 95/NT 4.0 (Only for DesignJet 430/450C/455CA/1050C/1055CM) - On 3.5-inch 1.44MB floppy

disks (French) C6072-60286 Toolbox and driver software - HP-GL/2 and RTL drivers for Windows 3.1/95/98/NT 4.0 (all DesignJets), and toolbox

software for Windows 95/NT 4.0 (Only for DesignJet 430/450C/455CA/1050C/1055CM) - On 3.5-inch 1.44MB floppy

disks (Spanish)

+ 13 hidden pages
