HP 2210B User Manual

HP Compaq 2210b Notebook PC

Maintenance and Service Guide

AMD, the AMD Arrow logo, and combinations thereof, are trademarks of Advanced Micro Devices, Inc. Bluetooth is a trademark owned by its proprietor and used by Hewlett-Packard Company under license. Intel, Core, and Celeron are trademarks or registered trademarks of Intel Corporation or its subsidiaries in the United States and other countries. Microsoft, Windows, and Windows Vista are either trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries. SD Logo is a trademark of its proprietor.

The information contained herein is subject to change without notice. The only warranties for HP products and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.

First Edition: July 2007

Document Part Number: 449391-001

Safety warning notice

WARNING! To reduce the possibility of heat-related injuries or of overheating the computer, do not

place the computer directly on your lap or obstruct the computer air vents. Use the computer only on a hard, flat surface. Do not allow another hard surface, such as an adjoining optional printer, or a soft surface, such as pillows or rugs or clothing, to block airflow. Also, do not allow the AC adapter to contact the skin or a soft surface, such as pillows or rugs or clothing, during operation. The computer and the AC adapter comply with the user-accessible surface temperature limits defined by the International Standard for Safety of Information Technology Equipment (IEC 60950).

iii

iv Safety warning notice

Table of contents

1 Product description

2 External component identification

Display components ................................................................................................................. 5

Top components ...................................................................................................................... 6

Pointing devices ........................................................................................................ 6

Buttons and fingerprint reader .................................................................................... 7

Keys ........................................................................................................................ 8

Lights ....................................................................................................................... 9

Front components ................................................................................................................... 11

Left-side components ............................................................................................................... 12

Right-side components ............................................................................................................ 13

Bottom components ................................................................................................................ 14

3 Illustrated parts catalog

Serial number location ............................................................................................................ 15

Computer major components ................................................................................................... 16

Cable Kit .............................................................................................................................. 21

Plastics Kit ............................................................................................................................. 22

Mass storage devices ............................................................................................................. 23

Miscellaneous parts ................................................................................................................ 24

Sequential part number listing .................................................................................................. 25

4 Removal and replacement procedures

Preliminary replacement requirements ....................................................................................... 29

Tools required ......................................................................................................... 29

Service considerations ............................................................................................. 29

Plastic parts ............................................................................................. 29

Cables and connectors ............................................................................. 30

Drive handling ......................................................................................... 30

Grounding guidelines .............................................................................................. 31

Electrostatic discharge damage .................................................................. 31

Packaging and transporting guidelines ........................................ 32

Workstation guidelines .............................................................. 32

Equipment guidelines ................................................................. 33

Unknown user password .......................................................................................... 34

Component replacement procedures ........................................................................................ 35

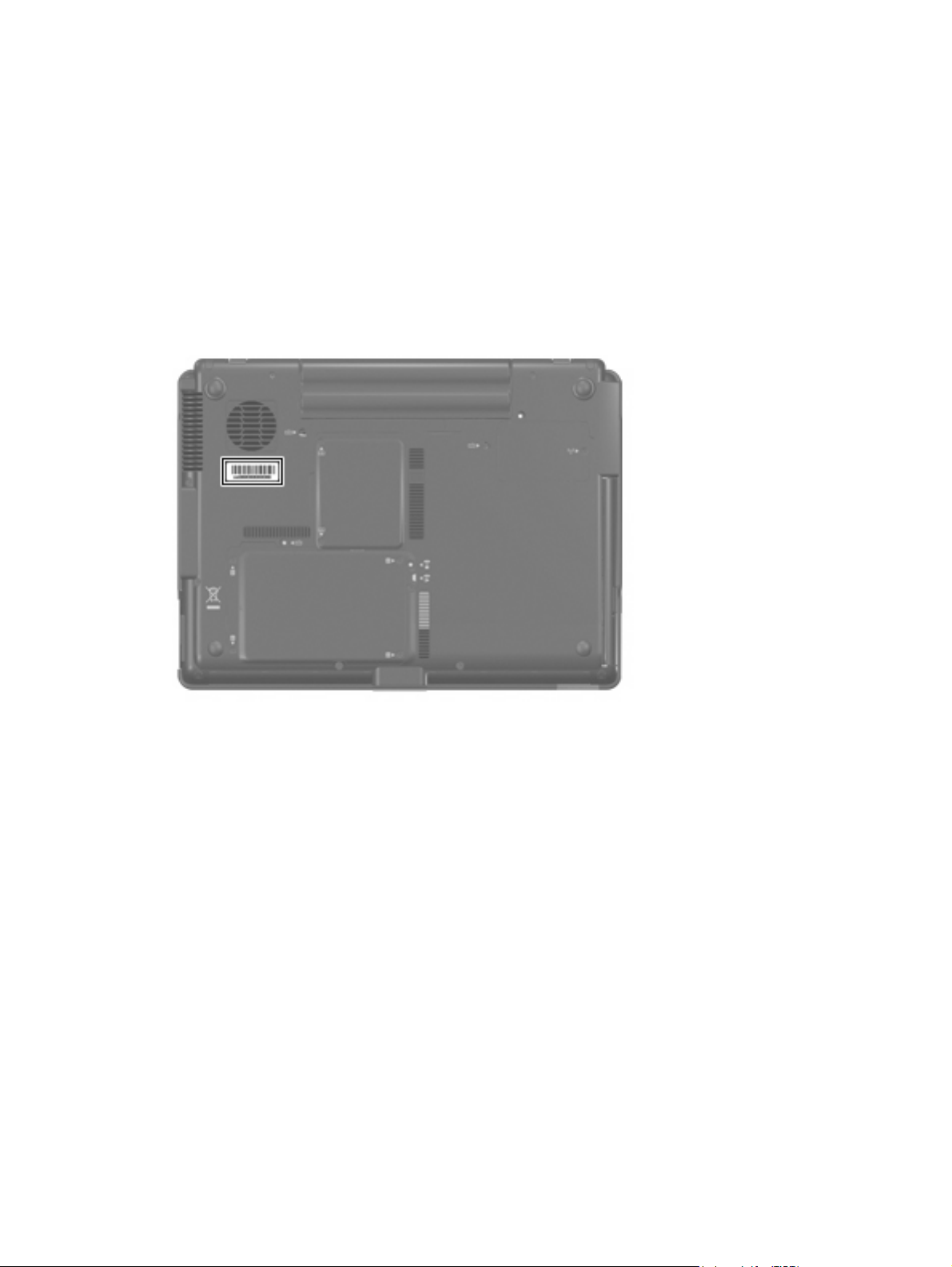

Serial number ......................................................................................................... 35

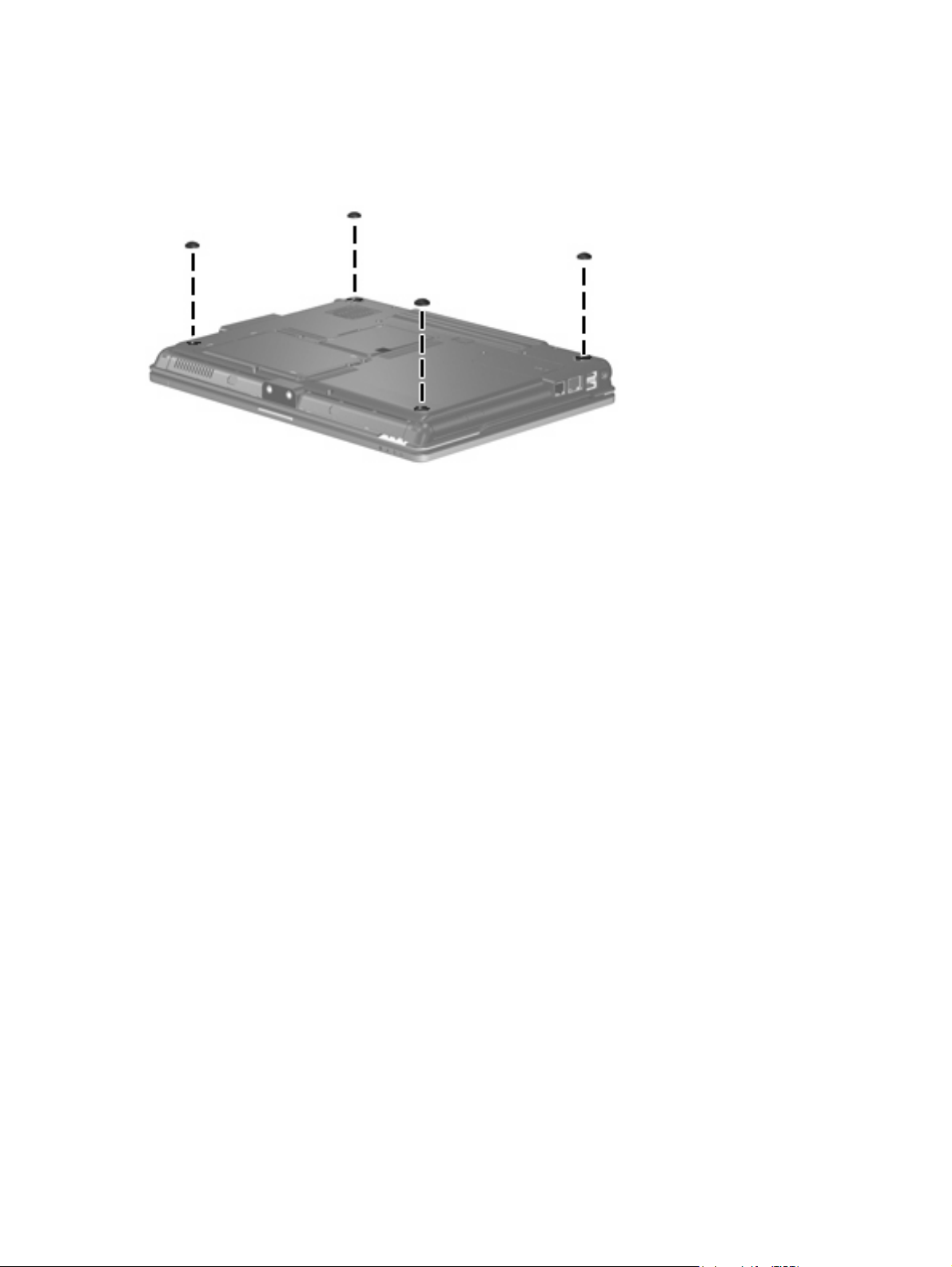

Computer feet ......................................................................................................... 36

Battery ................................................................................................................... 37

Hard drive ............................................................................................................. 38

Memory module ...................................................................................................... 40

WLAN module ........................................................................................................ 42

Optical drive .......................................................................................................... 45

Keyboard ............................................................................................................... 47

Switch cover ........................................................................................................... 49

Display assembly .................................................................................................... 51

Top cover ............................................................................................................... 55

RTC battery ............................................................................................................ 58

Front LED board ...................................................................................................... 60

Bluetooth module .................................................................................................... 61

Speaker assembly ................................................................................................... 62

Microphone ............................................................................................................ 64

System board ......................................................................................................... 65

ExpressCard assembly ............................................................................................. 67

Modem module ...................................................................................................... 69

Fan ....................................................................................................................... 71

Heat sink ............................................................................................................... 73

Processor ............................................................................................................... 75

5 Computer Setup

Starting Computer Setup ......................................................................................................... 77

Using Computer Setup ............................................................................................................ 78

Computer Setup menus ........................................................................................................... 79

6 Specifications

Computer specifications .......................................................................................................... 83

12.1-inch, WXGA display specifications ................................................................................... 84

Hard drive specifications ........................................................................................................ 85

DVD/CD-RW Combo Drive specifications ................................................................................. 86

DVD-ROM Drive ..................................................................................................................... 87

System DMA specifications ...................................................................................................... 88

System interrupt specifications ................................................................................................. 89

System I/O address specifications ............................................................................................ 90

System memory map specifications .......................................................................................... 92

Navigating and selecting in Computer Setup .............................................................. 78

Restoring factory settings in Computer Setup ............................................................... 78

File menu ............................................................................................................... 79

Security menu ......................................................................................................... 80

Diagnostics menu .................................................................................................... 80

System Configuration menu ...................................................................................... 81

7 Screw listing

Phillips PM2.0×4.0 screw ....................................................................................................... 93

Phillips PM2.0×5.0 captive screw ............................................................................................ 95

Phillips PM2.5×12.0 captive screw .......................................................................................... 96

Phillips PM3.0×4.0 screw ....................................................................................................... 97

Phillips PM2.5×4.0 screw ....................................................................................................... 98

Phillips PM2.5×7.0 screw ..................................................................................................... 100

Phillips PM2.5×7.0 captive screw .......................................................................................... 102

Phillips PM2.0×3.0 screw ..................................................................................................... 103

Phillips PM2.5×5.0 screw ..................................................................................................... 105

Torx T8M2.5×6.0 screw ....................................................................................................... 106

Torx T8M2.5×5.0 screw ....................................................................................................... 107

Phillips PM2.5×6.0 screw ..................................................................................................... 108

Phillips PM2.0×6.0 screw ..................................................................................................... 109

Phillips PM2.0×6.0 shoulder screw ........................................................................................ 110

8 Backup and recovery

Backup and recovery in Windows Vista .................................................................................. 111

Creating recovery discs ......................................................................................... 111

Backing up your information ................................................................................... 111

Performing a recovery ........................................................................................... 114

Backup and recovery in Windows XP ..................................................................................... 117

Creating recovery discs ......................................................................................... 117

Backing up your information ................................................................................... 117

Performing a recovery ........................................................................................... 120

When to back up ................................................................................... 112

Backup suggestions ................................................................................ 112

Backing up specific files or folders ............................................................ 112

Backing up the entire hard drive .............................................................. 113

Creating recovery points ......................................................................... 114

Scheduling backups ............................................................................... 114

Performing a recovery from the recovery discs ........................................... 115

Performing a recovery from the hard drive ................................................. 115

Initiating a recovery in Windows ............................................... 116

Initiating a recovery from the hard drive recovery partition ........... 116

When to back up ................................................................................... 118

Backup suggestions ................................................................................ 118

Backing up specific files or folders ............................................................ 118

Backing up the entire hard drive .............................................................. 119

Creating recovery points ......................................................................... 120

Scheduling backups ............................................................................... 120

Performing a recovery from the recovery discs ........................................... 121

Performing a recovery from the hard drive ................................................. 121

Initiating a recovery in Windows ............................................... 122

Initiating a recovery from the hard drive recovery partition ........... 122

9 Connector pin assignments

Audio-out (headphone) ......................................................................................................... 123

Audio-in (microphone) .......................................................................................................... 123

External monitor ................................................................................................................... 124

RJ-11 (modem) ..................................................................................................................... 125

RJ-45 (network) .................................................................................................................... 126

S-Video-out .......................................................................................................................... 127

Universal Serial Bus .............................................................................................................. 128

vii

10 Power cord set requirements

Requirements for all countries and regions ............................................................................... 129

Requirements for specific countries and regions ....................................................................... 130

11 Recycling

Battery ................................................................................................................................ 131

Display ............................................................................................................................... 131

Index ............................................................................................................................... 137

viii

Product description

Category Description

Product Name

Processors Intel® Core™ 2 Duo processors:

T7800 2.6-GHz processor, 4-MB L2 cache, 800-MHz front side bus (FSB)

T7700 2.4-GHz processor, 4-MB L2 cache, 800-MHz FSB

T7500 2.2-GHz processor, 4-MB L2 cache, 800-MHz FSB

T7300 2.0-GHz processor, 4-MB L2 cache, 800-MHz FSB

T7100 1.8-GHz processor, 2-MB L2 cache, 800-MHz FSB

Celeron M 540 1.86-Ghz processor, 2-MB L2 cache, 533-MHz FSB

Celeron M 530 1.73-Ghz processor, 2-MB L2 cache, 533-MHz FSB

Chipset

Southbridge: Intel ICH8M

Graphics

Panel

All display assemblies include 2 wireless local area network (WLAN) antennae

Memory

HP Compaq 2210b Notebook PC

Intel Celeron® M processors:

Northbridge: Intel GM965 with up to 800-Mhz FSB

Intel Unified Memory Architecture (UMA) graphics subsystem integrated with shared system memory (dynamically allocated)

12.1-inch WXGA panel (1280 × 800)

2 customer-accessible/upgradable memory module slots

Supports dual-channel memory

Supports up to 4 GB of system RAM

PC2-5300, 667-MHz, DDR2

Supports the following configurations:

4096-MB total system memory (2048 × 2, dual-channel)

●

3072-MB total system memory (2048 + 1024)

●

2560-MB total system memory (2048 + 512)

●

2048-MB total system memory (1024 × 2, dual-channel)

●

2048-MB total system memory (2048 × 1)

●

1536-MB total system memory (1024 + 512)

●

Category Description

● 1024-MB total system memory (512 × 2, dual-channel)

1024-MB total system memory (1024 × 1)

●

512-MB total system memory (512 × 1)

●

Hard drives

Customer-accessible

Serial ATA

HP 3D DriveGuard

Supports the following drives:

Optical drives

Customer-accessible

Parallel ATA

12.7-mm tray load

Supports no-optical-drive option

Supports the following drives:

Supports 9.5-mm, 2.5-inch hard drives

200-GB, 4200-rpm

●

160-GB, 5400-rpm

●

120-GB, 5400-rpm

●

80-GB, 5400-rpm

●

Fixed (removal of 1 screw required)

DVD/CD-RW Combo Drive

●

DVD-ROM Drive

●

Diskette drive

Microphone

Audio

2 speakers

Modem

Modem cable included

Ethernet

S4/S5 wake on LAN: AC

NIC power-down technology

Wireless Integrated WLAN options by way of wireless module:

2 wireless antennae built into display assembly

Support for no-WLAN option

Supports external USB diskette drive only

Integrated mono microphone

Azalia audio

56K V.92 1.5-inch data/fax modem with digital line guard

Intel Broadcom 5787 10/100/1000 network interface card (NIC)

2Chapter 1 Product description

Category Description

Support for the following WLAN formats:

Intel 802.11a/b/g/n

●

Broadcom 802.11a/b/g

●

Intel 802.11a/b/g

●

Broadcom 802.11b/g

●

Intel 802.11b/g

●

Support for no-WPAN option

Broadcom Bluetooth

External media card

Media Card Reader supporting MMC and SD digital cards

Ports

Audio-out (stereo headphone)

S-Video-out

RJ-11 (modem)

RJ-45 (Ethernet, includes link and activity lights)

USB (3)

VGA (Dsub 15-pin) supporting 1600 × 1200 external resolution at 75-GHz (hot plug/unplug

Multi-pin AC power

Keyboard/pointing devices

TouchPad with 2 TouchPad buttons

Integrated personal area network (PAN) options by way of Bluetooth® module:

One Type I/II PC Card slot, supporting 16-bit and 32-bit (Cardbus) PC Card modules

Audio-in (mono microphone)

with auto-detect)

Spill-resistant 12.3-inch keyboard

Supports 1-way scroll

Taps enabled as default

Windows Vista® Hardware Start Button

Power requirements

8-cell, 2.55-Ah (73-Wh) Li-ion battery

4-cell, 2.25-Ah (37-Wh) Li-ion battery

Security

Integrated fingerprint reader

Operating system Preinstalled:

Windows Vista® Business 32

Windows Home Basic 32

65-W AC adapter with localized and pointing stick cable plug support (3-wire plug with ground pin, supports 3-pin DC connector)

Security cable slot

Category Description

Windows® XP Professional

FreeDOS (India and Thailand)

FreeDOS (Thailand)

Windows Vista Business 32

Windows Vista Home Basic 32

Windows XP Professional

DRDVD XP

DRDVD Vista

Serviceability End-user replaceable parts:

AC adapter

Battery (system)

Hard drive

Memory module

Optical drive

WLAN module

Restore Media:

4Chapter 1 Product description

External component identification

Display components

Component Function

Wireless antennae (2)* Send and receive wireless signals to communicate with

WLANs.

*The antennae are not visible from the outside of the computer. For optimal transmission, keep the areas immediately around the antennae free from obstructions.

To see wireless regulatory notices, refer to the section of the Regulatory, Safety and Environmental Notices that applies to your country or region. These notices are located in Help and Support.

Display components 5

Top components

Pointing devices

Item Component Function

(1)

(2)

(3)

(4)

NOTE: This table describes factory settings. View or change pointing device preferences as follows:

●

TouchPad Moves the pointer and selects or activates items on the

screen.

Left TouchPad button Functions like the left button on an external mouse.

Right TouchPad button Functions like the right button on an external mouse.

TouchPad scroll zone Scrolls up or down.

In Windows Vista, select Start > Control Panel > Hardware and Sound > Mouse.

In Windows XP, select Start > Control Panel > Printers and Other Hardware > Mouse.

6Chapter 2 External component identification

Buttons and fingerprint reader

Item Component Function

(1)

(2)

(3)

(4)

Power button

Info button Launches Info Center, which enables you to open various

Presentation button Starts the presentation feature.

Wireless button Turns the wireless feature on or off, but does not establish a

When the computer is off, press the button to turn on

●

the computer.

When the computer is on, press the button to shut down

●

the computer.

When the computer is in the Sleep state (Windows

●

Vista) or in Standby (Windows XP), press the button briefly to exit the Sleep state or Standby.

When the computer is in Hibernation, press the button

●

briefly to exit Hibernation.

If the computer has stopped responding and Windows® shutdown procedures are ineffective, press and hold the power button for at least 5 seconds to turn off the computer.

To learn more about power settings, follow these steps:

● In Windows Vista, select Start > Control Panel >

System and Maintenance > Power Options.

●

In Windows XP, select Start > Control Panel > System and Maintenance > Power Options.

software solutions.

wireless connection.

(5)

NOTE: A wireless network must be set up in order to

establish a wireless connection.

Volume mute button Mutes and restores speaker sound.

Top components 7

Item Component Function

Keys

(6)

(7)

Volume scroll zone Adjusts speaker volume. Slide your finger to the left to

decrease volume and to the right to increase volume.

HP Fingerprint Sensor (fingerprint reader) Allows a fingerprint logon to Windows, instead of a

password logon.

Item Component Function

(1)

(2)

(3)

(4)

(5)

(6)

esc key Displays system information when pressed in combination

with the fn key.

fn key Executes frequently used system functions when pressed in

combination with a function key or the esc key.

Windows logo key Displays the Windows Start menu.

Windows applications key Displays a shortcut menu for items beneath the pointer.

Embedded numeric keypad keys Can be used like the keys on an external numeric keypad.

Function keys Execute frequently used system functions when pressed in

combination with the fn key.

8Chapter 2 External component identification

Lights

Item Component Function

(1)

(2)

(3)

Wireless lights (2)†

Power lights (2)*

Battery light

On: An integrated wireless device, such as a wireless

●

local area network (WLAN) device, the HP Broadband Wireless Module, and/or a Bluetooth® device, is on.

Off: All wireless devices are off.

●

On: The computer is on.

●

Blinking: The computer is in the Sleep state (Windows

●

Vista) or in Standby (Windows XP).

Blinking rapidly: An AC adapter with a higher power

●

rating should be connected.

Off: The computer is off or in Hibernation.

●

Amber: A battery is charging.

●

Green: A battery is close to full charge capacity.

●

Blinking amber: A battery that is the only available

●

power source has reached a low battery level. When the battery reaches a critical battery level, the battery light begins blinking rapidly.

Off: If the computer is plugged into an external power

●

source, the light turns off when all batteries in the computer are fully charged. If the computer is not plugged into an external power source, the light stays off until the battery reaches a low battery level.

(4)

Drive light

Blinking green: The hard drive or optical drive is being

●

accessed.

Amber: HP 3D DriveGuard has temporarily parked the

●

internal hard drive.

Top components 9

Item Component Function

(5)

(6)

(7)

*The 2 power lights display the same information. The light on the power button is visible only when the computer is open. The power light on the front of the computer is visible whether the computer is open or closed.

†The 2 wireless lights display the same information. The light on the wireless button is visible only when the computer is open. The wireless light on the front of the computer is visible whether the computer is open or closed.

Volume mute light ● Off: Computer sound is on.

On: Computer sound is off.

●

Volume down light Blinking: The volume scroll zone is being used to decrease

Volume up light Blinking: The volume scroll zone is being used to increase

speaker volume.

10 Chapter 2 External component identification

Front components

Item Component Function

(1)

(2)

(3)

Wireless light

Power light

Battery light

On: An integrated wireless device, such as a WLAN

●

device, the HP Broadband Wireless Module, and/or a Bluetooth device, is turned on.

● Off: All wireless devices are turned off.

On: The computer is on.

●

Blinking: The computer is in the Sleep state (Windows

●

Vista) or in Standby (Windows XP).

Blinking rapidly: An AC adapter with a higher power

●

rating should be connected.

Off: The computer is off or in Hibernation.

●

Amber: A battery is charging.

●

Green: A battery is close to full charge capacity.

●

Blinking amber: A battery that is the only available

●

power source has reached a low battery level. When the battery reaches a critical battery level, the battery light begins blinking rapidly.

Off: If the computer is plugged into an external power

●

(4)

(5)

(6)

(7)

Drive light

Speakers (2) Produce sound.

Audio-out (headphone) jack Produces sound when connected to optional powered stereo

Audio-in (microphone) jack Connects an optional computer headset microphone, stereo

Blinking green: The hard drive or optical drive is being

●

accessed.

Amber (select models only): HP 3D DriveGuard has

●

temporarily parked the hard drive.

speakers, headphones, ear buds, a headset, or television audio.

array microphone, or monaural microphone.

Front components 11

Left-side components

Item Component Function

(1)

(2)

(3)

(4)

(5)

(6)

Power connector Connects an AC adapter.

USB ports (2) Connect optional USB devices.

RJ-45 (network) jack Connects a network cable.

NOTE: The RJ-45 (network) jack provides Gigabit Ethernet

functionality.

RJ-11 (modem) jack Connects a modem cable.

Optical drive Reads optical discs and, on select models, also writes to

optical discs.

Optical drive light On: The optical drive is being accessed.

12 Chapter 2 External component identification

Right-side components

Item Component Function

(1)

(2)

(3)

(4)

(5)

(6)

(7)

(8)

ExpressCard slot (select models only) Supports optional ExpressCard/54 cards.

Media Card Reader Supports the following optional digital card formats:

MultiMedia Card (MMC) and Secure Digital (SD) Memory Card.

USB port (select models only) Connects an optional USB device.

S-Video-out jack Connects an optional S-Video device such as a television,

VCR, camcorder, overhead projector, or video capture card.

Internal microphone Records sound.

External monitor port Connects an external VGA monitor or projector.

Vent Enables airflow to cool internal components.

NOTE: The computer fan starts up automatically to cool

internal components and prevent overheating. It is normal for the internal fan to cycle on and off during routine operation.

Security cable slot Attaches an optional security cable to the computer.

NOTE: The security cable is designed to act as a

deterrent, but it may not prevent the computer from being mishandled or stolen.

Right-side components 13

Bottom components

Item Component Function

(1)

(2)

(3)

(4)

(5)

(6)

Hard drive bay Holds the hard drive.

Vents (5) Enables airflow to cool internal components.

NOTE: The computer fan starts up automatically to cool

internal components and prevent overheating. It is normal for the internal fan to cycle on and off during routine operation.

Memory module compartment Contains a memory module slot.

Battery bay Holds the battery.

WLAN module compartment Contains a WLAN module slot.

CAUTION: To prevent an unresponsive system, use only

a wireless module authorized for use in the computer by the governmental agency that regulates wireless devices in your country or region. If you install the module and then receive a warning message, remove the module to restore computer functionality, and then contact technical support through Help and Support.

Battery release latch Releases the battery from the battery bay.

14 Chapter 2 External component identification

Illustrated parts catalog

Serial number location

When ordering parts or requesting information, provide the computer serial number and model number located on the bottom of the computer.

Serial number location 15

Computer major components

16 Chapter 3 Illustrated parts catalog

Item Description Spare part

number

(1) 12.1-inch, WXGA display assembly (includes 2 WLAN antenna transceivers and

Display inverter 454009-001

Display hinges 454011-001

Display enclosure (includes logo) 454398-001

(2) Switch cover (includes LED board and cable)

(3) Keyboards (include keyboard cable)

For use in South Korea 454017-AD1

For use in Taiwan 454017-AB1

For use in Thailand 454017-281

For use in the United States 454017-001

(4) Top cover (includes TouchPad and cable, and fingerprint reader board and cable)

(5) RTC battery

(6) Microphone (included in the Cable Kit, spare part number 454008-001. See Cable Kit on page 21 for more Cable

cables)

Display internal components

Display bezel (includes nameplate) 455400-001

For use in Japan 454017-291

Kit information.)

454004-001

454006-001

453994-001

449137-001

(7)

(8) Bluetooth module

(9a)

(9b)

(9c)

(9d)

(10)

(11) System board (includes replacement thermal material)

(12) Modem modules

For use only in Japan and Asia Pacific countries and regions 449139-001

Speaker assembly

NOTE: The Bluetooth module spare part kit does not include a Bluetooth module cable. The

Bluetooth module cable is included in the Cables Kit, spare part number 454008-001. See

Cable Kit on page 21 for more Cable Kit information.

Plastics Kit (see Plastics Kit on page 22 for more Plastics Kit spare part information)

ExpressCard slot bezel

WLAN module compartment cover

Memory module compartment cover

Hard drive cover

Front LED board (includes front LED board cable)

NOTE: The modem module spare part kits do not include a modem module cable. The modem module cable is included

in the Cables Kit, spare part number 454008-001. See

For use in all countries and regions except Japan and Asia Pacific countries and regions 451403-001

Cable Kit on page 21 for more Cable Kit information.

457906-001

398393-002

454010-001

453996-001

453991-001

(13) ExpressCard assembly

457907-001

Computer major components 17

Item Description Spare part

number

(14) Processors (include replacement thermal material)

(15) Heat sink (includes replacement thermal material)

(16) Fan

(17) Optical drives (include optical drive bezel and bracket)

DVD-ROM Drive 454334-001

Intel Core 2 Duo processors (4-MB L2 cache, 800-MHz FSB):

T7800 2.6-GHz processor

●

T7700 2.4-GHz processor

●

T7500 2.2-GHz processor

●

T7300 2.0-GHz processor

●

T7100 1.8-GHz processor (1-MB L2 cache)

●

Intel Celeron M processors (1-MB L2 cache, 533-MHz FSB):

540 1.86-GHz processor

●

530 1.73-GHz processor

●

Thermal Material Kit

DVD/CD-RW Combo Drive 454333-001

Optical Drive Bezel/Bracket Kit (not illustrated)

454016-001

446894-001

454015-001

446892-001

446891-001

454600-001

454599-001

453998-001

445853-001

453999-001

454000-001

(18) Base enclosure (includes rubber feet)

(19) Batteries

4-cell, 37-WH 454001-001

(20) WLAN modules

8-cell, 73-WH 454002-001

Intel 802.11a/b/g/n WLAN modules:

For use in Antigua and Barbuda, Argentina, Aruba, the Bahamas, Barbados, Bermuda,

●

Brunei, Canada, the Cayman Islands, Chile, Colombia, Costa Rica, the Dominican Republic, Ecuador, El Salvador, Guam, Guatemala, Haiti, Honduras, Hong Kong, India, Indonesia, Malaysia, Mexico, Panama, Paraguay, Peru, Saudi Arabia, Taiwan, Uruguay, the United States, Venezuela, and Vietnam

For use in Azerbaijan, Bahrain, Belgium, Brazil, Bulgaria, Croatia, Cyprus, the Czech

●

Republic, Denmark, Egypt, Estonia, Finland, France, Georgia, Germany, Greece, Hungary, Iceland, Ireland, Israel, Italy, Latvia, Lebanon, Liechtenstein, Lithuania, Luxembourg, Malta, Monaco, the Netherlands, Norway, Oman, the Philippines, Poland, Portugal, Qatar, Romania, Russia, Serbia and Montenegro, Singapore, Slovakia, Slovenia, South Africa, Spain, Sri Lanka, Sweden, Switzerland, Turkey, Ukraine, the United Kingdom, and Uzbekistan

For use in Australia, New Zealand, Pakistan, the People's Republic of China, and South

●

Korea

For use in Japan

●

453993-001

441086-001

441086-002

441086-003

441086-291

Broadcom 802.11a/b/g WLAN modules:

18 Chapter 3 Illustrated parts catalog

Item Description Spare part

number

For use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda,

●

Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, People's Republic of China, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissa, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, Peru, the Philippines, Poland, Portugal, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome & Principe, Saudi Arabia, Senegal, Serbia and Montenegro, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts & Nevis, St. Lucia, St. Vincent & Grenada, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

For use in Japan

●

Intel 802.11a/b/g WLAN modules:

441075-002

441075-291

For use in Antigua & Barbuda, Argentina, Aruba, the Bahamas, Barbados, Bermuda,

●

For use in Austria, Azerbaijan, Bahrain, Belgium, Brazil, Bulgaria, Croatia, Cyprus, the

●

Czech Republic, Denmark, Egypt, Estonia, Finland, France, Georgia, Germany, Greece, Hungary, Iceland, Ireland, Israel, Italy, Latvia, Lebanon, Liechtenstein, Lithuania, Luxembourg, Malta, Monaco, the Netherlands, Norway, Oman, the Philippines, Poland, Portugal, Qatar, Romania, Russia, Serbia and Montenegro, Singapore, Slovakia, Slovenia, South Africa, Spain, Sri Lanka, Sweden, Switzerland, Turkey, Ukraine, the United Kingdom, and Uzbekistan

For use in Australia, New Zealand, Pakistan, the People's Republic of China, and South

●

Korea

For use in Japan

●

Broadcom 802.11b/g WLAN modules:

For use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua & Barbuda,

●

448674-001

448674-002

448674-003

448674-291

441090-002

Computer major components 19

Item Description Spare part

number

Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Palau, Panama, Papua New Guinea, Paraguay, the People's Republic of China, Peru, the Philippines, Poland, Portugal, Qatar, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome & Principe, Saudi Arabia, Senegal, Serbia and Montenegro, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts & Nevis, St. Lucia, St. Vincent & Grenada, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Thailand, Togo, Tonga, Trinidad & Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

Intel 802.11b/g WLAN module for use in Thailand 448675-004

(21) Memory modules (PC2-5300, 667-MHz, DDR2)

1024-MB 414046-001

512-MB 414045-001

(22) Hard drives (include hard drive bracket)

200-GB, 4200-rpm 454338-001

160-GB, 5400-rpm 454337-001

120-GB, 5400-rpm 454336-001

80-GB, 5400-rpm 454335-001

For use in Japan

●

2048-MB 417506-001

Cable Kit (not illustrated

441090-291

454008-001

20 Chapter 3 Illustrated parts catalog

Cable Kit

Item Description Spare part number

(1)

(2)

(3)

Cable Kit:

Bluetooth module cable

Modem module cable (includes RJ-11 jack)

Microphone (includes receiver)

454008-001

Cable Kit 21

Plastics Kit

Item Description Spare part number

Plastics Kit:

ExpressCard slot bezel

(1)

WLAN module compartment cover (includes one captive screw, secured by a C-clip)

(2)

Memory module compartment cover (includes one captive screw, secured by a C-clip)

(3)

Hard drive cover (includes 2 captive screws, secured by C-clips)

(4)

22 Chapter 3 Illustrated parts catalog

454010-001

Item Description Spare part number

Computer feet (4)

(5)

Base enclosure screw covers (4 covers, 2 sizes)

(6)

Mass storage devices

Item Description Spare part number

(1) Hard drives (include bracket )

200-GB, 4200-rpm 454338-001

160-GB, 5400-rpm 454337-001

120-GB, 5400-rpm 454336-001

80-GB, 5400-rpm 454335-001

(2) Optical drives (include bezel)

DVD/CD-RW Combo Drive 454333-001

DVD-ROM Drive 454334-001

Mass storage devices 23

Miscellaneous parts

Description Spare part number

65-W AC adapter

Power cords:

For use in Australia

For use in Japan 246959-291

For use the United States 246959-001

Screw Kit

Phillips PM3.0×4.0 screw

●

● Phillips PM2.5×12.0 captive screw

Phillips PM2.5×7.0 captive screw

●

Phillips PM2.5×7.0 screw

●

Phillips PM2.5×6.0 screw

●

Phillips PM2.5×5.0 screw

●

Phillips PM2.5×4.0 screw

●

Phillips PM2.0×6.0 screw

●

Phillips PM2.0×6.0 shoulder screw

●

Phillips PM2.0×5.0 captive screw

●

391172-001

246959-011

454014-001

Phillips PM2.0×3.0 screw

●

Torx T8M2.5×6.0 screw

●

Torx T8M2.5×5.0 screw

●

24 Chapter 3 Illustrated parts catalog

Sequential part number listing

Spare part number

246959-001 Power cord for use in the United States

246959-011 Power cord for use in Australia

246959-291 Power cord for use in Japan

391172-001 65-W AC adapter

398393-002 Bluetooth module

414045-001 512-MB memory module (PC2-5300, 667-MHz, DDR2)

414046-001 1024-MB memory module (PC2-5300, 667-MHz, DDR2)

417506-001 2048-MB memory module (PC2-5300, 667-MHz, DDR2)

441075-002 Broadcom 802.11a/b/g module for use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and

Description

NOTE: The Bluetooth module spare part kit does not include a Bluetooth module cable. The Bluetooth module

cable is included in the Cables Kit, spare part number 454008-001. See Kit information.

Barbuda, Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, People's Republic of China, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissa, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, Peru, the Philippines, Poland, Portugal, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome & Principe, Saudi Arabia, Senegal, Serbia and Montenegro, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts & Nevis, St. Lucia, St. Vincent & Grenada, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

Cable Kit on page 21 for more Cable

441075-291 Broadcom 802.11a/b/g module for use in Japan

441082-001 Intel 802.11a/b/g module for use in Antigua & Barbuda, Argentina, Aruba, the Bahamas, Barbados, Bermuda,

441082-003 Intel 802.11a/b/g module for use in Australia, New Zealand, Pakistan, the People's Republic of China, and

441082-291 Intel 802.11a/b/g module for use in Japan

441086-002 Intel 802.11a/b/g module for use in Austria, Azerbaijan, Bahrain, Belgium, Brazil, Bulgaria, Croatia, Cyprus,

South Korea

the Czech Republic, Denmark, Egypt, Estonia, Finland, France, Georgia, Germany, Greece, Hungary, Iceland, Ireland, Israel, Italy, Latvia, Lebanon, Liechtenstein, Lithuania, Luxembourg, Malta, Monaco, the Netherlands, Norway, Oman, the Philippines, Poland, Portugal, Qatar, Romania, Russia, Serbia and Montenegro, Singapore, Slovakia, Slovenia, South Africa, Spain, Sri Lanka, Sweden, Switzerland, Turkey, Ukraine, the United Kingdom, and Uzbekistan

Sequential part number listing 25

Spare part number

441090-002 Broadcom 802.11b/g module for use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua & Barbuda,

441090-291 Broadcom 802.11b/g module for use in Japan

445853-001 Thermal Material Kit

446891-001 Intel Core 2 Duo T7100 1.80-GHz processor (2-MB L2 cache, 800-MHz FSB, includes replacement thermal

Description

Argentina, Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia & Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cambodia, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissa, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Indonesia, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kuwait, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Palau, Panama, Papua New Guinea, Paraguay, the People's Republic of China, Peru, the Philippines, Poland, Portugal, Qatar, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome & Principe, Saudi Arabia, Senegal, Serbia and Montenegro, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts & Nevis, St. Lucia, St. Vincent & Grenada, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Thailand, Togo, Tonga, Trinidad & Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

material)

446892-001 Intel Core 2 Duo T7300 2.00-GHz processor (4-MB L2 cache, 800-MHz FSB, includes replacement thermal

446894-001 Intel Core 2 Duo T7700 2.40-GHz processor (4-MB L2 cache, 800-MHz FSB, includes replacement thermal

448674-001 Intel 802.11a/b/g module for use in Antigua & Barbuda, Argentina, Aruba, the Bahamas, Barbados, Bermuda,

448674-002 Intel 802.11a/b/g module for use in Austria, Azerbaijan, Bahrain, Belgium, Brazil, Bulgaria, Croatia, Cyprus,

448674-003 Intel 802.11a/b/g module for use in Australia, New Zealand, Pakistan, the People's Republic of China, and

448674-291 Intel 802.11a/b/g module for use in Japan

448675-004 Intel 802.11b/g module for use in Thailand

449137-001 RTC battery

449139-001 Modem module for use only in Japan and Asia Pacific countries and regions

material)

South Korea

NOTE: The modem module spare part kits do not include a modem module cable. The modem module cable

is included in the Cables Kit, spare part number 454008-001. See information.

Cable Kit on page 21 for more Cable Kit

451403-001 Modem module for use in all countries and regions except Japan and Asia Pacific countries and regions

26 Chapter 3 Illustrated parts catalog

Spare part number

453991-001 System board (includes replacement thermal material)

453993-001 Base enclosure (includes rubber feet)

453994-001 Top cover (includes TouchPad and cable, and fingerprint reader board and cable)

453996-001 Front LED board

453998-001 Heat sink (includes replacement thermal material)

453999-001 Fan

454000-001 Optical Drive Bezel/Bracket Kit

454001-001 4-cell, 37-WH battery

454002-001 8-cell, 73-WH battery

454004-001 12.1-inch, WXGA, display assembly

454005-001 Switch cover

454008-001 Cable Kit

454009-001 Display inverter

Description

NOTE: The modem module spare part kits do not include a modem module cable. The modem module cable

is included in the Cables Kit, spare part number 454008-001. See information.

Cable Kit on page 21 for more Cable Kit

454010-001 Plastics Kit

454011-001 Display hinges (includes left and right display hinges)

454014-001 Screw Kit

454015-001 Intel Core 2 Duo T7500 2.4-GHz processor (4-MB L2 cache, 800-MHz FSB, includes replacement thermal

material)

454016-001 Intel Core 2 Duo T7800 2.6-GHz processor (4-MB L2 cache, 800-MHz FSB, includes replacement thermal

material)

454017-001 Keyboard for use in the United States

454017-281 Keyboard for use in Thailand

454017-291 Keyboard for use in Japan

454017-AB1 Keyboard for use in Taiwan

454017-AD1 Keyboard for use in South Korea

454333-001 DVD/CD-RW Combo Drive

454334-001 DVD-ROM Drive

454335-001 80-GB, 5400-rpm hard drive (includes hard drive bracket)

454336-001 120-GB, 5400-rpm hard drive (includes hard drive bracket)

454337-001 160-GB, 5400-rpm hard drive (includes hard drive bracket)

454338-001 200-GB, 4200-rpm hard drive (includes hard drive bracket)

454398-001 Display enclosure (includes 2 WLAN transceivers and cables and logo)

Sequential part number listing 27

Spare part number

454599-001 Intel Celeron-M 530 1.73-GHz processor (1-MB L2 cache, 533-MHz FSB, includes replacement thermal material)

454600-001 Intel Celeron-M 540 1.86-GHz processor (1-MB L2 cache, 533-MHz FSB, includes replacement thermal material)

455400-001 Display bezel (includes nameplate)

455585-001 Miscellaneous Display Kit

455586-001 Display Cable Kit

456226-001 Fingerprint reader board

457906-001 Speakers

457907-001 ExpressCard assembly

Description

28 Chapter 3 Illustrated parts catalog

Removal and replacement procedures

Preliminary replacement requirements

Tools required

You will need the following tools to complete the removal and replacement procedures:

Flat-bladed screwdriver

●

Magnetic screwdriver

●

Phillips P0 and P1 screwdrivers

●

Torx T8 screwdriver

●

Service considerations

The following sections include some of the considerations that you must keep in mind during disassembly and assembly procedures.

NOTE: As you remove each subassembly from the computer, place the subassembly (and all

accompanying screws) away from the work area to prevent damage.

Plastic parts

Using excessive force during disassembly and reassembly can damage plastic parts. Use care when handling the plastic parts. Apply pressure only at the points designated in the maintenance instructions.

Preliminary replacement requirements 29

Cables and connectors

CAUTION: When servicing the computer, be sure that cables are placed in their proper locations

during the reassembly process. Improper cable placement can damage the computer.

Cables must be handled with extreme care to avoid damage. Apply only the tension required to unseat or seat the cables during removal and insertion. Handle cables by the connector whenever possible. In all cases, avoid bending, twisting, or tearing cables. Be sure that cables are routed in such a way that they cannot be caught or snagged by parts being removed or replaced. Handle flex cables with extreme care; these cables tear easily.

Drive handling

CAUTION: Drives are fragile components that must be handled with care. To prevent damage to the

computer, damage to a drive, or loss of information, observe these precautions:

Before removing or inserting a hard drive, shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.

Before handling a drive, be sure that you are discharged of static electricity. While handling a drive, avoid touching the connector.

Before removing a diskette drive or optical drive, be sure that a diskette or disc is not in the drive and be sure that the optical drive tray is closed.

Handle drives on surfaces covered with at least one inch of shock-proof foam.

Avoid dropping drives from any height onto any surface.

After removing a hard drive, an optical drive, or a diskette drive, place it in a static-proof bag.

Avoid exposing a hard drive to products that have magnetic fields, such as monitors or speakers.

Avoid exposing a drive to temperature extremes or liquids.

If a drive must be mailed, place the drive in a bubble pack mailer or other suitable form of protective packaging and label the package “FRAGILE.”

30 Chapter 4 Removal and replacement procedures

Grounding guidelines

Electrostatic discharge damage

Electronic components are sensitive to electrostatic discharge (ESD). Circuitry design and structure determine the degree of sensitivity. Networks built into many integrated circuits provide some protection, but in many cases, ESD contains enough power to alter device parameters or melt silicon junctions.

A discharge of static electricity from a finger or other conductor can destroy static-sensitive devices or microcircuitry. Even if the spark is neither felt nor heard, damage may have occurred.

An electronic device exposed to ESD may not be affected at all and can work perfectly throughout a normal cycle. Or the device may function normally for a while, then degrade in the internal layers, reducing its life expectancy.

CAUTION: To prevent damage to the computer when you are removing or installing internal

components, observe these precautions:

Keep components in their electrostatic-safe containers until you area ready to install them.

Use nonmagnetic tools.

Before touching an electronic component, discharge static electricity by using the guidelines described in this section.

Avoid touching pins, leads, and circuitry. Handle electronic components as little as possible.

If you remove a component, place it in an electrostatic-safe container.

The following table shows how humidity affects the electrostatic voltage levels generated by different activities.

CAUTION: A product can be degraded by as little as 700 V.

Typical electrostatic voltage levels

Relative humidity

Event 10% 40% 55%

Walking across carpet 35,000 V 15,000 V 7,500 V

Walking across vinyl floor 12,000 V 5,000 V 3,000 V

Motions of bench worker 6,000 V 800 V 400 V

Removing DIPS from plastic tube 2,000 V 700 V 400 V

Removing DIPS from vinyl tray 11,500 V 4,000 V 2,000 V

Removing DIPS from Styrofoam 14,500 V 5,000 V 3,500 V

Removing bubble pack from PCB 26,500 V 20,000 V 7,000 V

Packing PCBs in foam-lined box 21,000 V 11,000 V 5,000 V

Preliminary replacement requirements 31

Packaging and transporting guidelines

Follow these grounding guidelines when packaging and transporting equipment:

To avoid hand contact, transport products in static-safe tubes, bags, or boxes.

●

Protect ESD-sensitive parts and assemblies with conductive or approved containers or packaging.

●

Keep ESD-sensitive parts in their containers until the parts arrive at static-free workstations.

●

Place items on a grounded surface before removing items from their containers.

●

Always be properly grounded when touching a component or assembly.

●

Store reusable ESD-sensitive parts from assemblies in protective packaging or nonconductive foam.

●

Use transporters and conveyors made of antistatic belts and roller bushings. Be sure that mechanized

●

equipment used for moving materials is wired to ground and that proper materials are selected to avoid static charging. When grounding is not possible, use an ionizer to dissipate electric charges.

Workstation guidelines

Follow these grounding workstation guidelines:

Cover the workstation with approved static-shielding material.

●

Use a wrist strap connected to a properly grounded work surface and use properly grounded tools

●

and equipment.

Use conductive field service tools, such as cutters, screwdrivers, and vacuums.

●

When fixtures must directly contact dissipative surfaces, use fixtures made only of static-safe

●

materials.

Keep the work area free of nonconductive materials, such as ordinary plastic assembly aids and

●

Styrofoam.

Handle ESD-sensitive components, parts, and assemblies by the case or PCM laminate. Handle these

●

items only at static-free workstations.

Avoid contact with pins, leads, or circuitry.

●

Turn off power and input signals before inserting or removing connectors or test equipment.

●

32 Chapter 4 Removal and replacement procedures

Equipment guidelines

Grounding equipment must include either a wrist strap or a foot strap at a grounded workstation.

When seated, wear a wrist strap connected to a grounded system. Wrist straps are flexible straps

●

with a minimum of one megohm ±10% resistance in the ground cords. To provide proper ground, wear a strap snugly against the skin at all times. On grounded mats with banana-plug connectors, use alligator clips to connect a wrist strap.

When standing, use foot straps and a grounded floor mat. Foot straps (heel, toe, or boot straps) can

●

be used at standing workstations and are compatible with most types of shoes or boots. On conductive floors or dissipative floor mats, use foot straps on both feet with a minimum of one megohm resistance between the operator and ground. To be effective, the conductive strips must be worn in contact with the skin.

The following grounding equipment is recommended to prevent electrostatic damage:

Antistatic tape

●

Antistatic smocks, aprons, and sleeve protectors

●

Conductive bins and other assembly or soldering aids

●

Nonconductive foam

●

Conductive tabletop workstations with ground cords of one megohm resistance

●

Static-dissipative tables or floor mats with hard ties to the ground

●

Field service kits

●

Static awareness labels

●

Material-handling packages

●

Nonconductive plastic bags, tubes, or boxes

●

Metal tote boxes

●

Electrostatic voltage levels and protective materials

●

The following table lists the shielding protection provided by antistatic bags and floor mats.

Material Use Voltage protection level

Antistatic plastic Bags 1,500 V

Carbon-loaded plastic Floor mats 7,500 V

Metallized laminate Floor mats 5,000 V

Preliminary replacement requirements 33

Unknown user password

If the computer you are servicing has an unknown user password, follow these steps to clear the password:

NOTE: These steps also clear CMOS.

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the real-time clock (RTC) battery (see

Wait approximately 5 minutes.

Replace the RTC battery and reassemble the computer.

Connect AC power to the computer. Do not reinsert any batteries at this time.

Turn on the computer.

All passwords and all CMOS settings have been cleared.

Battery on page 37).

RTC battery on page 58).

34 Chapter 4 Removal and replacement procedures

Component replacement procedures

This chapter provides removal and replacement procedures.

There are as many as 84 screws, in 15 different sizes, that must be removed, replaced, or loosened when servicing the computer. Make special note of each screw size and location during removal and replacement.

Serial number

Report the computer serial number to HP when requesting information or ordering spare parts. The serial number is located on the bottom of the computer.

Component replacement procedures 35

Computer feet

The computer feet are adhesive-backed rubber pads. The feet are included in the Plastics Kit, spare part number 454010-001. There are 4 rubber feet that attach to the base enclosure in the locations illustrated below.

36 Chapter 4 Removal and replacement procedures

Battery

Description Spare part number

8-cell, 2.55-Ah (73-Wh) Li-ion battery 454002-001

4-cell, 2.20-Ah (37-Wh) Li-ion battery 454001-001

Before disassembling the computer, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery:

Turn the computer upside down on a flat surface, with the battery bay toward you.

2. Slide the battery release latch (1) to release the battery.

3. Remove the battery (2) from the computer.

Install the battery by inserting it into the battery bay until you hear a click.

Component replacement procedures 37

Hard drive

NOTE: All hard drive spare part kits include a hard drive bracket.

Description Spare part number

200-GB, 4200-rpm hard drive 454338-001

160-GB, 5400-rpm hard drive 454337-001

120-GB, 5400-rpm hard drive 454336-001

80-GB, 5400-rpm hard drive 454335-001

Before removing the hard drive, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Battery on page 37).

Remove the hard drive:

Position the computer with the front toward you.

2. Loosen the four Phillips PM2.0×5.0 captive screws (1) that secure the hard drive cover to the

computer.

3. Lift the rear edge of the hard drive cover (2), swing it up and forward, and remove the cover. The

hard drive cover is included in the Plastics Kit, spare part number 454010-001.

4. Loosen the Phillips PM2.5×12.0 captive screw (1) that secures the hard drive to the computer.

38 Chapter 4 Removal and replacement procedures

5. Grasp the Mylar tab (2) on the hard drive and slide the hard drive (3) to the left to disconnect it

from the system board.

6. Remove the hard drive (4) from the hard drive bay.

If it is necessary to replace the hard drive bracket, remove the two Phillips PM3.0×4.0 hard drive

bracket screws (1) from each side of the hard drive.

8. Lift the bracket (2) straight up to remove it from the hard drive.

Reverse this procedure to reassemble and install the hard drive.

Component replacement procedures 39

Memory module

Description Spare part number

2048-MB (PC2-5300, 667-MHz, DDR2) 417506-001

1024-MB (PC2-5300, 667-MHz, DDR2) 414046-001

512-MB (PC2-5300, 667-MHz, DDR2) 414045-001

Before removing the memory module, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Battery on page 37).

Remove the memory module:

Position the computer with the front toward you.

2. Loosen the two Phillips PM2.0×5.0 captive screws (1) that secure the memory module compartment

cover to the computer.

3. Lift the left side of the cover (2), swing it up and to the right, and remove the cover. The memory

module compartment cover is included in the Plastics Kit, spare part number 454010-001.

4. Spread the retaining tabs (1) on each side of the memory module slot to release the memory module.

(The edge of the module opposite the slot rises away from the computer.)

40 Chapter 4 Removal and replacement procedures

5. Remove the memory module (2) by pulling the module away from the slot at an angle.

NOTE: Memory modules are designed with a notch (3) to prevent incorrect installation into the

memory module slot.

Reverse this procedure to install a memory module.

Component replacement procedures 41

WLAN module

CAUTION: The WLAN module and the WWAN module are not interchangeable.

Description Spare part number

Intel 802.11a/b/g/n WLAN modules:

For use in Antigua and Barbuda, Argentina, Aruba, the Bahamas, Barbados, Bermuda, Brunei,

●

Canada, the Cayman Islands, Chile, Colombia, Costa Rica, the Dominican Republic, Ecuador, El Salvador, Guam, Guatemala, Haiti, Honduras, Hong Kong, India, Indonesia, Malaysia, Mexico, Panama, Paraguay, Peru, Saudi Arabia, Taiwan, Uruguay, the United States, Venezuela, and Vietnam

For use in Austria, Azerbaijan, Bahrain, Belgium, Brazil, Bulgaria, Croatia, Cyprus, the Czech

●

For use in Australia, New Zealand, Pakistan, the People's Republic of China, and South Korea

●

For use in Japan

●

Broadcom 802.11a/b/g WLAN modules:

For use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua and Barbuda, Argentina,

●

Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia and Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, People's Republic of China, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, GuineaBissa, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Pakistan, Palau, Panama, Papua New Guinea, Paraguay, Peru, the Philippines, Poland, Portugal, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome & Principe, Saudi Arabia, Senegal, Serbia and Montenegro, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts & Nevis, St. Lucia, St. Vincent & Grenada, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Togo, Tonga, Trinidad and Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

441086-001

441086-002

441086-003

441086-291

441075-002

For use in Japan

●

Intel 802.11a/b/g WLAN modules:

For use in Antigua & Barbuda, Argentina, Aruba, the Bahamas, Barbados, Bermuda, Brunei,

●

For use in Austria, Azerbaijan, Bahrain, Belgium, Brazil, Bulgaria, Croatia, Cyprus, the Czech

●

42 Chapter 4 Removal and replacement procedures

441075-291

448674-001

448674-002

Description Spare part number

Russia, Serbia and Montenegro, Singapore, Slovakia, Slovenia, South Africa, Spain, Sri Lanka, Sweden, Switzerland, Turkey, Ukraine, the United Kingdom, and Uzbekistan

For use in Australia, New Zealand, Pakistan, the People's Republic of China, and South Korea

●

For use in Japan

●

Broadcom 802.11b/g WLAN modules:

For use in Afghanistan, Albania, Algeria, Andorra, Angola, Antigua & Barbuda, Argentina,

●

Armenia, Aruba, Australia, Austria, Azerbaijan, the Bahamas, Bahrain, Bangladesh, Barbados, Belarus, Belgium, Belize, Benin, Bermuda, Bhutan, Bolivia, Bosnia & Herzegovina, Botswana, Brazil, the British Virgin Islands, Brunei, Bulgaria, Burkina Faso, Burundi, Cambodia, Cameroon, Cape Verde, the Central African Republic, Chad, Chile, Colombia, Comoros, the Congo, Costa Rica, Croatia, Cyprus, the Czech Republic, Denmark, Djibouti, Dominica, the Dominican Republic, East Timor, Ecuador, Egypt, El Salvador, Equitorial Guinea, Eritrea, Estonia, Ethiopia, Fiji, Finland, France, French Guiana, Gabon, Gambia, Georgia, Germany, Ghana, Gibraltar, Greece, Grenada, Guadeloupe, Guatemala, Guinea, Guinea-Bissa, Guyana, Haiti, Honduras, Hong Kong, Hungary, Iceland, India, Indonesia, Ireland, Israel, Italy, the Ivory Coast, Jamaica, Jordan, Kazakhstan, Kenya, Kiribati, Kuwait, Kyrgyzstan, Laos, Latvia, Lebanon, Lesotho, Liberia, Liechtenstein, Lithuania, Luxembourg, Macedonia, Madagascar, Malawi, Malaysia, the Maldives, Mali, Malta, the Marshall Islands, Martinique, Mauritania, Mauritius, Mexico, Micronesia, Monaco, Mongolia, Montenegro, Morocco, Mozambique, Namibia, Nauru, Nepal, the Nether Antilles, the Netherlands, New Zealand, Nicaragua, Niger, Nigeria, Norway, Oman, Palau, Panama, Papua New Guinea, Paraguay, the People's Republic of China, Peru, the Philippines, Poland, Portugal, Qatar, the Republic of Moldova, Romania, Russia, Rwanda, Samoa, San Marino, Sao Tome & Principe, Saudi Arabia, Senegal, Serbia and Montenegro, the Seychelles, Sierra Leone, Singapore, Slovakia, Slovenia, the Solomon Islands, Somalia, South Africa, South Korea, Spain, Sri Lanka, St. Kitts & Nevis, St. Lucia, St. Vincent & Grenada, Suriname, Swaziland, Sweden, Switzerland, Taiwan, Tajikistan, Tanzania, Thailand, Togo, Tonga, Trinidad & Tobago, Tunisia, Turkey, Turkmenistan, Tuvalu, Uganda, Ukraine, the United Arab Emirates, the United Kingdom, Uruguay, Uzbekistan, Vanuatu, Venezuela, Vietnam, Yemen, Zaire, Zambia, and Zimbabwe

448674-003

448674-291

441090-002

For use in Japan

●

Intel 802.11b/g WLAN module for use in Japan 448675-004

441090-291

Before removing the WLAN module, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Battery on page 37).

Remove the WLAN module:

Position the computer with the front toward you.

2. Loosen the Phillips PM2.0×5.0 captive screw (1) that secures the WLAN module compartment cover

to the computer.

Component replacement procedures 43

Lift the right side of the cover, swing it up and to the left, and remove the cover.

4. Disconnect the WLAN antenna cables (1) from the terminals on the WLAN module.

NOTE: The black WLAN antenna cable is connected to the WLAN module “Main” terminal. The

white WLAN antenna cable is connected to the WLAN module “Aux” terminal.

5. Remove the two Phillips PM2.5×4.0 screws (2) that secure the WLAN module to the computer. (The

edge of the module opposite the slot rises away from the computer.)

6. Remove the WLAN module (3) by pulling the module away from the slot at an angle.

NOTE: WLAN modules are designed with a notch (4) to prevent incorrect installation.

Reverse this procedure to install the WLAN module.

44 Chapter 4 Removal and replacement procedures

Optical drive

NOTE: All optical drive spare part kits include an optical drive bezel.

Description Spare part number

DVD/CD-RW Combo Drive 454333-001

DVD-ROM Drive 454334-001

Before removing the optical drive, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Battery on page 37).

Remove the optical drive:

Position the computer with the right side toward you.

2. Remove the Torx T8M2.5×7.0 screw (1) that secures the optical drive to the computer.

3. Insert a flat-bladed screwdriver or similar tool into the optical drive tab access (2) and press the tab

to the right to release the optical drive from the computer.

4. Remove the optical drive (3) from the computer.

If it is necessary to replace the optical drive bracket, position the optical drive with the rear toward

you.

6. Remove the two Phillips PM2.0×4.0 screws (1) that secure the optical drive bracket to the optical

drive.

Component replacement procedures 45

7. Remove the optical drive bracket (2).

Reverse this procedure to reassemble and install an optical drive.

46 Chapter 4 Removal and replacement procedures

Keyboard

For use in: Spare part number For use in: Spare part number

Japan 454017-291 Thailand 454017-281

Korea 454017-AD1 The United States 454017-001

Taiwan 454017-AB1

Before removing the keyboard, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the computer.

Remove the battery (see

Battery on page 37).

Remove the keyboard:

Turn the computer upside down, with the front toward you.

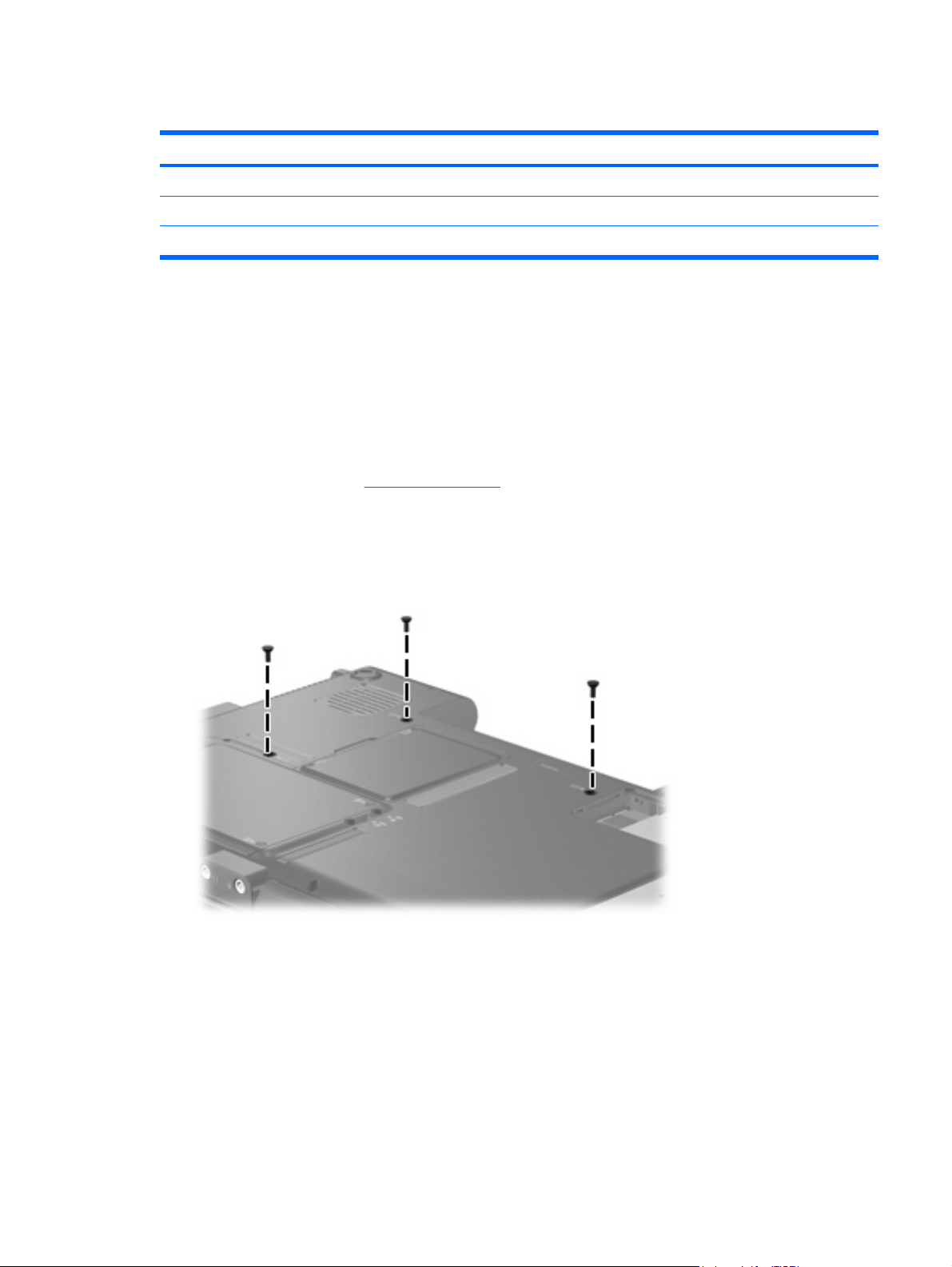

Loosen the three Phillips PM2.5×7.0 captive screws that secure the keyboard to the computer.

Turn the computer display-side up, with the front toward you.

Open the computer as far as possible.

5. Lift the rear edge of the keyboard (1) until it rests at an angle.

Component replacement procedures 47

6. Move the keyboard (2) toward the display until the tabs on the keyboard bottom edge disengage

from the top cover.

7. Release the zero insertion force (ZIF) connector (1) to which the keyboard cable is attached, and

disconnect the keyboard cable (2) from the system board.

Remove the keyboard.

Reverse this procedure to install the keyboard.

48 Chapter 4 Removal and replacement procedures

Switch cover

Description Spare part number

Switch cover (includes LED board and LED board cable) 454006-001

Before removing the switch cover, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the keyboard (see

Battery on page 37).

Keyboard on page 47).

Remove the switch cover:

Turn the computer upside down, with the rear panel toward you.

Remove the following:

(1) Two rubber screw covers. The rubber screw covers are included in the Plastics Kit, spare part

number 454010-001.

(2) Three Phillips PM2.5×7.0 screws.

(3) Five Phillips PM2.0×3.0 screws.

Turn the computer right-side up, with the front toward you.

Open the computer as far as possible.

Component replacement procedures 49

5. Disconnect the LED board cable (1) from the system board.

6. Remove the switch cover (2).

Reverse this procedure to install the switch cover.

50 Chapter 4 Removal and replacement procedures

Display assembly

Description Spare part number

12.1-inch, WXGA display assembly (includes WLAN antenna transceivers and cables) 454004-001

Before removing the display assembly, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Disconnect the wireless antenna cables from the WLAN module (see

Remove the keyboard (see

Remove the switch cover (see

Battery on page 37).

WLAN module on page 42).

Keyboard on page 47).

Switch cover on page 49).

Remove the display assembly:

Close the computer and turn it upside down, with the rear panel toward you.

2. Remove the Phillips PM2.5×7.0 screw (1) and Phillips PM2.5×5.0 screw (2) that secure the display

assembly to the computer.

Turn the computer right-side up, with the front toward you.

Open the computer as far as possible.

5. Disconnect the display panel cable (1) from the system board.

Component replacement procedures 51

6. Remove the WLAN antenna cables (2) from the opening in the system board.

7. Remove the four Phillips PM2.5×6.0 screws (1) that secure the display assembly to the computer.

8. Lift the display assembly (2) straight up and remove it.

52 Chapter 4 Removal and replacement procedures

If it is necessary to replace the display bezel or the display assembly internal components, remove

the six rubber screw covers (1) and the six Torx T8M2.5×6.0 screws (2) that secure the display bezel to the display enclosure.

10. Flex the inside edges of the left and right sides (1) and the top and bottom sides (2) of the display

bezel until the bezel disengages from the display enclosure.

11. Remove the display bezel (3). The display bezel is available using spare part number

455400-001.

12. If it is necessary to replace the display inverter, release the inverter (1) as far as the display panel

cable and backlight cable allow.

Component replacement procedures 53

13. Disconnect the backlight cable (2) and the display panel cable (3) from the display inverter.

Remove the display inverter from the display enclosure. The display inverter is available using spare

14.

part number 454009-001.

15. If it is necessary to replace the display hinges, remove the six Torx T8M2.5×5.0 screws (1) that

secure the display panel to the display enclosure.

16. Remove the display panel (2) from the display enclosure.

17. Remove the two Phillips PM2.0×4.0 screws (1) that secure the display hinges to the display panel.

54 Chapter 4 Removal and replacement procedures

18. Remove the display hinges (2) from the display panel. The display hinges are available using spare

Reverse this procedure to reassemble and install the display assembly.

Top cover

Description Spare part number

Top cover (includes TouchPad and cable, and fingerprint reader board and cable) 453994-001

Before removing the top cover, follow these steps:

part number 454011-001.

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the following components:

Hard drive (see

Optical drive (see

Keyboard (see

Switch cover (see

Display assembly (see

Battery on page 37).

Hard drive on page 38)

Optical drive on page 45)

Keyboard on page 47)

Switch cover on page 49)

Display assembly on page 51)

Remove the top cover:

Turn the computer upside down, with the front toward you.

Component replacement procedures 55

Remove the following:

(1) Two rubber screw covers. The rubber screw covers are included in the Plastics Kit, spare part

number 454010-001.

(2) Seven Phillips PM2.5×7.0 screws.

(3) Three Phillips PM2.0×3.0 screws.

Turn the computer right-side up, with the front toward you.

4. Disconnect the fingerprint reader board cable (1) from the system board.

5. Disconnect the TouchPad cable (2) from the system board.

6. Remove the two Phillips PM2.5×7.0 screws (3) and the two Phillips PM2.5×4.0 screws (4) that

secure the top cover to the computer.

56 Chapter 4 Removal and replacement procedures

7. Lift the rear edge of the top cover (1) and swing it (2) up and forward until it rests at an angle.

8. Lift the top cover (3) straight up and remove it.

Reverse this procedure to install the top cover.

Component replacement procedures 57

RTC battery

NOTE: Removing the RTC battery and leaving it uninstalled for 5 or more minutes causes all passwords

and CMOS settings to be cleared.

Description Spare part number

RTC battery 449137-001

Before removing the RTC battery, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the following components:

Hard drive (see

Optical drive (see

Keyboard (see

Switch cover (see

Display assembly (see

Top cover (see

Battery on page 37).

Hard drive on page 38)

Optical drive on page 45)

Keyboard on page 47)

Switch cover on page 49)

Display assembly on page 51)

Top cover on page 55)

Remove the RTC battery:

1. Disconnect the RTC battery cable (1) from the system board.

58 Chapter 4 Removal and replacement procedures

2. Remove the RTC battery (2).

Reverse this procedure to install the RTC battery.

Component replacement procedures 59

Front LED board

Description Spare part number

Front LED board 453996-001

Before removing the front LED board, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the following components:

Hard drive (see

Optical drive (see

Keyboard (see

Switch cover (see

Display assembly (see

Top cover (see

Battery on page 37).

Hard drive on page 38)

Optical drive on page 45)

Keyboard on page 47)

Switch cover on page 49)

Display assembly on page 51)

Top cover on page 55)

Remove the front LED board:

1. Disconnect the front LED board cable (1) from the system board.

2. Remove the two Phillips PM2.0×3.0 screws (2) that secure the front LED board to the base enclosure.

60 Chapter 4 Removal and replacement procedures

3. Remove the front LED board (3).

Reverse this procedure to reassemble and install the front LED board.

Bluetooth module

NOTE: The Bluetooth module spare part kit does not include a Bluetooth module cable. The Bluetooth

module cable is included in the Cables Kit, spare part number 454008-001. See

Cable Kit

on page 21 for more Cable Kit information.

Description Spare part number

Bluetooth 398393-002

Before removing the Bluetooth module, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the following components:

Hard drive (see

Optical drive (see

Battery on page 37).

Hard drive on page 38)

Optical drive on page 45)

Keyboard (see

Switch cover (see

Keyboard on page 47)

Switch cover on page 49)

Component replacement procedures 61

Display assembly (see

Display assembly on page 51)

Top cover (see

Top cover on page 55)

Remove the Bluetooth module:

1. Disconnect the Bluetooth module cable (1) from the system board.

2. Remove the two Phillips PM2.0×4.0 screws (2) that secure the Bluetooth module to the system board.

3. Remove the module (3).

Reverse this procedure to install the Bluetooth module.

Speaker assembly

Description Spare part number

Speaker assembly 457906-001

Before removing the speaker assembly, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

62 Chapter 4 Removal and replacement procedures

Remove the battery (see

Remove the following components:

Battery on page 37).

Hard drive (see

Optical drive (see

Keyboard (see

Switch cover (see

Display assembly (see

Top cover (see

Bluetooth module (see

Hard drive on page 38)

Optical drive on page 45)

Keyboard on page 47)

Switch cover on page 49)

Display assembly on page 51)

Top cover on page 55)

Bluetooth module on page 61)

Remove the speaker assembly:

1. Disconnect the speaker assembly cable (1) from the system board.

2. Remove the speaker assembly (2) from the base enclosure.

Reverse this procedure to install the speaker assembly.

Component replacement procedures 63

Microphone

NOTE: The microphone is included in the Cables Kit, spare part number 454008-001. See Cable

Kit on page 21 for more Cable Kit information.

Before removing the microphone, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the following components:

Hard drive (see

Optical drive (see

Keyboard (see

Switch cover (see

Display assembly (see

Top cover (see

Bluetooth module (see

Remove the microphone:

1. Disconnect the microphone cable (1) from the system board.

2. Remove the microphone receiver (2) from the clip built into the base enclosure.

Battery on page 37).

Hard drive on page 38)

Optical drive on page 45)

Keyboard on page 47)

Switch cover on page 49)

Display assembly on page 51)

Top cover on page 55)

Bluetooth module on page 61)

64 Chapter 4 Removal and replacement procedures

Reverse this procedure to install the microphone.

System board

Description Spare part number

System board (includes replacement thermal material) 453991-001

Before removing the system board, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the following components:

Hard drive (see

Optical drive (see

Keyboard (see

Switch cover (see

Display assembly (see

Top cover (see

Bluetooth module (see

Battery on page 37).

Hard drive on page 38)

Optical drive on page 45)

Keyboard on page 47)

Switch cover on page 49)

Display assembly on page 51)

Top cover on page 55)

Bluetooth module on page 61)

When replacing the system board, be sure that the following components are removed from the defective system board and installed on the replacement system board:

Memory module (see

●

WLAN module (see

●

ExpressCard assembly (see

●

Modem module (see

●

Memory module on page 40)

WLAN module on page 42)

ExpressCard assembly on page 67)

Modem module on page 69)

Fan (see

●

Heat sink (see

●

Processor (see

●

Fan on page 71)

Heat sink on page 73)

Processor on page 75)

Remove the system board:

1. Remove the three Phillips PM2.5×6.0 screws (1) that secure the system board to the base enclosure.

Component replacement procedures 65

2. Loosen the captive standoff (2) on the fan that secures the system board to the base enclosure.

3. Flex the left side of the base enclosure (1) until the USB, RJ-45, and RJ-11 jacks (2) clear the openings

in the base enclosure.

4. Use the optical drive connector (1) to lift the left side of the system board (2) until it rests at an angle.

5. Remove the system board (3) from the base enclosure by pulling it away at an angle.

Reverse the preceding procedure to install the system board.

66 Chapter 4 Removal and replacement procedures

ExpressCard assembly

Description Spare part number

ExpressCard assembly 457907-001

Before removing the ExpressCard assembly, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the following components:

Hard drive (see

Optical drive (see

Keyboard (see

Switch cover (see

Display assembly (see

Top cover (see

Bluetooth module (see

System board (see

Battery on page 37).

Hard drive on page 38)

Optical drive on page 45)

Keyboard on page 47)

Switch cover on page 49)

Display assembly on page 51)

Top cover on page 55)

Bluetooth module on page 61)

System board on page 65)

Remove the ExpressCard assembly:

Turn the system board upside down, with the left side toward you.

Component replacement procedures 67

Remove the four Phillips PM2.0×6.0 screws that secure the ExpressCard assembly to the system

board.

Turn the system board right-side up, with the left side toward you.

Remove the ExpressCard assembly from the system board.

Reverse this procedure to install the ExpressCard assembly.

68 Chapter 4 Removal and replacement procedures

Modem module

NOTE: The modem module spare part kits doe not include a modem module cable. The modem module

cable is included in the Cables Kit, spare part number 454008-001. See Cable Kit information.

Description Spare part number

For use in all countries and regions except Japan and Asia Pacific countries and regions 451403-001

For use only in Japan and Asia Pacific countries and regions 449139-001

Before removing the modem module, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Cable Kit on page 21 for more

Remove the battery (see

Remove the following components:

Hard drive (see

Optical drive (see

Keyboard (see

Switch cover (see

Display assembly (see

Top cover (see

Bluetooth module (see

System board (see

Battery on page 37).

Hard drive on page 38)

Optical drive on page 45)

Keyboard on page 47)

Switch cover on page 49)

Display assembly on page 51)

Top cover on page 55)

Bluetooth module on page 61)

System board on page 65)

Remove the modem module:

Turn the system board upside down, with the rear edge toward you.

2. Remove the two Phillips PM2.5×4.0 screws (1) that secure the modem module to the system board.

Component replacement procedures 69

3. Disconnect the modem module (2) from the system board by lifting it straight up.

Remove the modem module and modem module cable.

Reverse this procedure to install the modem module and modem module cable.

70 Chapter 4 Removal and replacement procedures

Fan

Description Spare part number

Fan 453999-001

Before removing the fan, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the following components:

Hard drive (see

Optical drive (see

Keyboard (see

Switch cover (see

Display assembly (see

Top cover (see

Bluetooth module (see

System board (see

Battery on page 37).

Hard drive on page 38)

Optical drive on page 45)

Keyboard on page 47)

Switch cover on page 49)

Display assembly on page 51)

Top cover on page 55)

Bluetooth module on page 61)

System board on page 65)

Remove the fan:

Turn the system board upside down, with the rear edge toward you.

2. Disconnect the fan cable (1) from the system board.

3. Remove the three Phillips PM2.0×4.0 screws (2) that secure the fan to the heat sink.

Component replacement procedures 71

4. Remove the fan (3) from the heat sink.

Reverse this procedure to install the fan.

NOTE: To properly ventilate the computer, allow at least a 7.6-cm (3-inch) clearance on the left side of

the computer.

The computer uses an electric fan for ventilation. The fan is controlled by a temperature sensor and is designed to turn on automatically when high temperature conditions exist. These conditions are affected by high external temperatures, system power consumption, power management/battery conservation configurations, battery fast charging, and software requirements. Exhaust air is displaced through the ventilation grill located on the left side of the computer.

72 Chapter 4 Removal and replacement procedures

Heat sink

Description Spare part number

Heat sink (includes a heat sink clip and replacement thermal material) 453998-001

Thermal Material Kit 445853-001

Before removing the heat sink, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the following components:

Hard drive (see

Optical drive (see

Keyboard (see

Switch cover (see

Display assembly (see

Top cover (see

Bluetooth module (see

System board (see

Fan (see

Fan on page 71)

Battery on page 37).

Hard drive on page 38)

Optical drive on page 45)

Keyboard on page 47)

Switch cover on page 49)

Display assembly on page 51)

Top cover on page 55)

Bluetooth module on page 61)

System board on page 65)

Remove the heat sink:

1. Remove the two Phillips PM2.0×6.0 shoulder screws (1) that secure the heat sink and the heat sink

retention clips to the system board.

2. Remove the heat sink retention clips (2) by sliding them to the left.

Component replacement procedures 73

3. Remove the heat sink (3) by lifting it straight up.

NOTE: Due to the adhesive quality of the thermal material located between the heat sink and

system board components, it may be necessary to move the heat sink from side to side to detach the assembly.

NOTE: The thermal material must be thoroughly cleaned from the surfaces of the heat sink (1) and

(3), the processor (2), and graphics subsystem component (4) on the system board each time the heat

sink is removed. Thermal material is included with all system board, heat sink, and processor spare part kits, and is also available in the Thermal Material Kit, spare part number 445853-001.

Reverse this procedure to install the heat sink.

74 Chapter 4 Removal and replacement procedures

Processor

NOTE: All processor spare part kits include replacement thermal material. The Thermal Material Kit is

also available using spare part number 445853-001.

Description Spare part number

Intel Core 2 Duo processors (4-MB L2 cache, 800-MHz FSB)

T7800 2.6-GHz processor

T7700 2.4-GHz processor 446894-001

T7500 2.2-GHz processor 454015-001

T7300 2.0-GHz processor 446892-001

T7100 1.8-GHz processor 446891-001

Intel Core Duo processors (2-MB L2 cache, 667-MHz FSB)

T5450 1.66-GHz processor

T5250 1.50-GHz processor 455399-001

Intel Celeron-M processors (1-MB L2 cache, 533-MHz FSB)

540 1.86-GHz processor

530 1.73-GHz processor 454599-001

454016-001

454598-001

454600-001

Before removing the processor, follow these steps:

Shut down the computer. If you are unsure whether the computer is off or in Hibernation, turn the

computer on, and then shut it down through the operating system.

Disconnect all external devices connected to the computer.

Disconnect the power from the computer by first unplugging the power cord from the AC outlet and

then unplugging the AC adapter from the computer.

Remove the battery (see

Remove the following components:

Hard drive (see

Optical drive (see

Keyboard (see

Switch cover (see

Display assembly (see

Top cover (see

Bluetooth module (see

System board (see

Battery on page 37).

Hard drive on page 38)

Optical drive on page 45)

Keyboard on page 47)

Switch cover on page 49)

Display assembly on page 51)

Top cover on page 55)

Bluetooth module on page 61)

System board on page 65)

Component replacement procedures 75

Fan (see

Fan on page 71)

Heat sin (see

Heat sink on page 73)

Remove the processor:

1. Use a flat-bladed screwdriver to turn the processor locking screw (1) one-half turn counterclockwise

until you hear a click.

2. Lift the processor (2) straight up and remove it.

NOTE: When you install the processor, the gold triangle (3) on the processor must be aligned with

the triangle (4) embossed on the processor slot.

Reverse this procedure to install the processor.

76 Chapter 4 Removal and replacement procedures

Computer Setup

Starting Computer Setup

Computer Setup is a preinstalled, ROM-based utility that can be used even when the operating system is not working or will not load.

NOTE: Some of the Computer Setup menu items listed in this guide may not be supported by your

computer.

NOTE: Pointing devices are not supported in Computer Setup. You must use the keyboard to navigate

and make selections.

NOTE: An external keyboard connected by USB can be used with Computer Setup only if USB legacy

support is enabled.

To start Computer Setup, follow these steps:

Turn on or restart the computer.

Before Windows® opens and while the "F10 = ROM Based Setup" message is displayed in the

lower-left corner of the screen, press f10.

Starting Computer Setup 77

Using Computer Setup

Navigating and selecting in Computer Setup

The information and settings in Computer Setup are accessed from the File, Security, Diagnostics, and System Configuration menus.

Open Computer Setup by turning on or restarting the computer, and then pressing f10 while the

"F10 = ROM Based Setup" message is displayed in the lower-left corner of the screen.

Because Computer Setup is not Windows-based, it does not support the TouchPad. Navigation and selection are by keystroke:

To choose a menu or a menu item, use the arrow keys.

●

To select an item, press enter.

●

To close open dialog boxes and return to the main Computer Setup screen, press esc.

●

To view navigation information, press f1.

●

To change the language, press f2.

●

2. Select the File, Security, Diagnostics, or System Configuration menu.

To exit Computer Setup, choose one of the following methods:

●

To exit Computer Setup without saving your preferences, use the arrow keys to select File > Ignore Changes and Exit. Then follow the instructions on the screen.

●

To save your preferences and exit Computer Setup, use the arrow keys to select File > Save Changes and Exit. Then follow the instructions on the screen.

Your preferences go into effect when the computer restarts.

Restoring factory settings in Computer Setup

To return all settings in Computer Setup to the values that were set at the factory, follow these steps:

Open Computer Setup by turning on or restarting the computer, and then pressing f10 while the

"F10 = ROM Based Setup" message is displayed in the lower-left corner of the screen.

2. Use the arrow keys to select File > Restore defaults, and then press enter.

When the confirmation dialog box opens, press f10.

4. To save your preferences and exit Computer Setup, use the arrow keys to select File > Save

Changes and Exit. Then follow the instructions on the screen.

Your preferences go into effect when the computer restarts.

NOTE: Your password settings and security settings are not changed when you restore the factory

settings.

78 Chapter 5 Computer Setup

Computer Setup menus

The menu tables in this section provide an overview of Computer Setup options.

NOTE: Some of the Computer Setup menu items listed in this chapter may not be supported by your

computer.

File menu

Select To do this

System information

Restore defaults Replace the configuration settings in Computer Setup with the original factory

Ignore changes and exit Cancel any changes entered during the current session. Then exit and restart the

Save changes and exit Save any changes entered during the current session. Then exit and restart the

View identification information for the computer and the batteries in the system.

●

View specification information for the processor, cache and memory size,

●

system ROM, video revision, and keyboard controller version.

settings. (Password settings and security settings are not changed when you restore the factory settings.)

computer.

computer. Your changes go into effect when the computer restarts.

Computer Setup menus 79

Security menu

Select To do this

Setup password Enter, change, or delete a setup password.

Power-On password Enter, change, or delete a power-on password.

Password options

DriveLock passwords

Smart Card security Enable/disable support for smart card and Java™ Card power-on authentication.

TPM Embedded Security Enable/disable support for Trusted Platform Module (TPM) Embedded Security,

System IDs Enter user-defined computer asset tracking number and ownership tag.

Disk Sanitizer Run Disk Sanitizer to destroy all existing data on the primary hard drive. The

Enable/disable stringent security.

●

Enable/disable password requirement on computer restart.

●

Enable/disable DriveLock on any computer hard drive and on optional

●

MultiBay hard drives.

● Change a DriveLock user password or master password.

NOTE: DriveLock settings are accessible only when you enter Computer Setup by

turning on (not restarting) the computer.

NOTE: Power-on authentication for smart cards is supported only on computers

with optional smart card readers.

NOTE: You must have an administrator password to change this setting.

which protects the computer from unauthorized access to owner functions available in Embedded Security for ProtectTools. For more information, refer to the ProtectTools software Help.

NOTE: You must have a setup password to change this setting.

following options are available:

Diagnostics menu

Select To do this

Hard Drive Self-Test options Run a comprehensive self-test on any hard drive in the system or on any optional

Memory Check Run a comprehensive check on system memory.

Startup Check (select models only) Verify the system components needed for starting the computer.

Fast: Runs the Disk Sanitizer erase cycle once.

●

Optimum: Runs the Disk Sanitizer erase cycle 3 times.

●

Custom: Allows you to select the desired number of Disk Sanitizer erase cycles

●

from a list.

CAUTION: If you run Disk Sanitizer, the data on the primary hard drive is

destroyed permanently.

MultiBay hard drive.

80 Chapter 5 Computer Setup

System Configuration menu

NOTE: Some of the listed System Configuration options may not be supported by your computer.

Select To do this

Language (or press f2) Change the Computer Setup language.

Boot options

Device configurations

Set f9, f10, and f12 delay when starting up.

●

Enable/disable CD-ROM boot.

●

Enable/disable floppy boot.

●

Enable/disable internal network adapter boot and set the boot mode (PXE or

●

RPL).

Enable/disable MultiBoot, which sets a boot order that can include most boot

●

devices in the system.

Set the Express Boot Popup delay in seconds.

●

Set the boot order.

●

Swap the functions of the fn key and left ctrl key.

●

Enable/disable multiple standard pointing devices at startup. (To set the

●

computer to support only a single, usually nonstandard, pointing device at startup, select Disable.)

Enable/disable USB legacy support. When enabled, USB legacy support

●

allows the following:

Use of a USB keyboard, mouse, and hub in Computer Setup even when

◦

a Windows operating system is not running.

Startup from bootable USB devices, including a hard drive, diskette drive,

◦

or optical drive connected by a USB port to the computer or to an optional docking device (select models only).

Select a parallel port mode: EPP (Enhanced Parallel Port), standard,

●

bidirectional, or ECP (Enhanced Capabilities Port).

Enable/disable BIOS DMA data transfers.

●

Enable/disable fan always on while connected to an AC outlet.

●

Enable/disable Intel® Data Execution Prevention or AMD® PSAE Execution

●

Disable. When enabled, the processor can disable some virus code execution, which helps to improve computer security.

● Enable/disable LAN Power Save. When enabled, saves power by turning off

the LAN when not in use.

Enable/disable SATA Native Mode.

●

Enable/disable Dual Core CPU.

●

Enable/disable Secondary Battery Fast Charge.

●

Choose Bit-shift or LBA assisted HDD Translation Mode.

●

Enable/disable Windows direct application launcher.

●

Enable/disable HP Lockout.

●

Computer Setup menus 81

Select To do this

Built-In Device Options ● Enable/disable embedded WWAN Device Radio.

Enable/disable embedded WLAN Device Radio.

●

Enable/disable embedded Bluetooth® Device Radio.

●

Enable/disable LAN/WLAN Switching. When enabled, switches to a WLAN

●

when a LAN is either unavailable or disconnected.

Enable/disable Wake on LAN from Off.

●

Enable/disable the ambient light sensor.

●

Port Options

Enable/disable the serial port.

●

Enable/disable the parallel port.

●

Enable/disable the flash media reader.

●

Enable/disable the USB port.

●

CAUTION: Disabling the USB port also disables MultiBay devices and

ExpressCard devices on the advanced port replicator.

Enable/disable the 1394 port.

●

Enable/disable the cardbus slot.

●

Enable/disable the ExpressCard slot.

●

Enable/disable the infrared port.

●

Enable/disable the optical disk drive.

●

Enable/disable the network controller.

●

82 Chapter 5 Computer Setup

Specifications

Computer specifications

Metric U.S.

Dimensions

Length

Width 22.5 cm 8.86 in

Height (front to rear) 2.8 to 3.3 cm 1.10 to 1.29 in

Weight

Equipped with 8-cell battery and optical drive

Equipped with 4-cell battery and optical drive 1.92 kg 4.23 lbs

Input power

Operating voltage

Operating current 4.74 A

Temperature

Operating (not writing to optical disc)

Operating (writing to optical disc) 5°C to 35°C 41°F to 95°F

Nonoperating -20°C to 60°C -4°F to 140°F

Relative humidity

Operating

Nonoperating 5% to 95%

30.6 cm 12.01 in

2.12 kg 4.67 lbs

19.0 V dc @ 4.74 A – 65 W

0°C to 35°C 32°F to 95°F

10% to 90%

Maximum altitude (unpressurized)

Operating (14.7 to 10.1 psia)

Nonoperating (14.7 to 4.4 psia) -15 m to 12,192 m -50 ft to 40,000 ft

Shock

Operating

Nonoperating 200 g, 2 ms, half-sine

Random vibration

-15 m to 3,048 m 50 ft to 10,000 ft

125 g, 2 ms, half-sine

Computer specifications 83

Metric U.S.

Operating 0.75 g zero-to-peak, 10 Hz to 500 Hz, 0.25 oct/min sweep

Nonoperating 1.50 g zero-to-peak, 10 Hz to 500 Hz, 0.5 oct/min sweep rate

NOTE: Applicable product safety standards specify thermal limits for plastic surfaces. The computer operates well within this

range of temperatures.

rate

12.1-inch, WXGA display specifications

Metric U.S.

Dimensions

Height

Width 26.2 cm 10.3 in

Diagonal 30.8 cm 12.1 in

Number of colors

Contrast ratio

Brightness

Pixel resolution

16.9 cm 6.7 in

Up to 16.8 million

250:1 (typical)

180 nits (typical)

Pitch

Format 1280 × 800

Configuration RGB vertical stripe

Backlight

Character display

Total power consumption

Viewing angle

0.279 × 0.279 mm

Edge lit

80 × 25

4.0 W

+/-40 horizontal, +120/–40° vertical (typical)

84 Chapter 6 Specifications

Hard drive specifications

200-GB* 160-GB* 120-GB* 80-GB*

Dimensions

Height

Width 70 mm 70 mm 70 mm 70 mm

Weight 101 g 101 g 101 g 101 g

Interface type

Transfer rate

Security

Seek times (typical read, including setting)

Single track

Average 13 ms 13 ms 13 ms 13 ms

Maximum 24 ms 24 ms 24 ms 24 ms

Logical blocks

Disc rotational speed

Operating temperature

*1 GB = 1 billion bytes when referring to hard drive storage capacity. Actual accessible capacity is less. Actual drive specifications may differ slightly.

NOTE: Certain restrictions and exclusions apply. Contact technical support for details.

9.5 mm 9.5 mm 9.5 mm 9.5 mm

SATA SATA SATA SATA

100 MB/sec 100 MB/sec 100 MB/sec 100 MB/sec

ATA security ATA security ATA security ATA security

3 ms 3 ms 3 ms 3 ms

390,700,850 312,560,640 234,420,480 156,280,320

4200 rpm 5400 rpm 5400 rpm 5400 rpm

5°C to 55°C (41°F to 131°F)

Hard drive specifications 85

DVD/CD-RW Combo Drive specifications

Applicable disc Read:

CD-DA, CD+(E)G, CD-MIDI, CD-TEXT, CD-ROM, CD-ROM XA, MIXED MODE CD, CD-I, CD-I Bridge (Photo-CD, Video CD), Multisession CD (Photo-CD, CD-EXTRA, Portfolio, CD-R, CD-RW), CD-R, CD-RW, DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18), DVD-R, DVD-RW, DVD+R, DVD+RW, DVD-RAM

Center hole diameter

Disc diameter

Standard disc

Mini disc 8 cm (3.15 in)

Disc thickness

Track pitch

Access time

Random < 110 ms < 130 ms

Full stroke < 210 ms < 225 ms

Audio output level

Cache buffer

1.5 cm (0.59 in)

12 cm (4.72 in)

1.2 mm (0.047 in)

0.74 μm

CD DVD

Line-out, 0.7 Vrms

2 MB

Write:

CD-R and CD-RW

Data transfer rate

24X CD-ROM 3,600 KB/sec

8X DVD 3,600 KB/sec

24X CD-R 3,600 KB/sec

24X CD-RW 3,600 KB/sec

Transfer mode

Startup time

Stop time

Multiword DMA mode 2

< 15 seconds

< 6 seconds

86 Chapter 6 Specifications

DVD-ROM Drive

Applicable disc

Center hole diameter

Disc diameter

Standard disc

Mini disc

Disc thickness

Track pitch

Access time

Random < 100 ms < 125 ms

Full stroke < 175 ms < 225 ms

Audio output level

Cache buffer

Data transfer rate

CD-R (24X) 3600 KB/s (150 KB/s at 1X CD rate)

CD-RW (10X) 1500 KB/s (150 KB/s at 1X CD rate)

DVD-ROM (DVD-5, DVD-9, DVD-10, DVD-18, CD-ROM (Mode 1 and 2), CD Digital Audio, CD-XA ready (Mode 2, Form 1 and Form 2), CD-I (Mode 2, Form 1 and Form 2), CD-R, CD-RW, Photo CD (single and multisession), CD-Bridge

1.5 cm (0.59 in)

12 cm (4.72 in)

8 cm (3.15 in)

1.2 mm (0.047 in)

0.74 μm

CD DVD

Line-out, 0.7 Vrms

512 KB

CD-ROM (24X) 3600 KB/s (150 KB/s at 1X CD rate)

DVD (8X) 10,800 KB/s (1,352 KB/s at 1X DVD rate)

Multiword DMA mode 2 16.6 MB/s

Startup time

Stop time

< 10 seconds

< 3 seconds

DVD-ROM Drive 87

System DMA specifications

Hardware DMA System function

DMA0 Not applicable

DMA1* Not applicable

DMA2* Not applicable

DMA3 Not applicable

DMA4 Direct memory access controller

DMA5* Available for PC Card

DMA6 Not assigned

DMA7 Not assigned

*PC Card controller can use DMA 1, 2, or 5.

88 Chapter 6 Specifications

System interrupt specifications

Hardware IRQ System function

IRQ0 System timer

IRQ1 Standard 101-/102-Key or Microsoft® Natural Keyboard

IRQ2 Cascaded

IRQ3 Intel 82801DB/DBM USB2 Enhanced Host Controller—24CD

IRQ4 COM1

IRQ5* Conexant AC—Link Audio Intel 82801DB/DBM SMBus Controller—24C3 Data Fax

Modem with SmartCP

IRQ6 Diskette drive

IRQ7* Parallel port

IRQ8 System CMOS/real-time clock

IRQ9* Microsoft ACPI-compliant system

IRQ10* Intel USB UHCI controller—24C2

Intel 82852/82855 GM/GME Graphic Controller

Realtek RTL8139 Family PCI Fast Ethernet Controller

IRQ11 Intel USB EHCI controller—24CD

Intel USB UHCI controller—24C4

Intel USB UHCI controller—24C7

Intel Pro/Wireless 2200BG

TI OHCI 1394 host controller

TI PCI1410 CardBus controller

IRQ12 Synaptics PS/2 TouchPad

IRQ13 Numeric data processor

IRQ14 Primary IDE channel

IRQ15 Secondary IDE channel

*Default configuration; audio possible configurations are IRQ5, IRQ7, IRQ9, IRQ10, or none.

NOTE: PC Cards may assert IRQ3, IRQ4, IRQ5, IRQ7, IRQ9, IRQ10, IRQ11, or IRQ15. Either the infrared or the serial port

may assert IRQ3 or IRQ4.

System interrupt specifications 89

System I/O address specifications

I/O address (hex) System function (shipping configuration)

000 - 00F DMA controller no. 1

010 - 01F Unused

020 - 021 Interrupt controller no. 1

022 - 024 Opti chipset configuration registers

025 - 03F Unused

02E - 02F 87334 “Super I/O” configuration for CPU

040 - 05F Counter/timer registers

044 - 05F Unused

060 Keyboard controller

061 Port B

062 - 063 Unused

064 Keyboard controller

065 - 06F Unused

070 - 071 NMI enable/RTC

072 - 07F Unused

080 - 08F DMA page registers

090 - 091 Unused

092 Port A

093 - 09F Unused

0A0 - 0A1 Interrupt controller no. 2

I/O Address (hex) System Function (shipping configuration)

0A2 - 0BF Unused

0C0 - 0DF DMA controller no. 2

0E0 - 0EF Unused

0F0 - 0F1 Coprocessor busy clear/reset

0F2 - 0FF Unused

100 - 16F Unused

170 - 177 Secondary fixed disk controller

178 - 1EF Unused

1F0 - 1F7 Primary fixed disk controller

1F8 - 200 Unused

201 JoyStick (decoded in ESS1688)

202 - 21F Unused

90 Chapter 6 Specifications

I/O address (hex) System function (shipping configuration)

220 - 22F Entertainment audio

230 - 26D Unused

26E - 26 Unused

278 - 27F Unused

280 - 2AB Unused

2A0 - 2A7 Unused

2A8 - 2E7 Unused

2E8 - 2EF Reserved serial port

2F0 - 2F7 Unused

2F8 - 2FF Infrared port

300 - 31F Unused

320 - 36F Unused

370 - 377 Secondary diskette drive controller

378 - 37F Parallel port (LPT1/default)

380 - 387 Unused

388 - 38B FM synthesizer—OPL3

38C - 3AF Unused

3B0 - 3BB VGA

3BC - 3BF Reserved (parallel port/no EPP support)

3C0 - 3DF VGA

3E0 - 3E1 PC Card controller in CPU

3E2 - 3E3 Unused

3E8 - 3EF Internal modem

3F0 - 3F7 “A” diskette controller

3F8 - 3FF Serial port (COM1/default)

CF8 - CFB PCI configuration index register (PCIDIVO-1)

CFC - CFF PCI configuration data register (PCIDIVO-1)

System I/O address specifications 91

System memory map specifications

Size Memory address System function

640 KB 00000000-0009FFFF Base memory

128 KB 000A0000-000BFFFF Video memory

48 KB 000C0000-000CBFFF Video BIOS

160 KB 000C8000-000E7FFF Unused

64 KB 000E8000-000FFFFF System BIOS

15 MB 00100000-00FFFFFF Extended memory

58 MB 04800000-07FFFFFF Super extended memory

58 MB 04800000-07FFFFFF Unused

2 MB 08000000-080FFFFF Video memory (direct access)

4 GB 08200000-FFFEFFFF Unused

64 KB FFFF0000-FFFFFFFF System BIOS

92 Chapter 6 Specifications

HP 2210B User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Product description

External component identification

Display components

Top components

Pointing devices

Buttons and fingerprint reader

Keys

Lights

Front components

Left-side components

Right-side components

Bottom components

Illustrated parts catalog

Serial number location

Computer major components

Cable Kit

Plastics Kit

Mass storage devices

Miscellaneous parts

Sequential part number listing

Removal and replacement procedures

Preliminary replacement requirements

Tools required

Service considerations

Plastic parts

Cables and connectors

Drive handling

Grounding guidelines

Electrostatic discharge damage

Packaging and transporting guidelines

Workstation guidelines

Equipment guidelines

Unknown user password

Component replacement procedures

Serial number

Computer feet

Battery

Hard drive

Memory module

WLAN module

Optical drive

Keyboard

Switch cover

Display assembly

Top cover

RTC battery

Front LED board

Bluetooth module

Speaker assembly

Microphone

System board

ExpressCard assembly

Modem module

Heat sink

Processor

Computer Setup

Starting Computer Setup

Using Computer Setup

Navigating and selecting in Computer Setup

Restoring factory settings in Computer Setup

Computer Setup menus

File menu

Security menu

Diagnostics menu

System Configuration menu

Specifications

Computer specifications

12.1-inch, WXGA display specifications

Hard drive specifications

DVD/CD-RW Combo Drive specifications

DVD-ROM Drive

System DMA specifications

System interrupt specifications

System I/O address specifications

System memory map specifications
