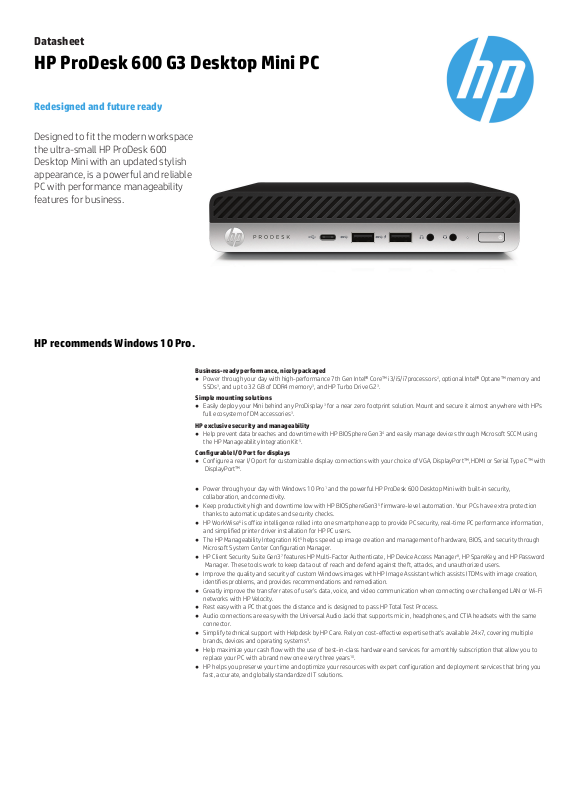

Datasheet
HP ProDesk 600 G3 Desktop Mini PC
Redesigned and future ready
Designed to fit the modern workspace the ultra-small HP ProDesk 600 Desktop Mini with an updated stylish appearance, is a powerful and reliable PC with performance manageability features for business.
HP recommends Windows 10 Pro.
Business-ready performance, nicely packaged
Power through your day with high-performance 7th Gen Intel® Core™ i3/i5/i7processors2, optional Intel® Optane™ memory and
SSDs3, and up to 32 GB of DDR4 memory3, and HP Turbo Drive G23.
Simple mounting solutions
Easily deploy your Mini behind any ProDisplay3for a near zero footprint solution. Mount and secure it almost anywhere with HP’s
full ecosystem of DM accessories3.
HP exclusive security and manageability
Help prevent data breaches and downtime with HP BIOSphere Gen34and easily manage devices through Microsoft SCCM using
the HP Manageability Integration Kit5.
Configurable I/O Port for displays
Configure a rear I/O port for customizable display connections with your choice of VGA, DisplayPort™, HDMI or Serial Type C™ with
DisplayPort™.
Power through your day with Windows 10 Pro1and the powerful HP ProDesk 600 Desktop Mini with built-in security,
collaboration, and connectivity. Keep productivity high and downtime low with HP BIOSphereGen35firmware-level automation. Your PCs have extra protection
thanks to automatic updates and security checks. HP WorkWise6is office intelligence rolled into one smartphone app to provide PC security, real-time PC performance information,
and simplified printer driver installation for HP PC users. The HP Manageability Integration Kit5helps speed up image creation and management of hardware, BIOS, and security through
Microsoft System Center Configuration Manager. HP Client Security Suite Gen37features HP Multi-Factor Authenticate, HP Device Access Manager8, HP SpareKey, and HP Password
Manager. These tools work to keep data out of reach and defend against theft, attacks, and unauthorized users.
Improve the quality and security of custom Windows images with HP Image Assistant which assists ITDMs with image creation,
identifies problems, and provides recommendations and remediation. Greatly improve the transfer rates of user’s data, voice, and video communication when connecting over challenged LAN or Wi-Fi
networks with HP Velocity. Rest easy with a PC that goes the distance and is designed to pass HP Total Test Process.
Audio connections are easy with the Universal Audio Jacki that supports mic in, headphones, and CTIA headsets with the same
connector. Simplify technical support with Helpdesk by HP Care. Rely on cost-effective expertise that’s available 24x7, covering multiple
brands, devices and operating systems9. Help maximize your cash flow with the use of best-in-class hardware and services for a monthly subscription that allow you to
replace your PC with a brand new one every three years10. HP helps you preserve your time and optimize your resources with expert configuration and deployment services that bring you
fast, accurate, and globally standardized IT solutions.
Page 2
Datasheet
HP ProDesk 600 G3 Desktop Mini PC Specifications Table
Form Factor
Available Operating System
Available Processors
4,5
Chipset
Maximum Memory
Memory slots
Internal Storage
Optical Storage
Available Graphics
Audio
Communications
Expansion Slots
Ports and Connectors
Internal Drive Bays
Input Device
Available Software
Security Management
Management Features
Power
Dimensions
Weight
Environmental
Energy Efficiency Compliance
Mini
Windows 10 Pro 64 – HP recommends Windows 10 Pro. Windows 10 Home 64 Windows 10 Home Single Language 64 Windows 7 Professional 64 (available through downgrade rights from Windows 10 Pro) FreeDOS 2.0
Intel® Core™ i7-7700T with Intel HD Graphics 630 (2.9 GHz, up to 3.8 GHz with Intel Turbo Boost, 8 MB cache, 4 cores); Intel® Core™ i5-7500T with Intel HD Graphics 630 (2.7 GHz, up to 3.3 GHz with Intel Turbo Boost, 6 MB cache, 4 cores); Intel® Core™ i5-7600T with Intel HD Graphics 630 (2.8 GHz, up to 3.7 GHz with Intel Turbo Boost, 6 MB cache, 4 cores); Intel® Core™ i3-7100T with Intel HD Graphics 630 (3.4 GHz, 3 MB cache, 2 cores); Intel® Core™ i3-7300T with Intel HD Graphics 630 (3.5 GHz, 3 MB cache, 2 cores); Intel® Core™ i7-6700T with Intel HD Graphics 530 (2.8 GHz, up to 3.6 GHz with Intel Turbo Boost, 8 MB cache, 4 cores); Intel® Core™ i5-6600T with Intel HD Graphics 530 (2.7 GHz, up to 3.5 GHz with Intel Turbo Boost, 6 MB cache, 4 cores); Intel® Core™ i5-6500T with Intel HD Graphics 530 (2.5 GHz, up to 3.1 GHz with Intel Turbo Boost, 6 MB cache, 4 cores); Intel® Core™ i3-6100T with Intel HD Graphics 530 (3.2 GHz, 3 MB cache, 2 cores); Intel® Pentium® G4560T with Intel HD Graphics 610 (2.9 GHz, 3 MB cache, 2 cores); Intel® Pentium® G4600T with Intel HD Graphics 630 (3 GHz, 3 MB cache, 2 cores); Intel® Celeron™ G3930T with Intel HD Graphics 610 (2.7 GHz, 2 MB cache, 2 cores)
Intel® Q270
Up to 32 GB DDR4-2400 SDRAM Standard memory note: Transfer rates up to 2400 MT/s
2 SODIMM
500 GB up to 2 TB 2.5" SATA (7200 rpm) 500 GB up to 1 TB SATA SSHD (5400 rpm) 256 GB up to 512 GB SATA SED SSD 256 GB up to 1 TB HP Turbo Drive G2 TLC SSD (PCIe) 128 GB up to 256 GB SATA SSD up to 500 GB 2.5" SATA SED HDD
DVD-Writer (optional)
Integrated: Intel® HD Graphics 530; Intel® HD Graphics 630; Intel® HD Graphics 610
Conexant CX20632 codec with universal audio jack and 2W internal speaker, headset and headphone front ports (3.5 mm), multi-streaming capable
LAN: Intel® I219LM Gigabit Network Connection LOM WLAN: Intel® 8265 802.11ac (2x2) wireless with Bluetooth® M.2 combo card vPro™; Intel® 8265 802.11ac (2x2) wireless with Bluetooth® M.2 combo card non-vPro™; Intel® 7265
802.11ac (2x2) wireless with Bluetooth® M.2 combo card non-vPro™
1 M.2 2230 for optional wireless NIC; 1 M.2 2280 for storage drives
Front: 1 USB 3.1 Type-C™ (charging); 1 USB 3.1 Gen 1; 1 USB 3.1 Gen 1 (charging); 1 Headphone connector; Universal audio jack with CTIA headset support Back: 1 security lock slot; 1 external antenna connector; 2 DisplayPort™; 4 USB 3.1 Gen 1; 1 R J-45; 1 power connector; 1 optional port Back (optional): 1 DisplayPort™; 1 HDMI; 1 VGA; 1 serial; 1 USB 3.1 Type-C™ (DisplayPort™ alternate mode or 15 W output)
One 6.35 cm (2.5")
HP USB Conferencing Keyboard; HP USB Smart Card (CCID) Keyboard; HP USB Business Slim Keyboard; HP USB Grey Business Slim Keyboard HP USB 1000 dpi Laser Mouse; HP Grey V2 Mouse; HP USB Optical Mouse; HP USB Hardened Mouse
HP business PCs are shipped with a variety of software titles including: HP BIOSphere Gen3, CyberLink Power Media Player, Native Miracast Support, HP ePrint Driver, HP Support Assistant. Please refer to this product's quick spec document for a full list of preinstalled software.
Trusted Platform Module TPM 2.0 Embedded Security Chip (SLB9670 - Common Criteria EAL4+ Certified); SATA 0,1 port disablement (via BIOS); Drive lock; Serial, USB enable/disable (via BIOS); Power-on password (via BIOS); Setup password (via BIOS); Support for chassis padlocks and cable lock devices; Integrated hood sensor
Intel® vPro™ optional (Core i5 and Core i7)
65 W 89% efficient
17.7 x 3.42 x 17.47 cm
1.21 kg
Low halogen
ENERGY STAR® certified and EPEAT® registeredconfigurations available
1
1
6
7
7
7
7
7
HP recommends Windows 10 Pro.
1
3
7
10,11,12
9,19
8
13
14,15,16
17
13
Page 3
Datasheet
HP ProDesk 600 G3 Desktop Mini PC
Accessories and services (not included)
HP Desktop Mini Rack Mount Tray Kit Module
G1K21AA
Put your HP Desktop Mini PCs to work behind the scenes with HP Desktop Mini Rack Mount Tray Kit Modules, which holds up to eight PCs and fit into the HP 100kg Sliding Shelf.
HP Desktop Mini DVD ODD Module
K9Q83AA
Add a DVD Writer to your HP Desktop Mini PC with HP Desktop Mini DVD Writer ODD Module.
1
HP Desktop Mini Chassis Tower Stand
G1K23AA
Keep it vertical. Make the most of space-constrained environments by deploying your HP Desktop Mini in a vertical
1
orientation with the HP Desktop Mini Chassis Tower Stand.
HP Desktop Mini I/O Module
K9Q84AA
Keep working with your existing peripherals and add legacy ports to your HP Desktop Mini PC with the HP Desktop Mini I/O Module.
HP recommends Windows 10 Pro.
HP Integrated Work Center for Desktop Mini and Thin Client
G1V61AA
Make the most of small work spaces with an HP IWC Desktop Mini/Thin Client that lets you create a compact desktop solution by combining a display1with an HP Desktop Mini, HP Thin Client or HP Chromebox1and giving you convenient front access to all of its inputs.
HP Desktop Mini 65w Power Supply Kit
L2X04AA
Keep an extra HP Desktop Mini adapter at the ready, or take it with you if you use your HP Desktop Mini on the go with the HP Desktop 65W Mini Power Supply Kit.
1
HP Wireless Slim Business Keyboard
N3R88AA
Enjoy easy data entry and wireless connectivity with the HP Wireless Business Slim Keyboard, designed to complement the 2015 class of HP Business PCs.
HP Desktop Mini Port Cover Kit
P3R65AA
Help prevent unauthorized access to the rear ports of your HP Desktop Mini with HP Desktop Mini Port Cover Kit.
HP 5 year Next business day Onsite Desktop Only Hardware Support
U7899E
HP USB Business Speakers v2
N3R89AA
Quickly and easily add stereo sound to your workspace with HP USB Business Speakers v2, a set of stylish desktop speakers powered by your PC’s USB port.
HP Business Headset v2
T4E61AA
Quickly and easily collaborate, chat online or listen to personal media with the crystal-clear sound and noise cancelling features of the sleek, lightweight HP Business Headset v2, designed to complement your professional workspace.1,
2
HP Desktop Mini LockBox
P1N78AA
Fortify your HP Desktop Mini in a range of settings with the HP Desktop Mini LockBox, HP’s most secure enclosure for your PC, power brick, and cable connections.
Learn more at
www.hp.eu/desktops
Page 4
Datasheet
HP ProDesk 600 G3 Desktop Mini PC
HP recommends Windows 10 Pro.
Messaging Footnotes
1
Not all featuresare available in all editions or versions of Windows. Systems may requireupgraded and/or separately purchasedhardware, drivers, software or BIOS update to takefull advantage of Windows functionality. Windows 10 is automatically updated,
which is always enabled. ISP feesmay apply and additional requirements may apply over time for updates.See http://www.windows.com.
2
Multi-Core is designed toimprove performance of certain software products. Not allcustomers or software applications will necessarily benefit from use of this technology.Performance and clock frequency will vary depending on application workloadand your
hardware and softwareconfigurations. Intel’s numbering is not a measurement of higher performance.
3
Sold separatelyor as an optional feature.
4
HP BIOSphere Gen3 featuresmay vary depending on the PC platform and configurations.
5
HP Manageability Integration Kit is planned tobe available first quarter 2017 and can be downloaded from http://www8.hp.com/us/en/ads/clientmanagement/overview.html.
6
HP WorkWise smartphone app will soon be availableas a free download on the App Store and GooglePlay.
7
HP Client Security Suite Gen3 requires Windowsand Intel® 7th Gen processors.
8
HP Multi FactorAuthenticate requires 7th Generation Intel® Core™ processor, Intel® integratedgraphics, and Intel® WLAN.
9
HP Care Services are optional.Ser vicelevels and response times for HP Care Pack Services may vary dependingon your geographic location. Service starts on date of hardware purchase.Restrictions and limitations apply. For details, visit www.hp.com/go/cpc. HP services are governed bythe applicable HP terms and conditions of service provided or indicated to Customerat the time of purchase. Customer may have additional statutory rights accordingto applicable local laws, and such rights are not in any way affected by the HP terms and conditions of service or theHP Limited Warranty provided with your HP Product.
10
Financing and service offerings availablethrough Hewlett-Packard Financial Services Company and its subsidiariesand affiliates (collectively HPFSC) in certain countries and is subject tocredit approval and execution of standard HPFSC documentation. Subscriptions to use are availablefor 24 or 36 month terms. Rates and terms are based on customer’s creditrating, offering types, services and/or equipment type and options. Not allcustomers may qualify. Not all services or offers are available in all countries. Other restrictions may apply.HPFSC reserves the right to change or cancel this program at any time without notice.
Technical specifications disclaimers
1
Not all featuresare available in all editions or versions of Windows. Systems may requireupgraded and/or separately purchasedhardware, drivers, software or BIOS update to takefull advantage of Windows functionality. Windows 10 is automatically updated,
which is always enabled. ISP feesmay apply and additional requirements may apply over time for updates.See http://www.windows.com/.
2
Some devices for academic use will automatically be updated to Windows 10 Pro Education with theWindows 10 Anniversary update. Features vary; see https://aka.ms/ProEducationfor Windows 10 Pro Education feature information.
3
This system is preinstalledwith Windows 7 Pro software and also comes with a license and media for Windows 10 Prosoftware. You may only use one version of the Windowssoftware at a time. Switching between versions will require you touninstall one
version and install the other version.You must back up all data (files, photos, etc.)before uninstalling and installing operating systems to avoid lossof your data.
4
Multicore is designed toimprove performance of certain software products. Not allcustomers or software applications will necessarily benefit from use ofthis technology. Performance and clock frequency will vary depending on application workloadand your
hardware and softwareconfigurations. Intel’s numbering is not a measurement of higher performance.
5
Your productdoes not support Windows 8 or Windows 7. In accordance with Microsoft’s support policy,HP does not support the Windows 8 or Windows 7 operating system on products configuredwith Intel and AMD 7th generation and forward processors or
provide any Windows 8 or Windows 7 driverson http://www.support.hp.com.
6
Due to the non-industry standard natureof some third-party memory modules, we recommend HP branded memory to ensure compatibility. Ifyou mix memory speeds, the system will perform at the lower memory speed.
7
For storage drives,GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less.Up to 30 GB (for Windows 10) is reserved for system recoverysoftware.
8
HDMI cable sold separatelyor as an optional feature.
9
Wireless cardsare optional or add-on features and requires separatelypurchased wireless access point and internet service. Availabilityof public wireless access points limited. The specifications forthe 802.11ac WLAN are draft specifications and are not final. If
the final specifications differ from the draft specifications,it may affect the ability of the notebook to communicate with other 802.11ac WLAN devices.
10
Intel® HD Graphics 530: integratedon 6th gen Core™ i7/i5/i3 processors
11
Intel® HD Graphics 630: integratedon 7th gen Core™ i7/i5/i3 processors and Pentium® G4620, 4600, 4600T
12
Intel® HD Graphics 610: integratedon Pentium® G4560, G4560T, Celeron™G3950, G3930, G3930T
13
Sold separatelyor as an optional feature.
14
HP BIOSphere Gen 3 requiresIntel® 7th generation processors.
15
Miracast is a wirelesstechnology your PC can use to project your screen to TVs, projectors,and streaming media players that also support Miracast. Youcan use Miracast to share what you’re doing on your PC and present a slideshow. For more information: http://windows.microsoft.com/en-us/windows-8/project-wireless-screen-miracast.
16
HP ePrint Driver requires an Internetconnection to HP web-enabled printer and HP ePrint account registration(for a list of eligible printers, supported documents and image types and other HP ePrint details, see www.hp.com/go/eprintcenter). Requires optional broadband module. Broadbanduse requires separately purchased service contract. Check with serviceprovider for coverage and availability in your area. Separatelypurchased data plans or usage fees may apply. Print times and connectionspeeds may vary.
17
EPEAT® registered where applicable. EPEATregistration varies by country. See www.epeat.net for registration statusby country.
18
External power supplies, power cords,cables and peripherals are not low halogen. Service parts obtainedafter purchase may not be low halogen.
19
Wake on Lan featureis not available.
Learn more at
www.hp.eu/desktops
Sign up for updates
www.hp.com/go/getupdated
Copyright © 2017 HP Development Company, L.P. The only warranties for HP products are set forth in the express limited warranty statements accompanying such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. Intel, Core, Pentium, Celeron and vPro are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries. Bluetooth is a trademark of its proprietor and used by HP Inc. under license. USB Type-C™ and USB-C™ are trademarks of USB Implementers Forum. ENERGY STAR is a registered trademark of the U.S. Environmental Protection Agency. DisplayPort™ and the DisplayPort™ logo are trademarks owned by the Video Electronics Standards Association (VESA®) in the United States and other countries. All other trademarks are the property of their respective owners.
4AA6-9330EEE, February 2017
