Datasheet

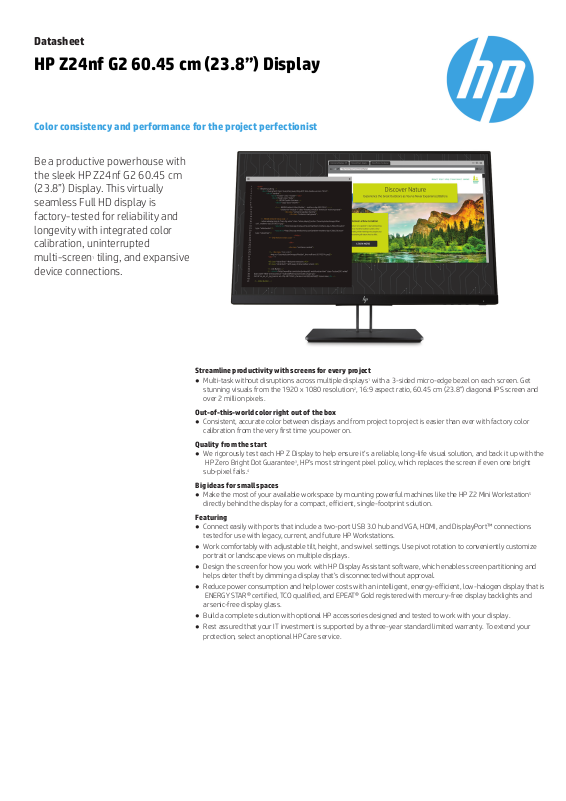

HP Z24nf G2 60.45 cm (23.8”) Display
Color consistency and performance for the project perfectionist
Be a productive powerhouse with
the sleek HP Z24nf G2 60.45 cm
(23.8”) Display. This virtually
seamless Full HD display is
factory-tested for reliability and
longevity with integrated color
calibration, uninterrupted
multi-screen1tiling, and expansive
device connections.
Streamline productivity with screensfor every project
Multi-task without disruptions across multiple displays1with a 3-sided micro-edge bezel on each screen. Get
●
stunning visuals from the 1920 x 1080 resolution2, 16:9 aspect ratio, 60.45 cm (23.8”) diagonal IPS screen and
over 2 million pixels.
Out-of-this-world color right out of the box
Consistent, accurate color between displays and from project to project is easier than ever with factory color
●
calibration from the very first time you power on.
Quality from the start
We rigorously test each HP Z Display to help ensure it’s a reliable, long-life visual solution, and back it up with the
●
HP Zero Bright Dot Guarantee3, HP’s most stringent pixel policy, which replaces the screen if even one bright
sub-pixel fails.
Big ideas for small spaces
Make the most of your available workspace by mounting powerful machines like the HP Z2 Mini Workstation
●
directly behind the display for a compact, efficient, single-footprint solution.
Featuring
Connect easily with ports that include a two-port USB 3.0 hub and VGA, HDMI, and DisplayPort™ connections
●
tested for use with legacy, current, and future HP Workstations.
Work comfortably with adjustable tilt, height, and swivel settings. Use pivot rotation to conveniently customize
●
portrait or landscape views on multiple displays.
Design the screen for how you work with HP Display Assistant software, which enables screen partitioning and
●
helps deter theft by dimming a display that’s disconnected without approval.
Reduce power consumption and help lower costs with an intelligent, energy-efficient, low-halogen display that is
●
ENERGY STAR® certified, TCO qualified, and EPEAT® Gold registered with mercury-free display backlights and
arsenic-free display glass.
Build a complete solution with optional HP accessories designed and tested to work with your display.
●
Rest assured that your IT investment is supported by a three-year standard limited warranty. To extend your
●
protection, select an optional HP Care service.
4
5
Page 2
Datasheet
HP Z24nf G2 60.45 cm (23.8”) Display
Specifications Table
Product Color Black
Display size (diagonal) 60.45 cm (23.8")
Display Type IPS w/LED backlight
Panel Active Area 52.7 x 29.64 cm;
Viewing Angle 178° horizontal; 178° vertical
Brightness 250 cd/m²
Contrast Ratio 1000:1 static; 10000000:1 dynamic
Response Ratio 5 ms gray to gray
Aspect Ratio 16:9
Native Resolution FHD (1920 x 1080 @ 60 Hz)
Resolutions Supported 1920 x 1080; 1680 x 1050; 1600 x 900; 1440 x 900; 1280 x 1024; 1280 x 800; 1280 x 720; 1024 x 768; 800 x 600; 720 x 480; 640 x 480
Display Features Anti-glare; In plane switching; Language selection; LED Backlights; On-screen controls; Pivot rotation; Plug and Play; User programmable; Low Haze
User Controls Brightness; Contrast; Color Control; Input Control; Image Control; Power; Menu; Management; Language; Information; Exit; OK
Input signal 1 VGA; 1 HDMI 1.4; 1 DisplayPort™ 1.2
Ports and Connectors 3 USB 3.0 (one upstream, two downstream)
Input power Input voltage: 100 to 240 VAC
Power consumption Energy Efficiency Class: A; Panel Active Area: 52.7 x 29.64 cm; On-mode power consumption: 23 W; Annual energy consumption: 34 kWh; Power
Dimensions with Stand (W x D
x H)
Dimensions without Stand (W
x D x H)
Weight 5.6 kg (With stand)
Ergonomic features Tilt: -5 to +22°; Swivel: ±45°; Pivot rotation: 90°; Height: 150 mm
Certification and Compliance Australian-New Zealand MEPS; BSMI; CB; CCC; CE; CEL; cTUVus; CU; ErP; E-standby; FCC; ICES; ISC; ISO 9241-307; KC; Mexico CoC; Microsoft WHQL
Environmental Arsenic-free display glass; Mercury-free display backlights; Low halogen
Energy Efficiency Compliance ENERGY STAR® certified; EPEAT® Gold
What's in the box Monitor; AC power cord; USB cable (Type A male to Type B male); DisplayPort™ 1.2 cable; CD (includes User Guide, warranty, drivers); HP Display Assistant
Warranty 3-years limited warranty including 3 years of parts and labour. Certain restrictions and exclusions apply.
1
1
1,3
with HDCP support on DisplayPort™ and HDMI
1
consumption (standby): 0.5 W; Power consumption (off-mode): 0.5 W; Power consumption Description: 35 W (maximum), 19 W (typical), 0.5 W (standby);
Screen resolution: FHD (1920 x 1080 @ 60 Hz)
53.88 x 20.5 x 46.3 cm
53.88 x 4.38 x 32.19 cm
Certification (Windows 10); MSIP; PSB; RCM; SEPA; SmartWay Transport Partnership - NA only; TUV-S; VCCI; Vietnam MEPS; WEEE
Page 3
Datasheet
HP Z24nf G2 60.45 cm (23.8”) Display
Accessories and services (not included)
HP B300 PC Mounting
Bracket
HP 5 year Next business day
Onsite Standard Monitor
Hardware Support
Customize an altogether better solution with the HP B300 PC Mounting Bracket, which lets you attach your HP
Workstation, HP Desktop Mini, HP Chromebox or select HP Thin Client directly behind select 2017 and 2018 HP
EliteDisplays and HP Z Displays.
1
Product number: 2DW53AA
Receive 5 years of next business day onsite HW Support from an HP-qualified technician for your computing device, if the
issue cannot be solved remotely.
Product number: U7935E
Page 4
Datasheet
HP Z24nf G2 60.45 cm (23.8”) Display
Messaging Footnotes
1
Additional displays required and sold separately.
2
All performance specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher or lower.
3
The HP Pixel Policy allows no bright sub-pixel defects for this display. For complete details, see http://support.hp.com/us-en/document/c00288895.
4
HP Care Packs sold separately. Service levels and response times for HP Care Packs may vary depending on your geographic location. Service starts on date of hardware purchase. Restrictions and limitations apply. For
details, visit www.hp.com/go/cpc. HP Services are governed by the applicable HP terms and conditions of service provided or indicated to Customer at the time of purchase. Customer may have additional statutory rights
according to applicable local laws, and such rights are not in any way affected by the HP terms and conditions of service or the HP Limited Warranty provided with your HP Product.
5
Workstation sold separately. Requires HP B500 PC Mounting Bracket for Monitors, sold separately.
6
Each sold separately.
7
External power supplies, power cords, cables and peripherals are not Low Halogen. Service parts obtained after purchase may not be Low Halogen.
8
EPEAT® registered where applicable. EPEAT registration varies by country. See www.epeat.net for registration status in your country.
Technical specifications disclaimers
1
All specifications represent the typical specifications provided by HP's component manufacturers, actual performance may vary either higher or lower.
2
External power supplies, power cords, cables and peripherals are not Low Halogen. Service parts obtained after purchase may not be Low Halogen.
3
Product default is 14.0ms response time and can be adjusted to as low as 5.4ms in the display menu. See user guide for more information.
Sign up for updates
www.hp.com/go/getupdated
© Copyright 2017 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products
and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an
additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein. EPEAT® registered where applicable. EPEAT registration
varies by country. See www.epeat.net for registration status by country. Search keyword generator on HP’s 3rd party option store for solar generator
accessories at www.hp.com/go/options
ENERGY STAR® and the ENERGY STAR® mark are registered trademarks of the U.S. Environmental Protection Agency. DisplayPort™ and the DisplayPort™ logo
are trademarks owned by the Video Electronics Standards Association (VESA®) in the United States and other countries.
4AA7-1206EEE, September 2017
