Datasheet

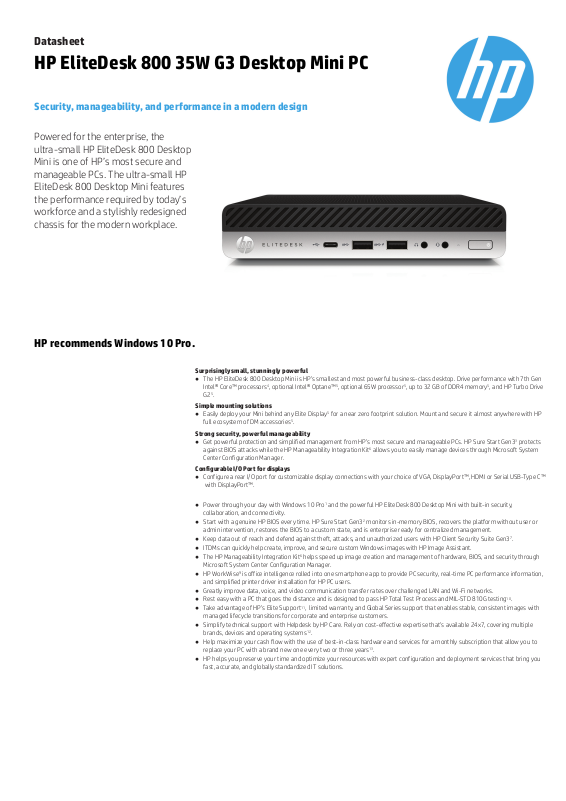

HP EliteDesk 800 35W G3 Desktop Mini PC

Security, manageability, and performance in a modern design

Powered for the enterprise, the ultra-small HP EliteDesk 800 Desktop Mini is one of HP’s most secure and manageable PCs. The ultra-small HP EliteDesk 800 Desktop Mini features the performance required by today’s workforce and a stylishly redesigned chassis for the modern workplace.

HP recommends Windows 10 Pro.

Surprisingly small, stunninglypowerful

The HP EliteDesk 800 Desktop Mini is HP’s smallest and most powerful business-class desktop. Drive performance with 7th Gen

●

Intel® Core™ processors4, optional Intel® Optane™5, optional 65W processor5, up to 32 GB ofDDR4 memory5, and HP Turbo Drive G25.

Simple mounting solutions

Easily deploy your Mini behind any Elite Display5for a near zero footprint solution. Mount and secure it almost anywhere with HP

●

full ecosystem of DM accessories5.

Strong security, powerful manageability

Get powerful protection andsimplified management from HP’s most secure and manageable PCs. HP Sure Start Gen33protects

●

against BIOS attacks while the HP Manageability Integration Kit6allows you to easily manage devices through Microsoft System Center Configuration Manager.

Configurable I/O Port for displays

Configure a rearI/O port for customizable display connections with your choice of VGA, DisplayPort™, HDMI or Serial USB-Type C™

●

with DisplayPort™.

Power through your day with Windows 10 Pro1and the powerful HP EliteDesk 800 Desktop Mini with built-in security,

●

collaboration, and connectivity. Start with a genuine HP BIOS every time. HP Sure Start Gen32monitors in-memory BIOS, recovers the platform without user or

●

admin intervention, restores the BIOS to a custom state, and is enterprise ready for centralized management. Keep data out of reach and defend against theft, attacks, and unauthorized users with HP Client Security Suite Gen37.

●

ITDMs can quickly helpcreate, improve, and secure custom Windows images with HP Image Assistant.

●

The HP Manageability Integration Kit6helps speed up image creation and management of hardware, BIOS, and security through

●

Microsoft System Center Configuration Manager. HP WorkWise9is office intelligence rolled into one smartphone app to provide PCsecurity, real-time PC performance information,

●

and simplified printer driver installation for HP PC users. Greatly improve data, voice, and video communication transfer rates over challenged LAN and Wi-Fi networks.

●

Rest easy with a PC that goes the distance and is designed to pass HP Total Test Process and MIL-STD 810G testing10.

●

Take advantage of HP’s Elite Support11, limited warranty, and Global Series support that enables stable, consistent images with

●

managed lifecycle transitions for corporate and enterprise customers. Simplify technical support with Helpdesk byHP Care. Rely on cost-effective expertise that’s available 24x7, covering multiple

●

brands, devices and operating systems12. Help maximize your cash flow with the use of best-in-class hardware and services for a monthly subscription that allow you to

●

replace your PC with a brand new one every two or three years13. HP helps you preserve your time and optimize your resources withexpert configuration and deployment services that bring you

●

fast, accurate, and globally standardized IT solutions.

Page 2

Datasheet

HP EliteDesk 800 35W G3 Desktop Mini PC Specifications Table

Form Factor

Available Operating System

Available Processors

4,5

Chipset

Maximum Memory

Memory slots

Internal Storage

Optical Storage

Available Graphics

Audio

Communications

Expansion Slots

Ports and Connectors

Internal Drive Bays

Input Device

Available Software

Security Management

Management Features

Power

Dimensions

Weight

Environmental

Energy Efficiency Compliance

Mini

Windows 10 Pro 64 – HP recommends Windows 10 Pro. Windows 10 Home 64 Windows 10 Home Single Language 64 Windows 7 Professional 64(available through downgrade rights from Windows 10Pro) FreeDOS 2.0

Intel® Core™ i7-7700T with Intel HD Graphics 630 (2.9 GHz, up to3.8 GHz with Intel Turbo Boost, 8 MB cache, 4 cores); Intel® Core™i5-7500T with Intel HD Graphics 630 (2.7 GHz, up to 3.3 GHz with Intel Turbo Boost, 6 MB cache, 4 cores); Intel® Core™i5-7600T with Intel HD Graphics 630 (2.8 GHz, up to 3.7 GHz with Intel Turbo Boost, 6 MB cache, 4 cores); Intel® Core™ i3-7100T with Intel HDGraphics 630 (3.4 GHz, 3 MB cache, 2 cores); Intel® Pentium® G4560T with Intel HD Graphics 610 (2.9GHz, 3 MB cache, 2 cores); Intel® Pentium® G4600T with Intel HD Graphics 630 (3GHz, 3 MB cache, 2 cores); Intel® Core™ i7-6700Twith Intel HD Graphics 530 (2.8 GHz, up to 3.6 GHz with IntelTurbo Boost, 8 MB cache, 4 cores); Intel® Core™ i5-6600T with Intel HD Graphics 530 (2.7GHz, up to 3.5 GHz with Intel Turbo Boost, 6MB cache, 4 cores); Intel® Core™ i5-6500T with Intel HD Graphics 530 (2.5 GHz, up to 3.1 GHz with IntelTurbo Boost, 6 MB cache, 4 cores); Intel® Core™ i3-6100T with Intel HDGraphics 530 (3.2 GHz, 3 MB cache, 2 cores)

Intel® Q270

Up to 32 GB DDR4-2400 SDRAM Standard memory note: Transfer rates up to 2400MT/s

2 SODIMM

500 GB up to 2 TB 2.5" SATA HDD 500 GB up to 1 TB 2.5" SATA SSHD (5400 rpm) 256 GB up to 512 GB 2.5" SATA SED 256 GB up to 1 TB HP Turbo Drive G2 TLC SSD (PCIe) 128 GB up to 512 GB 2.5" SATA SSD

DVD-Writer (optional)

Integrated: Intel® HD Graphics530; Intel® HD Graphics 630; Intel® HD Graphics 610

Integrated Realtek ALC221 with combo microphone/headphone jack, line-in and line-out rearpor ts(3.5 mm), internal speaker.

LAN: Intel® I219LM Gigabit Network ConnectionLOM WLAN: Intel® 8265 802.11ac (2x2) wireless with Bluetooth® M.2 combo card vPro™; Intel® 8265 802.11ac(2x2) wireless with Bluetooth® M.2 combo card non-vPro™; Intel® 7265

802.11ac (2x2) wireless with Bluetooth® M.2 combo cardnon-vPro™

1 M.2 2230 for optional wireless NIC; 1 M.2 2280 forstorage drives

Front: 1 USB 3.1 Type-C™ (charging); 1 USB 3.1 Gen 1;1 USB 3.1 Gen 1 (charging); 1 Headphone connector; Universalaudio jack with CTIA headset support Back: 1 security lock slot;1 external antenna connector; 2 DisplayPort™; 4 USB 3.1 Gen1; 1 RJ-45; 1 power connector Optional: 1 DisplayPort™; 1 HDMI; 1VGA; 1 serial; 1 USB 3.1 Type-C™ (DisplayPort™ alternate mode or 15 W output)

One 6.35 cm (2.5")

HP USB Conferencing Keyboard; HP USB Smart Card (CCID) Keyboard; HP USBBusiness Slim Keyboard; HP PS/2 Business Slim Keyboard; HP USB Grey Business Slim Keyboard HP PS/2 Mouse; HP USB 1000 dpiLaser Mouse; HP Grey V2 Mouse; HP USB Optical Mouse; HP USB Hardened Mouse

HP business PCs are shippedwith a variety of software titles including: HP BIOSphere Gen3 with SureStart G3, CyberLinkPower Media Player,Native Miracast Support, HP ePrint Driver, HP Support Assistant. Please refer to this product's quick spec document fora full list of preinstalled software.

Trusted Platform Module TPM 2.0 Embedded Security Chip (SLB9670 - Common Criteria EAL4+ Certified); SATA 0,1 portdisablement (via BIOS); Drive lock; RAID configurations; Serial, USB enable/disable (via BIOS); Power-on password (viaBIOS); Setup password (via BIOS); Support for chassis padlocks and cable lock devices; Integrated hood sensor

Intel® vPro™ standard (Core i5 and Core i7)

35 W 89% efficient

17.7 x 3.42 x 17.5 cm

1.21 kg

Low halogen

ENERGY STAR® certified and EPEAT® registered configurations available

HP recommends Windows 10 Pro.

10,11,12

9,19

14,15,16

Page 3

Datasheet

HP EliteDesk 800 35W G3 Desktop Mini PC

Accessories and services (not included)

HP Desktop Mini Rack Mount Tray Kit Module

G1K21AA

Put your HP DesktopMini PCs to work behind the scenes with HP Desktop Mini Rack Mount Tray Kit Modules, which holds up to eight PCsand fit into the HP 100kg Sliding Shelf.

HP Desktop Mini 500GB Hard Drive I/O Module

K9Q82AA

Add an extra hard drive to your HP Desktop Mini PC and enable compatibility with your existing and legacy peripherals with the HP Desktop Mini 500GB HDD/I/O Module.

HP Desktop Mini Chassis Tower Stand

G1K23AA

Keep it vertical. Make the most of space-constrained environments by deployingyour HP Desktop Mini in a vertical

orientation with the HP DesktopMini Chassis Tower Stand.

HP Desktop Mini DVD ODD Module

K9Q83AA

Add a DVD Writer to your HP Desktop Mini PC with HP Desktop Mini DVD Writer ODD Module.

HP recommends Windows 10 Pro.

HP Integrated Work Center for Desktop Mini and Thin Client

G1V61AA

Make the most ofsmall work spaces with an HP IWC Desktop Mini/Thin Client that lets you create a compact desktop solution by combining a display1with an HP Desktop Mini, HP Thin Client or HP Chromebox1and giving you convenient front access to all of its inputs.

HP Desktop Mini I/O Module

K9Q84AA

Keep working with your existing peripherals and add legacy ports to your HP Desktop Mini PC with the HP Desktop Mini I/O Module.

HP Desktop Mini 65w Power Supply Kit

L2X04AA

Keep an extra HP Desktop Mini adapter at theready, or take it with you if youuse your HP Desktop Minion the go with the HP Desktop 65W Mini Power Supply Kit.

HP PC Mounting Bracket for Monitors

N6N00AA

Customize an altogether better solution with the HP PC Mounting Bracket forMonitors, which lets you attach your HP Desktop Mini, HP Chromebox, or select HP Thin Client directly behind select HP Z Displays and EliteDisplays.

HP Wireless Slim Business Keyboard

N3R88AA

Enjoy easy data entry and wireless connectivity with the HP Wireless Business Slim Keyboard, designed to complement the 2015 class of HP Business PCs.

HP Desktop Mini LockBox

P1N78AA

Fortify your HP DesktopMini in a range of settings withthe HP Desktop Mini LockBox, HP’s most secure enclosure for your PC, power brick, and cable connections.

HP USB Business Speakers v2

N3R89AA

Quickly and easily add stereo sound to your workspace with HP USB Business Speakers v2, a set of stylish desktop speakers powered by your PC’s USB port.

HP Desktop Mini Port Cover Kit

P3R65AA

Help prevent unauthorized access to the rear ports of your HP Desktop Mini with HP Desktop Mini Port Cover Kit.

Page 4

Datasheet

HP Keyed Cable Lock 10 mm

T1A62AA

Help keep your notebook safe in the office and high-traffic areas by tethering it to a secure surface with the HP Master Keyed Cable Lock 10mm, designed specifically for ultra-thin profile notebooks.

HP 5 year Next Business Day Onsite Hardware Support for Desktops

U7899E

HP Business Headset v2

T4E61AA

Quickly and easily collaborate, chat online or listen to personal media with the crystal-clear sound and noise cancelling features of the sleek, lightweight HP Business Headset v2, designed to complement your professional workspace.1,

HP 16GB DDR4-2400 SoDIMM

Z9H53AA

Boost the capabilities of your HP Business Desktop PCand improve system performance and application responsiveness with low-power, high-speed DDR4 memory from HP.

Learn more at

www.hp.eu/hpoptions

Page 5

Datasheet

HP EliteDesk 800 35W G3 Desktop Mini PC

HP recommends Windows 10 Pro.

Messaging Footnotes

Not all featuresare available in all editions or versions ofWindows. Systems may require upgraded and/orseparately purchased hardware,drivers, software or BIOS update to takefull advantage of Windows functionality. Windows 10 is automaticallyupdated,

which is always enabled.ISP fees may apply and additional requirements may applyover time for updates. See http://www.windows.com.

Available on HPEliteBook products equipped with Intel® 7th generation processors.

Based on HP’s unique and comprehensivesecurity capabilities at no additional cost and HP Manageability IntegrationKit’s management of every aspect of a PC including hardware,BIOS and software management using Microsoft SystemCenter Configuration

Manager among vendors with >1M unitannual sales as of November 2016 on HP Elite PCswith 7th Gen Intel® Core® Processors, Intel® integratedgraphics, and Intel® WLAN.

Multi-Core is designedto improve performance of certain softwareproducts. Not all customers or software applications willnecessarily benefit from use of this technology. Performanceand clock frequency will vary depending on application workloadand your

hardware and softwareconfigurations. Intel’s numbering is not a measurement ofhigher performance.

Sold separatelyor as an optional feature.

HP Manageability Integration Kitis planned to be available first quarter 2017 and can bedownloaded from http://www8.hp.com/us/en/ads/clientmanagement/overview.html.

HP Client Security Suite Gen3 requiresWindows and Intel® 7th Gen processors.

HP Multi FactorAuthenticate requires 7th Generation Intel® Core™processor, Intel®integrated graphics, and Intel® WLAN .

HP WorkWise smartphone app willsoon be available as a free download on theApp Store and Google Play.

MIL-STD testing is pending and is notintended to demonstrate fitness for U.S. Department ofDefense contract requirements or for military use. Test results arenot a guarantee of future performance under thesetest conditions. Damage under the MIL STD test

conditions or any accidental damagerequires an optional HP Accidental Damage ProtectionCare Pack.

Technical specifications disclaimers

which is always enabled.ISP fees may apply and additional requirements may applyover time for updates. See http://www.windows.com/.

Some devices for academicuse will automatically be updated to Windows 10Pro Education with the Windows 10 Anniversary update. Featuresvary; see https://aka.ms/ProEducation for Windows 10 ProEducation feature information.

This system is preinstalledwith Windows 7 Pro software and also comeswith a license and media for Windows 10 Pro software.You may only use one version ofthe Windows software at a time. Switching between versions willrequire you to uninstall one

version and install the otherversion. You must back up all data(files, photos, etc.) before uninstalling andinstalling operating systems to avoid loss ofyour data.

Multicore is designedto improve performance of certain softwareproducts. Not all customers or software applications willnecessarily benefit from use of this technology.Performance and clock frequency will vary depending on application workload and your

hardware and softwareconfigurations. Intel’s numbering is not a measurement ofhigher performance.

Your productdoes not support Windows 8 or Windows 7. In accordancewith Microsoft’s support policy, HP does not support theWindows 8 or Windows 7 operating system on products configuredwith Intel and AMD 7th generation and forward processorsor

provide any Windows 8or Windows 7 drivers on http://www.support.hp.com.

Due to the non-industry standardnature of some third-party memory modules, we recommendHP branded memory to ensure compatibility. If you mix memory speeds,the system will perform at the lower memory speed.

For storage drives,GB = 1 billion bytes. TB = 1 trillion bytes.Actual formatted capacity is less. Up to 30 GB (forWindows 10) is reserved for system recoverysoftware.

HDMI cable soldseparately or as an optional feature.

Wireless cardsare optional or add-on features and requiresseparately purchased wireless accesspoint and internet service. Availability of public wirelessaccess points limited. The specifications for the802.11ac WLAN are draft specifications and are not final. If

the final specifications differ fromthe draft specifications, it may affect the ability of the notebookto communicate with other 802.11ac WLAN devices.

Intel® HD Graphics 530: integratedon 6th gen Core™ i7/i5/i3 processors

Intel® HD Graphics 630: integratedon 7th gen Core™ i7/i5/i3 processors andPentium® G4620, 4600, 4600T

Intel® HD Graphics 610: integratedon Pentium® G4560, G4560T,Celeron™ G3950, G3930, G3930T

Sold separatelyor as an optional feature.

HP BIOSphere with SureStart available only on business PCs with HP BIOS.HP BIOSphere Gen 3 requires Intel® 7th generationprocessors.

Miracast is a wirelesstechnology your PC can use to project yourscreen to TVs, projectors, and streaming mediaplayers that also support Miracast. You can useMiracast to share what you’re doing on yourPC and present a slide show. For more information:

http://windows.microsoft.com/en-us/windows-8/project-wireless-screen-miracast.

HP ePrint Driver requiresan Internet connection to HP web-enabled printer and HPePrint account registration (for a list ofeligible printers, supported documents and image types and other HP ePrintdetails, see www.hp.com/go/eprintcenter). Requires optional

broadband module. Broadbanduse requires separately purchased servicecontract. Check with service provider for coverageand availability in your area. Separately purchaseddata plans or usage fees may apply. Print timesand connection speeds may vary.

EPEAT® registered where applicable. EPEAT registration variesby country. See www.epeat.net for registration status bycountry.

External power supplies, powercords, cables and peripherals are not lowhalogen. Service parts obtained after purchase may notbe low halogen.

Wake on Lanfeature is not available.
