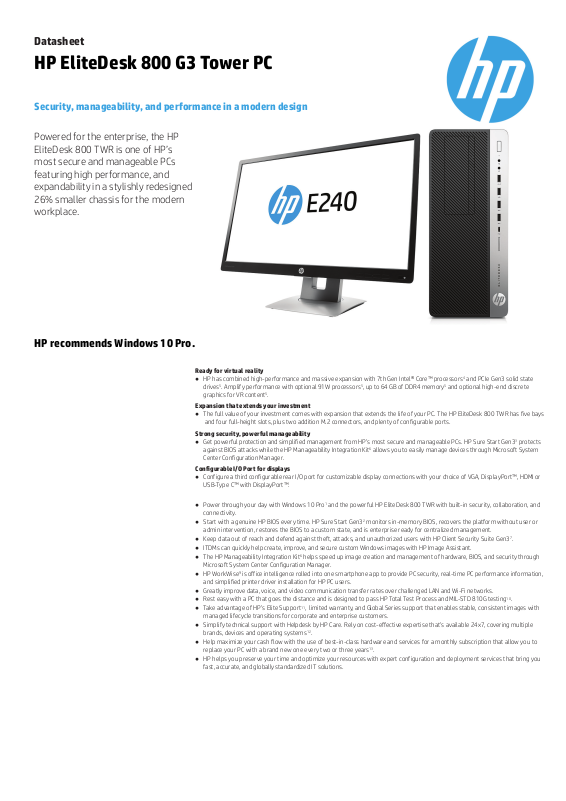

Page 1
Datasheet
HP EliteDesk 800 G3 Tower PC
Security, manageability, and performance in a modern design
Powered for the enterprise, the HP
EliteDesk 800 TWR is one of HP’s
most secure and manageable PCs
featuring high performance, and
expandability in a stylishly redesigned
26% smaller chassis for the modern
workplace.
HP recommends Windows 10 Pro.
Ready for virtual reality
HP has combined high-performance and massive expansion with 7th Gen Intel® Core™ processors4and PCIe Gen3 solid state
●
drives5. Amplify performance with optional 91W processors5, up to 64 GB of DDR4 memory5and optional high-end discrete
graphics for VR content5.
Expansion that extends yourinvestment
The full value of your investment comes with expansion that extends the life of your PC. The HP EliteDesk 800 TWR has five bays
●
and four full-height slots, plus two addition M.2 connectors, and plenty of configurable ports.
Strong security, powerful manageability
Get powerful protection and simplified management from HP’s most secure and manageable PCs. HP Sure Start Gen33protects
●
against BIOS attacks while the HP Manageability Integration Kit6allows you to easily manage devices through Microsoft System
Center Configuration Manager.
Configurable I/O Port for displays
Configure a third configurable rear I/O port for customizable display connections with your choice of VGA, DisplayPort™, HDMI or
●
USB-Type C™ with DisplayPort™.
Power through your day with Windows 10 Pro1and the powerful HP EliteDesk 800 TWR with built-in security, collaboration, and
●
connectivity.
Start with a genuine HP BIOS every time. HP Sure Start Gen32monitors in-memory BIOS, recovers the platform without user or
●
admin intervention, restores the BIOS to a custom state, and is enterprise ready for centralized management.
Keep data out of reach and defend against theft, attacks, and unauthorized users with HP Client Security Suite Gen37.
●
ITDMs can quickly help create, improve, and secure custom Windows images with HP Image Assistant.
●
The HP Manageability Integration Kit6helps speed up image creation and management of hardware, BIOS, and security through
●
Microsoft System Center Configuration Manager.
HP WorkWise9is office intelligence rolled into one smartphone app to provide PC security, real-time PC performance information,
●
and simplified printer driver installation for HP PC users.
Greatly improve data, voice, and video communication transfer rates over challenged LAN and Wi-Fi networks.
●
Rest easy with a PC that goes the distance and is designed to pass HP Total Test Process and MIL-STD 810G testing10.
●
Take advantage of HP’s Elite Support11, limited warranty, and Global Series support that enables stable, consistent images with
●
managed lifecycle transitions for corporate and enterprise customers.
Simplify technical support with Helpdesk by HP Care. Rely on cost-effective expertise that’s available 24x7, covering multiple
●
brands, devices and operating systems12.
Help maximize your cash flow with the use of best-in-class hardware and services for a monthly subscription that allow you to
●
replace your PC with a brand new one every two or three years13.
HP helps you preserve your time and optimize your resources with expert configuration and deployment services that bring you
●
fast, accurate, and globally standardized IT solutions.
Page 2
Datasheet
HP EliteDesk 800 G3 Tower PC
Specifications Table
Form Factor
Available Operating System
Available Processors
4,5
Chipset
Maximum Memory
Memory slots
Internal Storage
Optical Storage
Available Graphics
Audio
Communications
Expansion Slots
Ports and Connectors
Internal Drive Bays
External Drive Bays
Input Device
Available Software
Security Management
Management Features
Power
Dimensions
Weight
Environmental
Energy Efficiency Compliance
Warranty
Tower
Windows 10 Pro 64 – HP recommends Windows 10 Pro.
Windows 10 Home 64
Windows 10 Home Single Language 64
Windows 7 Professional 64 (available through downgrade rights from Windows 10 Pro)
FreeDOS 2.0
Intel® Core™ i7-7700K with Intel HD Graphics 630 (4.2 GHz, up to 4.5 GHz with Intel Turbo Boost, 8 MB cache, 4 cores); Intel® Core™ i7-7700 with Intel HD Graphics 630 (3.6 GHz, up
to 4.2 GHz with Intel Turbo Boost, 8 MB cache, 4 cores); Intel® Core™ i5-7500 with Intel HD Graphics 630 (3.4 GHz, up to 3.8 GHz with Intel Turbo Boost, 6 MB cache, 4 cores); Intel®
Core™ i5-7600 with Intel HD Graphics 630 (3.5 GHz, up to 4.1 GHz with Intel Turbo Boost, 6 MB cache, 4 cores); Intel® Core™ i3-7100 with Intel HD Graphics 630 (3.9 GHz, 3 MB cache,
2 cores); Intel® Core™ i3-7300 with Intel HD Graphics 630 (4 GHz, 4 MB cache, 2 cores); Intel® Pentium® G4560 with Intel HD Graphics 610 (3.5 GHz, 3 MB cache, 2 cores); Intel®
Pentium® G4600 with Intel HD Graphics 630 (3.6 GHz, 3 MB cache, 2 cores); Intel® Pentium® G4620 with Intel HD Graphics 630 (3.7 GHz, 3 MB cache, 2 cores); Intel® Celeron™ G3930
with Intel HD Graphics 610 (2.9 GHz, 2 MB cache, 2 cores); Intel® Celeron™ G3950 with Intel HD Graphics 610 (3 GHz, 2 MB cache, 2 cores); Intel® Core™ i7-6700 with Intel HD
Graphics 530 (3.4 GHz, up to 4.0 GHz with Intel Turbo Boost, 8 MB cache, 4 cores); Intel® Core™ i5-6600 with Intel HD Graphics 530 (3.3 GHz, up to 3.9 GHz with Intel Turbo Boost, 6
MB cache, 4 cores); Intel® Core™ i5-6500 with Intel HD Graphics 530 (3.2 GHz, up to 3.6 GHz with Intel Turbo Boost, 6 MB cache, 4 cores); Intel® Core™ i3-6100 with Intel HD Graphics
530 (3.7 GHz, 3 MB cache, 2 cores)
Intel® Q270
Up to 64 GB DDR4-2400 SDRAM
Standard memory note: Transfer rates up to 2400 MT/s
4 DIMM
500 GB up to 2 TB 3.5" SATA HDD (7200 rpm)
500 GB up to 1 TB 2.5" SATA SSHD (5400 rpm)
256 GB up to 512 GB 2.5" SATA SED
256 GB up to 1 TB HP Turbo Drive G2 TLC SSD (PCIe)
128 GB up to 512 GB 2.5" SATA SSD
500 GB up to 1 TB 2.5" SATA HDD (7200 rpm)
up to 1 TB 3.5" SATA SSHD (7200 rpm)
Slim DVD-ROM; Slim DVD-Writer
Integrated: Intel® HD Graphics 530; Intel® HD Graphics 630; Intel® HD Graphics 610
Discrete: AMD Radeon™ R7 450 FH (4 GB); AMD Radeon™ RX 460 FH (2 GB); AMD Radeon™ RX 480 FH (4 GB); NVIDIA® GeForce® GT730 HDMI (1 GB); NVIDIA® GeForce® GT 730 (2 GB,
with DisplayPort™ display support); NVIDIA® GeForce® GTX 1080 FH (8 GB)
Integrated Realtek ALC221 with combo microphone/headphone jack, line-in and line-out rear ports (3.5 mm), internal speaker.
LAN: Intel® I219LM Gigabit Network Connection LOM; Intel Ethernet I210-T1 PCIe x1 gigabit network interface card (optional)
WLAN: Intel® 8265 802.11ac (2x2) wireless with Bluetooth® M.2 combo card vPro™; Intel® 8265 802.11ac (2x2) wireless with Bluetooth® M.2 combo card non-vPro™; Intel® 7265
802.11ac (2x2) wireless with Bluetooth® M.2 combo card non-vPro™
1 M.2 2230 for optional wireless NIC; 1 M.2 internal connector for optional SSD drive; 1 PCIe x1; 1 PCIe 3.0 x16; PCI Express x16 (v3.0)(wired as a x4) 6.35 cm (2.5") low profile, 16.76
cm (6.6") length, 35 W max power
Front: 1 SD 4 card reader (optional); 1 Headphone connector; 1 USB 2.0 (fast charging); 1 USB 2.0; 2 USB 3.1 Gen 1; 1 USB Type-C™ (charging); Universal audio jack with CTIA headset
support
Back: 1 audio out; 2 DisplayPort™; 2 USB 2.0; 4 USB 3.1 Gen 1; 1 audio in; 1 RJ-45; 1 power connector; 3 optional ports
Back (optional): 1 choice of 1 HDMI; 1 DisplayPort™; 1 VGA; 1 USB 3.1 Type-C™ (DisplayPort™ alternate mode or 15 W output); 1 choice of serial and PS/2; 1 choice of serial port
One 6.35 cm (2.5"); One 8.9 cm (3.5"); One 13.34 cm (5.25")
One 9.5 mm slim
HP Conferencing Keyboard; HP USB Smart Card (CCID) Keyboard; HP USB Business Slim Keyboard; HP PS/2 Business Slim Keyboard; HP USB Grey Business Slim Keyboard
HP PS/2 Mouse; HP USB 1000 dpi Laser Mouse; HP Grey V2 Mouse; HP USB Optical Mouse; HP USB Hardened Mouse
HP business PCs are shipped with a variety of software titles including: HP BIOSphere Gen3 with SureStart G3, CyberLink Power Media Player, Native Miracast Support, HP ePrint
Driver, HP Support Assistant. Please refer to this product's quick spec document for a full list of preinstalled software.
Trusted Platform Module TPM 2.0 Embedded Security Chip (SLB9670 - Common Criteria EAL4+ Certified); SATA 0,1 port disablement (via BIOS); Drive lock; RAID configurations; Serial,
USB enable/disable (via BIOS); Power-on password (via BIOS); Setup password (via BIOS); Solenoid hood lock/intrusion sensor; Support for chassis padlocks and cable lock devices
Intel® vPro™ standard (Core i5 and Core i7)
250 W standard efficiency
15.4 x 36.5 x 37 cm
9.86 kg
Low halogen
ENERGY STAR® certified and EPEAT® registered configurations available
3-year limited warranty including 3 years of parts, labour, and next-business-day onsite service. Terms and conditions vary by country. Certain restrictions and exclusions apply.
1
HP recommends Windows 10 Pro.
1
1
6
7
7
7,8
7
7
7
9
17
10,11,12
3
13
14,15,16
13
Page 3
Datasheet
HP EliteDesk 800 G3 Tower PC
HP recommends Windows 10 Pro.
Accessories and services (not included)
HP 16GB DDR4-2400 DIMM Boost the capabilities of your HP Business Desktop PC and improve system performance and application responsiveness
HP 5 year Next Business Day
Onsite Hardware Support for
Desktops
Learn more
at
www.hp.eu/hpoptions
with low-power, high-speed DDR4 memory from HP.
Product number: Z9H57AA
Receive 5 years of next business day onsite HW Support from an HP-qualified technician for your computing device, if the
issue cannot be solved remotely.
Product number: U7899E
Page 4
Datasheet
HP EliteDesk 800 G3 Tower PC
HP recommends Windows 10 Pro.
Messaging Footnotes
1
Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. Windows 10 is automatically updated,
which is always enabled. ISP fees may apply and additional requirements may apply over time for updates. See http://www.windows.com.
2
Available on HP EliteBook products equipped with Intel® 7th generation processors.
3
Based on HP’s unique and comprehensive security capabilities at no additional cost and HP Manageability Integration Kit’s management of every aspect of a PC including hardware, BIOS and software management using Microsoft System Center Configuration
Manager among vendors with >1M unit annual sales as of November 2016 on HP Elite PCs with 7th Gen Intel® Core® Processors, Intel® integrated graphics, and Intel® WLAN.
4
Multi-Core is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. Performance and clock frequency will vary depending on application workload and your
hardware and software configurations. Intel’s numbering is not a measurement of higher performance.
5
Sold separately or as an optional feature.
6
HP Manageability Integration Kit is planned to be available first quarter 2017 and can be downloaded from http://www8.hp.com/us/en/ads/clientmanagement/overview.html.
7
HP Client Security Suite Gen3 requires Windows and Intel® 7th Gen processors.
8
HP Multi Factor Authenticate requires 7th Generation Intel® Core™ processor, Intel® integrated graphics, and Intel® WLAN .
9
HP WorkWise smartphone app will soon be available as a free download on the App Store and Google Play.
10
MIL-STD testing is pending and is not intended to demonstrate fitness for U.S. Department of Defense contract requirements or for military use. Testresults are not a guarantee of future performance under these test conditions. Damage under the MIL STD test
conditions or any accidental damage requires an optional HP Accidental Damage Protection Care Pack.
Technical specifications disclaimers
1
Not all features are available in all editions or versions of Windows. Systems may require upgraded and/or separately purchased hardware, drivers, software or BIOS update to take full advantage of Windows functionality. Windows 10 is automatically updated,
which is always enabled. ISP fees may apply and additional requirements may apply over time for updates. See http://www.windows.com/.
2
Some devices for academic use will automatically be updated to Windows 10 Pro Education with the Windows 10 Anniversary update. Features vary; see https://aka.ms/ProEducation for Windows 10 Pro Education feature information.
3
This system is preinstalled with Windows 7 Pro software and also comes with a license and media for Windows 10 Pro software. You may only use one version of the Windows software at a time. Switching between versions will require you to uninstall one
version and install the other version. You must back up all data (files, photos, etc.) before uninstalling and installing operating systems to avoid loss of your data.
4
Multicore is designed to improve performance of certain software products. Not all customers or software applications will necessarily benefit from use of this technology. Performance and clock frequency will vary depending on application workload and your
hardware and software configurations. Intel’s numbering is not a measurement of higher performance.
5
Your product does not support Windows 8 or Windows 7. In accordance with Microsoft’s support policy, HP does not support the Windows 8 or Windows 7 operating system on products configured with Intel and AMD 7th generation and forward processors or
provide any Windows 8 or Windows 7 drivers on http://www.support.hp.com.
6
Due to the non-industry standard nature of some third-party memory modules, we recommend HP branded memory to ensure compatibility. If you mix memory speeds, the system will perform at the lower memory speed.
7
For storage drives, GB = 1 billion bytes. TB = 1 trillion bytes. Actual formatted capacity is less. Up to 30 GB (for Windows 10) is reserved for system recovery software.
8
TLC SSD in Federa Information Processing Standard
9
Wireless cards are optional or add-on features and requires separately purchased wireless access point and internet service. Availability of public wireless access points limited. The specifications for the 802.11ac WLAN are draft specifications and are not final. If
the final specifications differ from the draft specifications, it may affect the ability of the notebook to communicate with other 802.11ac WLAN devices.
10
Intel® HD Graphics 530: integrated on 6th gen Core™ i7/i5/i3 processors
11
Intel® HD Graphics 630: integrated on 7th gen Core™ i7/i5/i3 processors and Pentium® G4620, 4600, 4600T
12
Intel® HD Graphics 610: integrated on Pentium® G4560, G4560T,Celeron™ G3950, G3930, G3930T
13
Sold separately or as an optional feature.
14
HP BIOSphere with Sure Start available only on business PCs with HP BIOS. HP BIOSphere Gen 3 requires Intel® 7th generation processors.
15
Miracast is a wireless technology your PC can use to project your screen to TVs, projectors, and streaming media players that also support Miracast. You can use Miracast to share what you’re doing on your PC and present a slide show. For more information:
http://windows.microsoft.com/en-us/windows-8/project-wireless-screen-miracast.
16
HP ePrint Driver requires an Internet connection to HP web-enabled printer and HP ePrint account registration (for a list of eligible printers, supported documents and image types and other HP ePrint details, see www.hp.com/go/eprintcenter).Requires optional
broadband module. Broadband use requires separately purchased service contract. Check with service provider for coverage and availability in your area. Separately purchased data plans or usage fees may apply. Print times and connection speeds may vary.
17
EPEAT® registered where applicable. EPEAT registration varies by country. See www.epeat.net for registration status by country.
18
External power supplies, power cords, cables and peripherals are not low halogen. Service parts obtained after purchase may not be low halogen.
Learn more at
www.hp.eu/desktops
Sign up for updates
www.hp.com/go/getupdated
Copyright © 2017 HP Development Company, L.P. The only warranties for HP products are set forth in the express limited warranty statements accompanying
such products. Nothing herein should be construed as constituting an additional warranty. HP shall not be liable for technical or editorial errors or omissions
contained herein.
Intel, Core, Pentium, Celeron and vPro are trademarks of Intel Corporation or its subsidiaries in the U.S. and/or other countries. Bluetooth is a trademark of its
proprietor and used by HP Inc. under license. USB Type-C™ and USB-C™ are trademarks of USB Implementers Forum. ENERGY STAR is a registered trademark of
the U.S. Environmental Protection Agency. DisplayPort™ and the DisplayPort™ logo are trademarks owned by the Video Electronics Standards Association
(VESA®) in the United States and other countries. All Rights Reserved. All other trademarks are the property of their respective owners.
4AA6-9332EEE, February 2017
