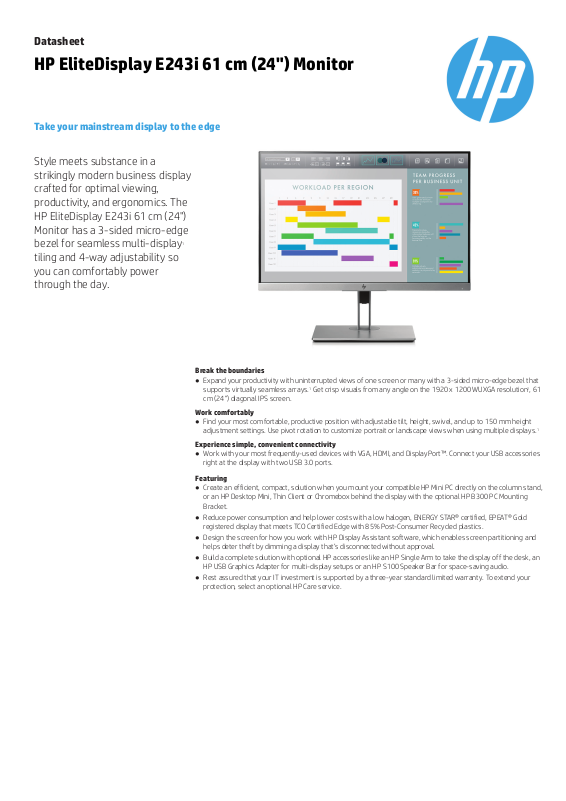

Page 1
Datasheet
HP EliteDisplay E243i 61 cm (24") Monitor
Take your mainstream display to the edge
Style meets substance in a
strikingly modern business display
crafted for optimal viewing,
productivity, and ergonomics. The
HP EliteDisplay E243i 61 cm (24")
Monitor has a 3-sided micro-edge
bezel for seamless multi-display
tiling and 4-way adjustability so
you can comfortably power
through the day.
1
Break the boundaries
Expand your productivity with uninterrupted views of one screen or many with a 3-sided micro-edge bezel that
●
supports virtually seamless arrays.1Get crisp visuals from any angle on the 1920 x 1200 WUXGA resolution2, 61
cm (24") diagonal IPS screen.
Work comfortably
Find your most comfortable, productive position with adjustable tilt, height, swivel, and up to 150 mm height
●
adjustment settings. Use pivot rotation to customize portrait or landscape views when using multiple displays.
Experience simple, convenientconnectivity
Work with your most frequently-used devices with VGA, HDMI, and DisplayPort™. Connect your USB accessories
●
right at the display with two USB 3.0 ports.
Featuring
Create an efficient, compact, solution when you mount your compatible HP Mini PC directly on the column stand,
●
or an HP Desktop Mini, Thin Client or Chromebox behind the display with the optional HP B300 PC Mounting
Bracket.
Reduce power consumption and help lower costs with a low halogen, ENERGY STAR® certified, EPEAT® Gold
●
registered display that meets TCO Certified Edge with 85% Post-Consumer Recycled plastics.
Design the screen for how you work with HP Display Assistant software, which enables screen partitioning and
●
helps deter theft by dimming a display that’s disconnected without approval.
Build a complete solution with optional HP accessories like an HP Single Arm to take the display off the desk, an
●
HP USB Graphics Adapter for multi-display setups or an HP S100 Speaker Bar for space-saving audio.
Rest assured that your IT investment is supported by a three-year standard limited warranty. To extend your
●
protection, select an optional HP Care service.
1
Page 2
Datasheet
HP EliteDisplay E243i 61 cm (24") Monitor
Specifications Table
Product Number 1FH49AA;
Product Color Black and Silver
Display size (diagonal) 60.96 cm (24”)
Display Type IPS w/LED backlight
Panel Active Area 51.84 x 32.4 cm;
Viewing Angle 178° horizontal; 178° vertical
Brightness 250 cd/m²
Contrast Ratio 1000:1 static; 10000000:1 dynamic
Response Ratio 5 ms on/off
Aspect Ratio 16:10
Native Resolution WUXGA (1920 x 1200 @ 60 Hz)
Resolutions Supported 1920 x 1200; 1920 x 1080; 1680 x 1050; 1600 x 900; 1440 x 900; 1280 x 1024; 1280 x 800; 1280 x 720; 1024 x 768; 800 x 600; 720 x 400; 640 x 480
Display Features Anti-glare; BrightView Panel; In plane switching; Language selection; LED Backlights; On-screen controls; Pivot rotation; Plug and Play; Anti-static; Low
User Controls Brightness; Color Control; Contrast; Exit; Image Control; Information; Input Control; Language; Management; Menu; Minus ("-"); OK; Plus ("+"); Power
Input signal 1 VGA; 1 HDMI 1.4 (with HDCP support); 1 DisplayPort™ 1.2 (with HDCP support)
Ports and Connectors 3 USB 3.0 (one upstream, two downstream)
Input power Input voltage: 100 to 240 VAC
Power consumption Energy Efficiency Class: A; Panel Active Area: 51.84 x 32.4 cm; On-mode power consumption: 26 W; Annual energy consumption: 38 kWh; Power
Dimensions with Stand (W x D
x H)
Dimensions without Stand (W
x D x H)
Weight 6.36 kg
Ergonomic features Tilt: -5 to +20°; Swivel: ±45°; Pivot rotation: 90°; Height: 150 mm
Certification and Compliance BSMI; CB; CCC; CE; CEL; cTUVus; ErP; FCC; ICES; ISC; ISO 9241-307; Mexico CoC; Microsoft WHQL Certification Win-10, Win-8, Win-7; MSIP; RCM; S-mark;
Environmental Arsenic-free display glass; Mercury-free display backlights; Low halogen
Energy Efficiency Compliance ENERGY STAR® certified; EPEAT® Gold
What's in the box Monitor; AC power cord; VGA cable; USB cable (Type A male to Type B male); DisplayPort™ 1.2 cable; CD (includes user guide, warranty, drivers); VESA
Warranty 3-years limited warranty including 3 years of parts and labour. Certain restrictions and exclusions apply.
1
1
1
Haze
Control
1
consumption (standby): 0.3 W; Power consumption (off-mode): 0.2 W; Power consumption Description: 45 W (maximum), 35 W (typical), 0.5 W (standby);
Screen resolution: WUXGA (1920 x 1200 @ 60 Hz)
53.2 x 21.39 x 36.23 cm
53.20 x 4.64 x 35.13 cm
(With stand)
SmartWay Transport Partnership - NA only; TUV-GS; VCCI; WEEE
mount adapter; HP Display Assistant
Page 3
Datasheet
HP EliteDisplay E243i 61 cm (24") Monitor
Accessories and services (not included)
HP B500 PC Mounting
Bracket
Customize an altogether better solution with the HP B500 PC Mounting Bracket, which lets you attach your HP
Workstation, HP Desktop Mini, HP Chromebox or select HP Thin Client directly behind select 2017 and 2018 HP Z
1
Displays.
Product number: 2DW53AA
HP Single Monitor Arm The HP Single Monitor Arm is the perfect desk accessory for your work life. Sleek and streamlined, the HP Single Monitor
Arm is designed to complement the way you work.
Product number: BT861AA
HP Quick Release A secure and easy-to-use mounting solution for your VESA-compliant HP thin clients, compatible HP flat panel monitors
and other HP desktop products. Attach to any a compatible stand, bracket or wall mount and make the most of your
workspace.
Product number: EM870AA
HP Integrated Work Center
for Desktop Mini and Thin
Client
Make the most of small work spaces with an HP IWC Desktop Mini/Thin Client that lets you create a compact desktop
solution by combining a display1with an HP Desktop Mini, HP Thin Client or HP Chromebox1and giving you convenient
front access to all of its inputs.
Product number: G1V61AA
HP 5 year Next business day
Onsite Standard Monitor
Hardware Support
Receive 5 years of next business day onsite HW Support from an HP-qualified technician for your computing device, if the
issue cannot be solved remotely.
Product number: U7935E
Page 4
Datasheet
HP EliteDisplay E243i 61 cm (24") Monitor
Messaging Footnotes
1
Each display sold separately.
2
All performance specifications represent the typical specifications provided by HP's component manufacturers; actual performance may vary either higher or lower.
3
HP Mini PC sold separately. HP Desktop PC, Thin Client, and Chromebox sold separately and require the HP B300 PC Mounting Bracket, also sold separately. See display QuickSpecs for product compatibility.
4
External power supplies, power cords, cables and peripherals are not Low Halogen. Service parts obtained after purchase may not be Low Halogen.
5
EPEAT® registered where applicable. EPEAT registration varies by country. See www.epeat.net for registration status by country. Search keyword generator on HP’s 3rd party option store for solar generator accessories
at www.hp.com/go/options
6
Each sold separately.
7
HP Care Packs sold separately. Service levels and response times for HP Care Packs may vary depending on your geographic location. Service starts on date of hardware purchase. Restrictions and limitations apply. For
details, visit www.hp.com/go/cpc. HP Services are governed by the applicable HP terms and conditions of service provided or indicated to Customer at the time of purchase. Customer may have additional statutory rights
according to applicable local laws, and such rights are not in any way affected by the HP terms and conditions of service or the HP Limited Warranty provided with your HP Product.
Technical specifications disclaimers
1
All specifications represent the typical specifications provided by HP's component manufacturers, actual performance may vary either higher or lower.
2
External power supplies, power cords, cables and peripherals are not Low Halogen. Service parts obtained after purchase may not be Low Halogen.
Sign up for updates
www.hp.com/go/getupdated
© Copyright 2017 HP Development Company, L.P. The information contained herein is subject to change without notice. The only warranties for HP products
and services are set forth in the express warranty statements accompanying such products and services. Nothing herein should be construed as constituting an
additional warranty. HP shall not be liable for technical or editorial errors or omissions contained herein.
ENERGY STAR® and the ENERGY STAR® mark are registered trademarks of the U.S. Environmental Protection Agency. DisplayPort™ and the DisplayPort™ logo
are trademarks owned by the Video Electronics Standards Association (VESA®) in the United States and other countries.
4AA7-0719EEE, August 2017
