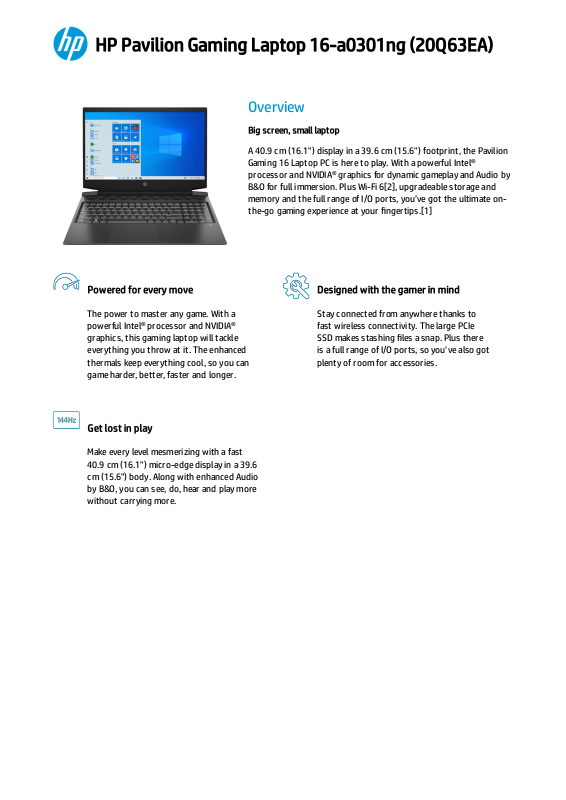

HP Pavilion Gaming Laptop 16-a0301ng (20Q63EA)

Overview

Big screen, small laptop

A 40.9 cm (16.1") display in a 39.6 cm (15.6") footprint, the Pavilion
Gaming 16 Laptop PC is here to play. With a powerful Intel®
processor and NVIDIA® graphics for dynamic gameplay and Audio by
B&O for full immersion. Plus Wi-Fi 6[2], upgradeable storage and
memory and the full range of I/O ports, you’ve got the ultimate on­the-go gaming experience at your ngertips.[1]

Powered for every move

The power to master any game. With a
powerful Intel® processor and NVIDIA®
graphics, this gaming laptop will tackle
everything you throw at it. The enhanced
thermals keep everything cool, so you can
game harder, better, faster and longer.

Designed with the gamer in mind

Stay connected from anywhere thanks to
fast wireless connectivity. The large PCIe
SSD makes stashing les a snap. Plus there
is a full range of I/O ports, so you’ve also got
plenty of room for accessories.

Get lost in play

Make every level mesmerizing with a fast

40.9 cm (16.1") micro-edge display in a 39.6
cm (15.6") body. Along with enhanced Audio
by B&O, you can see, do, hear and play more
without carrying more.

Features

10th Generation Intel® Core™ processor

Experience power and responsive performance to
boost your productivity. Enjoy immersive
entertainment and game, stream and create content

with accelerated performance.

[3]

NVIDIA® GeForce® GTX 1650 graphics

With the all-new NVIDIA Turing™ architecture, gaming
and streaming will never be the same. Get all the
power you need for fast, smooth, power-efficient
performance from NVIDIA® GeForce® GTX 1650.

FHD IPS display

Enjoy crystal-clear images from any angle. With 178°
wide-viewing angles and a vibrant 1920 x 1080
resolution, you'll always have a great view of your

favorite content.

[4]

Anti-glare panel

Enjoy the sun and your favorite content with this
anti-glare panel. Non-reective and low gloss means
you'll get less glare while you're outside.

Effortlessly connected

Enjoy a smoother wireless experience with Wi-Fi 6
(2x2) and Bluetooth® 5.0 combo, all your connections
are solid and up to 3x faster le transfer speeds than

Wi-Fi 5.

[5]

DDR4 RAM

Designed to run more efficiently and more reliably at
faster speeds, DDR4 is the future of RAM. With its
higher bandwidth, everything from multi-tasking to
playing games gets a performance boost.

[1] This device has been engineered for optimal performance. Upgrading PC may affect warranty coverage.

[2] Wi-Fi 6 (802.11ax) is not supported in Ukraine, Russia, and Indonesia where Wi-Fi settings will be optimized
to local regulatory requirements (802.11ac).

[3] Multi-core is designed to improve performance of certain software products. Not all customers or software
applications will necessarily benefit from use of this technology. Performance and clock frequency will vary
depending on application workload and your hardware and software configurations. Intel’s numbering, branding
and/or naming is not a measurement of higher performance. Internet service required and not included. 4K
content required to view full 4K images. Graphics output may be limited based on the maximum resolution of
the display.

[4] Full high-definition (FHD) content is required to view FHD images.

[5] Wireless access point and internet service required and sold separately. Availability of public wireless
access points limited. Wi-Fi 6 (802.11ax) is backwards compatible with prior 802.11 specs. The specifications
for Wi-Fi 6 are draft and are not final. If the final specifications differ from the draft specifications, it may affect
the ability of the notebook to communicate with other Wi-Fi 6 devices. Only available in countries where

802.11ax is supported. Wi-Fi 6 (802.11ax) is not supported in Ukraine, Russia, and Indonesia where the Wi-Fi 6
(802.11ax) will be disabled and downgraded to 802.11ac by the Intel's DRS solution.

Specications

Operating system Windows 10 Home 64

Product color Shadow black, chrome logo

Processor family 10th Generation Intel® Core™ i5 processor

Processor

Intel® Core™ i5-10300H (2.5 GHz base frequency, up to 4.5 GHz with Intel®
Turbo Boost Technology, 8 MB L3 cache, 4 cores)

[6,7]

Chipset Intel® HM470

Memory 16 GB DDR4-2933 SDRAM (2 x 8 GB)

Internal Storage 512 GB Intel® PCIe® NVMe™ M.2 SSD

Product design Paint nish

Optical drive Optical drive not included

Display

40.9 cm (16.1") diagonal, FHD (1920 x 1080), IPS, micro-edge, anti-glare,
250 nits, 45% NTSC

Display size (diagonal) 40.9 cm (16.1")

Audio features Audio by B&O; Dual speakers; HP Audio Boost 1.0

Minimum dimensions (W x D x H)

37 x 26.25 x 2.35 cm

(Dimensions vary by configuration)

Weight

Starting at 2.35 kg

(Weight varies by configuration)

Keyboard Full-size, backlit, ghost white keyboard with numeric keypad

Pointing device

HP Imagepad with multi-touch gesture support; Precision Touchpad
Support

Input devices Accelerometer

Webcam

HP True Vision 720p HD camera with integrated dual array digital
microphones

Ports

1 SuperSpeed USB Type-C® 5Gbps signaling rate (DisplayPort™ 1.4); 1
SuperSpeed USB Type-A 5Gbps signaling rate (HP Sleep and Charge); 1
SuperSpeed USB Type-A 5Gbps signaling rate; 1 HDMI 2.0; 1 RJ-45; 1 AC

smart pin; 1 headphone/microphone combo

[19]

Expansion slots 1 multi-format SD media card reader

Package dimensions (W x D x H) 6.9 x 55.2 x 34.5 cm

Package weight 3.07 kg

Network interface Integrated 10/100/1000 GbE LAN

Wireless

Intel® Wi-Fi 6 AX201 (2x2) and Bluetooth® 5 combo (Supporting Gigabit
le transfer speeds)

[11,12,13,16]

Power supply type 150 W Smart AC power adapter

Battery type 3-cell, 52.5 Wh Li-ion polymer

Battery life

Up to 6 hours and 45 minutes

[3]

Battery recharge time

Supports battery fast charge: approximately 50% in 45 minutes

[5]

Battery weight 210 g

Energy efficiency ENERGY STAR® certied; EPEAT® Silver registered

Pre-installed software

Alexa; Netix; ExpressVPN (30 day free trial); LastPass Premium (30 day
free trial)

[22]

Software included McAfee LiveSafe™

Software - Productivity & nance

1 month trial for new Microsoft 365 customers

[24]

Cloud service

Dropbox

[1]

UPC number 195122676568

Warranty 2 year limited parts, labour, and pickup and return service

Limited warranty coverage and
exceptions

You can expand the warranty coverage of your product to reach up to 3
years in total; for more information go to the "Options and accessories"
web section on hp.com product pages.

Additional specications

Additional information about HP http://www.hp.com

Battery capacity 52.5

Battery capacity uom Wh

Battery cells number 3

Battery life video playback Up to 11 hours

Battery type Li-ion polymer

Bluetooth version Bluetooth® 5

Brightness 250 nits

Color gamut 45% NTSC

Datasheet photo 1 AHID/35bcba7abd0b2e400ac92366b20c6612d8d6dbb0

Datasheet photo 2 AHID/04ea54121e47e1421d2df1649131bc92cc02b11c

Datasheet photo 3 AHID/4042609ba7968f311e0bd4091e6ff59d397b4351

Datasheet photo 4 AHID/4b2303edc18006f9a7a4995c08793e0133bf8b5a

Datasheet photo 5 Publication logos/pc-carepack-logo.jpg

Display bezel micro-edge

Display brightness 250

Display brightness uom nits

Display panel technology IPS

Display resolution (pixels) 1920 x 1080

Display resolution standard FHD

Display size (diagonal) uom "

Display size (diagonal, imperial) 16.1

Display size (diagonal, metric) 40.9

Display size (diagonal, metric)
uom

cm

Display surface treatment anti-glare

ECC memory No

Fingerprint reader Fingerprint reader not available

Graphics Discrete

Graphics (discrete) NVIDIA® GeForce® GTX 1650 Ti(4 GB GDDR6 dedicated)

Graphics card brand NVIDIA®

Graphics card family GeForce®

Graphics card memory size 4

Graphics card memory size uom GB
