Pin Assignments
This appendix provides connector pin assignment tables for Compaq Presario 1600XL
Series Portable Notebooks. For more information on connectors, refer to the section on
Rear Connectors
Note: The signals in all tables of this appendix are considered active high unless
otherwise indicated by an asterisk (*).
.
Parallel Connector
Pin Signal Pin Signal
1 Strobe* 10 Acknowledge*
2 Data Bit 0 11 Busy
3 Data Bit 1 12 Paper Out
4 Data Bit 2 13 Select
5 Data Bit 3 14 Auto Linefeed*
6 Data Bit 4 15 Error*
7 Data Bit 5 16 Initialize Printer*
8 Data Bit 6 17 Select In*
9 Data Bit 7 18-25 Signal Ground
* = Active low
P
RESARIO NOTEBOOK MAINTENANCE AND SERVICE GUIDE
1600 S
ERIES
PIN A
SSIGNMENTS
1
Presario 1600XL Series
Model 1600T, 1600-XL140, 1600-XL141, 1600-XL142, 1600-XL143, 1600-XL144,
1600-XL146, 1600-XL147, 1600-XL150 XL156, XL157, XL255, XL256, XL257, and XL258
Serial Connectors
Connector Pin Signal
1 Carrier Detect
2 Receive Data
3Transmit Data
4 Data Terminal Ready
5 Signal Ground
6 Data Set Ready
7Ready to Send
8 Clear to Send
9 Ring Indicator
Keyboard/Mouse
Connector Pin Signal
1 Data 1
2 Data 2
3 Ground
4 +5 V
5Clock 1
6 Clock 2
2 PIN A
SSIGNMENTS
Modem Connector
Connector Pin Signal
1 Unused
2 Tip
3Ring
4 Unused
P
RESARIO NOTEBOOK MAINTENANCE AND SERVICE GUIDE
1600XL S
ERIES
Presario 1600XL Series
Model 1600T, 1600-XL140, 1600-XL141, 1600-XL142, 1600-XL143, 1600-XL144,
1600-XL146, 1600-XL147, 1600-XL150 XL156, XL157, XL255, XL256, XL257, and XL258
Universal Serial Bus
Connector Pin Signal
1+5 V
2 Data -
3 Data +
4 Ground
External VGA Monitor
Pin Connector Pin Signal
1Red Analog 9+5 V
2 Green Analog 10 Ground
3 Blue Analog 11 Not connected
4 Not connected 12 DDC2B Data
5 Ground 13 Horizontal Sync
6 Ground Analog 14 Vertical Sync
7 Ground Analog 15 DDC2B Clock
8 Ground Analog
P
RESARIO NOTEBOOK MAINTENANCE AND SERVICE GUIDE
1600 S
ERIES
PIN A
SSIGNMENTS
3
Presario 1600XL Series
Model 1600T, 1600-XL140, 1600-XL141, 1600-XL142, 1600-XL143, 1600-XL144,
1600-XL146, 1600-XL147, 1600-XL150 XL156, XL157, XL255, XL256, XL257, and XL258
TV-Out
Connector Pin Signal
1 Ground
2 Composite

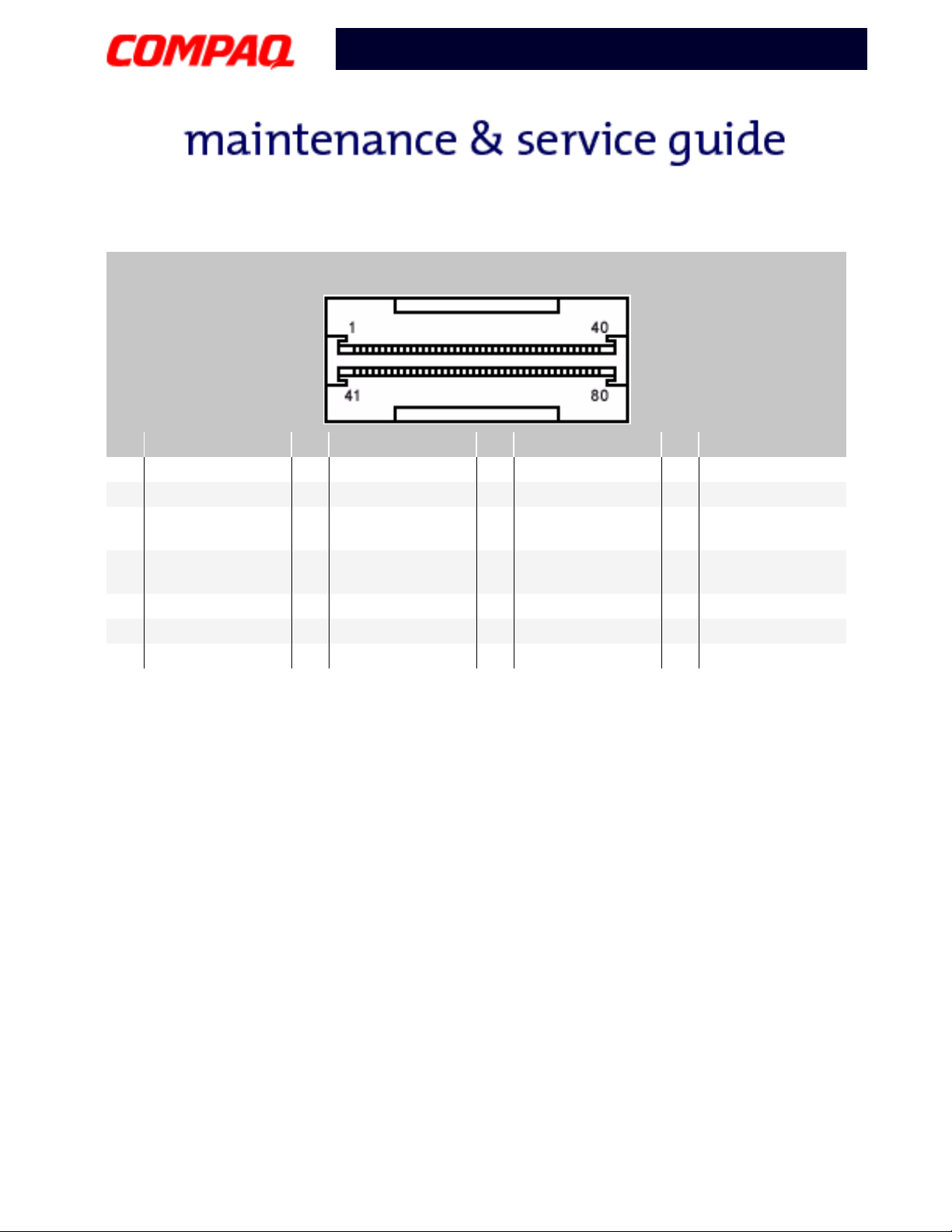

QuikDock Connector
Pin Signal Pin Signal Pin Signal Pin Signal
1 Adapter Power 22 Serial Port DCD 43 Keyboard Clock 64 MIDI Output
2 Adapter Power 23 Serial Port DSR 44 Keyboard Data 65 Headphone
Sense
3 Adapter Power 24 Serial Port TXD 45 Mouse Clock 66 USB Power
4 Adapter Power 25 Serial Port RTS 46 Mouse Data 67 USB Power
5 Adapter Power 26 Monitor DDC 47 Lp Select 68 USB Power
6 Adapter Power 27 Monitor DDC 48 Lp Paper End 69 USB Power
7 Not Connected 28 Not connected 49 Lp Initialize 70 USB A-
8 Printer Data 0 29 V. SY NC 50 Lp Busy 71 USB A+
9 Printer Data 1 30 Ground 51 Lp Error 72 USB B-
10 Printer Data 2 31 H.SYNC 52 Lp Acknowledge 73 USB B+
11 Printer Data 3 32 Ground 53 Lp AutoFeed 74 5V
12 Printer Data 4 33 Blue 54 Lp Strobe 75 5V
13 Printer Data 5 34 Ground 55 Joystick Data A 76 Line Out Left
14 Printer Data 6 35 Green 56 Joystick Data B 77 S-Video SYR
4 PIN A
SSIGNMENTS
P
RESARIO NOTEBOOK MAINTENANCE AND SERVICE GUIDE
1600XL S
ERIES
Presario 1600XL Series
Model 1600T, 1600-XL140, 1600-XL141, 1600-XL142, 1600-XL143, 1600-XL144,
1600-XL146, 1600-XL147, 1600-XL150 XL156, XL157, XL255, XL256, XL257, and XL258
QuikDock Connector
Pin Signal Pin Signal Pin Signal Pin Signal
15 Printer Data 7 36 Ground 57 Joystick Data C 78 Ground
16 Lp Indicator 37 Red 58 Joystick Data D 79 S-Video SCG
17 QuikDock
Indicator
18 Serial Port RXD 39 Composite
19 Serial Port RI 40 Line Out Right 61 Switch C 82 Ground
20 Serial Port DTR 41 Line Out Present 62 Switch D
21 Serial Port CTS 42 Power Cycle 63 MIDI Input
38 Ground 59 Switch A 80 Ground
60 Switch B 81 Ground
TV Out
P
RESARIO NOTEBOOK MAINTENANCE AND SERVICE GUIDE
1600 S
ERIES
PIN A
SSIGNMENTS
5
Presario 1600XL Series
Model 1600T, 1600-XL140, 1600-XL141, 1600-XL142, 1600-XL143, 1600-XL144,
1600-XL146, 1600-XL147, 1600-XL150 XL156, XL157, XL255, XL256, XL257, and XL258
6 PIN A
SSIGNMENTS
P
RESARIO NOTEBOOK MAINTENANCE AND SERVICE GUIDE
1600XL S
ERIES
