HP 15-cc033na Instruction manual

Datasheet

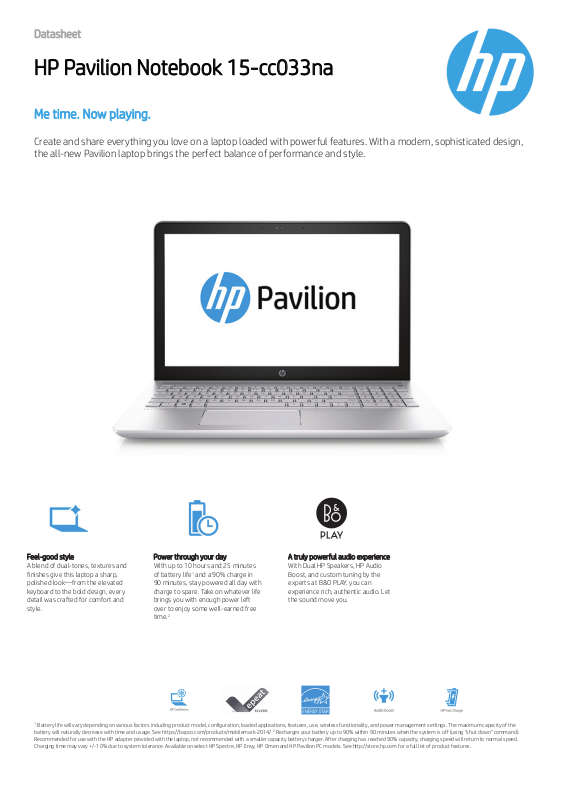

HP Pavilion Notebook 15-cc033na

Me time. Now playing.

Create and share everything you love on a laptop loaded with powerful features. With a modern, sophisticated design,
the all-new Pavilion laptop brings the perfect balance of performance and style.

Feel-good style

A blend of dual-tones, textures and
finishes give this laptop a sharp,
polished look—from the elevated
keyboard to the bold design, every
detail was crafted for comfort and
style.

1

Battery life will vary depending on various factors including product model, configuration, loaded applications, features, use, wireless functionality, and power management settings. The maximum capacity of the
battery will naturally decrease with time and usage. See https://bapco.com/products/mobilemark-2014/2Recharges your battery up to 90% within 90 minutes when the system is off (using “shut down” command).
Recommended for use with the HP adapter provided with the laptop, not recommended with a smaller capacity battery charger. After charging has reached 90% capacity, charging speed will return to normal speed.
Charging time may vary +/-10% due to system tolerance. Available on select HP Spectre, HP Env y,HP Omen and HP Pavilion PC models. See http://store.hp.com for a full list of product features.

Power through your day

With up to 10 hours and 25 minutes
of battery life1and a 90% charge in
90 minutes, stay powered all day with
charge to spare. Take on whatever life
brings you with enough power left
over to enjoy some well-earned free

2

time.

A truly powerful audio experience

With Dual HP Speakers, HP Audio
Boost, and custom tuning by the
experts at B&O PLAY, you can
experience rich, authentic audio. Let
the sound move you.

Datasheet

HP Pavilion Notebook 15-cc033na

Specifications

Performance

Operating System
Windows 10 Home 64
Processor
Intel® Core™ i3-7100U (2.4 GHz, 3 MB cache, 2 cores)
Processor family: 7th Generation Intel® Core™ i3 processor
Memory
8 GB DDR4-2133 SDRAM (1 x 8 GB)
Storage
1 TB 5400 rpm SATA
DVD-Writer

1

Dropbox
Graphics
Integrated Intel® HD Graphics 620
Audio
B&O PLAY; HP Audio Boost; Dual speakers
Display

39.6 cm (15.6") diagonal HD SVA anti-glare WLED-backlit (1366 x 768)
Power
45 W AC power adapter
Battery Type
3-cell, 41 Wh Li-ion
Supports battery fast charge: approximately 90% in 90 minutes
Target battery life
Up to 9 hours and 30 minutes estimated battery time
Maximum battery life video playback
Up to 7 hours and 15 minutes

_

5

5

3

Connectivity

Network interface
Integrated 10/100/1000 GbE LAN
Wireless connectivity
Intel® 802.11b/g/n/ac (1x1) Wi-Fi® and Bluetooth® 4.2 Combo (Miracast compatible)
Ports
1 USB 3.1 Type-C™ Gen 1 (Data Transfer up to 5 Gb/s); 2 USB 3.1 Gen 1 (Data transfer
only); 1 HDMI; 1 RJ-45; 1 headphone/microphone combo
1 multi-format SD media card reader
Webcam
HP Wide Vision HD Camera with integrated dual array digital microphone

Design

Product Color
Mineral silver cover, natural silver base and keyboard frame; Metal aluminum keyboard
frame

_

Software

HP Apps
HP Audio Switch; HP JumpStart; HP Sure Connect; HP CoolSense; HP Orbit
Software
Netflix; 1 month trial for new Microsoft® Office 365 customers
Service & support
McAfee LiveSafe™

_

2

Additional information

Part Number
P/N: 2GG58EA #ABU
UPC/EAN code: 191628333684
Energy Efficiency Compliance
ENERGY STAR® certified; EPEAT® Silver registered
Weight

2.12 kg
Dimensions

37.8 x 25.21 x 2.25 cm
Warranty
1 year limited parts, labour, and pickup and return service; You can expand the
warranty coverage of your product to reach up to 3 years in total; for more
information go to the "Options and accessories" web section on hp.com product
pages.
Keyboard
Full-size island-style keyboard with numeric keypad
HP Imagepad with multi-touch gesture support
Security management
Kensington MicroSaver® lock slot

Compatible accessories*

Warranty services*

* Not included.

3-year pickup and
return
U4819E

1

25 GB of free online storagefor one year from date of registration. For completedetails and terms of use, including cancellation policies, visit the website at www.dropbox.com.Internet service required and not included.2McAfee LiveSafe 30-day freetrial offer (Internet access required. First
30 days included. Subscription requiredfor live updates afterwards.)3Estimated Windows 10 battery lifebased on Windows 10 / MobileMark® 2014 benchmarking. Battery life will vary depending on various factors including product model, configuration,loaded applications, features, use,
wireless functionality,and power management settings. The maximum capacity of the battery will naturally decreasewith time and usage. See www.bapco.com for additional details.5Recharges your batteryup to 90% within 90 minutes when the system is off (using “shut down” command).

Recommended for use with the HP adapterprovided with the notebook, not recommended with a smaller capacity battery charger.After charging has reached 90% capacity, charging speed will returnto normal speed. Charging time may vary +/-10% due to System tolerance.Available on
select HP Spectre,HP Envy, HP Omen and HP Pavilion PC models. See http://store.hp.comfor a full list of product features.

© Copyright 2017 HP DevelopmentCompany, L.P. The information contained herein is subject to change withoutnotice. The only warranties for HP products and services are set forth in the expresswarranty statements accompanying such products and services.
Nothing herein shouldbe construed as constituting an additional warranty. HP shall not be liable for technical or editorial errorsor omissions contained herein. Not all features are availablein all editions or versions of Windows. Systems may require upgraded and/or
separately purchasedhardware, drivers, software or BIOS update to takefull advantage of Windows functionality. Windows 10 is automatically updated, which is always enabled.ISP fees may apply and additional requirements may apply over time for updates.See
http://www.microsoft.com.Microsoft, Windows, and the Windows Logo are U.S. registered trademarks of MicrosoftCorporation.Bluetooth is a trademark of its proprietor and used by Hewlett-PackardCompany under license. Intel and Core are trademarksof Intel
Corporation in the U.S. and other countries.ENERGY STAR is a registered markowned by the U.S. government. All other trademarks are the property of their respectiveowners.

May 2017
