HP 12C Platinum Owner ’ s Handbook and Problem-Solving Guide

HP 12C Platinum
Owner’s Handbook
and
Problem-Solving Guide
© Copyright 2003 Hewlett-Packard Development Company, L.P.
Introduction
About This Handbook
Following this introduction is a brief section called Making Financial Calculations Easy—which shows you that your HP 12C Platinum does just that! The remainder of this handbook is organized basically into three parts:
z Part I (sections 1 through 7) describes how to use the various financial,
mathematics, statistics, and other functions (except for programming) provided in the calculator:
z Section 1 is about Getting Started. It tells you how to use the keyboard,
how to do simple arithmetic calculations and chain calculations, and how to use the storage registers (“memories”).
z Section 2 tells you how to use the percentage and calendar functions.
z Section 3 tells you how to use the simple interest, compound interest,
and amortization functions.
z Section 4 tells you how to do discounted cash flow analysis, bond, and
depreciation calculations.
z Section 5 tells you about miscellaneous operating features such as
Continuous Memory, the display, and special function keys.
z Sections 6 and 7 tell you how to use the statistics, mathematics, and
number-alteration functions.
z Part II (sections 8 through 11) describe how to use the powerful
programming capabilities of the HP 12C Platinum.
z Part III (sections 12 through 16) give you step-by-step solutions to
specialized problems in real estate, lending, savings, investment analysis, and bonds. Some of these solutions can be done manually, while others involve running a program. Since the programmed solutions are both self­contained and step-by-step, you can easily employ them even if you don’t care to learn how to create your own programs. But if you do start to create your own programs, look over the programs used in the solutions: they contain examples of good programming techniques and practices.
2
Introduction 3
z The various appendices describe additional details of calculator operation
as well as warranty and service information.
z The Function Key Index and Programming Key Index at the back of the
handbook can be used as a handy page reference to the comprehensive information inside the manual
Financial Calculations in the United Kingdom
The calculations for most financial problems in the United Kingdom are identical to the calculations for those problems in the United States – which are described in this handbook. Certain problems, however, require different calculation methods in the United Kingdom than in the United States. Refer to Appendix G for more information.
For More Solutions to Financial Problems
In addition to the specialized solutions found in Sections 12 through 16 of this handbook, many more are available in the optional HP 12C Platinum Solutions Handbook. Included are solutions to problems in lending, forecasting, pricing, statistics, savings, investment analysis, personal finance, securities, Canadian mortgages, learning curves in manufacturing, and queuing theory. The solutions handbook is available from your authorized HP dealer.
Contents
Introduction ...................................................................................... 2
About This Handbook ..................................................................................... 2
Financial Calculations in the United Kingdom ................................................ 3
For More Solutions to Financial Problems...................................................... 3
Part I: Problem Solving................................................15
Section 1: Getting Started................................................................... 16
Power On and Off......................................................................................... 16
Low-Power Indication ............................................................................. 16
The Keyboard ............................................................................................... 16
Keying in Numbers ................................................................................. 17
Digit Separators...................................................................................... 17
Negative Numbers.................................................................................. 17
Keying in Large Numbers....................................................................... 18
The CLEAR Keys ................................................................................... 18
The RPN and ALG Keys......................................................................... 19
Simple Arithmetic Calculations in RPN Mode............................................... 19
Chain Calculations in RPN Mode ................................................................. 20
Storage Registers......................................................................................... 23
Storing and Recalling Numbers.............................................................. 24
Clearing Storage Registers .................................................................... 25
Storage Register Arithmetic.................................................................... 25
Section 2: Percentage and Calendar Functions............................ 27
Percentage Functions................................................................................... 27
Percentages ........................................................................................... 27
Net amount............................................................................................. 27
Percent Difference.................................................................................. 28
Percent of Total ...................................................................................... 29
Calendar Functions ...................................................................................... 30
Date Format............................................................................................ 30
Future or Past Dates .............................................................................. 31
Number of Days Between Dates ............................................................ 32
Section 3: Basic Financial Functions............................................... 34
The Financial Registers................................................................................ 34
Storing Numbers Into the Financial Registers........................................ 34
Displaying Numbers in the Financial Registers...................................... 34
Clearing the Financial Registers............................................................. 34
Simple Interest Calculations ......................................................................... 35

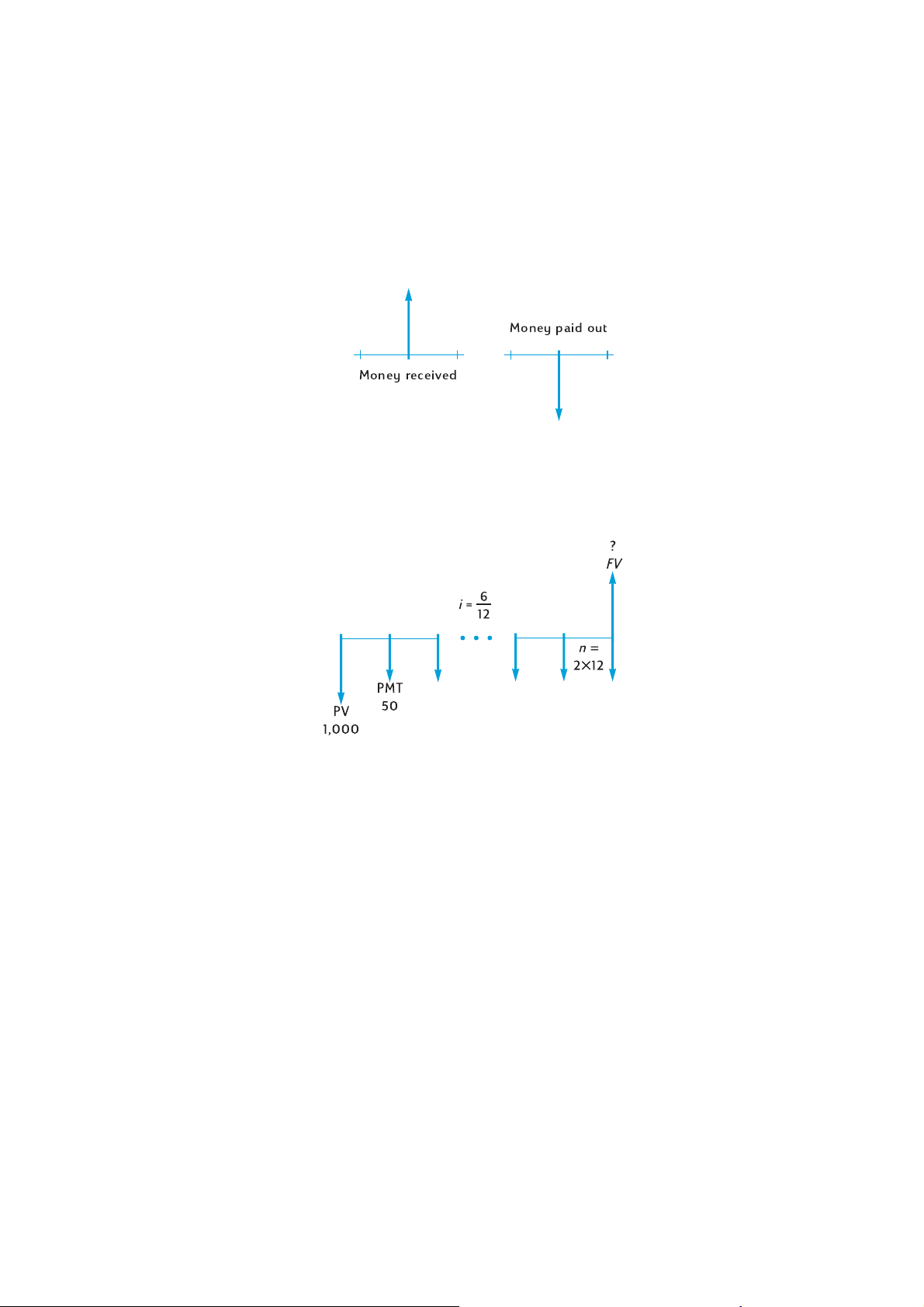

Financial Calculations and the Cash Flow Diagram ..................................... 36
The Cash Flow Sign Convention ............................................................ 38
The Payment Mode ................................................................................ 38
Generalized Cash Flow Diagrams.......................................................... 39
5
6 Contents
Compound Interest Calculations .................................................................. 41
Specifying the Number of Compounding Periods and the Periodic
Interest Rate ........................................................................................... 41
Calculating the Number of Payments or Compounding Periods ............ 41
Calculating the Periodic and Annual Interest Rates............................... 45
Calculating the Present Value ................................................................ 46
Calculating the Payment Amount ........................................................... 48
Calculating the Future Value .................................................................. 49
Odd-Period Calculations......................................................................... 51
Amortization.................................................................................................. 54
Section 4: Additional Financial Functions ...................................... 58
Discounted Cash Flow Analysis: NPV and IRR............................................ 58
Calculating Net Present Value (NPV)..................................................... 59
Calculating Internal Rate of Return (IRR)............................................... 63
Reviewing Cash Flow Entries................................................................. 64
Changing Cash Flow Entries .................................................................. 66
Bond Calculations......................................................................................... 67
Bond Price.............................................................................................. 67
Bond Yield .............................................................................................. 68
Depreciation Calculations............................................................................. 68
Section 5: Additional Operating Features....................................... 70
Continuous Memory ..................................................................................... 70
The Display................................................................................................... 70
Status Indicators..................................................................................... 70
Number Display Formats........................................................................ 71
Scientific Notation Display Format.......................................................... 72
Special Displays ..................................................................................... 73
The
~ Key................................................................................................ 74
The
F Key ............................................................................................... 74
Arithmetic Calculations With Constants.................................................. 75
Recovering From Errors in Digit Entry.................................................... 75
Section 6: Statistics Functions .......................................................... 76
Accumulating Statistics................................................................................. 76
Correcting Accumulated Statistics................................................................ 77
Mean............................................................................................................. 77
Standard Deviation ....................................................................................... 78
Linear Estimation.......................................................................................... 79
Weighted Mean ............................................................................................ 81
Section 7: Mathematics and Number-Alteration Functions ....... 82
One-Number Functions ................................................................................ 82
The Power Function ..................................................................................... 84
Contents 7
Part II: Programming....................................................85
Section 8: Programming Basics........................................................ 86
Why Use Programs? .................................................................................... 86
Creating a Program ...................................................................................... 86
Running a Program ...................................................................................... 87
Program Memory.......................................................................................... 88
Identifying Instructions in Program Lines................................................ 89
Displaying Program Lines....................................................................... 90
The
i000 Instruction and Program Line 000..................................... 91
Expanding Program Memory.................................................................. 91
Setting the Calculator to a Particular Program Line ............................... 93
Executing a Program One Line at a Time .................................................... 94
Interrupting Program Execution.................................................................... 95
Pausing During Program Execution ....................................................... 95
Stopping Program Execution .................................................................. 98
Section 9: Branching and Looping................................................. 101
Simple Branching ....................................................................................... 101
Looping....................................................................................................... 101
Conditional Branching ................................................................................ 104
Section 10: Program Editing............................................................. 110
Changing the Instruction in a Program Line............................................... 110
Adding Instructions at the End of a Program.............................................. 111
Adding Instructions Within a Program ........................................................ 112
Adding Instructions by Replacement.................................................... 112
Adding Instructions by Branching ......................................................... 113
Section 11: Multiple Programs......................................................... 117
Storing Another Program............................................................................ 117
Running Another Program.......................................................................... 119
Part III: Solutions........................................................121
Section 12: Real Estate and Lending ............................................. 122
Annual Percentage Rate Calculations With Fees....................................... 122
Price of a Mortgage Traded at a Discount or Premium .............................. 124
Yield of a Mortgage Traded at a Discount or Premium .............................. 125
The Rent or Buy Decision........................................................................... 127
Deferred Annuities...................................................................................... 131
Section 13: Investment Analysis..................................................... 134
Partial-Year Depreciation ........................................................................... 134
Straight-Line Depreciation .................................................................... 134
Declining-Balance Depreciation ........................................................... 137
Sum-of-the-Years-Digits Depreciation.................................................. 139
Full- and Partial-Year Depreciation with Crossover.................................... 141
Excess Depreciation................................................................................... 145
Modified Internal Rate of Return................................................................. 145
8 Contents
Section 14: Leasing............................................................................ 148
Advance Payments..................................................................................... 148
Solving For Payment ............................................................................ 148
Solving for Yield.................................................................................... 150
Advance Payments With Residual ............................................................. 152
Solving for Payment ............................................................................. 152
Solving For Yield .................................................................................. 154
Section 15: Savings............................................................................ 156
Nominal Rate Converted to Effective Rate................................................. 156
Effective Rate Converted to Nominal Rate................................................. 157
Nominal Rate Converted to Continuous Effective Rate.............................. 158
Section 16: Bonds............................................................................... 159
30/360 Day Basis Bonds ............................................................................ 159
Annual Coupon Bonds................................................................................ 161
Appendixes ................................................................ 165
Appendix A: RPN and the Stack .................................................... 166
Getting Numbers Into the Stack: The \ Key ......................................... 167
Termination of Digit Entry ..................................................................... 168
Stack Lift............................................................................................... 168
Rearranging Numbers in the Stack ............................................................ 168
The
~ Key........................................................................................ 168
The
d Key.......................................................................................... 168
One-Number Functions and the Stack ....................................................... 169
Two-Number Functions and the Stack ....................................................... 169
Mathematics Functions......................................................................... 169
Percentage Functions........................................................................... 170
Calendar and Financial Functions.............................................................. 171
The LAST X Register and the
Chain Calculations in RPN Mode ............................................................... 172
Arithmetic Calculations with Constants ...................................................... 173
Appendix B: Algebraic Mode (ALG) .............................................. 175
Simple Arithmetic calculations in ALG mode.............................................. 175
Keying in Negative Numbers (
Chain Calculations in ALG mode................................................................ 176
Percentage Functions................................................................................. 176
Percent Difference................................................................................ 177
Percent of Total .................................................................................... 177
The Power Function ................................................................................... 178
Appendix C: More About L ......................................................... 179
Appendix D: Error Conditions ........................................................ 181
Error 0: Mathematics .................................................................................. 181
Error 1: Storage Register Overflow ............................................................ 181
Error 2: Statistics ........................................................................................ 182
Error 3: IRR ................................................................................................ 182
F KEY ................................................... 172
Þ)........................................................... 175
Contents 9
Error 4: Memory.......................................................................................... 182
Error 5: Compound Interest........................................................................ 182
Error 6: Storage Registers.......................................................................... 183
Error 7: IRR ................................................................................................ 183
Error 8: Calendar........................................................................................ 184
Error 9: Service........................................................................................... 184
Pr Error ....................................................................................................... 184
Appendix E: Formulas Used ............................................................ 185
Percentage ................................................................................................. 185
Interest........................................................................................................ 185
Simple Interest...................................................................................... 185
Compound Interest ............................................................................... 185
Amortization................................................................................................ 186
Discounted Cash Flow Analysis ................................................................. 187
Net Present Value ................................................................................ 187
Internal Rate of Return ......................................................................... 187
Calendar..................................................................................................... 187
Actual Day Basis .................................................................................. 187
30/360 Day Basis ................................................................................. 188
Bonds ......................................................................................................... 188
Depreciation ............................................................................................... 189
Straight-Line Depreciation .................................................................... 189
Sum-of-the-Years-Digits Depreciation.................................................. 190
Declining-Balance Depreciation ........................................................... 190
Modified Internal Rate of Return................................................................. 190
Advance Payments..................................................................................... 191
Interest Rate Conversions .......................................................................... 191
Finite Compounding ............................................................................. 191
Continuous Compounding.................................................................... 191
Statistics ..................................................................................................... 191
Mean..................................................................................................... 191
Weighted Mean .................................................................................... 192
Linear Estimation.................................................................................. 192
Standard Deviation............................................................................... 192
Factorial................................................................................................ 192
The Rent or Buy Decision........................................................................... 193
Appendix F: Battery, Warranty, and Service Information ........ 195
Battery ........................................................................................................ 195
Low-Power Indication ................................................................................. 195
Installing a New Battery........................................................................ 195
Verifying Proper Operation (Self-Tests) ..................................................... 196
Warranty ..................................................................................................... 198
Service........................................................................................................ 200
Potential For Radio/Television Interference (for U.S.A. Only) .................... 201
Temperature Specifications........................................................................ 201
Noise Declaration ....................................................................................... 201
Regulation applying to The Netherlands .................................................... 202
10 Contents
Appendix G: United Kingdom Calculations ................................ 203
Mortgages................................................................................................... 203
Annual Percentage Rate (APR) Calculations............................................. 203
Bond Calculations....................................................................................... 204
Function Key Index ..................................................................... 205
Programming Key Index ............................................................. 208
Subject Index ............................................................................... 211
Making Financial
Calculations Easy
Before you begin to read through this handbook, let’s take a look at how easy financial calculations can be with your HP 12C Platinum. While working through the examples below, don’t be concerned about learning how to use the calculator; we’ll cover that thoroughly beginning with Section 1.
Example 1: Suppose you want to ensure that you can finance your daughter’s college education 14 years from today. You expect that the cost will be about $6,000 a year ($500 a month) for 4 years. Assume she will withdraw $500 at the beginning of each month from a savings account. How much would you have to deposit into the account when she enters college if the account pays 6% annual interest compounded monthly?
This is an example of a compound interest calculation. All such problems involve at least three of the following quantities:
z n: the number of compounding periods.
z i: the interest rate per compounding period.
z P
W
: the present value of a compounded amount.
z PMT: the periodic payment amount.
z FV: the future value of a compounded amount.
In this particular example:
z n is 4 years × 12 periods per year = 48 periods.
z i is 6% per year ÷ 12 periods per year = 0.5% per period.
z PV is the quantity to be calculated – the present value when the financial
transaction begins.
z PMT is $500.
z FV is zero, since by the time your daughter graduates she (hopefully!) will
not need any more money.
To begin, turn the calculator on by pressing the ; key. Then, press the keys shown in the Keystrokes column below.
Note: A battery symbol ( ) shown in the upper-left corner of the
display when the calculator is on signifies that the available battery power is nearly exhausted. To install new batteries, refer to Appendix F.
1
1.
If you are not familiar with the use of an HP calculator keyboard, refer to the description on pages 16 and 17.
11
12 Making Financial Calculations Easy
The calendar functions and nearly all of the financial functions take some time to produce an answer. (This is typically just a few seconds, but the ¼, !, L, and S functions could require a half-minute or more.) During these calculations, the word running flashes in the display to let you know that the calculator is running.
Keystrokes Display
fCLEARHf2
4gA
6gC
500P
g× $
a Don’t be concerned now about the minus sign in the display. That and other details will
be explained in Section 3.
Example 2: We now need to determine how to accumulate the required deposit by the time your daughter enters college 14 years from now. Let’s say that she has a paid-up $5,000 insurance policy that pays 5.35% annually, compounded semiannually. How much would it be worth by the time she enters college?
In this example, we need to calculate FV, the future value.
0.00
48.00
0.50
500.00
500.00
–21,396.61
Clears previous data inside the calculator and sets display to show two decimal places.
Calculates and stores the number of compounding periods.
Calculates and stores the periodic interest rate.
Stores periodic payment amount.
Sets payment mode to Begin.
Amount required to be deposited.
a
Keystrokes (RPN mode) Display
fCLEARG
14\2§w
5.35\2z¼
5000Þ$
M
Example 3: The preceding example showed that the insurance policy will provide about half the required amount. An additional amount must be set aside to provide the balance (21,396.61 – 10,470.85 = 10,925.76). Suppose you make monthly payments, beginning at the end of next month, into an account that pays
–21,396.61
28.00
2.68
–5000.00
10,470.85
Clears previous financial data inside the calculator.
Calculates and stores the number of compounding periods.
Calculates and stores the periodic interest rate.
Stores the present value of the policy.
Value of policy in 14 years.
Making Financial Calculations Easy 13
6% annually, compounded monthly. What payment amount would be required in order to accumulate $10,925.75 in the 14 years remaining?
Keystrokes Display
fCLEARG
14gA
6gC
10925.76M
g P
Example 4: Suppose you cannot find a bank that currently offers an account with 6% annual interest compounded monthly, but you can afford to make $45.00 monthly payments. What is the minimum interest rate that will enable you to accumulate the required amount?
In this problem, we do not need to clear the previous financial data inside the calculator, since most of it is unchanged from the preceding example.
10,470.85
168.00
0.50
10.925.76
10.925.76
–41.65
Clears previous financial data inside the calculator.
Calculates and stores the number of compounding periods.
Calculates and stores the periodic interest rate.
Stores the future value required.
Sets payment mode to End.
Monthly payment required.
Keystrokes Display
45ÞP ¼ 12§
This is only a small sampling of the many financial calculations that can now be done easily with your HP 12C Platinum. To begin learning about this powerful financial tool, just turn the page.
–45.00
0.42
5.01
Stores payment amount.
Periodic interest rate.
Annual interest rate.
Part I
Problem Solving
Section 1
Getting Started
Power On and Off
To begin using your HP 12C Platinum, press the ; key1. Pressing ; again turns the calculator off. If not manually turned off, the calculator will turn off automatically 8 to 17 minutes after it was last used.
Low-Power Indication
A battery symbol ( ) shown in the upper-left corner of the display when the calculator is on signifies that the available battery power is nearly exhausted. To replace the batteries, refer to Appendix F.
The Keyboard
Many keys on the HP 12C Platinum perform two or even three functions. The primary function of a key is indicated by the characters printed in white on the upper face of the key. The alternate function(s) of a key are indicated by the characters printed in gold above the key and the characters printed in blue on the lower face of the key. These alternate functions are specified by pressing the appropriate prefix key before the function key.
:
z To specify the alternate function printed in
gold above a key, press the gold prefix key (f), then press the function key.
z To specify the primary function printed on
the upper face of a key, press the key alone.
z To specify the alternate function printed in
blue on the lower face of a key, press the blue prefix key (g), then press the function key.
Throughout this handbook, references to the operation of an alternate function appear as only the function name in a box (for example, “The L function …”). References to the selection of an alternate function appear preceded by the
1.
Note that the ; key is lower than the other keys to help prevent its being pressed inadvertently.
16
Section 1: Getting Started 17
appropriate prefix key (for example, “Pressing fL …”). References to the functions shown on the keyboard in gold under the bracket labeled “CLEAR” appear throughout this handbook preceded by the word “CLEAR” (for example, “The CLEAR H function …” or “Pressing fCLEARH …”).
If you press the f or g prefix key mistakenly, you can cancel it by pressing fCLEAR X. This can also be pressed to cancel the ?, :, and i keys. (These keys are “prefix” keys in the sense that other keys must be pressed after them in order to execute the corresponding function.) Since the X key is also used to display the mantissa (all 10 digits) of a displayed number, the mantissa of the number in the display will appear for a moment after the X key is released.
Pressing the f or g prefix key turns on the corresponding status indicator – f or g – in the display. Each indicator turns off when you press a function key (executing an alternate function of that key), another prefix key, or fCLEAR X.
Keying in Numbers
To key a number into the calculator, press the digit keys in sequence, just as if you were writing the number on paper. A decimal point must be keyed in (using the decimal point key) if it is part of the number unless it appears to the right of the last digit.
Digit Separators
As a number is keyed in, each group of three digits to the left of the decimal point is automatically separated in the display. When the calculator is first turned on after coming from the factory – or after Continuous Memory is reset – the decimal point in displayed numbers is a dot, and the separator between each group of three digits is a comma. If you wish, you can set the calculator to display a comma for the decimal point and a dot for the three-digit separator. To do so, turn the calculator off, then press and hold down the . key while you press ;. Doing so again sets the calculator to use the original digit separators in the display.
Negative Numbers
To make a displayed number negative – either one that has just been keyed in or one that has resulted from a calculation – simply press Þ (change sign). When the display shows a negative number – that is, the number is preceded by a minus sign – pressing Þ removes the minus sign from the display, making the number positive.
18 Section 1: Getting Started
Keying in Large Numbers
Since the display cannot show more than 10 digits of a number, numbers greater than 9,999,999,999 cannot be entered into the display by keying in all the digits in the number. However, such numbers can be easily entered into the display if the number is expressed in a mathematical shorthand called “scientific notation.” To convert a number into scientific notation, move the decimal point until there is only one digit (a nonzero digit) to its left. The resulting number is called the “mantissa” of the original number, and the number of decimal places you moved the decimal point is called the “exponent” of the original number. If you moved the decimal point to the left, the exponent is positive; if you moved the decimal point to the right (this would occur for numbers less than one), the exponent is negative. To key the number into the display, simply key in the mantissa, press Æ (enter exponent), then key in the exponent. If the exponent is negative, press Þ after pressing Æ.
For example, to key in $1,781,400,000,000, we move the decimal point 12 places to the left, giving a mantissa of 1.7814 and an exponent of 12:
Keystrokes Display
1.7814Æ12
Numbers entered in scientific notation can be used in calculations just like any other number.
1.7814 12
1,781,400,000,000 entered in scientific notation.
The CLEAR Keys
Clearing a register or the display replaces the number in it with zero. Clearing program memory replaces the instructions there with gi000. There are several clearing operations on the HP 12C Platinum, as shown in the table below:
Key(s) Clears:
O Display and X-register. fCLEAR² Statistics registers (R
registers, and display.
fCLEARÎ Program memory (only when pressed in
Program mode).
fCLEARG Financial registers. fCLEARH Data storage registers, financial registers,
stack and LAST X registers, and display.
through R6), stack
1
Section 1: Getting Started 19
The RPN and ALG Keys
The calculator can be set to perform arithmetic operations in either RPN (Reverse Polish Notation) or ALG (Algebraic) mode.
In reverse polish notation (RPN) mode, the intermediate results of calculations are stored automatically, hence you do not have to use parentheses.
In algebraic (ALG) mode, you perform addition, subtraction, multiplication, and division in the traditional way.
To select RPN mode: Press f] to set the calculator to RPN mode. When the
calculator is in RPN mode, the RPN status indicator is lit.
To select ALG mode: Press f[ to set the calculator to ALG mode. When
the calculator is in ALG mode, the ALG status indicator is lit.
Example
Suppose you want to calculate 1 + 2 = 3. In RPN mode, you enter the first number, press the \ key, enter the second
number, and finally press the arithmetic operator key: +. In ALG mode, you enter the first number, press +, enter the second number,
and finally press the equals key: }.
RPN mode ALG mode
1 \ 2 + 1 + 2 }
In RPN mode and algebraic mode, the results of all calculations are listed. However, in RPN mode only the results are listed, not the calculations.
Most examples in this manual (except those in Appendix B) assume that RPN mode is selected. Some examples will also be correct if you are in ALG mode.
Simple Arithmetic Calculations in RPN Mode
In RPN mode, any simple arithmetic calculation involves two numbers and an operation – addition, subtraction, multiplication, or division. To do such a calculation on your HP 12C Platinum, you first tell the calculator the two numbers, then tell the calculator the operation to be performed. The answer is calculated when the operation key (+,-,§, or z) is pressed.
The two numbers should be keyed into the calculator in the order they would appear if the calculation were written down on paper left-to-right. After keying in the first number, press the \ key to tell the calculator that you have completed entering the number. Pressing \ separates the second number to be entered from the first number already entered.
20 Section 1: Getting Started
In summary, to perform an arithmetic operation:
1. Key in the first number.
2. Press \ to separate the second number from the first.
3. Key in the second number.
4. Press +,-,§, or z to perform the desired operation.
For example to calculate 13 ÷ 2, proceed as follows:
Keystrokes (RPN mode) Display
13
\
2
z
Notice that after you pressed \, two zeroes appeared following the decimal point. This is nothing magical: the calculator’s display is currently set to show two decimal places of every number that has been entered or calculated. Before you pressed \, the calculator had no way of knowing that you had completed entering the number, and so displayed only the digits you had keyed in. Pressing \ tells the calculator that you have completed entering the number: it terminates digit entry. You need not press \ after keying in the second number because the +,-,§, and z keys also terminate digit entry. (In fact, all keys terminate digit entry except for digit entry keys – digit keys, ., Þ, and Æ – and prefix keys – f, g, ?, :, and (.)
13.
13.00
2.
6.50
Keys the first number into the calculator.
Pressing \ separates the second number from the first.
Keys the second number into the calculator.
Pressing the operation key calculates the answer.
Chain Calculations in RPN Mode
Whenever the answer has just been calculated and is therefore in the display, you can perform another operator with this number by simply keying in the second number and then pressing the operation key: you need not press \ to separate the second number from the first. This is because when a number is keyed in after a function key (such as +,-,§,z, etc.) is pressed, the result of that prior calculation is stored inside the calculator – just as when the \ key is pressed. The only time you must press the \ key to separate two numbers is when you are keying them both in, one immediately following the other.
The HP 12C Platinum is designed so that each time you press a function key in RPN mode, the calculator performs the operation then – not later – so that you see the results of all intermediate calculations, as well as the “bottom line.”
Section 1: Getting Started 21
Example: Suppose you’ve written three checks without updating your checkbook, and you’ve just deposited your paycheck for $1,053.00 into your checking account. If your latest balance was $58.33 and the checks were written for $22.95, $13.70, and $10.14, what is the new balance?
Solution: When written down on paper, this problem would read
58.33 – 22.95 – 13.70 – 10.14 + 1053
Keystrokes (RPN mode) Display
58.33
\
22.95
-
13.70
-
10.14-
1053+
58.33
58.33
22.95
35.38
13.70
21.68
11.54
1,064.54
Keys the first number. Pressing \ separates the second
number from the first. Keys in the second number. Pressing - subtracts the second
number from the first. The calculator displays the result of this calculation, which is the balance after subtracting the first check.
Keys in the next number. Since a calculation has just been performed, do not press \; the next number entered (13.70) is automatically separated from the one previously in the display (35.38).
Pressing - subtracts the number just entered from the number previously in the display. The calculator displays the result of this calculation, which is the balance after subtracting the second check.
Keys in the next number and subtracts it from the previous balance. The new balance appears in the display. (It’s getting rather low!)
Keys in the next number – the paycheck deposited – and adds it to the previous balance. The new, current balance appears in the display.
22 Section 1: Getting Started
The preceding example demonstrates how the HP 12C Platinum calculates just as you would using pencil and paper (except a lot faster!):
Youdoone operation at a time ...
... and you see the results of each operation immediately.
Let’s see this happening in a different type of calculation – one that involves multiplying groups of two numbers and then adding the results. (This is the type of calculation that would be required to total up an invoice consisting of several items with different quantities and different prices.)
For example, consider the calculation of (3 × 4) + (5 × 6). If you were doing this on paper, you would first do the multiplication in the first parentheses, then the multiplication in the second parentheses, and finally add the results of the two multiplications:
Your HP 12C Platinum calculates the answer in just the same way:
Keystrokes (RPN mode) Display
3\4§
5\6§
+
12.00
30.00
42.00
Step 1: Multiply the numbers in the first parentheses.
Step 2: Multiply the numbers in the second parentheses.
Step 3: Add the results of the two multiplications.
Notice that before doing step 2, you did not need to store or write down the result of step 1: it was stored inside the calculator automatically. And after you keyed in the 5 and the 6 in step 2, the calculator was holding two numbers (12 and 5) inside for you, in addition to the 6 in the display. (The HP 12C Platinum can hold a total of three numbers inside, in addition to the number in the display.) After step 2, the calculator was still holding the 12 inside for you, in addition to the 30 in the display. You can see that the calculator holds the number for you, just as you would have them written on paper, and then calculates with them at the
Section 1: Getting Started 23
proper time, just as you would yourself.2 But with the HP 12C Platinum, you don’t need to write down the results of an intermediate calculation, and you don’t even need to manually store it and recall it later.
By the way, notice that in step 2 you needed to press \ again. This is simply because you were again keying in two numbers immediately following each other, without performing a calculation in between.
To check your understanding of how to calculate with your HP 12C Platinum, try the following problems yourself. Although these problems are relatively simple, more complicated problems can be solved using the same basic steps. If you have difficulty obtaining the answers shown, review the last few pages.
34+()56+()× 77.00=
27 14()
-----------------------0.25=
14 38+()
5
--------------------------- 0 . 1 3= 31621++
Storage Registers
Numbers (data) in the HP 12C Platinum are stored in memories called “storage registers” or simply “registers.” (The singular term “memory” is sometimes used in this handbook to refer to the entire collection of storage registers.) Four special registers are used for storing numbers during calculations (these “stack registers” are described in Appendix A), and another (called the “LAST X” register) is used for storing the number last in the display before an operation is performed. In addition to these registers into which numbers are stored automatically, up to 20 “data storage” registers are available for manual storage of numbers. These data storage registers are designated R through R.9. Fewer registers are available for data storage if a program has been stored in the calculator (since the program is stored in some of those 20 registers), but a minimum of 7 registers is always available. Still other storage registers – referred to as the “financial registers” – are reserved for numbers used in financial calculations.
through R9 and R
0
.0
2.
Although you don’t need to know just how these numbers are stored and brought back at just the right time, if you’re interested you can read all about it in Appendix A. By gaining a more complete understanding of the calculator’s operation, you’ll use it more efficiently and confidently, yielding a better return on the investment in your HP 12C Platinum.
24 Section 1: Getting Started
Storing and Recalling Numbers
To store the number from the display into a data storage register:
1. Press ? (store).
2. Key in the register number: 0 through 9 for registers R through .9 for registers R
through R.9.
.0
Similarly, to recall a number from a storage register into the display, press : (recall), then key in the register number. This copies the number from the storage register into the display; the number remains unaltered in the storage register. Furthermore, when this is done, the number previously in the display is automatically held inside the calculator for a subsequent calculation, just as the number in the display is held when you key in another number.
Example: Before you leave to call on a customer interested in your personal computer, you store the cost of the computer ($3,250) and also the cost of a printer ($2,500) in data storage registers. Later, the customer decides to buy six computers and one printer. You recall the cost of the computer, multiply by the quantity ordered, and then recall and add the cost of the printer to get the total invoice.
Keystrokes (RPN mode) Display
3250?1
2500?2
3,250.00
2,500.00
; Turns the calculator off.
Stores the cost of the computer in R
.
1
Stores the cost of the printer in R2.
through R9, or .0
0
Later that same day …
Keystrokes (RPN mode) Display
; :1
6§
:2
+
2,500.00
3,250.00
19,500.00
2,500.00
22,000.00
Turns the calculator back on.
Recalls the cost of the computer to the display.
Multiplies the quantity ordered to get the cost of the computers.
Recalls the cost of the printer to the display.
Total invoice.
Section 1: Getting Started 25
Clearing Storage Registers
To clear a single storage register – that is, to replace the number in it with zero – merely store zero into it. You need not clear a storage register before storing data into it; the storing operation automatically clears the register before the data is stored.
To clear all storage registers at once – including the financial registers, the stack registers, and the LAST X register – press fCLEARH.
3
This also clears the
display.
All storage registers are also cleared when Continuous Memory is reset (as described on page 70).
Storage Register Arithmetic
Suppose you wanted to perform an arithmetic operation with the number in the display and the number in a storage register, then store the result back into the same register without altering the number in the display. The HP 12C Platinum enables you to do all this in a single operation.
1. Press ?.
2. Press +,-,§, or z to specify the desired operation.
3. Key in the register number.
When storage register arithmetic is performed, the new number in the register is determined according to the following rule:
number formerly
in register
Storage register arithmetic is possible with only registers R
number in display
through R
0
4
.
Example: In the example on page 21, we updated the balance in your checkbook. Let’s suppose that because data is stored indefinitely in your calculator’s Continuous Memory, you keep track of your checking account balance in the calculator. You could use storage register arithmetic to quickly update the balance after depositing or writing checks.
3.
CLEARH is not programmable.
26 Section 1: Getting Started
Keystrokes Display
58.33?0
22.95?-0
13.70?-0
10.14?-0 1053?+0 :0
58.33
22.95
13.70
10.14
1,053.00
1,064.54
Stores the current balance in register R
.
0
Subtracts the first check from the balance in R
. Note that the display
0
continues to show the amount subtracted; the answer is placed only in R
.
0
Subtracts the second check.
Subtracts the third check.
Adds the deposit.
Recalls the number in R0 to check the new balance.
Section 2
Percentage and Calendar
Functions
Percentage Functions
The HP 12C Platinum includes three keys for solving percentage problems: b, à, and Z. You don’t need to convert percentages to their decimal
equivalents; this is done automatically when you press any of these keys. Thus, 4% need not be changed to 0.04; you key it in the way you see and say it: 4b.
Percentages
In RPN mode, to find the amount corresponding to a percentage of a number:
1. Key in the base number.
2. Press \.
3. Key in the percentage.
4. Press b.
For example, to find 14% of $300:
Keystrokes (RPN mode) Display
300
\
14
b
300.
300.00
14.
42.00
Keys in the base number. Pressing \ separates the next
number entered from the first number, just as when an ordinary arithmetic calculation is performed.
Keys in the percentage.
Calculates the amount.
If the base number is already in the display as a result of a previous calculation, you should not press \ before keying in the percentage – just as in a chain arithmetic calculation.
Net Amount
A net amount – that is, the base amount plus or minus the percentage amount – can be calculated easily with your HP 12C Platinum, since the calculator holds
27
28 Section 2: Percentage and Calendar Functions
the base amount inside after you calculate a percentage amount. To calculate a net amount, simply calculate the percentage amount, then press = or -.
Example: You’re buying a new car that lists for $13,250. The dealer offers you a discount of 8%, and the sales tax is 6%. Find the amount the dealer is charging you, then find the total cost to you, including tax.
Keystrokes (RPN mode) Display
13250\
8b
­6b =
13,250.00
1,060.00
12,190.00
731.40
12,921.40
Keys in the base amount and separates it from the percentage.
Amount of discount.
Base amount less discount.
Amount of tax (on $12,190).
Total cost: base amount less discount plus tax.
Percent Difference
In RPN mode, to find the percent difference between two numbers:
1. Key in the base number.
2. Press \ to separate the other number from the base number.
3. Key in the other number.
4. Press à.
If the other number is greater than the base number, the percent difference will be positive. If the other number is less than the base number, the percent difference will be negative. Therefore, a positive answer indicates an increase, while a negative answer indicates a decrease.
If you are calculating a percent difference over time, the base number is typically the amount occurring first.
Example: Yesterday your stock fell from 58˝ to 53ď per share. What is the percent change?
Keystrokes Display
58.5\
53.25
à
The à key can be used for calculations of the percent difference between a wholesale cost and a retail cost. If the base number entered is the wholesale cost,
58.50
53.25
–8.97
Keys in the base number and separates it from the other number.
Keys in the other number.
Nearly a 9% decrease.
Section 2: Percentage and Calendar Functions 29
the percent difference is called the markup; if the base number entered is the retail cost, the percent difference is called the margin. Examples of markup and margin calculations are included in the HP 12C Platinum Solutions Handbook.
Percent of Total
In RPN mode, to calculate what percentage one number is of another:
1. Calculate the total amount by adding the individual amounts, just as in a chain arithmetic calculation.
2. Key in the number whose percentage equivalent you wish to find.
3. Press Z.
Example: Last month, your company posted sales of $3.92 million in the U.S., $2.36 million in Europe, and $1.67 million in the rest of the world. What percentage of the total sales occurred in Europe?
Keystrokes (RPN mode) Display
3.92\
2.36+
1.67+
2.36
Z
3.92
6.28
7.95
2.36
29.69
Keys in the first number and separates it from the second.
Adds the second number. Adds the third number to get the
total. Keys in 2.36 to find what
percentage it is of the number in the display.
Europe had nearly 30% of the total sales.
The HP 12C Platinum holds the total amount inside after a percent of total is calculated. Therefore, to calculate what percentage another amount is of the total:
1. Clear the display by pressing O.
2. Key in that amount.
3. Press Z again.
For example, to calculate what percent of the total sales in the preceding example occurred in the U.S. and what percent occurred in the rest of the world:
Keystrokes (RPN mode) Display
O3.92Z
O1.67 Z
49.31
21.01
The U.S. had about 49% of the total sales.
The rest of the world had about 21% of the total sales.
30 Section 2: Percentage and Calendar Functions
To find what percentage a number is of a total, when you already know the total number
1. Key in the total number.
2. Press \ to separate the other number from the total number.
3. Key in the number whose percentage equivalent you wish to find.
4. Press Z.
For example, if you already knew in the preceding example that the total sales were $7.95 million and you wanted to find what percentage of that total occurred in Europe:
Keystrokes Display
7.95\
2.36
Z
7.95
2.36
29.69
Keys in the total amount and separates it from the next number.
Keys in 2.36 to find what percentage it is of the number in the display.
Europe had nearly 30% of the total sales.
Calendar Functions
The calendar functions provided by the HP 12C Platinum – D and Ò – can handle dates from October 15, 1582 through November 25, 4046.
Date Format
For each of the calendar functions – and also for bond calculations (E and S) – the calculator uses one of two date formats. The date format is used to
interpret dates when they are keyed into the calculator as well as for displaying dates.
Month-Day-Year. To set the date format to month-day-year, press gÕ. To key in a date with this format in effect:
1. Key in the one or two digits of the month.
2. Press the decimal point key (.).
3. Key in the two digits of the day.
4. Key in the four digits of the year.
Dates are displayed in the same format.
Section 2: Percentage and Calendar Functions 31
For example, to key in April 7, 2004:
Keystrokes Display
4.072004
Day-Month-Year. To set the date format to day-month-year, press . To key in a date with this format in effect:
1. Key in the one or two digits of the day.
2. Press the decimal point key (.).
3. Key in the two digits of the month.
4. Key in the four digits of the year.
For example, to key in 7 April, 2004:
4.072004
Keystrokes Display
7.042004
When the date format is set to day-month-year, the D.MY status indicator in the display is lit. If D.MY is not lit, the date format is set to month-day-year.
The date format remains set to what you last specified until you change it; it is not reset each time the calculator is turned on. However, if Continuous Memory is reset, the date format is set to month-day-year.
7.042004
Future or Past Dates
To determine the date and day that is a given number of days from a given date:
1. Key in the given date and press \.
2. Key in the number of days.
3. If the other date is in the past, press Þ.
4. Press gD.
The answer calculated by the D function is displayed in a special format. The numbers of the month, day, and year (or day, month, and year) are separated by digit separators, and the digit at the right of the displayed answer indicates the day of the week: 1 for Monday through 7 for Sunday.
4.
The day of the week indicated by the D function may differ from that recorded in history for dates when the Julian calendar was in use. The Julian calendar was standard in England and its colonies until September 14, 1752, when they switched to the Gregorian calendar. Other countries adopted the Gregorian calendar at various times.
4
32 Section 2: Percentage and Calendar Functions
Example: If you purchased a 120-day option on a piece of land on 14 May 2004, what would be the expiration date? Assume that you normally express dates in the day-month-year format.
Keystrokes Display
14.052004\
120gD
When D is executed as an instruction in a running program, the calculator pauses for about 1 second to display the result, then resumes program execution.
7.04
14.05
11,09,2004 6
Sets date format to day-month­year. (Display shown assumes date remains from preceding example. The full date is not now displayed because the display format is set to show only two decimal places, as described in Section 5.)
Keys in date and separates it from number of days to be entered.
The expiration date is 11 September 2004, a Saturday.
Number of Days Between Dates
To calculate the number of days between two given dates:
1. Key in the earlier date and press \.
2. Key in the later date and press .
The answer shown in the display is the actual number of days between the two dates, including leap days (the extra days occurring in leap years), if any. In addition, the HP 12C Platinum also calculates the number of days between the two dates on the basis of a 30-day month. This answer is held inside the calculator; to display it, press ~. Pressing ~ again will return the original answer to the display.
Example: Simple interest calculations can be done using either the actual number of days or the number of days counted on the basis of a 30-day month. What would be the number of days counted each way, to be used in calculating the simple interest accruing from June 3, 2004 to October 14, 2005? Assume that you normally express dates in the month-day-year format.
Section 2: Percentage and Calendar Functions 33
Keystrokes Display
6.032004\
10.152005
~
11.09
6.03
498.00
491.00
Sets date format to month-day-year. (Display shown assumes date remains from preceding example.)
Keys in earlier date and separates it from the later date.
Keys in later date. Display shows actual number of days.
Number of days counted on the basis of a 30-day month.
Section 3
Basic Financial Functions
The Financial Registers
In addition to the data storage registers discussed on page 23, the HP 12C Platinum has five special registers in which numbers are stored for financial calculations. These registers are designated n, i, PV, PMT, and FV. The first five keys on the top row of the calculator are used to store a number from the display into the corresponding register, to calculate the corresponding financial value and store the result into the corresponding register, or to display the number stored in the corresponding register.
Storing Numbers Into the Financial Registers
To store a number into a financial register, key the number into the display, then press the corresponding key (n, ¼, $, P, or M).
Displaying Numbers in the Financial Registers
5
To display a number stored in a financial register, press : followed by the corresponding key.
6
Clearing the Financial Registers
Every financial function uses numbers stored in several of the financial registers. Before beginning a new financial calculation, it is good practice to clear all of the financial registers by pressing fCLEARG. Frequently, however, you may want to repeat a calculation after changing a number in only one of the financial registers. To do so, do not press fCLEARG; instead, simply store the new number in the register. The numbers in the other financial registers remain unchanged.
5.
Which operation is performed when one of these keys is pressed depends upon the last preceding operation performed: If a number was just stored into a financial register (using n, ¼, $, P, M, A, or C), pressing one of these five keys calculates the corresponding value and stores it into the corresponding register; otherwise pressing one of these five keys merely stores the number from the display into the corresponding register.
6.
It’s good practice to press the corresponding key twice after :, since often you may want to calculate a financial value right after displaying another financial value. As indicated in the preceding footnote, if you wanted to display FV and then calculate PV, for example, you should press :MM$. If you didn’t press M the second time, pressing store FV in the PV register rather than calculating PV, and to calculate PV you would have to press $ again.
34
$ would
Section 3: Basic Financial Functions 35
The financial registers are also cleared when you press fCLEARH and when Continuous Memory is reset (as described on page 70).
Simple Interest Calculations
The HP 12C Platinum simultaneously calculates simple interest on both a 360­day basis and a 365-day basis. You can display either one, as described below. Furthermore, with the accrued interest in the display, you can calculate the total amount (principal plus accrued interest) by pressing +.
1. Key in or calculate the number of days, then press n.
2. Key in the annual interest rate, then press ¼.
3. Key in the principal amount, then press Þ$.
4. Press to calculate and display the interest accrued on a 360-day basis.
5. If you want to display the interest accrued on a 365-day basis, press d~.
6. Press + to calculate the total of the principal and the accrued interest now in the display.
The quantities n, i, and PV can be entered in any order.
Example 1: Your good friend needs a loan to start his latest enterprise and has requested that you lend him $450 for 60 days. You lend him the money at 7% simple interest, to be calculated on a 360-day basis. What is the amount of accrued interest he will owe you in 60 days, and what is the total amount owed?
7
Keystrokes (RPN mode) Display
60n 7¼ 450Þ$
fÏ +
60.00
7.00
–450.00
5.25
455.25
Example 2: Your friend agrees to the 7% interest on the loan from the preceding example, but asks that you compute it on a 365-day basis rather than a 360-day
7.
Pressing the $ key stores the principal amount in the PV register, which then contains the present value of the amount on which interest will accrue. The Þ key is pressed first to change the sign of the principal amount before storing it in the PV register. This is required by the cash flow sign convention, which is applicable primarily to compound interest calculations.
Stores the number of days. Stores the annual interest rate. Stores the principal. Accrued interest, 360-day basis. Total amount: principal plus
accrued interest.
36 Section 3: Basic Financial Functions
basis. What is the amount of accrued interest he will owe you in 60 days, and what is the total amount owed?
Keystrokes (RPN mode) Display
60n 7¼ 450Þ$
fÏd~
+
60.00
7.00 –450.00
5.18
455.18
If you have not altered the numbers in the n, i, and PV registers since the preceding example, you may skip these keystrokes.
Accrued interest, 365-day basis.
Total amount: principal plus accrued interest.
Financial Calculations and the Cash Flow Diagram
The concepts and examples presented in this section are representative of a wide range of financial calculations. If your specific problem does not appear to be illustrated in the pages that follow, don’t assume that the calculator is not capable of solving it. Every financial calculation involves certain basic elements; but the terminology used to refer to these elements typically differs among the various segments of the business and financial communities. All you need to do is identify the basic elements in your problem, and then structure the problem so that it will be readily apparent what quantities you need to tell the calculator and what quantity you want to solve for.
An invaluable aid for using your calculator in a financial calculation is the cash flow diagram. This is simply a pictorial representation of the timing and direction of financial transactions, labeled in terms that correspond to keys on the calculator.
The diagram begins with a horizontal line, called a time line. It represents the duration of a financial problem, and is divided into compounding periods. For example, a financial problem that transpires over 6 months with monthly compounding would be diagrammed like this:
The exchange of money in a problem is depicted by vertical arrows. Money you receive is represented by an arrow pointing up from the point in time line when the transaction occurs; money you pay out is represented by an arrow pointing down.
Section 3: Basic Financial Functions 37
Money paid out
Money received
Suppose you deposited (paid out) $1,000 into an account that pays 6% annual interest and is compounded monthly, and you subsequently deposited an additional $50 at the end of each month for the next 2 years. The cash flow diagram describing the problem would look like this:
The arrow pointing up at the right of the diagram indicates that money is received at the end of the transaction. Every completed cash flow diagram must include at least one cash flow in each direction. Note that cash flows corresponding to the accrual of interest are not represented by arrows in the cash flow diagram.
The quantities in the problem that correspond to the first five keys on the top row of the keyboard are now readily apparent from the cash flow diagram.
z n is the number of compounding periods. This quantity can be expressed in
years, months, days, or any other time unit, as long as the interest rate is expressed in terms of the same basic compounding period. In the problem illustrated in the cash flow diagram above, n = 2 × 12. The form in which n is entered determines whether or not the calculator performs financial calculations in Odd-Period mode (as described on pages 51 through 54). If n is a noninteger (that is, there is at least one nonzero digit to the right of the decimal point), calculations of i, PV, PMT, and FV are performed in Odd-Period mode.
38 Section 3: Basic Financial Functions
z i is the interest rate per compounding period. The interest rate shown in the
cash flow diagram and entered into the calculator is determined by dividing the annual interest rate by the number of compounding periods. In the problem illustrated above, i = 6% ÷ 12.
z PV – the present value – is the initial cash flow or the present value of a
series of future cash flows. In the problem illustrated above, PV is the $1,000 initial deposit.
z PMT is the period payment. In the problem illustrated above PMT is the
$50 deposited each month. When all payments are equal, they are referred to as annuities. (Problems involving equal payments are described in this section under Compound Interest Calculations; problems involving unequal payments can be handled as described in Section 4 under Discounted Cash Flow Analysis: NPV and IRR. Procedures for calculating the balance in a savings account after a series of irregular and/or unequal deposits are included in the HP 12C Platinum Solutions Handbook.)
z FV – the future value – is the final cash flow or the compounded value of a
series of prior cash flows. In the particular problem illustrated above, FV is unknown (but can be calculated).
Solving the problem is now basically a matter of keying in the quantities identified in the cash flow diagram using the corresponding keys, and then calculating the unknown quantity by pressing the corresponding key. In the particular problem illustrated in the cash flow diagram above, FV is the unknown quantity; but in other problems, as we shall see later, n, i, PV, or PMT could be the unknown quantity. Likewise, in the particular problem illustrated above there are four known quantities that must be entered into the calculator before solving for the unknown quantity; but in other problems only three quantities may be known – which must always include n or i.
The Cash Flow Sign Convention
When entering the PV, PMT, and FV cash flows, the quantities must be keyed into the calculator with the proper sign, + (plus) or – (minus), in accordance with …
The Cash Flow Sign Convention: Money received (arrow pointing up) is
entered or displayed as a positive value (+). Money paid out (arrow pointing down) is entered or displayed as a negative value (–).
The Payment Mode
One more bit of information must be specified before you can solve a problem involving periodic payments. Such payments can be made either at the beginning of a compounding period (payments in advance, or annuities due) or at the end of the period (payments in arrears, or ordinary annuities). Calculations involving
Section 3: Basic Financial Functions 39
payments in advance yield different results than calculations involving payments in arrears. Illustrated below are portions of cash flow diagrams showing payments in advance (Begin) and payments in arrears (End). In the problem illustrated in the cash flow diagram above, payments are made in arrears.
Begin
Regardless of whether payments are made in advance or in arrears, the number of payments must be the same as the number of compounding periods.
To specify the payment mode:
z Press if payments are made at the beginning of the compounding
periods.
z Press if payments are made at the end of the compounding
periods.
The BEGIN status indicator is lit when the payment mode is set to Begin. If BEGIN is not lit, the payment mode is set to End.
The payment mode remains set to what you last specified until you change it; it is not reset each time the calculator is turned on. However, if Continuous Memory is reset, the payment mode will be set to End.
End
Generalized Cash Flow Diagrams
Examples of various kinds of financial calculations, together with the applicable cash flow diagrams, appear under Compound Interest Calculations later in this section. If your particular problem does not match any of those shown, you can solve it nevertheless by first drawing a cash flow diagram, then keying the quantities identified in the diagram into the corresponding registers. Remember always to observe the sign convention when keying in PV, PMT, and FV.
The terminology used for describing financial problems varies among the different segments of the business and financial communities. Nevertheless, most problems involving compound interest can be solved by drawing a cash flow diagram in one of the following basic forms. Listed below each form are some of the problems to which that diagram applies.
40 Section 3: Basic Financial Functions
Compound Growth
Savings Account
Appreciation
Mortgage
Direct Reduction (Installment) Loan
Amortization
Ordinary Annuity
Amortization
Annuity Due
Savings Plan
Pension Fund
Annuity Due
Mortgage With Balloon
Amortization
Ordinary Annuity
Lease
Lease With Buyback (Residual)
Amortization
Annuity Due
Section 3: Basic Financial Functions 41
Compound Interest Calculations
Specifying the Number of Compounding Periods and the Periodic Interest Rate
Interest rates are usually quoted at the annual rate (also called the nominal rate): that is, the interest rate per year. However, in compound interest problems, the interest rate entered into i must always be expressed in terms of the basic compounding period, which may be years, months, days, or any other time unit. For example, if a problem involves 6% annual interest compounded quarterly for 5 years, n – the number of quarters – would be 5 × 4 = 20 and i – the interest rate per quarter – would be 6% ÷ 4 = 1.5%. If the interest were instead compounded monthly, n would be 5× 12 = 60 and i would be 6% ÷ 12 = 0.5%.
If you use the calculator to multiply the number of years by the number of compounding periods per year, pressing n then stores the result in n. The same is true for i. Values of n and i are calculated and stored like this in Example 2 on page 48.
If interest is compounded monthly, you can use a shortcut provided on the calculator to calculate and store n and i:
z To calculate and store n, key the number of years into the display, then
press gA.
z To calculate and store i, key the annual rate into the display, then press
gC.
Note that these keys not only multiply or divide the displayed number by 12; they also automatically store the result in the corresponding register, so you need not press the n or ¼ key next. The A and C keys are used in Example 1 on page 48.
Calculating the Number of Payments or Compounding Periods
1. Press fCLEARG to clear the financial registers.
2. Enter the periodic interest rate, using ¼ or C.
3. Enter at least two of the following values:
z Present value, using $. z Payment amount, using P. z Future value, using M.
4. If a PMT was entered, press or to set the payment mode.
5. Press n to calculate the number of payments or periods.
Note: Remember to
observe the cash flow sign convention.
42 Section 3: Basic Financial Functions
If the answer calculated is not an integer (that is, there would be nonzero digits to the right of the decimal point), the calculator rounds the answer up to the next
8
higher integer before storing it in the n register and displaying it.
For example,
if n were calculated as 318.15, 319.00 would be the displayed answer.
n is rounded up by the calculator to show the total number of payments needed: n–1 equal, full payments, and one final, smaller payment. The calculator does
not automatically adjust the values in the other financial registers to reflect n equal payments; rather, it allows you to choose which, if any, of the values to
9
adjust.
Therefore, if you want to know the value of the final payment (with which you can calculate a balloon payment) or desire to know the payment value for n equal payments, you will need to press one of the other financial keys, as shown in the following two examples.
Example 1: You’re planning to build a log cabin on your vacation property. Your rich uncle offers you a $35,000 loan at 10.5% interest. If you make $325 payments at the end of each month, how many payments will be required to pay off the loan, and how many years will this take?
Keystrokes(RPN mode) Display
fCLEARG
10.5gC 35000$ 325ÞP
g n 12z
8.
The calculator will round n down to the next lower integer if the fractional portion of n is less than 0.005.
9.
After calculating n, pressing ¼,$,P, or M will recalculate the value in the corresponding financial register.
0.88
35,000.00
–325.00
–325.00
328.00
27.33
Calculates and stores i.
Stores PV. Stores PMT (with minus sign for
cash paid out). Sets the payment mode to End. Number of payments required. Twenty-seven years and four
months.
Section 3: Basic Financial Functions 43
Because the calculator rounds the calculated value of n up to the next higher
integer, in the preceding example it is likely that – while 328 payments will be
required to pay off the loan – only 327 full payments of $325 will be required,
the next and final payment being less than $325. You can calculate the final,
fractional, 328th payment as follows:
Keystrokes (RPN mode) Display
328n
M
328.00
181.89
Stores total number of payments. Calculates FV – which equals the
overpayment if 328 full payments were made.
:P
+
a You could skip this step, since 328 is already stored in the n register. If you do so, how-
ever, you will need to press M twice in the next step (for the reason discussed in the first footnote on page 34; you would not have to press M twice if you had not pressed 12z after w in the example above.) We choose to show this and the following exam­ple in a parallel format so that the procedure is easy to remember: the number you key is the number of the final payment—either the fractional payment or the balloon pay­ment—whose amount is to be calculated.
–325.00
–143.11
Recalls payment amount. Final, fractional payment.
Alternatively, you could make the fractional payment together with the 327th
payment. (Doing so will result in a somewhat smaller total of all payments, since
you will not have to pay interest during the 328th payment period.) You can
calculate this final, larger, 327th payment (essentially a balloon payment) as
follows:
a
Keystrokes (RPN mode) Display
327n
M
:P
+
327.00
–141.87
–325.00
–466.87
Instead of having a fractional (or balloon) payment at the end of the loan, you
might wish to make 327 or 328 equal payments. Refer to “Calculating the
Payment Amount” on page 48 for a complete description of this procedure.
Example 2: You’re opening a savings account today (the middle of the month)
with a $775 deposit. The account pays 6ď% interest compounded semimonthly.
If you make semimonthly deposits of $50 beginning next month, how long will it
take for your account to reach $4000?
Stores number of full payments. Calculates FV – which is the
balance remaining after 327 full payments.
Recalls payment amount. Final, balloon payment.
44 Section 3: Basic Financial Functions
Keystrokes (RPN mode) Display
fCLEARG
6.25\24 775Þ$
50ÞP
4000M
g n 2z
0.26
–775.00
–50.00
4,000.00
4,000.00
58.00
29.00
Calculates and stores i.
Stores PV (with minus sign for cash paid out).
Stores PMT (with minus sign for cash paid out).
Stores FV. Sets the payment mode to End. Number of semimonthly deposits. Number of months.
As in Example 1, it is likely that only 57 full deposits will be required, the next and final deposit being less than $50. You can calculate this final, fractional, 58th deposit as in Example 1, except that for this example you must subtract the original FV. (In Example 1, the original FV was zero.) The procedure is as follows:
Keystrokes (RPN mode) Display
MM
:P +
4000-
4,027.27
–50.00
3,977.27
–22.73
Calculates FV – which equals the balance in the account if 58 full
deposits were made.
a
Recalls amount of deposits.
Calculates the balance in the account if 57 full deposits were made and interest accrued during
th
the 58
Calculates final, fractional, 58
month.
b
th
deposit required to reach $4,000.
Section 3: Basic Financial Functions 45
a In this example, M must be pressed twice, since the preceding key pressed was z.
If we had stored the number of deposits in n (as we did following Example 1), we would have to press M only once here, since the preceding key pressed would have been w (as it was following Example 1). Remember that it is not necessary to store the number of payments in n before calculating the amount of the final, fractional pay­ment. (Refer to the preceding footnote.)
b You might think that we could calculate the balance in the account after 57 full deposits
were made simply by storing that number in n and then calculating FV, as we did using the second method following Example 1. However, this balance would not include the
interest accrued during the 58
th
month.
Calculating the Periodic and Annual Interest Rates
1. Press fCLEARG to clear the financial registers.
2. Enter the number of payments or periods, using n or A.
3. Enter at least two of the following values:
z Present value, using $. z Payment amount, using P. z Future value, using M.
4. If a PMT was entered, press or to set the payment mode.
5. Press ¼ to calculate the periodic interest rate.
6. To calculate the annual interest rate, key in the number of periods per year,
then press §.
Note: Remember to
observe the cash flow sign convention.

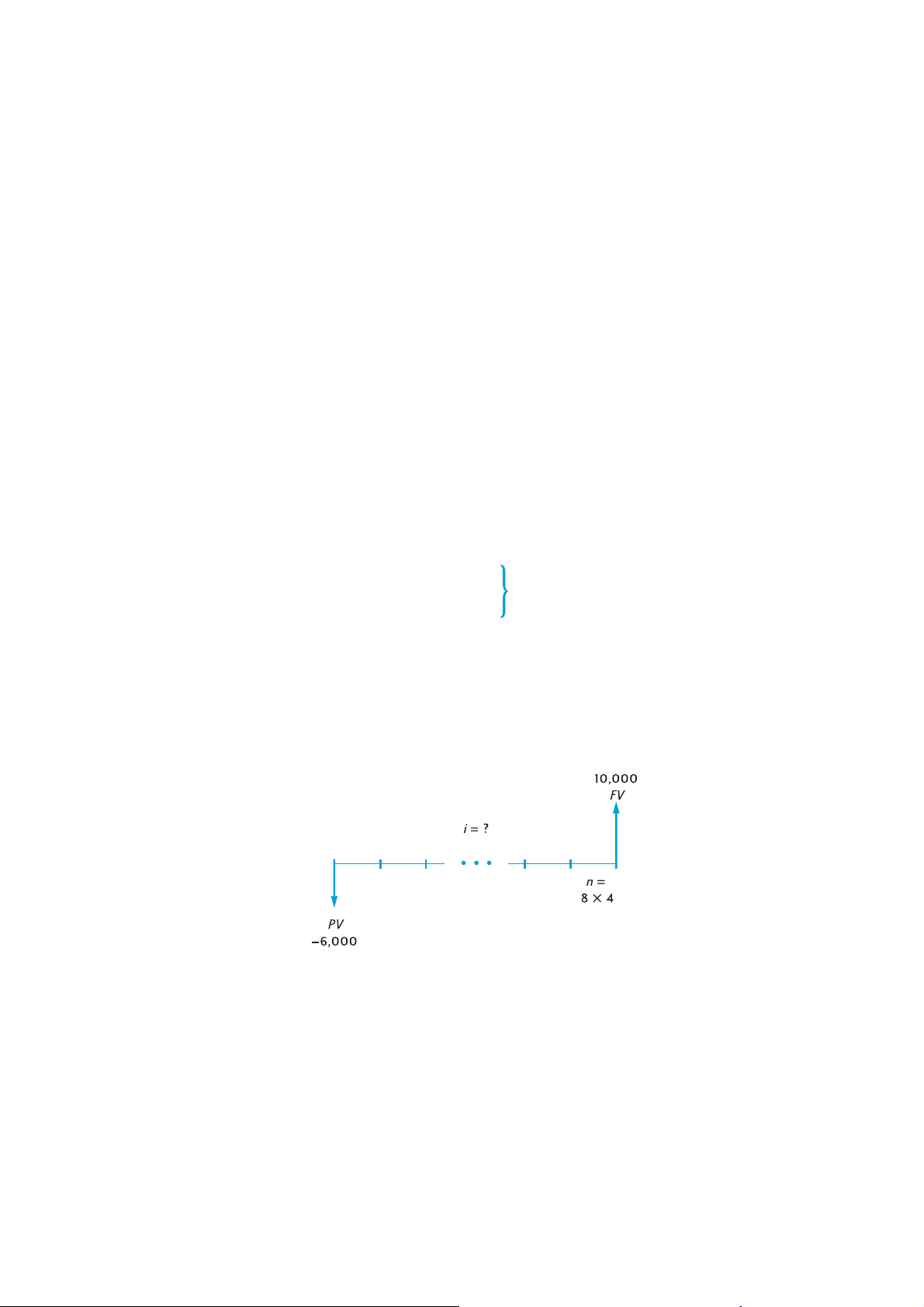

Example: What annual interest rate must be obtained to accumulate $10,000 in
8 years on an investment of $6,000 with quarterly compounding?
46 Section 3: Basic Financial Functions
Keystrokes (RPN mode) Display
fCLEARG 8\4§n
6000Þ$
10000M
¼ 4§
32.00
–6,000.00
10,000.00
1.61
6.44
Calculates and stores n.
Stores PV (with minus sign for cash paid out).
Stores FV. Periodic (quarterly) interest rate. Annual interest rate.
Calculating the Present Value
1. Press fCLEARG to clear the financial registers.
2. Enter the number of payments or periods, using n or A.
3. Enter the periodic interest rate, using ¼ or C.
4. Enter either or both of the following:
z Payment amount, using P. z Future value, using M.
5. If a PMT was entered, press or to set the payment mode.
6. Press $ to calculate the present value.
Note: Remember to
observe the cash flow sign convention.

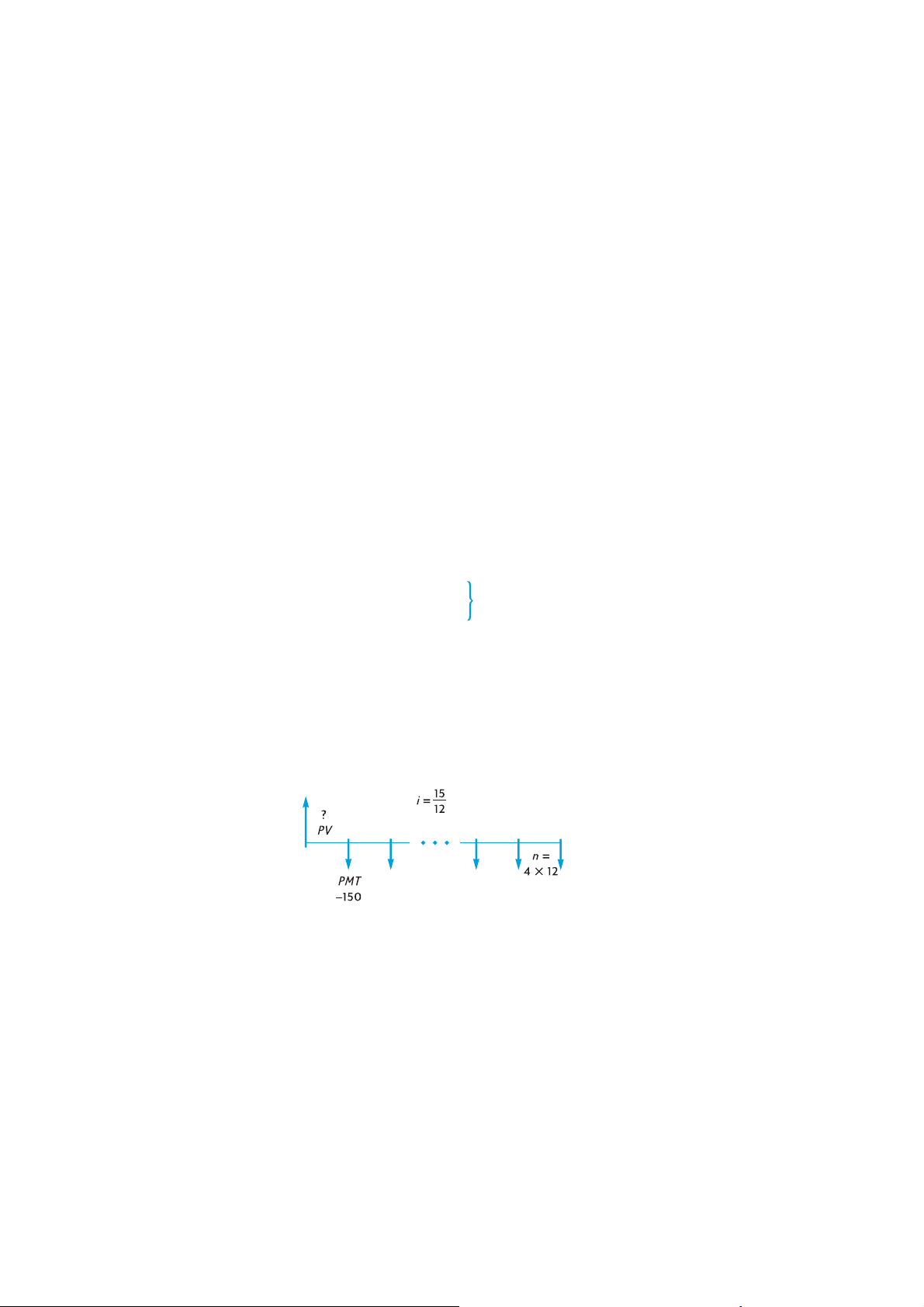

Example 1: You’re financing a new car purchase with a loan from an institution that requires 15% interest compounded monthly over the 4-year term of the loan. If you can make payments of $150 at the end of each month and your down payment will be $1,500, what is the maximum price you can pay for the car? (Assume the purchase date is one month prior to the date of the first payment.)
Section 3: Basic Financial Functions 47
Keystrokes(RPN mode) Display
fCLEARG
4gA
15gC
150ÞP
$
1500+
Example 2: A development company would like to purchase a group of
condominiums with an annual net cash flow of $17,500. The expected holding
period is 5 years, and the estimated selling price at that time is $540,000.
Calculate the maximum amount the company can pay for the condominiums in
order to realize at least a 12% annual yield.
48.00
1.25
–150.00
–150.00
5,389.72
6,889.72
Calculates and stores n.
Calculates and stores i. Stores PMT (with minus sign for
cash paid out). Sets payment mode to End. Maximum amount of loan. Maximum purchase price.
Keystrokes Display
fCLEARG
5n
12¼
17500P
540000M
$
5.00
12.00
17,500.00
540,000.00
540,000.00
–369,494.09
Stores n.
Stores i. Stores PMT. Unlike in the
previous problem, here PMT is positive since it represents cash received.
Stores FV. Sets payment mode to End. The maximum purchase price
to provide a 12% annual yield. PV is displayed with a minus sign since it represents cash paid out.
48 Section 3: Basic Financial Functions
Calculating the Payment Amount
1. Press fCLEARG to clear the financial registers.
2. Enter the number of payments or periods, using n or A.
3. Enter the periodic interest rate, using ¼ or C.
4. Enter either or both of the following:
z Present value, using $. z Future value, using M.
5. Press g× or g to set the payment mode.
6. Press P to calculate the payment amount.
Example 1: Calculate the payment amount on a 29-year, $43,400 mortgage at 14ď% annual interest.
Note: Remember to
observe the cash flow sign convention.
Keystrokes Display
fCLEARG 29gA
14.25gC 43400$
g P
Example 2: Looking forward to retirement, you wish to accumulate $60,000 after 15 years by making deposits in an account that pays 9Đ% interest compounded semiannually. You open the account with a deposit of $3,200 and intend to make semiannual deposits, beginning six months later, from your profit-sharing bonus paychecks. Calculate how much these deposits should be.
348.00
1.19
43,400.00
43,400.00
–523.99
Calculates and stores n.
Calculates and stores i. Stores PV. Sets payment mode to End. Monthly payment (with minus sign
for cash paid out).
Keystrokes(RPN mode) Display
fCLEARG
15\2§n
9.75\2z¼
3200Þ$
60000M
P
30.00
4.88
–3200.00
60,000.00
60,000.00
–717.44
Section 3: Basic Financial Functions 49
Calculates and stores n. Calculates and stores i. Stores PV (with minus sign for cash
paid out). Stores FV. Sets payment mode to End. Semiannual payment (with minus
sign for cash paid out).
Calculating the Future Value
1. Press fCLEARG to clear the financial registers.
2. Enter the number of payments or periods, using n or A.
3. Enter the periodic interest rate, using ¼ or C.
4. Enter either or both of the following:
z Present value, using $. z Payment amount, using P.
5. If a PMT was entered, press or to set the payment mode.
6. Press M to calculate the future value.
Note: Remember to
observe the cash flow sign convention.
50 Section 3: Basic Financial Functions
Example 1: In Example 1 on page 48, we calculated that the payment amount on a 29-year, $43,400 mortgage at 14ď% annual interest is $523.99. If the seller requests a balloon payment at the end of 5 years, what would be the amount of the balloon?
Keystrokes Display
fCLEARG 5gA
14.25gC 43400$
523.99ÞP
g M
60.00
1.19
43,400.00
–523.99
–523.99
–42,652.37
Calculates and stores n. Calculates and stores i. Stores PV. Stores PMT (with minus sign for
cash paid out). Sets payment mode to End. Amount of balloon payment.
Example 2: If you deposit $50 a month (at the beginning of each month) into a new account that pays 6ď% annual interest compounded monthly, how much will you have in the account after 2 years?
Section 3: Basic Financial Functions 51
Keystrokes Display
fCLEARG
2gA
6.25gC
50ÞP
M
Example 3: Property values in an unattractive area are depreciating at the rate of
2% per year. Assuming this trend continues, calculate the value in 6 years of
property presently appraised at $32,000.
24.00
0.52
–50.00
–50.00
1,281.34
Calculates and stores n.
Calculates and stores i. Stores PMT (with minus sign for
cash paid out). Sets payment mode to Begin. Balance after 2 years.
Keystrokes Display
fCLEARG
6n
2Þ¼
32000Þ$
M
6.00
–2.00
–32,000.00
28,346.96
Stores n.
Stores i (with minus sign for a “negative interest rate”).
Stores PV (with minus sign for cash paid out).
Property value after 6 years.
Odd-Period Calculations
The cash flow diagrams and examples presented so far have dealt with financial
transactions in which interest begins to accrue at the beginning of the first
regular payment period. However, interest often begins to accrue prior to the
beginning of the first regular payment period. The period from the date interest
begins accruing to the date of the first payment, being not equal to the regular
payment periods is sometimes referred to as an “odd first period”. For simplicity,
in using the HP 12C Platinum we will always regard the first period as equal to
the remaining periods, and we will refer to the period between the date interest
begins accruing and the beginning of the first payment period as simply the “odd
52 Section 3: Basic Financial Functions
period” or the “odd days”. (Note that the odd period is always assumed by the calculator to occur before the first full payment period.) The following two cash flow diagrams represent transactions including an odd period for payments in advance (Begin) and for payments in arrears (End).
.
Begin
odd
period
End
odd
period
You can calculate i, PV, PMT, and FV for transactions involving an odd period simply by entering a noninteger n. (A noninteger is a number with at least one nonzero digit to the right of the decimal point.) This places the calculator in Odd­Period mode.
10
The integer part of n (the part to the left of the decimal point) specifies the number of full payment periods, and the fractional part (the part to the right of the decimal) specifies the length of the odd period as a fraction of a full period. The odd period, therefore, cannot be greater than one full period.
The fractional part of n can be determined using either the actual number of odd days or the number of odd days counted on the basis of a 30-day month.
11
The
Ò function can be used to calculate the number of odd days either way. The fractional part of n is a fraction of a payment period, so the number of odd days
10.
Calculations of i, PMT, and FV are performed using the present value at the end of the odd period. This is equal to the number in the PV register plus the interest accrued during the odd period. When calculating PV in Odd-Period mode, the calculator returns a value equal to the present value at the beginning of the odd period and stores it in the PV register.
After calculating i, PV, PMT, or FV in Odd-Period mode, you should not try to calculate n. If you do, the calculator will switch out of Odd-Period mode and compute n without taking the odd period into account. The values in the other financial registers will correspond to the new n, but the original assumptions for the problem will be changed.
11.
The two methods of counting odd days will yield slightly different answers. If you are calculating i to determine the annual percentage rate (APR) for an odd-period transaction, the lower APR will result if the calculation uses the greater number of odd days determined using the two methods.
Section 3: Basic Financial Functions 53
must be divided by the number of days in a period. If interest is compounded monthly, for this number you can use either 30, 365/12, or (if the odd period falls entirely within a single month) the actual number of days in that month. Usually, a monthly period is taken to be 30 days long.
At your option, the calculations of i, PV, PMT, and FV can be performed with either simple interest or compound interest accruing during the odd period. If the C status indicator in the display is not lit, simple interest is used. To specify
12
compound interest, turn the C indicator on by pressing ?Æ.
Pressing
again turns the C indicator off, and calculations will then be performed using simple interest for the odd period.
Example 1: A 36-month loan for $4,500 accrues interest at a 15% annual percentage rate (APR), with the payments made at the end of each month. If interest begins accruing on this loan on February 15, 2004 (so that the first period begins on March 1, 2004), calculate the monthly payment, with the odd days counted on the basis of a 30-day month and compound interest used for the odd period.
Keystrokes (RPN mode) Display
fCLEARG Clears financial registers. Sets date format to month-day-year. Sets payment mode to End. Turns on the C indicator in the
display, so that compound interest will be used for the odd period.
2.152004\
3.012004
gÒ ~
30z
36+n
15gC 4500$
P
2.15
3.012004
15.00
16.00
0.53
36.53
1.25
4,500.00
–157.03
Keys in the date interest begins accruing and separates it from the next date entered.
Keys in the date of the beginning of the first period.
Actual number of odd days. Number of odd days counted on the
basis of a 30-day month. Divides by the length of a monthly
period to get the fractional part of n. Adds the fractional part of n to the
number of complete payment periods, then stores the result in n.
Calculates and stores i. Stores PV. Monthly payment.
12.
is not programmable.
54 Section 3: Basic Financial Functions
Example 2: A 42-month car loan for $3,950 began accruing interest on July 19, 2004, so that the first period began on August 1, 2004. Payments of $120 are made at the end of each month. Calculate the annual percentage rate (APR), using the actual number of odd days and simple interest for the odd period.
Keystrokes (RPN mode) Display
fCLEARG Clears financial registers. Turns off the C indicator in the
display, so that simple interest will be used for the odd period.
7.192004\
8.012004
30z
42+n
3950$ 120ÞP
¼ 12§
7.19
8.012004
13.00
0.43
42.43
3,950.00
–120.00
1.16
13.95
Keys in the date interest begins accruing and separates it from the next date entered.
Keys in the date of the beginning of the first period.
Actual number of odd days. Divides by the length of a monthly
period to get the fractional part of n. Adds the fractional part of n to the
number of complete payment periods, then stores the result in n.
Stores PV.
Stores PMT (with minus sign for cash paid out).
Periodic (monthly) interest rate. Annual percentage rate (APR).
Amortization
The HP 12C Platinum enables you to calculate the amounts applied toward principal and toward interest from a single loan payment or from several payments, and also tells you the remaining balance of the loan after the payments are made.
13.
13
All amounts calculated when f! is pressed are automatically rounded to the number of decimal places specified by the display format. (The display format is described in Section
5.) This rounding affects the number inside the calculator as well as how the number appears in the display. The amounts calculated on your HP 12C Platinum may differ from those on the statements of lending institutions by a few cents, since different rounding techniques are sometimes used. To calculate answers rounded to a different number of decimal places, press f followed by the number of decimal places desired before you press f!.
Section 3: Basic Financial Functions 55
To obtain an amortization schedule:
1. Press fCLEARG to clear the financial registers.
2. Enter the periodic interest rate, using ¼ or C.
3. Enter the amount of the loan (the principal), using $.
4. Key in the periodic payment, then press ÞP (the sign of PMT must
be negative, in accordance with the cash flow sign convention).
5. Press or (for most direct reduction loans) to set the
payment mode.
6. Key in the number of payments to be amortized.
7. Press f! to display the amount from those payments applied toward
interest.
8. Press ~ to display the amount from those payments applied toward the
principal.
9. To display the number of payments just amortized, press dd.
10. To display the remaining balance of the loan, press :$.
11. To display the total number of payments amortized, press :n.
Example: For a house you’re about to buy, you can obtain a 25-year mortgage for $50,000 at 13ď% annual interest. This requires payments of $573.35 (at the end of each month). Find the amounts that would be applied to interest and to the principal from the first year’s payments.
Keystrokes Display
fCLEARG
13.25gC 50000$
573.35ÞP
12f!
~
:$ :n
1.10
50,000.00
–573.35
–573.35
–6,608.89
–271.31
49,728.69
12.00
Enters i. Enters PV. Enters PMT (with minus sign for
cash paid out).
Sets payment mode to End. Portion of first year’s payments (12
months) applied to interest. Portion of first year’s payments
applied to principal. Balance remaining after 1 year. Total number of payments
amortized.
56 Section 3: Basic Financial Functions
The number of payments keyed in just before f! is pressed is taken to be the payments following any that have already been amortized. Thus, if you now press 12f!, your HP 12C Platinum will calculate the amounts applied to interest and to the principal from the second year’s payments (that is, the second 12 months):
Keystrokes Display
12f!
~
dd
:$ :n
Pressing :$ or :n displays the number in the PV or n register. When you did so after each of the last two calculations, you may have noticed that PV and n had been changed from their original values. The calculator does this so that you can easily check the remaining balance and the total number of payments amortized. But because of this, if you want to generate a new amortization schedule from the beginning, you must reset PV to its original value and reset n to 0.
For example, suppose you now wanted to generate an amortization schedule for each of the first two months:
–6,570.72
–309.48
12.00
49,419.21
24.00
Portion of second year’s payments applied to interest.
Portion of second year’s payments applied to principal.
Number of payments just amortized.
Balance remaining after 2 years. Total number of payments
amortized.
Keystrokes Display
50000$ 0n 1f!
~
1f!
~
:n
50,000.00
0.00
–552.08
–21.27
–551.85
–21.50
2.00
Resets PV to original value. Resets n to zero. Portion of first payment applied to
interest. Portion of first payment applied to
principal. Portion of second payment applied
to interest. Portion of second payment applied
to principal. Total number of payments
amortized.
Section 3: Basic Financial Functions 57
If you want to generate an amortization schedule but do not already know the monthly payment:
1. Calculate PMT as described on page 48.
2. Press 0n to reset n to zero.
3. Proceed with the amortization procedure listed on page 55 beginning with step 6.
Example: Suppose you obtained a 30-year mortgage instead of a 25-year mortgage for the same principal ($50,000) and at the same interest rate (13ď%) as in the preceding example. Calculate the monthly payment, then calculate the amounts applied to interest and to the principal from the first month’s payment. Since the interest rate is not being changed, do not press fCLEARG; to calculate PMT, just enter the new value for n, reset PV, then press P.
Keystrokes Display
30gA 50000$
P
0n 1f!
~
:$
360.00
50,000.00
–562.89
0.00
–552.08
–10.81
49,989.19
Enters n. Enters PV. Monthly payment. Resets n to zero. Portion of first payment applied to
interest. Portion of first payment applied to
principal. Remaining balance.
Section 4
Additional Financial Functions
Discounted Cash Flow Analysis: NPV and IRR
The HP 12C Platinum provides functions for the two most widely-used methods of discounted cash flow analysis: l (net present value) and L (internal rate of return). These functions enable you to analyze financial problems involving cash flows (money paid out or received) occurring at regular intervals. As in compound interest calculations, the interval between cash flows can be any time period; however, the amounts of these cash flows need not be equal.
To understand how to use l and L, let’s consider the cash flow diagram for an investment that requires an initial cash outlay (CF (CF
) at the end of the first year, and so on up to the final cash flow (CF6) at the
1
end of the sixth year. In the following diagram, the initial investment is denoted
, and is depicted as an arrow pointing down from the time line since it is
by CF
0
cash paid out. Cash flows CF
and CF4 also point down from the time line,
1
because they represent projected cash flow losses.
) and generates a cash flow
0
NPV is calculated by adding the initial investment (represented as a negative cash flow) to the present value of the anticipated future cash flows. The interest rate, i, will be referred to in this discussion of NPV and IRR as the rate of
14
return.
The value of NPV indicates the result of the investment.
z If NPV is positive, the financial value of the investor’s assets would be
increased: the investment is financially attractive.
z If NPV is zero, the financial value of the investor’s assets would not
change: the investor is indifferent toward the investment.
z If NPV is negative, the financial value of the investor’s assets would be
decreased: the investment is not financially attractive.
14.
Other terms are sometimes used to refer to the rate of return. These include: required rate of return, minimally acceptable rate of return, and cost of capital.
58
Section 4: Additional Financial Functions 59
A comparison of the NPV’s of alternative investment possibilities indicates which of them is most desirable: the greater the NPV, the greater the increase in the financial value of the investor’s assets.
IRR is the rate of return at which the discounted future cash flows equal the initial cash outlay: IRR is the discount rate at which NPV is zero. The value of IRR relative to the present value discount rate also indicates the result of the investment:
z If IRR is greater than the desired rate of return, the investment is
financially attractive.
z If IRR is equal to the desired rate of return, the investor is indifferent
toward the investment.
z If IRR is less than the desired rate of return, the investment is not
financially attractive.
Calculating Net Present Value (NPV)
Calculating NPV for Ungrouped Cash Flows. If there are no equal consecutive cash flows, use the procedure described (and then summarized) below. With this procedure, NPV (and IRR) problems involving up to 30 cash flows (in addition to the initial investment CF consecutive cash flows are equal – for example, if the cash flows in periods three and four are both $8,500 – you can solve problems involving more than 30 cash flows, or you can minimize the number of storage registers required for problems involving less than 30 cash flows, by using the procedure described next (under Calculating NPV for Grouped Cash Flows, page 61).
The amount of the initial investment (CF the J key.
Note: The initial investment can not be zero.
Each cash flow (CF
, CF2, etc.) is designated CFj, where j takes on values from
1
1 up to the number of the final cash flow. The amount of a cash flow is entered using the K key. Each time gK is pressed, the amount in the display is stored in the next available storage register, and the number in the n register is increased by 1. This register therefore counts how many cash flow amounts (in addition to the initial investment CF
) have been entered.
0
Note: When entering cash flow amounts – including the initial investment
CF
– remember to observe the cash flow sign convention by pressing
0
Þ after keying in a negative cash flow.
In summary, to enter the cash flow amounts:
1. Press fCLEARH to clear the financial and storage registers.
2. Key in the amount of the initial investment, press Þ if that cash flow is negative, then press gJ.
) can be solved. If two or more
0
) is entered into the calculator using
0
60 Section 4: Additional Financial Functions
Note: The initial investment can not be zero.
3. Key in the amount of the next cash flow, press Þ if the cash flow is negative, then press gK. If the cash flow amount is zero in the next period, press 0 gK.
4. Repeat step 3 for each cash flow until all have been entered.
With the amounts of the cash flows stored in the calculator’s registers, you can calculate NPV as follows:
1. Enter the interest rate, using ¼ or C.
2. Press fl.
The calculated value of NPV appears in the display and also is automatically stored in the PV register.
Example: An investor has an opportunity to buy a duplex for $80,000 and would like a return of at least 13%. He expects to keep the duplex 5 years and then sell it for $130,000; and he anticipates the cash flows shown in the diagram below. Calculate NPV to determine whether the investment would result in a return or a loss.
Note that although a cash flow amount ($4,500) occurs twice, these cash flows are not consecutive. Therefore, these cash flows must be entered using the method described above.
Keystrokes Display
fCLEARH
80000ÞgJ
500ÞgK
4500gK 5500gK
0.00
–80,000.00
–500.00
4,500.00
5,500.00
Clears financial and storage registers.
Stores CF0(with minus sign for a negative cash flow). Stores CF1(with minus sign for a negative cash flow). Stores CF2.
Stores CF3.
Section 4: Additional Financial Functions 61
Keystrokes (Cont.) Display
4500gK 130000gK
:n
13¼ fl
4,500.00
130,000.00
5.00
13.00
212.18
Since NPV is positive, the investment would increase the financial value of the investor’s assets.
Calculating NPV for Grouped Cash Flows. A maximum of 30 cash flow amounts (in addition to the initial investment CF Platinum.
15
However, problems involving more than 30 cash flows can be handled if among the cash flows there are equal consecutive cash flows. For such problems, you merely enter along with the amounts of the cash flows the number of times – up to 99 – each amount occurs consecutively. This number is designated N a key. Each N
, corresponding to cash flow amount CFj, and is entered using the
j
is stored in a special register inside the calculator.
j
This method can, of course, be used for problems involving fewer than 30 cash flows – and it will require fewer storage registers than the method described above under Calculating NPV for Ungrouped Cash Flows. Equal consecutive cash flows can be entered using that method – provided there are enough storage registers available to accommodate the total number of individual cash flows. The facility of grouping equal consecutive cash flows is provided to minimize the number of storage registers required.
Note: When entering cash flow amounts – including the initial investment
CF0 – remember to observe the cash flow sign convention by pressing
Þ after keying in the amount for a negative cash flow.
In summary, to enter the amounts of the cash flows and the number of times they occur consecutively:
1. Press fCLEARH to clear the financial and storage registers.
2. Key in the amount of the initial investment, press Þ if that cash flow is negative, then press gJ.
Note: The initial investment can not be zero.
Stores CF4.
Stores CF5.
Checks number of cash flow amounts entered (in addition to
CF
.
0
Stores i. NPV.
) can be stored in the HP 12C
0
15.
If you have stored a program in the calculator, the number of registers available for storing cash flow amounts may be less than 31.
62 Section 4: Additional Financial Functions
3. If the initial investment consists of more than one cash flow of the amount
entered in step 2, key in the number of those cash flows, then press ga. If ga is not pressed, the calculator assumes that N
is 1.
0
4. Key in the amount of the next cash flow, press Þ if that cash flow is negative, then press gK. If the cash flow amount is zero in the next period, press 0gK.
5. If the amount entered in step 4 occurs more than once consecutively, key in the number of times that cash flow amount occurs consecutively, then press ga. If ga is not pressed, the calculator assumes that N
for the CF
6. Repeat steps 4 and 5 for each CF
just entered.
j
and Njuntil all cash flows have been
j
is 1
j
entered.
With the amounts of the cash flows and the number of times they occur consecutively stored in the calculator, NPV can be calculated by entering the interest rate and pressing fl, just as described earlier.
Example: An investor has an opportunity to purchase a piece of property for $79,000; and he would like a 13½% return. He expects to be able to sell it after 10 years for $100,000 and anticipates the yearly cash flows shown in the table below:
Year Cash Flow Year Cash Flow
1
2
3
4
5
$14,000
$11,000
$10,000
$10,000
$10,000
6
7
8
9
10
$9,100
$9,000
$9,000
$4,500
$100,000
Since two cash flow amounts ($10,000 and $9,000) are repeated consecutively, we can minimize the number of storage registers required by using the method just described.
Keystrokes Display
fCLEARH
79000ÞgJ
14000gK 11000gK 10000gK
0.00
–79,000.00
14,000.00
11,000.00
10,000.00
Clears financial and storage registers.
Initial investment (with minus sign for a negative cash flow).
First cash flow amount Next cash flow amount. Next cash flow amount.
Section 4: Additional Financial Functions 63
Keystrokes Display
3ga
9100gK 9000gK 2ga
4500gK 100000gK
:n
13.5¼ fl
Since NPV is positive, the investment would increase the financial value of the investor’s assets by $907.77.
3.00
9,100.00
9,000.00
2.00
4,500.00
100,000.00
7.00
13.50
907.77
Number of times this cash flow amount occurs consecutively.
Next cash flow amount. Next cash flow amount. Number of times this cash flow
amount occurs consecutively. Next cash flow amount. Final cash flow amount. Seven different cash flow amounts
have been entered. Stores i. NPV
Calculating Internal Rate of Return (IRR)
1. Enter the cash flows using either of the methods described above under Calculating Net Present Value.
2. Press fL.
The calculated value of IRR appears in the display and also is automatically stored in the i register.
Note: Remember that the L function may take a significant amount of
time to produce an answer, during which the calculator displays running.
Example: The NPV calculated in the preceding example was positive,
indicating that the actual rate of return (that is, the IRR) was greater than the 13˝% used in the calculation. Find the IRR.
Assuming the cash flows are still stored in the calculator, we need only press fL:
Keystrokes Display
fL
Note that the value calculated by L is the periodic rate of return. If the cash flow periods are other than years (for example, months or quarters), you can calculate the nominal annual rate of return by multiplying the periodic IRR by the number of periods per year.
As noted above, the calculator may take several seconds or even minutes to produce an answer for IRR. This is because the mathematical calculations for
13.72
IRR is 13.72%.
64 Section 4: Additional Financial Functions
finding IRR are extremely complex, involving a series of iterations – that is, a series of successive calculations. In each iteration, the calculator uses an estimate of IRR as the interest rate in a computation of NPV. The iterations are repeated until the computed NPV reaches about zero.
16
The complex mathematical characteristics of the IRR computation have an additional ramification: Depending on the magnitudes and signs of the cash flows, the computation of IRR may have a single answer, multiple answers, a negative answer or no answer.
17
For additional information regarding L, refer to Appendix C. For an alternative method of calculating IRR, refer to Section 13.
Reviewing Cash Flow Entries
z To display a single cash flow amount, press :, then key in the number
of the register containing the cash flow amount to be displayed. Alternatively, store the number of that cash flow amount (that is, the value of j for the CF
z To review all the cash flow amounts, press :gK repeatedly. This
displays the cash flow amounts in reverse order – that is, beginning with the final cash flow and proceeding to CF
z To display the number of times a cash flow amount occurs consecutively –
that is, to display the N amount (that is, the value of j) in the n register, then press :ga.
z To review all the cash flow amounts together with the number of times
each cash flow amount occurs consecutively (that is, to review each CF and Nj pair), press :ga:gK repeatedly. This displays N followed by CFj beginning with the final cash flow amount and proceeding to N
and CF0.
0
Note: Neither L nor l change the number in the n register. However,
each time :gK is pressed, the number in the n register is decreased by 1. If this is done, or if you manually change the number in the n register in order to display a single N
n register to the total number of cash flow amounts originally entered (not including the amount of the initial investment CF
NPV and IRR calculations will give incorrect results; also, a review of cash flow entries would begin with N
16.
In practice, because the complex mathematical calculations inside the calculator are done with numbers rounded to 10 digits, NPV may never reach exactly zero. Nevertheless, the interest rate that results in a very small NPV is very close to the actual IRR.
17.
In the case of multiple answers for IRR, the decision criteria listed on page 58 should be modified accordingly.
desired) in the n register, then press :gK.
j
.
0
for a CFj – store the number of that cash flow
j
and/or CFj, be sure to reset the number in the
j
). If this is not done,
0
and CFn, where n is the number currently
n
j
j
Section 4: Additional Financial Functions 65
in the n register.
For example, to display the fifth cash flow amount and the number of times that amount occurs consecutively:
Keystrokes Display
:5 5n
:ga 7n
9,000.00
5.00
2.00
7.00
To display all the cash flow amounts and the number of times they occur consecutively:
CF
5
Stores the value of j in the n register.
N
5
Resets the number in the n register to its original value.
Keystrokes Display
:ga :gK :ga :gK :ga :gK
. . .
1.00
100,000.00
1.00
4,500.00
2.00
9,000.00
. . .
N
CF
N
CF
N
CF
7
7
6
6
5
5
. . .
:ga :gK :ga :gK 7n
1.00
14,000.00
1.00
–79,000.00
7.00
N
1
CF
1
N
0
CF
0
Resets the number in the n register to its original value.
66 Section 4: Additional Financial Functions
Changing Cash Flow Entries
z To change a cash flow amount:
1. Key the amount into the display.
2. Press ?.
3. Key in the number of the register containing the cash flow amount to be changed.
z To change the number of times a cash flow amount occurs consecutively –
that is, to change the N
1. Store the number of that cash flow amount (that is, j) in the n register.
2. Key the number of times the cash flow amount occurs consecutively into the display.
3. Press ga.
Note: If you change the number in the n register in order to change an N
be sure to reset the number in the n register to the total number of cash flow amounts originally entered (not including the amount of the initial investment CF
0
incorrect results.
Example 1: With the cash flows now stored in the calculator, change CF $11,000 to $9,000, then calculate the new NPV for a 13½% return.
for a CFj:
j
). If this is not done, NPV and IRR calculations will give
2
from
,
j
Keystrokes Display
9000?2
13.5¼
fl
a This step is necessary in this example because we have calculated IRR since the first
time we calculated NPV. The IRR calculation replaced the 13.5 we keyed into i before calculating NPV with the result for IRR – 13.72.
9,000.00
13.50
–644.75
Since this NPV is negative, the investment would decrease the financial value of the investor’s assets.
Example 2: Change N
from 2 to 4, then calculate the new NPV.
5
Stores the new CF2in R2.
a
Stores i The new NPV.
Keystrokes Display
5n 4ga
7n
fl
5.00
4.00
7.00
–1,857.21
Stores j in the n register. Stores the new N5.
Resets the number in the n register to its original value.
The new NPV.
Bond Calculations
Section 4: Additional Financial Functions 67
The HP 12C Platinum enables you to solve for bond price (and the interest accrued since the last interest date) and the yield to maturity. S calculations are done assuming a semiannual coupon payment and using an actual/actual basis (such as for U.S. Treasury bonds and U.S. Treasury notes). In accordance with market convention, prices are based on a redemption (par) value of 100.
To calculate bond price and yield for a 30/360 bond (that is, using the basis of a 30-day month and a 360-day year – such as for municipal bonds, corporate bonds, and state and local government bonds), and to calculate bond price for bonds with an annual coupon payment, refer to Section 16: Bonds.
18
The E and
Bond Price
1. Enter the desired yield to maturity (as a percentage), using ¼.
2. Enter the annual coupon rate (as a percentage), using P.
3. Key in the settlement (purchase) date (as described on page 30), then press
\.
4. Key in the maturity (redemption) date.
5. Press fE.
The price is shown in the display and also is stored in the PV register. The interest accrued since the last interest date is held inside the calculator: to display the interest, press ~; to add the interest to the price, press +.
Example: What price should you pay on April 28, 2004 for a 6¾% U.S. Treasury bond that matures on June 4, 2018, if you want a yield of 8¼%. Assume that you normally express dates in the month-day-year format.
Keystrokes (RPN mode) Display
8.25¼
6.75P
4.282004\
6.042018
fE +
18.
All bond calculations are performed in accordance with. the Securities Industry Association’s recommendations as contained in Spence, Graudenz, and Lynch, Standard Securities Calculation Methods, Securities Industry Association, New York, 1973.
8.25
6.75
6.75
4.28
6.042018
87.62
90.31
Enters yield to maturity. Enters coupon rate. Sets date format to month-day-year. Enters settlement (purchase) date. Enters maturity (redemption) date. Bond price (as a percent of par). Total price, including accrued
interest.
68 Section 4: Additional Financial Functions
Bond Yield
1. Enter the quoted price (as a percent of par), using $.
2. Enter the annual coupon rate (as a percentage), using P.
3. Key in the settlement (purchase) date, then press \.
4. Key in the maturity (redemption) date.
5. Press fS.
The yield to maturity is shown in the display and also is stored in the i register.
Note: Remember that the S function may take a significant amount of
time to produce an answer, during which the calculator displays running.
Example: The market is quoting 88
example. What yield will that provide?
Keystrokes (RPN mode) Display
3\8z 88+$
6.75P
4.282003\
6.042017
fS
3
/8% for the bond described in the preceding
0.38
88.38
6.75
4.28
6.042017
8.15
Calculates Enters quoted price. Enters coupon rate. Enters settlement (purchase) date. Enters maturity (redemption) date. Bond yield
3
/8.
Depreciation Calculations
The HP 12C Platinum enables you to calculate depreciation and the remaining depreciable value (book value minus salvage value) using the straight-line, sum-of-the-years-digits, and declining-balance methods. To do so with any of these methods:
1. Enter the original cost of the asset, using $.
2. Enter the salvage value of the asset, using M. If the salvage value is zero, press 0M.
3. Enter the expected useful life of the asset (in years), using n.
4. If the declining-balance method is being used, enter the declining-balance factor (as a percentage), using ¼. For example, 1¼ times the straight-line rate – 125 percent declining-balance – would be entered as 125¼.
5. Key in the number of the year for which depreciation is to be calculated.
Section 4: Additional Financial Functions 69
6. Press:
z fV for depreciation using the straight-line method. z for depreciation using the sum-of-the-years digits method. z f# for depreciation using the declining-balance method.
V, Ý, and # each place the amount of depreciation in the display. To display the remaining depreciable value (the book value less the salvage value) after the depreciation has been calculated, press ~.
Example: A metalworking machine, purchased for $10,000, is depreciated over 5 years. Its salvage value is estimated at $500. Find the depreciation and remaining depreciable value for the first 3 years of the machine’s life using the declining-balance method at double the straight-line rate (200 percent declining-balance).
Keystrokes Display
10000$ 500M 5n 200¼ 1f#
~
2f# ~
3f# ~
10,000.00
500.00
5.00
200.00
4,000.00
5,500.00
2,400.00
3,100.00
1,440.00
1,660.00
Enters original cost. Enters salvage value. Enters expected useful life. Enters declining-balance factor. Depreciation in first year. Remaining depreciable value after
first year. Depreciation in second year. Remaining depreciable value after
second year. Depreciation in third year. Remaining depreciable value after
third year.
To calculate depreciation and the remaining depreciable value when the acquisition date of the asset does not coincide with the beginning of the fiscal accounting year, refer to the procedures in Section 13. That section also includes a procedure for depreciation calculations when changing from the declining-balance method to the straight-line method, and a procedure for calculating excess depreciation.
70 Section 5: Additional Operating Features
Section 5
Additional Operating Features
Continuous Memory
The calculator’s Continuous Memory contains the data storage registers, the financial registers, the stack and LAST X registers, program memory, and status information such as display format, date format, and payment mode. All information in Continuous Memory is preserved even while the calculator is turned off. Furthermore, information in Continuous Memory is preserved for a short time when the batteries are removed, so that you can change the batteries without losing your data and programs.
Continuous Memory may be reset if the calculator is dropped or otherwise traumatized, or if power is interrupted. You can also manually reset Continuous Memory as follows:
1. Turn the calculator off.
2. Hold down the - key, and press ;.
When Continuous Memory is reset:
z All registers are cleared.
z Program memory consists of eight program lines, each containing the
instruction g(000.
z Display format is set to the standard format with two decimal places.
z Date format is set to month-day-year.
z Payment mode is set to End.
Whenever Continuous Memory has been reset, the display will show Pr Error. Pressing any key will clear this message from the display.
The Display
Status Indicators
Eight indicators that appear along the bottom of the display signify the status of the calculator for certain operations. These status indicators are described elsewhere in this handbook where the relevant operation is discussed.
RPN ALG f g BEGIN D.MY C PRGM
Section 5: Additional Operating Features 71
Number Display Formats
When the calculator is first turned on after coming from the factory or after Continuous Memory has been reset, answers are displayed with two decimal places.
Keystrokes (RPN mode) Display
19.8745632\ 5-

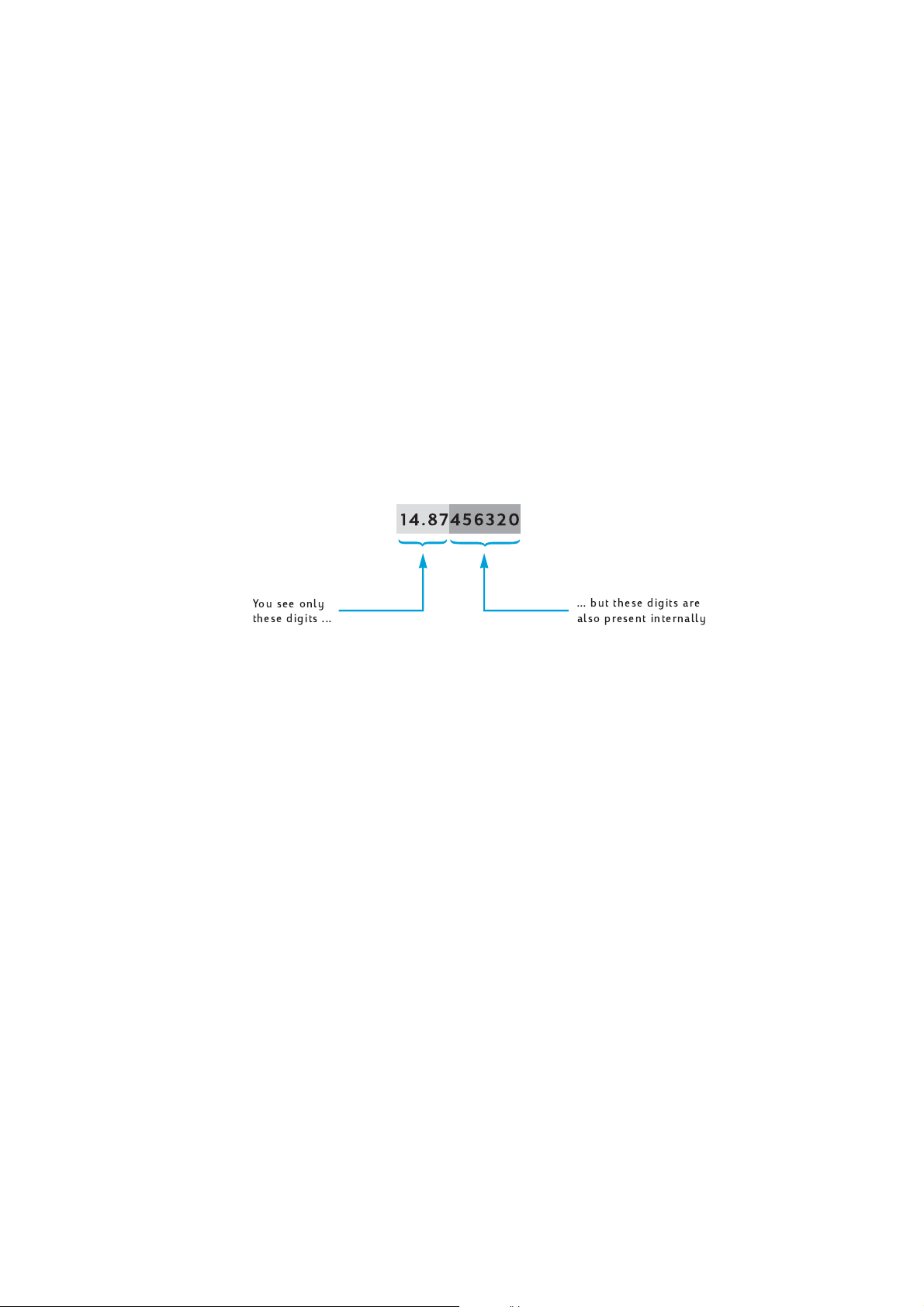

Although you see only two decimal places, all calculations in your HP 12C Platinum are performed with full 10-digit numbers.
19.87
14.87
You see only these digits ...
... but these digits are also present internally
When only two decimal places are displayed, numbers are rounded to two decimal places: if the third digit is 5 through 9, the second digit is increased by one; if the third digit is 0 through 4, the second digit is not affected. Rounding occurs regardless of how many decimal places are displayed.
Several options are provided for controlling how numbers appear in the display. But regardless of which display format or how many displayed decimal places you specify, the number inside the calculator – which appears altered in the display – is not altered unless you use the B, !, V, Ý, or # functions.
Standard Display Format. The number 14.87 now in your calculator is currently being displayed in the standard display format with two decimal places shown. To display a different number of decimal places, press f followed by a digit key (0 through 9) specifying the number of decimal places. In the following examples, notice how the displayed form of the number inside the calculator –
14.87456320 – is rounded to the specified number of digits.
72 Section 5: Additional Operating Features
Keystrokes Display
f4 f1 f0 f9
The standard display format, plus the specified number of decimal places, remain in effect until you change them; they are not reset each time the calculator is turned on. However, if Continuous Memory is reset, when the calculator is next turned on numbers will be displayed in the standard display format with two decimal places shown.
If a calculated answer is either too small or too large to be displayed in the standard display format, the display format automatically switches to scientific notation (described below). The display returns to the standard display format for all numbers that can be displayed in that format.
14.8746
14.9
15.
14.87456320
Although nine decimal places were specified after f, only eight are displayed since the display can show a total of only 10 digits.
Scientific Notation Display Format
7-digit mantissa Exponent of 10
Sign of exponentSign of mantissa
In scientific notation, a number is displayed with its mantissa at the left and a two-digit exponent at the right. The mantissa is simply the first seven digits in the number, and has a single, nonzero digit to the left of the decimal point. The exponent is simply how many decimal places you would move the decimal point in the mantissa before writing down the number in standard format. If the exponent is negative (that is, there is a minus sign between it and the mantissa), the decimal point should be moved to the left; this occurs for any number less than 1. If the exponent is positive (that is, there is a blank space between it and the mantissa), the decimal point should be moved to the right; this occurs for any number greater than or equal to 1.
Section 5: Additional Operating Features 73
To set the display format to scientific notation, press f.. For example (assuming the display still shows 14.87456320 from the preceding example):
Keystrokes Display
f.
The exponent in this example indicates that the decimal point should be moved one decimal place to the right, giving the number 14.87456, which is the first seven digits of the number previously in the display.
To set the display back to standard display format, press f followed by the desired number of decimal places. Scientific notation display format remains in effect until you change to the standard display format; it is not reset each time the calculator is turned on. However, if Continuous Memory is reset, when the calculator is next turned on the standard display format, with two decimal places, will be used.
Mantissa Display Format. Because both the standard display format and scientific notation display format often show only a few digits of a number, you may occasionally want to see all 10 digits – the full mantissa – of the number inside the calculator. To do so, press fCLEAR X and hold down the X key. The display will show all 10 digits of the number as long as you hold down the X key; after you release the key, the number will again be displayed in the current display format. For instance, if the display still contains the result from the preceding example:
1.487456 01
Keystrokes Display
fCLEAR X
f2
1487456320
1.487456 01
14.87
All 10 digits of the number inside the calculator.
Display returns to its former contents when the X key is released.
Returns display to standard format.
Special Displays
Running. Certain functions and many programs may take several seconds or more to produce an answer. During these calculations, the word running flashes in the display to let you know that the calculator is running.
Overflow and Underflow. If a calculation results in a number whose magnitude is greater than 9.999999999 × 10 displays 9.999999 99 (if the number is positive) or –9.999999 99 (if the number is negative).
99
, the calculation is halted and the calculator
74 Section 5: Additional Operating Features
If a calculation results in a number whose magnitude is less than 10 calculation is not halted, but the value 0 is used for that number in subsequent calculations.
Errors. If you attempt an improper operation – such as division by zero – the calculator will display the word Error followed by a digit (0 through 9). To clear the Error display, press any key. This does not execute that key’s function, but does restore the calculator to its condition before the improper operation was attempted. Refer to Appendix D for a list of error conditions.
Pr Error. If power to the calculator is interrupted, the calculator will display Pr Error when next turned on. This indicates that Continuous Memory – which
contains all data, program, and status information – has been reset.
.99
, the
The ~ Key
Suppose you need to subtract $25.83 from $144.25, and you (mistakenly) key in
25.83, press \, then key in 144.25. But then you realize that when written down on paper, the desired calculation reads 144.25 – 25.83, so that you have unfortunately keyed in the second number first. To correct this mistake, merely exchange the first and second numbers by pressing ~, the exchange key.
Keystrokes (RPN mode) Display
25.83\144.25
~
-
144.25
25.83
118.42
Oops! You mistakenly keyed in the
second number first.
Exchanges the first and second numbers. The first number keyed in is now in the display.
The answer is obtained by pressing the operation key.
The ~ key is also useful for checking the first number entered to make sure you keyed it in correctly. Before pressing the operation key, however, you should press ~ again to return the second number entered to the display. Regardless of how many times you press ~, the calculator considers the number in the display to be the second number entered.
The F Key
Occasionally you may want to recall to the display the number that was there before an operation was performed. (This is useful for doing arithmetic calculations with constants and for recovering from errors in keying in numbers.) To do so, press gF (last x).
Section 5: Additional Operating Features 75
Arithmetic Calculations With Constants
Example: At Permex Pipes a certain pipe fitting is packaged in quantities of 15, 75, and 250. If the cost per fitting is $4.38, calculate the cost of each package.
Keystrokes (RPN mode) Display
15\
4.38
§
75
gF
§
250
gF
§
Another method for doing arithmetic calculations with constants is described on page 173.
15.00
4.38
65.70
75.
4.38
328.50
250.
4.38
1,095.00
Keys first quantity into calculator. Keys unit cost into display. Cost of a package of 15. Keys second quantity into display. Recalls unit cost – which was last
number in display before § was pressed – into display.
Cost of a package of 75. Keys third quantity into display. Recalls unit cost into display again. Cost of a package of 250.
Recovering From Errors in Digit Entry
Example: Suppose you want to divide the total annual production for one of your firm’s products (429,000) by the number of retail outlets (987) in order to calculate the average number distributed by each outlet. Unfortunately, you mistakenly key in the number of outlets as 9987 rather than as 987. It’s easy to correct:
Keystrokes (RPN mode) Display
429000\ 9987
z
gF
429000\ 987z
429,000.00
9,987.
42.96
9,987.00
429,000.00
434.65
You haven’t noticed your mistake yet.
About 43 products per outlet – but that seems too low!
Recalls to the display the number that was there before you press z. You see that you keyed it in wrong.
Begins the problem over. The correct answer.
Section 6
Statistics Functions
Accumulating Statistics
The HP 12C Platinum can perform one- or two-variable statistical calculations. The data is entered into the calculator using the _ key, which automatically calculates and stores statistics of the data into storage registers R (These registers are therefore referred to as the “statistics registers.”)
Before beginning to accumulate statistics for a new set of data, you should clear the statistics registers by pressing fCLEAR².
19
In one-variable statistical calculations, to enter each data point – referred to as an “x-value” – key the x-value into the display, then press _.
In two-variable statistical calculations, to enter each data pair – referred to as the “x- and y-values”:
1. Key the y-value into the display.
2. Press \.
3. Key the x-value into the display.
4. Press _.
Each time you press _, the calculator does the following:
z The number in R
is increased by 1, and the result is copied into the
1
display.
z The x-value is added to the number in R
z The square of the x-value is added to the number in R
z The y-value is added to the number in R
z The square of the y-value is added to the number in R
z The product of the x- and y-values is added to the number in R
.
2
.
4
The table below shows where the accumulated statistics are stored.
.
3
.
5
, through R6.
1
.
6
19.
This also clears the stack registers and the display.
76
Section 6: Statistics Functions 77
Register Statistic
R1 (and display) n: number of data pairs accumulated.
R
2
R
3
Σx: summation of x-values.
Σx2: summation of squares of
x-values.
R
4
R
5
R
6
Σy: summation of y-values.
Σy2 summation of squares of y-values.
Σxy: summation of products of
x-values and y-values.
Correcting Accumulated Statistics
If you discover you have entered data incorrectly, the accumulated statistics can easily be corrected:
z If the incorrect data point or data pair has just been entered and _ has
been pressed, press gFg^.
z If the incorrect data point or data pair is not the most recent one entered,
key in the incorrect data point or data pair again as if it were new, but press g^ instead of _.
These operations cancel the effect of the incorrect data point or data pair. You can then enter the data correctly, using _, just as if it were new.
Mean
Pressing calculates the means (arithmetic averages) of the x-values ( ) and of the y-values ( ). The mean of the x-values appears in the display after Ö
y
x
is pressed; to display the mean of the y-values, press ~.
Example: A survey of seven salespersons in your company reveals that they work the following hours a week and sell the following dollar volumes each month. How many hours does the average salesperson work each week? How much does the average salesperson sell each month?
78 Section 6: Statistics Functions
Salesperson Hours/Week Hours/Week
132$17,000
240$25,000
345$26,000
440$20,000
538$21,000
650$28,000
735$15,000
To find the average workweek and sales of this sample:
Keystrokes Display
fCLEAR² 32\
17000_ 40\
25000_ 45\
26000_ 40\
20000_ 38\
21000_ 50\
28000_ 35\
15000_
gÖ ~
0.00
32.00
1.00
40.00
2.00
45.00
3.00
40.00
4.00
38.00
5.00
50.00
6.00
35.00
7.00
21,714.29
40.00
Clears statistics registers.
First entry.
Second entry.
Third entry.
Fourth entry.
Fifth entry.
Sixth entry.
Total number of entries in the sample.
Mean dollar sales per month ( ).
Mean workweek in hours ( ).
x
y
Standard Deviation
Pressing gv calculates the standard deviation of the x-values (sx) and of the y-values (s
dispersion around the mean.) The standard deviation of the x-values appears in the display after v is pressed; to display the standard deviation of the y-values, press ~.
). (The standard deviation of a set of data is a measure of the
y
Section 6: Statistics Functions 79
Example: To calculate the standard deviations of the x-values and of the y-values from the preceding example:
Keystrokes Display
gv ~
4,820.59
6.03
Standard deviation of sales. Standard deviation of hours worked.
The formulas used in the HP 12C Platinum for calculating s
, and sy give best
x
estimates of the population standard deviation based on a sample of the
population. Thus, current statistical convention calls them sample standard deviations. So we have assumed that the seven salespersons are a sample of the population of all salespersons, and our formulas derive best estimates of the population from the sample.
What if the seven salespersons constituted the whole population of salespersons. Then we wouldn’t need to estimate the population standard deviation. We can find the true population standard deviation (σ) when the data set equals the total population, using the following keystrokes.
20
Keystrokes Display
gÖ _ gv
~
21,714.29
8.00
4,463.00
5.58
To continue summing data pairs, press gÖg^ before entering more data.
Mean (dollars) Number of entries + 1.
σ
x
σ
y
Linear Estimation
With two-variable statistical data accumulated in the statistics registers, you can estimate a new y-value ( ) given a new x-value, and estimate a new x-value ( )
y
ˆ
given a new y-value.
To calculate :
y
ˆ
1. Key in a new x-value.
2. Press gR.
x
ˆ
To calculate :
x
ˆ
1. Key in a new y-value.
2. Press gQ.
20.
It turns out that if you sum the mean of the population into the set itself and find the new s, computed using the formulas on page 192, that s will be the population standard deviation, σ, of the original set.
80 Section 6: Statistics Functions
Example: Using the accumulated statistics from the preceding problem, estimate the amount of sales delivered by a new salesperson working 48 hours per week.
Keystrokes Display
48gQ
The reliability of a linear estimate depends upon how closely the data pairs would, if plotted on a graph, lie in a straight line. The usual measure of this reliability is the correlation coefficient, r. This quantity is automatically calculated whenever or is calculated; to display it, press ~. A correlation coefficient close to 1 or –1 indicates that the data pairs lie very close to a straight line. On the other hand, a correlation coefficient close to 0 indicates that the data pairs do not lie closely to a straight line; and a linear estimate using this data would not be very reliable.
Example: Check the reliability of the linear estimate in the preceding example by displaying the correlation coefficient.
28,818.93
yˆx
ˆ
Estimated sales for a 48 hour workweek.
Keystrokes Display
~
0.90
The correlation coefficient is close to 1, so the sales calculated in the preceding example is a good estimate.
To graph the regression line, calculate the coefficients of the linear equation y = A + Bx.
1. Press 0gR to compute the y-intercept (A).
2. Press 1gR~d~- to compute the slope of the line (B).
Example: Compute the slope and intercept of the regression line in the preceding example.
Keystrokes (RPN mode) Display
0gR
1 gR~d~-
The equation that describes the regression line is:
15.55
0.001
y = 15.55 + 0.001x
y-intercept (A); projected value for x = 0.
Slope of the line (B); indicates the change in the projected values caused by an incremental change in the x value.
Section 6: Statistics Functions 81
Weighted Mean
You can compute the weighted mean of a set of numbers if you know the corresponding weights of the items in question.
1. Press fCLEAR².
2. Key in the value of the item and press \, then key in its weight and press _. Key in the second item’s value, press \, key in the second weight, and press _. Continue until you have entered all the values of the items and their corresponding weights. The rule for entering the data is “item \ weight _.”
3. Press gh to calculate the weighted mean of the items.
Example: Suppose that you stop during a vacation drive to purchase gasoline at four stations as follows: 15 gallons at $1.16 per gallon, 7 gallons at $1.24 per gallon, 10 gallons at $1.20 per gallon, and 17 gallons at $1.18 per gallon. You want to find the average cost per gallon of gasoline purchased. If you purchased the same quantity at each station, you could determine the simple arithmetic average or mean using the Ö key. But since you know the value of the item (gasoline) and its corresponding weight (number of gallons purchased), use the h key to find the weighted mean:
Keystrokes Display
fCLEAR²
1.16\15_
1.24\7_
1.20\10_
1.18\17_
gh
0.00
1.00
2.00
3.00
4.00
1.19
Clears statistics registers. First item and weight. Second item and weight. Third item and weight. Fourth item and weight. Weighted mean cost per gallon.
A procedure for calculating the standard deviation and standard error (as well as the mean) of weighted or grouped data is included in the HP 12C Platinum Solutions Handbook.
Section 7
Mathematics and
Number-Alteration Functions
The HP 12C Platinum provides several keys for mathematical functions and for altering, numbers. These functions are useful for specialized financial calculations as well as for general mathematics calculations.
One-Number Functions
Most of the mathematics functions require that only one number be in the calculator (that is, the number in the display) before the function key is pressed. Pressing the function key then replaces the number in the display by the result.
Reciprocal. Pressing y calculates the reciprocal of the number in the display – that is, it divides 1 by the number in the display.
Square. Pressing g’ calculates the square of the number in the display. Square Root. Pressing gr calculates the square root of the number in the
display. Logarithm. Pressing g¿ calculates the natural logarithm (that is, the
logarithm to the base e) of the number in the display. To calculate the common logarithm (that is, the logarithm to the base 10) of the number in the display, calculate the natural logarithm, then press 10g¿z.
Exponential. Pressing g> calculates the exponential of the number in the display – that is, it raises the base e to the number in the display.
Factorial. Pressing ge calculates the factorial of the number in the display – that is, it calculates the product of the integers from 1 to n, where n is the number in the display.
Round. The display format specifies to how many decimal places a number inside the calculator is rounded when it appears in the display; but the display format alone does not affect the number itself inside the calculator. Pressing fB, however, changes the number inside the calculator to match its displayed version. Thus, to round a number in the display to a given number of decimal places, temporarily set the display format (as described on page 71) to show the desired number of decimal places, then press fB.
82
Section 7: Mathematics and Number-Alteration Functions 83
Integer. Pressing replaces the number in the display by its integer portion – that is, it replaces each digit to the right of the decimal point by 0. The number is changed inside the calculator as well as in the display. The original number can be recalled to the display by pressing gF.
Fractional. Pressing gT replaces the number in the display by its fractional portion – that is, it replaces all digits to the left of the decimal point by 0. Like Ñ, T changes the number inside the calculator as well as its displayed version. The original number can be recalled to the display by pressing gF.
All of the above functions are used basically in the same way. For example, to find the reciprocal of 0.258:
Keystrokes Display
.258
y
Any of the above functions can be done with a number in the display resulting from a previous calculation, as well as with a number you have just keyed in.
0.258
3.88
Keys the number into the display. The reciprocal of 0.258, the original
number.
Keystrokes (RPN mode) Display
fCLEAR X
fB
fX
gF
gT
3875968992
3.88
3.88
3880000000
3.88
3.00
3.88
0.88
Displays all 10 digits of the number inside the calculator.
Display returns to normal format when X key is released.
The number now in the display appears the same as before, but …
Displaying all 10 digits of the number inside the calculator shows B has changed the number to match its displayed version.
Display returns to normal format. The integer portion of the number
previously displayed. Recalls the original number to the
display. The fractional portion of the
number previously displayed.
84 Section 7: Mathematics and Number-Alteration Functions
The Power Function
Pressing q calculates a power of a number – that is, yx. Like the arithmetic function +, q requires two numbers:
1. Key in the base number (which is designated by the y on the key).
2. Press \ to separate the second number (the exponent) from the first (the
base).
3. Key in the exponent (which is designated by the x on the key).
4. Press q to calculate the power.
To Calculate Keystrokes (RPN mode) Display
1.4
2
–1.4
2
(–2)
3
2
3
or 2
2\1.4q
2\1.4Þq
2Þ\3q
1/3
2\3yq
2.64
0.38
–8.00
1.26
Part II
Programming
Section 8
Programming Basics
Why Use Programs?
A program is simply a sequence of keystrokes that is stored in the calculator. Whenever you have to calculate with the same sequence of keystrokes several times, you can save a great deal of time by incorporating these keystrokes in a program. Instead of pressing all the keys each time, you press just one key to start the program: the calculator does the rest automatically!
Creating a Program
While in programming made, before pressing steps, users need to creating a program consists simply of writing the program, then storing it:
1. Write down the sequence of keystrokes that you would use to calculate the quantity or quantities desired.
2. Press fs to set the calculator to Program mode. When the calculator is in Program mode, functions are not executed when they are keyed in, but instead are stored inside the calculator. The PRGM status indicator in the display is lit when the calculator is in Program mode.
3. Press fCLEARÎ to erase any previous programs that may be stored inside the calculator. If you want to create a new program without erasing a program already stored, skip this step and proceed as described in Section 11, Multiple Programs.
4. Select the mode you want to use (by pressing f] or f[).
Note: Programs or steps created and saved in RPN mode can only be
executed in RPN mode, and programs or steps created and saved in ALG mode can only be executed in ALG mode. (You can also create steps in your program to switch to the appropriate mode.)
5. Key in the sequence of keystrokes that you wrote down in step 1. Skip the beginning keystrokes that enter data, which would differ each time the program is used.
Example: Your office supplies dealer is selling selected stock at 25% off. Create a program that calculates the net cost of an item after the discount is subtracted and the $5 handling charge is added.
First, we’ll manually calculate the net cost of an item listing for $200.
86
Section 8: Programming Basics 87
Keystrokes (RPN mode) Display
200
\
25b
-
5
+
Next, set the calculator to Program mode and erase any program(s) already stored:
200.
200.00
50.00
150.00
5.
155.00
Keys in cost of item. Separates cost of item from
percentage to be keyed in next. Amount of discount. Price less discount. Handling charge. Net cost (price less discount plus
handling charge).
Keystrokes (RPN mode) Display
fs fCLEARÎ
Finally, press the keys that we used above to solve the problem manually. Do not key in 200; this number will vary each time the program is used. Don’t be concerned right now about what appears in the display as you press the keys; we’ll discuss that later in this section.
000,
000,
Sets calculator to Program mode. Clears program(s).
Keystrokes (RPN mode) Display
\
2 5
b
-
5
+
001, 36
002, 2
003, 5
004, 25
005, 30
006, 5
007, 40
Running a Program
To run (sometimes called “execute”) a program:
1. Press fs to set the calculator back to Run mode. If the calculator is
already in Run mode (that is, the PRGM status indicator in the display is not lit), skip this step.
2. Key any required data into the calculator, just as if you were calculating manually. When a program is run, it uses the data already keyed into the display and the registers inside the calculator.
3. Press t to begin program execution.
88 Section 8: Programming Basics
Example: Run the program created above to calculate the net cost of a typewriter listing for $625 and an executive chair listing for $159.
Keystrokes (RPN mode) Display
fs
625
t
159
t
That’s all there is to creating and running simple programs! But if you want to use programs frequently, you’ll want to know more about programming – such as how to check what keystrokes are stored in program memory, how many keystrokes can be stored in program memory, how to correct or otherwise modify programs, how to skip keystrokes when running a program, and so on. Before you can understand these aspects of programming, we need to briefly discuss how keystrokes are treated by the calculator when they are stored in Program mode and when they are executed in Run mode.
155.00
625.
473.75
159.
124.25
Sets calculator to Run mode. Display shows number previously calculated.
Keys in price of typewriter. Net cost of typewriter. Keys in list price of chair. Net cost of chair.
Program Memory

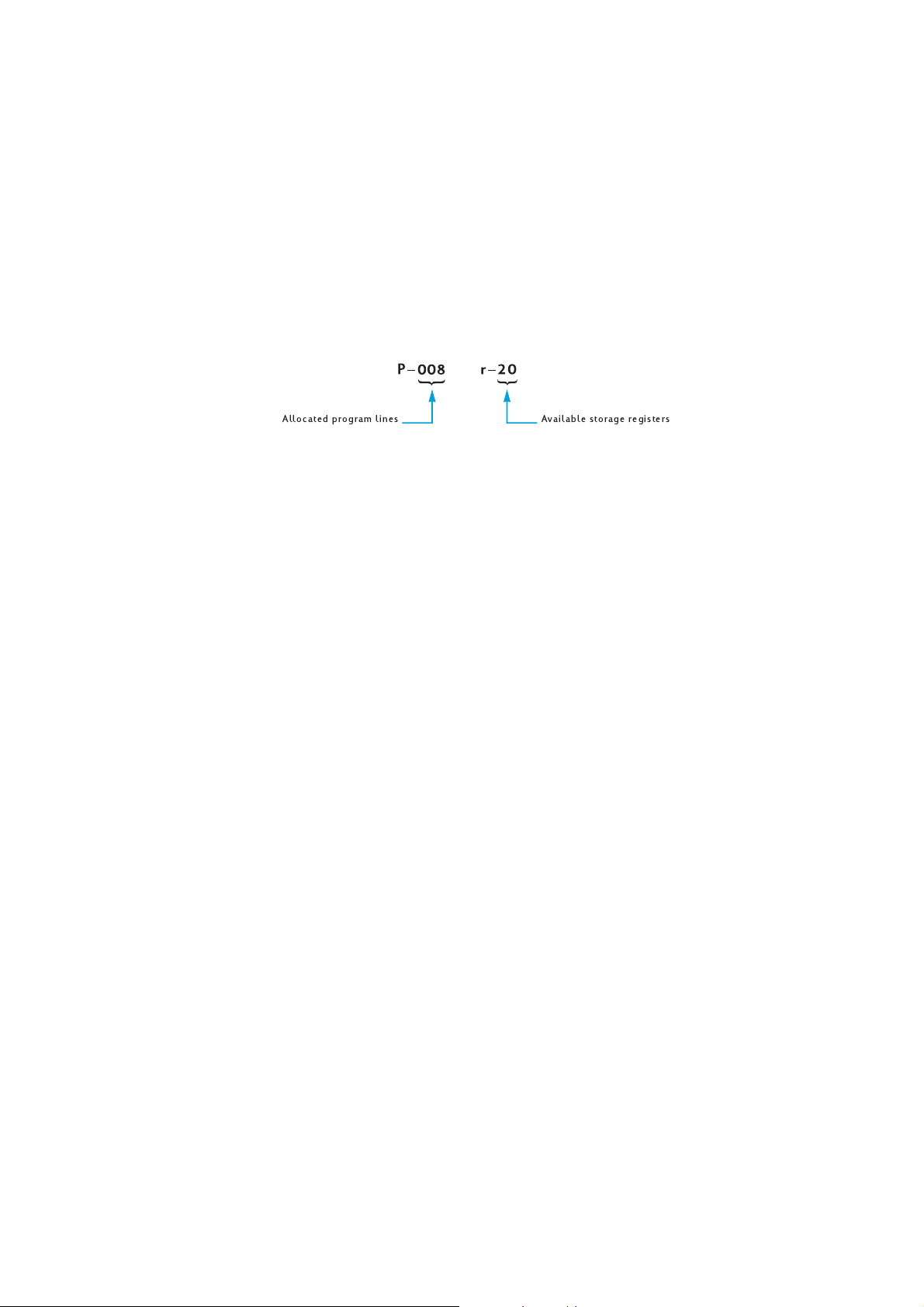

Keystrokes entered into the calculator in Program mode are stored in program memory. Each digit, decimal point, or function key is called an instruction and is stored in one line of program memory – usually referred to simply as a program line. Keystroke sequences beginning with the f, g, ?, :, and i
prefix keys are considered to comprise a complete instruction and are stored in only one program line.
When a program is run, each instruction in program memory is executed – that is, the keystroke in that program line is performed, just as if you were pressing the key manually – beginning with the current line in program memory and proceeding sequentially with the higher-numbered program lines.
Whenever the calculator is in Program mode (that is, whenever the PRGM status indicator in the display is lit), the display shows information about the program line to which the calculator is currently set. At the left of the display is the number of the program line within program memory. The remaining digits in the display comprise a code that indicates what instruction has been stored in that program line. No code is shown for program line 000, since no regular instruction is stored there.
Section 8: Programming Basics 89
Identifying Instructions in Program Lines
Each key on the HP 12C Platinum keyboard – except for the digit keys 0 through 9 – is identified by a two-digit “keycode” that corresponds to the key’s position
on the keyboard. The first digit in the keycode is the number of the key row, counting from row 1 at the top; the second digit is the number of the key in that row, counting from 1 for the first key in the row through 9 for the ninth key in the row and 0 for the tenth key in the row. The keycode for each digit key is simply the digit on the key. Thus, when you keyed the instruction b into program memory, the calculator displayed
004, 25
This indicates that the key for the instruction in program line 004 is in the second row on the keyboard and is the fifth key in that row: the b key. When you keyed the instruction + into program memory, the calculator displayed
007, 40
This indicates that the key for the instruction in program line 007 is in the fourth row on the keyboard and is the tenth key in that row: the + key. When you keyed the digit 5 into program memory, the keycode displayed was only the digit 5.
hp 12c platinum financial calculator
2
=
Since keystroke sequences beginning with f, g, ?, :, and i are stored in only one program line, the display of that line would show the keycodes for all the keys in the keystroke sequence.
Instruction Keycode
gÒ ?=1 gi000
nnn, 43 26
nnn,44 40 1
nnn,43,33,000
90 Section 8: Programming Basics
Displaying Program Lines
Pressing fs to set the calculator from Run mode to Program mode displays the line number and keycode for the program line to which the calculator is currently set.
Occasionally you’ll want to check several or all of the instructions stored in program memory. The HP 12C Platinum enables you to review program instructions either forward or backward through program memory:
z Pressing Ê (single step) while the calculator is in Program mode
advances the calculator to the next line in program memory, then displays that line number and the keycode of the instruction stored there.
z Pressing (back step) while the calculator is in Program mode sets
the calculator back to the previous line in program memory, then displays that line number and the keycode of the instruction stored there.
For example, to display the first two lines of the program now stored in program memory, set the calculator to Program mode and press Ê twice:
Keystrokes Display
fs
Ê Ê
000,
001, 36
002, 2
Sets calculator to Program mode and displays current line of program memory
Program line 001: \ Program line 002: digit 2.
Pressing does the reverse:
Keystrokes Display
gÜ gÜ
If either the Ê key or the Ü key is held down, the calculator displays all of the lines in program memory. Press Ê again now, but this time hold it down until program line 007 is displayed.
001, 36
000,
Program line 001. Program line 000.
Keystrokes Display
Ê
(Release Ê)
001, 36
. . .
007, 40
Program line 001
. . .
Program line 007
Section 8: Programming Basics 91
Program line 007 contains the last instruction you keyed into program memory. However, if you press Ê again, you’ll see that this is not the last line stored in program memory:
Keystrokes Display
Ê
As you should now be able to tell from the keycodes displayed, the instruction in program line 008 is gi000.
008,43,33,000
Program line 008
The i000 Instruction and Program Line 000
Whenever you run the program now stored in program memory, the calculator executes the instruction in line 008 after executing the seven instructions you keyed in. This i000 instruction – as its name implies – tells the calculator to “go to” program line 000 and execute the instruction in that line. Although line 000 does not contain a regular instruction, it does contain a “hidden” instruction that tells the calculator to halt program execution. Thus, after each time the program is run, the calculator automatically goes to program line 000 and halts, ready for you to key in new data and run the program again. (The calculator is also automatically set to program line 000 when you press fs to set the calculator from Program mode to Run mode.)
The i000 instruction was already stored in line 008 – in fact, in all program lines – before you keyed in the program. If no instructions have been keyed into program memory, if Continuous Memory is reset, or if fCLEARÎ is pressed (in Program mode), the instruction i000 is automatically stored in program lines 001 through 008. As you key each instruction into program memory, it replaces the i000 instruction in that program line.
If your program should consist of exactly eight instructions, there would be no i000 instructions remaining at the end of program memory. Nevertheless, after such a program is executed the calculator automatically returns to program line 000 and halts, just as if there were a i000 instruction following the program.
If you key in more than eight instructions, program memory automatically expands to accommodate the additional instructions.
Expanding Program Memory
If no instructions have been keyed into program memory, if Continuous Memory has been reset, or if fCLEARÎ has been pressed (in Program mode),
92 Section 8: Programming Basics
program memory consists of 8 program lines, and there are 20 storage registers available for storage of data.
Program Memory Storage Registers
As you key in a 310th instruction, storage register R
is automatically converted
0.9
into seven new lines of program memory. The instruction you key in is stored in program line 310, and the instruction i000 is automatically stored in program lines 311 through 316.
Program Memory Storage Registers
310
311
312 313 314 315
316
Program memory is automatically expanded like this whenever another seven instructions have been keyed into program memory – that is, when you key an instruction into program line 317, 324, 331 etc. In each case, the additional program lines made available are converted, seven lines at a time, from the last available data storage register (whether or not data has been stored in that register; if it has, it will be lost). Furthermore, the six new program lines (following the 317th, 324th etc.) will each contain the instruction i000.
Section 8: Programming Basics 93
To determine at any time how many program lines (including those containing i000) are currently in program memory and how many storage registers are currently available for conversion to program lines or for data storage, press gN (memory). The calculator will respond with a display like the following:
Allocated program lines Available storage registers
Up to 400 instructions can be stored in program memory. Doing so would require the conversion of 56 data storage registers (because 400 = 8 + [56 × 7]), leaving 7 storage registers – R
through R6 – available for data storage.
0
If you find yourself creating long programs, you should create your programs so that they don’t use up program lines unnecessarily, since program memory is limited to 400 program lines. One way to minimize program length is to replace numbers consisting of more than just one digit – like the number 25 in lines 002 and 003 of the program keyed in above – by a : instruction, and then storing the number in the designated storage register before running the program. In this case, this would save one program line, since the : instruction requires only one program line, not two as are required by the number 25. Of course, doing so uses up data storage registers that you might want to save for other data. As in many business and financial decisions, there is a trade off involved; here it is between program lines and data storage registers.
Setting the Calculator to a Particular Program Line
There will be occasions when you’ll want to set the calculator directly to a particular program line – such as when you’re storing a second program in program memory or when you’re modifying an existing program. Although you can set the calculator to any line by using Ê as described above, you can do so more quickly as follows:
z With the calculator in Program mode, pressing gi. followed by
three digit keys sets the calculator to the program line specified by the digit keys, and then displays that line number and the keycode of the instruction stored there.
z With the calculator in Run mode, pressing gi followed by three digit
keys sets the calculator to the program line specified by the digit keys. Since the calculator is not in Program mode, the line number and keycode are not displayed.
The decimal point is not necessary if the calculator is in Run mode, but it is necessary if the calculator is in Program mode.
94 Section 8: Programming Basics
For example, assuming the calculator is still in Program mode, you can set it to program line 000 as follows:
Keystrokes Display
gi.000
000,
Program line 000
Executing a Program One Line at a Time
Pressing Ê repeatedly with the calculator in Program mode (as described earlier) enables you to verify that the program you have stored is identical to the program you wrote – that is, to verify that you have keyed the instructions in correctly. However, this does not ensure that the program you wrote calculates the desired results correctly: even programs created by the most experienced programmers often do not work correctly when they are first written.
To help you verify that your program works correctly, you can execute the program one line at a time, using the Ê key. Pressing Ê while the calculator is in Run mode advances the calculator to the next line in program memory, then displays that line’s number and the keycode of the instruction stored there, just as in Program mode. In Run mode, however, when the Ê key is released the instruction in the program line just displayed is executed and the display then shows the result of executing that line.
For example, to execute the program stored in the calculator one line at a time:
Keystrokes (RPN mode)
fs
625
Ê
Ê
Ê
Ê
Display
124.25
625.
001, 36
625.00
002, 2
2.
003, 5
25.
004, 25
Sets calculator to Run mode and to line 000 in program memory. (Display shown assumes results remain from previous calculation.)
Keys in price of typewriter. Program line 001: \ Result of executing program line
001. Program line 002: 2. Result of executing program line
002. Program line 003: 5. Result of executing program line
003. Program line 004: b
Section 8: Programming Basics 95
Keystrokes (RPN mode)
Ê
Ê
Ê
Pressing while the calculator is in Run mode sets the calculator to the previous line in program memory, then displays that line’s number and the keycode of the instruction stored there, just as in Program mode. In Run mode, however, when the Ü key is released the display again shows the same number as it did before was pressed: no instruction in program memory is executed.
Display
156.25
005, 30
468.75
006, 5
5.
007, 40
473.75
Result of executing program line
004. Program line 005: ­Result of executing program line
005. Program line 006: 5 Result of executing program line
006. Program line 007: + Result of executing program line
007 (the last line of the program).
Interrupting Program Execution
Occasionally you’ll want a program to stop executing so that you can see an intermediate result or enter new data. The HP 12C Platinum provides two functions for doing so: u (pause) and t (run/stop).
Pausing During Program Execution
When a running program executes a u instruction, program execution halts for about 1 second, then resumes. During the pause, the calculator displays the last result calculated before the u instruction was executed.
If you press any key during a pause, program execution is halted indefinitely. To resume program execution at the program line following that containing the u instruction, press t.

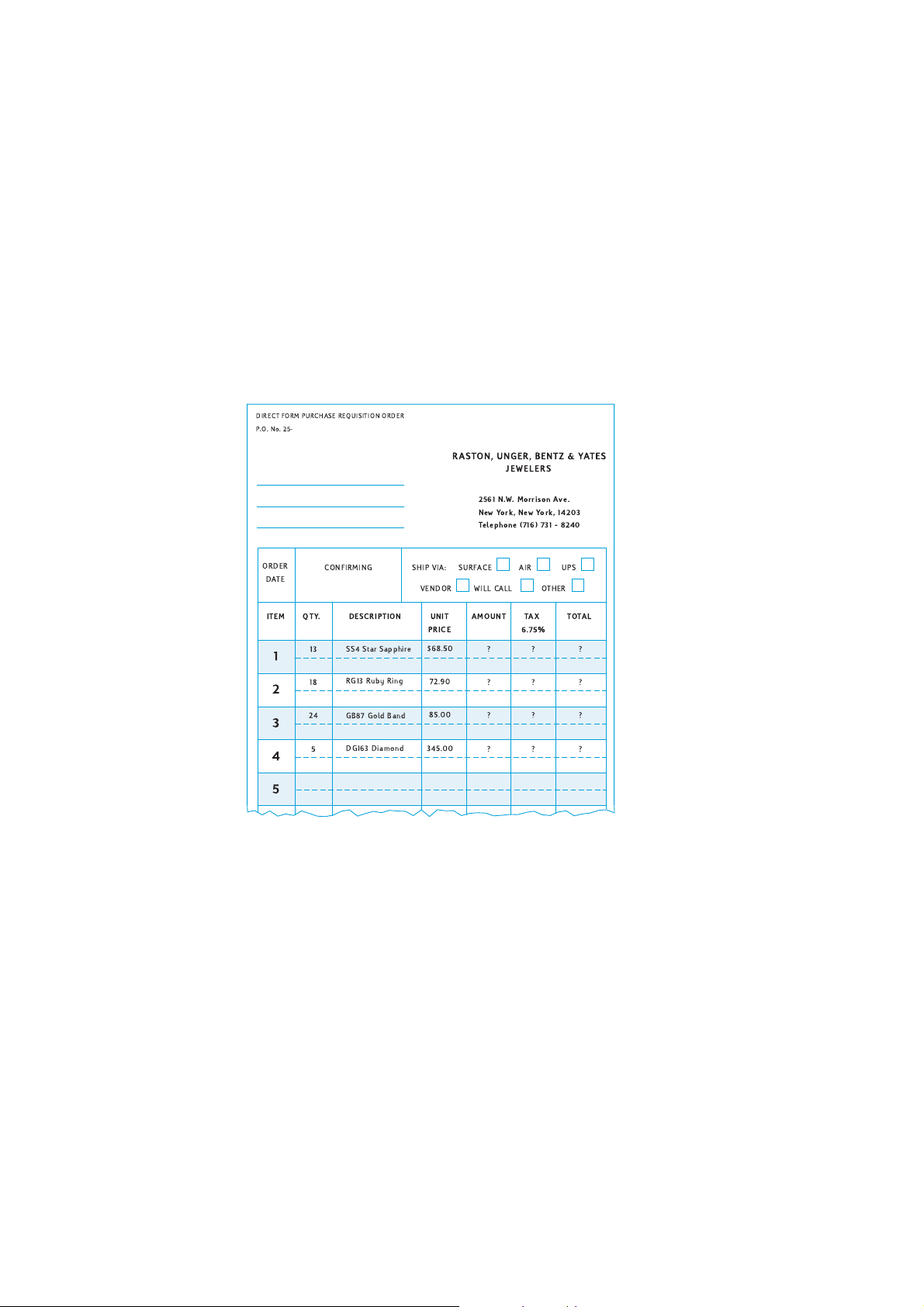

Example: Create a program that calculates the entries in the AMOUNT, TAX, and TOTAL columns for each item on the jewelry distributor’s invoice shown on the next page, and also calculates the total in each of these columns for all items on the invoice. Assume the sales tax is 6¾%.
To conserve lines of program memory, instead of keying in the tax rate before the b instruction we’ll store it in register R instruction. Before storing the program in program memory, we’ll calculate the
and recall it before the b
0
96 Section 8: Programming Basics
required amounts for the first item on the invoice manually. The keystroke sequence will use storage register arithmetic (described on page 25) in registers
, R2, and R3 to calculate the column sums. Since these registers are cleared
R
1
when fCLEAR² is pressed, we’ll press those keys before beginning the manual calculation – and also later, before running the program – to ensure that the column sums are “initialized” to zero. (Pressing fCLEARH would clear registers R
through R3, but would also clear R0, which will contain the tax rate.)
1
DIRECT FORM PURCHASE REQUISITION ORDER P.O. No. 25-
JEWELERS
2561 N.W. Morrison Ave. New York, New York, 14203 Telephone (716) 731 - 8240
ORDER
DATE
ITEM
CONFIRMING SHIP VIA: SURFACE AIR UPS
VENDOR WILL CALL OTHER
QTY.
DESCRIPTION
SS4 Star Sapphire
RG13 Ruby Ring
GB87 Gold Band
DG163 Diamond
UNIT
AMOUNT TAX TOTAL
PRICE
Pressing the gu keys is not necessary when we do the calculations manually, since in Run mode the result of every intermediate calculation is displayed automatically; but we’ll include u instructions in the program so that the intermediate results AMOUNT and TAX are automatically displayed when the program is executed.
Section 8: Programming Basics 97
Keystrokes (RPN mode)
6.75?0 fCLEAR²
13
\
68.5
§ ?+1
:0 b ?+2
+ ?+3
Now, we’ll store the program in program memory. Do not key in the quantity and cost of each item; these numbers will vary each time the program is run.
Keystrokes (RPN mode)
fs fCLEARÎ
§ gu ?+1 :0 b gu ?+2 + ?+3
Display
6.75
0.00
13.
13.00
68.5
890.50
890.50
6.75
60.11
60.11
950.61
950.61
Display
000,
000,
001, 20
002, 43 31
003,44 40 1
004,45 0
005, 25
006, 43 31
007,44 40 2
008, 40
009,44 40 3
Stores tax rate in R0. Clears the registers in R1 through
.
R
6
Keys in quantity of item. Separates quantity of item from
cost of item to be keyed in next. Keys in cost of item. AMOUNT. Adds AMOUNT to sum of
AMOUNT entries in register R Recalls tax rate to display. TAX. Adds TAX to sum of TAX entries
in register R TOTAL. Adds TOTAL to sum of TOTAL
entries in register R
Sets calculator to Program mode. Clears program memory.
Pauses to display AMOUNT.
Pauses to display TAX.
.
2
.
3
1
.
98 Section 8: Programming Basics
Now, to run the program:
Keystrokes (RPN mode)
fs fCLEAR²
6.75?0 Stores tax rate. 13\68.5
t
18\72.9
t
24\85
t
5\345
t
:1 :2 :3
Display
950.61
0.00
68.5
890.50
60.11
950.61
72.9
1,312.20
88.57
1,400.77
85.
2,040.00
137.70
2,177.70
345.
1,725.00
116.44
1,841.44
5,967.70
402.82
6,370.52
Sets calculator to Run mode. Clears registers R1– R6.
Enters quantity and price of first item on invoice.
AMOUNT for first item. TAX for first item. TOTAL for first item. Enters quantity and price of
second item on invoice. AMOUNT for second item. TAX for second item. TOTAL for second item. Enters quantity and price of third
item on invoice. AMOUNT for third item. TAX for third item. TOTAL for third item. Enters quantity and price of
fourth item on invoice. AMOUNT for fourth item. TAX for fourth item. TOTAL for fourth item. Sum of AMOUNT column. Sum of TAX column. Sum of TOTAL column.
If the duration of the pause is not long enough to write down the number displayed, you can prolong it by using more than one u instruction. Alternatively, you can have the program automatically stop as described next.
Stopping Program Execution
Stopping Program Execution Automatically. Program execution is automatically halted when the program executes a t instruction. To resume executing the program from the program line at which execution was halted, press t.
Section 8: Programming Basics 99
Example: Replace the program above by one containing t instructions instead of u instructions.
Keystrokes (RPN mode)
fs fCLEARÎ
§ t
?+1 :0 b t
?+2 + ?+3 fs fCLEAR² 13\68.5 t t t 18\72.9 t t t 24\85 t t t 5\345 t t t :1 :2
Display
000,
000,
001, 20
002, 31
003,44 40 1
004, 45 0
005, 25
006, 31
007,44 40 2
008, 40
009,44 40 3
6,370.52
0.00
68.5
890.50
60.11
950.61
72.9
1,312.20
88.57
1,400.77
85.
2,040.00
137.70
2,177.70
345.
1,725.00
116.44
1,841.44
5,967.70
402.82
Sets calculator to Program mode. Clears program memory.
Stops program execution to display AMOUNT.
Stops program execution to display TAX.
Sets calculator to Run mode. Clears registers R1 through R6. First item. AMOUNT for first item. TAX for first item. TOTAL for first item. Second item. AMOUNT for second item. TAX for second item. TOTAL for second item. Third item. AMOUNT for third item. TAX for third item. TOTAL for third item. Fourth item. AMOUNT for fourth item. TAX for fourth item. TOTAL for fourth item. Sum of AMOUNT column. Sum of TAX column.
100 Section 8: Programming Basics
Keystrokes (RPN mode)
:3
Program execution is also automatically halted when the calculator overflows (refer to page page 73) or attempts an improper operation that results in an Error display. Either of these conditions signifies that the program itself probably contains an error.
To determine at which program line execution has halted (in order to locate the error), press any key to clear the Error display, then press fs to set the calculator to Program mode and display that program line.
You may also want to display the current program line (by pressing fs) if your program has halted at one of several t instructions in your program and you want to determine which one that is. To continue executing the program afterward:
1. Press fs to set the calculator back to Run mode.
2. If you want to resume execution from the program line at which execution
halted rather than from line 000, press gi followed by three digit keys that specify the program line desired.
3. Press t to resume execution.
Stopping Program Execution Manually. Pressing any key while a program is running halts program execution. You may want to do this if the calculated results displayed by a running program appear to be incorrect (indicating that the program itself is incorrect).
To halt program execution during a pause in a running program (that is, when u is executed), press any key.
Display
6,370.52
Sum of TOTAL column.
After stopping program execution manually, you can determine at which program line execution has halted and/or resume program execution as described above.
Section 9
Branching and Looping
Although the instructions in a program normally are executed in order of their program line numbers, in some situations it is desirable to have program execution transfer or “branch” to a program line that is not the next line in program memory. Branching also makes it possible to automatically execute portions of a program more than once – a process called “looping.”
Simple Branching
The i (go to) instruction is used in a program to transfer execution to any program line. The program line desired is specified by keying its three-digit line number into the program line containing the i instruction. When the i instruction is executed, program execution branches or “goes to” the program line specified and then continues sequentially as usual.
001, 002, 003, 004, 005, 006, 007, 008,
003 causes program execution to
branch to line 003
You have already seen a common use of branching: the i000 instruction (that is stored in program memory after the program you key in) transfers execution to program line 000. A i instruction can be used to branch not only backward in program memory – as in the case of i000 and as illustrated above – but also forward in program memory. Backward branching is typically done to create loops (as described next); forward branching is typically done in conjunction with an o or m instruction for conditional branching (as described afterward).
Looping
If a i instruction specifies a lower-numbered line in program memory, the instructions in the program lines between the specified line and the i instruction will be executed repeatedly. As can be seen in the illustration above under Simple Branching, once the program begins executing the “loop” it will execute it again and again.
101
102 Section 9: Branching and Looping
If you want to terminate the execution of a loop, you can include an o or m instruction (described below) or an t instruction within the loop. You can also terminate execution by pressing any key while the loop is being executed.
Example: The following program automatically amortizes the payments on a home mortgage without requiring you to press f! for each payment. It will amortize one month’s payments each time or one year’s payments each time the loop is executed, depending on whether the number 1 or 12 is in the display when you start running the program. Before running the program, we’ll “initialize” it by storing the required data in the financial registers – just as we would do if we were amortizing a single payment manually. We’ll run the program for a $50,000 mortgage at 12¾% for 30 years, and we’ll key 1 into the display just before running it in order to amortize monthly payments. For the first two “passes” through the loop we’ll execute the program one line at a time, using Ê, so that we can see the looping occurring; then we’ll use t to execute the entire loop a third time before terminating execution.
Keystrokes Display
fs fCLEARÎ ?0
:0
f! gu
~
gu
000,
000,
001, 44 0
002, 45 0
003, 42 11
004, 43 31
005, 34
006, 43 31
Sets calculator to Program mode. Clears program memory. Stores the number from the
display into register R
. This
0
number will be the number of payments to be amortized.
Recalls the number of payments to be amortized. This program line is the one to which program execution will later branch. It is included because after the first time the loop is executed, the
number in the “display”
a
is
replaced by the result of !. Amortizes payment(s). Pauses to display amount of
payment(s) applied to interest. Brings amount of payment(s)
applied to principal into “display.”
a
Pauses to display amount of payment(s) applied to principal.
