HP 1255, 1275 Service Manual

Presario 1200 Series
Models: 1255, 1256, 1260, 1262, 1266, 1267, 1272, 1273, 1274, and 1275
Before You Begin Specifications Parts Catalog
Product Description Pin Assignments
Before You Begin
Notice Preface Product
Description Troubleshooting Illustrated Parts
Index
Catalog Removal &
Replacement Procedures
Specifications Connector Pin
Assignments Battery Pack
Operations
Presario 1200 Series
This online guide is designed to serve the needs of those whose job it is to repair Compaq products.
This Guide will be periodically maintained and updated online as needed.
For content comments or questions, contact
To report a technical problem, contact your Regional Support Center or IM Help Center.
Compaq.
Presario 1200 Series
Models: 1255, 1256, 1260, 1262, 1266, 1267, 1272, 1273, 1274, and 1275
Before You Begin Specifications Parts Catalog
Product Description Pin Assignments
Index
Notice
The information in this guide is subject to change without notice.
COMPAQ COMPUTER CORPORATION SHALL NOT BE LIABLE FOR TECHNICAL OR EDITORIAL ERRORS OR OMISSIONS CONTAINED HEREIN, NOR FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES RESULTING FROM THE FURNISHING, PERFORMANCE, OR USE OF THIS MATERIAL.
This guide contains information protected by copyright. No part of this guide may be photocopied or reproduced in any form without prior written consent from Compaq Computer Corporation.
© 1999 Compaq Computer Corporation. All rights reserved. Printed in the U.S.A.
Compaq, Presario Registered U. S. Patent and Trademark Office.
Microsoft, MS-DOS, and Windows are registered trademarks of Microsoft Corporation. Windows 98 is a trademark of Microsoft Corporation.
The software described in this guide is furnished under a license agreement or nondisclosure agreement. The software may be used or copied only in accordance with the terms of the agreement.
Product names mentioned herein may be trademarks and/or registered trademarks of their respective companies.
Maintenance and Service Guide
Compaq Presario 1200 Series Portable Computers
First Edition (June 1999) Compaq Computer Corporation
Presario 1200 Series
Models: 1255, 1256, 1260, 1262, 1266, 1267, 1272, 1273, 1274, and 1275
Before You Begin Specifications Parts Catalog
Removal Sequence Troubleshooting Battery Operations
Product Description Pin Assignments
Index
Preface
This Maintenance and Service Guide is a troubleshooting guide that can be used for reference when servicing the Compaq Presario 1200 Series Portable Computers.
Compaq Computer Corporation reserves the right to make changes to the Compaq Presario 1200 Series Portable Computers without notice.
Symbols
The following words and symbols mark special messages throughout this guide.
WARNING: Text set off in this manner indicates that failure to follow directions in the warning could result in bodily harm or loss of life.
CAUTION: Text set off in this manner indicates that failure to follow directions could result in damage to equipment or loss of data.
IMPORTANT:
Text set off in this manner presents clarifying information or specific instructions.
Text set off in this manner presents commentary, sidelights, or interesting points of
NOTE:
information.
Technician Notes
WARNING: Only authorized technicians trained by Compaq should repair this equipment. All troubleshooting and repair procedures are detailed to allow only subassembly/module level repair. Because of the complexity of the individual boards and subassemblies, the user should not attempt to make repairs at the component level or to make modifications to any printed circuit board. Improper repairs can create a safety hazard. Any indications of component replacement or printed circuit board modifications may void any warranty.
Serial Number
When requesting information or ordering spare parts, the computer serial number should be provided to Compaq. The serial number is located on the bottom of the computer.
Locating Additional Information
The following documentation is available to support this product:
Compaq Presario 1200 Series Portable Computer documentation set
Introducing Windows 95 Guide
Service Training Guides
Compaq Service Advisories and Bulletins
Compaq QuickFind
Compaq Service Quick Reference Guide
Presario 1200 Series
Models: 1255, 1256, 1260, 1262, 1266, 1267, 1272, 1273, 1274, and 1275
Before You Begin Specifications Parts Catalog
Removal Sequence Troubleshooting Battery Operations
Product Description Pin Assignments
Product Description
Models and Features Controls and Lights Left Side
Components Right Side
Components Bottom of Unit Rear Connectors Power Management
for Windows 98
Index
Compaq
Presario Portable Computers...
are a continuation of new generation multimedia portable computers with innovative integrated designs, outstanding audio and video, advanced core features, and attractive styling.
This full­function, AMD-K6 portable computer allows full desktop functionality.
Presario 1200 Series
Models: 1255, 1256, 1260, 1262, 1266, 1267, 1272, 1273, 1274, and 1275
Before You Begin Specifications Parts Catalog
Product Description Pin Assignments
Models & Features
Models and Features
Controls and Lights
Left Side Components
Right Side Components
Bottom of Unit
Rear Connectors
Power Management
Display Processor
Hard Drive
Compaq Presario 1200 Series
Portable Computer
Models
Model 1255 Model 1256
12. 1" HPA 12.1" HPA AMD-K6 333-MHz
MMX
3.2-GB (or) 4.0-GB 4.3-GB
Index
AMD-K6 333-MHz MMX
CD Drive Modem
Battery System
Memory
Display Processor
Hard Drive CD Drive Modem
24× MAX 24× MAX K-56.0 (or) M++56.0
Kbps Data/Fax with ITU V.90
M++56.0 Kbps Data/Fax with ITU
V.90 ES NiMH (or) sLi ion ES NiMH 32 MB 32 MB
Model 1260 Model 1262
12. 1" TFT 12. 1" TFT AMD-K6 333-MHz
MMX
AMD-K6 333-MHz
MMX
4.0-GB (or) 6.4-GB 4.0-GB 24× MAX 24× MAX K-56.0 (or) M++56.0
K-56.0 Kbps Data/Fax
Battery System
Memory
Display Processor
Hard Drive CD Drive Modem
Kbps Data/Fax with
with ITU V.90 ITU V.90
sLi ion ES NiMH 32 MB 32 MB
Model 1266 Model 1267
12. 1" TFT 12. 1" TFT AMD-K6 333-MHz
MMX
AMD-K6 333-MHz
MMX
4.0-GB (or) 6.4-GB 4.0-GB 24× MAX 24× MAX K-56.0 (or) M++56.0
Kbps Data/Fax with
K-56.0 Kbps Data/Fax
with ITU V.90 ITU V.90
Battery System
Memory
Display Processor
Hard Drive CD Drive Modem
Battery System
Memory
sLi ion ES NiMH 32 MB 32 MB
Model 1272 Model 1273
12. 1" HPA 12. 1" HPA AMD-K6II 333-MHz
MMX
AMD-K6II 333-MHz
MMX
4.3-GB 6.4-GB 24× MAX 24× MAX K-56.0 Khan K-56.0 Khan
ES NiMH ES NiMH 32 MB 32 MB
Display Processor
Hard Drive CD Drive Modem
Battery System
Memory
Model 1274 Model 1275
12. 1" HPA 13.0" HPA AMD-K6II 333-MHz
MMX
AMD-K6II 333-MHz
MMX
4.3-GB 4.3-GB 24× MAX 24× MAX K-56.0 Khan K-56.0 Khan
ES NiMH sLi ion 64 MB 32 MB (or) 64 MB
Presario 1200 Series
Models: 1255, 1256, 1260, 1262, 1266, 1267, 1272, 1273, 1274, and 1275
Before You Begin Specifications Parts Catalog
Removal Sequence Troubleshooting Battery Operations
Product Description Pin Assignments
Controls and Lights
Models and Features
Controls and Lights
Left Side Components
Right Side Components
Bottom of Unit
Rear Connectors
Index
Front Panel Components
1. Display
2. Power Button
3. Keyboard
Power Management for Windows 98
4.TouchPad
5. Speakers & Ports
6. Palmrest
7. (L) TouchPad Button
8. (R) TouchPad Button
9. Instant Internet Access Button
10. Instant Search Button
11. Scroll up/down Button
12. Instant E­Commerce Button (or Retail Center)
NOTE:
Depending on the model, the icon for this button may be either a
check mar
k or a shopping cart.
13. Instant E-mail
14. Power Light
15. Battery Charge Light
16. AC Adapter Light
17. Headphone Jack
18. Volume Down Button
19. Volume Up Button
20. Microphone Jack
21. Number Lock Light
22. Cap Lock Light
23. Scroll Lock Light
Presario 1200 Series
Models: 1255, 1256, 1260, 1262, 1266, 1267, 1272, 1273, 1274, and 1275
Before You Begin Specifications Parts Catalog
Product Description Pin Assignments
Left Side Components
Models and Features
Controls and Lights
Left Side Components
Right Side Components
Bottom of Unit
Rear Connectors
Power Management for Windows 98
Index
1. PC Card Eject Lever
2. PC Card Slot
3. Diskette Drive Slot
4. Diskette Eject Button
Presario 1200 Series
Models: 1255, 1256, 1260, 1262, 1266, 1267, 1272, 1273, 1274, and 1275
Before You Begin Specifications Parts Catalog
Removal Sequence Troubleshooting Battery Operations
Product Description Pin Assignments
Right Side Components
Models and Features
Controls and Lights
Left Side Components
Right Side Components
Bottom of Unit
Rear Connectors
Index
1. Battery Compartment.
2. CD Drive.
3. CD Drive Eject Button.
Power Management for Windows 98
Presario 1200 Series
Models: 1255, 1256, 1260, 1262, 1266, 1267, 1272, 1273, 1274, and 1275
Before You Begin Specifications Parts Catalog
Removal Sequence Troubleshooting Battery Operations
Product Description Pin Assignments
Bottom of Unit
Models and Features
Controls and Lights
Left Side Components
Right Side Components
Bottom of Unit
Rear Connectors
Index
1. Upgradeable memory compartment.
2. Rubber feet.
Power Management for Windows 98
Presario 1200 Series
Models: 1255, 1256, 1260, 1262, 1266, 1267, 1272, 1273, 1274, and 1275
Before You Begin Specifications Parts Catalog
Removal Sequence Troubleshooting Battery Operations
Product Description Pin Assignments
Rear Connectors
Models and Features
Controls and Lights
Left Side Components
Right Side Components
Bottom of Unit
Rear Connectors
Power Management for Windows 98
Index
1. AC Adapter.
2. Parallel Printer Port.
3. Serial Port.
4. Fan Exhaust.
5. External Monitor Port.
6. USB.
7. Keyboard/Mouse Port.
8. Modem Jack.
9. Security Slot.
Presario 1200 Series
Models: 1255, 1256, 1260, 1262, 1266, 1267, 1272, 1273, 1274, and 1275
Before You Begin Specifications Parts Catalog
Product Description Pin Assignments
Index
Power Management for Windows 98
The following power management features are available for conserving AC power and extending battery operating time:
Power Management
Settings
Sleep
Hibernation
Battery Operating
Time
Rebooting After
Lockup
Servicing Your
Computer
Maintenance & Service Guide
Presario 1200 Series
Models: 1255, 1256, 1260, 1262, 1266, 1267, 1272, 1273, 1274, and 1275
| Home Page | Notice | Preface | Product Description | Troubleshooting
Illustrated Parts Catalog | Removal & Replacement Procedures | Specifications
Pin Assignments | Battery Pack Operations
Power Management for Windows 98
Power Management Settings
Depending on your patterns of computer use, you can set different levels of power management. These different power management levels can be activated based on the amount of time passed since the last system activity. System activity examples include keyboard or mouse movement, CD or DVD playback (while under program control that monitors Sleep), and modem use.
You can select different conditions or power schemes through Power Management.The optional settings are Home/Office Desk, Portable/ Laptop, and Always On. From the default settings, you can change the following settings:
the System goes to Sleep (Standby) mode
the screen times out and goes blank
the hard drive spins down
Each of these system components goes to sleep after the selected or default periods of inactivity. (The setting for hard drive must be less than, or equal to, the setting for System.)
IMPORTANT:
System Standby to Never.
If you're on a network, it's recommended that you set
There are five categories of power management settings under the Control Panel.
The default settings for each feature are listed in the following tables:
Power Management Properties
Tab: Power Schemes: Plugged in
Always on System
Never
Standby:
Turn OFF Monitor
3 hours
Running on Batteries
After 15 minutes
Never
Turn OFF Hard Drive
After 15 minutes
After 10 minutes
Power Management Properties
Tab: ALARMS::
Low Battery Alarm: 10%
Critical Battery Alarm 0%
Alarm Actions: X Display Message
Notification:
Text Action: No Action
Power Management Properties
Tab: POWER METER: Default
Tab: ADVANCED Default
(show power meter on taskbar)
Display Properties
Tab: Monitor: Laptop Display (800 x 600)
Return to Power Management for Windows 98 list.
Maintenance & Service Guide
Presario 1200 Series
Models: 1255, 1256, 1260, 1262, 1266, 1267, 1272, 1273, 1274, and 1275
| Home Page | Notice | Preface | Product Description | Troubleshooting
Illustrated Parts Catalog | Removal & Replacement Procedures | Specifications
Pin Assignments | Battery Pack Operations
Power Management for Windows 98
Sleep
You can select Sleep mode instead of turning off the computer when you have finished using it. This allows the computer to wake up faster than turning it off and saves power over the active (On) mode. Compaq Presario Notebook computers have two levels of sleep - Hibernation and Sleep.
Hibernation - pushing the power button once causes your computer to perform a save to disk followed by a shut down of the computer into Off mode.
Sleep - is a low-power mode, also referred to as Standby mode. While in Sleep mode, your computer maintains system information and open files. Unsaved information is lost if you turn off your system before system wake-up, or if you lose power while using the AC adapter.
CAUTION: While in Sleep mode, your computer maintains system information and open files. Unsaved information is lost if you turn off your system before system wake-up, or if you lose power while using the AC adapter
.
Maintenance & Service Guide
Presario 1200 Series
Models: 1255, 1256, 1260, 1262, 1266, 1267, 1272, 1273, 1274, and 1275
| Home Page | Notice | Preface | Product Description | Troubleshooting
Illustrated Parts Catalog | Removal & Replacement Procedures | Specifications
Pin Assignments | Battery Pack Operations
Power Management for Windows 98
Hibernation Mode
Hibernation helps conserve battery life and protect your data. Hibernation can be a routine power saving event, or can be the result of a low battery condition. As it enters Hibernation, your computer displays a progress screen, as it automatically saves the machine state before it shuts down and turns itself off. Your computer automatically goes into Hibernation when the battery has little power left, or when the system (operating on battery power) has been in Sleep mode for more than an hour. You can also manually initiate Hibernation by pressing the power button once while the system is active. To restore the computer's previous state, simply press the power button once again. While waking up, the computer displays a progress screen.
The following table shows the conditions and indicators for getting in and out of the various power management modes - Sleep, Hibernation, and Off.
Mode To Initiate To End Indicators
Sleep
Manual keys combination
Press any key Flashing green
Power LED
- Fn+F4
Time Out Default ­15 minutes if on Battery power (system will not time out to sleep)
Hibernate Manual - Press Power
Button once
Press Power Button once
No Power LED, blank screen
Time Out Default ­If low battery or after 1 hour of sleep (system will not Hibernate if on AC power)
Off Perform normal Windows
shutdown via the start button, or press and hold down the power button for 4 seconds
Return to Power Management for Windows 98 list.
Press Power Button once
No Power LED, blank screen
Maintenance & Service Guide
Presario 1200 Series
Models: 1255, 1256, 1260, 1262, 1266, 1267, 1272, 1273, 1274, and 1275
| Home Page | Notice | Preface | Product Description | Troubleshooting
Illustrated Parts Catalog | Removal & Replacement Procedures | Specifications
Pin Assignments | Battery Pack Operations
Power Management for Windows 98
Battery Operating Time
Battery operating time is affected by variables, such as the following:
Power conservation
settings
Hardware
configuration
Software
applications
For more information on increasing battery pack operating time, conditioning the battery pack, and disposing of a used battery pack, refer to Battery Pack Operating Time.
Return to Power Management for Windows 98 list.
Installed
options
Display
brightness
Hard drive
usage
Power button
Changes in operating
temperature
Type and number of
installed PC Cards
Maintenance & Service Guide
Presario 1200 Series
Models: 1255, 1256, 1260, 1262, 1266, 1267, 1272, 1273, 1274, and 1275
| Home Page | Notice | Preface | Product Description | Troubleshooting
Illustrated Parts Catalog | Removal & Replacement Procedures | Specifications
Pin Assignments | Battery Pack Operations
Power Management for Windows 98
Rebooting After a Lockup
Occasionally you may encounter a frozen keyboard or a locked screen. To reboot your computer (as if from a cold start), press and hold down the Power Button for at least four seconds, which will cause a manual shutdown. Then, restart the computer with a single press of the Power Button. If it still does not recover, press the Power Button and hold it for four seconds to power off the computer. Then, remove the battery or unplug the AC power for at least 30 seconds. Reinsert the battery or reconnect AC power and press the Power Button once to reboot.
Return to Power Management for Windows 98 list.
Maintenance & Service Guide
Presario 1200 Series
Models: 1255, 1256, 1260, 1262, 1266, 1267, 1272, 1273, 1274, and 1275
| Home Page | Notice | Preface | Product Description | Troubleshooting
Illustrated Parts Catalog | Removal & Replacement Procedures | Specifications
Pin Assignments | Battery Pack Operations
Power Management for Windows 98

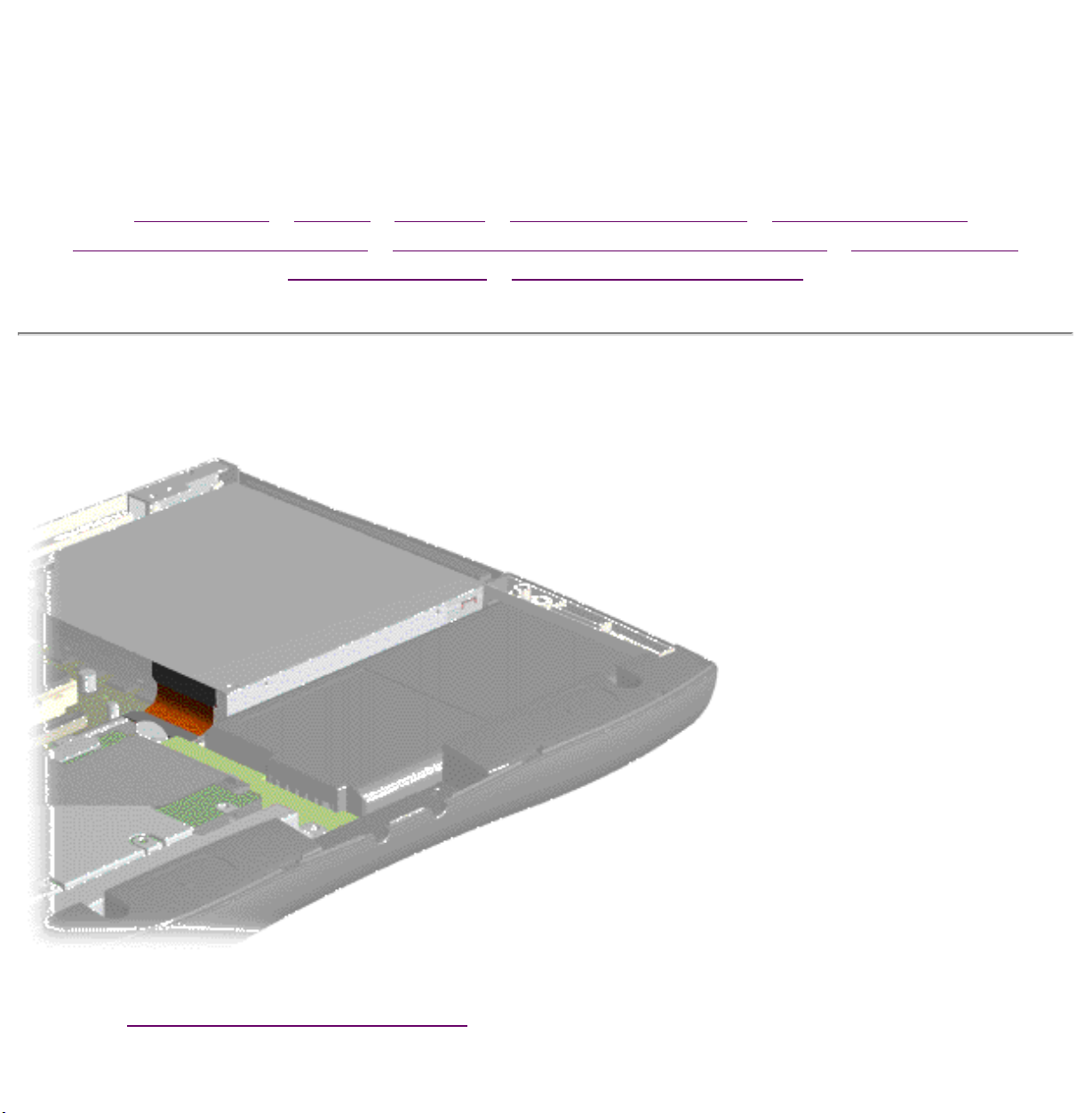

Servicing Your Computer - Full Off Mode
If you need to install or replace components in your system, you must turn the computer off completely. Place the computer into Off mode, unplug it from the outlet, and remove the
battery
(see battery section for instruction on removing battery).
Return to Power Management for Windows 98 list.
Presario 1200 Series
Models: 1255, 1256, 1260, 1262, 1266, 1267, 1272, 1273, 1274, and 1275
Before You Begin Specifications Parts Catalog
Product Description Pin Assignments
Troubleshooting
Preliminary Steps Clearing the Power-On
Password Power-On Self Test
(POST) Compaq Diagnostics Diagnostic Error Codes Troubleshooting
Without Diagnostics Solving Minor
Problems
This section covers troubleshooting information for the Compaq Presario 1200 Series Portable Computers. The basic steps in troubleshooting include:
1. Follow the
Steps.
2. Run the Power-On Self-Test (POST).
3. If you are unable to run
Index
Preliminary
Contacting Compaq Support
POST or if POST displays an error message, follow the recommended actions described in the diagnostic tables.
When following the recommended actions in the Sections on POST and
Diagnostic Error Codes,
perform them in the order listed. Rerun POST after each recommended action until the problem is solved and no error message occurs. Once the problem is solved, do not complete the remaining recommended actions.
If the problem is intermittent, check the
NOTE:
computer several times to verify that the problem is solved.
Presario 1200 Series
Models: 1255, 1256, 1260, 1262, 1266, 1267, 1272, 1273, 1274, and 1275
Before You Begin Specifications Parts Catalog
Product Description Pin Assignments
Index
Preliminary Steps
Before running POST, complete the following preliminary steps:
1. If a power-on password has been established, type the password and press the Enter key. If the password is not known,
2. Run Computer Checkup.
3. Turn off the computer and its external devices.
4. Disconnect any external devices that you do not want to test. Do not disconnect the printer if you want to test it or use it to log error messages.
clear the password.
If the problem only occurs when an external device is connected to the computer, the problem may be related to the external
IMPORTANT:
device or its cable. Verify this by running POST with and without the external device connected.
5. Install loopback plugs in the serial and parallel connectors if you would like to test these ports.
6. Ensure that the hard drive is installed in the computer.
7. Ensure that the battery pack is inserted in the computer and the computer is connected to an external AC power source.
When these preliminary steps are completed, you are ready to run
POST.
Return to Troubleshooting index page.
Presario 1200 Series
Models: 1255, 1256, 1260, 1262, 1266, 1267, 1272, 1273, 1274, and 1275
Before You Begin Specifications Parts Catalog
Removal Sequence Troubleshooting Battery Operations
Product Description Pin Assignments
Index
Power-On Self Test (POST)
Running POST
To run POST, complete the following steps:
Turn off the computer; then, turn on the computer.
If POST does not detect any errors, the computer will not beep. This indicates successful
completion of POST test. POST has run successfully and boots from the hard drive (or from a bootable diskette if one is installed in the diskette drive).
If POST detects errors, the errors are indicated by screen and/or audible messages.
Refer to "Power-On Self-Test (POST) Codes" in the tables for a list of POST codes and their relevant descriptions.
If the system is not functioning well enough to run POST, or if the display is
NOTE:
not functioning well enough to show POST error messages, refer to the Troubleshooting tables.
Power-On Self-Test Messages
102-System Board Failure
Probable Cause Recommended Action
DMA, timers, etc. Replace the system board.
162-System Options Not Set
Probable Cause Recommended Action
Configuration incorrect Run Computer Setup.
CMOS reflects that an invalid
Run Computer Setup.
configuration has been set.
RAM failure 1. Replace the memory modules.
2. Replace the system board.
Memory test data error 1. Replace the memory modules.
2. Replace the system board.
XX000YZZ RAM failure Replace the system board.
XX000YZZ 201-Memory Error
Probable Cause Recommended Action
RAM failure 1. Replace the memory modules.
2. Replace the system board.
Memory test data error 1. Replace the memory modules.
2. Replace the system board.
XXOOOYZZ Ram failure Replace the system board.
301-Keyboard Error
Probable Cause Recommended Action
Keyboard failure 1. Ensure that keys are not depressed
during POST.
2. Reconnect the keyboard with the computer off.
3. Replace the keyboard.
304-Keyboard or System Unit Error
Probable Cause Recommended Action
Keyboard or system board error 1. Replace the keyboard.
2. Replace the TouchPad or mouse.
3. Replace the system board.
601-Diskette Controller Error
Probable Cause Recommended Action
Mismatch in drive type or failure in the diskette controller
Run Computer Checkup (TEST).
1.
2. Check and/or replace cables.
3. Replace the system board.
605-Diskette Drive Error
Probable Cause Recommended Action
Mismatch in drive type Run Computer Setup.
1780-Primary Hard Drive 0 Failure
Probable Cause Recommended Action
Disk 0 failed to respond 1.
Hard drive format error 1. Run Computer Checkup (TEST).
Run Computer Checkup (TEST).
2. Replace the hard drive.
2. Replace the hard drive.
1782-Hard Drive Controller
Probable Cause Recommended Action
Hard drive controller failure 1. Run Computer Setup.
2. Replace the hard drive.
Presario 1200 Series
Models: 1255, 1256, 1260, 1262, 1266, 1267, 1272, 1273, 1274, and 1275
Before You Begin Specifications Parts Catalog
Product Description Pin Assignments
Clearing the Power-on Password
Index
Clearing the power-on password requires removing all Setup attributes that are programmed in the CMOS. The RTC battery
is located on the
system board.
If the password is not known, clear it by performing the following steps:
1. Turn off the computer.
2. Disconnect the power cord.
3. Remove the
battery
pack.
4. Remove the Palmrest
Cover with Touch Pad.
5. Move the keyboard to allow access to the
heatspreader.
6. Remove the
heatspreader.
7. Remove the modem.
8. Remove the RTC battery for 30 seconds and replace it.
9. Reassemble the computer by reversing the previous steps.
10. Turn on the computer to verify that the power-on password has been cleared. If it has not been cleared, repeat Steps 1 through
10.
Return to
preliminary
steps page.
or
Return to Troubleshooting index page.
Presario 1200 Series
Models: 1255, 1256, 1260, 1262, 1266, 1267, 1272, 1273, 1274, and 1275
Before You Begin Specifications Parts Catalog
Product Description Pin Assignments
Index
Compaq Diagnostics
Compaq Diagnostics is installed on the hard drive of the computer. Run the Diagnostics utilities when you want to view or test system information and if you have installed or connected devices. If you run Compaq Diagnostics from a diskette, ensure that it is version 10.11 or later.
The Diagnostics menu includes the following utilities:
Perform Computer Checkup (TEST)
View System Information (INSPECT)
Prepare Computer for a Compaq Service Call (RemotePaq)
If you have a problem you cannot solve, run the Diagnostics utilities before you call for support. Run Computer Checkup and save the device list to a file and to print, or save the error log. Run the View System Information (INSPECT) utility and print or save that information. Have the files or the printed information available when you call for support.
Perform Computer Checkup (TEST)
Computer Checkup (TEST) determines whether the various computer components and devices are recognized by the system and are functioning properly. You can display, print, or save the information generated by Computer Checkup.
Follow these steps to run Computer Checkup:
1. Plug the computer into an external power source. (A low battery condition could interrupt the program.)
2. Turn on the external devices that you want to test. Connect the printer if you want to print a log of error messages.
3. Insert the Compaq Diagnostics diskette in drive A.
4. Turn on or restart the computer. The computer starts from drive A, and the Diagnostics Welcome screen appears.
5. Press Enter to continue. The Diagnostics menu appears.
6. Select Computer Checkup from the Diagnostics menu. A Test Option menu appears.
7. Select View the Device List from the Test Option menu. A list of the installed Compaq devices appears.
8. If the list of installed devices is correct, select OK. The Test Option menu appears.
If the list is incorrect, ensure that any new devices are installed
NOTE:
properly.
9. Select one of the following from the Test Option menu:
Quick Check Diagnostics. Runs a quick, general test on each device with
a minimal number of prompts. If errors occur, they display when the testing is complete. You cannot print or save the error messages.
Automatic Diagnostics. Runs unattended, maximum testing of each
device with minimal prompts. You can choose how many times to run the tests, to stop on errors, or to print or save a log of errors.
Prompted Diagnostics. Allows maximum control over testing the devices.
You can choose attended or unattended testing, decide to stop on errors, or choose to print or save a log of errors.
10. Follow the instructions on the screen as the devices are tested. When testing is complete, the Test Option menu appears.
11. Exit the Test Option menu.
12. Exit the Diagnostics menu.
Return to
top of this page
View System Information (INSPECT)
The View System Information (INSPECT) utility provides information about the computer and installed or connected devices. You can display, print, or save the information.
Follow these steps to run View System Information (INSPECT) from the Compaq Diagnostics diskette:
1. Turn on the external devices that you want to test. Connect the printer if you want to print the information.
2. Insert the Compaq Diagnostics diskette in drive A.
3. Turn on or restart the computer. The computer starts from drive A, and the Diagnostics Welcome screen appears.
4. Press Enter to continue. The Diagnostics menu appears.
5. Select View System Information (INSPECT) from the Diagnostics menu.
6. Select the item you want to view from the following list:
System Memory ROM Audio Keyboard Operating system System ports System files System storage Windows files Graphics
7. Follow the instructions on the screen to cycle through the screens, to return to the list and choose another item, or to print the information.
Return to
top of this page
or to Preliminary steps page.
or to the Troubleshooting index page.
Presario 1200 Series
Models: 1255, 1256, 1260, 1262, 1266, 1267, 1272, 1273, 1274, and 1275
Before You Begin Specifications Parts Catalog
Product Description Pin Assignments
Index
Diagnostic Error Codes
Diagnostic error codes occur if the system recognizes a problem while running the Compaq Diagnostic program. These error codes help identify possibly defective subassemblies.
The following tables list error codes, a description of the error condition, and the action required to resolve the error condition.
IMPORTANT:
For the removal and replacement of a particular subassembly, see
Procedures.
Retest the system after completing each step. If the problem has been resolved, do not proceed with the remaining steps.
Removal and Replacement
Select error codes by number or type:
101 through 114 200 through 215 Processor Test 300 through 304 Memory Test 401 through 403 Keyboard Test 600 through 699 Parallel Printer Test
1101 Diskette Drive Test
1701 through 1736 Serial Test
501 through 516 Hard Drive Test
2402 through 2456 Video Test 2458 through 2480 Audio Test
3206 Touch Pad Pointing Device Test 8601 through 8602 CD Test 3301 through 6623
Processor Test Error Codes
Error Code Description Recommended Action
101-xx CPU test failed Replace the processor and retest. 102-xx Coprocessor or Weitek Error 1. Run the Configuration and Diagnostics
Utilities.
2. Replace the processor board and retest. 103-xx DMA page registers test failed Replace the system board and retest. 104-xx Interrupt controller master test failed 105-xx Port 61 error 106-xx Keyboard controller self-test failed 107-xx CMOS RAM test failed 108-xx CMOS interrupt test failed 109-xx CMOS clock test failed 110-xx Programmable timer load data test failed 113-xx Protected mode test failed
114-01 Speaker test failed 1. Check system configuration.
2. Verify cable connections to speaker.
3. Replace the system board and retest.
Memory Test Error Codes
200-xx Memory machine ID test failed 1. Flash the system ROM and retest. 202-xx Memory system ROM checksum failed
203-xx Write/Read test failed 1. Remove the memory module and retest. 204-xx Address test failed 211-xx Random pattern test failed 214-xx Noise test failed
2. Replace the system board and retest.
2. Install a new memory module and
retest.
215-xx Random address test failed
Return to the top
Keyboard Test Error Codes
300-xx Failed ID Test 1. Check the keyboard connection. If
disconnected, turn off the computer and
301-xx Failed Selftest/Interface Test 302-xx Failed Individual Key Test 304-xx Failed Keyboard Repeat Test
Parallel Printer Test Error Codes
401-xx Printer failed or not connected 1. Connect the printer.
connect the keyboard.
2. Replace the keyboard and retest.
3. Replace the system board and retest.
2. Check power to the printer. 402-xx Failed Port Test
403-xx Printer pattern test failed
600-xx 601-xx
602-xx 603-xx
Diskette ID drive types test failed
Diskette format failed Diskette read test failed Diskette write, read, compare test failed
3. Install the loop-back connector and
retest.
4. Check port and IRQ configuration.
5. Replace the system board and retest.
Return to the top.
Diskette Drive Test
1. Replace the diskette media and retest.
2. Check and/or replace the diskette power
and signal cables and retest.
3. Replace the diskette drive and retest. 604-xx
605-xx 606-xx 609-xx 610-xx 697-xx 698-xx
699-xx
Diskette random read test failed Diskette ID media failed Diskette speed test failed Diskette reset controller test failed Diskette change line test failed Diskette type error Diskette drive speed not within limits
Diskette drive/media ID error 1. Replace media.
4. Replace the system board and retest.
2. Run the Configuration and Diagnostics
Utilities.
Return to the top.
Serial Test Error Codes
1101-
xx
1701-xxHard drive format test failed 1. Run the Configuration and Diagnostics
1702-xxHard drive read test failed
1703-xxHard drive write/read/compare test failed
1704-xxHard drive random seek test failed
1705-xxHard drive controller test failed
1706-xxHard drive ready test failed
1707-xxHard drive recalibration test failed
Serial port test failed 1. Check port configuration.
2. Replace the system board and retest.
Hard Drive Test Error Codes
Utilities and verify drive type.
2. Verify that all secondary drives have
secondary drive capability.
3. Replace the hard drive and retest.
4. Replace the system board and retest.
1708-xxHard drive format bad track test failed
1709-xxHard drive reset controller test failed
1710-xxHard drive park head test failed
1715-xxHard drive head select test failed
1716-xxHard drive conditional format test failed
1717-xxHard drive ECC* test failed
1719-xxHard drive power mode test failed
1724-xxNetwork preparation test failed
1736-xxDrive monitoring test failed
* ECC = Error Correction Code
Return to the top.
Video Test Error Codes
501-xx Video controller test failed The following apply to error codes 501-xx 502-xx Video memory test failed 503-xx Video attribute test failed 504-xx Video character set test failed
505-xx
506-xx 507-xx Video 40 × 25 mode test failed 508-xx
Video 80 × 25 mode 9 × 14 character cell test failed
Video 80 × 25 mode 8 × 8 character cell test failed
Video 320 × 200 mode color set 0 test failed
through 516-xx:
1. Disconnect external monitor and test
with internal LCD display.
2. Replace the display assembly and retest.
3. Replace the system board and retest.
509-xx 510-xx Video 640 × 200 mode test failed
511-xx Video screen memory page test failed 512-xx Video gray scale test failed 514-xx Video white screen test failed 516-xx Video noise pattern test failed
2402-xxVideo memory test failed The following steps apply to error codes
2403-xxVideo attribute test failed
2404-xxVideo character set test failed
2405-xxVideo 80 × 25 mode 9 × 14 character cell
2406-xxVideo 80 × 25 mode 8 × 8 character cell
Video 320 × 200 mode color set 1 test failed
2402-xx through 2456-xx:
1. Run the Configuration and Diagnostics
Utilities.
2. Replace the display assembly and retest.
test failed
3. Replace the system board and retest.
test failed
2408-xxVideo 320 × 200 mode color set 0 test
failed
2409-xxVideo 320 × 200 mode color set 1 test
failed
2410-xxVideo 640 × 200 mode test failed
2411-xxVideo screen memory page test failed
2412-xxVideo gray scale test failed
2414-xxVideo white screen test failed
2416-xxVideo noise pattern test failed
2418-xxECG/VGC memory test failed
2419-xxECG/VGC ROM checksum test failed 1. Run the Configuration and Diagnostics
Utilities.
2421-xxECG/VGC 640 × 200 graphics mode test
failed
2422-xxECG/VGC 640 × 350 16 color set test
failed
2423-xxECG/VGC 640 × 350 64 color set test
failed
2424-xxECG/VGC monochrome text mode test
failed
2425-xxECG/VGC monochrome graphics mode test
failed
2431-xx640 × 480 graphics test failure
2432-xx320 × 200 graphics (256 color mode) test
failure
2448-xxAdvanced VGA Controller test failed
2451-xx132-column Advanced VGA test failed
2. Disconnect external monitor and test
with internal LCD display.
3. Replace the display assembly and retest.
4. Replace the system board and retest.
2456-xxAdvanced VGA 256 Color
test failed
2458-xxAdvanced VGA BitBLT test The following step applies to error codes
2458-xx through 2480-xx:
2468-xxAdvanced VGA DAC test
Replace the system board and retest.
2477-xxAdvanced VGA data path test
2478-xxAdvanced VGA BitBLT test
2480-xxAdvanced VGA LineDraw test
Return to the top.
Audio Test Error Codes
3206-xxAudio System Internal Error Replace the system board and retest.
TouchPad/Pointing Device Interface Test Error Codes
8601-xxMouse test failed 1. Replace the TouchPad and retest.
8602-xxInterface test failed
CD Drive Test Error Codes
3301-xxCD drive read test failed 1. Replace the CD and retest.
3305-xxCD drive seek test failed
6600-xxID test failed
6605-xxRead test failed
2. Replace the system board and retest.
2. Verify that the speakers are connected.
3. Verify that drivers are loaded and
properly installed.
4. Replace the CD drive and retest.
6608-xxController test failed
6623-xxRandom read test failed
or return to the Troubleshooting index page.
5. Replace the system board and retest.
Return to the top.
Presario 1200 Series
Models: 1255, 1256, 1260, 1262, 1266, 1267, 1272, 1273, 1274, and 1275
Before You Begin Specifications Parts Catalog
Removal Sequence Troubleshooting Battery Operations
Product Description Pin Assignments
Index
Troubleshooting Without Diagnostics
This section provides information about how to identify and correct some common hardware, memory, and software problems. It also explains several types of common messages that may be displayed on the screen. The following pages contain troubleshooting information on:
Audio Memory Battery/Battery gauge PC Card CD drive Power Diskette/Diskette drive Printer Display Touch Pad Hard drive Keyboard/Numeric keypad Hardware Installation
Since symptoms can be similar, carefully match the symptoms of the computer malfunction against the problem description in the Troubleshooting tables to avoid a misdiagnosis.
WARNING: To avoid a potential shock hazard during troubleshooting procedures, disconnect all power
sources before removing the keyboard cover or the display bezel.
Before Replacing Parts
Verify that cables are connected properly to the suspected defective parts.
Run Computer Setup after connecting external devices.
Verify that all required device drivers are installed.
Verify that all required changes have been made to the CONFIG.SYS file.
Verify that all required changes have been made to the AUTOEXEC.BAT file.
Verify that all printer drivers have been installed for each application.
Return to the
Troubleshooting index page.
Presario 1200 Series
Models: 1255, 1256, 1260, 1262, 1266, 1267, 1272, 1273, 1274, and 1275
Before You Begin Specifications Parts Catalog
Removal Sequence Troubleshooting Battery Operations
Product Description Pin Assignments
Index
Solving Minor Problems
Some minor problems and possible solutions are outlined in the following tables. If the problem appears related to a software application, check the documentation provided with the software.
The following problems and possible solutions are addressed:
Audio Problems
Battery Pack and Battery Gauge Problems
CD Drive Problems
Diskette and Diskette Drive Problems
Display Problems
Hard Drive Problems
Hardware Installation Problems
Keyboard/Numeric Keypad Problems
Memory Problems
Solving Audio Problems
Some common audio problems and solutions are listed in the following table.
Solving Audio Problems
Problem Probable Cause Solution(s)
Computer does not beep after the Power-On Self-Test (POST).
This is typical; it indicates successful completion of the Power-On Self-Test (POST).
No action is required.
Solving Battery Pack and Battery Gauge Problems
Some common causes and solutions for battery pack problems are listed in the following table. The "Solving Power Problems" section in this chapter may also be applicable.
Solving Battery Pack and Battery Gauge Problems
Problem Probable Cause Solution(s)
Computer won't turn on when battery pack is inserted and power cord is unplugged.
Computer is beeping and battery LED icon is blinking.
Battery pack is discharged. Connect the computer to an external
power source and charge the battery pack.
Replace the battery pack with a fully charged battery pack.
Check the battery connectors on the system board to verify that they are evenly spaced and are not bent or broken.
Battery charge is low. Immediately save any open file(s).
Then do any one of the following:
Connect the computer to an
external power source to charge the battery pack.
Turn off the computer or initiate
Hibernation until you can find another power source or charge the battery pack.
Computer battery LED icon (front on the unit) blinks to indicate low battery condition, but computer does not beep.
Battery LED icon doesn't light and battery pack won't fast charge.
You have to set the date and time every time you turn on the computer.
Battery charge does not last as long as expected.
Volume is turned down too low. Adjust the volume.
Battery pack is already charged. No action is necessary.
Battery pack was exposed to temperature extremes.
Battery pack is at end of its life. Replace battery pack. RTC battery is dead. Replace the RTC battery.
Battery is being exposed to high temperatures or extremely cold temperatures.
Battery has partially self-discharged. Recharge the battery. Discharge the
Allow time for the battery pack to return to room temperature.
Keep the battery pack within the recommended operating temperature range 50° F to 104° F (10° C to 40° C) or recommended storage range -4° F to 86° F (-20° C to 30° C ). Recharge the battery pack.
battery completely and then recharge it.
Battery pack is warm to the touch after charging.
Battery pack operating time is far less than the documented average operating time.
Power management is disabled. Set a power management level in
Computer Setup.
An external device or PC Card is draining the battery.
Normal warming has occurred due to charging.
Power management is turned off or disabled.
An external device or PC Card is draining the battery.
Battery pack has partially self­discharged.
Turn off or disconnect external devices when not using them.
No action is required.
Enable power management in Computer Setup and in Windows Power Properties.
Turn off or disconnect external devices when not using them.
Condition the battery pack by fully charging, fully discharging, then fully recharging it.
To maintain the charge, leave battery packs in the computer when it is connected to external power.
If the computer is disconnected from external power for more than two weeks, remove battery packs from the computer to reduce the discharge rate.
Battery pack is being exposed to high temperatures or extremely cold temperatures.
Keep the battery pack within the recommended temperature ranges. Operating: 50° F to 104° F (10° C to 40° C) Storage: -4° F to 86° F (-20° C to 30° C )
Recharge the battery pack.
Solving CD Drive Problems
Some common causes and solutions for CD drive problems are listed in the following table.
Solving CD Drive Problems
Problem Probable Cause Solution(s)
CD drive cannot read a compact disc. Compact disc is upside down or is
improperly inserted in the CD drive.
CD is CD Plus or Pregap/Track 0 type. Cannot read these type CDs in 24x.
Open the CD loading tray, lay the compact disc in it (label side up), then close the tray.
Remove the CD.
Solving Diskette and Diskette Drive Problems
Some common causes and solutions for diskette and diskette drive problems are listed in the following table.
Solving Diskette and Diskette Drive Problems
Problem Probable Cause Solution(s)
Diskette drive cannot write to a diskette.
Diskette is write-protected. Disable the diskette's write-
protect feature or use a diskette that is not write­protected.
Computer is writing to
the wrong drive.
Not enough space is left
Check the drive letter in the path statement.
Use another diskette.
on the diskette.
Drive error has occurred. Run Computer Checkup from
the Compaq Diagnostics diskette.
Diskette is not formatted. Format the diskette. At
the system prompt, enter
FORMAT A:
Diskette drive cannot read a diskette.
The wrong type of diskette is being used.
Use the type of diskette required by the drive.
Diskette has a bad sector. Copy files to hard drive or
another diskette. Reformat bad floppy.
Drive error has occurred. Run Computer Checkup from
the Compaq Diagnostics diskette.
Diskette is not formatted. Format the diskette. At the
system prompt, enter
FORMAT A:
Cannot boot from diskette. Bootable diskette is not in
drive A.
Put the bootable diskette in drive A.
Diskette Boot has incorrect
setting in Computer Setup.
Run Computer Setup and set diskette as first to boot.
Solving Display Problems
This section lists some common causes and solutions for computer display and external monitor problems.
You can perform a monitor self-test on an external VGA color or monochrome monitor by disconnecting the monitor from the computer. To do so, complete the following steps:
1. Turn off the monitor.
2. Turn off the computer.
3. Disconnect the monitor signal cable from the computer.
4. Turn on the monitor and allow it to warm up for one minute.
The display should be white. A narrow black border may also appear on the left and right sides of the display. Either of these displays indicates that the monitor is working properly.
Solving Display Problems
Problem Probable Cause Solution(s)
Screen is dim. Control for brightness or
contrast (if applicable) is not set properly.
Adjust the Brightness of the display by using Fn + F7 or Fn + F8.
Adjust the Contrast of the display by using Fn + F5 or Fn + F6.
Computer screen is in direct light.
Screen is blank. Screen save was initiated by
Power Management due to lack of user activity.
Display has overheated. If computer is in direct
Display is blank and the Power icon
System is in Suspend mode. Press any key or touch the is flashing, or the Suspend icon is present.
Internal display is blank and the screen on an external monitor displays information.
Internal display flashes or has
Display function was
switched to the external
monitor.
Using 1024 × 768 or higher
Tilt display or move computer.
Press any key or touch the Touch Pad.
sunlight, move it and allow it to cool off.
Touch Pad.
Use Fn + F3 to switch between LCD or CRT.
Restart the computer. garbled characters when computer is connected to external monitor.
The light tube-s on the edge of the display panel do not light up at all and Power-On Self­Test (POST) completes when the unit is powered up.**
The light tubes on the edge of the display panel do not light up at all and Power-On Self­Test (POST) does not complete when the unit is powered up.**
resolution on external monitor and have toggled back to internal display, which supports up to 800 ×
600.
Improper backlight or display cable connections
Defective inverter board. Replace the display assembly. Defective display cable. Replace the display assembly. Defective display panel. Replace the display assembly. Defective system board. Replace the system board. Defective system board. Replace the system board.
Replace the display assembly.
Backlight (brightness) cannot be adjusted with Fn + F7 or Fn + F8.
Contrast cannot be adjusted with Fn + F5 or Fn + F6.
Improper display cable connections. 1. Reseat the display cable to the
system board.
2. Replace the display assembly.
Defective inverter board. Replace the display assembly. Defective display cable. Replace the display assembly. Defective system board. Replace the system board. System may have a TFT display
(which is always at maximum contrast)
Improper display-cable connections. 1. Reseat the display cable to the
Defective inverter board. Replace the display assembly. Defective display cable. Replace the display assembly.
No adjustment is possible.
system board.
2. Replace the display assembly.
** This problem indicates that the backlight or its power circuitry has failed. Since you cannot observe the POST result on the display panel when the backlight is not functioning, connect the unit to an external monitor before powering the unit up. If an external monitor is not available, verify that POST completes by opening and closing the display, listening for the single or double beep, and watching for the LEDs to turn on at the front of the computer.
Defective system board. Replace the system board.
Problem Probable Cause Solution(s)
This display panel has a continuous pattern across it (e.g., a "jailbars" pattern), has a single color on it, or has garbled graphics across the entire panel. This failure is for patterns across the entire panel (not just on one section).
Improper display cable connections
Reseat the display cable to the following until the problem is solved:
1. System board
2. Display assembly
Ghost bars extending from graphics on the display.
Defective display cable. Replace the display assembly.
Defective inverter board. Replace the display assembly.
Defective system board. Replace the system board.
Common characteristic of STN displays.
1. Change the background colors.
2. Adjust the Contrast of the display by using Fn + F5 or Fn + F6.
A single line, a small group of lines, or a block appears on the display panel. This failure occurs in only a section of the display panel.
Defective display panel. Replace the display assembly.
To perform a "self-test" on an external VGA color or monochrome monitor, complete the following steps: The
NOTE:
screen should be white. A narrow black border may also appear on the left and right sides of the display. Either of these displays indicates that the monitor is working properly.
Solving Hard Drive Problems
Some common causes and solutions for hard drive problems are listed in the following table.
CAUTION: To prevent loss of information, always maintain an up-to-date backup of your hard drive at all
times, in case of errors or failures.
Solving Hard Drive Problems
Problem Probable Cause Solution(s)
Reading hard drive takes an unusually long time after restarting the computer.
Hard drive error occurs. Hard drive has bad sectors or has
Hard drive does not work. Hard drive is not seated properly. Turn off and unplug the computer,
System entered Hibernation due to low battery condition and is now exiting from it.
failed.
Give the system time to restore the previously saved data to its exact state before Hibernation.
Computer Checkup.
Run
remove the battery pack, and remove and then reinstall the hard drive.
Solving Hardware Installation Problems
Some common causes and solutions for hardware installation problems are listed in the following table.
Solving Hardware Installation Problems
Problem Probable Cause Solutions(s)
A new device is not recognized as part of the computer system.
Power switch of new external
Cable(s) of new external device are loose, or power cables are unplugged.
device is not turned on.
Ensure that all cables are properly and securely connected.
Turn off the computer, turn on the external device, then turn on the computer to integrate the device with the computer system.
Device is not seated properly. Turn off the computer and
reinsert the device.
Solving Keyboard/Numeric Keypad Problems
Some common causes and solutions for keyboard/numeric keypad problems are listed in the following table.
Solving Keyboard/Numeric Keypad Problems
Problem Probable Cause Solution(s)
Embedded numeric keypad on computer keyboard is disabled.
Num Lock function is not enabled.
Press the Shift+NumLk keys to enable the Num Lock function and embedded numeric keypad. The Num Lock icon on the status panel turns on.
Embedded numeric keypad is disabled and Num Lock function is on.
External numeric keypad is connected to the computer.
Disconnect the external numeric keypad from the computer.
Solving Memory Problems
Some common causes and solutions for memory problems are listed in the following table.
Solving Memory Problems
Problem Probable Cause Solution(s)
Memory count during Power-On Self­Test (POST) is incorrect.
Optional memory expansion card is installed incorrectly, is incompatible with
Ensure that the optional memory expansion card is installed correctly.
"Out of Memory" message is displayed on the screen or insufficient memory error occurs during operation.
Solving Minor Problems (continued)
the computer, or is defective.
System ran out of memory for the application.
Too many TSR (terminate­and stay-resident) applications are running.
Check the application documentation for memory requirements.
Install additional memory.
Remove from memory any TSR applications that you do not need.
or return to the Troubleshooting index page.
Maintenance & Service Guide
Presario 1200 Series
Models: 1255, 1256, 1260, 1262, 1266, 1267, 1272, 1273, 1274, and 1275
| Home Page | Notice | Preface | Product Description | Troubleshooting
Illustrated Parts Catalog | Removal & Replacement Procedures | Specifications
Pin Assignments | Battery Pack Operations
Solving PC Card Problems
Some common causes and solutions for PC Card problems are listed in the following table.
Solving PC Card Problems
Problem Probable Cause Solution(s)
When turned on, the computer does not beep when a PC Card is inserted.
Card is not inserted properly.
PC Card beeps are disabled.
Speaker is turned off or volume is turned down.
PC Card drivers are not installed.
Ensure that the card is inserted in the correct orientation.
Double-click the PC Card icon in the Control Panel; click the Global Settings tab; then, enable PC Card sound effects.
Press volume buttons to turn the speaker on; then, increase the volume.
Double click the Add New Hardware icon in the Control Panel for installation instructions.
PC Card modem, fax, or network card does not work.
Card or card driver is not supported.
Card is not fully inserted into the slot or is not inserted properly.
Telephone cord is not plugged in all the way.
Necessary drivers are not
If PC Card or drivers are not compatible with Windows, install drivers and use the PC Card in MS-DOS mode.
Contact your Compaq­authorized service provider for a list of PC Cards tested successfully in Compaq PC Card platforms.
Ensure that the card is inserted in the correct orientation.
Check and secure telephone connection.
Install drivers.
PC Card modem or fax card does not work.
Modem network PC Card does not work.
Memory or storage card does
installed (turned on). You are trying to access the
card using the wrong COM
See COM port.
Specifications to verify
port. The card conflicts with a
serial device.
See
Specifications to verify
address.
The card is not supported. Use supported cards only.
Network driver is not
Install driver. installed or is not set up properly.
Telephone cord is not
Verify telephone connection. properly connected.
SRAM and flash
Install driver.
not work.
memory cards require that the memory card driver be loaded (turned on).
Flash memory cards require the that the Microsoft FlashFile System be loaded.
Hard drives on flash mass storage cards require that the PC Card ATA driver be loaded.
You are trying to access the hard drive card using the wrong drive letter.
Double-click My Computer
to verify the drive letter
assigned to the card. The card is not supported. Contact your Compaq
authorized service provider
for a list of PC Cards tested
successfully in Compaq PC
Card platforms.
Solving Power Problems
Also see "Solving Battery and Battery Gauge Problems" in this section.
Solving Power Problems
Problem Probable Cause Solution(s)
Computer won't turn on and
Computer is not connected to
Insert battery or connect an
battery pack is not inserted.
Computer turned off while it was left unattended and the power icon is off.
a power source.
Power cords to the external power source are unplugged.
external power source.
Ensure that power cords connecting the computer and the external power source are plugged in properly.
Power adapter is defective. Replace AC Adapter and
restart. System board is defective. Replace the system board. System initiated Hibernation
due to a critical low-battery condition.
Replace the battery pack with
a fully charged battery pack or
connect the computer to an
external power source. Then
turn on the computer. System initiated Hibernation
Turn on the computer. after a preset timeout.
Solving Printer Problems
If you experience problems printing, run a printer self-test. Refer to the documentation provided with your printer for instructions. If the self-test fails, it is a printer-specific problem. Also refer to the printing section of your application documentation.
Solving Printer Problems
Problem Probable Cause Solution(s)
Printer will not turn on. The signal cable may not be
connected properly, or the printer is unplugged.
Ensure that the signal cable is properly connected and that the power cord is connected to the electrical outlet.
Printer will not print. Printer is not turned on or is off
line. The device drivers for your
application are not installed.
Printer that is set up for a network is not connected to the network.
Printer cable is too long, unshielded, or defective.
Paper tray is empty. Fill the paper tray with paper
Turn the printer on and set it to on line.
Refer to the printer documentation to install the correct printer driver.
Connect the printer to the network.
Replace the cable.
and set the printer to online.
Printer prints garbled information.
Correct printer drivers are not installed.
Refer to the printer documentation to install the correct printer driver.
Cable is not connected properly. Ensure that the printer signal
cable is properly connected to the computer.
Cable is defective. Replace the printer cable and
retest.
Solving Touch Pad/Pointing Device Problems
Some common causes and solutions for Touch Pad/pointing device problems are listed in the following table.
Solving Touch Pad/Pointing Device Problems
Problem Cause Solution(s)
Touch Pad or mouse does not work.
Incorrect or no device driver is installed.
Install the device driver and add to the AUTOEXEC.BAT file or CONFIG.SYS file.
External mouse does not work. Mouse is not securely
The device driver is not installed in Windows.
connected or is connected to an incorrect external connector.
Install the Touch Pad/mouse driver in Windows.
Ensure that the mouse is securely connected to the appropriate external connector.
Touch Pad or mouse does not work even though the device is enabled in Windows.
Mouse is not enabled. Enter MOUSE at the system
prompt to activate the mouse device driver.
Add a line in the AUTOEXEC.BAT file to automatically activate the mouse device driver each time computer is turned on or restarted.
Cable not properly seated in
Reseat cable.
Touch Pad board. Defective Touch Pad board. Replace Touch Pad board. Defective system board. Replace system board. Device driver is not correctly
installed in Windows.
Install the appropriate device driver in Windows.
Cursor skips or moves abnormally when using the Touch Pad.
The Touch Pad needs to be cleaned.
Clean the Touch Pad with a cloth dampened with alcohol or an ammonia-based glass cleaner. Wipe up liquid with a dry cloth.
Presario 1200 Series
Models: 1255, 1256, 1260, 1262, 1266, 1267, 1272, 1273, 1274, and 1275
Before You Begin Specifications Parts Catalog
Product Description Pin Assignments
Index
Contacting Compaq Support
Obtain the following information before contacting Compaq Reseller Support:
Product name
Product serial number
Purchase date
Conditions under which the problem occurred
Any error messages that have occurred
Hardware configuration
Type of printer connected
Hardware/software being used
Printed result of Computer Checkup (TEST)
Printed copies of CONFIG.SYS and AUTOEXEC.BAT files, if possible
Shipping Preparation
To ship the computer, complete the following steps:
1. Back up the critical hard drive files. Ensure that backup tapes/diskette are not exposed to electrical or magnetic fields while stored in transit.
2. Turn off the computer and external devices.
3. Disconnect the external devices from their power sources, then from the computer.
IMPORTANT:
4. Close the display and all exterior doors of the computer.
Ensure that there is no diskette in the diskette drive, no PC Cards in the PC slots, and no CD in the CD-ROM drive.
5. Pack the computer with sufficient packing material to protect it. Use the original packing box or similar packaging.
Return to
Compaq Diagnostics page or Troubleshooting Index page.
Presario 1200 Series
Models: 1255, 1256, 1260, 1262, 1266, 1267, 1272, 1273, 1274, and 1275
Before You Begin Specifications Parts Catalog
Product Description Pin Assignments
Index
Illustrated Parts Catalog
This section provides a breakdown and identifies the spare
parts ordering number associated with each item for the Compaq
Presario 1200 Series Portable Computers.
System Unit
Miscellaneous Hardware &
Boards
Display Assembly
Miscellaneous Parts
Cables
Plastics Kit
Mass Storage Devices
Documentation & Software
Miscellaneous Cable Kit
Presario 1200 Series
Keyboards
Touchpad and Palmrests
CPU Upper Cover with Power Switch
CPU Base Enclosure
Battery Packs:
Models: 1255, 1256, 1260, 1262, 1266, 1267, 1272, 1273, 1274, and 1275
Before You Begin Specifications Parts Catalog
Removal Sequence Troubleshooting Battery Operations
Product Description Pin Assignments
System Unit
Place cursor over each device to obtain its part number.
System Unit
Boards Display
Assembly Mass Storage
Devices Miscellaneous
Cable Kit
Index
Cables Miscellaneous
Hardware and Plastics Kit
Miscellaneous Parts
Documentation and Software
Loading...
+ 67 hidden pages
