Hozelock 4712, 4716 User Manual

12 & 16

4712
4716

3

Year guarantee
Ans de garantie

Jahre garantie

Jaat garantie

Años de garantia

Xρόν ια εγγύ ηση

www.hozelock.com

?

Hozelock Ltd.

Midpoint Park, Birmingham,

B76 1AB. England

Tel: [phone]

www.hozelock.com

33885-000

Contents • Contenu • Inhalt • Inhoud • Contenidos • Innehåll • Innhold • Sisältö • Indhold • Indice • Conteúdo

Zawartość • Περιεχόμενα • İçindekiler • Tartalom • Obsah • Содержание • Sisukord • Saturs • Turinys

Cuprins • Зміст • Vsebina

x1

x1

x1

x 2 x 3

x1

x1 x1

x1 x1

x 2

12mm

x 4 x 2x 2 x 3 x 1

10mm

x1 x1 x1

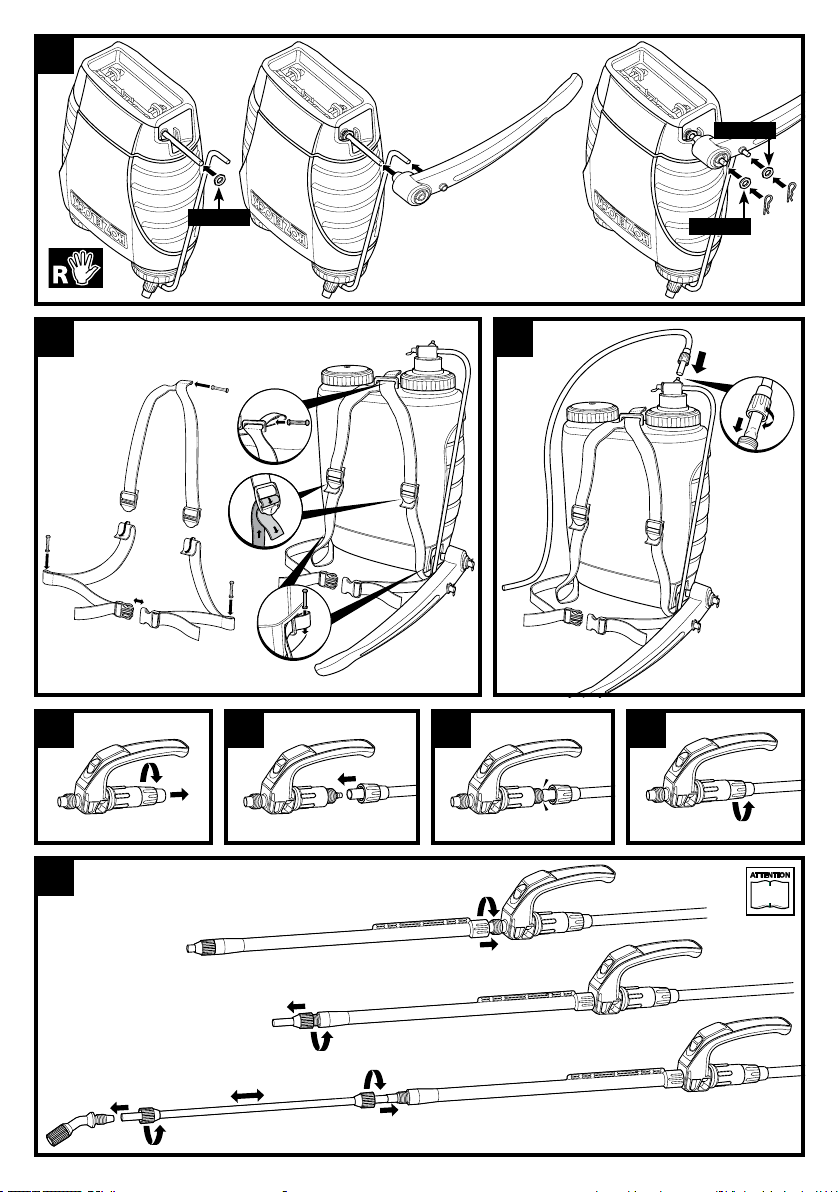

Assembly • Assemblage • Montage • Samenstelling • Montaje • Montering • Montering • Kokoaminen • Montering

Montaggio • Montagem • Montaż • Συγκρότημα • Montaj • Összeszerelés • Sestava • Сборка • Koostamine

Montāža • Surinkimas • Ansamblu • Монтаж • Sestav

1

2

43

Ø 10mm

5

Ø 10mm

Ø 12m m

6

8 119 10

Ø 12m m

7

12

A

ON/OFF

13

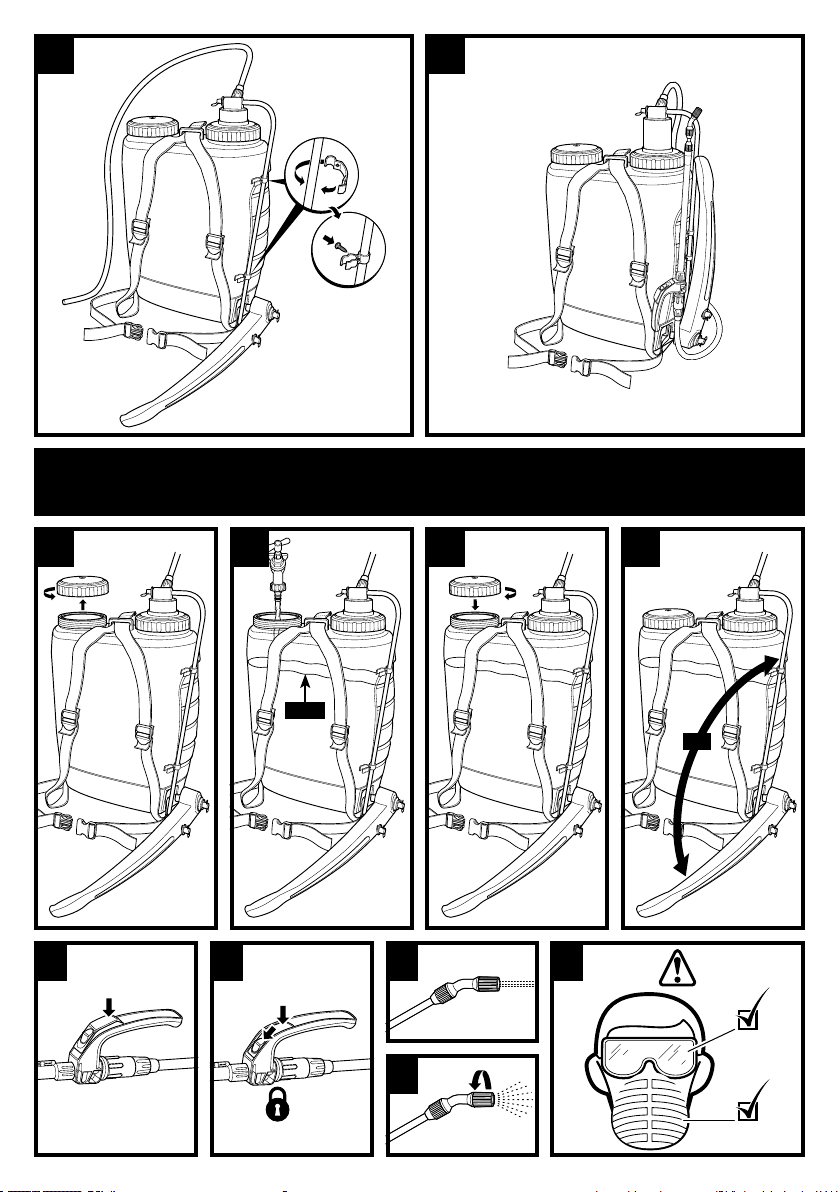

Operation • Fonctionnement • Bedienung • Gebruik • Funcionamiento • Användning • Bruk • Käyttö • Drift • Uso

Operação • Obsługa • Λειτουργία • Çalıştırma • Használat • Provoz • Эксплуатация • Kasutamine • Darbība

Naudojimas • Operare • Викорис тання • Delovanje

14

15

MAX

19 20 21

22

ON/OFF

1716 18

x 7

23

Maintenance • Entretien • Wartung • Onderhoud • Mantenimiento • Underhåll • Vedlikehold • Huolto • Vedligehold

Manutenzione • Manutenção • Konserwacja • Συντήρηση • Bakım • Karbantartás • Zdr ba • Техническое обслуживание

Hooldamine • Tehniskā apkope • Priežiūra • Întreţinere • Обслуговування • Vzdrževanje

24 25 2726

G G H I

A

A

A

GB

Instructions & Warnings

• This sprayer is intended for use with water-based solutions
of: insecticides, fungicides, weedkillers & fertilizers.

• Always follow the chemical suppliers instructions, as well as
the instructions supplied with this sprayer.

Always wear protective clothing, goggles, face mask and

gloves.
Avoid inhaling spray mist.
Avoid skin contact with chemicals.
Always work in a well ventilated area.
Take care to protect children pets & fish from exposure to

chemicals.

Always wash hands thoroughly after use & especially

before eating.
Always wash any contaminated clothing.
Seek medical attention if spray gets in your eyes or you

develop any symptoms after spraying.
Do not spray near food or food preparation areas. When

spraying crops, pay particular attention to the chemical

manufacturers advice on time before crops can be eaten.
Do not spray any solvent e.g. White spirit.
Spray only thin watery solutions; thicker mixtures will clog

the nozzle.

Powdered chemicals can be sprayed successfully if they

are completely soluble in water. If they are not, or the

solution tends to settle, spraying can still be successful if

the mixture is continually agitated.
If the material to be sprayed contains sediment, strain the

liquid into the sprayer bottle.
Occasionally the pump will require lubrication.
First depressurise the system by squeezing the trigger.

Winter Use – drain liquid from all parts and prevent

damage from freezing.

Annual Maintenance – At least once per year thoroughly

clean the whole sprayer and apply silicone grease to all
moving parts & seals. Test with water, and if any washer or
seal has perished it must be replaced.

Make sure all nuts are screwed hand tight before use.

A

This sprayer is made from many different types of

B

plastic, and although the liquid you wish to spray may
be packed in plastic, this does not guarantee it will
not damage the sprayer. If you have any doubt about
compatibility contact Hozelock customer services. When
filling the sprayer ensure that the maximum fill level is not
exceeded.

Ensure that the pump is screwed into the bottle tightly.

C

If the sprayer has been used with chemicals, discard

D

safely any unused solution after use.

Fill sprayer with warm water (not hot), re-assemble the

E

sprayer and spray some of the contents. Repeat; check
that the nozzle is free from sediment. If necessary repeat
the process until the sprayer is clean. NB : Do not use

detergent.

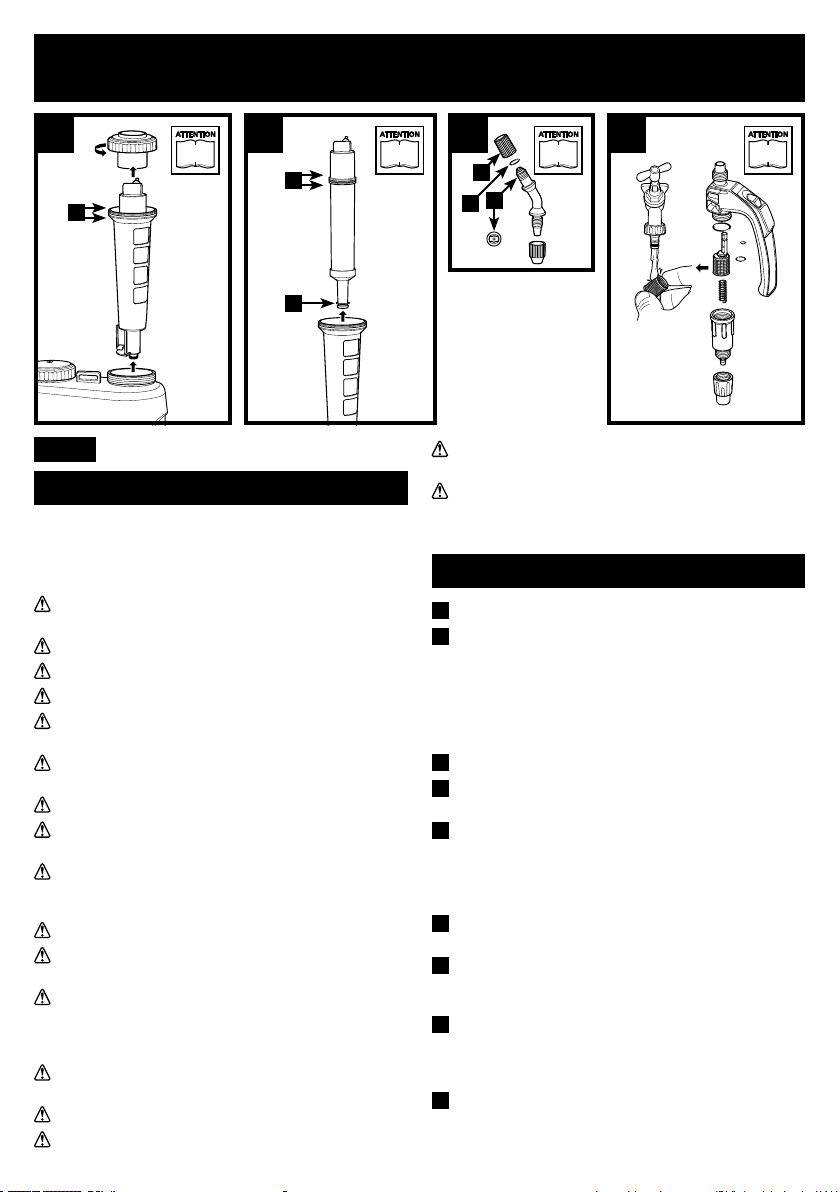

Occasionally the pump will require lubrication.

F

First depressurise the system by squeezing the trigger.

The pump O-ring should be lubricated to allow the sprayer

G

to pump air efficiently. Apply silicone grease regularly, to
the pump O-Ring (A).

The nozzle cap (B) & swirl grooves (C) should be kept clean

H

and free of obstruction. The O-ring should be lubricated
to allow the spray pattern to be easily changed. Apply
silicone grease regularly, to the nozzle O-ring (D).

Keep the trigger clean and free from build up of sediment

I

and chemicals by regularly flushing after use. If necessary
remove and clean the filter in the trigger.

B

C

D

Notes

Guarantee

• Hozelock guarantees this sprayer against any defect arising
from faulty materials or workmanship for a period of 3 years
from the date of purchase, provided that it has only been

used in accordance with these instructions. The guarantee

is limited to the repair or replacement of any defective or
faulty item. Proof of purchase must be retained.

• Hozelock extended guarantee covers the bottle and pump
mechanism only. It specifically excludes: all O-rings & seals,
the hose, and the lance assembly. These have a 12-month
guarantee, are wearing parts and are available as spares
from the retailer or from Hozelock direct.

Contact Details

Hozelock Limited

Midpoint Park, Birmingham. B76 1AB

Tel : [phone]

Internet : www.hozelock.com
Email : [email protected]

Troubleshooting

Issue Problem Solution

Weak or
no spray

Leaks Build up of

Sprayer will not

pressurise

Obstruction There could be a blockage

sediment or

foreign matter on
sealing surfaces

Worn or damaged
O-rings / Washers

Ensure all connections
are tight

Check O-rings and seals
are lubricated and
show no signs of wear
or damage – replace if

required

(see notes G, H & I)

in the nozzle, or the

trigger or the outlet tube

Check O-rings and seals
are free from dirt – Clean
or replace if required

Check O-rings and seals
are free from wear or
damage – replace if

required

Description Part No.

7 Replacement O-rings and Washer Kit

& Silicone Grease (EPDM)

8 Replacement Nozzles Kit (Jet & Fan) 4103

4093

Spares & Accessories

Description Part No.

1 Complete Pump Assembly (EPDM) 4097

2 1.3m Grey Hose (PVC) 4100

3 Trigger Assembly (EPDM) 4105

4 Strap 4109

5 Telescopic Lance (EPDM) 4107

6 Weedkiller Hood & Fan Spray 4112
